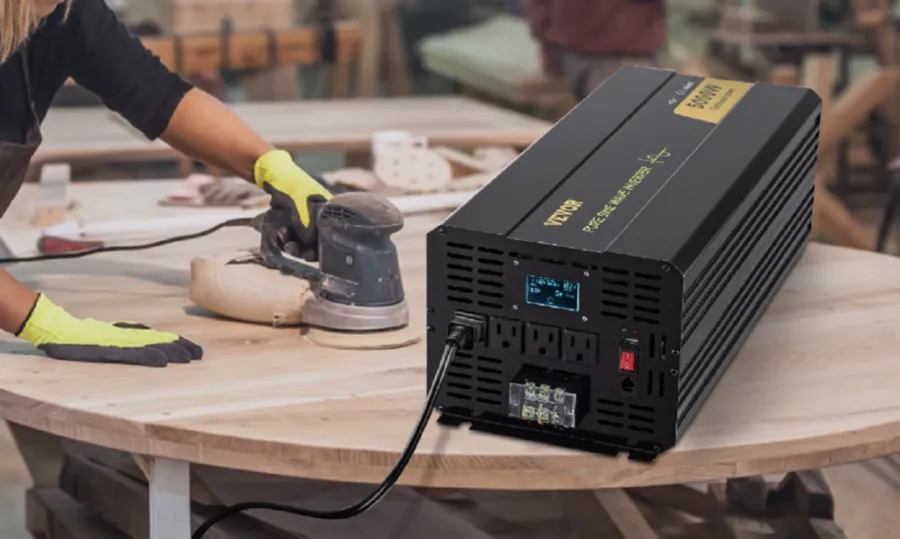

In the world of sustainable energy solutions, the VEVOR 5000 watt inverter stands out for its efficiency, reliability, and ease of use. Designed to convert DC power to AC with minimal energy loss, this high-frequency inverter is a go-to choice for those looking to power their appliances off-grid or in emergency situations. Whether you’re planning to use it in your RV, for your home solar power system, or in industrial settings, understanding the VEVOR 5000 watt inverter manual is key to harnessing its full potential. In this blog, we’ll delve into the essentials of operating this powerful inverter, ensuring you get the most out of your investment.
Table of contents
Warning
- The load (appliances) power aka the output of the inverter shall not be greater than the rated power, which could lead the inverter out of work.
- Please ensure the input voltage of the inverter of the battery shall comply with the rated voltage, the inverter would be damaged, if the input voltage would be greater than 1.6 times the rated voltage.
- When connected with an inductive or capacitive load, please reverse the allowance 3–5 times of load power. (aka 4-6 x Appliance power)
- Red to the positive pole, Black to the negative pole, please connect it properly. Reversely connection would melt the fuse, it could work normally after replacing the fuse and connecting properly.
- Forbidden to plug the inverter to mains power.
Please read this manual carefully before using products.
Thank you for choosing the vehicle inverter provided by us. We hope our products can bring you the most satisfied service.
Product Description
This high frequency inverter has adapted SPWM technology, and it’s highly efficient and reliable. Product has passed lS09001:2000. However, improper operation or misuse may still cause injury or loss, instruction and information provided in this manual must be followed all the time.
Technical Parameters
| Model | 1000W | 1500W | 2000W-2500 W | 3000W | 4000W | 5000W-6000 W |
| Input output | DC12V/24V/48V/60V (not automatically) | |||||
| Output voltage | AC220V±10% -120V±10%（not automatically） | |||||
| Loss when no load | ＜1A | ＜1 .2A | ＜1 .8A | |||
| Output wave | Pure sine wave — Modified wave | |||||
| Surge Power | ≤2000 W | ≤3000 W | ≤4000W-500 0W | ≤6000 W | ≤8000 W | ≤10KW-12K W |
| Output frequency | 50Hz±0 .5Hz or 60Hz±0 .5Hz | |||||
| Efficiency | ≥85% | |||||
| Over voltage | ≥16V – ≥30V – ≥60V – ≥75V | |||||
| Low voltage shutting | ≤9 .5V- ≤20V -≤40V – ≤50V | |||||
| Over temperature shutting | >80℃ | |||||
| Ambient temperature | -10℃ — +45℃ | |||||
Note: Keep the power supply around the ventilation dry, within 1 meter must not have flammable items, strictly preventing the cause of fire.
Protective Functions
Overload protection: when overloading 125%, the inverter will send an alarm, and stop working after 20 seconds.
- Loads are reduced to the accepted level, the inverter will resume working.
- Short circuit protection: inverter is with short circuit protection.
- Over-temperature protection: when the inside temperature of the inverter reaches 80℃, the RED indication light will be on. The inverter will stop working, once the temperature drops to an accepted level, the inverter will automatically resume working.
- Low voltage protection: when the battery voltage is below the setting level, the inverter will send an alarm by beeping. When the battery voltage keeps dropping to its shutting level, the inverter will beep, and the RED LED will light. When the battery voltage is increased to its restart level, the inverter will automatically resume working.
- Overvoltage protection: when the input voltage is higher than the setting level, the inverter will stop working, when the input voltage is normal, it will automatically resume working.
- Reverse connection protection: once there is a reverse connection, the inverter fuse will be burnt. In this case, please switch off the inverter, disconnect the power source, and change the fuse.
REVERSE CONNECT IS STRICTLY PROHIBITED.
- LCD display: Inverter display as LCD screen, display a variety of states, the following drawing’s detailed introduction.
Installation
- The function of inverter is to convert the DC 12v/24v/48v/60v voltage into AC 110v/220V, before connection, please make sure the inverter is switched off.
- When connecting the inverter to the battery, make sure that the battery voltage is consistent with the inverter reference voltage!!!
- Connect the Red cable of the inverter to the Positive pole of battery, connect the Black cable of the inverter to the Negative pole of battery. Do not connect the cable reversely, otherwise, the inverter fuse will be burnt.
- Turn on the inverter power switch, at which point the green (blue) indicator light is on, indicating that the inverter is working properly.
- Please connect the loads to the AC output of the inverter, please do not overload. In the case of overloading, the inverter will send an alarm and stop working. To restart the inverter, please firstly switch off the inverter for 5 seconds, reduce the load, and switch it on again.
Precautions
The inverters are designed, manufactured and tested as per safety standards.
However, as an electrical and electric product, it must be installed, operated and maintained strictly according to the related safety instructions as follows:
- Reverse connection between the inverter and battery is strictly prohibited, it will burn the fuse of the inverter.
- Please double-check if the voltage of the battery matches the inverter input DC voltage, a mismatch connection between the inverter and battery can cause serious damage.
- Double check if the connections are correct, make sure the connections are tight and firm.
- Do not extend the inverter power cable.
- When the inverter is not in use, please switch it off and disconnect the inverter from the system.
- Avoid contacting of any foreign objects or fluid. Do not touch the inverter with a wet hand. Keep the product away from children. Avoid using it in a damp, dusty, high-temperature area. Do not use this product inflammable and combustible areas.
- Install the product in a well-ventilated place, avoid using this product on or nearby hot objects such as electrical heaters, etc. Do not cover the inverter, avoid direct sunshine, moisture, and water.
- This inverter can not be parallel connected.
- It’s strictly prohibited to connect this product to the city grid.
- Do not try to repair the inverter, Once the inverter is opened, warranty is void.
Trouble Shooting
When there is no output, please check the follows:
- Excessive use of electrical appliances, too heavy load. Solution: Reduce electrical appliances, the use of electrical total power should be less than the inverter rated power.
- Overheat protection. WORKAROUND: Reduce load cooling and restart after 15 minutes. (Summer temperature is high, or the heat dissipation conditions are poor, should be appropriately reduced the use of the total power of electrical appliances.)
- It must replace the fuse with the same capacity after fusing
- Loose connection of the cable: make sure the cable is firmly and tightly connected.
- Low voltage of battery: please charge the battery.
- Battery exhausted: Please change battery, battery can be exhausted over the years.
| Inverter basic fault and troubleshooting method | ||
| The battery is low | Start by making an alarm sound (judgethe alarm sound as one, BI-BI-BI…),the LED red light flashes,The voltage continues to decrease andthe machine shuts down. | The battery is fully charged |
| The battery voltage is high | Alarm sound first (judge alarm sound istwo, BIBI – BIBI – BIBI…) THE LEDred light flashes,The voltage continues to rise and themachine shuts down. | The battery is fully charged or replaced in line with the nominal voltage of the inverter |
| Too much load | First issue an alarm sound (judge thealarm sound as a continuous alarm,BIBIBIBIBIBI…), the LED flashes redand the machine shuts down. | Reduce the load |
| The temperature is too high | Alarm sound first (judge alarm sound isthree, BIBIBI – BIBIBI – BIBIBI…),the LED flashes red, the temperaturecontinues to rise, and the machine shutsdown. | Subtract the load andwait for the inverter tocool down |
| The output is shorted | Alarm sound without damaging thecircuit (judge alarm sound ascontinuous alarm, BIBIBIBIBI…) | Just disconnect the short circuit |
| The battery is turned back | The built-in fuse is blown and themachine is powered on andunresponsive. | Replace the new fuse |
Warranty
- The company provides a free warranty period of one year. Please note that the dealer is in contact with the warranty and repair business.
- The failure range of this insurance clause does not include damage caused by external factors: incorrect installation, misuse or improper operation, unauthorized private maintenance, damage during transportation, etc.
Random Accessories
Products are carefully tested and inspected prior to shipment, but it is still possible
to receive damage in transit, please carefully check the equipment before installation. If there is any damage, contact the distributor in time.
- Portable Inverter power supply One
- Power Cable Pair
- A copy of the product instruction manual
- A copy of the car spare fuse
- Desiccant Bag
- External screen set (including cable one)

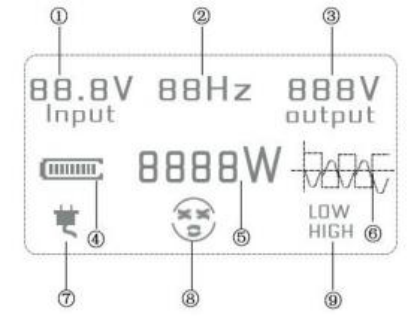

Panel diagram
① ：Product Input Voltage ②：Frequency ③ ：Product Output Voltage
④ ：Battery power ⑤：Product power ⑥：Product Waveform
⑦ ：Mains connection (with charging function) ⑧：Working status
⑨ ：High voltage/low voltage protection
Instructions for external wired remote control equipment
Equipment introduction: The inverter can be remotely controlled to turn on and off.
Digital display battery voltage value. The equipment adopts a wall switch design scheme, which can be installed in RVs and homes according to user needs. Comes with convenient stickers, which can be pasted at will.
① ：Battery power
② ：Fault indicator
③ ：Input voltage
④ ：Work indicator
⑤ ：Inverter switch key

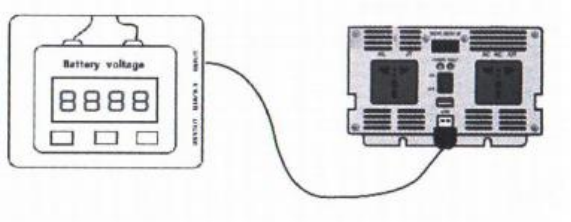

Remote Control Connection Diagram
① ：Backlight On/Of
② ：Lead-acid / Lithium
③ ：Inverter switch key
Packing List
| Packing list | |
| Inverter | 1 |
| Input wiring | 2 |
| Remote control | 1 |
| Remote control cable | 1 |
| Fuse | 1 |
| Instructions | 1 |
FAQs about the VEVOR 5000-Watt Inverter
Q: What should I check before using the VEVOR 5000 watt inverter?
A: Ensure the load does not exceed the inverter’s rated power, the input voltage complies with the inverter’s rated voltage, and connections are correctly made – red to positive and black to negative.
Q: Can the VEVOR 5000 watt inverter handle appliances with inductive or capacitive loads?
A: Yes, but allow for a 3-5 times power reserve of the appliance’s power to prevent overloading.
Q: What protective functions does the inverter have?
A: The inverter features overload, short circuit, over-temperature, low voltage, over voltage, and reverse connection protections.
Q: How do I troubleshoot if the inverter stops working?
A: Check for excessive appliance use, overheating, incorrect fuse capacity, loose connections, low battery voltage, or an exhausted battery.
Final Words
Incorporating the VEVOR 5000 watt inverter into your power setup offers a blend of performance and peace of mind, thanks to its comprehensive protective measures and robust design. However, proper setup and adherence to the guidelines in the VEVOR 5000 watt inverter manual are crucial to ensure safety and efficiency. If you’re ready to take the next step towards reliable and efficient power conversion, or have any more questions, feel free to reach out to us or visit our product page for more information. Embrace the power of VEVOR, and let us help you harness energy like never before.
