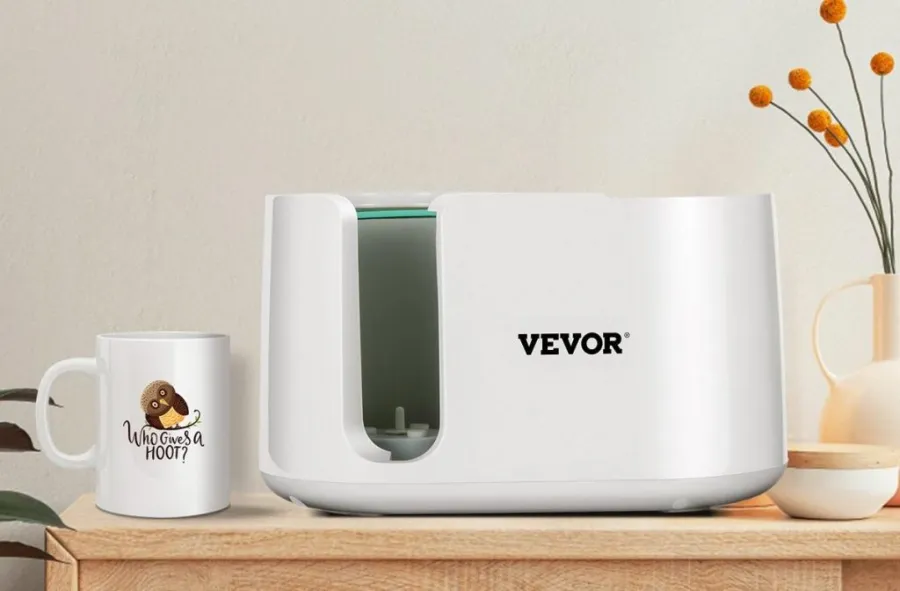

Please refer to the comprehensive user manual to understand how to use the VEVOR Mug Heat Press Machine. The manual provides detailed step-by-step instructions to help you set the temperature and time according to your printing requirements. Keep in mind that you need to manually adjust the pressure for different types of mugs. This high-quality press machine is ready to use, so get started now!
Table of contents
Please read the warnings carefully to avoid potential injuries.
SAFETY INSTRUCTIONS
To avoid injuries or death caused by electric shock,
- Please read all the instructions before using the machine.
- Keep the machine unplugged when moving it.
- Use the machine on a flat and stable surface in a ventilated room.
- Wear heat-resistant gloves when using the machine.
- Do not use the machine in a hazardous location.
- Do not use the machine when it cannot function properly.
- Do not disassemble and reassemble the machine without proper guidance.
- Do not plug the machine into an incompatible AC outlet.
- Do not touch the mug heater while the machine is heating up
- This machine is not intended to be used by people who have physical or sensory impairments or lack appropriate experience and knowledge unless under the supervision and guidance of a person responsible for their safety.
- Children may only use the machine under the supervision of an adult responsible for their safety.

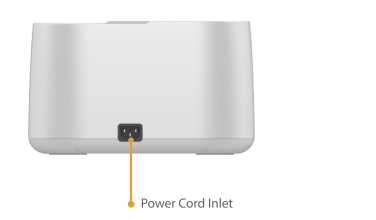

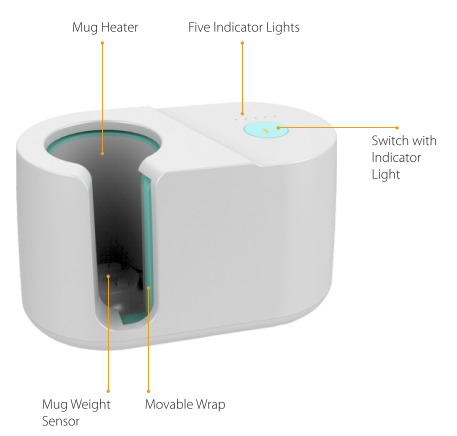

PRODUCT INTRODUCTION
NOTE: The mug heater is vulnerable; it is not covered under the warranty.
Note: Please make sure the voltage is compatible.
Main parameters
| Product Name | Pro Easy Mug Press Machine |
| Item Number | PD150 |
| Max.Temperature | 200°C/392F |
| Compatible Mug Size | 110z.-150Z |
| Rated Voltage/Frequency | 220V/50Hz 110V/60Hz |
| Rated Power | 280W |

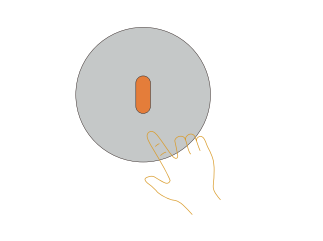

POWER ON/OFF
- Press the power button once to turn on the mug press.
- Long press the power button for 3 seconds to turn it off.
- The machine will shut down automatically after 30 minutes of not being in use.
HOW TO PRINT?

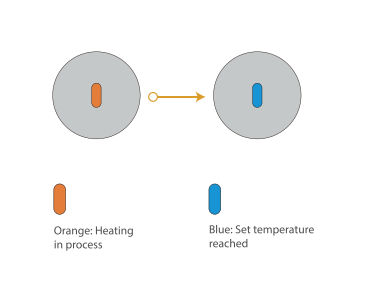

- When the indicator light turns blue, you can start printing on your mug.

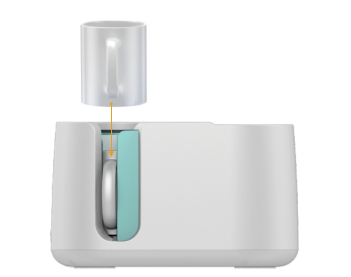

- Put the mug into the mug heater. Once the sensor senses the mug, the mug heater will automatically enclose the mug.
INDICATOR LICHT STATE
If the first light is blinking, the machine is still heating up. The entire heating process takes approximately 180 seconds.
If all lights are on,the printing process is complete. The mug heater will open automatically,and you can take out the mug.
EMERGENCY STOP
In case of emergency, you can press the power button anytime to open the mug heater.

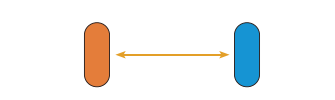

RESET IRREGULAR LIGHT
If the indicator light blinks irregularly, press the power button 5 continuous times to stop the machine. After 15 seconds, it will restart automatically.

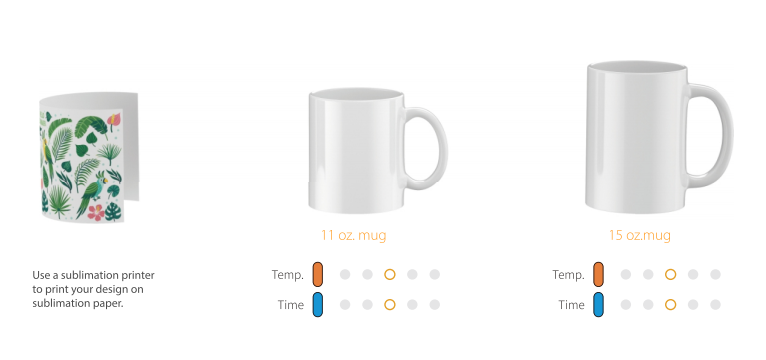

PRINTING SETTING

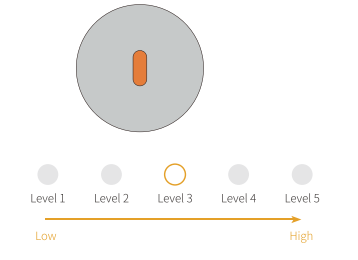

SETTING THE TEMP
- Turn off the machine or let it remain inactive.
- Long press the power button for 6 seconds.
- Release the button when the indicator light blinks in orange.
- The five lights above indicate different temperature levels. Press the power button to choose the preferred temperature level.
- Wait 5 seconds for the machine to automatically save the setting. The machine will then exit the setting mode.
- The automatic temperature setting is Level 3.

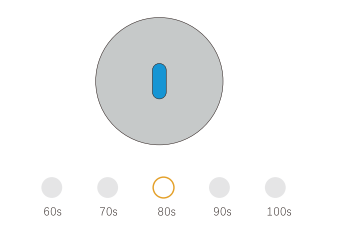

SETTING THE COUNTDOWN
- Turn off the machine or let it remain inactive.
- Long press the power button for 10 seconds.
- Release the power button when the indicator light blinks in blue.
- The five lights above indicate different time lengths. Press the power button to choose the preferred countdown length.
- Wait 5 seconds for the machine to automatically save the setting. The machine will then exit the setting mode.
- The automatic countdown setting is 60 seconds.
NOTE:
To continuously improve its products, we reserve the right to modify this information without prior notification.
For any questions during assembly, please watch the video on the product page for reference. Or contact our customer service with any questions, comments, or concerns. Thank you for using our products in your home!
