Distilling water or making alcohol is a fun activity. Sometimes, you want to feel mania. Moonshine turns out to be your best pal.
VEVOR moonshine still has provided you with opportunities to handle various tasks. From purifying liquid mixtures to trying a moonshine recipe, there is no big deal with it.
But how to use a still. How can you assemble it? If you have these sorts of questions, stay here. We will walk you through VEVOR moonshine still instruction with manual PDF.
Table of contents
What is Special About VEVOR Moonshine Stills?
VEVOR moonshine still is a revolutionary tool, having all the integrated features you won’t find in any other machine. We have listed some crucial features!
Easy to operate
Are you a beginner? Take a deep breath! VEVOR alcohol still is specially designed for you. A thermometer helps determine the temperature and ease you up. Easy-to-understand operation minimizes the risks of accidents and ensures a better output, whether beginner or pro!
Massive Capacity
VEVOR has multiple types of moonshine stills with large capacity. A 13.2-gallon VEVOR alcohol still can ferment 50 liters of water. Such a massive capacity gives more room to enjoy your alcohol distillation.
Faster cooling mechanism
The cooling mechanism is a next-level approach in the VEVOR 50L alcohol still. An open cooling system in the kit provides effective cooling. You’ll get faster and more adequate condensation. Adding a water pump has evolved this game by saving the cooling water.
Durable machine
VEVOR has installed durable silicone tubes that guarantee two things— flexibility to operate and durability to work. Once you have purchased the VEVOR 13.2 moonshine still, use it for many years with proper maintenance.
Specifications And Parts Of VEVOR Moonshine Still
VEVOR stainless steel moonshine stills can be a 2-pot and 3-pot. The only difference is the additional thumper keg. All you have to do is check the specifications of each one and choose your favorite one.
Specifications
| Model | VV-DAD-50L |
| Material | Stainless Steel + Red Copper |
| Distillation Period | 2~3 Hours |
| Boiler Barrel Capacity | 13.2 Gal (50 L) |
| Boiler Barrel Size | Φ15.7×15.7 in (Φ40 x 40 cm) |
| Condenser Keg Capacity | 0.92 Gal (3.5 L) |
| Condenser Keg Size | Φ7.9×4.7 in (Φ20 x 12 cm) |
| Thumper Keg Size | Φ7×4 in (18×10 cm) |
| Barrel Thickness | 0.03 in (0.7 mm) |
| Copper Coil Diameter | 0.39 in (10 mm) |
| Product Weight | 15.3 lbs (6.92 kg) |
This VEVOR moonshine still model comes with various components. Explore their purposes as:
- Boiler barrel. It is a pot in which you can heat your mixture. Vaporization occurs through it.
- Condenser barrel. The primary function is to condense the vapors and make them liquid. This barrel uses a cooling mechanism in this process.
- Thumper pot. The main goal of the Thumper Pot is to keep liquid from dripping. Plus, it adds the flavors.
- Collecting vessels. These vessels contain your condensed liquid. It can be alcohol or whatever liquid you want from your mixture.
3-pot assembly still parts
Home use VEVOR moonshine still has various parts. The complete list includes:
- Exhaust Valve
- Copper Coil
- Water Outlet
- Water inlet
- Liquid outlet
- Condenser
- Handle
- Stainless connection pipe
- Thumper keg
- Copper coil
- Mental thermometer
- Buckle
- Barrel
VEVOR Still Instructions For Assembly
VEVOR moonshine still instructions for its usage depend on the assembly of the parts. Follow the below steps.

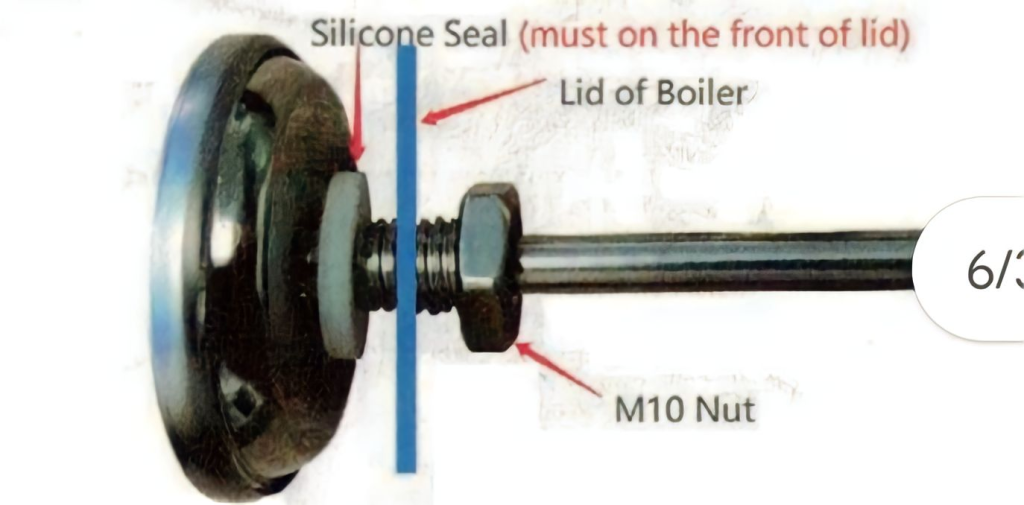

1. Thermometer assembly
Do you have a boiling pot? Let’s go with the thermometer assembly. It will tell you the temperatures inside the boiler. That is when you can understand how much temperature you need to run to vaporize a mixture.
Find out the M10 hole on the lid of the boiler. Attach your thermometer and make the fixing tight with the M10 nut.

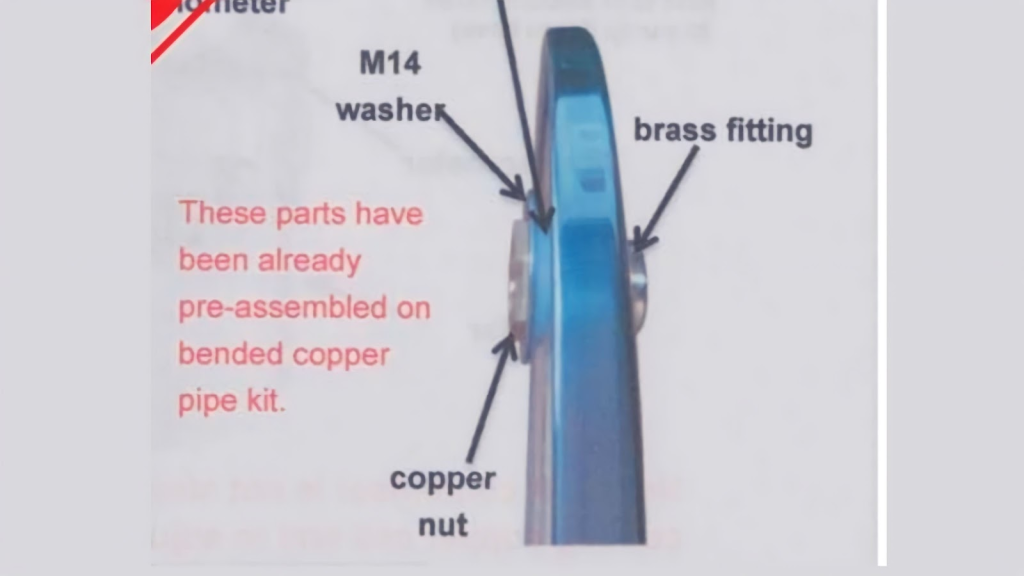

2. Vapor outlet assembly
Explore the M14 hole on the lid. Most probably, it is precisely 180 degrees from the thermometer. Connect and fix the vapor outlet with the boiler.

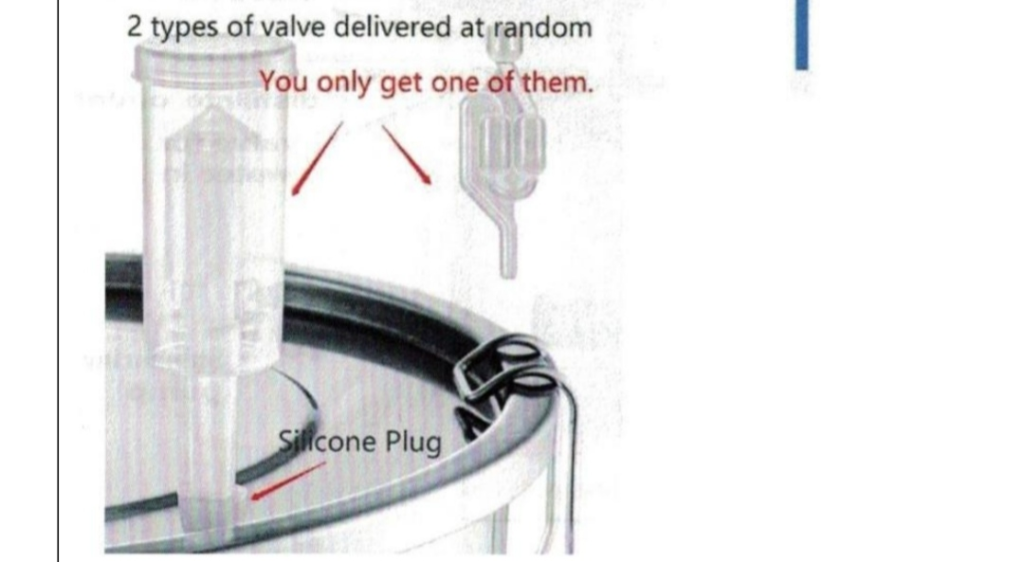

3. Fermentation valve assembly
It helps in controlling the fermentation of your moonshine mash. Link your fermentation valve with the silicone plug on the lid surface.

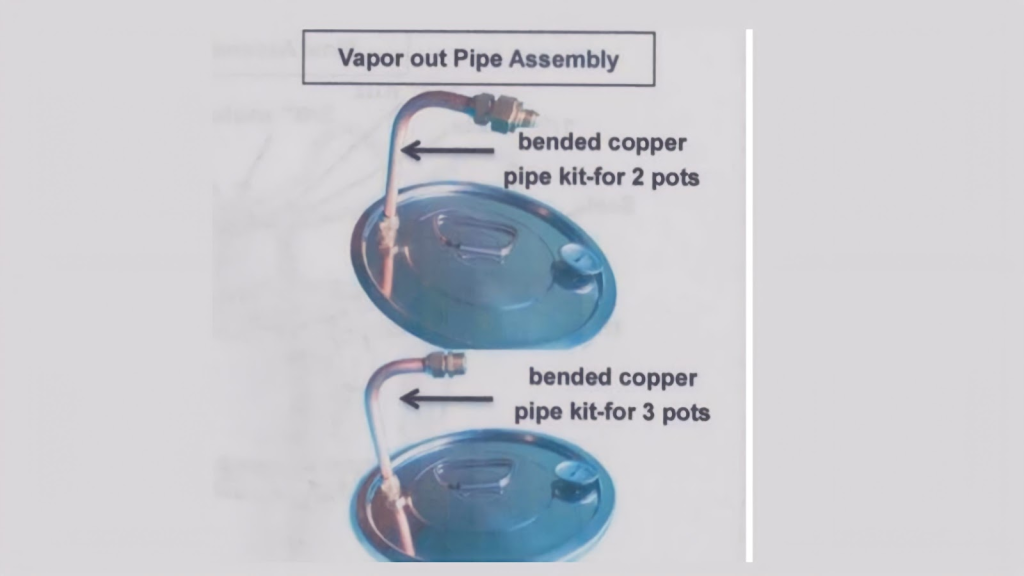

4. Vapor out pipe assembly
Vapor out pipe comprises copper and has a slightly different structure for 2-pot and 3-pot. Connect it where you have connected the outlet. The pipe will carry all the vapors to the condenser.
5. Final assembly 2-pots
In 2-pots, you get a boiler connected to a boiling barrel.
First, connect all the components of the condenser.
- There are two valves for water in and out. It is where you can connect them to the cooling system, such as a tub containing ice or cold water.
- Distillate outlet provides you with the alcohol for which you have tried so hard.
Now, connect the vapor outlet pipe with the condenser pipe through the ½” and ⅜” nuts.
6. Final assembly 3-pots
In 3-pot VEVOR moonshine still, you get an additional pot—thumper keg. It contains specialized flavors, such as coconut oil, grape juice, or whatever flavor you want to add to your alcohol.
It has two holes. Connect your vapor outlet pipe through one hole. At the same time, the second hole also has an outlet pipe connected to the condenser. All the vapors first pass through the thumper keg and then go to the condenser.
How To Use VEVOR Moonshine Still?
Using a VEVOR moonshine still is a child’s play. The smooth assembly and prompt distilling of water or alcohol is a fascinating task. Here are some steps to handle this task.
Assemble
First, find a solid surface that can support the VEVOR still apparatus. Now, start connecting all the components. Here is one thing to keep in mind— all elements must have a tight assembly. A slight mistake or loosening of connections can cause severe incidents to you.
After assembly, recheck the connections. You can also rely on the Teflon tape.
Prepare mixture
What do you want to distill? Alcohol or something else like a plant mixture for oil extraction.
Suppose you want to distill the alcohol. Define the recipe and prepare a fermentation mash of your recipe.
Add into boiler and Heat Up
Pour your mixture into the boiler. Ensure the boiler pot isn’t 100% full because the boiler needs a space for the vaporization. That secures your safety as well.
Use a heating source like the heater.
Condense Liquid
Once the temperature reaches boiling point, vapors will start arising in the mixture. You need to convert them back to the liquid form.
Check if your condenser has cold water. Cold water in condensers will transform the vapors into liquid. Collect the liquid(it is your target alcohol).
Clean
It is time to clean up all the mess you created. Follow the ideal cleaning instructions and tidy up all the components, from the condenser to the thermometer. Store it in a safe place!
Cleaning and Storage Instructions of VEVOR Moonshine Still
Cleaning a VEVOR 9 gal moonshine still isn’t rocket science. The simple and easy method is there. Just follow the below steps, and boom! You’ll get a perfectly cleaned VEVOR moonshine still.
Step 1: Water Wash
Bring your normal water out of the den and clean all the parts of the VEVOR moonshine still with it. There is no shame in using the detergent if you want to.
Rinse all the parts to make them look sterile.
Step 2: Steam Cleaning
Fill up the boiler with up to 50% space. Don’t turn on the condenser while running the boiler. Do it for 3-5 minutes until you turn on the condenser. Make sure you recover 25% of the water through condensation.
Turn off the apparatus and clean all the parts again.
Step 3: Vinegar Cleaning
Add vinegar spirit of up to 750 ml in the 2 liters of water. Put it into the boiler. Switch on the condenser. Turn on the boiling game. Once you recover 1 liter of water through the condenser, turn it off.
Wash your apparatus with water and detergent.
Step 4: Second Steam Cleaning
Do the same process as the second step. Clean up all the apparatus again.
Frequently Asked Questions About VEVOR Alcohol Still
Does the water pump circulate the water in VEVOR Moonshine Still?
Yes. A water pump in the VEVOR moonshine still has excellent pressure capacities. It not only pumps the water but also circulates it.
Can I clean it multiple times?
Yes. You can clean VEVOR moonshine still as many times as you want. But make sure the cleaning process is perfect and doesn’t leave any residue in it.
How do I assemble the parts?
It is an effortless task. You can follow the above-detailed guide on the assembly of different parts.
What do I do if I have a problem running VEVOR moonshine still?
It is less likely to face problems in the VEVOR moonshine still operations. However, you need to check whether the circuit breaker is working. Moreover, look for any obstruction in the hoses.
Conclusion
Following VEVOR still instructions with manual PDF can bring all the complex tasks down to earth. Whenever you have made a moonshine, clean up your tool and store it. Keep it away from the dust materials.
VEVOR moonshine still has revolutionized the distilling industry. There are tons of quality stills in our directory. Determine your capacity and shop now!
