3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale 3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale 3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale 3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale 3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale 3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale 3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale
GSC3C450-500-1000V1

3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale

See All Customer Reviews
15 Reviews 2 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【PREMIUM QUALITY & LED】- The linear encoder body adopts high-quality plastic for high durability. This linear scale applies an aluminum profile scaling body to be more resistant to oxidation. Besides, the dro for lathe features an 8 bit LED high-definition nixie tube for a relatively natural display effect.
  • 【INTELLIGENT FUNCTIONS】- The lathe readout is equipped with a variety of intelligent functions: SDM 200 sets memory, bevel processing, power-off memory, 1/2 centering, circumference drilling, oblique line drilling, ABS/INC mode selectable, R/D function, etc.
  • 【BRACKETS & SCREW SET INCLUDED】- Individualized components are included in the digital readout mill package for easy installation and operation. The lathe linear scale has slotted end blocks that are more convenient for users to mount, operate, and maintain easily.
  • 【STANDARD SIGNAL CABLE】- This high accuracy linear scale is equipped with a 3 m signal cable. The signal cable is protected by multi-layer shielded wire steel and a soft metal shell. It has excellent waterproof and anti-interference performance.
  • 【EXTENSIVE USE】- Precision linear scale with digital readout is applicable for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope. You can use it to achieve movement control, position monitoring, coordinate measurement, etc.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

3 Axis Digital Readout DRO 450&500&1000mm(17.7"&20"&40") Precision Linear Scale
Description Specification Questions and Answers Reviews
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

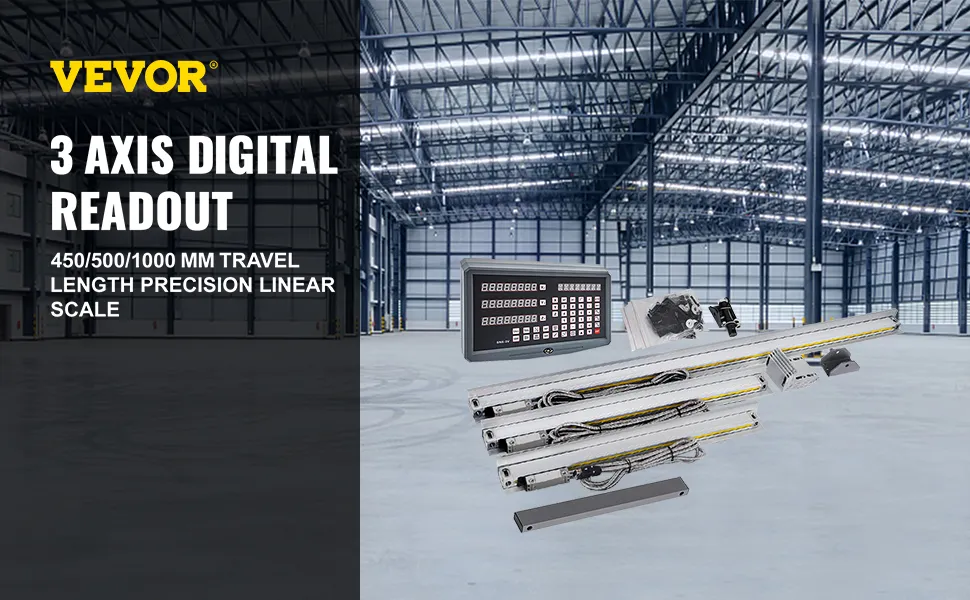

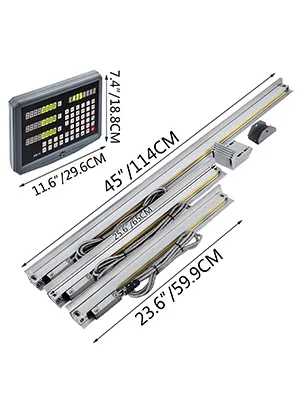

3 Axis Digital Readout & 450/500/1000 mm Linear Scale
This precision linear scale with the DRO display kit includes three precision linear scales with lengths of 450 mm (17.7"), 500 mm (19.7"), and 1000 mm (40"). Resolution of 5 μm (0.0002") at 20ºC. Precision linear scale with digital readout is widely used on milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, video measuring machines, movement control, position monitoring, and coordinate measurement X-Y-Z working table monitor, mechanical control.
  • ❤Friendly Note
  • The digital readout and linear scales maybe in different stocks so that they may be sent separately.
  • Pls do not worry, you will receive ALL the parcels in recent days after the order.
  • Premium Quality & LED
  • Intelligent Functions
  • Brackets & Screw Set Included
  • Standard Signal Cable

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

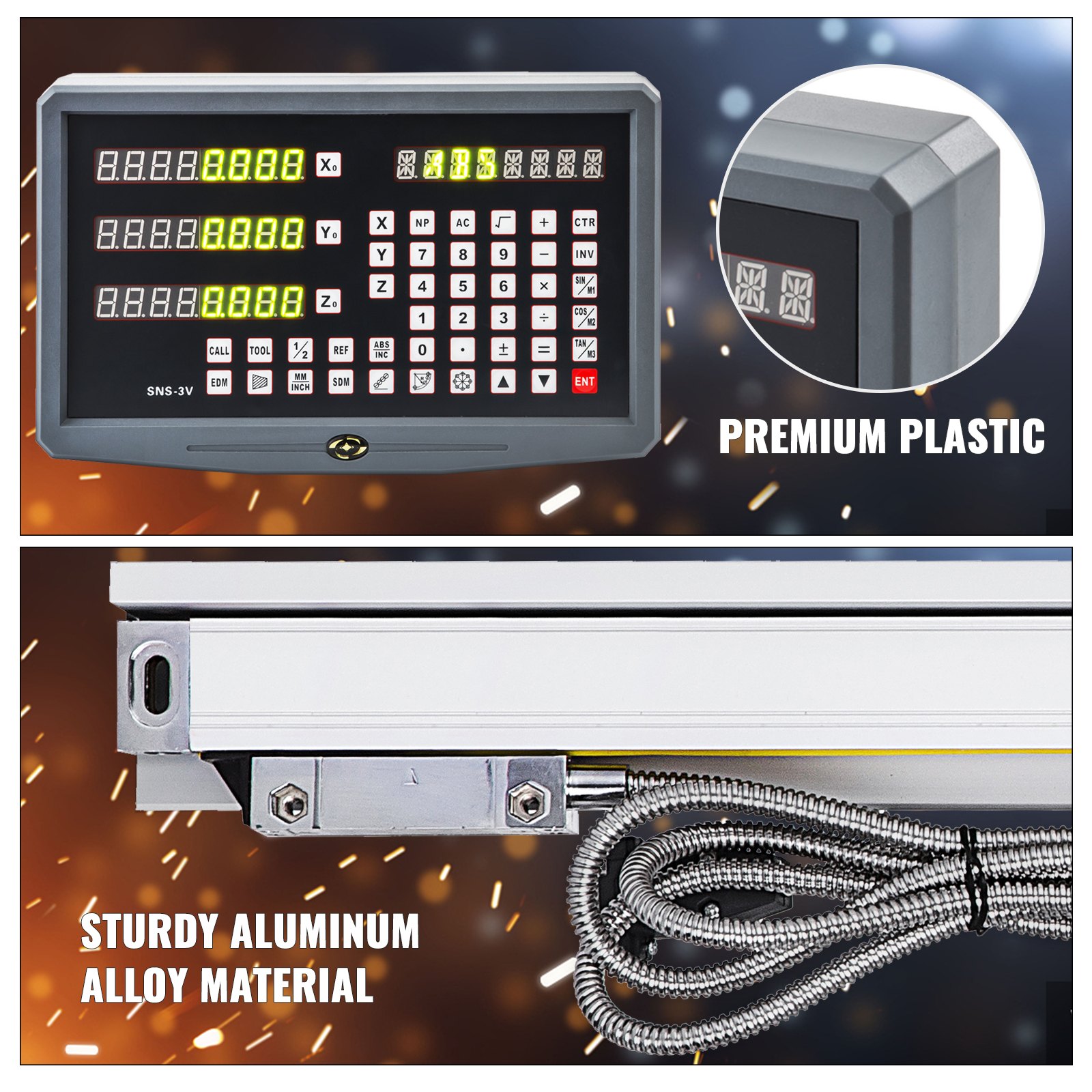

Durable Construction
The body of the grating digital display is made of high-quality plastic, resistant to friction. The scale body applies an aluminum profile, which is anti-vibration.

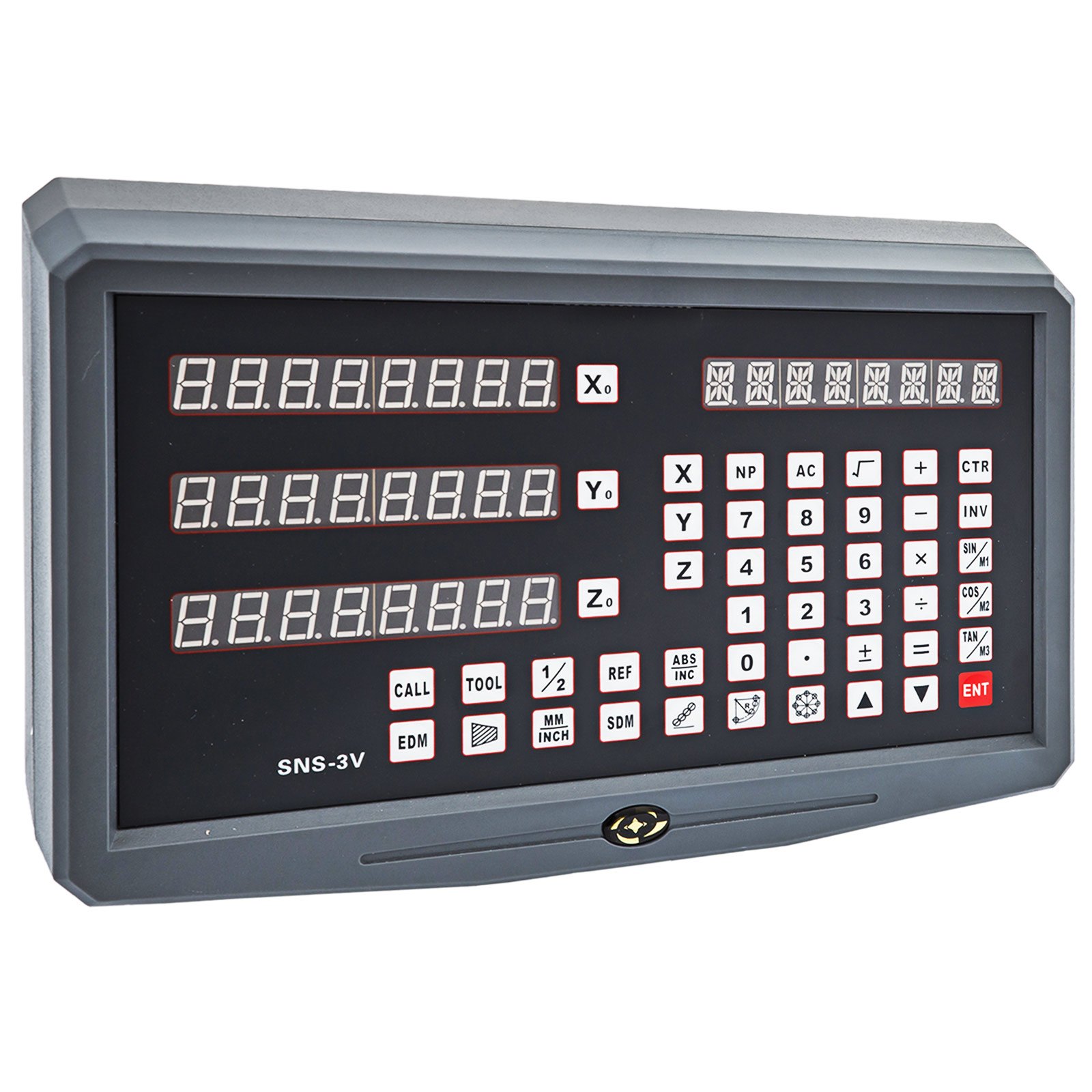

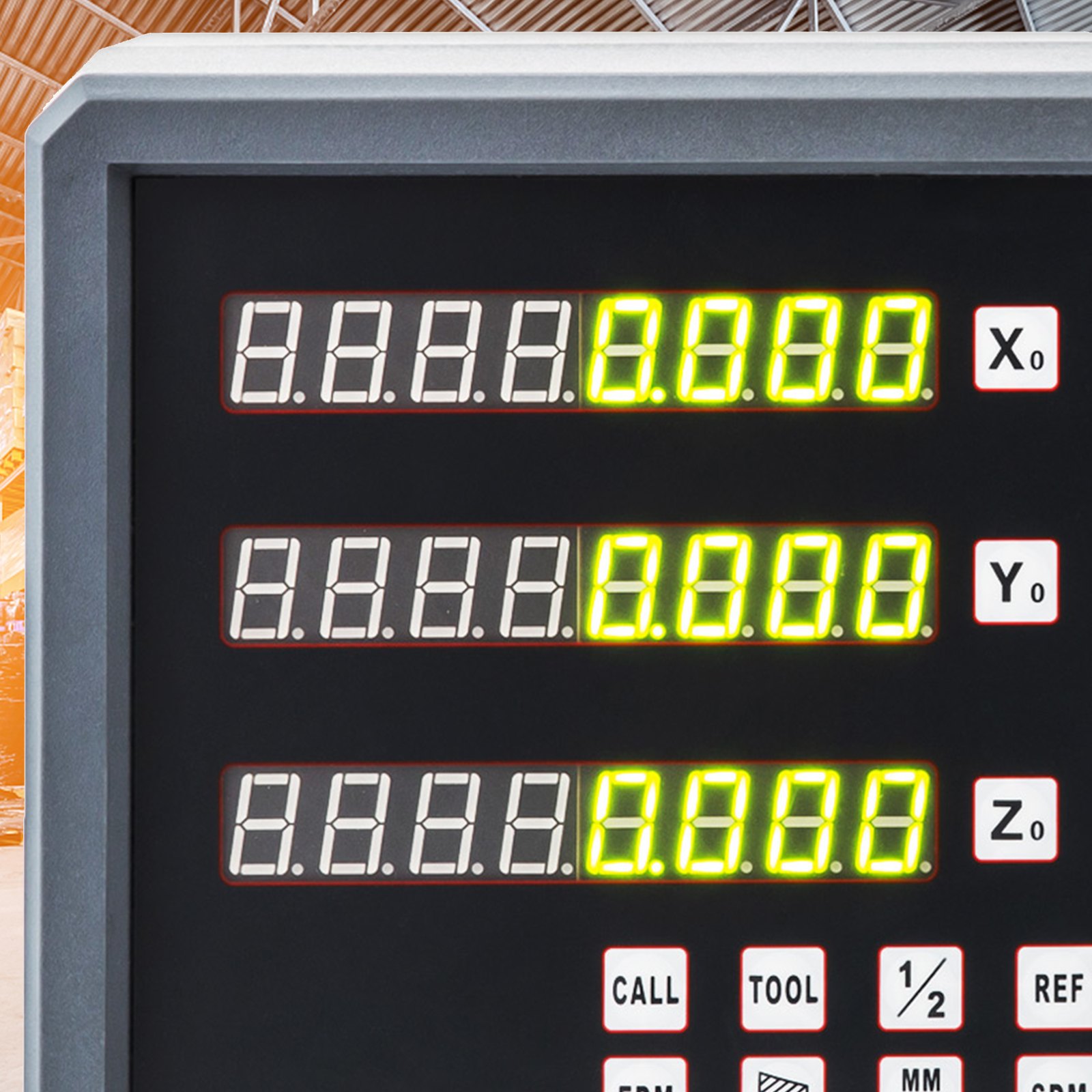

Low-energy LED Screen
The dro for milling machine adopts the LED screen has lower power consumption to save more energy with a smaller size, lighter weight, and longer service life.

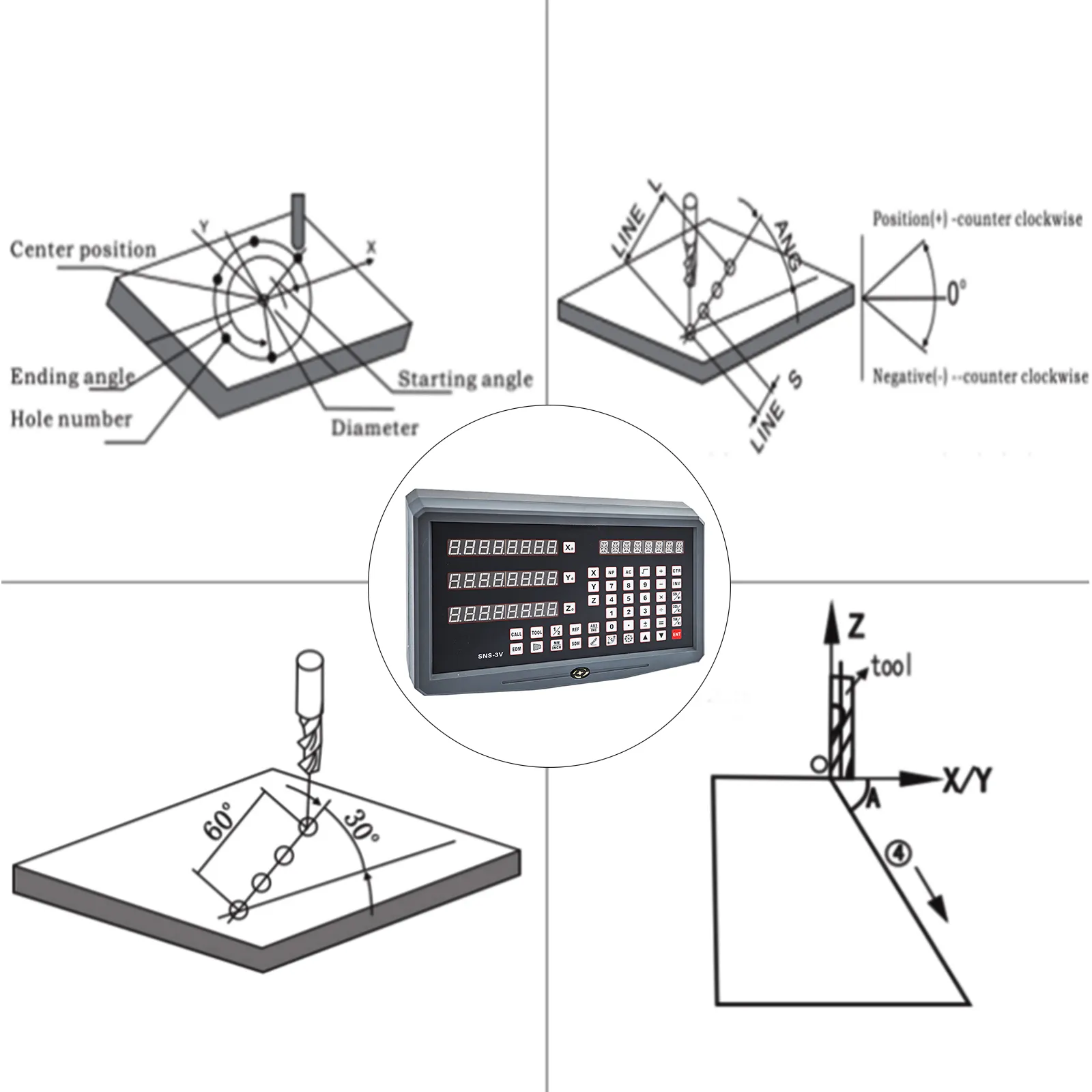

Multiple Special Functions
The lathe dro has lots of special functions: circumference holes processing, liner holes processing, ARC processing, oblique processing, slope processing, chambering processing, etc.

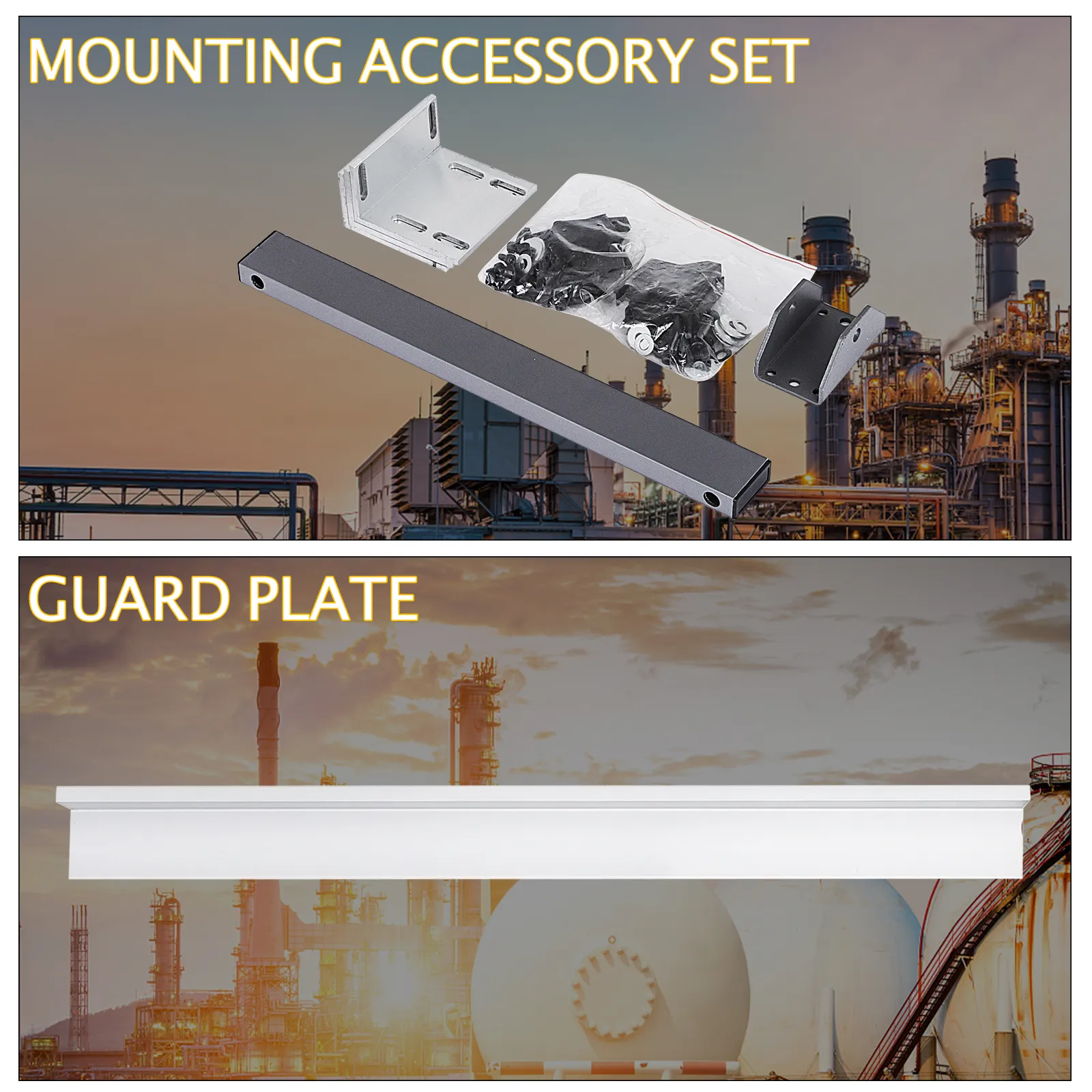

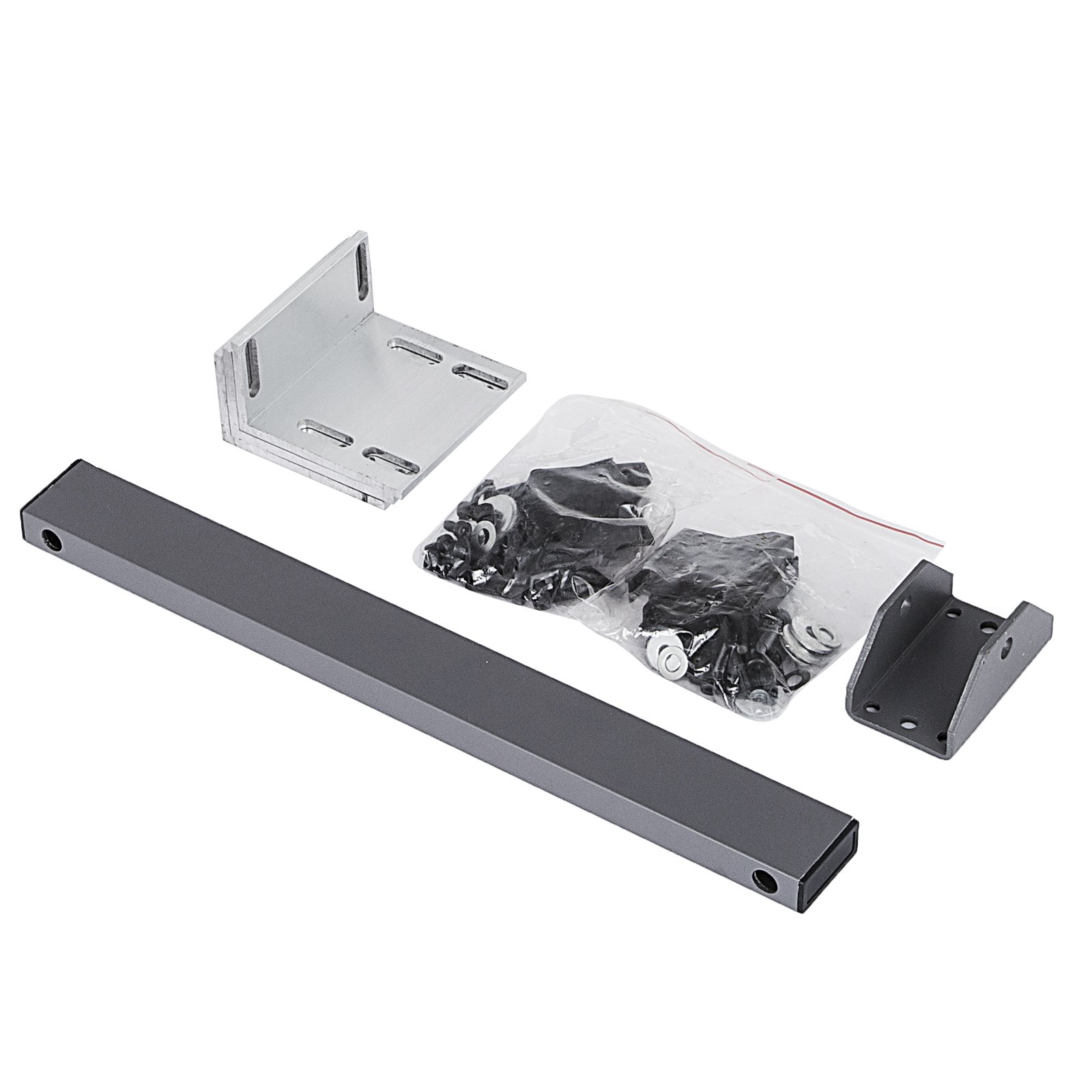

Effortless to Install
The lathe digital readout features all accessories to install and operate efficiently. This linear scale features multiple installation holes to fix the bracket's position and additional mounting hardware.

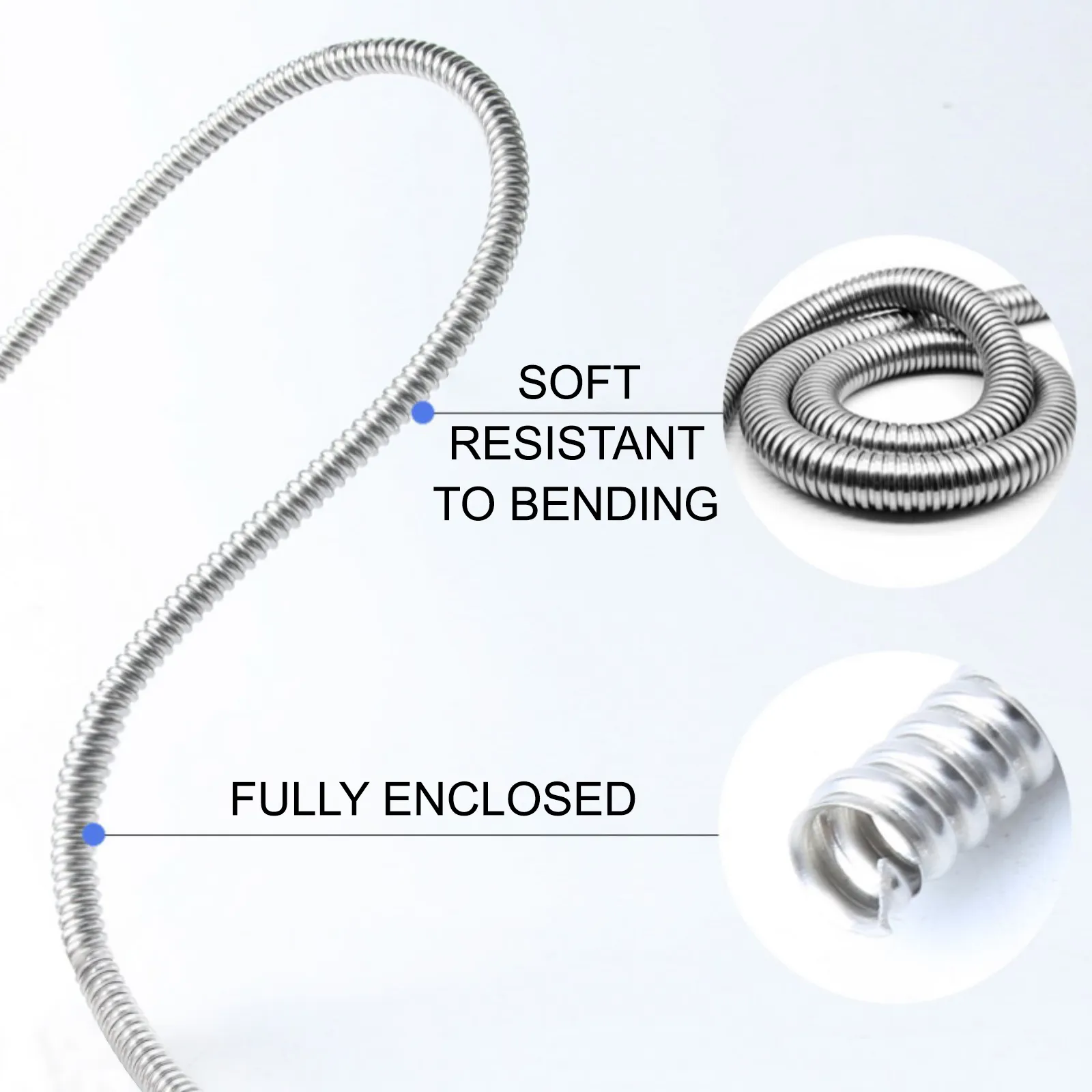

3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit and has high flexibility, bending resistance. Customized lengths can be provided according to the users' needs.

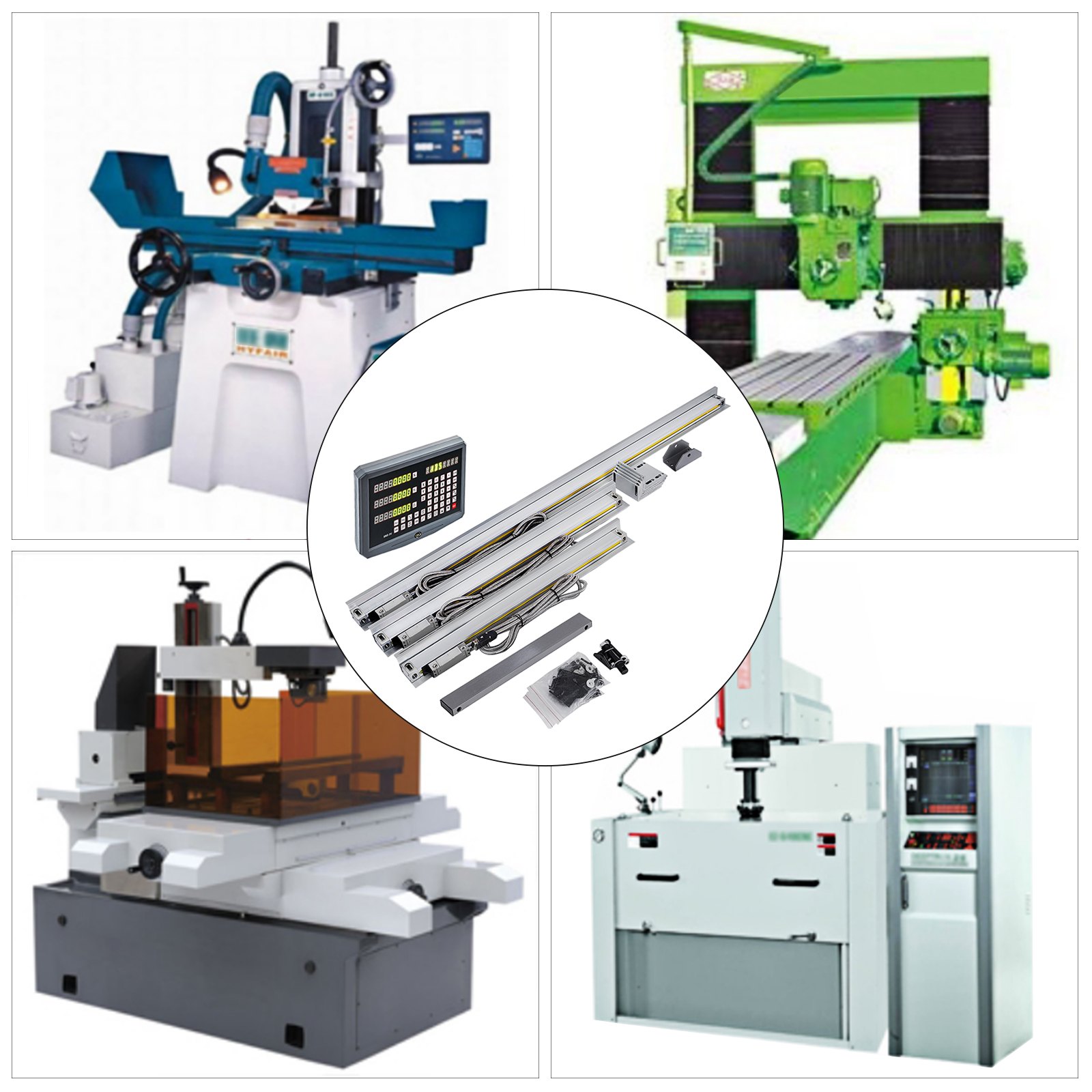

Wide Application
The absolute DRO and linear scale are suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines.
Specifications
  • Axis: 3 Axis
  • Display: 8 digits
  • Lifespan: Five million times
  • Input Signal: TTL square wave EIA-442
  • Input Signal Frequency: 100KHZ
  • Resolution: 5 μm/0.0002" at 20ºC
  • Linear Scale Cable Length: 3 m/10 feet each
  • Keyboard: Pressure sensitive

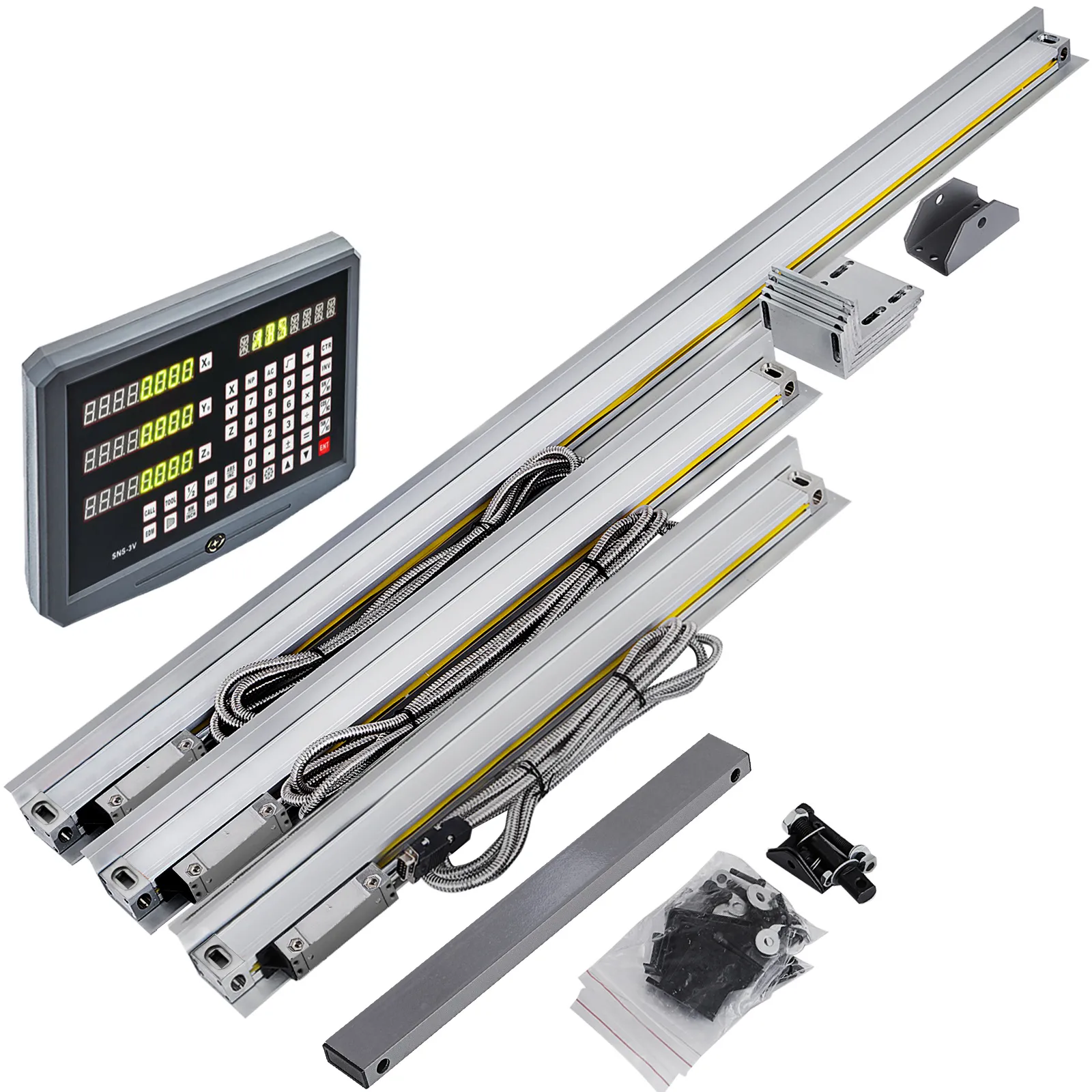

Package Content
  • 1 x 3 Axis Digital Readout Display Meter

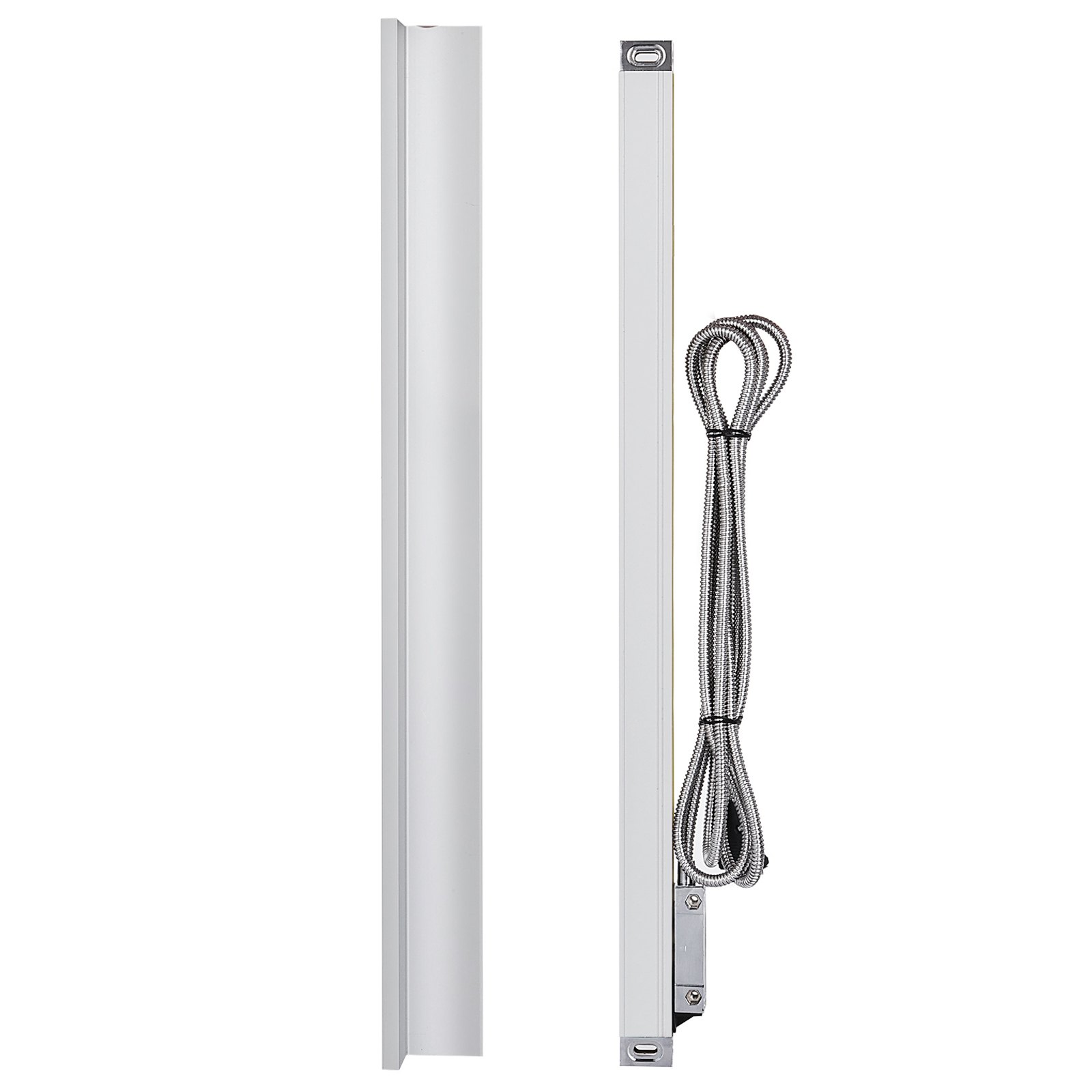

  • 1 x 450 mm/17.7" Linear Scale
  • 1 x 500 mm/19.7" Linear Scale
  • 1 x 1000 mm/40" Linear Scale
  • 1 x Guard Plate
  • 1 x Mounting Accessory Set
  • 1 x Manual
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
3 Axis Digital Readout & 450/500/1000 mm Linear Scale
This precision linear scale with the DRO display kit includes three precision linear scales with lengths of 450 mm (17.7"), 500 mm (19.7"), and 1000 mm (40"). Resolution of 5 μm (0.0002") at 20ºC. Precision linear scale with digital readout is widely used on milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, video measuring machines, movement control, position monitoring, and coordinate measurement X-Y-Z working table monitor, mechanical control.
  • ❤Friendly Note
  • The digital readout and linear scales maybe in different stocks so that they may be sent separately.
  • Pls do not worry, you will receive ALL the parcels in recent days after the order.
  • Premium Quality & LED
  • Intelligent Functions
  • Brackets & Screw Set Included
  • Standard Signal Cable
Durable Construction
The body of the grating digital display is made of high-quality plastic, resistant to friction. The scale body applies an aluminum profile, which is anti-vibration.
Low-energy LED Screen
The dro for milling machine adopts the LED screen has lower power consumption to save more energy with a smaller size, lighter weight, and longer service life.
Multiple Special Functions
The lathe dro has lots of special functions: circumference holes processing, liner holes processing, ARC processing, oblique processing, slope processing, chambering processing, etc.
Effortless to Install
The lathe digital readout features all accessories to install and operate efficiently. This linear scale features multiple installation holes to fix the bracket's position and additional mounting hardware.
3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit and has high flexibility, bending resistance. Customized lengths can be provided according to the users' needs.
Wide Application
The absolute DRO and linear scale are suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines.

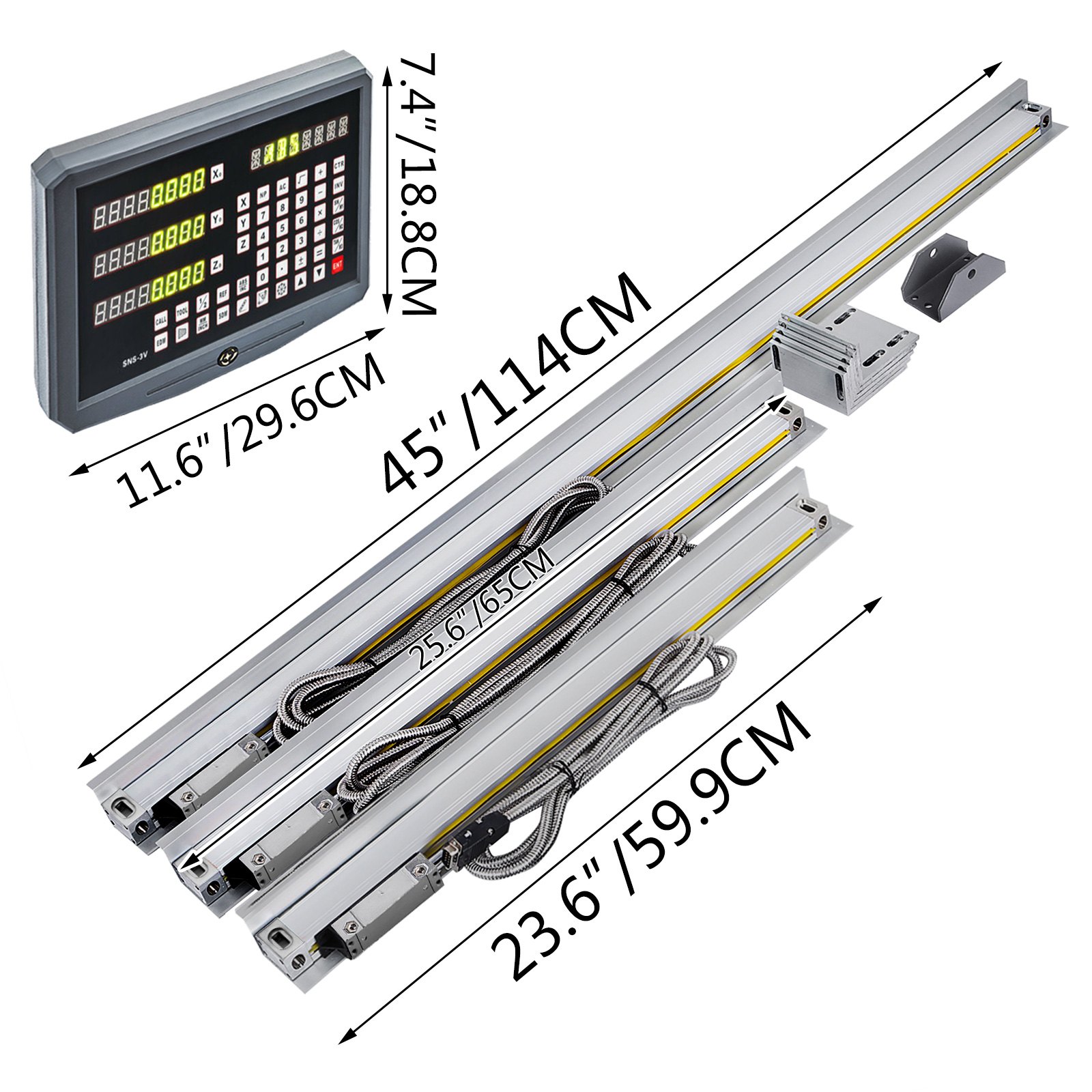

Package Content
  • 1 x 3 Axis Digital Readout Display Meter
  • 1 x 450 mm/17.7" Linear Scale
  • 1 x 500 mm/19.7" Linear Scale
  • 1 x 1000 mm/40" Linear Scale
  • 1 x Guard Plate
  • 1 x Mounting Accessory Set
  • 1 x Manual
Specifications
  • Axis: 3 Axis
  • Display: 8 digits
  • Lifespan: Five million times
  • Input Signal: TTL square wave EIA-442
  • Input Signal Frequency: 100KHZ
  • Resolution: 5 μm/0.0002" at 20ºC
  • Linear Scale Cable Length: 3 m/10 feet each
  • Keyboard: Pressure sensitive

Specification

Axis
3 Axis
Display
8 digits
Lifespan
Five million times
Input Signal
TTL square wave EIA-442
Input Signal Frequency
100KHZ
Resolution
5 μm/0.0002" at 20ºC
Linear Scale Cable Length
3 m/10 feet each
Keyboard
Pressure sensitive
Questions and Answers
2 Questions
or Ask a Question
Is the 500mm an exact measure of travel or is there a bit more. I need about 508 mm on my machine so it doesn’t bottom out the scale. Thanks
Answer This Question
Its effective stroke is 520mm.
By vevor
Helpful ( 0 )
I am concerned about installation. Do you provide support by phone? Or by chat?
Answer This Question
Yes. Here is our phone number: 855-385-1880.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 15 reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
15 Review(s)
Clear filters
zig zig
Fixer
Really excellent DRO set-up for the money !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ronald Tetzlaff Ronald Tetzlaff
Retired
Items was well packed and delivery was fairly fast. DRO setup was easy and product works great, had to shorten one of the linear scales and all went well.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Derrick Derrick
Fabricator
This was used to replace a DRO that no longer worked on my mill and it was easy to adapt to mine. Just drilled and tapped new holes in the casting using and indicator to keep each scale straight to its axis.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Bob Bob
Home Hobbyist
Good price and works really great. Takes a little time for instillation but it turned out really well. The only thing they need to let you know is that you don't need to order the scale sizes that they offer as a package. They have a lot of different scales sizes you can order separately that would fit your particular machine without cutting scales to fit. That would have saved me from cutting scales to size. Need some sales representation to talk to before ordering. But mine turned out well and works great.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Jon Jon
Owner
Very quick delivery, quality looks good. Happy with purchase. Have not had the time to install as of yet, but look forward to using it. Positive transaction.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ranged Ranged
Good DRO, Great Price
A great price on a DRO kit that includes 3 scales. Saved money by getting this kit for my PM-30'ish mill, and cutting the scales to fit, Actually, I only needed to cut the X-axes scale (cut down from the 750mm scale). Installation instructions leave a lot to be desired, but the operators manual for the DRO is very detailed. All the mounting hardware is included, but not very versatile. I ended up 3D printing brackets and spacers for a "better" fit on the scales. Build quality... no complaints. Display is large and clear, buttons are easy to read and use. Comes with a clear cover for the DRO. Powered from 110v outlet. Seems accurate for what I use it for (hobbyist). Although it could be much more accurate than what I am capable of measuring. On cutting scales, there seems to be two different methods out there. One where you take one end off the scale and cut the extrusion, glass and all. The other where you disassemble the scale, remove the glass and cut it separate. I used the latter method and had no problems. Although I did break a tap on one of the ridiculously small end cap screws. If I did it again, I would probably just epoxy the endcap back in place.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Wonka Wonka
Good scales for the money
Purchased 170mm, 320mm and 520mm scales. Accurate enough for the typical hobbyist. Nicely extruded cover for the scales to protect from fluids, bet the included mounting hardware is nothing special.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Non Stop Horizon Non Stop Horizon
Excellent value for the money.
As a home hobby machiinist with a serious addiction to making chips fly I inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Non Stop Horizon Non Stop Horizon
Excellent value for the money.
As a home hobby machiinist with a serious addiction to making chips fly I’m inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Non Stop Horizon Non Stop Horizon
A little fussy to set up, but works great
Installed in an afternoon. Most of the supplied hardware was of no use, but a few bucks at the hardware store and I was off to the races.As others have mentioned, the manual is almost useless. If you have some understanding of what a dro does, then it is good enough to fill in the blanks.Some of the buttons are abbreviated in an odd way (e.g. CTR for calculator), but it's not that big of a hurdle. Just remember that English is not this things first language.I had to set the resolution of the scales to 0.2 so they would read correctly. Out of the box it was showing 5 inches of travel per inch. That was a frightening 10 minutes, but everything checks out fine now.I haven't played with all the functions yet, but so far everything works great.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
