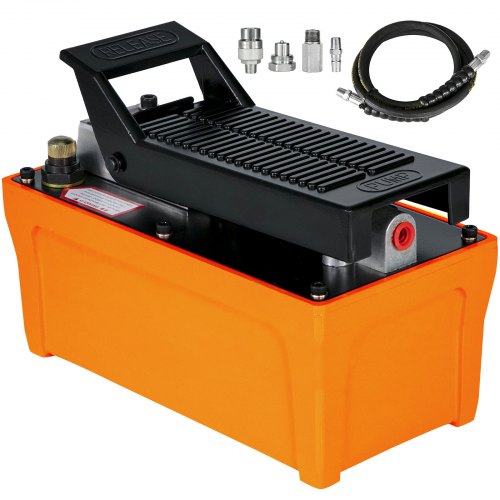

VEVOR air hydraulic pump with orange base, black top, hose, and five fittings. VEVOR air hydraulic pump with 10000 psi and orange casing for industrial use. VEVOR air hydraulic pump with quick hydraulic coupler, 70mpa oil output pressure. VEVOR air hydraulic pump with foot-actuated design for hands-free operation. VEVOR air hydraulic pump with 1.6l fuel tank capacity and oil filter. VEVOR air hydraulic pump with reinforced aluminum alloy and durable metal materials. VEVOR air hydraulic pump with dimensions 12.2x8.26x7.4 in in orange and black.
QDJTSYYB000000001V0

VEVOR Air Hydraulic Pump 10000 PSI 1/2 Gal Reservoir Hydraulic Foot Pump Air Treadle Foot Actuated for Auto Body Frame Machines and Pulling Post (Pump Comes Without Oil)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc), Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.
  • Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
  • Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L oil tank has a larger capacity with 98 cubic inches / 1.6 liters output oil. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
  • Durable Oil Pipe Included: This hydraulic air pump is equipped with a 1 m /3 ft high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable, no worry about the oil leak.
  • 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air Hydraulic Pump 10000 PSI 1/2 Gal Reservoir Hydraulic Foot Pump Air Treadle Foot Actuated for Auto Body Frame Machines and Pulling Post (Pump Comes Without Oil)
VEVOR air hydraulic pump with foot-actuated design, 10000 psi, high efficiency.
VEVOR air hydraulic pump with colorful base and fittings, including hose assembly.
10,000 PSI Air Hydraulic Foot Pump
Simple Foot Pedal Control & 1.6L Oil Tank & 3 ft Hydraulic Hose
This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
  • Fundamental Parameters
  • Foot-Actuated Design
  • Sturdy & Compact Construction
  • Durable Oil Pipe Included
  • 10,000 PSI for Wide Application
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR air hydraulic pump showcasing standard air inlet and oil outlet.
Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.
VEVOR air hydraulic pump with simple foot pedal control for lifting and dropping.
Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.
VEVOR air hydraulic pump, aluminum alloy, durable metal, premium quality and structure.
Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
VEVOR air hydraulic pump with 1.6l large oil tank, black pedal, and capacity details.
1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters production for high performance. Moreover, it ensures you have the supply needed to power your equipment.
high-pressure hose and couplers for VEVOR air hydraulic pump with bending resistance.
High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 1 m /3 ft with 3/8 NPT - Quick hydraulic coupler.
VEVOR air hydraulic pump applications: automobile repair, oil drilling platform, machine maintenance, machinery lifting handling.
Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.
VEVOR air hydraulic pump, orange body, labeled dimensions: 12.2x8.26x7.4 inches.
Specifications
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Control: Foot pedal pump - Release pressure to return fluid
  • Includes Hydraulic Hose: 1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air Connection: 1/4" Female NPT
  • Output Oil Hole: 3/8'' NPT Connection
  • Hydraulic Oil Type: HM22/HM32
  • Oil Capacity: 98 Cubic Inches / 1.6 Liters(1600 cc)
  • Input Air Pressure: 0.7-1MPa
  • Shell Material: Reinforced Aluminum Alloy
  • Fuel Tank Capacity: 1.6L
  • Capacity Tolerance: ± 0.1L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Pressure Range: ≥ 0.5
  • Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
  • Total Mass: 8.0 kg / 17.64 lbs
  • Overall Dimensions(L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''
orange VEVOR air hydraulic pump with black pedal and attached hoses.
Package Content
  • 1 x Air Powered Hydraulic Pump
  • 1 x Set of Related Accessories
  • 1 x Instruction Manual
  • Note: Pump comes without oil.
VEVOR air hydraulic pump with foot-actuated design, 10000 psi, high efficiency.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR air hydraulic pump with colorful base and fittings, including hose assembly.
10,000 PSI Air Hydraulic Foot Pump
Simple Foot Pedal Control & 1.6L Oil Tank & 3 ft Hydraulic Hose
This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
  • Fundamental Parameters
  • Foot-Actuated Design
  • Sturdy & Compact Construction
  • Durable Oil Pipe Included
  • 10,000 PSI for Wide Application
VEVOR air hydraulic pump showcasing standard air inlet and oil outlet.
Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.
VEVOR air hydraulic pump with simple foot pedal control for lifting and dropping.
Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.
VEVOR air hydraulic pump, aluminum alloy, durable metal, premium quality and structure.
Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
VEVOR air hydraulic pump with 1.6l large oil tank, black pedal, and capacity details.
1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters production for high performance. Moreover, it ensures you have the supply needed to power your equipment.
high-pressure hose and couplers for VEVOR air hydraulic pump with bending resistance.
High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 1 m /3 ft with 3/8 NPT - Quick hydraulic coupler.
VEVOR air hydraulic pump applications: automobile repair, oil drilling platform, machine maintenance, machinery lifting handling.
Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.
orange VEVOR air hydraulic pump with black pedal and attached hoses.
Package Content
  • 1 x Air Powered Hydraulic Pump
  • 1 x Set of Related Accessories
  • 1 x Instruction Manual
  • Note: Pump comes without oil.
VEVOR air hydraulic pump, orange body, labeled dimensions: 12.2x8.26x7.4 inches.
Specifications
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Control: Foot pedal pump - Release pressure to return fluid
  • Includes Hydraulic Hose: 1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air Connection: 1/4" Female NPT
  • Output Oil Hole: 3/8'' NPT Connection
  • Hydraulic Oil Type: HM22/HM32
  • Oil Capacity: 98 Cubic Inches / 1.6 Liters(1600 cc)
  • Input Air Pressure: 0.7-1MPa
  • Shell Material: Reinforced Aluminum Alloy
  • Fuel Tank Capacity: 1.6L
  • Capacity Tolerance: ± 0.1L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Pressure Range: ≥ 0.5
  • Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
  • Total Mass: 8.0 kg / 17.64 lbs
  • Overall Dimensions(L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''

Air Hydraulic Pump: High Performance for Auto Body Frame Machines

High Performance, the VEVOR air hydraulic pump is made for high performance. It delivers a maximum pressure of 10000 PSI hydraulic pump. This makes it ideal for auto body frame machine pumps. This pump ensures that your hydraulic tasks are completed efficiently. The foot pedal operation allows for hands-free use, enhancing productivity. Our reinforced aluminum alloy shell offers durability and reliability. You can use this pump for both professional and home workshops. It meets the demands of heavy-duty applications, guaranteeing consistent performance! This air hydraulic pump is regarded as essential for any serious mechanic.


10000 PSI Hydraulic Pump: Ideal for Heavy-Duty Applications

The 10000 PSI hydraulic pump is ideal for heavy-duty tasks. It provides a powerful output. This ensures that even the toughest jobs are done with ease. This pump can handle high-pressure applications. So, it’s suitable for various industrial uses. One of the most important features of this pump's strength is its metal reservoir. The construction guarantees that the pump will survive rigorous use without compromising performance. Therefore, it is an excellent choice for professionals who need reliable equipment.


Hydraulic Foot Pump: Efficient and Smooth Operation with Foot Pedal

It provides efficient and smooth operation. The hydraulic foot pump offers efficient and smooth performance in your work. This feature allows for quick and controlled hydraulic action (i.e., effortless use). This ensures that you can operate the pump without using your hands. This frees your hands for other tasks too. The foot pedal is designed to provide a comfortable and efficient experience when working on various tasks. It's perfect for multitasking. The design of the pump allows you to maintain precise control, making it ideal for detailed work! The responsiveness adds to the overall efficiency of this pump.


Auto Body Frame Machines Pump: Versatile Use in Workshops

This pump can be used in a variety of workshop settings. It is ideal for auto body frame machines & pulling post hydraulic pump applications, including auto body frame machines. Our design ensures that the pump will handle countless tasks. No matter if you're working on vehicles or other heavy equipment, this pump is up to your task. With its adaptability, we have made an excellent addition to any workshop. The pump works with various hydraulic tools. So, it’s compatible with different hydraulic instruments. This makes it suitable for different workshops, offering cost-effective solutions for many hydraulic needs.


Pulling Post Hydraulic Pump: Reliable for High-Pressure Tasks

It is a reliable pulling post hydraulic pump for high-pressure tasks. It's designed to handle the demands of pulling posts and other heavy-duty applications. The pump's high-pressure capability ensures that it can perform under challenging conditions. This makes it a dependable tool in professional settings that need consistent performance. The pump maintains durability and reliability even with frequent use. Therefore, it’s an essential tool for anyone working on any type of hydraulic system!


Metal Reservoir: Adds Durability and Longevity

The metal reservoir also adds durability and longevity to the pump. The reinforced aluminum alloy shell provides added strength, ensuring that the hydraulic foot pump can withstand rigorous use. Metal reservoir helps maintain the integrity of hydraulic oil, providing consistent performance. This feature ensures that the pump lasts longer, giving you a reliable tool for years to come. Also, the reservoir's design helps in maintaining the efficiency of the pumps. It makes it an excellent investment for anyone who needs dependable hydraulic pumping.


Fast and Efficient: Saves Time with Quick Setup and Operation

It is fast and efficient. It saves you time with quick setup and operation. The pump comes pre-filled with oil. So, you can start work right away. This makes it easier to complete tasks promptly. Foot pedal operation ensures quick and controlled hydraulic action. You will be able to finish tasks quickly. Our pump's design ensures that it operates smoothly, reducing downtime. That’s why it is an ideal tool for busy workshops where time matters. Also, the pump efficiency helps reduce overall operating costs. Therefore, it offers cost-effective solutions for various hydraulic needs.



See More

Specification

Type
Air Powered Hydraulic Pump
Action
Single Acting
Control
Foot pedal pump - Release pressure to return fluid
Includes Hydraulic Hose
1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler
Flow Rate
0.8 liters / 0.21 gallons per minute
Air Connection
1/4" Female NPT
Output Oil Hole
3/8'' NPT Connection
Hydraulic Oil Type
HM22/HM32
Oil Capacity
98 Cubic Inches / 1.6 Liters(1600 cc)
Input Air Pressure
0.7-1MPa
Shell Material
Reinforced Aluminum Alloy
Fuel Tank Capacity
1.6L
Capacity Tolerance
± 0.1L
Maximum Oil Output
1.3L
Oil Output Pressure
70MPa
Pressure Range
≥ 0.5
Max Output Hydraulic Pressure
10000 psi, 700 kg/square cm
Total Mass
8.0 kg / 17.64 lbs
Overall Dimensions(L x W x H)
265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''
Manual
Download Link
Questions and Answers
6 Questions
does it come with the hydraulic hose?
Yes, it comes with the hydraulic hose.
By vevor
Se puede usar para una pren hidráulica de 20 toneladas
Esto depende de la presión requerida por la prensa hidráulica, si está dentro de 70Mpa y el volumen de aceite es de 1,6K, se puede utilizar este producto.
By vevor
Wii this work a 50 ton jack
The pressure requirement of this 50-ton jack is within 70Mpa before it can be used.
By vevor
Is there a pressure regulation Valve on it to control how much pressure it puts out?
Yes, it is inside the product and can only be adjusted after opening the fuel tank.
By vevor
Will it work to hook the output of this to the where the plunger goes my 20 ton hydraulic press?
The maximum output pressure of mophorn air hydraulic pump is 70MPa. This product mainly depends on whether the customer's equipment is enough. If it is enough, it can be used.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
17 Review(s)
Clear filters
DB DB
shop owner
I paired this pump with the CH-70 punch and it's an excellent match makes holes easy and fast! Great product would buy again!!
Felix Lopez Felix Lopez
owner
Pump works great, super easy install, lift speed is a little underwhelming, but otherwise is great for the value!
Mkeithddc Mkeithddc
Great Product
So I don't normally do reviews, but they sent me an email and a link so I figured I would this time So I never heard of this company before. Needed a port-a-power pump for a press tool which I also bought from Vevor. The pump works good, no leaks well built. The only issue I found is that the push on hydraulic fittings that come with this pump and that come with the 2 types of presses, they are not the same type. So I just had to order and extra of the one of the kind I decided to use. I would def recommend this press to others. Also shipping was fast
Mark Mark
Great buy. Pumps fast
Works great. Way better than hand pumping my porta power set. Came with oil in it ready to use. Don't forget to loosen the breather cap/knob before using. I close it when I'm done using it, but you have to make sure you open it before pumping up your cylinders.
Charles Barady Charles Barady
Owner
Exactly as advertised. Works terrific!! High quality / high pressure hydraulic power unit used with my 100 ton ram.
RLST RLST
Me
Hydraulic pump had some oil but would not pump. Added approved oil and it worked well. Warning on pump said to loosen screw before using. This I did. Had problem with oil shooting out around screw. May have been on uneven ground, slightly too full or vent screw may have been backed out too far. Used with CH-60 punch and snapped 3/4 " holes in guard rail I-beams with no trouble. Good buy.
Heather Heather
Does what it says
Came early, had no oil as suspected. Not as fast as I thought it might be but works great for my application. Builds 5000 psi. no sweat and that's as high as I need. I do like the pedal stop you can relieve pressure and stop ram from fully opening, saves time reclosing...
Business owner Business owner
Boss
Good pump. Works well and is as described. 10000 PSI works excellent on shop presses and equipment. Metal reservoir is a plus also
Leticia peralta Leticia peralta
Owner
Works just fine, I bought it but it did not work for me because I was needing more fluid flow, but overall it works just fine
Santos Santos
Buenas
Fantastica para mi frame machine
