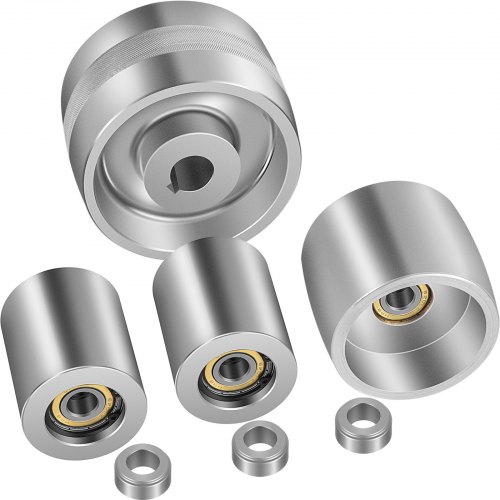

VEVOR belt grinder wheel set with four aluminum wheels and bearings. anodized embossed aluminum wheel, made of t6061 aluminum, for VEVOR belt grinder wheel set. VEVOR belt grinder wheel set features a 5/8in hole, crowned surface, and 3/16in keyway. VEVOR belt grinder wheel set featuring a 3in tracking wheel with labeled dimensions. VEVOR belt grinder wheel set features idler wheel dimensions and standoff spacer details. VEVOR belt grinder wheel set with instructions for convenient assembly and mounting. VEVOR belt grinder wheel set polishing iron, wood, copper, and plastic materials.
YCSDJQDL45823EYRUV0

VEVOR Belt Grinder 2" x 72" Wheel Set, Complete Belt Knife Grinder Wheel Set, Aluminum Belt Grinder Wheel Crowned, for Knife Grinder 4" Drive Wheel 5/8" Bore 3" Tracking 2" Idler Wheels (4"-3"-2")

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【6061-T6 ALUMINUM】- The belt grinder wheel is constructed with durable aluminum material, warp-proof, rust-proof, and corrosion-proof for long-term usage. It is durable and stable, ensuring smooth working.
  • 【4" DRIVE WHEEL】- 4" drive wheel is CNC machined with a 5/8 inch bore. Bore is equipped with a 3/16 inch keyway. The wheel is 2.4 inch/61 mm wide. The surface is truly crowned to ensure the belt won't jump off the wheel.
  • 【3" TRACKING & 2" IDLER WHEEL】- The 3" tracking wheel is 3" in diameter and 2.4" wide. The 2" idler wheels are 2" in diameter and 2.4" wide. 3 x heavy duty 7/16 inch (12 mm) bearings fitted back to back in each wheel for max bearings life. There is a spacer between the bearings to relieve over-tightening.
  • 【EASY INSTALLATION】- This belt grinder wheel set is easy to carry and use with small and lightweight features. The 7/16 inch (12 mm) bearings can easily be replaced when worn. Stalling this wheel on machines is no fatigue.
  • 【FLEXIBLE USES】- The knife grinder wheel set can satisfy your needs and work great in grinding metals, wood, acrylic, and other materials. It is widely used in parts factories, building materials factories, etc., perfect for tool polishing.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Belt Grinder 2" x 72" Wheel Set, Complete Belt Knife Grinder Wheel Set, Aluminum Belt Grinder Wheel Crowned, for Knife Grinder 4" Drive Wheel 5/8" Bore 3" Tracking 2" Idler Wheels (4"-3"-2")
VEVOR belt grinder wheel set on 2" x 72" belt grinder made from 6061-t6 aluminum.
VEVOR belt grinder wheel set with multiple silver wheels and bearings.
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 4" Drive Wheel
  • 3" Tracking & 2" Idler Wheel
  • Easy Installation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
anodized embossed t6061 aluminum featuring high-strength and corrosion-proof properties.
Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.
VEVOR belt grinder wheel set with 5/8in hole, crowned surface, 3/16in keyway.
Drive Wheel Features
The drive wheel is 4" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 5/8 inch bore with a 3/16 inch keyway.
VEVOR belt grinder wheel set dimensions and features, with 6201 rs sealed bearing.
Tracking Wheel Features
The 3" tracking wheel is 3" in diameter and 2.4" wide. It has three 6201 bearings (12 mm) installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.
VEVOR belt grinder wheel set idler wheel features with dimensions and sealed bearing.
Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch wide standoff (sleeve) will raise the wheel of the mounting plate.
VEVOR belt grinder wheel set assembly instructions with recommended mounting guide.
Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.
VEVOR belt grinder wheel set for iron, wood, copper, and plastic polishing.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.
VEVOR belt grinder wheel set: three silver wheels with specified measurements.
Specifications
  • Model: VV-BGW-45823
  • Drive Wheel Diameter: 4 inch/100 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 5/8 inch/16 mm
  • Keyway: 3/16 inch/5 mm
  • Tracking Wheel Diameter: 3 inch/75 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 3.48 lbs/1.58 kg
VEVOR belt grinder wheel set with four aluminum wheels and nuts on a white background.
Package Content
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Instruction
VEVOR belt grinder wheel set on 2" x 72" belt grinder made from 6061-t6 aluminum.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR belt grinder wheel set with multiple silver wheels and bearings.
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 4" Drive Wheel
  • 3" Tracking & 2" Idler Wheel
  • Easy Installation
anodized embossed t6061 aluminum featuring high-strength and corrosion-proof properties.
Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.
VEVOR belt grinder wheel set with 5/8in hole, crowned surface, 3/16in keyway.
Drive Wheel Features
The drive wheel is 4" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 5/8 inch bore with a 3/16 inch keyway.
VEVOR belt grinder wheel set dimensions and features, with 6201 rs sealed bearing.
Tracking Wheel Features
The 3" tracking wheel is 3" in diameter and 2.4" wide. It has three 6201 bearings (12 mm) installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.
VEVOR belt grinder wheel set idler wheel features with dimensions and sealed bearing.
Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch wide standoff (sleeve) will raise the wheel of the mounting plate.
VEVOR belt grinder wheel set assembly instructions with recommended mounting guide.
Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.
VEVOR belt grinder wheel set for iron, wood, copper, and plastic polishing.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.
VEVOR belt grinder wheel set with four aluminum wheels and nuts on a white background.
Package Content
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Instruction
VEVOR belt grinder wheel set: three silver wheels with specified measurements.
Specifications
  • Model: VV-BGW-45823
  • Drive Wheel Diameter: 4 inch/100 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 5/8 inch/16 mm
  • Keyway: 3/16 inch/5 mm
  • Tracking Wheel Diameter: 3 inch/75 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 3.48 lbs/1.58 kg

Belt Grinder Wheel Set Enhances Grinding Speed and Efficiency

This upgrade is perfect for sharpening tools and smoothing edges. The 2x72 belt grinder configuration ensures optimal grinding efficiency. More surface area enhances grinding speed. It’s ideal for knife makers and metalworkers. Aluminum wheels provide durability and precision. This update is a game-changer for anyone who needs quick and efficient grinding.


Precision-Machined Aluminum Wheels for Durability and High Performance

This belt grinder wheel set has precision-machined aluminum wheels. These wheels are built to last and perform. The 12mm centers ensure compatibility with various grinders. High-quality construction means fewer replacements and more savings. Wheels are smooth and well-balanced, minimizing vibration. This leads to a more stable and precise grinding experience. High-grade materials guarantee long-lasting performance. Perfect for both hobbyists and professionals.


Quick and Easy Installation Suits Various Belt Grinder Models

It is quick and easy to install the VEVOR belt grinder wheel set. It fits various belt grinder models, making it versatile. The installation process takes just a few minutes. This saves time and effort. What’s special about the set is that it includes all the necessary parts for achieving a seamless setup. The simple design means no special tools are required. So, it’s accessible to everyone, regardless of their technical skills. You can start grinding immediately. Compatibility with multiple models ensures a broader user base.


High-Quality Bearings Ensure Smooth and Quiet Operation

The VEVOR belt grinder wheel set has high-quality bearings. These bearings ensure smooth and quiet operation. Precision machining of the wheels enhances bearing performance. This leads to a more efficient and less noisy grinding experience. The bearings are designed to handle heavy loads without compromising performance, making the grinder suitable for prolonged use. Smooth operation reduces wear and tear, prolonging the life of your wheels. Perfect for those who need reliable and silent grinding.


Responsive Seller and Excellent Customer Service

The VEVOR provides responsive seller support and excellent customer service. Any issues are addressed quickly and efficiently. This ensures a hassle-free buying experience. The seller's responsiveness creates trust and confidence in the product. The customer service team is knowledgeable and helpful. It makes it easy to resolve any concerns or queries. Quick resolution of issues ensures minimal downtime. This is essential for those who work with their grinders for work or hobbies.


Precisely Machined for Accurate Dimensions and Fit

The VEVOR belt grinder wheel set is precisely machined for accuracy. The dimensions are exact, ensuring a perfect fit. This precision reduces the need for adjustments. These wheels are designed snugly, improving stability. Precision machining ensures consistent performance. It's important for detailed and precise grinding tasks and minimizes the risk of accidents. So, the grinder is safer to use. The high precision guarantees an optimum overall grinding experience.


Robust Design and Construction for Heavy-Duty Use

This belt grinder wheel set is made for heavy-duty use. The strong construction ensures it can handle tough grinding tasks. Aluminum wheels are strong and durable. It’s suitable for both home and commercial use. The solid design ensures the wheels can withstand high speeds. This leads to better performance and longevity. Fewer replacements are needed. So this makes it a cost-effective solution for heavier-duty grinding jobs. Strong design: It ensures the grinder can manage demanding workloads.


See More

Specification

Model
VV-BGW-45823
Drive Wheel Diameter
4 inch/100 mm
Drive Wheel Width
2.4 inch/61 mm
Bore
5/8 inch/16 mm
Keyway
3/16 inch/5 mm
Tracking Wheel Diameter
3 inch/75 mm
Idler Wheel Diameter
2 inch/50 mm
Tracking/Idler Wheel Width
2.4 inch/61 mm
Standoff Width
3/8 inch/9.5 mm
Product Weight
3.48 lbs/1.58 kg
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
28 Review(s)
Clear filters
Jason R Jason R
Belt grinder wheels
Very nice wheel set. These wheels seem to be made very well, great price!! Won’t know how they truly work until installed.
bill bill
owner
had 5/4 /2 rollers on my 2 x 72 belt grinder , bought this as an upgrade . took 5 minutes to replace my 5" drive roller with this 6" roller .am thrill with the increase in belt speed !!! by all accounts and my best math this increased belt speed by 1000 feet per minute . the differance was immeadiately apparent ! wow , massive improvement for 50.00 .
Edward M. Zimmerman Edward M. Zimmerman
5 inch wheel
The wheel looks good. I will be putting on the belt grinder>
George George
Solid aluminum
Seem to be good quality
azuanatoya azuanatoya
item look good and like in description.
item look good and like in description.
Richard Patterson Richard Patterson
Bearings measure 12mm not 1/2 inch. Everything is precisely machined and high quality
The seller is also very responsive. Everything about these wheels just IS what its supposed to be, numbers are exact. I just happen to have been sent a metric version by mistake but my issue was fixed quickly.
Kerwin & Sandie Scheel Kerwin & Sandie Scheel
The wheel set, well build for my need on the project I am working on.
Wheels round freely as needed.
Eric Eric
Great Wheel set.
Great wheels for my belt grinder. Was shipped out fast, it only took 2 days to receive it...................
Tommy Napier Tommy Napier
belt grinder wheel set
Travis Travis
Very impressed
The package I received was packaged very welland there was no damage. Very well made product no tooling marks or any marks for that matter. Very impressed with the quality
