VEVOR belt grinder accessory set with silver roller and bearings. anodized embossed t6061 aluminum with high strength and corrosion proof properties. VEVOR belt grinder drive wheel with 5/8in hole, crowned surface, and 3/16in keyway. VEVOR belt grinder tracking wheel features with dimensions and labeled components. idler wheel features with standoff spacer and sealed bearing for VEVOR belt grinder. convenient assembly of VEVOR belt grinder with recommended mounting instructions. VEVOR belt grinder for iron, wood, copper, and plastic polishing. wide applications.
YCSDJQDL55824SFNXV0

VEVOR Belt Grinder 2" x 72" Wheel Set, Complete Belt Knife Grinder Wheel Set, Aluminum Belt Grinder Wheel Crowned, for Knife Grinder 5" Drive Wheel 5/8" Bore 4" Tracking 2" Idler Wheels (5"-4"-2")

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【6061-T6 ALUMINUM】- The belt grinder wheel is constructed with durable aluminum material, warp-proof, rust-proof, and corrosion-proof for long-term usage. It is durable and stable, ensuring smooth working.
  • 【5" DRIVE WHEEL】- 5" drive wheel is CNC machined with a 5/8 inch bore. Bore is equipped with a 3/16 inch keyway. The wheel is 2.4 inch/61 mm wide. The surface is truly crowned to ensure the belt won't jump off the wheel.
  • 【4" TRACKING & 2" IDLER WHEEL】- The 4" tracking wheel is 4" in diameter and 2.4" wide. The 2" idler wheels are 2" in diameter and 2.4" wide. 3 x heavy duty 7/16 inch (12mm) bearings fitted back to back in each wheel for max bearings life. There is a spacer between the bearings to relieve over-tightening.
  • 【EASY INSTALLATION】- This belt grinder wheel set is easy to carry and use with small and lightweight features. The 7/16 inch (12mm) bearings can easily be replaced when worn. Stalling this wheel on machines is no fatigue.
  • 【FLEXIBLE USES】- The knife grinder wheel set can satisfy your needs and work great in grinding metals, wood, acrylic, and other materials. It is widely used in parts factories, building materials factories, etc., perfect for tool polishing.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Belt Grinder 2" x 72" Wheel Set, Complete Belt Knife Grinder Wheel Set, Aluminum Belt Grinder Wheel Crowned, for Knife Grinder 5" Drive Wheel 5/8" Bore 4" Tracking 2" Idler Wheels (5"-4"-2")
VEVOR belt grinder wheel set, 2"x72", 6061-t6 aluminum machine on a concrete surface.

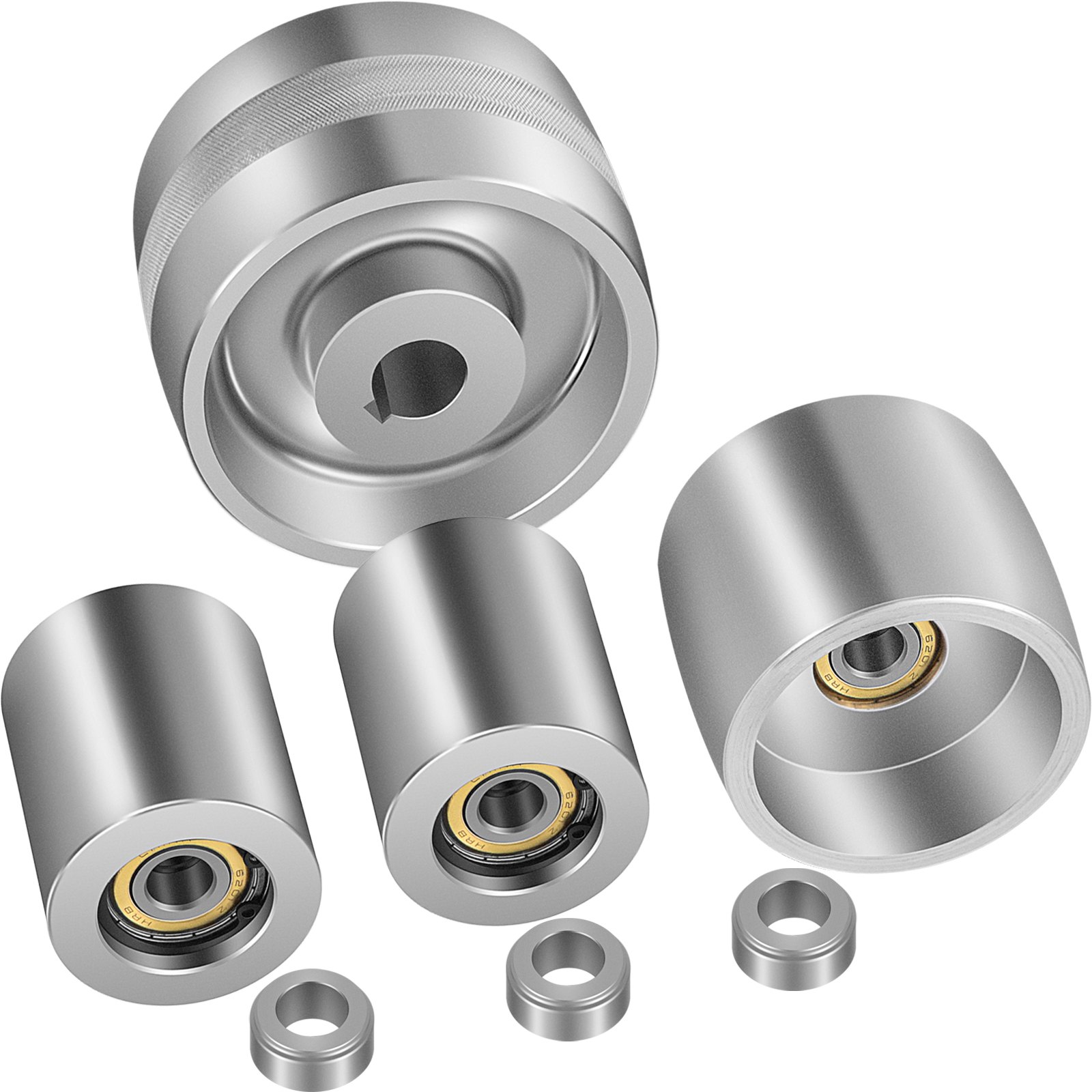

VEVOR belt grinder parts, including rollers and bearings arranged on a white background.
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 5" Drive Wheel
  • 4" Tracking & 2" Idler Wheel
  • Easy Installation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

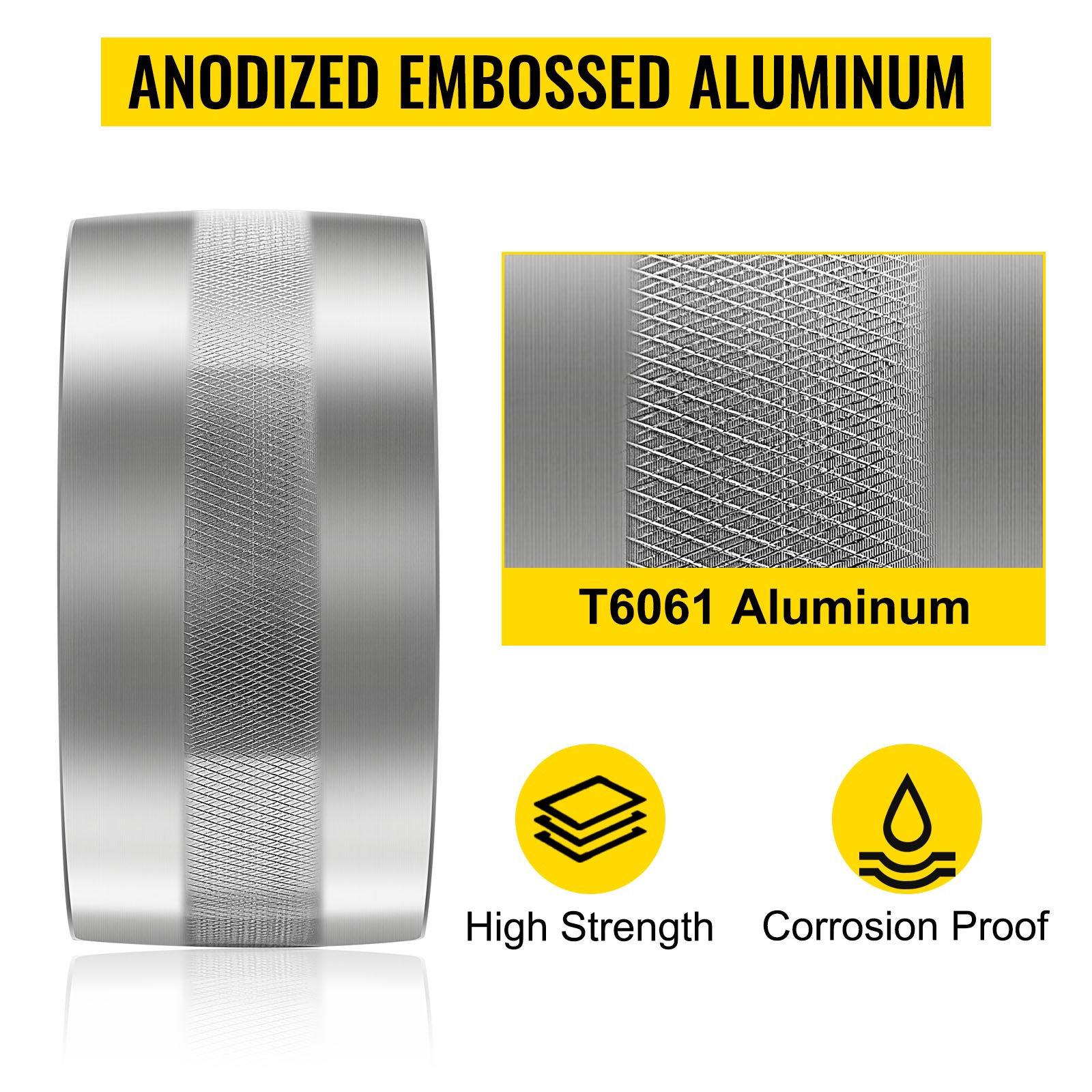

anodized embossed t6061 aluminum with high strength and corrosion proof features.
Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.

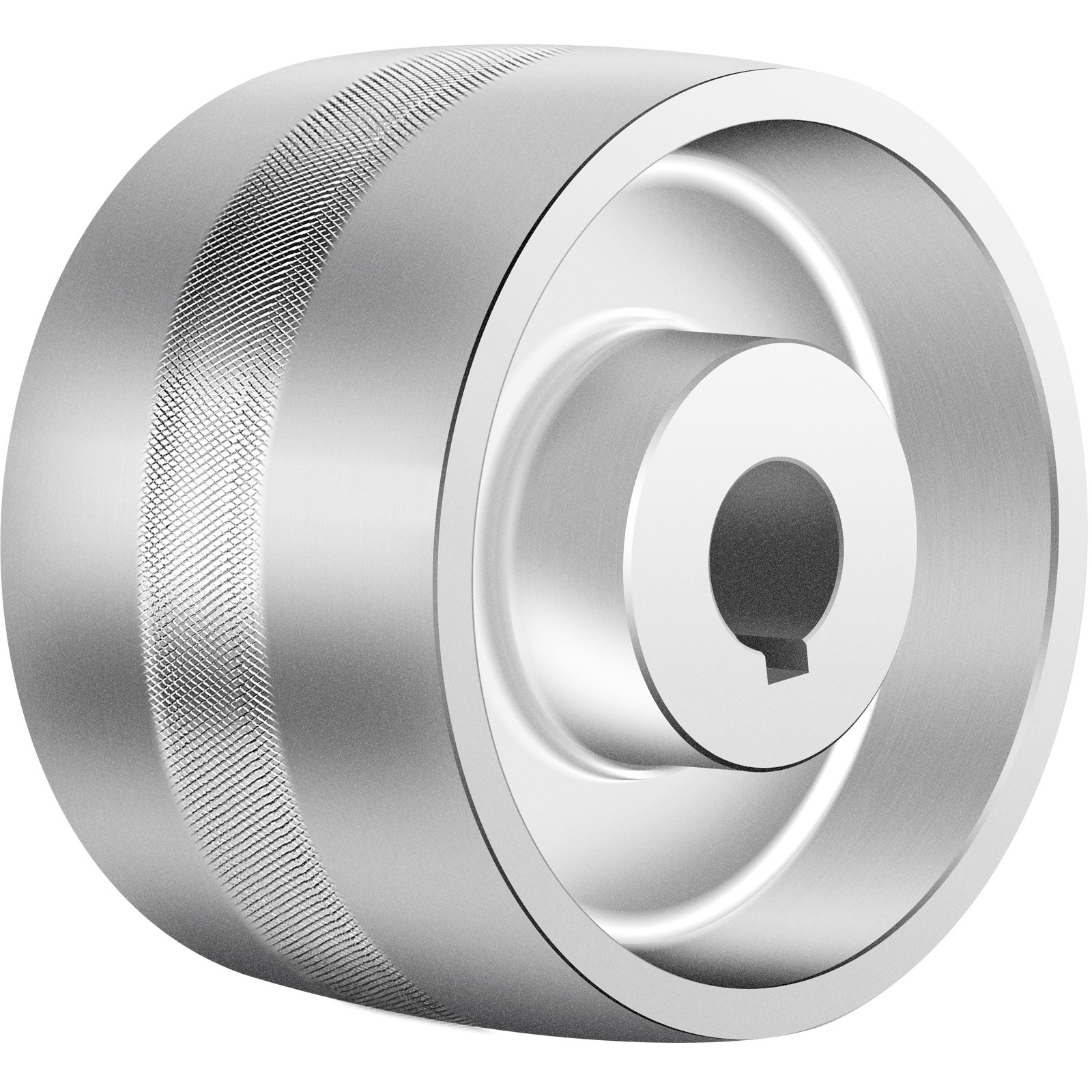

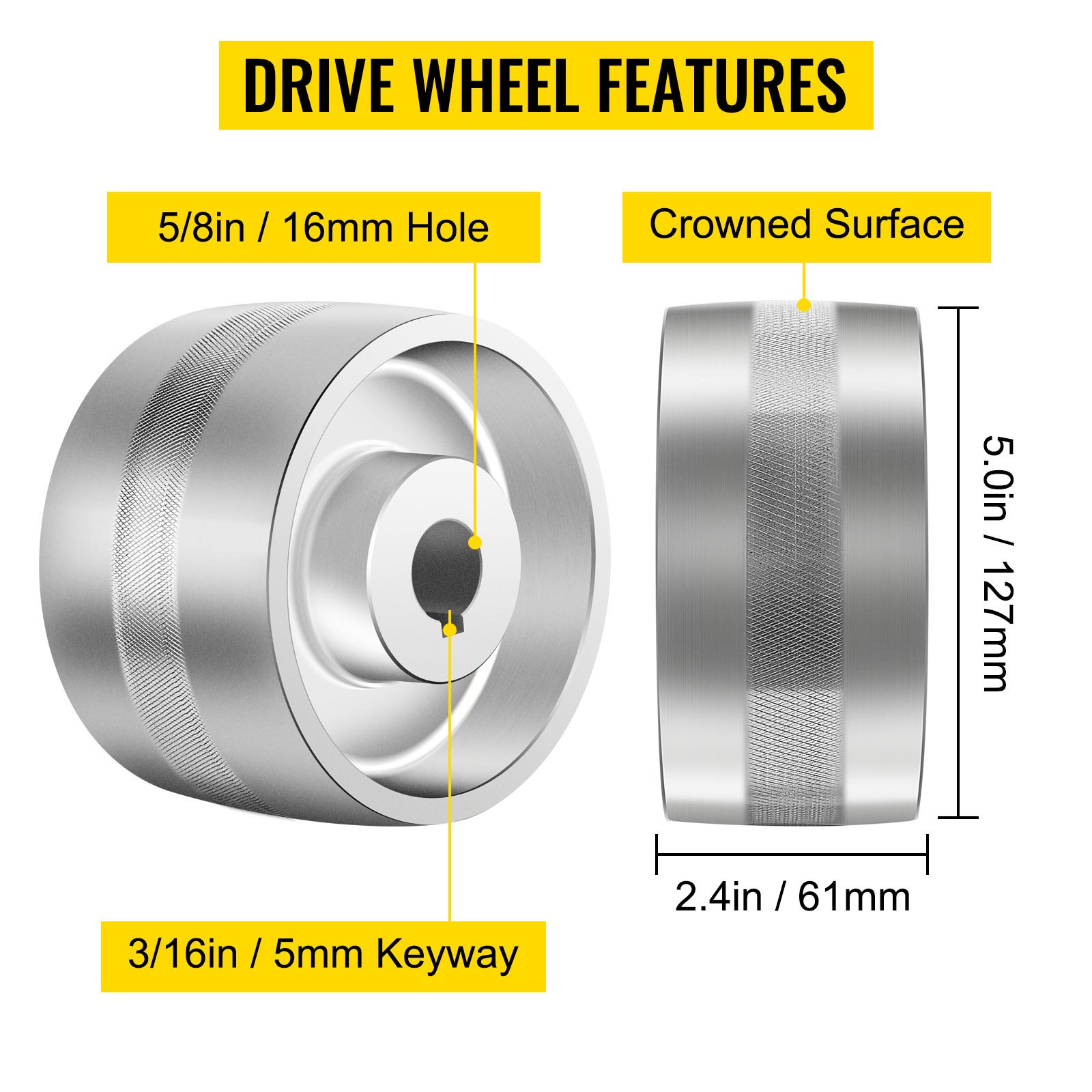

VEVOR belt grinder drive wheel features: 5/8in hole, crowned surface, 3/16in keyway.
Drive Wheel Features
The drive wheel is 5" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 5/8 inch bore with a 3/16 inch keyway.

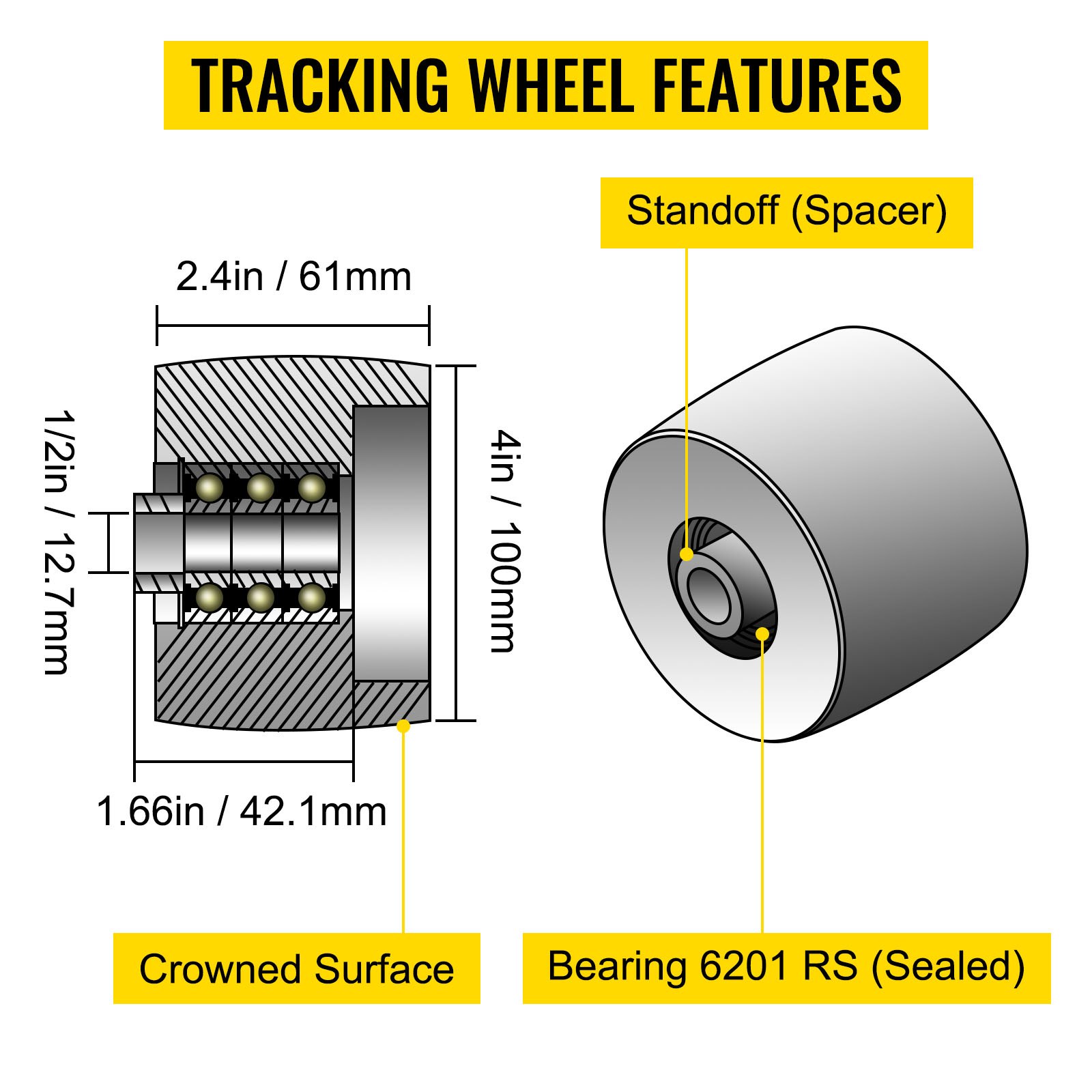

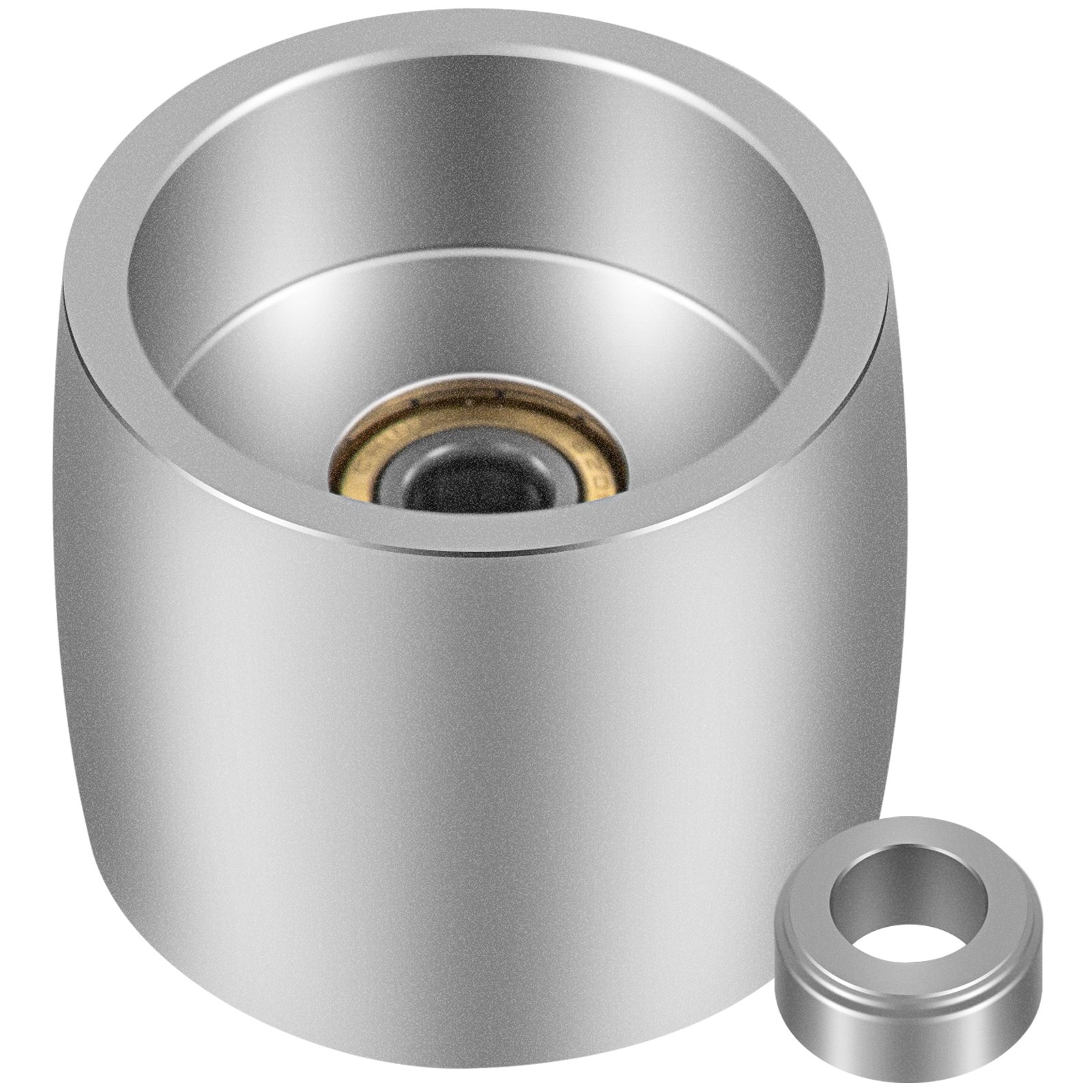

tracking wheel features for VEVOR belt grinder, dimensions labeled with specifications.
Tracking Wheel Features
The 4" tracking wheel is 4" in diameter and 2.4" wide. It has three 6201 bearings (7/16") installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.

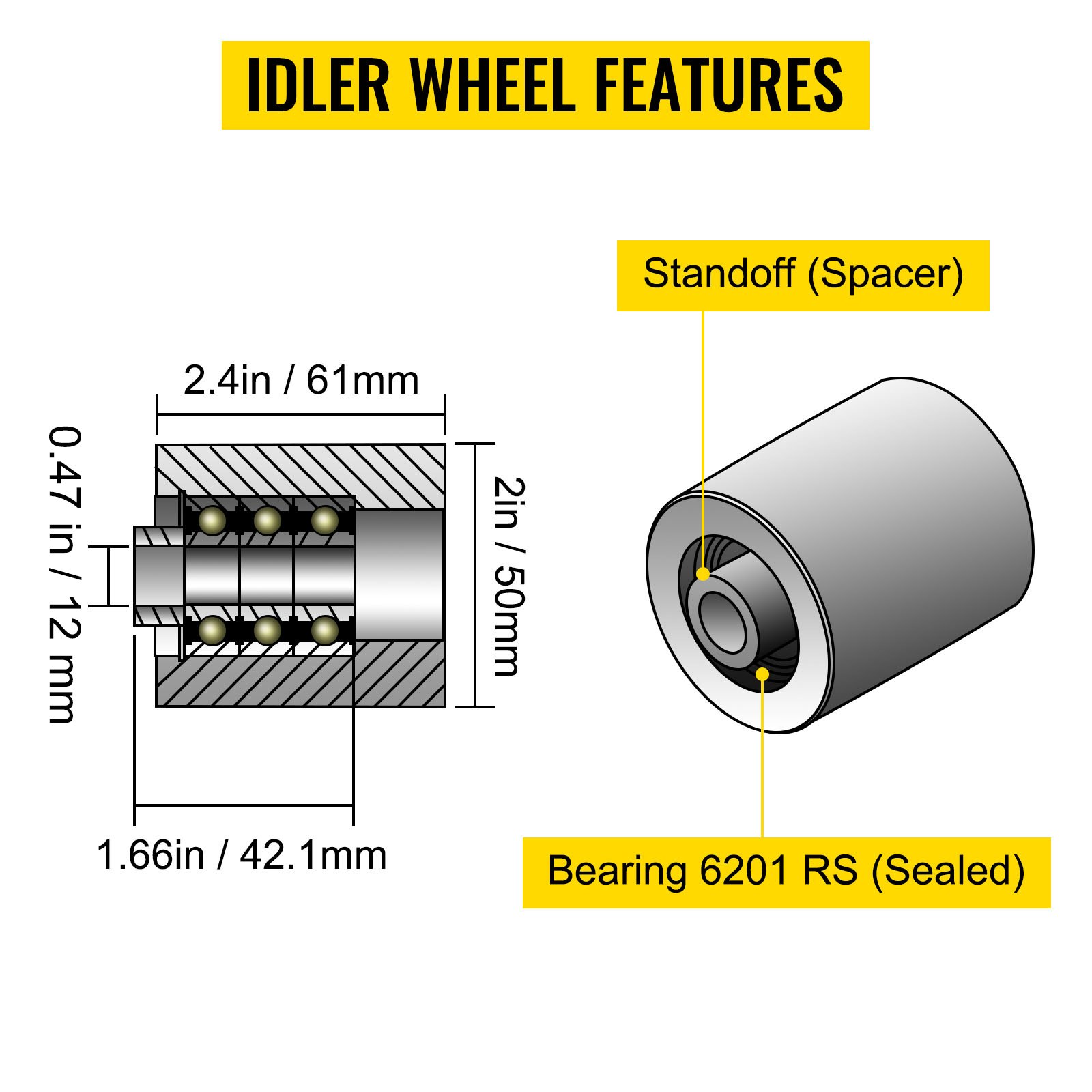

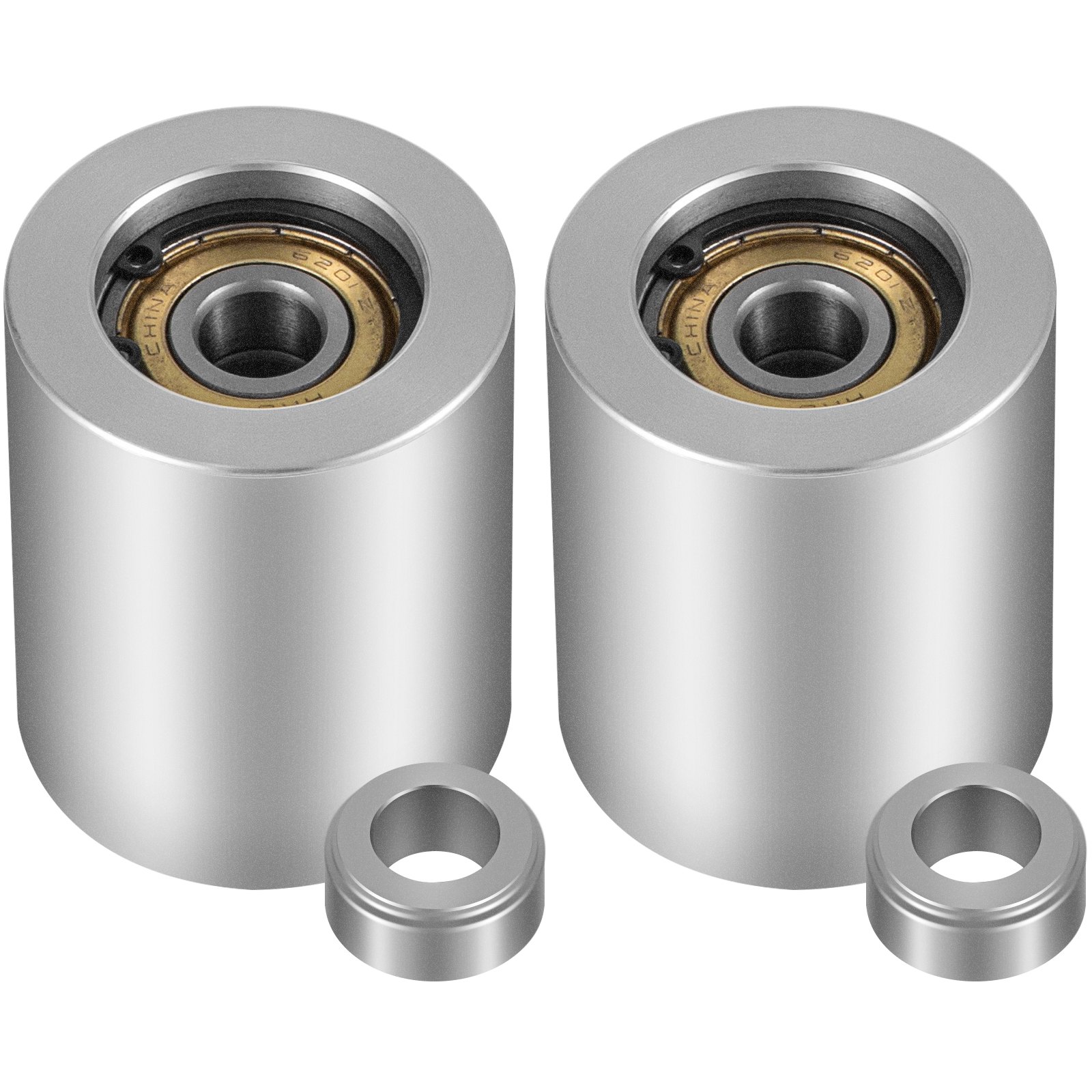

idler wheel features and dimensions for VEVOR belt grinder with labeled bearings and spacers.
Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch wide standoff (sleeve) will raise the wheel of the mounting plate.

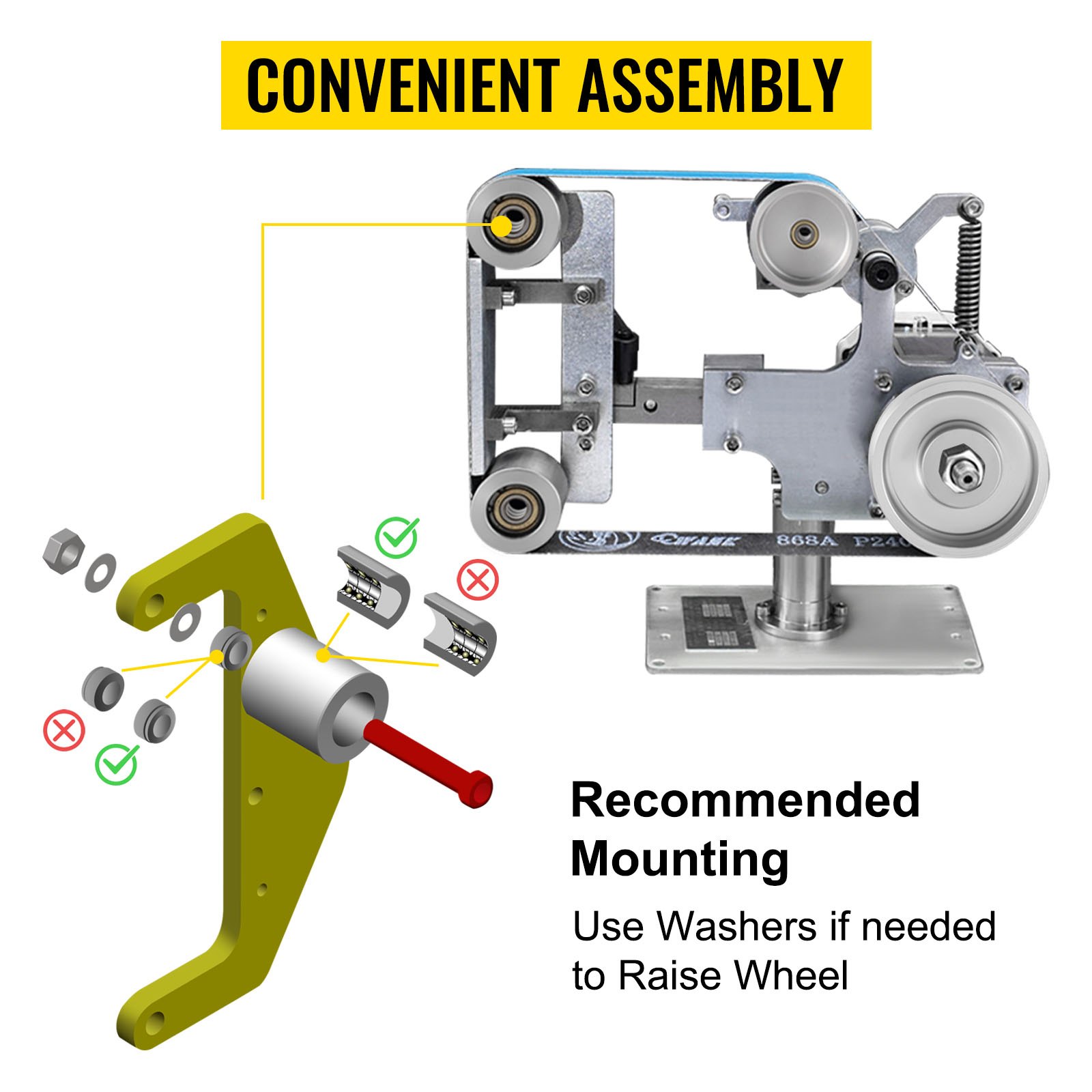

VEVOR belt grinder assembly guide with recommended mounting instructions.
Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.

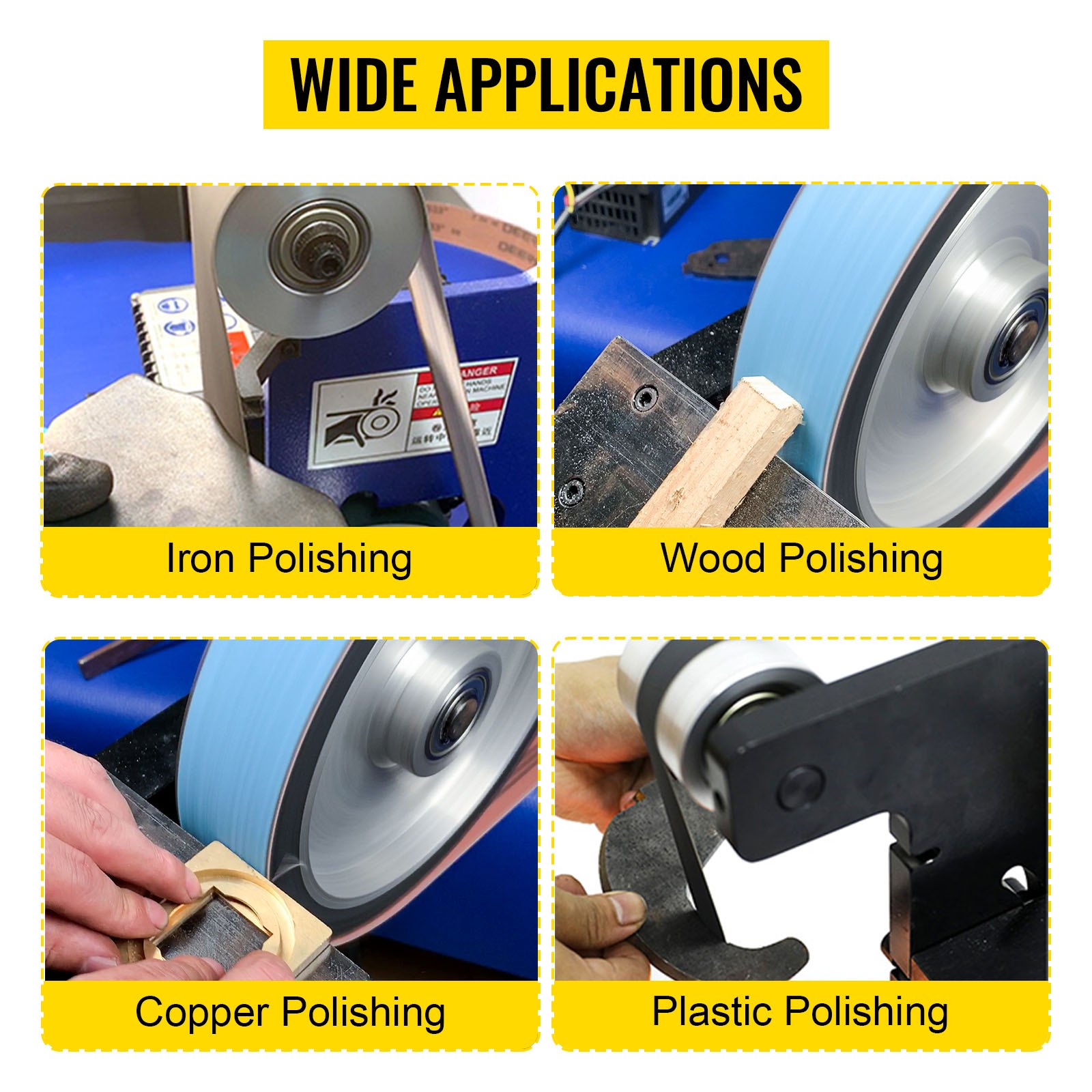

VEVOR belt grinder polishing iron, wood, copper, and plastic with diverse applications.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.

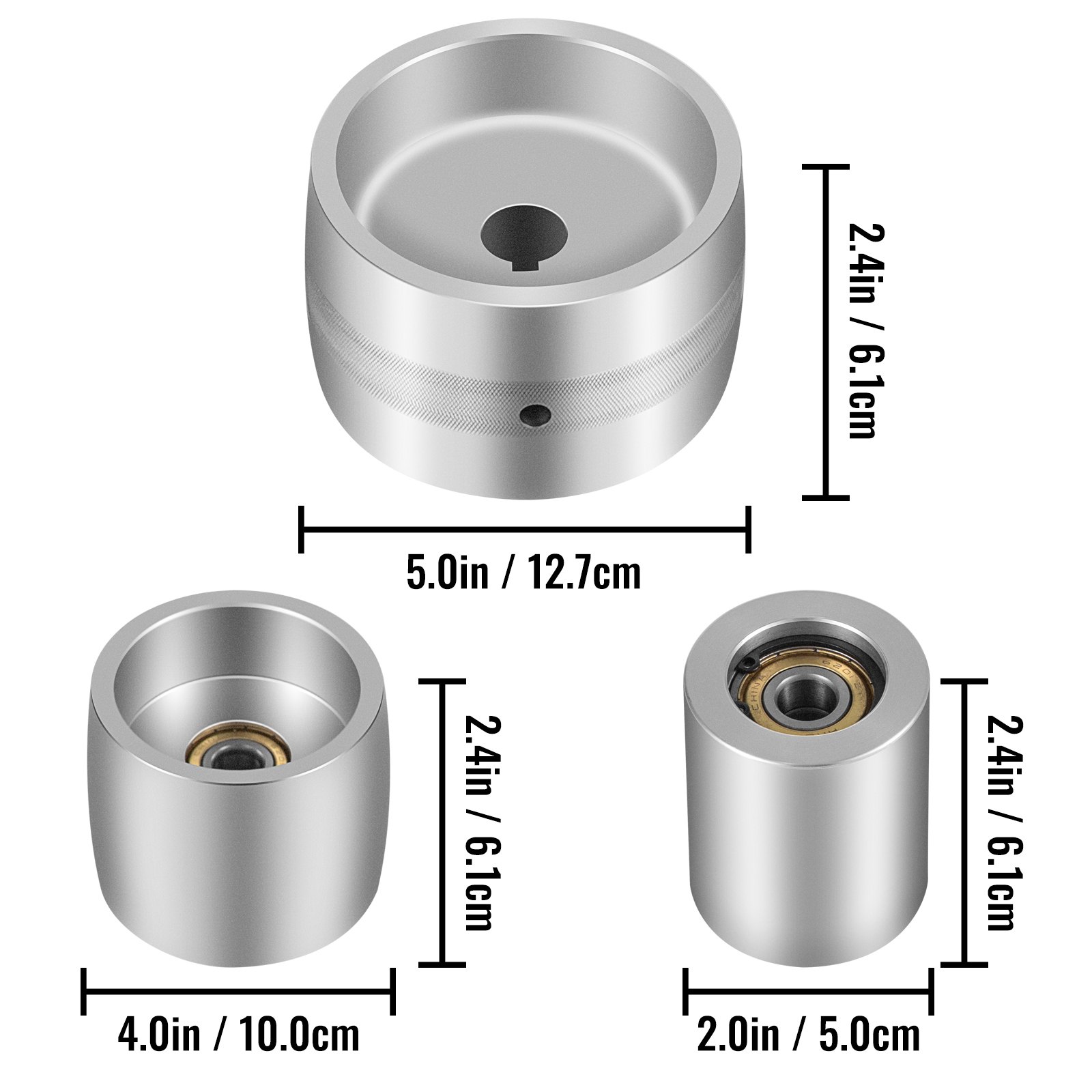

VEVOR belt grinder wheels with dimensions: 5x2.4, 4x2.4, and 2x2.4 inches.
Specifications
  • Model: VV-BGW-55824
  • Drive Wheel Diameter: 5 inch/127 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 5/8 inch/16 mm
  • Keyway: 3/16 inch/5 mm
  • Tracking Wheel Diameter: 4 inch/100 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 4.83 lbs/2.19 kg
VEVOR belt grinder replacement rollers and nuts in various sizes and shapes.
Package Content
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Instruction
VEVOR belt grinder wheel set, 2"x72", 6061-t6 aluminum machine on a concrete surface.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR belt grinder parts, including rollers and bearings arranged on a white background.
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 5" Drive Wheel
  • 4" Tracking & 2" Idler Wheel
  • Easy Installation
anodized embossed t6061 aluminum with high strength and corrosion proof features.
Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.
VEVOR belt grinder drive wheel features: 5/8in hole, crowned surface, 3/16in keyway.
Drive Wheel Features
The drive wheel is 5" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 5/8 inch bore with a 3/16 inch keyway.
tracking wheel features for VEVOR belt grinder, dimensions labeled with specifications.
Tracking Wheel Features
The 4" tracking wheel is 4" in diameter and 2.4" wide. It has three 6201 bearings (7/16") installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.
idler wheel features and dimensions for VEVOR belt grinder with labeled bearings and spacers.
Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch wide standoff (sleeve) will raise the wheel of the mounting plate.
VEVOR belt grinder assembly guide with recommended mounting instructions.
Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.
VEVOR belt grinder polishing iron, wood, copper, and plastic with diverse applications.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.
VEVOR belt grinder replacement rollers and nuts in various sizes and shapes.
Package Content
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Instruction
VEVOR belt grinder wheels with dimensions: 5x2.4, 4x2.4, and 2x2.4 inches.
Specifications
  • Model: VV-BGW-55824
  • Drive Wheel Diameter: 5 inch/127 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 5/8 inch/16 mm
  • Keyway: 3/16 inch/5 mm
  • Tracking Wheel Diameter: 4 inch/100 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 4.83 lbs/2.19 kg

Belt Grinder Wheel Set Enhances Grinding Efficiency

This belt grinder wheel set improves your grinder's performance. The 5-inch drive wheel increases belt speed significantly. This boost in speed makes grinding tasks faster and more efficient. Precision machining ensures that the wheels fit perfectly onto your grinder. The set includes a 5-inch drive wheel, making it easier to make an informed purchase without extensive research. A 4-inch tracking wheel and a 2-inch idler wheel are also included. These wheels work together to enhance your grinding experience. High-quality aluminum construction provides durability. This upgrade is essential for any serious grinder user. Enjoy smoother and quicker grinding with this wheelset. The increase in belt speed is immediately visible. It essentially transforms your grinding projects.


Precision-Machined Aluminum for Durability and Accuracy

The VEVOR belt grinder wheelset is made from solid aluminum. This material ensures both durability and precision, making each wheel exactly fit. The accurate dimensions make installation quick and easy. These wheels are free of tooling marks, ensuring a smooth finish. Heavy-duty construction means these wheels will last a long time. The set is designed to handle heavy grinding tasks without issue. Precision machining ensures the wheels run true. This accuracy is important for detailed grinding work. You can trust these wheels to hold up under regular use. The aluminum construction makes them resistant to wear and tear.


Quick and Easy Installation Saves Time and Effort

The installation process is so simple. It takes just a few minutes, saving you time and effort. The wheels are designed to fit perfectly, making the installation hassle-free. You won't need special tools to set up these wheels. Clear instructions make the process even simpler. This quick installation means you can start grinding sooner. Both beginners and experienced users will appreciate the easy setup. The time saved on installation can be used for more productive tasks. This convenience makes the wheelset a valuable addition to your grinder.


Responsive Seller and Reliable Customer Support

VEVOR is known for its responsiveness and support. If you have any issues or questions, they are quick to help. This reliable support ensures you get the most from your purchase. The seller's quick response time is a major advantage. You can trust that any concerns will be answered promptly. This level of customer service adds value to the product. Knowing you have support behind your purchases gives you peace of mind. The seller’s dedication to customer satisfaction is clear. So, you can count on them for any help you need with the item.


High-Quality Bearings Ensure Smooth Operation

The VEVOR belt grinder wheel set features high-quality bearings. These bearings ensure smooth and quiet operation. They are designed to handle high speeds without issue. The smooth operation makes grinding tasks more enjoyable. Our bearings are precisely machined to the highest quality standards for optimal performance. It reduces the need for frequent replacements in their performance. The quality of these bearings shines through their performance. You can trust them to keep your grinder running smoothly. This feature is important for consistent and reliable grinding. All bearing designs enhance the overall value of the wheelset.


Well-Packaged and Delivered Quickly for Immediate Use

The VEVOR belt grinder wheel set is well-packaged for safe delivery. The packaging ensures the wheels arrive without any damage. Quick delivery means you can start using them immediately. Efficient packaging and delivery add to the convenience of the product. You won't have to wait long to upgrade your grinder. These wheels are ready to install as soon as they arrive. This immediate usability is a major benefit. Start experiencing the improved grinding performance right away. Well-packed delivery ensures your product arrives in perfect condition.


Cost-Effective Upgrade for Enhanced Grinding Performance

It is cost-effective to upgrade to the VEVOR belt grinder wheel set. Just like the significant performance boost, the price is reasonable considering the major performance increase. Belt speed and precision machining make a noticeable difference. This upgrade is an investment in your grinding projects. The cost is justified by the improved efficiency and durability. You get high-quality wheels without breaking the bank. Cost-efficiency makes this product available to countless users. Both hobbyists and professionals can benefit from enhanced grinding performance.


See More

Specification

Model
VV-BGW-55824
Drive Wheel Diameter
5 inch/127 mm
Drive Wheel Width
2.4 inch/61 mm
Bore
5/8 inch/16 mm
Keyway
3/16 inch/5 mm
Tracking Wheel Diameter
4 inch/100 mm
Idler Wheel Diameter
2 inch/50 mm
Tracking/Idler Wheel Width
2.4 inch/61 mm
Standoff Width
3/8 inch/9.5 mm
Product Weight
4.83 lbs/2.19 kg
Questions and Answers
1 Questions
What size set screw fits in it
M6 will be fine
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
28 Review(s)
Clear filters
Jason R Jason R
Belt grinder wheels
Very nice wheel set. These wheels seem to be made very well, great price!! Won’t know how they truly work until installed.
bill bill
owner
had 5/4 /2 rollers on my 2 x 72 belt grinder , bought this as an upgrade . took 5 minutes to replace my 5" drive roller with this 6" roller .am thrill with the increase in belt speed !!! by all accounts and my best math this increased belt speed by 1000 feet per minute . the differance was immeadiately apparent ! wow , massive improvement for 50.00 .
Edward M. Zimmerman Edward M. Zimmerman
5 inch wheel
The wheel looks good. I will be putting on the belt grinder>
George George
Solid aluminum
Seem to be good quality
azuanatoya azuanatoya
item look good and like in description.
item look good and like in description.
Richard Patterson Richard Patterson
Bearings measure 12mm not 1/2 inch. Everything is precisely machined and high quality
The seller is also very responsive. Everything about these wheels just IS what its supposed to be, numbers are exact. I just happen to have been sent a metric version by mistake but my issue was fixed quickly.
Kerwin & Sandie Scheel Kerwin & Sandie Scheel
The wheel set, well build for my need on the project I am working on.
Wheels round freely as needed.
Eric Eric
Great Wheel set.
Great wheels for my belt grinder. Was shipped out fast, it only took 2 days to receive it...................
Tommy Napier Tommy Napier
belt grinder wheel set
Travis Travis
Very impressed
The package I received was packaged very welland there was no damage. Very well made product no tooling marks or any marks for that matter. Very impressed with the quality
