VEVOR hydraulic steering kit: components, 20ft hose, hydraulic cylinder. VEVOR hydraulic steering kit for precise control on a boat, supports up to 90hp engines. VEVOR hydraulic steering kit with lock valve, relief valve, and aluminum alloy shell 2x 20ft high-pressure hose with 200bar rating for VEVOR hydraulic steering kit. VEVOR hydraulic steering kit with tilt rod, tiller arm, air bleed nut, and mounting rods. VEVOR hydraulic steering kit chart for engines up to 90hp from various brands. VEVOR hydraulic steering kit with specifications for engine hp, pressure, and dimensions.
XWYYFXB90HP000001V0

VEVOR Hydraulic Steering Kit 90HP Hydraulic Outboard Steering Kit with Helm Pump Cylinder Marine Steering System Kit

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • 90 HP Hydraulic Steering Kit: Our 90 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 20ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys!
  • Two-Way Locking Valve: Our advanced hydraulic pump features a built-in two-way locking valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.
  • 2x20FT Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.

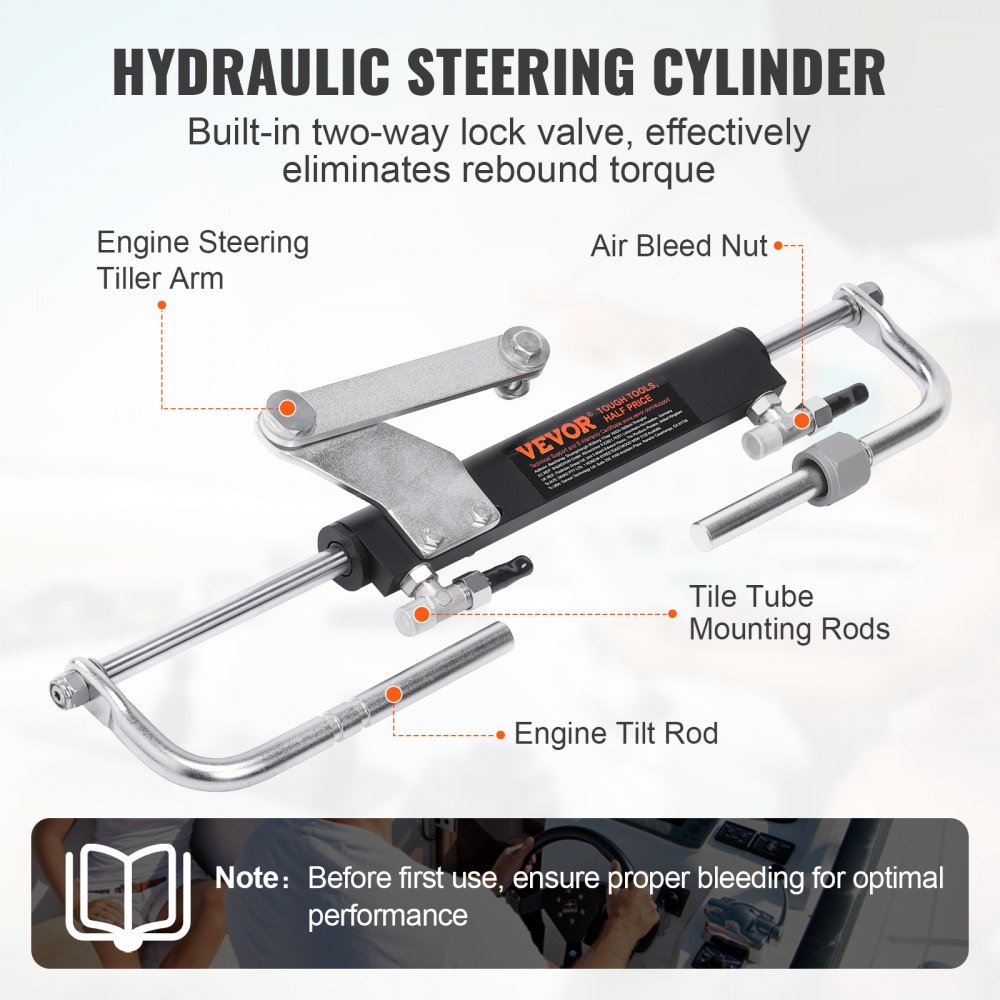

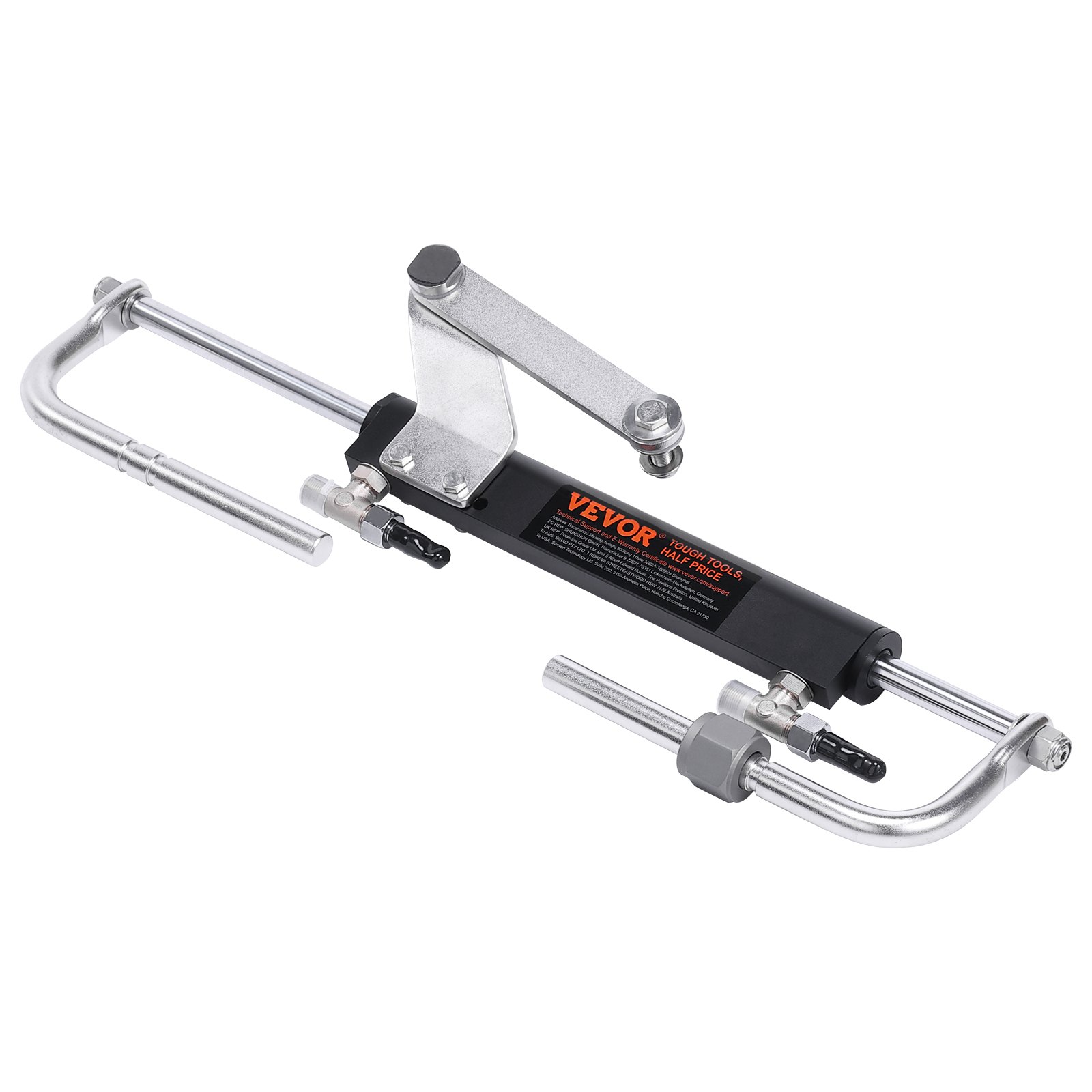

  • High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 232kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.

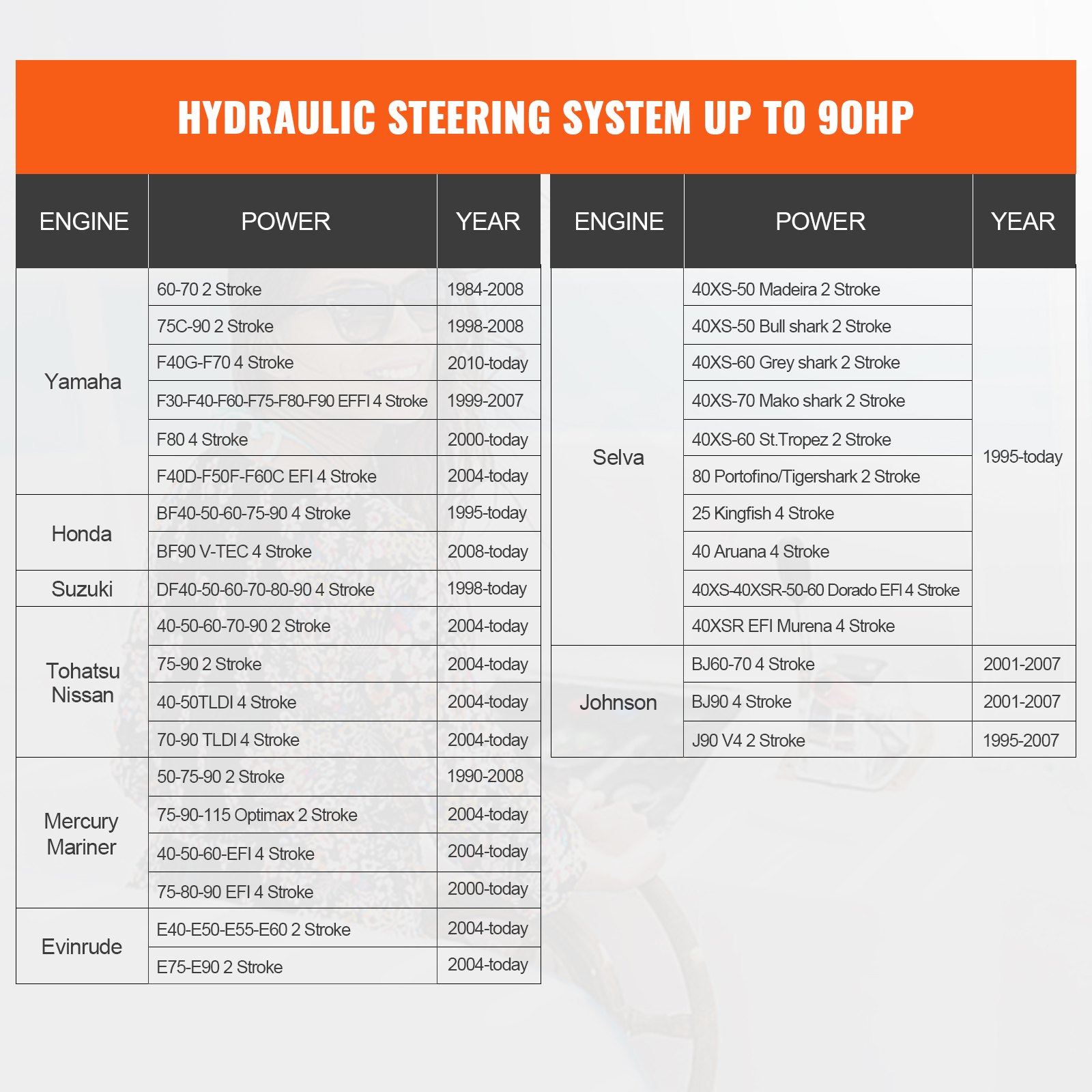

  • Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 90HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Steering Kit 90HP Hydraulic Outboard Steering Kit with Helm Pump Cylinder Marine Steering System Kit
VEVOR hydraulic steering kit for a yacht on the water, ideal for outboard boats.

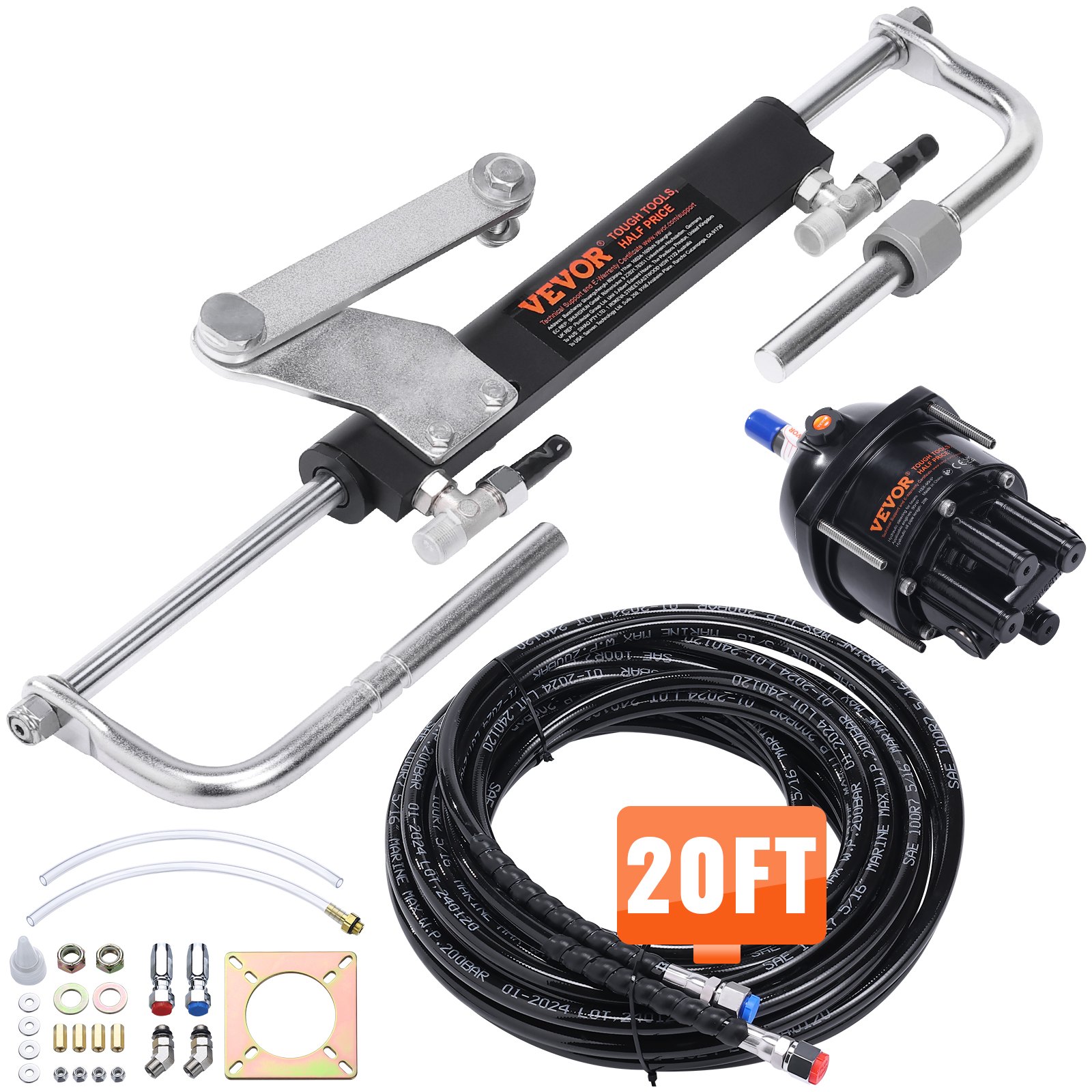

VEVOR hydraulic steering kit, 20ft hose, steering cylinder, and installation hardware.
90HP Hydraulic Outboard Steering System Kit
Our kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.
  • Two-Way Locking Valve
  • 2x20FT Hydraulic Hoses
  • High-Performance Steering Cylinder
  • Engineered for Versatility
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

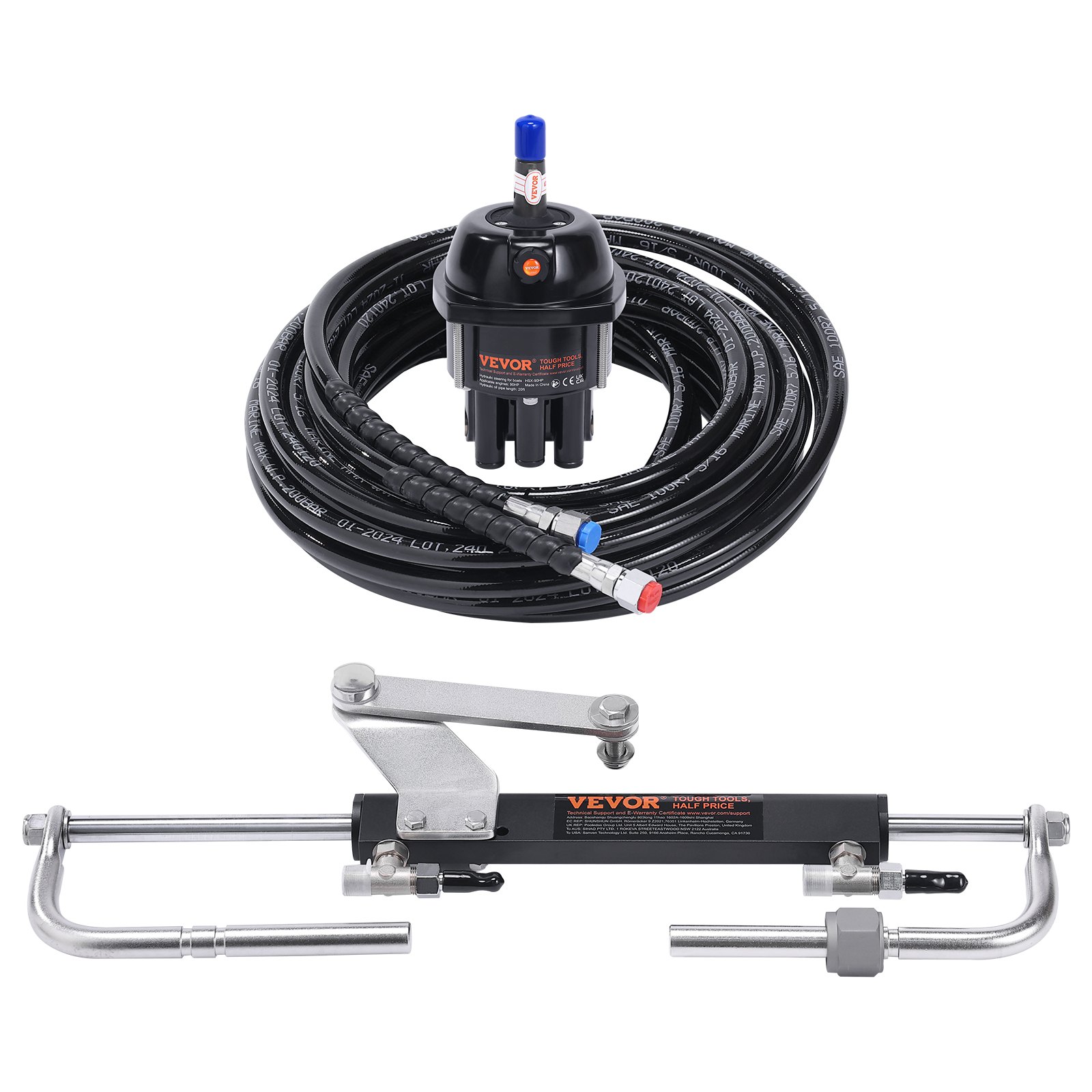

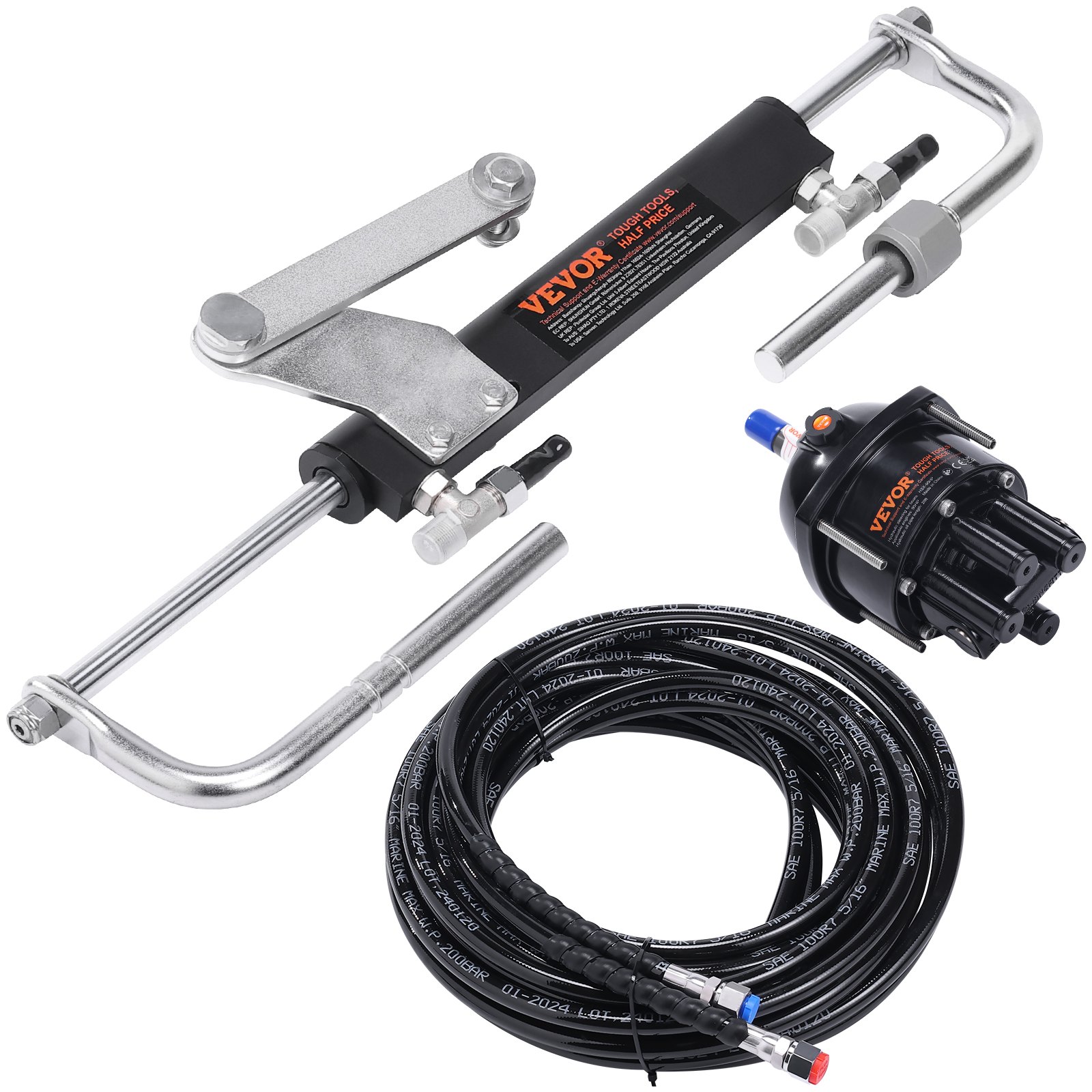

VEVOR hydraulic steering kit with components and coiled hose.
90HP Hydraulic Outboard Steering System Kit
Our kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.

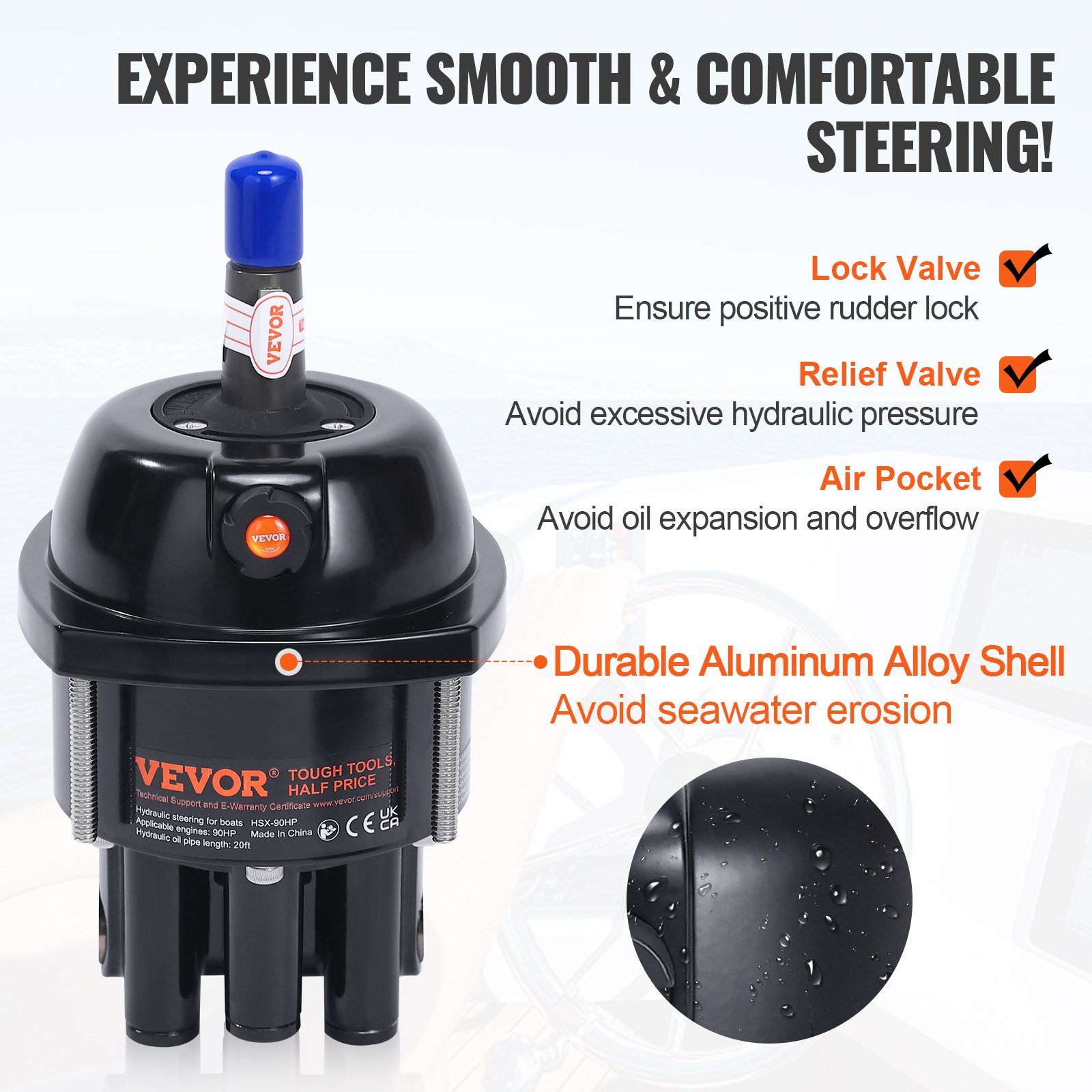

VEVOR hydraulic steering kit with aluminum alloy casing
Easy Maintenance
Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.
VEVOR hydraulic steering kit - compact and neat, efficient, reliable, professional
Fixed-Length Hoses
Our hydraulic steering for boats comes with 20 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.

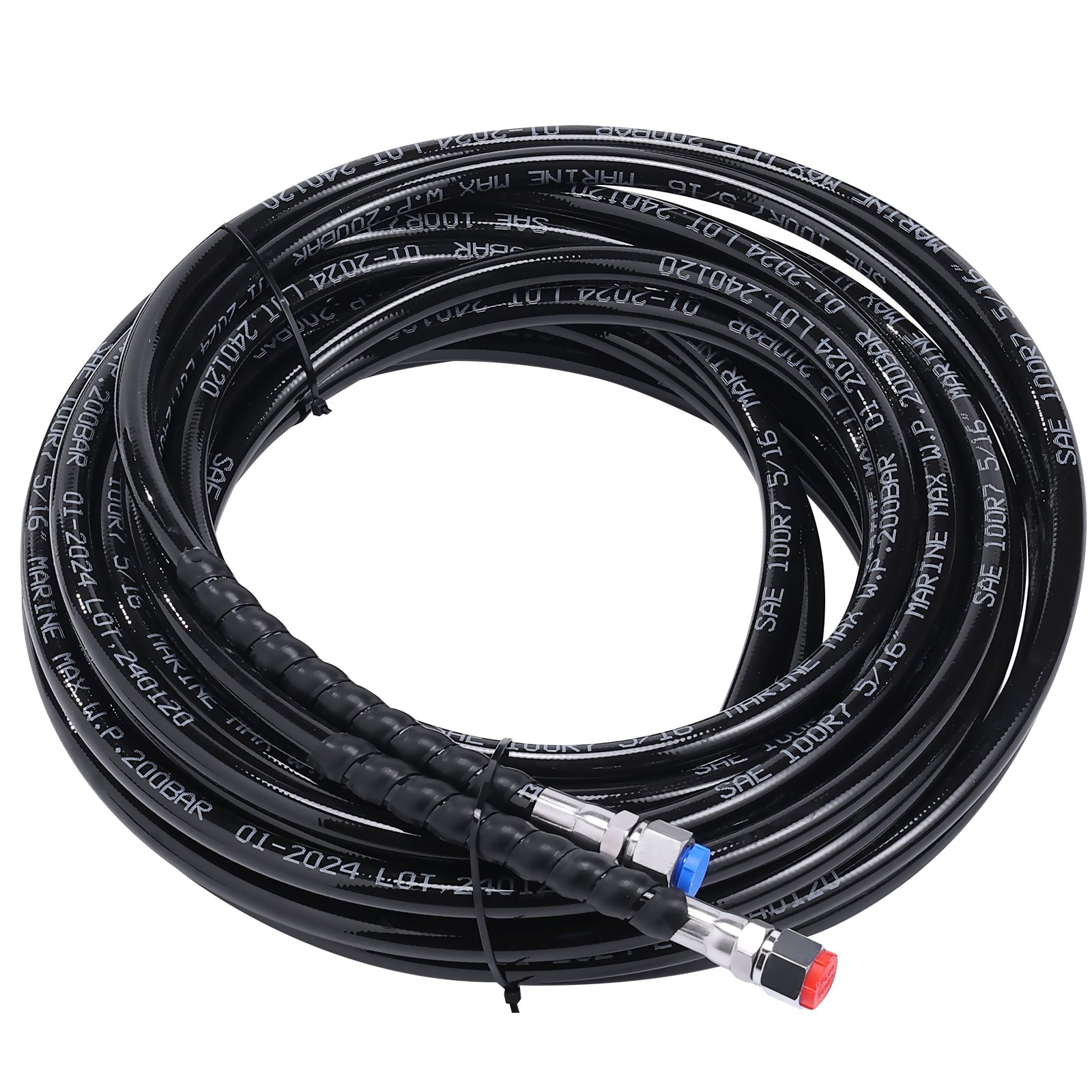

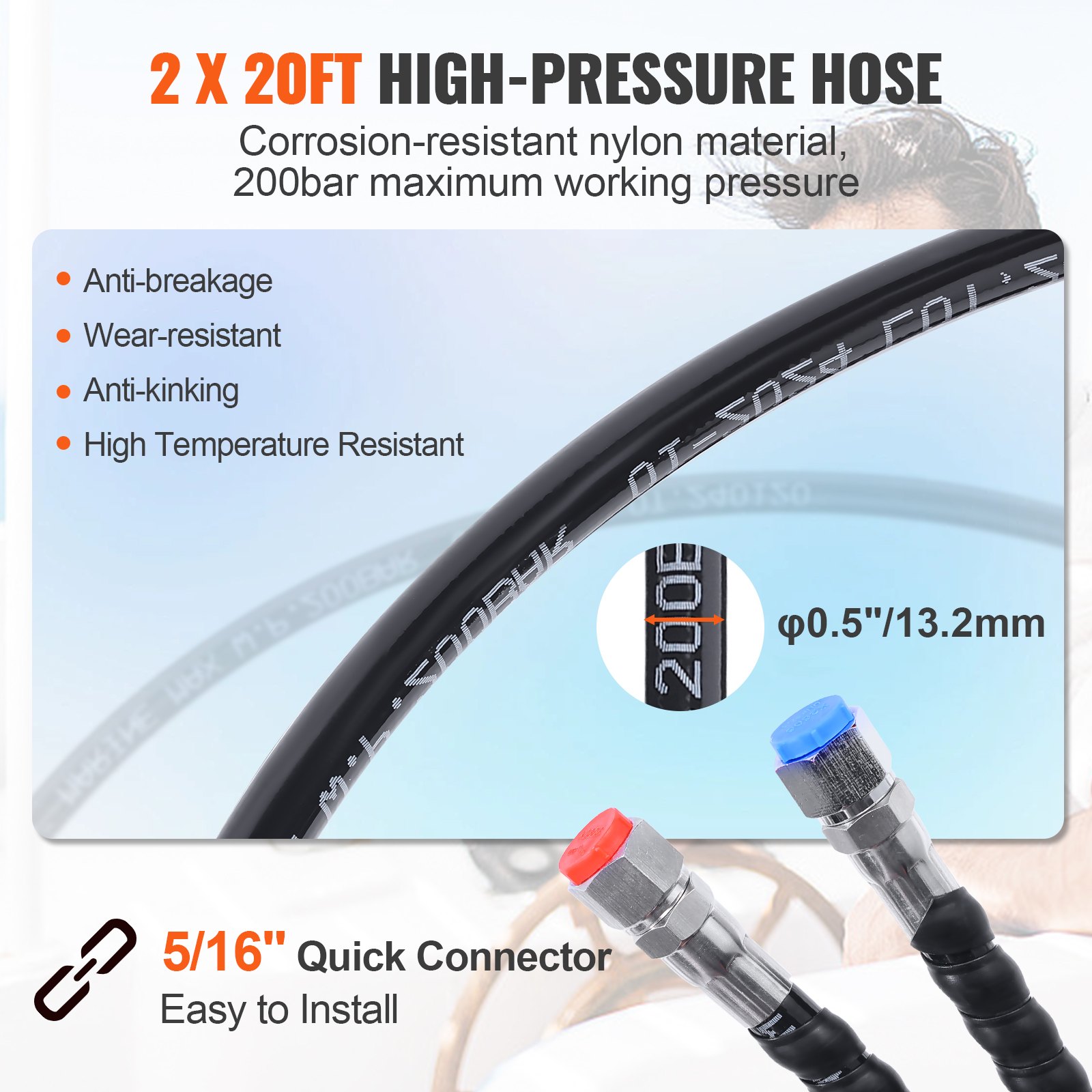

VEVOR hydraulic steering kit high-strength nylon hose with quick-fit 1/4" pipe fitting.
Abundant Accessories
Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.
VEVOR hydraulic steering kit components and hydraulic rubber parts on a white background.
Friendly Reminder
Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.
application scenarios for VEVOR hydraulic steering kit: offshore fishing, ship, flat-bottomed ship, yacht.
Sturdy & Durable
Our hydraulic steering pump body is crafted from premium aluminum alloy to maintain steady performance regardless of damp, rainy, or dusty conditions. We significantly reduce damage caused by environmental factors, ensuring your system operates reliably under any circumstance.

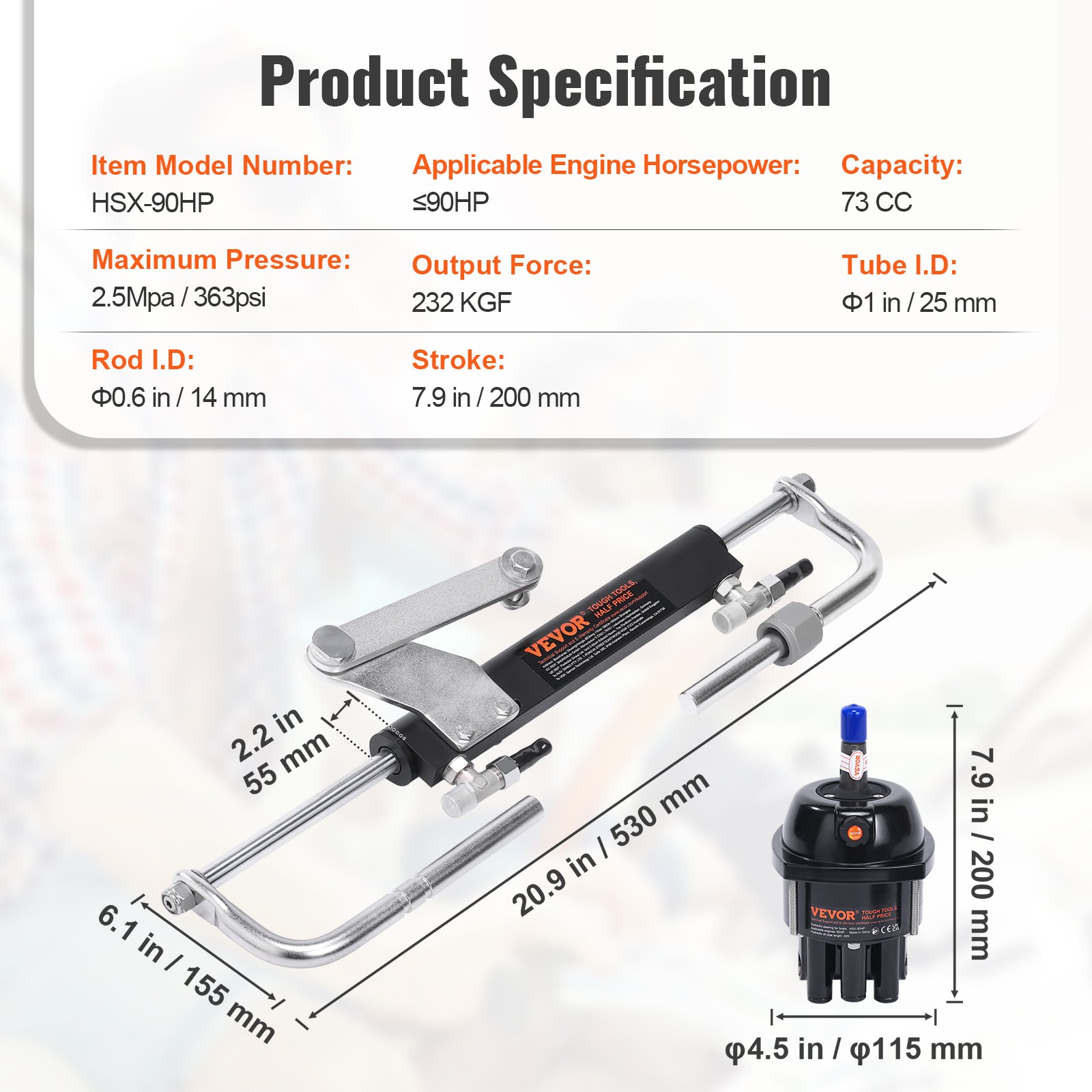

VEVOR hydraulic steering kit with measurements for reference.
Specifications
  • Item Model Number: HSX-90HP
  • Applicable Engine Horsepower: ≤90HP
  • Maximum Pressure: 2.5Mpa/363psi
  • Output Force: 232 KGF
  • Capacity: 73 cc
  • Tube I.D: Φ1 in/25 mm
  • Rod I.D: Φ0.6 in/14 mm
  • Stroke: 7.9 in/200 mm
VEVOR hydraulic steering kit components including cylinder, hose, and helm unit.
Package Content
  • 1 x Hydraulic Steering Pump
  • 1 x Hydraulic Steering Cylinder
  • 2 x High-Pressure Oil Hoses
  • 1 x User Manual
VEVOR hydraulic steering kit for a yacht on the water, ideal for outboard boats.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic steering kit, 20ft hose, steering cylinder, and installation hardware.
90HP Hydraulic Outboard Steering System Kit
Our kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.
  • Two-Way Locking Valve
  • 2x20FT Hydraulic Hoses
  • High-Performance Steering Cylinder
  • Engineered for Versatility
VEVOR hydraulic steering kit with components and coiled hose.
90HP Hydraulic Outboard Steering System Kit
Our kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.
VEVOR hydraulic steering kit with aluminum alloy casing
Easy Maintenance
Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.
VEVOR hydraulic steering kit - compact and neat, efficient, reliable, professional
Fixed-Length Hoses
Our hydraulic steering for boats comes with 20 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.
VEVOR hydraulic steering kit high-strength nylon hose with quick-fit 1/4" pipe fitting.
Abundant Accessories
Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.
VEVOR hydraulic steering kit components and hydraulic rubber parts on a white background.
Friendly Reminder
Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.
application scenarios for VEVOR hydraulic steering kit: offshore fishing, ship, flat-bottomed ship, yacht.
Sturdy & Durable
Our hydraulic steering pump body is crafted from premium aluminum alloy to maintain steady performance regardless of damp, rainy, or dusty conditions. We significantly reduce damage caused by environmental factors, ensuring your system operates reliably under any circumstance.
VEVOR hydraulic steering kit components including cylinder, hose, and helm unit.
Package Content
  • 1 x Hydraulic Steering Pump
  • 1 x Hydraulic Steering Cylinder
  • 2 x High-Pressure Oil Hoses
  • 1 x User Manual
VEVOR hydraulic steering kit with measurements for reference.
Specifications
  • Item Model Number: HSX-90HP
  • Applicable Engine Horsepower: ≤90HP
  • Maximum Pressure: 2.5Mpa/363psi
  • Output Force: 232 KGF
  • Capacity: 73 cc
  • Tube I.D: Φ1 in/25 mm
  • Rod I.D: Φ0.6 in/14 mm
  • Stroke: 7.9 in/200 mm

Make Steering Your Boat Better Without Much Effort

Efficiently control your operation with this hydraulic steering kit. With 20ft high-pressure hoses, and a two-way locking valve, this steering kit is entirely reliable for upgrading your steering system perfectly. Made of premium quality material for ultimate durability and compatibility with 15HP outboard motors of different brands, this steering kit comes with all accessories for effortless installation. So, get your hands on this marine hydraulic steering and revolutionize your boat-controlling system.


Premium Quality for Lasting Use

Aluminum alloy is the most recommended material to make a steering kit since it is highly durable. It resists rust, corrosion, and degradation even in continual and high uses. It is also lightweight so everyone can use it without any worry where weight is a major concern.


Moreover, its lightweight helps the user to handle the steering system easily. The aluminum alloy also features heat dissipation properties that prevent overheating and ensure consistent performance even under heavy use.


Here, the VEVOR hydraulic steering kit is made of premium aluminum alloy. It’s lightweight, corrosion- and rust-resistant, and it dissipates heat. So, don’t think twice if you’re looking for a high-quality marine steering system for long-lasting use.


Advanced Mechanism for Smooth Operation

What if you are in the sea and your boat’s steering system stops working? Your life is in danger. So, make sure you get a marine steering system kit equipped with advanced mechanisms to handle emergency situations.


Here. the VEVOR hydraulic steering kit has cutting-edge technology to operate properly. Its dual-directional valve sends the liquid in two different directions as needed. This means it helps to move the boat in two different directions. However, its locking feature keeps the steer fixed in one place, avoiding an unexpected movement.


The relief valve prevents the pressure from getting too high, protecting the pump and other parts from damage. However, the air pocket prevents sudden changes in the pressure that can cause problems.


Great for Multiple Applications

If a steering kit has a wider range of compatibility, it will be highly beneficial for you. You can easily use it with any vehicle without arranging another steering kit for a specific steering kit. This approach will prove highly flexible, saving your money and time.


So, the VEVOR hydraulic boat steering kit is compatible with outboard motors up to 150HP. You can easily use it with vehicles of different brands, such as Honda, Nissan, Tohatsu, Mercury, Yamaha, Suzuki, etc. Also, feel free to use this steering kit for Offshore fishing, ships, yachts, flat-bottomed ships, and more. Don’t think twice about integrating this steering kit with top brands to have full control on the steering system. Order your today!


What Customers Say About This Hydraulic Steering Kit

The major feature that was appreciated by most customers was the easy installation of this hydraulic steering system. The customer said that the instructions were well explained in simple language. Moreover, they mentioned that this steering kit came with a complete package that proved time-saving and cost-effective for them.


Many customers praised the high build and premium quality of this marine steering kit. Many customers mentioned that the care team was super supportive and professional as it sorted out their queries quickly. Overall, the customers found this steering system a great volume for money as it met their expectations at affordable prices. So, don’t delay more about buying this marine steering system kit if you want to get high-quality at an inexpensive cost.


See More

Specification

Model
Hydraulic Boat Steering Kit
Application
Up to 90HP
Max Pressure
4.5Mpa (650psi)
Output Force
232 kgf
Volume
73cc
Tube I.D
Φ25 mm
Rod I.D
Φ14 mm
Strode
200 mm
Questions and Answers
37 Questions
I have a 1983 90HP Evinrude. Would there be any benefit to going with the 150 hp kit or should I stick with the 90 hp kit?
The bigger it is, the faster the machine will be and the steering will be easier.
By vevor
How many turns lock to lock
6.
By vevor
Will this kit matchup with a Mercury 60 4 Stroke outboard jet with powertrim
Yes.
By vevor
What type aka size and thread is the helm nut? 5/8 18? 1/2 20?
This is described in detail in the user manual, which you should review:<br/>https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/1_2_noerl%E8%8B%B1%E6%96%87%E8%AF%B4%E6%98%8E%E4%B9%A6_1650901461319.pdf
By vevor
Will this unit work with a tilt helm i already have on the teleflex cable steering
No, it does not work.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
11 Review(s)
Clear filters
Martin Martin
Owner
Great Quality Product and well made. Easy installation. Installed on my 25hp Merc on my hunt boat with ZERO issues. Smooth silky operation, Highly Recommend!
Tracy Tracy
Perfect
Easy to install and easy to bleed the system.
Protect Lift Protect Lift
Nice product
You’re not buying this unless you know what you’re doing so not sure what good a review would do. This was installed in place of a cabled installation with a tight bend. Went through 2 cables in as many years. This was super easy to bleed and man what a difference!
SEA MONKEY SEA MONKEY
Captain
I have installed several different brands of hydraulic steering. This is by far the most complete best value highest quality components I have ever installed
Todd Theodore Todd Theodore
Good Purchase
Seems of good quality for the money. Instructions could be re-written to be more clear and helpful. Not the easiest thing in the world to install yourself. I had to watch a bunch of YouTube videos to really figure it out. Hopefully, it will hold up and prove to be the good purchase that it seems to be.
Let's Go Brandon Let's Go Brandon
President
I am shocked by the performance and quality of this steering kit. Easy to assemble, smooth as silk and overall very good quality. 2001 Fisher 17 / 70 hp Yamaha Oh, and FJB - both of them.
Mike Mike
Mike
Product is ok. Shipping from VEVOR sucks though!! If I had known it would take so long, I would have looked elsewhere, I will next time, won't ever shop VEVOR again!!
Kirk Batsel Kirk Batsel
Owner
Nice unit for smaller applications. I noticed that recently there has been a change to a brushed metal look verses the original al chrome in the connector arm.
Boater dog Boater dog
Hydraulic steering
Great product with exceptional quality, easy to install, very happy with item purchased for my boat restoration project this summer
Christopher Wilke Christopher Wilke
Works just like SeaStar
I purchased this for my 1973 Boston Whaler 13 with a 2014 25 HP Yamaha. I had a marine mechanic install it and he said it wasn't difficult. Looks good and its working great on my whaler. I would definitely recommend this because its less expensive and works just as well.
