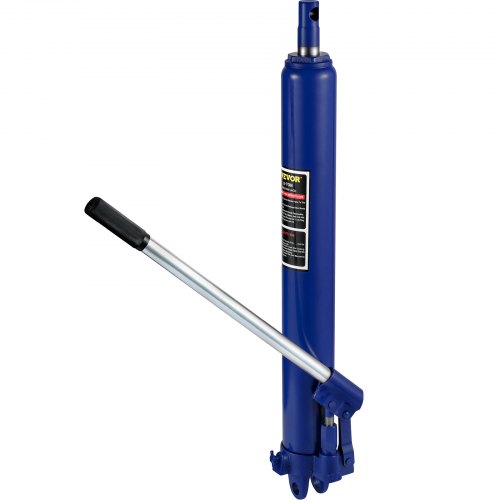

blue VEVOR hydraulic long ram jack with handle for lifting heavy loads. VEVOR hydraulic long ram jack lifting engine in a garage setting. VEVOR hydraulic long ram jack with 26"-45.7" lifting range and 3.1" cylinder diameter. VEVOR hydraulic long ram jack with large dia. cylinder, oil bypass, and y-style sealing ring. VEVOR hydraulic long ram jack with single piston pump and clevis style base. VEVOR hydraulic long ram jack featuring high-grade steel and lead-free paint. VEVOR hydraulic long ram jack: product specifications and usage scenarios.
ZGYYQJDLSDG8TK6M6V0

VEVOR Hydraulic Long Ram Jack, 8 Tons/17363 lbs Capacity, with Single Piston Pump and Clevis Base, Manual Cherry Picker w/Handle, for Garage/Shop Cranes, Engine Lift Hoist, Blue

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

8 T

  • 3 T
  • 12 T
  • 8 T

Blue

  • Black
  • Red
  • Blue

Single Cylinder

  • Single Cylinder
  • Double Cylinder

About this item

  • Handles up to 8-Ton/17363 lbs: This 8-Ton capacity long ram hydraulic jack helps you convert your existing hoist to a convenient and fast one. A quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications.
  • 26" -45.7" Lifting Range: Minimum height: 26 in/66 cm. Maximum height: 45.7 in/116 cm. The long ram hydraulic round bottom jack provides an ample 19.7 in/50 cm stroke for the optimal lift of objects up to 8 ton/17363 lb. in weight. And the slow release function for reliability and security.
  • Reliable & Durable Jack: Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life. The piston-ram is treated and polished to resist skiving and utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing the load from falling slowly or bypassing oil drift.
  • Labor-saving Long Ram: Long ram jack features a convenient handle with a rubberized comfort grip. Clevis style base allows the jack mounts directly onto most shop cranes. And the glide-action pressure pump is designed to lift with minimal muscle and effort.
  • Sturdy Steel Construction: Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability. A lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish. Paint is oil, grease, and dirt-resistance for easy cleanup.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Long Ram Jack, 8 Tons/17363 lbs Capacity, with Single Piston Pump and Clevis Base, Manual Cherry Picker w/Handle, for Garage/Shop Cranes, Engine Lift Hoist, Blue
8 T Blue Single Cylinder
VEVOR 8-ton hydraulic long ram jack lifting engine in a workshop with rapid heating.
blue VEVOR hydraulic long ram jack with black handle and label detailing.
8-Ton/17363 lbs Hydraulic Long Ram Jack
Sturdy & Durable & Great Helper
This VEVOR 8-Ton capacity long ram hydraulic jack helps you convert your existing hydraulic hoist to a convenient and fast hoist. It is a quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications. Mounts directly onto most shop cranes. Vertical use only.
  • Handles up to 8-Ton/17363 lbs
  • 26" -45.7" Lifting Range
  • Reliable & Durable Jack
  • Labor-saving Long Ram
  • Sturdy Steel Construction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic long ram jack lifting heavy load with 8-ton capacity in a warehouse.
8-Ton/17363 lbs Load Capacity
With 8 tons/17363 lbs of load-bearing capacity, the long ram jack easily supports your shop cranes, engine hoist, and more. Save your effort and time.
VEVOR hydraulic long ram jack with 26"-45.7" lifting range and 50cm stroke
26 "-45.7" Lifting Range
The long ram jack features a lifting range from 26" to 45.7" with an ample 19.7 in. stroke. Lift your hoist with ease!
VEVOR hydraulic long ram jack with overload valve and y-style sealing ring.
Hydraulic Steel Cylinder
Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits.
VEVOR hydraulic long ram jack with single piston pump and clevis style base.
Single Piston Pump & Clevis Base
The pressure pump is designed to lift with minimal muscle and effort. And clevis style base allows it to mount directly onto most shop cranes.
VEVOR hydraulic long ram jack with a high-grade steel, powder-coated, lead-free paint.
High-grade Steel Structure
The long ram jack is constructed of heavy-duty steel for added strength. It is treated with powder-coated, lead-free paint, providing a durable coating.
VEVOR hydraulic long ram jack in outdoor and indoor applications.
Residential and Commercial Use
Our hydraulic long ram jack is intended for residential and commercial use, fitting garage/shop cranes, engine hoists, and more.
VEVOR hydraulic long ram jack with dimensions 26in/66cm and 45.7in/116cm.
Specifications
  • Model: VV-CGQJD-LDJ-8T
  • Lifting Capacity: 8 Tons/17363 lbs
  • Min. Lift Height: 26 in/66 cm
  • Max. Lift Height: 45.7 in/116 cm
  • Stoke: 19.7 in/50 cm
  • Drive: Hydraulic
  • Piston Rod Dia: 1.2 in/3 cm
  • Pinhole Dia.: 0.7 in/1.7 cm
  • Diameter: 3.1 in/8 cm
  • Weight: 20.5 lb/9.3 kg
blue VEVOR hydraulic long ram jack with handle, ideal for lifting heavy objects.
Package Content
  • 1 x Hydraulic Long Ram Jack
  • 1 x Handle
VEVOR 8-ton hydraulic long ram jack lifting engine in a workshop with rapid heating.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
blue VEVOR hydraulic long ram jack with black handle and label detailing.
8-Ton/17363 lbs Hydraulic Long Ram Jack
Sturdy & Durable & Great Helper
This VEVOR 8-Ton capacity long ram hydraulic jack helps you convert your existing hydraulic hoist to a convenient and fast hoist. It is a quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications. Mounts directly onto most shop cranes. Vertical use only.
  • Handles up to 8-Ton/17363 lbs
  • 26" -45.7" Lifting Range
  • Reliable & Durable Jack
  • Labor-saving Long Ram
  • Sturdy Steel Construction
VEVOR hydraulic long ram jack lifting heavy load with 8-ton capacity in a warehouse.
8-Ton/17363 lbs Load Capacity
With 8 tons/17363 lbs of load-bearing capacity, the long ram jack easily supports your shop cranes, engine hoist, and more. Save your effort and time.
VEVOR hydraulic long ram jack with 26"-45.7" lifting range and 50cm stroke
26 "-45.7" Lifting Range
The long ram jack features a lifting range from 26" to 45.7" with an ample 19.7 in. stroke. Lift your hoist with ease!
VEVOR hydraulic long ram jack with overload valve and y-style sealing ring.
Hydraulic Steel Cylinder
Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits.
VEVOR hydraulic long ram jack with single piston pump and clevis style base.
Single Piston Pump & Clevis Base
The pressure pump is designed to lift with minimal muscle and effort. And clevis style base allows it to mount directly onto most shop cranes.
VEVOR hydraulic long ram jack with a high-grade steel, powder-coated, lead-free paint.
High-grade Steel Structure
The long ram jack is constructed of heavy-duty steel for added strength. It is treated with powder-coated, lead-free paint, providing a durable coating.
VEVOR hydraulic long ram jack in outdoor and indoor applications.
Residential and Commercial Use
Our hydraulic long ram jack is intended for residential and commercial use, fitting garage/shop cranes, engine hoists, and more.
blue VEVOR hydraulic long ram jack with handle, ideal for lifting heavy objects.
Package Content
  • 1 x Hydraulic Long Ram Jack
  • 1 x Handle
VEVOR hydraulic long ram jack with dimensions 26in/66cm and 45.7in/116cm.
Specifications
  • Model: VV-CGQJD-LDJ-8T
  • Lifting Capacity: 8 Tons/17363 lbs
  • Min. Lift Height: 26 in/66 cm
  • Max. Lift Height: 45.7 in/116 cm
  • Stoke: 19.7 in/50 cm
  • Drive: Hydraulic
  • Piston Rod Dia: 1.2 in/3 cm
  • Pinhole Dia.: 0.7 in/1.7 cm
  • Diameter: 3.1 in/8 cm
  • Weight: 20.5 lb/9.3 kg

Hydraulic Long Ram Jack with 8 Tons Capacity for Heavy-Duty Lifting

VEVOR hydraulic long ram jack has a lifting capacity of 8 tons, making it the best tool for any garage or workshop. This high capacity ensures safety and efficiency in lifting operations. It certainly provides a reliable solution for numerous lifting challenges.


Durable Hydraulic Steel Cylinder for Extended Service Life

The design of the jack reduces the oil pressure required to lift loads, thereby extending its service life. The strong steel construction makes it resistant to wear and tear. With a polished piston ram, it becomes resistant to skiving and ensures smooth operation. A Y-style polyurethane sealing ring prevents oil leakage. These things keep the load stable during use. The lead-free paint finish adds to its durability. High-quality materials used in construction ensure long-lasting and reliable performance, even in harsh conditions.


Effortless Operation with Long Ram and Glide-Action Pressure Pump

This manual cherrypicker has a convenient handle with a comfortable grip. It saves labor and reduces muscle effort. Our clevis-style base allows easy mounting on shop cranes. We have a glide-action pressure pump, which makes lifting easy. This feature is especially useful for frequent lifting tasks. This jack is ideal for those who need a dependable and simple-to-use lifting solution, making it a great choice for both professional and home use.


Dual-Pump Mechanism for Efficient Lifting and Positioning

This jack has a dual-pump mechanism, allowing you to lift loads faster. It applies pressure to the ram on both up and down strokes. This design makes lifting large and heavy loads more efficient. This design allows for swift and smooth lifting when necessary. The dual-power structure ensures precise control. There is also an integrated control system that provides easy and accurate positioning for the load. This feature is particularly useful in professional settings for its enhanced productivity and efficiency.


Sturdy Steel Construction Ensures Long-Lasting Performance

This 8-tons capacity jack is made from high-grade steel that guarantees both quality and durability. The lead-free paint finish adds to its longevity, making it resistant to oil, grease, and dirt for easy cleanup. The strong construction ensures a long-lasting finish. The design of this jack allows it to tackle challenging tasks without sacrificing its performance.


Easy Maintenance with Oil-Resistant

This engine lift hoist comes with a lead-free paint finish. This finish is resistant to oil, grease, and dirt. It makes cleaning the jack easy and quick. The high-quality paint ensures enduring performance. You can maintain the appearance and performance of the car in question. Regular maintenance is simple and ensures the machine works smoothly. That's especially beneficial for those who regularly use the hydraulic cylinder. Oil-resistant finish prevents corrosion and rust. This hydraulic long ram jack's durability and longevity are enhanced. The design of this hose ensures effortless maintenance. Therefore, it is an excellent option for any lifting task.


Versatile Use for Garage/Shop Cranes and Engine Lift Hoists

The single-piston pump jack is a reliable and efficient lifting solution for many tasks. This hydraulic long ram Jack is perfect for various lifting tasks, from garages to workshops. It’ll work well with engine hoists or shop cranes. Its wide lifting range enables its use in various applications.


See More

Specification

Model
VV-CGQJD-LDJ-8T
Lifting Capacity
8 Tons/17363 lbs
Min. Lift Height
26 in/66 cm
Max. Lift Height
45.7 in/116 cm
Stoke
19.7 in/50 cm
Drive
Hydraulic
Piston Rod Dia
1.2 in/3 cm
Pinhole Dia.
0.7 in/1.7 cm
Diameter
3.1 in/8 cm
Weight
20.5 lb/9.3 kg
