VEVOR Rotary Table for Milling Machines, 4''/ 100 mm, Horizontal Vertical Model Precision Milling Rotary Table, with 3.1''/80 mm 3-Jaw Chuck M10 T-Bolts Nuts, for Milling Engineering Indexing Tools

See All Customer Reviews
21 Reviews 1 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.
  • Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter: φ 3.1'' / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm. It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm. Enjoy the precise and secure machining of small components!
  • High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale number is 100, while the table itself is marked with 360 degrees. With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation.
  • Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7'' / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2'' / 50 mm. Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights. Additionally, the table's bottom features positioning slots for easy and secure attachment to your milling machine.
  • Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan. Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability. Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Rotary Table for Milling Machines, 4''/ 100 mm, Horizontal Vertical Model Precision Milling Rotary Table, with 3.1''/80 mm 3-Jaw Chuck M10 T-Bolts Nuts, for Milling Engineering Indexing Tools
Description Specification Questions and Answers Reviews
4-Inch Rotary Table for Milling Machine

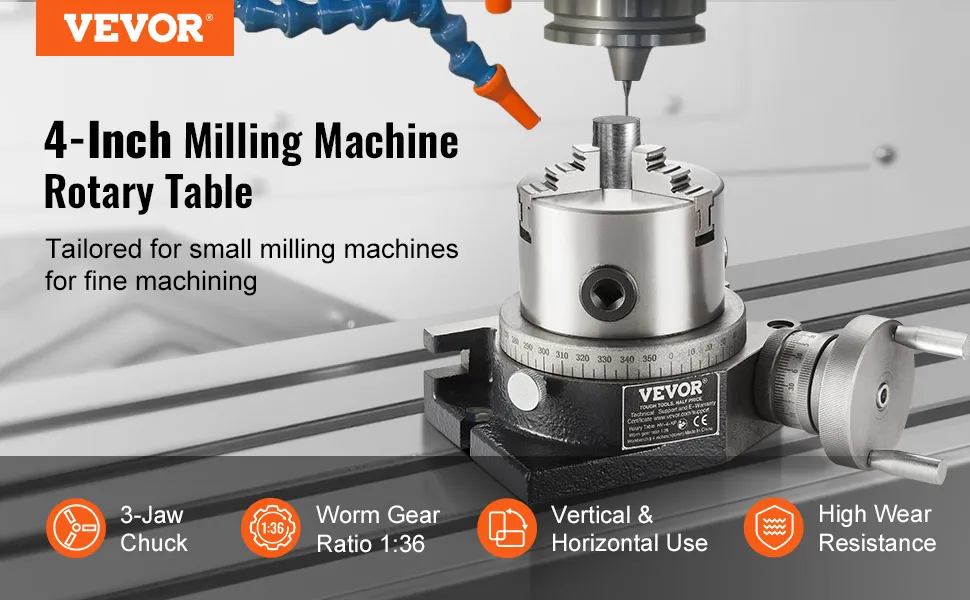

VEVOR rotary table with 3-jaw chuck, worm gear ratio 1:36, for vertical and horizontal milling.
VEVOR rotary table with 3-jaw chuck, worm gear ratio 1:36, for vertical and horizontal milling.
Our 4''/100 mm diameter rotary table is the perfect companion for small milling machines or specialized machinery and is designed for intricate and complex dividing cuts. Embrace the efficiency and versatility of our 4-inch rotary table and take your milling projects to the next level of accuracy.

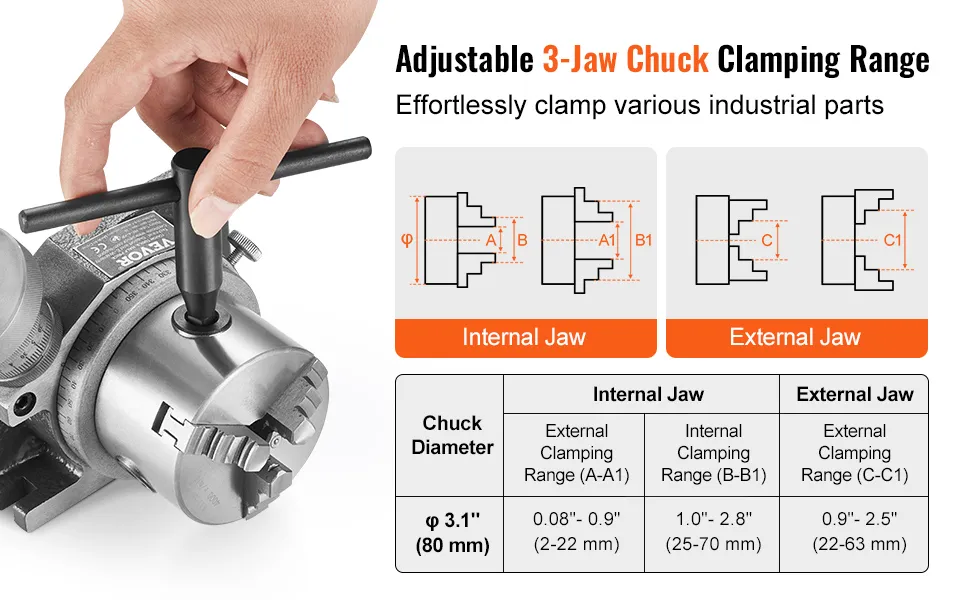

VEVOR rotary table with adjustable 3-jaw chuck clamping range for various industrial parts.
VEVOR rotary table with adjustable 3-jaw chuck clamping range for various industrial parts.
Our rotary table comes with a 3-jaw chuck and requires additional installation! We offer two types of jaws, internal jaw and external jaw, which easily open and close with a T-shaped chuck wrench, ensuring a secure and precise grip on your workpieces.

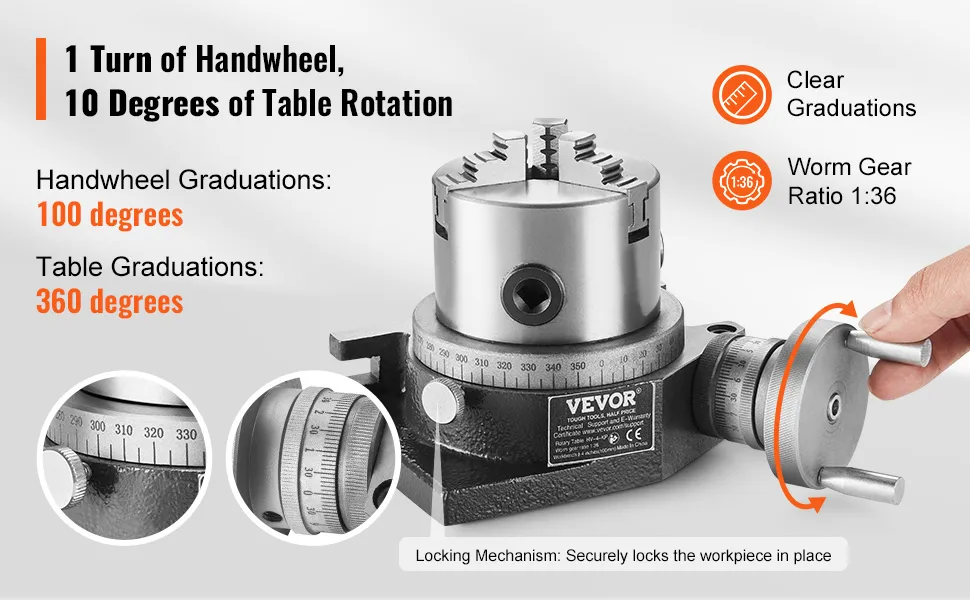

VEVOR rotary table features 10-degree rotation, 100-degree handwheel graduations, and 1:36 worm gear ratio.
VEVOR rotary table features 10-degree rotation, 100-degree handwheel graduations, and 1:36 worm gear ratio.
Enjoy the precise machining with our meticulously designed milling rotary table featuring a worm gear ratio of 1:36 and a fine, clear scale. Every rotation is under your control, with a dedicated degree lock. Once you set your angle, it stays put, ensuring stability and consistency in your work.

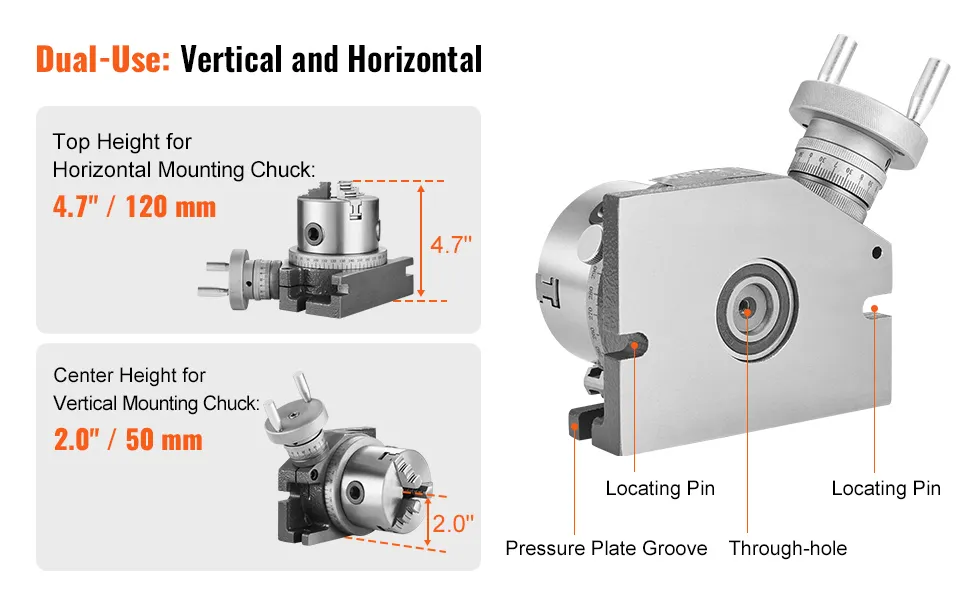

VEVOR rotary table with dual-use vertical and horizontal mounting, featuring locating pin and pressure plate groove.
VEVOR rotary table with dual-use vertical and horizontal mounting, featuring locating pin and pressure plate groove.
Discover unparalleled versatility with our milling machine rotary table, ingeniously designed for both horizontal and vertical applications. The precise positioning slot on the bottom ensures the rotary table remains stable and shake-free during operation.
high-hardness cast iron rotary table in use in automotive, woodworking, mold making, and machinery industries.
high-hardness cast iron rotary table in use in automotive, woodworking, mold making, and machinery industries.
Our rotary table is crafted from HT250 cast iron for exceptional wear resistance and high hardness and is a staple in precision and heavy-duty machining industries. Choose our rotary table for a lasting addition to your workshop, where strength meets precision at every turn.

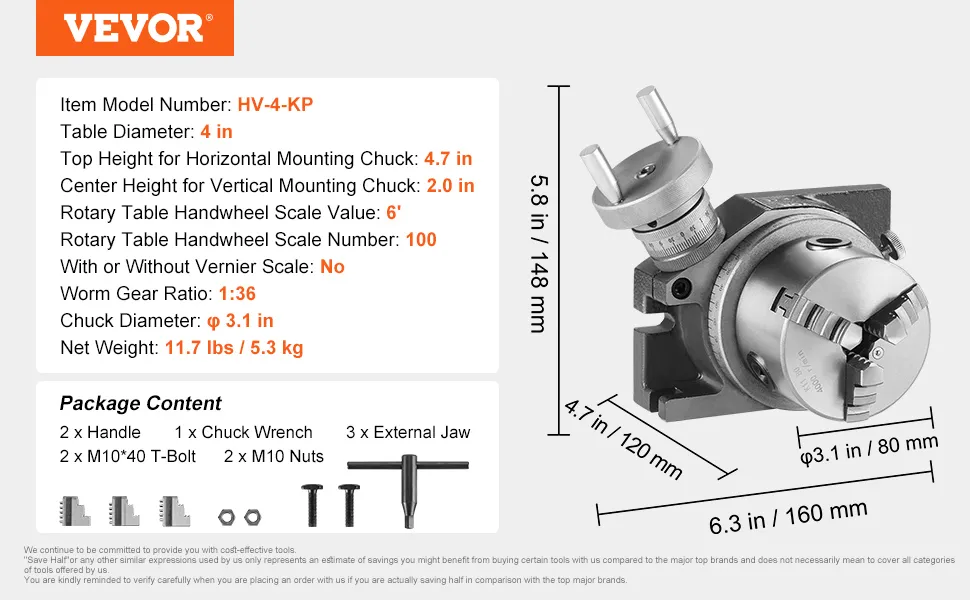

VEVOR rotary table hv-4-kp with 4 inch diameter, 1:36 gear ratio, 3 jaw chuck, and package contents.
VEVOR rotary table hv-4-kp with 4 inch diameter, 1:36 gear ratio, 3 jaw chuck, and package contents.

Specification

Item Model Number
HV-4-KP
Table Diameter
4 in / 100 mm, ±2 mm
Top Height for Horizontal Mounting Chuck
4.7 in / 120 mm, ±3 mm
Center Height for Vertical Mounting Chuck
2 in / 50 mm
Rotary Table Handwheel Scale Value
6'
Rotary Table Handwheel Scale Number
100
With or Without Vernier Scale
No
Worm Gear Ratio
1
Chuck Diameter
φ 3.1 in / 80 mm
Net Weight
11.7 lbs / 5.3 kg ± 3%
Product Dimensions
6.3 x 5.8 x 4.7 in / 160 × 148 × 120 mm
Questions and Answers
1 Questions
or Ask a Question
Can the 3 jaw chuck be removed and replaced with a different chuck?
Answer This Question
Yes, it can be removed and replaced with a different chuck.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 21 reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
21 Review(s)
Clear filters
Kevin R Langworthy Kevin R Langworthy
Great for the price
Used it on a few projects now. Very pleased with this product for the price. The only complaints I have are very minor and minor. 1) The \"On / Off\" engagement labeling for the worm gear is backwards. I believe someone else mentioned this too. Does not affect function at all, just causes confusion the first time you're trying it out. 2) If the worm gear is engaged all the way there is a very sticky spot somewhere along it. I am getting around it by only 'mostly' engaging it; when I do that there is no sticking but there is I believe more free play. I can make that work since I'm not doing precise enough work to need the graduations on the handle.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Hobby Guy Hobby Guy
Very Functional
Item arrived in a timely manner and as described. This is my very first rotary table. More than adequate for my usage. Item was well packaged to minimize any damage during shipment. Very satisfied!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Capt. Art Capt. Art
purchaser
Very nice rotary table. wish that it had 6 slots to make setups easier. Heavy duty construction with good finish. Only concern is that my initial concentricity checks show a difference when tramming the MT3 hole from the spindle versus putting the indicator on the rotary table and tramming to the spindle. Will have to redo these measurements a few more times to see if indeed the rotary table is not concentric, or if my measurements were not done correctly.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
xjanderson xjanderson
Proprietor
I've only used this for light work so far and it's pretty damn good especially for the price. The workmanship appears to be excellent and I think it will hold up well but if not I'll redo the review!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ken Ken
Nice product
The only reason I gave this 4 stars instead of 5 is that I haven't had it long enough to determine overall quality.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
DH DH
Nice
Very nice table fit and finish is great and came smothered with oil. I was able to fab up a mount to put dividing plates on.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
CwD CwD
Best bang for the Buck 4.5+
You will be hard pressed to find a better value for the price. Is it perfect? No; It also isn't $450 or more! It is easy to setup, it is light enough to move (it is over 40#). I do wish I had a wider movement range for the adjustable zero degree mark. I will also make an extension for the crank handle.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Thomas Yarkosky Thomas Yarkosky
good value.
Everything is good.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
william m. william m.
Take it apart clean and recoil and lightly grease
Like all things from overseas you need to take apart clean debut recoil and put in good grease still a great value if you take the time to dial it in the center Morse 3 taper was within a half a tenth thousandth
See More See Less
Helpful Sending feedback... Thank you for your feedback. 3 people found this helpful
David M David M
Perfect for me
I have not used this rotary table for a project yet. But the machine seems well built and operates smoothly. I have not tested it for accuracy but the hand wheel and table check well all around. Perfect size for my mill. The Good price for a hobbies like me.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
