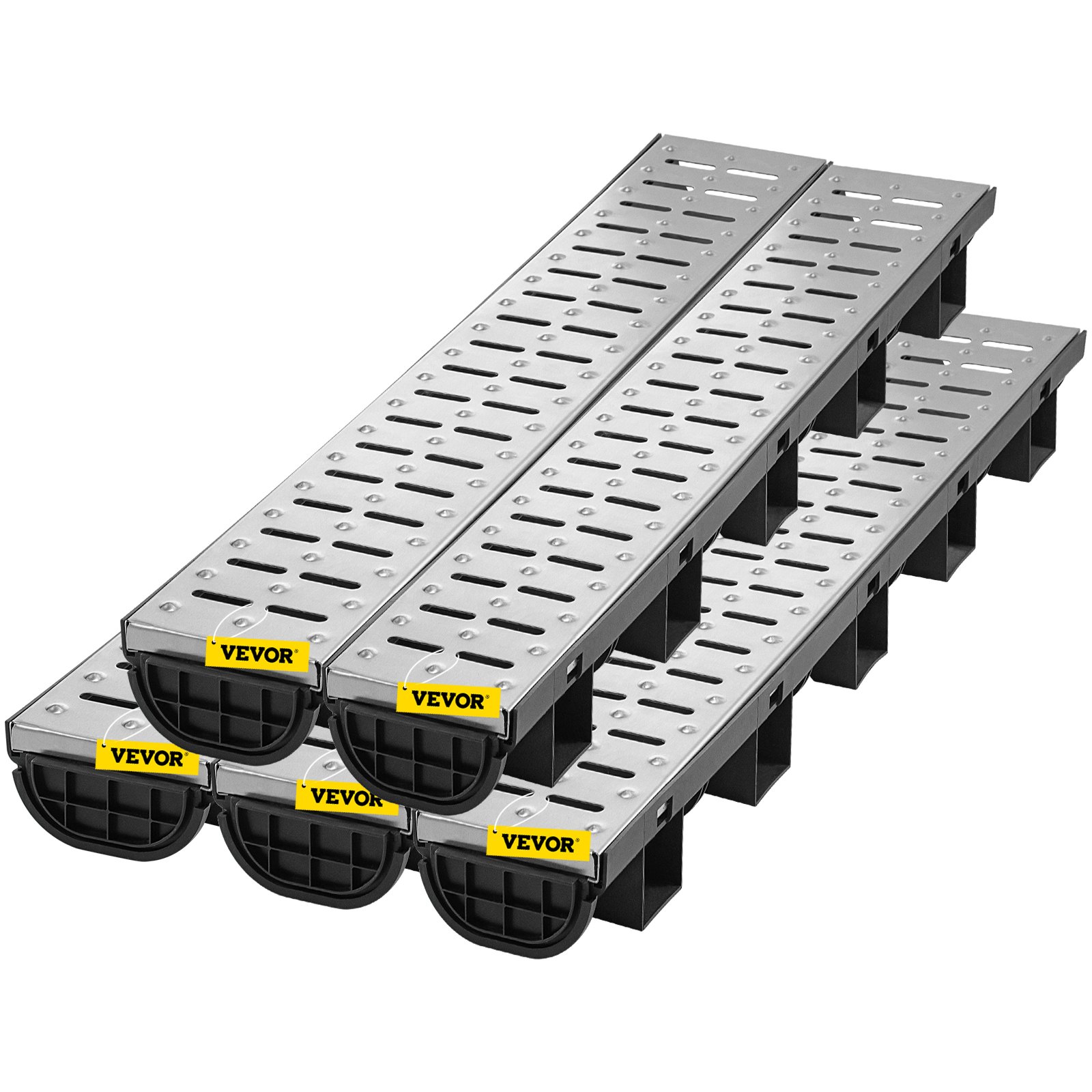

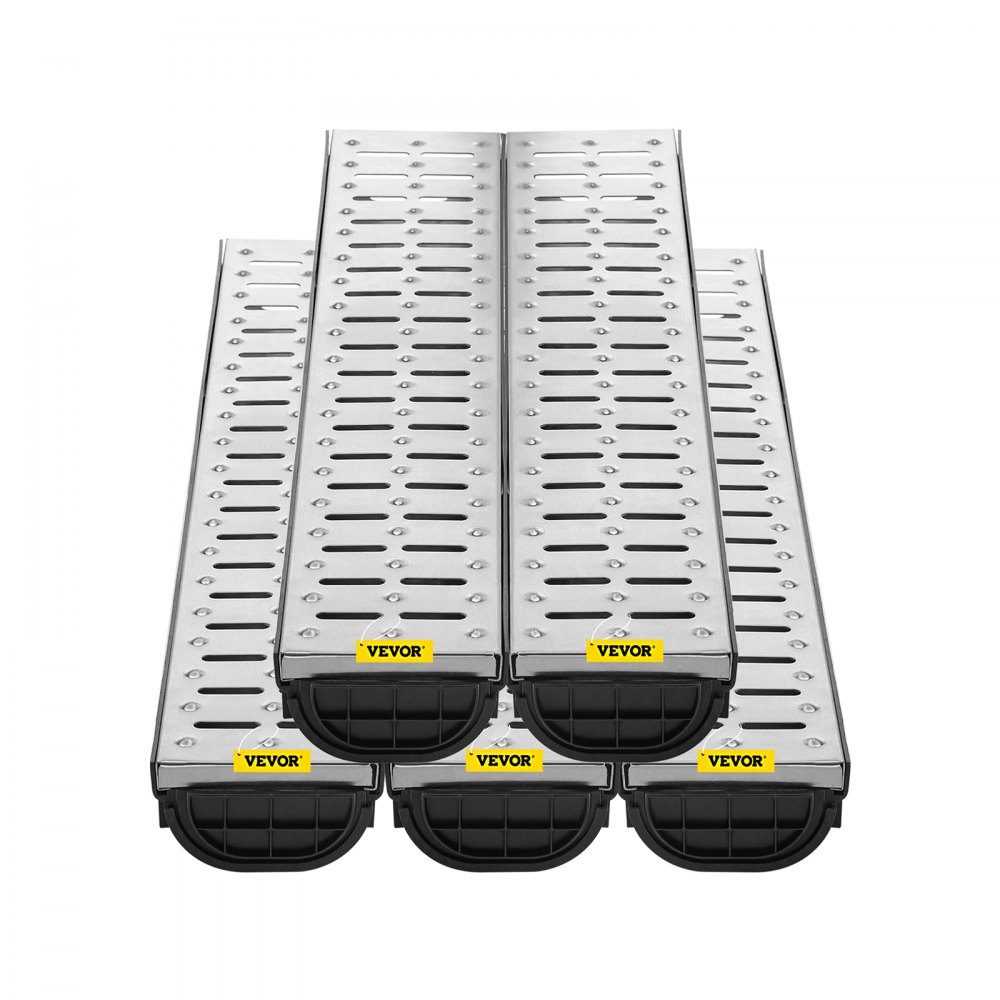

VEVOR trench drain system with black base and metal grates stacked neatly. VEVOR trench drain system installed on a patio with outdoor furniture and plants. VEVOR trench drain system with stainless steel grates and tight connection feature. VEVOR trench drain system with detachable grates for easy cleaning. VEVOR trench drain system with bottom and side outlets in multiple sizes. VEVOR trench drain system with hdpe and stainless steel, load capacity a15. VEVOR trench drain system specifications with applications in concrete, swimming pool, and driveway.
PSXGBM100455426SZV0

VEVOR Trench Drain System, Channel Drain with Metal Grate, 5.7x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 5x39 Trench Drain Grate, with 5 End Caps, for Garden, Driveway-5 Pack

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

5 PCS

  • 5 PCS
  • 6 PCS
  • 3 PCs
  • 4 PCS

Stainless steel

  • Plastic
  • Stainless steel

100 x 45 mm

  • 100 x 150 mm
  • 100 x 100 mm
  • 100 x 45 mm

About this item

  • Low-profile Drain System: Dimensions of each channel: 5.7" W x 3.1" H x 39.4" L. Commercial water drainage systems allow safe and efficient drainage for grassed areas, gardens, farms, patio areas, pool sides, office buildings, driveways, or factory interiors. The anti-flotation design prevents floating and doesn’t require staking when setting in concrete.
  • Easy & Quick Installation: You can connect these trench drains together for extra length. The interlocking design connects the drains tightly with no potential leak of water. Detachable grate can be manually installed and detached easily, needs no screws or bolts. It also provides a convenient way to clean the drain if it is bunged up.
  • Various Outlet Connections: Each trench drain provides a bottom outlet with multiple sizes (48/78/96 mm). You can choose the size you need. No outlet connector is required because it is already built-in; thus, the pipe can be connected directly.
  • Durability & High Performance: Sturdy HDPE plastic and stainless steel material creates a hard and durable structure. The load capacity is A15. The HDPE plastic provides a smooth interior surface, which allows faster water intake.
  • Complete Packing List: This trench drain kit comes with 5 drains with built-in bottom outlets, 5 plastic grates, and 5 end caps. Plus, the outlet connector is already built-in. All the accessories that you may need are included.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Trench Drain System, Channel Drain with Metal Grate, 5.7x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 5x39 Trench Drain Grate, with 5 End Caps, for Garden, Driveway-5 Pack
5 PCS Stainless steel 100 x 45 mm
VEVOR trench drain system by the pool, surrounded by lush green garden background.

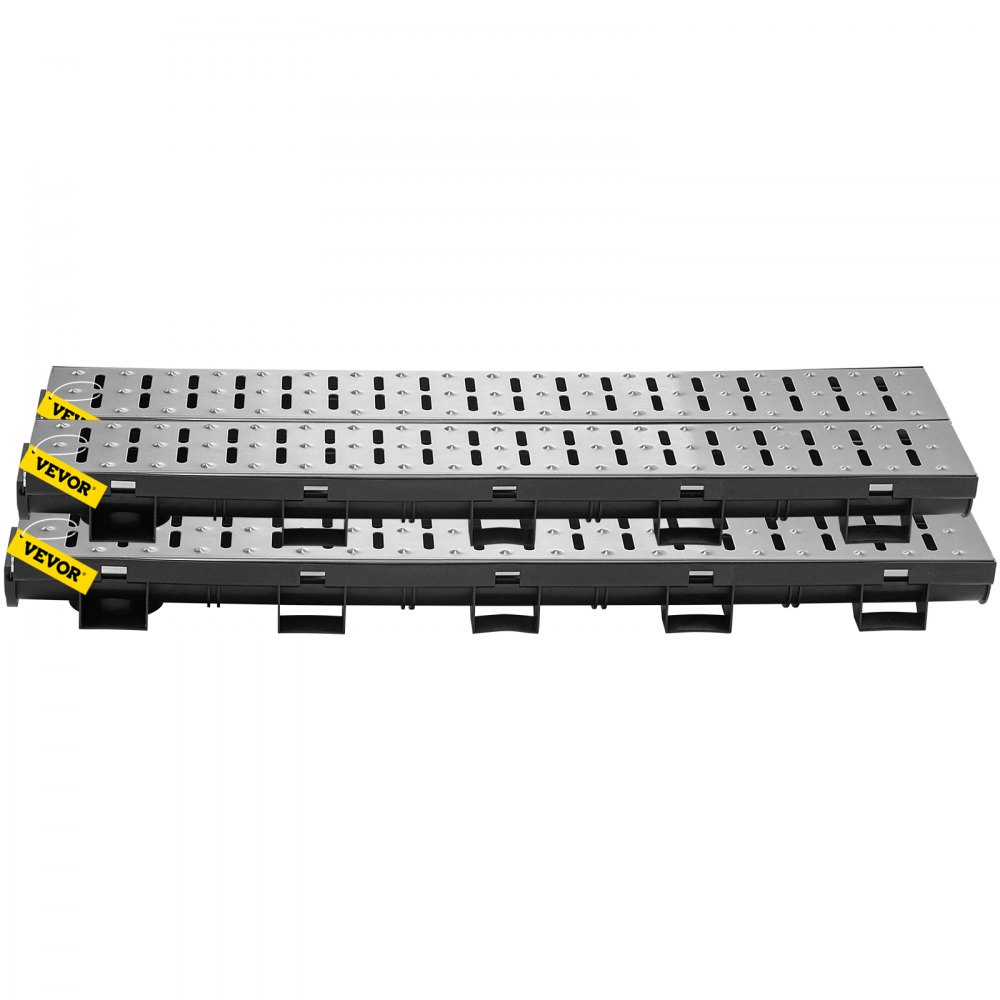

VEVOR trench drain system with gray slotted grates in a stacked arrangement.
Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for A15, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

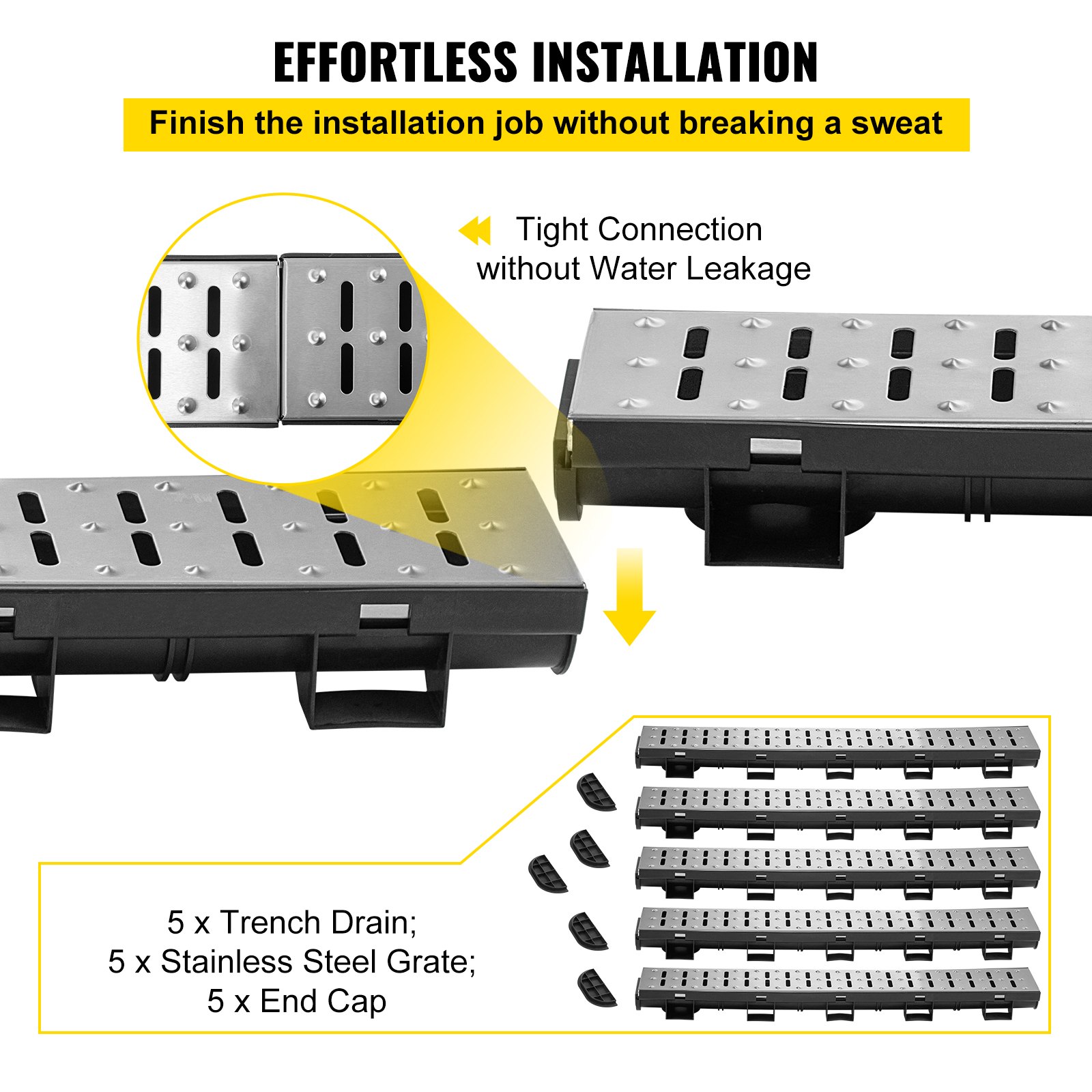

VEVOR trench drain system with tight connection for hassle-free installation.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.
VEVOR trench drain system with removable grates, highlighting durable construction.

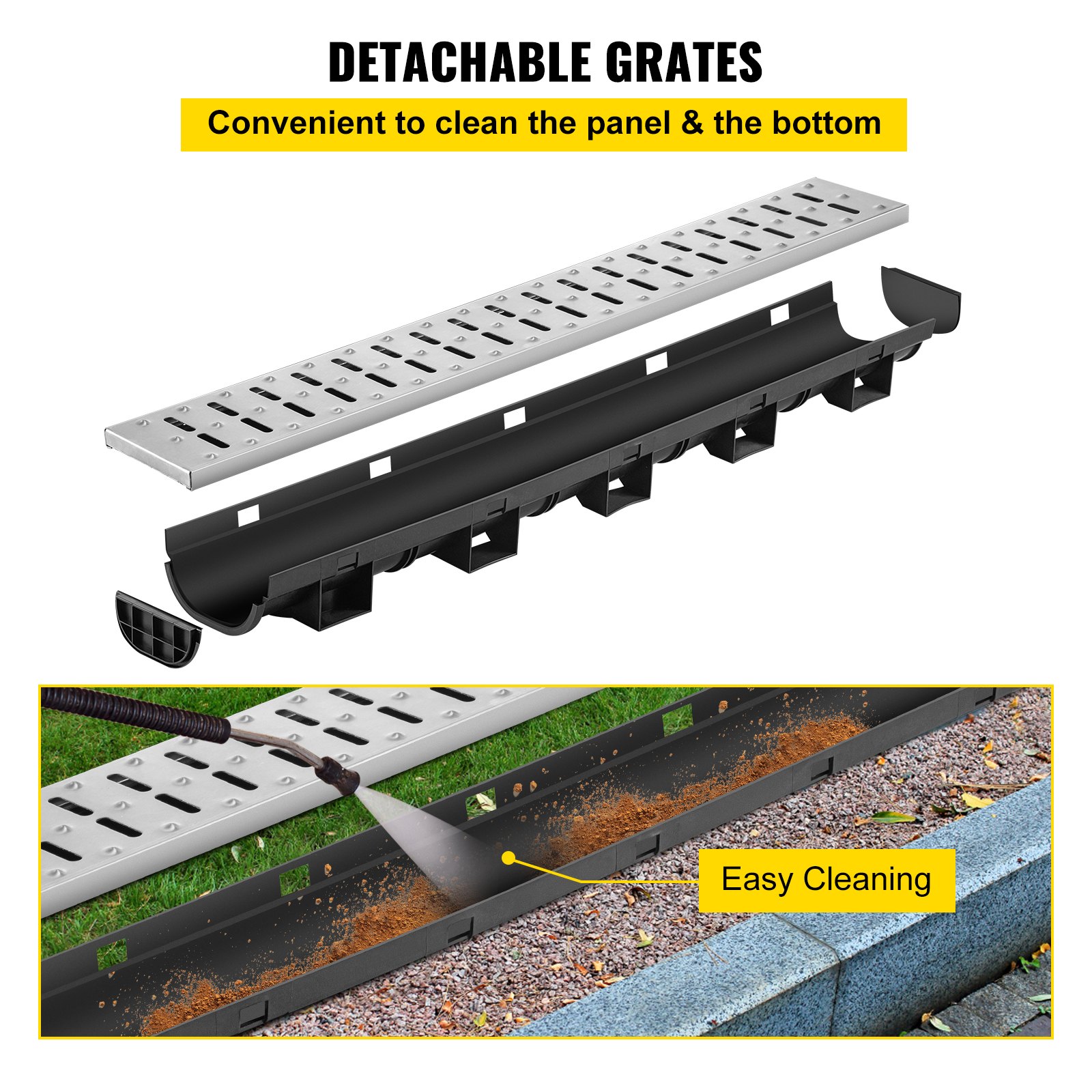

Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.
VEVOR trench drain system features water outlets and a bottom outlet connection.

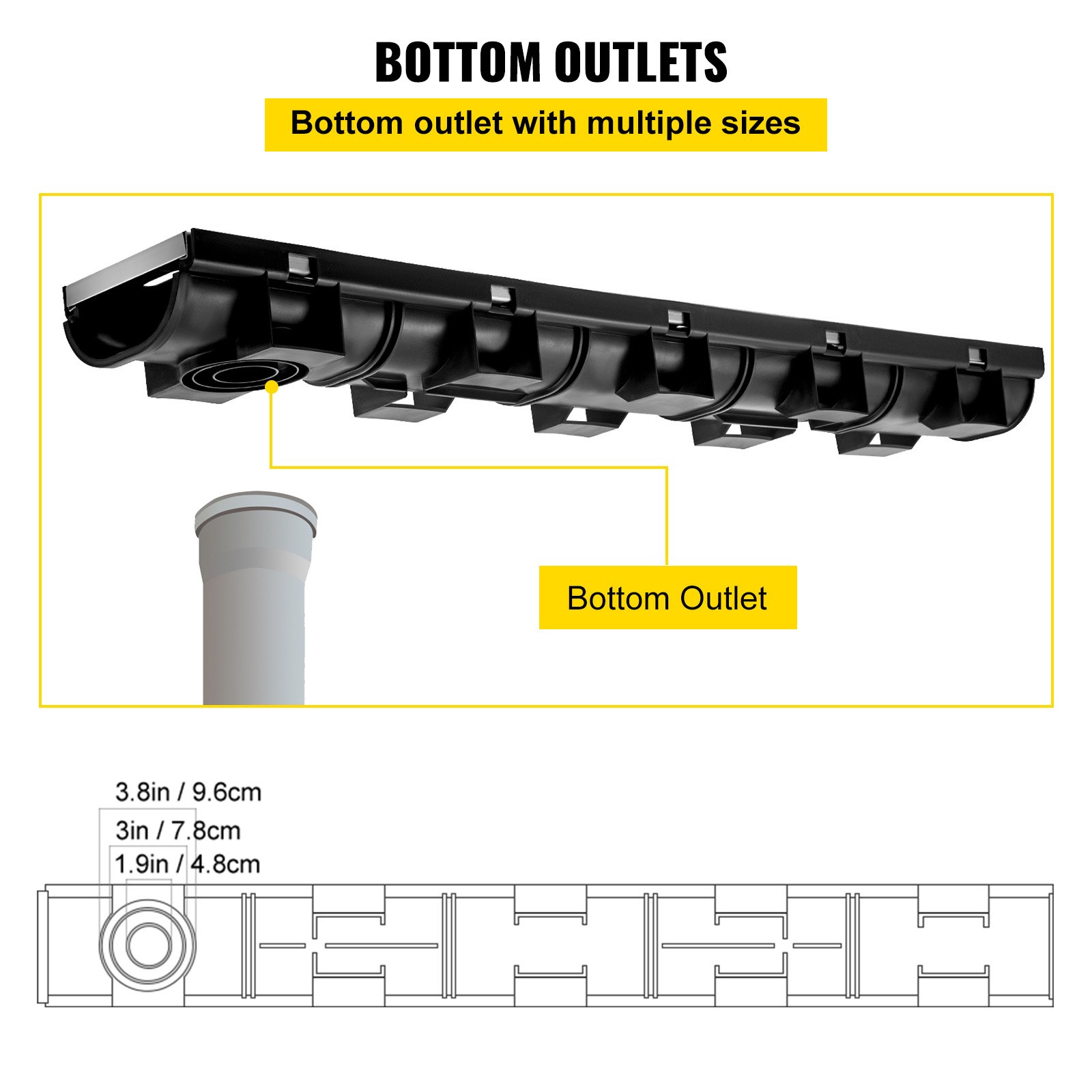

Water Outlets
The bottom outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

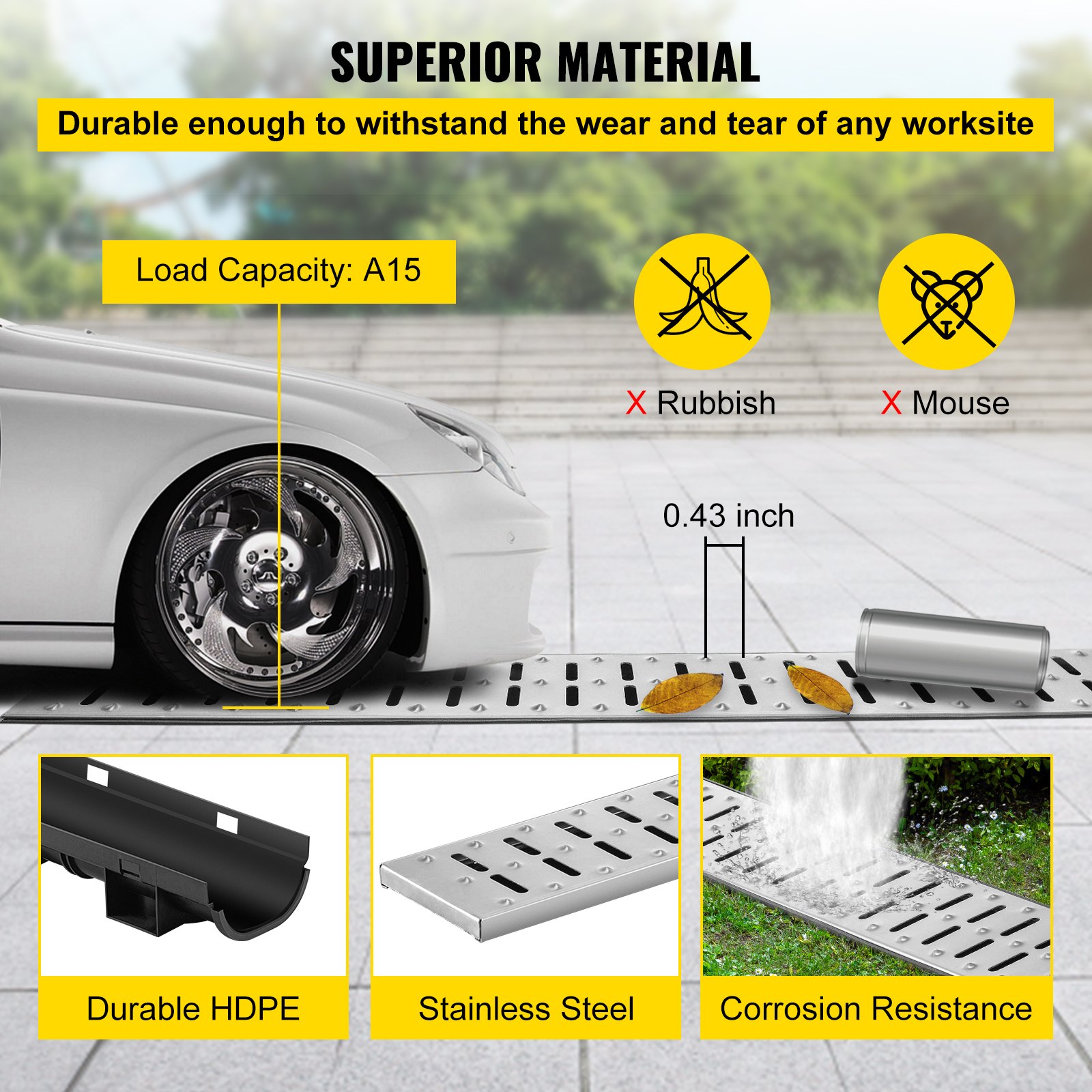

VEVOR trench drain system, hdpe + stainless steel, safe and efficient drainage solution.
HDPE + Stainless Steel Material
Made of HDPE plastic and stainless steel, the load capacity is A15. It is suitable for driveways. The superior material creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system, stainless steel grates, end caps, trench drain kit.
Trench Drain Kit
This trench drain kit includes 5 trench drains. Each one is one meter long. The accessories include 5 metal grates and 5 end caps. We offer you all the accessories that you may need.
VEVOR trench drain system shown in concrete, swimming pool, driveway, and grass area.

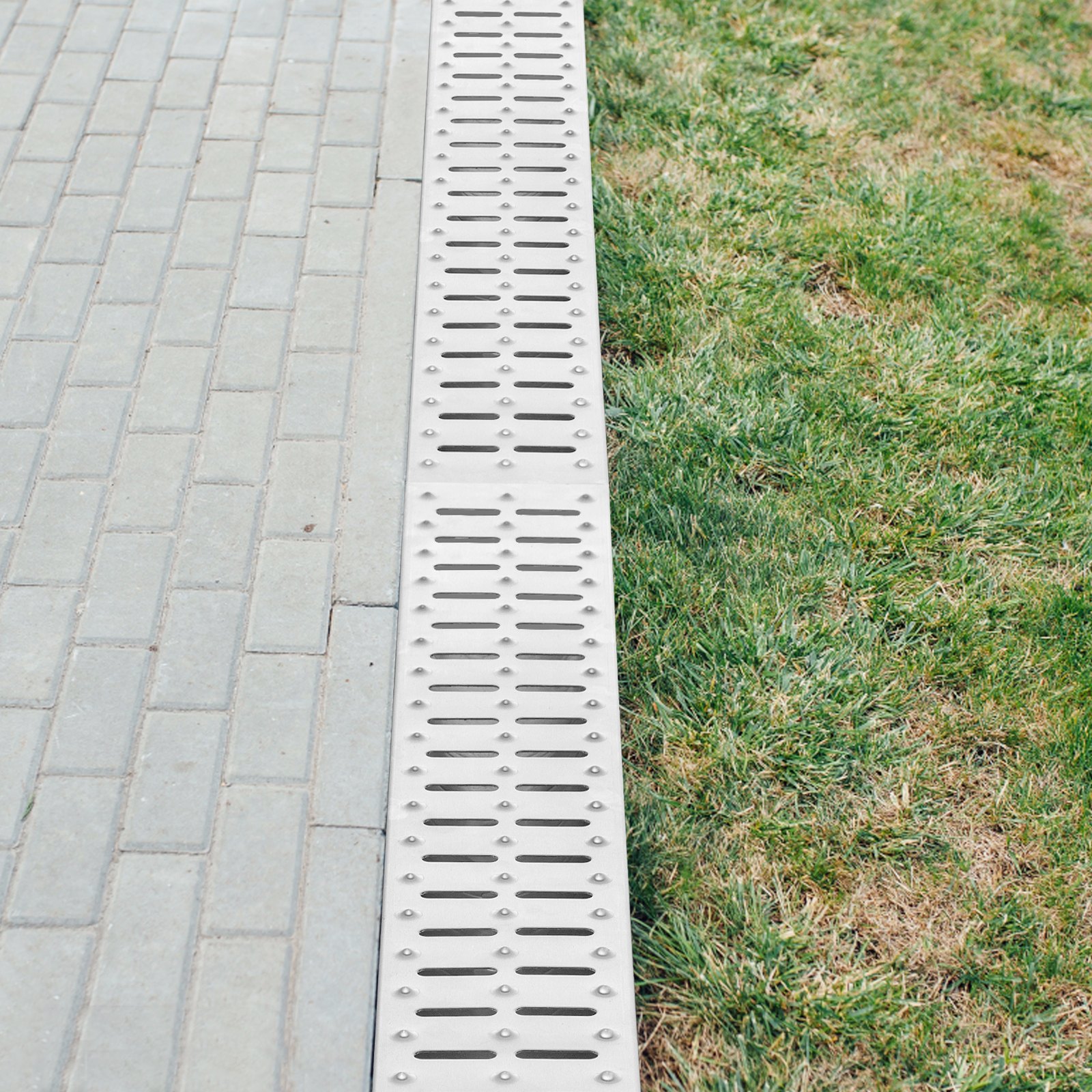

Extensive Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the A15 load rate, it is also suitable for driveways.

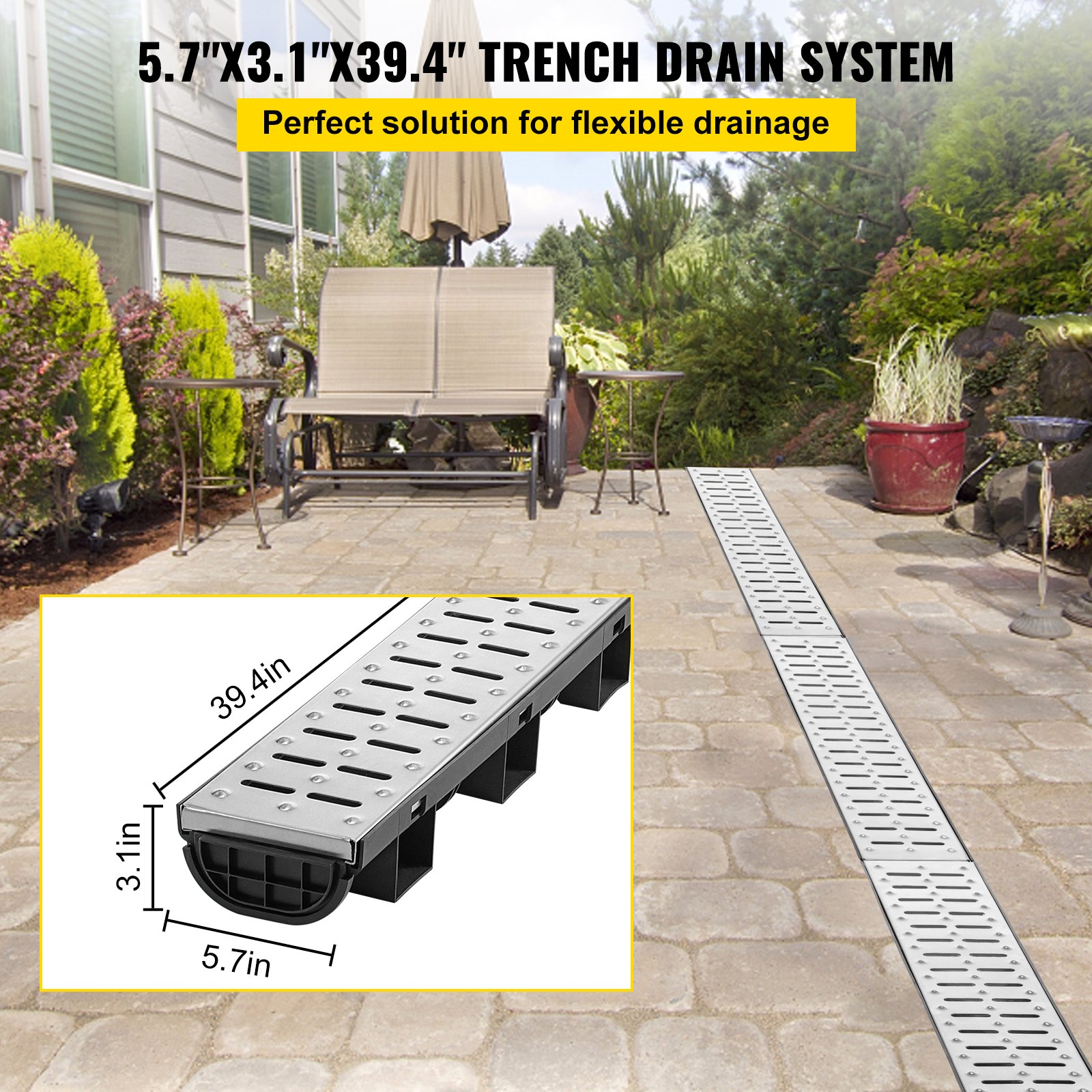

VEVOR trench drain system with dimensions: 39.4in x 5.7in x 3.1in.

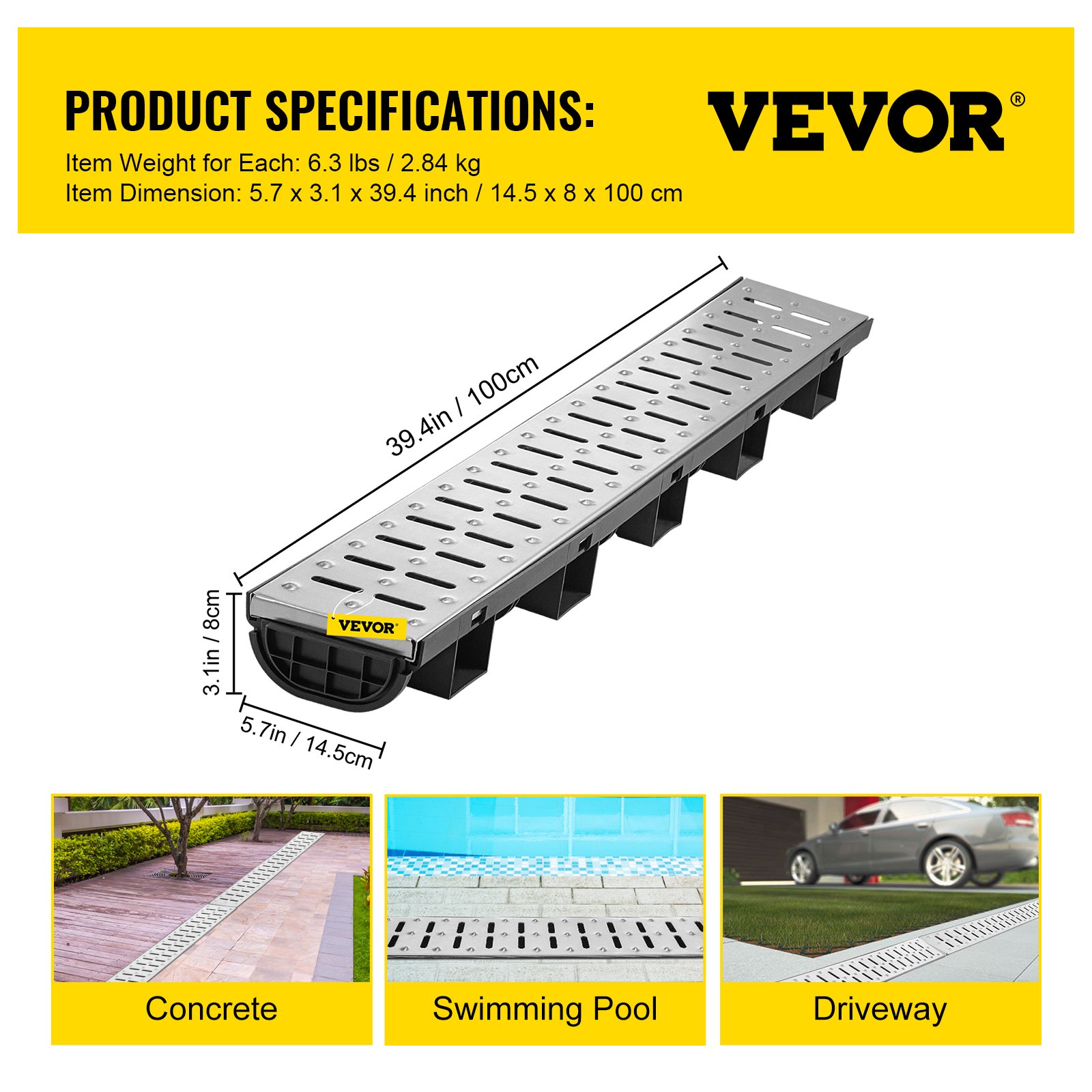

Specifications
  • Model: PSG100*45*5M
  • Material of Trench Drain: HDPE Plastic
  • Material of Grate: Stainless Steel
  • Color: Black & Silver
  • Load Rate: A15
  • Amount: 5 Pack
  • External Item Dimensions: 5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm
  • Internal Item Dimensions: 3.9 x 1.8 x 39.4 inch/ 10 x 4.5 x 100 cm
  • Diameter of Bottom Drain Hole: 48/78/96 mm
  • Item Weight Each: 2.84 kg / 6.3 lbs
  • Maximum Working Temperature: 120℃ / 248℉
  • Minimum Working Temperature: -40℃ / -40℉
VEVOR trench drain system with steel grate and durable black base.
Package Content
  • 5 x Trench Drain
  • 5 x Metal Grate
  • 5 x End Cap
VEVOR trench drain system by the pool, surrounded by lush green garden background.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR trench drain system with gray slotted grates in a stacked arrangement.
Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for A15, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR trench drain system with tight connection for hassle-free installation.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.
VEVOR trench drain system with removable grates, highlighting durable construction.
Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.
VEVOR trench drain system features water outlets and a bottom outlet connection.
Water Outlets
The bottom outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.
VEVOR trench drain system, hdpe + stainless steel, safe and efficient drainage solution.
HDPE + Stainless Steel Material
Made of HDPE plastic and stainless steel, the load capacity is A15. It is suitable for driveways. The superior material creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system, stainless steel grates, end caps, trench drain kit.
Trench Drain Kit
This trench drain kit includes 5 trench drains. Each one is one meter long. The accessories include 5 metal grates and 5 end caps. We offer you all the accessories that you may need.
VEVOR trench drain system shown in concrete, swimming pool, driveway, and grass area.
Extensive Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the A15 load rate, it is also suitable for driveways.
VEVOR trench drain system with steel grate and durable black base.
Package Content
  • 5 x Trench Drain
  • 5 x Metal Grate
  • 5 x End Cap
VEVOR trench drain system with dimensions: 39.4in x 5.7in x 3.1in.
Specifications
  • Model: PSG100*45*5M
  • Material of Trench Drain: HDPE Plastic
  • Material of Grate: Stainless Steel
  • Color: Black & Silver
  • Load Rate: A15
  • Amount: 5 Pack
  • External Item Dimensions: 5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm
  • Internal Item Dimensions: 3.9 x 1.8 x 39.4 inch/ 10 x 4.5 x 100 cm
  • Diameter of Bottom Drain Hole: 48/78/96 mm
  • Item Weight Each: 2.84 kg / 6.3 lbs
  • Maximum Working Temperature: 120℃ / 248℉
  • Minimum Working Temperature: -40℃ / -40℉

Trench Drain System for Superior Water Management

The VEVOR trench drain system is made to address water management issues efficiently. It is made from high-quality HDPE plastic. This system ensures durability and effectiveness. The 5.7x3.1-inch dimensions provide enough water flow capacity. These features make it ideal for various applications, like garages or gardens. The system’s design allows for easy installation and maintenance. You can easily redirect water and prevent buildup. We have tested the system during heavy downpours. So, your space stays dry. Our robust construction guarantees long-lasting performance. It is suitable for both residential and commercial use. With this trench drain system, you’ll have peace of mind knowing that your water control needs are met.


Easy Installation and Maintenance of Channel Drain with Metal Grate

The VEVOR trench drain system stands out for its ease of installation. The stainless steel grade adds both elegance and functionality to the metal grate. The system's design makes cleaning and maintenance simple. Cleaning and Maintenance The grates can be lifted out without removing screws. That saves time and effort. The installation process is straightforward, even for DIY enthusiasts. Our system fits seamlessly, guaranteeing a pristine look. Grates are designed to withstand vehicular traffic. They make them ideal for driveways. Combining easy installation and low maintenance makes this system incredibly successful.


Durable HDPE Drainage Trench with High Load Capacity

The VEVOR trench drain system is built to last. Made from high-density polyethylene (HDPE), it offers exceptional durability. The material can withstand heavy loads up to 6600 lbs. This makes it suitable for high-traffic areas. HDPE construction ensures it is resistant to cracking and deformation. It can handle extreme temperatures, from -40°C to 120°F. So, it's reliable in any weather condition. High load capacity and durable material guarantee long-term use. You can trust this system to perform consistently over time.


Effective Garage Floor Drain for Keeping Spaces Dry

It helps keep your space dry and safe on garage floors. The system efficiently moves water away from your building. This 5-pack ensures you have enough pieces to cover large areas, making integrating into any garage setup easy. It’s ideal for preventing water damage and maintaining cleanliness. The effectiveness of this system is evident during heavy rains. This system channels water away, safeguarding your property. Keep your spaces dry, ensuring peace of mind and safety.


Versatile Driveway Channel Drain Suitable for Various Environments

It’s versatile and adaptable. It can be used in a variety of environments. Whether you need it for a driveway, garden, or patio, it works well. The system’s design allows for easy integration into different settings. You can handle vehicular traffic. This makes it ideal for driveways. Durable construction ensures it stands up to the elements in gardens. It is also suitable for patios. It enhances both function and aesthetics with this system. Its versatility is also an excellent addition to any property. We recommend using this efficient solution for various water management needs.


High-Quality Construction Ensures Long-Term Performance

The system is built to withstand harsh conditions. It maintains its performance over time without deteriorating. High-quality materials resist corrosion and wear. This ensures the system remains effective for years. The robust construction also makes it resistant to impact. You can trust this system to perform reliably in the long run. It is an investment in quality that pays off with consistent performance. The VEVOR trench drain system is reliable for any water management project.


Attractive Design with Functional Metal Grate Enhances Aesthetics

The system combines functionality with aesthetics. The metal grate adds a sleek, modern look. The black and silver color scheme fits seamlessly into any design. The system improves the appearance of your space while providing practical benefits. The design of the grate allows for optimal water flow. It keeps debris out while looking stylish. The overall design of this system is both elegant and functional. This is a perfect addition to any area where both form and function matter. The VEVOR trench train system is an aesthetically pleasing solution for water management.


See More

Specification

Model
PSG100*45*5M
Material of Trench Drain
HDPE Plastic
Material of Grate
201 Stainless Steel
Color
Black & Silver
Load Rate
6600 lbs
Amount
5 Pack
External Item Dimensions
147x80x1000mm / 5.8"x3.1"x39"
Internal Item Dimensions
110x45x1000mm / 4.3"x1.8"x39"
Item Weight Each
2.84 kg / 6.3lbs
Maximum Working Temperature
120℃ / 248℉
Minimum Working Temperature
-40℃ / -40℉
Questions and Answers
9 Questions
There are options for different sizes, but when the optional sizes are requested the diagram shows the same dimensions ?? What is the actual size of a 100cm x 150 drain?
Please see the file in below link for reference, the link is valid in 3 days: https://we.tl/t-8mPQha1EYY
By vevor
why would you sell these without an adaptor to hook up to a drain pipe?
Please just connect to our water outlet directly.
By vevor
Can i install this in a gravel driveway without the use of concrete?
Concrete can also not be used, but you'd better use it, because plastic products will expand when heat expands and contract when cold, that is, if you leave a gap for it, it will easily cause the product to crack.
By vevor
Is there an adapter for a end outlet
No, there isn't an adapter for an end outlet.
By vevor
I need water to drain out the end. Is that possible
Yes, it is possible.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
64 Review(s)
Clear filters
Udit Sharma Udit Sharma
MD
Received product 10 days late from promised date. No return or refund offered. Had to buy product locally from Home Depot to finish time bound construction. Very dissatisfied with customer delivery and service!
Michael Kelly Michael Kelly
Perfect drain
We are concreting my pole barn and needed a drainage system for when we wash vehicles. We were so impressed with this drain that we ordered another for the other side of the barn that will be a workshop. Price wise, the box stores couldn’t touch the price and charged almost as much for one 3’ section as the entire 10’ sections from Vevor cost. If you need a drain system, I highly recommend this one.
BobG BobG
Homeowner.
The install worked well. I installed it in concrete. I taped the grates with painters' tape to keep the concrete out. The only problem I had was the concrete got in the slots where the grates snap in which made it difficult to get them out. I would recommend taping these slots if concrete is used.
Def1960 Def1960
Pleasure Concepts LLC Owner.
Looks great. Look forward to getting this job done. Would recommend these driveway drains to anyone...
Billwh87 Billwh87
Works good
Works well to direct water away from my porch walkway. Before, water would run down on my sidewalk along with mud, etc.
ddufon ddufon
Well built and great price.
I actually purchased this to use as an outdoor drain for my garden pathway. Fits perfectly
Vevor Trench Vevor Trench
Vevor Trench Drain
The six-piece set is a great value, These drains are a well-built product and Vevor had fast shipping. Easy install, quality.
Katrina Katrina
Good Drain for the price
I used three drains next to my pool and connected them to my gutter drain system. It appears to be working well.
Tim Tim
Sir
Great product, used around pool deck. Wife loves it also, keeps trash from washing in the pool. Thanks
Yem Yem
Worked well
This was for a diy project, experimenting with a face sink turned out awesome. And was very reasonable
