Name: VEVOR 20PCs CNC Bits 1/8"(3.175mm) Shank CNC Router End Mill 0.1mm Tip V-shape Engraving Bits Tungsten Steel 3D Milling Cutter 10/15/20/30 Degrees Cnc Carving Bits for Engraving Acrylic Solid Wood MDF
Brand: VEVOR
SKU: DKJHJDKTX20000001V0
Price: 18.99 USD
Availability: Discontinued
Rating: 4.8 (11 reviews)

VEVOR 20PCs CNC Bits 1/8"(3.175mm) Shank CNC Router End Mill 0.1mm Tip V-shape Engraving Bits Tungsten Steel 3D Milling Cutter 10/15/20/30 Degrees Cnc Carving Bits for Engraving Acrylic Solid Wood MDF

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive $5.00 off for your first three orders on the App.

Download Now

Exclusive $5.00 off for your first three orders on the App.

Scan the QR code to download

About this item

【20PCS CNC ROUTER BITS】 - The CNC router bit kit includes 20 pieces of drill bits with four types to satisfy your needs. Type: V-type; Shank Diameter(SD): 3.175 mm (1/8"); Overall Length(OAL): 32 mm (1.26") / 30 mm (1.18") / 32 mm (1.26") / 30 mm(1.18"); Cutting Degree(CD):10°/15°/20°/30°; Cutting Edge Length(CEL): 13 mm (0.51") / 11 mm (0.43") / 7 mm (0.28") / 5 mm (0.20"); Tip: 0.1 mm.
【HEAVY-DUTY TUNGSTEN STEEL】 - Built with tungsten steel, the CNC router mill has the superiority of high hardness, high-temperature resistance, and wear resistance. It can withstand mechanical shocks and maintain almost no deformation at 500℃.
【USER-FRIENDLY EDGE & SHANK】 - The CNC engraving bit is equipped with a sharp cutting edge and chamfer-designed shank, which features high-speed cutting, clean surface, and no glitches to improve your working efficiency.
【PORTABLE STORAGE CASE】 - The CNC mill bits come with a portable plastic case. Each is stored in an individual section with a protective rubber cover, making the kit convenient to store and carry around.
【VARIOUS SCENARIOS】 - Our CNC mill bits are ideal for processing and milling the PCB, SMT, CNC, MDF, ABS, PVC, acrylic, nylon, resin, plastic fiber, carbon fiber, density board, hardwood, plywood, printed circuit board, and other precision parts.

See More See Less

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Tough Equipment & Tools, Pay Less

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

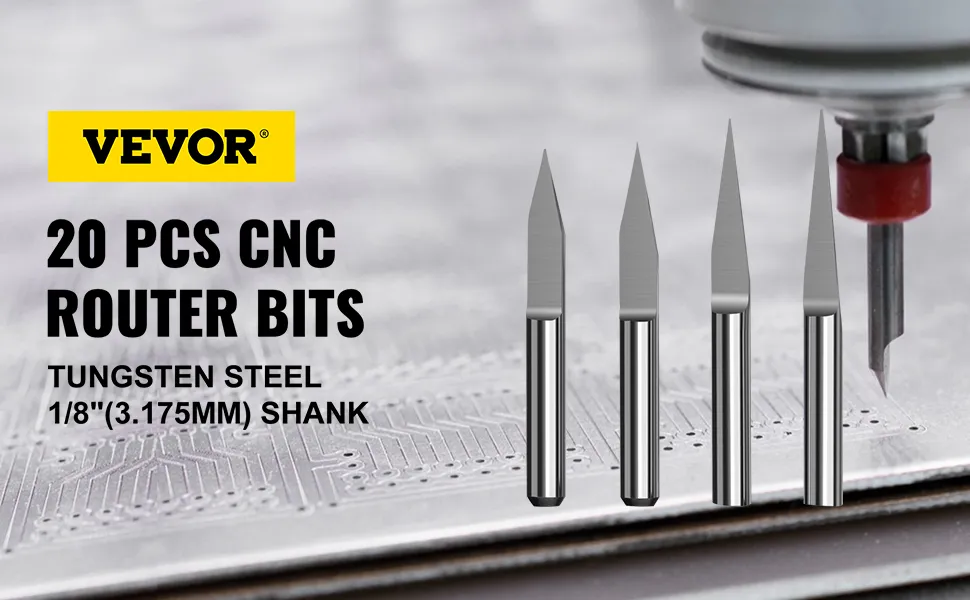

20PCs CNC Router Bits

The kit includes 20 pieces of drill bits to meet your different needs. It is forged with tungsten steel for wear resistance and sufficient flexural strength. With a sharp cutting edge and chamfered shank, you can effortlessly process and mill the PCB, MDF, ABS, PVC, acrylic, nylon, resin, plastic fiber, density board, hardwood, plywood, and other precision parts.

20PCs CNC Router Bits
Heavy-Duty Tungsten Steel
User-Friendly Edge & Shank
Portable Storage Case

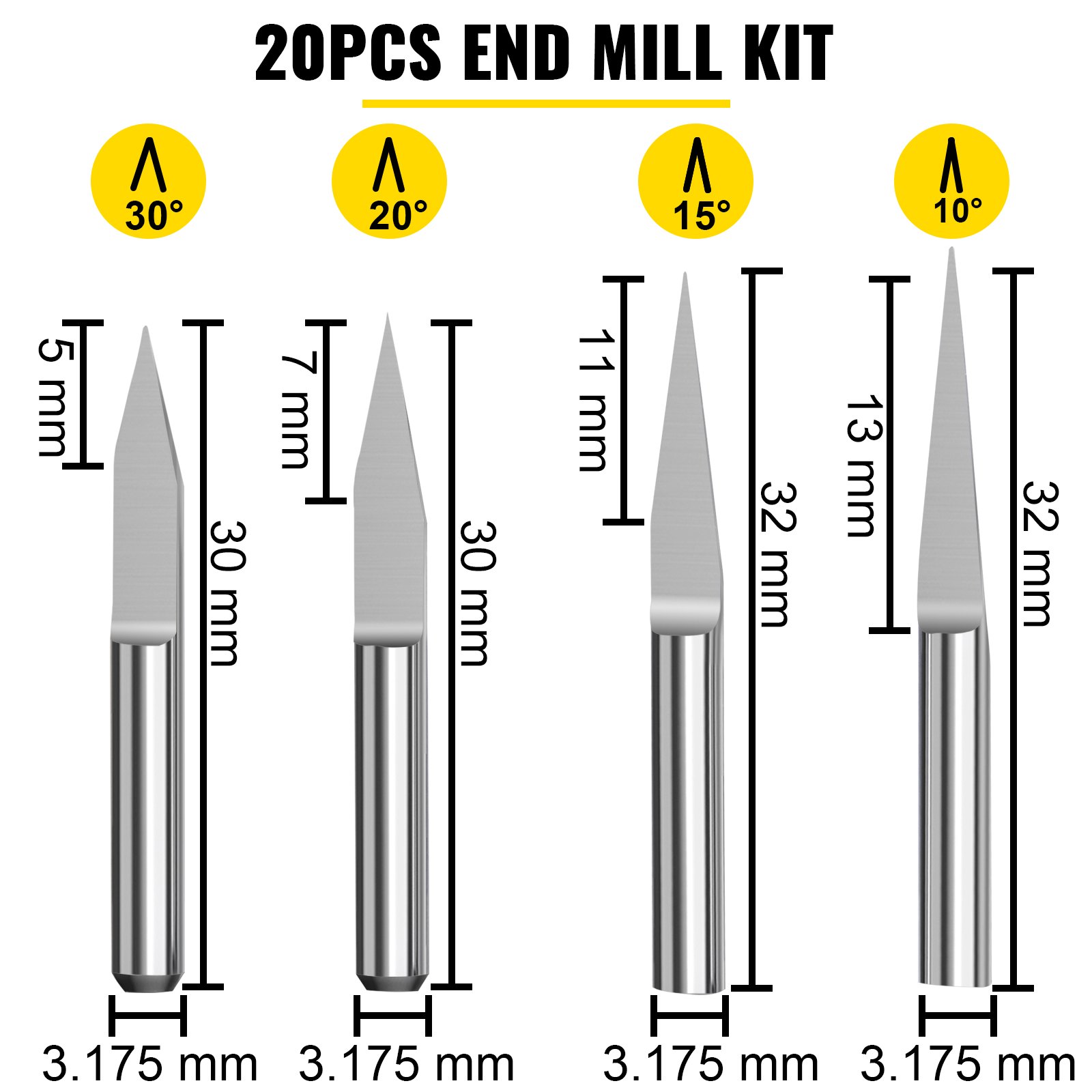

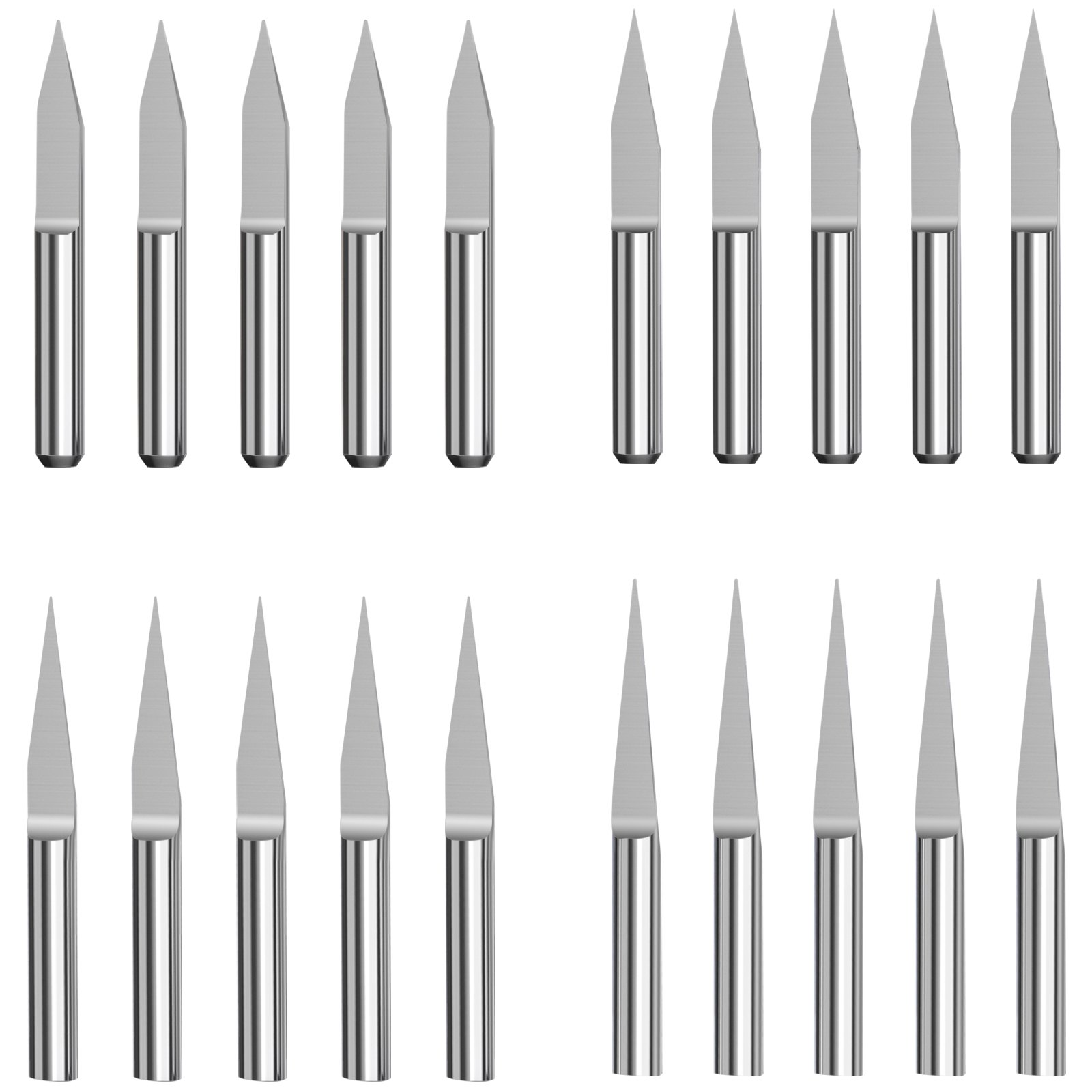

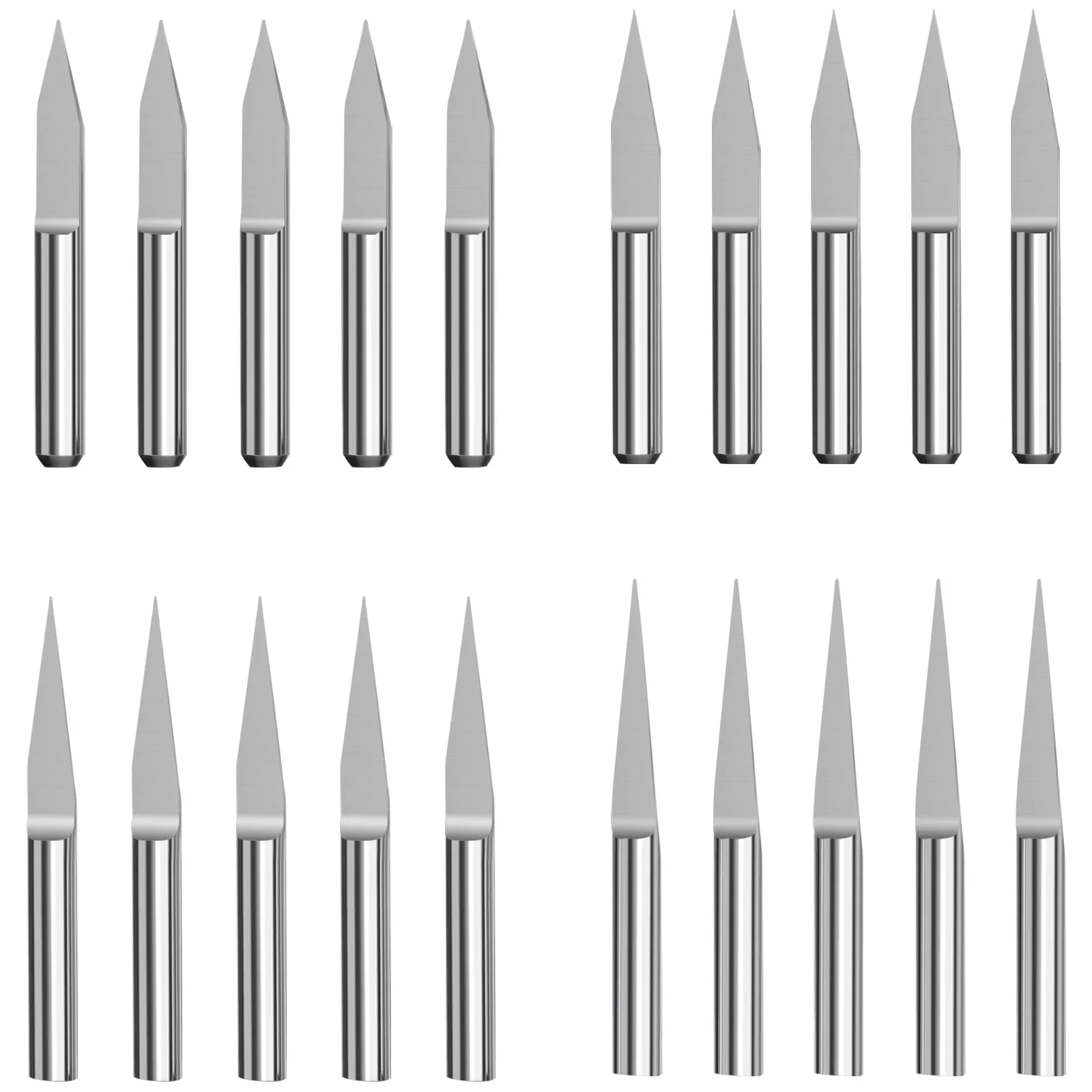

20PCs End Mill Kit

There are 20 pieces of V-shape end mills with four types, featuring excellent cutting and milling performance to meet your requirements for various work projects.

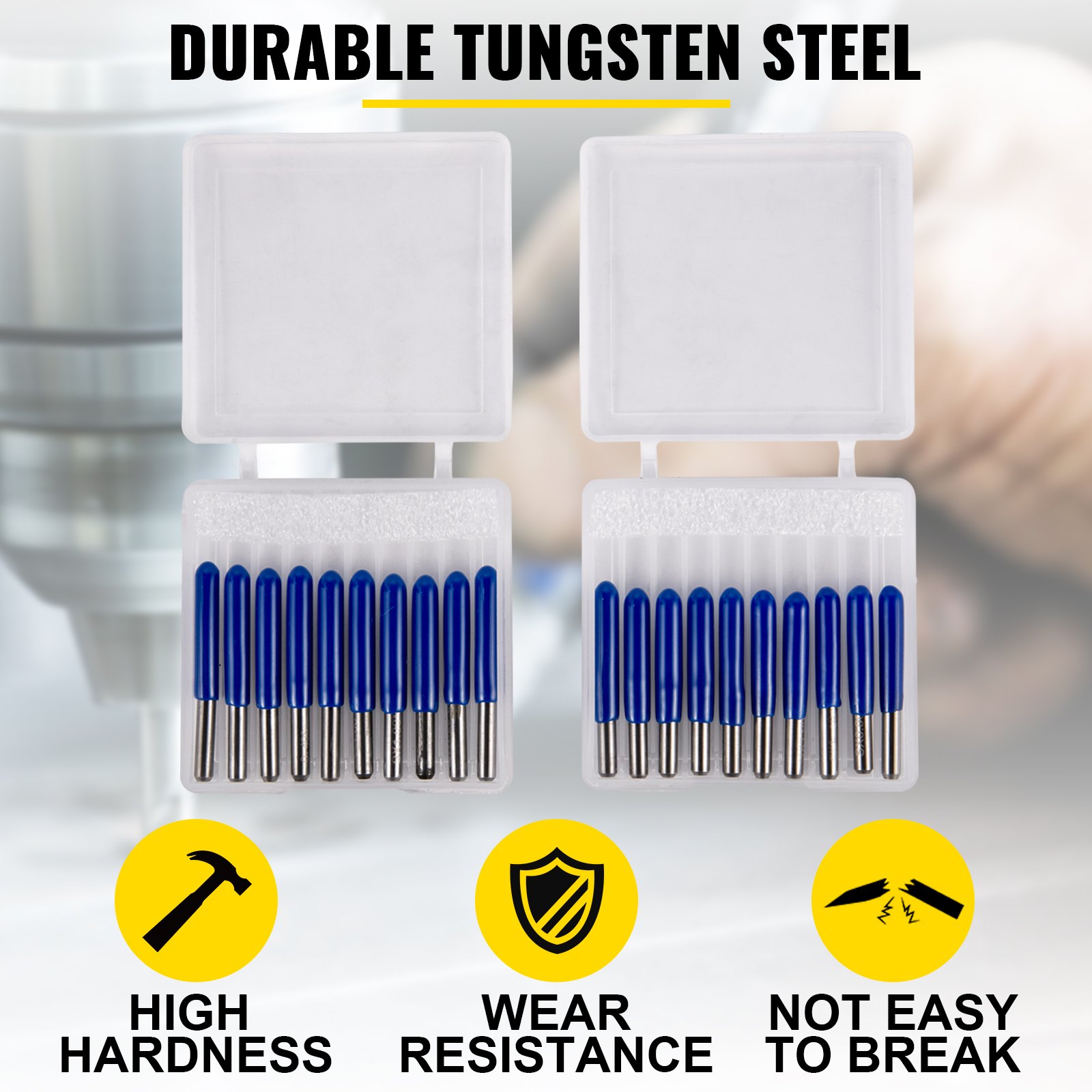

Durable Tungsten Steel

For sufficient flexural strength and wear resistance, this router bit adopts heavy-duty tungsten steel. The sturdy construction ensures that the bit is not easily broken for maximized longevity.

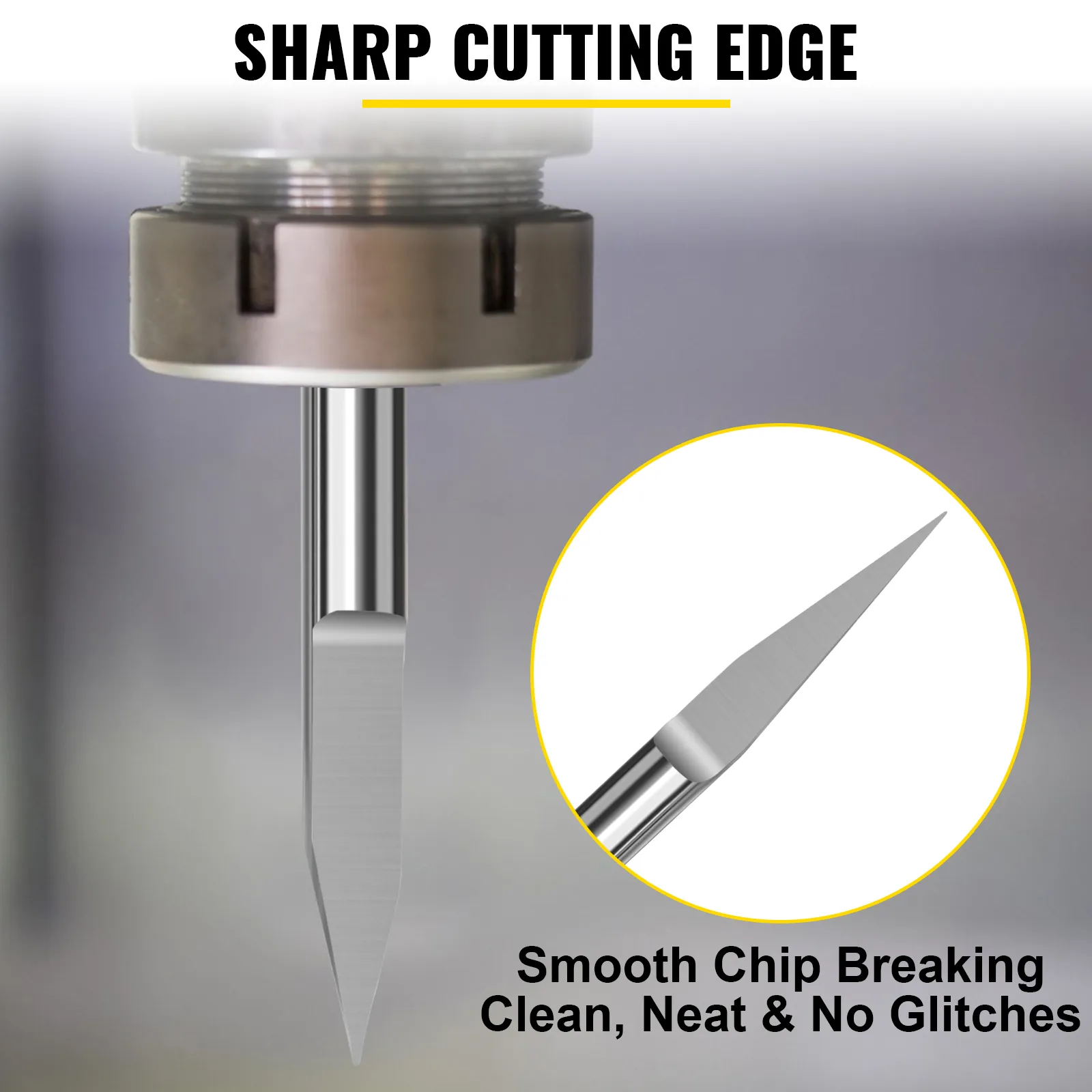

Sharp Cutting Edge

The V-type drill bits with different cutting angles have a sharp edge, which is beneficial to high-speed cutting, achieving smooth chip discharge and no burr effect.

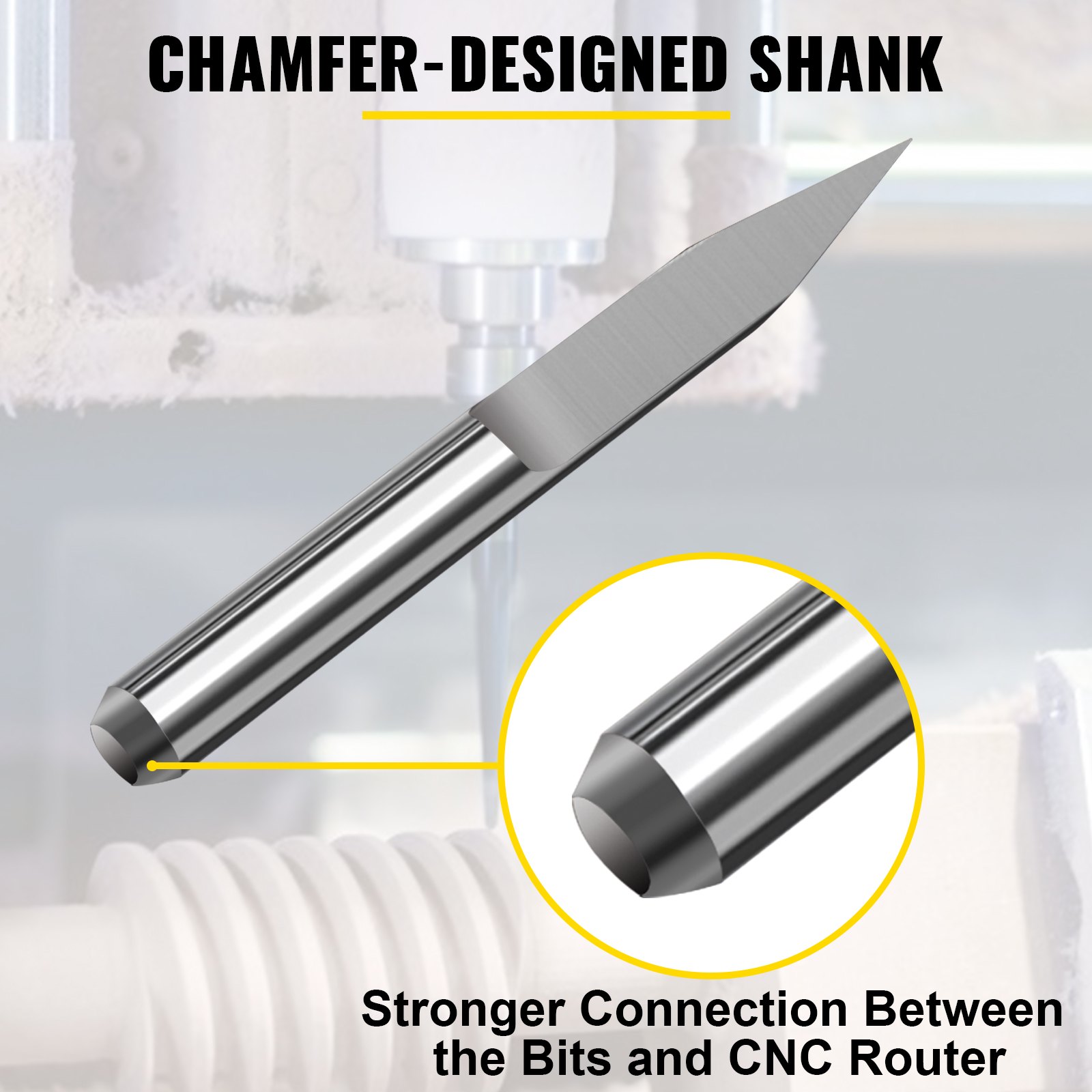

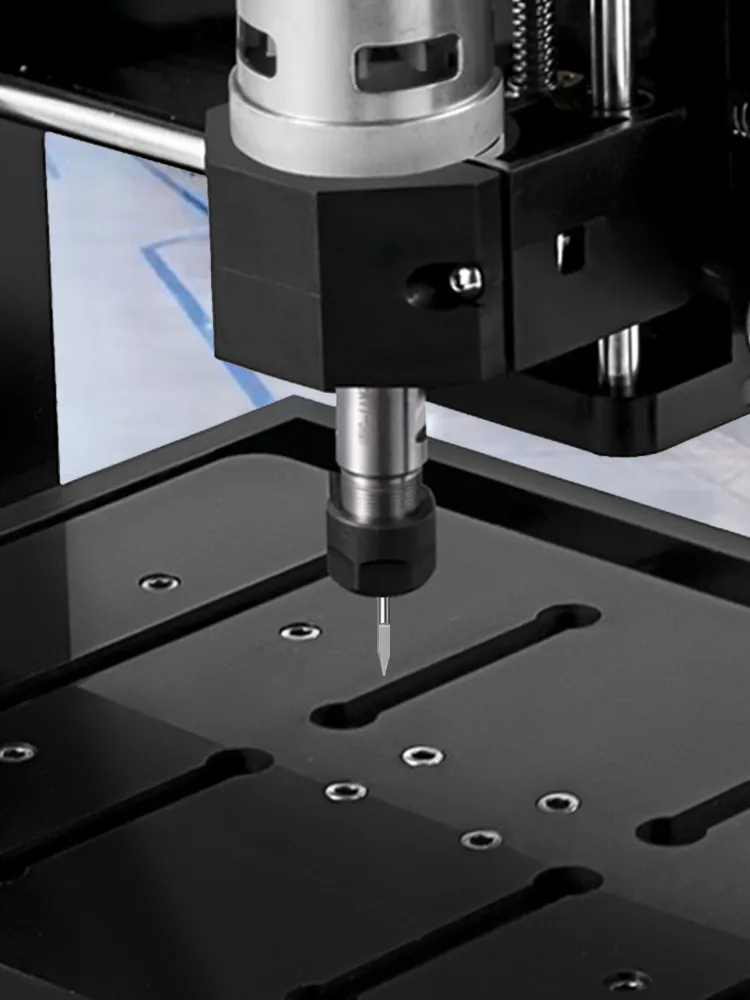

Chamfer-designed Shank

This tool's shank is chamfered to facilitate a more firm connection with the CNC router. You can quickly install the milling cutter on the chuck without worrying about the loosening problem.

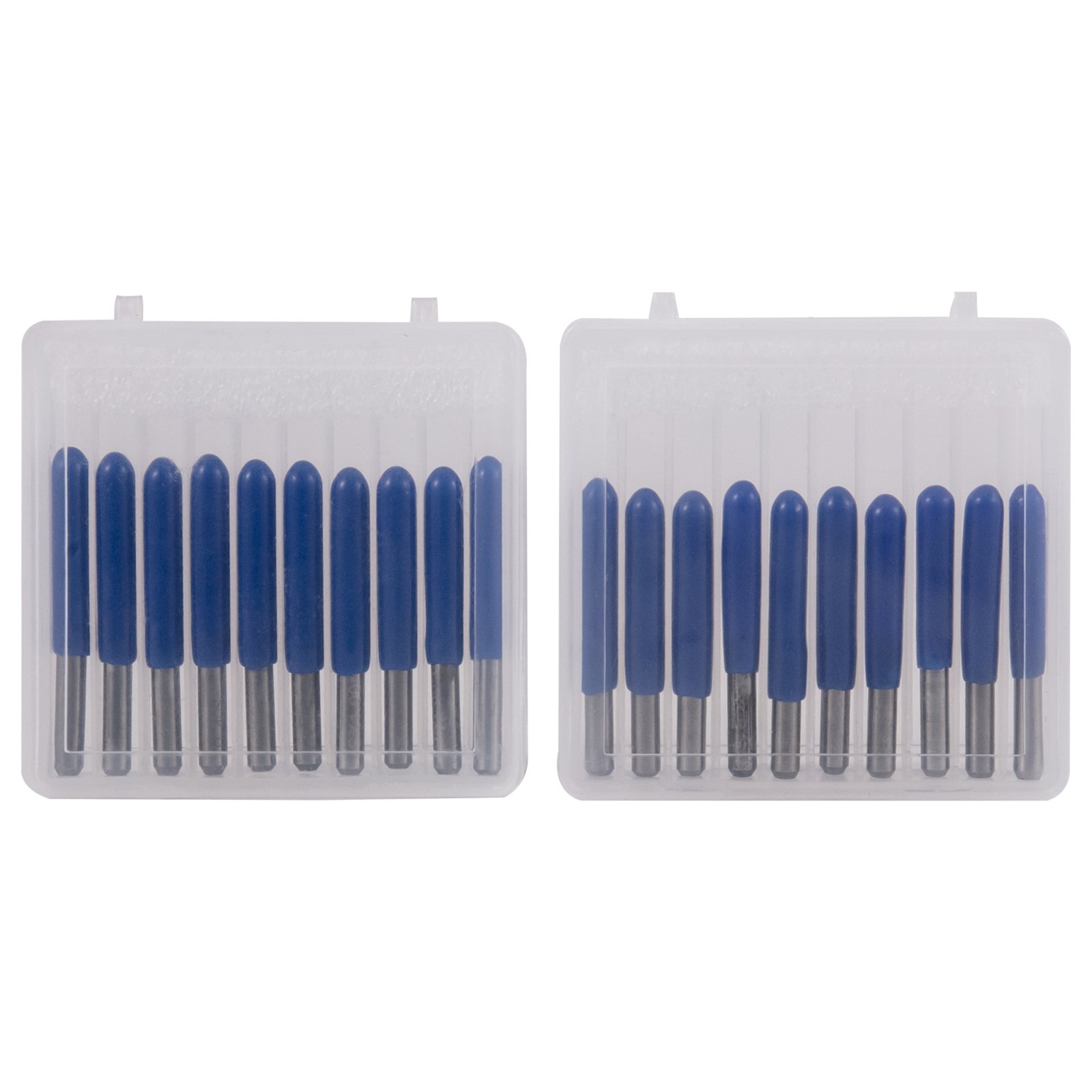

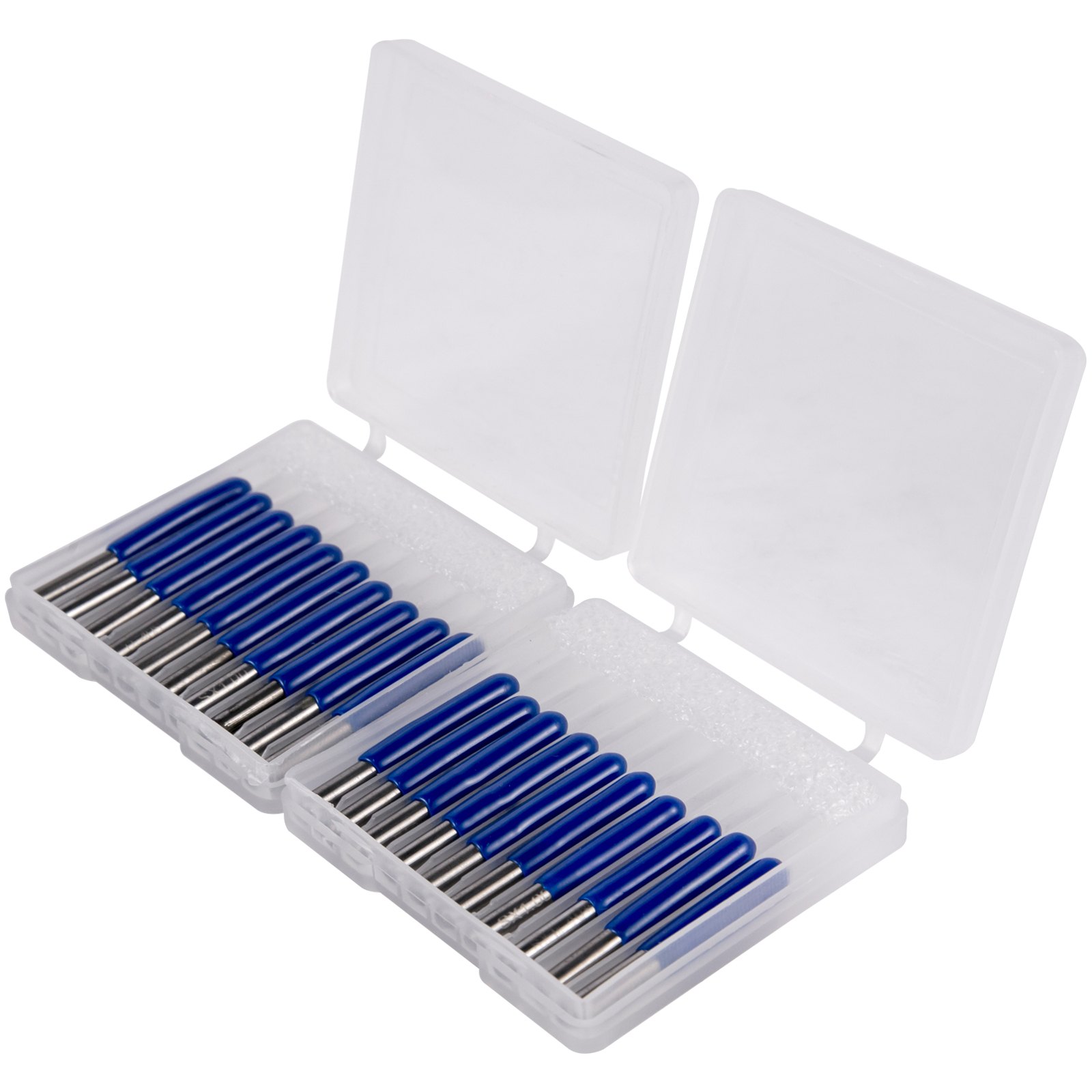

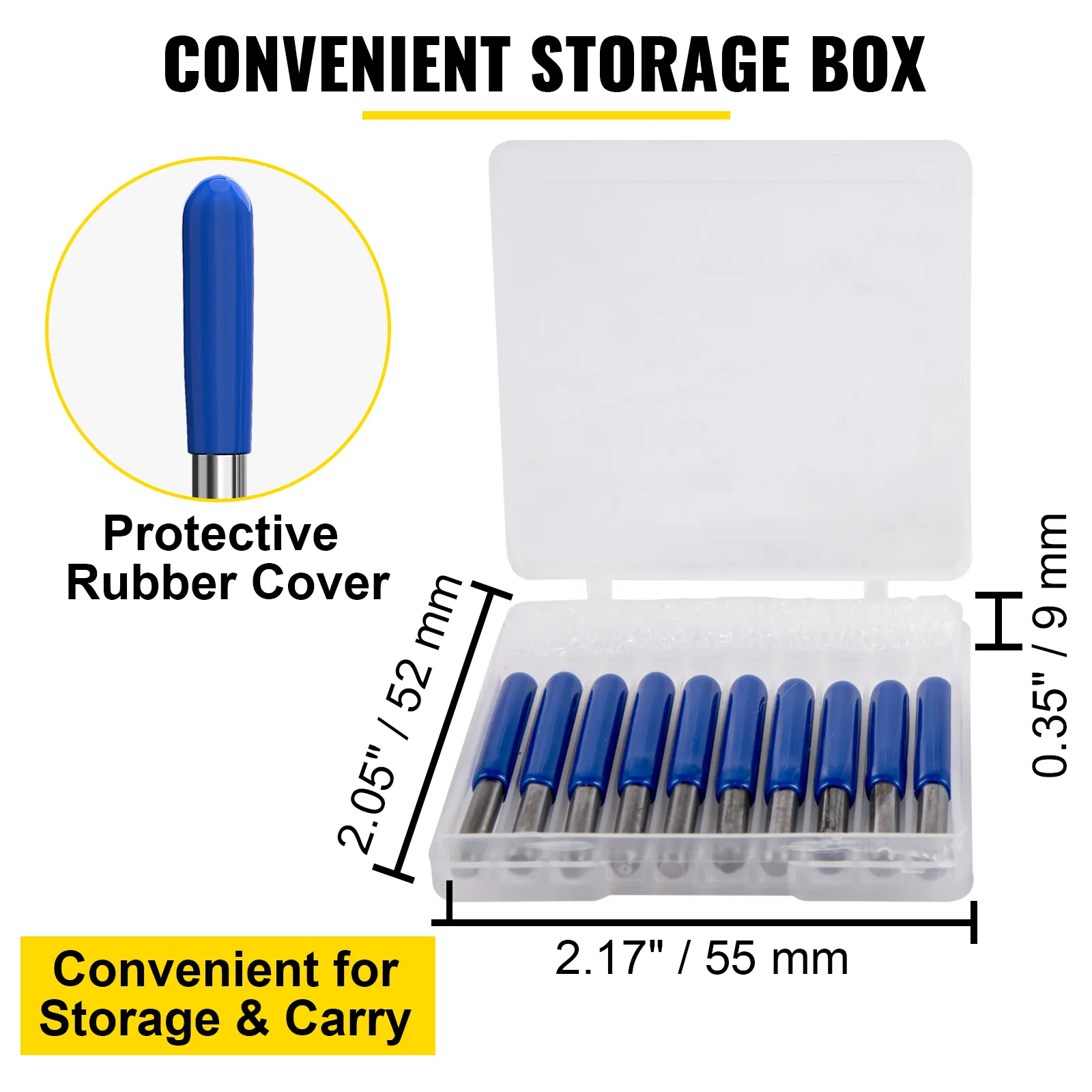

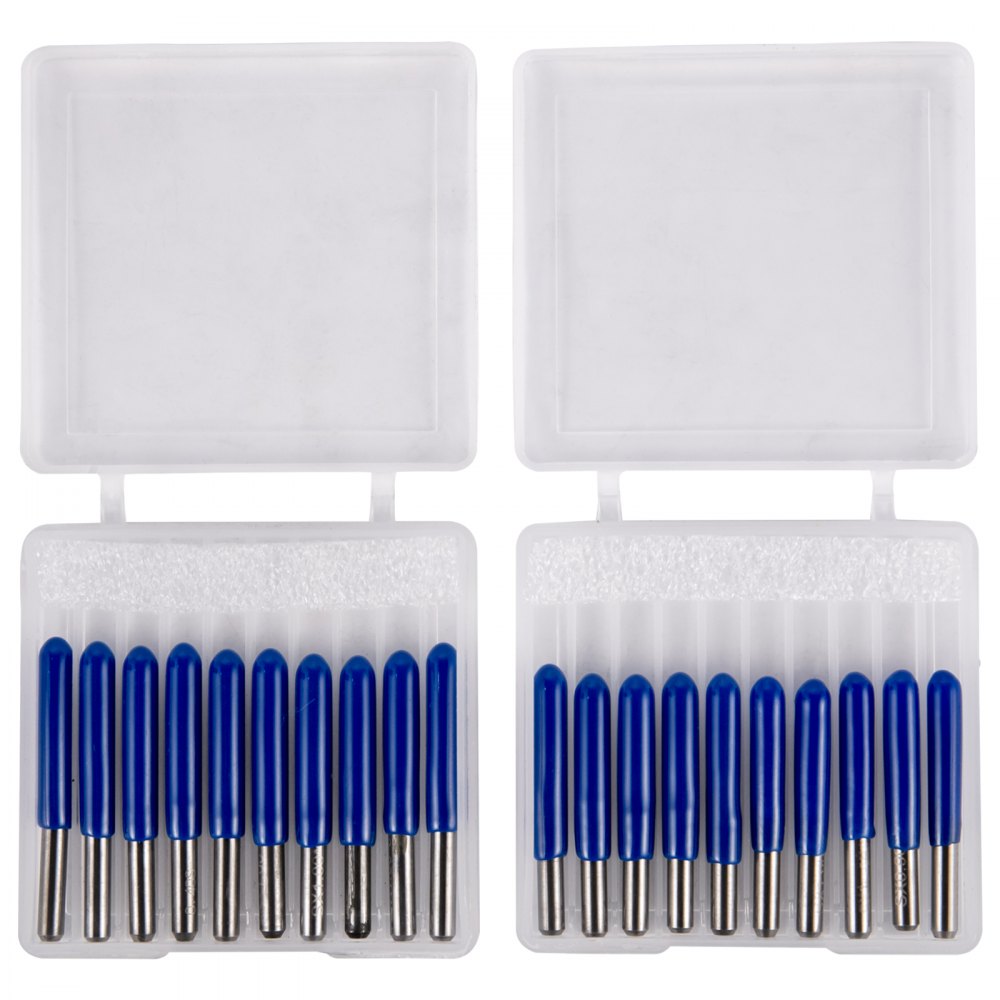

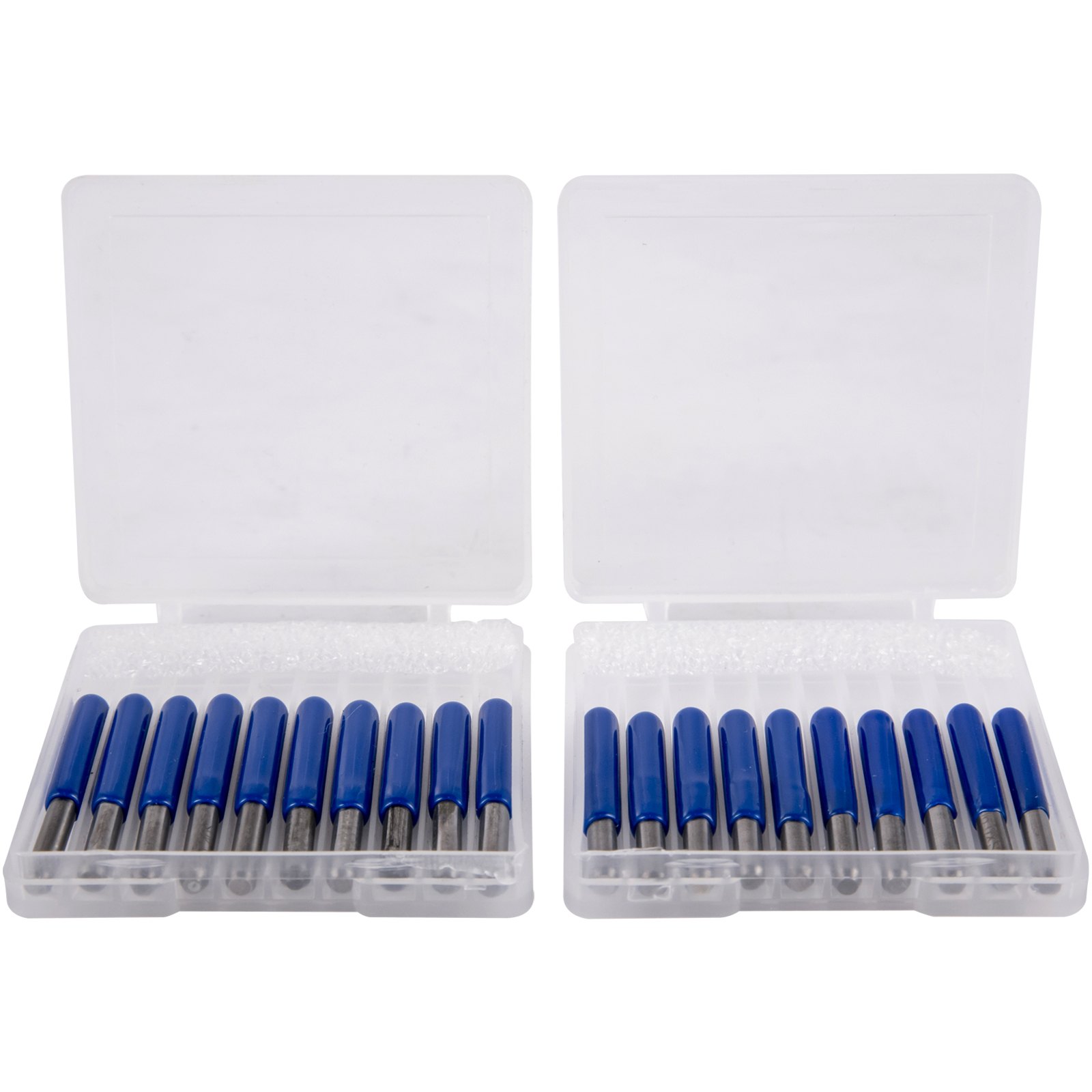

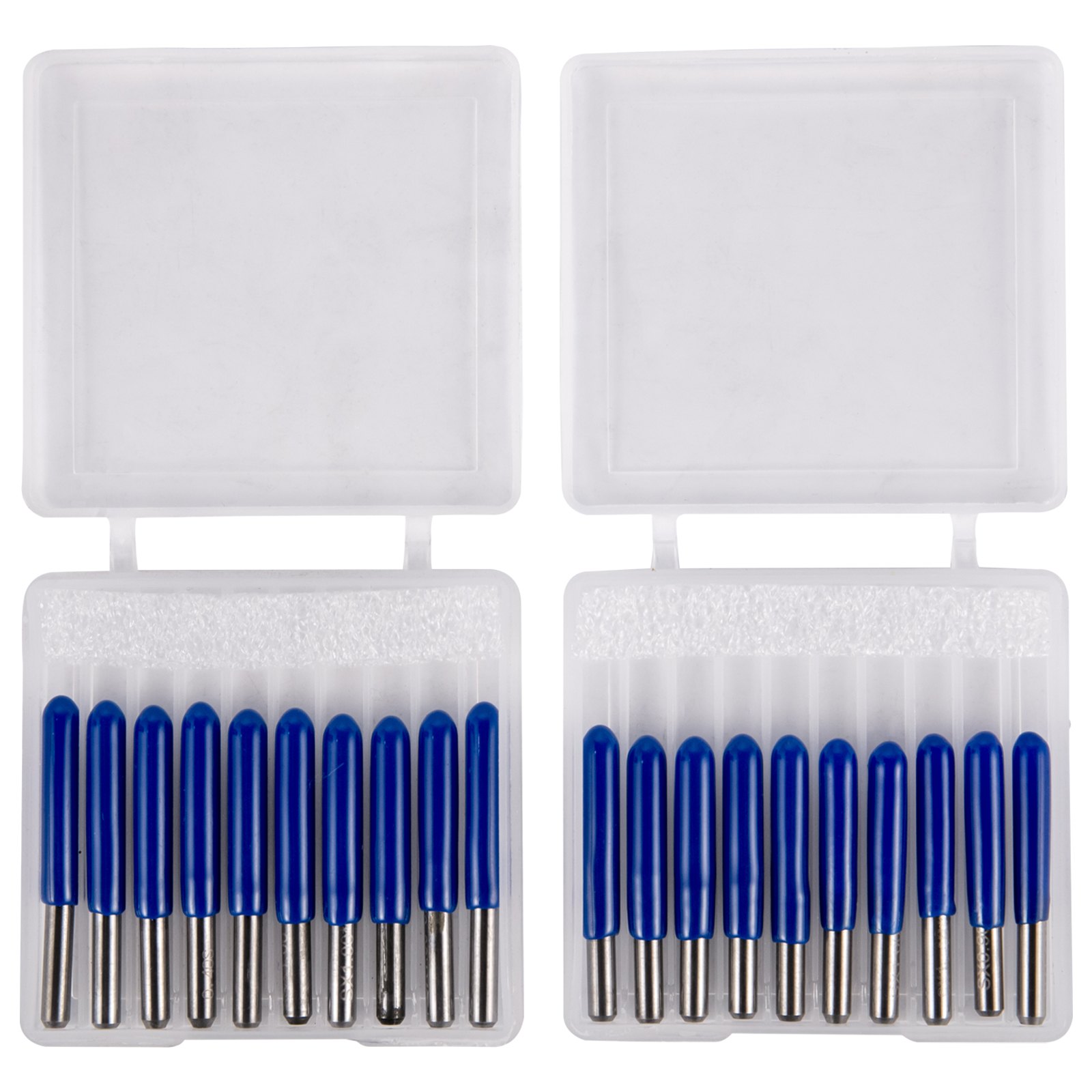

Convenient Storage Box

These bits are well packed in a portable plastic box for easy storage, each contained in an individual section to keep the bits from beating each other up.

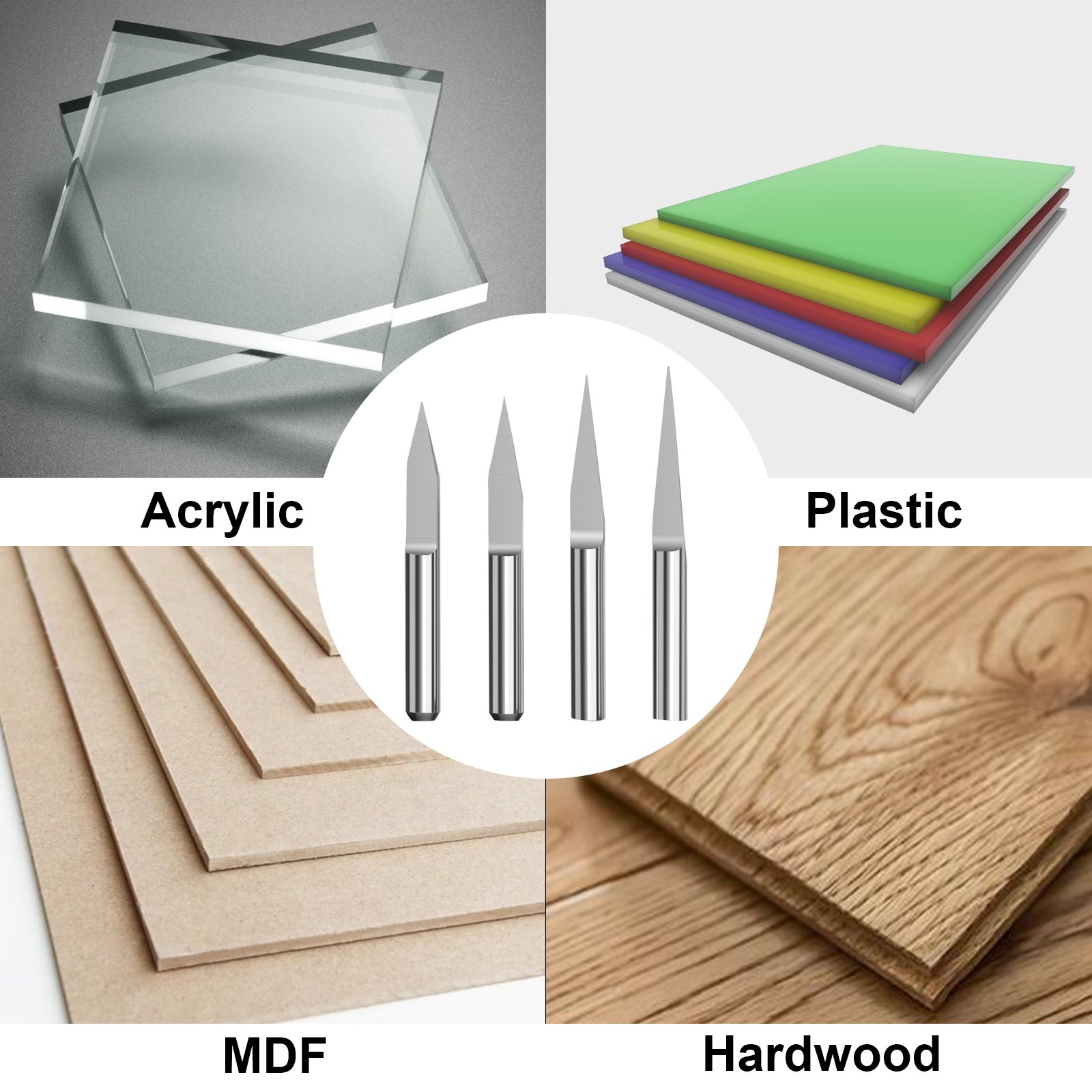

Extensive Application

As the professional parts of engraving tools, our end mills are widely applicable to carve, cut, engrave materials like MDF, ABS, PVC, acrylic, nylon, resin, plastics, wood, etc.

Package Content

20 x CNC Router Bits

Specifications

Model: 20 PCs V-shape Bits
Material: Tungsten Steel
Shank Diameter (SD): 0.125" / 3.175 mm
Cutting Degree (CD): 10°, 15°, 20°, 30°
Cutting Edge Length (CEL): 0.51" / 13 mm, 0.43" / 11 mm, 0.28" / 7 mm, 0.20" / 5 mm

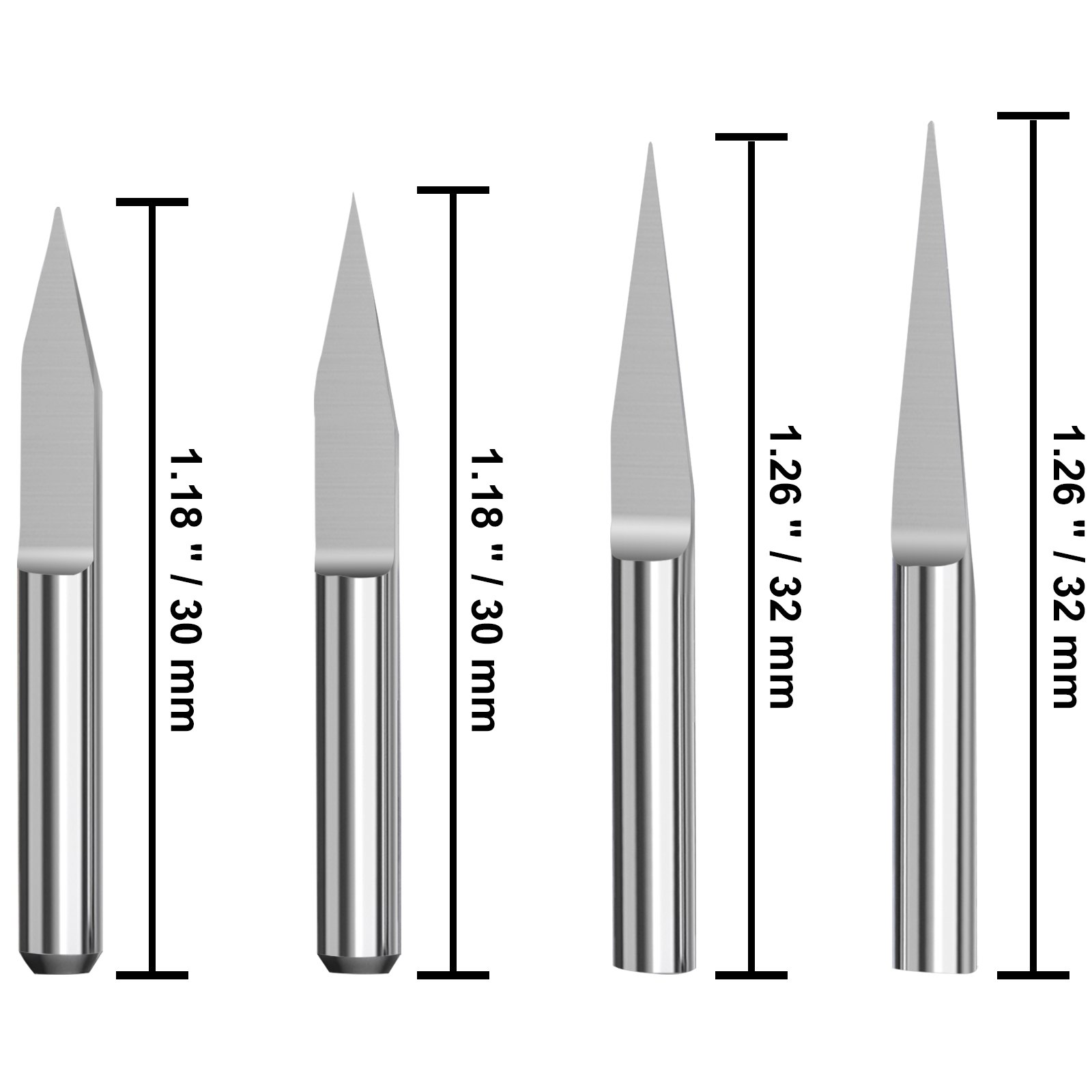

Overall Length (OAL): 1.26" / 32 mm, 1.18" / 30 mm, 1.26" / 32 mm, 1.18" / 30 mm
Tip: 0.004" / 0.1 mm
Storage Case Size: 2.17" x 2.05" x 0.35" / 55 x 52 x 9 mm

Specification

Model: 20 PCs V-shape Bits

Material: Tungsten Steel

Shank Diameter (SD): 0.125" / 3.175 mm

Cutting Degree (CD): 10°, 15°, 20°, 30°

Cutting Edge Length (CEL): 0.51" / 13 mm, 0.43" / 11 mm, 0.28" / 7 mm, 0.20" / 5 mm

Overall Length (OAL): 1.26" / 32 mm, 1.18" / 30 mm, 1.26" / 32 mm, 1.18" / 30 mm

Tip: 0.004" / 0.1 mm

Storage Case Size: 2.17" x 2.05" x 0.35" / 55 x 52 x 9 mm

These are a great buy for my Makermade M2 CNC Router. Perfect for cutting 1/8" to 1/4" thick sheet goods. Slower speeds than a 1/4" bit but the thinner kerf makes up for that and more.

The bits themselves seem to be good quality, I'm converting my 3d printer to a cnc and needed something cheap. They cut wood decently and seem pretty sharp. Only thing is their size is a bit questionable. The 3mm one i received was measured at ~0.1225" while 3mm is 0.11811" so it's a bit off. Same with the other bits.

Customer Reviews

4.8 Out of 5

Based on 11 reviews

Ratings by Features

Price 4.8
Quality 4.7
Features 4.7
Easy to Use 4.7
See More See Less

11 Review(s)

Clear filters

Shannon Taylor

Good bits for the money

These are pretty good bits especially for the money . I mean eventually they break but they’re small and I’m generally rushing through hardwood.

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Doug

4077

After I learned how to use the CNC cutter. I wanted different bits so I bought this set. They stay sharp through many cuttings. I recommend these.

Bob

1/8" Router bits

jeff davis

works as it should

for cnc router

Loretta F.

Great for PCB milling

Bits stay sharp after routing several FR-4 boards.

Joe

WOODDESIGNSSOCAL.GMAIL.COM

it works great.. very sharp and last long.. i made a lot of nice stuff with these bits// thank you 5 stars

great bits.5 stars it works great ,, good priced love the way it works. i would recomend it any time.. thank you 5 stars

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

VEVOR Customer

Seem to be good quality, size is questionable

SALEH

package

Thank you for the fast shipping Excellent packaging thank you Thank you for the fast shipping Excellent packaging thank you

trinh truong

Very sharp and durable

Love it. I bought two sets. I used it to cut the words for decorations.
