VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro
GGZCCHEVYSBCEK30TV0

VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Perfect Fit: Replaces the original cylinder head assembly to resolve failure and damage issues. As a cylinder head for small block Chevrolet engines, it fits the following models: SBC 327/350/383 Corvette, Camaro, Z06. You will experience unprecedented smoothness in engine operation.

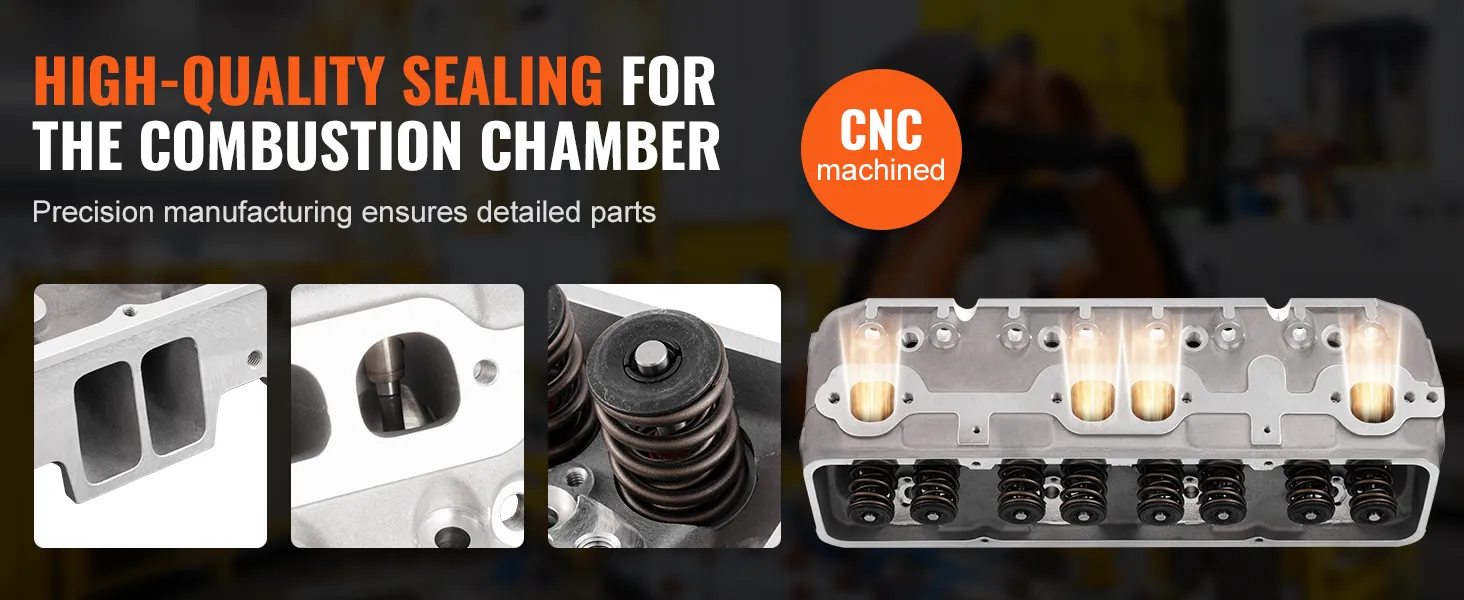

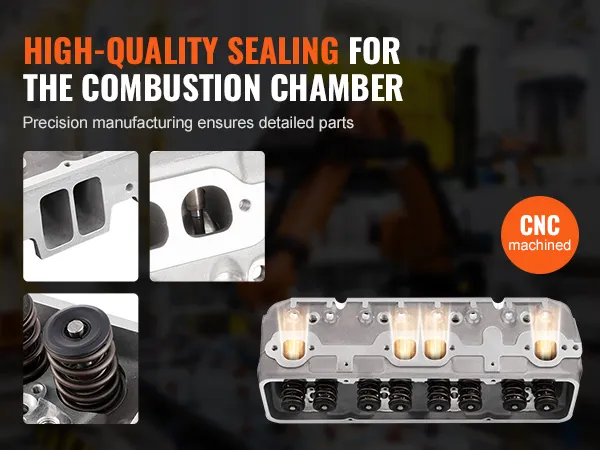

  • Precise Manufacturing: Utilizes CNC precision machining for the combustion chamber, intake, and exhaust passages. Compared to standard casting, this cylinder head provides smoother airflow and high precision with excellent sealing. Ensures that all components (such as valves, threaded holes, etc.) are correctly positioned, sized, and angled, avoiding issues such as improper valve heights. Passed sealing tests to ensure correct installation and operation. Compatible with angled spark plugs, M14*P1.25*22.8 installation holes.
  • Long Service Life: The cylinder head assembly is crafted from premium materials to extend its lifespan. Made with industrial-grade aluminum alloy, it offers excellent impact resistance, wear resistance, and rapid heat dissipation to prevent overheating. We also include manganese bronze valve guides and hardened valve seats to maintain engine performance stability. Upgrade from disappointing old cylinder heads with our reliable option.

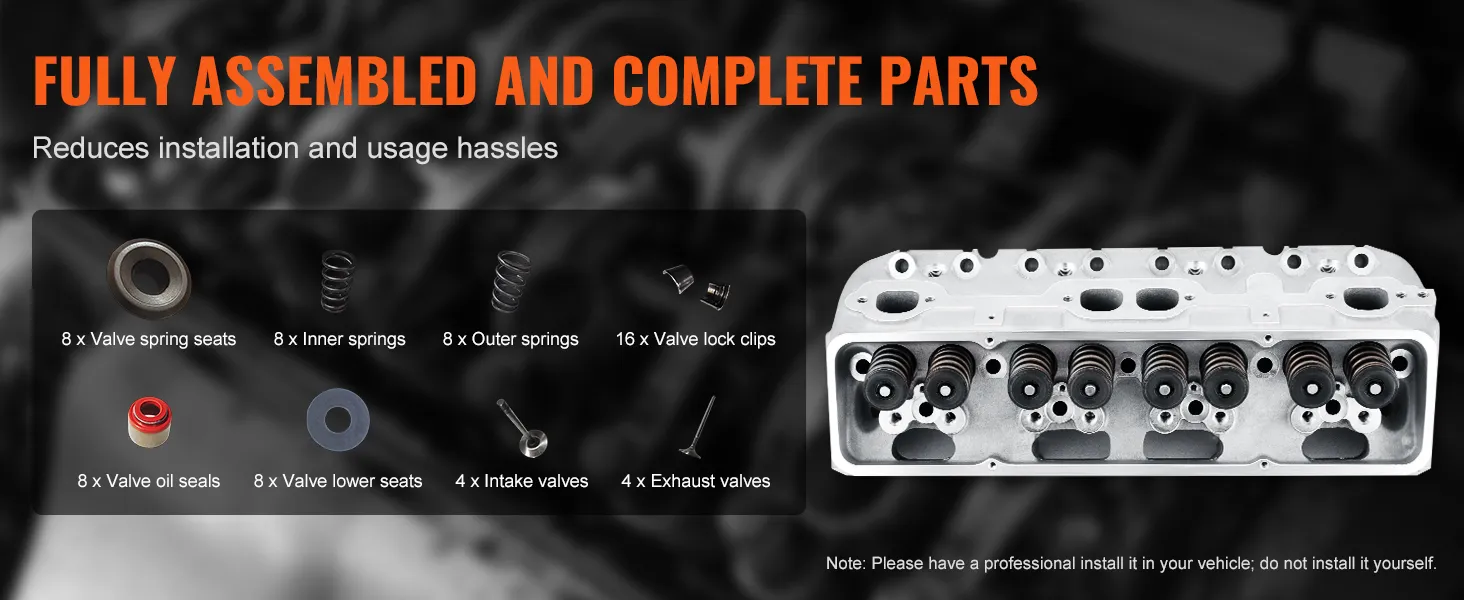

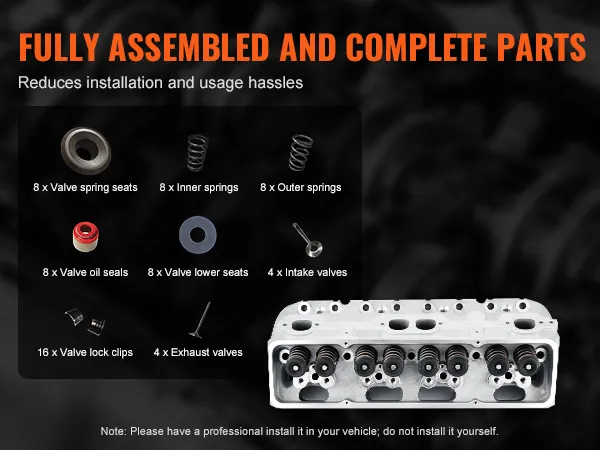

  • Fully Assembled: The cylinder head assembly comes fully assembled with all necessary components, including valve spring seats, inner springs, outer springs, valve locks, valve seals, valve seats, intake valves, and exhaust valves. This reduces the likelihood of installation errors and ensures ease of use. It is carefully packaged and ready to be delivered to you. Please keep the installation environment clean and have a professional perform the installation.
  • Efficient Solution for Common Issues: If your vehicle experiences abnormal vibrations, severe oil leaks, aging or deformation, or excessive spark plug oil deposits, consider replacing it with this high-quality engine cylinder head. It will enhance horsepower, improve fuel efficiency, and reduce emissions.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Engine Cylinder Head Assembly Replacement Aluminum for SBC Corvette Camaro
Cylinder Head Assembly Replacement: Enjoy a Smooth Start-up
Designed specifically to replace cylinder heads for small block Chevrolet engines. Please confirm your engine model and vehicle make before purchase.
The cylinder head assembly seals the top of the cylinder, forming the combustion chamber. Each cylinder head is meticulously designed and rigorously tested before delivery to ensure precise fit and high sealing performance.

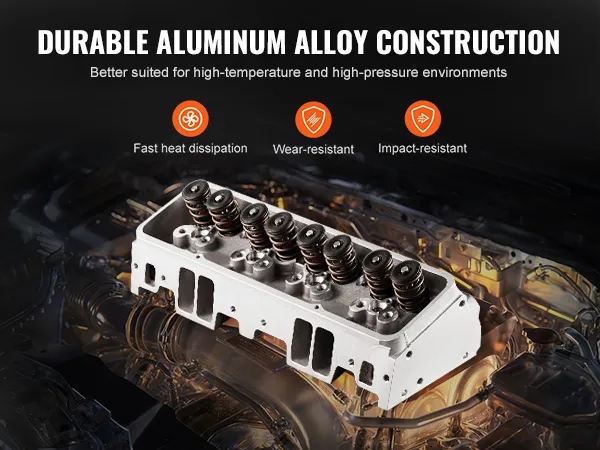

This cylinder head is made from high-rigidity aluminum alloy with excellent heat dissipation. It can endure high-temperature and high-pressure environments, ensuring long-term durability even with frequent use.
Essential components are pre-installed to reduce assembly steps. Purchase spark plugs compatible with your model, maintain a clean installation environment, and have a professional perform the installation.
This complete cylinder head is designed to improve vehicle performance. It has been optimized to enhance your vehicle's operational efficiency.

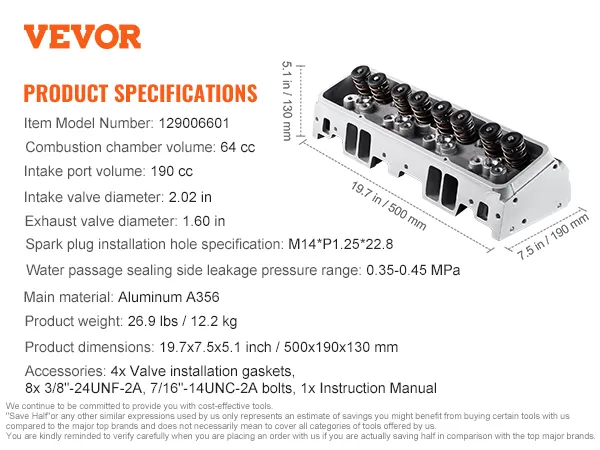

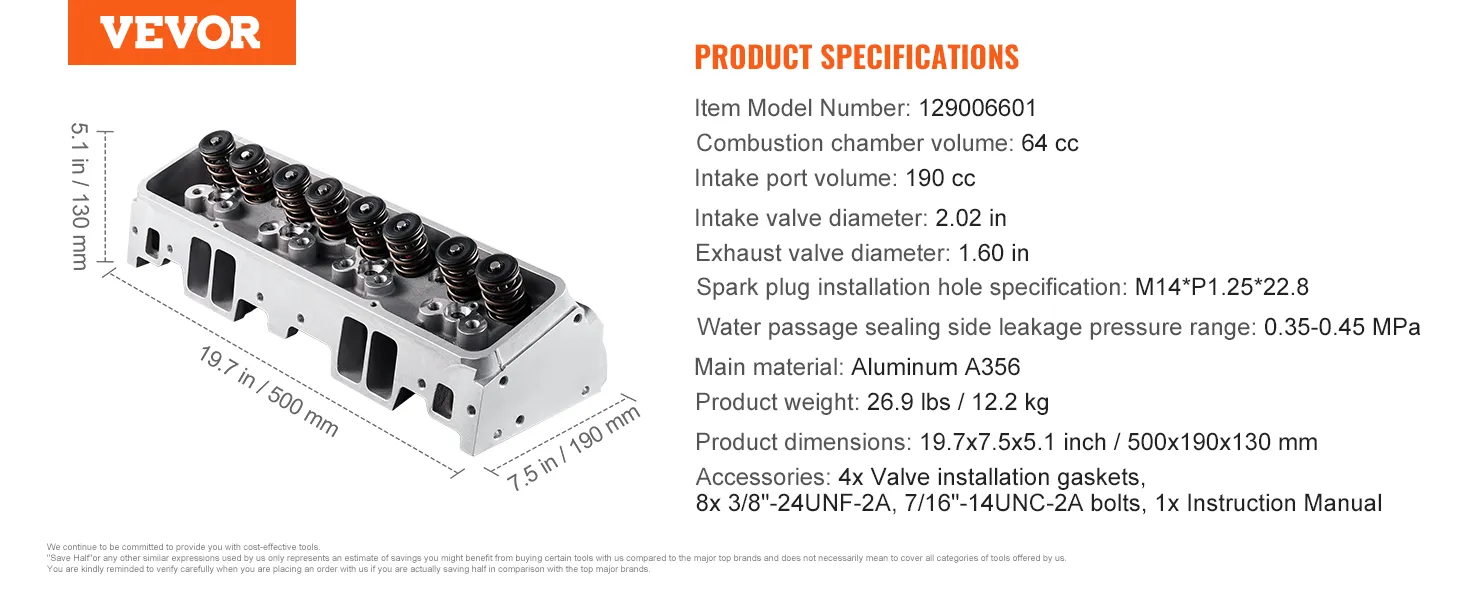

Specification

Item Model Number
129006601
Combustion Chamber Volume
64 cc
Intake Port Volume
190 cc
Intake Valve Diameter
2.0 inch / 51.3 mm
Exhaust Valve Diameter
1.60 inch / 40.6 mm
Spark Plug Type
Slant Hole
Spark Plug Installation Hole Specification
M14*P1.25*22.8
Water Passage Sealing Side Leakage Pressure Range
0.35-0.45 MPa
Main Material
Aluminum A356
Product Weight
26.9 lbs / 12.2 kg
Product Dimensions
19.7x7.5x5.1 inch / 500x190x130 mm
Questions and Answers
6 Questions
what is the valve installed height and the spring pressure at that height
The outer spring is compressed to 32 at 905N and to 54.5 at 210N. The inner spring is compressed to 26 under pressure of 553N; Compressed to 131 at a pressure of 45N
By vevor
What is max lift supported by these heads and do you have any flow bench numbers from these heads?
Assembly Specifications Max Lift is 550 , combustion chamber volume is 62cc
By vevor
My sbc year is 1991 thoes heads fit?
These heads fit your sbc 1991.
By vevor
what are the valve lengths
Intake valve is Φ8.6*Φ51.2*128, exhaust valve is Φ8.6*Φ40.5*128.
By vevor
Are these springs setup for a flat tappet cam or roller cam?
These are roller cam.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
23 Review(s)
Clear filters
Robert Jolly Robert Jolly
Excellent price and quality
Great engine part! I read consumer reports about not using the cam shaft it came with so I bough a cam and lifter assembly for it and it’s still kind of early but I have no reason to be anything but happy with results so far. My 22re is alive and well!
Joe W. Joe W.
Over 15k miles on this head and no problem.
I have gone over 15k miles so far Re-Use your original Toyota Camshaft I am not saying the cam is bad. I have bought several chinese heads and the only problem I have with them is the cam lobes wearing off from the cam material being too soft. On this head I used my original cam. This is worth mentioning, because some 22R/22RE replacement heads use proprietary cams with a different size bearing/journal. This one will accept your OEM Camshaft. If you need to use camshaft that came with this head, use lucas 30W break-in motor oil so the new camshaft mates properly with the rockers. Also re-check your valve adjustment after about 5k miles.
Mark S Harris Mark S Harris
Mechsnic
Better than OEM from the looks. Improved casting. Better flowing head. I'm impressed exp for the price.
Noe Aguinaga Noe Aguinaga
22re Mophorn cylinder head
Does the job I hope. Does fit. Reviews say the cam is trash. So there's that. It's a 200 dollar head. Go buy a 150 cam and boom 350 for a good cylinder head for your truck.
Leonardo cruz Leonardo cruz
Dueño
Excellent nice and good price the shipping one time .....................................................
furnk furnk
wonderful
My father likes it
emilie emilie
Good product for the money.
Thank you for a great quality yet affordable product. Shipped quickly.
Big Dan Big Dan
Used cars.
They are well worth the money they are. Awesome you can't build For that. I've used several sets of these. Heads They work very well.
Robert Crabtree Robert Crabtree
Powerstroke tech
I'm powerstroke tech. Installed set 10000 miles everything still good. I check all clearance and thickness. Check ford specs was same.
happy customers happy customers
Great heads
Was exactly as description said ... Came package great to keep from getting damaged ....love this product
