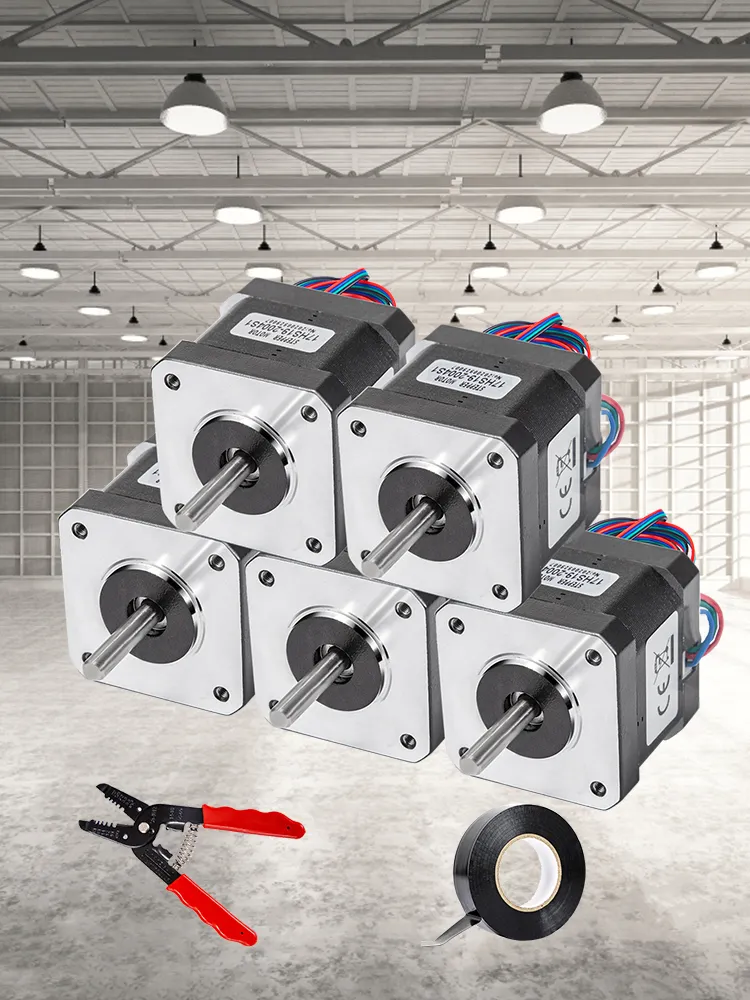

5PCS NEMA 17 59Ncm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
- Precision Control System
- Excellent Performance
- Premium Quality
- Effortless to Use
Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
High Torque & Speed
The holding torque of the stepper motor up to 59 N.cm / 83.6 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
Package Content
- 5 x Stepper Motors
- 1 x Wire Stripper
- 1 x Insulating Rubber Tape
- 1 x Product Manual
Specifications
- Model: 42HS19-2004S1
- Rated Voltage: 2.8V
- Rated Current/Phase: 2A
- Number of Phase: 2
- Holding Torque: 59 N.cm / 83.6 oz.in
- Step Angle: 1.8°
- Step Angle Accuracy: 5% (full step, no load)
- Lead Wire: 4
- Phase Inductance: 3mH
- Phase Resistance: 1.4 Ω
- Moment of Inertia: 68 g.cm²
- Orientation Torque: 200 g.cm
- Shaft Diameter: Ø 4.5 mm / 0.18''
- Shaft Length: 24 ± 0.5 mm / 0.94''
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Insulation Resistance: 100 m/min, 500VDC
- Dielectric Strength: 500VAC/ for one minute
- Shaft Radial Play: 0.02 Max.(450g-load)
- Shaft Axial Play: 0.08 Max.(450g-load)
- Max. Radial Force: 28 N(20 mm from the flange)
- Max. Axial Force: 10 N
- Motor Size(L x W x H): 42 x 42 x 48 mm / 1.65 x 1.65 x 1.89''
- Weight: 0.35 kg / 0.77 lbs
- Wiring Configuration: 4-Wire Bipolar
