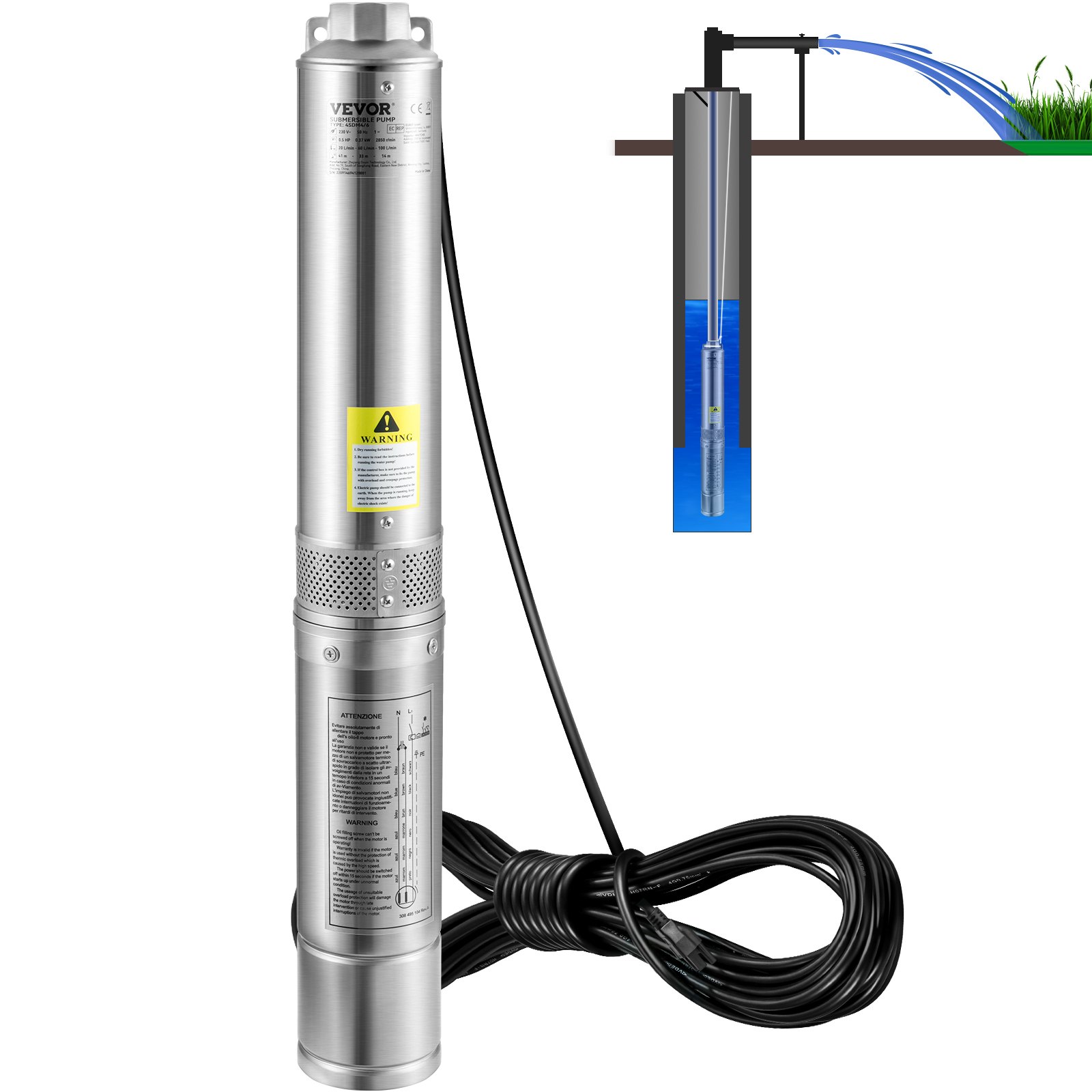

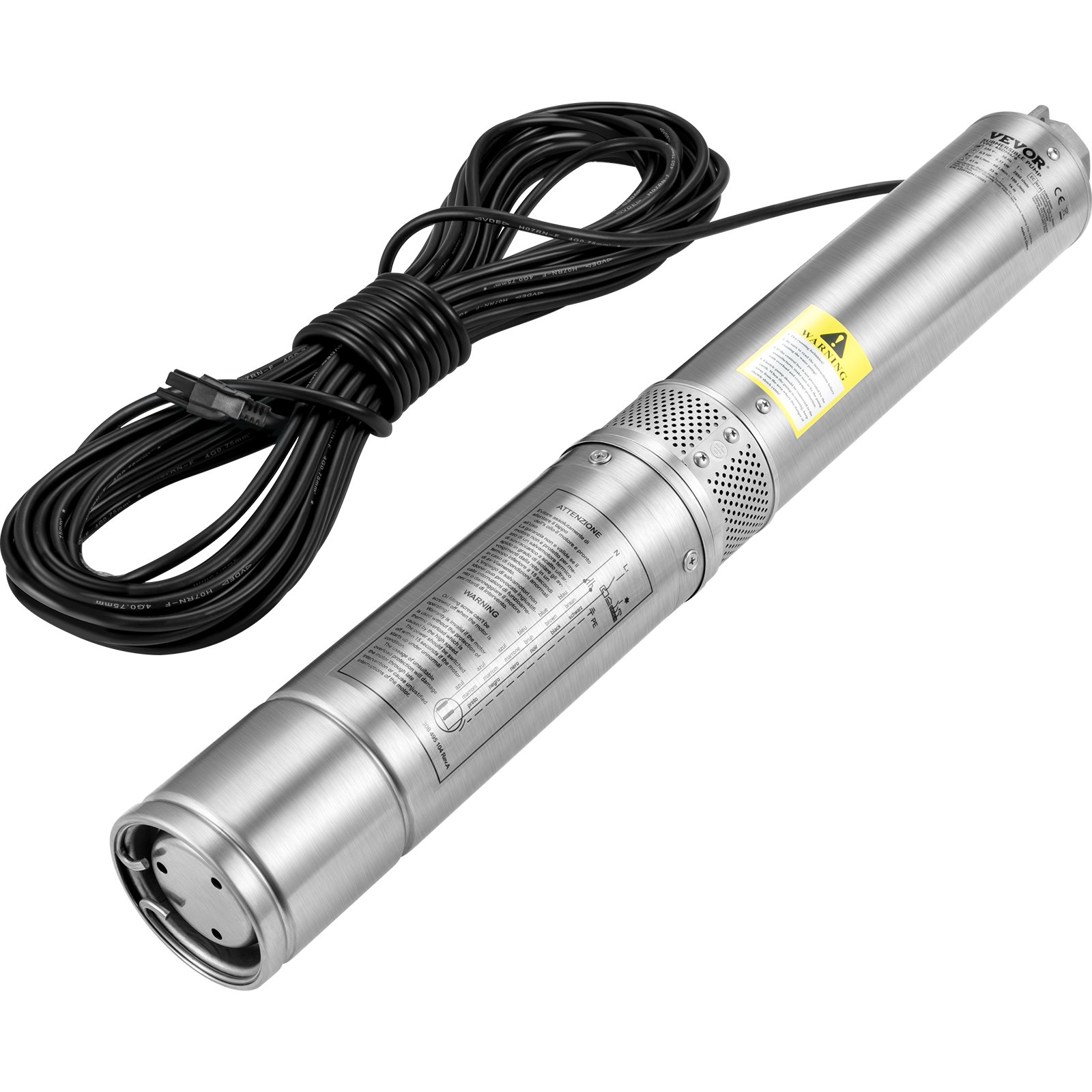

VEVOR deep well submersible pump with cable, diagram illustrating pump submerged in well. VEVOR deep well submersible pump 0.5hp with a 33 ft electric cord, shown in a lush field with irrigation. VEVOR deep well submersible pump with 28 gpm flow, 167 ft head lift, and pure water operation warning. stainless steel VEVOR deep well submersible pump with etl certification and ip68 waterproof rating under water. powerful copper motor of the VEVOR deep well submersible pump with high-precision rotor and built-in overheat protection. VEVOR deep well submersible pump with stainless steel filtration mesh for crystal clear water.
SJQSBNZMC05HPPECMV1

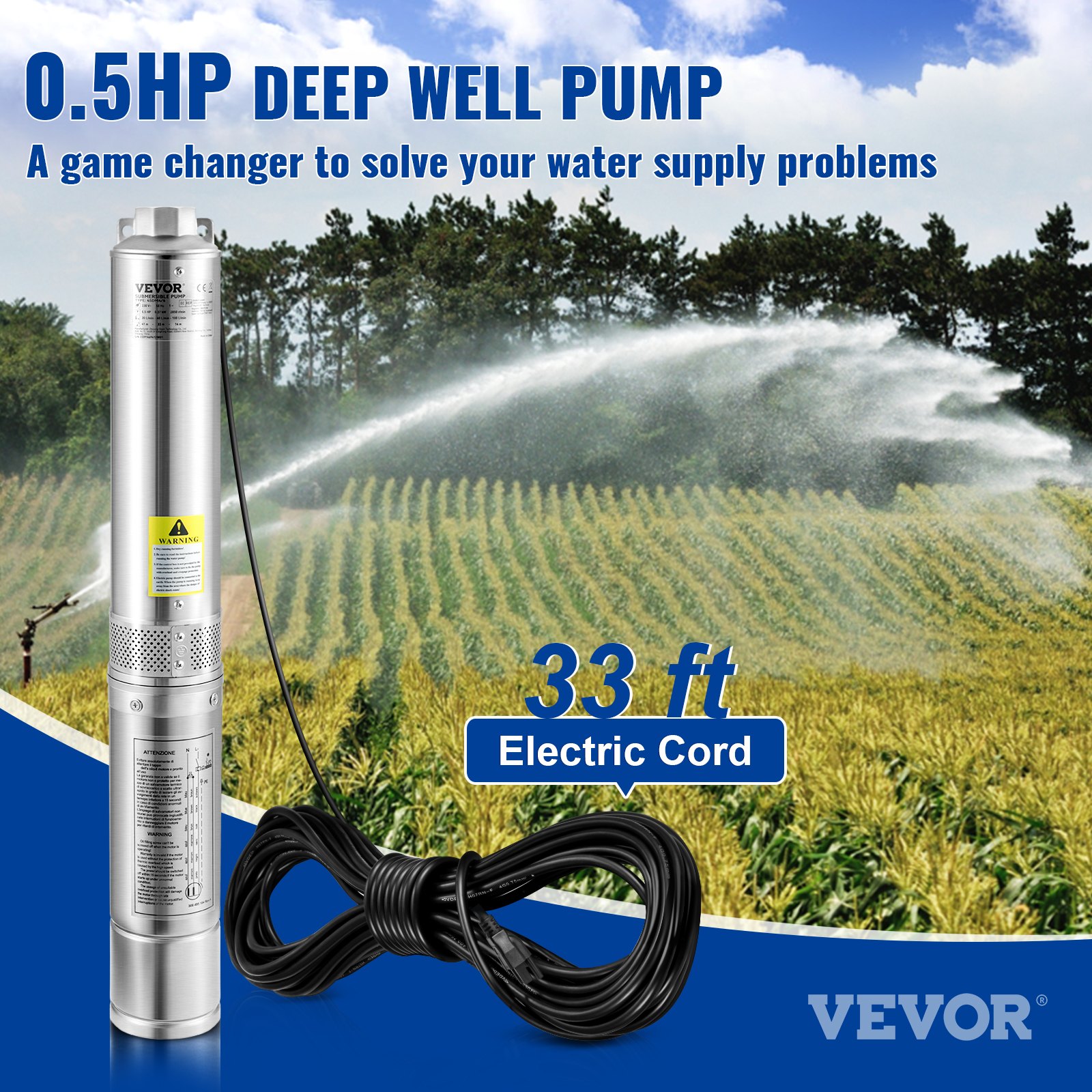

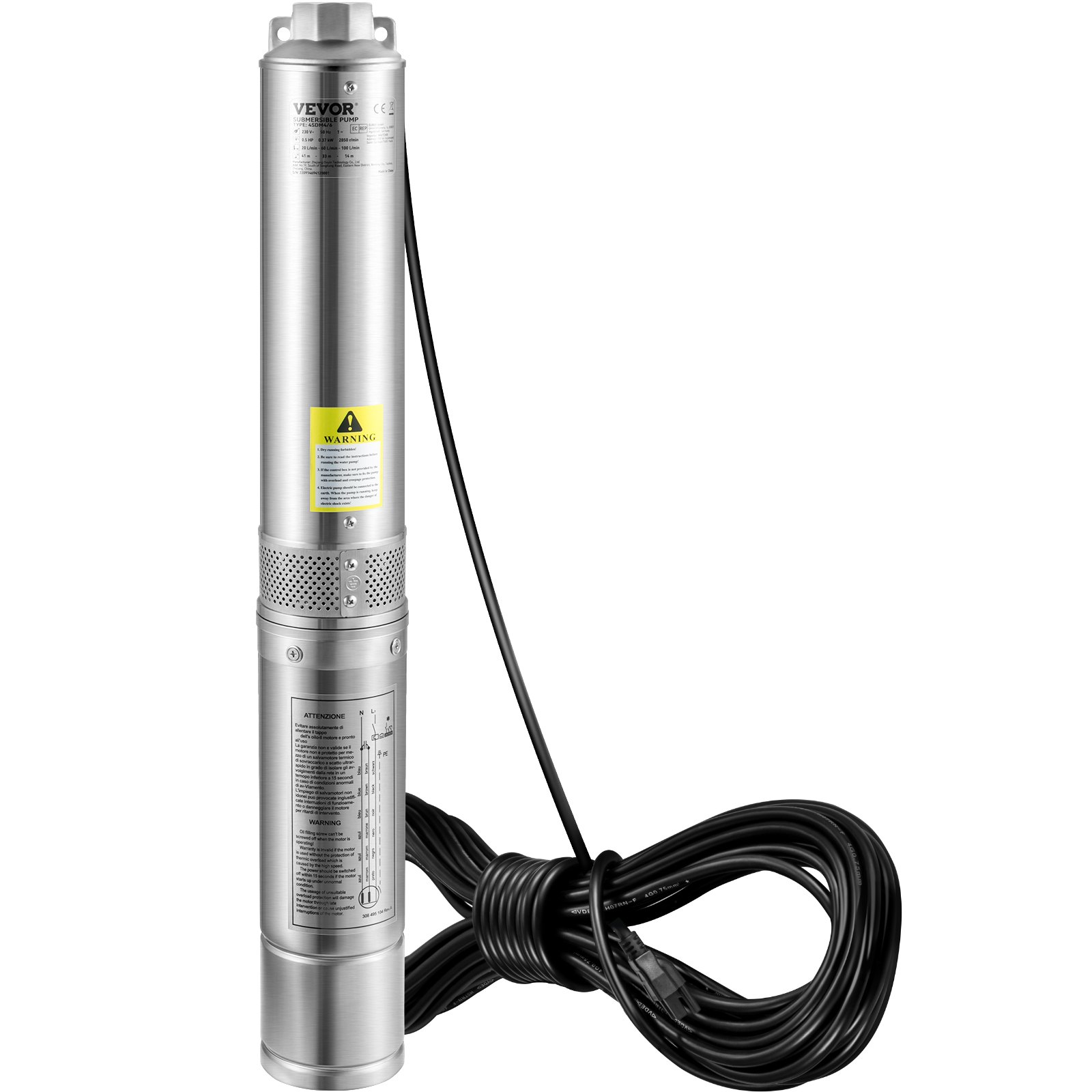

VEVOR Deep Well Submersible Pump, 0.5HP 115V/60Hz, 28gpm Flow 167ft Head, with 33ft Electric Cord, 4" Stainless Steel Water Pumps for Industrial, Irrigation&Home Use, IP68 Waterproof Grade

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

Built-in

  • External Starter Box
  • Built-in

0.5 hp

  • 1.5 hp
  • 0.5 hp
  • 1 hp

About this item

  • Enhanced Pump Flow & Head: Power: 0.5HP, 115V; Diameter: 4" (for 4" or bigger well casing); Discharge: 1-1/4" NPT. This deep well submersible pump is designed with 5-stage thermoplastic impellers, providing 28GPM max flow and 167 ft max head. It comes with a 33 ft electric cord, making life without modern plumbing a lot easier. Pump out your worries with ease and relax. No challenge is too big for you.
  • Upgraded Stainless Steel: The whole frame of our deep well pump is unlike anything on the market. It is made of stainless steel, including the outlet and connecting components. You don't have to worry about it becoming rusted or corroded after being underwater for a long time. With ETL certification and IP68 waterproof grade, the pump can be used for 8-10 years. Stop wasting time! The perfect choice is in front of you!
  • Reliable Copper Motor: Are you tired of previous submersible well pumps failing you? Are you ready for consistent satisfaction and quality? The powerful copper motor and high-precision rotor promise long-term stable running. The motor features built-in overheat protection, allowing it to automatically stop when stuck or during abnormal situations to prevent burning. NOTICE: DO NOT use it without water or at a low water level to avoid idle running.

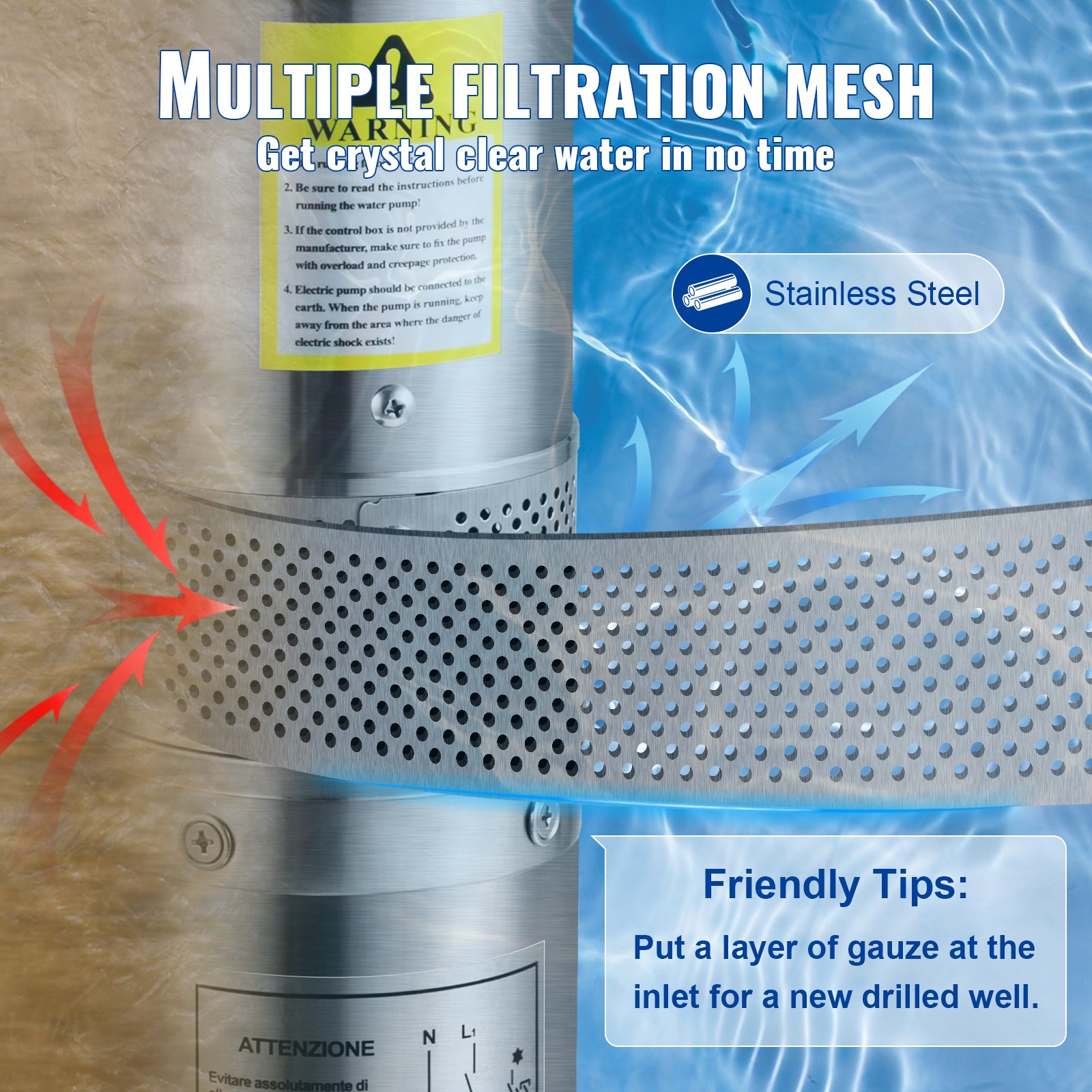

  • Trouble-free Check Valve & Filter: This well pump has a built-in check valve to prevent back-flow (an additional check valve is highly recommended). The stainless steel filtration mesh is designed to filter impurities. You can add a layer of gauze in front of the filtration inlet for a new drilled well that may contain excessive granular sediment. Keep impurities out without the headache.
  • Use It Anywhere: Whether you want to solve water supply problems for industry, farmland, or home, this deep water well pump is the one you can trust. It works excellently as a garden water source and sprinkler for the kids. You can use the pump for extracting water from deep wells, reservoirs, canals, rivers, and other water-lifting works.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Deep Well Submersible Pump, 0.5HP 115V/60Hz, 28gpm Flow 167ft Head, with 33ft Electric Cord, 4" Stainless Steel Water Pumps for Industrial, Irrigation&Home Use, IP68 Waterproof Grade
Built-in 0.5 hp
VEVOR deep well submersible pump 0.5hp with stainless steel, 167ft high head, and 28gpm large flow.
VEVOR deep well submersible pump with long cable, stainless steel body, and water pipe setup illustration.
0.5HP Deep Well Submersible Pump
28 GPM Max. Flow & 167 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

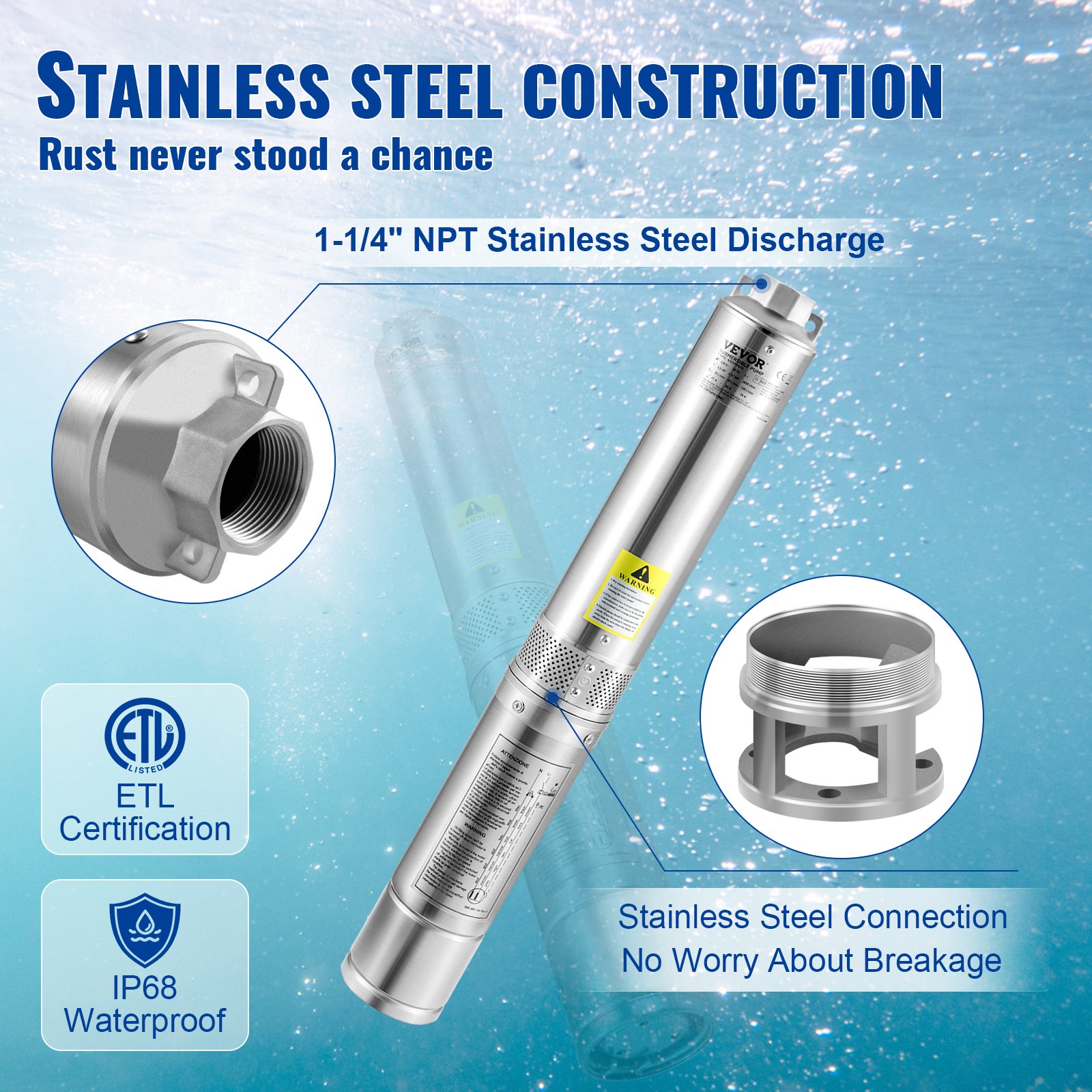

VEVOR deep well submersible pump vs others: stainless steel outlet, connection, thickened pump shell.
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.

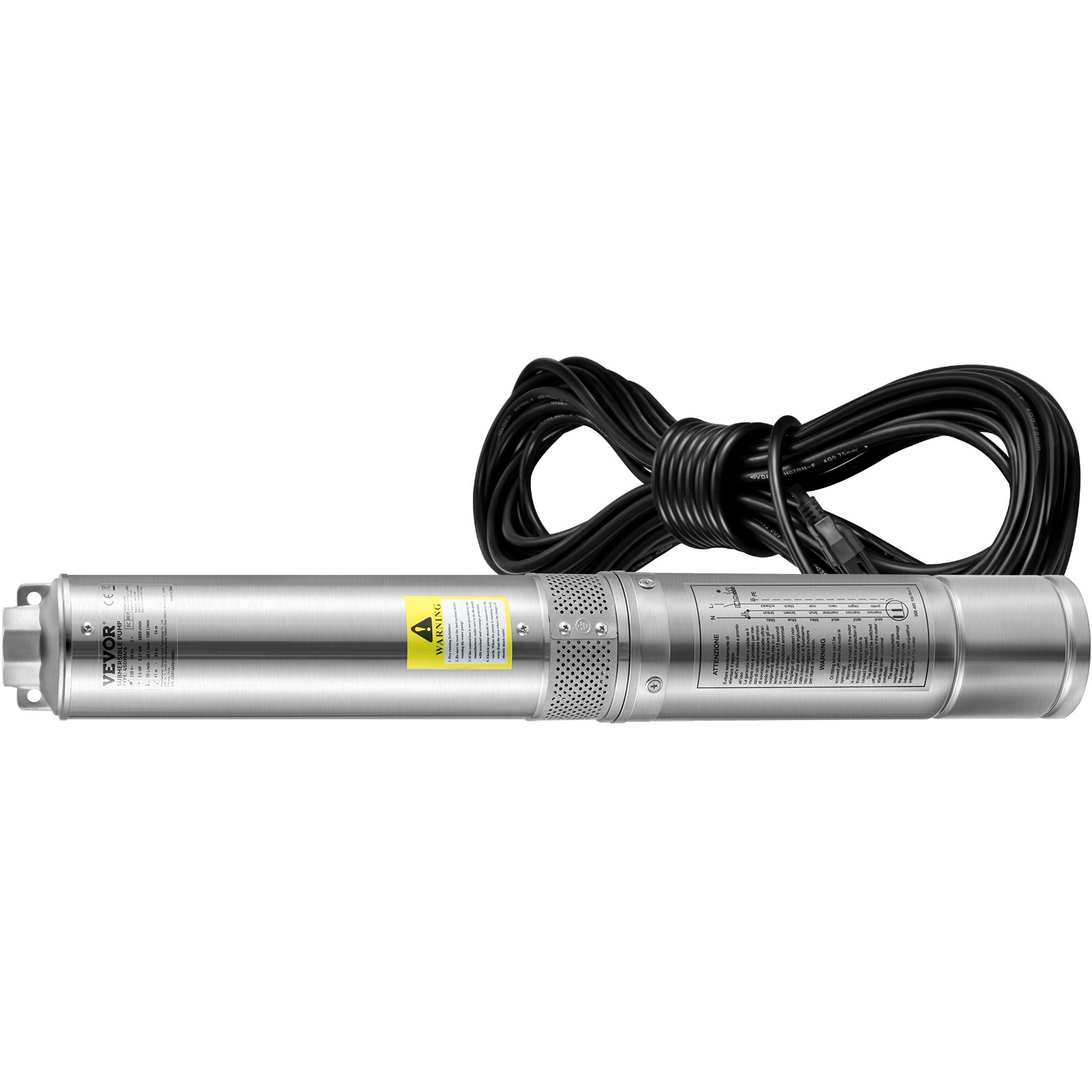

how to install VEVOR deep well submersible pump vertically or horizontally with water level warning.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
VEVOR deep well submersible pump with 5-stage thermoplastic impellers, double ball bearing, and sling hole.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.

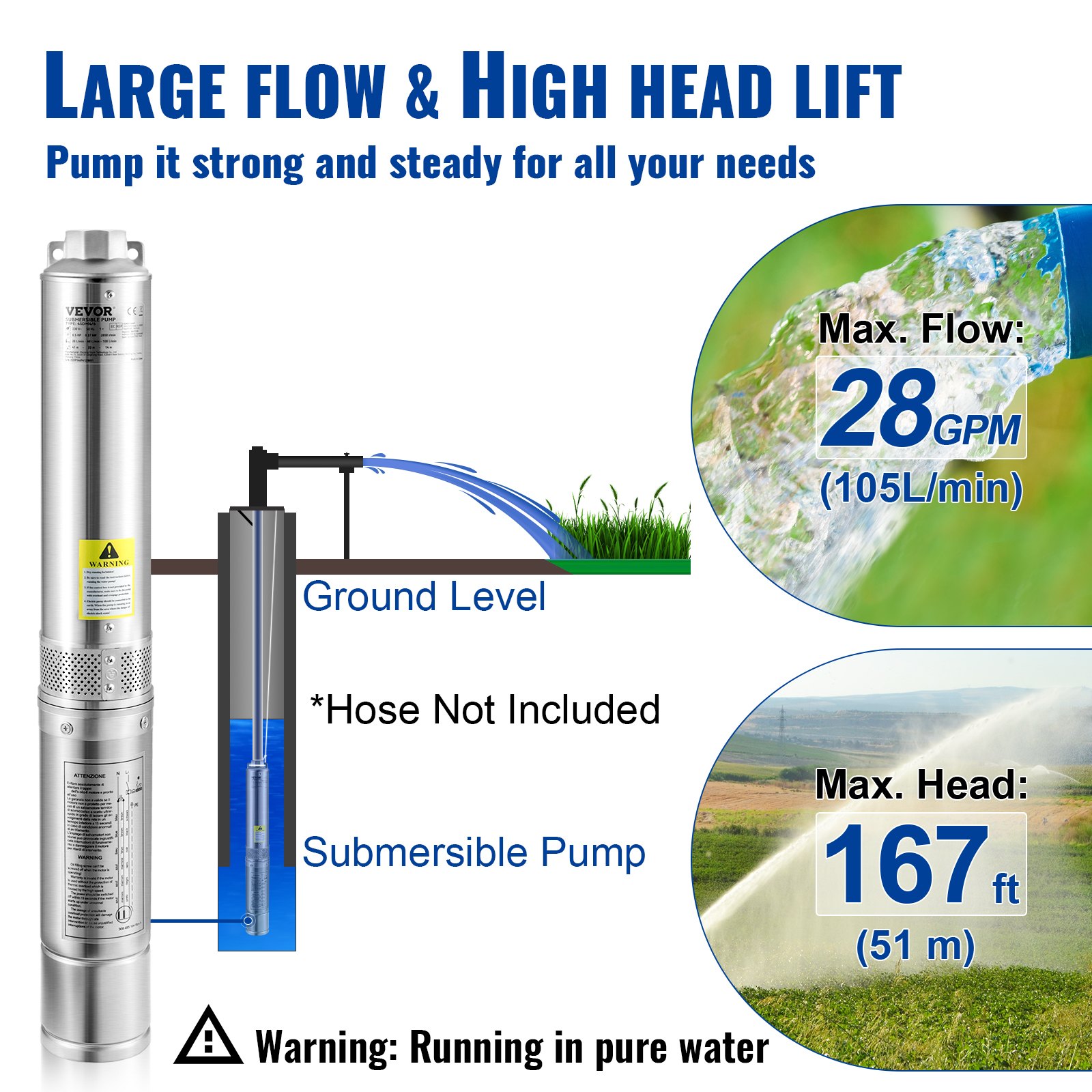

VEVOR deep well submersible pump, 28 gpm large flow, 167 ft high head lift for efficient irrigation.
Large Flow & High Head Lift
This 0.5 HP submersible well pump features a large 28GPM flow and 167 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.

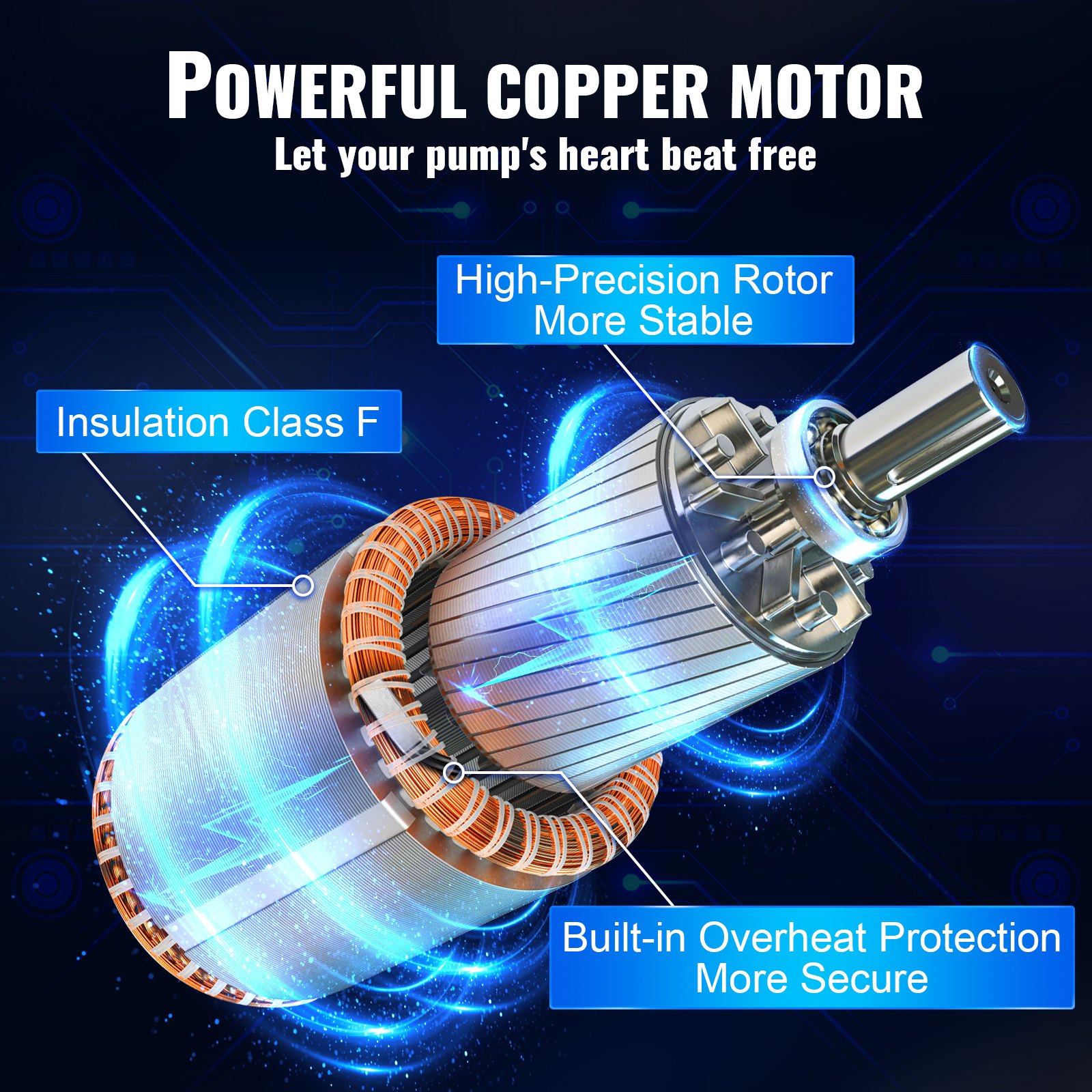

VEVOR deep well submersible pump with high efficiency copper motor and overheat protection features.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overheat protection to prevent overheating and consume less energy.

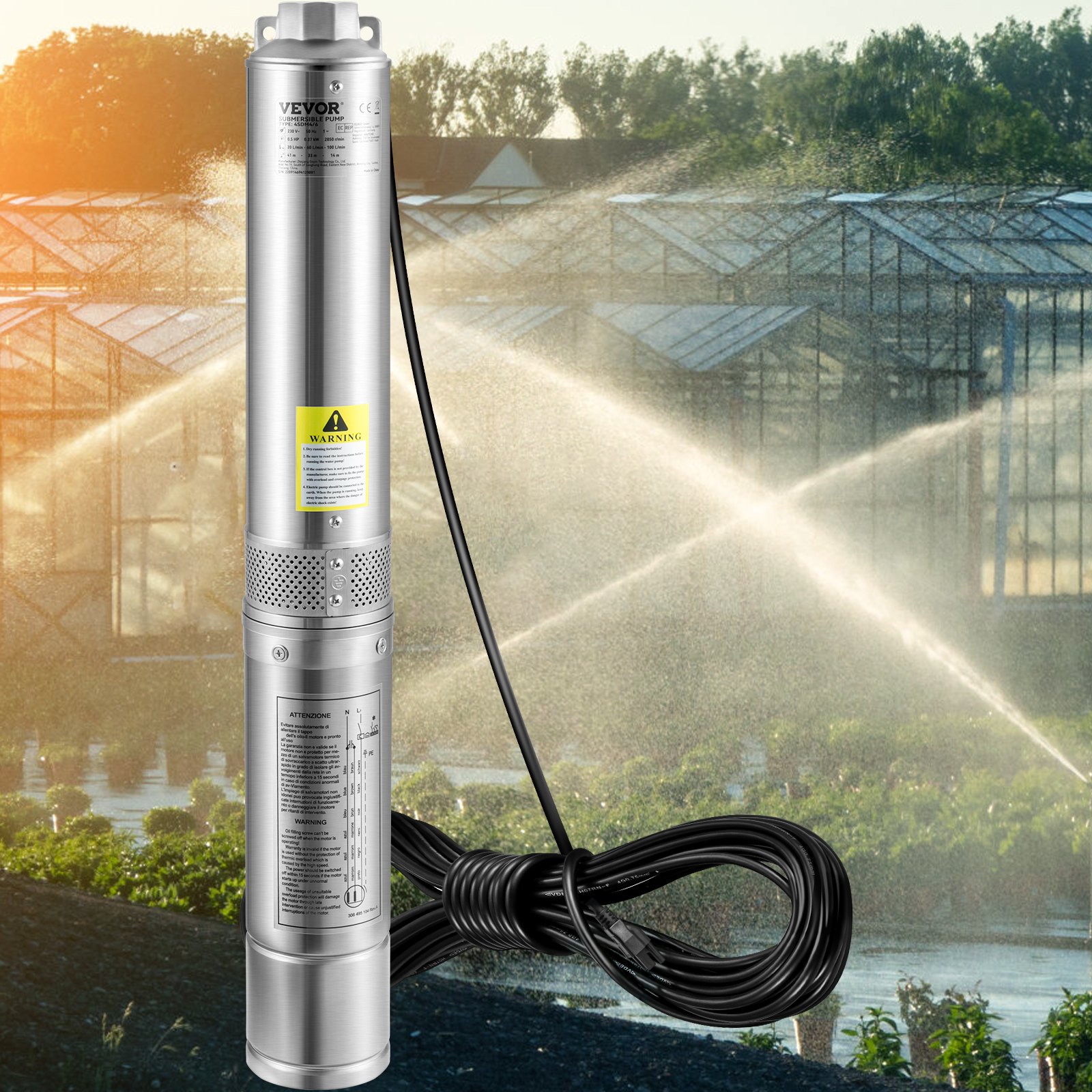

VEVOR deep well submersible pump for well pumping, irrigation, domestic water, livestock, fishpond, river.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
VEVOR deep well submersible pump, stainless steel, 28 inches tall, measurements highlighted.
Specifications
  • Model: 4SSM4/5
  • Material: Stainless Steel
  • Power: 0.5HP/370W
  • Voltage: 115V/60Hz
  • Max. Flow: 28GPM (105L/min)
  • Max. Head: 167 ft/51 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 5
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

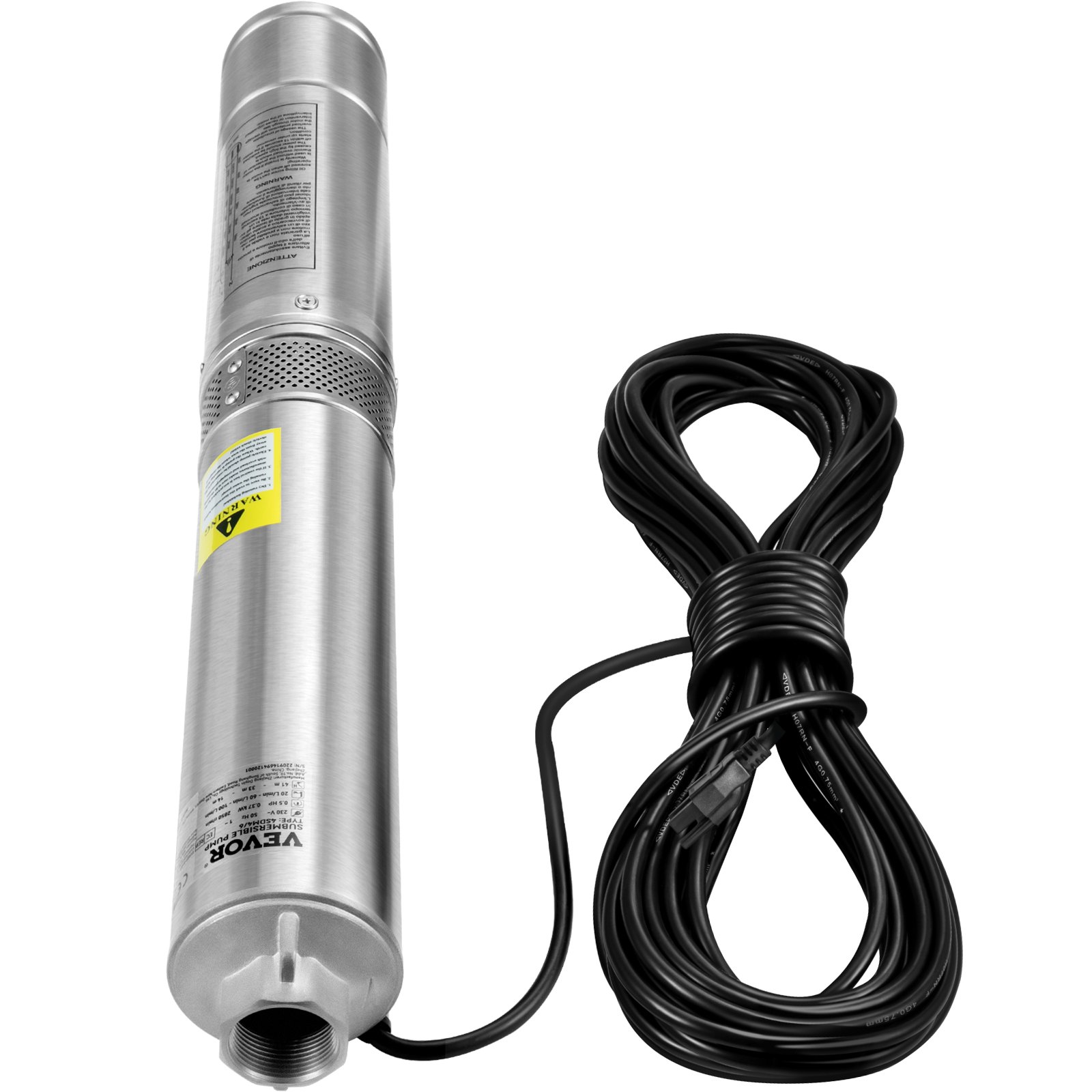

VEVOR deep well submersible pump with black cable, stainless steel body, and yellow label.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x 33 ft Electric Cord with US Plug
VEVOR deep well submersible pump 0.5hp with stainless steel, 167ft high head, and 28gpm large flow.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR deep well submersible pump with long cable, stainless steel body, and water pipe setup illustration.
0.5HP Deep Well Submersible Pump
28 GPM Max. Flow & 167 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
VEVOR deep well submersible pump vs others: stainless steel outlet, connection, thickened pump shell.
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
how to install VEVOR deep well submersible pump vertically or horizontally with water level warning.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
VEVOR deep well submersible pump with 5-stage thermoplastic impellers, double ball bearing, and sling hole.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.
VEVOR deep well submersible pump, 28 gpm large flow, 167 ft high head lift for efficient irrigation.
Large Flow & High Head Lift
This 0.5 HP submersible well pump features a large 28GPM flow and 167 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.
VEVOR deep well submersible pump with high efficiency copper motor and overheat protection features.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overheat protection to prevent overheating and consume less energy.
VEVOR deep well submersible pump for well pumping, irrigation, domestic water, livestock, fishpond, river.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
VEVOR deep well submersible pump with black cable, stainless steel body, and yellow label.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x 33 ft Electric Cord with US Plug

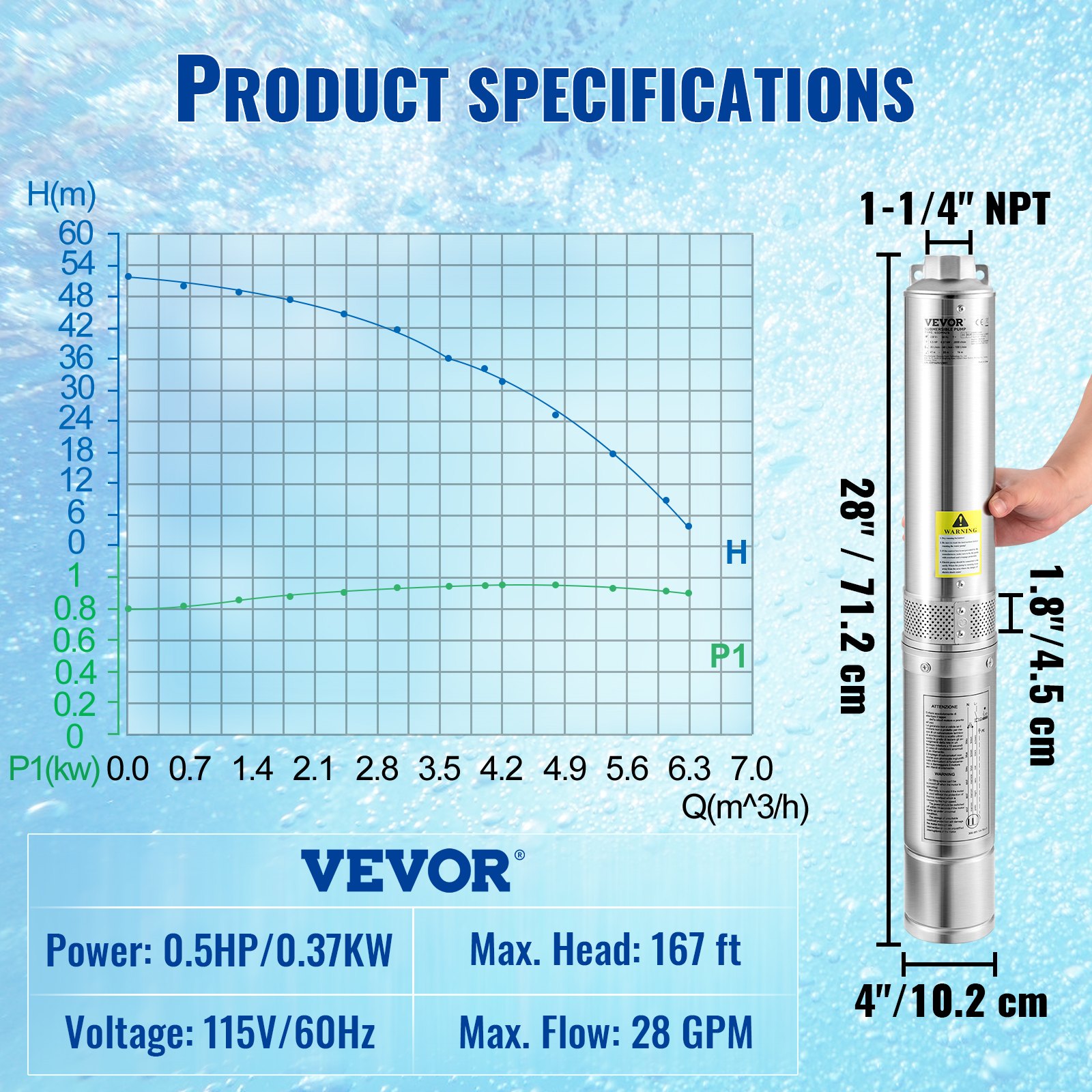

VEVOR deep well submersible pump, stainless steel, 28 inches tall, measurements highlighted.
Specifications
  • Model: 4SSM4/5
  • Material: Stainless Steel
  • Power: 0.5HP/370W
  • Voltage: 115V/60Hz
  • Max. Flow: 28GPM (105L/min)
  • Max. Head: 167 ft/51 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 5
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

Deep Well Submersible Pump: High-Performance with 28 GPM Flow

The VEVOR deep well submersible pump has great performance. It can pump 28 GPM, making it suitable for various tasks. It can reach a height of 167ft and delivers water efficiently from deep wells. This pump is ideal for irrigation, livestock watering, and other residential uses. With its high performance, it ensures reliability and a constant supply of water in operations. Whether you need it for a modern well or an old hand-dug well, this submersible pump gets the job done effectively. The consistent water flow it provides will help meet your daily water needs without any trouble.


Durable Stainless Steel Construction Ensuring Longevity and Corrosion Resistance

The material ensures that the pump remains corrosion-resistant even in harsh environments. This durability guarantees a longer lifespan, saving you replacement costs. The stainless steel body means you won’t worry about rust or wear and tear affecting the pump’s performance. You can trust this deep-well submersible pump to function efficiently for years, providing value for money. It's worth it for anyone looking for a dependable deep-well submersible pump.


Easy Installation with 33-foot Electric Cord and IP68 Waterproof Rating for Versatile Use

It comes with a 33-foot electric cord, giving you flexibility in setup. The pump also has an IP68 waterproof rating, which means it can be used in various environments. Whether you’re installing it in a deep well or outdoor setting, you can rest assured that it will withstand water exposure. With its user-friendly design, you don’t need to be an expert to install it. Easy installation reduces downtime and gets your water system operational fast.


Ideal for Residential and Light Industrial Applications

This deep well submersible pump is highly versatile. It can be used for both residential and light industrial applications. Use it for irrigation to keep your plants healthy and hydrated. Also, it works well for providing water to livestock. You have guaranteed they have a constant supply. The pump makes an excellent addition to your home, whether you're working on general household water needs or specific tasks like garden maintenance. Because of its versatility, this pump serves as a multifunctional tool that meets various water supply requirements. This pump ensures your property’s water demands are met effectively.


Exceptional Quality and Value: Comparably Low Price for Premium Features

This pump offers exceptional quality at a competitive price. You benefit from premium features without a hefty price tag. Its robust construction, efficient performance, and durable materials justify the investment. You get more bang for your buck compared to other pumps on the market. Ensuring a balance between cost and quality, this deep well submersible pump is an excellent purchase.


Heavy-Duty and Reliable: Engineered to Handle the Demands of a Deep Well with Ease

The VEVOR deep well submersible pump is built to handle the harsh demands of deep well operations. Its heavy-duty construction ensures it can pump water from significant depths effortlessly. You can trust its reliability, knowing it will perform consistently under various conditions. Engineered with precision, it meets high standards of performance and durability. Whether for daily use or more demanding tasks, this pump will not disappoint you. Providing a reliable water supply whenever you need it, it’s a reliable choice for deep-well applications.


Eco-Friendly Option with Potential for Solar Power Integration

A further benefit of this pump is its eco-friendly potential. It can be integrated with solar power systems, making it a sustainable choice. This feature is especially beneficial for remote or off-grid locations where traditional power sources are limited. Switching to solar energy helps lower electricity costs and environmental impact. The deep well submersible pump's compatibility with alternative energy sources makes it an innovative solution. You get the reliability and efficiency you need while supporting eco-friendly initiatives.


See More

Specification

Model
4SSM4/5
Material
Stainless Steel
Power
0.5HP/370W
Voltage
115V/60Hz
Max. Flow
28GPM (105L/min)
Max. Head
167 ft/51 m
Sand Resistant
<5%
Pump Diameter
4"/10.2 cm
Discharge Size
1-1/4" NPT (3.2 cm NPT)
Electric Cord Length
33 ft/10 m
Impeller Stages
5
Max. Speed
3450 r/min
Work Temperature
32℉-104℉/0℃-40℃
Certification
ETL
Waterproof Grade
IP68
Insulation Class
F
Questions and Answers
19 Questions
What is the maximum pressure this pump is capable of?
The maximum pressure is 5bar.
By vevor
Do you have 2" NPT version? What's the weight?
We currently do not have pumps with 2-inch NPT threads, and the current pump weight is approximately 12kg.
By vevor
Can you hook up a pressure switch alarm to it
It depends on what kind of pressure switch you are using. Generally, the pressure switch will have terminals for connecting the water pump. You just need to connect the water pump line to the pressure switch.
By vevor
What is the ampere/amperage of the .5hp pump 115V/60Hz, 28gpm water pump?
Its operating current is 8.9A and its starting current is about 36A.
By vevor
What is the Aperage draw both the running current and starting current?
The running current is 8.9A and the starting current is about 36A
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
44 Review(s)
Clear filters
Jed Jed
Mgr
Works great well worth the money. I can't believe how good it worked for the money I was going to never be here
Randy Randy
Good as they get
Can’t beat the performance of this pump for the price! Excellent power and quality. Very easy to use and care for.
tex tex
mr
work great been using it everyday for the last 6 months no issues psi will not do more than 50psi on my well about 80' deep.
CynicCE CynicCE
For the price, I don't know how you can beat it!
I have the older version of this that I bought 2 years ago. I did have to find an adapter to get the fitting on it (looks like this new version may have remedied that?) and I feel like the wire was a smaller gauge than I was comfortable with so i cut it and put a thicker pump wire on it. That being said, I've had it in operation for 2 summers now and it's about 95 ft down in my well. It's been working flawlessly the entire time. Until we build something permanent, this paired with a small pressure tank on top of the well is servicing my camper perfectly. Plenty of pressure for a nice strong shower. I was able to run 2 sprinklers full blast on it but a 3rd started pushing its limits a bit. I put a check valve on the line before installing for extra measure but I don't know if it was necessary or not. Ours is in bedrock and there's still quite a bit of sediment that gets caught in my filters. I feel like it's been sufficiently stress tested for me to give my seal of approval. Compared to name brand pumps, I could replace this thing 7 times and still come out ahead. Even if it died tomorrow, the value is outstanding and I'd immediately buy another. Thumbs up from me!
Justin  wisdom Justin wisdom
Mr.
2nd one I ordered and both were extremely fast would recommend to everyone. Good product. Thanks for your promtness.
Michael Michael
terrific pump!
You'll not find another 1/2 horse well pump this well built at this price no matter how hard you look.
Jimmy Jimmy
Great pump
So far I've been using the pump for over a month. Pumps water good and is quiet. I have it 85 feet deep in the well. I use it to help keep a small pond full. The price was the main selling point. It was much cheaper than well supply houses.
Jesse Holmes Jesse Holmes
Plumber
Good quality like product worked well came in time very impressed with with product do you recommend for anybody needing a wheel pump they should buy this product they have a lot of other products and I'm sure good and it is safe to buy and they deliver on time
Mike Johnson Mike Johnson
Great Pump
This effluent pump has surpassed my expectations. Works, feels and looks like a quality piece of equipment. At about a third the price of name brand pumps, I couldn’t be more impressed.
Kblack Kblack
papa
Just got it hooked up yesterday, Has a ground wire that old one didn't so had to add that from pump to ground. No big deal. worked as it should.
