VEVOR submersible pump with control box, underground water installation, and long power cable. VEVOR submersible pump with external control box in a green field, 33 ft electric cord, 3hp deep well. VEVOR submersible pump diagram showcasing max flow of 37 gpm and max head of 640 ft with controller. stainless steel VEVOR submersible pump with ip68 waterproof rating and 1-1/4" npt discharge. powerful copper motor for VEVOR submersible pump with high-precision rotor and built-in overload protection. VEVOR submersible pump with multiple filtration mesh and stainless steel for clear water filtration.
SJQSBMBWZQDHMFJ90V4

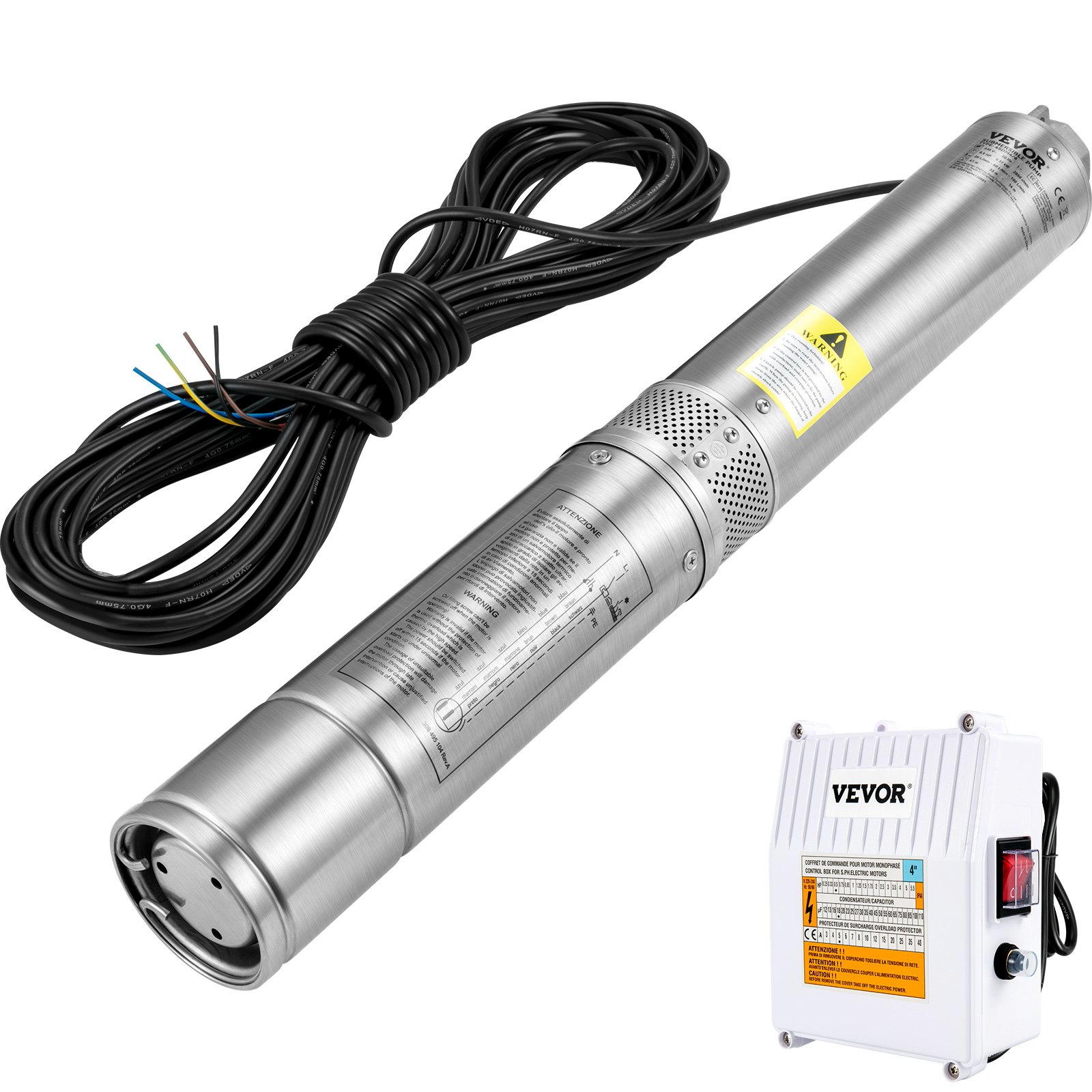

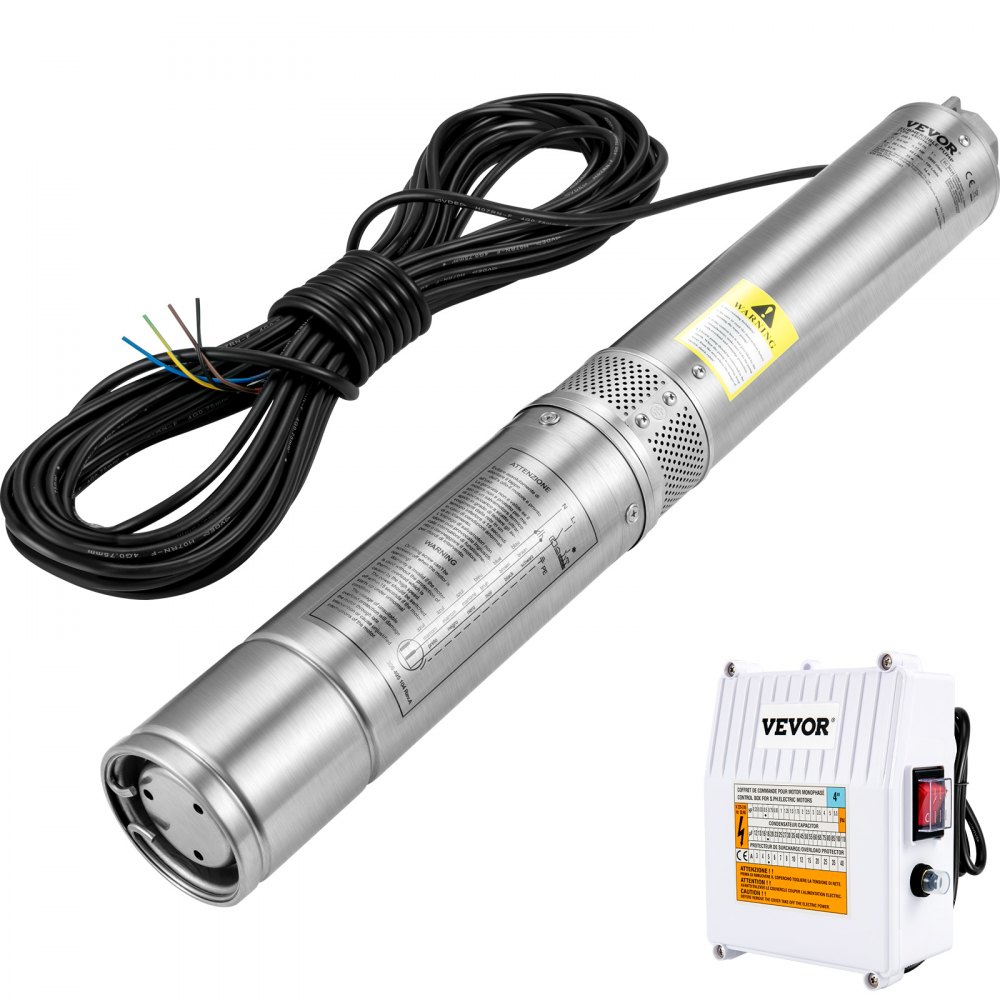

VEVOR Deep Well Submersible Pump, 3HP 230V/60Hz, 37GPM 640 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

External Starter Box

  • External Starter Box
  • Built-in

3 hp

  • 2 hp
  • 3 hp
  • 1.5 hp
  • 0.5 hp
  • 1 hp

About this item

  • Enhanced Pump Flow & Head: Power: 3HP, 230V; Diameter: 4" (for 4" or bigger well casing); Discharge: 1-1/4" NPT. This deep well submersible pump is designed with 18-stage thermoplastic impellers, providing 37GPM max flow and 640 ft max head. It comes with an external control box and a 33 ft electric cord, making life without modern plumbing a lot easier. Pump out your worries with ease and relax. No challenge is too big for you.
  • Upgraded Stainless Steel: The whole frame of our deep well pump is unlike anything on the market. It is made of stainless steel, including the outlet and connecting components. You don't have to worry about it becoming rusted or corroded after being underwater for a long time. With ETL certification and IP68 waterproof grade, the pump can be used for 8-10 years. Stop wasting time! The perfect choice is in front of you!
  • Reliable Copper Motor: Are you tired of previous submersible well pumps failing you? Are you ready for consistent satisfaction and quality? The powerful copper motor and high-precision rotor promise long-term stable running. The motor features built-in overload protection, allowing it to automatically stop when stuck or during abnormal situations to prevent burning. NOTICE: DO NOT use it without water or at a low water level to avoid idle running.
  • Trouble-free Check Valve & Filter: This well pump has a built-in check valve to prevent back-flow (an additional check valve is highly recommended). The stainless steel filtration mesh is designed to filter impurities. You can add a layer of gauze in front of the filtration inlet for a new drilled well that may contain excessive granular sediment. Keep impurities out without the headache.
  • Use It Anywhere: Whether you want to solve water supply problems for industry, farmland, or home, this deep water well pump is the one you can trust. It works excellently as a garden water source and sprinkler for the kids. You can use the pump for extracting water from deep wells, reservoirs, canals, rivers, and other water-lifting works.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Deep Well Submersible Pump, 3HP 230V/60Hz, 37GPM 640 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
External Starter Box 3 hp
VEVOR submersible pump 3hp deep well, 640ft head, 37gpm, stainless steel, etl certified, overload protection.
VEVOR submersible pump with control box, power cables, and water flow diagram in a well setup.

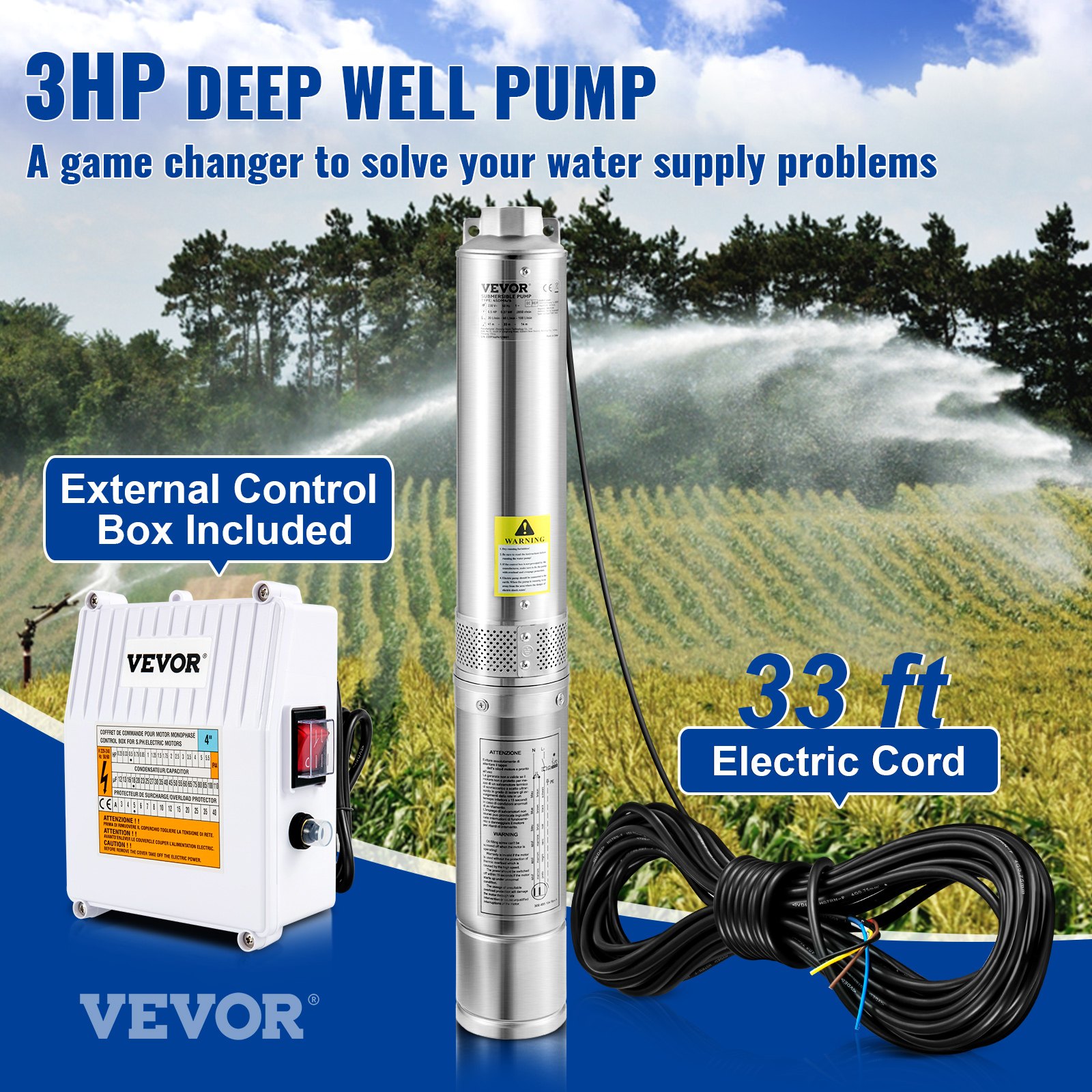

3HP Deep Well Submersible Pump
37 GPM Max. Flow & 640 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

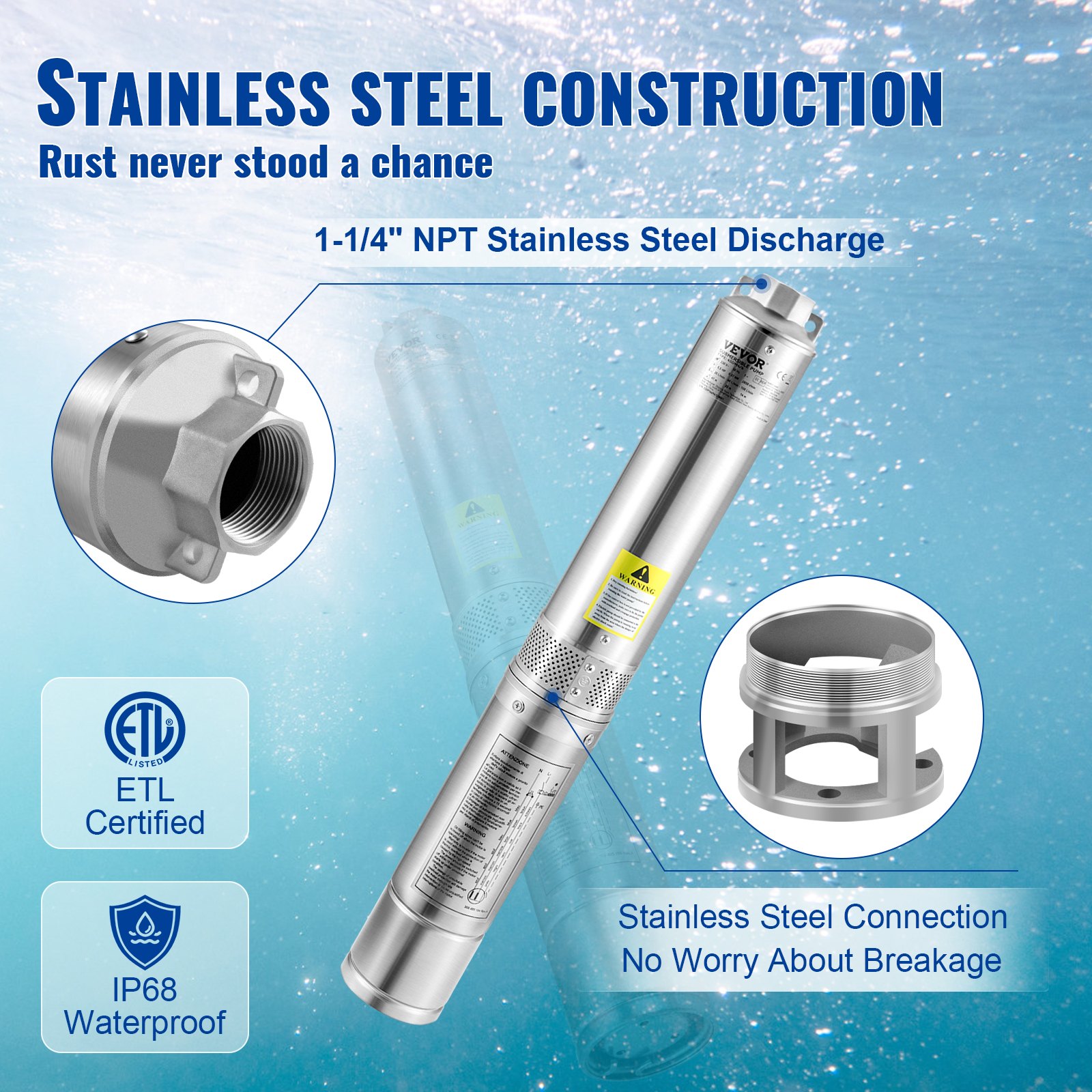

comparison chart highlighting the VEVOR submersible pump's stainless steel outlet, connection
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.

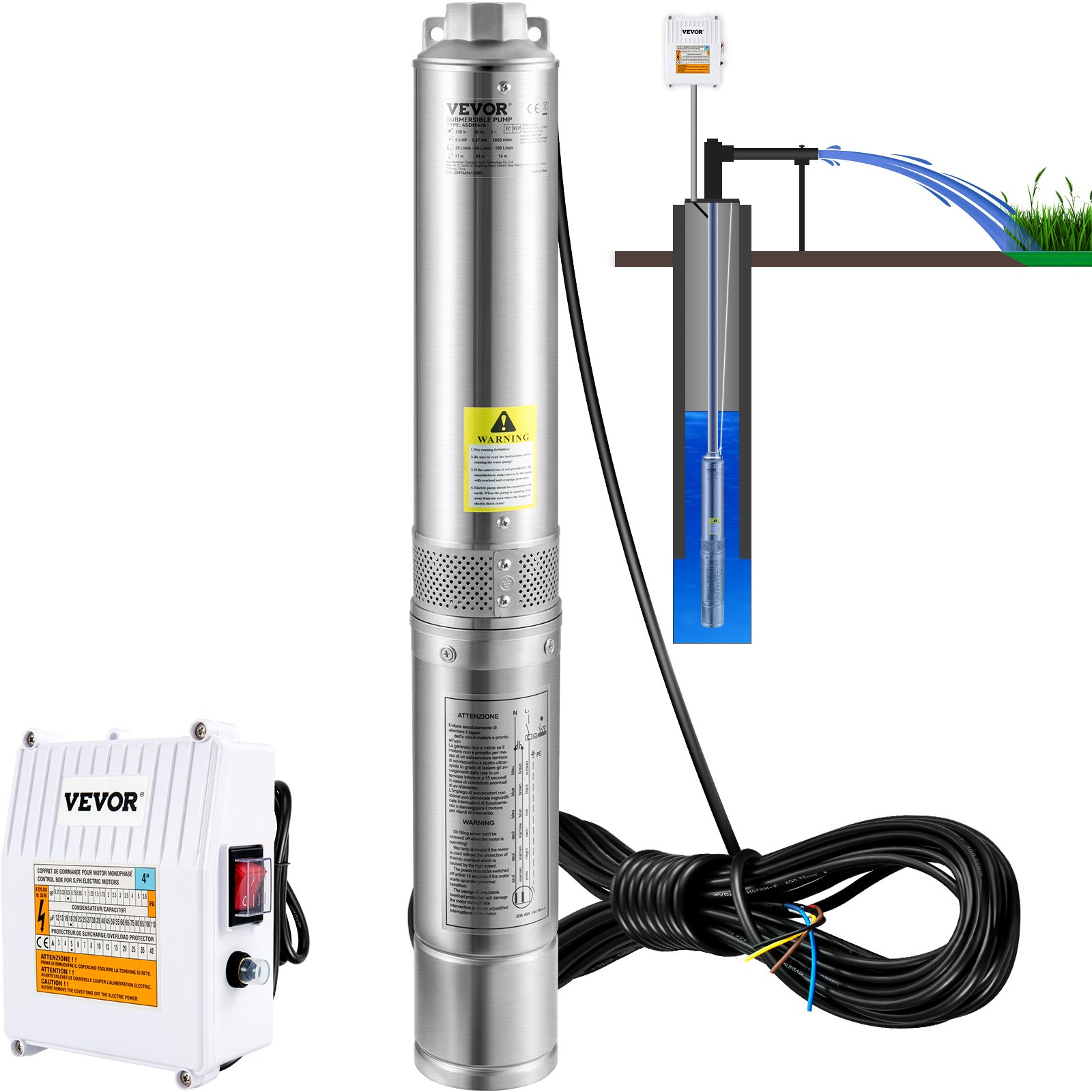

VEVOR submersible pump installation guide, showing correct vertical and horizontal setups with water level warning.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
VEVOR submersible pump features 18-stage thermoplastic impellers and stainless steel rotor journal.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.

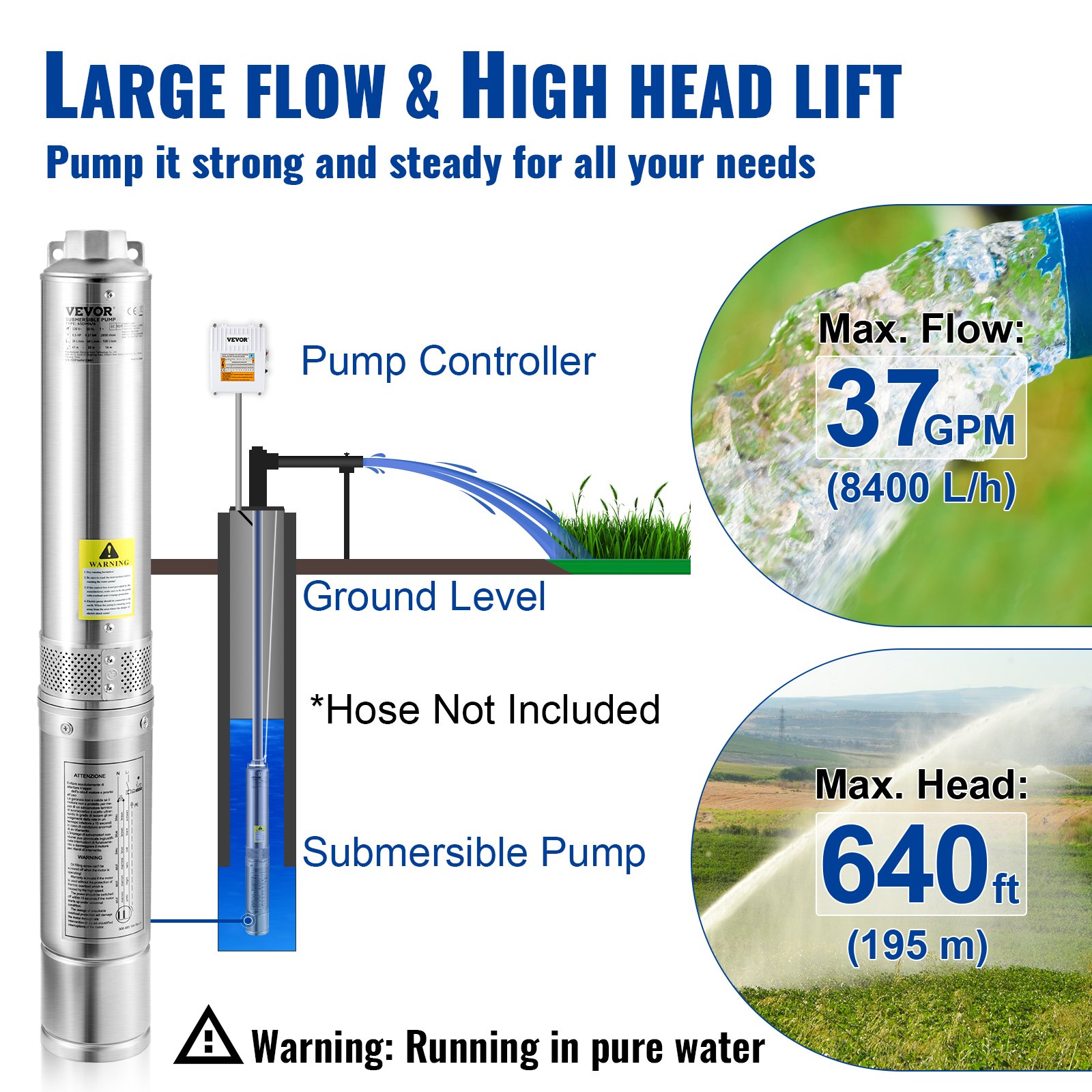

VEVOR submersible pump delivering 37 gpm for large flow and 640 ft high head lift in a field.
Large Flow & High Head Lift
This 3 HP submersible well pump features a large 37GPM flow and 640 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.

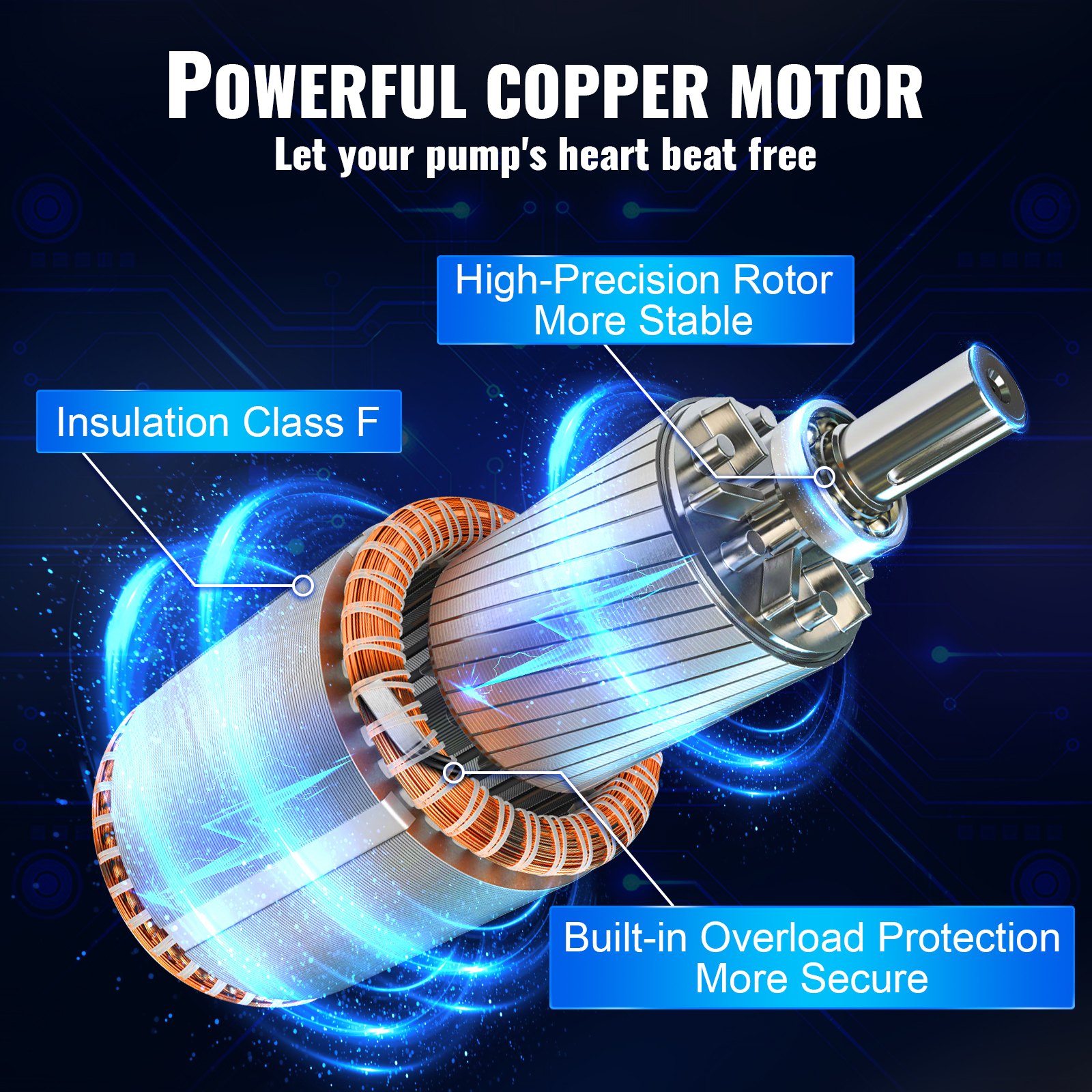

high efficiency copper motor for stable running with overload protection in VEVOR submersible pump.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overload protection to prevent overheating and consume less energy.

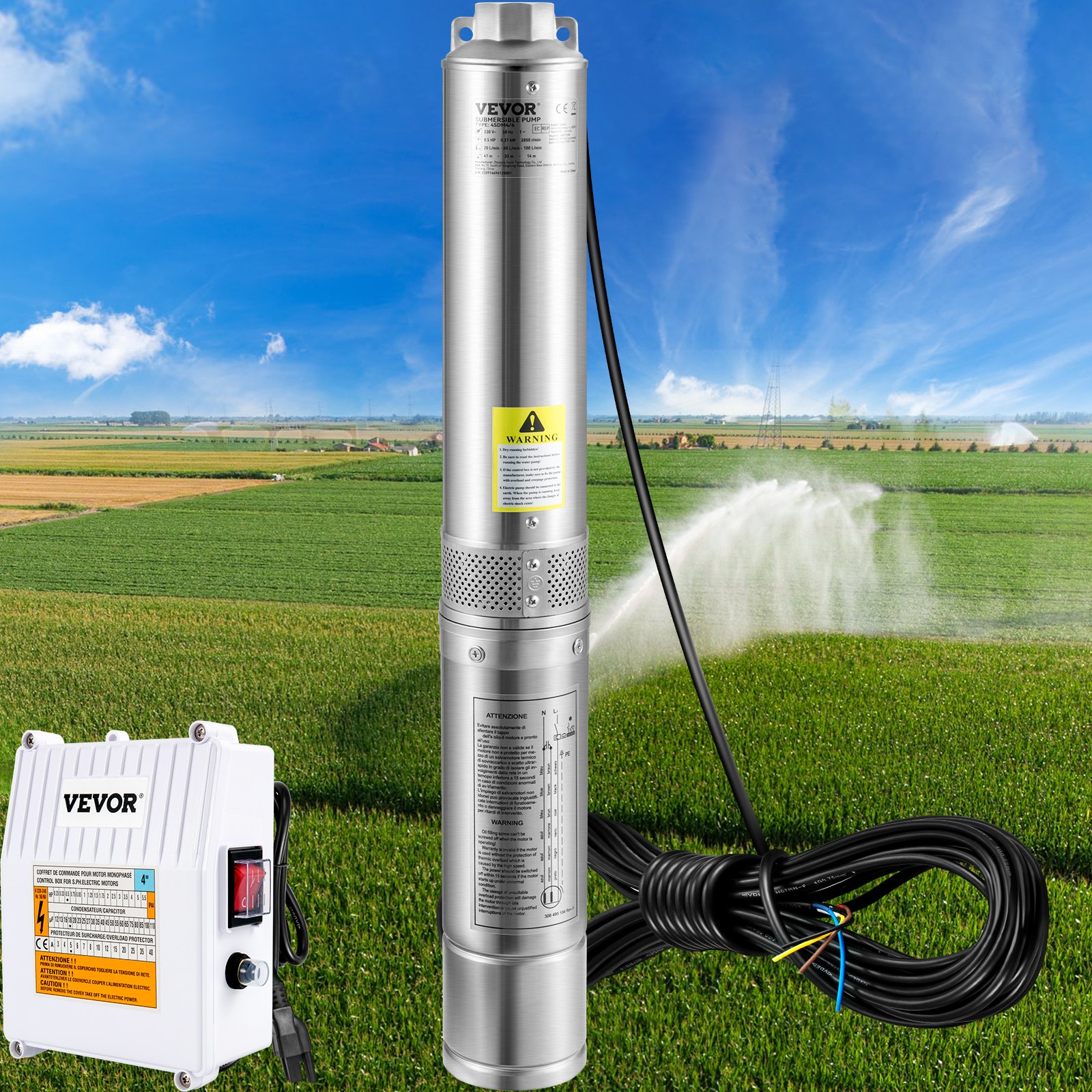

VEVOR submersible pump uses: deep well pumping, farmland irrigation, water supply, livestock, fishpond, river.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.

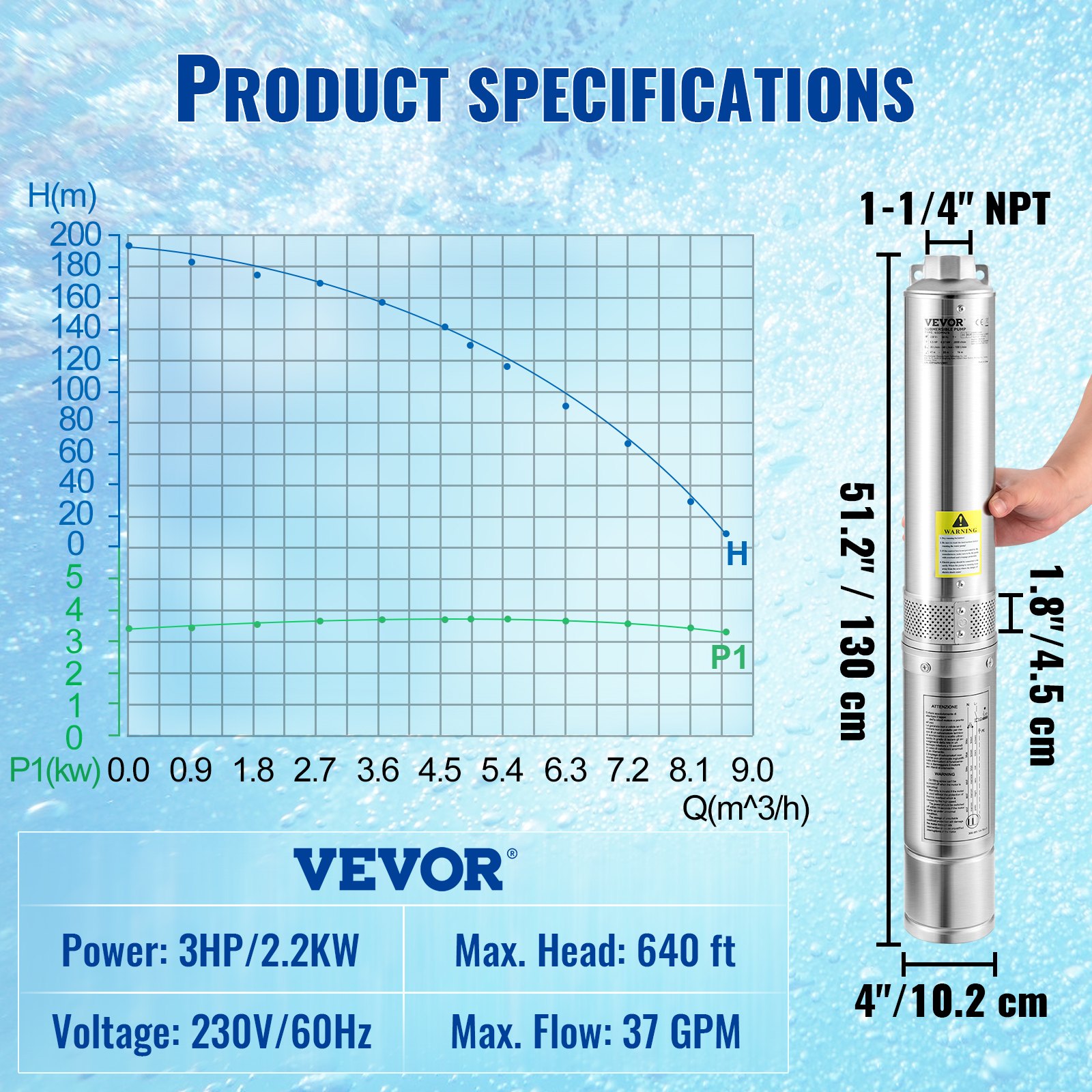

VEVOR submersible pump with dimensions: height 51.2"/130 cm, diameter 4"/10.2 cm, outlet 1-1/4" npt.
Specifications
  • Model: 4SSM5/18
  • Material: Stainless Steel
  • Power: 3HP/2200W
  • Voltage: 230V/60Hz
  • Max. Flow: 37GPM (140L/min)
  • Max. Head: 640 ft/195 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 18
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

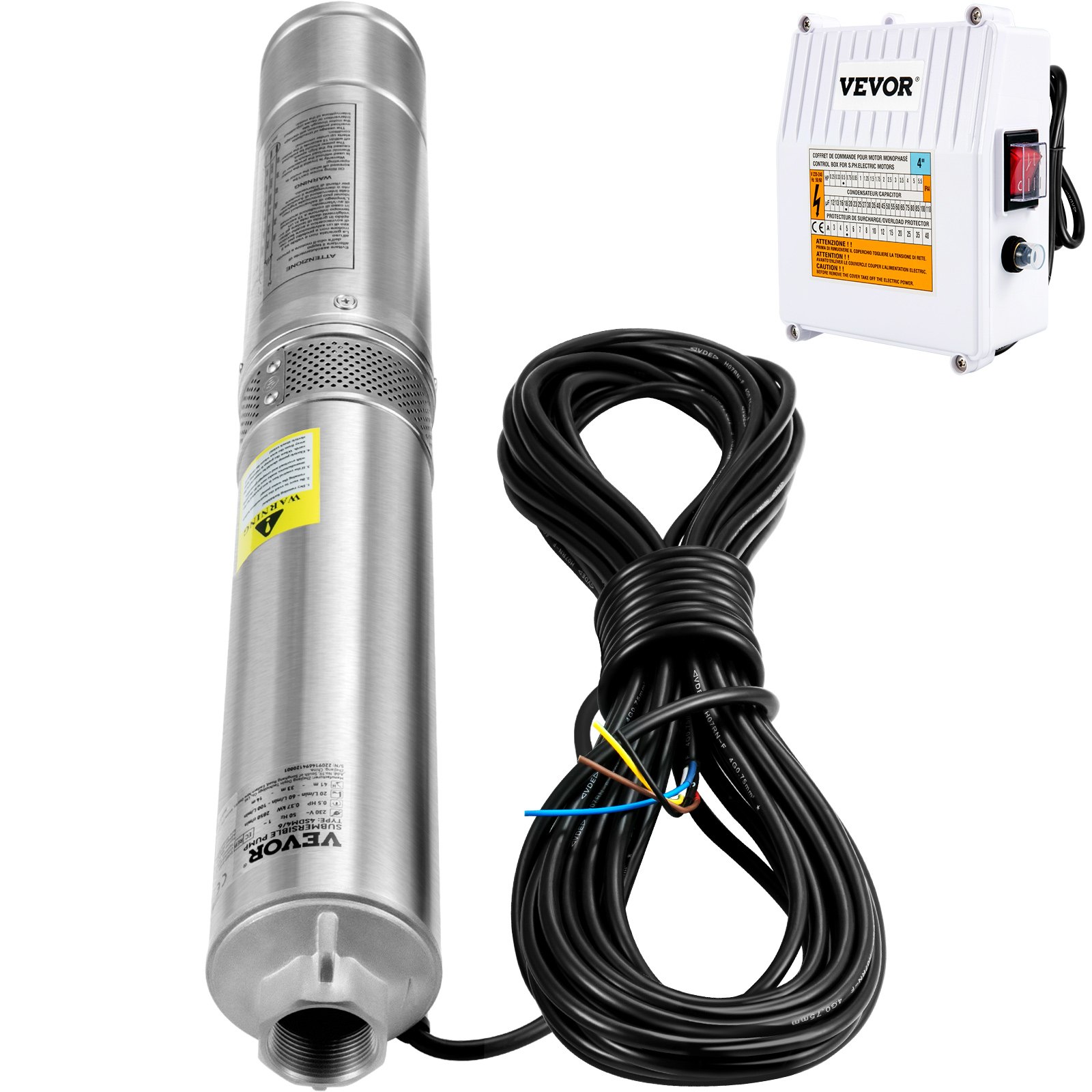

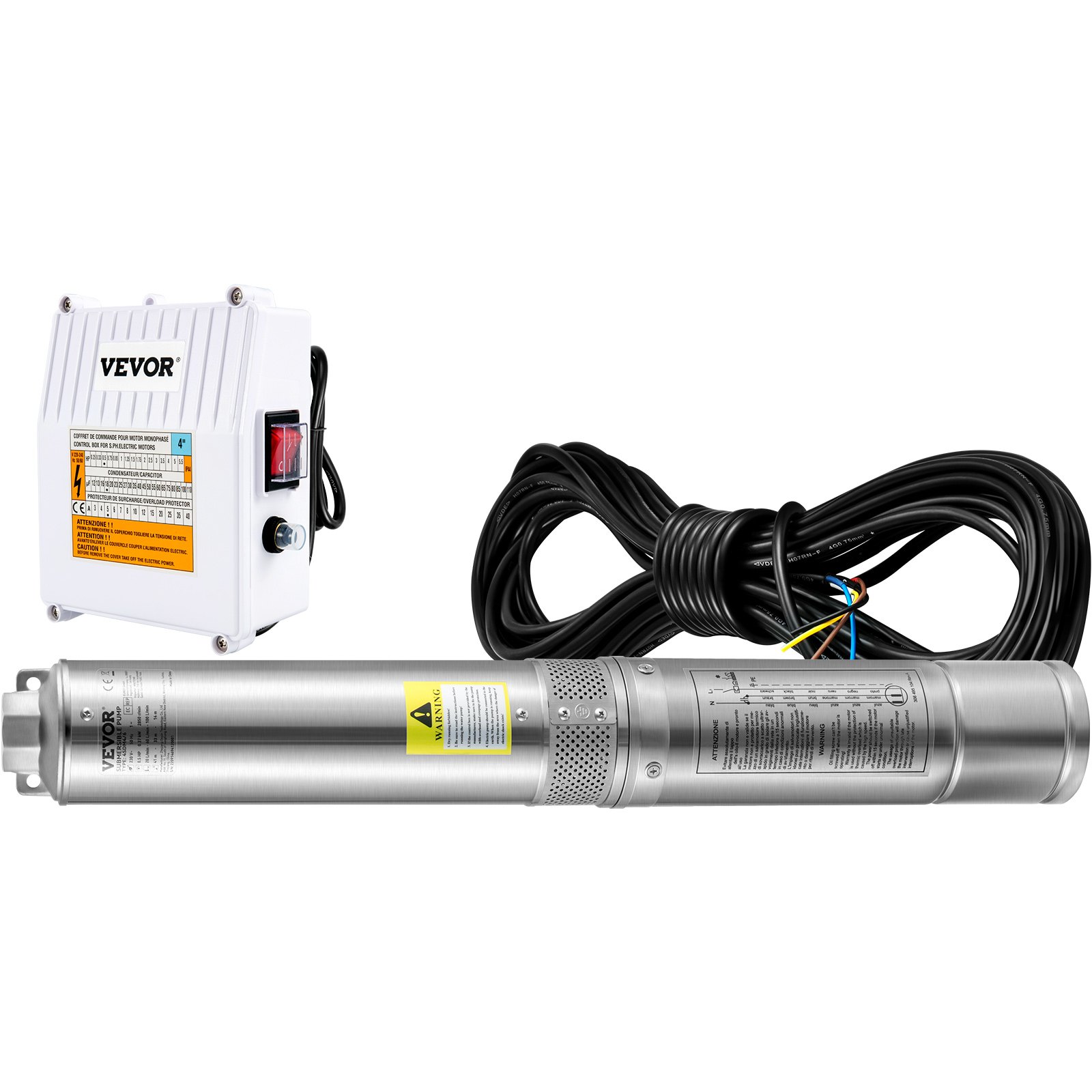

VEVOR submersible pump with long power cable and control box.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x External Control Box with US Plug
  • 1 x 33 ft Electric Cord
VEVOR submersible pump 3hp deep well, 640ft head, 37gpm, stainless steel, etl certified, overload protection.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR submersible pump with control box, power cables, and water flow diagram in a well setup.
3HP Deep Well Submersible Pump
37 GPM Max. Flow & 640 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
comparison chart highlighting the VEVOR submersible pump's stainless steel outlet, connection
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
VEVOR submersible pump installation guide, showing correct vertical and horizontal setups with water level warning.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
VEVOR submersible pump features 18-stage thermoplastic impellers and stainless steel rotor journal.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.
VEVOR submersible pump delivering 37 gpm for large flow and 640 ft high head lift in a field.
Large Flow & High Head Lift
This 3 HP submersible well pump features a large 37GPM flow and 640 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.
high efficiency copper motor for stable running with overload protection in VEVOR submersible pump.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overload protection to prevent overheating and consume less energy.
VEVOR submersible pump uses: deep well pumping, farmland irrigation, water supply, livestock, fishpond, river.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
VEVOR submersible pump with long power cable and control box.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x External Control Box with US Plug
  • 1 x 33 ft Electric Cord
VEVOR submersible pump with dimensions: height 51.2"/130 cm, diameter 4"/10.2 cm, outlet 1-1/4" npt.
Specifications
  • Model: 4SSM5/18
  • Material: Stainless Steel
  • Power: 3HP/2200W
  • Voltage: 230V/60Hz
  • Max. Flow: 37GPM (140L/min)
  • Max. Head: 640 ft/195 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 18
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

Heavy-Duty Deep Well Pump for High-Pressure Water Supply

Enhance your water access with this deep well pump. It is designed to lift water efficiently for various needs, from farming to home use. This pump is durable, reliable, and long-lasting and is built to handle deep wells. It combines advanced technology with solid materials to ensure powerful water flow and high efficiency. With easy installation and maintenance, this submersible water pump is an excellent choice for accessing deep underground water sources.


High Performance & Unwavering Power

The VEVOR deep well pump delivers top-notch performance and reliable power. With a strong 3HP motor and 230V power, it’s built to handle demanding water-pumping tasks. It fits in well casings that are 4 inches or more prominent and has a discharge size of 1-1/4" NPT. The pump features 18 durable thermoplastic impellers.


This allows it to move up to 37 gallons of water per minute and reach a depth of 640 feet. It comes with an external control box and a 33-foot electric cord. This makes it easy to use even without modern plumbing. This industrial water pump is designed to make your water needs easier and more efficient.


Premium Stainless Steel Construction

Ordinary well pumps might experience issues with rust and corrosion, which can lead to frequent repairs or replacements. The VEVOR deep well pump is built with premium stainless steel, which makes it very strong and long-lasting. This premium material is used to construct the entire pump, including the connections and output. This implies that even when submerged for an extended period of time, it won't rust or corrode.


With an IP68 waterproof rating and an ETL certification, it is built to last for eight to ten years. The robust stainless steel structure aids in preventing corrosion and breakage damage. It is therefore a dependable option for water pumping. You can depend on this irrigation water pump to function efficiently and last over time.


Powerful Copper Motor

The copper motor ensures durability and built-in overload protection for a worry-free water supply. The powerful copper machine of the VEVOR deep well pump ensures strong and dependable performance. It is long-lasting and composed of premium copper. It effectively maintains the water's smooth flow.


If you’ve had issues with other well pumps, this one is designed to be different. The copper motor and precision rotor promise long-term, stable operation. Additionally, this stainless steel water pump has an integrated overload protection system. This cuts the engine in the event of a malfunction or jam to prevent damage and overheating.

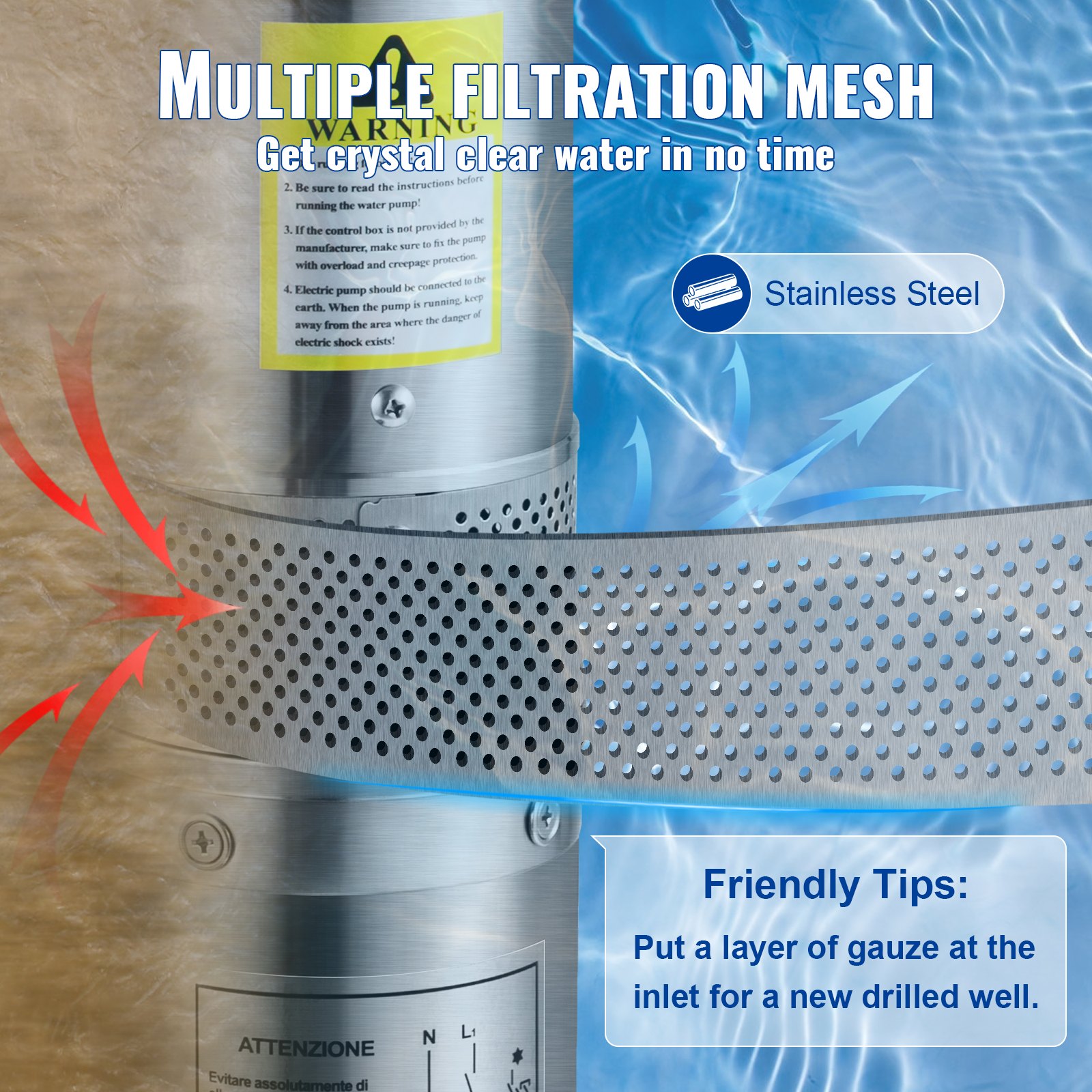

Advanced Filtration & Check Valve System

This deep well pump maintains its proper operation and guarantees that you receive clean water. It includes an integrated check valve to prevent water from returning to the well. This helps keep the water pressure steady. For extra safety, you can add another check valve if needed. The pump also features a stainless steel mesh that filters out dirt and impurities.


You can use this pump on a new well with a lot of sediment. Just add a layer of gauze in front of the mesh helps catch more of the debris. This system is designed to make your life easier. This irrigation water pump ensures that your water is clean and reduces the need for frequent maintenance. Overall, this setup simplifies the use of the pump and protects it from potential problems with water flow.


Effortless Installation

Simple installation saves you the added costs of hiring professionals. The VEVOR deep well pump is designed for effortless installation, making it easy to set up. You can install it vertically or horizontally, so it fits well in different setups. This flexibility helps you place the pump in the best spot for your needs. With this setup, setting up the pump is straightforward and quick, saving you time and effort.


Whether you're experienced or new to installing pumps, the VEVOR deep well pump is easy to handle, letting you get it working without fuss. To keep the pump working well, immerse it in water before you start it fully. This helps avoid problems from running this irrigation water pump while it's dry for too long. You should follow this step to keep the pump in good shape and ensure it works properly.


Versatility Across Multiple Applications

The VEVOR deep well pump is very versatile and can be used in many ways. It provides water to homes, water crops on farms, and drains water in cities, factories, and mines. It also works well for gardens, helping with watering and sprinkling. Whether you need water from deep wells, reservoirs, canals, or rivers, this stainless steel pump does the job reliably.


See More

Specification

Model
4SSM5/18
Material
Stainless Steel
Power
3HP/2200W
Voltage
230V/60Hz
Max. Flow
37GPM (140L/min)
Max. Head
640 ft/195 m
Sand Resistant
<5%
Pump Diameter
4"/10.2 cm
Discharge Size
1-1/4" NPT (3.2 cm NPT)
Electric Cord Length
33 ft/10 m
Impeller Stages
18
Max. Speed
3450 r/min
Work Temperature
32℉-104℉/0℃-40℃
Certification
ETL
Waterproof Grade
IP68
Insulation Class
F
Questions and Answers
30 Questions
What is the wire gauge of the 33 ft cord that is included?
Its wire is 10 meters and the specification is 4*10m*14AWG.
By vevor
Do these pumps have a built-in check valve?
Yes, these pumps do have a built-in check valve normally but depend on the products.
By vevor
Can you sell me the control box only for this submersible pump?
Sorry, we do not sell them separately. Our products are sold in sets.
By vevor
Is this a solar pump? Can this pump be connected to solar panels to work. I am looking for a borehole solar pump with controller. I want to make sure it’s a solar pump before purchasing.
It's not a solar pump.
By vevor
I am runni g 400 ft what is recommended wire?
It is recommended to use 13AWG wire
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
100 Review(s)
Clear filters
Lenny Lenny
Not 37 gpms , and a broken check valve
I purchased the well pump based on the 37 gallon per minute description for our iron filter backwash cycle... It needs high gpms.... However , after the install .... The gpms couldn't handle the backwash which only demands 11 gpms... And the well is only 175 feet deep, So I knew something wasn't right... I immediately sent in a ticket for refund/malfunction/ wrong product description...I was very descriptive , with details being that I'm a plumber by trade... I was answerd and they asked for photos or videos... I sent the videos(which had to clipped so much that you I had to send much more than one in really short time frames so that they could even be sent... Upon further inspection when I repulsed the pump... I noticed the check valve didn't work... So now I'm still waiting on a reply from a technician... It's only been about a week... So much for a 30 return policy.... The well depth is only about 175 feet.. so a 2 horse power pump should be good to hold it's gpms for AT LEAST 400 feet... I can't speak for the pumps that do work correctly but as for this one, and the fact that the return process is slow at best , I cannot recommend this pump...
Jacoby  Guiden Jacoby Guiden
Horrible warranty
Bought this pump on August 6,2024 I came home December 9,2024 and with no warning at all to the pump burnt up it’s only me and my wife so the pump doesn’t get used often I wasn’t to upset because it was cheap pump the part that makes me give the review is the warranty on the pump and the customer service you get what you pay for but the circles I had to jump through and videos I had to get when I just wanted a replacement pump due to this one failing
Joseph Anthony Carmody Joseph Anthony Carmody
Owner
4 inch pump doesn't go into a 4 inch well. It just gets stuck. Lesson learned. Pump seems fine. But didn't use it after ai got it out
Mike Mathis Mike Mathis
Retired
Pump works as it should, built heavy and looks to be good quality. Easy install and works great. Would recommend!
ChrisReno ChrisReno
Mr
Pump is not working after 4 days of use and j have to pull it out again I'm not happy with the product
CodyK CodyK
Great water pump
Used it for my house. It was pretty straight forward hookup.and seems to be working great six months later.
Eric Eric
Home owner
Pump works great. It's been in the well for about 6 months and we use a lot of water. It filled our pond and we have 3 houses on the property and it supplies plenty of water. It starts quiet and runs quiet and even shuts off quiet. Our water is hard water so I'm going to purchase another 3 hp pump to keep on the shelf and at these prices I can afford to do that.
Kevin Bohannon Kevin Bohannon
Well pump
The box was damaged and when we put it in. The pump was not pumping water But the motor was good , so we had to separ The new one and put the old pump on it Now the old pump has went out Because we had to have water quickly
Big Mac Big Mac
Well pump
Spliced the wire and connected the pipe lowered into the well. Hooked it up to power and the folks had water 💧!
James Pelfrey James Pelfrey
Well pump
I haven't put it in yet but I was very impressed with the getting what I wanted fast thanks for your fast response look forward to doing more business with your company
