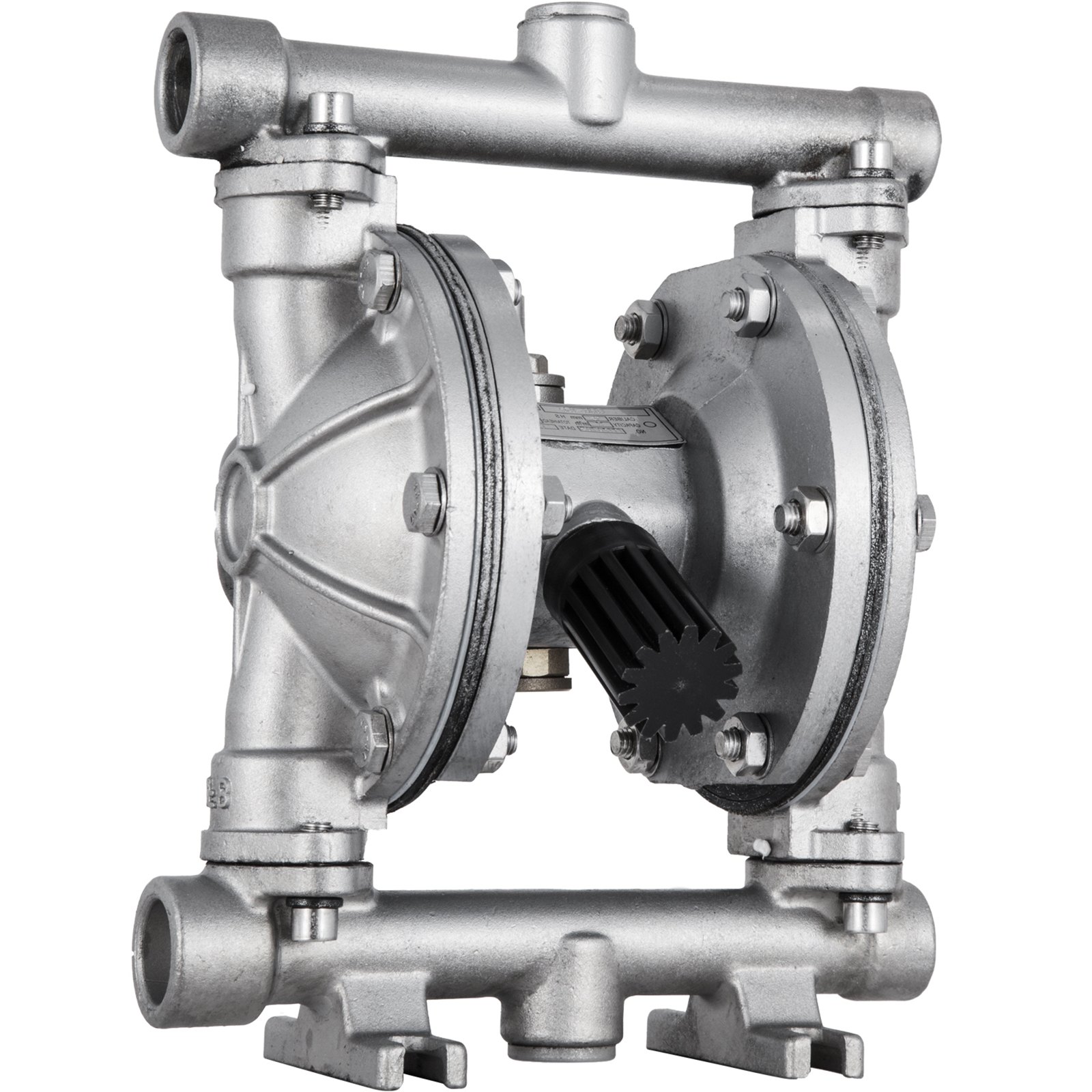

VEVOR air-operated double diaphragm pump with metallic construction and secure fixtures VEVOR air-operated double diaphragm pump with red oil drum background. VEVOR air-operated double diaphragm pump, stainless steel, high-temp resistant, corrosion-proof. VEVOR air-operated double diaphragm pump, self-priming, high corrosion resistance VEVOR air-operated double diaphragm pump with multiple ports in industrial setting. conveying various fluids: waste oil, alcohol, hydraulic fluid, ink, drinks, detergent, gasoline, diesel, water VEVOR air-operated double diaphragm pump with size specifications and usage scenarios.
YBGMBQBK-15P00001V0

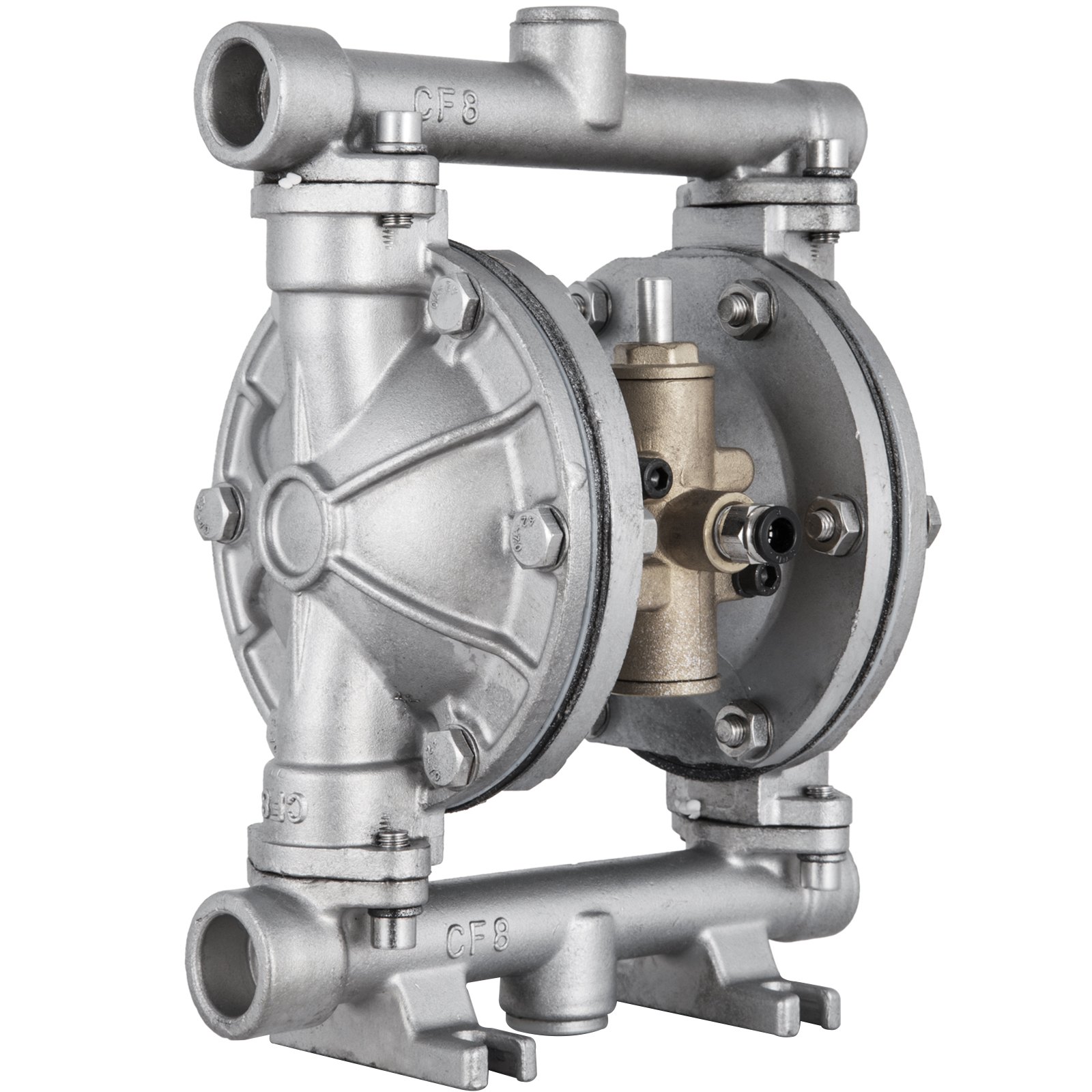

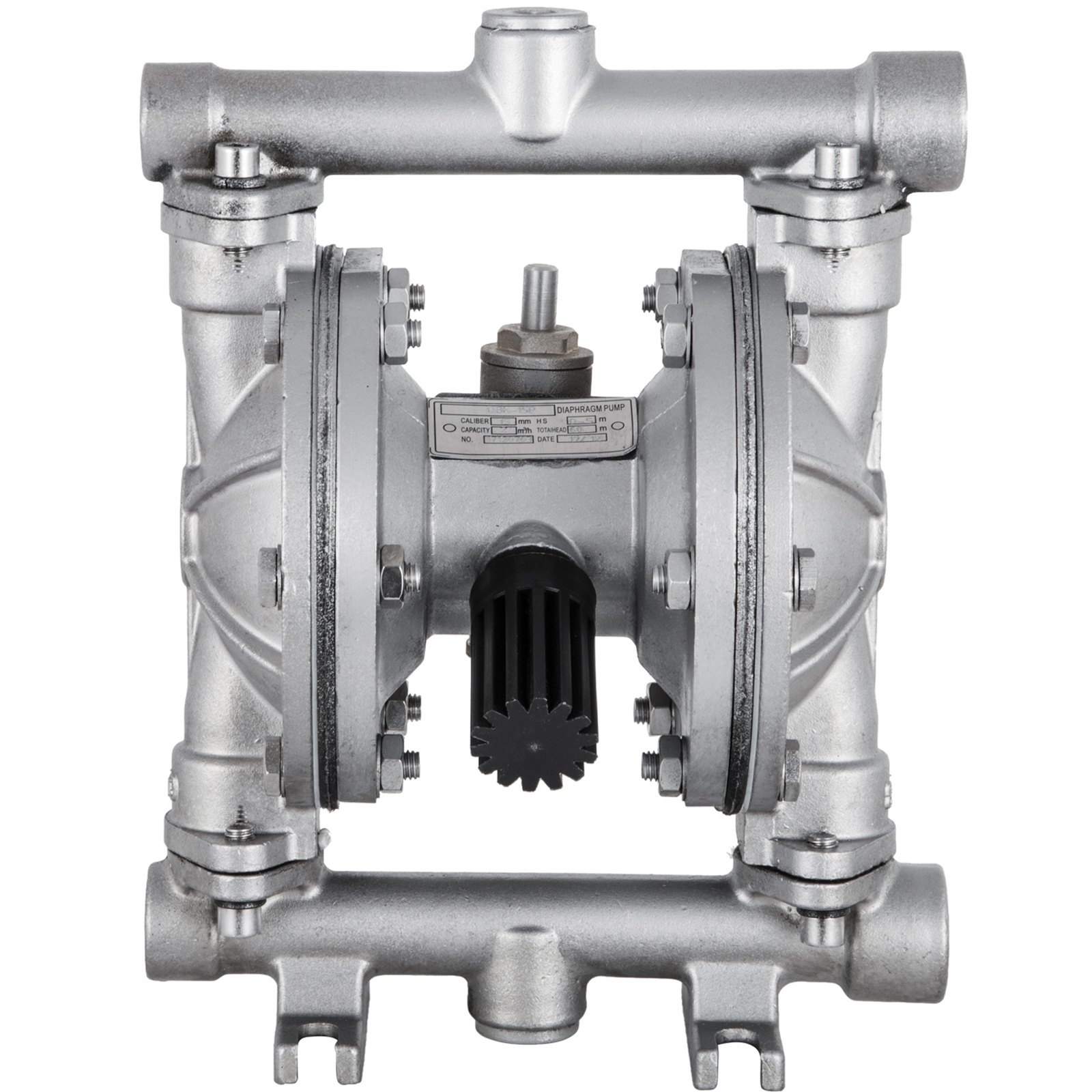

VEVOR Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Stainless Steel Body, 8.8 GPM & Max 120PSI, PTFE Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 90 psi; Max. Flow Rate:3 GPM; Max Head Lift:196.85 ft/60 m±15%.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of stainless steel material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Stainless Steel Body, 8.8 GPM & Max 120PSI, PTFE Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids

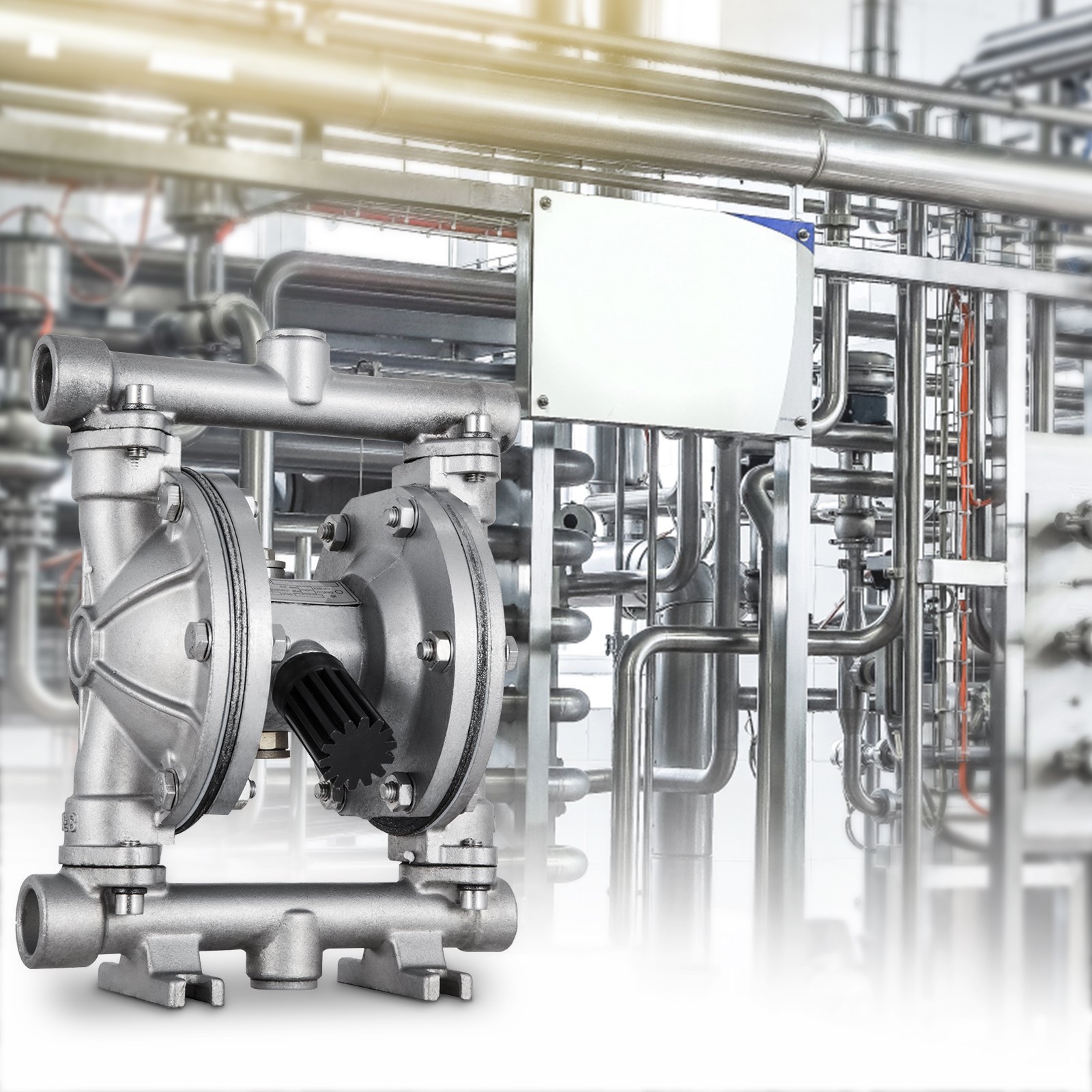

VEVOR air-operated double diaphragm pump in front of an industrial refinery.

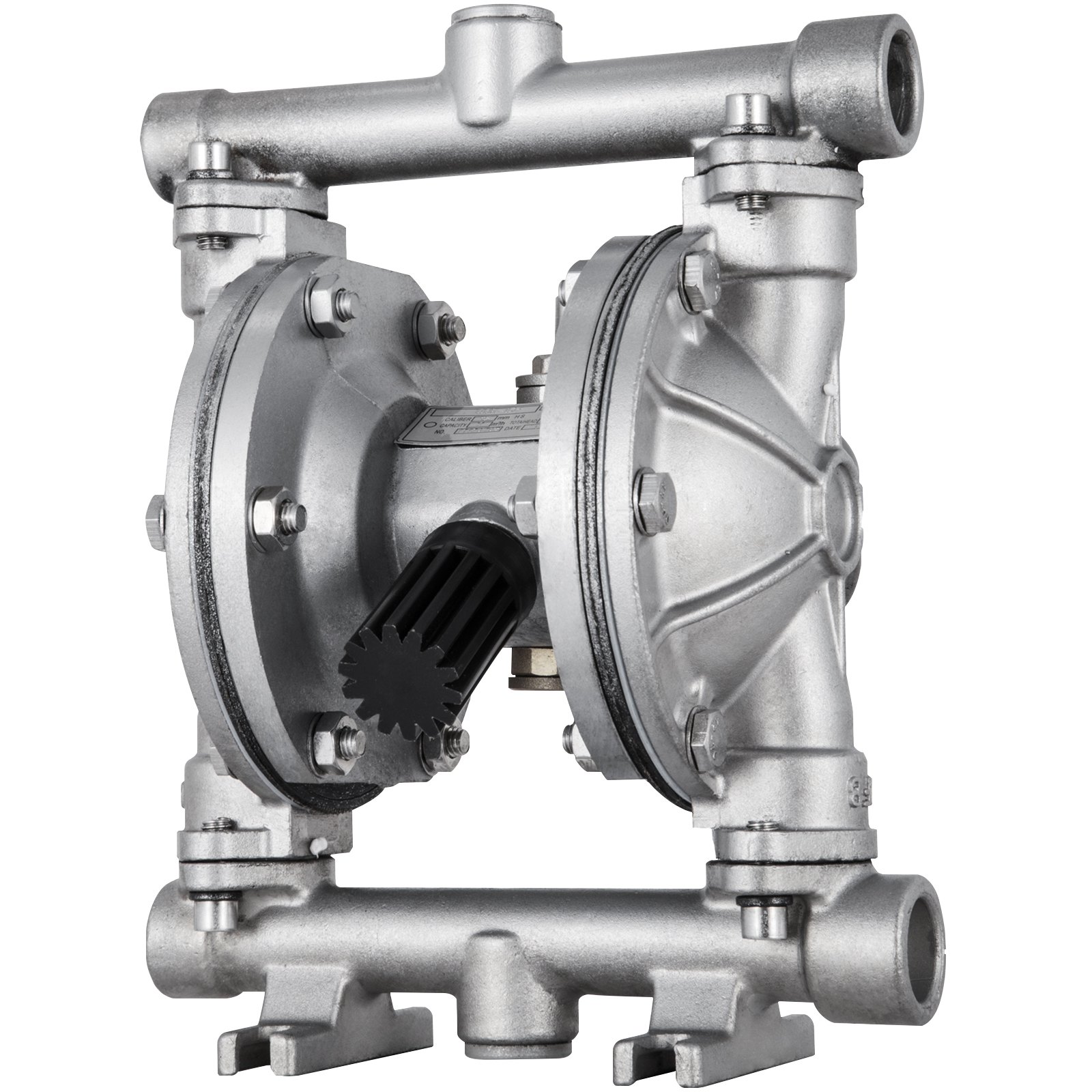

VEVOR air-operated double diaphragm pump with metallic housing and industrial design.
Air-Operated Double Diaphragm Pump Stainless Steel Construction & PTFE Diaphragm & 3 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted stainless steel body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double PTFE Diaphragms
Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

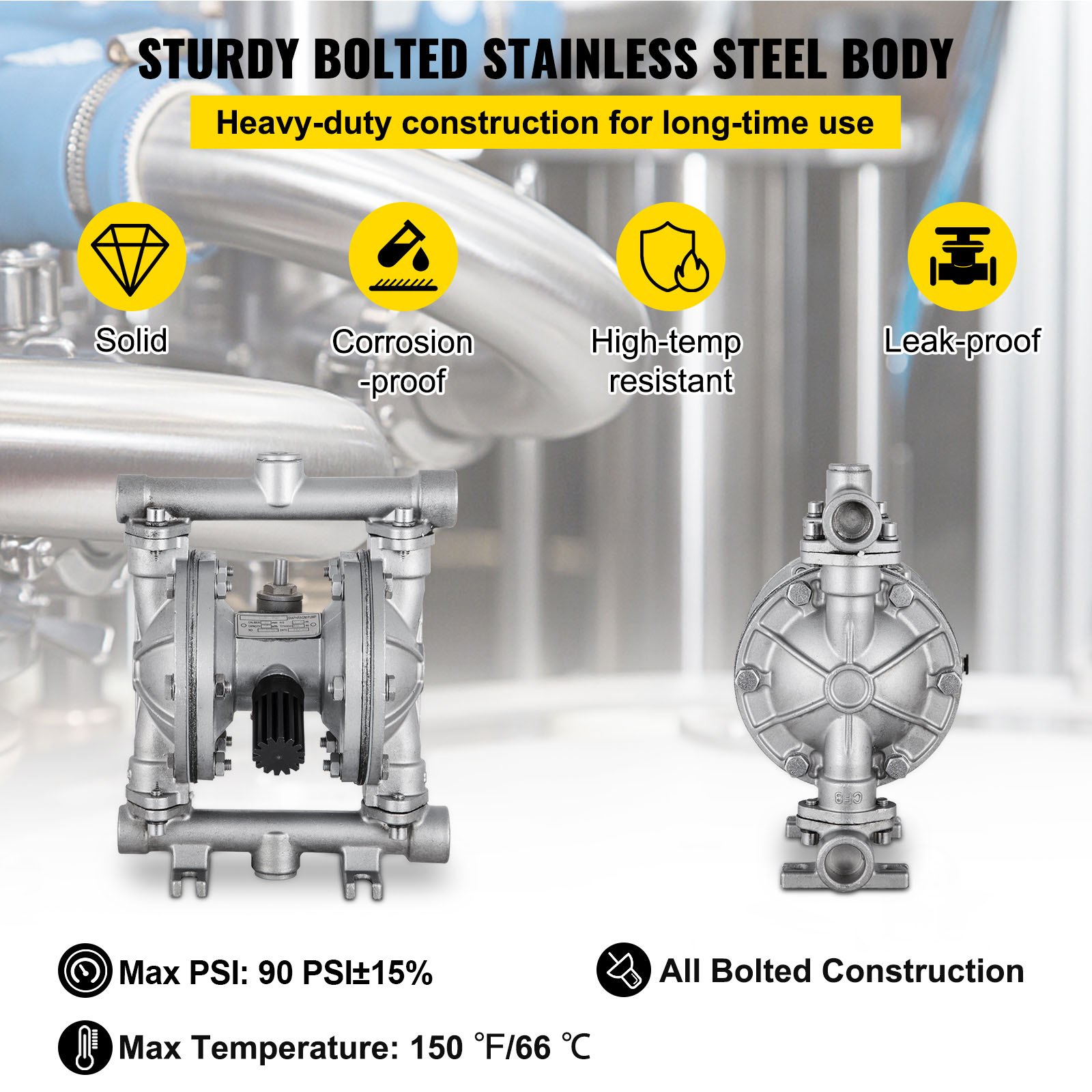

VEVOR air-operated double diaphragm pump with solid, rustproof, high-temp resistant body.
Sturdy Stainless Steel Body
The shell of the air-operated diaphragm pump adopts stainless steel construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 90 psi.
VEVOR air-operated double diaphragm pump, ptfe, durable, corrosion-proof, long-lasting.
PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:3 GPM; Max Head Lift:196.85 ft/60 m±15%.

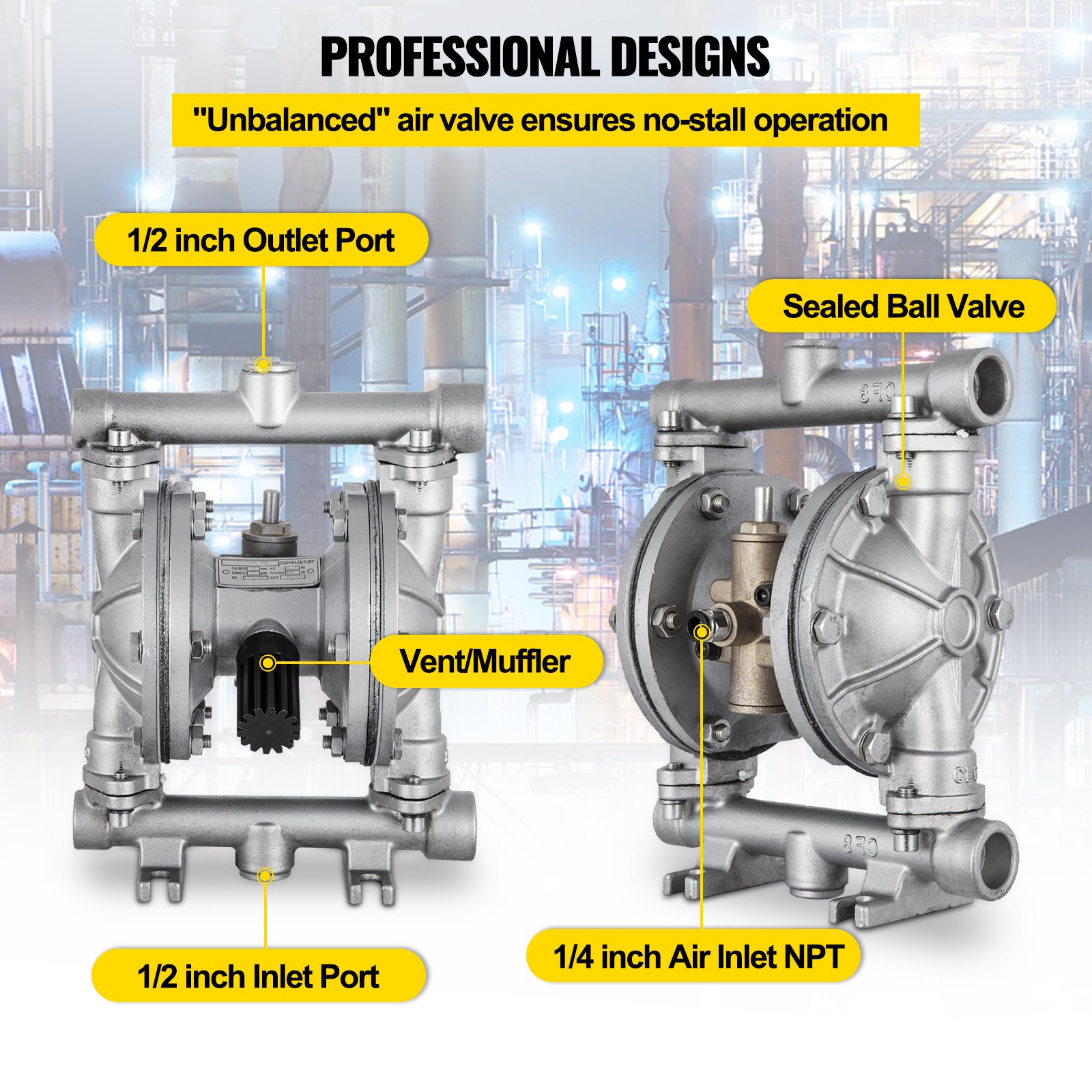

VEVOR air-operated double diaphragm pump with labeled components and ports.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch.

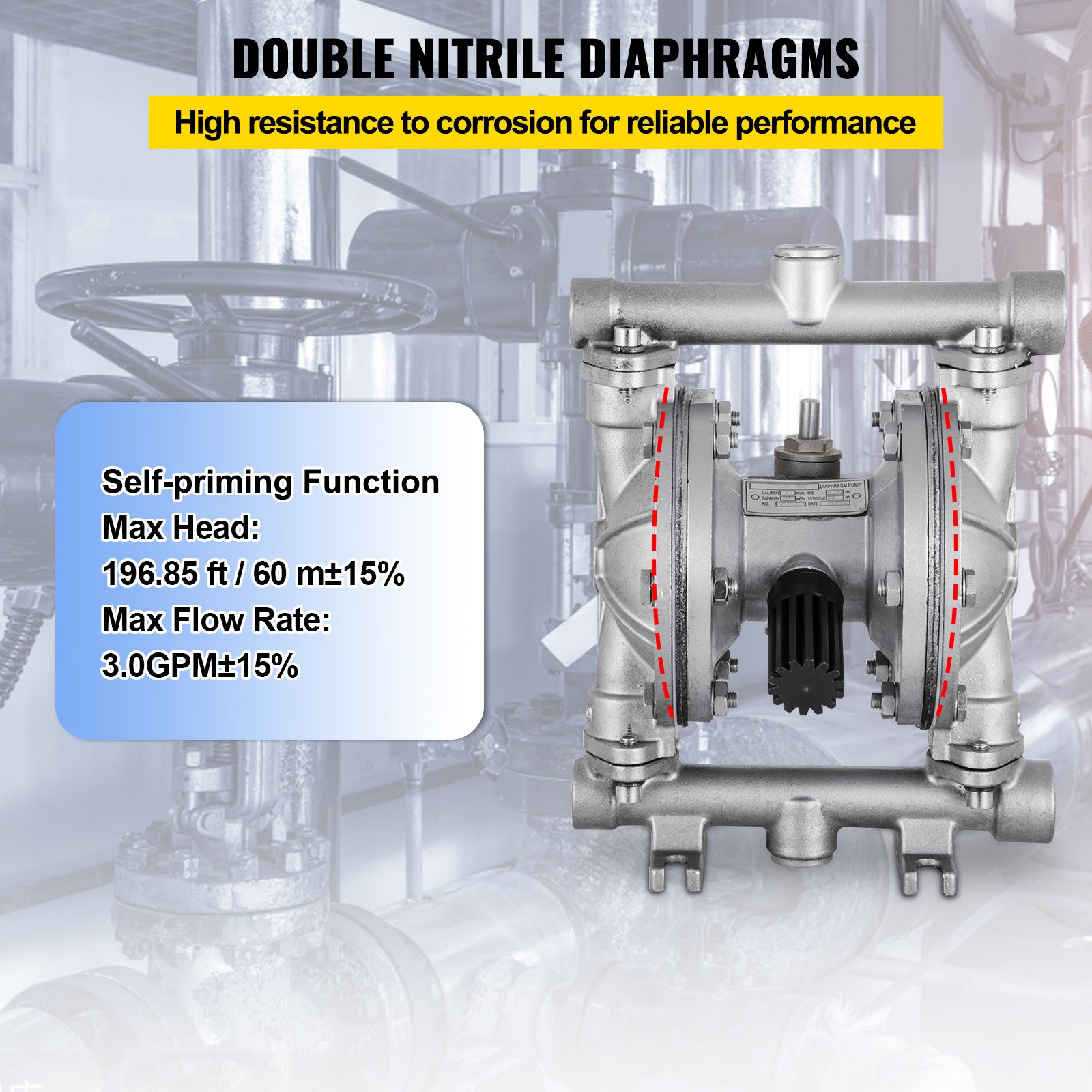

VEVOR air-operated double diaphragm pump with 196.85 ft max head and 3.0 gpm flow rate.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.

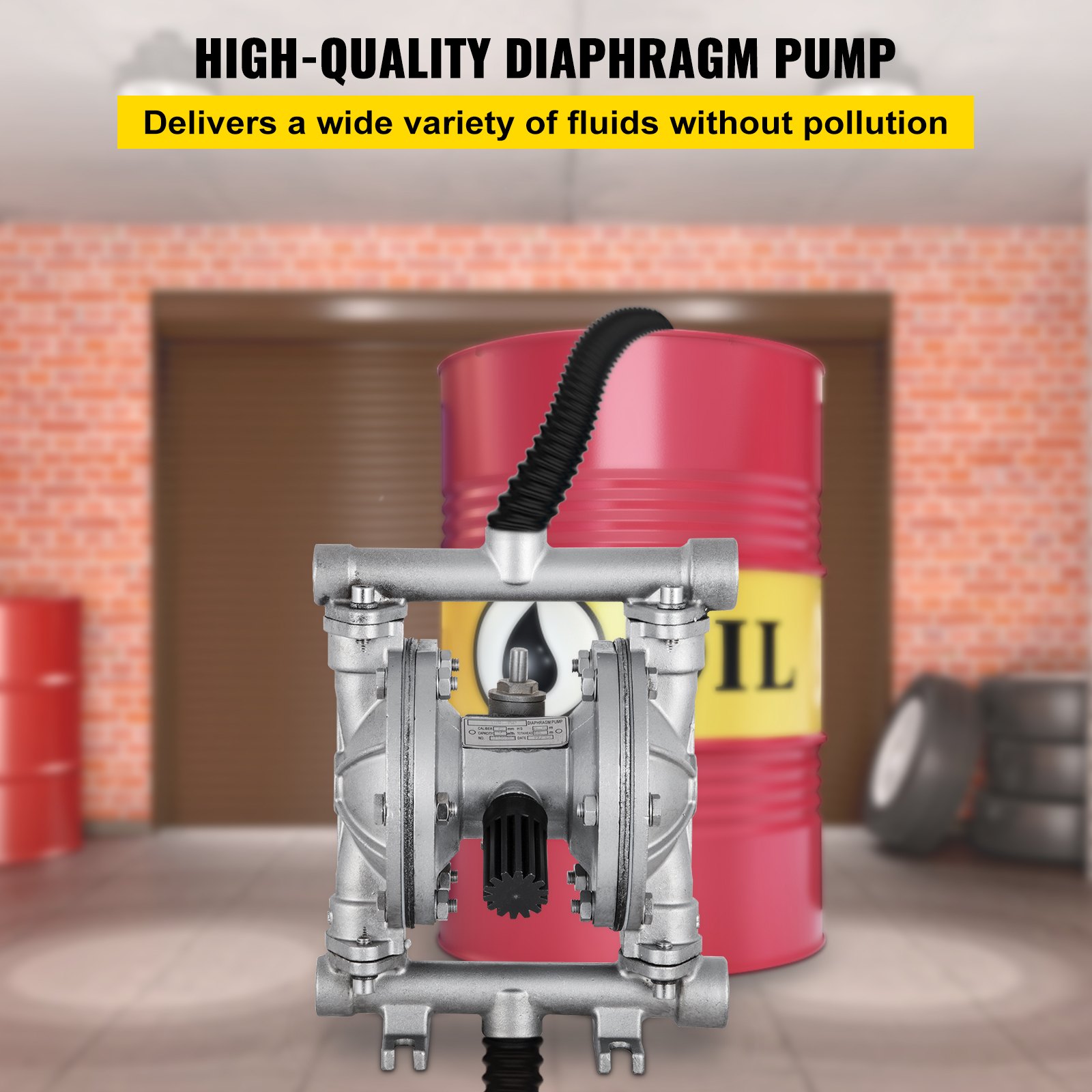

VEVOR air-operated double diaphragm pump handles waste oil, alcohol, hydraulic fluid, ink, and more.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR air-operated double diaphragm pump in industrial, lab, and beverage settings
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.

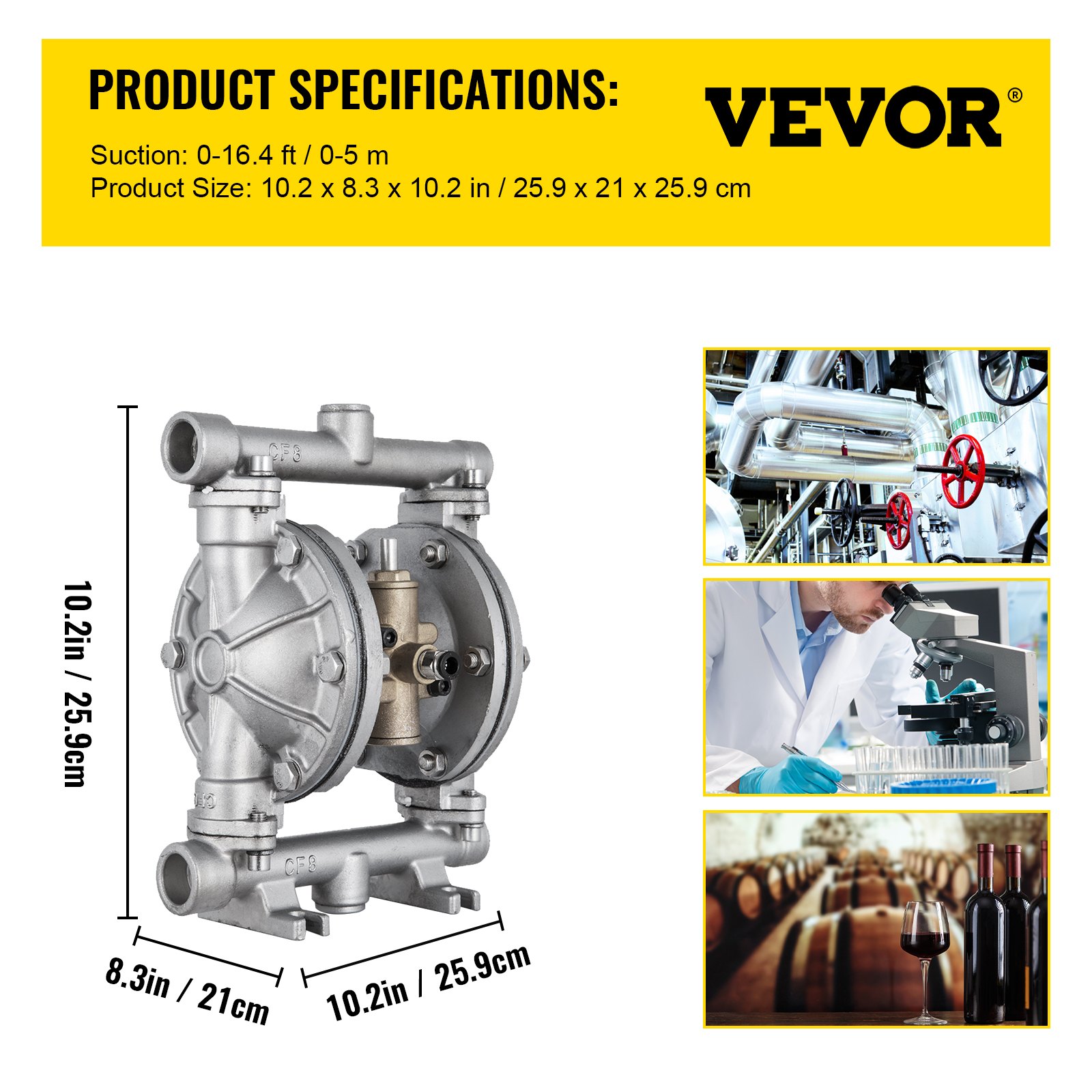

VEVOR air-operated double diaphragm pump with dimensions labeled: 10.2in x 8.3in.
Specifications
  • Model: QBK-15P
  • Pump Body Material: Stainless Steel
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: 1/4 inch (6.35 mm)
  • Gas Nozzle: 0.32 inch (8 mm)
  • Max. Suspended Solids: 1/8 inch (3.18 mm)
  • Max Flow Rate: 2 GPM
  • Suction: 0-5 m (0-16.4 ft)
  • Max Head: 196.85 ft/60 m±15%
  • Max PSI: 90 psi
  • Max. Fluid Temp.: 122 ℉
  • Average Air Consumption: 10 CFM

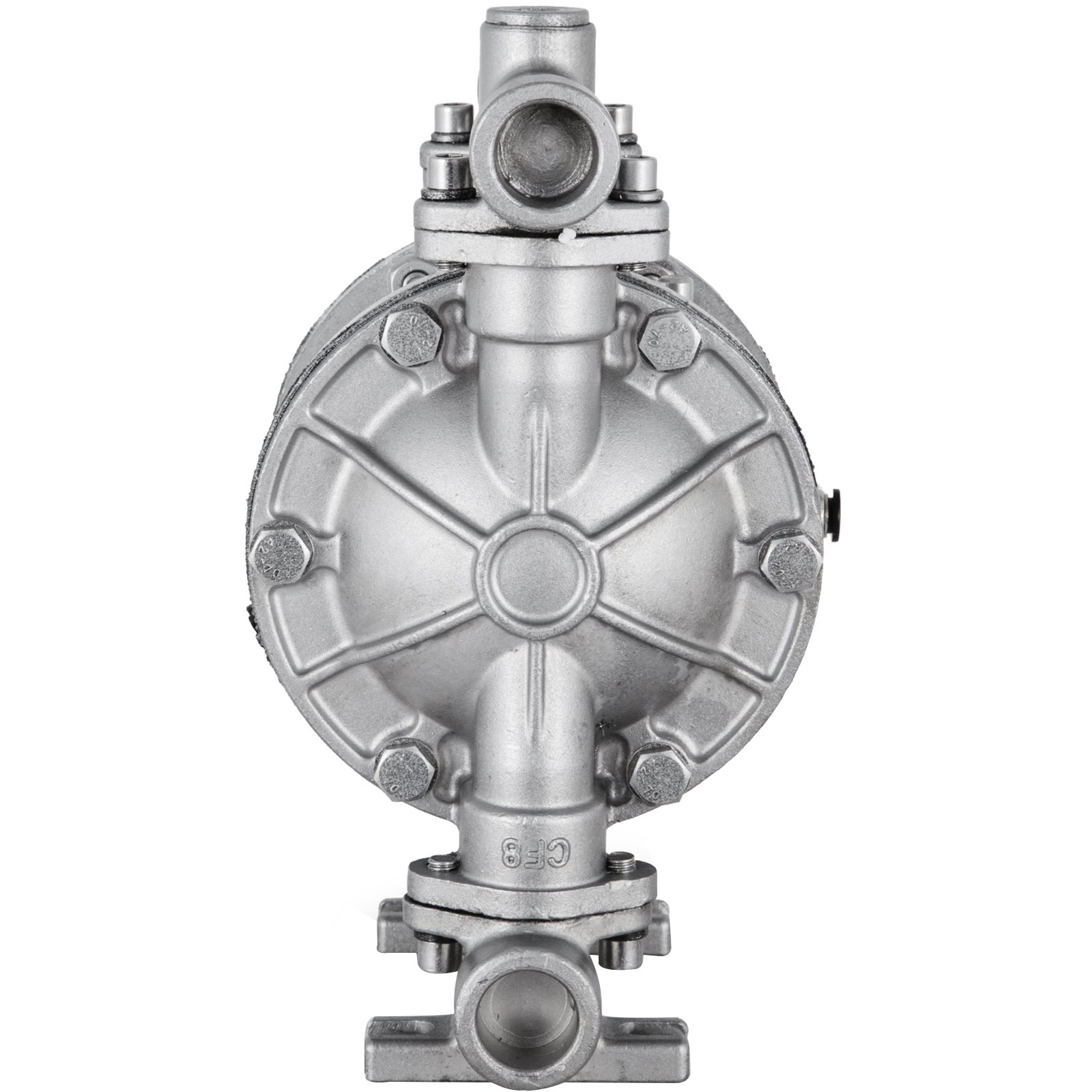

VEVOR air-operated double diaphragm pump in metallic finish
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR air-operated double diaphragm pump in front of an industrial refinery.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR air-operated double diaphragm pump with metallic housing and industrial design.
Air-Operated Double Diaphragm Pump Stainless Steel Construction & PTFE Diaphragm & 3 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted stainless steel body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double PTFE Diaphragms
Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR air-operated double diaphragm pump with solid, rustproof, high-temp resistant body.
Sturdy Stainless Steel Body
The shell of the air-operated diaphragm pump adopts stainless steel construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 90 psi.
VEVOR air-operated double diaphragm pump, ptfe, durable, corrosion-proof, long-lasting.
PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:3 GPM; Max Head Lift:196.85 ft/60 m±15%.
VEVOR air-operated double diaphragm pump with labeled components and ports.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch.
VEVOR air-operated double diaphragm pump with 196.85 ft max head and 3.0 gpm flow rate.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR air-operated double diaphragm pump handles waste oil, alcohol, hydraulic fluid, ink, and more.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR air-operated double diaphragm pump in industrial, lab, and beverage settings
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
VEVOR air-operated double diaphragm pump in metallic finish
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR air-operated double diaphragm pump with dimensions labeled: 10.2in x 8.3in.
Specifications
  • Model: QBK-15P
  • Pump Body Material: Stainless Steel
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: 1/4 inch (6.35 mm)
  • Gas Nozzle: 0.32 inch (8 mm)
  • Max. Suspended Solids: 1/8 inch (3.18 mm)
  • Max Flow Rate: 2 GPM
  • Suction: 0-5 m (0-16.4 ft)
  • Max Head: 196.85 ft/60 m±15%
  • Max PSI: 90 psi
  • Max. Fluid Temp.: 122 ℉
  • Average Air Consumption: 10 CFM

Air-Operated Double Diaphragm Pump for Efficient Fluid Transfer

The pump is perfect for moving fluids quickly and efficiently. It handles petroleum, diesel, oil, and low-viscosity fluids with ease. The pump's design ensures smooth and consistent operation. This makes fluid transfer tasks straightforward and efficient. The air-operated feature means it requires no electricity. So it’s safe to use in various environments. It is also useful in areas where electrical pumps may not be suitable. The double diaphragm design ensures reliable performance. Reduces the need for frequent maintenance. The efficiency saves you time and effort in fluid transfer tasks. Therefore, this tool is versatile and can be used for different applications.


Stainless Steel Construction Ensures Durability and Longevity

The VEVOR pump features a durable stainless steel body. This construction provides strength and resistance to corrosion. It is designed to withstand harsh conditions and demanding environments. The stainless steel material ensures the pump remains in good condition for a long time. This durability makes it a dependable choice for long-term use. Additionally, the material makes cleaning and maintenance easy. These are especially important in industries where hygiene is paramount. The strong build quality provides peace of mind, knowing that the pump can handle tough tasks. Therefore, this becomes an incredibly valuable investment for your fluid transfer needs.


High Flow Rate and Pressure for Effective Pumping

It has a maximum flow rate of 8.8 GPM and 120 PSI. This makes it ideal for tasks that require high flow and pressure. It can handle up to 150 gallons in just 20 minutes. That efficiency ensures jobs get done quickly and effectively. The pump's performance is consistent, even when dealing with challenging fluids. High flow rates are beneficial in time-sensitive applications. Pressure capability ensures effective pumping even in demanding conditions. Therefore, it’s an incredibly powerful tool for various industrial and commercial uses.


Versatile Applications Across Industries

This diaphragm pump is ideal for a wide range of applications. It can handle fluids like petroleum, diesel, oil, and low viscosity. You can use it in the automotive, manufacturing, and food processing industries. The versatility makes it useful in automotive, manufacturing, and other industries. We also can filter wastewater through filters. This makes the tool an invaluable addition to environmental management tasks. Our versatile device extends beyond pumping out drain pans in shops. Its wide variety of uses makes it a flexible and reliable addition to any operation. So, it can adapt to different needs, making it able to meet various requirements.


Quick and Reliable Performance Saves Time

One of the biggest benefits of this pump is its quick performance. It can transfer 150 gallons of fluid in just 20 minutes. This speed ensures tasks are completed efficiently, saving valuable time. Reliable performance means fewer interruptions and less downtime. That is important in busy environments where every minute counts. Also, it matters in hectic environments with no need for constant supervision. Furthermore, the pump's efficiency minimizes that requirement, keeping up time for other tasks and increasing overall productivity. With its rapid and reliable performance, you have an essential tool for fluid transfer operations.


Easy to Use with Minimal Maintenance Requirements

This pump is easy to use and requires minimal maintenance. Its simple design makes it easy to operate. There is no need for complicated setup or specialized knowledge. The construction of the pump also minimizes maintenance needs. This reduces the time and resources spent on upkeep. Easy-to-use means it's accessible to a wide range of users. That includes those without extensive technical expertise. Low maintenance requirements ensure that the pump stays operational for longer periods. So, it’s easy to use for various fluid transfer tasks!


Cost-Effective Solution for Fluid Transfer Needs

This pump offers a cost-effective solution for fluid transfer needs. Its reasonable price point makes it accessible to different budgets. The pump's efficiency and durability further enhance its cost-effectiveness. You save money by reducing the need for frequent replacements and repairs. Low maintenance costs also contribute to its overall affordability. This is advisable for businesses and individuals looking for an efficient fluid transfer solution without high upfront costs. Cost-effectiveness combined with performance makes this feature add value to any operation.


See More

Specification

Model
QBK-15P
Pump Body Material
Stainless Steel
Inlet Port
1/2 inch (12.7 mm)
Outlet Port
1/2 inch (12.7 mm)
Air Inlet Size
1/4 inch (6.35 mm)
Gas Nozzle
0.32 inch (8 mm)
Max. Suspended Solids
1/8 inch (3.18 mm)
Max Flow Rate
2 GPM
Suction
0-5 m (0-16.4 ft)
Max Head
196.85 ft/60 m±15%
Max PSI
90 psi
Max. Fluid Temp.
122 ℉
Average Air Consumption
10 CFM
Questions and Answers
7 Questions
What material are the check valves made of
They are made of PTFE.
By vevor
What material are the wetted parts
Its material is stainless steel.
By vevor
can it be used for food grade liquids?
No, it can not be used for food.
By vevor
can this be used for maple syrup? Is it food approved?
This can not be used for maple syrup, it is not food approved.
By vevor
What is the flow rate of the stainless steel pump? It shows 2 GPM, 3 GPM AND 8.8 GPM in different locations in this same web page for the unit.
Please refer to the instructions in the link, the link is valid for 3 days: https://we.tl/t-32I5ljK62z
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
10 Review(s)
Clear filters
NPAK NPAK
I would buy it again.
Worked and didn't leak. Cheapest double diaphragm pump on internet dot com Got my home s(tuff) done.Why does Amazon ask me to post this review on Facebook? I've never had a Facebook account.Some younger people do not know the difference between internet and Facebook. Please recognize that you are not the only culture in the world.
VEVOR Customer VEVOR Customer
Pump works
The pump works although you will find it consumes a lot of air, this is my first time with a pump of this nature so I can't say that it is better or worse than other pumps in that area. The user manual is horrible!
matt matt
NICE PUMP
This pump was purchased to replace a diaphragm pump that had been in service for several years. It is used to pump waste water through a filter prior to going into the municipal sewer system. So far, it's been working great. It runs about 10 hours a day.The build quality and construction seem to be nice, it's heavy for it's size since it's made of metal. I hope this will last a while, like the previous one.
BDJ TRUCK REPAIR BDJ TRUCK REPAIR
Great for drain pans
Exactly what we needed for pumping out drain pans in our shop.
jw jw
Perfect
Works great. We use it in the sugar house to can our syrup
ADE ADE
happybuy Diaphragm pump 1/2 inch inlet and outlet.
The pump works great and fantastic but was unable to pump our product due to the product viscosity. So I decided to exchange it for a more powerful pump. smooth transaction and reliable seller.
Clovis Enloe Clovis Enloe
pump works great
I use the pump to transfer 30W lub oil into an overhead tank, is very quick 150 gal. in 20 mins.
Kelly Anderson Kelly Anderson
Great product
The product came very fast and works like we needed it to.
Eric L. Enk Eric L. Enk
Excellent for pumping hot syrup through filter press.
I realize it is imported. But when a sugar supplier wanted $194 for just the shipping on their locally made $850 unit.
jw jw
Perfect
Works great. We use it in the sugar house to can our syrup
