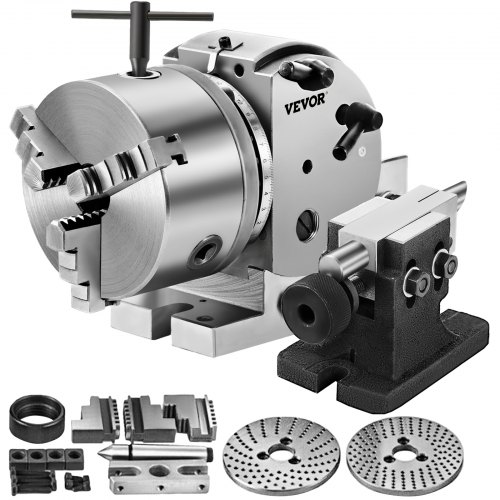

VEVOR dividing head with accessories, adjustable chuck, and rotary table attachments. VEVOR dividing head for drilling, cutting, boring, spot flattening in a cnc machine. VEVOR dividing head with ht200 cast iron body, rigid mirror finish, and very little friction. VEVOR dividing head with adjustable angles and accuracy calibration, swing 6.5", height 3.95". VEVOR dividing head with high precision indexing plate and 3-jaw chuck for axis machining VEVOR dividing head, strong support, standing and lying, rapid indexing, simple operation. VEVOR dividing head product specifications and dimensions with detailed measurements.
5CFDT000000000001V0

VEVOR Dividing Head BS-0 5Inch 3 Jaw Chuck Dividing Head Set Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock Milling Set (5 Inch Chuck)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Solid Cast Iron Construction: Swing: 6-1/2"/168 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
  • Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
  • High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.
  • Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
  • Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Dividing Head BS-0 5Inch 3 Jaw Chuck Dividing Head Set Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock Milling Set (5 Inch Chuck)
VEVOR dividing head for precise 5-inch indexing head milling machine with 4" center height.
VEVOR dividing head with accessories and adjustable base for milling machines.
BS-0 Precision Dividing Head
MT2 Headstock Taper & Complete Set & Simple Operation
The indexing head doesn't only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.
  • Solid Cast Iron Construction
  • Adjustable Dividing Head
  • High Precision Indexing Plate
  • Strong Workpiece Support
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR dividing head with ht200 cast iron body and rigid sturdy construction.
Rigid & Sturdy Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that is wear-resistant and tear-resistant and looks low-profile.
VEVOR dividing head with adjustable headstock, 6-1/2" swing, 3-15/16" center height.
Adjustable Headstock
The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.
VEVOR dividing head with direct indexing plate, lever, and spindle lock lever.
Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.
VEVOR dividing head with high precise plates and adjustable handle for accurate machining.
More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.
VEVOR dividing head with strong mt2 tailstock for precision machining.
Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.
VEVOR dividing head showing wide application: drilling, cutting, boring, spot flattening.
Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
VEVOR dividing head with precise dimensions illustration for machining tasks.
Specifications
  • Swing: 6-1/2" (16.5 cm)
  • Center Height: 3-15/16" (10 cm)
  • Headstock Taper: MT2
  • Net Weight: 50.7 lbs (23 kg)
  • Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
  • Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)
VEVOR dividing head with adjustable indexing plates and various components.
Package Content
  • 1 x Dividing Head
  • 3 x Dividing Plates
  • 1 x Tailstock
  • 1 x 125 mm 3-Jaw Chuck
VEVOR dividing head for precise 5-inch indexing head milling machine with 4" center height.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR dividing head with accessories and adjustable base for milling machines.
BS-0 Precision Dividing Head
MT2 Headstock Taper & Complete Set & Simple Operation
The indexing head doesn't only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.
  • Solid Cast Iron Construction
  • Adjustable Dividing Head
  • High Precision Indexing Plate
  • Strong Workpiece Support
VEVOR dividing head with ht200 cast iron body and rigid sturdy construction.
Rigid & Sturdy Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that is wear-resistant and tear-resistant and looks low-profile.
VEVOR dividing head with adjustable headstock, 6-1/2" swing, 3-15/16" center height.
Adjustable Headstock
The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.
VEVOR dividing head with direct indexing plate, lever, and spindle lock lever.
Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.
VEVOR dividing head with high precise plates and adjustable handle for accurate machining.
More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.
VEVOR dividing head with strong mt2 tailstock for precision machining.
Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.
VEVOR dividing head showing wide application: drilling, cutting, boring, spot flattening.
Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
VEVOR dividing head with adjustable indexing plates and various components.
Package Content
  • 1 x Dividing Head
  • 3 x Dividing Plates
  • 1 x Tailstock
  • 1 x 125 mm 3-Jaw Chuck
VEVOR dividing head with precise dimensions illustration for machining tasks.
Specifications
  • Swing: 6-1/2" (16.5 cm)
  • Center Height: 3-15/16" (10 cm)
  • Headstock Taper: MT2
  • Net Weight: 50.7 lbs (23 kg)
  • Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
  • Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

Robust Dividing Head for Flawless Results

VEVOR Dividing Head is crafted with exceptional durable and long-lasting functionality at its core. This tool features a solid cast iron construction, making it suitable for prolonged heavy-duty use without signs of wear over time. You would find its mirror-finish swing an excellent choice for increasing its aesthetic appeal while offering comprehensive protection against wear and rust. This means this tool won’t lose its luster and functionality, causing you to regret your purchasing decision.


Aside from its amazing aesthetic appeal and strong build, the VEVOR Universal Dividing Head comes in handy during intricate machining or gear cutting, ensuring accurate and improved cutting efficiency. You can make precise adjustments and turns with this tool to accommodate a wide range of projects, from gear cutting to precision machining for flawless results.


Adjustable Headstock for Many Applications

One of the remarkable features of the VEVOR Precision Dividing Head is its adjustable headstock bringing flexibility to your metalworking or machining. You can tilt the headstock from 10 degrees below horizontal to a vertical position, allowing machinists and engineers to work on any workpiece without size or shape limitations. This feature makes this dividing head a valuable tool for anyone looking to expand their creative boundaries or tackle diverse metalworking tasks.


Furthermore, the headstock's adjustability improves your control over their workpieces. This leads to high precision machining and professional-quality results, regardless of your skill level and the project’s complexity. Also, it’s easy to make these fine adjustments and switch from one angle to another, which cuts down downtime significantly making room for better efficient workflow.


Achieve Superior Precision with Indexing Plate

VEVOR Dividing Head is equipped with a direct and interchangeable indexing plate, making it easier to achieve precise distances between your cuttings for accurate work. These indexing plates offer more than just effortless precision but a new level of flexibility, allowing machinists and metalworks to execute both simple divisions and complex projects with ease and accuracy.


Considering how easy it is to set your preferred distances between cuttings, you can kiss long setup time and tedious workflow goodbye. The VEVOR Universal Dividing Head is the tool to have for streamlined workflow and more efficient project completion.


Hold Workpieces in Place for Less Errors

VEVOR Dividing Head boasts a wide range of machine tool accessories, with the tailstock being the favorite of the lot. This tailstock for milling provides your workpiece with the much-needed support to keep it steady during the machining process. This accessory is useful when dealing with long metal pieces that are notorious for dancing around.


With a solid foundation and robust support, it’s easier to achieve a higher degree of precision, crucial for intricate metalworks. If you often find yourself faced with more challenging projects, this precision dividing head is the ally you need in those tricky times to reduce your risk of errors due to stability issues.


High Compatibility with Various Machines

The versatility of the VEVOR Universal Dividing Head makes it an indispensable tool for any metalworker, engineer, or machinist. Compared to its picky competitors, this precision dividing head works nicely with boring machines, grinders, drill presses, milling machines, etc. to accomplish various metalworking tasks without breaking a sweat.


Its swift integrations with different equipment in your workshop and solid build to handle the rigors of heavy-duty use make it a great choice for metalworkers looking to take on a wider range of projects to improve their craftsmanship. Whether it's flawlessly executing precision cuts or etching detailed patterns, this tool is the obvious choice for you with its rotary indexers, steady base, and high accuracy.


See More

Specification

Swing
6-1/2" (16.5 cm)
Center Height
3-15/16" (10 cm)
Headstock Taper
MT2
Net Weight
50.7 lbs (23 kg)
Headstock Dimensions
9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
Tailstock Dimensions
3.5" x 6" x 4" (9 x 15 x 10 cm)
Manual
Download Link
Questions and Answers
13 Questions
Can you get gears for differential indexing?
It comes with 3 indexing plates for any combination you might need. The most important thing you need to do before using is take it completely apart including the chuck and deburr , clean and put in some good grease and oil, it is horrendously dirty inside, otherwise it seems of good quality.
By vevor
What is the total height at 90 degrees?
The total height is 250mm.
By vevor
What is the difference between semi-universal and universal?
A semi-universal can only cut straight gears as where the universal models have linkages that allow helical cut gears to be cut.
By vevor
WHAT THE MAX DIA FOR CHUCKING
The clamping range is 2-110mm.
By vevor
Can a stepper motor be connected to this head for use with a CNC?
Yes, it can be used with a CNC.
By vevor
