Name: VEVOR Heavy Duty Drawer Slides 18" Length, Locking Drawer Slides 500lbs Load Capacity Full Extension Drawer Slide 1 Pair Side Mount Ball Bearing Drawer Glides Push to Open Cabinet Industrial Shelf
Brand: VEVOR
SKU: CTDG18YC500B00001V0
Price: 38.99 USD
Availability: InStock
Rating: 4.8 (18 reviews)

VEVOR Heavy Duty Drawer Slides 18" Length, Locking Drawer Slides 500lbs Load Capacity Full Extension Drawer Slide 1 Pair Side Mount Ball Bearing Drawer Glides Push to Open Cabinet Industrial Shelf

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Length: 18 inch

22 inch
60 inch
24 inch
48 inch
26 inch
18 inch
40 inch
36 inch

About this item

Three-Section Drawer Slides: You can get 1 pair of locking drawer slides: 18"/ 45.7 cm in length, 3"/ 7.6 cm in width, and 0.75"/ 1.9 cm in thickness. Our 3-fold full extension design allows the entire drawer to be extended fully, making it easy to reach. A great helper to maximally utilize your drawer's space(fully closed length: 18", fully extended length: 36"/ 91.4 cm).
Sturdy Steel & 500 lbs Bearing: Constructed with 0.75"/ 19 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 500 lbs/ 225 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The electroplated surface keeps the extension drawer slides rust-proof and abrasion-proof, ensuring lifetime use. The slides can be applied to goods shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.
Softly & Quietly Slides with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Compared to drawer slides without locks, our drawer slides with locks provide more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.
Choose the Right Size: How can you determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. 0.7"/ 19.2 mm space between drawer and cabinet wall is required (left 0.7", right 0.7"). It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should be less than or equal to drawer depth.
Installation & Usage: Full extension drawer slides are compatible with most major drawer and cabinet types. The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as industrial drawers, commercial equipment, and retrofitted vehicles. Installation is effortless, so you can use the drawer right away.

See More See Less

VEVOR heavy duty drawer slides in red toolbox holding yellow-handled tools, 500lbs capacity.

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

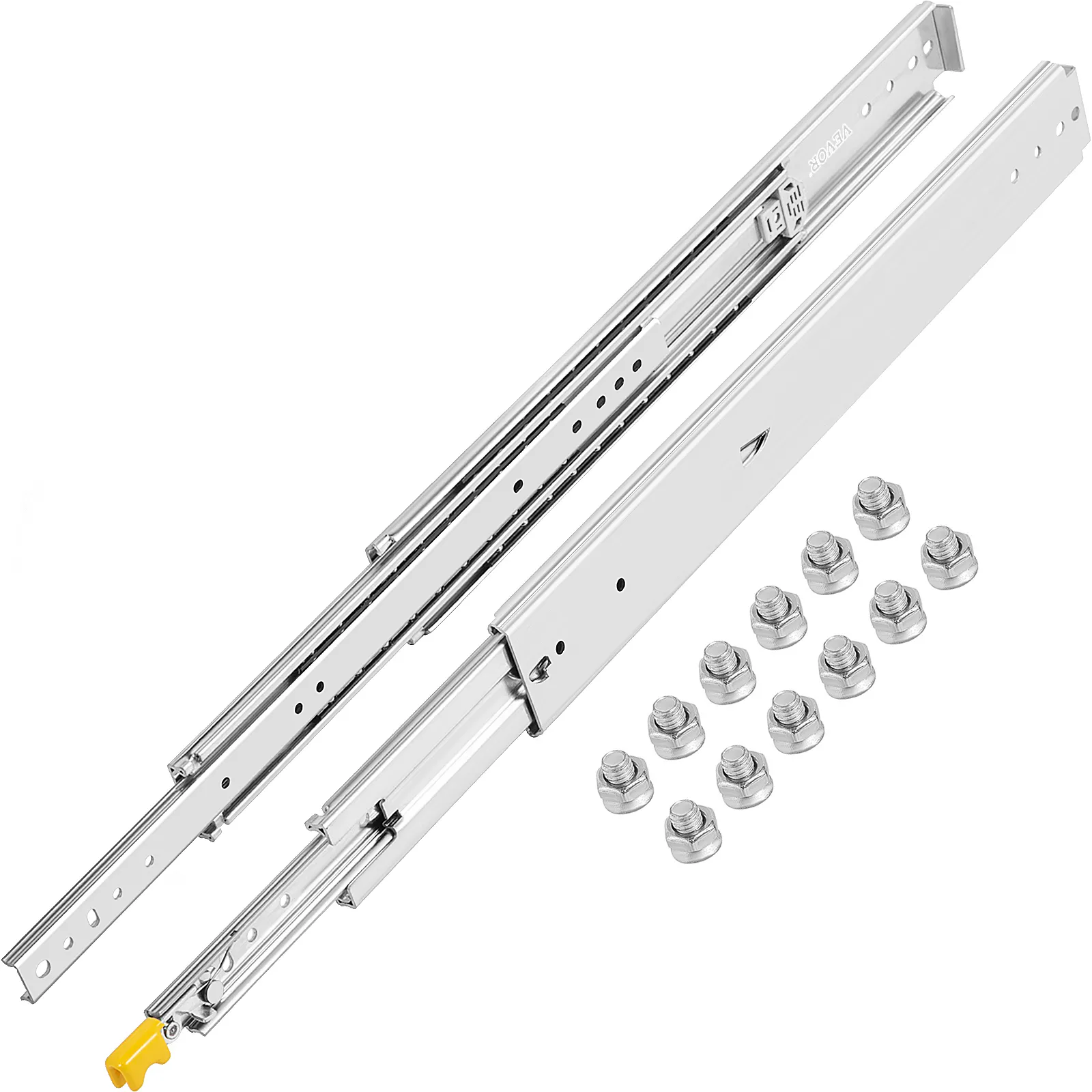

VEVOR heavy duty drawer slides with nuts, showcasing high-quality metal construction.

18 in Locking Slide Drawers

Smooth Slide & Low Noise & Durable

Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. Install your drawers at in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, and get ready to slide, lock, and close. Stability and durability are achieved for a high-quality performance you can trust.

Three-Section Drawer Slides
Sturdy Steel & 500 lbs Bearing
Softly & Quietly Slides with Lock
Choose the Right Size

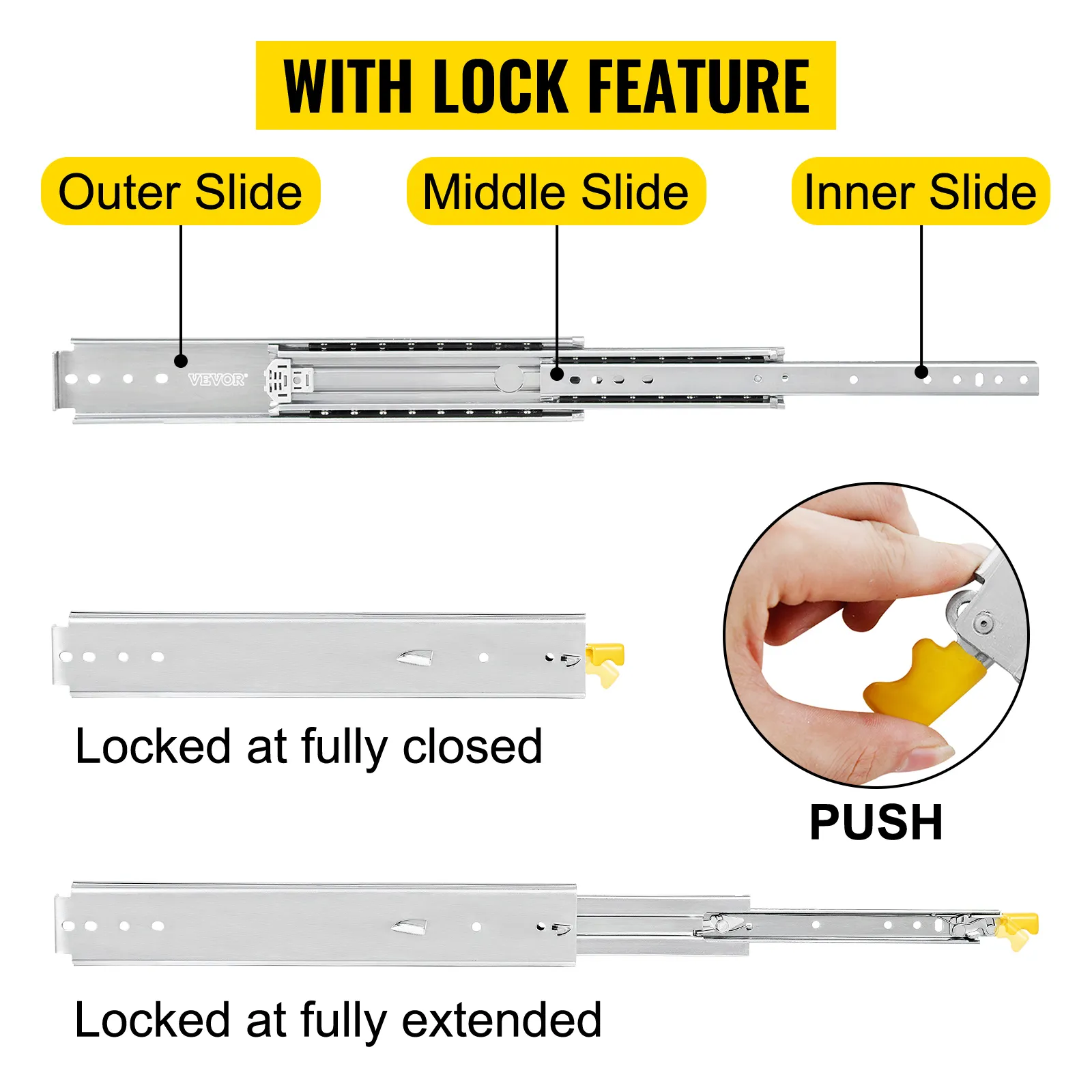

VEVOR heavy duty drawer slides with lock feature, closed and extended states shown.

Lock Feature Included

Inner slide, middle slide, and outer slide are all included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.

VEVOR heavy duty drawer slides with dual-row ball-bearings and nylon buffer design.

Quiet Design Details

Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.

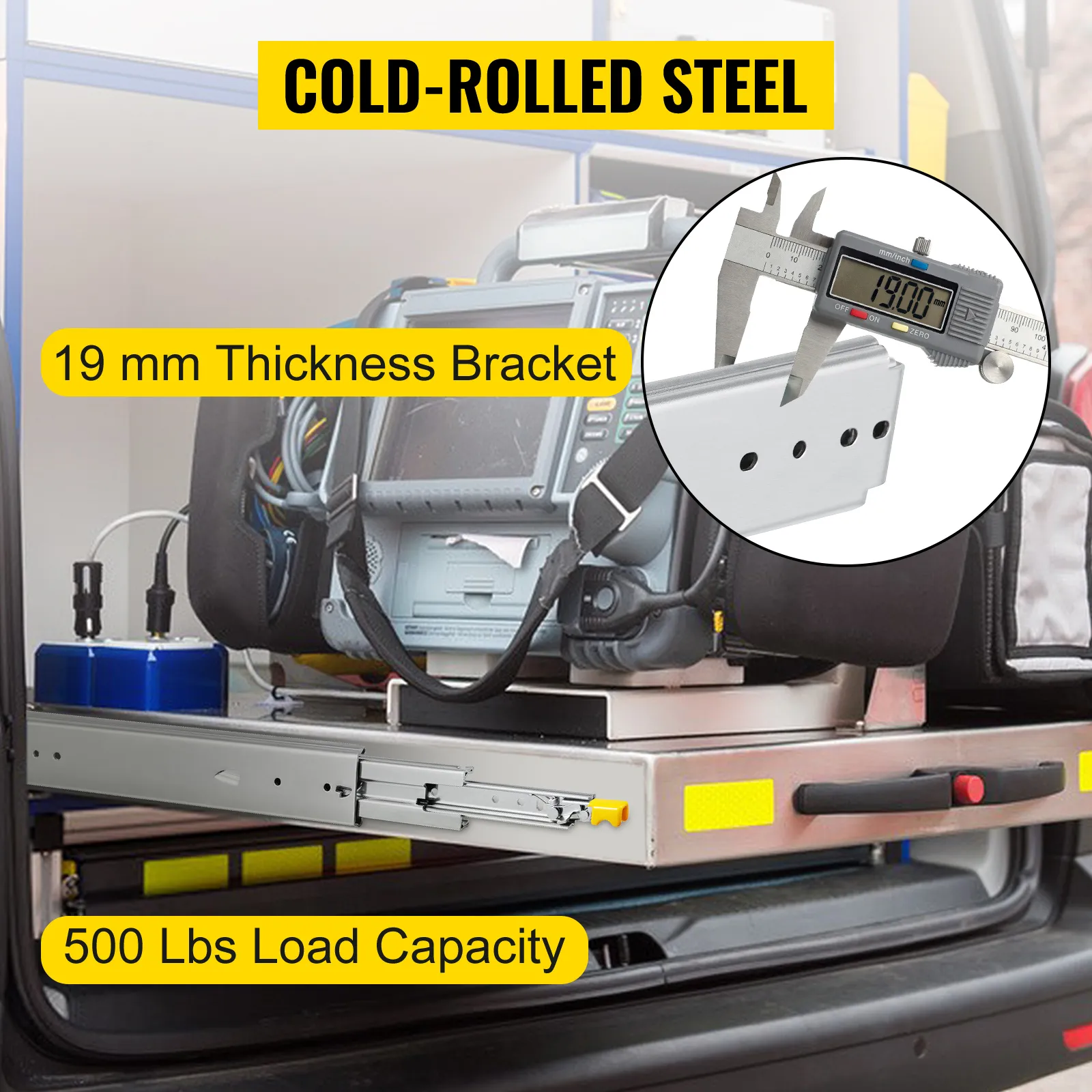

VEVOR heavy duty drawer slides holding equipment, 500 lbs capacity, 19 mm thickness bracket.

Cold Rolled Steel

High-grade cold-rolled steel with an electroplated finish can effectively prevent the drawer rail from scratches, deformation, and rust.

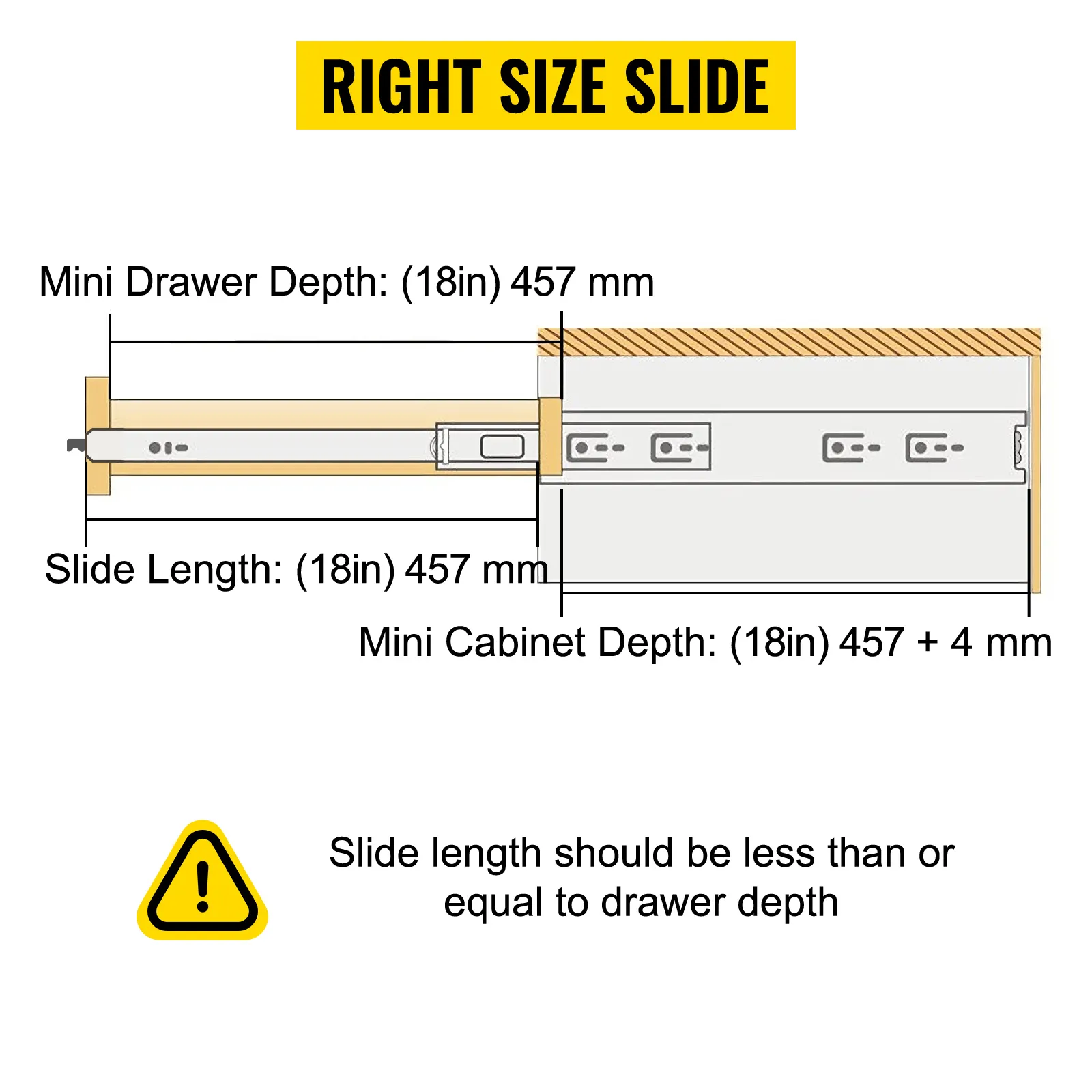

right size slide diagram showing 18in measurements for VEVOR heavy duty drawer slides.

Right Size Table

Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.

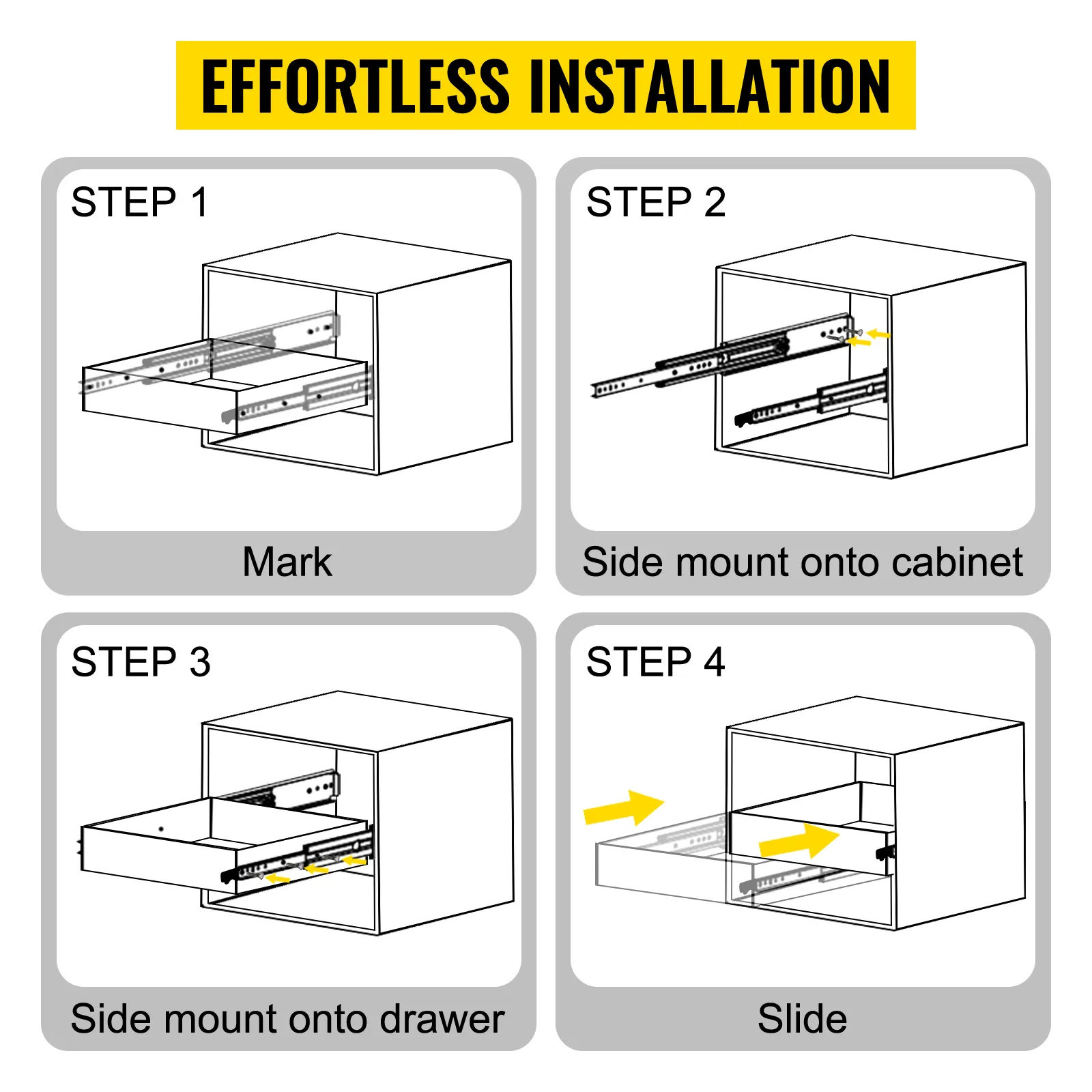

step-by-step guide to effortless installation of VEVOR heavy duty drawer slides.

Easy & Quick to Assemble

During installation, it's better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.

VEVOR heavy duty drawer slides: multipurpose uses in vehicle, toolbox, and workstations

Extensive Usage

The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.

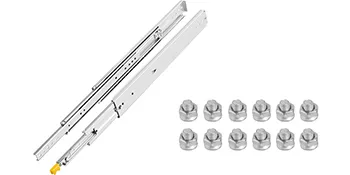

VEVOR heavy duty drawer slides with 12 mounting screws.

Package Content

1 x Heavy-Duty Drawer Slide Kit
1 x Screw Kit
1 x User Manual

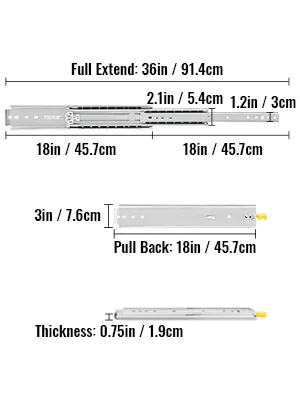

VEVOR heavy duty drawer slides, 36in extension, 18in pull back, 0.75in thick.

Specifications

Length: 18"/ 45.7
Fully Pull-Out Length: 36"/ 91.4 cm
Material: Cold Rolled Steel
Load Capacity: 500 lbs/ 225 kg
Install Distance(Each Side): 0.7"/ 19.2 ± 0.3 mm
Slide Lock: Support
Product Width: 3"/ 7.6 cm
Product Thickness: 19 mm / 0.75"
