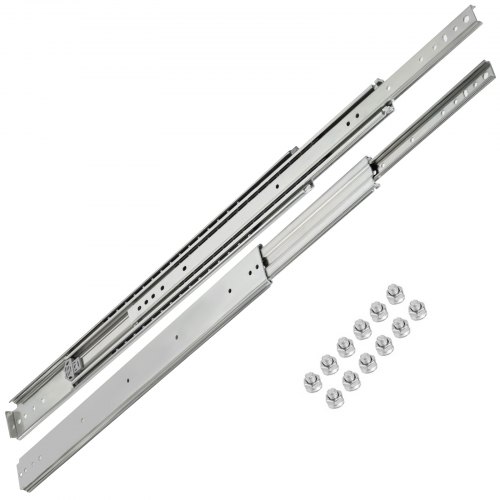

VEVOR drawer slides with screws on a white background. gray drawer with yellow labels showing inner, middle, and outer sections. VEVOR drawer slides. VEVOR drawer slides on cold-rolled steel file cabinet, scratch-proof, non-corrosion. VEVOR drawer slides with ball-bearing action for smooth, low-noise opening and closing. drawer size guide showing VEVOR drawer slides and measurements for cabinet depth. step-by-step guide to installing VEVOR drawer slides in a cabinet.
CTDGBYCW50022Q18YV0

VEVOR Drawer Slides, 1 Pair 22 Inch Heavy Duty Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

22 inch

  • 26 inch
  • 30 inch
  • 22 inch
  • 20 inch
  • 16 inch
  • 24 inch
  • 28 inch

500 lbs

  • 500 lbs
  • 250 lbs

About this item

  • Three-Section Slides: 1 pair of 22"/ 55.88 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. The fold and full extension drawer slides consist of three sections and can be fully pulled out to utilize the drawer's space (Actual size 22", extended size 44"/ 111.76 cm). And the slide drawers are also designed to ensure your drawers smoothly pushing and pulling.
  • Steel & 500 lbs Bearing: The heavy-duty drawer slides are constructed with thick cold rolled steel (CRS) plates for a strong bearing capacity of 500 lbs. Therefore, they are tough enough to bear the heavy wooden or iron things you need. In addition, zinc is plated on the surface to stay rust-proof, abrasion-proof for long-term service.
  • Smooth & Quite to Slide: Drawer hardware slides are equipped with ball-bearing action to create a quiet environment for your family and work. The row of balls on the two sides of sliding and the nylon buffer design on the second section, which aim to make less noise and friction at closing and open the drawer.
  • Choose the Right Size: How to choose the right size of slides for your drawer? Install distance (each side): 0.76"/19.5 mm. Please measure the length of the drawer without the frame board at first. The length of slides should be less than or equal to drawer depth minus 4 mm.
  • Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All included screws and bolts are easy and quick to install. They are mainly used for industrial, commercial equipment, factory machines, office, vehicle, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Drawer Slides, 1 Pair 22 Inch Heavy Duty Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise
22 inch 500 lbs
VEVOR drawer slides with full extension, 500lbs bearing, quiet work, smooth slide.
VEVOR drawer slides with mounting screws on white background.
Full Extension Slide Drawers
The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Slides
  • Steel & 500 lbs Bearing
  • Smooth & Quite to Slide
  • Choose the Right Size
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
blue cabinet with five open drawers on VEVOR drawer slides, grey case, and red wheels.
3-Fold Slide Drawers
Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.
tool tray with high rigidity, non-corrosive, scratch-proof VEVOR drawer slides.
Cold Rolled Steel
Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.
VEVOR drawer slides with steel ball-bearing action and nylon buffer for low noise.
Low Noise Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.
VEVOR drawer slides sizing guide with measurements and installation instructions.
Fit for Size
Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.
VEVOR drawer slides installation steps for side-mounted drawer slides in cabinets.
Easy & Quick Assemble
It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.
VEVOR drawer slides for warehouse containers, industrial drawers, commercial equipment, and retrofitted vehicles.
Wide Application
The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.
VEVOR drawer slides in various sizes and measurements in inches and cm.
Specifications
  • Model: VV-CTDG-500B WS 22YC
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Load Capacity: 500 lbs/ 225 kg
  • Fully Pull-Out Length: 44"/ 111.76 cm
  • Fold Product Size: 22 x 3 x 0.75"/ 55.88 x 7.6 x 1.9 cm
  • Inner Size: 22 x 1.2"/ 55.88 x 3 cm (L x W)
  • Middle Size: 22 x 2.1"/ 55.88 x 5.4 cm (L x W)
  • Outer Size: 22 x 3"/ 55.88 x 7.6 cm (L x W)
two silver VEVOR drawer slides with screws above, arranged in a row.
Package Content
  • 2 x Drawer Slides
  • 12 x M6 Screws
  • 12 x M6 Screw Nuts
VEVOR drawer slides with full extension, 500lbs bearing, quiet work, smooth slide.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR drawer slides with mounting screws on white background.
Full Extension Slide Drawers
The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Slides
  • Steel & 500 lbs Bearing
  • Smooth & Quite to Slide
  • Choose the Right Size
blue cabinet with five open drawers on VEVOR drawer slides, grey case, and red wheels.
3-Fold Slide Drawers
Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.
tool tray with high rigidity, non-corrosive, scratch-proof VEVOR drawer slides.
Cold Rolled Steel
Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.
VEVOR drawer slides with steel ball-bearing action and nylon buffer for low noise.
Low Noise Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.
VEVOR drawer slides sizing guide with measurements and installation instructions.
Fit for Size
Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.
VEVOR drawer slides installation steps for side-mounted drawer slides in cabinets.
Easy & Quick Assemble
It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.
VEVOR drawer slides for warehouse containers, industrial drawers, commercial equipment, and retrofitted vehicles.
Wide Application
The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.
two silver VEVOR drawer slides with screws above, arranged in a row.
Package Content
  • 2 x Drawer Slides
  • 12 x M6 Screws
  • 12 x M6 Screw Nuts
VEVOR drawer slides in various sizes and measurements in inches and cm.
Specifications
  • Model: VV-CTDG-500B WS 22YC
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Load Capacity: 500 lbs/ 225 kg
  • Fully Pull-Out Length: 44"/ 111.76 cm
  • Fold Product Size: 22 x 3 x 0.75"/ 55.88 x 7.6 x 1.9 cm
  • Inner Size: 22 x 1.2"/ 55.88 x 3 cm (L x W)
  • Middle Size: 22 x 2.1"/ 55.88 x 5.4 cm (L x W)
  • Outer Size: 22 x 3"/ 55.88 x 7.6 cm (L x W)

22-Inch Drawer Slides: Ensure Full Extension and Smooth Motion

These 22-inch drawer slides from VEVOR provide a full extension, making every inch of your drawer space accessible. The slides glide smoothly, ensuring easy access to stored items. This functionality is essential for household and commercial uses; it doesn’t matter if it’s pantry drawers, tool storage, or custom cabinetry. These slides deliver consistent and smooth motion. They are designed to withstand repeated opening and closing without losing functionality; therefore, they are a dependable choice for any application.


Robust Build Handles Up to 500 lbs, Perfect for Heavy-Duty Applications

The VEVOR drawer slides are designed to handle heavy loads. They handle up to 500 lbs, making them ideal for heavy-duty applications. These slides can be used for storage solutions in RVs, trucks, and workshops. The robust construction ensures that even with a heavy load, there is no deflection or wobble. This solid build is vital for projects that require reliable and strong support. Their load-bearing capacity makes them suitable for holding heavy tools, equipment, or supplies securely.


Ball-Bearing Mechanism: Enhances Smoothness of Drawer Movements

The ball-bearing design in these drawer slides enhances their smooth operation. The bearings ensure that drawers move effortlessly, even when fully loaded. This mechanism reduces friction, allowing for a quiet and silky motion. Smooth movement is essential for drawer-containing items, as it prevents jerks and sudden stops. Due to this feature, opening and closing the drawer has become an easy experience, especially for applications where ease of use matters first.


Versatile Usage: From Household Cabinets to Heavy Workshop Drawers

These drawer slides are extremely versatile. They can be used for household cabinets, heavy workshop drawers, and more. You can use them for a variety of applications, including kitchen drawers, workbenches, or other custom storage solutions. Their strength and smooth motion make them able to serve both everyday and heavy-duty uses. This versatility makes these drawer slides incredibly useful for any storage project, providing consistent performance across different environments.


Reliable Performance with Minimal Noise and No Wobble

This is important for maintaining a quiet and stable environment, especially in homes or offices. The slides work smoothly without making distracting noises. The lack of wobble ensures drawers stay stable even when fully extended. This reliability is crucial for both daily use and heavy-duty applications, ensuring stability even with frequent use.


Easy Installation with Sturdy Side Mount Design

The solid side mount design allows for easy installation. This design is user-friendly, making it easy to install even for non-professionals. The slides provide a secure fit, ensuring stability and reliability. This ease of installation means you can upgrade your storage space easily. With clear instructions and the necessary hardware included, setting up these drawer slides is quick and simple, saving you time and effort.


Excellent Value with Competitive Pricing and Quick Delivery

The VEVOR drawer slides offer excellent value with their competitive pricing and quick delivery. These slides provide a high-performance product at an affordable price. The quick delivery ensures you get your order promptly, allowing you to start working on your projects immediately. This combination of quality, affordability, and efficient service makes these drawer slides a prudent investment for anyone looking to improve their storage solutions without breaking the bank.


See More

Specification

Model
VV-CTDG-500B WS 22YC
Color
Sliver
Material
Cold Rolled Steel
Finish
Zinc Plated
Load Capacity
500 lbs/ 225 kg
Fully Pull-Out Length
44"/ 111.76 cm
Fold Product Size
22 x 3 x 0.75"/ 55.88 x 7.6 x 1.9 cm
Inner Size
22 x 1.2"/ 55.88 x 3 cm (L x W)
Middle Size
22 x 2.1"/ 55.88 x 5.4 cm (L x W)
Outer Size
22 x 3"/ 55.88 x 7.6 cm (L x W)
Questions and Answers
1 Questions
Does your 22" draw slides have a bracket system for free standing drawer base cabient?
Hello Salvatore. There is no  bracket system  for the drawer.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
16 Review(s)
Clear filters
Jake Jake
Rollers for cabinets
Bought these ro build slides on cabinets vs the very expensive in store options. They work perfect for this application.
QB QB
Heavy Duty
Heavy Duty and smooth, I have 6 sets each with a 41"x32" self that I load with tools and things like oil and grease, the slide super easy and smooth.
QB QB
Heavy duty
These are very heavy duty and smooth, i used them to make 32”x48” shelves for tools which are very heavy and i can easily slide them. Have bought 4 sets since and am doing 4 more sliders.
Kelvin Woodard Kelvin Woodard
Owner
Quick delivery. Heavy duty and sturdy. Extend the full leggy as stated. Prices quite competitively. Definition will buy again.
Drew Menzie Drew Menzie
Awesome for my new drawers in the bed of my ram!
These are exactly what i needed for the bed of my 2012 ram 1500 sport 4x4. I built some drawers on top of my bed slide and now i cqn put most of my tools in these and have them organized while still able to use the top of the system to put things on. They fully extend so that you can use all of the space. I bought 2 sets so i could have 2 drawers the length of the bed. Nice product! Good price!
Bob Nichols Bob Nichols
Sturdy
I bought these to do an unusual sliding wall. They are heavy and sturdy. I needing something to hold about 250 lbs without giving and these did the trick.
Matt Matt
Heavy Duty drawer slides that are actually heavy duty
Not sure I would feel comfortable putting 500lbs on these but I used them for my 13inch plainer on a hydraulic table to tuck it away under my bench. They work perfectly. My guess is around 160lbs with plainer and table and they run smooth and easy. Just a little shove to get the weight moving. Once it's moving it runs so smooth it doesn't want to stop.... I would buy them again.
AW13 AW13
Just What Was Needed
What a good find. I've been needing new slides for about three years for my four-foot tool drawers in my work van. These were almost identical to the originals that are over 30 years old! What made it even better was the price drop. Thank you! (The replacement was difficult- no fault of VEVOR. Just be patient when replacing).
Sandra Atchison Sandra Atchison
Very sturdy
Very sturdy. Was actually used for a barn door in a cabin.
Jim Jim
customer
The slides are very heavy duty and very pleased with them considering the price. Like other reviews the packaging was not strong enough and I had to get replacement screws but they were sent out quickly. I would have given Quality a 5 star if the box had been better and I was not missing the fasteners. I used them for long drawers on a 2022 Toyota Tacoma pickup and they worked out well.
