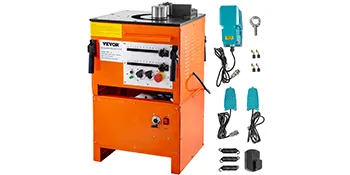

VEVOR hydraulic rebar bender with accessories and orange metal housing. VEVOR hydraulic rebar bender, 1700w electric cutter for various steel bars and shapes. VEVOR hydraulic rebar bender with 1/4"-1" diameter, 6-7s bend, 5-6s cut speed. VEVOR hydraulic rebar bender features 1700w pure copper motor for efficient, low-noise performance. VEVOR hydraulic rebar bender with adjustment blocks, emergency stop, and indicator light. VEVOR hydraulic rebar bender with handles, foot pedal, and control switches. VEVOR hydraulic rebar bender, orange, 31.1in tall, dimensions 19.7x17.7x31.1 inches.
TSGJWQJD25DWHYM01V1

VEVOR Hydraulic Rebar Bender 1700 Wattage Electric Rebar Bender and Cutter, 1''/25 mm Max Rebar Diameter, Rebar Steel Bender and Cutter Machine, Bending Machine For Bending Rebar, Steel Bar, Steel Rod

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

Updated Version

  • Updated Version
  • General

25 mm

  • 25 mm
  • 32 mm

About this item

  • Ultra-Fast Working Speed: This rebar bender and cutter machine is designed with excellent performance. It helps save valuable person-hours by bending rebar 1/4'' #2 to 1" #8 Grade 60(6 to 25 mm) within 6 to 7 seconds. It can also cut rebar within 5-6 seconds. Bending Angle: 0-180°. Bending Radius: 1.57'' / 40 mm, Max. Rebar Hardness: HRC30, Hydraulic Oil Type: VG46.
  • 1700W Pure Copper Coil Motor: This rebar cutter and bender features a 1700W pure copper motor, which can run quietly with low noise and significantly improve your working efficiency, reducing unnecessary wear. Besides, a copper motor can extend this rebar bender cutter's operating life to a large extent. Voltage: 110V, Frequency: 60 Hz, Amps: 14A, Noise: 92 dB(A).
  • Angle Adjustment Knobs: This rod bending machine has two slide-type angle selectors, which can help you accurately bend any angle from 0-180 degrees. Preset angle locks are designed for repeating the same angle bending. When bending processing, the angle of point 1 must be bigger than point 2. Otherwise, the machine can not operate normally.
  • Sturdy Machine Body: The bar bender machine adopts a sturdy iron machine body and durable Idler Wheel. Ø78 iron Gyre Idler Wheel and Ø94 Fixed Idler Wheel are stronger and not easy to break. Moreover, it can stand super-hard rebar with strong clamping force, which can help to reduce steel rebar waste.
  • Easy to Operate & Transport: This heavy-duty rebar cutter bender comes with the standard foot pedal control switch for your easy hands-free bending. With four handles on the corner for you to transport and operate effortlessly. It is widely used in construction engineering for bending or cutting rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Rebar Bender 1700 Wattage Electric Rebar Bender and Cutter, 1''/25 mm Max Rebar Diameter, Rebar Steel Bender and Cutter Machine, Bending Machine For Bending Rebar, Steel Bar, Steel Rod
Updated Version 25 mm

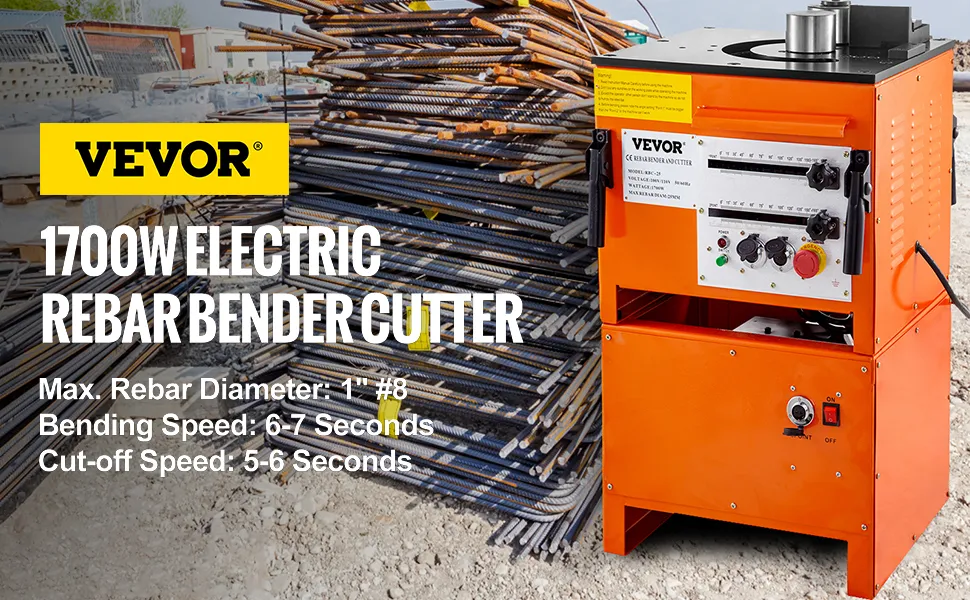

VEVOR hydraulic rebar bender beside stacked rebar on a construction site.
VEVOR hydraulic rebar bender in bright orange with control panel and accessories.
1700W Rebar Bender and Cutter Machine
1/4'' to 1" Rebar Diameter & 6-7S Bending Speed & 5-6S Cut-Off Speed
The rebar bender and cutter machine can bend 1/4''(#2) to 1"(#8) (6 to 25 mm) rebar to 0-180°in 6-7 seconds. Cut-off speed: 5-6 seconds. Two standard foot pedal control switches for hands-free bending. This rebar bender cutter is multi-purpose for construction or all kinds of other things related to rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel bending. It is ideal for manufacturers who need simple, easy-to-use, consistent, and accurate steel bending machines. A must-have for the professional concrete installer!
  • Ultra-Fast Working Speed
  • 1700W Pure Copper Coil Motor
  • Angle Adjustment Knobs
  • Sturdy Machine Body
  • Easy to Operate & Transport
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

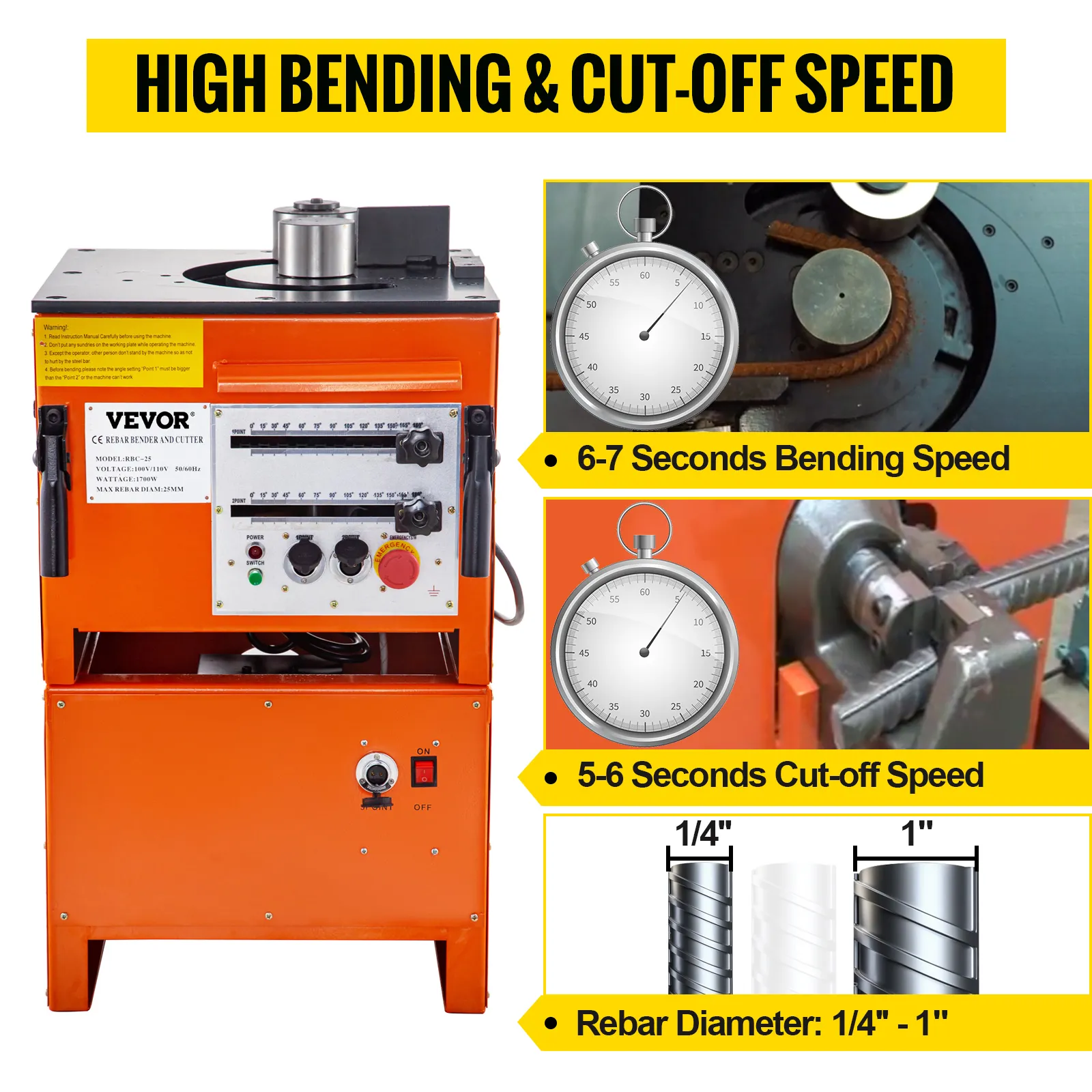

VEVOR hydraulic rebar bender with 6-7 sec bending, 5-6 sec cut-off speed, 1/4"-1" diameter.
High Bending & Cut-off Speed
The steel rebar bender bends 1/4'' to 1" (6 to 25 mm) / 1/4'' to 1-1/4" steel super fast in just 6 -7 seconds and cuts steel in 5-6 seconds. Bending Angle: 0-180°. The bending speed depends on the thickness of the rebar and the angle you want to reach.

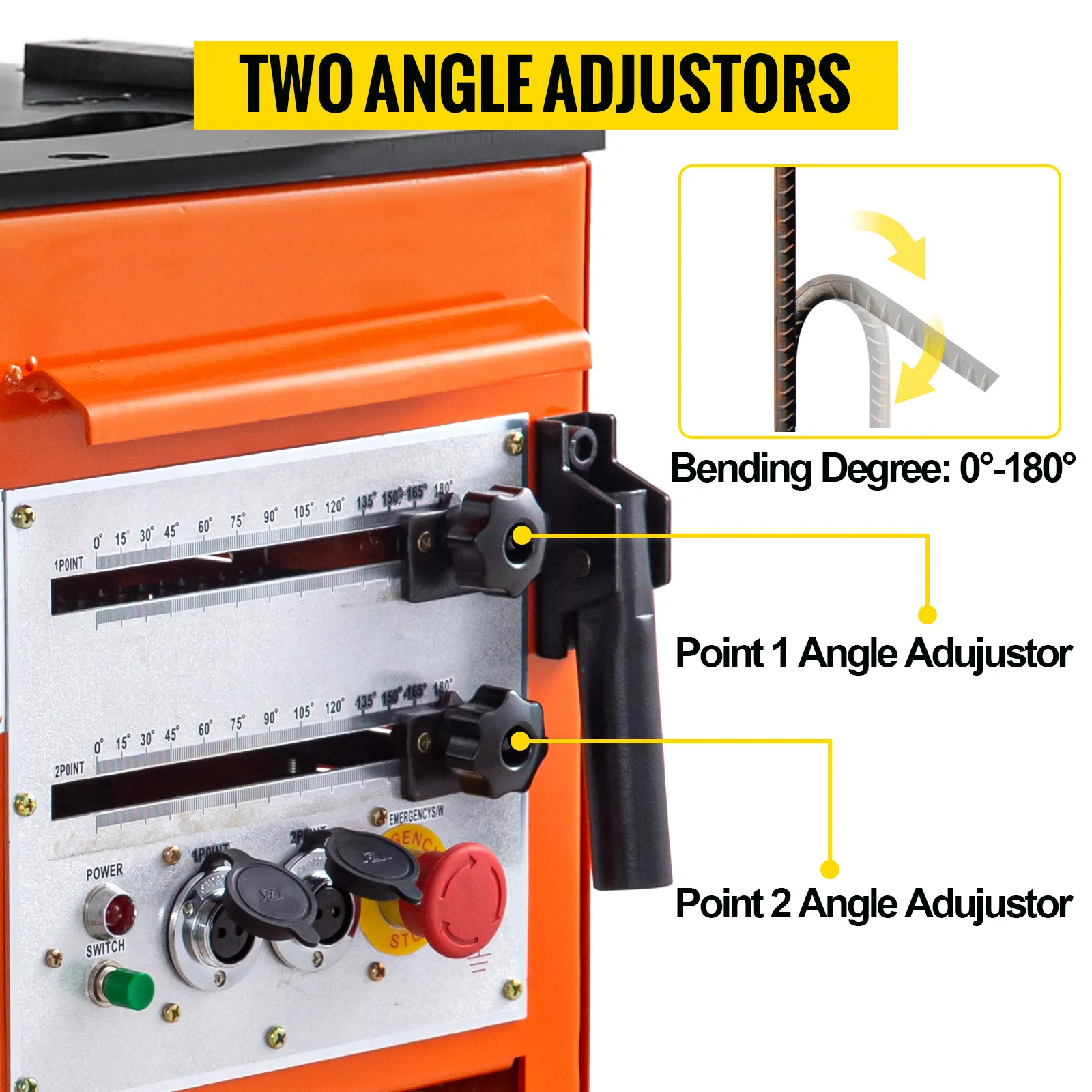

VEVOR hydraulic rebar bender with two angle adjustors and adjustable bending degree.
Two Angle Adjustors
Adjust the angle you need by moving left or right, and after angle adjustment is set accurately, ensure that the angle setting handle is fixed. When you find some abnormal during the operation, you must press down emergency stopped to close down the machine's operation.

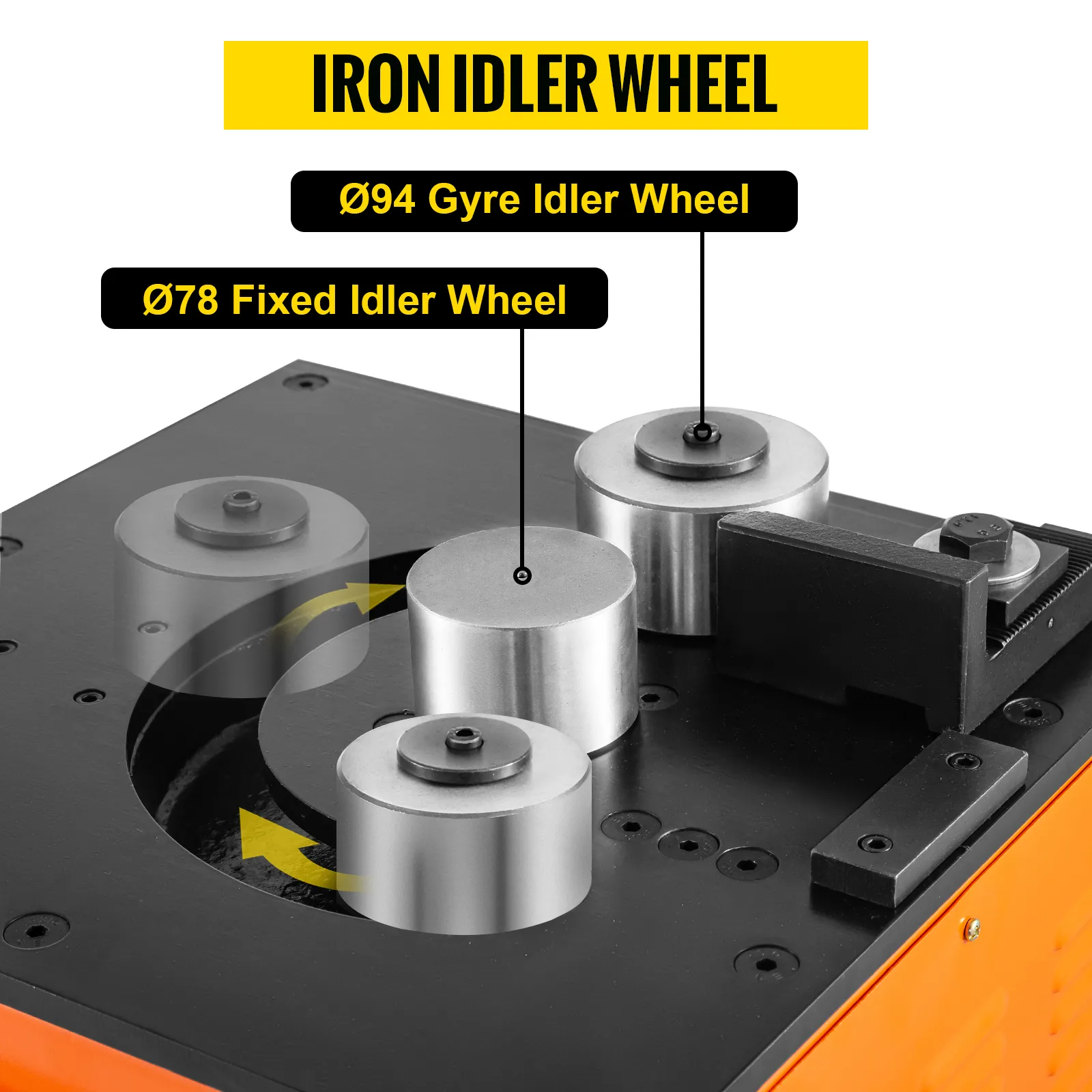

VEVOR hydraulic rebar bender with iron idler wheel, gyre, and fixed idler wheel.
Iron Idler Wheel
The high-strength Ø78 Gyre Idler Wheel and Ø94 Fixed Idler Wheel are made of iron materials, are more firm, and not easily deformed. Besides, exceeding designated material specifications greatly increases this risk and will also damage the tool.

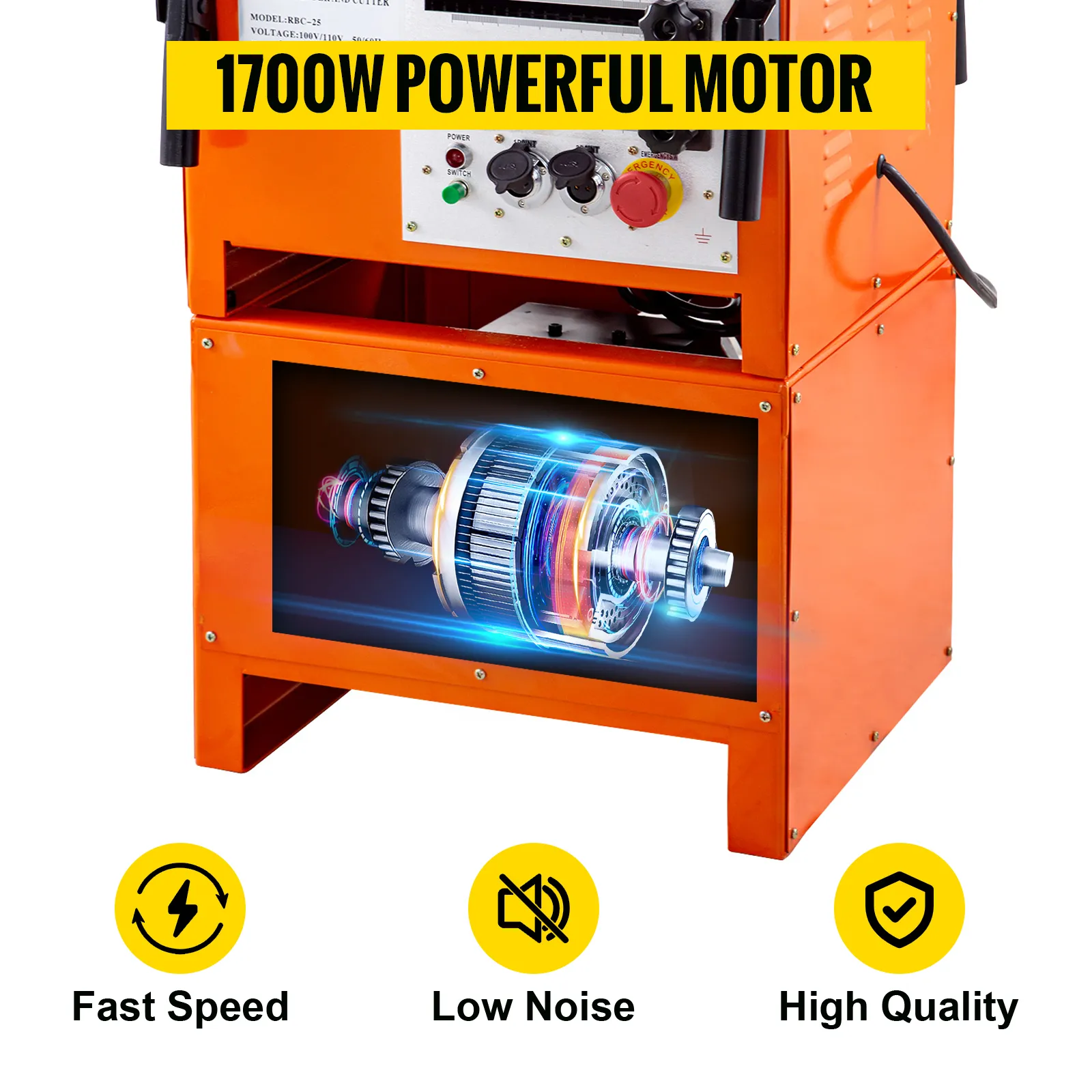

VEVOR hydraulic rebar bender with 1700w powerful motor, fast speed, low noise, high quality.
1700W Powerful Motor
The rebar bending machine features a 100% pure copper core high-power motor with double endurance for high conductivity, low noise operation, high-temperature resistance, and saves energy for a long time. Frequency: 60 Hz, Amps: 14A, Noise: 92 dB(A).

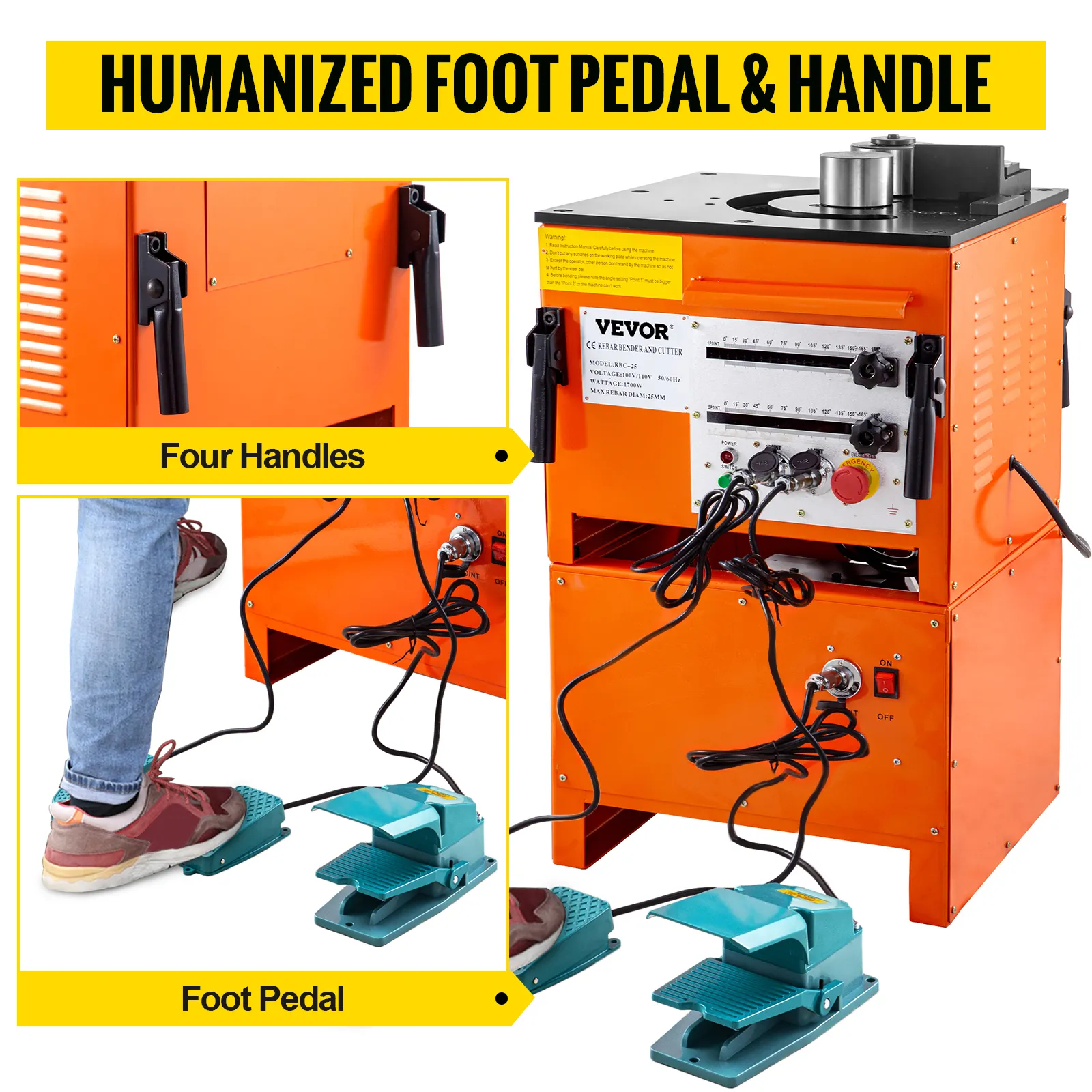

VEVOR hydraulic rebar bender with four handles and foot pedal, orange machine
Humanized Foot Pedal & Handle
The foot switch connection to point 1,2 will make it more convenient to go to work. And when pressing the starting switch or the foot switch will bend the rebar to the angle you have set. When moving the bender by fixing the handle, 4 bolts can not loose, then move the bender together by 4 handles.
wide range of applications: screw thread steel, medium carbon steel, low carbon steel, round steel
Extensive Application
The hydraulic rebar bender is widely applied in construction engineering / bridge construction / railway viaduct / dock highway bridges / electric power building. Perfect for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.

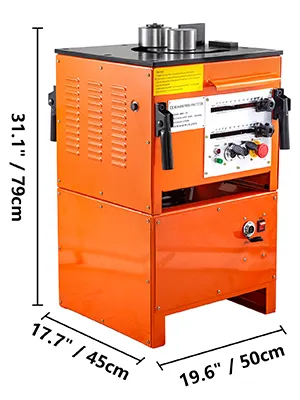

orange VEVOR hydraulic rebar bender with dimensions: 31.1"x19.6"x17.7".
Specifications
  • Model: RBC-25
  • Voltage: 110V
  • Power: 1700W
  • Frequency: 60 Hz
  • Amps: 14A
  • Bending Angle: 0-180°
  • Max. Rebar Diameter: 1" / 25 mm #8 Grade 60
  • Min. Rebar Diameter: 1/4'' / 6 mm #2 Grade 60
  • Bending Speed: 6-7 Seconds
  • Bending Radius: 1.57'' / 40 mm
  • Cut-Off Speed: 5-6 Seconds
  • Max. Rebar Hardness: HRC30
  • Hydraulic Oil Type: VG46
  • Noise: 92 dB(A)
  • Material: Iron
  • Item Dimensions(L x W x H): 19.69 x 17.72 x 31.1'' / 50 x 45 x 79 cm
  • Packing Size(L x W x H): 22.44 x 18.9 x 38.58'' / 57 x 48 x 98 cm
  • Net Weight: 299.82 lbs / 136 kg
  • Gross Weight: 368.17 lbs / 167 kg
  • Certificate: CE
  • Application: Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc
VEVOR hydraulic rebar bender with accessories including various power tools and connectors.
Package Content
  • 1 x Electric Rebar Bender and Cutter
  • 2 x Foot Pedals
  • 3 x Tension Springs
  • 4 x Carbon Brushes
  • 1 x User Manual
VEVOR hydraulic rebar bender beside stacked rebar on a construction site.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic rebar bender in bright orange with control panel and accessories.
1700W Rebar Bender and Cutter Machine
1/4'' to 1" Rebar Diameter & 6-7S Bending Speed & 5-6S Cut-Off Speed
The rebar bender and cutter machine can bend 1/4''(#2) to 1"(#8) (6 to 25 mm) rebar to 0-180°in 6-7 seconds. Cut-off speed: 5-6 seconds. Two standard foot pedal control switches for hands-free bending. This rebar bender cutter is multi-purpose for construction or all kinds of other things related to rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel bending. It is ideal for manufacturers who need simple, easy-to-use, consistent, and accurate steel bending machines. A must-have for the professional concrete installer!
  • Ultra-Fast Working Speed
  • 1700W Pure Copper Coil Motor
  • Angle Adjustment Knobs
  • Sturdy Machine Body
  • Easy to Operate & Transport
VEVOR hydraulic rebar bender with 6-7 sec bending, 5-6 sec cut-off speed, 1/4"-1" diameter.
High Bending & Cut-off Speed
The steel rebar bender bends 1/4'' to 1" (6 to 25 mm) / 1/4'' to 1-1/4" steel super fast in just 6 -7 seconds and cuts steel in 5-6 seconds. Bending Angle: 0-180°. The bending speed depends on the thickness of the rebar and the angle you want to reach.
VEVOR hydraulic rebar bender with two angle adjustors and adjustable bending degree.
Two Angle Adjustors
Adjust the angle you need by moving left or right, and after angle adjustment is set accurately, ensure that the angle setting handle is fixed. When you find some abnormal during the operation, you must press down emergency stopped to close down the machine's operation.
VEVOR hydraulic rebar bender with iron idler wheel, gyre, and fixed idler wheel.
Iron Idler Wheel
The high-strength Ø78 Gyre Idler Wheel and Ø94 Fixed Idler Wheel are made of iron materials, are more firm, and not easily deformed. Besides, exceeding designated material specifications greatly increases this risk and will also damage the tool.
VEVOR hydraulic rebar bender with 1700w powerful motor, fast speed, low noise, high quality.
1700W Powerful Motor
The rebar bending machine features a 100% pure copper core high-power motor with double endurance for high conductivity, low noise operation, high-temperature resistance, and saves energy for a long time. Frequency: 60 Hz, Amps: 14A, Noise: 92 dB(A).
VEVOR hydraulic rebar bender with four handles and foot pedal, orange machine
Humanized Foot Pedal & Handle
The foot switch connection to point 1,2 will make it more convenient to go to work. And when pressing the starting switch or the foot switch will bend the rebar to the angle you have set. When moving the bender by fixing the handle, 4 bolts can not loose, then move the bender together by 4 handles.
wide range of applications: screw thread steel, medium carbon steel, low carbon steel, round steel
Extensive Application
The hydraulic rebar bender is widely applied in construction engineering / bridge construction / railway viaduct / dock highway bridges / electric power building. Perfect for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.
VEVOR hydraulic rebar bender with accessories including various power tools and connectors.
Package Content
  • 1 x Electric Rebar Bender and Cutter
  • 2 x Foot Pedals
  • 3 x Tension Springs
  • 4 x Carbon Brushes
  • 1 x User Manual
orange VEVOR hydraulic rebar bender with dimensions: 31.1"x19.6"x17.7".
Specifications
  • Model: RBC-25
  • Voltage: 110V
  • Power: 1700W
  • Frequency: 60 Hz
  • Amps: 14A
  • Bending Angle: 0-180°
  • Max. Rebar Diameter: 1" / 25 mm #8 Grade 60
  • Min. Rebar Diameter: 1/4'' / 6 mm #2 Grade 60
  • Bending Speed: 6-7 Seconds
  • Bending Radius: 1.57'' / 40 mm
  • Cut-Off Speed: 5-6 Seconds
  • Max. Rebar Hardness: HRC30
  • Hydraulic Oil Type: VG46
  • Noise: 92 dB(A)
  • Material: Iron
  • Item Dimensions(L x W x H): 19.69 x 17.72 x 31.1'' / 50 x 45 x 79 cm
  • Packing Size(L x W x H): 22.44 x 18.9 x 38.58'' / 57 x 48 x 98 cm
  • Net Weight: 299.82 lbs / 136 kg
  • Gross Weight: 368.17 lbs / 167 kg
  • Certificate: CE
  • Application: Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc

Bend & Cut Steels Rods & Bars Effortlessly

Cut and bend the steel rods and bars quickly with this hydraulic rebar bender. In 6 to 7 seconds, it bends metal bars ranging from a quarter to an inch thick. It also bends the bars from 0° to 180° degrees in seconds. For cutting the bars, this bending machine takes 5 to 6 seconds. Featuring a maximum 1.57-inch bending radius, this bender works best with metal bars that have a hardness level of HRC30.


Simple to Use (No Training Required)

You don’t need to be an expert to use this electric rebar bender. By following a few suggestions, you can efficiently use it. First, place the hydraulic rebar bender on a stable and level surface so it won’t tip over during operation. Next, ensure that the machine is properly connected to a power source and has sufficient hydraulic fluid.


Afterward, wear all safety gear, like gloves for your protection. Now, it’s time to measure and mark the rebar according to your bending requirements. You may use a measuring tape or a marker for this purpose. Also, ensure that rebar is clean from the debris so nothing can interfere with the bending process.


Now, position the rebar around the machine roller and set the bending level using the angles featured on the bender machine. In the last stage, press the foot pedal so it can operate and get your job done.


Ultra Fast & Advanced Technology to Bend the Steel

You know a hydraulic rebar bender needs to deal with hardened material. So, it must be equipped with powerful motors. A high-quality motor not only ensures longevity and durability but it also proves less prone to overheating and wear. It also maintains a consistent bending performance. And if a sopper coil motor is equipped with an anti-noise mechanism, it avoids making noise. As a result, you’ll be able to work efficiently with full comfort.


This electric rebar bender has a 1700W pure copper coil motor. It also doesn’t make noise, so you can work with full efficiency. No matter how hard the steel rods or bars are, the premium motor enables the bender machine to work swiftly and bend or cut them in seconds. This approach saves you time and consumes less electricity, saving you money.


So, if you’re looking for a rebar bender machine equipped with an advanced mechanism, the VEVOR rebar machine is what you need. So, simply opt for it and do all of your rebar bending and cutting tasks effortlessly.


This Hydraulic Rebar Bender Is Great for Multiple Applications

Feel free to use this steel bar bender for different metal bars, such as rebar, steel rods, low-carbon steel, medium-carbon steel, and round steel. It is also super useful in all sorts of construction projects, like building bridges, highways, or power plants. In short, this rebar bender is perfect for bending and shaping metal bars to fit the needs of construction work, like bridge construction, railway viaducts, highway bridges, etc.


Long-Lasting Quality for Long Use

If a rebar bender and cutter is made of premium quality material, it will withstand the rigours of heavy-duty usage over an extended period. Moreover, high-quality bending rebar keeps operating without requiring repair or replacement, saving you time and time.


Also, when a rebar bender keeps working smoothly, it enhances productivity. As a result, you can accomplish much work in a short time. So, are you looking for such a rebar steel bender and cutter machine? If your answer is yes, a VEVOR hydraulic bender is what you need.


It is made of a strong iron body and idler wheels, Ø78 iron gyre idler wheel and Ø94 fixed idle. No matter how much and long you use this hydraulic rebar bender, it will remain intact and doesn’t require repair. So, stop struggling with manual rebar bending today and grab your hydraulic rebar bender now!


See More

Specification

Model
RBC-25
Voltage
110V
Power
1700W
Frequency
60 Hz
Amps
14A
Bending Angle
0-180°
Max. Rebar Diameter
1" / 25 mm #8 Grade 60
Min. Rebar Diameter
1/4'' / 6 mm #2 Grade 60
Bending Speed
6-7 Seconds
Bending Radius
1.57'' / 40 mm
Cut-Off Speed
5-6 Seconds
Max. Rebar Hardness
HRC30
Hydraulic Oil Type
VG46
Noise
92 dB(A)
Material
Iron
Item Dimensions(L x W x H)
19.69 x 17.72 x 31.1'' / 50 x 45 x 79 cm
Packing Size(L x W x H)
22.44 x 18.9 x 38.58'' / 57 x 48 x 98 cm
Net Weight
299.82 lbs / 136 kg
Gross Weight
368.17 lbs / 167 kg
Certificate
CE
Application
Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc
Manual
Download Link
Questions and Answers
13 Questions
Tax ando shipping included to México?
Sorry, products from the US site cannot be shipped to Mexico.
By vevor
Which parts are considered consumable under your warranty?
Blades and carbon brushes are consumables.
By vevor
Where can i get parts for these cutter/bender?
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(In the case of parts that are not consumable). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
How accurate can I cut 1/2" & 5/16" CS rod? Is cut end deformation drastic ? Can I test this machine and still return it? I am considering this for a manufacturing application, I need a relatively clean, reliable (+-1/8") cutter.
The incision deformation is sharp and uneven.
By vevor
Can this bend #4 into 18" rings?
No.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
3 Review(s)
Clear filters
SteveO SteveO
Good for the price
Works as expected, seems to have enough power to bend #6 grade 60 rebar and cuts it well. The degree setting for the two bend angles is off by several degrees (8°) but was able to compensate to allow for the inaccurate degree settings. The owners manual is very vague and has no instructions on adjusting the degree angle settings. Also the #1 setting and #2 settings both bend to the same angle regardless of what you have the degree settings set to. Since what I am doing now the same angles for each bend so it hasn’t been a big issue. But compared to other units it is worth the price.
Judy Judy
Perfect
George George
Amazing
Worth the money
