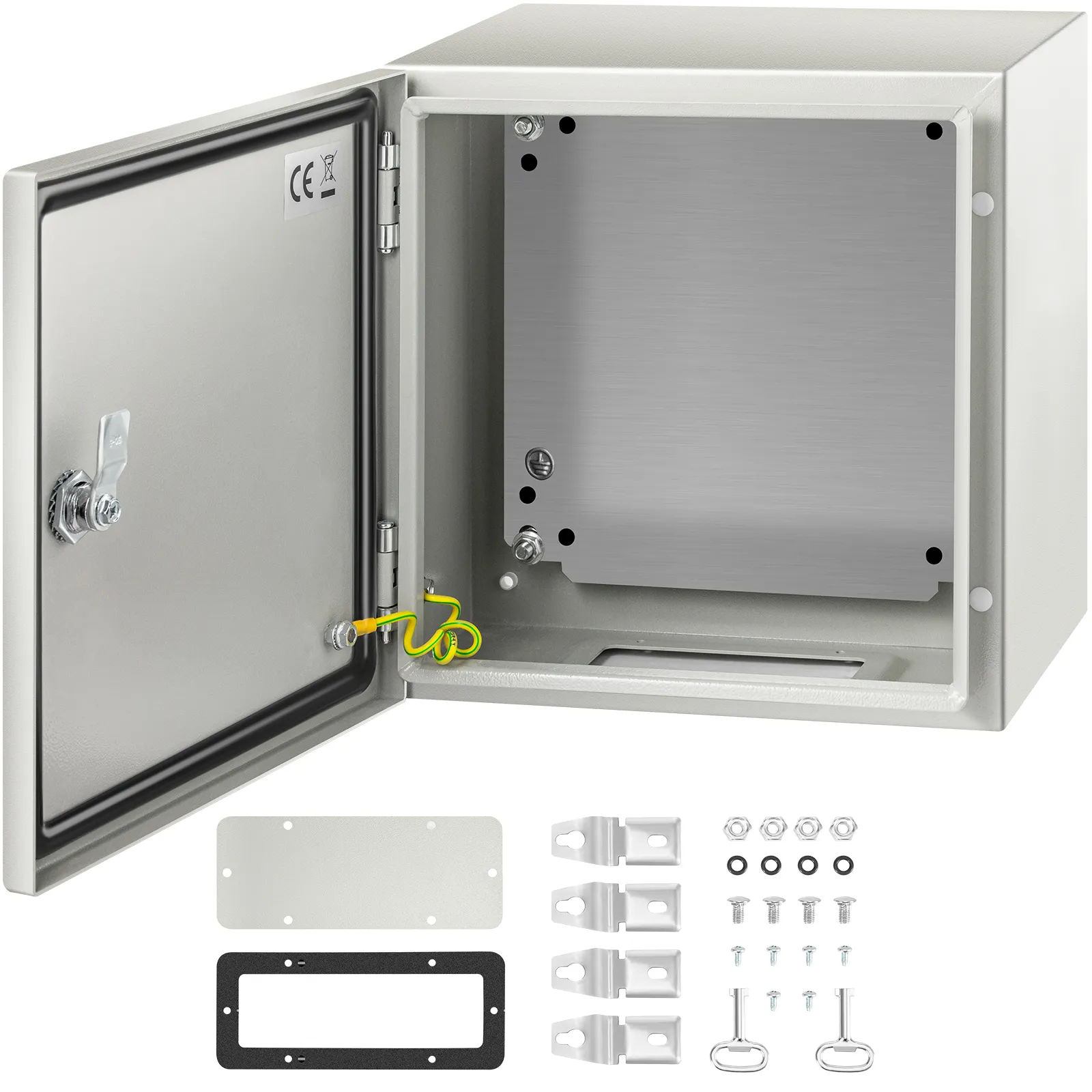

VEVOR nema steel enclosure open with mounting parts and accessories displayed VEVOR nema steel enclosure with open door, showcasing internal wiring and components. durable steel VEVOR nema steel enclosure with corrosion resistance and high impact strength. VEVOR nema steel enclosure with waterproof sealing strip for dust, rain, uv, snow protection. VEVOR nema steel enclosure features quality safety lock, mounting plate, high-strength hinge. VEVOR nema steel enclosure with back corner design, hooks, and included accessories.
DQXJSTCFS30X30X20V0

VEVOR NEMA Steel Enclosure, 12 x 12 x 8'' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

12 x 12 x 8 inch

  • 16 x 16 x 8 inch
  • 12 x 12 x 8 inch
  • 12 x 10 x 6 inch
  • 10 x 8 x 6 inch
  • 8 x 8 x 6 inch
  • 12 x 8 x 8 inch
  • 16 x 12 x 8 inch
  • 12 x 12 x 6 inch
  • 16 x 16 x 6 inch
  • 12 x 8 x 6 inch

About this item

  • Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
  • IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
  • Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
  • Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
  • Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR NEMA Steel Enclosure, 12 x 12 x 8'' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate
12 x 12 x 8 inch
VEVOR nema steel enclosure box in front of a blurred car and a red garage door.
VEVOR nema steel enclosure, open with hardware components and mounting accessories
Electrical Enclosure Box--Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
  • Sturdy Steel Construction
  • IP66 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisite Details Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

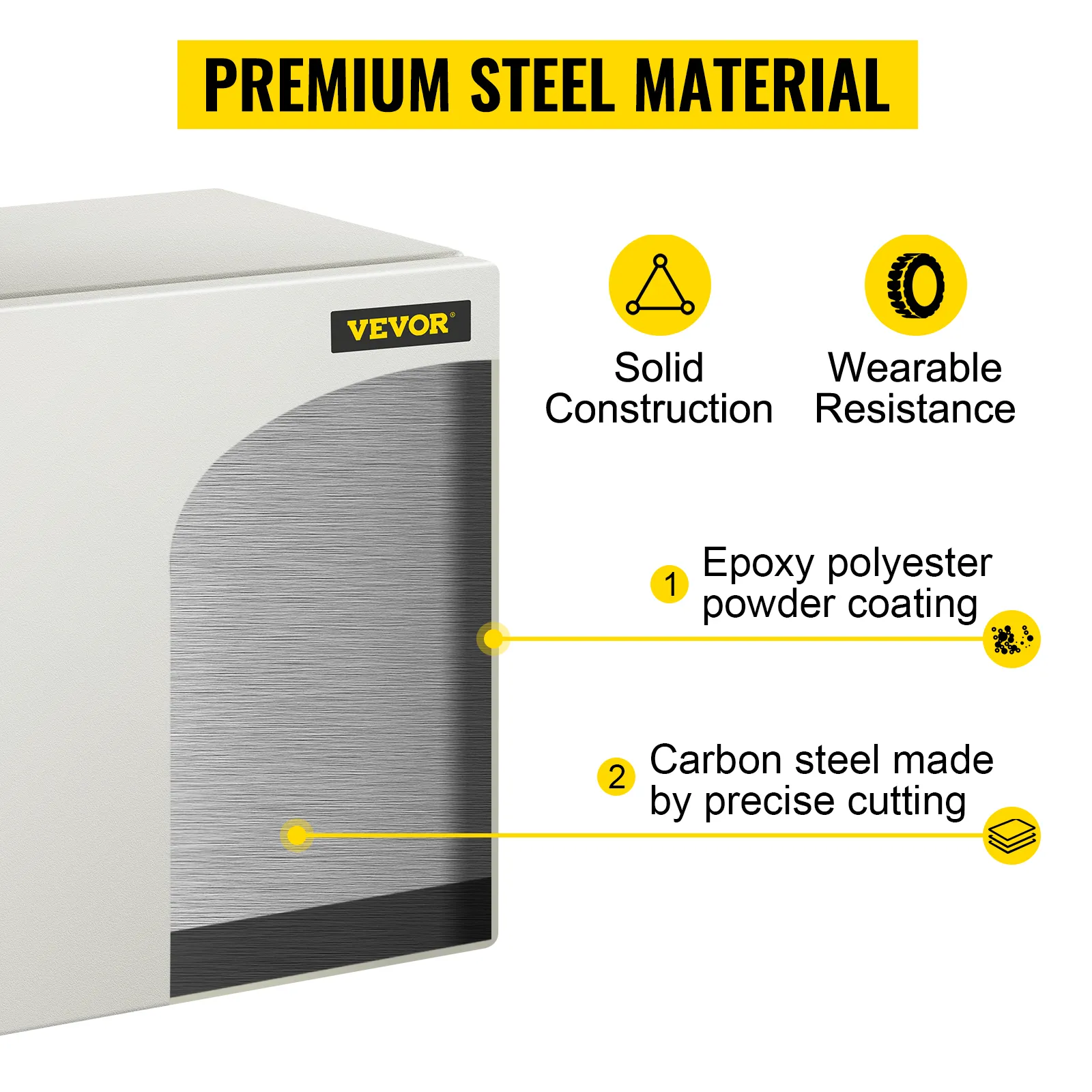

VEVOR nema steel enclosure with epoxy polyester coating and carbon steel construction
Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.

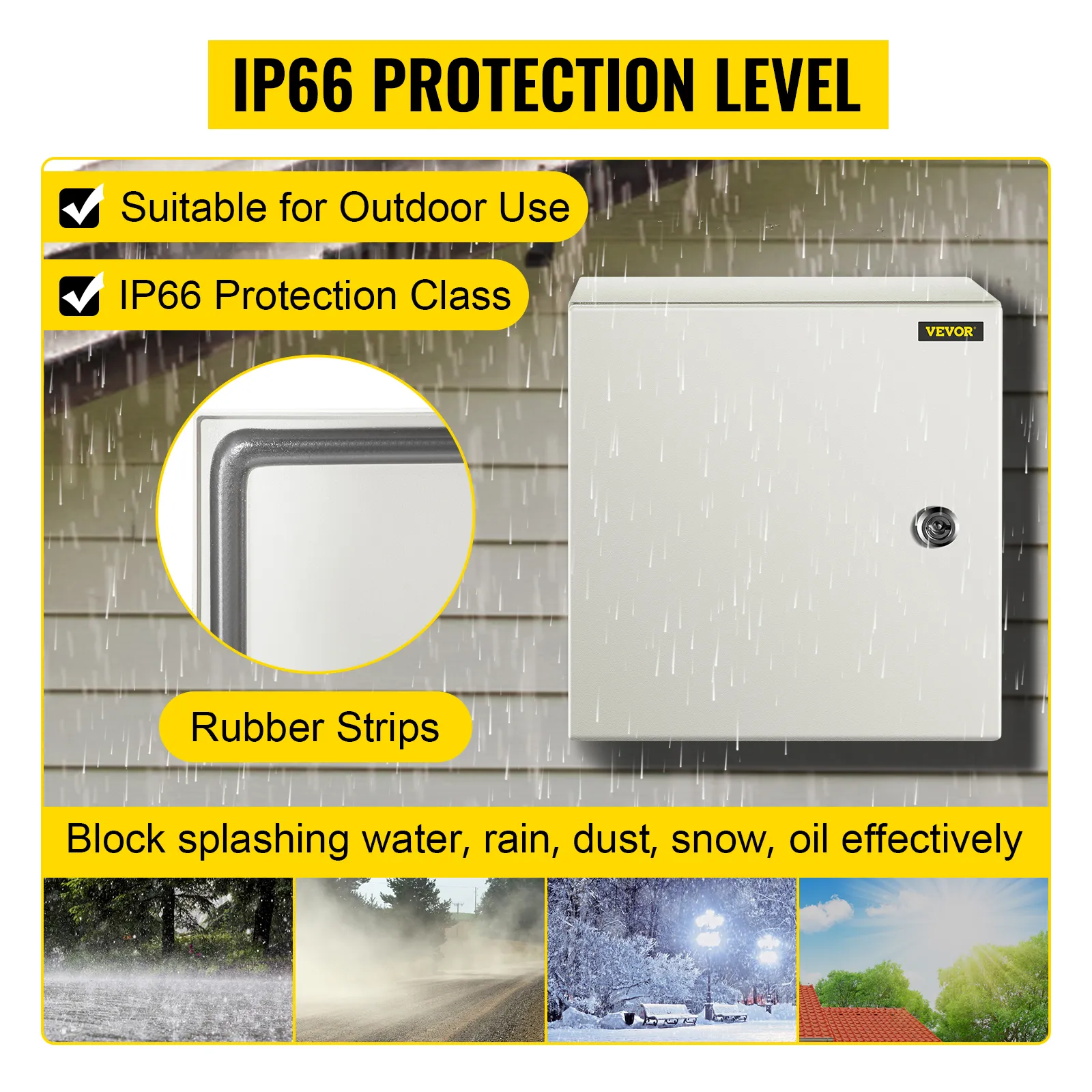

VEVOR nema steel enclosure with ip66 protection, rubber strips, for outdoor use.
IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.

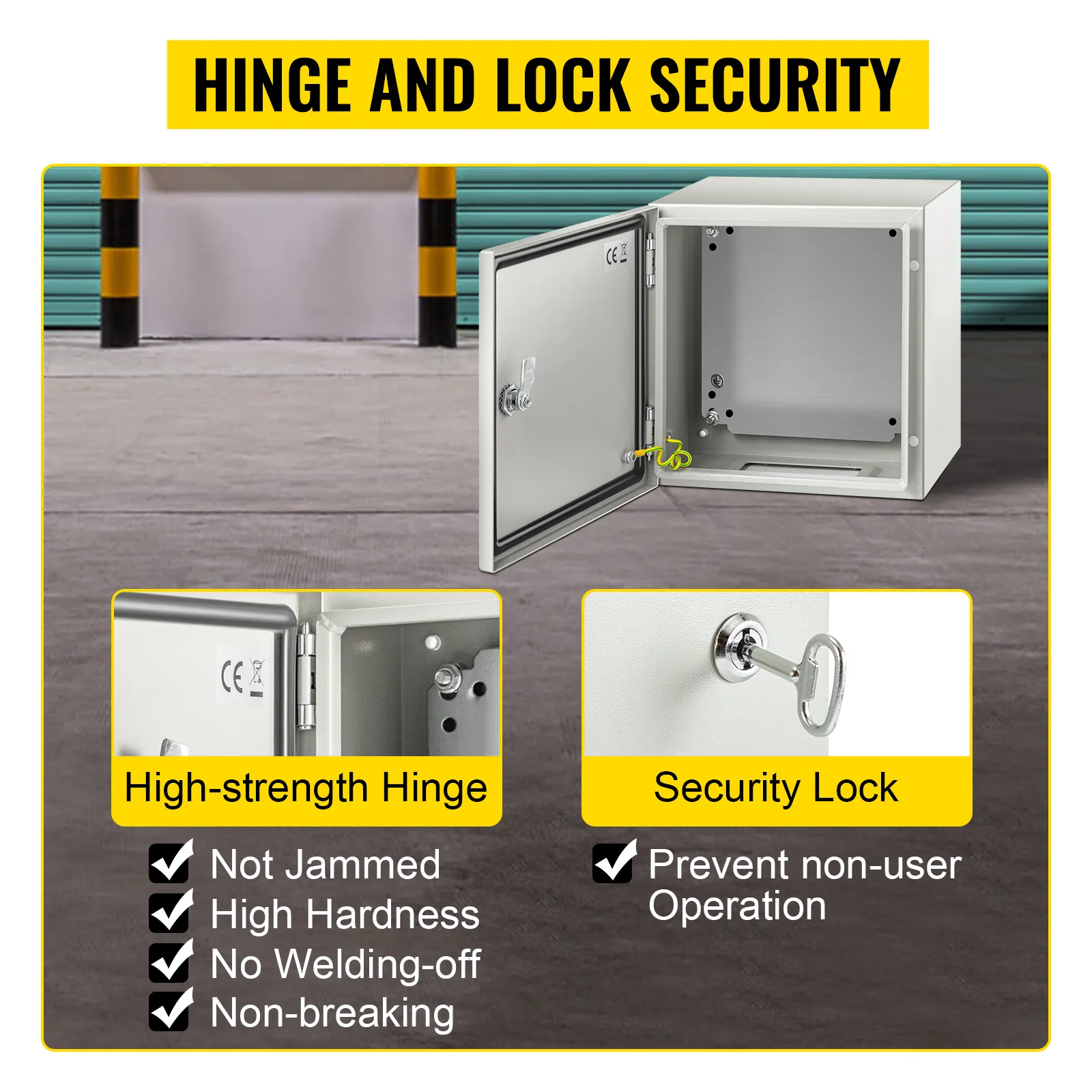

VEVOR nema steel enclosure with high-strength hinge and secure lock mechanism.
Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.

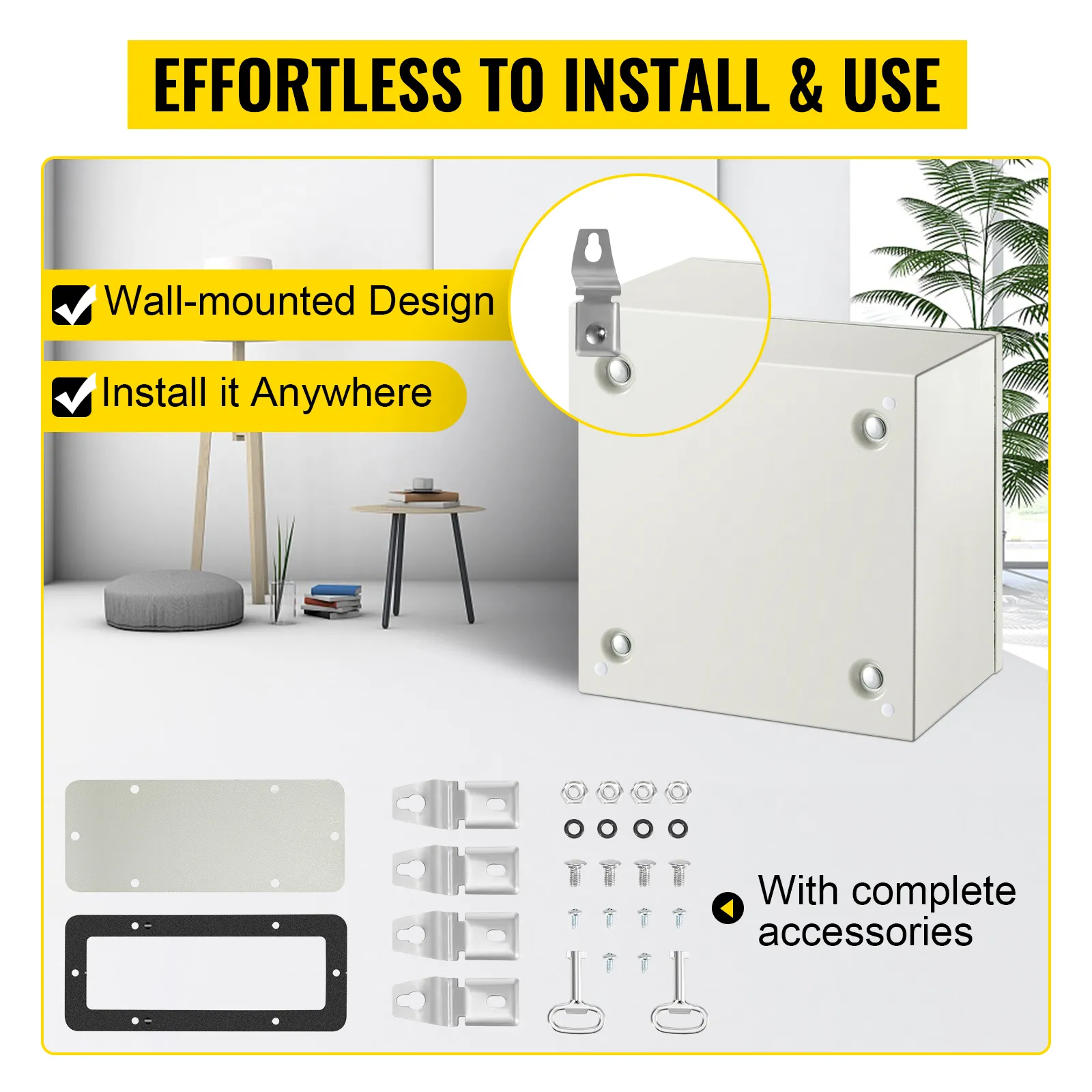

VEVOR nema steel enclosure with wall-mount design and installation accessories.
Effortless to Install & Use
The 2 MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.

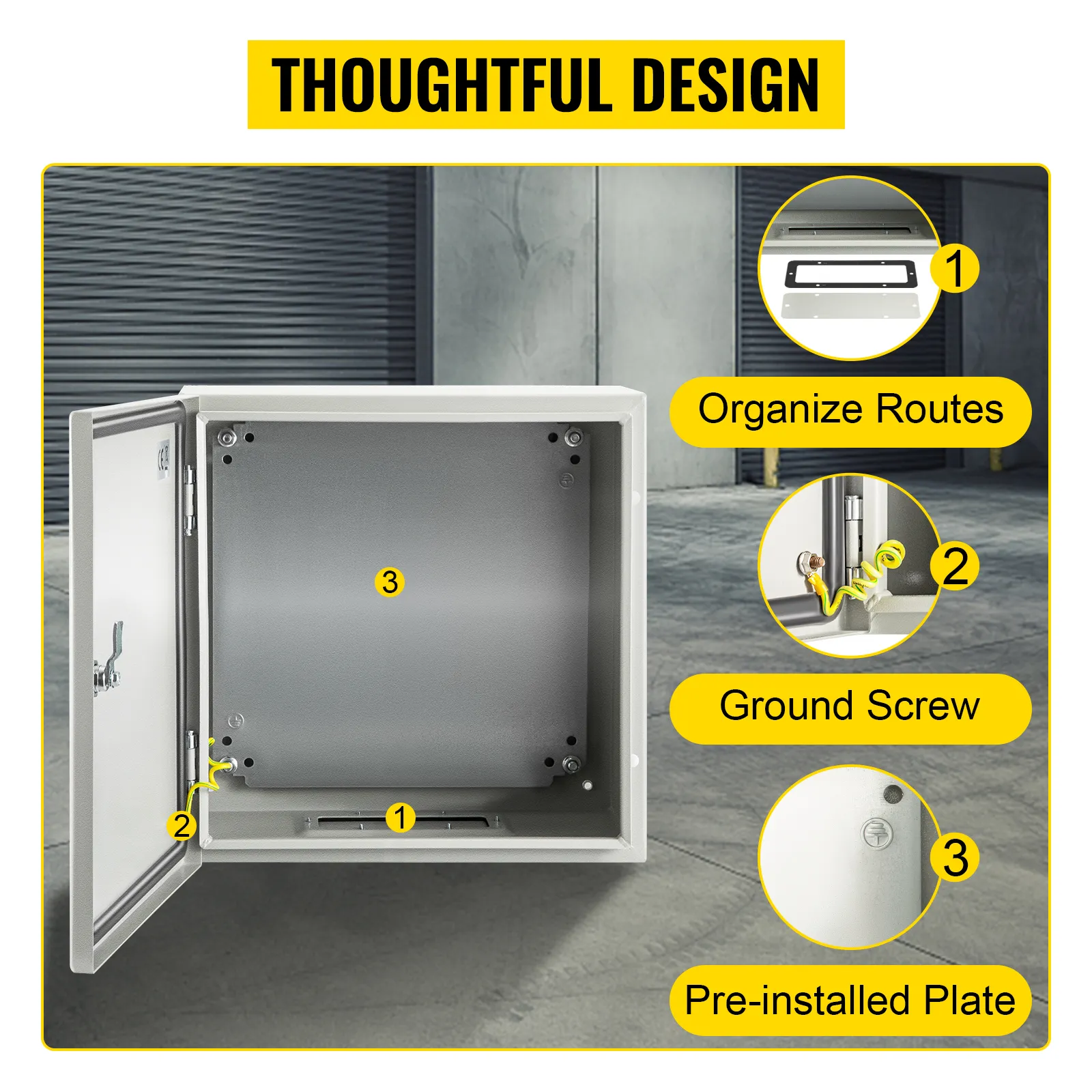

VEVOR nema steel enclosure with organize routes, ground screw, pre-installed plate.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR nema steel enclosure for extensive indoor and outdoor applications.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.
VEVOR nema steel enclosure showing dimensions: 12x12x8 inches.
Specifications
  • Model: SPT
  • Color: Gray White(RAL7035)
  • Material: 0.059'' / 1.5 mm Carbon Steel
  • Coating: Epoxy Polyester Powder Coating
  • Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
  • IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Connection Type: Hinged
  • Feature: Lockable, Waterproof
  • Galvanized Backplate Dimensions: 9.8" x 9.8" / 25 x 25 cm
  • Outer Dimensions (H x W x D): 12'' x 12'' x 8'' / 30 x 30 x 20 cm
  • Inner Dimensions (H x W x D): 11.7'' x 11.7'' x 6.6'' / 29.7 x 29.7 x 16.65 cm
  • Product Weight: 16.31 lbs / 7.4 kg
  • Certification: CE / ROHS Certification

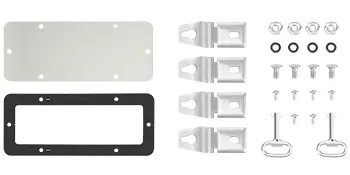

VEVOR nema steel enclosure parts with screws, latches, gasket, and keys.
Package Content
  • 1 x Electrical Box
  • 2 x Keys
  • 1 x Mounting Plate(The mounting plate has been assembled in the box)
  • 1 x Set of Wall Mounting Pendants
  • 1 x Bottom Sealing Plate
VEVOR nema steel enclosure box in front of a blurred car and a red garage door.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR nema steel enclosure, open with hardware components and mounting accessories
Electrical Enclosure Box--Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
  • Sturdy Steel Construction
  • IP66 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisite Details Design
VEVOR nema steel enclosure with epoxy polyester coating and carbon steel construction
Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.
VEVOR nema steel enclosure with ip66 protection, rubber strips, for outdoor use.
IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.
VEVOR nema steel enclosure with high-strength hinge and secure lock mechanism.
Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.
VEVOR nema steel enclosure with wall-mount design and installation accessories.
Effortless to Install & Use
The 2 MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.
VEVOR nema steel enclosure with organize routes, ground screw, pre-installed plate.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR nema steel enclosure for extensive indoor and outdoor applications.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.
VEVOR nema steel enclosure parts with screws, latches, gasket, and keys.
Package Content
  • 1 x Electrical Box
  • 2 x Keys
  • 1 x Mounting Plate(The mounting plate has been assembled in the box)
  • 1 x Set of Wall Mounting Pendants
  • 1 x Bottom Sealing Plate
VEVOR nema steel enclosure showing dimensions: 12x12x8 inches.
Specifications
  • Model: SPT
  • Color: Gray White(RAL7035)
  • Material: 0.059'' / 1.5 mm Carbon Steel
  • Coating: Epoxy Polyester Powder Coating
  • Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
  • IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Connection Type: Hinged
  • Feature: Lockable, Waterproof
  • Galvanized Backplate Dimensions: 9.8" x 9.8" / 25 x 25 cm
  • Outer Dimensions (H x W x D): 12'' x 12'' x 8'' / 30 x 30 x 20 cm
  • Inner Dimensions (H x W x D): 11.7'' x 11.7'' x 6.6'' / 29.7 x 29.7 x 16.65 cm
  • Product Weight: 16.31 lbs / 7.4 kg
  • Certification: CE / ROHS Certification

NEMA Steel Enclosure—Robust and Versatile for Any Project

The VEVOR NEMA steel enclosure is made for the long term. It's made from 0.059'' thick carbon steel. It provides strong protection. The dimensions of the 12"x12"x8" enclosure are ideal for various projects. They have an epoxy polyester powder coating that ensures durability. This makes it suitable for both indoor and outdoor settings. You can use this enclosure for many different projects without any hassle. The enclosure is lockable and secure, offering excellent protection against water and dust. The enclosure provides excellent protection against water and dust, making it ideal for protecting sensitive electrical components. The detachable galvanised backplate adds another layer of safety features. Our NEMA steel enclosure offers robust and versatile solutions. These features make it perfect for any electrical project you undertake.


IP66 Waterproof and Dustproof Design for Outdoor Use

This IP66 waterproof electrical box meets IP66 standards. It provides superior protection against water and dust. This makes it ideal for outdoor applications. The box's construction ensures it withstands harsh weather conditions. The sealed design keeps internal components safe. This is essential for maintaining functionality. IP67 rating guarantees reliability in all outdoor environments. Our IP69 rating guarantees reliability in all outdoor environments. For areas that are prone to rain or dust, the box offers peace of mind for long-term outdoor electrical setups.


Easy Installation with Included Wall Mounting Hardware

The VEVOR outdoor electrical junction box comes with all necessary mounting hardware. This makes installation simple and hassle-free. The included hardware ensures secure mounting to any surface. It allows for simple mounting in various orientations. You can easily mount in different orientations. With this flexibility, you can use it for different installation needs. The pre-installed door ground wire adds an extra layer of safety. The mounting process saves time and effort during setup. This benefit makes the enclosure a top choice for many projects.


Ideal for Indoor and Outdoor Applications, from Solar Projects to Industrial Settings

This indoor electrical junction box is versatile and suitable for both indoor and outdoor use. It is ideal for solar projects and industrial applications. The strong construction ensures reliability in tough environments. Our enclosure's design meets various NEMA standards. This ensures it performs well in different settings. It is perfect for housing electrical components in challenging conditions. Whether you are working on solar installations or industrial setups, this box excels. You get secure and durable protection for electrical systems. This toolbox makes any project worth doing, providing all the features you need.


Pre-Installed Ground Wire & Removable Access Plate Enhance Safety and Accessibility

This indoor electrical junction box includes a pre-installed door ground wire for added safety. The removable access plate allows simple access to internal components. This makes maintenance and setup much easier. The design ensures compliance with safety standards. The ground wire reduces the risk of electrical faults. The simple adjustable plate provides convenience for adjustments. These features enhance the overall usability of the enclosure. They make it a safer and more accessible option for various applications.


Heavy-Duty Construction with Thick Steel and Epoxy Coating Ensures Longevity

It's built to last. It features heavy-duty construction with thick steel. The epoxy coating provides an extra layer of protection. This ensures the enclosure stays durable over time. The strong design withstands wear and tear. Perfect for heavy-duty applications. Thick steel and epoxy coating make it resistant to corrosion. That improves its longevity and reliability, making it a reliable choice. Heavy-duty construction is perfect for projects that require long-lasting protection.


Fast Shipping and Reliable Packaging for Secure Delivery

The VEVOR indoor electrical junction box is not just about quality. It also ensures a smooth buying experience. Fast shipping means you get your order fast. The product is packaged securely to prevent damage during transit. This attention to detail ensures the enclosure arrives in perfect condition. Reliable packaging is essential for maintaining product integrity. We have rapid shipping and secure packaging that enhance customer satisfaction. That's why VEVOR is a dependable choice for electrical enclosures. You can trust the timely delivery and safe arrival of your purchase.


See More

Specification

Model
SPT
Color
Gray White(RAL7035)
Material
0.059'' / 1.5 mm Carbon Steel
Coating
Epoxy Polyester Powder Coating
Mounting Plate
0.079'' / 2 mm Detachable Galvanized Backplate
IP Rating
Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type
Hinged
Feature
Lockable, Waterproof
Galvanized Backplate Dimensions
9.8" x 9.8" / 25 x 25 cm
Outer Dimensions (H x W x D)
12'' x 12'' x 8'' / 30 x 30 x 20 cm
Inner Dimensions (H x W x D)
11.7'' x 11.7'' x 6.6'' / 29.7 x 29.7 x 16.65 cm
Product Weight
16.31 lbs / 7.4 kg
Certification
CE / ROHS Certification
Questions and Answers
4 Questions
Do you have a submittal sheet or spec sheet I can email my gc in my submittal packet?
Yes, please click below link to download the manual, https://we.tl/t-u6QxWPKYtx.
By vevor
Can we order just replacement doors for these? We cut them out for an HMI and scrap one here or there.
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(Except for consumables). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
Do Vevor junction and pull boxes have a 2 hour fire rating?
Sorry, this product is not a professional fire protection product and does not have a specific fire protection rating.
By vevor
I need to mount these cabinets on light poles. Is there a pole mount accessory or kit.
No, we don't have a sccessory for pole mount.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
114 Review(s)
Clear filters
John John
Mr
I purchased the 20x16x10 steel enclosure to build a 5kW LiFePO4 battery. The enclosure came faster than I expected and arrived with a good amount of hardware for mounting components inside the box and the box onto a wall. High quality, exceeds expectations.
Nice Box Nice Box
Nice Box
This box seems to be of good quality with nice seals around the door and nice latches to keep the door closed. The back plate is removable and is made of quite heavy duty what appears to be galvanized steel. Mounting hardware is included.
Branson's Branson's
Storage Owner
I used these boxes as sub-panels for our storage unit facility. Each box houses a din rail with mini breakers to limit the power usage in each unit. The boxes worked great and our electrician that did the install was very happy with them. I'll be swapping out the standard key with custom key to keep people out of them.
Louis Senofonte Louis Senofonte
Owner Seno Graphics LLC
I plan on purchasing many more in the near future they work great for my invention. I would like a discount on future purchases, I have purchased 13 of these this month. Can I buy them wholesale in quantities of 10.
lou lou
owner
i had tried this product for my project and found it perfect for my need. i have completed adding my components to the first one i purchased from you. it worked so well i purchased another 11 enclosures from you.
Chad Manning Chad Manning
Supervisior
This was exactly what i was looking for and it works perfectly. I had issues with water getting into the breaker box
Peter Peter
solid and well thought through
Good solid designs that are well thought through.
Don S. Don S.
Good price and quality
Very good quality and work perfect for what I needed
Peter D Peter D
Impressed!
Using this for PLC bench testing, impressed with the cutouts, and quality. The key to open it could be a bit more durable, or just make it flathead compatible.
John Henson John Henson
VEVOR NEMA Steel Enclosure
I admit, I did caulk anything that seemed like it might let water in. Even with that said, It's still a great box for the money.
