VEVOR electrical enclosure box with wall mount and accessories kit laid out. VEVOR electrical enclosure box with wiring and power arrangement on a metal frame. VEVOR electrical enclosure box with steel construction and epoxy polyester powder coating. VEVOR electrical enclosure box, waterproof with sealing strip, rubber strips, ce mark, ip66. VEVOR electrical enclosure box with safety lock, mounting plate, hinge, ground screw, outlet. VEVOR electrical enclosure box with hooks and accessories, easy wall installation.
DQXJSTCFS40X30X15V0

VEVOR Electrical Enclosure Box, 16'' ×12'' ×6'', Carbon Steel Hinged Junction Box, IP66 Waterproof & Dustproof, Outdoor Electrical Box, with Mounting Plate

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

16 x 12 x 6 inch

  • 24 x 24 x 8 inch
  • 20 x 16 x 8 inch
  • 20 x 12 x 10 inch
  • 20 x 20 x 6 inch
  • 24 x 16 x 10 inch
  • 16 x 12 x 6 inch
  • 24 x 24 x 12 inch
  • 20 x 16 x 10 inch
  • 20 x 16 x 6 inch

About this item

  • Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
  • IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
  • Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
  • Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
  • Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Electrical Enclosure Box, 16'' ×12'' ×6'', Carbon Steel Hinged Junction Box, IP66 Waterproof & Dustproof, Outdoor Electrical Box, with Mounting Plate
16 x 12 x 6 inch

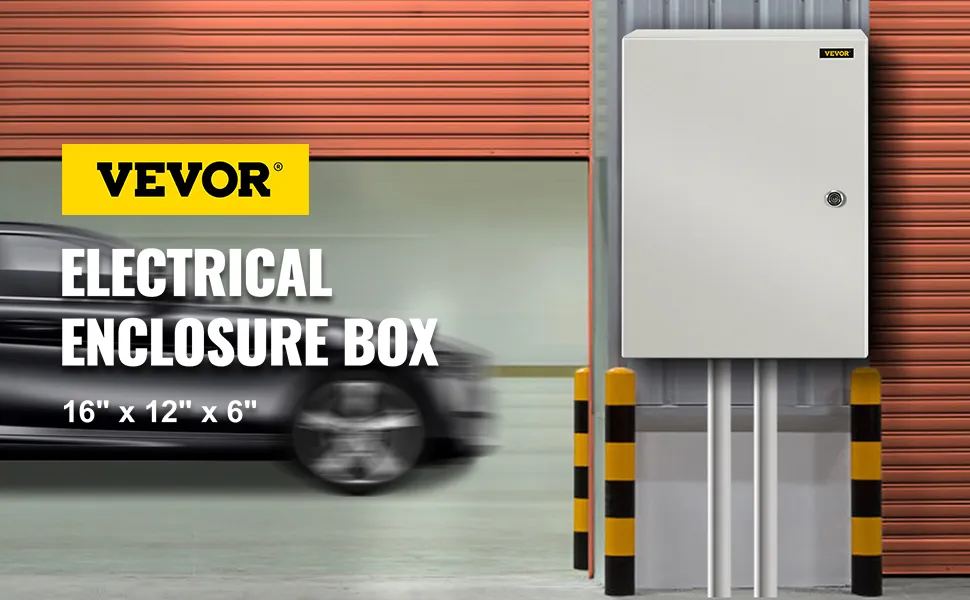

VEVOR electrical enclosure box mounted on an outdoor wall, size 16" x 12" x 6"

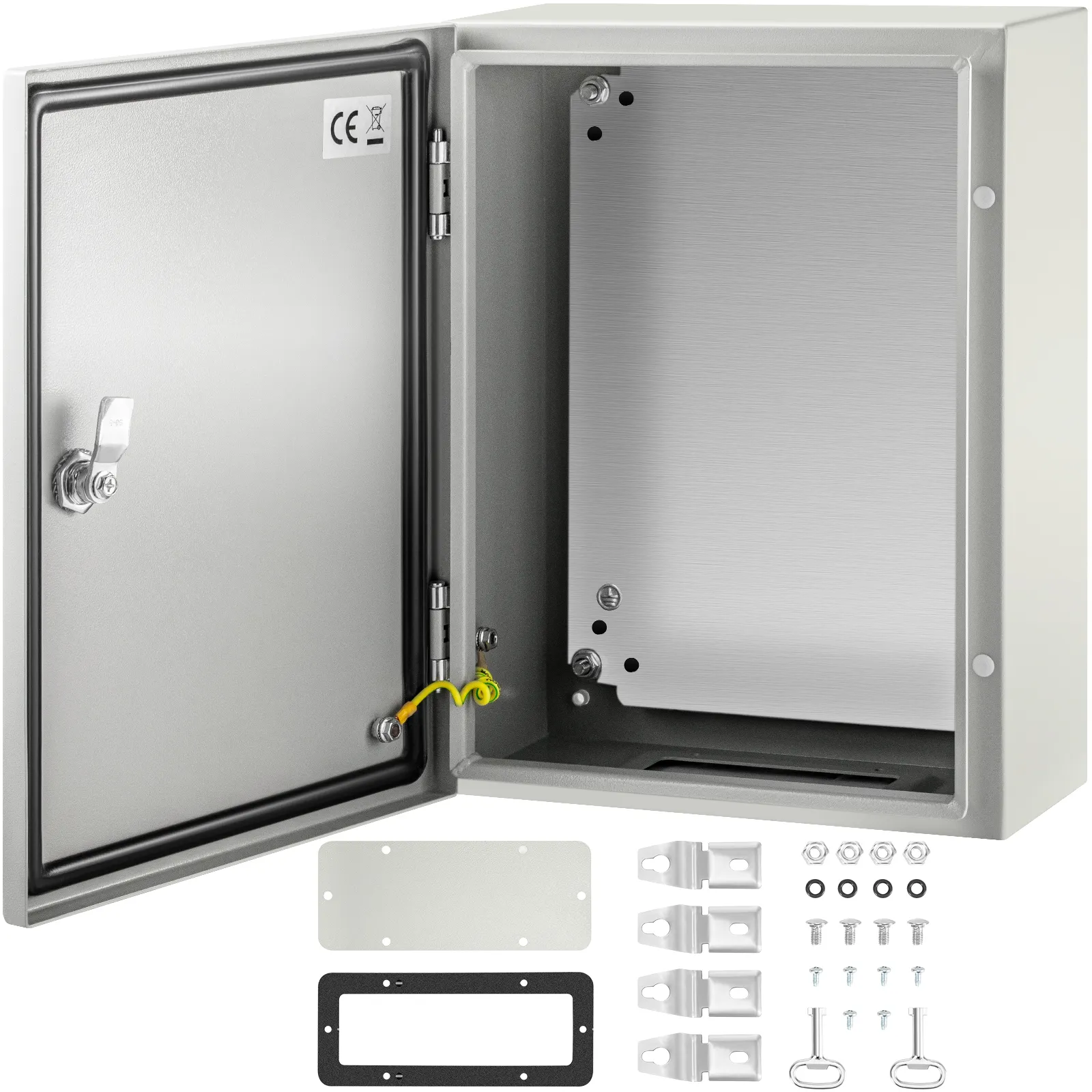

open VEVOR electrical enclosure box with accessories including screws and mounting brackets.
Electrical Enclosure Box--Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
  • Sturdy Steel Construction
  • IP66 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisite Details Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR electrical enclosure box, premium steel, solid construction, epoxy coating.

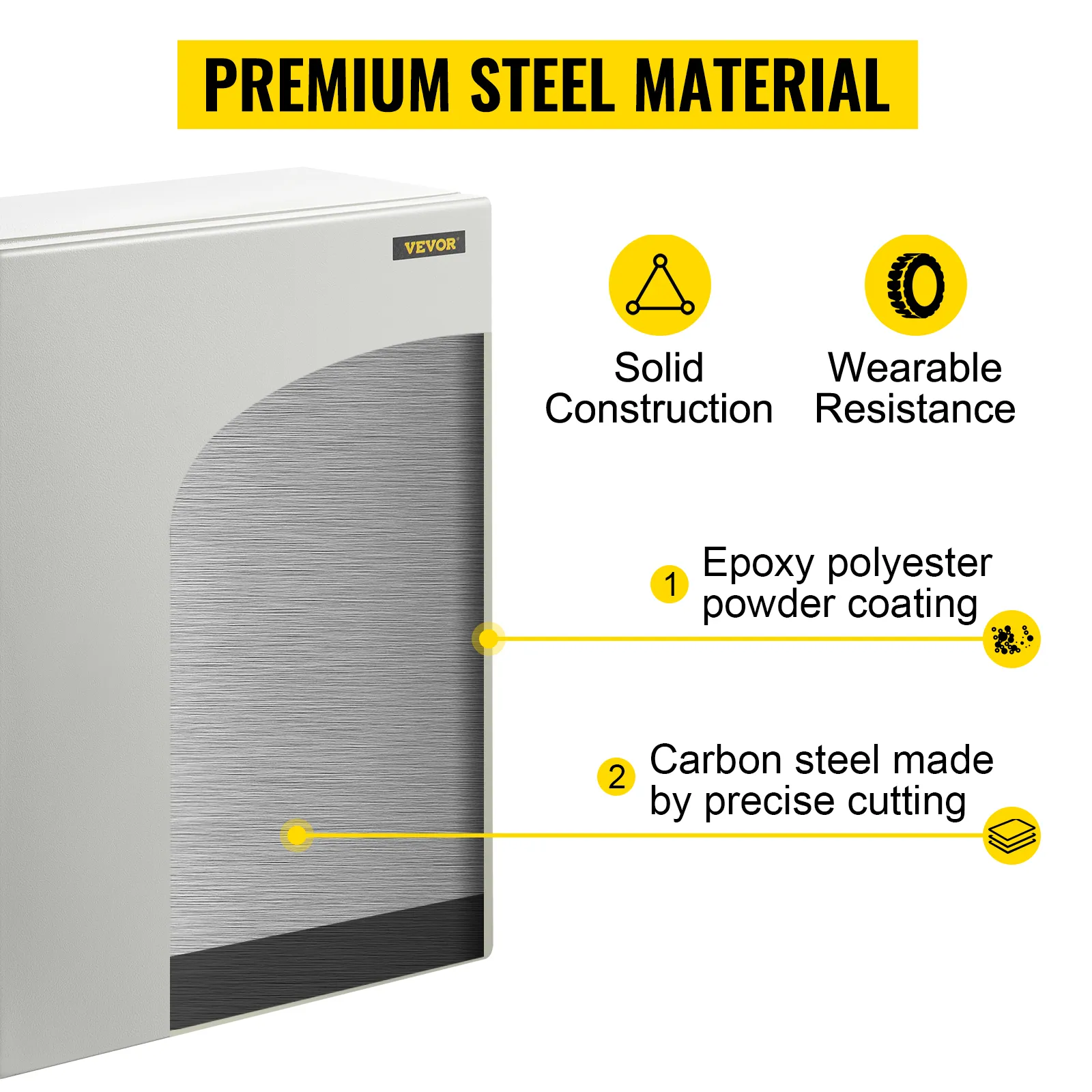

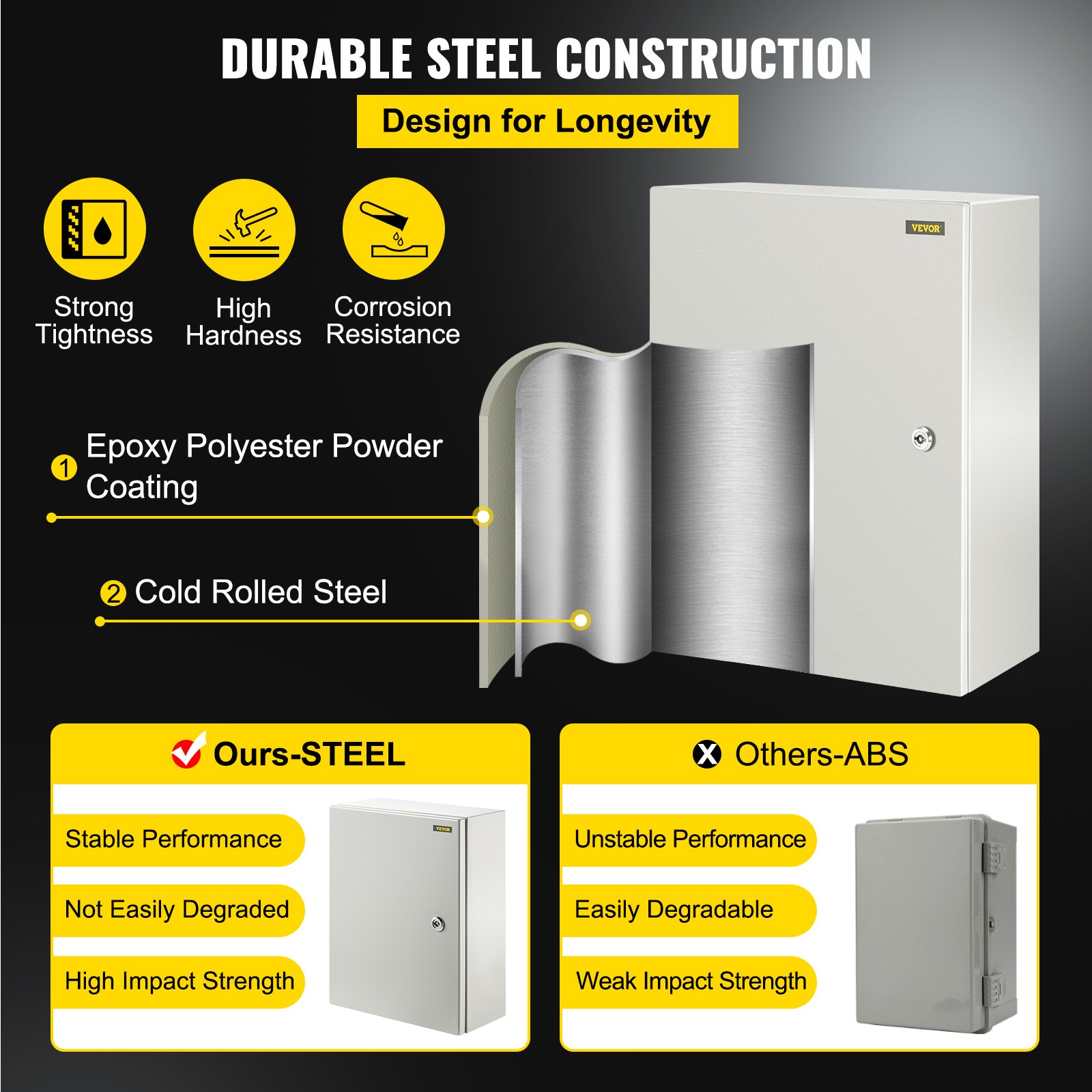

Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.

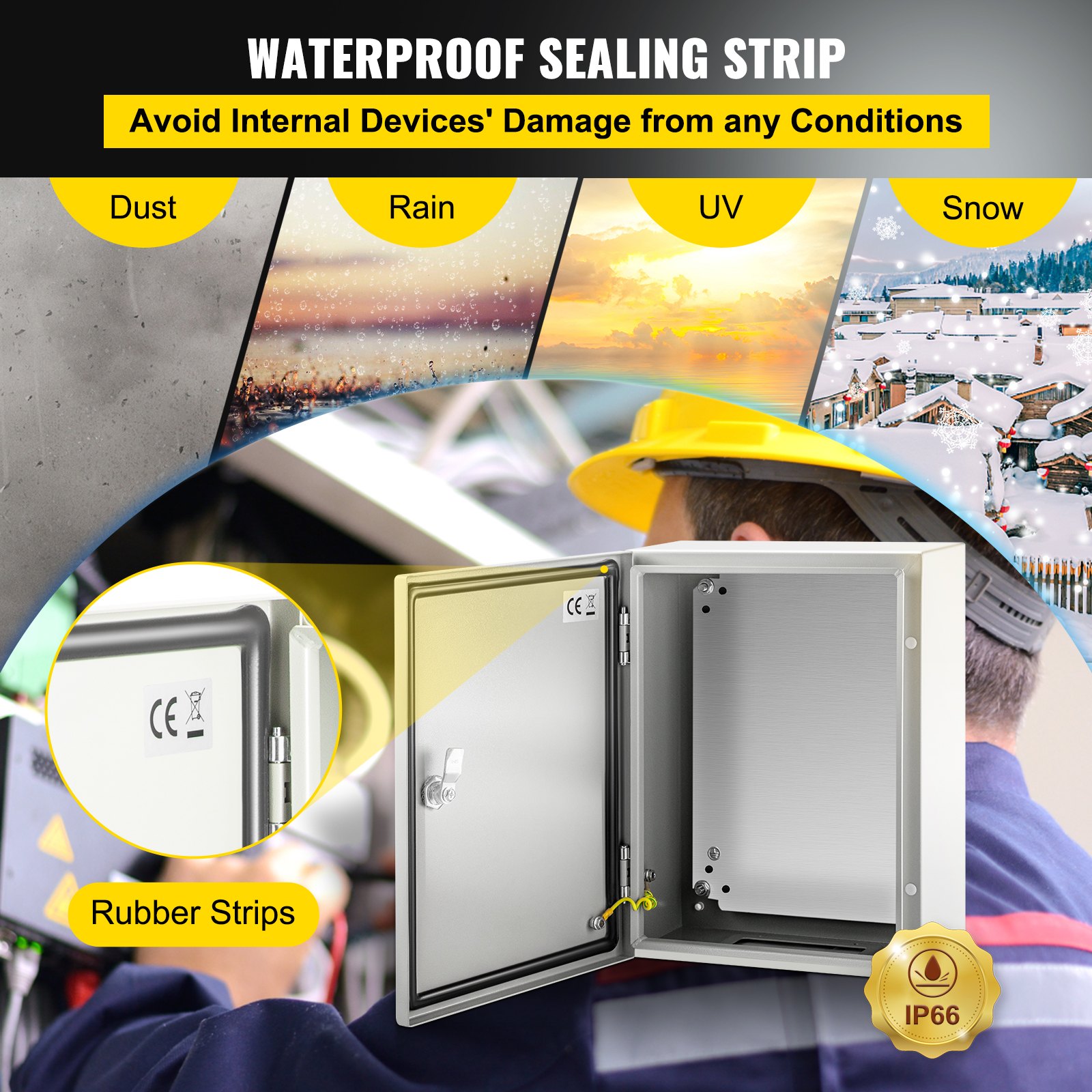

VEVOR electrical enclosure box with ip66 protection for outdoor use, blocks water, dust, snow.

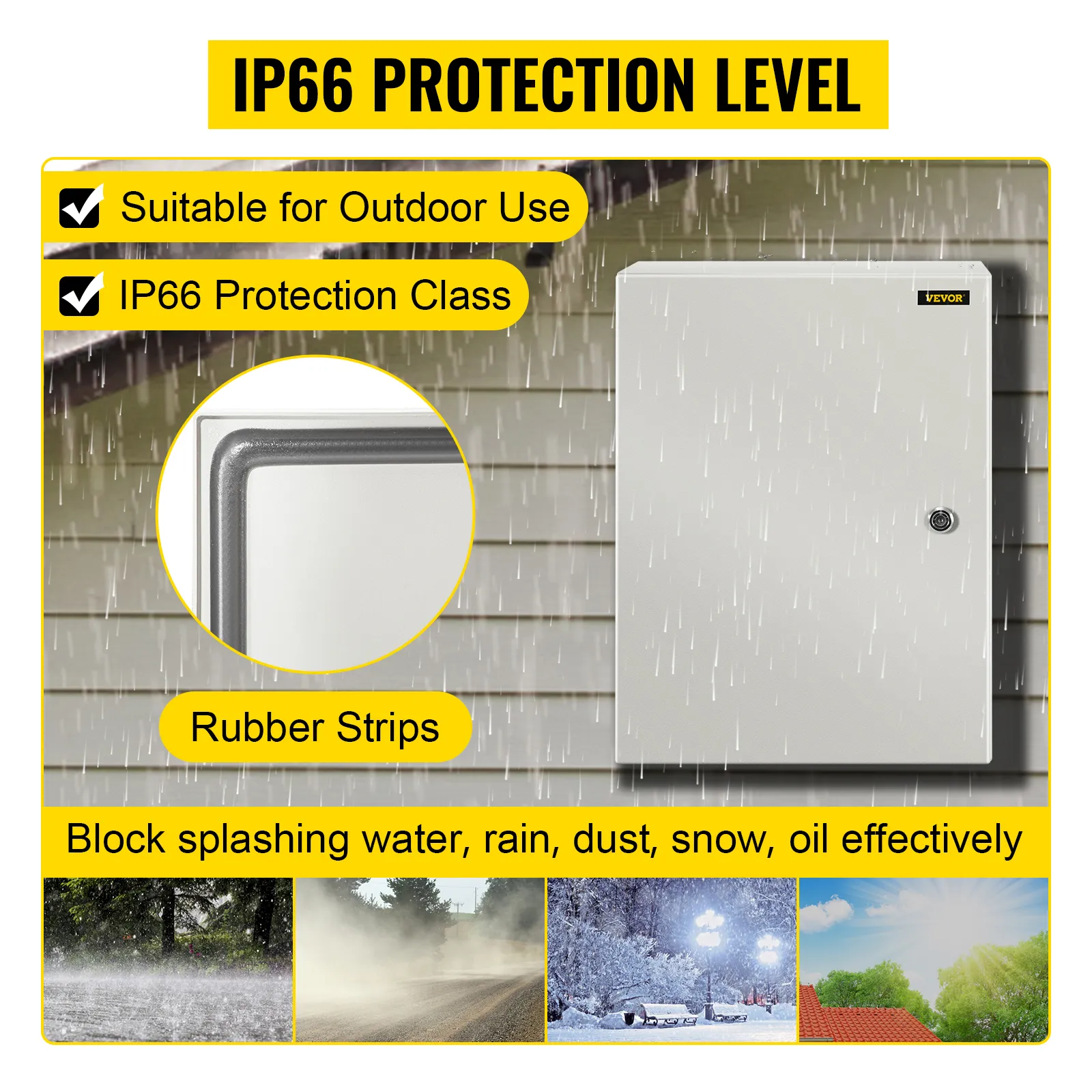

IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.
VEVOR electrical enclosure box with high-strength hinge and security lock mechanism.

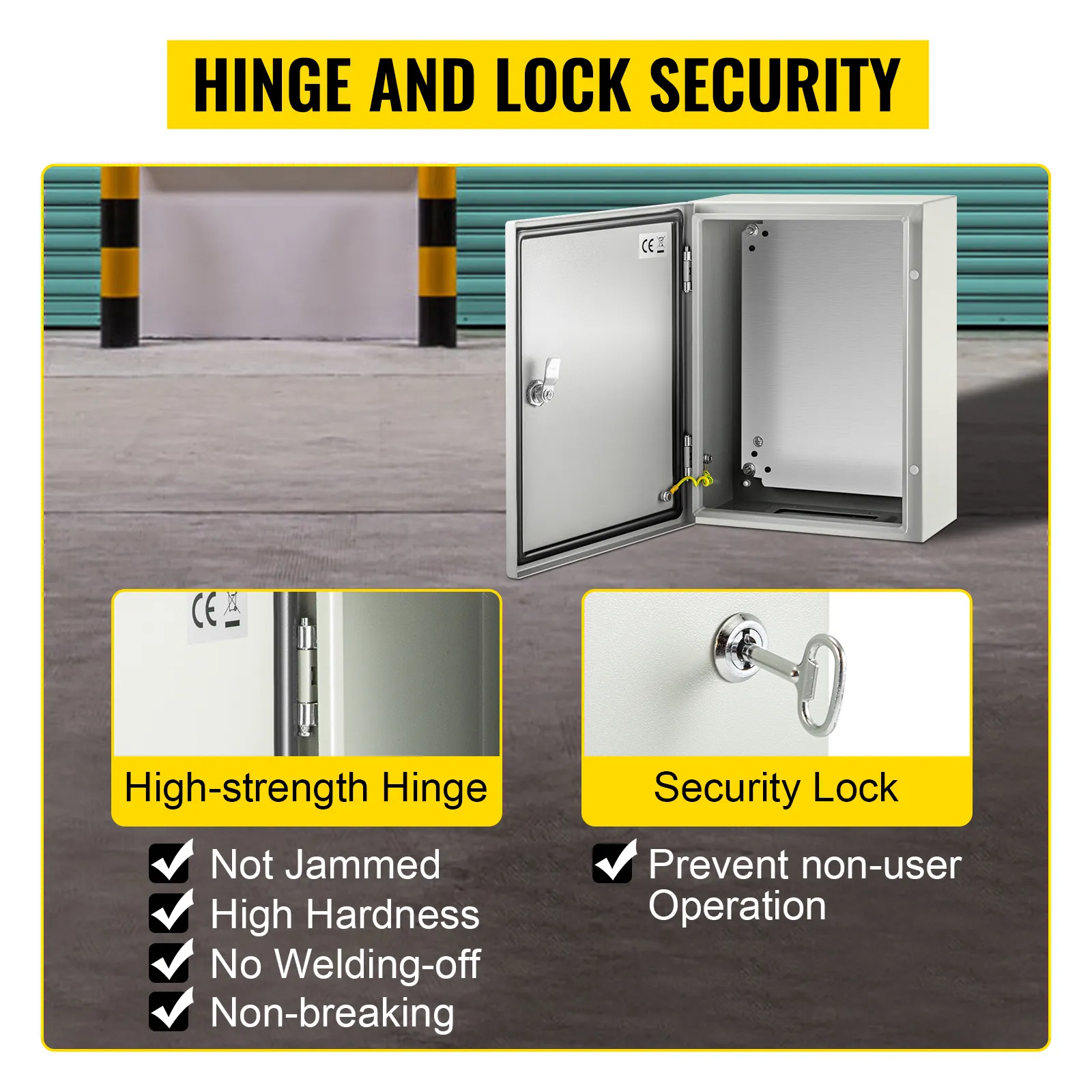

Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.

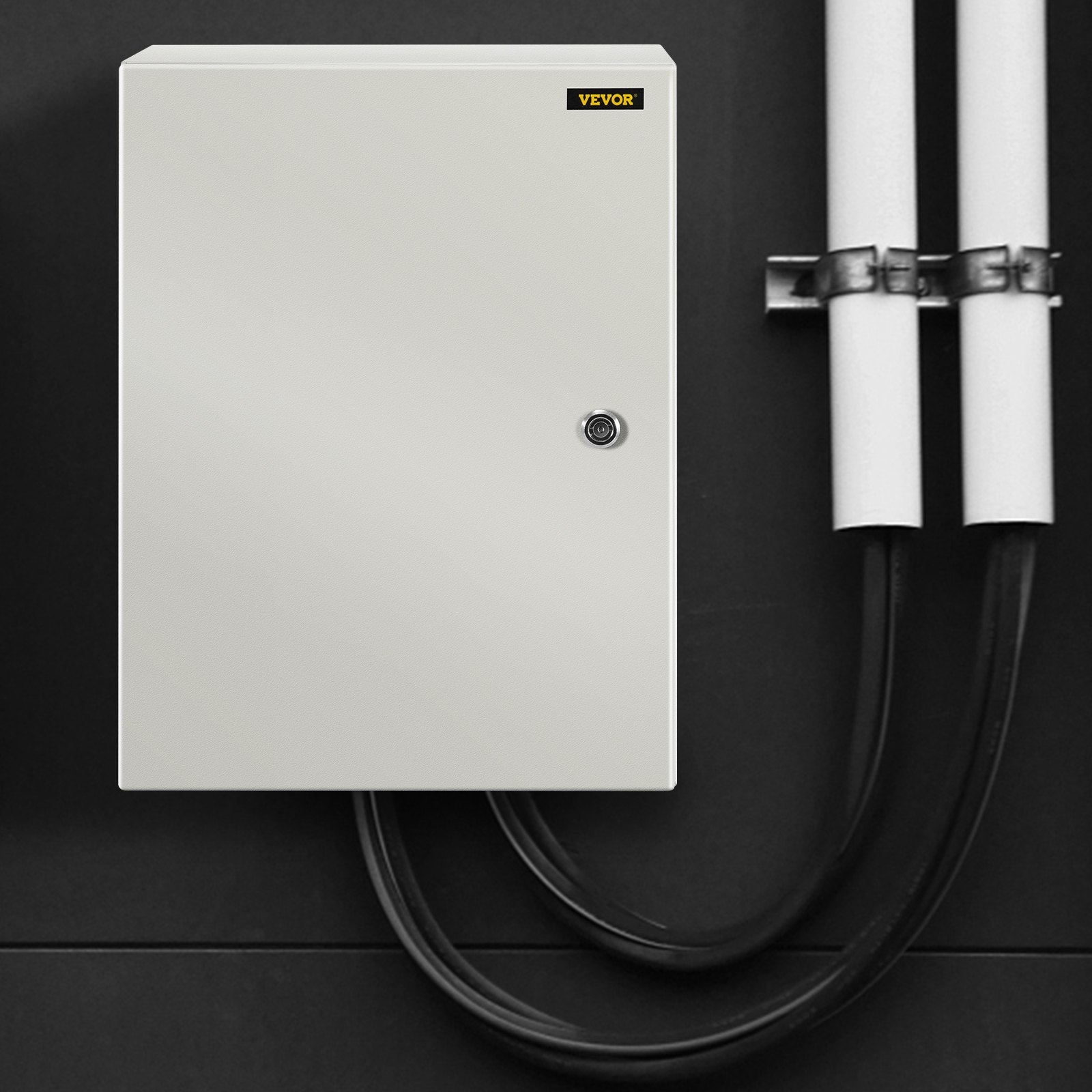

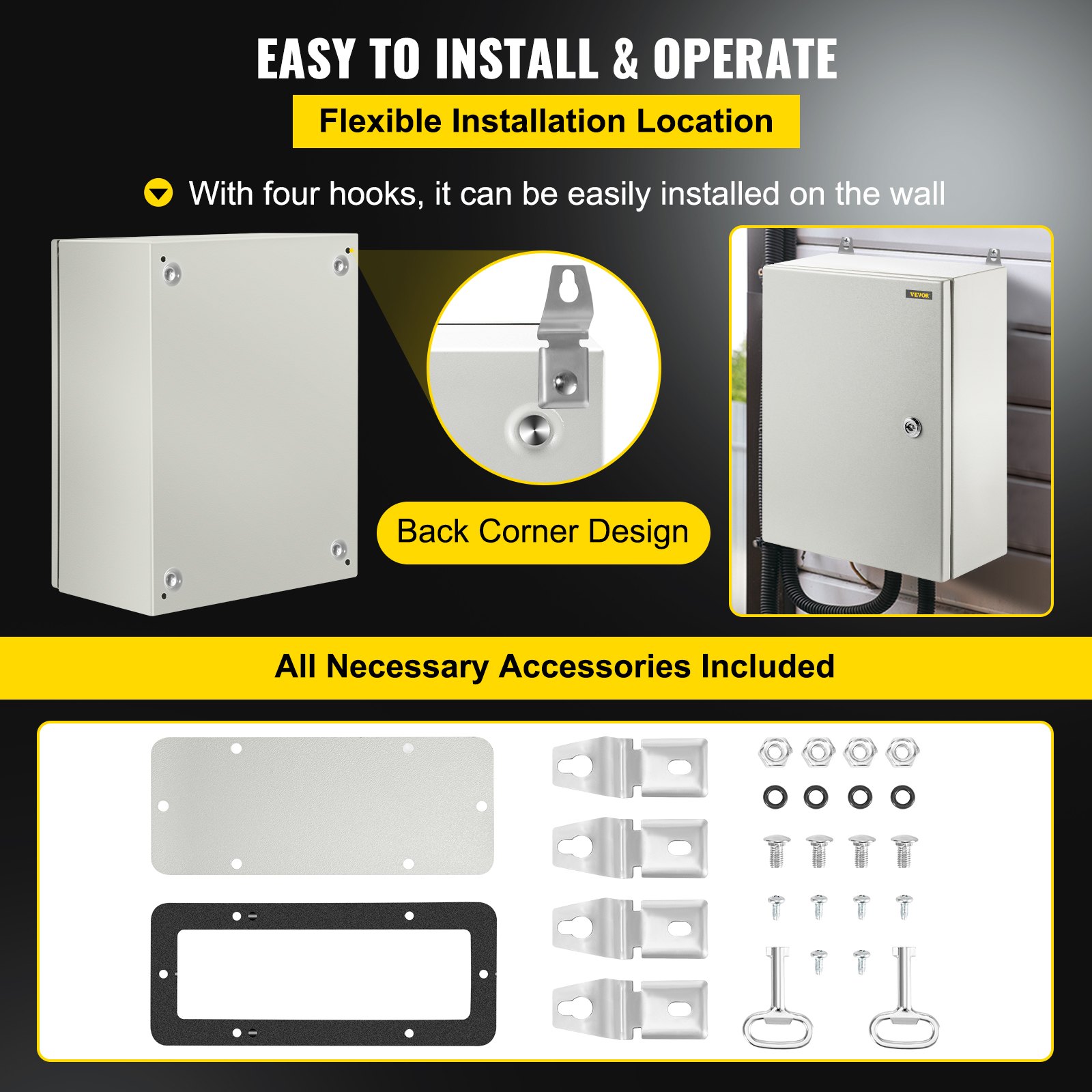

VEVOR electrical enclosure box with wall-mounted design, complete accessories included.

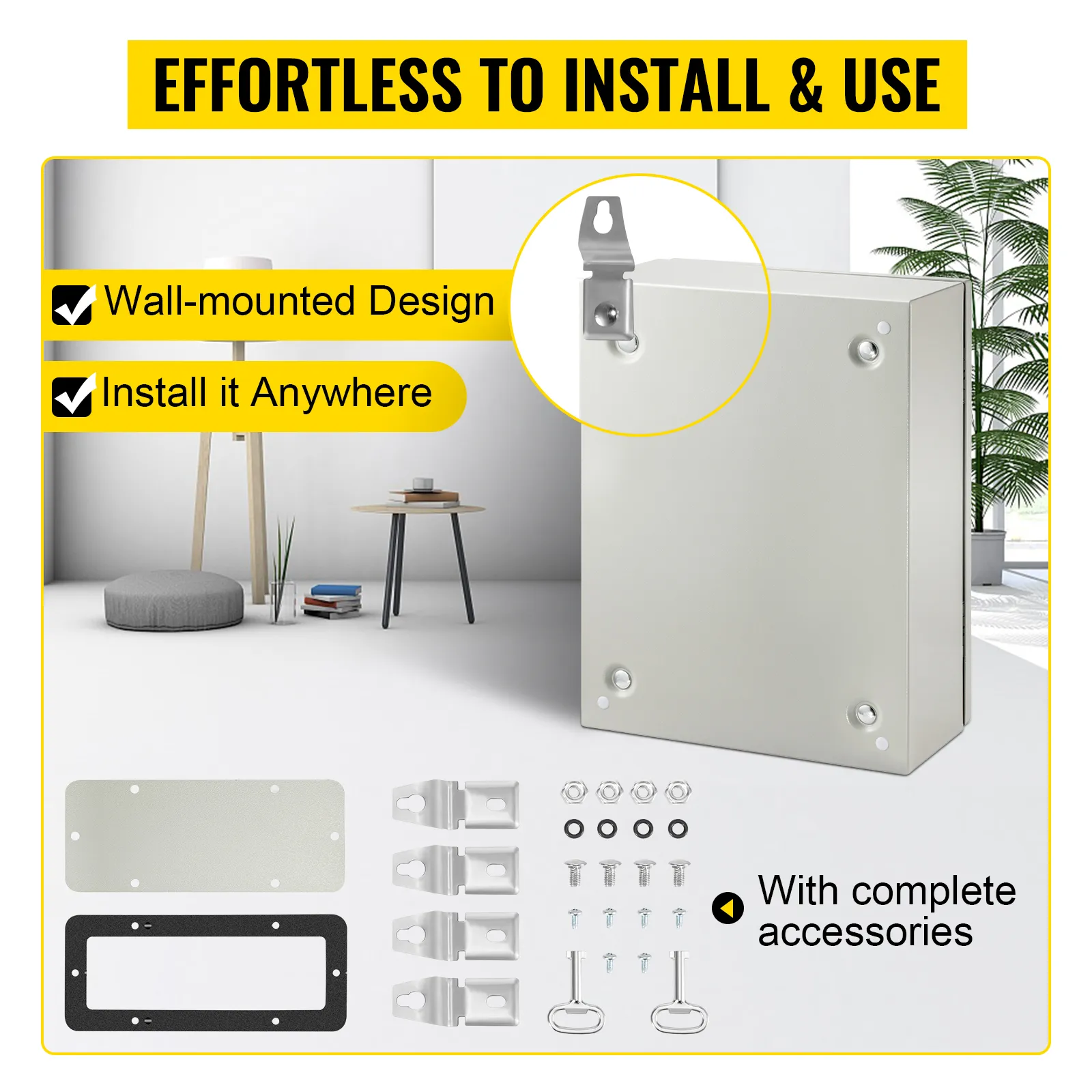

Effortless to Install & Use
The 2MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.

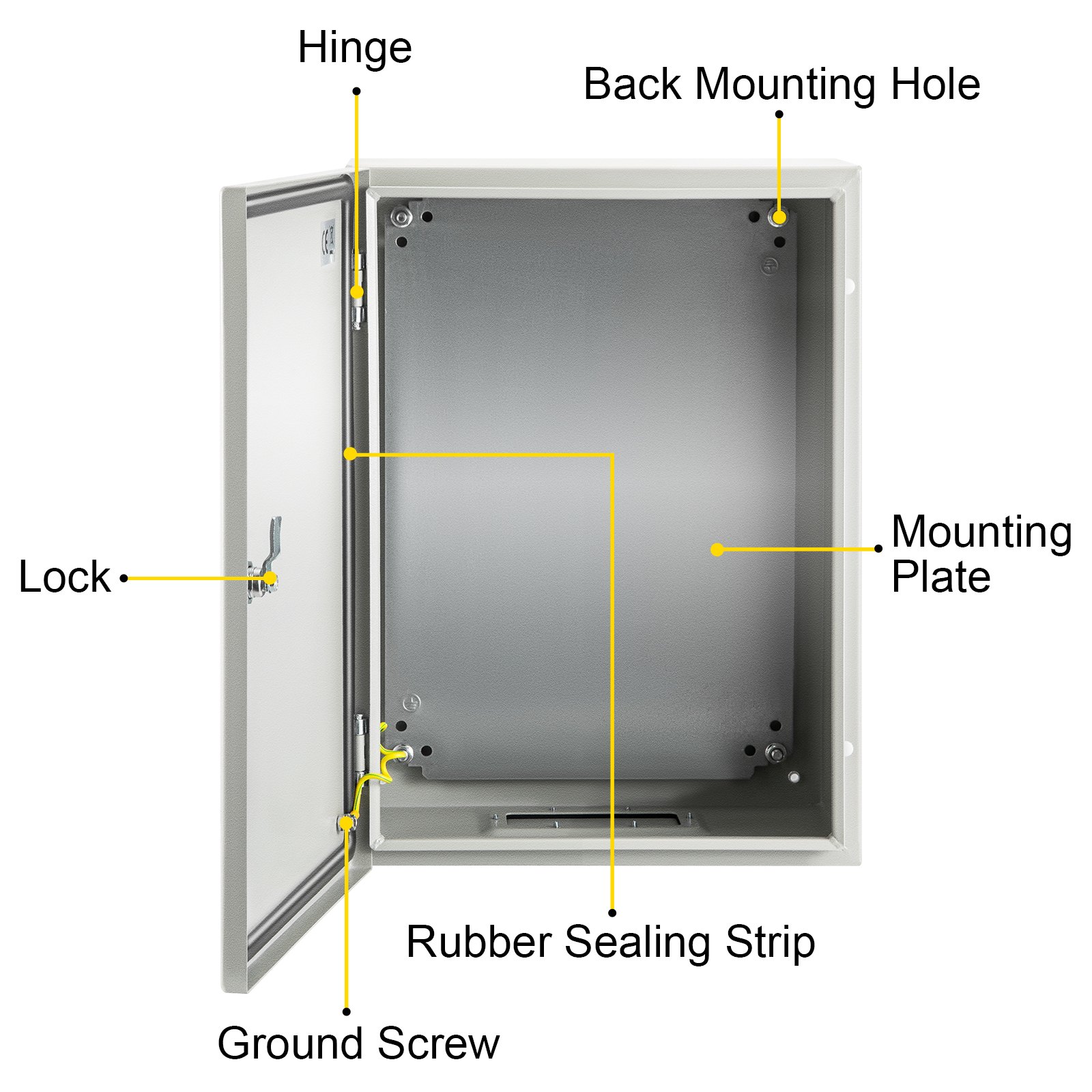

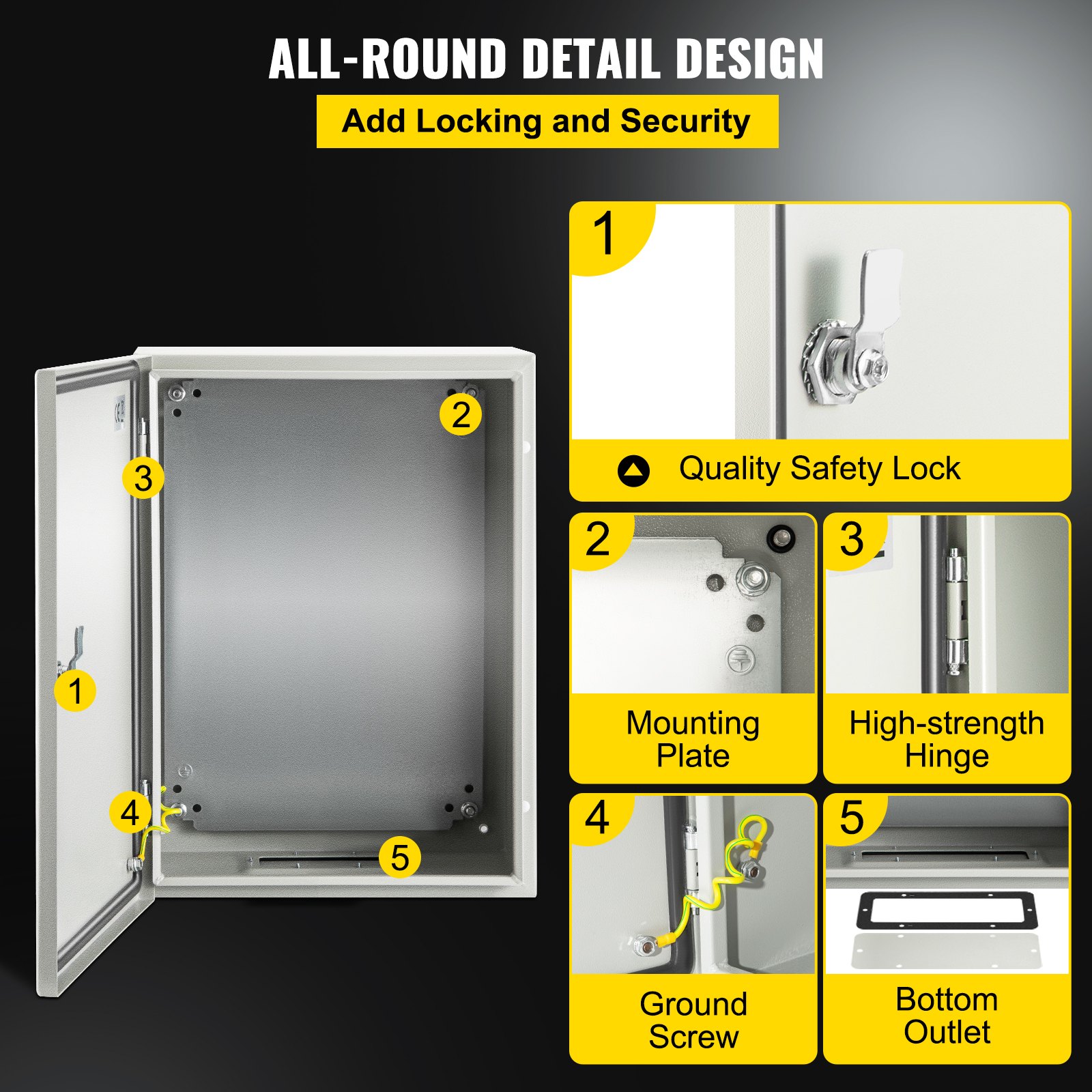

VEVOR electrical enclosure box with route organizer, ground screw, pre-installed plate.

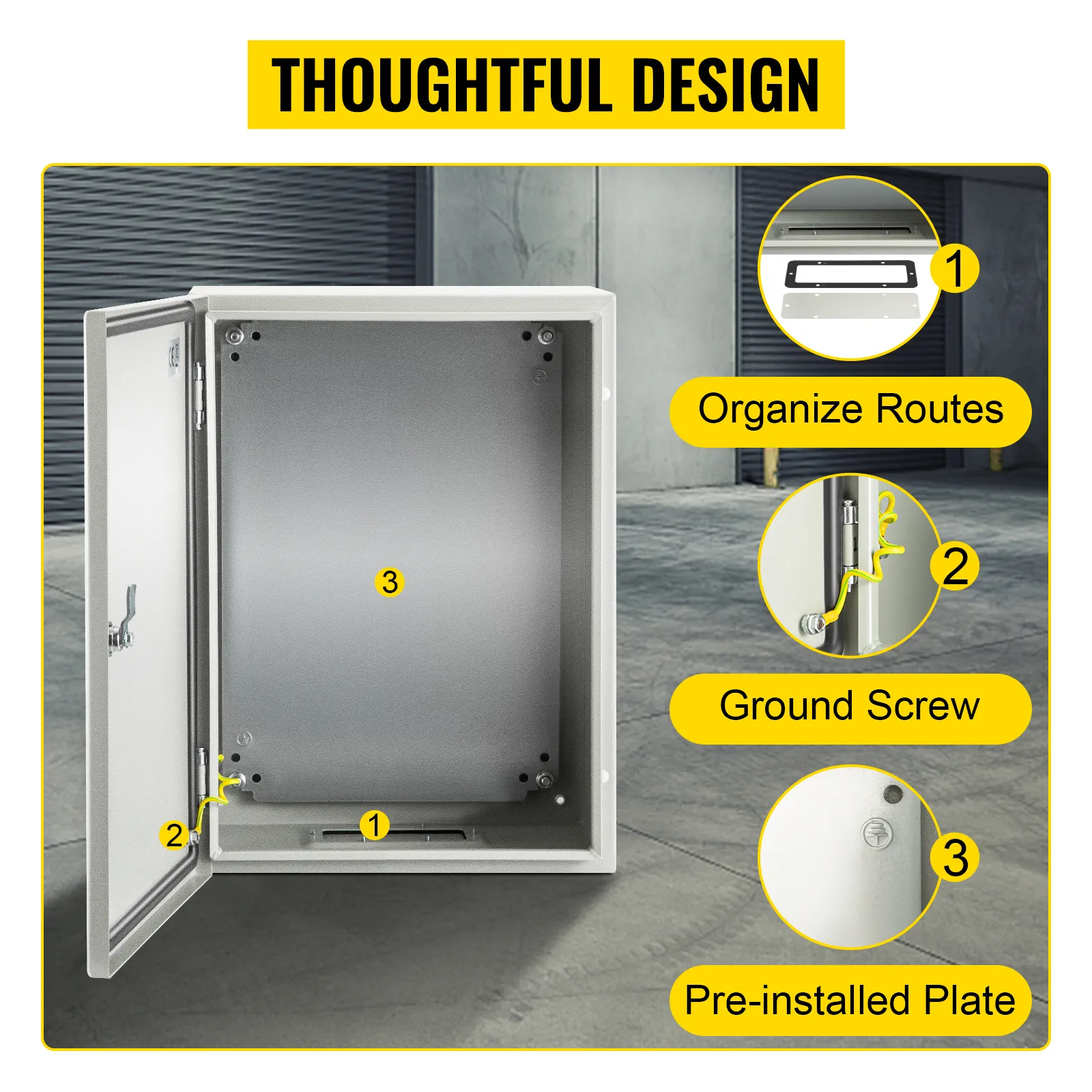

Thoughtful Design

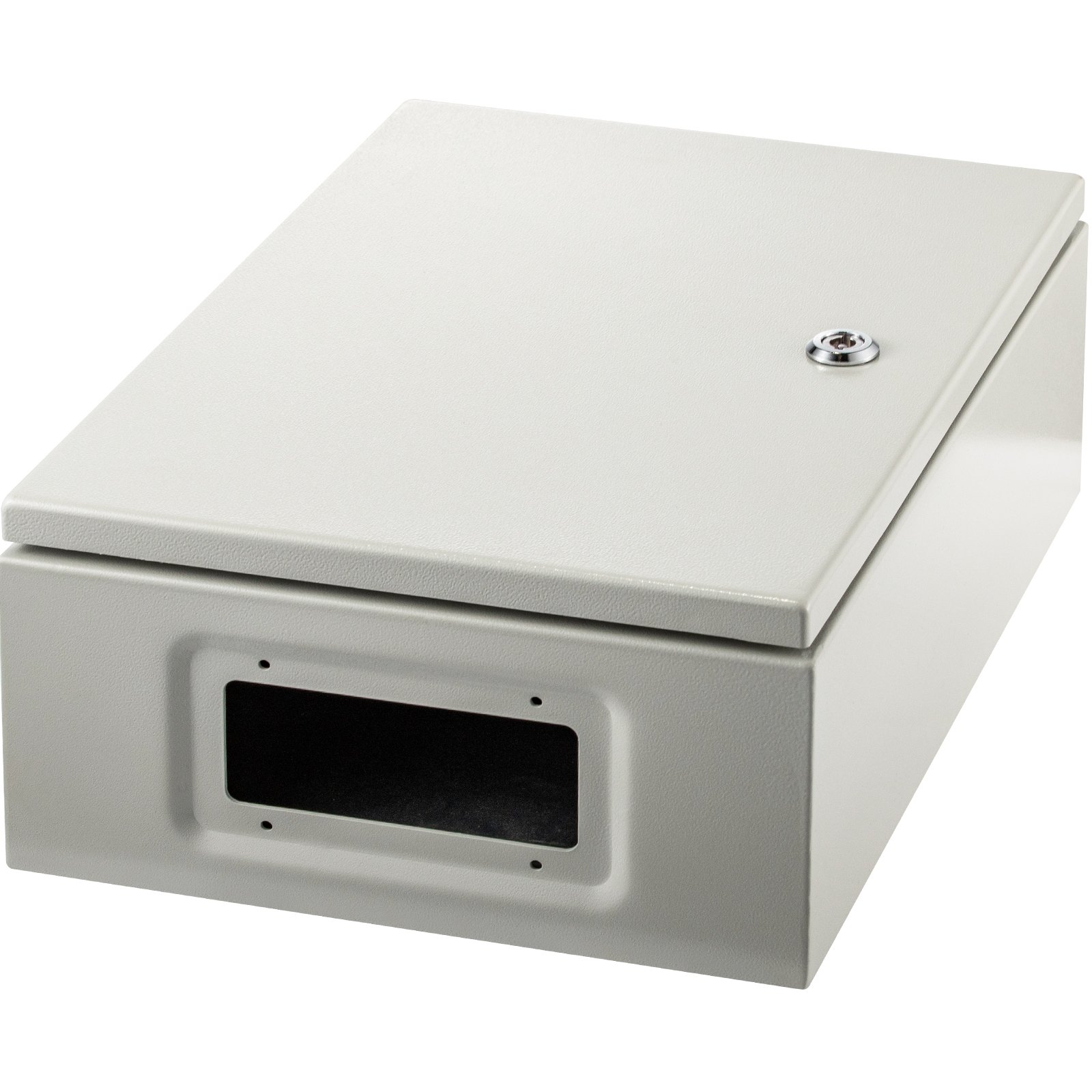

The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR electrical enclosure box ideal for indoor and outdoor applications with various scenes.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.

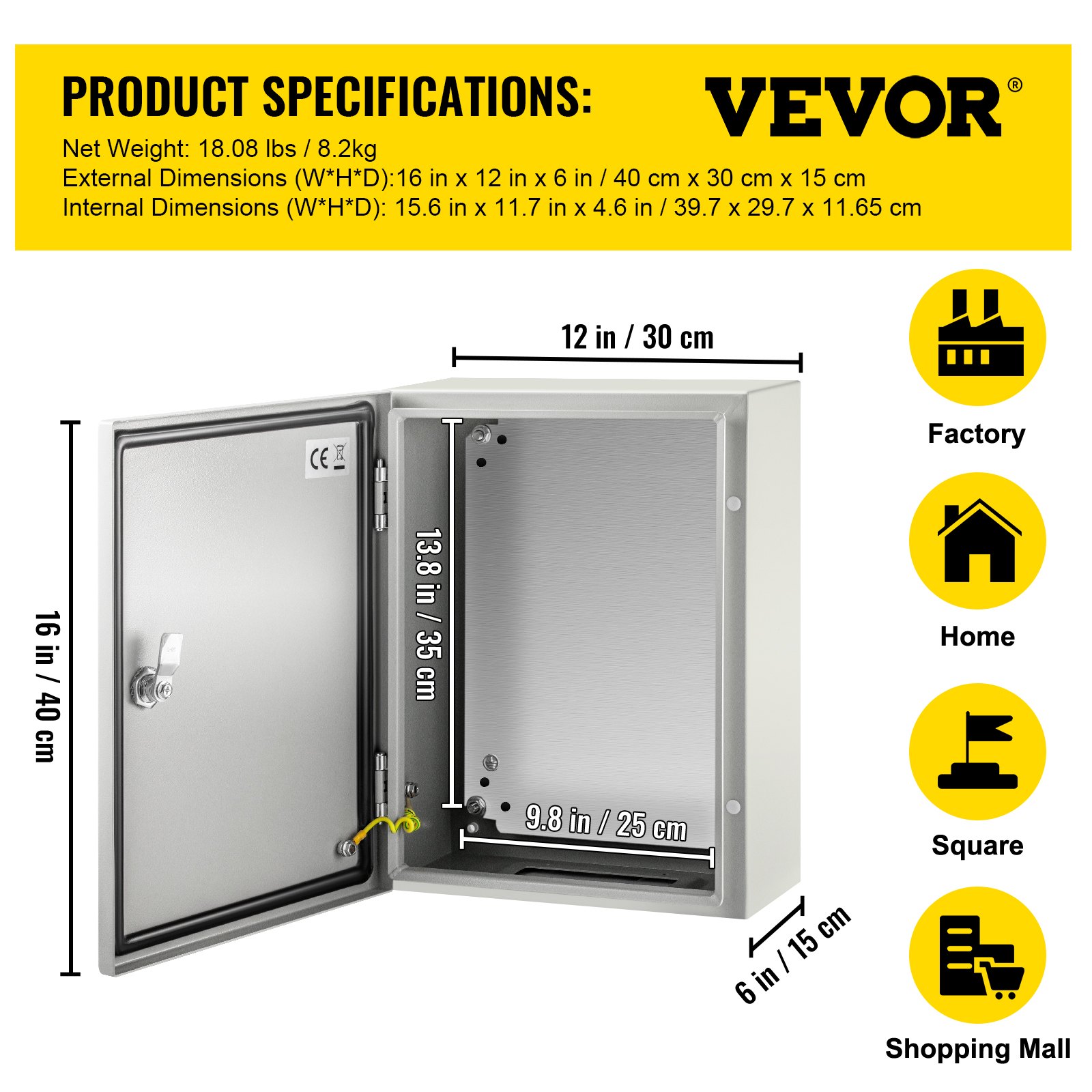

VEVOR electrical enclosure box with open door, dimensions 16x12x6 inches.

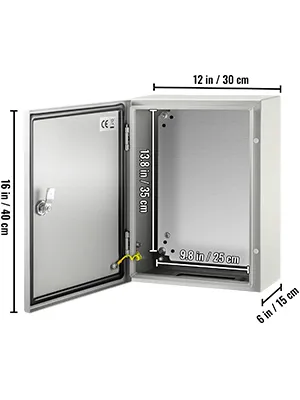

Specifications
  • Model: SPT
  • Color: Gray White(RAL7035)
  • Material: 0.059'' / 1.5 mm Carbon Steel
  • Coating: Epoxy Polyester Powder Coating
  • Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
  • IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Connection Type: Hinged
  • Feature: Lockable, Waterproof

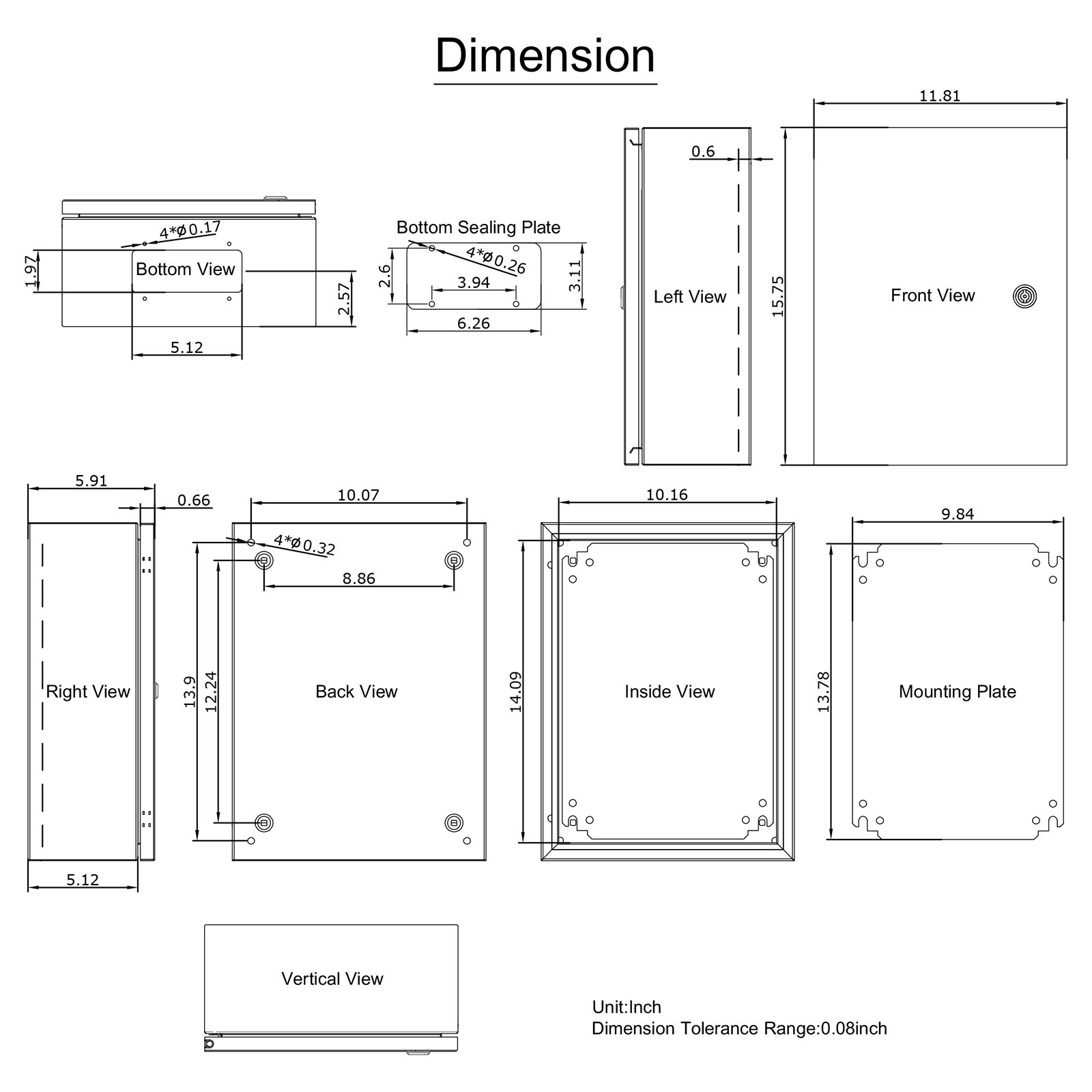

  • Galvanized Backplate Dimensions: 13.8" x 9.8" / 35 x 25 cm
  • Outer Dimensions (H x W x D): 16'' x 12'' x 6'' / 40 x 30 x 15 cm
  • Inner Dimensions (H x W x D): 15.6'' x 11.7'' x 4.6'' / 39.7 x 29.7 x 11.65 cm
  • Product Weight: 18.08 lbs / 8.2 kg
  • Certification: CE / ROHS Certification
VEVOR electrical enclosure box hardware kit with keys, screws, brackets, and gaskets.

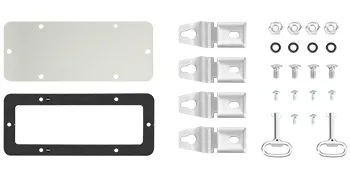

Package Content
  • 1 x Electrical Box
  • 2 x Keys
  • 1 x Mounting Plate (The mounting plate has been assembled in the box)
  • 1 x Set of Wall Mounting Pendants
  • 1 x Bottom Sealing Plate
VEVOR electrical enclosure box mounted on an outdoor wall, size 16" x 12" x 6"
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
open VEVOR electrical enclosure box with accessories including screws and mounting brackets.
Electrical Enclosure Box--Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
  • Sturdy Steel Construction
  • IP66 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisite Details Design
VEVOR electrical enclosure box, premium steel, solid construction, epoxy coating.
Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.
VEVOR electrical enclosure box with ip66 protection for outdoor use, blocks water, dust, snow.
IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.
VEVOR electrical enclosure box with high-strength hinge and security lock mechanism.
Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.
VEVOR electrical enclosure box with wall-mounted design, complete accessories included.
Effortless to Install & Use
The 2MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.
VEVOR electrical enclosure box with route organizer, ground screw, pre-installed plate.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR electrical enclosure box ideal for indoor and outdoor applications with various scenes.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.
VEVOR electrical enclosure box hardware kit with keys, screws, brackets, and gaskets.
Package Content
  • 1 x Electrical Box
  • 2 x Keys
  • 1 x Mounting Plate (The mounting plate has been assembled in the box)
  • 1 x Set of Wall Mounting Pendants
  • 1 x Bottom Sealing Plate
VEVOR electrical enclosure box with open door, dimensions 16x12x6 inches.
Specifications
  • Model: SPT
  • Color: Gray White(RAL7035)
  • Material: 0.059'' / 1.5 mm Carbon Steel
  • Coating: Epoxy Polyester Powder Coating
  • Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
  • IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Connection Type: Hinged
  • Feature: Lockable, Waterproof
  • Galvanized Backplate Dimensions: 13.8" x 9.8" / 35 x 25 cm
  • Outer Dimensions (H x W x D): 16'' x 12'' x 6'' / 40 x 30 x 15 cm
  • Inner Dimensions (H x W x D): 15.6'' x 11.7'' x 4.6'' / 39.7 x 29.7 x 11.65 cm
  • Product Weight: 18.08 lbs / 8.2 kg
  • Certification: CE / ROHS Certification

Electrical Enclosure Box: Perfect for Outdoor Projects

It is the best choice for any outdoor project. Its robust design ensures it can withstand tough conditions. The carbon steel construction provides strength and stability. This makes it ideal for housing electrical components safely. Our weatherproof design protects against rain and dust. So, it’s suitable for all environments. The lockable feature adds security to your equipment. It is easy to install and modify due to features such as a removable backplate for flexibility, and a great electrical enclosure box.


IP66 Waterproof & Dustproof for Ultimate Protection

This electrical enclosure box provides IP66 protection. It ensures your equipment stays safe from water and dust. This makes it perfect for outdoor use. Heavy rain or dust storms won't affect your setup. The tightly sealed design keeps the elements out. You can trust this box to protect your electrical components. It is reliable in any weather condition. Durable construction adds to its protective features. This box is ideal for ensuring your gear remains functional. Choose it for ultimate protection and peace of mind.


Durable Carbon Steel Junction Box with Epoxy Coating

This material ensures durability and strength. It can withstand harsh conditions and heavy use. The epoxy coating adds an extra layer of protection. It resists corrosion and wear. This makes the box long-lasting and reliable. The durable construction is perfect for industrial environments. Trust this junction box to hold up over time. High standards of durability are met. Choose it for a reliable and robust solution.


Lockable Design Ensures Security of Your Equipment

The VEVOR electrical enclosure box is designed to be lockable. This ensures your equipment stays secure. You can lock the box to prevent unauthorized access. It is important for protecting valuable components. The secure design is perfect for outdoor settings. It gives you peace of mind knowing your setup is safe. This feature makes the box suitable for various applications. Choose it for a secured solution.


Includes Mounting Plate for Easy Installation

This electrical enclosure box comes with a mounting plate. This makes installation quick and easy. You can securely mount the box on any surface. The plate is detachable for added flexibility. You can adjust the setup to suit your needs. The mounting plate is durable and reliable. It ensures that the box stays in place once installed. So, this makes the installation process hassle-free. Choose it for an efficient solution.


Flexible Usage with Removable Galvanized Backplate

This feature adds flexibility to your setup. You can easily access and modify the components inside. Galvanized steel ensures the durability of the backplate. It provides a strong surface for mounting equipment. You can customize the layout as needed. This makes the box versatile for different applications. A removable design simplifies maintenance and upgrades. Choose it for a flexible and adaptable solution.


Reliable Performance with CE and ROHs Certification

This electrical enclosure box is CE and ROHs certified. This ensures reliable performance and safety. The certifications guarantee the box meets high standards. It is safe for use in various environments. You can trust the quality of this product. It performs well over time. Certifications add an extra layer of assurance. Choose it for a reliable and certified solution. This makes it ideal for professional and personal use. Make sure your setup runs smoothly with this certified box.


See More

Specification

Model
SPT
Color
Gray White(RAL7035)
Material
0.059'' / 1.5 mm Carbon Steel
Coating
Epoxy Polyester Powder Coating
Mounting Plate
0.079'' / 2 mm Detachable Galvanized Backplate
IP Rating
Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type
Hinged
Feature
Lockable, Waterproof
Galvanized Backplate Dimensions
13.8" x 9.8" / 35 x 25 cm
Outer Dimensions (H x W x D)
16'' x 12'' x 6'' / 40 x 30 x 15 cm
Inner Dimensions (H x W x D)
15.6'' x 11.7'' x 4.6'' / 39.7 x 29.7 x 11.65 cm
Product Weight
18.08 lbs / 8.2 kg
Certification
CE / ROHS Certification
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
114 Review(s)
Clear filters
John John
Mr
I purchased the 20x16x10 steel enclosure to build a 5kW LiFePO4 battery. The enclosure came faster than I expected and arrived with a good amount of hardware for mounting components inside the box and the box onto a wall. High quality, exceeds expectations.
Nice Box Nice Box
Nice Box
This box seems to be of good quality with nice seals around the door and nice latches to keep the door closed. The back plate is removable and is made of quite heavy duty what appears to be galvanized steel. Mounting hardware is included.
Branson's Branson's
Storage Owner
I used these boxes as sub-panels for our storage unit facility. Each box houses a din rail with mini breakers to limit the power usage in each unit. The boxes worked great and our electrician that did the install was very happy with them. I'll be swapping out the standard key with custom key to keep people out of them.
Louis Senofonte Louis Senofonte
Owner Seno Graphics LLC
I plan on purchasing many more in the near future they work great for my invention. I would like a discount on future purchases, I have purchased 13 of these this month. Can I buy them wholesale in quantities of 10.
lou lou
owner
i had tried this product for my project and found it perfect for my need. i have completed adding my components to the first one i purchased from you. it worked so well i purchased another 11 enclosures from you.
Chad Manning Chad Manning
Supervisior
This was exactly what i was looking for and it works perfectly. I had issues with water getting into the breaker box
Peter Peter
solid and well thought through
Good solid designs that are well thought through.
Don S. Don S.
Good price and quality
Very good quality and work perfect for what I needed
Peter D Peter D
Impressed!
Using this for PLC bench testing, impressed with the cutouts, and quality. The key to open it could be a bit more durable, or just make it flathead compatible.
John Henson John Henson
VEVOR NEMA Steel Enclosure
I admit, I did caulk anything that seemed like it might let water in. Even with that said, It's still a great box for the money.
