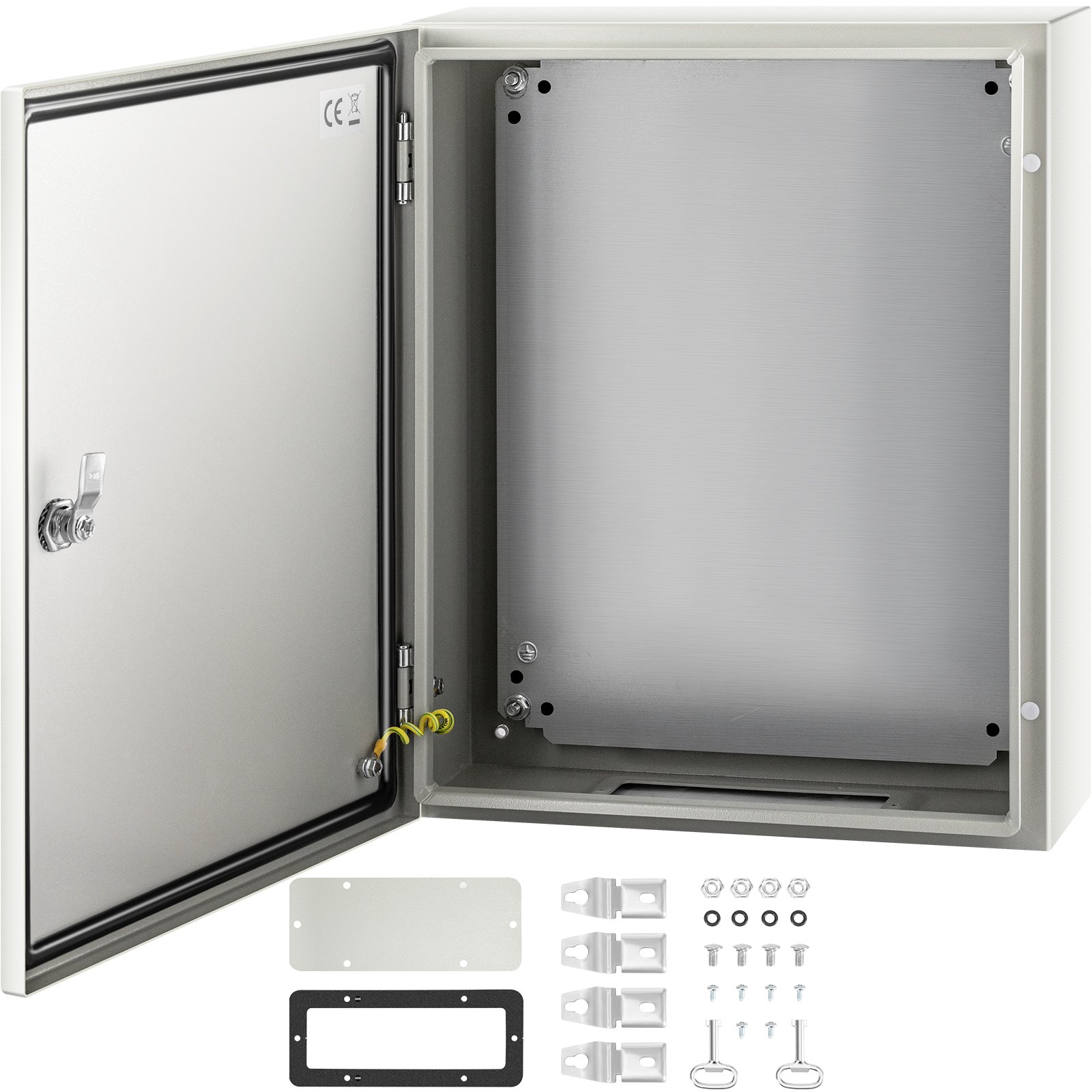

VEVOR nema steel enclosure with open door, mounting plate, and included accessories. VEVOR nema steel enclosure with open door, showing internal wiring and components. VEVOR nema steel enclosure with epoxy coating and cold-rolled steel comparison to abs. VEVOR nema steel enclosure with waterproof sealing strip, protection from dust and weather. VEVOR nema steel enclosure; safety lock, mounting plate, high-strength hinge, ground screw, bottom outlet. VEVOR nema steel enclosure with wall hooks, back corner design, and accessories included.
DQXJSTCFS50X40X15V0

VEVOR NEMA Steel Enclosure, 20 x 16 x 6'' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

20 x 16 x 6 inch

  • 24 x 24 x 8 inch
  • 20 x 16 x 8 inch
  • 20 x 12 x 10 inch
  • 20 x 20 x 6 inch
  • 24 x 16 x 10 inch
  • 16 x 12 x 6 inch
  • 24 x 24 x 12 inch
  • 20 x 16 x 10 inch
  • 20 x 16 x 6 inch

About this item

  • Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
  • IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
  • Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
  • Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
  • Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR NEMA Steel Enclosure, 20 x 16 x 6'' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate
20 x 16 x 6 inch

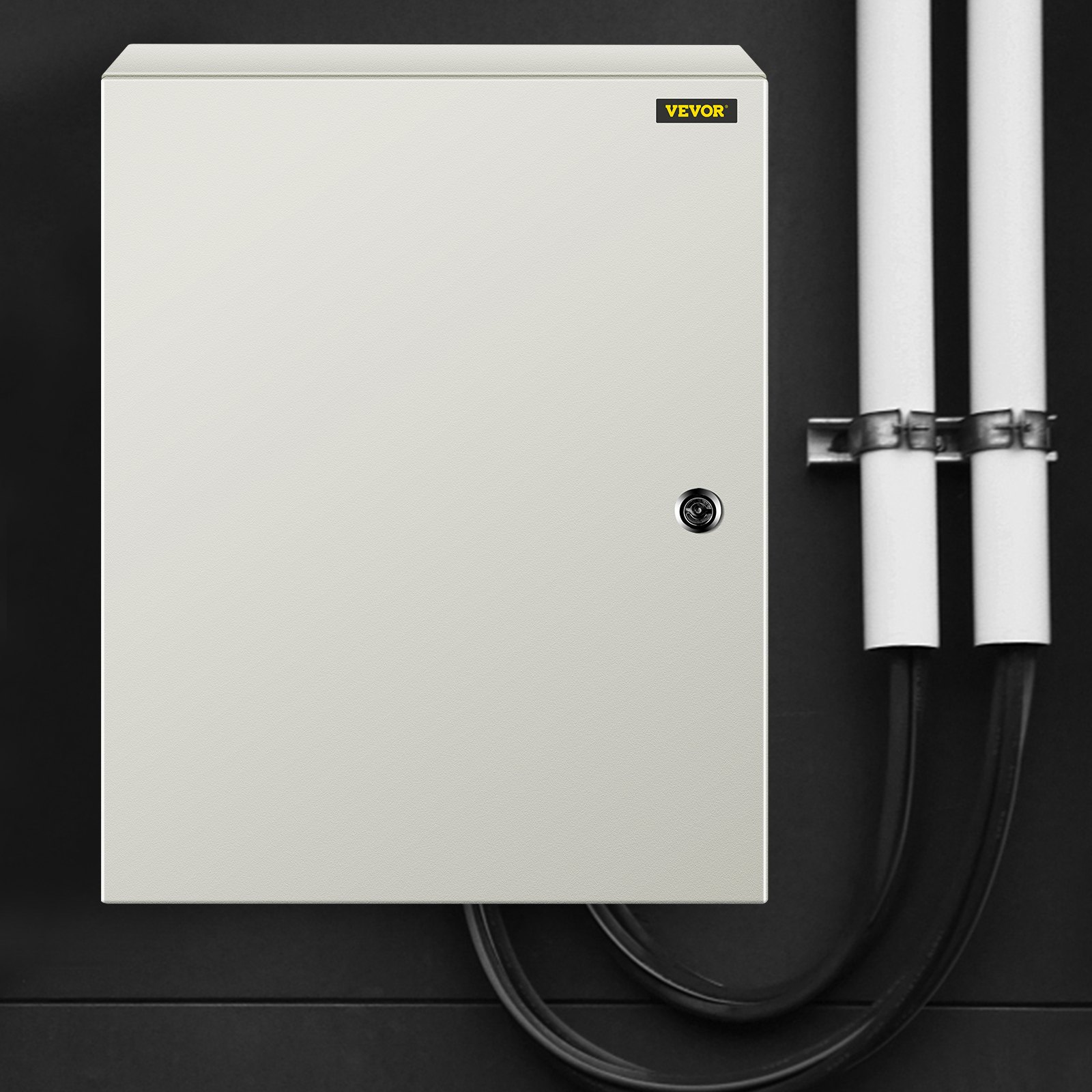

VEVOR nema steel enclosure box 20" x 16" x 6" mounted near a garage door.
VEVOR nema steel enclosure with open door and mounting accessories.
Electrical Enclosure Box--Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
  • Sturdy Steel Construction
  • IP66 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisite Details Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

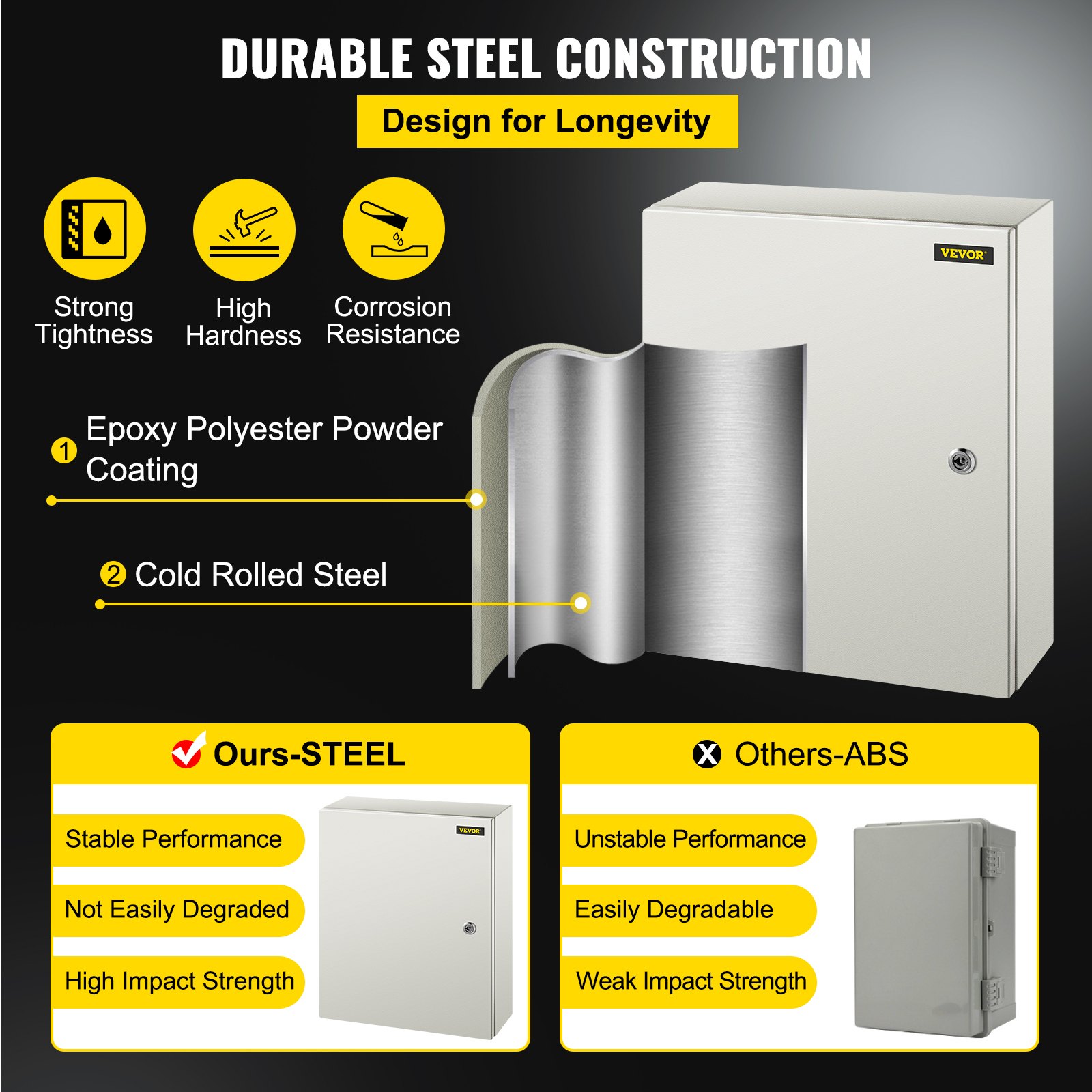

VEVOR nema steel enclosure with solid construction and epoxy polyester coating.
Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.

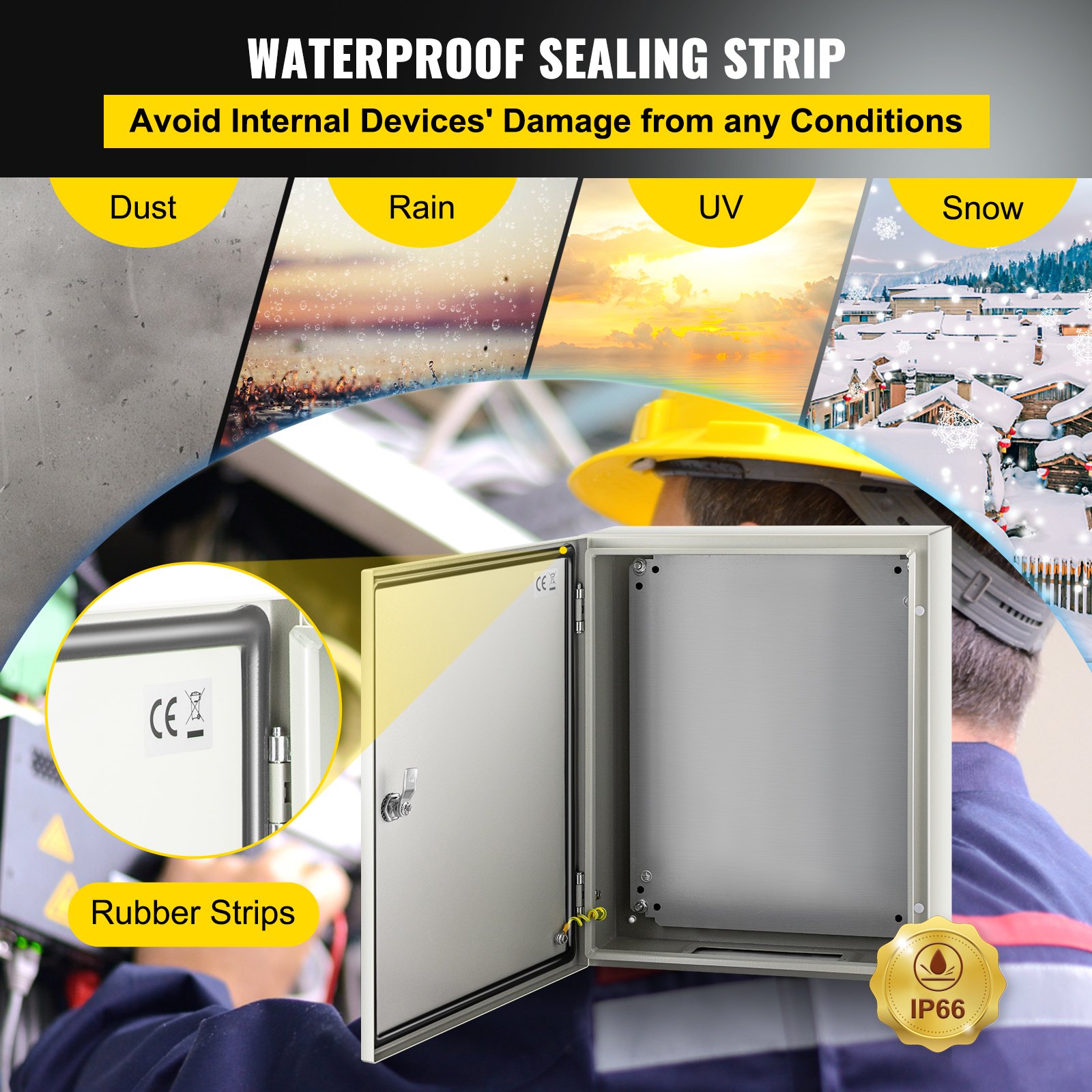

VEVOR nema steel enclosure with ip66 protection for outdoor use, rubber strips included.
IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.
VEVOR nema steel enclosure with high-strength hinge and security lock.
Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.

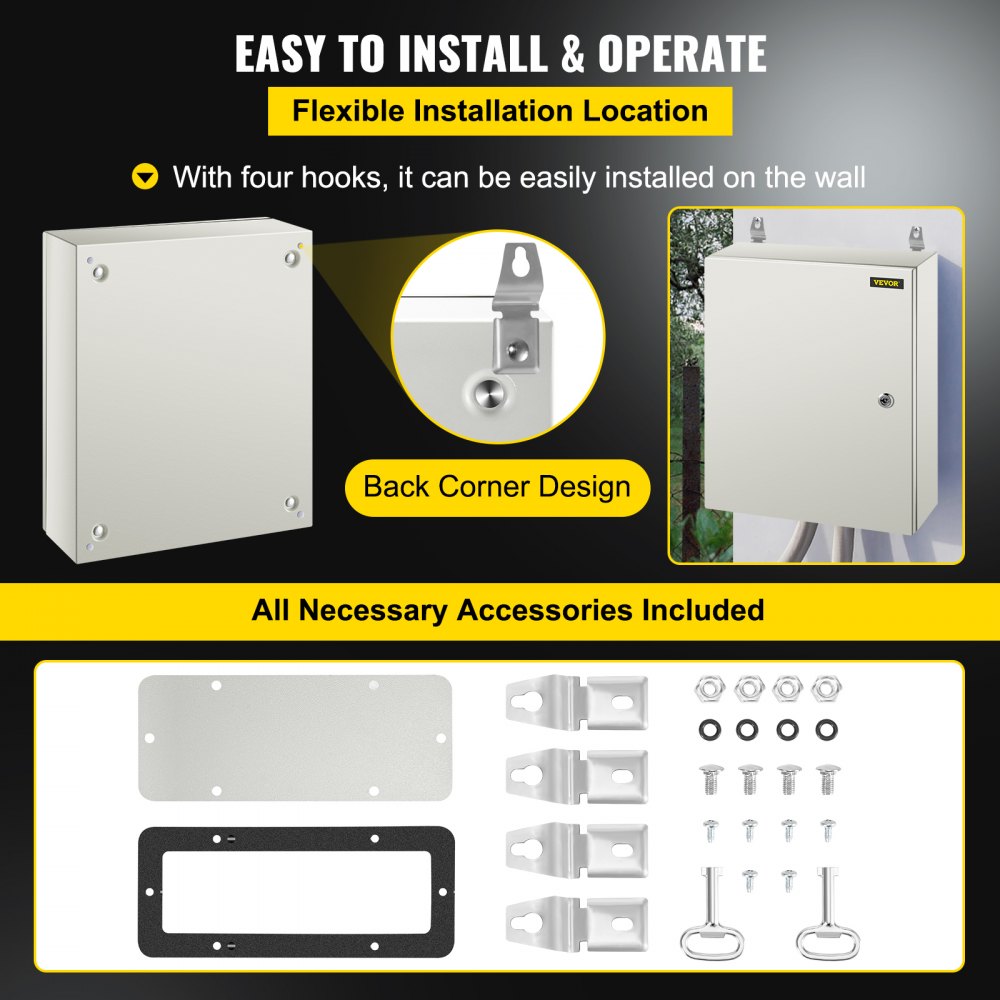

VEVOR nema steel enclosure with wall-mounted design and complete accessories.
Effortless to Install & Use
The 2 MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.

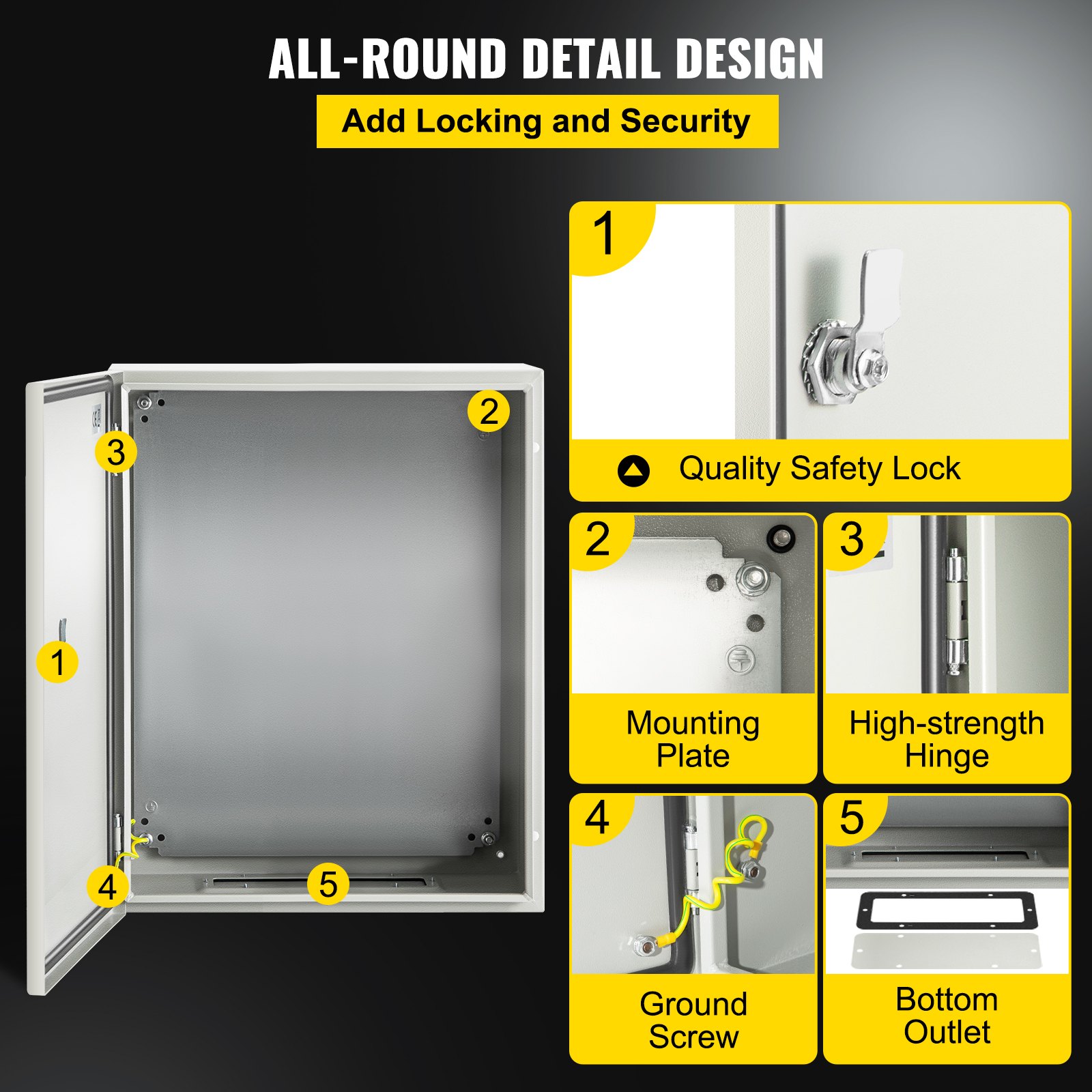

VEVOR nema steel enclosure showcasing organize routes, ground screw, and pre-installed plate.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.

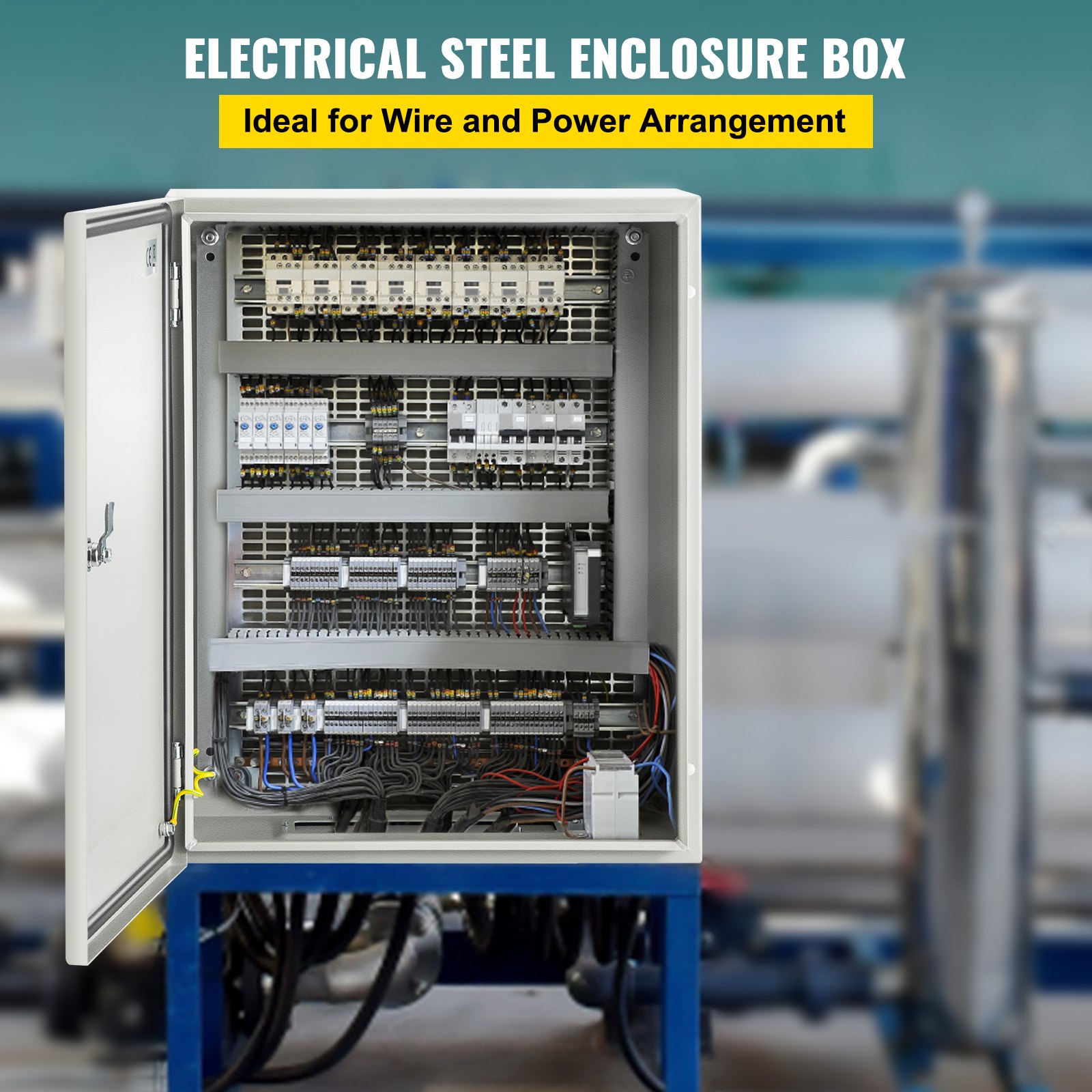

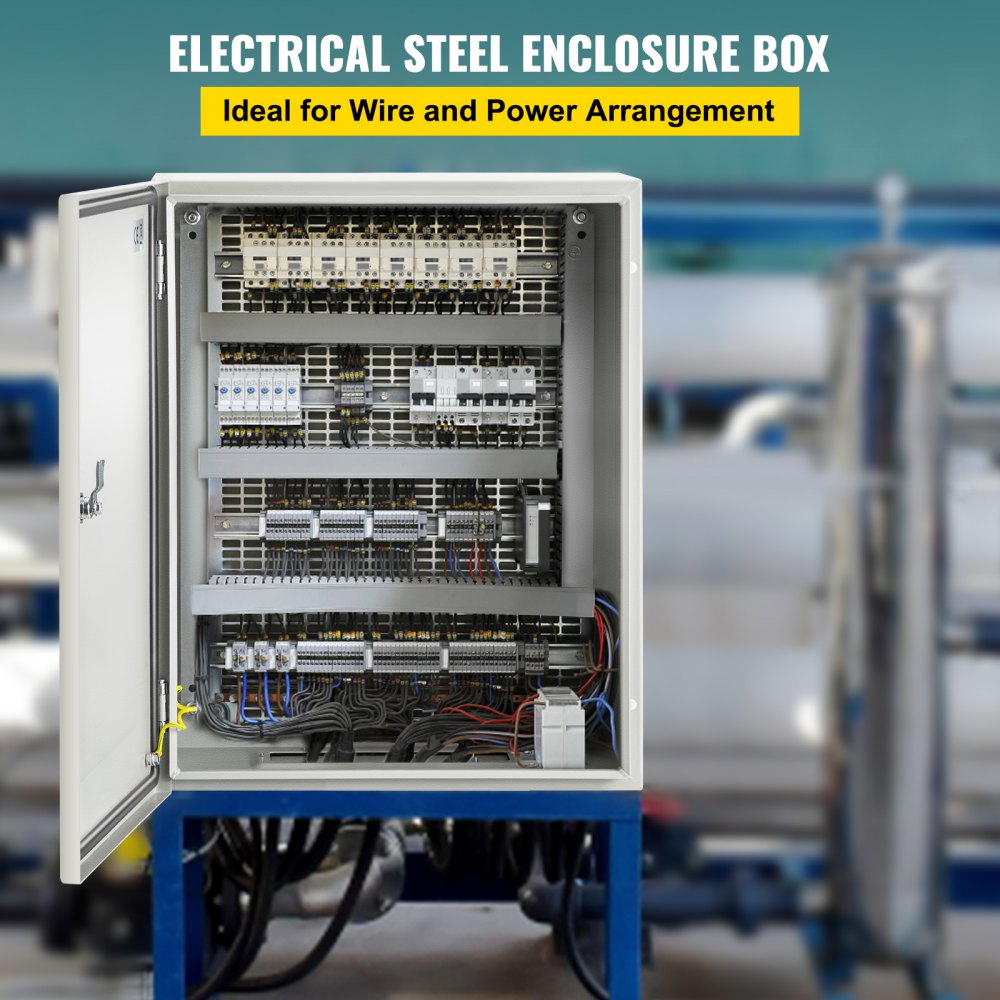

VEVOR nema steel enclosure for indoor and outdoor applications in various settings.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.

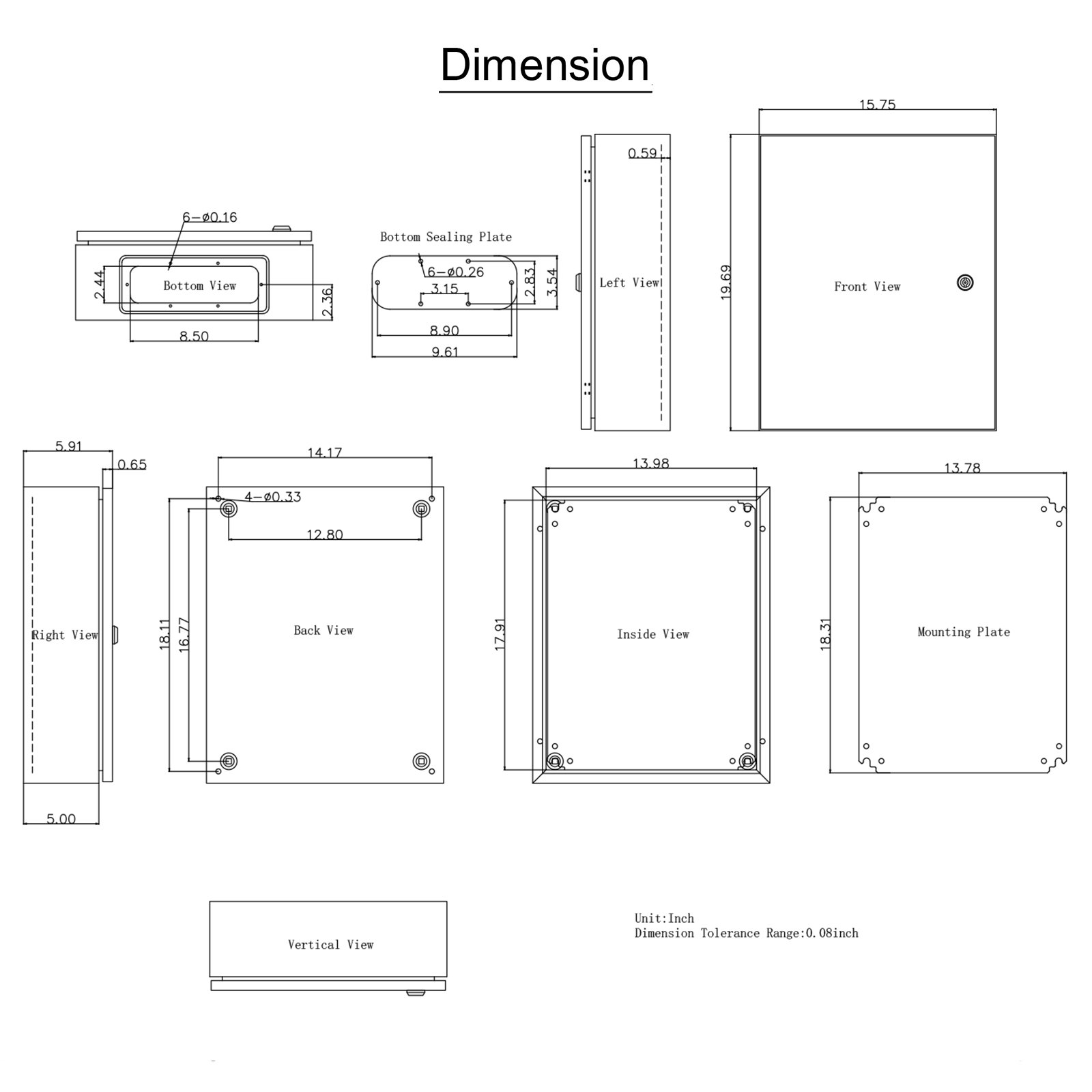

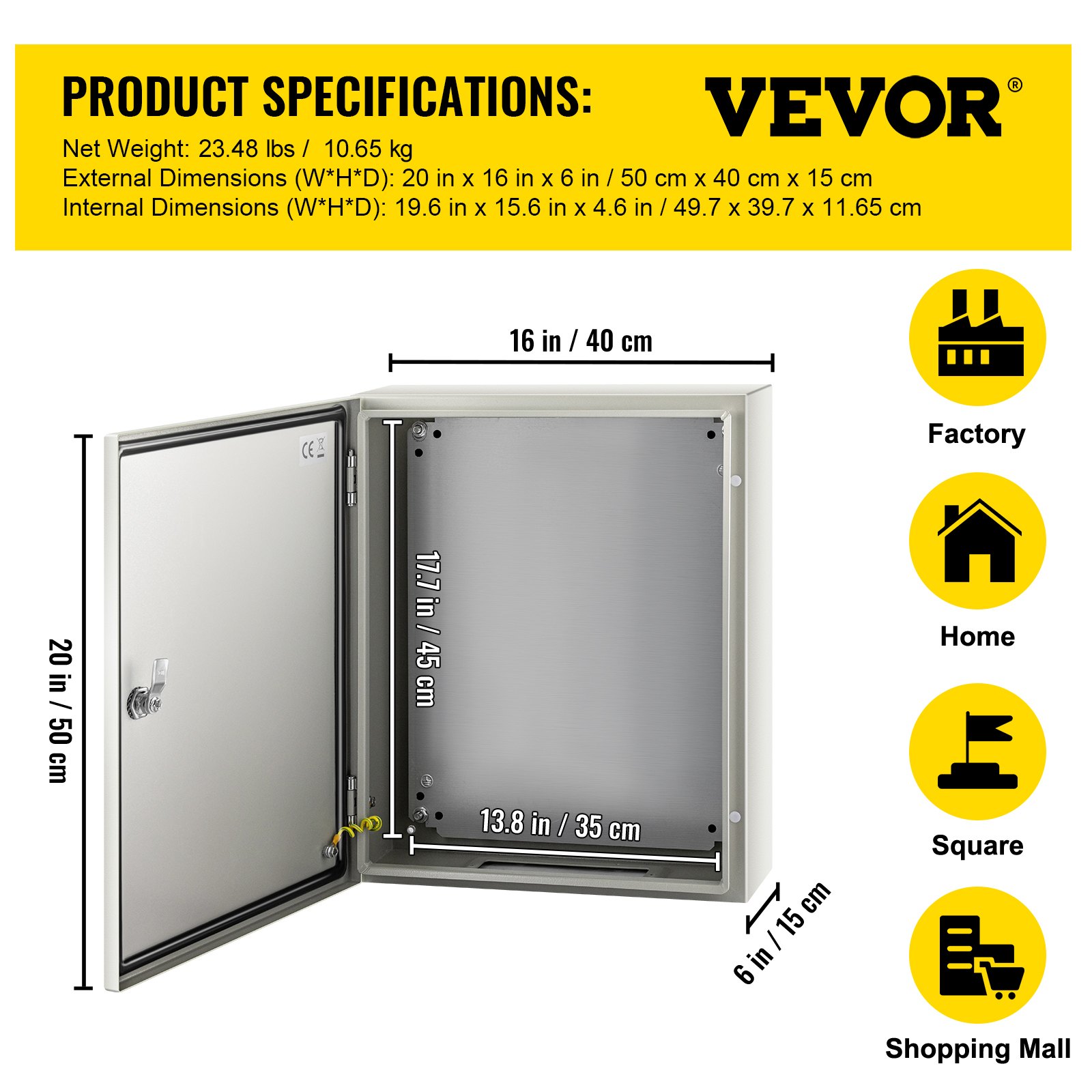

VEVOR nema steel enclosure open with dimensions labeled 20x16x6 inches.
Specifications
  • Model: SPT
  • Color: Gray White(RAL7035)
  • Material: 0.059'' / 1.5 mm Carbon Steel
  • Coating: Epoxy Polyester Powder Coating
  • Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
  • IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Connection Type: Hinged
  • Feature: Lockable, Waterproof
  • Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm
  • Outer Dimensions (H x W x D): 20'' x 16'' x 6'' / 50 x 40 x 15 cm
  • Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 4.6'' / 49.7 x 39.7 x 11.65 cm
  • Product Weight: 26.68 lbs / 12.1 kg
  • Certification: CE / ROHS Certification
VEVOR nema steel enclosure parts, including brackets, screws, nuts, gaskets, and keys.
Package Content
  • 1 x Electrical Box
  • 2 x Keys
  • 1 x Mounting Plate(The mounting plate has been assembled in the box)
  • 1 x Set of Wall Mounting Pendants
  • 1 x Bottom Sealing Plate
VEVOR nema steel enclosure box 20" x 16" x 6" mounted near a garage door.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR nema steel enclosure with open door and mounting accessories.
Electrical Enclosure Box--Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
  • Sturdy Steel Construction
  • IP66 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisite Details Design
VEVOR nema steel enclosure with solid construction and epoxy polyester coating.
Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.
VEVOR nema steel enclosure with ip66 protection for outdoor use, rubber strips included.
IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.
VEVOR nema steel enclosure with high-strength hinge and security lock.
Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.
VEVOR nema steel enclosure with wall-mounted design and complete accessories.
Effortless to Install & Use
The 2 MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.
VEVOR nema steel enclosure showcasing organize routes, ground screw, and pre-installed plate.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR nema steel enclosure for indoor and outdoor applications in various settings.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.
VEVOR nema steel enclosure parts, including brackets, screws, nuts, gaskets, and keys.
Package Content
  • 1 x Electrical Box
  • 2 x Keys
  • 1 x Mounting Plate(The mounting plate has been assembled in the box)
  • 1 x Set of Wall Mounting Pendants
  • 1 x Bottom Sealing Plate
VEVOR nema steel enclosure open with dimensions labeled 20x16x6 inches.
Specifications
  • Model: SPT
  • Color: Gray White(RAL7035)
  • Material: 0.059'' / 1.5 mm Carbon Steel
  • Coating: Epoxy Polyester Powder Coating
  • Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
  • IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Connection Type: Hinged
  • Feature: Lockable, Waterproof
  • Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm
  • Outer Dimensions (H x W x D): 20'' x 16'' x 6'' / 50 x 40 x 15 cm
  • Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 4.6'' / 49.7 x 39.7 x 11.65 cm
  • Product Weight: 26.68 lbs / 12.1 kg
  • Certification: CE / ROHS Certification

NEMA Steel Enclosure: IP66 Electrical Box for Ultimate Protection

We built this VEVOR NEMA steel enclosure to meet IP66 standards. It offers superior protection against dust and water. You can trust this rating for both outdoor and indoor applications. It is ideal for housing sensitive electrical components. The strong construction ensures long-lasting durability. The enclosure has a strong epoxy polyester powder coating. This coating provides extra surface protection against corrosion. In harsh environments, your equipment will remain safe and secure. And the IP66 rating guarantees reliable performance in any condition. This makes it suited for various projects.


Waterproof and Dustproof: Ideal Outdoor Electrical Junction Box

This is both waterproof and dustproof. We designed it to withstand outdoor conditions. The enclosure has a tight seal that prevents water intrusion. So, it’s suitable for outdoor installations. You can use it in rain, snow, or dusty environments. The enclosure will protect your electrical components. It is ideal for housing junction boxes and other equipment. The strong construction ensures you can handle tough conditions well.


Lockable Design: Secure Your Equipment Efficiently

It has a lockable design. It comes with a key lock for added security. This allows you to protect your equipment from unauthorized access. The lock is easy to use and provides a dependable seal. You can secure your electrical components safely. The lockability design is perfect for sensitive installations. It ensures your gear stays safe and secure. Trust this enclosure to keep your devices protected. The lock is an effective security feature, providing an extra layer of protection for your setup.


Easy Installation with Mounting Plate and Hardware

The installation process is quick and straightforward. This VEVOR NEMA steel enclosure is easy to install. It comes with a detachable galvanized backplate. The back plate provides a sturdy surface for mounting components. You can easily attach your electrical devices to the plate. Additionally, the enclosure includes mounting hardware. So, it makes the installation procedure quick and easy. For instance, you can secure the enclosure to a wall or other surface. Mounting plates and hardware simplify the setup. You can get your project up and running in no time. We designed this enclosure to ensure hassle-free installation.


Versatile Usage: Perfect for Various Electrical Projects

This is a versatile steel enclosure. You can use it for various electrical projects. It can be used in industrial settings. It is suitable for home projects. The enclosure can house circuit breakers, SPDs, and more. You can use this enclosure for solar systems or other electrical setups. The strong construction ensures that it can handle different environments. So, you can trust this cage for any electrical project. It offers reliable protection and security. The versatile design makes it incredibly useful for any setup.


Durable Construction: Heavy-Duty Steel for Long-Lasting Use

We build this NEMA steel enclosure to last. It's made from 0.059'" carbon steel. The steel is thick and heavy-duty. This ensures the enclosure can withstand wear and tear. We cleanly weld these joints for extra strength. The epoxy polyester powder coating adds durability, protecting against corrosion and other damage. Long-term use is suitable for this enclosure. You can trust it to endure through various conditions. Heavy-duty construction keeps it reliable. So, this makes it a great investment for any project.


Fast and Reliable Shipping with Secure Packaging

This enclosure features rapid and reliable shipping. The product is well-packaged to ensure safe delivery. It arrives with all necessary accessories. You can trust the packaging to protect your item. The secure packaging ensures your enclosure arrives in perfect condition. Fast shipping means you can start your project sooner. You can rely on VEVOR for efficient and trustworthy service. We guarantee your satisfaction throughout the purchasing process. This makes the buying process smooth and hassle-free. Trust VEVOR to deliver your enclosure promptly and safely.


See More

Specification

Model
SPT
Color
Gray White(RAL7035)
Material
0.059'' / 1.5 mm Carbon Steel
Coating
Epoxy Polyester Powder Coating
Mounting Plate
0.079'' / 2 mm Detachable Galvanized Backplate
IP Rating
Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type
Hinged
Feature
Lockable, Waterproof
Galvanized Backplate Dimensions
17.7" x 13.8" / 45 x 35 cm
Outer Dimensions (H x W x D)
20'' x 16'' x 6'' / 50 x 40 x 15 cm
Inner Dimensions (H x W x D)
19.6'' x 15.6'' x 4.6'' / 49.7 x 39.7 x 11.65 cm
Product Weight
26.68 lbs / 12.1 kg
Certification
CE / ROHS Certification
Questions and Answers
3 Questions
We bought one of these enclosures for testing a new project. We need the box to be in black have cooling louvre vents to be added to the sides of the box. Do you have that available?
No.
By vevor
What's your availability on this product??
The electrical box comprises premium carbon steel, with a sophisticated lock core, high-strength hinge, sealing rubber strip, and IP65 protection level to well-protect the internal electrical safety in harsh environments. It is widely used for indoor and outdoor applications to protect circuits from liquids and corrosion, such as electricity, construction, hotel, and other industries.
By vevor
We will be replacing one enclosure on our golf course and plan on taking the back plate off and fixing overtop of the current controls we have. Is there a type of gasket or weatherproof strip on the backside of the box once the cover is removed? Or should it still be considered weatherproof?
Do you want to remove the cover? Because the sealing strip is on the cover, and the cover and bottom box are sealed by the lock. The product is not waterproof if the cover is removed.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
113 Review(s)
Clear filters
John John
Mr
I purchased the 20x16x10 steel enclosure to build a 5kW LiFePO4 battery. The enclosure came faster than I expected and arrived with a good amount of hardware for mounting components inside the box and the box onto a wall. High quality, exceeds expectations.
Nice Box Nice Box
Nice Box
This box seems to be of good quality with nice seals around the door and nice latches to keep the door closed. The back plate is removable and is made of quite heavy duty what appears to be galvanized steel. Mounting hardware is included.
Branson's Branson's
Storage Owner
I used these boxes as sub-panels for our storage unit facility. Each box houses a din rail with mini breakers to limit the power usage in each unit. The boxes worked great and our electrician that did the install was very happy with them. I'll be swapping out the standard key with custom key to keep people out of them.
Louis Senofonte Louis Senofonte
Owner Seno Graphics LLC
I plan on purchasing many more in the near future they work great for my invention. I would like a discount on future purchases, I have purchased 13 of these this month. Can I buy them wholesale in quantities of 10.
lou lou
owner
i had tried this product for my project and found it perfect for my need. i have completed adding my components to the first one i purchased from you. it worked so well i purchased another 11 enclosures from you.
Peter Peter
solid and well thought through
Good solid designs that are well thought through.
Don S. Don S.
Good price and quality
Very good quality and work perfect for what I needed
Peter D Peter D
Impressed!
Using this for PLC bench testing, impressed with the cutouts, and quality. The key to open it could be a bit more durable, or just make it flathead compatible.
John Henson John Henson
VEVOR NEMA Steel Enclosure
I admit, I did caulk anything that seemed like it might let water in. Even with that said, It's still a great box for the money.
SoapyBuoy SoapyBuoy
IT Manager
I'm the IT Mgr for an agricultural cooperative and much of our hardware is in very dusty, dirty environments. This is being used to house a SFF PC and PoE switch in a grain dump pit. We mounted it on the block wall, placed the hardware inside and all is well. This box is built very well and I like the fact that it is fully grounded, including the door.
