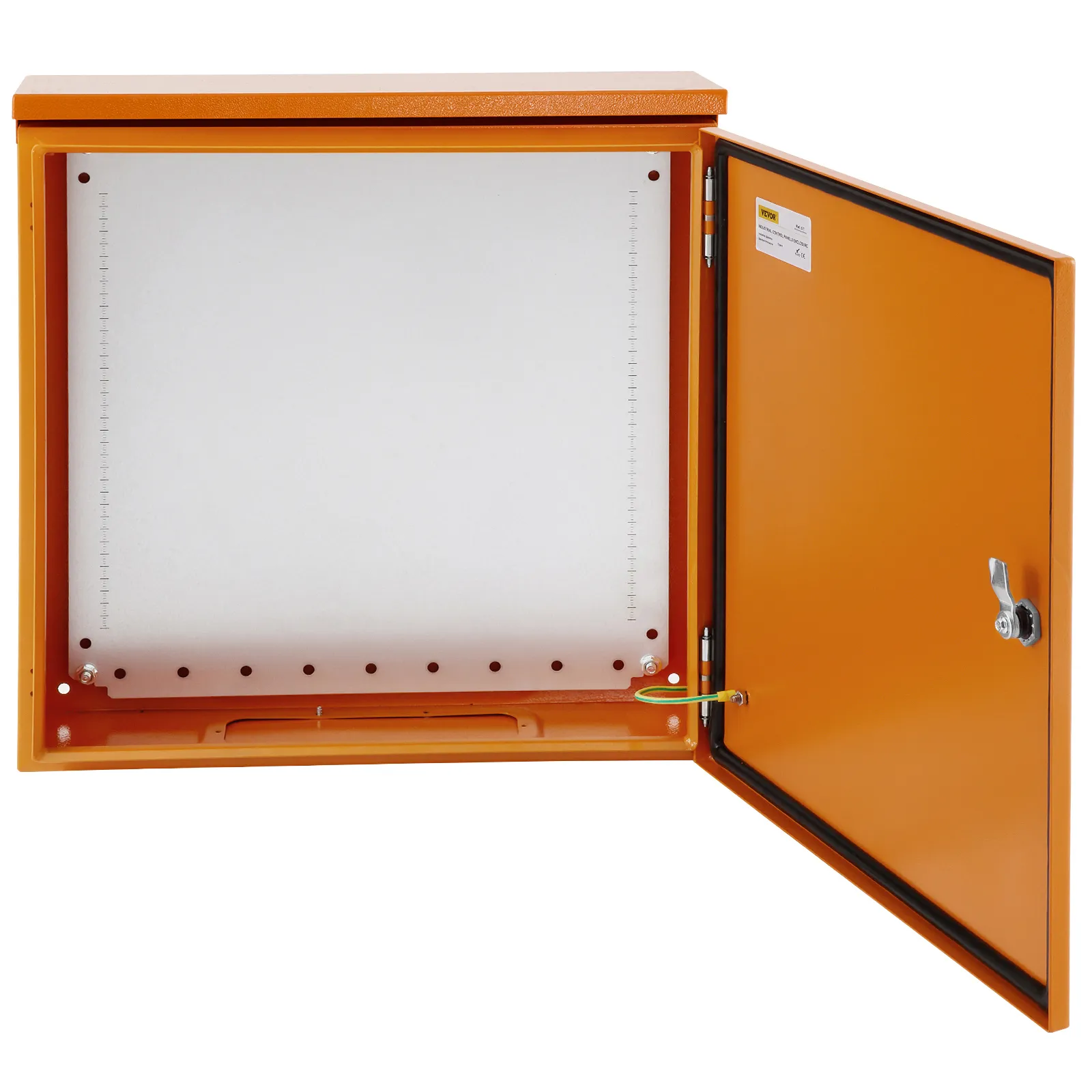

orange VEVOR electrical enclosure with open door, revealing empty interior and secure locking mechanism. worker examines VEVOR electrical enclosure with wiring and circuit breakers against a white brick wall. VEVOR electrical enclosure made with 0.05 in cold-rolled carbon steel, showcasing durability and corrosion resistance. VEVOR electrical enclosure with waterproof sealing strip protecting against dust, rain, uv, and snow. VEVOR electrical enclosure with high-strength hinge, quality safety lock, bottom outlet, ground screw. easy to install VEVOR electrical enclosure with back corner design and all necessary accessories included. VEVOR electrical enclosure, dimensions 20x20x6 inches, orange with open door, icons for use at home and factory.
TUL50X50X15CMZPAQV0

VEVOR Electrical Enclosure, 20"x20"x6", Tested to UL Standards NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain H

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

20 x 20 x 6 inch

  • 20 x 20 x 6 inch
  • 28 x 20 x 8 inch
  • 24 x 24 x 12 inch
  • 24 x 16 x 12 inch
  • 24 x 16 x 10 inch
  • 24 x 16 x 8 inch
  • 24 x 24 x 8 inch

About this item

  • Sturdy Steel Construction: The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
  • IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
  • Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
  • Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
  • Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Electrical Enclosure, 20"x20"x6", Tested to UL Standards NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain H
20 x 20 x 6 inch
VEVOR electrical enclosure box, 20x20x6”, cold rolled carbon steel, ce and tuv certified.
orange VEVOR electrical enclosure with an open door, showcasing interior mounting space.
Electrical Enclosure Box--Begin your security setups!
20 x 20 x 6 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR electrical enclosure made of carbon steel with powder coating, featuring high strength and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.

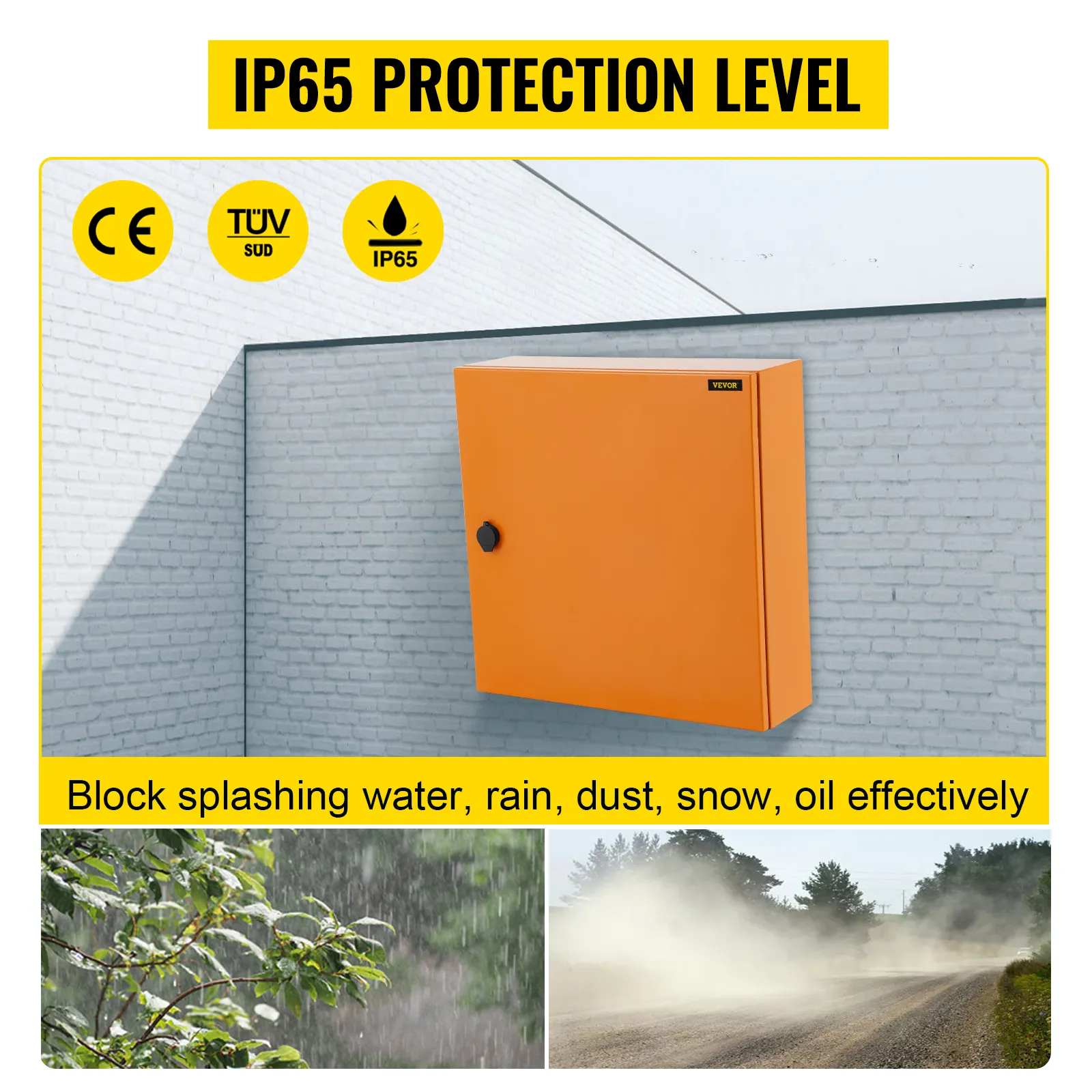

VEVOR electrical enclosure, ip65 protection against water, rain, dust, snow, illustrated with images.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.

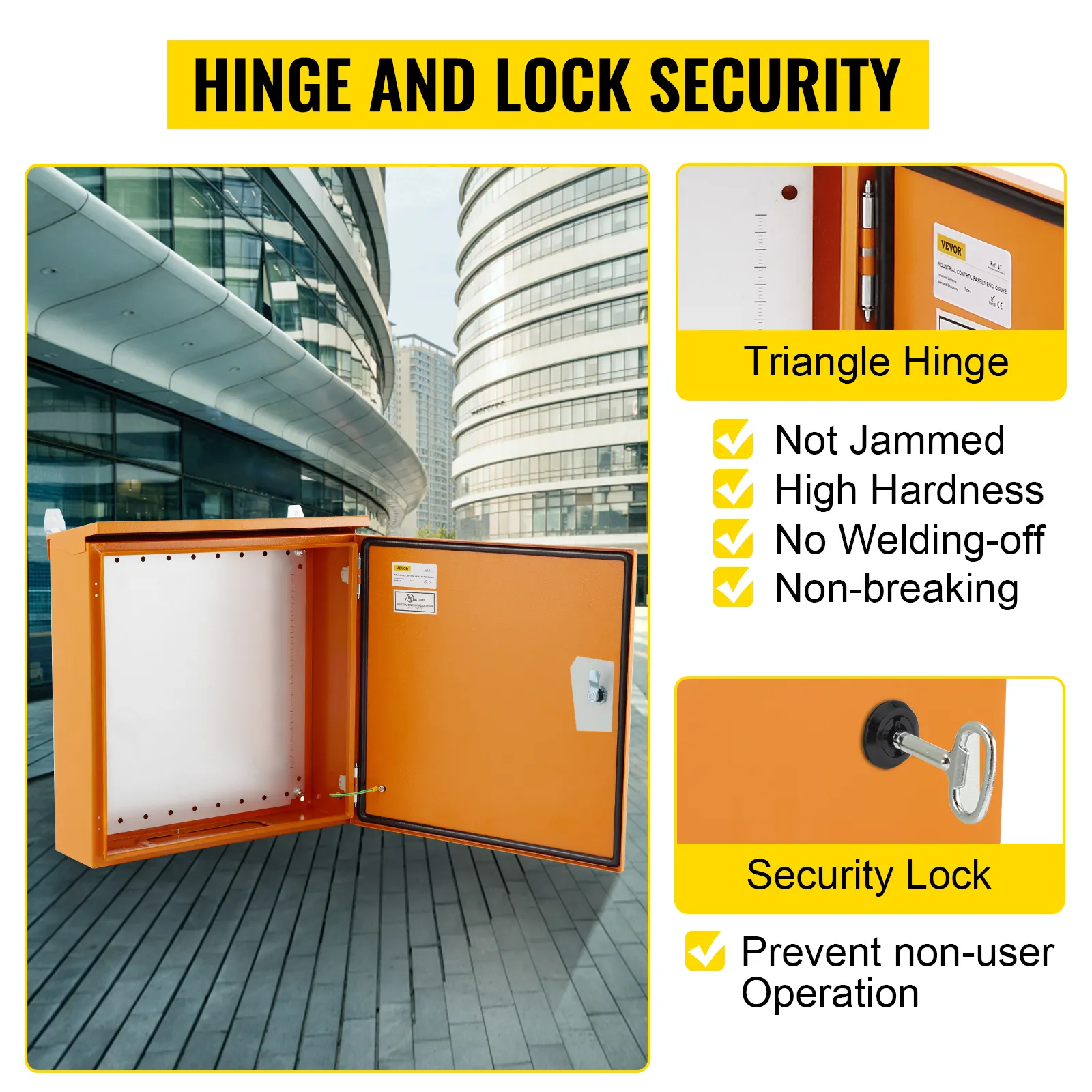

VEVOR electrical enclosure with hinged door and secure lock, ideal for outdoor use.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.

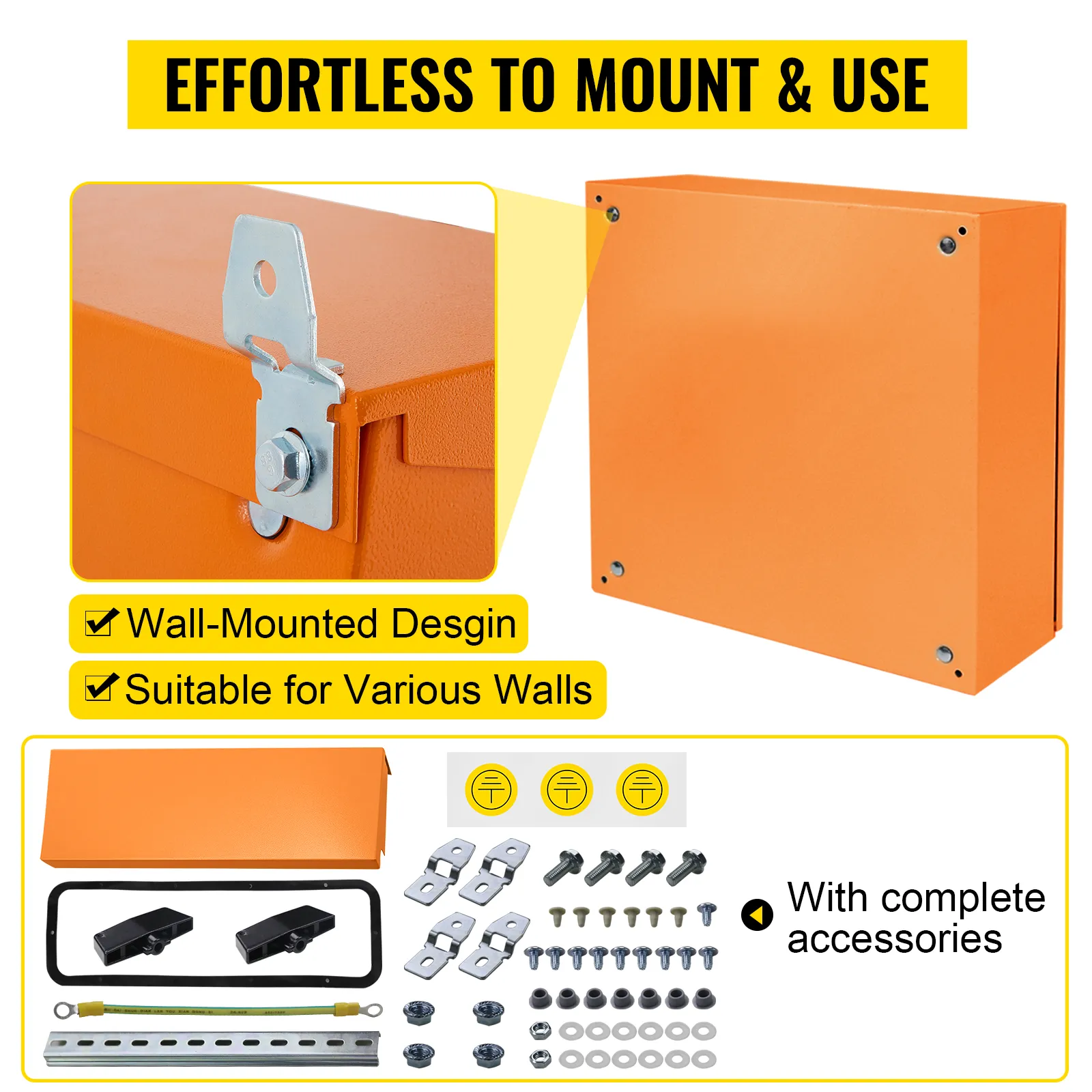

VEVOR electrical enclosure, wall-mounted with hardware, easy installation, orange, includes accessories.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.

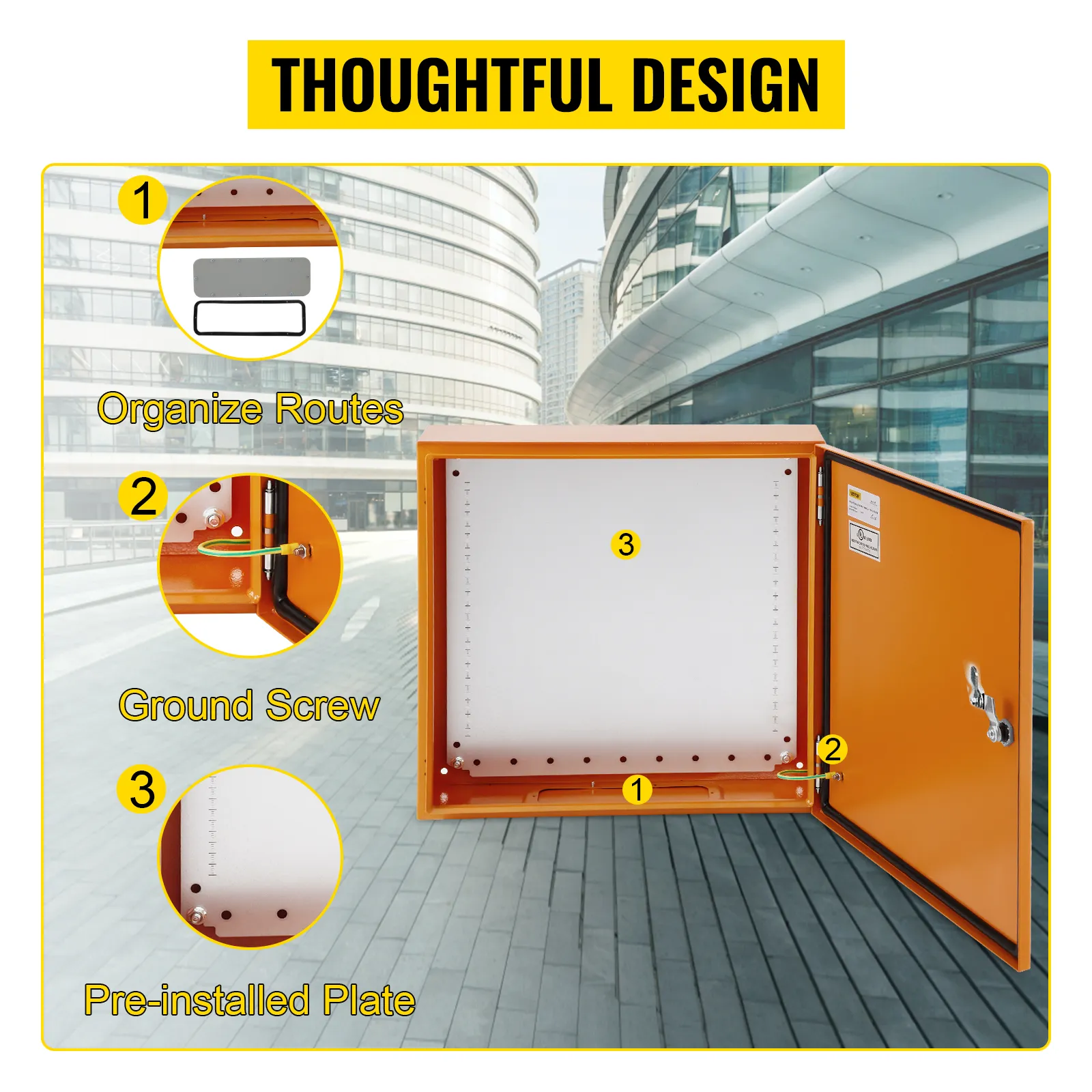

VEVOR electrical enclosure with organized routes, ground screw, and pre-installed plate. thoughtful design.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
extensive application of VEVOR electrical enclosure: factory, school, courtyard, power grid, shopping mall, construction site.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
VEVOR electrical enclosure, orange box with dimensions 20x20x6 inches (50x50x15 cm), door open.
Specifications
  • Model: ST5515
  • Color: RAL 2000 (Orange)
  • Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 20 x 20 x 6 in / 50 x 50 x 15 cm
  • Inner Dimensions(H x W x D): 19.6 x 19.6 x 5 in / 49.7 x 49.7 x 12.7 cm
  • Galvanized Backplate Dimensions(H x W): 18.3 x 18 in / 46.5 x 45 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 36.6 lbs / 16.6 kg

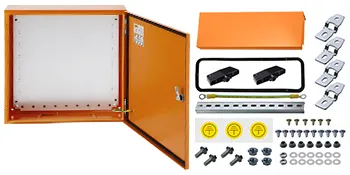

orange VEVOR electrical enclosure with open door, mounting accessories, screws, seals, and brackets.
Package Content
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure box, 20x20x6”, cold rolled carbon steel, ce and tuv certified.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
orange VEVOR electrical enclosure with an open door, showcasing interior mounting space.
Electrical Enclosure Box--Begin your security setups!
20 x 20 x 6 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
VEVOR electrical enclosure made of carbon steel with powder coating, featuring high strength and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
VEVOR electrical enclosure, ip65 protection against water, rain, dust, snow, illustrated with images.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
VEVOR electrical enclosure with hinged door and secure lock, ideal for outdoor use.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
VEVOR electrical enclosure, wall-mounted with hardware, easy installation, orange, includes accessories.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
VEVOR electrical enclosure with organized routes, ground screw, and pre-installed plate. thoughtful design.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
extensive application of VEVOR electrical enclosure: factory, school, courtyard, power grid, shopping mall, construction site.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
orange VEVOR electrical enclosure with open door, mounting accessories, screws, seals, and brackets.
Package Content
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure, orange box with dimensions 20x20x6 inches (50x50x15 cm), door open.
Specifications
  • Model: ST5515
  • Color: RAL 2000 (Orange)
  • Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 20 x 20 x 6 in / 50 x 50 x 15 cm
  • Inner Dimensions(H x W x D): 19.6 x 19.6 x 5 in / 49.7 x 49.7 x 12.7 cm
  • Galvanized Backplate Dimensions(H x W): 18.3 x 18 in / 46.5 x 45 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 36.6 lbs / 16.6 kg

Electrical Enclosure Perfect for Diverse Outdoor Conditions

The VEVOR electrical enclosure's strong construction keeps your electrical components protected. Its seamless foam gasket ensures a tight seal. This makes it ideal for outdoor use, whether it's rain or shine. It maintains performance from -40 to 122°F. The finish is durable and chip-resistant, ensuring longevity. Protect your sensitive equipment with confidence. Whether you are looking for an electric charger, solar combiner, or breaker switch, this enclosure delivers reliable results.


Versatile and Easily Customizable IP65 Waterproof Junction Box

Unlike other junction boxes, the VEVOR electrical enclosure is the best option for unmatched versatility. The door can be flipped right or left opening. It has a removable backplate for easy component mounting. You can drill the bottom plate to make it easy to mount your components. Use it for dozens of projects with specific requirements. It adapts easily. Perfect for housing EV chargers or various automation modules. Inside, you'll find many mounting points for secure installations. This box meets IP65 waterproof standards. This standard keeps components dry. Ideal for DIY enthusiasts and professionals alike. Extend its use further with its easy customisation.


Sturdy Construction and Secure Locking System

The VEVOR electrical enclosure is constructed out of thick, cold-rolled steel. It’s incredibly strong and meets NEMA Type 4 standards. The robust construction ensures long-lasting use. Powder-coated finish resists chipping and rust. Lock system offers security, although some may upgrade it. This enclosure stands firm. Protect your valuable components with a secure, well-built enclosure. Heavy-duty and designed to last.


Quick and Reliable Customer Support for Outdoor Electrical Box

The VEVOR electrical enclosure provides prompt and effective customer support. Any issues get resolved quickly. In case of delivery problems, quick refunds ensure satisfaction. The company is responsive and helpful. Customer service is readily available to handle any queries. Choose VEVOR, knowing you're in good hands. Experience seamless support that meets your needs promptly. Trust in reliable service that prioritises your satisfaction. Your investments are well protected with excellent support.


Cost-Effective Solution Compared to Local Suppliers

This enclosure provides amazing value. It's significantly cheaper than local suppliers. High-quality materials and construction at a lower cost. Perfect for budget-conscious buyers. You get more for your money without sacrificing quality. It provides exceptional durability and performance. This makes it an ideal choice for both individuals and businesses. Achieve your project goals without breaking the bank. Get an affordable solution for all your electrical needs. Save money while enjoying high performance and quality.


Ideal for DIY Projects and Professional Installations

The EV chargers or housing control panels are ideal for a wide range of projects. DIY enthusiasts find it easy to customise and install. Professionals appreciate the robust build and versatile design. It doesn’t matter whether you're working on home, workshop, or industrial installations. Use it for installing an EV charger or if you have concerns about external conditions affecting components. The simple customisation options make it perfect for various applications. Make your complex projects easier with this versatile enclosure. Confidence in your installations begins with the right products.


High-Quality Materials and Finish for Long-Lasting Use

It's durable. Water, dust, and extreme temperatures don't affect it. Construction and materials give you a long lifespan. Even with significant modifications, it stays strong. The seamless foam gasket offers outstanding sealing ability. You can trust it for both indoor and outdoor applications. Quality meets and exceeds expectations. This box is built to withstand the tests of time and elements. Expect long-lasting reliability and safety for your electrical components. Use it confidently for all your critical or sensitive installations.


See More

Specification

Model
ST5515
Color
RAL 2000 (Orange)
Body Material
0.05 in / 0.12 cm Cold-Rolled Carbon Steel
Inner Plate
0.06 in / 0.15 cm Galvanized Plate
Finish
Powder Coating(Surface Pickling and Passivization)
Certification
TUV, CE, 508A (CSA C22.2 No. 14-13.)
Ratings
NEMA Type 4
Protection Grade
IP65, IK10
Construction
Continuously Welded
Ambient Temperature
-40 to 122℉ / -40 to 55°C
Gasket Material
Seamless Foam/ Nylon(washer or plug)
Outer Dimensions(H x W x D)
20 x 20 x 6 in / 50 x 50 x 15 cm
Inner Dimensions(H x W x D)
19.6 x 19.6 x 5 in / 49.7 x 49.7 x 12.7 cm
Galvanized Backplate Dimensions(H x W)
18.3 x 18 in / 46.5 x 45 cm
Mounting Hole Diameter(± 0.2 cm)
0.35 in / 0.9 cm
Net Weight
36.6 lbs / 16.6 kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
36 Review(s)
Clear filters
Jerry Kloss Jerry Kloss
Very pleased
The only reason I did not give it five stars was because I could not get the rain cap to fit but decided it didn’t need it anyways
Guy Lestician Guy Lestician
Great product
Great product, and beats out the larger compies units I used to purchase at a 1/3 the price. Performs well in all environments as stated. I am purchasing more.
VEVOR Customer VEVOR Customer
I use the box for housing breaker switches under 44 panel ground mount solar array
Very well built and nice locking system. It appears water tight and bug proof.
Rog Rog
ENG
Great Product, The quality is as high as I've ever work with with other products in the category. Highly recomended
Snik7 Snik7
solid
has a small hood for helping with heat. nice unit for the price point
Scott Jenkins Scott Jenkins
Good product, would buy again.
Used to house a gate opener LiFePo battery and solar charger. Very well made. Nice finish. Would buy again and recommend to a friend.
Kyle Kyle
Maintenance mechanic
Very well built and $400 cheaper than local electric suppliers it is very heavy made out of thick steel good rubber seals
Joe Joe
Great Box
I used these (I bought two) for a project in Alaska the and they worked great in the negative degree weather. Easy to install, easy to cut into and good quality materials.
Nguyen Minh Nguyen Minh
Perfect for securing my outdoor ev charger
I need something that is lockable and has a bottom opening so I can push the j1772 and the nema 14-50 plugs of the ev charger through. This box was perfect. I have the eutel maxicharger.
Johnny M. Johnny M.
Good buy
I saw reviews that they have arrived bent, mine came in good shape, and I like the quality of paint job. It was the wrong color, but the company was great to work with and worked to fix the issue. I was happy that they were willing to fix the issue and didn't give me a hard time, that I plan on ordering another for a different project.
