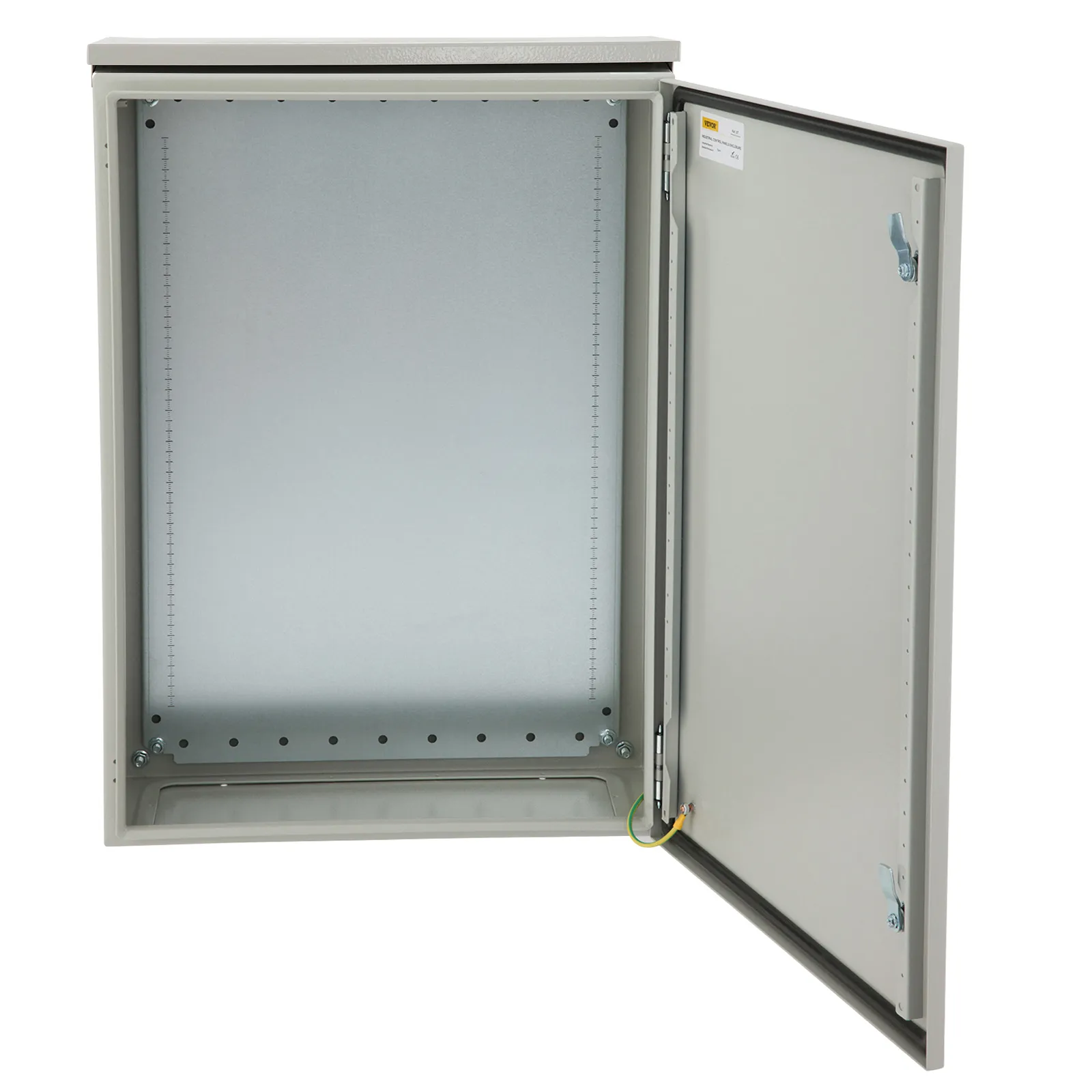

VEVOR electrical enclosure with open door, showcasing spacious interior and secure locking mechanism. VEVOR electrical enclosure with wiring and power arrangement, hand and worker in hard hat shown. VEVOR electrical enclosure with durable steel construction, strong tightness, high hardness, and corrosion resistance. VEVOR electrical enclosure with waterproof sealing strip, protecting against dust, rain, uv, and snow. VEVOR electrical enclosure with high-strength hinge, quality safety lock, bottom outlet, ground screw. VEVOR electrical enclosure with back corner design, easy to install and operate, includes accessories. VEVOR electrical enclosure 24x16x12 in with factory, home, power grid, and shopping mall icons.
TUL60X40X30CMHWI5V0

VEVOR Electrical Enclosure, 24"x16"x12", Tested to UL Standards NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain

CLEARANCE
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

24 x 16 x 12 inch

  • 20 x 20 x 6 inch
  • 28 x 20 x 8 inch
  • 24 x 24 x 12 inch
  • 24 x 16 x 12 inch
  • 24 x 16 x 10 inch
  • 24 x 16 x 8 inch
  • 24 x 24 x 8 inch

About this item

  • Sturdy Steel Construction: The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
  • IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
  • Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
  • Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
  • Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Electrical Enclosure, 24"x16"x12", Tested to UL Standards NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain
24 x 16 x 12 inch
VEVOR electrical enclosure box, 24" x 16" x 12", cold rolled carbon steel, mounted in a modern room.
open VEVOR electrical enclosure showcasing internal mounting panel and built-in grounding wire.
Electrical Enclosure Box--Begin your security setups!
24 x 16 x 12 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

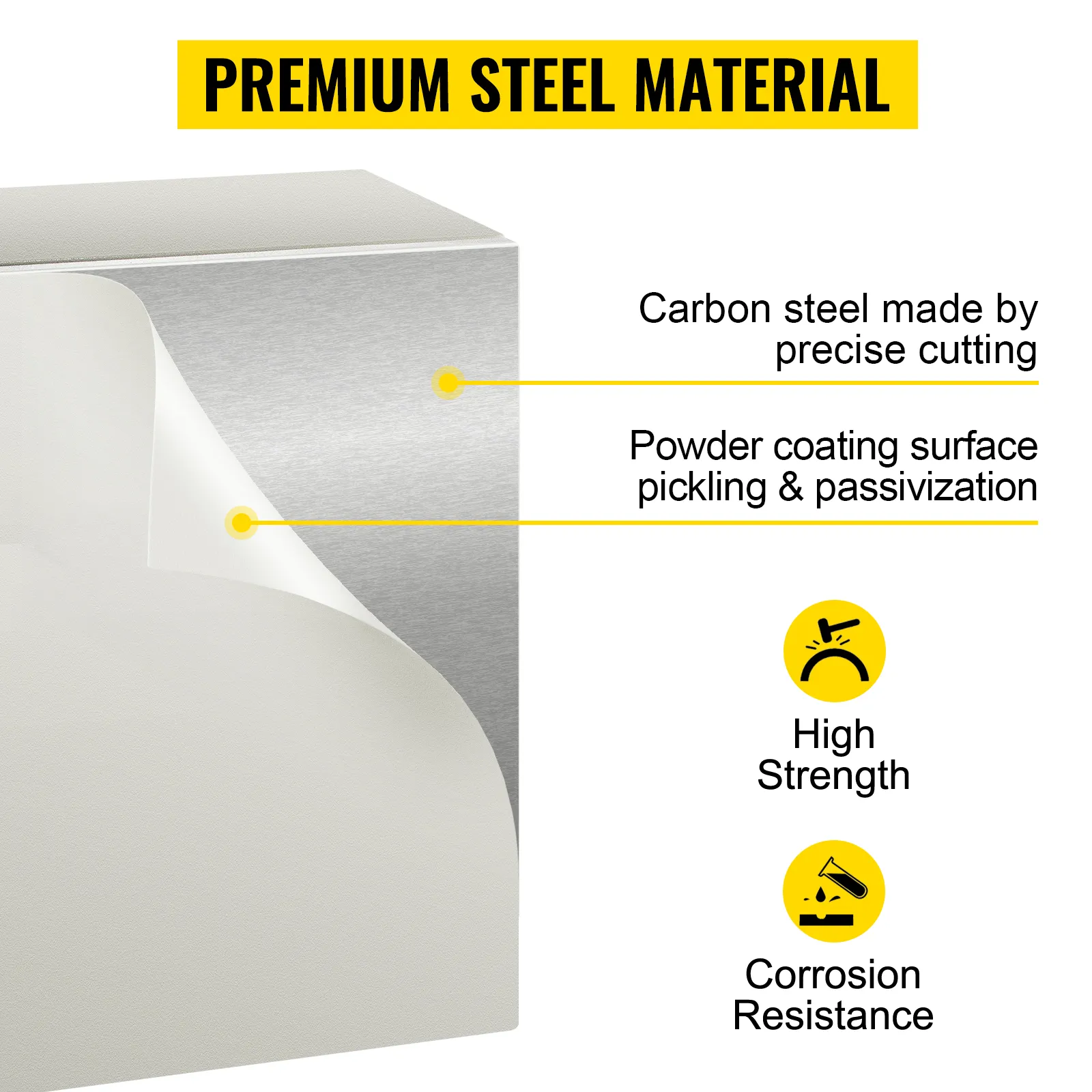

VEVOR electrical enclosure showing carbon steel with powder coating for high strength and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.

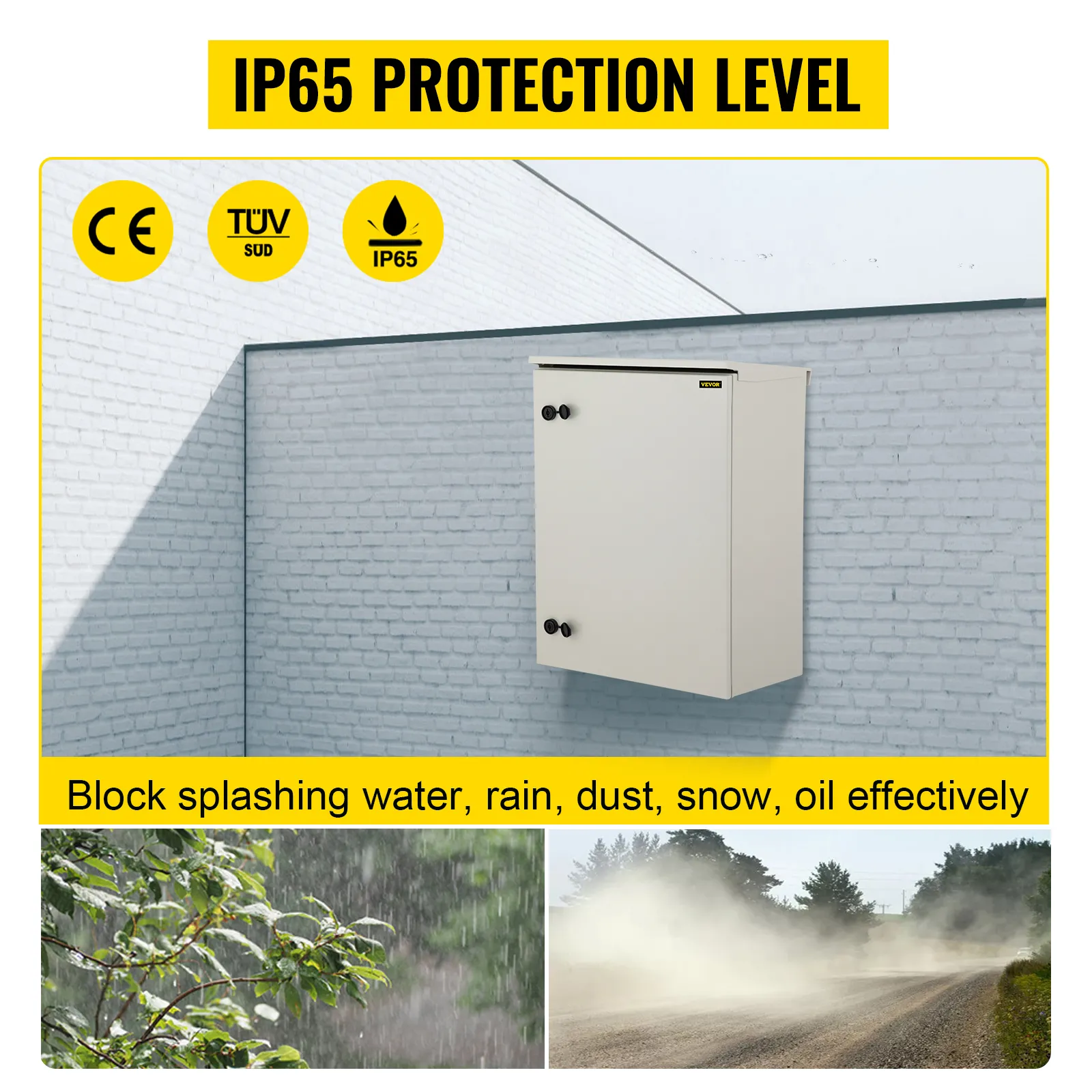

VEVOR electrical enclosure with ip65 protection against water, dust, rain, snow, and oil. ce, tüv certified.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.

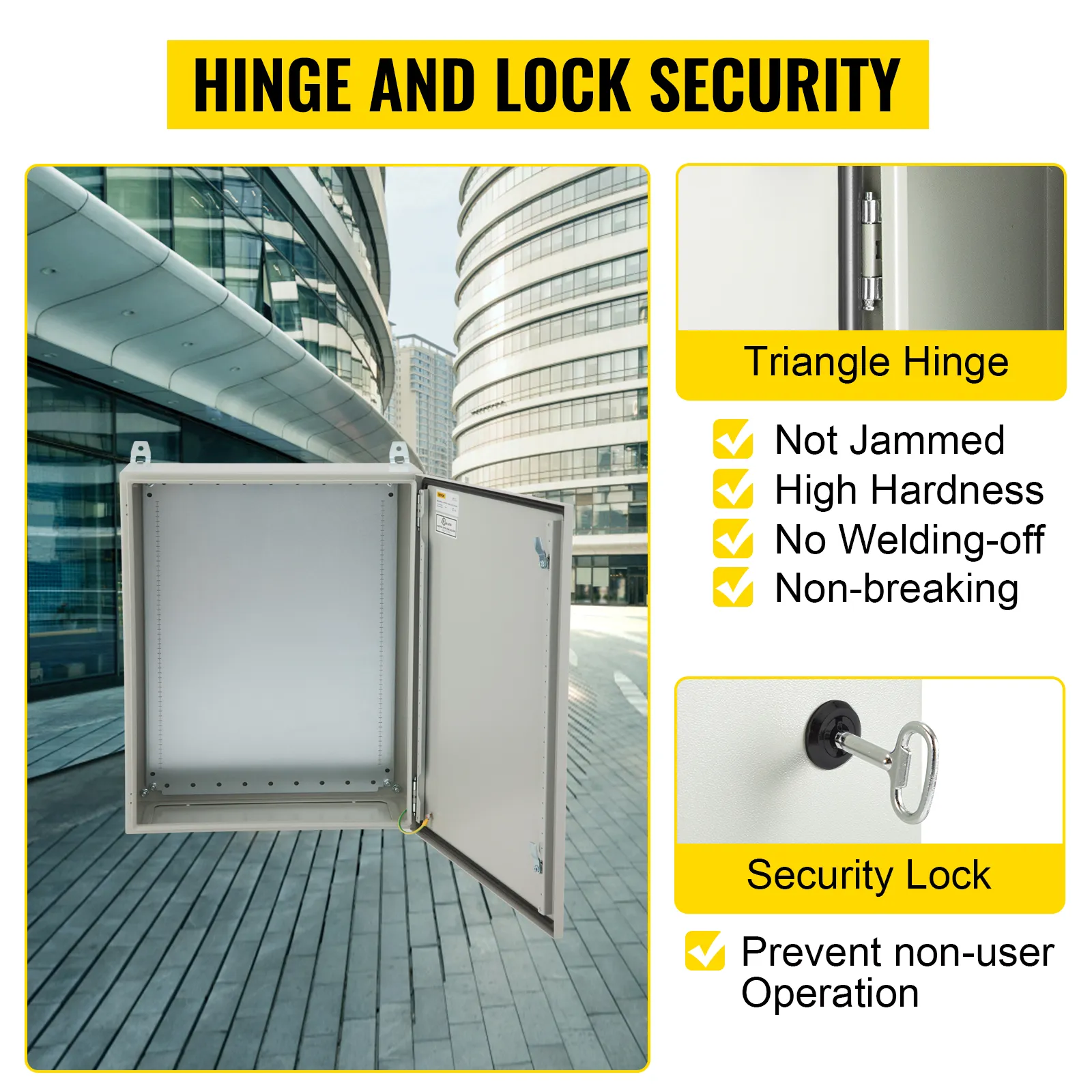

VEVOR electrical enclosure with security lock, triangle hinge, and durability features in a modern setting.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.

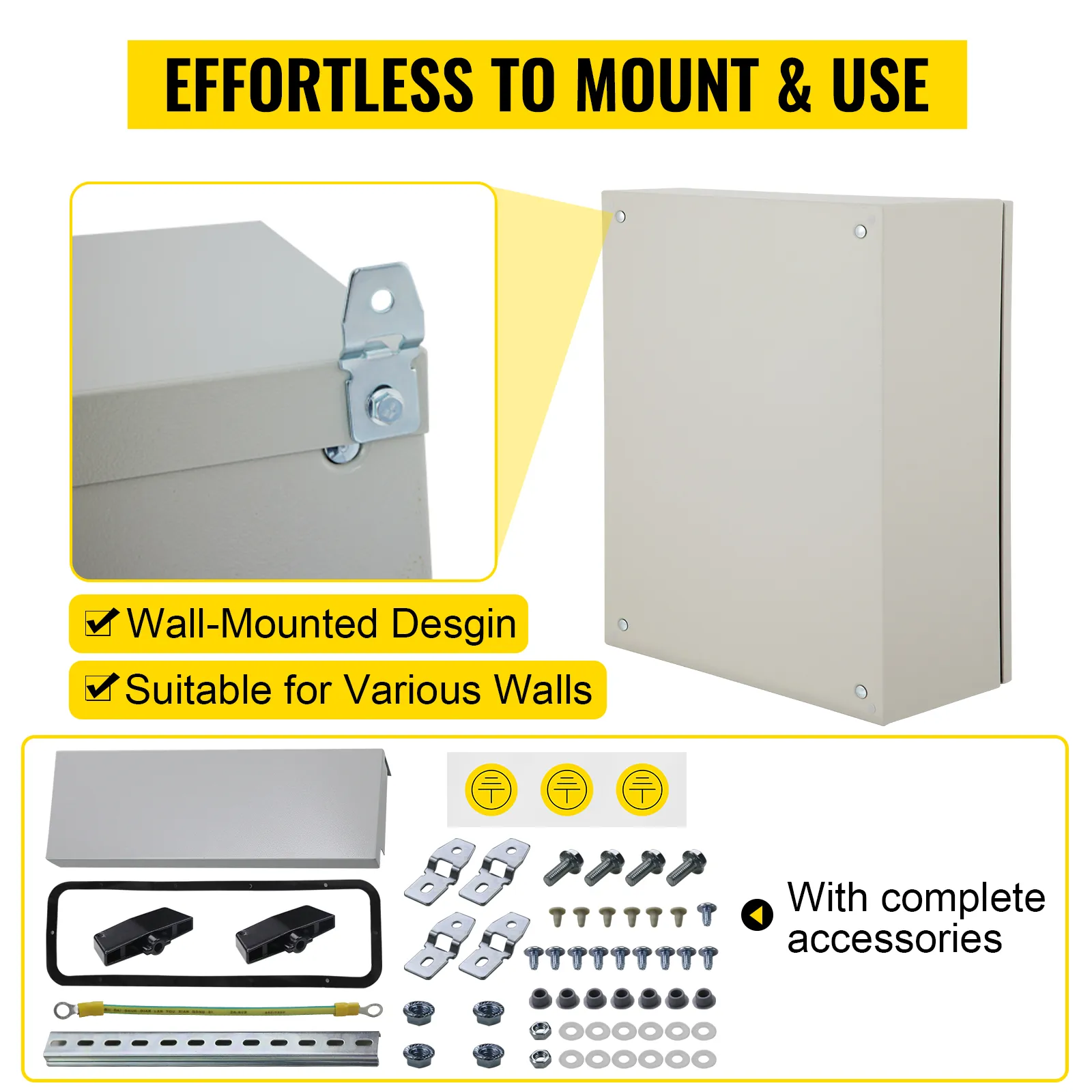

VEVOR electrical enclosure, wall-mounted design, complete with mounting accessories, suitable for various walls.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.

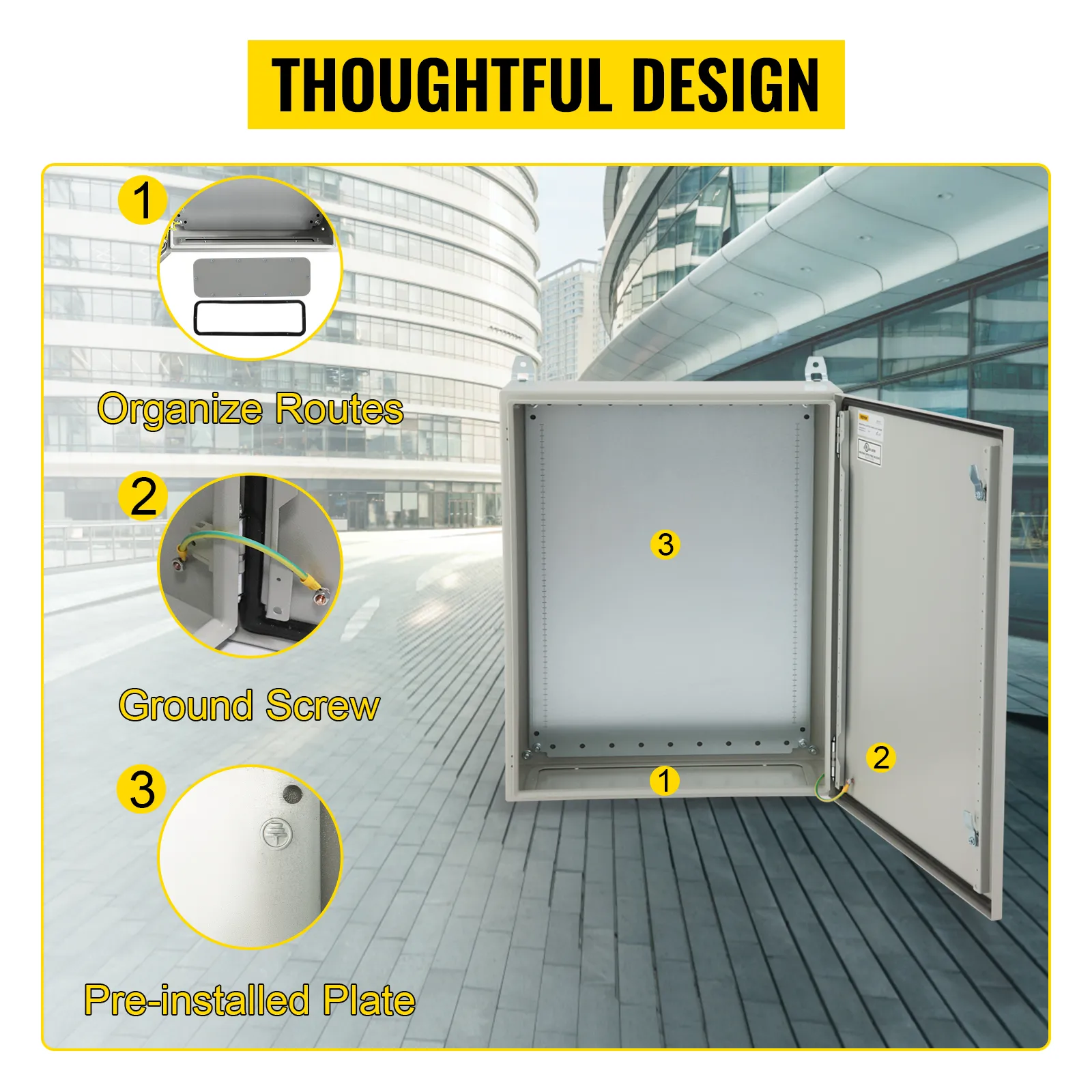

VEVOR electrical enclosure with pre-installed plate, ground screw, and organized routes, thoughtful design.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR electrical enclosure use: factory, school, courtyard, power grid, shopping mall, construction site
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.

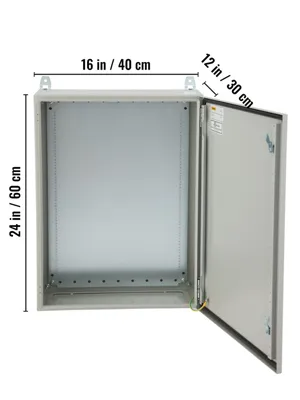

open VEVOR electrical enclosure, 24 in x 16 in x 12 in, metal construction with mounting brackets.
Specifications
  • Model: ST6430
  • Color: RAL 7035 (White Gray)
  • Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 24 x 16 x 12 in / 60 x 40 x 30 cm
  • Inner Dimensions(H x W x D): 23.5 x 15.6 x 11 in / 59.7 x 39.7 x 27.7 cm
  • Galvanized Backplate Dimensions(H x W): 22.2 x 14 in / 56.5 x 35 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 44.53 lbs / 20.2 kg

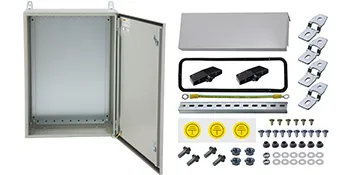

open gray VEVOR electrical enclosure with assorted mounting hardware, screws, and seals against white background.
Package Content
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure box, 24" x 16" x 12", cold rolled carbon steel, mounted in a modern room.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
open VEVOR electrical enclosure showcasing internal mounting panel and built-in grounding wire.
Electrical Enclosure Box--Begin your security setups!
24 x 16 x 12 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
VEVOR electrical enclosure showing carbon steel with powder coating for high strength and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
VEVOR electrical enclosure with ip65 protection against water, dust, rain, snow, and oil. ce, tüv certified.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
VEVOR electrical enclosure with security lock, triangle hinge, and durability features in a modern setting.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
VEVOR electrical enclosure, wall-mounted design, complete with mounting accessories, suitable for various walls.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
VEVOR electrical enclosure with pre-installed plate, ground screw, and organized routes, thoughtful design.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR electrical enclosure use: factory, school, courtyard, power grid, shopping mall, construction site
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
open gray VEVOR electrical enclosure with assorted mounting hardware, screws, and seals against white background.
Package Content
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
open VEVOR electrical enclosure, 24 in x 16 in x 12 in, metal construction with mounting brackets.
Specifications
  • Model: ST6430
  • Color: RAL 7035 (White Gray)
  • Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 24 x 16 x 12 in / 60 x 40 x 30 cm
  • Inner Dimensions(H x W x D): 23.5 x 15.6 x 11 in / 59.7 x 39.7 x 27.7 cm
  • Galvanized Backplate Dimensions(H x W): 22.2 x 14 in / 56.5 x 35 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 44.53 lbs / 20.2 kg

Electrical Enclosure with Sturdy Steel Construction for Harsh Environments

The VEVOR electrical enclosure is a reliable choice for both indoor and outdoor applications. You can trust this enclosure to protect your equipment effectively. The strong construction ensures long-lasting performance, making it an incredibly worthwhile investment.


IP65 Waterproof Outdoor Electrical Box with Enhanced Sealing

The VEVOR outdoor electrical box is rated IP65, which means it is dustproof and waterproof. The foam and nylon gasket offer excellent sealing, keeping dirt and water out of the box. This feature is important for outdoor installations where the box faces various weather conditions. The rain hood prevents water from entering when the lid is open, keeping internal components dry and safe. High sealing performance ensures your equipment stays protected, even in heavy rain, making it a reliable choice for outdoor applications. You can trust this enclosure to keep your devices secure and functional.


Reinforced Lock & Hinge System for Increased Security

The waterproof electrical enclosure has a strong lock and hinge system. A high-quality lock core increases security and lockability. This makes it less likely to fall off, ensuring your equipment stays safe. Squeezing can damage the high-strength hinged lid. This feature is crucial for outdoor installations where security is a top priority. The reinforced lock and hinge system ensures peace of mind. You know your gear is well protected. This makes it a reliable option for safeguarding valuable components. Trust this enclosure to keep your devices safe and secure.


Convenient Operation with Detachable Mounting Backplate

This IP65 junction box is simple to operate. It comes with a detachable galvanized mounting backplate. This makes it simple for you and your friends to install electrical components inside the box. The box comes with complete accessories and features four mounting holes on the back for quick wall fixing. That saves time and effort during installation. You can set up your equipment without hassle. Its convenient design ensures a smooth and efficient installation process.


Exquisitely Designed Details for Versatile Applications

The bottom of the box is made for threading. The grounding screws are pre-installed, and the cutouts are smooth to prevent cable damage. This thoughtful design makes it suitable for various applications. Whether for industrial equipment or home devices, this enclosure fits well. The versatile design ensures it meets different needs effectively; therefore, it is a flexible choice for multiple projects. You can trust this cage to provide reliable performance in diverse scenarios.


Ideal for Securing Outdoor Equipment with Versatile Mounting Options

The perfect electrical enclosure is ideal for securing outdoor gear. It has flexible mounting options, making it suitable for different setups. Durable steel construction and an IP65 rating ensure it endures harsh outdoor conditions. The reinforced lock and hinge system adds an extra layer of security. This makes it ideal to protect valuable outdoor equipment. You can trust this enclosure to keep your devices safe and functional in various outdoor settings. Widening mounting options make it a practical choice for multiple applications. This enclosure was built to meet the demands of outdoor installations effectively.


Excellent Value with High-Quality Build and Competitive Pricing

The VEVOR electrical enclosure offers excellent value. This electrical enclosure offers great value because it combines high-quality build with competitive pricing. The cold-rolled carbon steel construction ensures durability and strength. IP65 rating and robust lock system enhance its reliability. This makes it cost-effective for protecting your equipment. Competitive pricing does not compromise on quality, making it an intelligent investment. This enclosure provides reliable performance at an affordable price. The exceptional value ensures you receive optimal protection for your devices without exceeding your budget. Therefore, this is a smart choice for both budget-conscious and quality-focused buyers.


See More

Specification

Model
ST6430
Color
RAL 7035 (White Gray)
Body Material
0.05 in / 0.12 cm Cold-Rolled Carbon Steel
Inner Plate
0.06 in / 0.15 cm Galvanized Plate
Finish
Powder Coating(Surface Pickling and Passivization)
Certification
TUV, CE, 508A (CSA C22.2 No. 14-13.)
Ratings
NEMA Type 4
Protection Grade
IP65, IK10
Construction
Continuously Welded
Ambient Temperature
-40 to 122℉ / -40 to 55°C
Gasket Material
Seamless Foam/ Nylon(washer or plug)
Outer Dimensions(H x W x D)
24 x 16 x 12 in / 60 x 40 x 30 cm
Inner Dimensions(H x W x D)
23.5 x 15.6 x 11 in / 59.7 x 39.7 x 27.7 cm
Galvanized Backplate Dimensions(H x W)
22.2 x 14 in / 56.5 x 35 cm
Mounting Hole Diameter(± 0.2 cm)
0.35 in / 0.9 cm
Net Weight
44.53 lbs / 20.2 kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
36 Review(s)
Clear filters
Jerry Kloss Jerry Kloss
Very pleased
The only reason I did not give it five stars was because I could not get the rain cap to fit but decided it didn’t need it anyways
Guy Lestician Guy Lestician
Great product
Great product, and beats out the larger compies units I used to purchase at a 1/3 the price. Performs well in all environments as stated. I am purchasing more.
VEVOR Customer VEVOR Customer
I use the box for housing breaker switches under 44 panel ground mount solar array
Very well built and nice locking system. It appears water tight and bug proof.
Rog Rog
ENG
Great Product, The quality is as high as I've ever work with with other products in the category. Highly recomended
Snik7 Snik7
solid
has a small hood for helping with heat. nice unit for the price point
Scott Jenkins Scott Jenkins
Good product, would buy again.
Used to house a gate opener LiFePo battery and solar charger. Very well made. Nice finish. Would buy again and recommend to a friend.
Kyle Kyle
Maintenance mechanic
Very well built and $400 cheaper than local electric suppliers it is very heavy made out of thick steel good rubber seals
Joe Joe
Great Box
I used these (I bought two) for a project in Alaska the and they worked great in the negative degree weather. Easy to install, easy to cut into and good quality materials.
Nguyen Minh Nguyen Minh
Perfect for securing my outdoor ev charger
I need something that is lockable and has a bottom opening so I can push the j1772 and the nema 14-50 plugs of the ev charger through. This box was perfect. I have the eutel maxicharger.
Johnny M. Johnny M.
Good buy
I saw reviews that they have arrived bent, mine came in good shape, and I like the quality of paint job. It was the wrong color, but the company was great to work with and worked to fix the issue. I was happy that they were willing to fix the issue and didn't give me a hard time, that I plan on ordering another for a different project.
