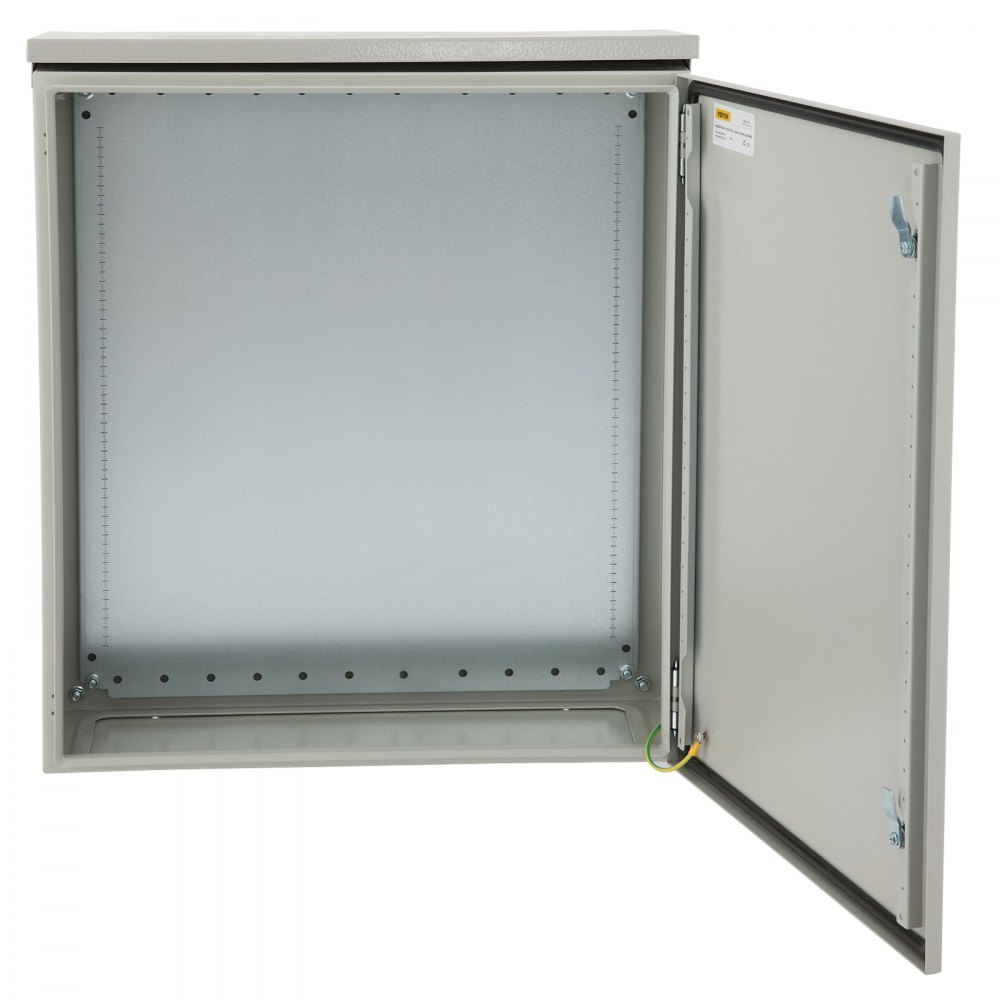

VEVOR electrical enclosure with open door, featuring a gray metal interior and secure locking mechanism. VEVOR electrical enclosure open against brick wall, gloves point inside, showcasing wiring and components. VEVOR electrical enclosure made of durable steel, highlighting strong tightness, high hardness, and corrosion resistance. VEVOR electrical enclosure showing its waterproof sealing strip protecting against dust, rain, uv, and snow. VEVOR electrical enclosure with high-strength hinge, safety lock, bottom outlet, ground screw, round corners. VEVOR electrical enclosure installation setup, featuring back corner design and included accessories. VEVOR electrical enclosure dimensions 24x24x12 in, suitable for factory, home, power grid, and shopping mall.
TUL60X60X30CMB2JPV0

VEVOR Electrical Enclosure, 24x24x12in, Tested to UL Standards NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

24 x 24 x 12 inch

  • 20 x 20 x 6 inch
  • 28 x 20 x 8 inch
  • 24 x 16 x 12 inch
  • 24 x 24 x 12 inch
  • 24 x 16 x 10 inch
  • 24 x 16 x 8 inch
  • 24 x 24 x 8 inch

About this item

  • Sturdy Steel Construction: The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
  • IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
  • Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
  • Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
  • Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Electrical Enclosure, 24x24x12in, Tested to UL Standards NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood
24 x 24 x 12 inch
VEVOR electrical enclosure box in modern room, cold rolled carbon steel, ce and tuv certified.
gray VEVOR electrical enclosure with open door, revealing empty metal interior and wiring.
Electrical Enclosure Box--Begin your security setups!
24 x 24 x 12 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
premium steel VEVOR electrical enclosure with carbon steel, powder coating, high strength, and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
VEVOR electrical enclosure, ip65 certified for water, dust, snow, and oil protection. ce and tuv sud approved.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
VEVOR electrical enclosure with triangle hinge and security lock, ensuring high hardness and non-breaking.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
VEVOR electrical enclosure, wall-mounted design, complete accessories, suitable for various walls.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
VEVOR electrical enclosure with organize routes, ground screw, and pre-installed plate for thoughtful design
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR electrical enclosure applications: factory, school, courtyard, power grid, shopping mall, construction site.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
VEVOR electrical enclosure, 24x24x12 inch, open-door view, gray metal cabinet with mounting holes.
Specifications
  • Model: ST6630
  • Color: RAL 7035 (White Gray)
  • Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 24 x 24 x 12 in / 60 x 60 x 30 cm
  • Inner Dimensions(H x W x D): 23.5 x 23.5 x 11 in / 59.7 x 59.7 x 27.7 cm
  • Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 60.19 lbs / 27.3 kg
VEVOR electrical enclosure with open door, mounting hardware, gaskets, screws, and cable management accessories.
Package Content
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure box in modern room, cold rolled carbon steel, ce and tuv certified.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
gray VEVOR electrical enclosure with open door, revealing empty metal interior and wiring.
Electrical Enclosure Box--Begin your security setups!
24 x 24 x 12 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
premium steel VEVOR electrical enclosure with carbon steel, powder coating, high strength, and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
VEVOR electrical enclosure, ip65 certified for water, dust, snow, and oil protection. ce and tuv sud approved.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
VEVOR electrical enclosure with triangle hinge and security lock, ensuring high hardness and non-breaking.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
VEVOR electrical enclosure, wall-mounted design, complete accessories, suitable for various walls.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
VEVOR electrical enclosure with organize routes, ground screw, and pre-installed plate for thoughtful design
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
VEVOR electrical enclosure applications: factory, school, courtyard, power grid, shopping mall, construction site.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
VEVOR electrical enclosure with open door, mounting hardware, gaskets, screws, and cable management accessories.
Package Content
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure, 24x24x12 inch, open-door view, gray metal cabinet with mounting holes.
Specifications
  • Model: ST6630
  • Color: RAL 7035 (White Gray)
  • Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 24 x 24 x 12 in / 60 x 60 x 30 cm
  • Inner Dimensions(H x W x D): 23.5 x 23.5 x 11 in / 59.7 x 59.7 x 27.7 cm
  • Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 60.19 lbs / 27.3 kg

Electrical Enclosure Offers Versatile Mounting and Accessibility

The VEVOR electrical enclosure offers multiple mounting options. Therefore, it is suitable for various projects. It has a removable door and panels. This feature allows you to easily access the inside. The electrical enclosure is ideal for housing EV chargers, solar arrays, etc. It provides flexibility. You can customize it for your specific needs with ease. How do you install or remove components without any hassle? This versatile box meets various requirements, making maintenance effortless. The flexible design ensures you adapt it precisely to fit your installation needs.


IP65 Waterproof Junction Box Ensures Protection Against Dust and Water in Harsh Weather Conditions

It's ideal for outdoor installations where moisture and dust can be a problem. The seamless gasket seal is tight to prevent water ingress. You can trust it to protect your electrical gear in any situation. This high level of protection ensures reliability in challenging environments.


Cold-Rolled Carbon Steel Enclosure Provides Durable and Robust Protection for Electrical Components

The VEVOR electrical enclosure is made of cold-rolled carbon steel. This makes it very strong and durable, capable of withstanding heavy impacts and harsh conditions. We also powder-coat the steel for added protection. This coating prevents rust and corrosion, ensuring long-lasting performance. The sturdy construction provides peace of mind knowing your equipment is well protected.


User-Friendly Features with Removable Door and Panels Facilitate Easy Setup and Maintenance

The VEVOR electrical enclosure has a removable door. This feature speeds up installation and maintenance. You can easily access the internal components. Removable panels add to the flexibility. Running wires and installing parts is easy. The design saves time and effort. It simplifies the setup process, making it faster and easier. Adjustments and modifications are also made easier through these user-friendly features.


Cost-Effective Solution Compared to Local Suppliers with Comparable Quality

This VEVOR electrical enclosure offers excellent quality at a lower price. Compared to local suppliers, it provides the same features for less. Cost efficiency makes it an attractive choice. You can obtain high-quality materials and robust construction without exceeding your budget. This is ideal for budget-conscious buyers. Save money without sacrificing quality, making it a wise investment.


Secure Locking System Enhances Safety and Security of Internal Components

The lock on this enclosure is strong and reliable. It ensures that your internal components are secure. Unauthorised access is prevented, ensuring safety. The locking mechanism is robust and hard to tamper with. This feature enhances the overall security of your installation. The protection of everything inside gives you peace of mind. The lock is easy to use but provides strong security.


Quick and Reliable Customer Service for Hassle-Free Experience

The VEVOR offers excellent customer service. They handle issues quickly and efficiently. This ensures a hassle-free experience for the users. We will promptly resolve any issue you encounter. Reliable service enhances overall satisfaction. You can trust their support team to help whenever needed. It adds extra value to your purchase, ensuring continuous support.


Suitable for a Wide Range of Outdoor and Indoor Applications including EV Chargers, Solar Arrays, and More

The VEVOR electrical enclosure is versatile and suitable for many applications. It can house EV chargers, solar arrays, and other electrical components. The size and design make it suitable for both indoor and outdoor installations. Its strong and waterproof features ensure reliability. It is well-suited for various projects, offering flexibility. You can use it for multiple different applications, ensuring better utilisation.


See More

Specification

Model
ST6630
Color
RAL 7035 (White Gray)
Body Material
0.06 in / 0.15 cm Cold-Rolled Carbon Steel
Inner Plate
0.06 in / 0.15 cm Galvanized Plate
Finish
Powder Coating(Surface Pickling and Passivization)
Certification
TUV, CE, 508A (CSA C22.2 No. 14-13.)
Ratings
NEMA Type 4
Protection Grade
IP65, IK10
Construction
Continuously Welded
Ambient Temperature
-40 to 122℉ / -40 to 55°C
Gasket Material
Seamless Foam/ Nylon(washer or plug)
Outer Dimensions(H x W x D)
24 x 24 x 12 in / 60 x 60 x 30 cm
Inner Dimensions(H x W x D)
23.5 x 23.5 x 11 in / 59.7 x 59.7 x 27.7 cm
Galvanized Backplate Dimensions(H x W)
22.2 x 22 in / 56.5 x 55 cm
Mounting Hole Diameter(± 0.2 cm)
0.35 in / 0.9 cm
Net Weight
60.19 lbs / 27.3 kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
36 Review(s)
Clear filters
Jerry Kloss Jerry Kloss
Very pleased
The only reason I did not give it five stars was because I could not get the rain cap to fit but decided it didn’t need it anyways
Guy Lestician Guy Lestician
Great product
Great product, and beats out the larger compies units I used to purchase at a 1/3 the price. Performs well in all environments as stated. I am purchasing more.
VEVOR Customer VEVOR Customer
I use the box for housing breaker switches under 44 panel ground mount solar array
Very well built and nice locking system. It appears water tight and bug proof.
Rog Rog
ENG
Great Product, The quality is as high as I've ever work with with other products in the category. Highly recomended
Snik7 Snik7
solid
has a small hood for helping with heat. nice unit for the price point
Scott Jenkins Scott Jenkins
Good product, would buy again.
Used to house a gate opener LiFePo battery and solar charger. Very well made. Nice finish. Would buy again and recommend to a friend.
Kyle Kyle
Maintenance mechanic
Very well built and $400 cheaper than local electric suppliers it is very heavy made out of thick steel good rubber seals
Joe Joe
Great Box
I used these (I bought two) for a project in Alaska the and they worked great in the negative degree weather. Easy to install, easy to cut into and good quality materials.
Nguyen Minh Nguyen Minh
Perfect for securing my outdoor ev charger
I need something that is lockable and has a bottom opening so I can push the j1772 and the nema 14-50 plugs of the ev charger through. This box was perfect. I have the eutel maxicharger.
Johnny M. Johnny M.
Good buy
I saw reviews that they have arrived bent, mine came in good shape, and I like the quality of paint job. It was the wrong color, but the company was great to work with and worked to fix the issue. I was happy that they were willing to fix the issue and didn't give me a hard time, that I plan on ordering another for a different project.
