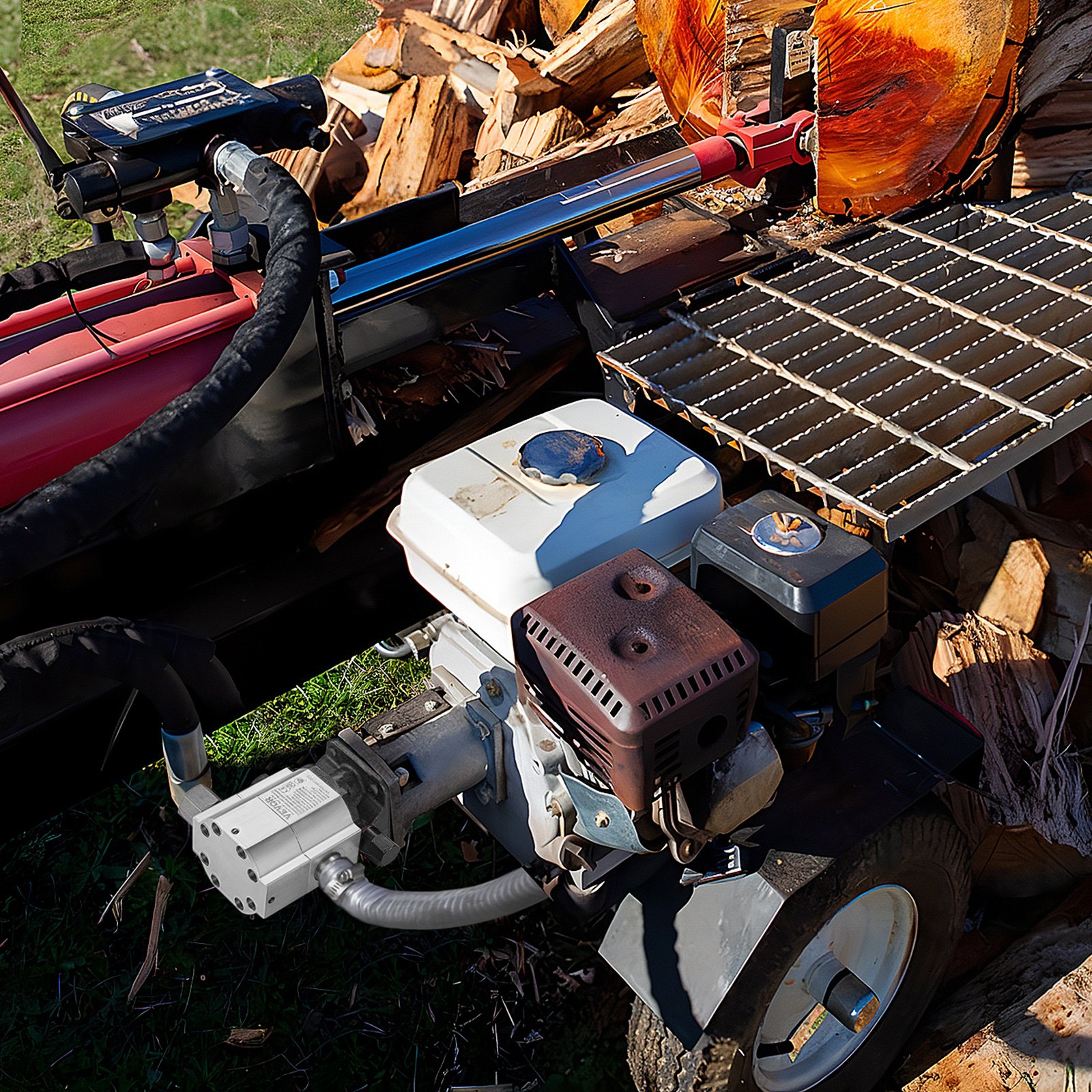

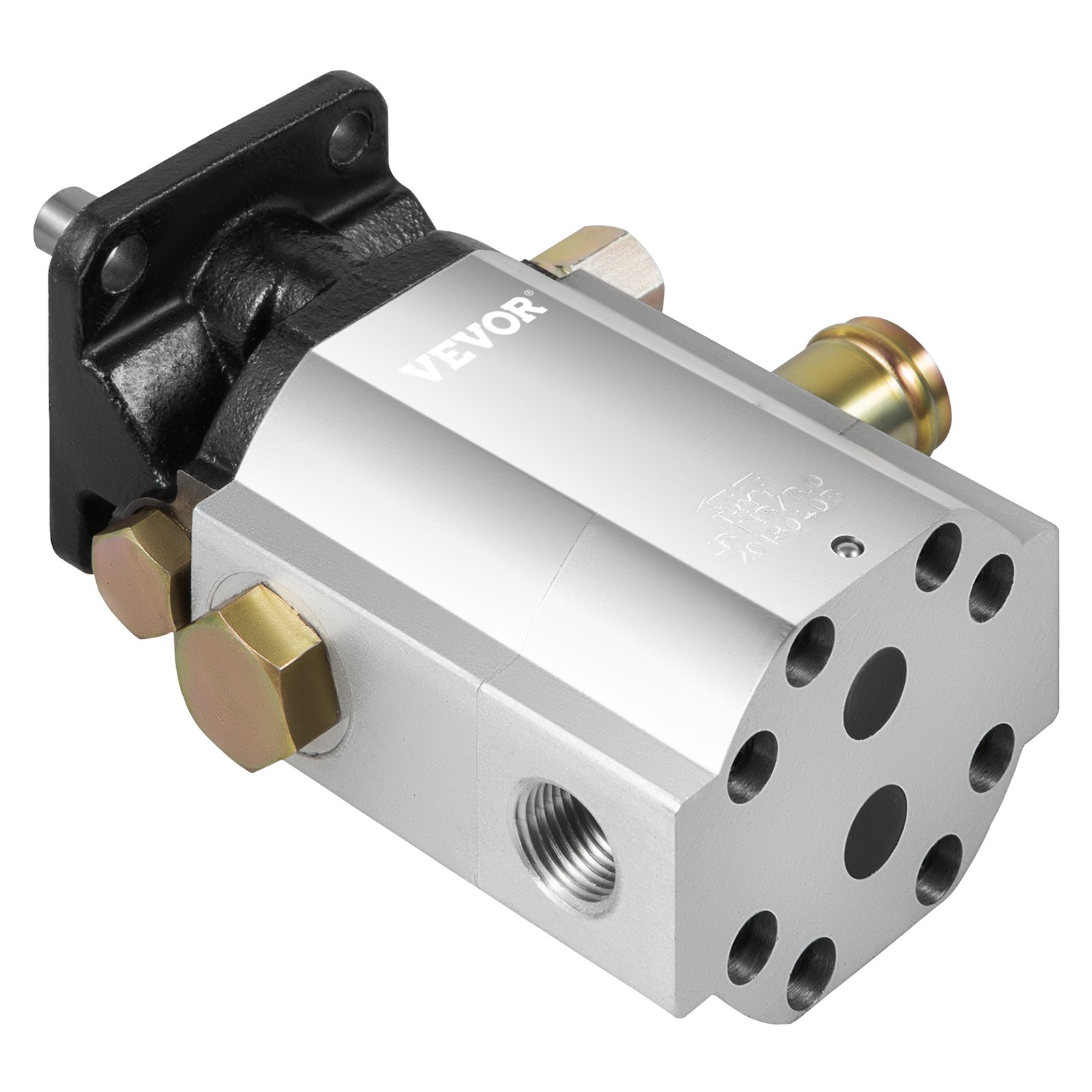

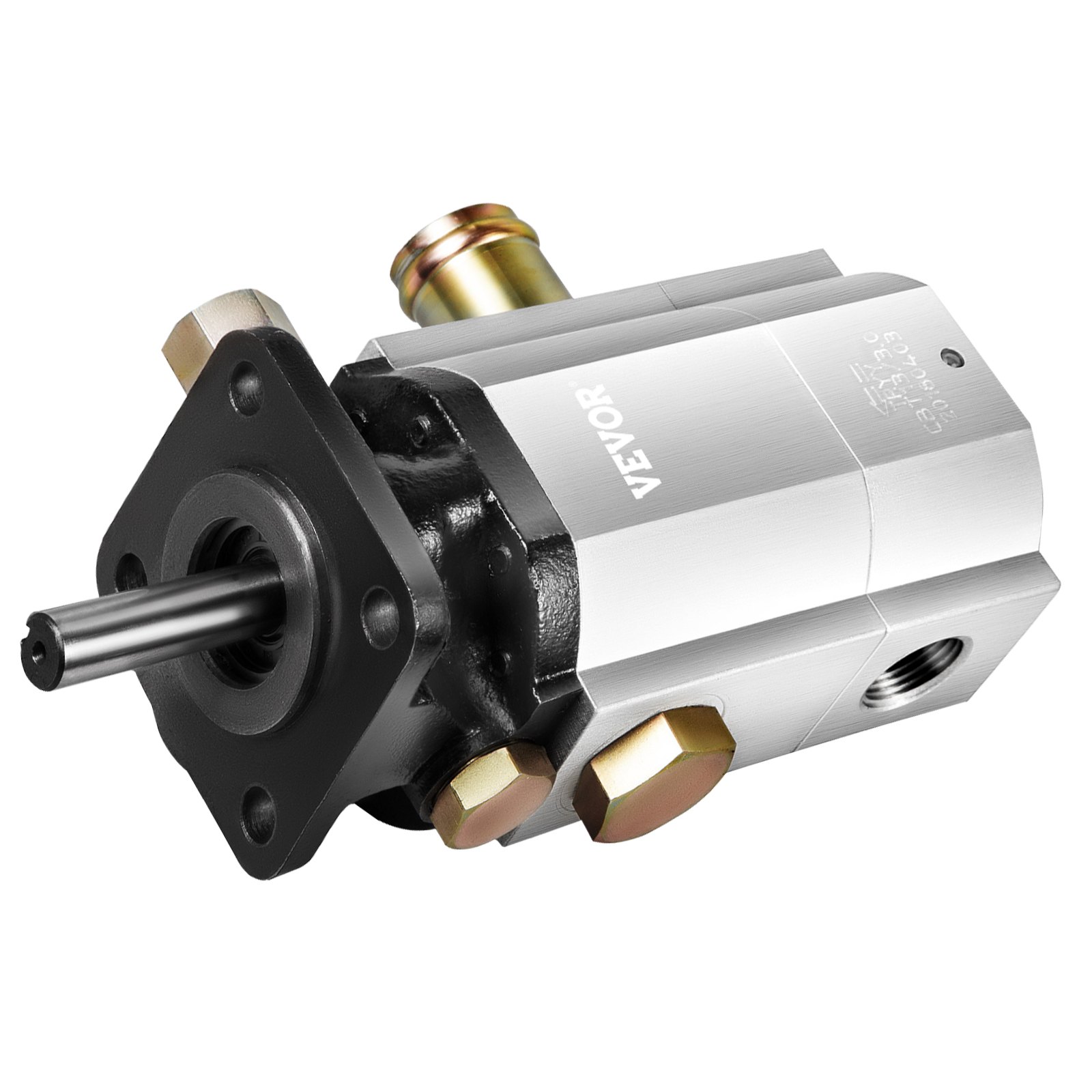

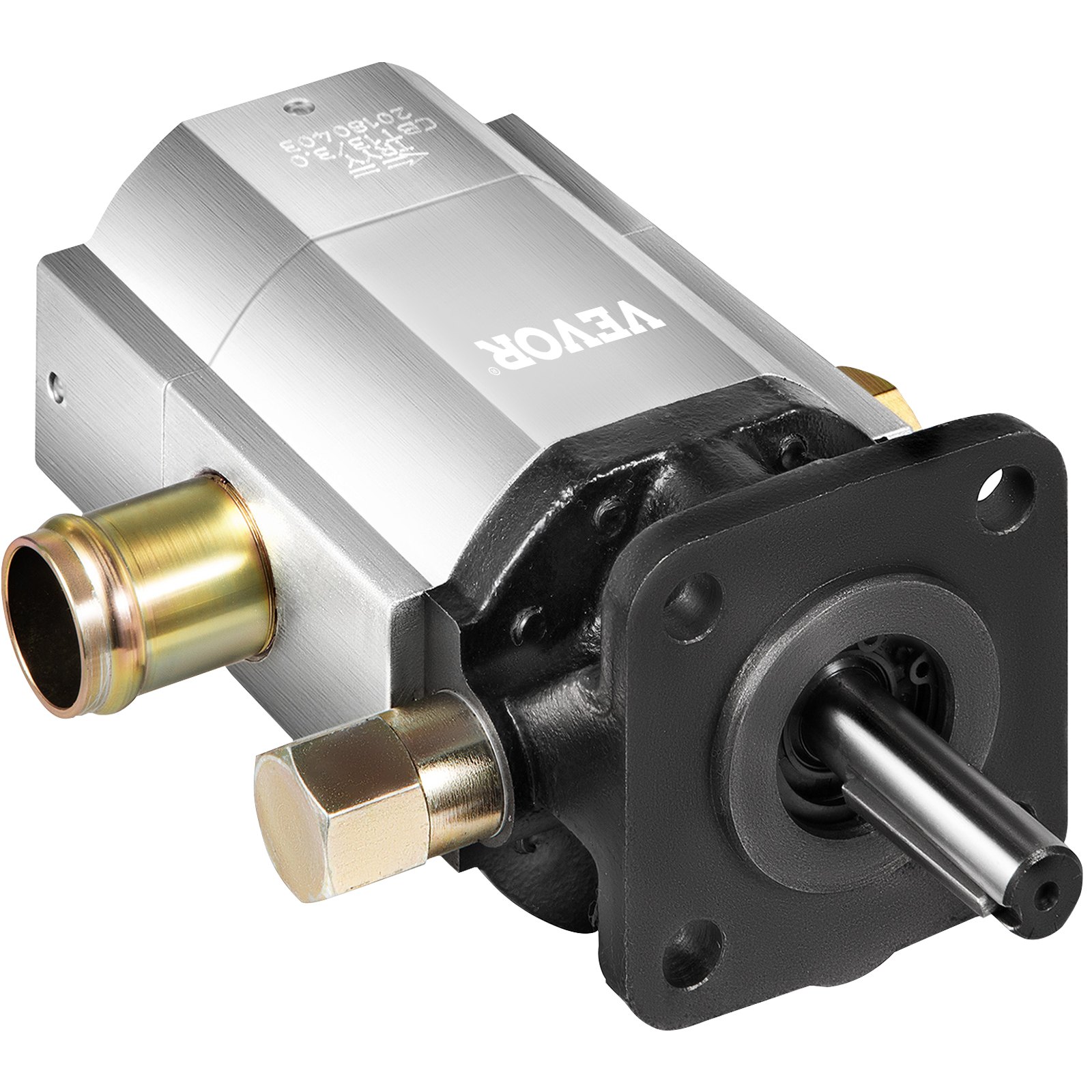

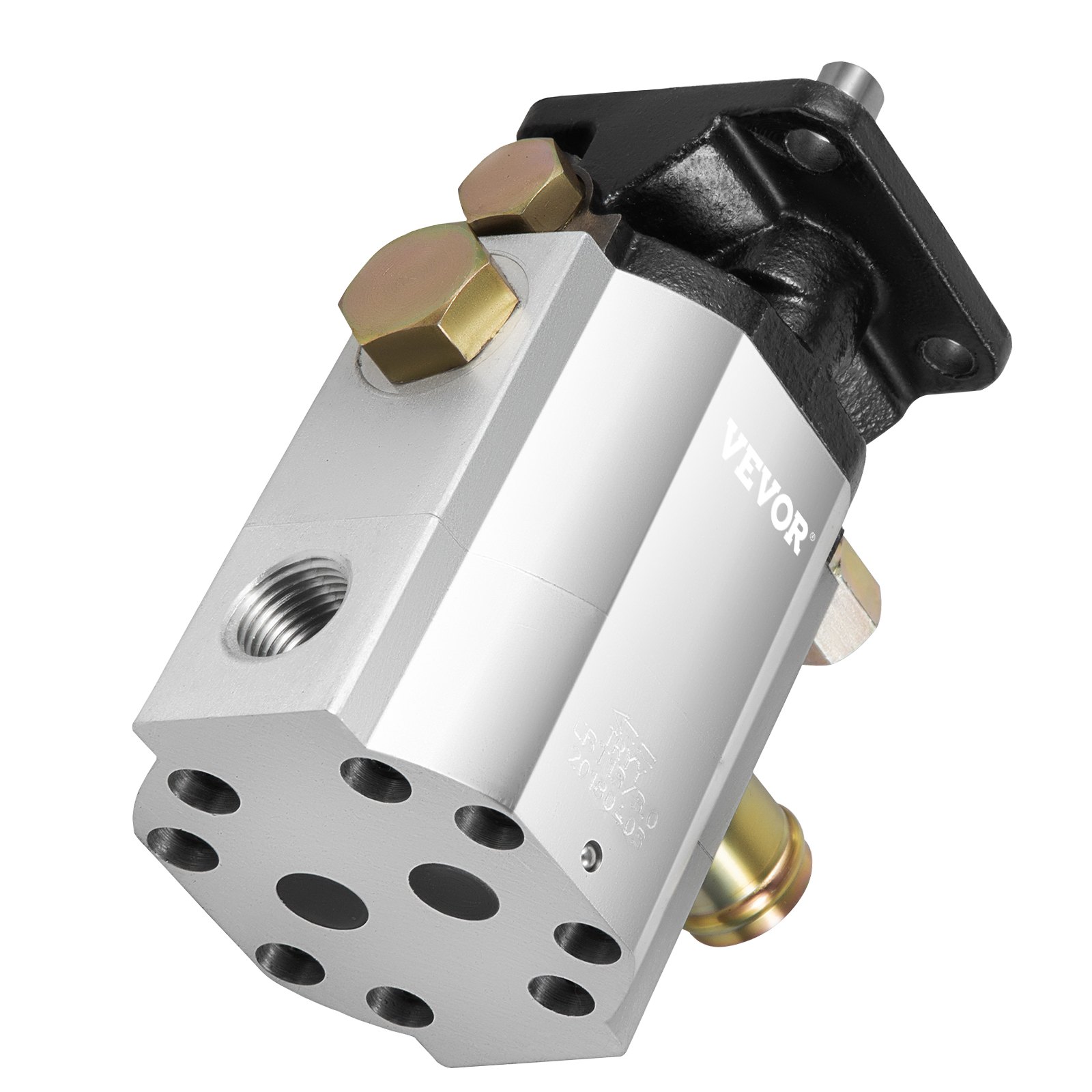

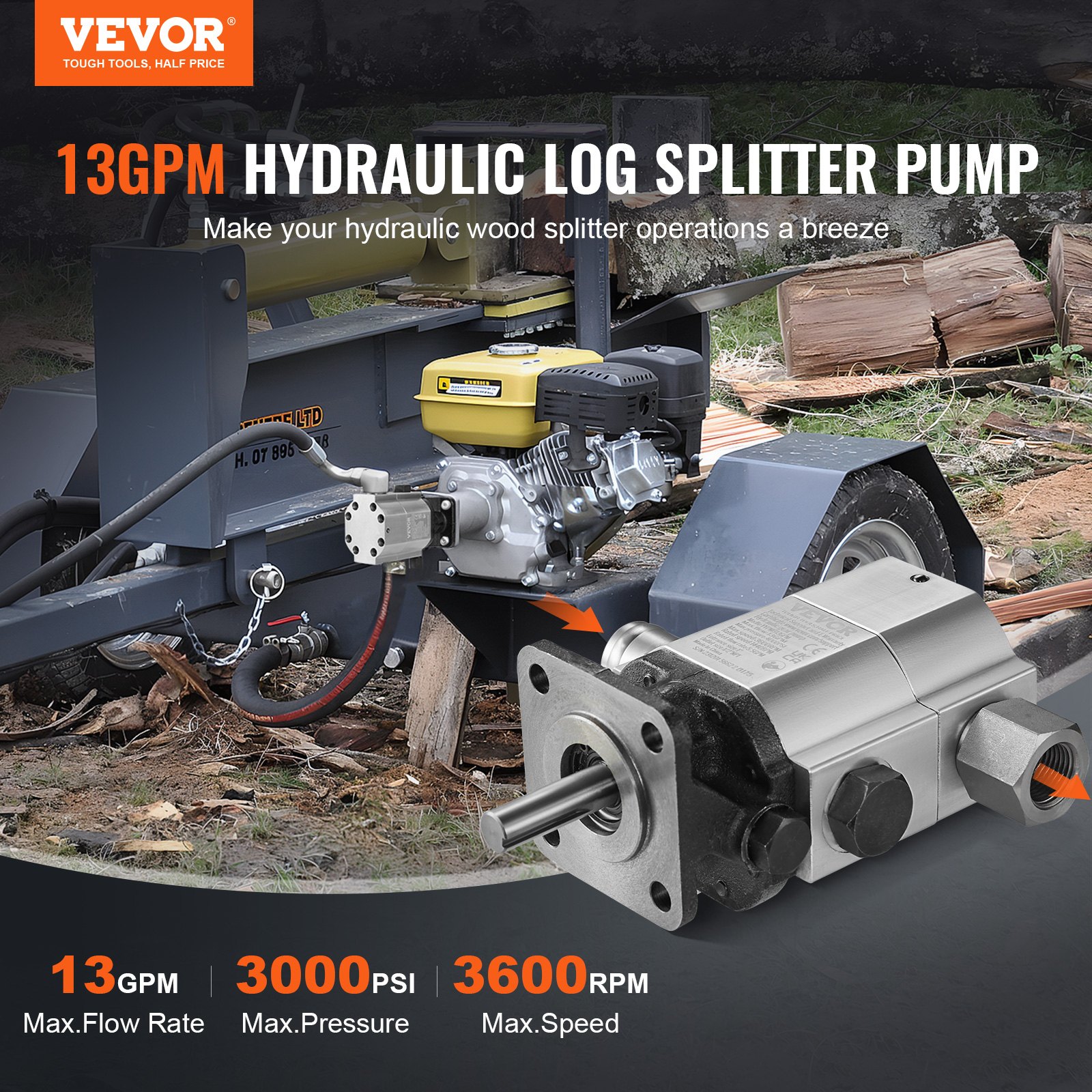

VEVOR hydraulic wood splitter pump in stainless steel casing with mounting features. VEVOR hydraulic wood splitter pump on a blue log splitter with cut wood in background VEVOR hydraulic wood splitter pump with 13 gpm flow, 3600 rpm speed, 3000 psi pressure. VEVOR hydraulic wood splitter pump with 1" inlet and 1/2" npt outlet ports. VEVOR hydraulic wood splitter pump with sturdy aluminum housing, anti-impact, rust-resistant. VEVOR hydraulic wood splitter pump installation guide with step-by-step images. VEVOR hydraulic wood splitter pump with specifications and usage illustrations
CLB13GPMCLB000001V0

VEVOR Hydraulic Wood Splitter Pump 3000 PSI 2 Stage Log Splitter Pump 13 GPM, Hydraulic Gear Pump 3600 RPM Aluminum Log Splitter Pumps 1/8" Keyed Shaft for Gas Log Splitters/Hydraulic Power Units

See All Customer Reviews
56 Reviews 15 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

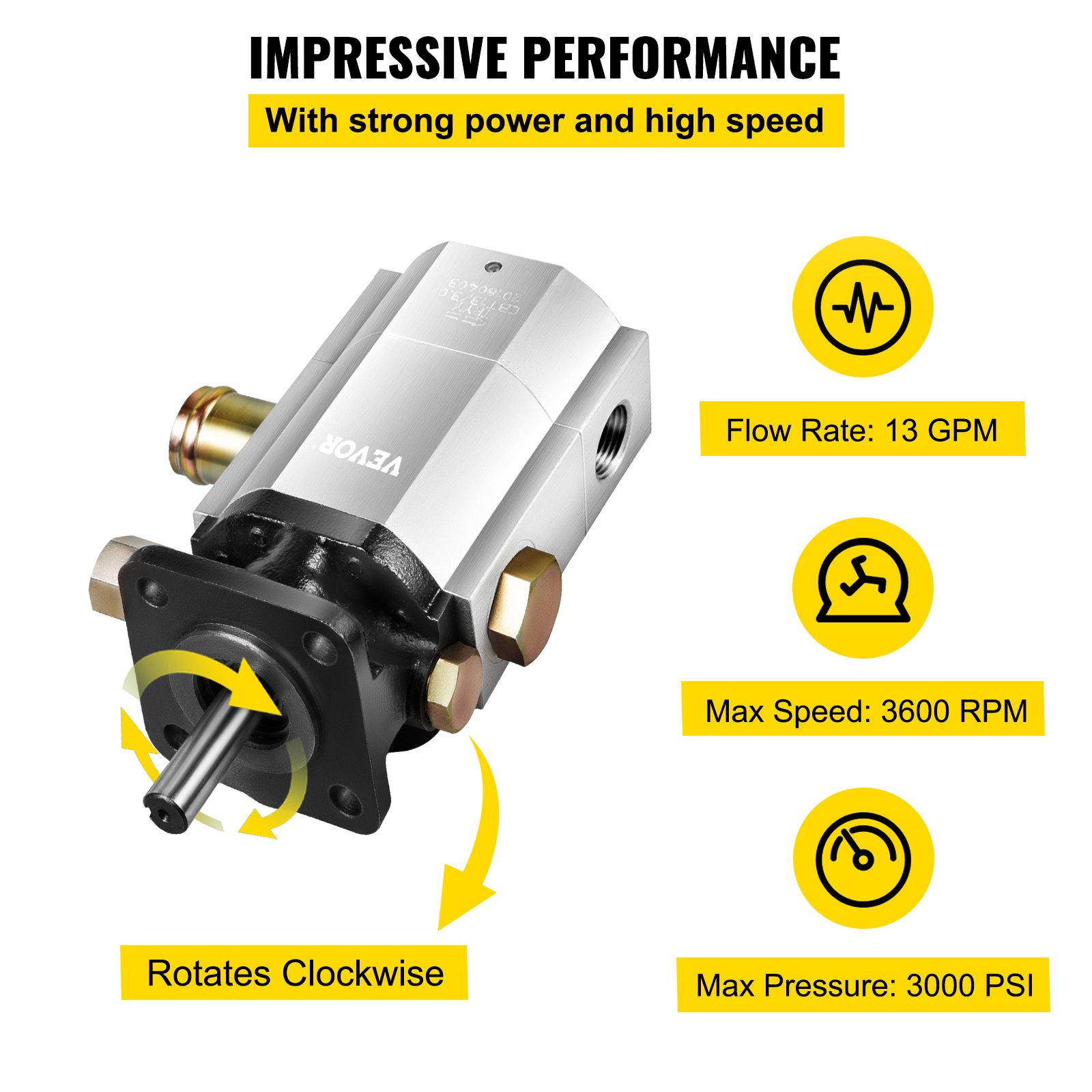

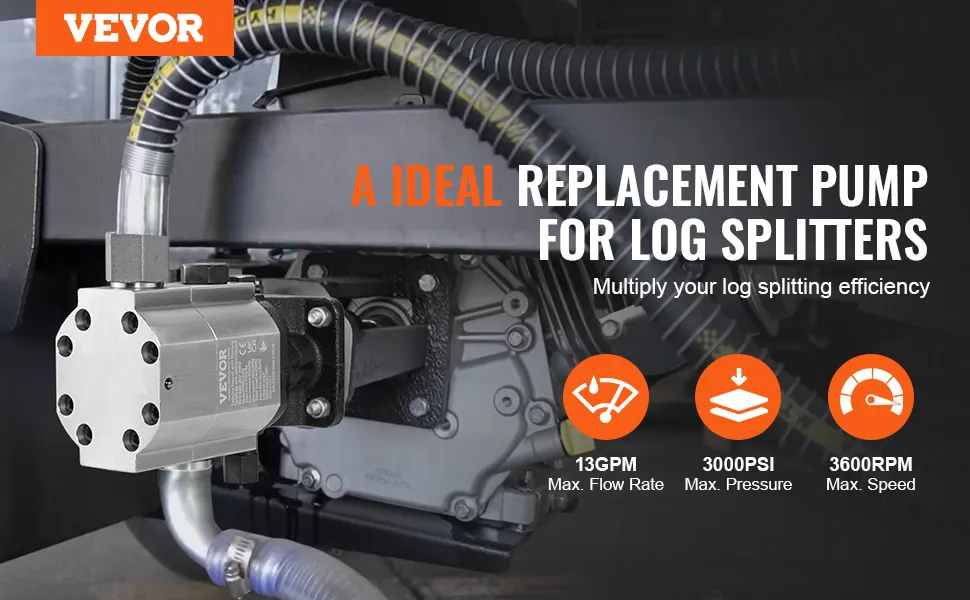

  • Exceptional Performance at Your Fingertips: With a remarkable maximum speed of 3600 RPM, a maximum operating pressure of 3000 PSI, and an 13 GPM high flow rate, our hydraulic wood log splitter pump is your ultimate solution for tackling all types of wood. This hydraulic gear pump excels in both speed and force, ensuring efficient wood splitting like never before, making it your go-to tool for any wood processing task.
  • Perfect Sealing, No Compromises: Our 2 stage log splitter pump is designed with a standardized 1-inch inlet, 1/2-inch NPT outlet, 1.5-inch shaft length and 1/2-inch shaft diameter, ensuring compatibility with a wide range of systems while maximizing sealing effectiveness and stability. Not only does it simplify the installation process, but it also enhances the overall efficiency and reliability of the hydraulic gear pump.
  • Rugged Aluminum Alloy Construction: Our hydraulic log splitter pump is constructed from high-quality aluminum alloy material, ensuring exceptional durability and corrosion resistance. It's designed to withstand the toughest outdoor challenges, ensuring long-term reliability in any working environment. Don't settle for less; choose our hydraulic gear pump for unwavering performance.

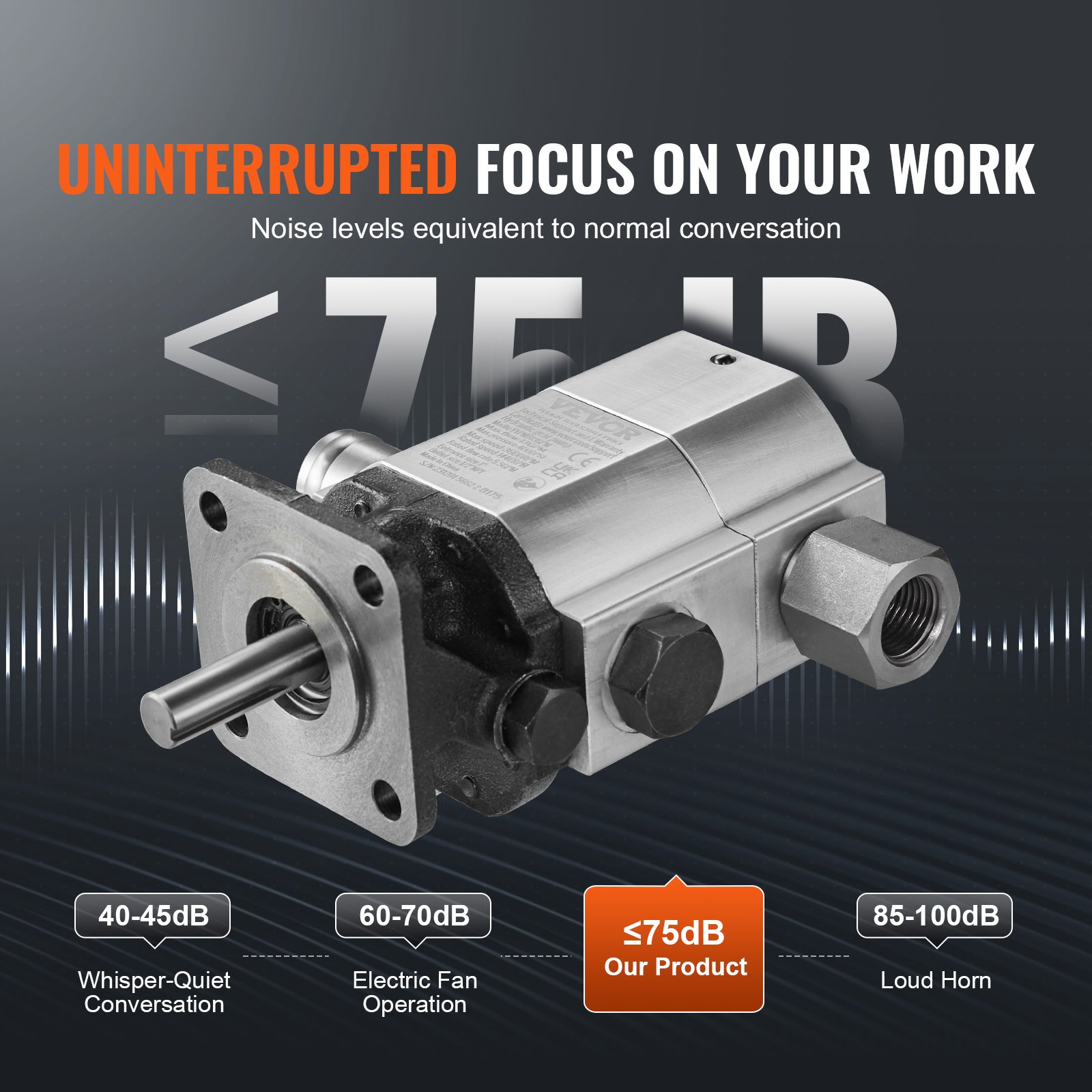

  • Low Noise Operation, Stay Focused: Our wood splitter pump operates at a noise level below 75dB, ensuring that it won't disrupt your concentration. Even in environments where you need to stay focused, the pump's noise won't be a distracting factor. Stay on task and get the job done efficiently with our hydraulic gear pump.
  • Not Limited to Wood Splitting: Our 2-stage hydraulic pump is also perfect for powering log splitters, presses, machine tools, and snowplow hydraulic systems. Its outstanding compatibility extends to many OEM manufacturers, including Speeco, Huskee, Champion, and more. When you need reliable power for various applications, our hydraulic pump has got you covered.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Wood Splitter Pump 3000 PSI 2 Stage Log Splitter Pump 13 GPM, Hydraulic Gear Pump 3600 RPM Aluminum Log Splitter Pumps 1/8" Keyed Shaft for Gas Log Splitters/Hydraulic Power Units
Description Specification Questions and Answers Reviews
Hydraulic Wood Log Splitter Pump

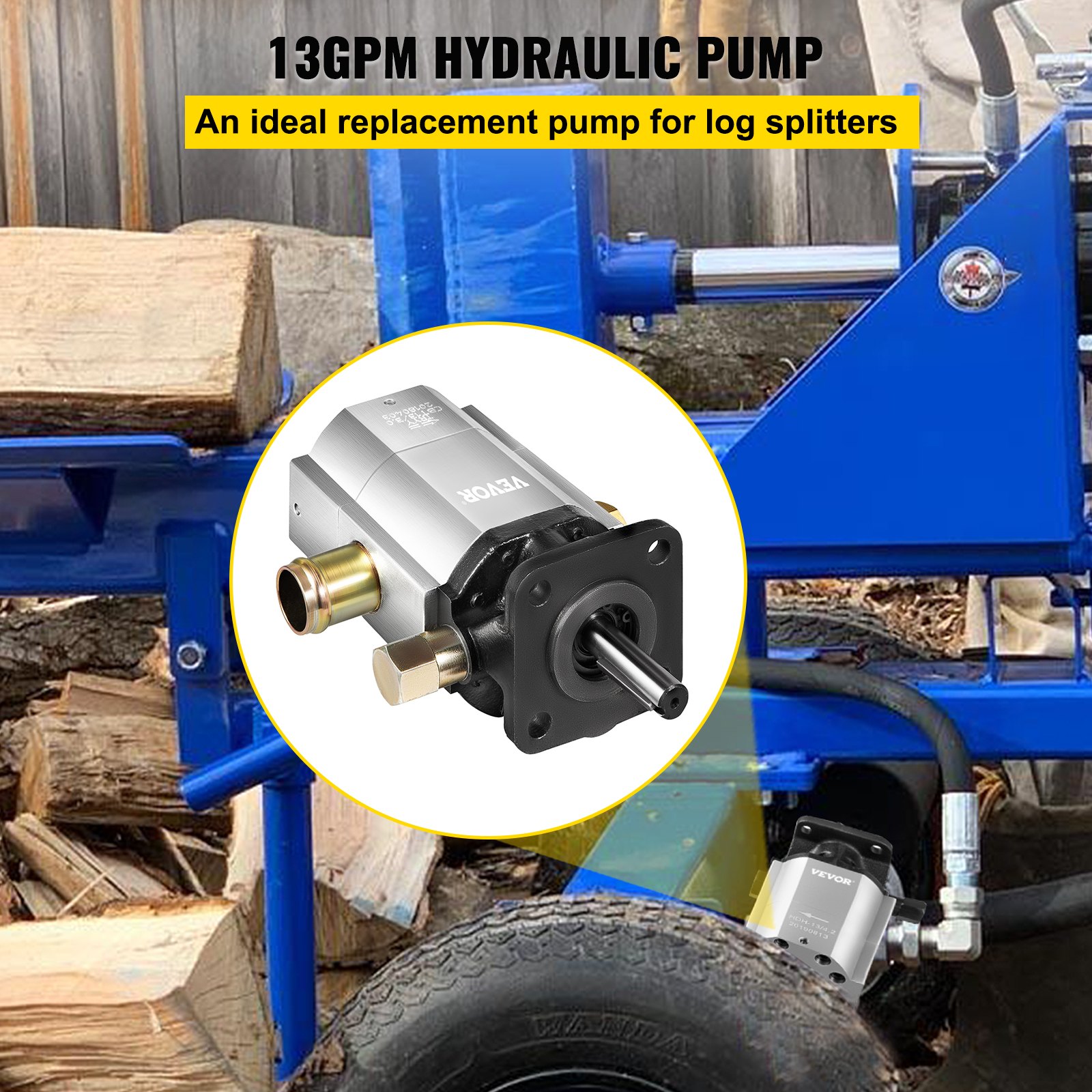

VEVOR hydraulic wood splitter pump for efficient log splitting with 13gpm flow rate.
VEVOR hydraulic wood splitter pump for efficient log splitting with 13gpm flow rate.
Introducing our hydraulic gear pump, crafted from corrosion-resistant aluminum alloy, with a 13 GPM flow rate and a high-pressure output of 3000 PSI, it effortlessly handles a wide range of wood types. Upgrade your wood processing with our efficient wood log splitter pump today!

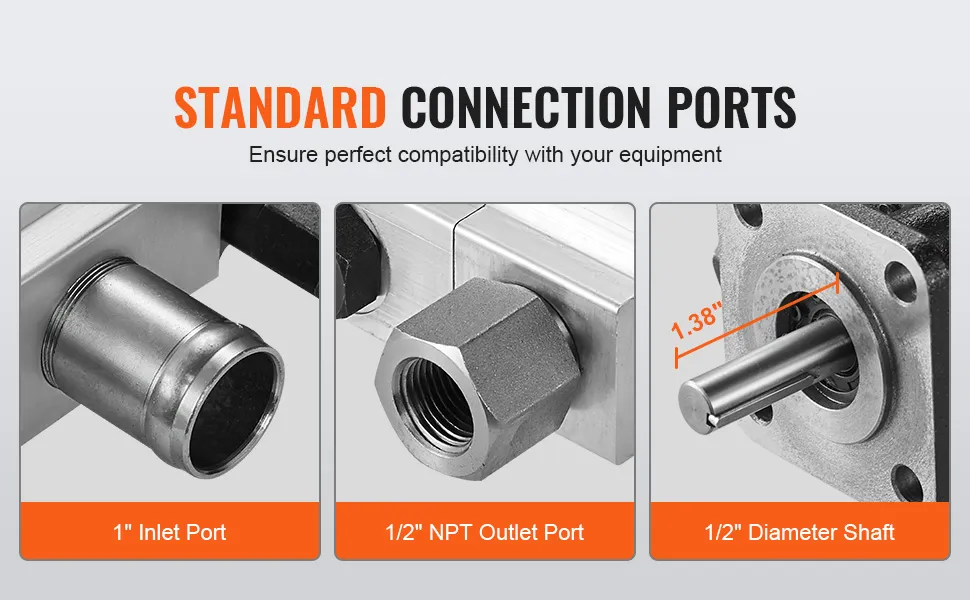

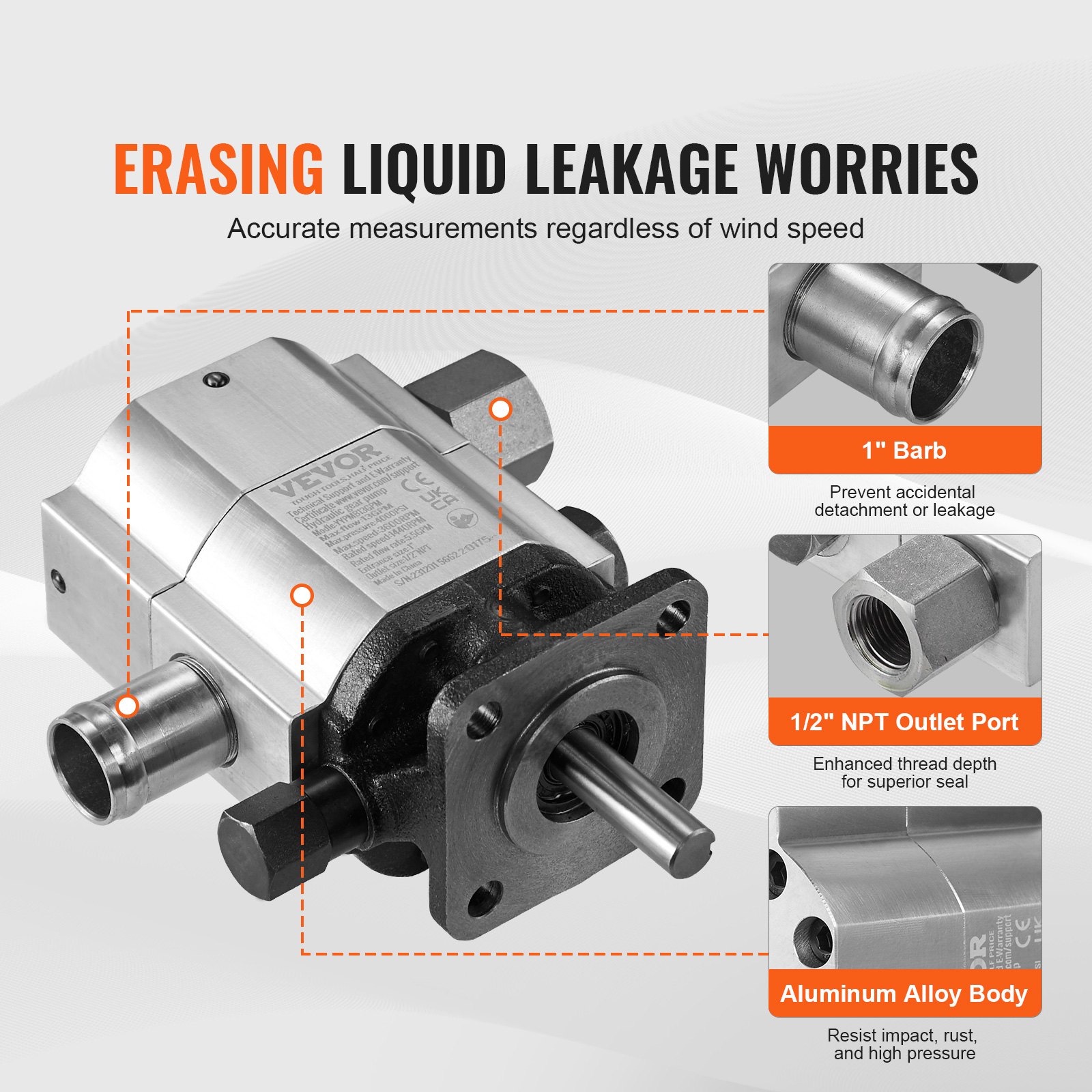

VEVOR hydraulic wood splitter pump standard connection ports: 1" inlet, 1/2" outlet, 1/2" shaft.
VEVOR hydraulic wood splitter pump standard connection ports: 1" inlet, 1/2" outlet, 1/2" shaft.

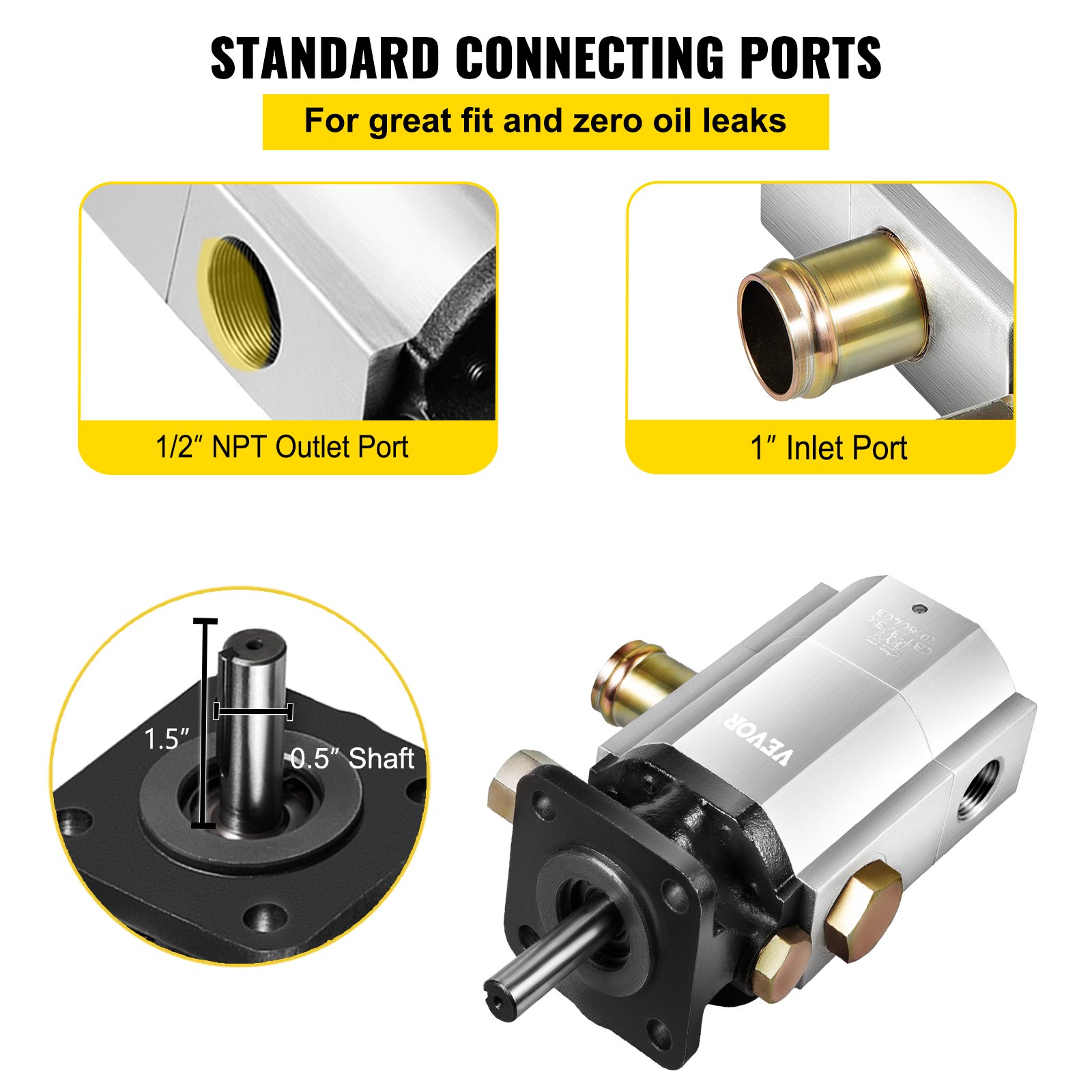

Our 2-stage log splitter pump features a 1-inch inlet and 1/2-inch NPT outlet, boasting exceptional compatibility for various pipe connections. It is designed with carefully crafted shaft length and diameter ensure smooth operation while minimizing energy loss.

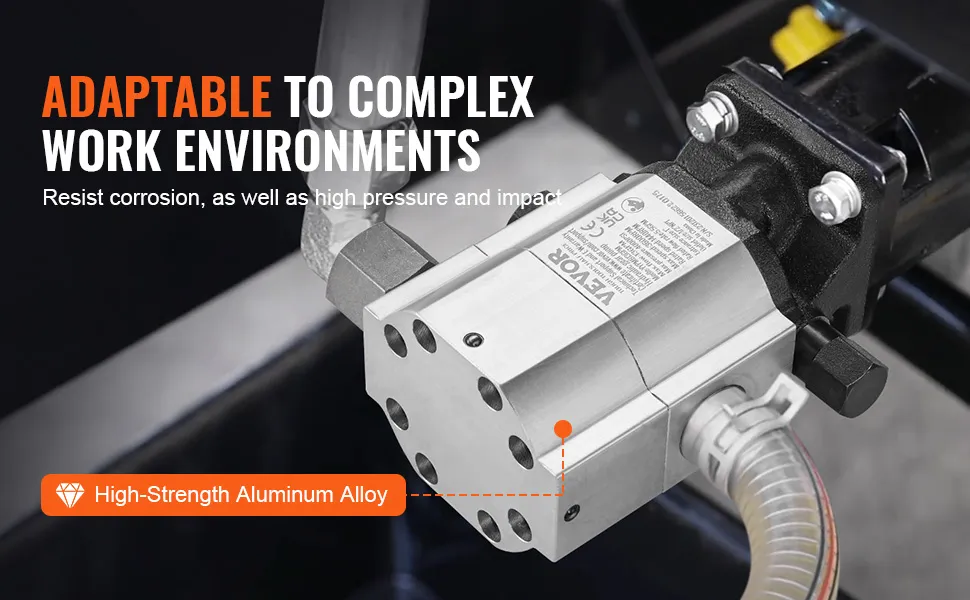

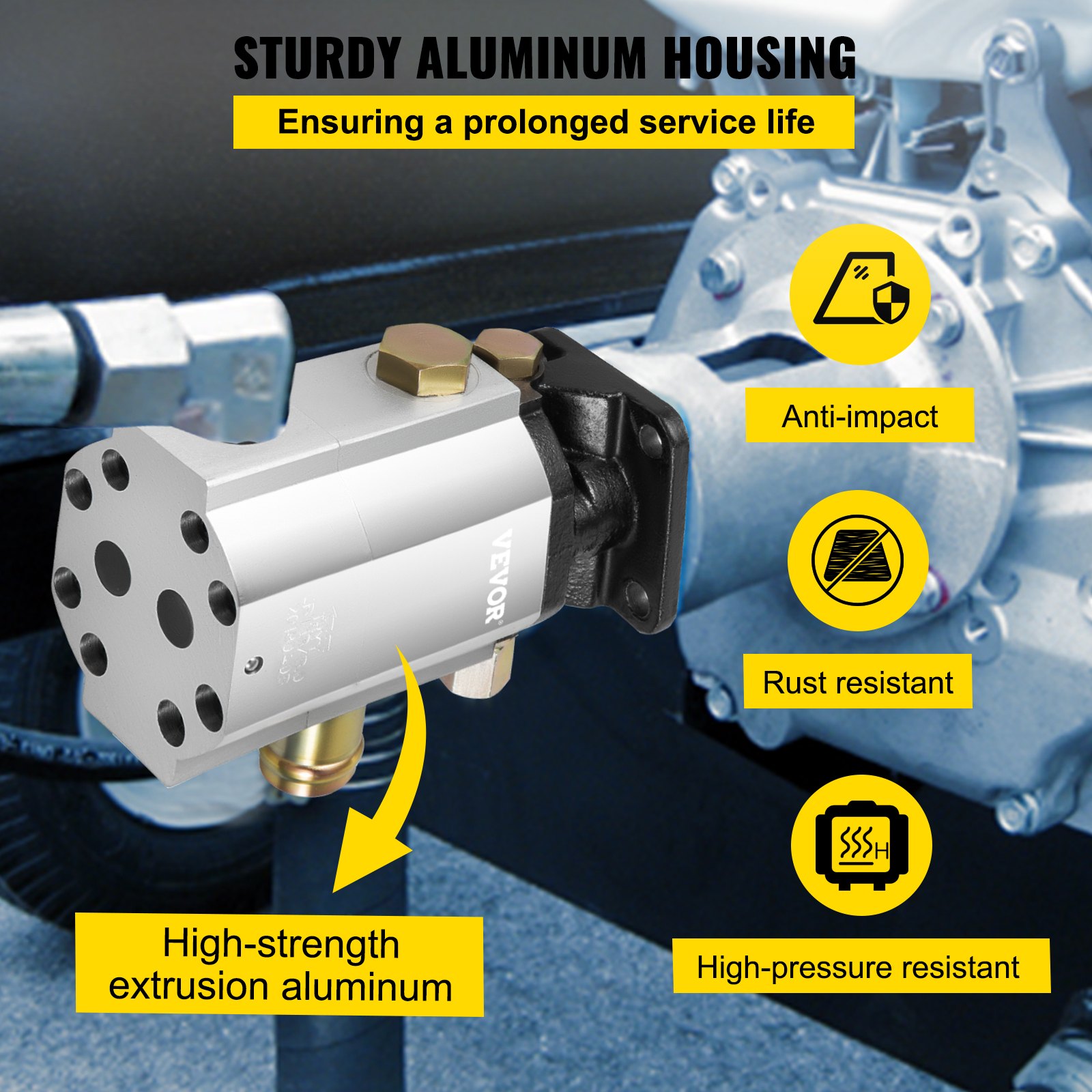

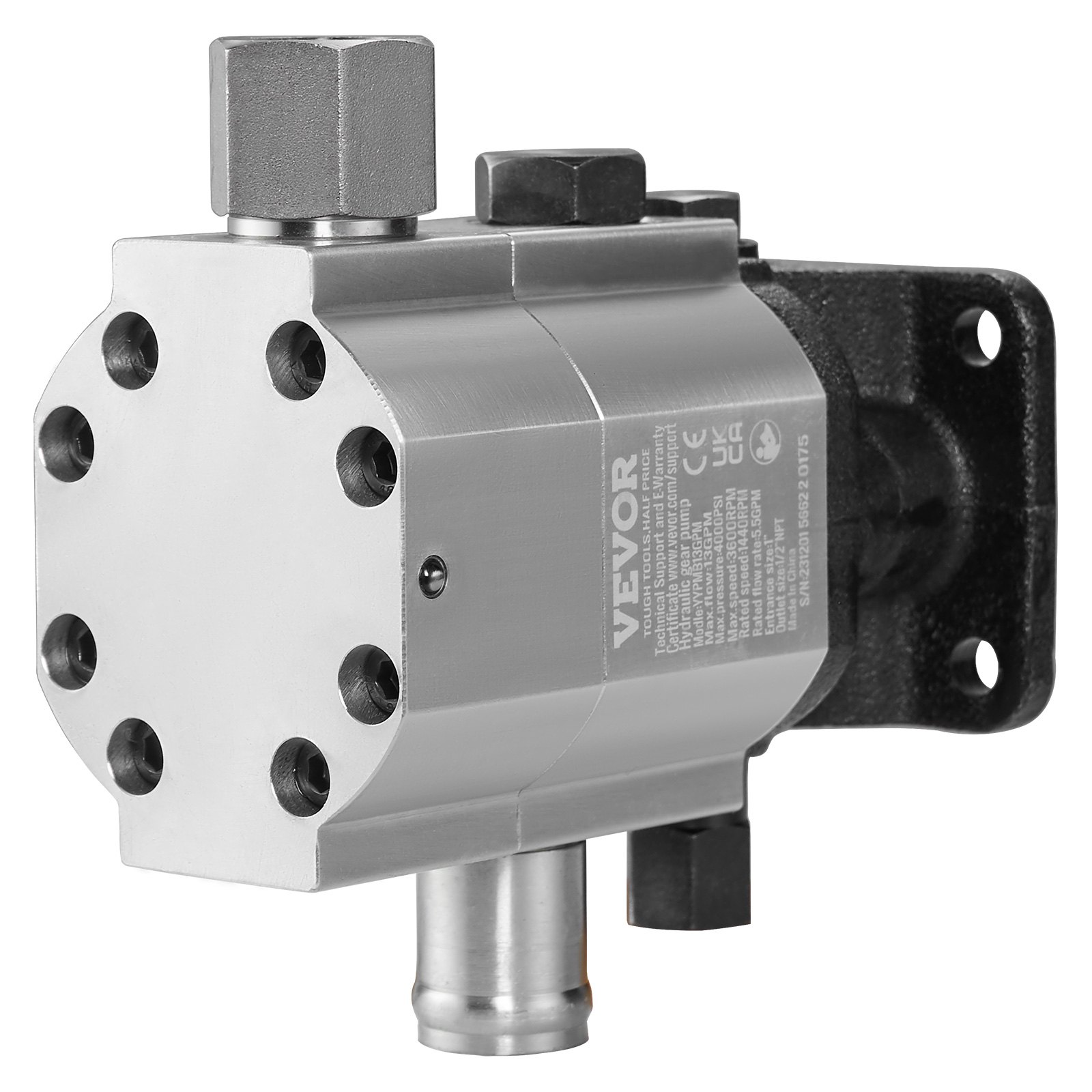

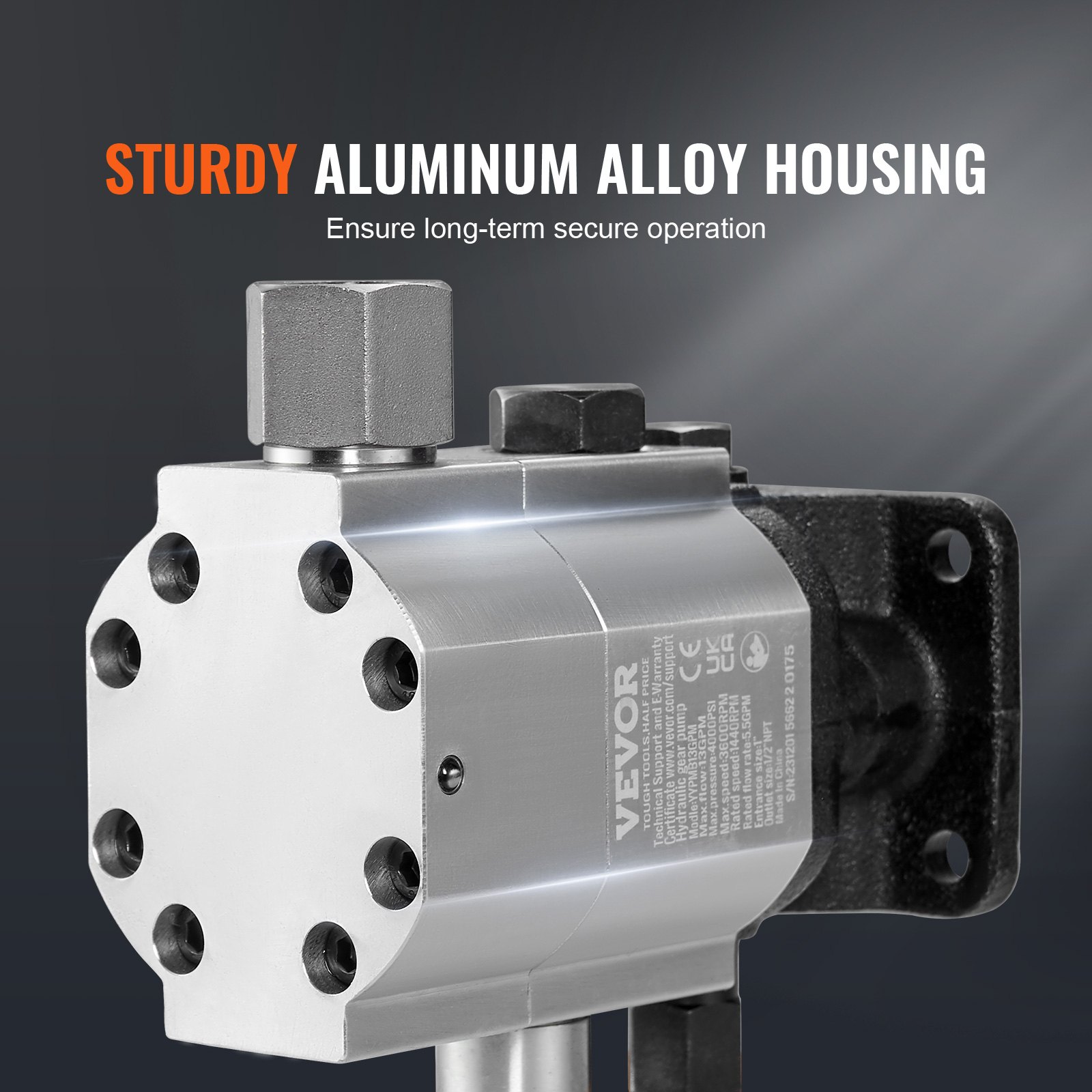

VEVOR hydraulic wood splitter pump in high-strength aluminum alloy, adaptable to work environments.
VEVOR hydraulic wood splitter pump in high-strength aluminum alloy, adaptable to work environments.
Our hydraulic log splitter pump is constructed with precision using high-quality aluminum alloy, ensuring consistent performance whether in wet, rainy, or dusty environments. Count on our pump to maintain its stability and minimize wear and tear caused by environmental factors.
Easy Installation

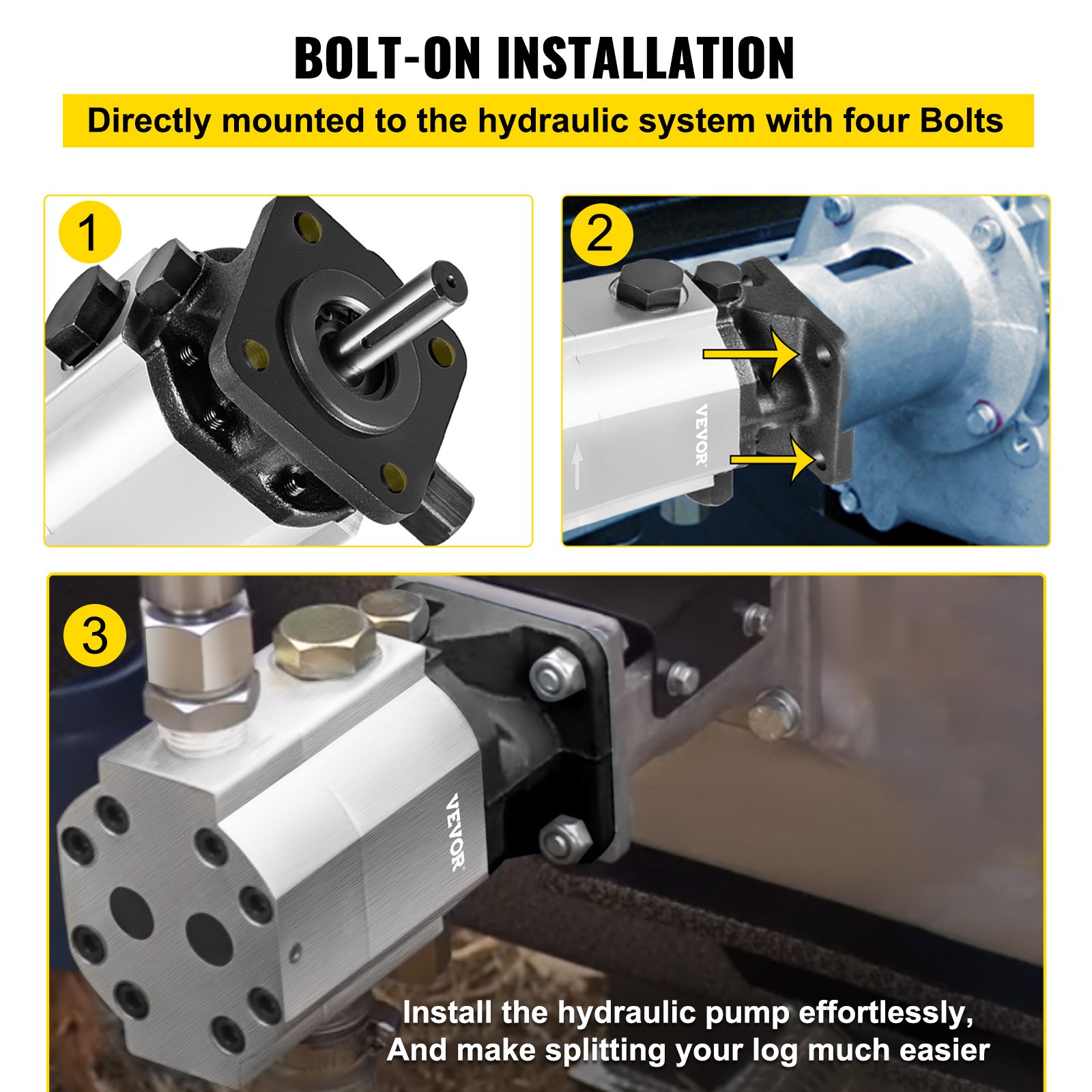

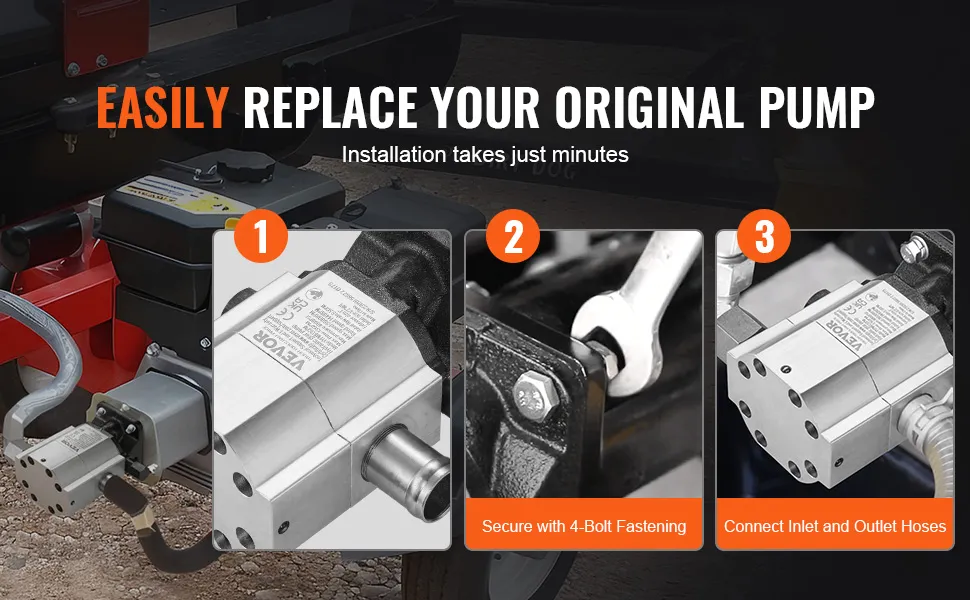

easily install VEVOR hydraulic wood splitter pump with 4-bolt fastening and hose connection.
easily install VEVOR hydraulic wood splitter pump with 4-bolt fastening and hose connection.
Our log splitter pump is designed for hassle-free installation, requiring only four bolts to secure it to the engine. You don't need specialized skills or complex tools. It makes replacing the original pump a breeze, and even non-professionals can complete the installation effortlessly.
Comprehensive Accessories

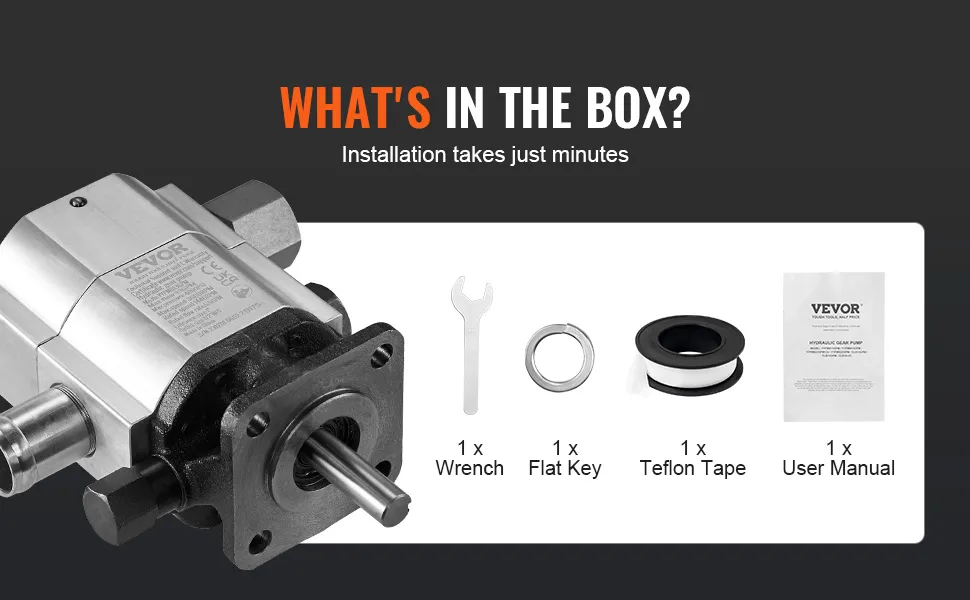

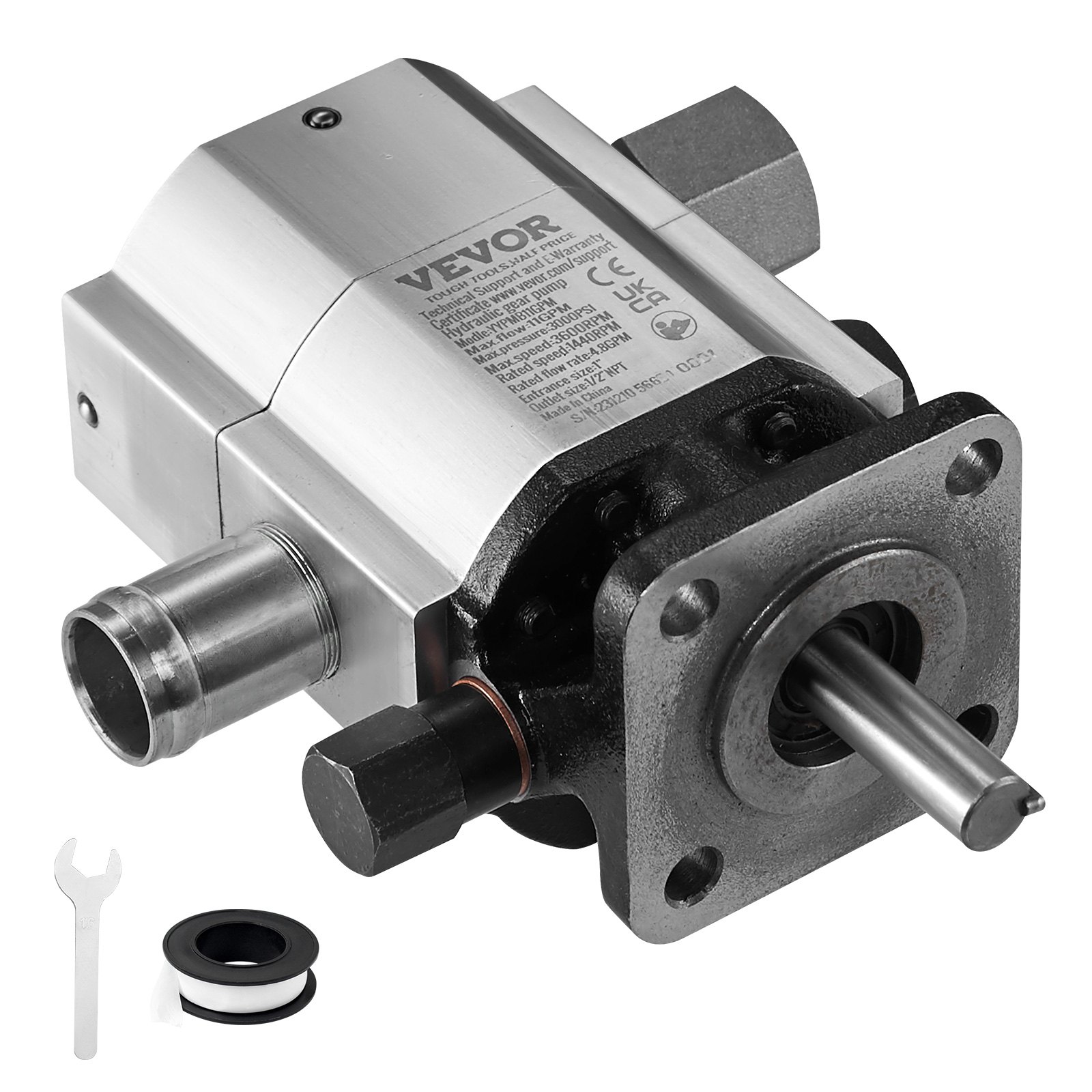

VEVOR hydraulic wood splitter pump package with wrench, flat key, teflon tape, and manual.
VEVOR hydraulic wood splitter pump package with wrench, flat key, teflon tape, and manual.
Our hydraulic gear pump comes with a complete set of accessories, including a wrench, flat key, and Teflon tape. It makes installation and maintenance a breeze without any additional purchases. We've got you covered with everything you need for a seamless experience.

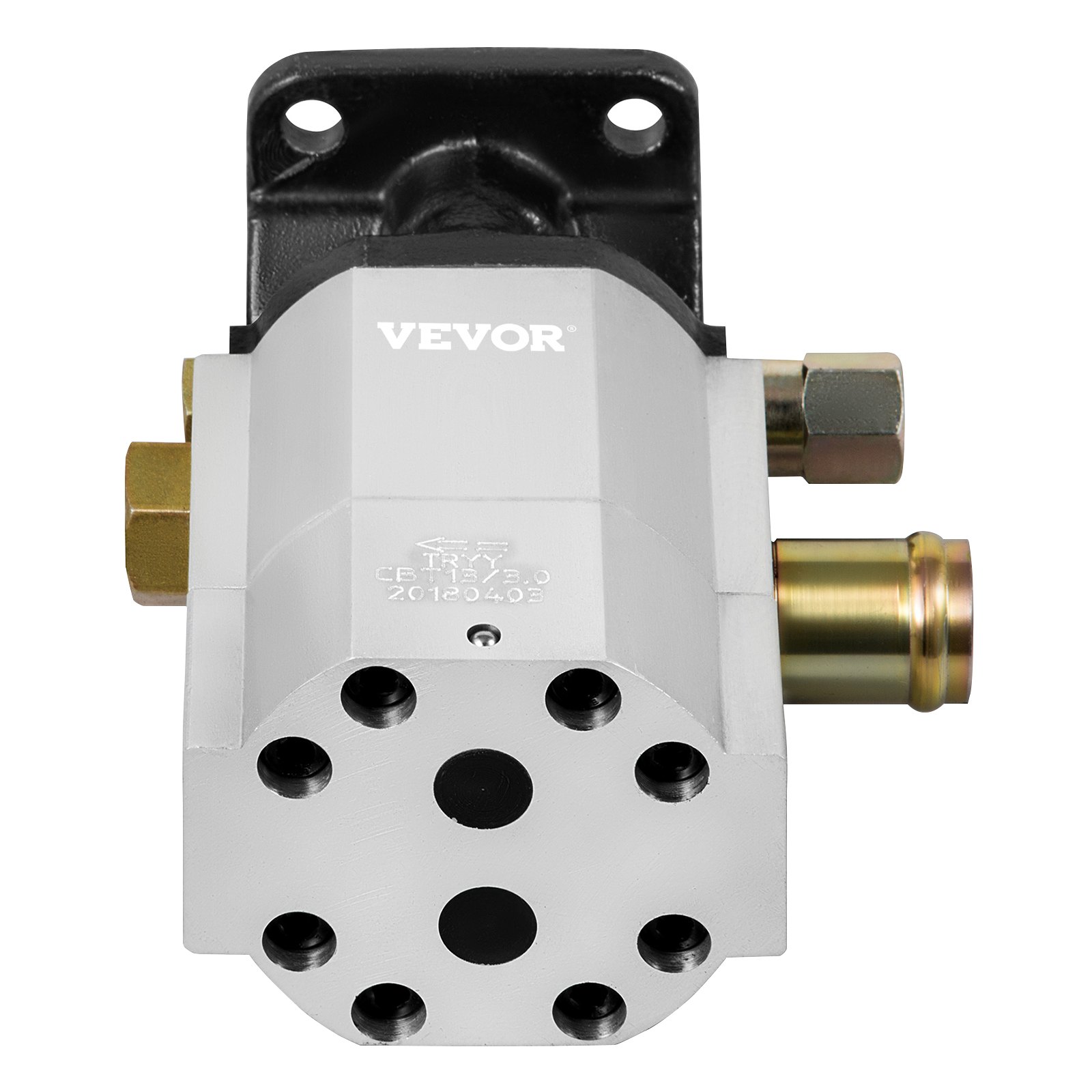

VEVOR hydraulic wood splitter pump with aluminum alloy housing and 13gpm flow rate.
VEVOR hydraulic wood splitter pump with aluminum alloy housing and 13gpm flow rate.

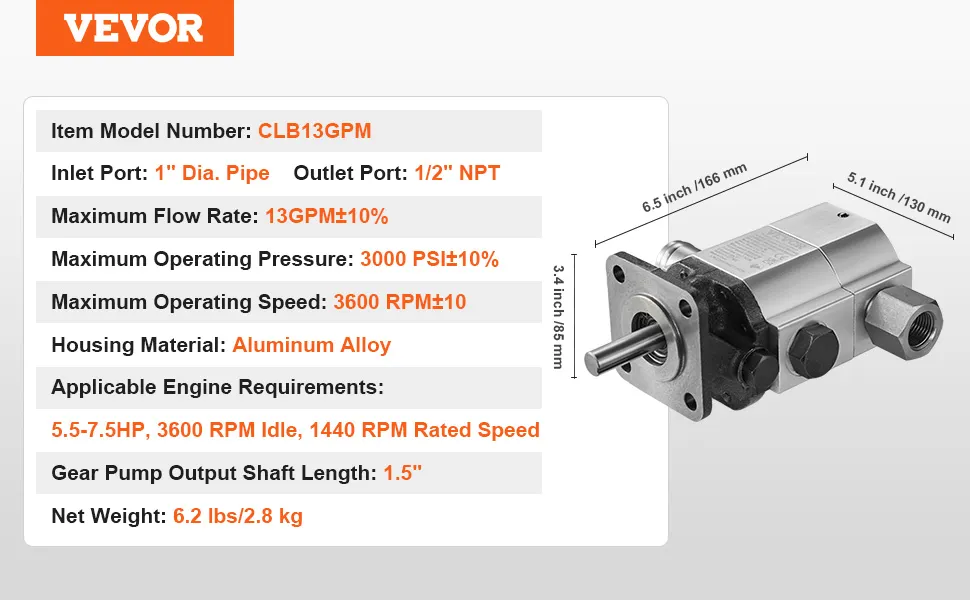

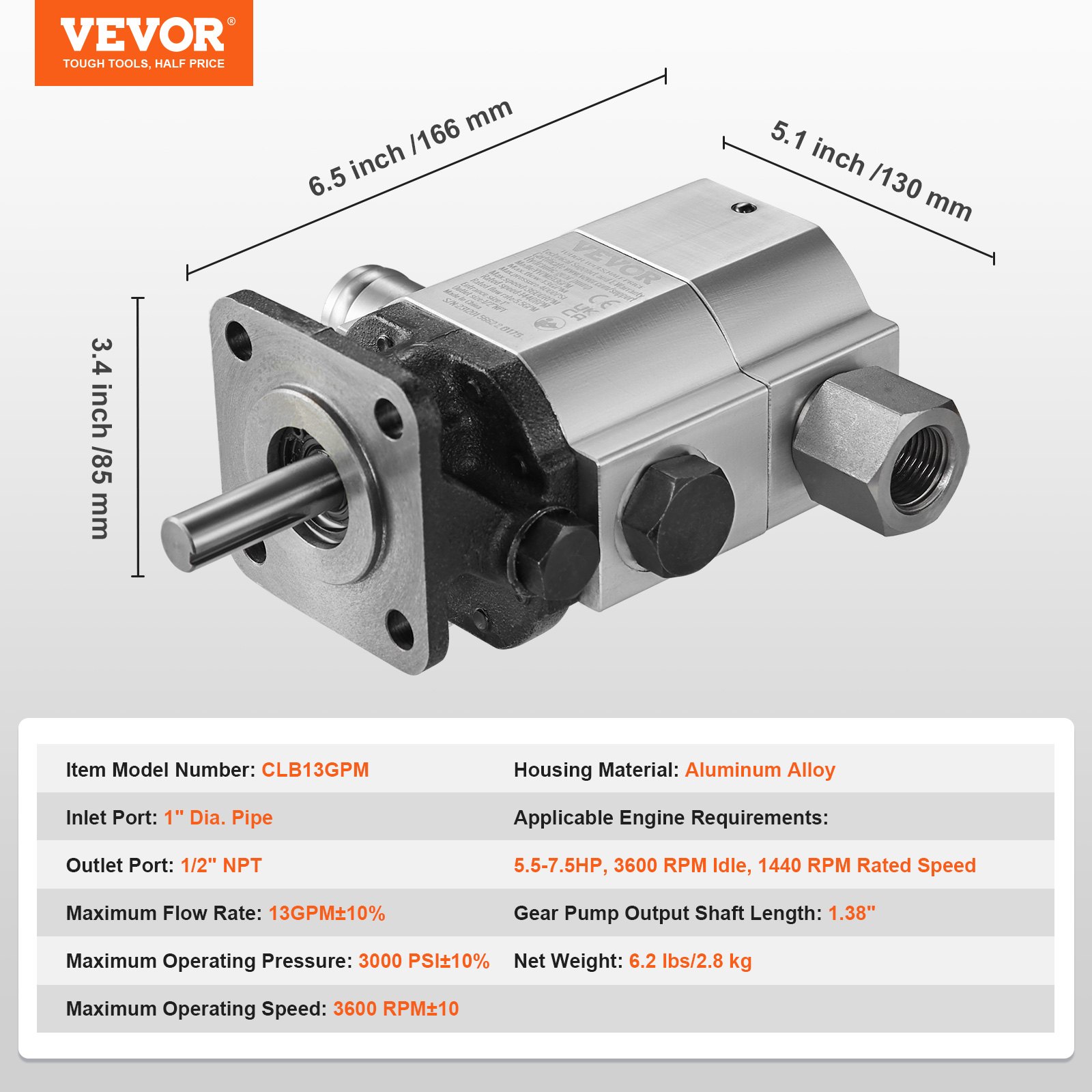

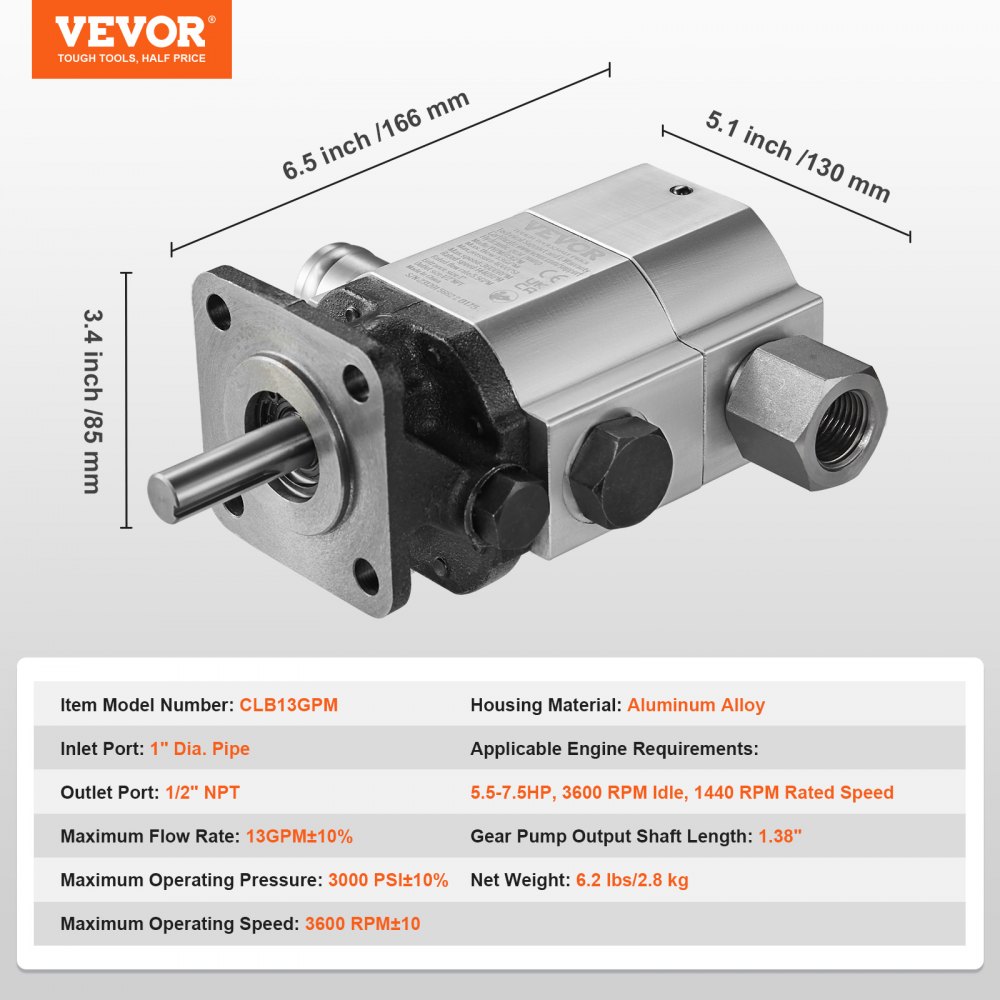

Specification

Item Model Number
CLB13GPM
Inlet Port
1" Dia. Pipe
Outlet Port
1/2" NPT
Maximum Flow Rate
13GPM±10%
Maximum Operating Pressure
3000 PSI±10%
Maximum Operating Speed
3600 RPM±10%
Housing Material
Aluminum Alloy
Applicable Engine Requirements
5.5-7.5HP, 3600RPM idle, Rated Speed
Gear Pump Output Shaft Length
1.5"
Net Weight
6.2 lbs/2.8 kg

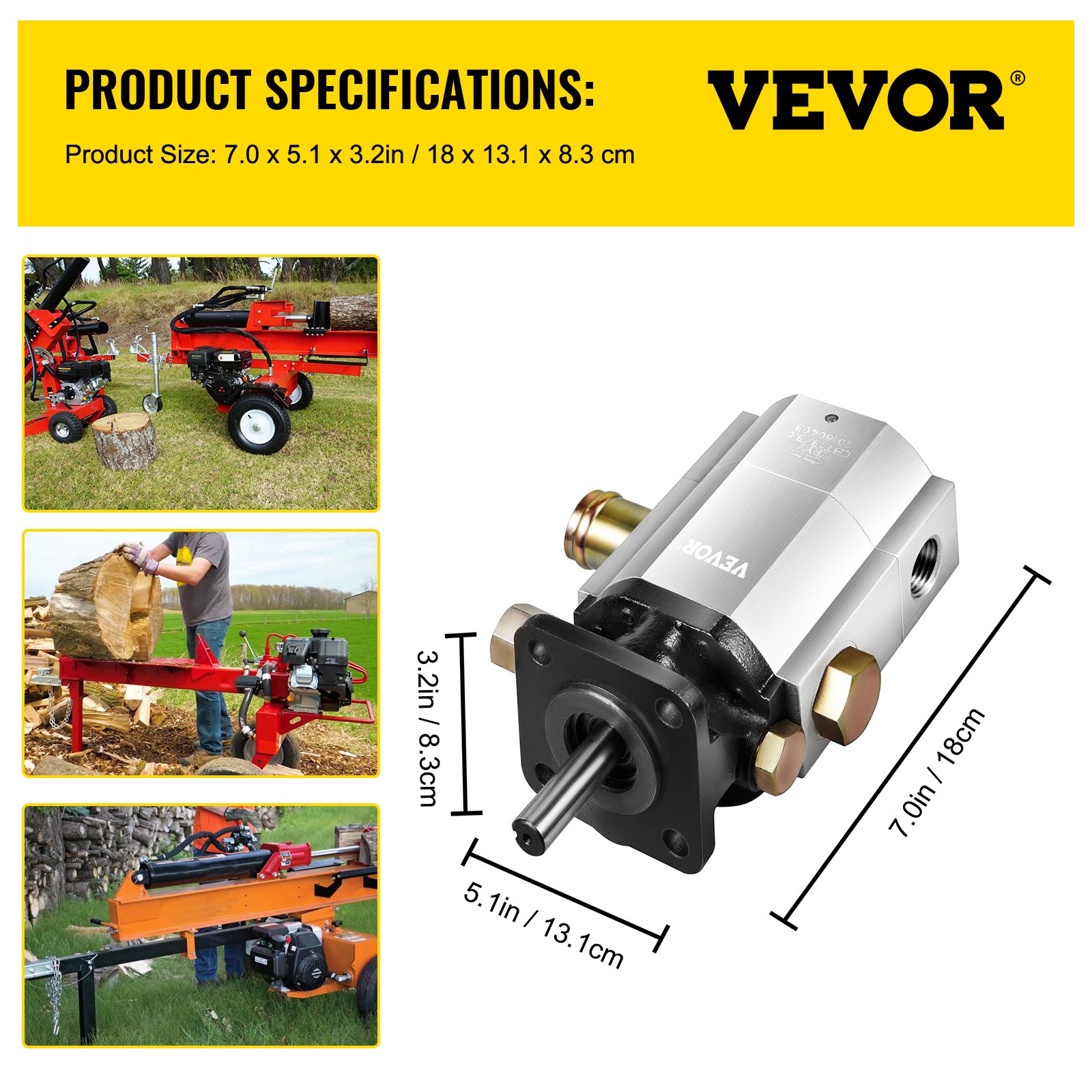

Product Dimensions
5.1 x 3.4 x 6.5 in/130 x 85 x 166 mm
Questions and Answers
15 Questions
or Ask a Question
What is flow rate for high pressure
Answer This Question
Max. Operation Speed: 3600RPM Max. Operation Pressure: 3000PSI
By vevor
Helpful ( 5 )
Does it turn clockwise or counterclockwise
Answer This Question
counterclockwise
By beaver
Helpful ( 3 )
See More (2)
What type of hydraulic fluid is required?
Answer This Question
No. 46 hydraulic oil or hydraulic oil can be used.
By vevor
Helpful ( 1 )

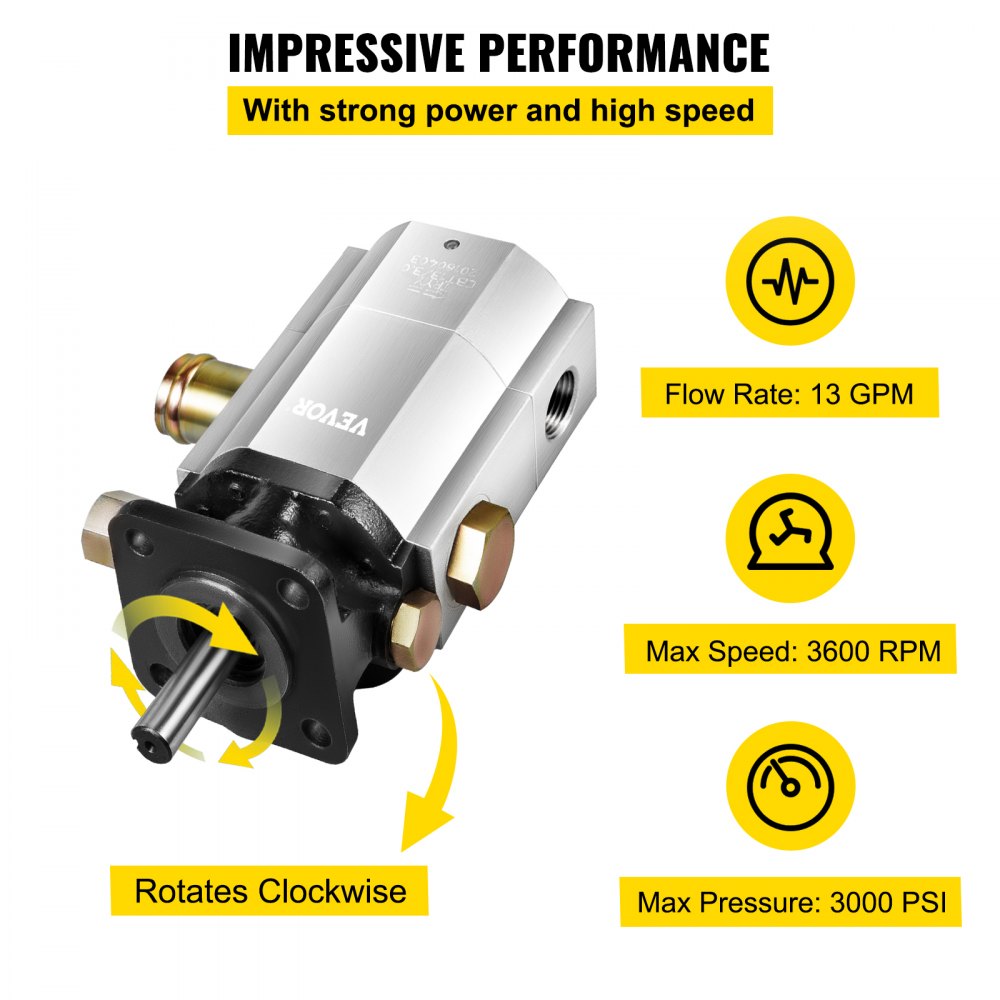

To check rotation is that as you face the pump shaft
Answer This Question
When viewed from the shaft end of the product, it rotates clockwise.
By vevor
Helpful ( 1 )
will this replace mtd part # 718-04127
Answer This Question
This will replace mtd part # 718-04127.
By vevor
Helpful ( 0 )

Customer Reviews

4.7 Out of 5
Based on 56 reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
56 Review(s)
Clear filters
Bruce B. Bruce B.
Owner
It isn't putting out 16 gpm! Not even 11 gpm! My old pump still works but is 8 years old, so I decided to upgrade with a higher output pump. I do have a 13 hp motor so 16 gpm isnt an issue. I have contacted Vevor and they wanted a video of the log splitter running which I sent. We will see if they will let me return it.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Rob Brumme Rob Brumme
Farm use
Pump fails to build pressure would like refund and return shipping label please and thank you,have tryed your support and chat rooms haven't heard back yet on return shipping for item as of yet
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Danny Danny
Ower
Put this on customer wood spiller was easy to install work great when install would buy again great product
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Michelle Hayes Michelle Hayes
Office manager
Was exactly what we expected. Arrived before expected date. Was great quality.Customer service was excellent. I had absolutely no issues or complaints whatsoever with this product I will be happy to use vector again for future online purchases
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Exact fit Exact fit
Exact fit
We used this to make our log splitter fact
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Aaron Aaron
Heads up
The aluminum coupler that ties the engine and the pump together would not work on the 6.5 hp predator engines..fyi. Quality and price appear to be very good.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Jeff pierce Jeff pierce
Pump kit
Great experience all around. Good quality products! I bought my 10 gallon hydraulic tank from them 2! Great set up splitter was done and we tried it, the old team pushed forward the.... hydraulic fluid all over, didn't know the casting on my old team was cracked... now I'll get a new ram and split wood! Thanks vevor
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Fixed the woodsplitter Fixed the woodsplitter
Good pump
I recieved this pump in a very timly manner was identical to the one I replaced....which as non-repairable... also noted that the vevor has the option to repair the shaft seal by means of a C-clip so very happy with my Vevor pump repair
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
David David
mr
great product works good and not a bad price. running it using a 6hp gas motor with not real any problems
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Brian Brian
owner
Great product! Only issue I have is the detent on the valve doesn't pop off all the way when the cylinder retracts. Also the detent doesn't hold that great because I have the spring set light to get it to shut off on the retract.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
