VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
DLGYYGL8516I13QS9V0

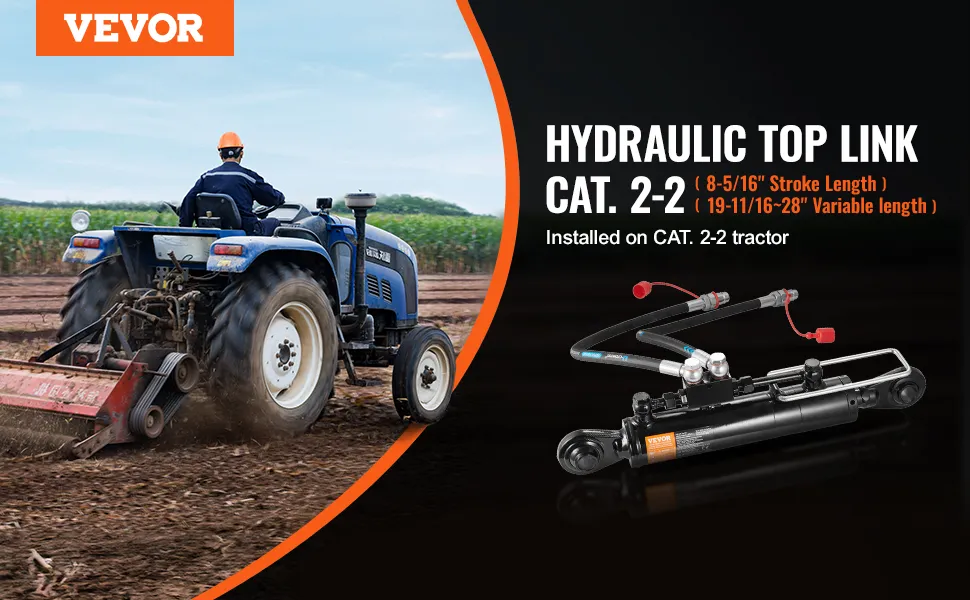

VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Adaptation for Cat. 2-2 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length:19-11/16 in(500 mm); Stroke length: 8-5/16 in (211 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.

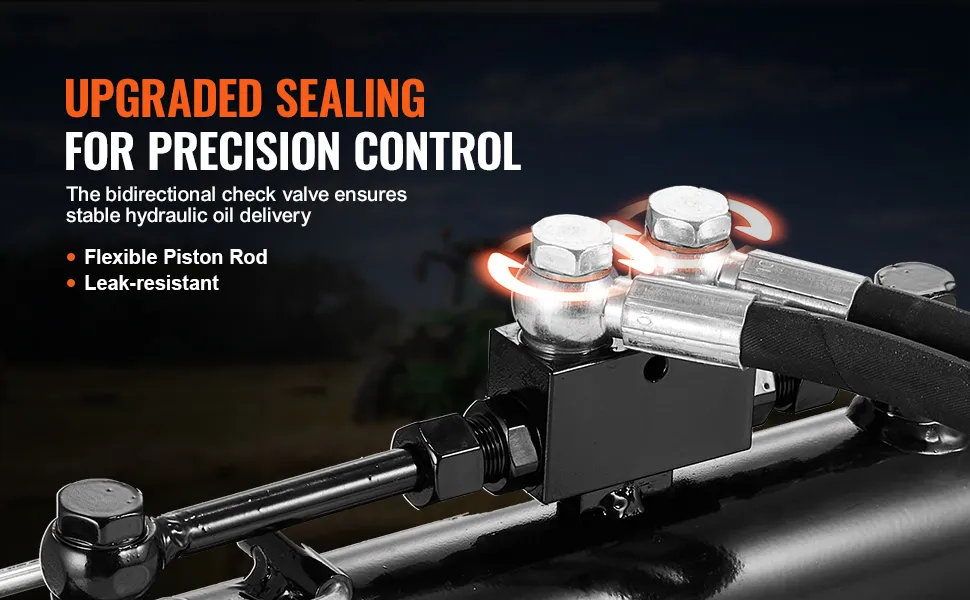

  • High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.

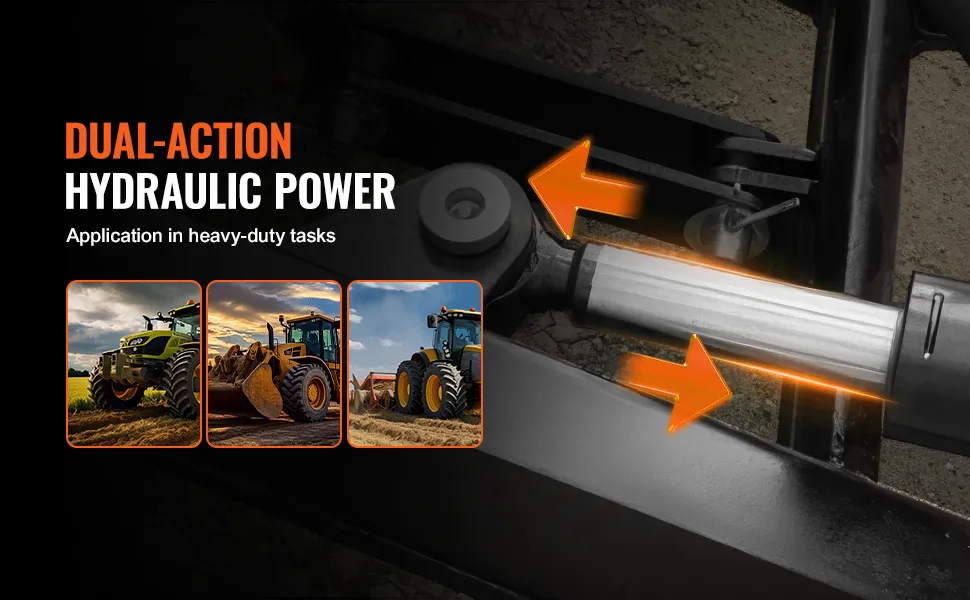

  • Enhanced Hydraulic Power: The hydraulic top link is capable of providing 4 tons of pushing force and 2.4 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
  • Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.

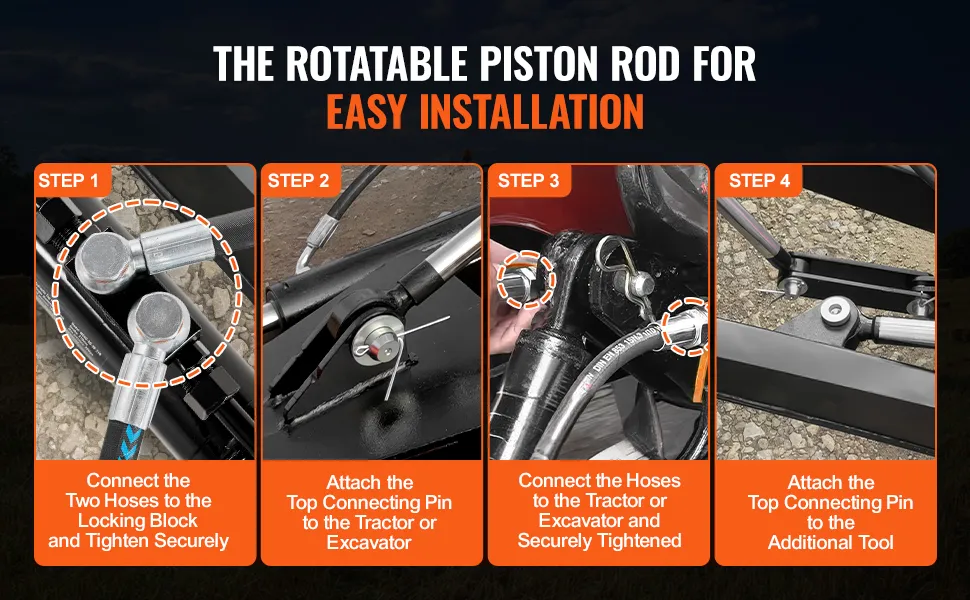

  • Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Cylinder- Powerful Performance, Precise Extension Control!
Within the maximum working pressure range of 20/18 MPa, the double-acting hydraulic cylinder can generate 4 tons of pushing force and 2.5 tons of pulling force without the need for mechanical gears/levers.
The hydraulic top link Cat.2-2 utilizing bidirectional check valves with locking blocks, it effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force.
The top link made entirely of 45# steel, it is robust and heavy-duty, resistant to deformation. With added paint coating on the surface, it is corrosion-resistant and rust-resistant, ensuring durability even in harsh environments such as muddy terrain, rainy days, and outdoor high temperatures.
The piston rod of hydraulic top link is specially designed with a rotating feature, allowing for flexible installation on different tools. Note: Hydraulic hose fittings need to be tightened securely to prevent oil leakage.
With a connection hole diameter of 1.0 in/Φ25.5 mm, double acting hydraulic cylinder is compatible with Cat.2-2 tractors, allowing for direct installation on tractor equipment to enhance operational efficiency.

Hydraulic Top Link for Heavy-Duty Tasks

The VEVOR hydraulic top link is perfect for heavy-duty tasks. It fits category 2 tractors perfectly. Use it for plowing, waste recycling, and transportation. This top link can handle tough conditions. It ensures efficiency and reliability in your work. The hydraulic cylinder has a 4-ton pushing force. It also has a 2.4-ton pulling force, which makes it suitable for demanding jobs. With a maximum working pressure of 20/18 MPa, it delivers strong performance. Our hydraulic top link comes with hoses and a check valve. You are ready to use it right out of the box. This product is built to handle the toughest tasks easily.


High-Sealing Check Valve Ensures Precise Control

The check valve in this hydraulic cylinder is the best. It ensures minimal oil leakage during operations. This means precise control when pushing or pulling. Even when the pump stops, the piston rod stays stable. That's important for maintaining accuracy. The bidirectional check valve adds to its efficiency. You can let the hydraulic system perform smoothly. This high-sealing feature guarantees consistent performance over time. The check valuable control system (CHEVOR) is a key part of the VEVOR hydraulic cylinder, maintaining convenient performance over time.


Enhanced Hydraulic Power for Superior Performance

This hydraulic cylinder delivers strong power. It has a 4-ton pushing force and a 2.4-ton pulling force. They operate within a maximum pressure range of 20–18 MPa. So, it's suitable for heavy-duty tasks. The hydraulic top link caters to demanding jobs. You get efficient and reliable performance. The delivered power helps you handle tough tasks easily. Enhanced hydraulic power ensures smooth and effective operations. This feature ensures the hydraulic engine meets high performance standards.


Durable 45# Steel Construction Withstands Harsh Conditions

The cat 2 hydraulic cylinder is made from thick 45# steel. This material is known for its durability. The surface has a paint coating that resists rust and wear. It also withstands high temperatures and rain. These features make it ideal for harsh conditions. Mud, rain, or heat won't affect its performance. Construction ensures long-lasting reliability. Our hydraulic cylinder is built to last. You can handle tough environments without compromising on performance in any way. The durable build is a major plus for heavy-duty tasks.


Easy Installation with Rotatable Piston Rod and Included Hoses

The hydraulic cylinder with hoses is very simple. It has a rotatable piston rod that meets different installation needs. It includes high-pressure-resistant hoses. You don't need to buy hoses separately. So, assembly is hassle-free. Follow the instructions and set it up. The easy setup saves time and effort. Our hydraulic cylinder is ready to use immediately, which is especially useful for those who need a quick setup. Included hydraulic jacks and rotary rods make installation an easy task.


Suitable for a Variety of Agricultural and Industrial Applications

The hydraulic top link is versatile. It can be used in a variety of agricultural and industrial tasks. You can use it for plowing, waste recycling, transportation, etc. This link excels in demanding jobs. The hydraulic cylinder fits category 2 tractors. So, it's suitable for many applications. Our product is designed to meet diverse needs. No matter the agricultural or industrial setting, this tool performs well. The versatility of the G3/8 check valve hydraulic cylinder adds to its usefulness. We have made it a dependable tool for various applications across industries.


Cost-Effective Solution with Reliable Performance

The VEVOR hydraulic top link is cost-effective. It offers reliable performance at an affordable price. The product comes with hoses and a check valve. This makes it ready to use without extra costs. Durability and performance are excellent. These ensure you get value for your money. The hydraulic cylinder is efficient and reliable. It's a savvy investment for heavy-duty tasks. Cost-effectiveness combined with high performance makes this a great choice. You meet high standards without breaking the bank. This feature is important for those looking to save costs while achieving high efficiency.


See More

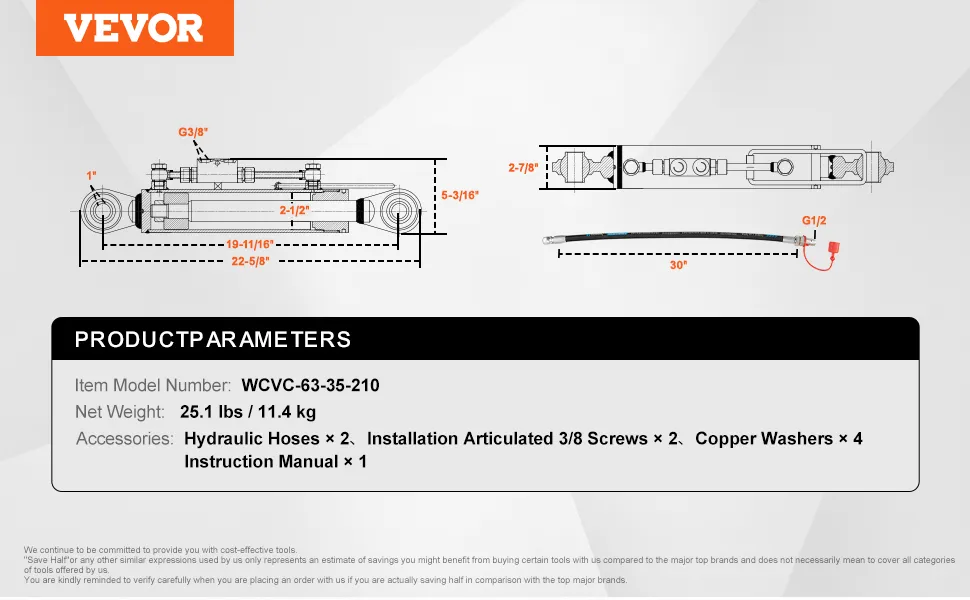

Specification

Item Model Number
WCVC-63-35-210
Minimum Retracted Length
19-11/16 inch (500 mm)
Stroke
8-5/16 inch/211 mm
Cylinder Diameter (I.D.)
2.5 inch/Φ63 mm
Outer Diameter
2-7/8 inch(Φ73 mm)
Piston Rod Diameter
1.4 inch/Φ35 mm
Connection Hole Diameter
1.0 inch/Φ25.5 mm
Connection Hole Width
2.0 inch/51 mm
Thrust Force
4 Tons
Pull Force
2.5 Tons
Check Valve Inlet/Outlet Port
G3/8"
Maximum/Rated Working Pressure
20/16 Mpa(2900/2320psi)
Compatible Equipment
Class Ⅱ Tractors
Hydraulic Hose
(I.D.&L.)
Fitting Type
G1/2
Color and Surface Treatment
Black Paint
Main Material
45#Steel
Service Life
1-year Warranty
Net Weight
25.1 lbs/11.4 kg
Product Dimensions
22.6 ×5.2 ×2.9 inch/575×132×73 mm
Questions and Answers
1 Questions
Will this work on a TYM 575. 55horse power tractor?
This has nothing to do with horsepower, as long as the hydraulic pump pressure does not exceed 22mpa
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
15 Review(s)
Clear filters
Instinctive 130 Instinctive 130
Hydraulic top link
Perfect Ram for hydraulic top link on my John Deere 2025r. Paired with a vector 12 volt 4 valve pump which I mounted on the rail across ropps
Landon Landon
Great price
Excellent price for this item. Hoping it holds up well. Will keep the review updated as time goes on.
Joshua Davis Joshua Davis
Top link.
Absolutely love it. One of the hoses started leaking and Vevor sent me another one 3 months after purchase, that's good customer service. Highly recommend.
John John
Fernando
I recently purchased the Vevor hydraulic cylinder for my heavy machinery application, and I'm thoroughly impressed! The cylinder's performance has exceeded my expectations in every way. The build quality is exceptional, with a sturdy construction that can withstand the rigors of heavy use. The cylinder's sealing system is also top-notch, providing a leak-free operation that ensures reliable performance. I've been using the cylinder for several weeks now, and it's consistently delivered smooth, precise motion control. The pressure ratings are accurate, and the cylinder's responsiveness is impressive. What really sets this product apart, however, is the exceptional customer support I received from Vevor. Their technical team was knowledgeable, responsive, and helped me with any questions or concerns I had during the installation process. Overall, I'm extremely satisfied with the Vevor hydraulic cylinder. Its outstanding performance, and durability. Highly recommended!"
Mark Sims Mark Sims
Good quality hyd cylinder
I like the way this works. There was an issue with the cat 2 adapter not fitting I’m guessing this is metric. Had my son make me two adapters to fit and it’s working great. Small issue for the price point of this cylinder. It works great and no leaks Very strong and holds its position. I wish I had bought one of these a long time ago.
Ron Snyder Ron Snyder
Farmer
This has made using the bale fork so much more convenient. Adjusting for uphill travel made easy. Thanks.
Tommy N Tommy N
Customer
Ordered this cylinder installed,would not work. Took it to a hydraulic shop and found out the fittings on the hose was not drilled from the factory. I contacted vevor and was told hoses and washers would be sent within 10 to 15 days. Now all I am getting is the same email over and over asking me to reply. I have replied seven to eight times. If this is how they treat customers I will not be purchasing anything else from Vevor.
Curtis Curtis
Hydraulic top link
Installed in KIOTI ck2620. So far works great. Some assembly required. The swivel bushing was a tight fit into the top link mount. Overall very satisfied.
Neil Neil
Excellent upgrade for using the box blade
Installation was quick and easy. New top link makes tilting the box blade seamless without exiting the tractor. Definitely a must have!
Curtis h. Curtis h.
It works
Good for use with a 3 point hay spear. Can keep the bale from dragging the ground.
