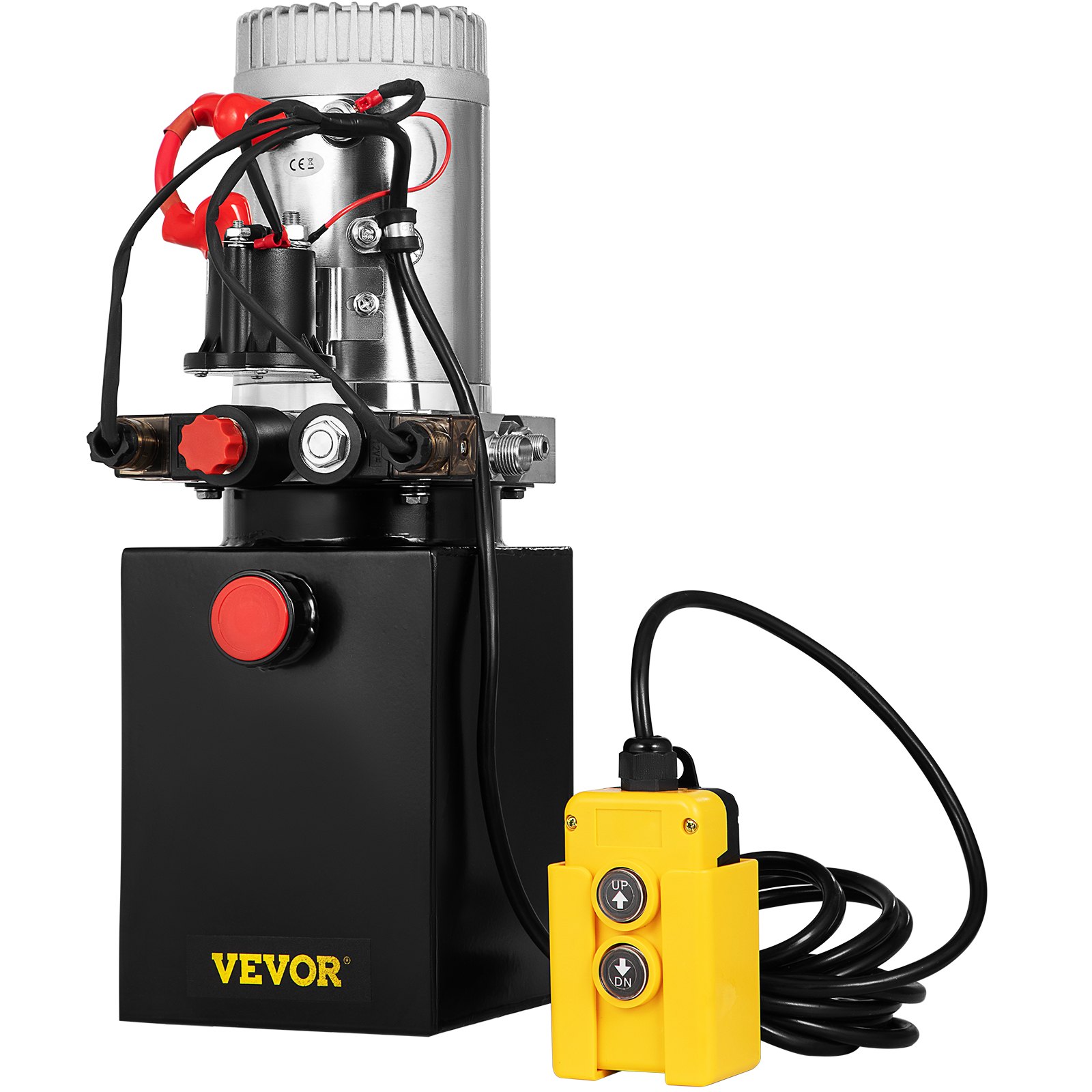

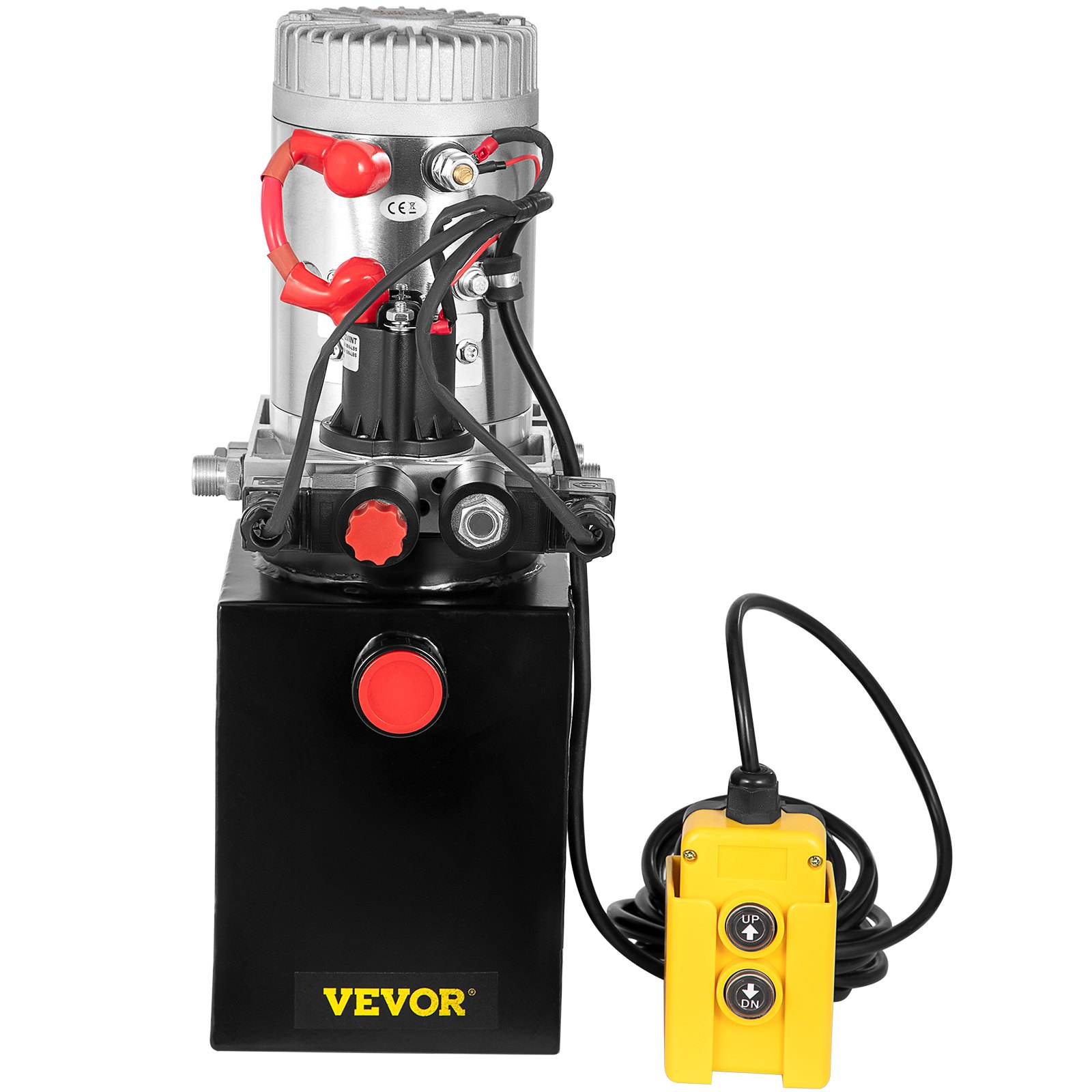

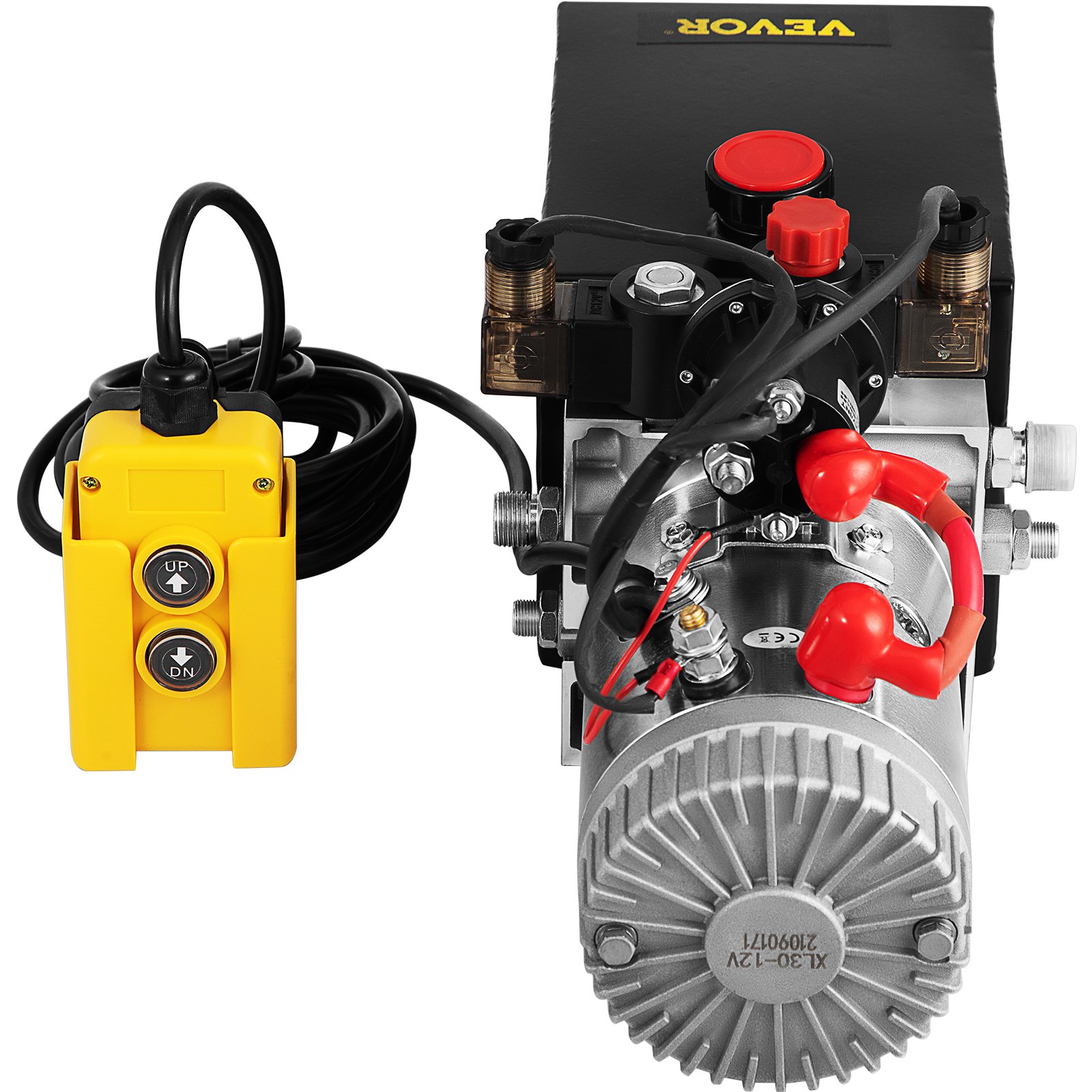

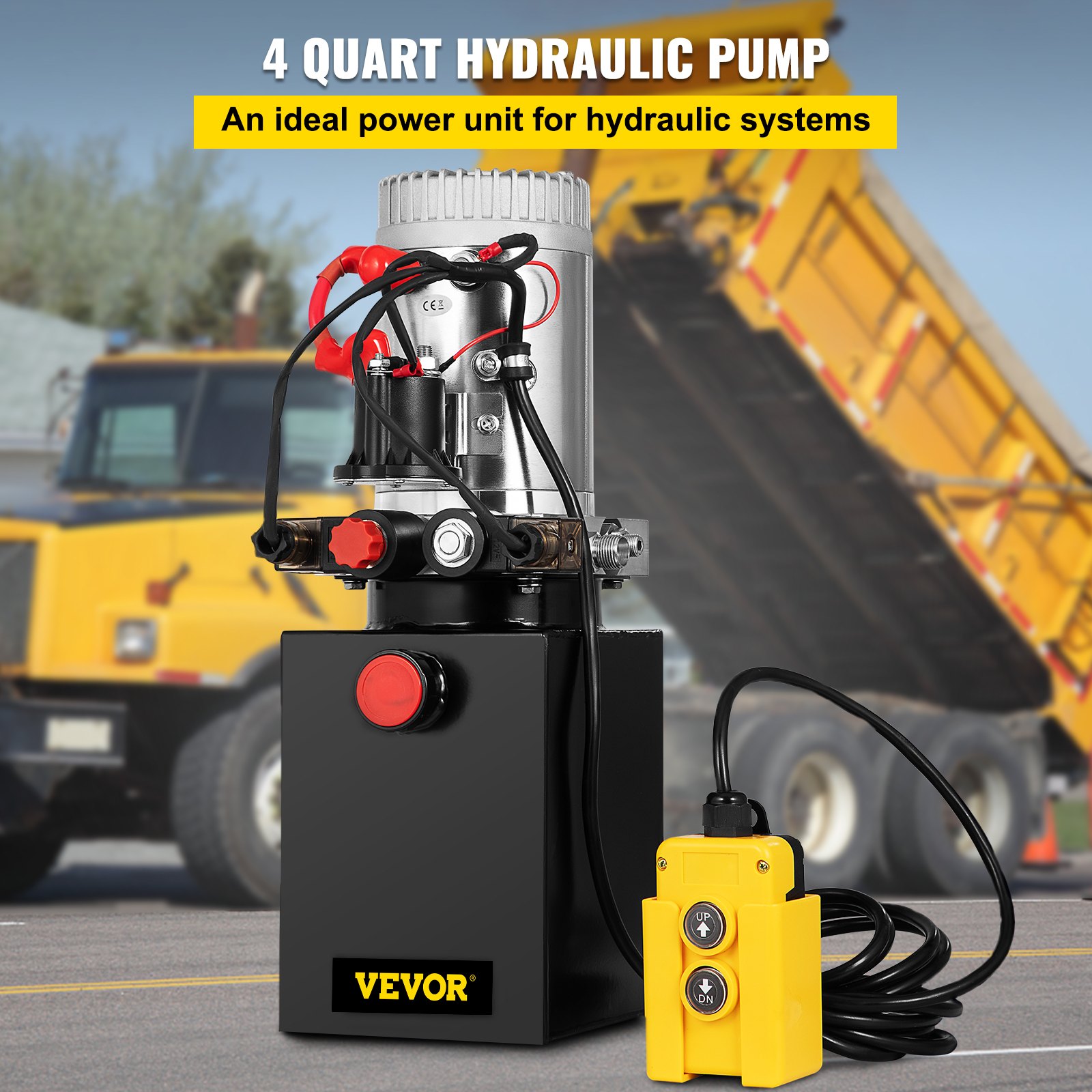

4 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 4-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Please Note: All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application

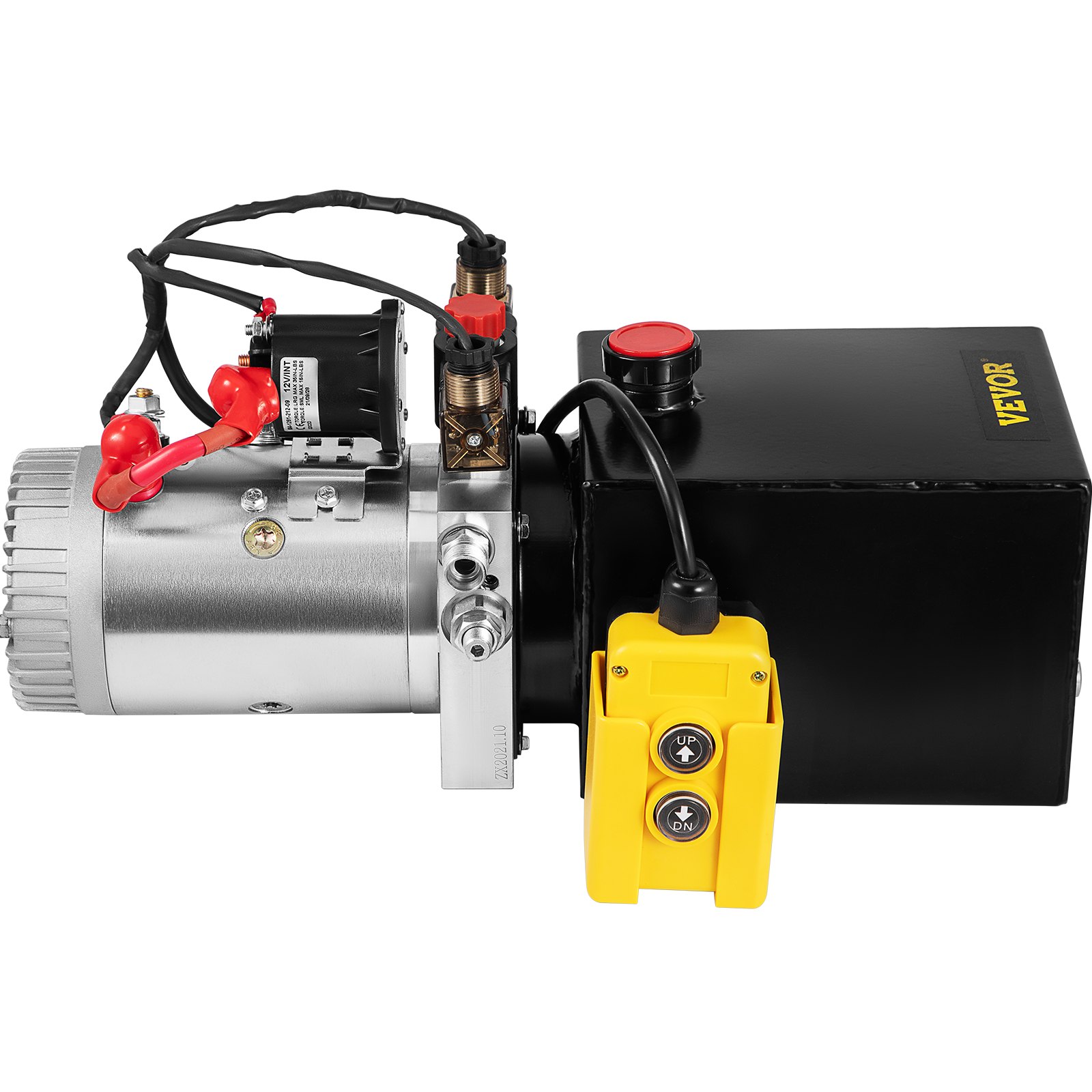

Double-Acting Power Unit

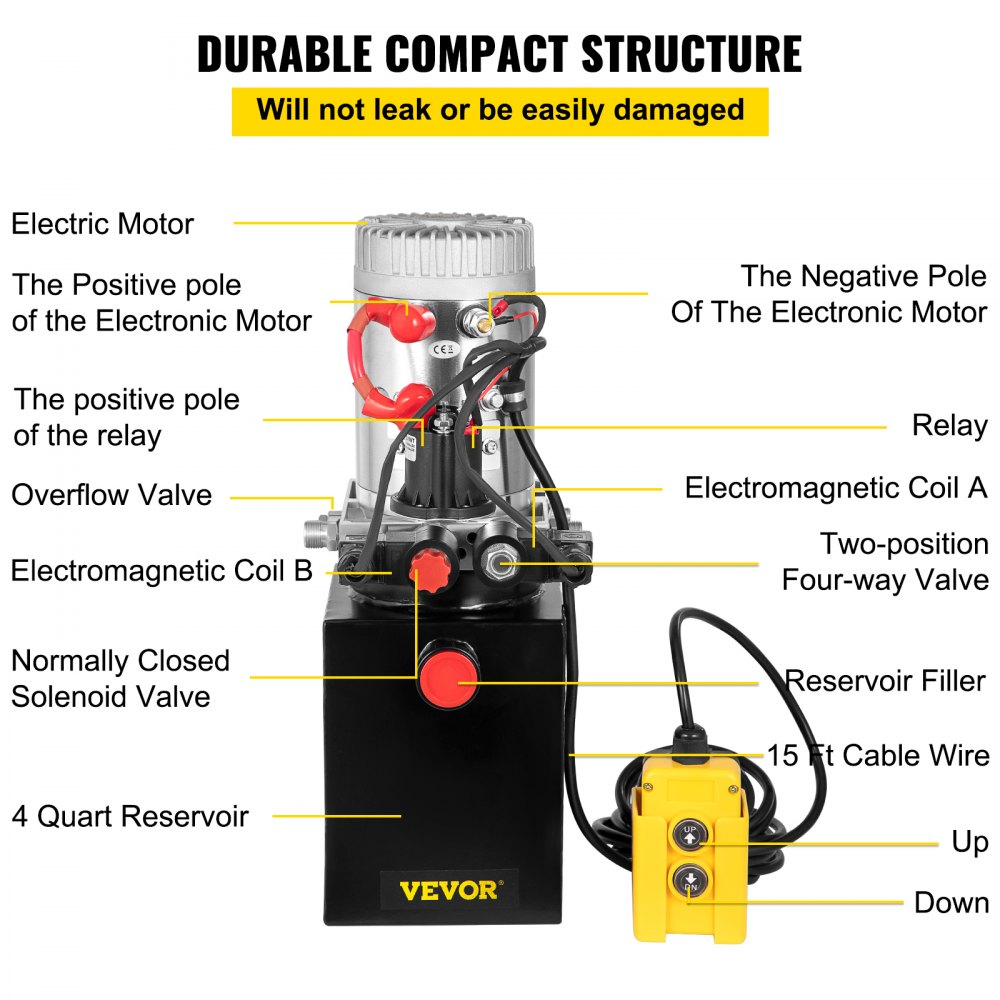

This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
Convenient Design

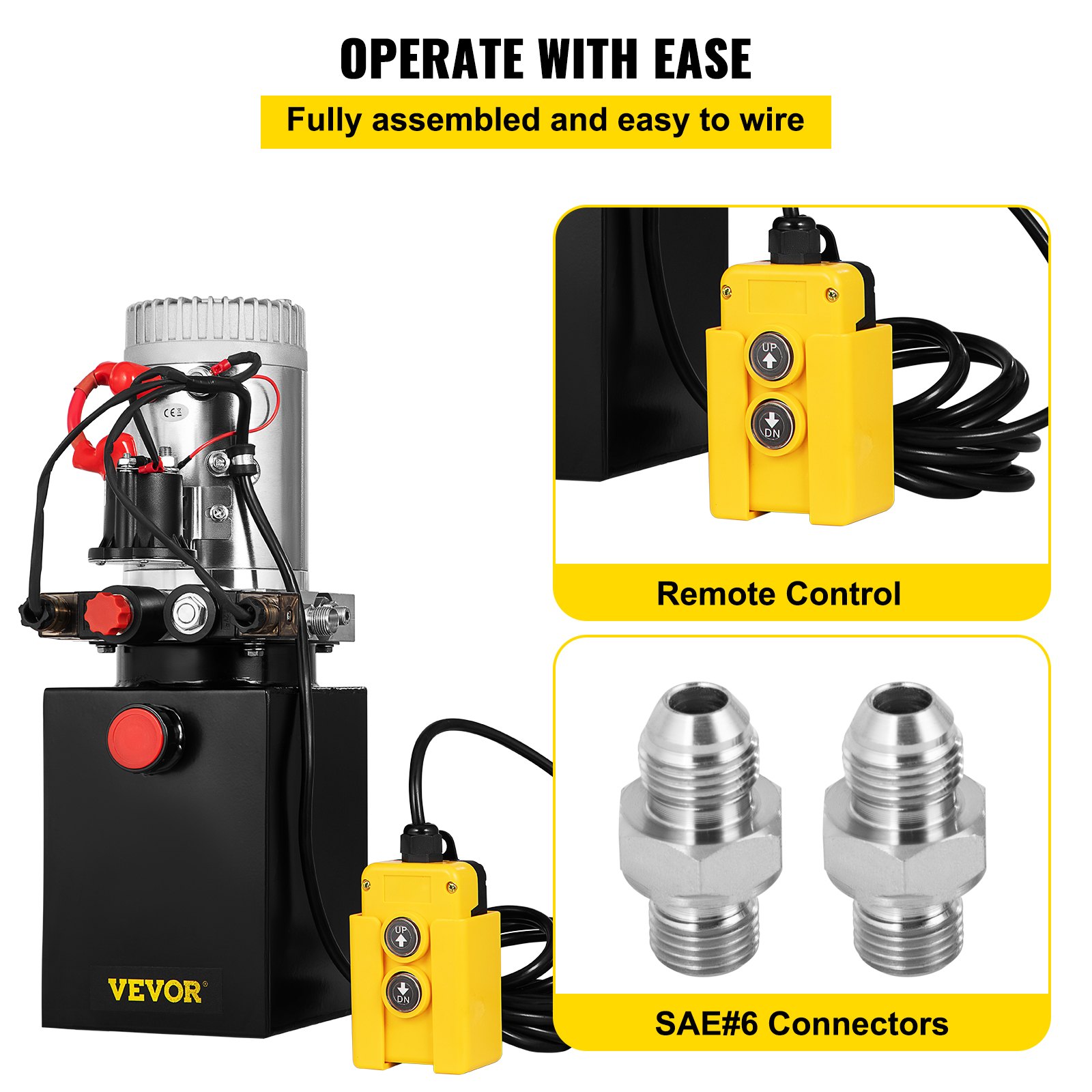

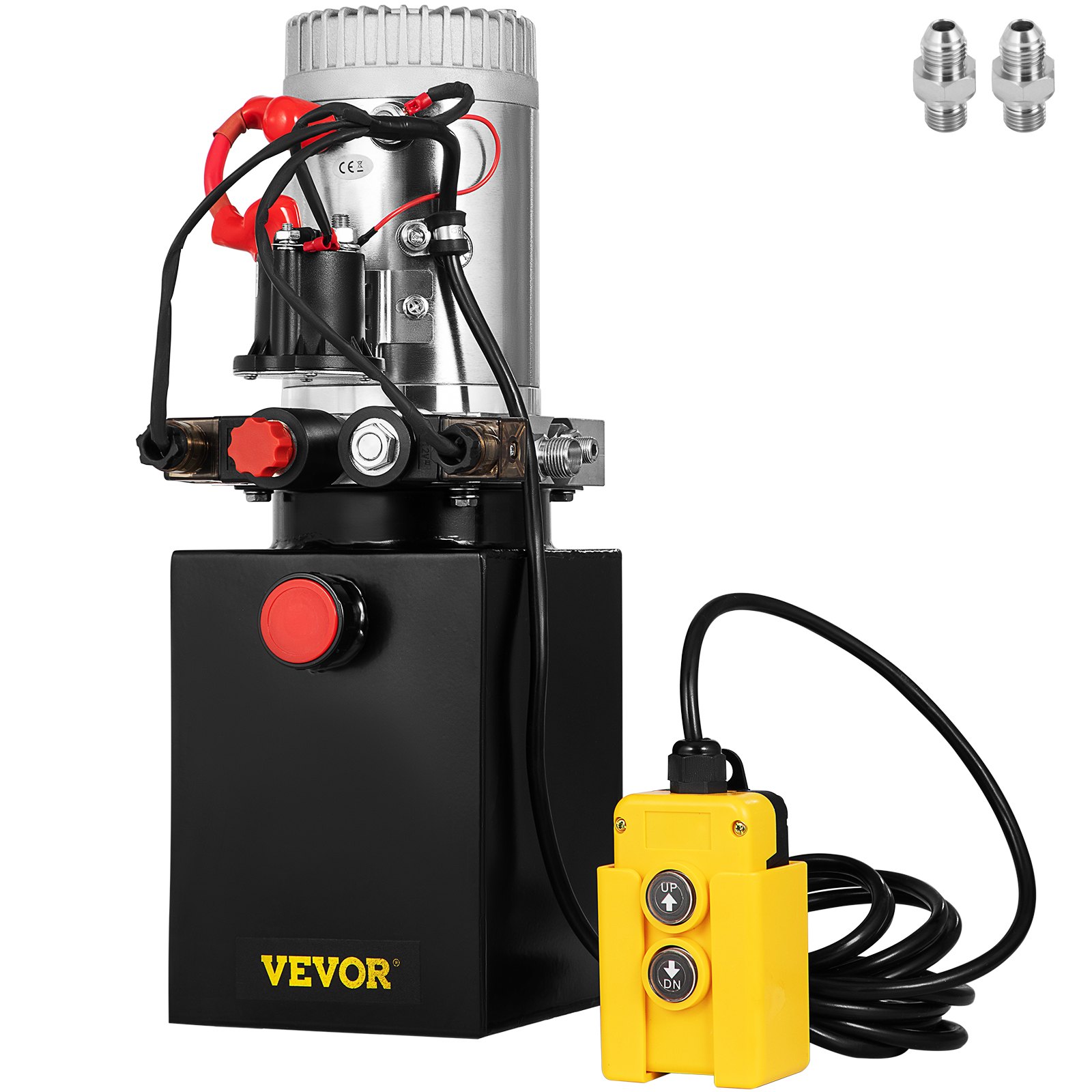

Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 2 additional SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting

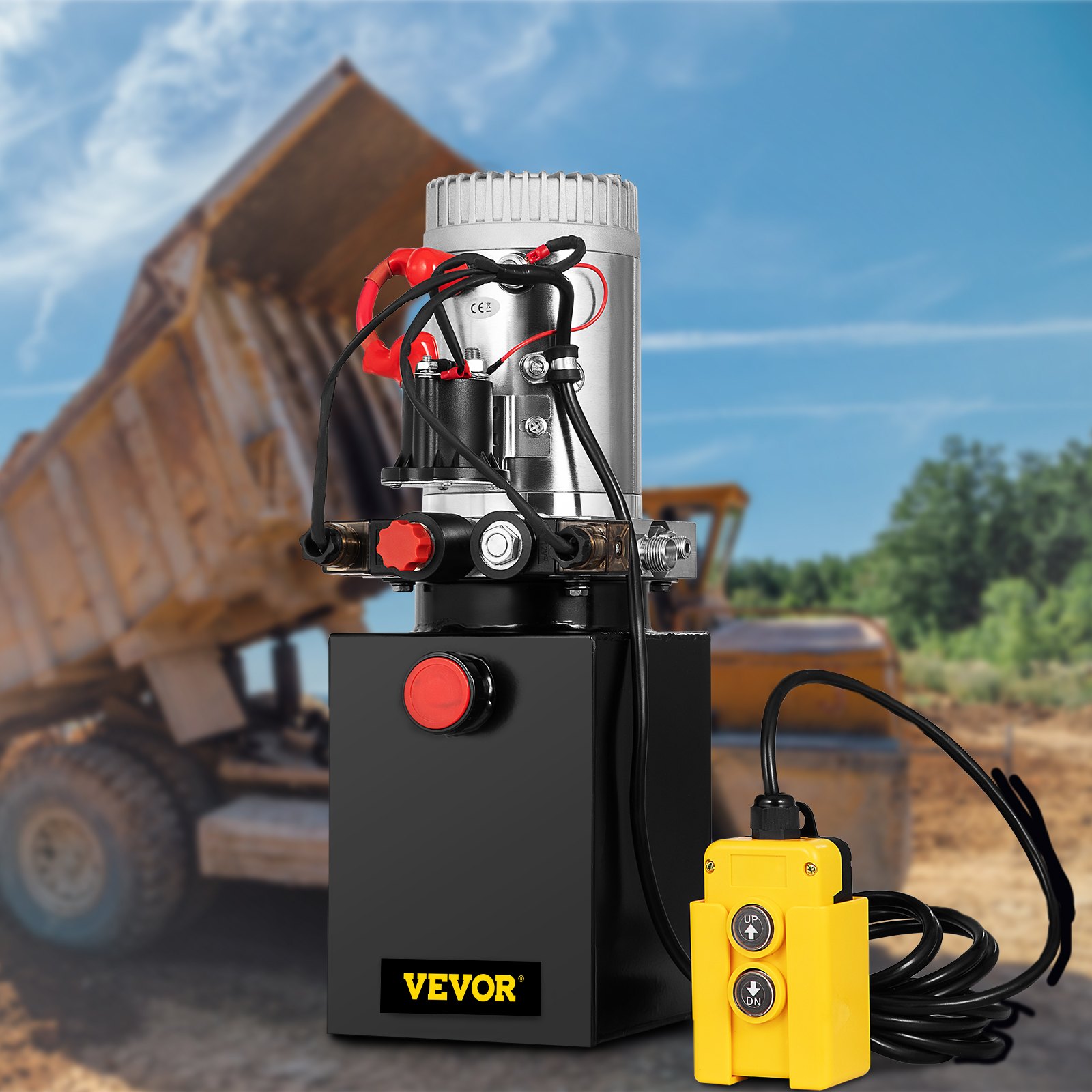

With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation

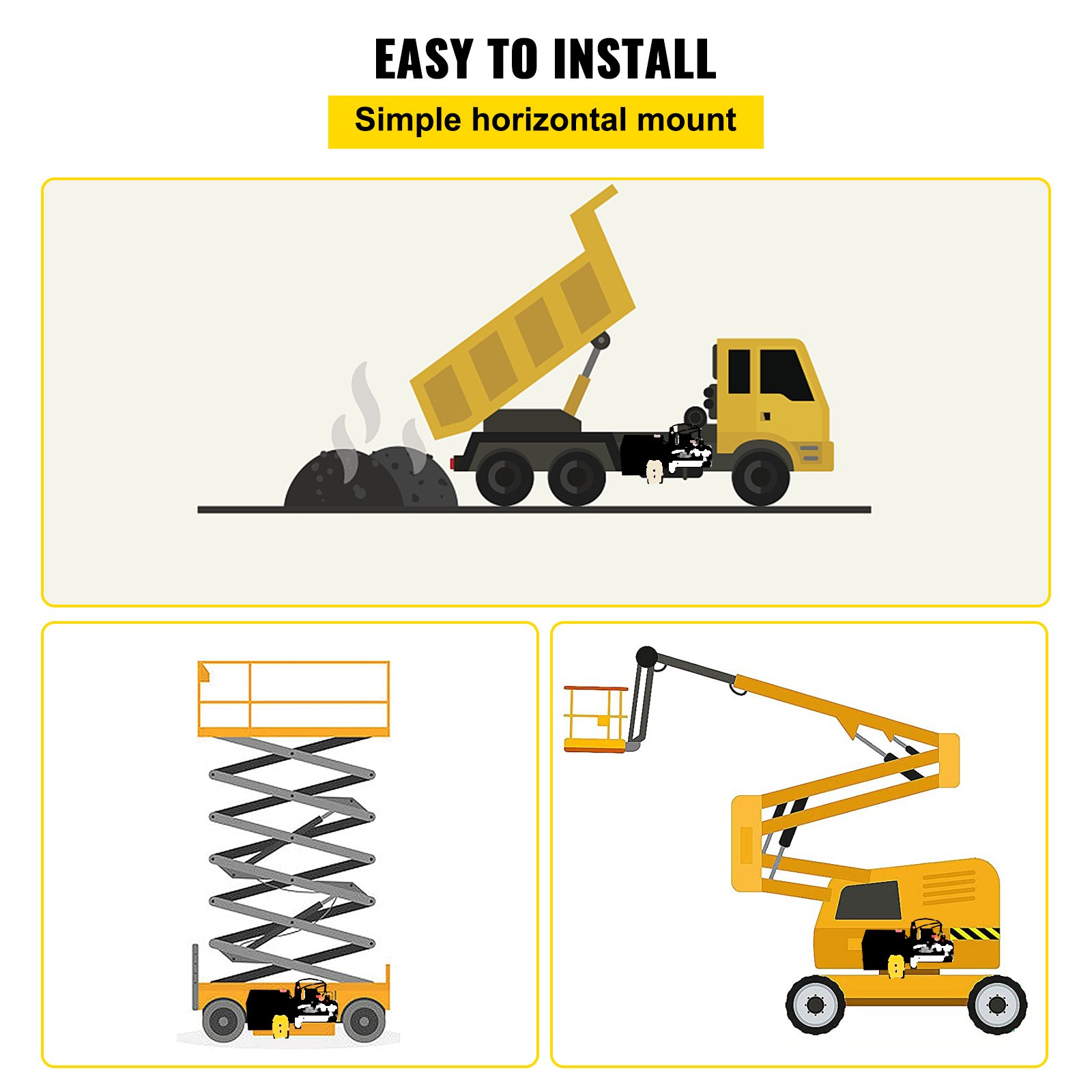

All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Package Content
- 1 × 4 Quart Double Acting Hydraulic Pump
- 1 × Instruction Manual
- Several Related Accessories (Including connectors)

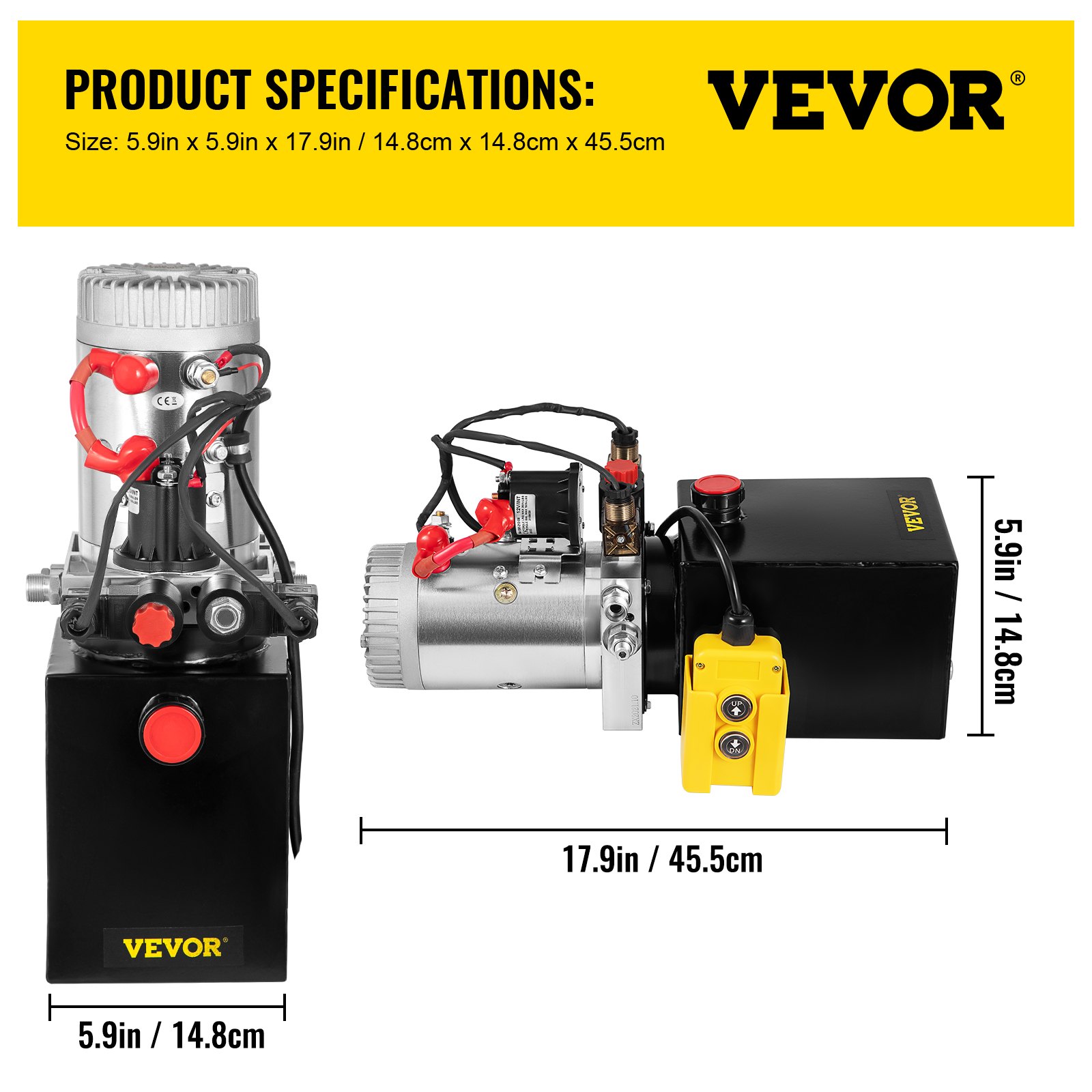

Specifications
- Tank Material: Metal
- Displacement of hydraulic pump: 0.825GPM
- Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
- Rated speed: 2850R/MIN
- Motor power: 1.6-3.0KW
- Motor voltage: DC12-DV24
- Fuel tank: 4 quart

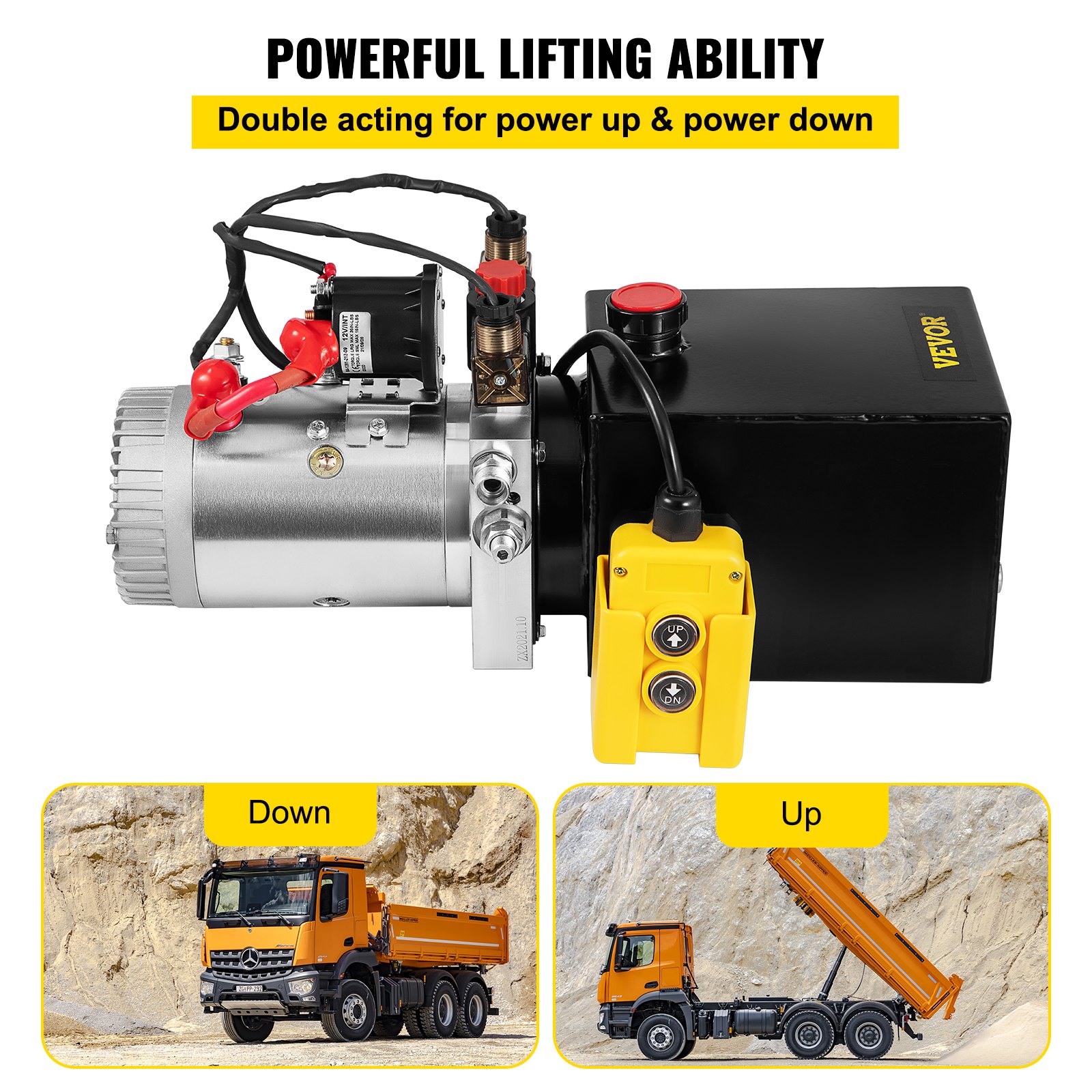

- Double acting Power-Up/Power Down
- 1500 PS Max Relief Setting on B port
- 4 Quart Metal Reservoir
- SAE # 6 Port, Horizontal mount
- Hand held pendant with about 15 feet (4.5 m) removal cord and start solenoid
