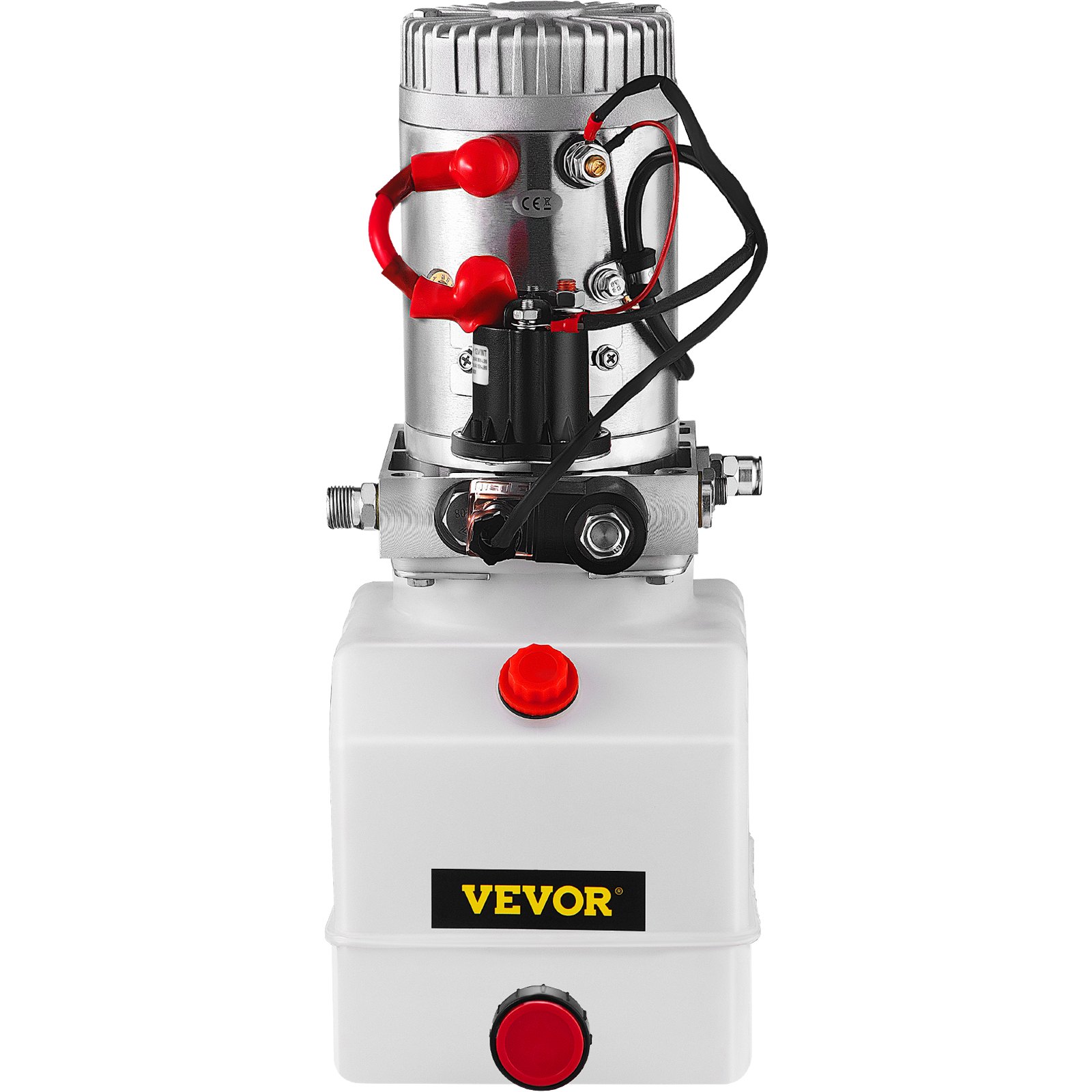

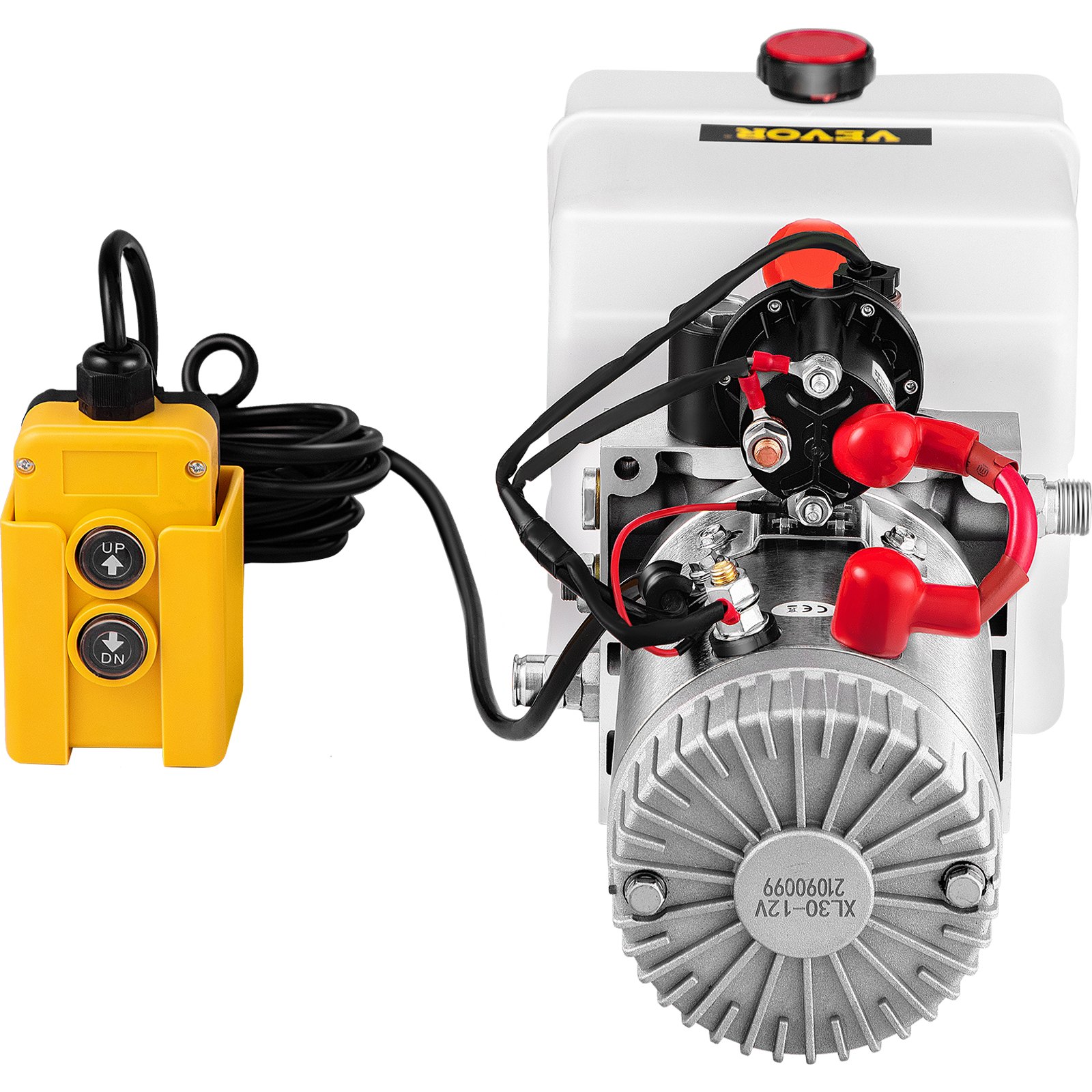

VEVOR hydraulic pump with motor, plastic reservoir, and control switch. VEVOR hydraulic pump with a 4 quart capacity beside a yellow dump truck. VEVOR hydraulic pump with single-acting power, lifting dump truck bed up and down. VEVOR hydraulic pump with remote control and sae#6 connectors. fully assembled unit. VEVOR hydraulic pump with electric motor, relay, solenoid valve, and 4-quart reservoir. easy to install VEVOR hydraulic pump on various construction vehicles. VEVOR hydraulic pump with dimensions 6.5in x 16.5cm and 16in x 40.6cm.
4LCZYYBSLDZY00001V0

4 Quart Single Acting Hydraulic Pump Dump Trailer Plastic Remote Unloading

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

Single Acting

  • Single Acting
  • Double Acting

4 Quart

  • 15 Quart
  • 10 Quart
  • 4 Quart
  • 12 Quart
  • 8 Quart
  • 6 Quart

About this item

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
  • Easy to Use: This 12V hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. We offer you one 15ft remote for long-distance control and one additional SAE#6 connector for replacement.
  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.
  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

Frequently Bought Together

People Who Bought This Item Also Bought

4 Quart Single Acting Hydraulic Pump Dump Trailer Plastic Remote Unloading
Single Acting 4 Quart

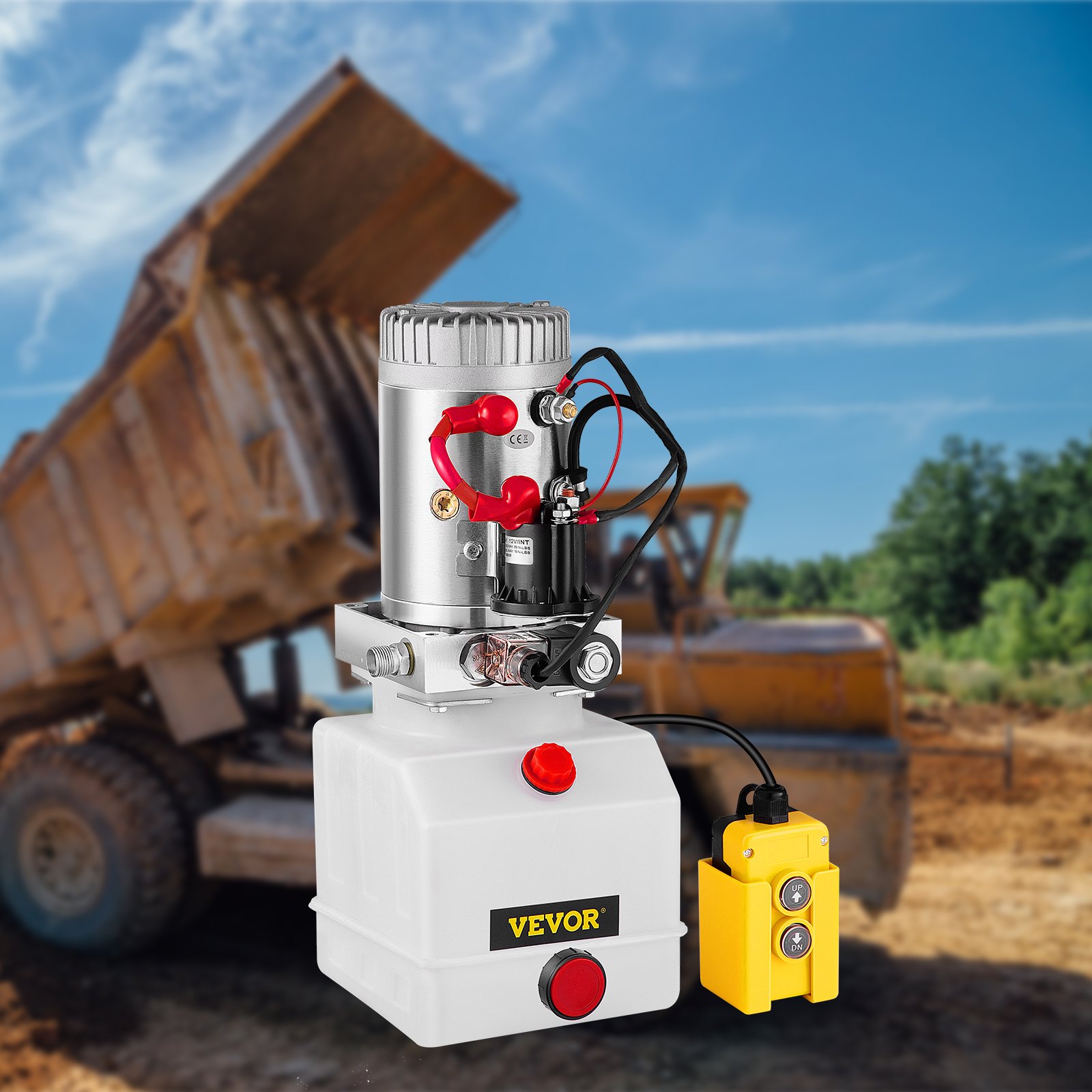

VEVOR hydraulic pump for dump trailer with remote control and 4 quart capacity.

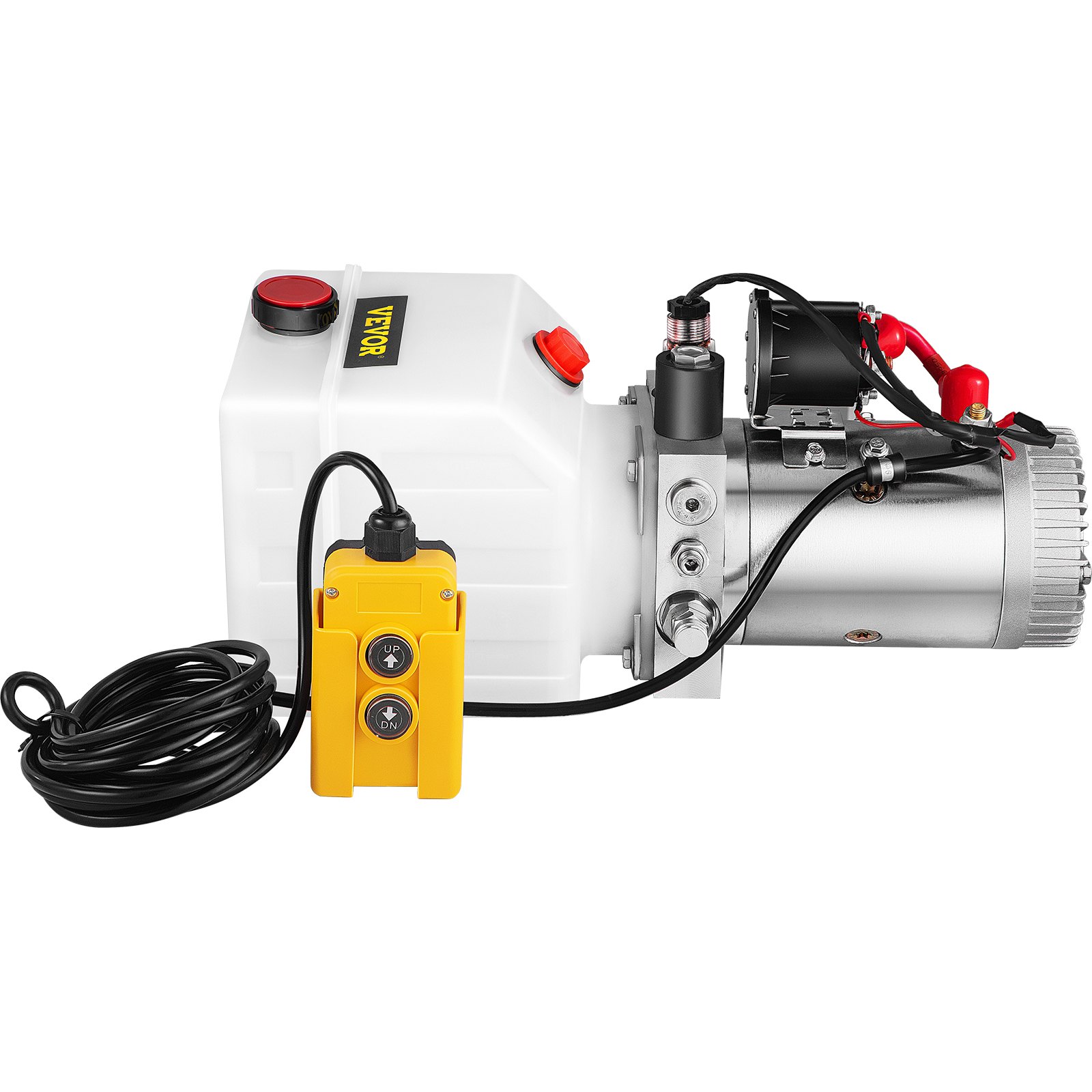

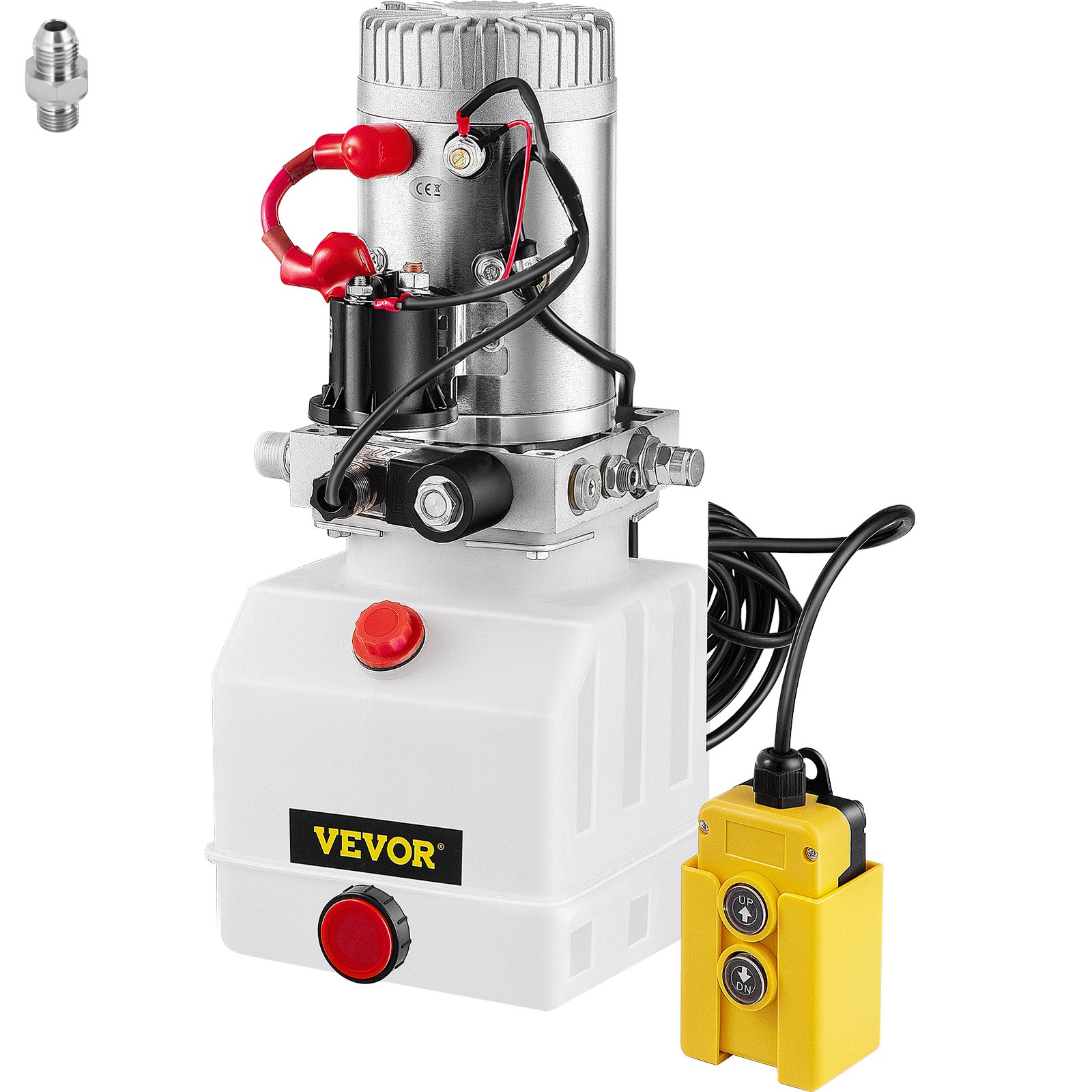

VEVOR hydraulic pump with yellow remote control, metal fittings, and wiring.
4 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
  • Wide Application
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

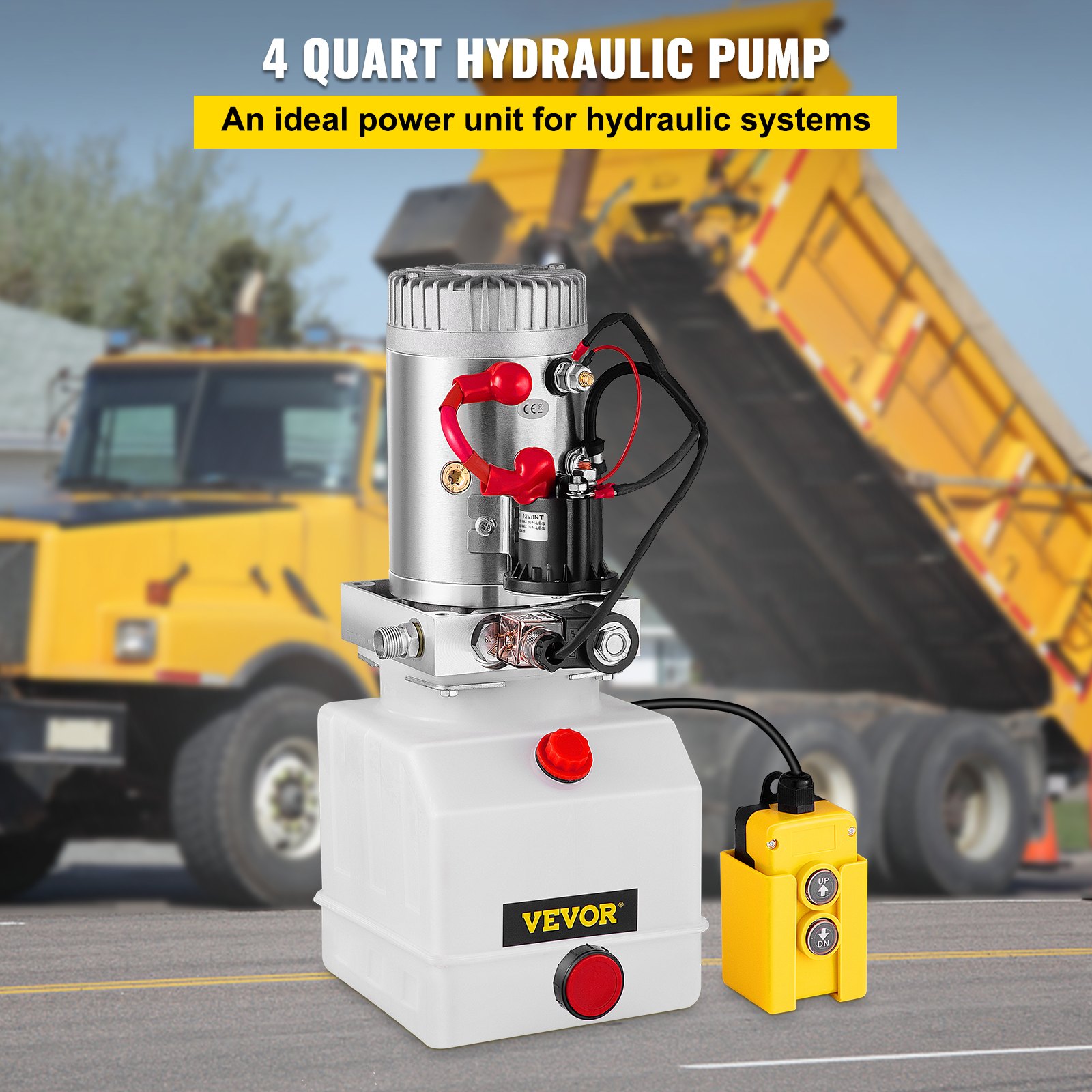

VEVOR hydraulic pump unit, 1.6-3.0 kw, 12v dc, 4-quart capacity, yellow control box.
Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.

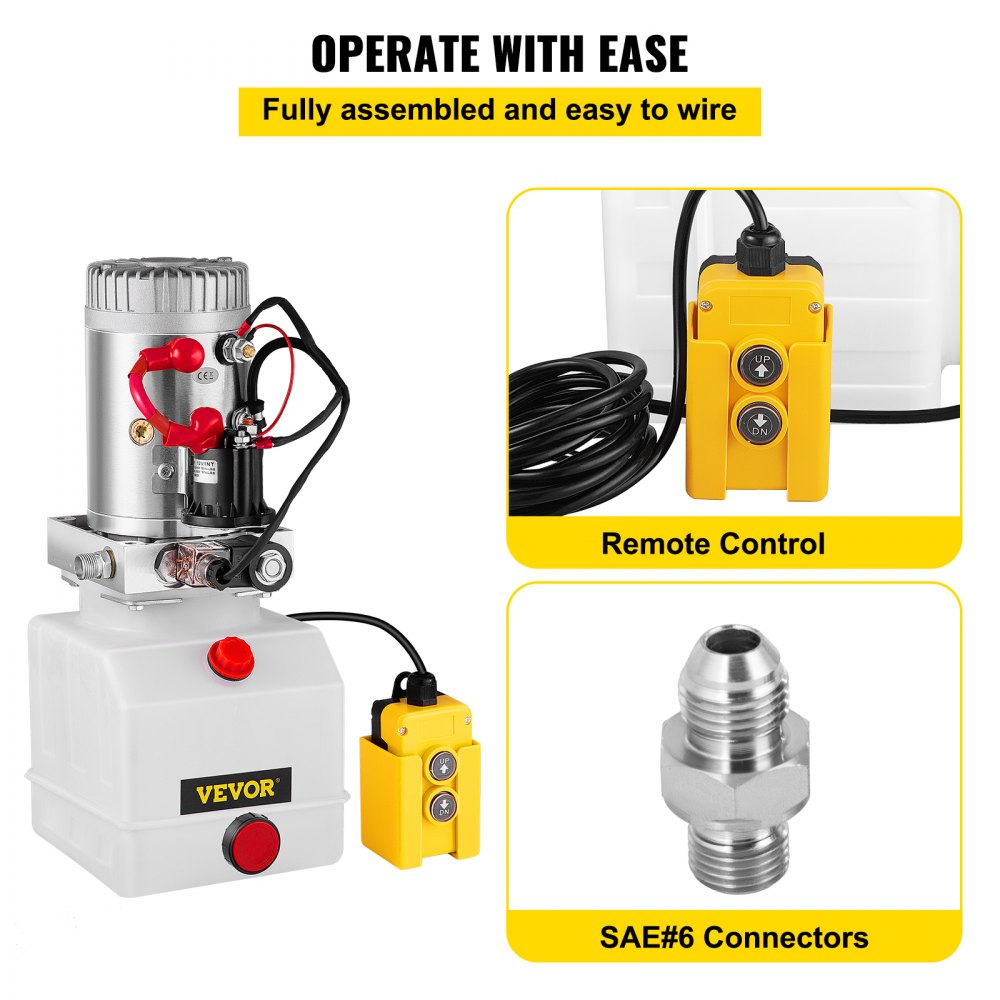

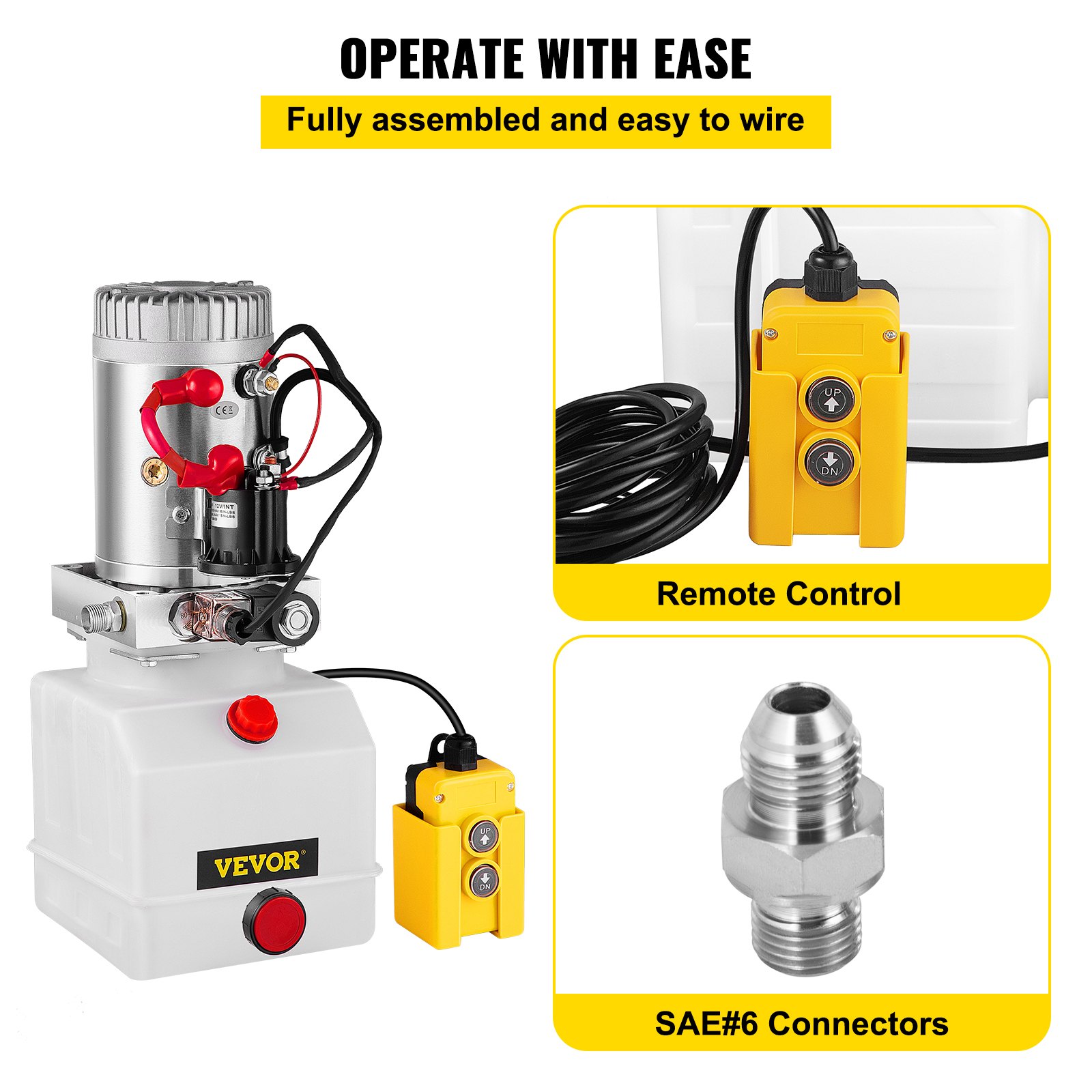

VEVOR hydraulic pump with 4-quart metal reservoir, sae#6 connectors, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.

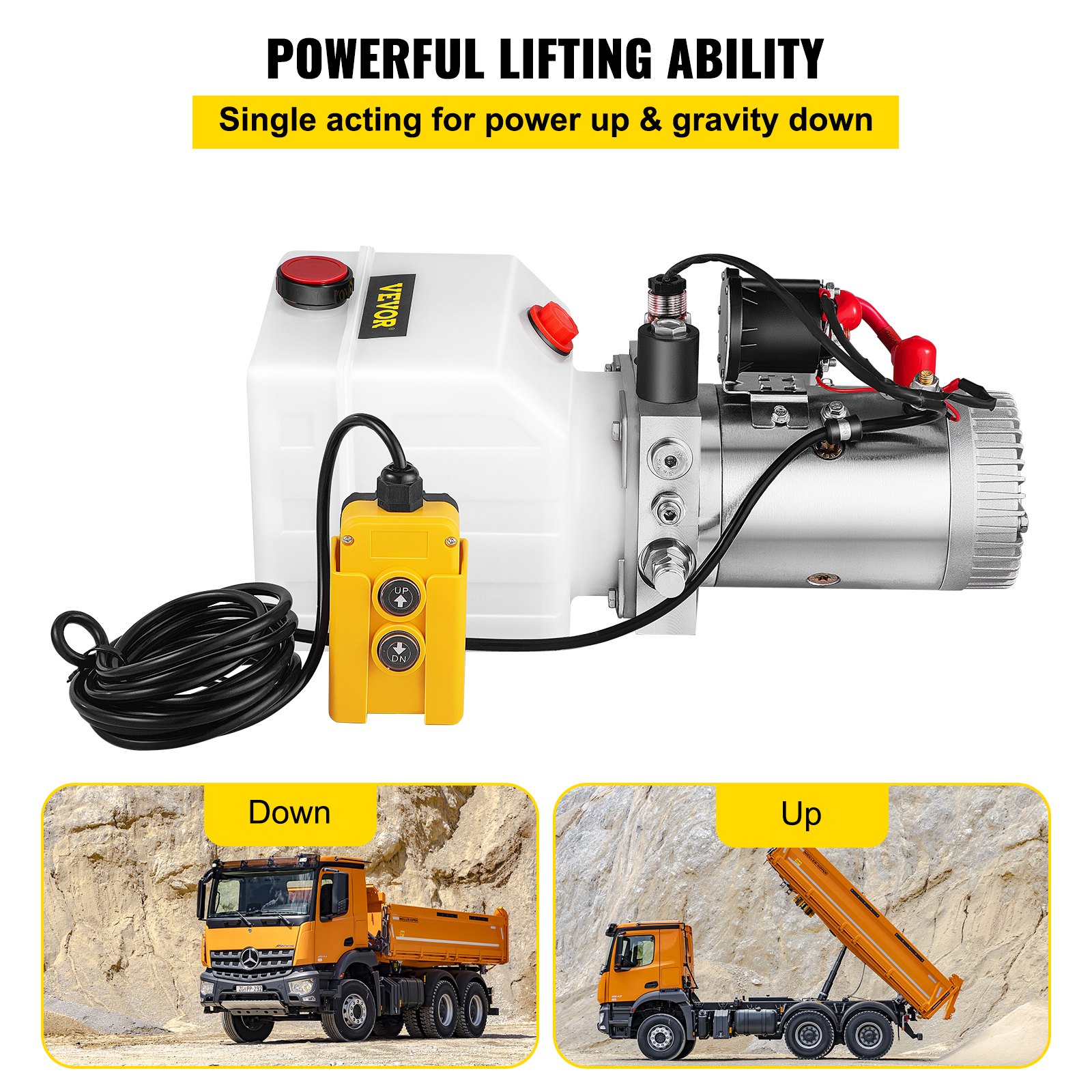

VEVOR hydraulic pump with control unit for quick start and lifting, and truck diagrams.
Quick Start&Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
VEVOR hydraulic pump with sturdy plastic tank, powerful electric motor, and reinforced structure.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

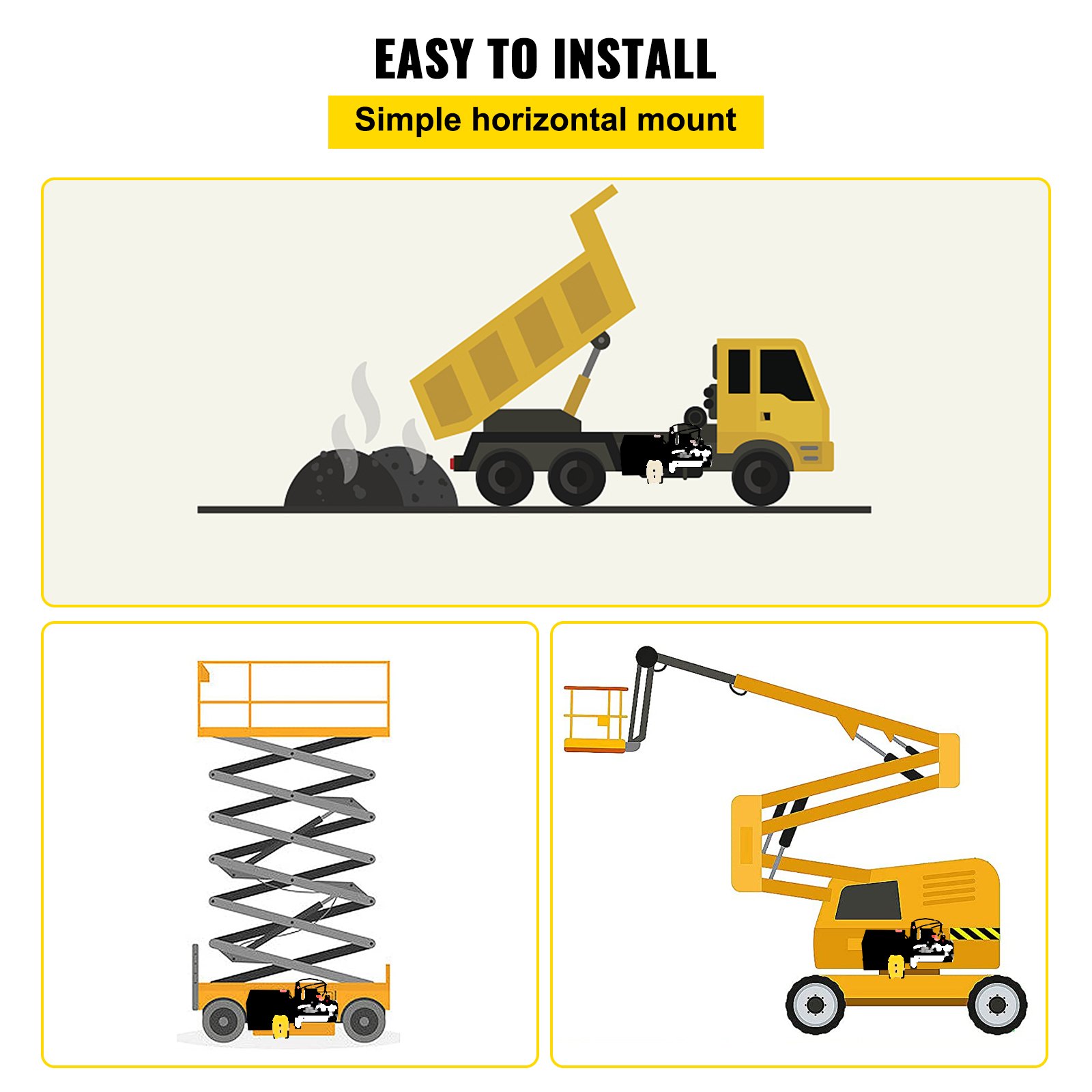

VEVOR hydraulic pump with easy horizontal installation for dump trucks.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic pump for trucks, forklifts, cranes, and dump trucks.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

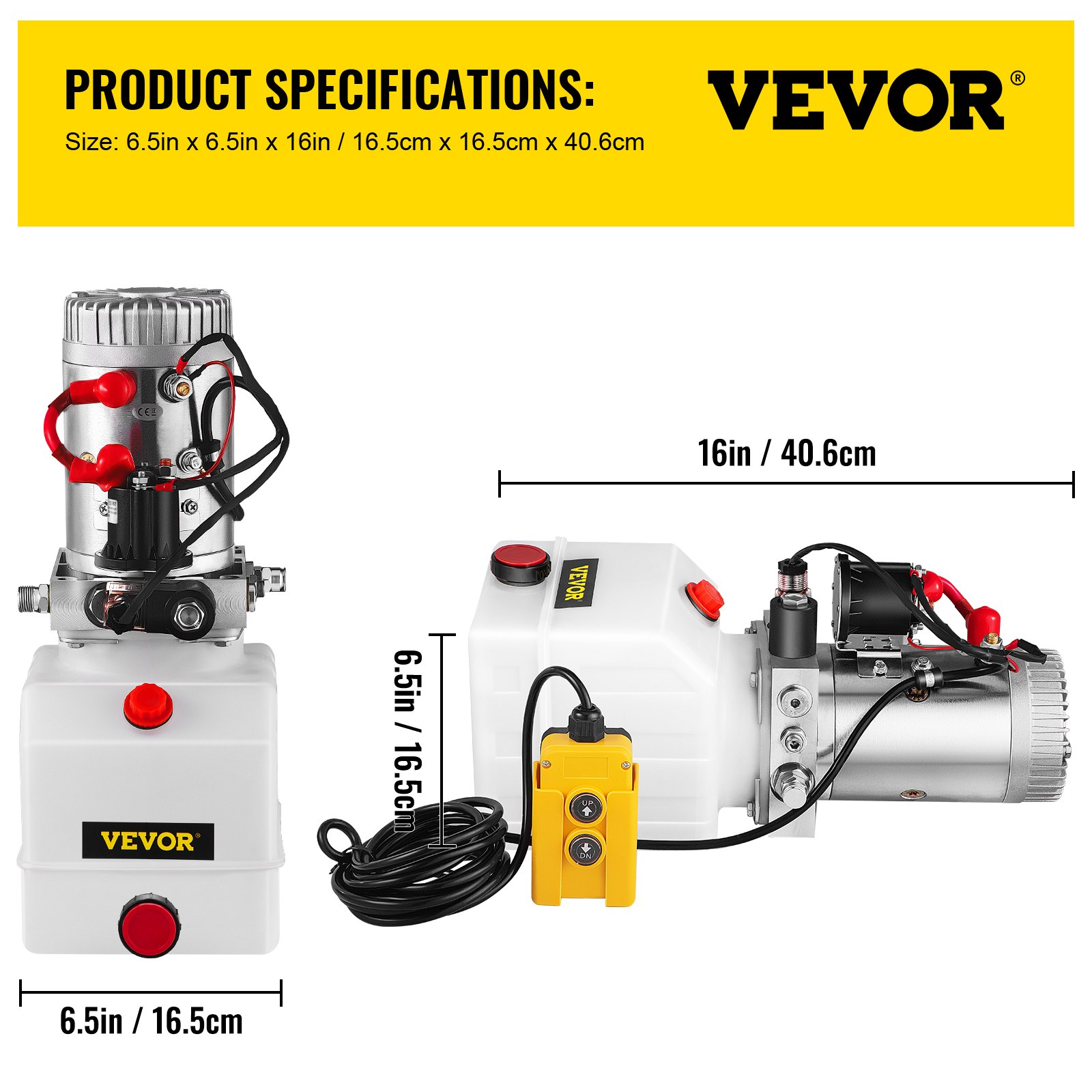

VEVOR hydraulic pump with dimensions, yellow control unit, and white housing.
Specifications
  • Material of tank: Plastic
  • Displacement of hydraulic pump: 0.562-4.350GPM
  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
  • Rated speed: 2850R/MIN
  • Motor power: 1.6-3KW
  • Motor voltage: DC12V
  • Fuel tank: 4L
  • Single acting Power-Up/Gravity Down
  • 1500 PS Max Relief Setting on B port
  • 4 Quart Translucent Reservoir
  • SAE # 6 Port, Horizontal mount
  • Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid

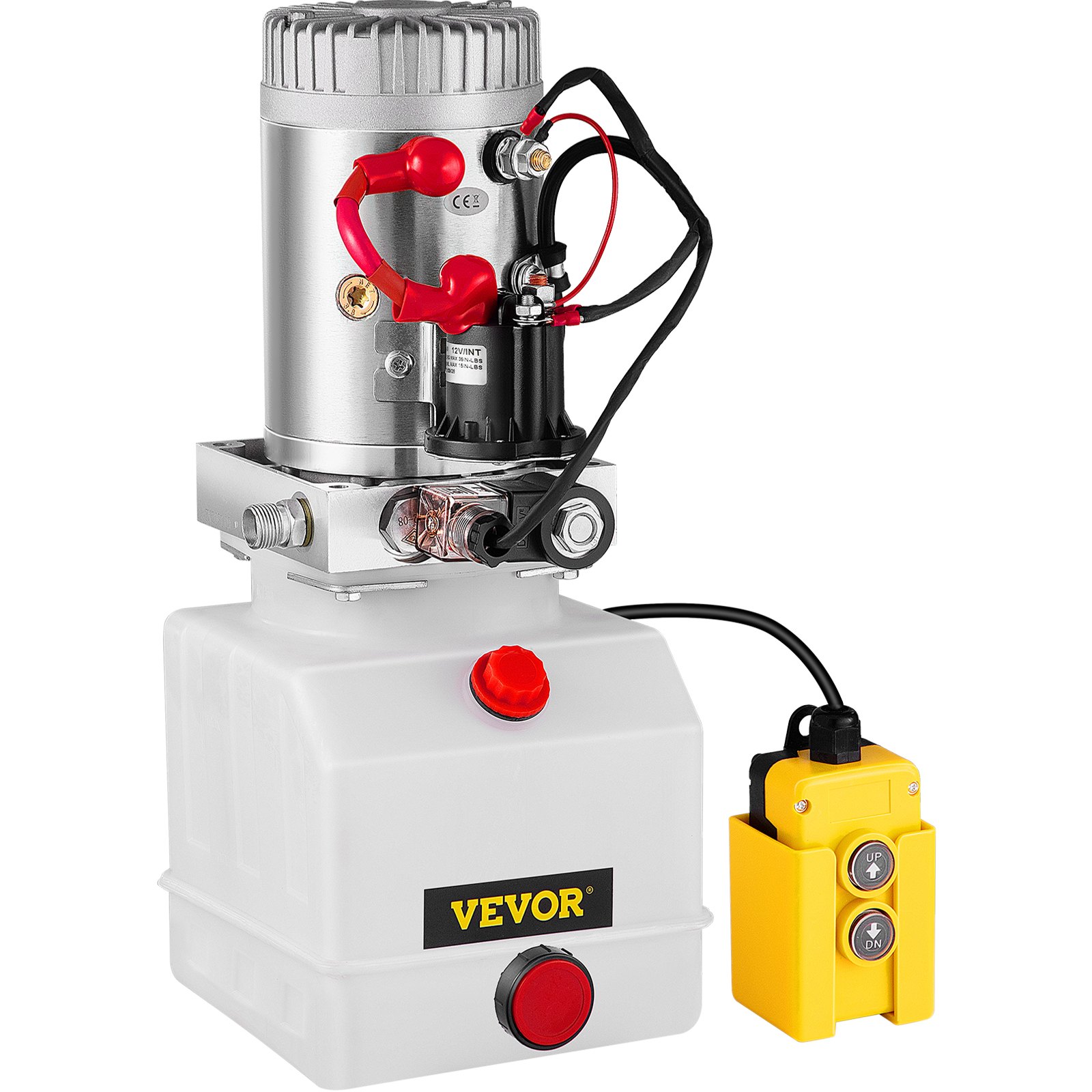

VEVOR hydraulic pump with white tank, yellow control switch, and black cables.
Package Content
  • 1 × 4 Quart Single Acting Hydraulic Pump
  • 1 × English Manual
  • Several related accessories (including connectors)
VEVOR hydraulic pump for dump trailer with remote control and 4 quart capacity.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic pump with yellow remote control, metal fittings, and wiring.
4 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
  • Wide Application
VEVOR hydraulic pump unit, 1.6-3.0 kw, 12v dc, 4-quart capacity, yellow control box.
Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
VEVOR hydraulic pump with 4-quart metal reservoir, sae#6 connectors, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
VEVOR hydraulic pump with control unit for quick start and lifting, and truck diagrams.
Quick Start&Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
VEVOR hydraulic pump with sturdy plastic tank, powerful electric motor, and reinforced structure.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
VEVOR hydraulic pump with easy horizontal installation for dump trucks.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic pump for trucks, forklifts, cranes, and dump trucks.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
VEVOR hydraulic pump with white tank, yellow control switch, and black cables.
Package Content
  • 1 × 4 Quart Single Acting Hydraulic Pump
  • 1 × English Manual
  • Several related accessories (including connectors)
VEVOR hydraulic pump with dimensions, yellow control unit, and white housing.
Specifications
  • Material of tank: Plastic
  • Displacement of hydraulic pump: 0.562-4.350GPM
  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
  • Rated speed: 2850R/MIN
  • Motor power: 1.6-3KW
  • Motor voltage: DC12V
  • Fuel tank: 4L
  • Single acting Power-Up/Gravity Down
  • 1500 PS Max Relief Setting on B port
  • 4 Quart Translucent Reservoir
  • SAE # 6 Port, Horizontal mount
  • Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid

4 Quart Hydraulic Pump Offers Easy Installation and Compatibility

This hydraulic pump is made for easy installation. It fits well with various trailer models. You can set it up without much hassle. The pump works seamlessly with your existing setup. This compatibility makes it a versatile choice for different applications. It performs efficiently, whether using it to remove boat lifts or utilize hydraulic trailers. The simple installation process saves you time and effort. You can have it all up and running in no time. This feature makes this option an ideal alternative for both professionals and DIY enthusiasts.


Robust Performance and Power of the Hydraulic Power Unit

It provides strong performance and is built to handle heavy-duty tasks. The powerful motor ensures efficient operation. This makes it ideal for demanding applications. You can depend on the pump's performance over time, giving you confidence in its ability to lift heavy loads. We have provided you with the power needed for smooth and effective operations. Hence, it’s a valuable addition to your equipment. Whether you need it for commercial or personal use, this hydraulic pump meets your needs.


High-Quality Build and Durable Materials Ensure Longevity

The hydraulic pump is made from high-quality materials. It features a durable plastic tank. This ensures the pump lasts for ages. The strong construction withstands tough conditions. It is wear and tear-resistant. You can trust the pump to perform consistently. The quality materials used in its construction enhance its durability. This longevity gives you an efficient, cost-effective solution. The lack of frequent replacements saves you money in the long run.


Cost-Effectiveness and Value for Money of the Hydraulic Pump

This hydraulic pump offers great value for money. It is priced competitively. Despite its affordable cost, it does not compromise on quality. You get a reliable and efficient pump at a reasonable price. This makes it incredibly cost-effective for your hydraulic needs. The pump's durability and performance ensure you get your money's worth. You don't have to spend countless fortune to obtain an irrationally high-quality product. Due to its affordability, it is accessible to a broader range of users. Whether on a tight budget or not, you will find it to be of excellent value.


User-Friendly Design with Simple Controls and Easy Maintenance

It has a user-friendly design. It includes simple controls that are easy to understand. You can operate it without any special skills. The pump is also easy to maintain. Regular maintenance ensures optimal performance. Cleaning the filters and changing the oil is straightforward. This simplicity makes it convenient to use. No major issues during maintenance are faced.


Reliable Shipping and Packaging Ensure Safe Delivery

The hydraulic pump is delivered promptly and well-packaged. Packaging protects the pump during transit. You can expect the pump to be in good shape upon arrival. This reliability ensures you get a quality product. The packaging is sturdy enough to withstand shipping. There is no need to worry about damages during delivery. Therefore, you can trust VEVOR to deliver your product safely. This reliability adds to the overall value of the pumps.


Excellent Customer Service and Support from VEVOR

VEVOR provides excellent customer service and support. If you face any issues, you can contact them. They assist in resolving your problems. The support team is knowledgeable and responsive. You can get the information you need promptly. This support ensures you have a smooth experience. Whether you require installation help or troubleshooting, they are there to assist. Their customer service makes it easier to use and maintain the hydraulic pump.


See More

Specification

Material of tank
Plastic
Displacement of hydraulic pump
0.562-4.350GPM
Relief valve pressure
22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed
2850R/MIN
Motor power
1.6-3KW
Motor voltage
DC12V
Fuel tank
4L
Single acting Power-Up/Gravity Down
1500 PS Max Relief Setting on B port
4 Quart Translucent Reservoir
SAE # 6 Port, Horizontal mount
Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid
Questions and Answers
9 Questions
What are Ports A and B? They do not appear to be labeled or indicated in the manual. How do you adjust the pressure?
Both pressure ports are the same. They are factory set and do not require pressure adjustment.
By vevor
What size battery do I need for this
200A.
By vevor
What is the center to center hole mount size ? What psi is it set on and what is maximum psi ?
It is 82mm pitch, the pressure is 16MPa and the maximum pressure is 22MPa.
By vevor
What thread size on pump for hydraulic fitting? I know one side is m18x1.5
Its internal thread is M14×1.5.
By vevor
Where is the hydraulic line and the fuse line
This product does not come with fuses, power cords and oil pipes, so you need to purchase them yourself.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
18 Review(s)
Clear filters
Steve Harrison Steve Harrison
Owner of why knott marine
Great stuff, and best prices.bougjt stuff from them before and never had any problems with the quality of the products.
Gregg Miller Gregg Miller
Nice pump
Can't beat this unit for all your hydraulic needs on trailers or lifts. Installed on a Presto 2k lb. Lift and it works like original. Would recommend 100%
Gary-GNS Railroad Gary-GNS Railroad
owner
The unit works as advertised. It has a slight leak from the throttle valve. I need instructions on how to repair and adjust. A more complete instruction manual would be helpful.
r_olness r_olness
it is working well!
It worked for 4 up and downs with my boatlift. I took it apart and cleaned the filters and put new oil in. It still doesn’t work!I sent it back and ordered a new one which is now working very well!
ed phelps ed phelps
Good buy.....wrong style fittings
Super easy to install....only problem was it had UK style fittings coming out of the pump....had to spend 27$$ at the parker store to get correct fittings.
Michael Glynn Michael Glynn
Works as should
Works as it should.
Michael T. Dell Michael T. Dell
Speedy delivery and it worked perfectly
Had no problems it came as advertised and was pretty painless to install. Works like it's supposed to, I would recommend this product.
RICHARD RICHARD
Easy to plumb
Working like a champ
David David
David Rushton- A must buy, don’t hesitate!
David Rushton-Easy to install, good power, a bargain for the money! Works better than the original.
