About this item

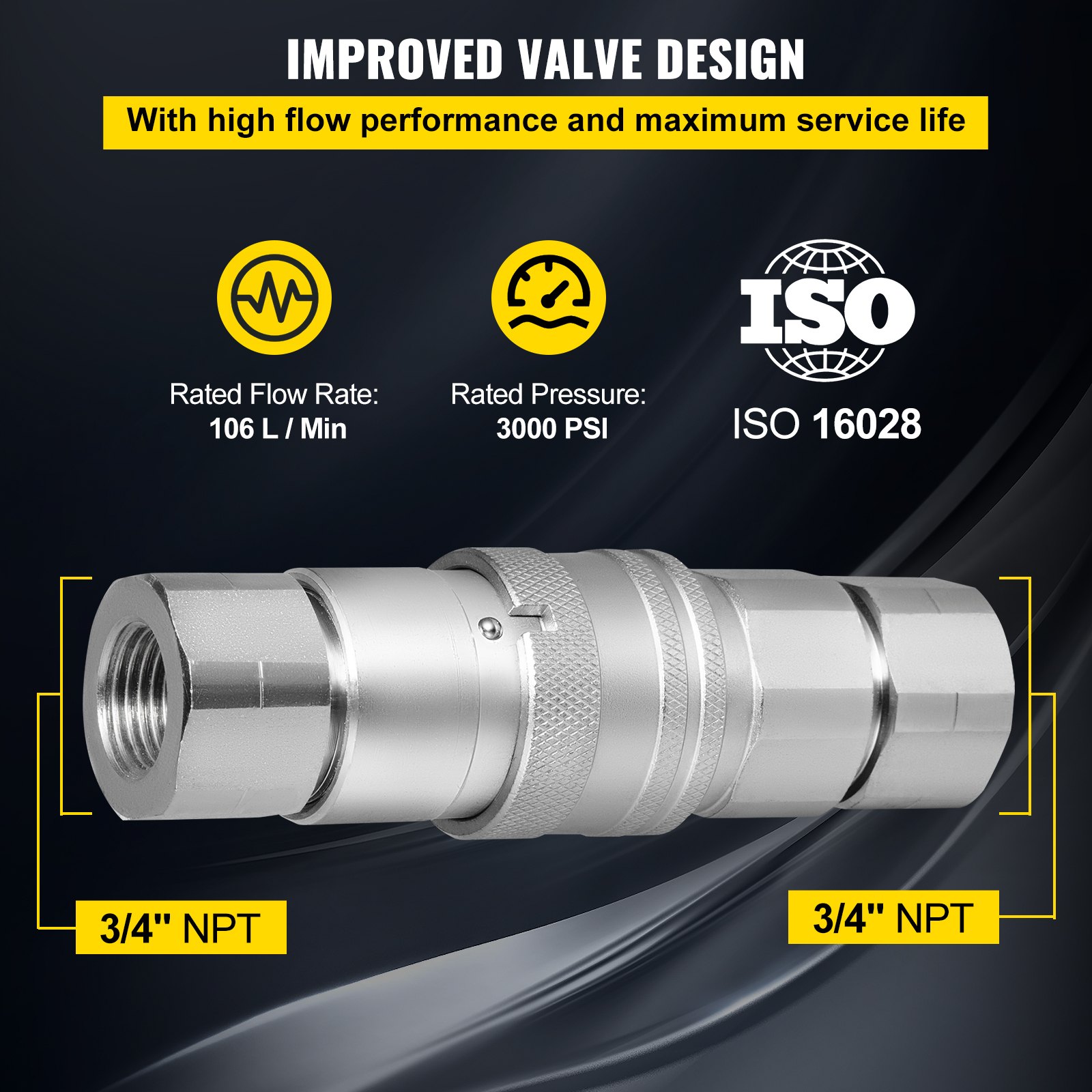

Advanced Design: This flat face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 3000 PSI, 106/L high-flow, zero fluid loss, and long service life. It meets the standards of ISO 16028, perfect for connecting your hydraulic lines.

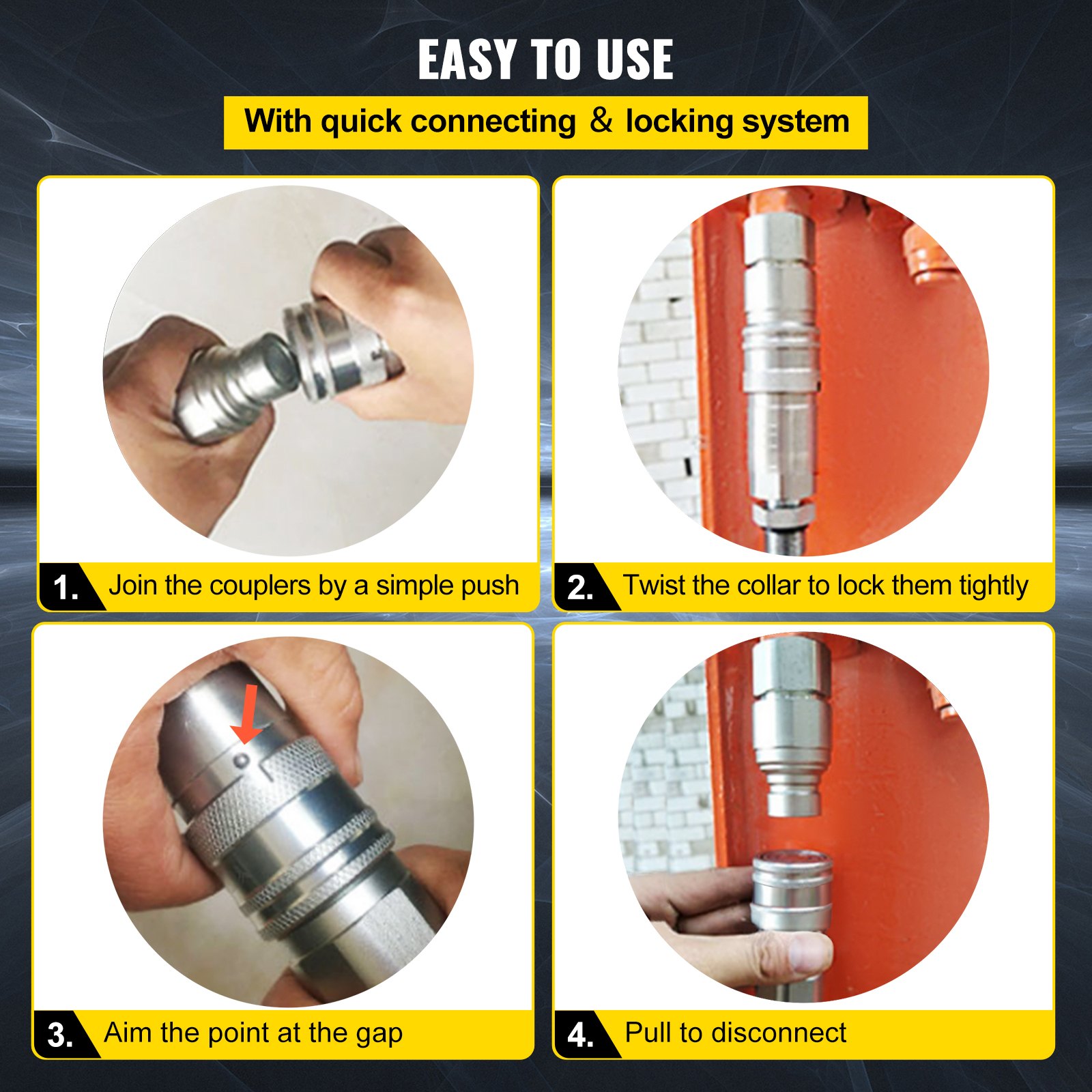

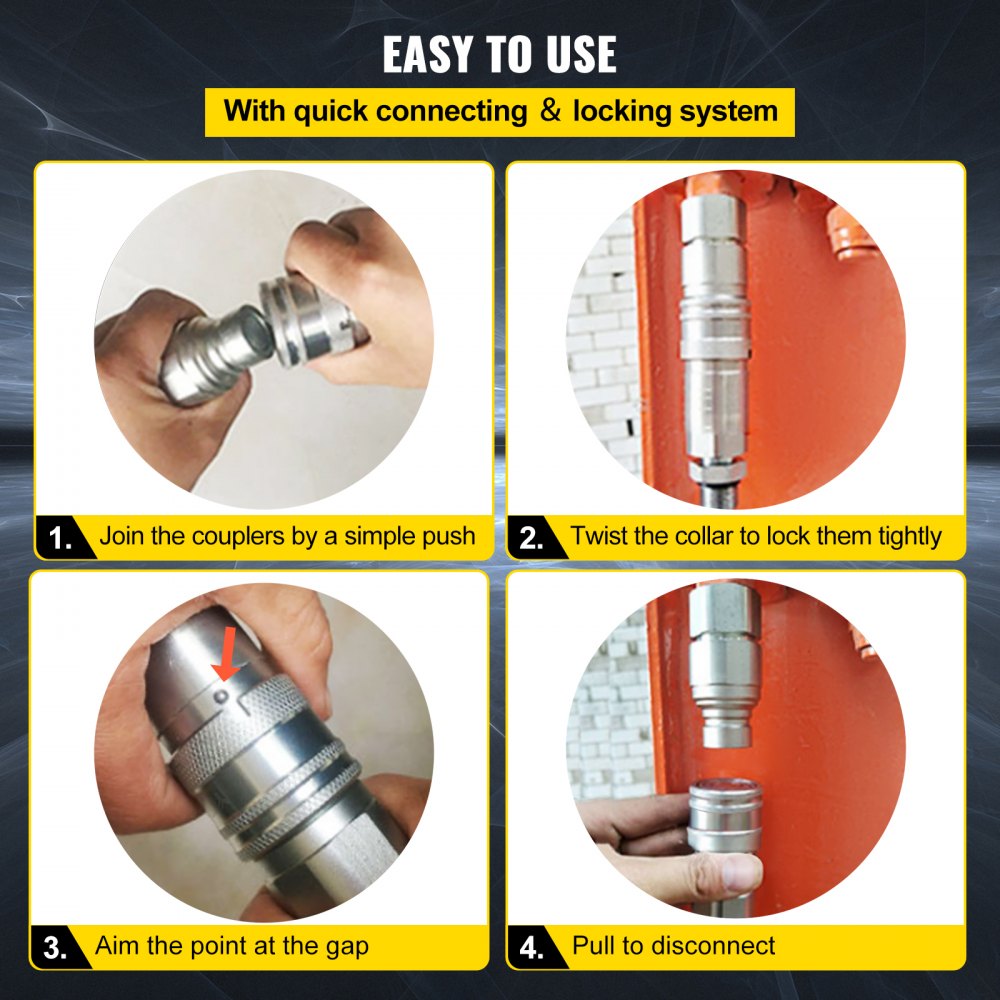

Quick Connecting: The sleeve locking mechanism (with 3/4" NPT thread) makes the couplers easy to connect with a simple push. Rotate the collar to lock them tightly, preventing accidental disconnection. If you need to disconnect it, aim the point at the gap, then give a pull. Connection is simple, effortless, and requires minimal force.

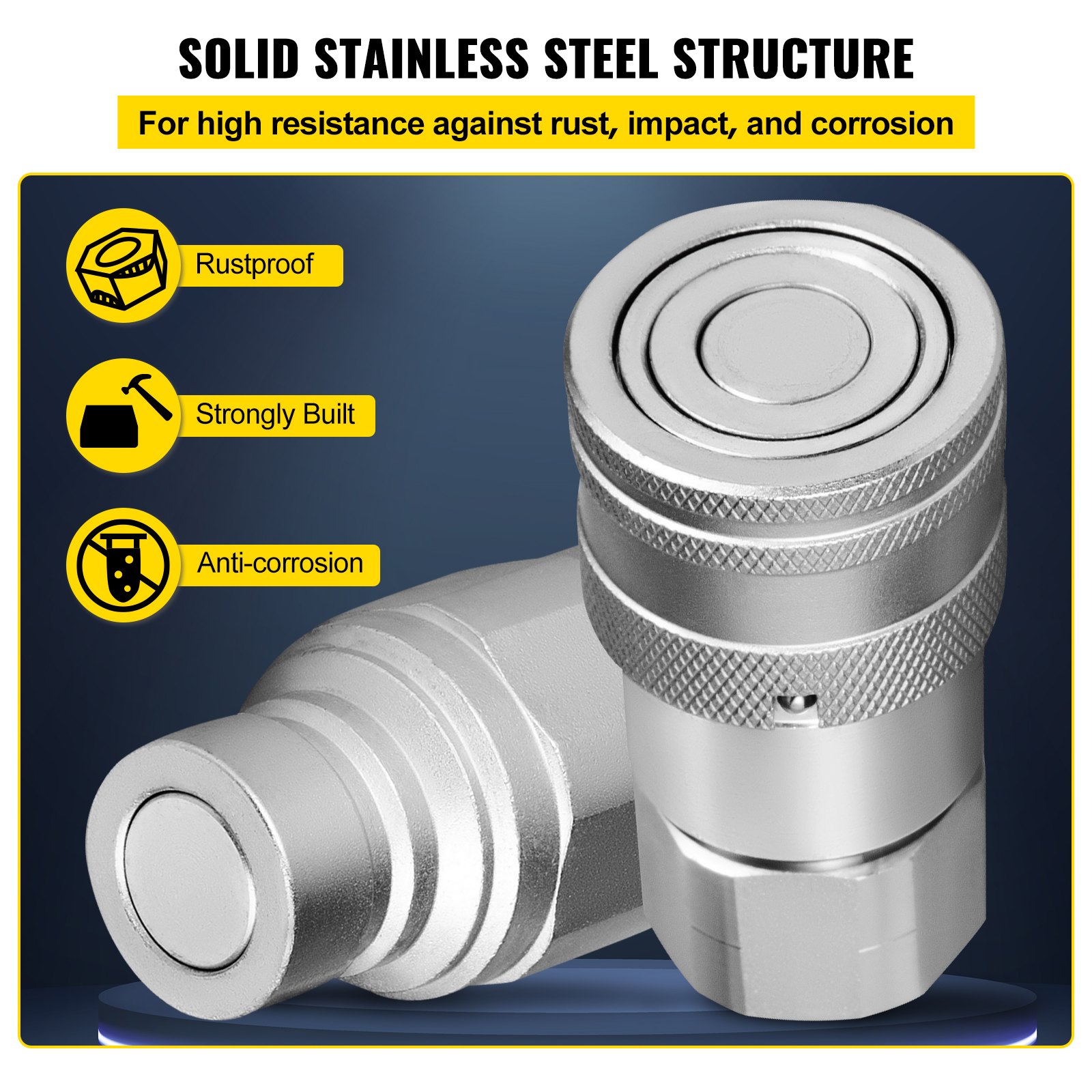

Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures. The zinc-nickel plating provides high resistance against rust and corrosion. They are built tough to last for years to come.

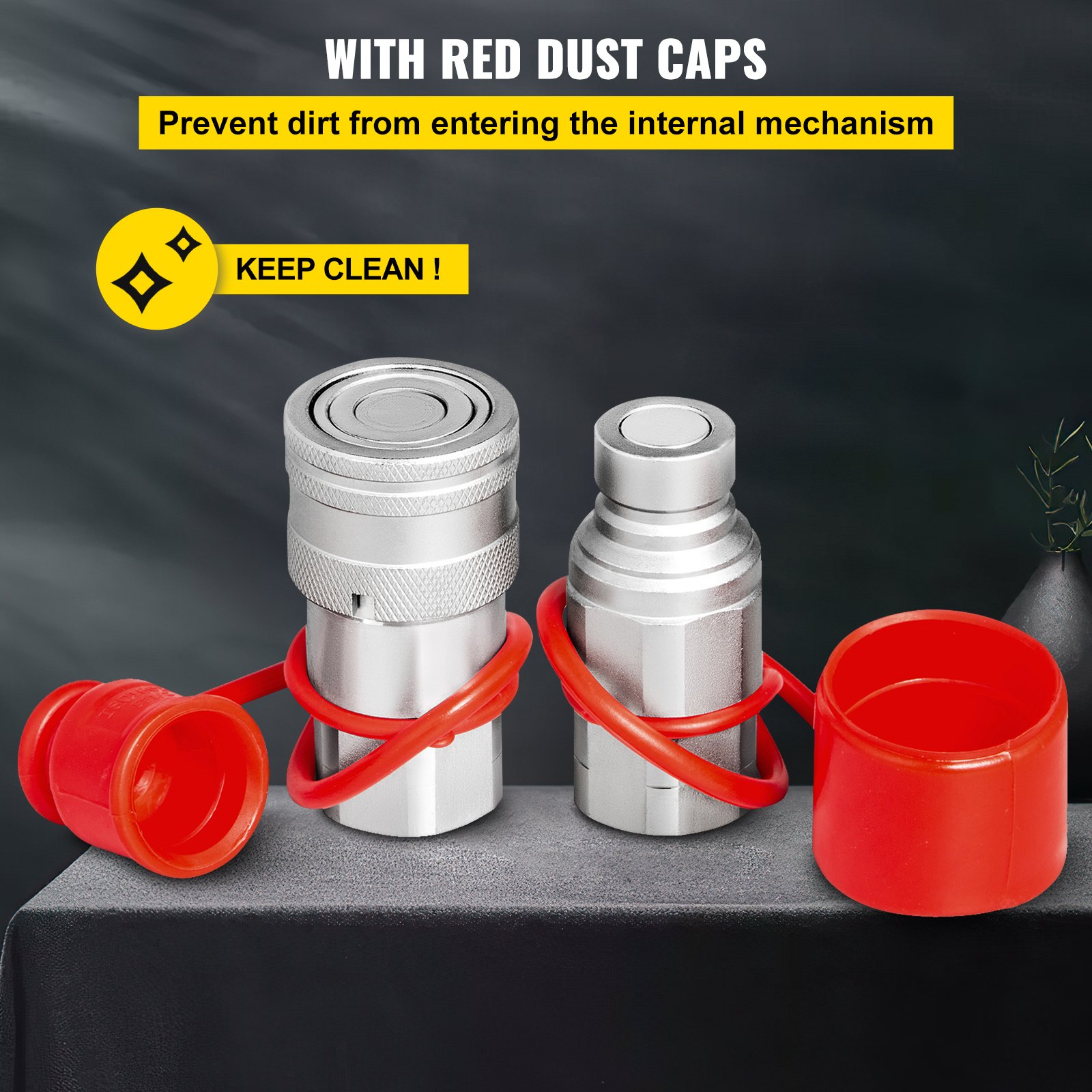

Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction. The retaining ring is covered by a sleeve. Additionally, a dust seal is placed within the spring area.

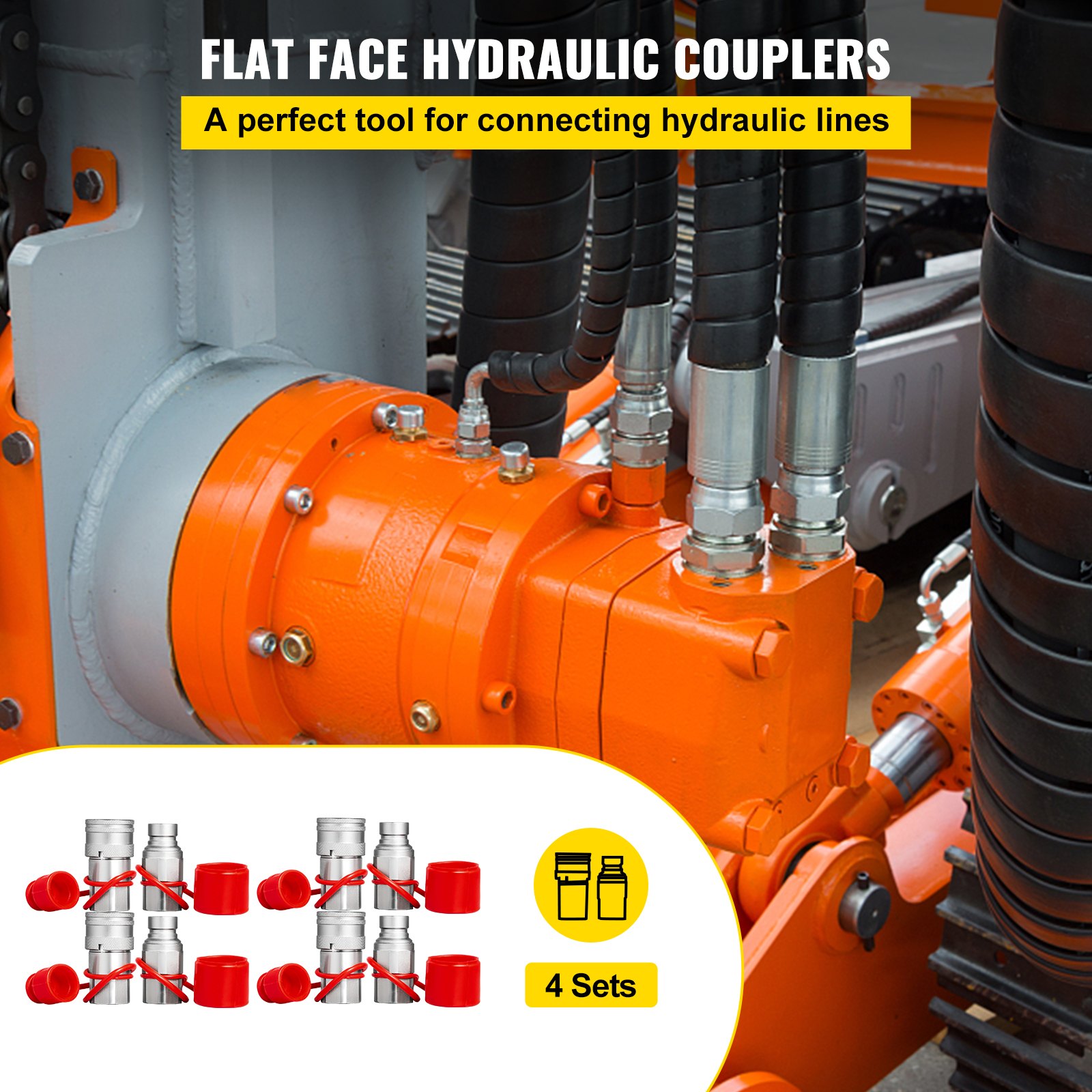

High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
【HARDEN STEEL CONSTRUCTION】-Made from high quality Harden steel,provides superior resistance to corrosion. New zinc plating treatment makes the anti-rust performance better.
【HIGH FLOW PERFORMANCE】- This flat face quick coupling adopted new improved valve design with higher performance to bear the damage from high velocity flow and pulse pressure.
【SAFER & CLEANER WORKING ENVIRONMENT】- Using the flush face valve design, our quick coupler greatly minimizes fluid losses which allow for a safer / cleaner working environment.
【MAXIMUM SERVICE LIFE】- Our hydraulic quick coupler is made to achieve ISO 16028 Standard. Not only Interchangeable with other ISO 16028 standard couplings but with a long-service life.
【WIDE APPLICATION】- These flat face couplers interchange with most models of skid steers loaders including Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.

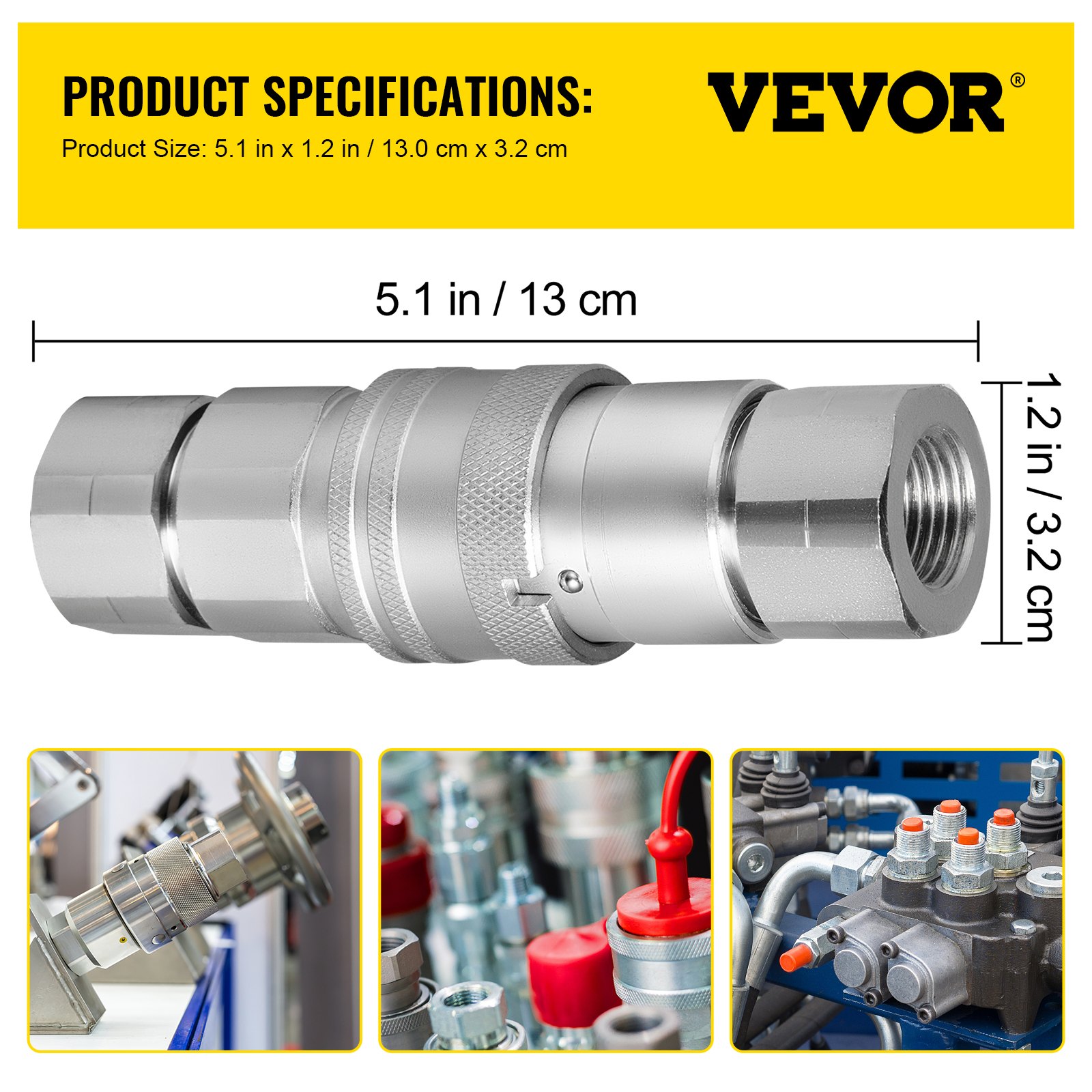

Specifications

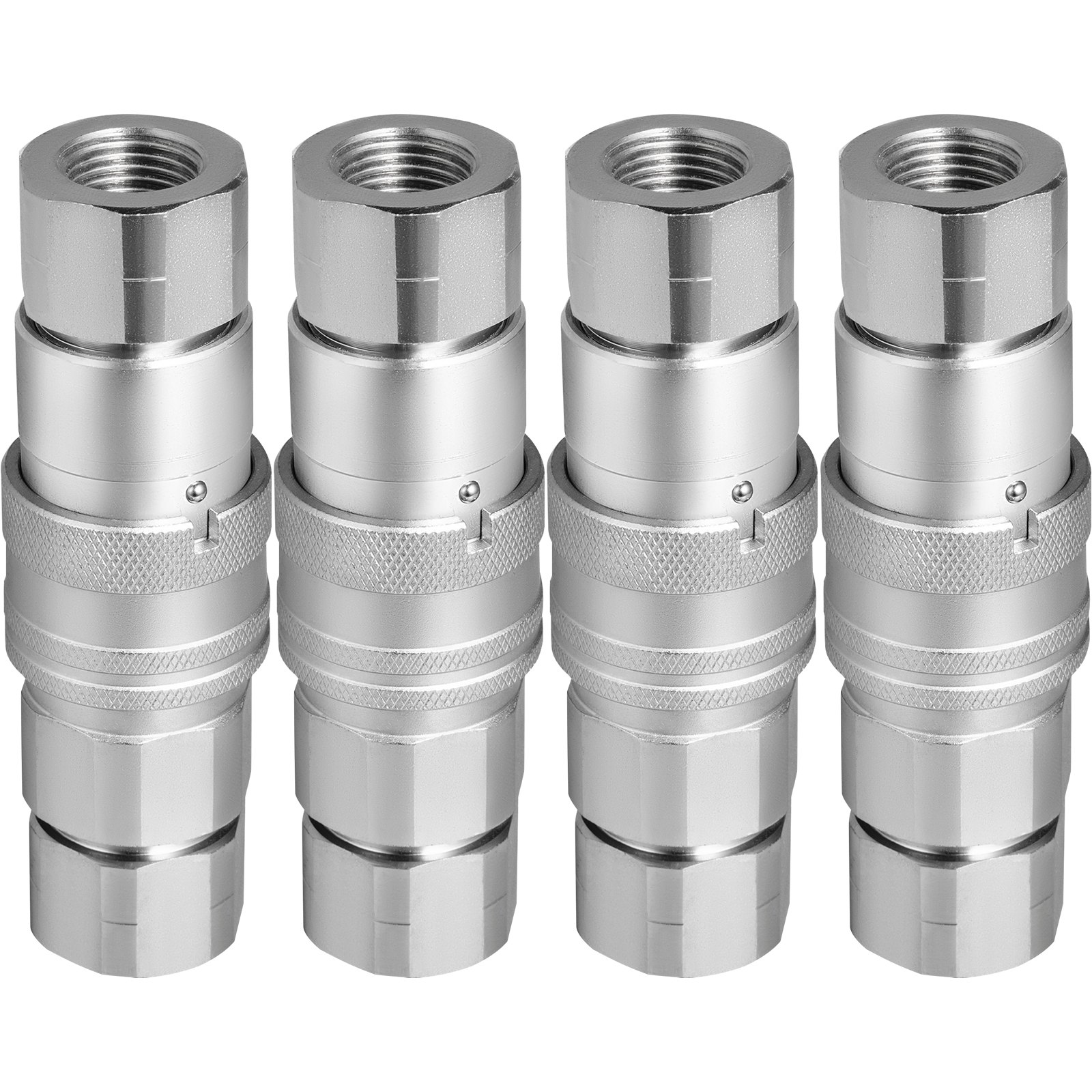

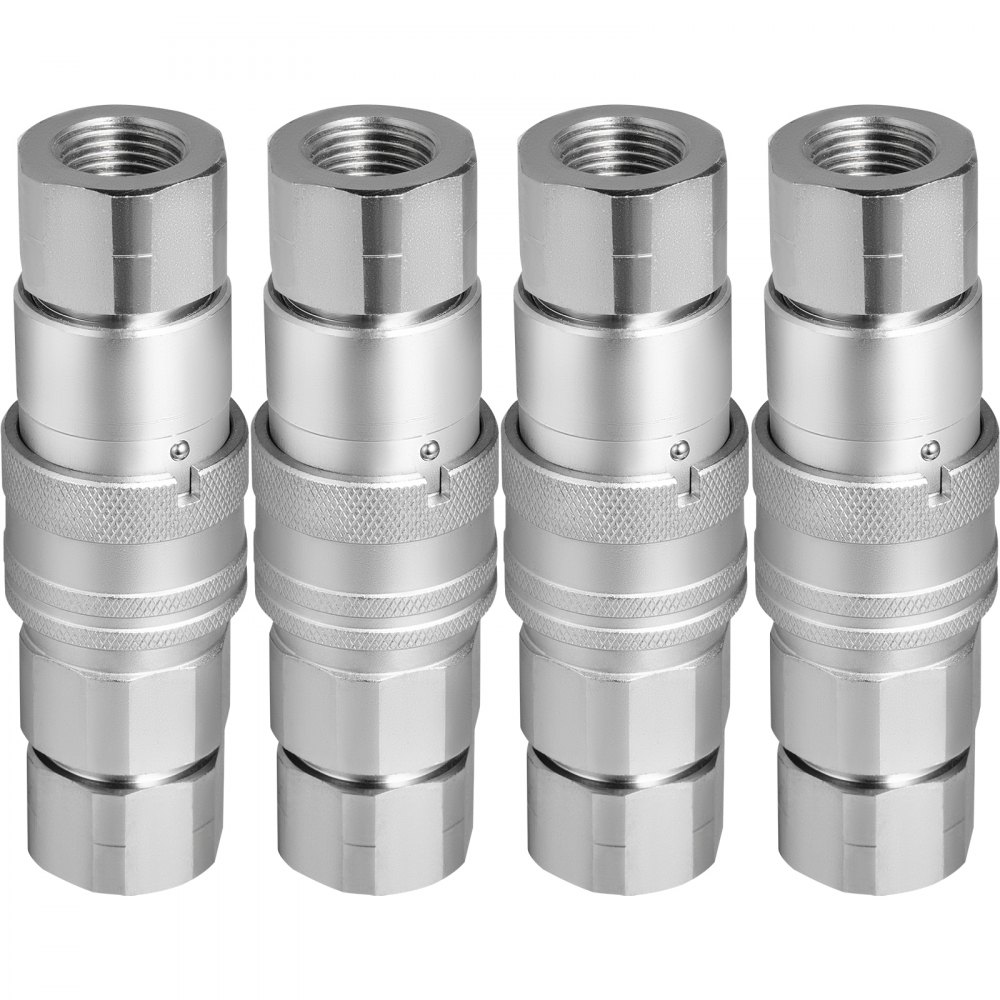

Body Size: 3/4" Body with 3/4" NPT Thread
Rated Pressure Of Steel: 20.7 MPa
Rated Pressure Of Stainless Steel: 10.4 MPa
Rated Flow: 106 L/Min
Temperature Range（Nbr）: -20℃~+100℃
Temperature Range（Fkm）:-20℃~+180℃
ISO Standards: ISO 16028

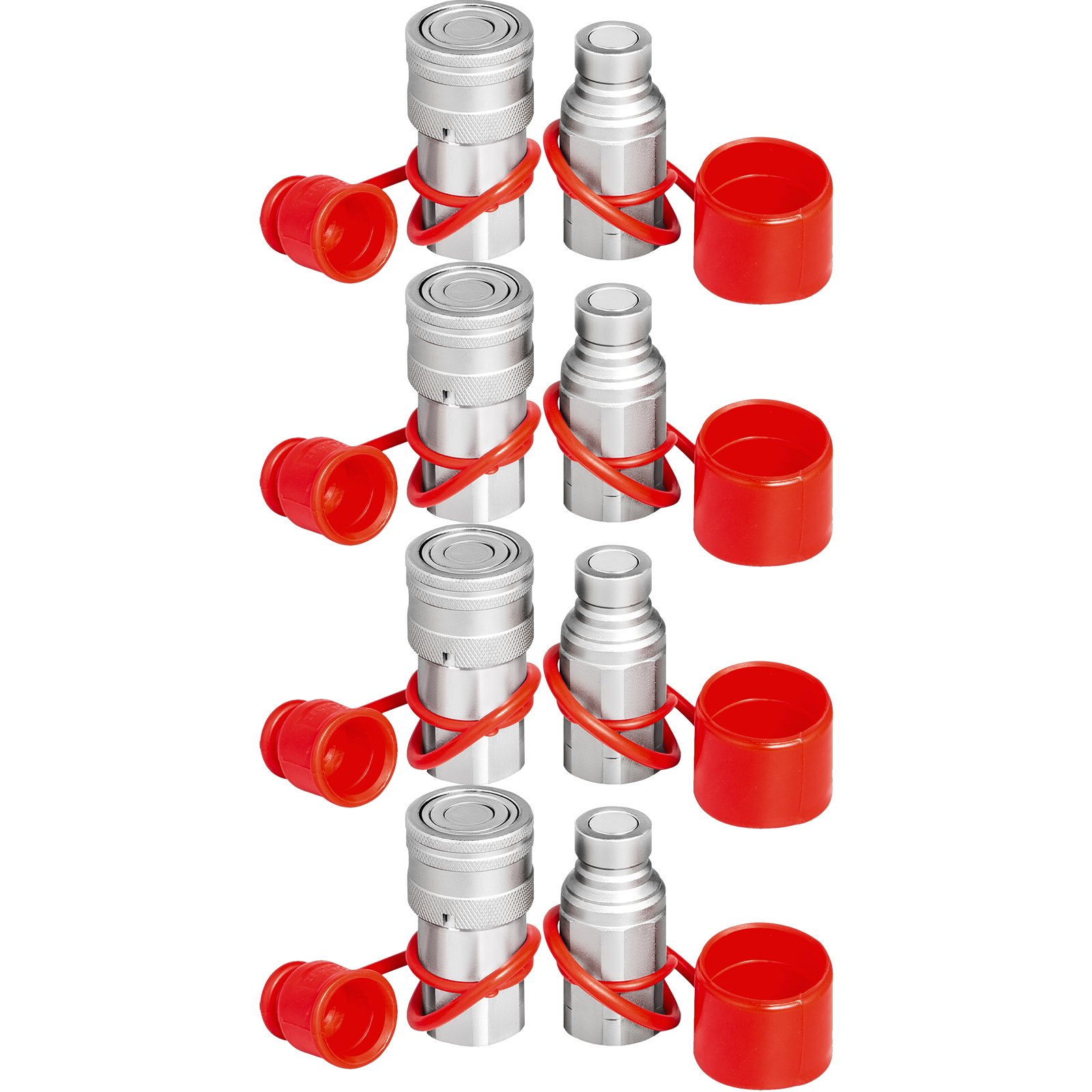

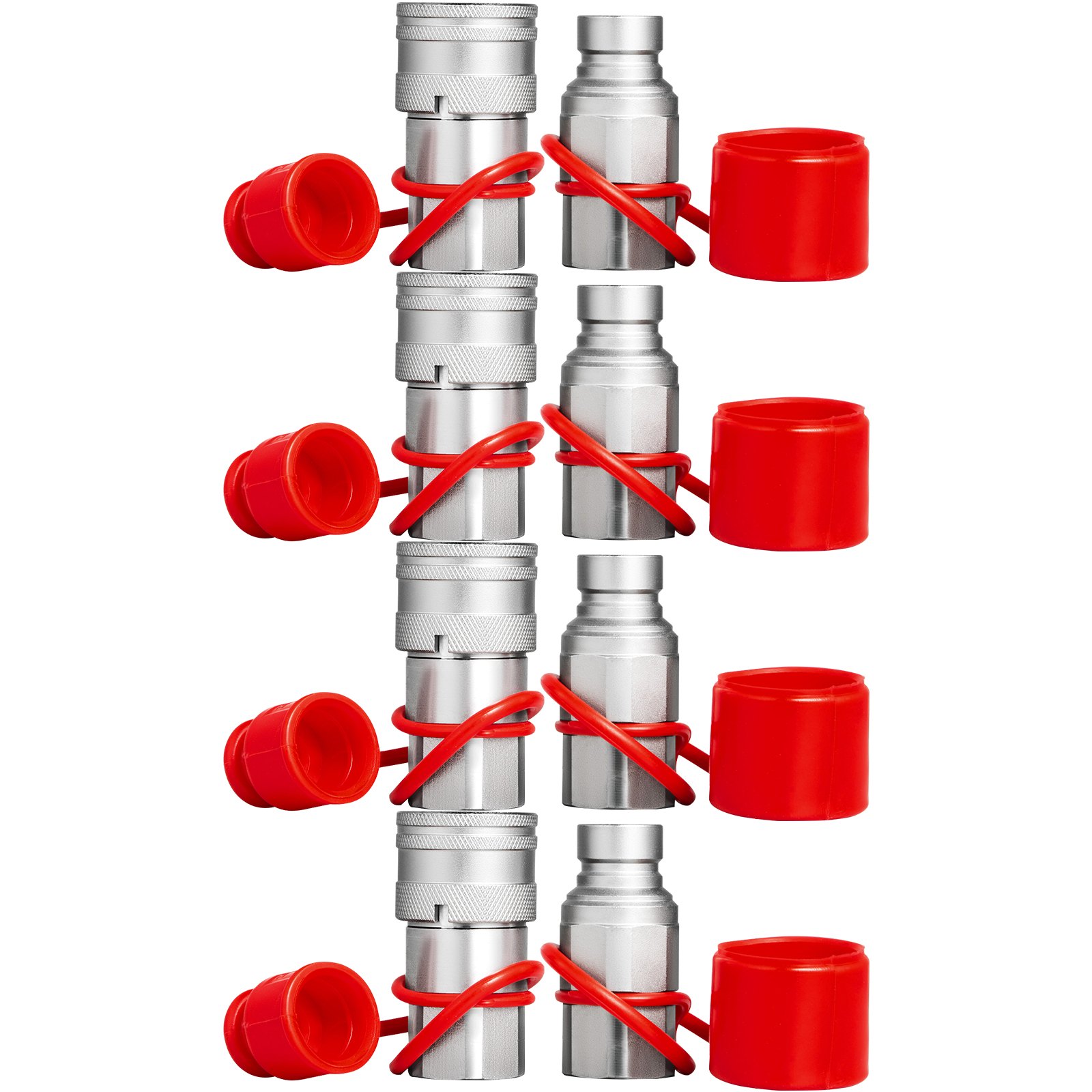

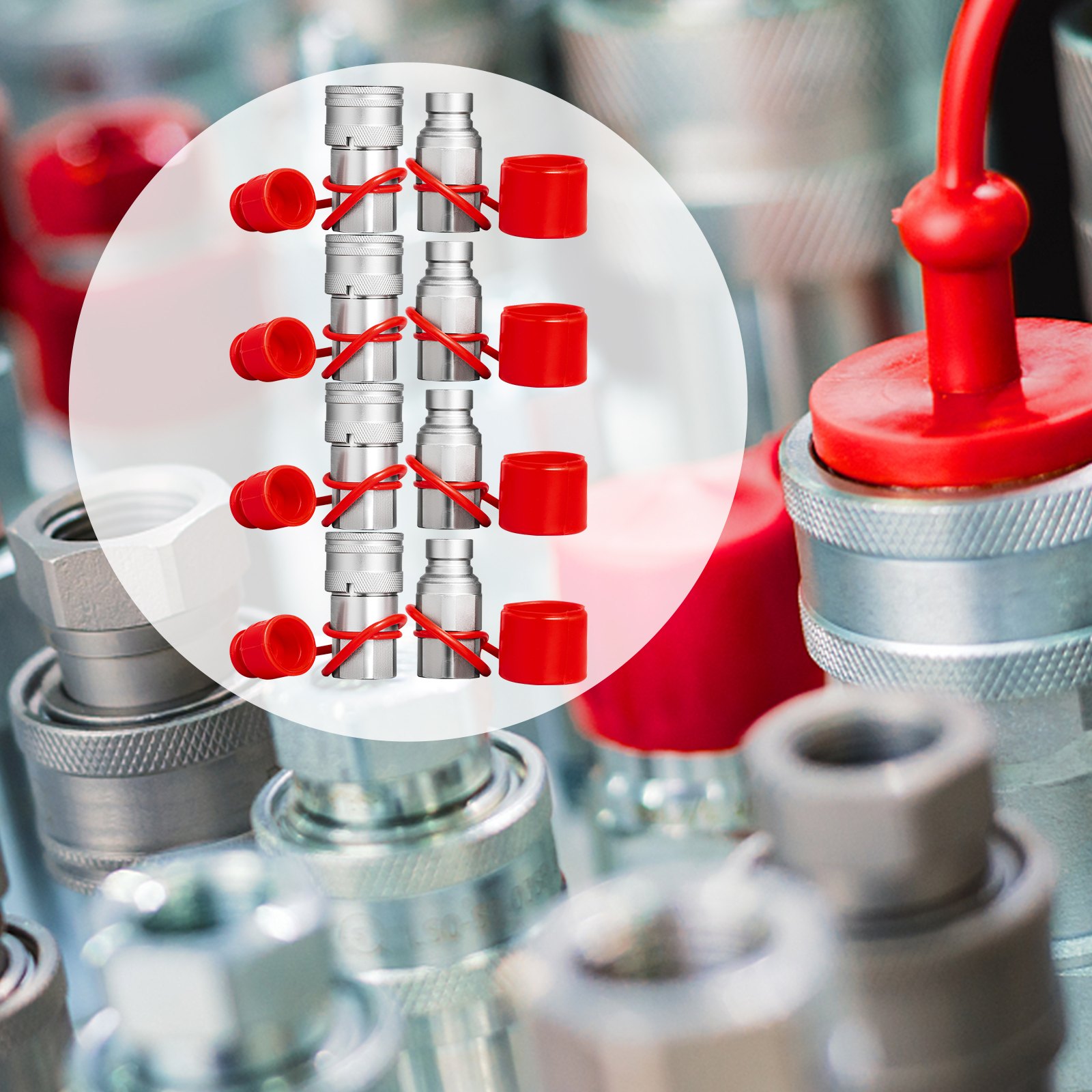

Package Content

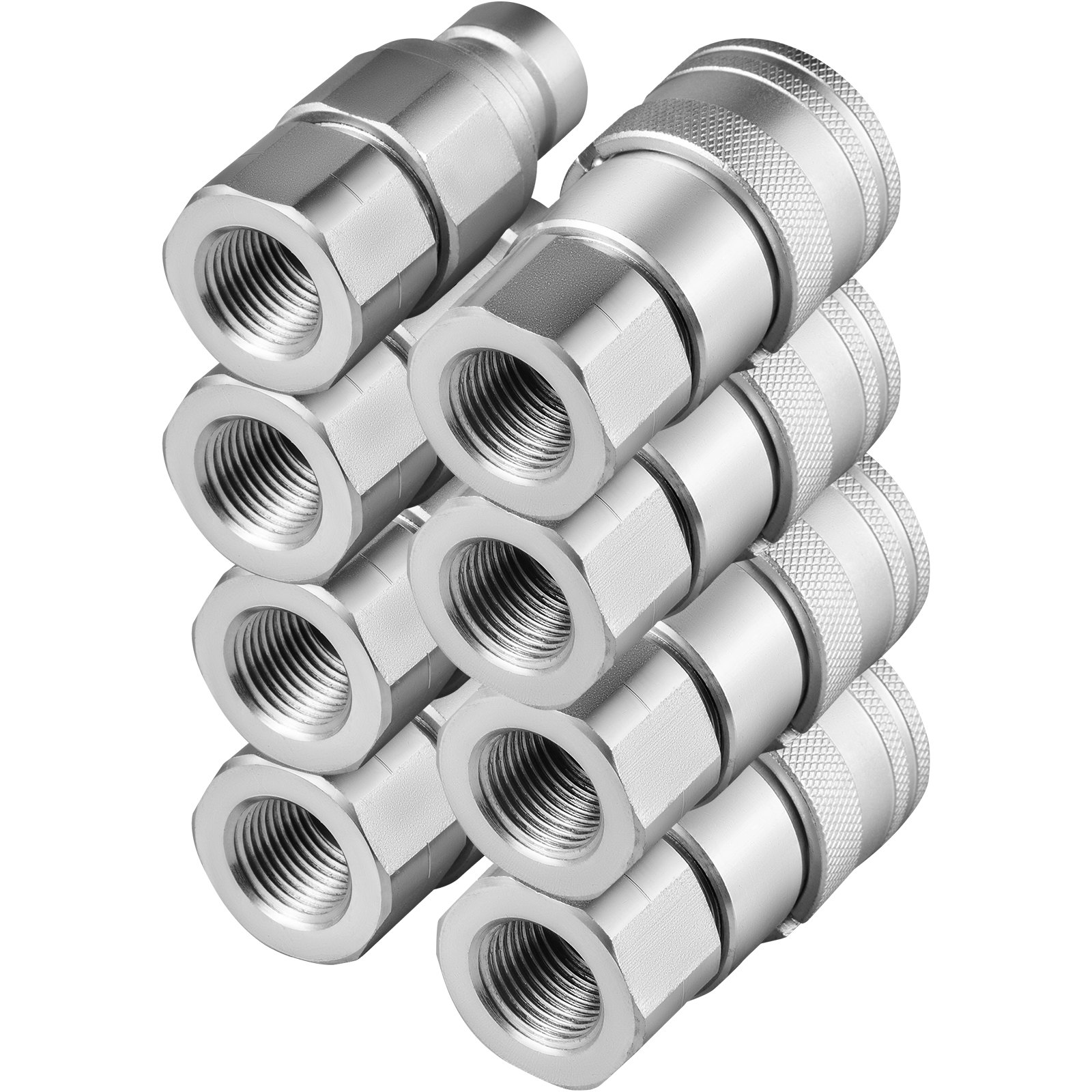

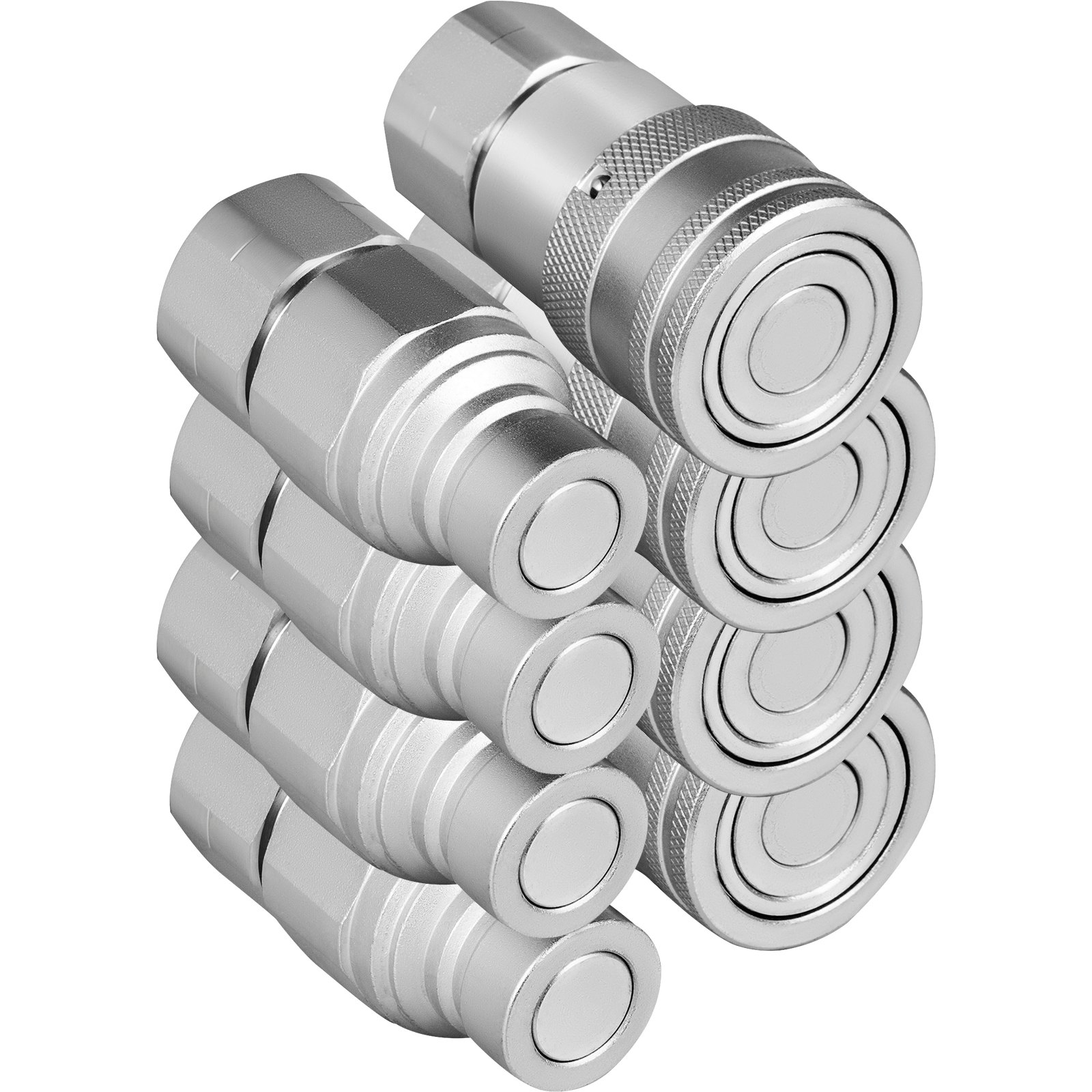

4 Female Flat Face Couplers
4 Male Flat Face Couplers
4 Male PVC Protective Covers
4 Female PVC Protective Covers
Features & Details
【HARDEN STEEL CONSTRUCTION】-Made from high quality Harden steel,provides superior resistance to corrosion. New zinc plating treatment makes the anti-rust performance better.
【HIGH FLOW PERFORMANCE】- This flat face quick coupling adopted new improved valve design with higher performance to bear the damage from high velocity flow and pulse pressure.
【SAFER & CLEANER WORKING ENVIRONMENT】- Using the flush face valve design, our quick coupler greatly minimizes fluid losses which allow for a safer / cleaner working environment.
【MAXIMUM SERVICE LIFE】- Our hydraulic quick coupler is made to achieve ISO 16028 Standard. Not only Interchangeable with other ISO 16028 standard couplings but with a long-service life.
【WIDE APPLICATION】- These flat face couplers interchange with most models of skid steers loaders including Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
We suggest that you choose 3/4NPT Hydraulic Quick Connect according to the actual pipeline diameter, pressure demand, flow demand and other parameters, and choose the suitable product by yourself.
just started using them but the fit like there suppose to and lock good no leaks so far they do hook up a little hard but not sure if it the fitting or the hyd pressure is draining off like it should i would give a higher rating but haven't used them much yet
Paid as much for 2 sets as i would have paid for 1 piece at TRACTOR SUPPLY. Fast And Free Shipping is a great Plus, Product was very well Made. Just As Well as Buying it any ware else. Prices Are Great And The product was well built.
So for they have been great for the price and trouble free so far and have used quite a bit lately. Definitely will buy again . Almost paid the same price for one set local and I got 4 sets for that money .
