VEVOR hydraulic couplers with red protective caps, chrome finish, reflective surface VEVOR hydraulic couplers displayed on a farm tractor lifting hay bales, dimensions included. VEVOR hydraulic couplers with locking sleeve and anti-dust design for secure connections. VEVOR hydraulic couplers attached to hardened carbon steel construction with rated pressure of 5076 psi. VEVOR hydraulic couplers with sealing dust cover, showcasing dust-proof and safe features. VEVOR hydraulic couplers, anti-slip knurled texture, easy one-handed operation with glove for handling. VEVOR hydraulic couplers, 1/2" npt, 5076 psi, 72mm and 75mm lengths, with red dust cap.
YYKSJTISO1605BND4V0

VEVOR 1/2" Flat Face Hydraulic Couplers, 1/2" NPT Skid Steer Hydraulic Quick Connect Couplers with 2 Dust Caps (ISO16028)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

1 Pair

  • 2 Pairs
  • 1 Pair

Flat Hydraulic Fitting

  • Flat Hydraulic Fitting
  • Conical Hydraulic Fitting

NPT

  • NPT
  • SAE

About this item

  • Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.
  • Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.
  • Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.
  • Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.
  • Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 1/2" Flat Face Hydraulic Couplers, 1/2" NPT Skid Steer Hydraulic Quick Connect Couplers with 2 Dust Caps (ISO16028)
1 Pair Flat Hydraulic Fitting NPT
Compliant with Standards

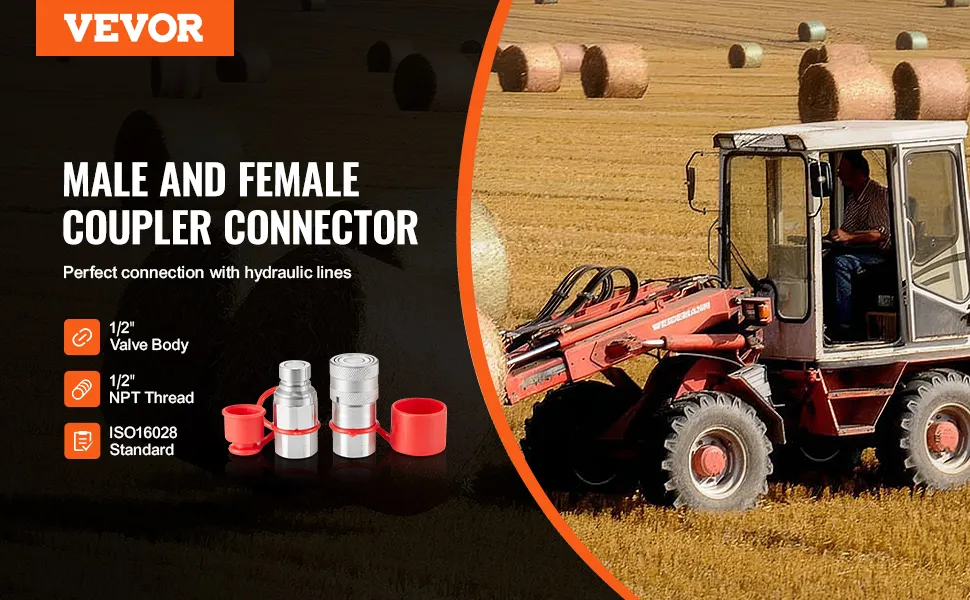

VEVOR hydraulic couplers on tractor in hay field, showcasing male and female connector specifications.
VEVOR hydraulic couplers on tractor in hay field, showcasing male and female connector specifications.
Our hydraulic couplers has passed impact, high pressure, and high temperature tests to ensure compliance with ISO 16028 standards. Our dedication to high quality makes our product the wise choice for you.

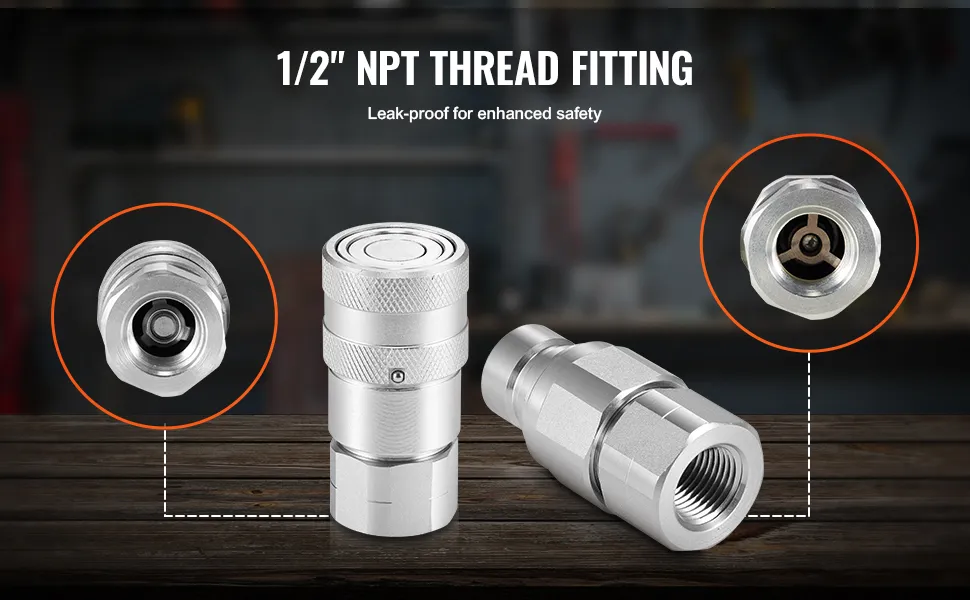

1/2" npt thread fitting with VEVOR hydraulic couplers; leak-proof, enhanced safety.
1/2" npt thread fitting with VEVOR hydraulic couplers; leak-proof, enhanced safety.
The flat face hydraulic couplers feature 1/2" NPT threads, with a newly improved valve design providing a high flow rate of 25GPM and a rated pressure of 5076 PSI, significantly enhancing lifespan.
high-quality VEVOR hydraulic couplers made of durable steel, resistant to harsh weather, anti-rust, and long-lasting.
high-quality VEVOR hydraulic couplers made of durable steel, resistant to harsh weather, anti-rust, and long-lasting.
Our skid steer hydraulic couplers are made from high-quality carbon steel and coated with zinc for high rust and corrosion resistance, ensuring durability.

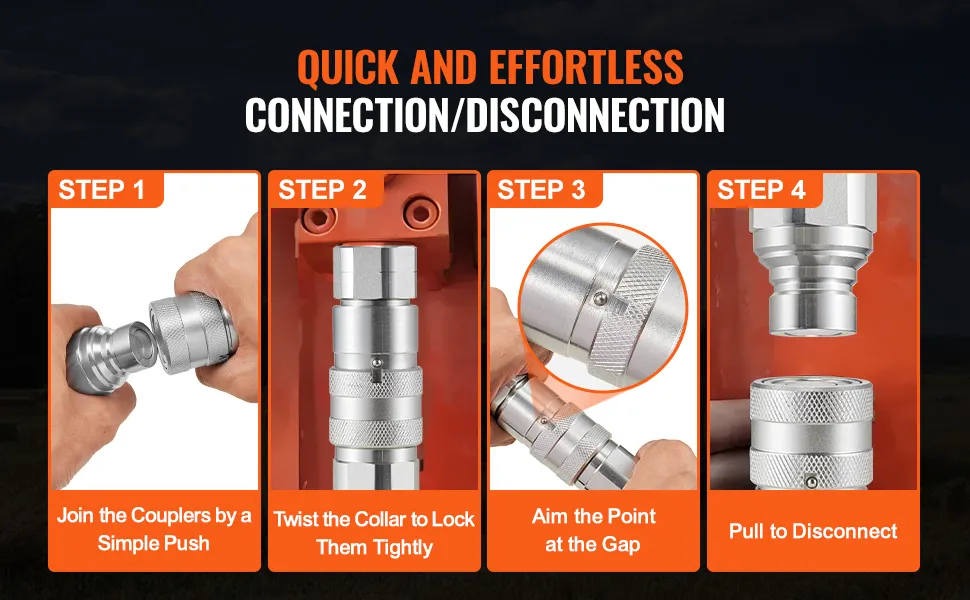

quick and effortless connection with VEVOR hydraulic couplers; join, twist, aim, and pull to disconnect.
quick and effortless connection with VEVOR hydraulic couplers; join, twist, aim, and pull to disconnect.
The sleeve lock design of hydraulic quick couplers allows for easy connection with a simple push. The rotating sleeve locks it securely, preventing accidental disconnection. To disconnect, align the tip with the gap and pull, making connection simple and easy.
compatible with skid steer loaders, VEVOR hydraulic couplers for agriculture, construction, logging, oil industries
compatible with skid steer loaders, VEVOR hydraulic couplers for agriculture, construction, logging, oil industries
Designed for applications where hydraulic leaks may occur, the hydraulic couplings are interchangeable with most types of skid steer loaders, suitable for agriculture, construction, forestry, and more.

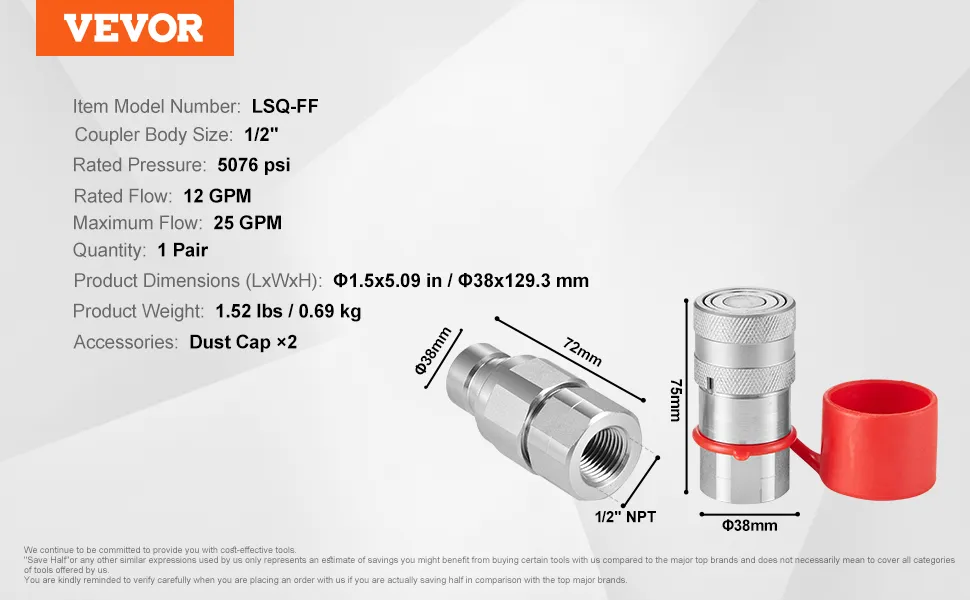

VEVOR hydraulic couplers, lsq-ff model, 5076 psi, 12 gpm flow, 1/2" body size, with dust caps.
VEVOR hydraulic couplers, lsq-ff model, 5076 psi, 12 gpm flow, 1/2" body size, with dust caps.

Specification

Item Model Number
LSQ-FF
Coupler Type
Flat Face Hydraulic Coupler
Standard
ISO16028
Coupler Body Size
1/2"
Rated Pressure
5076 psi
Rated Flow
12 GPM
Maximum Flow
25 GPM
Quantity
1 Pair
Male Coupler Thread Size
1/2" NPT (Internal Thread)
Female Coupler Thread Size
1/2" NPT (Internal Thread)
Configuration
Dust Caps
Color
White
Main Material
45# Carbon Steel
Male Coupler
Φ38×72 mm (O.D. x L), 45# Carbon Steel, Chrome Plating
Female Coupler
Φ38×75 mm (O.D. x L), 45# Carbon Steel, Chrome Plating
Dust Cap
Φ40×260 mm (O.D. x L), Rubber, Red
Product Weight
1.52 lbs / 0.69 kg
Product Dimensions (LxWxH)
Φ1.5x5.09 in / Φ38x129.3 mm
