VEVOR hydraulic quick connect couplers with red protective caps and durable metal fittings. VEVOR hydraulic quick connect couplers with red caps displayed beside tractor in hayfield, dimensions shown. VEVOR hydraulic quick connect couplers with locking sleeve, anti-leak tapered design, and anti-dust sleeve. VEVOR hydraulic quick connect couplers with hardened carbon steel construction, rated 4000 psi, 12 gpm. hands securing VEVOR hydraulic quick connect couplers with red dust cover, dust-proof and safe. VEVOR hydraulic quick connect couplers with anti-slip knurled texture for one-handed operation. VEVOR hydraulic quick connect couplers with product specifications and measurements.
YYKSJT2DISO50O4VEV0

VEVOR 1/2" Tapered Hydraulic Couplers, 1/2" NPT Skid Steer Hydraulic Quick Connect Couplers with 4 Dust Caps (ISO5675)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

2 Pairs

  • 2 Pairs
  • 1 Pair

Conical Hydraulic Fitting

  • Flat Hydraulic Fitting
  • Conical Hydraulic Fitting

NPT

  • NPT
  • SAE

About this item

  • Standards Compliant: This hydraulic coupler features a 1/2" body size, with a 1/2" NPT thread size for both the male and female couplers, adhering to ISO 5675 standards, making it ideal for connecting hydraulic lines.
  • Sleeve Locking Design: The tapered hydraulic couplers features a sleeve locking design, allowing for easy connection with just a simple push. The tapered design of the coupler prevents leakage and also prevents dust from entering the hydraulic system during connection and disconnection.
  • Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 4000 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.
  • Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.
  • Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 1/2" Tapered Hydraulic Couplers, 1/2" NPT Skid Steer Hydraulic Quick Connect Couplers with 4 Dust Caps (ISO5675)
2 Pairs Conical Hydraulic Fitting NPT
VEVOR 1/2" Tapered Hydraulic Couplers- Tool for Connecting Hydraulic Lines!
VEVOR hydraulic quick connect couplers on a farm tractor with hay bales in the background.
VEVOR hydraulic quick connect couplers on a farm tractor with hay bales in the background.
Our hydraulic couplers has passed impact, high pressure, and high temperature tests to ensure compliance with ISO 5675 standards. Our dedication to high quality makes our product the wise choice for you.

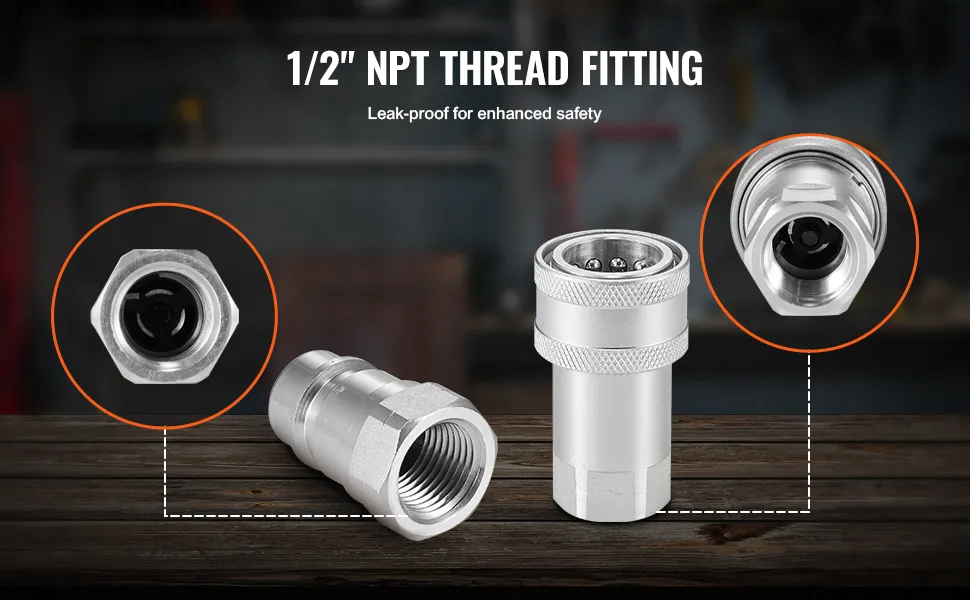

VEVOR hydraulic quick connect couplers with 1/2" npt thread fitting, leak-proof design for enhanced safety.
VEVOR hydraulic quick connect couplers with 1/2" npt thread fitting, leak-proof design for enhanced safety.
The tapered hydraulic couplers feature 1/2" NPT threads, with a newly improved valve design providing a high flow rate of 25GPM and a rated pressure of 4000 PSI, significantly enhancing lifespan.

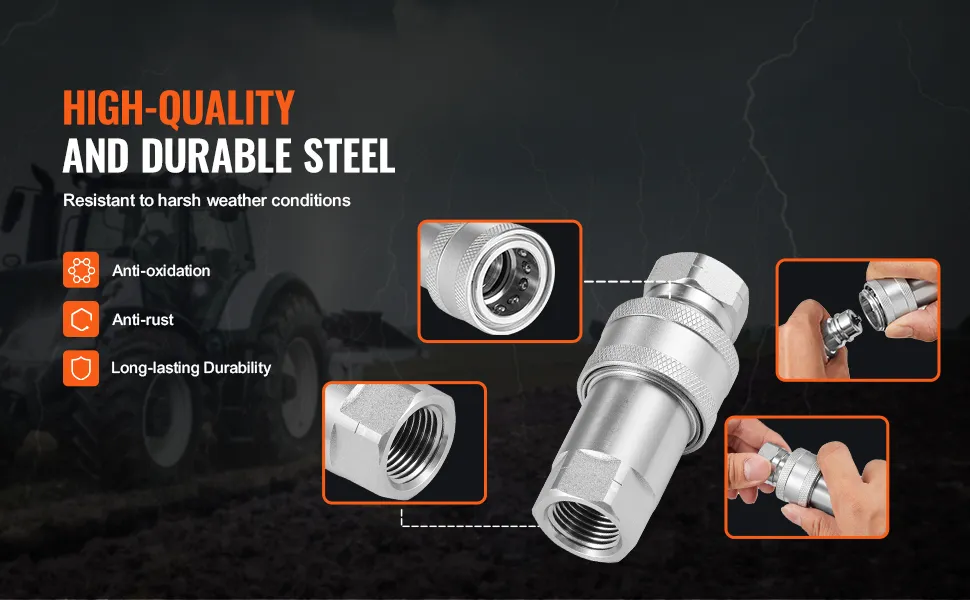

high-quality and durable VEVOR hydraulic quick connect couplers, resistant to harsh weather conditions.
high-quality and durable VEVOR hydraulic quick connect couplers, resistant to harsh weather conditions.
Our skid steer hydraulic couplers are made from high-quality carbon steel and coated with zinc for high rust and corrosion resistance, ensuring durability.

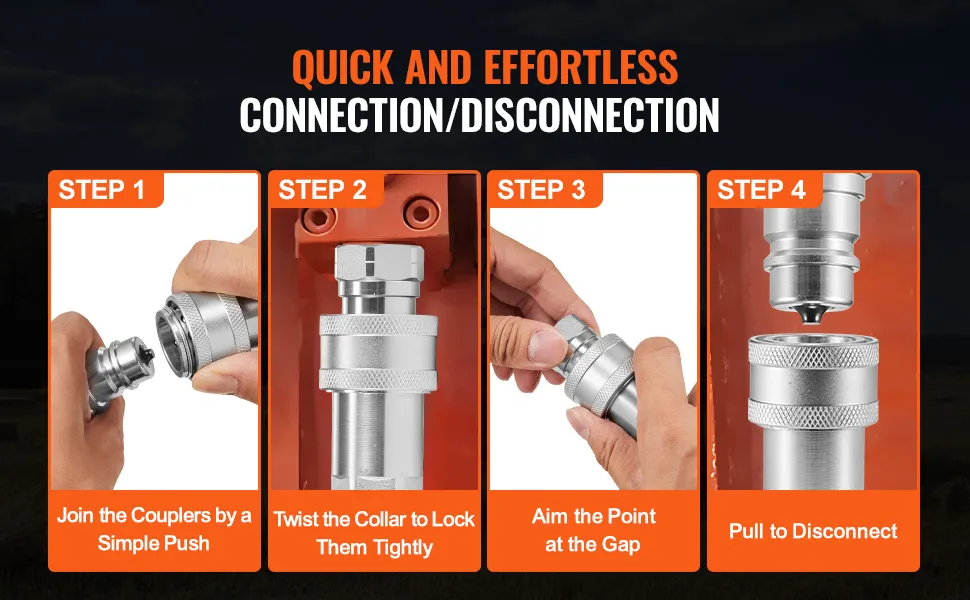

VEVOR hydraulic quick connect couplers showing 4-step connection and disconnection process.
VEVOR hydraulic quick connect couplers showing 4-step connection and disconnection process.
The sleeve lock design of hydraulic quick couplers allows for easy connection with a simple push. The rotating sleeve locks it securely, preventing accidental disconnection. To disconnect, align the tip with the gap and pull, making connection simple and easy.
VEVOR hydraulic quick connect couplers compatible with skid steer loaders in agriculture and construction.
VEVOR hydraulic quick connect couplers compatible with skid steer loaders in agriculture and construction.
Designed for applications where hydraulic leaks may occur, the hydraulic couplings are interchangeable with most types of skid steer loaders, suitable for agriculture, construction, forestry, and more.

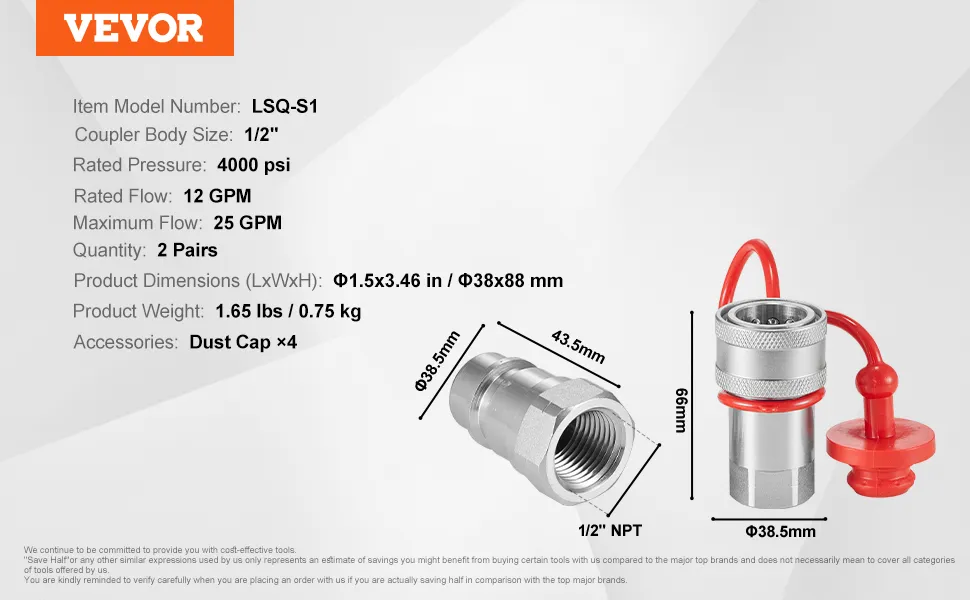

VEVOR hydraulic quick connect couplers lsq-s1, 1/2" body size, 4000 psi, 12 gpm, set of 2 pairs.
VEVOR hydraulic quick connect couplers lsq-s1, 1/2" body size, 4000 psi, 12 gpm, set of 2 pairs.

Specification

Item Model Number
LSQ-S1
Coupler Type
Tapered Hydraulic Coupler
Standard
ISO5675
Coupler Body Size
1/2"
Rated Pressure
4000 psi
Rated Flow
12 GPM
Maximum Flow
25 GPM
Quantity
2 Pairs
Male Coupler Thread Size
1/2" NPT (Internal Thread)
Female Coupler Thread Size
1/2" NPT (Internal Thread)
Configuration
Dust Caps
Color
White
Main Material
45# Carbon Steel
Male Coupler
Φ38.5×43.5 mm (O.D. x L), 45# Carbon Steel, Chrome Plating
Female Coupler
Φ38.5×66 mm (O.D. x L), 45# Carbon Steel, Chrome Plating
Dust Cap
Φ38×298 mm (O.D. x L), Rubber, Red
Product Weight
1.65 lbs / 0.75 kg
Product Dimensions (LxWxH)
Φ1.5x3.46 in / Φ38x88 mm
