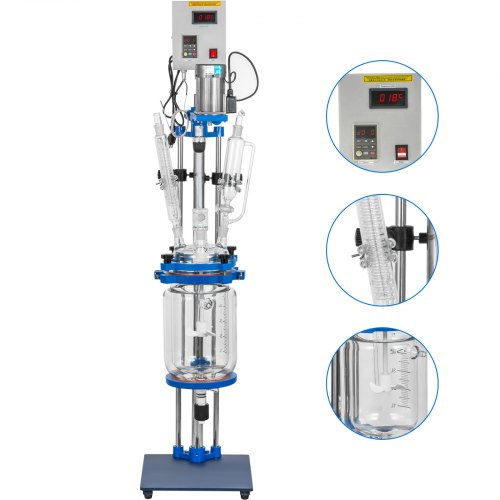

VEVOR jacketed reactor with digital control panel, glass vessel, and measuring scale. VEVOR jacketed reactor with borosilicate glass and stainless steel support. VEVOR jacketed reactor control panel with temperature and speed display. VEVOR jacketed reactor with high-efficiency motor on blue base. laboratory VEVOR jacketed reactor with high-precision ptfe sealing. VEVOR jacketed reactor with detailed close-ups of clamps, valves, and volume markings. VEVOR jacketed reactor applications in laboratories, industrial plants, and medical research.
FYF5LGPG000000001V1

VEVOR Jacketed Reactor 5L Laboratory Glass Reactor, Jacketed Glass Reactor, Chemical Reaction Vessel, Lab Jacketed Reactor, Reaction Vessel Chemistry, with Digital Display, for Reaction Distillation

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【PREMIUM MATERIAL】- Borosilicate glass (GG17 material) has excellent physical properties and chemical properties. The overall national standard stainless steel new frame structure, compact and sturdy.
  • 【PRECISE DIGITAL SCREENS】- LCD makes temperature measurement easier and more convenient; temperature range: -60 °C-200 °C, resistant to strong acid and alkali, high-temperature resistance, high strength, high hardness。
  • 【VARIABLE SPEED MOTOR】- Lab reaction vessel adopts variable speed motor, which has long-running time, excellent stability, no noise, standard gear, no gap, wear-resistant
  • 【PTFE COMPONENT SEAL】- The PTFE component seal is durable and air-tight, with an abrasive dust collection box. The PTFE discharge valve is designed with a large bottle of mouth, which is easy to clean and disassemble. Solid/liquid substances are easily released from the bottom.
  • 【WIDELY USED】- The 5 liter reaction vessel can be safely operated under a full vacuum. Jacketed glass reactor systems are ideal equipment for mixing, reaction, and distillation in the chemical and pharmaceutical industries.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Jacketed Reactor 5L Laboratory Glass Reactor, Jacketed Glass Reactor, Chemical Reaction Vessel, Lab Jacketed Reactor, Reaction Vessel Chemistry, with Digital Display, for Reaction Distillation
laboratory VEVOR jacketed reactor, capacity 5l, with blue-liquid-filled flask.
VEVOR jacketed reactor with a digital control panel and transparent glass chamber.
5L Laboratory Jacketed Reactor
This series of reaction kettle can do vacuum stirring reaction; mezzanine can connect the heat source (freezing liquid, water, and hot oil) circulation heating or cooling, can control the reaction solution evaporation and re-flow. It is widely used in chemical, excellent chemical, biopharmaceutical, and other industries.
  • Premium Material
  • Precise Digital Screens
  • Variable Speed Motor
  • PTFE Component Seal
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
borosilicate glass VEVOR jacketed reactor with stainless steel support. wide temperature range.
Wide Temperature Range
Reaction kettle vessel is made of GG17 high borosilicate glass, which can ensure that the reaction is carried out safely between -60°C and 200°C
VEVOR jacketed reactor digital display panel showing temperature and control settings.
Digital Display
Digital display screen, which can display the current data in time and accurately and adjust it according to your needs
silver motor mounted on blue base labeled "high-efficiency motor" for VEVOR jacketed reactor.
High-Efficiency Motor
Frequency conversion motor, stable and reliable operation; running smoothly, continuous running without heat, low noise.
VEVOR jacketed reactor with ptfe sealing and high-precision sealing.
High-precision Sealing
The components are sealed with PTFE, which can withstand various solvents and maintain a high-precision seal (0.095 MPA).
VEVOR jacketed reactor with detailed component close-ups and measurement markings.
Outstanding Details
The high-quality condenser and pressure funnel are resistant to strong acids and alkalis, and to high temperatures; the PTFE stirring blade is corrosion-resistant; the large-diameter discharge valve allows solid/liquid substances to be easily released from the bottom.
VEVOR jacketed reactor, scientific apparatus, laboratory beakers, industrial plant.
Wide Application
Distillation Glass Reactor is widely used in experiments, pilot tests, and production in chemistry, fine chemicals, biopharmaceuticals, and synthesis of new materials.
VEVOR jacketed reactor with precise measurements 60"x15.7"x13.8".
Specifications
  • Reaction glass container capacity: 5L
  • Cooling / heating jacket capacity: 2L
  • Voltage:110V
  • Speed: 0-1200r / min
  • Motor power (W): 100w
  • Operating temperature range: -60 to 200 °C
  • Gross Weight: 55.5 kg/122.35 lb
  • Package Size: 140x42x58 cm/ 55.11x16.53x22.83 inch
VEVOR jacketed reactor with glass components and digital controls on metal stand.
Package Content
  • 1 x glass reactor
  • 1 x 5m connection hose
laboratory VEVOR jacketed reactor, capacity 5l, with blue-liquid-filled flask.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR jacketed reactor with a digital control panel and transparent glass chamber.
5L Laboratory Jacketed Reactor
This series of reaction kettle can do vacuum stirring reaction; mezzanine can connect the heat source (freezing liquid, water, and hot oil) circulation heating or cooling, can control the reaction solution evaporation and re-flow. It is widely used in chemical, excellent chemical, biopharmaceutical, and other industries.
  • Premium Material
  • Precise Digital Screens
  • Variable Speed Motor
  • PTFE Component Seal
borosilicate glass VEVOR jacketed reactor with stainless steel support. wide temperature range.
Wide Temperature Range
Reaction kettle vessel is made of GG17 high borosilicate glass, which can ensure that the reaction is carried out safely between -60°C and 200°C
VEVOR jacketed reactor digital display panel showing temperature and control settings.
Digital Display
Digital display screen, which can display the current data in time and accurately and adjust it according to your needs
silver motor mounted on blue base labeled "high-efficiency motor" for VEVOR jacketed reactor.
High-Efficiency Motor
Frequency conversion motor, stable and reliable operation; running smoothly, continuous running without heat, low noise.
VEVOR jacketed reactor with ptfe sealing and high-precision sealing.
High-precision Sealing
The components are sealed with PTFE, which can withstand various solvents and maintain a high-precision seal (0.095 MPA).
VEVOR jacketed reactor with detailed component close-ups and measurement markings.
Outstanding Details
The high-quality condenser and pressure funnel are resistant to strong acids and alkalis, and to high temperatures; the PTFE stirring blade is corrosion-resistant; the large-diameter discharge valve allows solid/liquid substances to be easily released from the bottom.
VEVOR jacketed reactor, scientific apparatus, laboratory beakers, industrial plant.
Wide Application
Distillation Glass Reactor is widely used in experiments, pilot tests, and production in chemistry, fine chemicals, biopharmaceuticals, and synthesis of new materials.
VEVOR jacketed reactor with glass components and digital controls on metal stand.
Package Content
  • 1 x glass reactor
  • 1 x 5m connection hose
VEVOR jacketed reactor with precise measurements 60"x15.7"x13.8".
Specifications
  • Reaction glass container capacity: 5L
  • Cooling / heating jacket capacity: 2L
  • Voltage:110V
  • Speed: 0-1200r / min
  • Motor power (W): 100w
  • Operating temperature range: -60 to 200 °C
  • Gross Weight: 55.5 kg/122.35 lb
  • Package Size: 140x42x58 cm/ 55.11x16.53x22.83 inch

Premium Jacketed Reactor with Durable Borosilicate Glass

This jacketed reactor material is known for its excellent physical and chemical properties. The national standard stainless steel frame is sturdy and compact. It ensures the reactor's durability and stability, making it ideal for laboratory glass reactors and industrial use. With ease of use, you can handle various chemical reactions vessel, such as resistance to strong acids or alkalis. Also, it can withstand high temperatures. This makes it suitable for a wide range of applications. Our design guarantees long-term performance and reliability.


Precise Digital Display for Easy Temperature Measurement

It has an LCD display. This makes temperature measurement simple and convenient. The display shows temperatures ranging from 60 °C to 200 °C. This wide range allows precise control over reactions, including a digital display reactor that is clear and simple to read. It helps maintain accurate reaction conditions. The design of the reactor ensures that you can monitor the process closely. That feature is crucial for achieving consistent results. It also enhances the safety of the response process.


Variable Speed Motor for Long-Running and Stable Performance

A variable speed motor is also a feature of the VEVOR jacketed reactor. The variable speed motor provides long running time and excellent stability. This means that you can run your machine at speeds from 0 to 1200 r/min. It offers both long run time as well as outstanding stability, which makes it an excellent choice for many tasks in the future. Noise-free and wear-resistant: The motor itself is noise free and resistant to wear and tear. These features ensure smooth and uninterrupted operation. This unit's variable speed allows you to precisely control the reaction. This feature will be crucial in achieving the desired results. Should we also consider preserving the effectiveness of our reactor? The design of its motor helps ensure that it can handle different reaction conditions.


Airtight PTFE Component Seal for Enhanced Safety

This is a PTFE component seal. It's durable and airtight. The seal ensures that the reactor remains sealed during operation. This feature enhances safety and prevents leaks. The seal is resistant to abrasive dust and is simple to clean. Additionally, maintenance and cleaning are easy. Maintenance and cleaning are simple with this seal. The VEVOR jacketed reactor has PTFE component sealing. A large bottle mouth allows for simple disassembly. This design makes maintenance an effortless task. Because of its design, the vessel can handle solid and liquid substances. Therefore, this feature is essential for maintaining the reactor's performance.


Ideal for Reaction Distillation in Chemical and Pharmaceutical Industries

This VEVOR jacketed reactor is perfect for reaction distillation. You can operate it under a full vacuum. This makes it suitable for the chemical and pharmaceutical industries. Our reactor allows for efficient mixing, reaction, and distilling. You can handle various types of chemical processes easily. Because of its design, you can achieve high-quality results while improving production efficiency. Selecting this tool guarantees the fulfillment of industry standards and requirements in line with your expectations.


Compact and Sturdy National Standard Stainless Steel Frame

The VEVOR jacketed reactor features a compact and sturdy frame. Our jacket has a slender, sturdy frame. We use national standard stainless steel for the frame, ensuring the reactor's stability and durability. This ensures that it remains stable and durable. It also offers excellent support for the reactor. Also, the frame resists wear and tear. Furthermore, it provides excellent support for the reactor. The compact design saves space but is simple to install. If you need to maintain your own unit, our machine boasts amazing features. Having said that, our robust structure ensures that the reaction can withstand a wide range of conditions. Therefore, maintaining the performance of any kind of condition requires us to keep this in mind when choosing between different environments.


Temperature Range from -60°C to 200°C for Versatile Applications

This is a versatile temperature range. It can handle temperatures from -60°C to 200°C. This wide temperature range makes it suitable for various chemical reactions and processes. The design of the reactor ensures that it can maintain precise temperatures, which is important for achieving desired outcomes. Furthermore, it enhances the safety of the reaction process. With its high temperature capacity, you can use it in different applications both at home and in laboratories.


See More

Specification

Reaction glass container capacity
5L
Cooling / heating jacket capacity
2L
Voltage
110V
Speed
0-1200r / min
Motor power (W)
100w
Operating temperature range
-60 to 200 °C
Gross Weight
55.5 kg/122.35 lb
Package Size
140x42x58 cm/ 55.11x16.53x22.83 inch
Manual
Download Link
Questions and Answers
10 Questions
I am looking for assembly instructions manual?
You can refer to the link below.<br/>https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/FYF5LGPG000000001V1_1687232707348.pdf
By vevor
1. There is temperatur sensor? 2. It is possible this sensor conect to digital display?
It has a temperature sensor, which displays the temperature on the control box, and the sensor is inserted into the kettle body, through a thermometer sleeve, to measure the temperature of the solution.
By vevor
What is the diameter of the top and the vessel?
The outer diameter of the container is 210mm, and the inner diameter is 165mm.
By vevor
What size are the side necks on the lid? We would need them to be 24/40 or 29/42.
The size of the side necks on the lid is 24/29.
By vevor
Do you know when you will have these back in stock? I was about to order one, last week and barely missed one of the last ones you had.
Hello Zane.  It will back in stock in 2 weeks. If you still want to buy it. You can pay attention on the website.
By vevor
