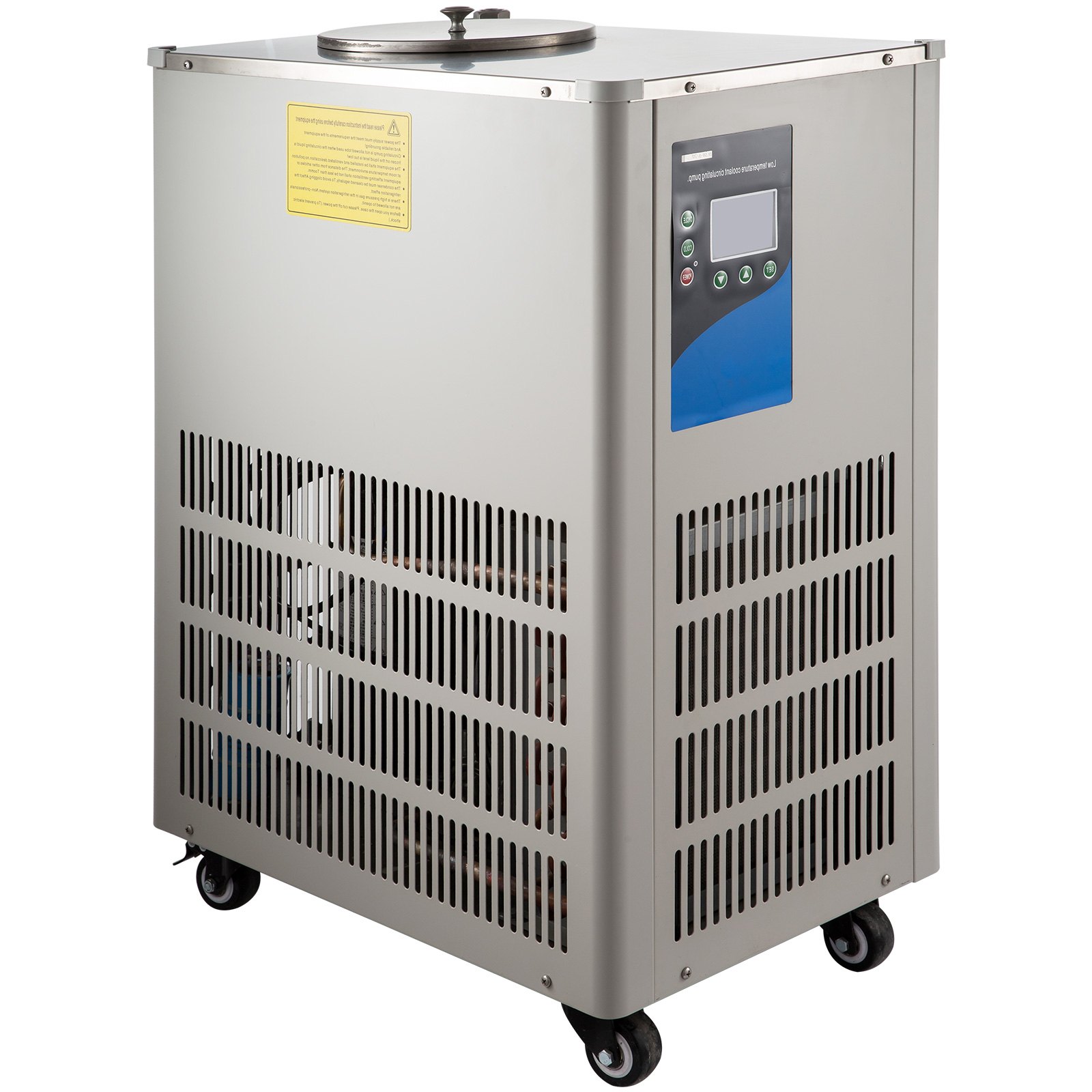

VEVOR laboratory chiller with digital control panel, vented sides, wheels, and accessories. VEVOR laboratory chiller with 304 stainless steel desk and electrostatic spraying. control panel of VEVOR laboratory chiller with buttons and display screen. VEVOR laboratory chiller stainless coil with pt100 temperature sensor display. VEVOR laboratory chiller with ventilation design and caster wheels for easy mobility. VEVOR laboratory chiller with moveable casters, digital display, and vented front. VEVOR laboratory chiller in industrial, lab, plant science, and research applications.
SYSXHLQQ5L-200001V1

VEVOR Laboratory Chiller Circulator 5L Chiller Lab -20℃ Low Temperature Cooling Liquid Circulator Pump Chiller Lab Recirculating Chiller Water Bath Recirculating Water Cooling Chiller for Laboratory

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

-20℃

  • -5℃
  • -20℃

About this item

  • 【ANTI-CORROSION MATERIAL】- Lab chiller cooler made of 304 stainless steel, electrostatic spraying, rust, and corrosion resistance. Provide users with a high-quality Low-Temperature Circulator.
  • 【FREELY TEMPERATURE ADJUST】- Have an LCD screen on the machine, easy to observe temperature value and set. Selectable cooling mode and recirculating output mode. With copper inlet & outlet water connection at the back, also with a water outlet valve.
  • 【PROTECTION SYSTEM】- The refrigeration has overheating and overcurrent protection. The control system has over-temperature tweet alarms, which can set the upper and lower limits of the temperature. The over-temperature alarm temperature can automatically cut off the load when over-temperature.
  • 【COMPLETE ACCESSORY】- No need to worry about installation and quick use, we will provide you 2pcs 6M insulation silicone tubes, one power transformer, fuse, etc. All you need is included.
  • 【VARIOUS APPLICATION】- Recirculating water cooling Chiller is particularly suitable for chemical, biological, and physical laboratory work under normal conditions or where low temperatures are required.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Laboratory Chiller Circulator 5L Chiller Lab -20℃ Low Temperature Cooling Liquid Circulator Pump Chiller Lab Recirculating Chiller Water Bath Recirculating Water Cooling Chiller for Laboratory
-20℃
VEVOR laboratory chiller, 5l, pid control, over-heating alarm, 304 stainless steel

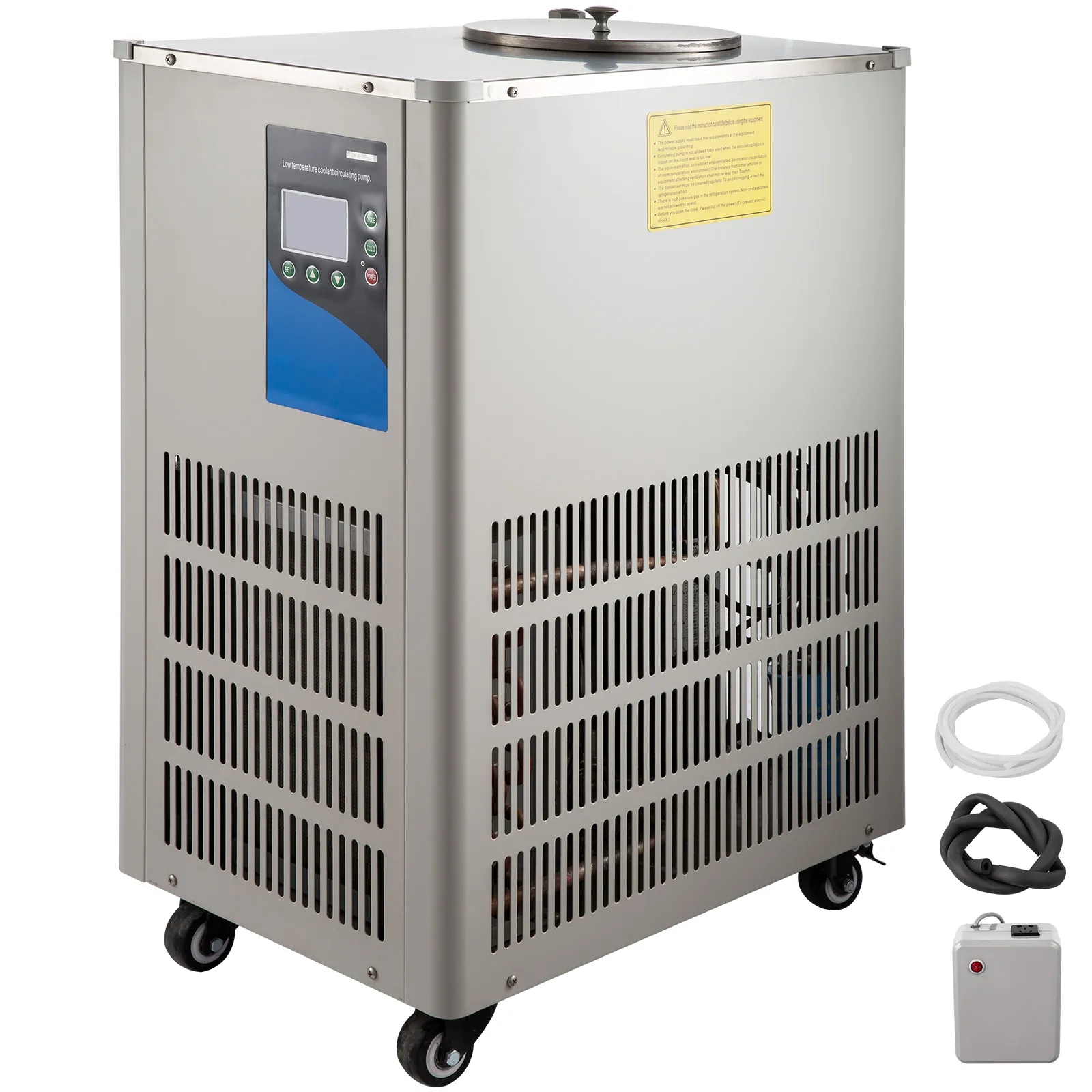

VEVOR laboratory chiller with digital display and accessories.
5L Laboratory Chiller Circulator
The relays, protection devices, capacitors, and refrigeration components of the circulating cooler are manufactured with high-quality equipment. The circulation system is made of corrosion-resistant materials and has the functions of anti-rust, anti-corrosion, and resistance to low-temperature liquid pollution. Intelligent control and multiple protection functions make sure the high performance.
  • Anti-Corrosion Material
  • Freely Temperature Adjust
  • Protection System
  • Complete Accessory
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

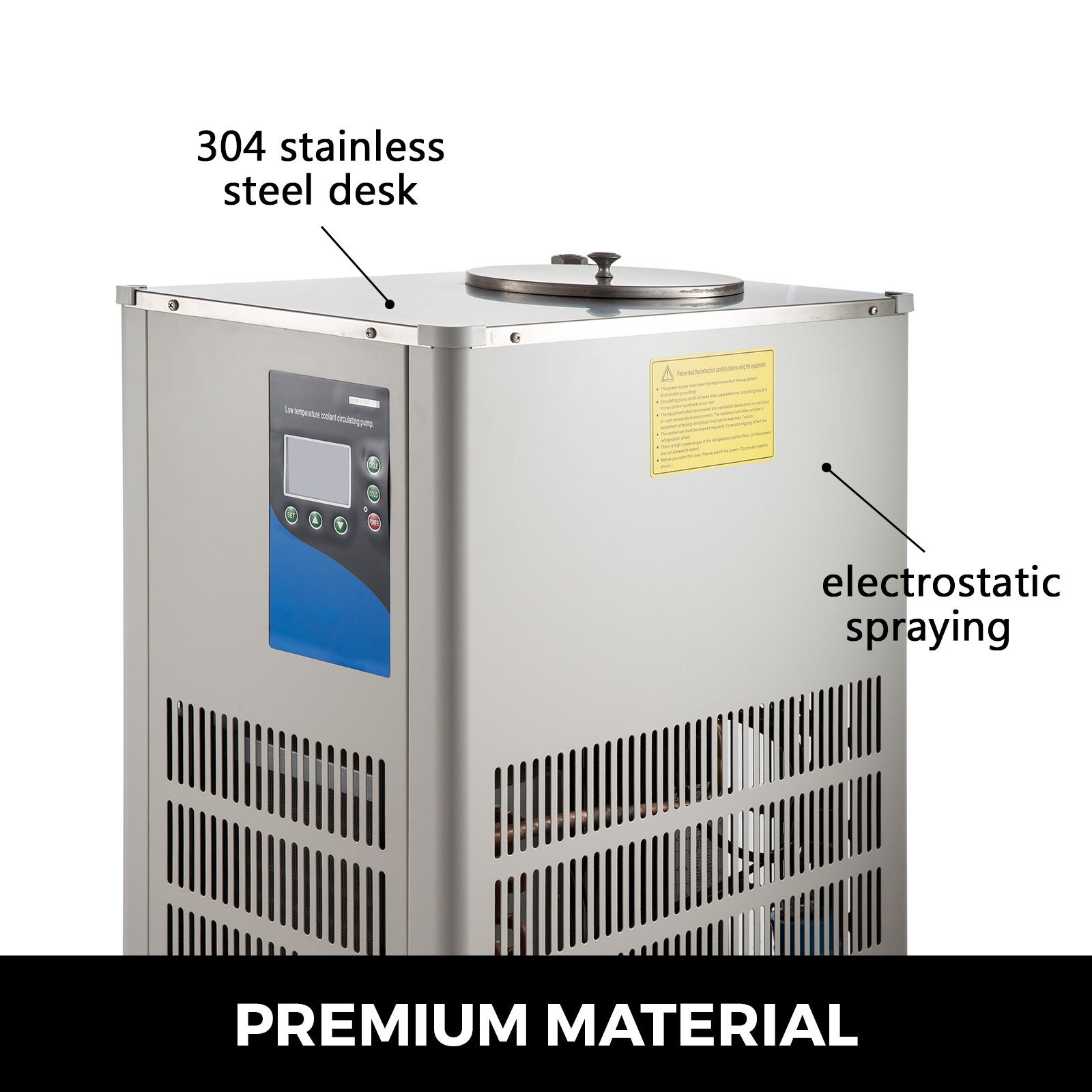

VEVOR laboratory chiller with 304 stainless steel desk and electrostatic spraying.
Premium Material
The stainless steel work surface of the lab cooler is widened and thickened, and the whole machine adopts electrostatic spraying technology to prevent rust. It is suitable for rare matter extraction.

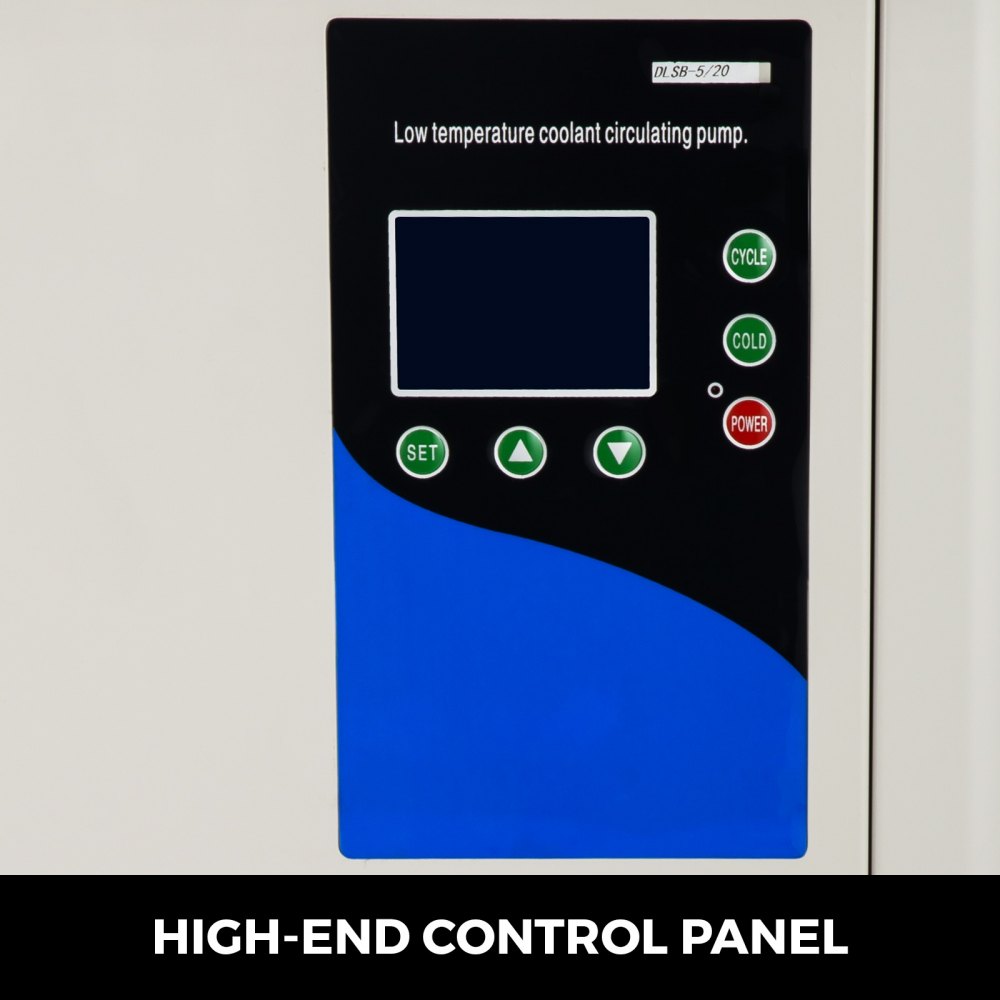

VEVOR laboratory chiller control panel with buttons for set, cycle, cold, and power.
High-end Control Panel
The large LCD screen with buttons, with a built-in thermostat, clearly to adjust temperature ranges: -10℃ to the ambient, and adjustment accuracy is ±1℃. It also can select backlight, cooling, or circulating mode.

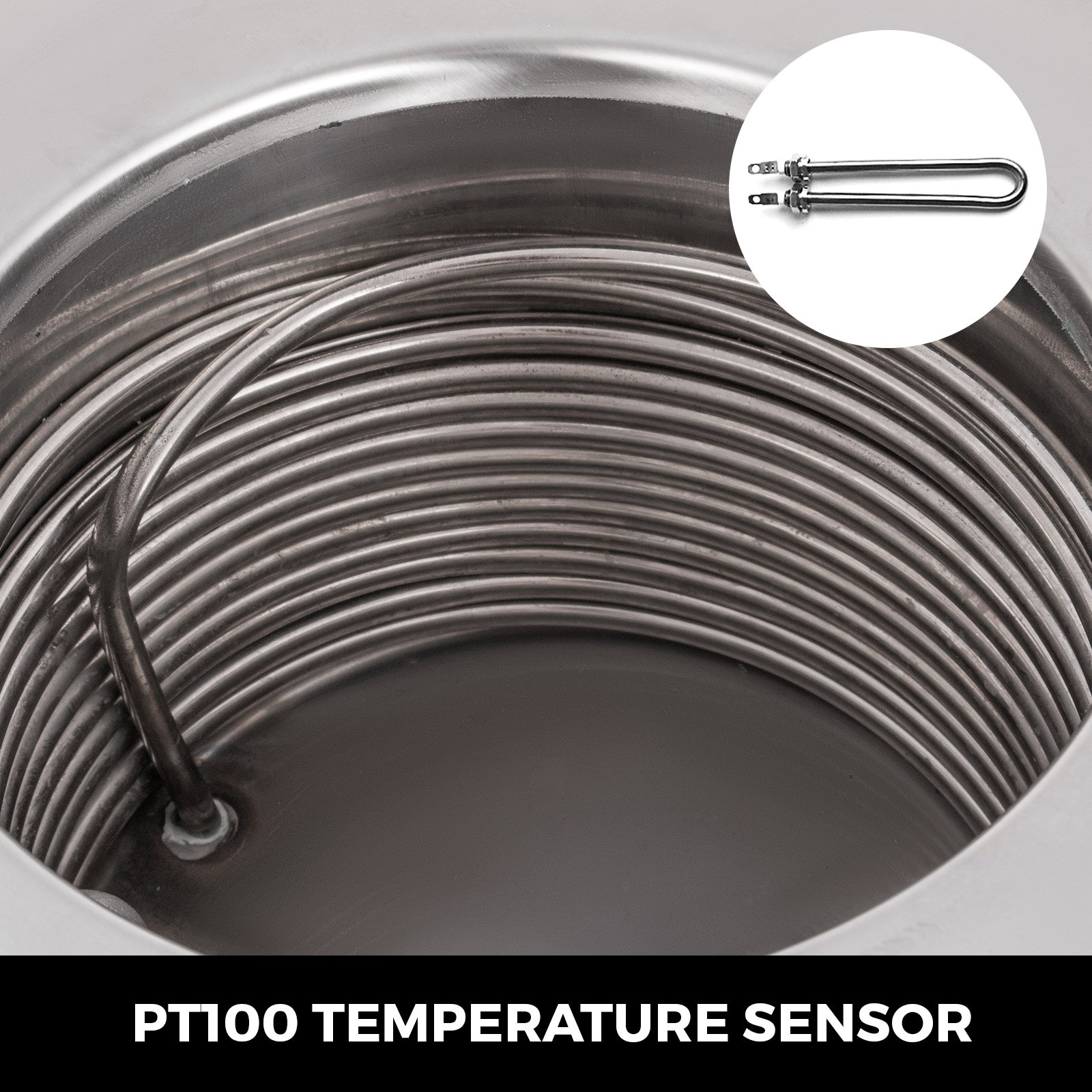

pt100 temperature sensor coil in a VEVOR laboratory chiller.
Pt100 Temperature Sensor
The heating tube of a recirculating chiller is made of 304 stainless steel, and the PT100 temperature sensor is more accurate.

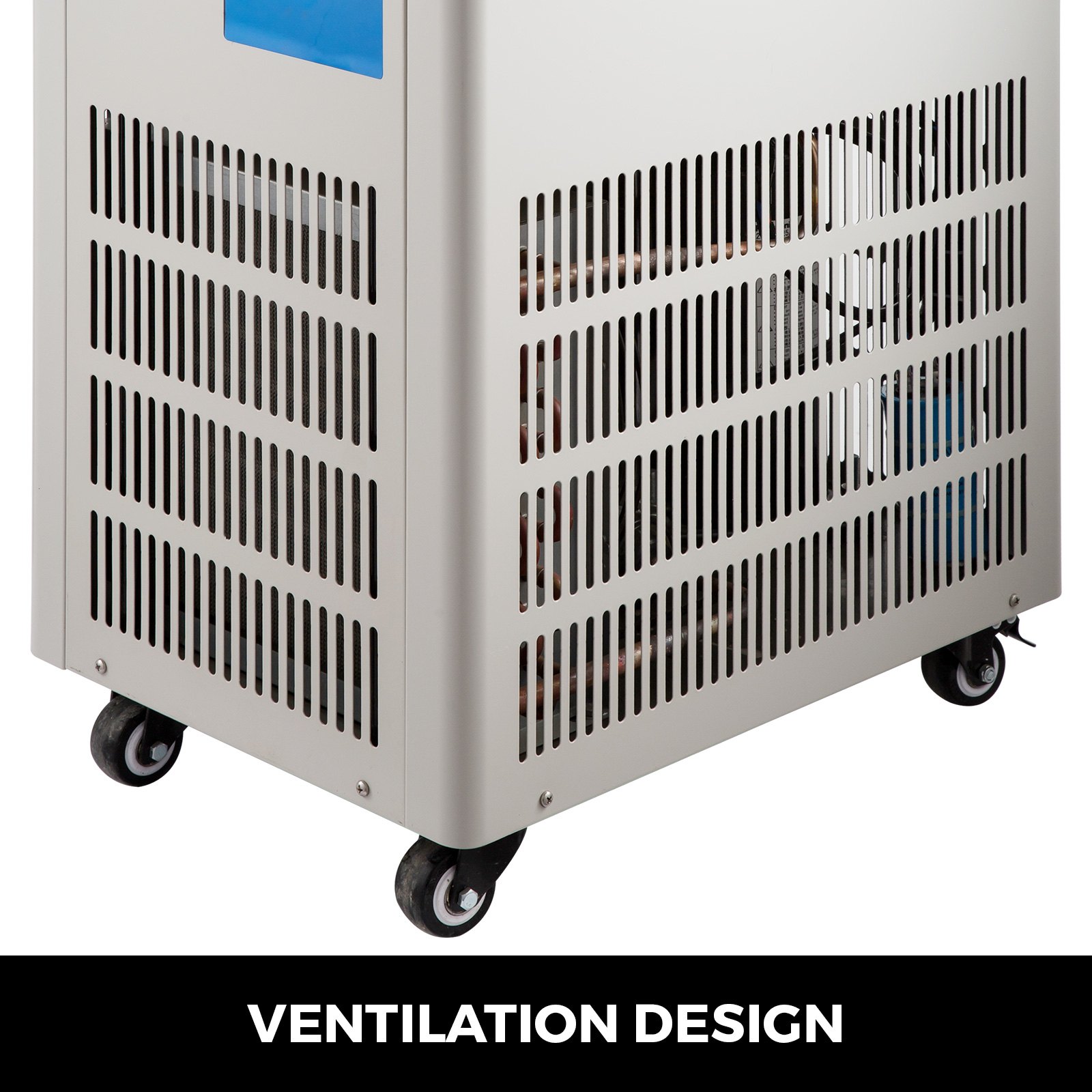

VEVOR laboratory chiller with efficient ventilation design and caster wheels.
Ventilation Design
The Low-temperature chillers are designed with multiple vent holes for rapid heat dissipation and stable temperature.

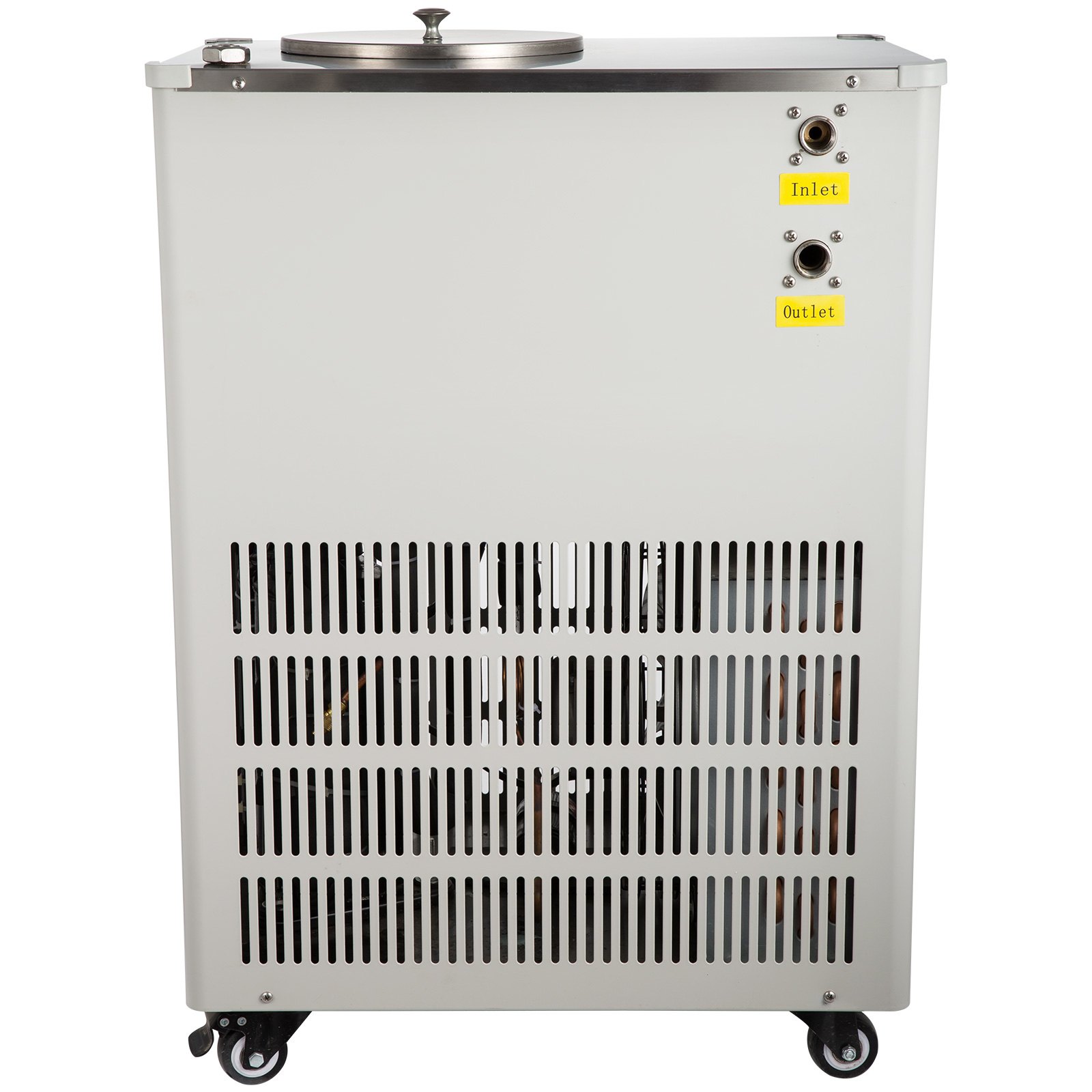

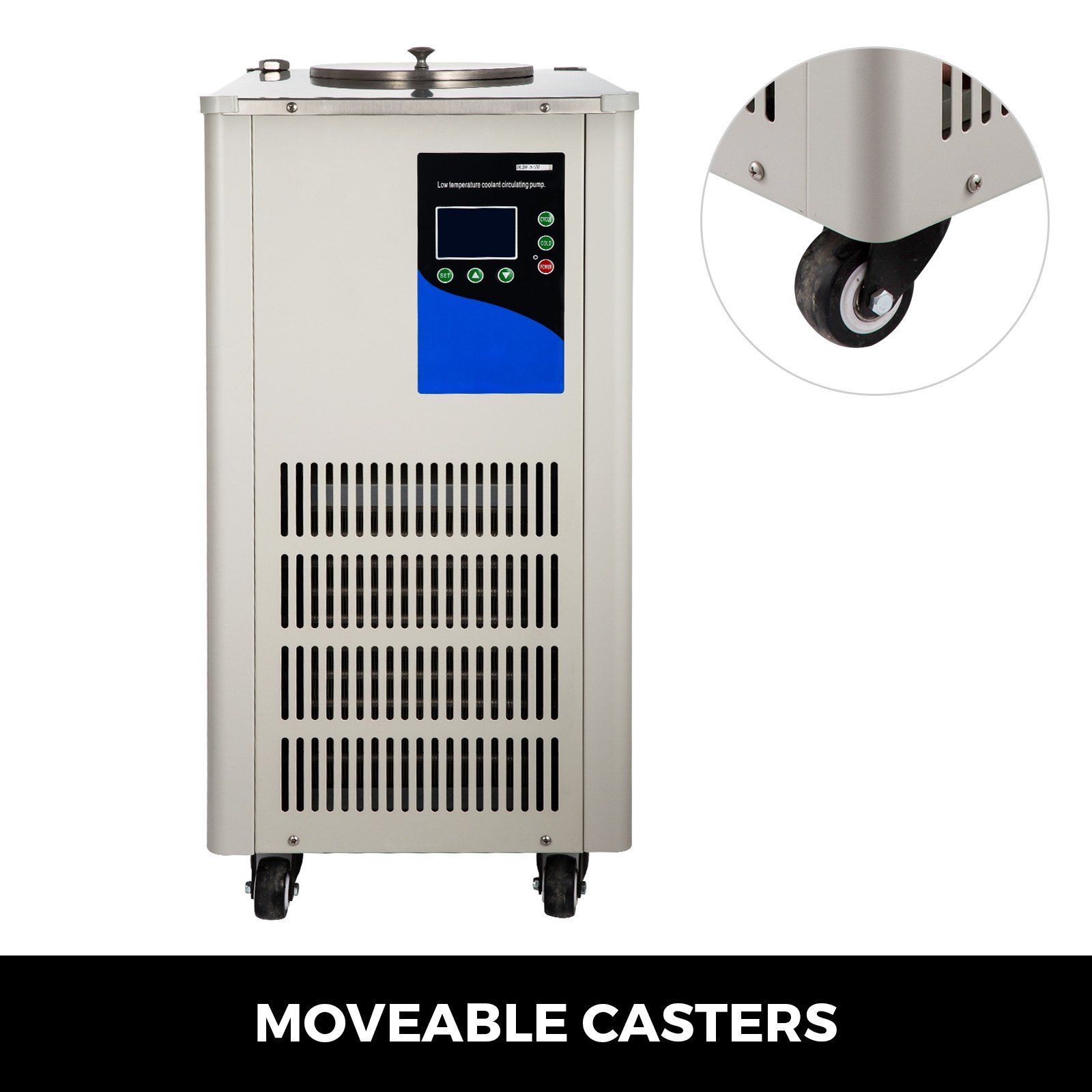

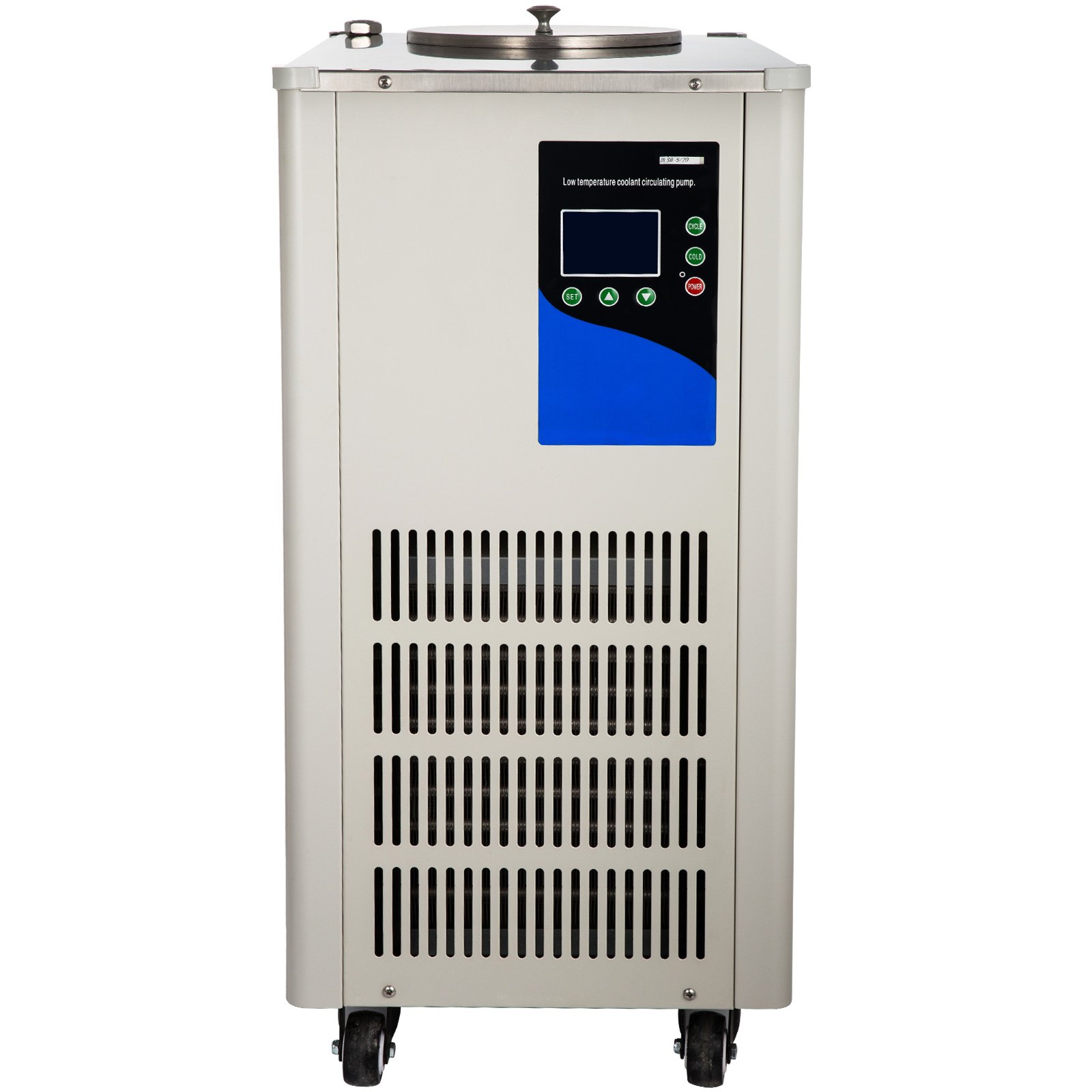

front view of VEVOR laboratory chiller with moveable casters for easy mobility.
Moveable Casters
This circulating chiller is designed with four wheels, 2 x 360° wheels, and 2 x wheels with locks. You can move this equipment everywhere quickly and lock it at any place if needed.
VEVOR laboratory chiller used in various lab and industrial applications.
Wide Application
Widely used in petroleum, chemical, metallurgy, medicine, biochemical, physical properties, testing and chemical analysis research departments, colleges and universities, factory laboratories and metrology, and quality inspection departments.

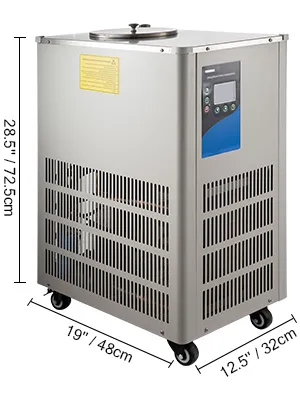

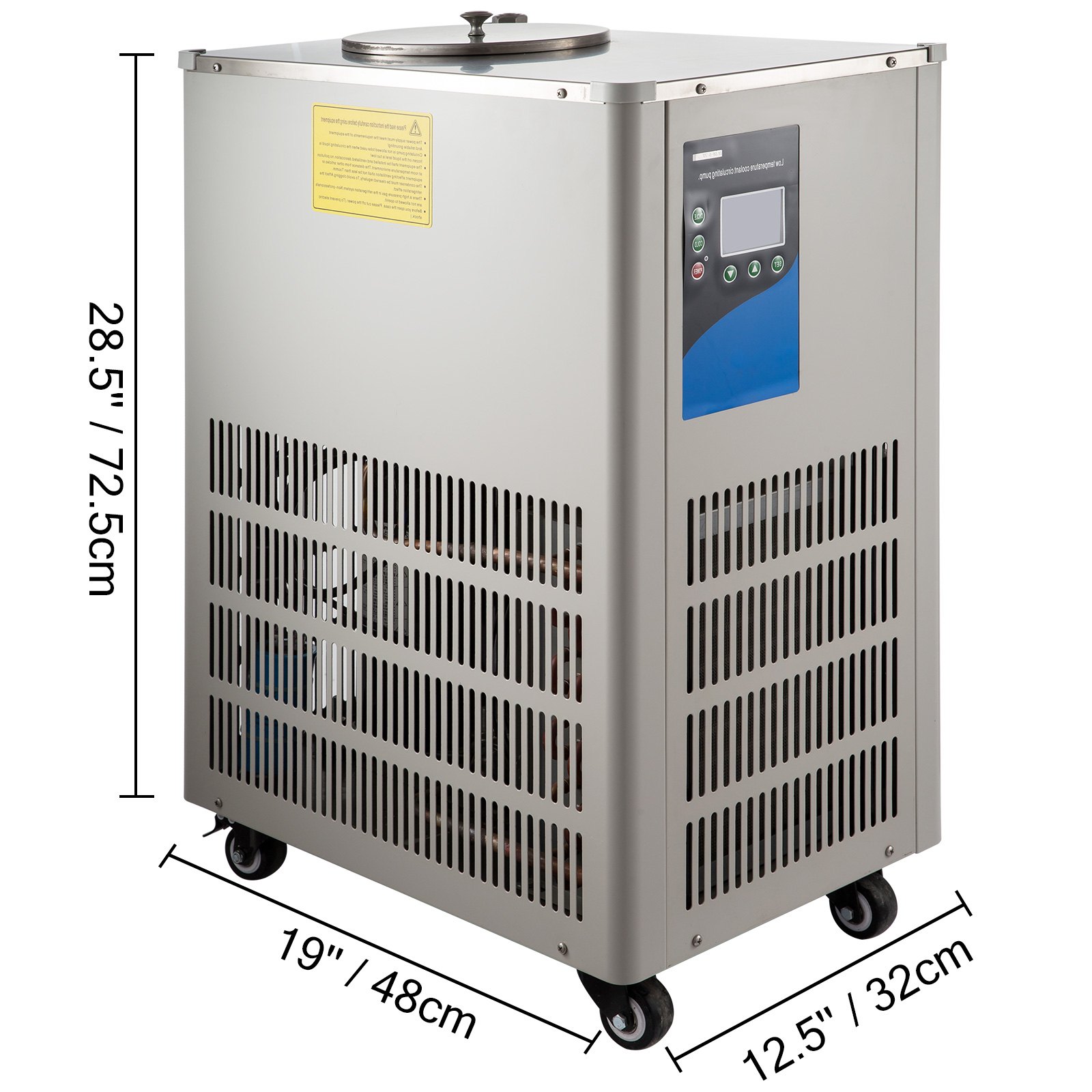

VEVOR laboratory chiller with adjustable control panel and dimensions highlighted.
Specifications
  • Input: 110V
  • Material: 304 Stainless Steel
  • Temperature Range: Ambient to -20°C
  • Temperature accuracy: ±1°C
  • Reservoir Volume:5L
  • Maximum pressure:0.7bar
  • Flow rate:10L/min
  • Chilling fluid connection:3/8" hose barb X2
  • Chilling Power @ 20°C :500W
  • Chilling Power @ 10°C :400W
  • Chilling Power @0°C:150W
  • Power Transformer Electrical Requirements:220V

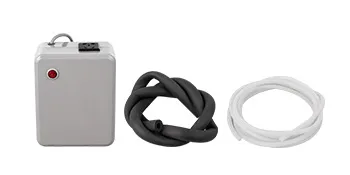

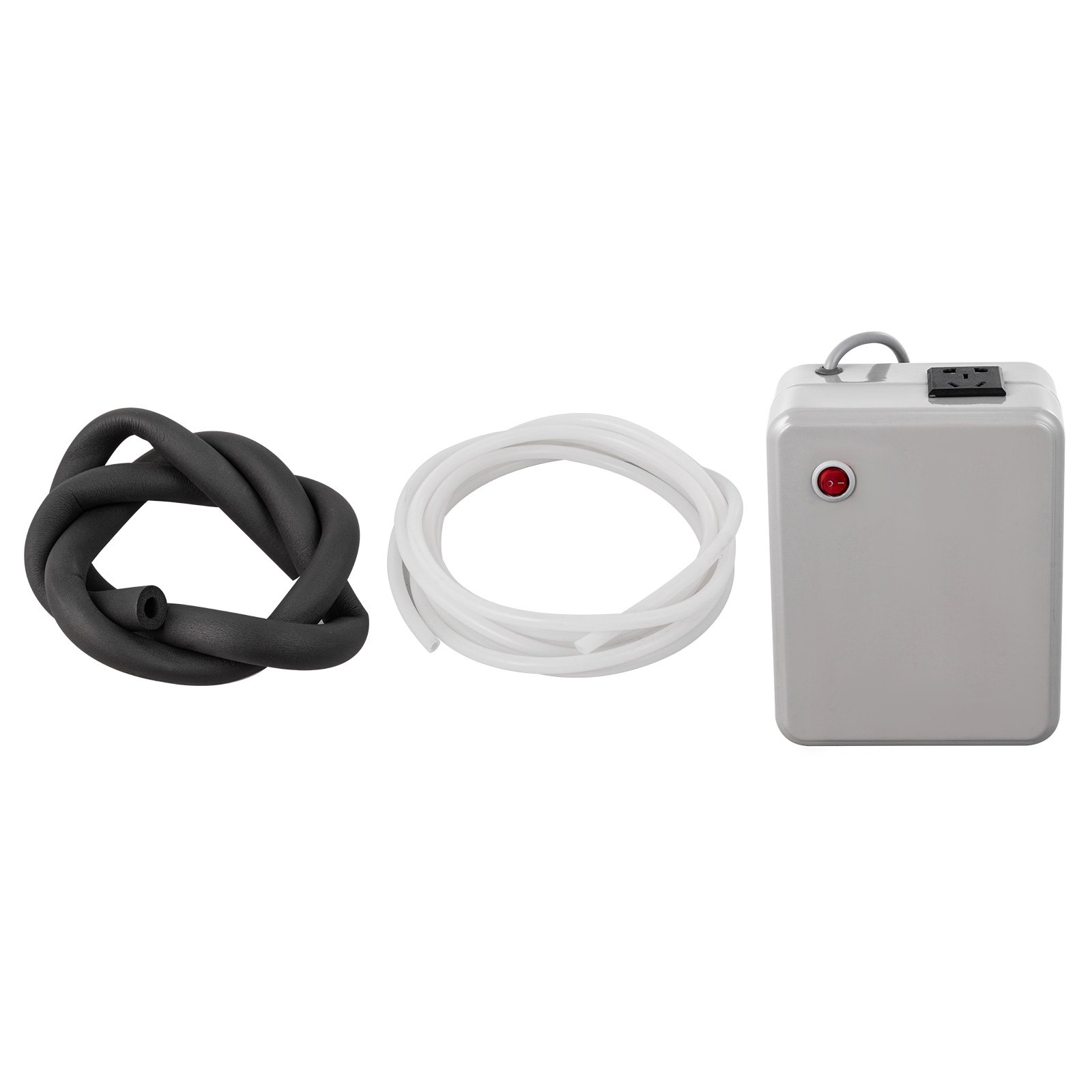

VEVOR laboratory chiller with hoses, showcasing components for lab cooling.
Package Content
  • 1 x Lab Recirculating Chiller
  • 1 x Power Transformer
  • 2 x 6M Length Insulation Silicone Pipes
  • 1 x English User Manual
VEVOR laboratory chiller, 5l, pid control, over-heating alarm, 304 stainless steel
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR laboratory chiller with digital display and accessories.
5L Laboratory Chiller Circulator
The relays, protection devices, capacitors, and refrigeration components of the circulating cooler are manufactured with high-quality equipment. The circulation system is made of corrosion-resistant materials and has the functions of anti-rust, anti-corrosion, and resistance to low-temperature liquid pollution. Intelligent control and multiple protection functions make sure the high performance.
  • Anti-Corrosion Material
  • Freely Temperature Adjust
  • Protection System
  • Complete Accessory
VEVOR laboratory chiller with 304 stainless steel desk and electrostatic spraying.
Premium Material
The stainless steel work surface of the lab cooler is widened and thickened, and the whole machine adopts electrostatic spraying technology to prevent rust. It is suitable for rare matter extraction.

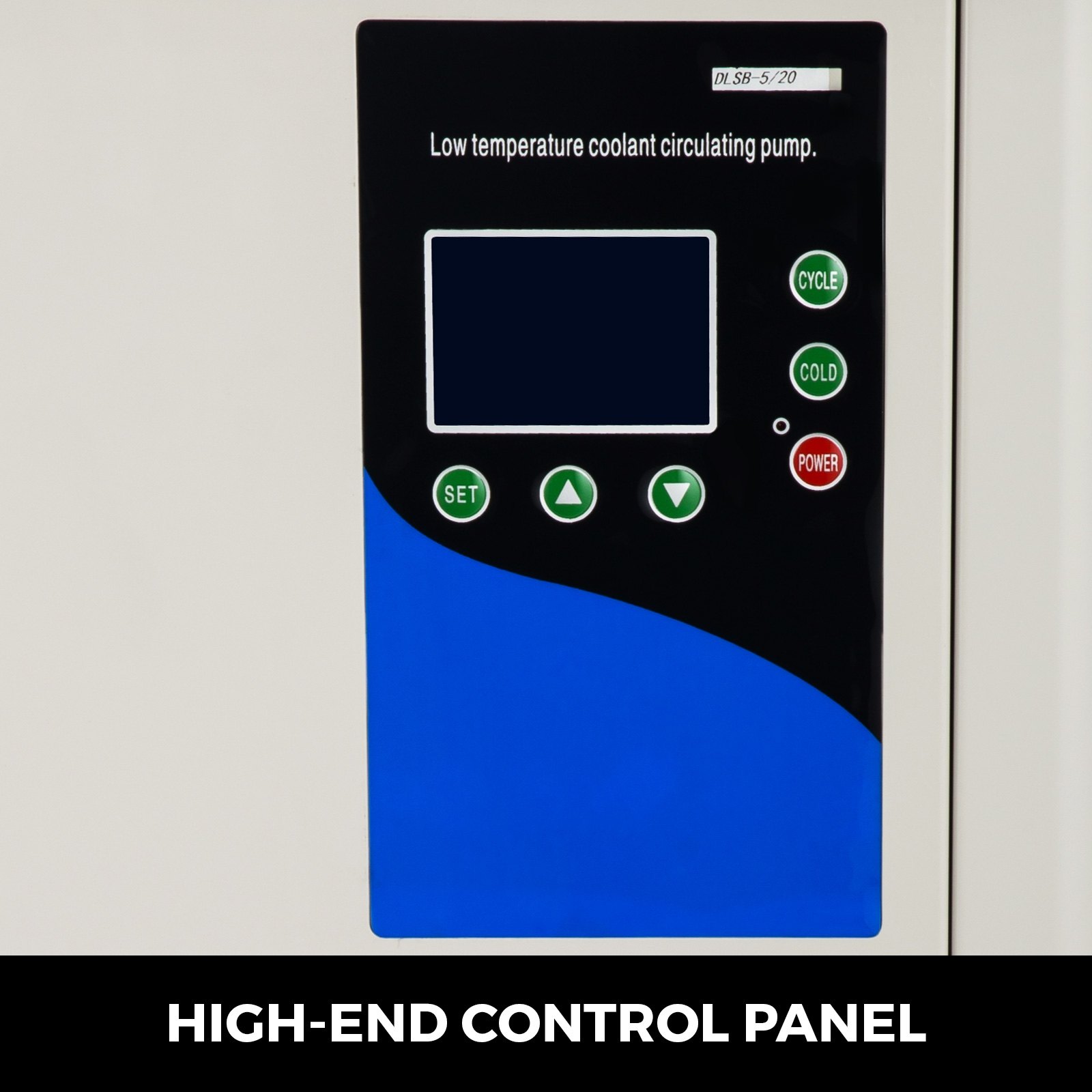

VEVOR laboratory chiller control panel with buttons for set, cycle, cold, and power.
High-end Control Panel
The large LCD screen with buttons, with a built-in thermostat, clearly to adjust temperature ranges: -10℃ to the ambient, and adjustment accuracy is ±1℃. It also can select backlight, cooling, or circulating mode.
pt100 temperature sensor coil in a VEVOR laboratory chiller.
Pt100 Temperature Sensor
The heating tube of a recirculating chiller is made of 304 stainless steel, and the PT100 temperature sensor is more accurate.
VEVOR laboratory chiller with efficient ventilation design and caster wheels.
Ventilation Design
The Low-temperature chillers are designed with multiple vent holes for rapid heat dissipation and stable temperature.
front view of VEVOR laboratory chiller with moveable casters for easy mobility.
Moveable Casters
This circulating chiller is designed with four wheels, 2 x 360° wheels, and 2 x wheels with locks. You can move this equipment everywhere quickly and lock it at any place if needed.
VEVOR laboratory chiller used in various lab and industrial applications.
Wide Application
Widely used in petroleum, chemical, metallurgy, medicine, biochemical, physical properties, testing and chemical analysis research departments, colleges and universities, factory laboratories and metrology, and quality inspection departments.
VEVOR laboratory chiller with hoses, showcasing components for lab cooling.
Package Content
  • 1 x Lab Recirculating Chiller
  • 1 x Power Transformer
  • 2 x 6M Length Insulation Silicone Pipes
  • 1 x English User Manual
VEVOR laboratory chiller with adjustable control panel and dimensions highlighted.
Specifications
  • Input: 110V
  • Material: 304 Stainless Steel
  • Temperature Range: Ambient to -20°C
  • Temperature accuracy: ±1°C
  • Reservoir Volume:5L
  • Maximum pressure:0.7bar
  • Flow rate:10L/min
  • Chilling fluid connection:3/8" hose barb X2
  • Chilling Power @ 20°C :500W
  • Chilling Power @ 10°C :400W
  • Chilling Power @0°C:150W
  • Power Transformer Electrical Requirements:220V

Laboratory Chiller Delivers Consistent Low Temperatures Down to -20°C

The VEVOR laboratory chiller can achieve and maintain temperatures as low as -20 °C. This consistent chilling capability is essential for processes that require precision. The chiller ensures efficient cooling without fluctuations in temperature. It performs well in various laboratory tasks, providing the reliable conditions needed for accurate results. With a temperature accuracy of 1°C, this chiller provides precise control for your experiments. Therefore, it’s ideal for experiments where consistency is important! The cooling power fluctuates with temperature but remains strong across different settings. No matter if you need it for cold stability tests or other applications, its robust performance makes it an essential fixture in any lab setting.


Designed for Easy Mobility and Space Efficiency in Your Lab

This laboratory chiller is lightweight and easy to move. Its compact design saves valuable lab space. You can place it conveniently in any corner or shelf. Despite its small size, it offers high performance. The 5L reservoir volume provides enough capacity for various applications. Durability and longevity. You'll find it simple to integrate into your existing lab setup. Moving it around your lab for different experiments is seamless. You can trust these chillers to be both functional and unobtrusive. They support your work without taking up much space.


Prompt and Efficient Customer Service for Immediate Issue Resolution

This efficient support reduces downtime in your lab operations. Knowing that help is just a call away provides peace of mind. You can focus on your work without worrying about prolonged interruptions. This level of support adds significant value to the chiller. It ensures you invest in an established and reliable product.


Quiet Operation and Modern Design Enhance Lab Environment

In labs that conduct multiple, simultaneous processes, the quiet operation is especially beneficial. It creates a conducive environment for focused work and reduces distractions. You won't need to shout over its noise or worry about it disturbing your work. This machine seamlessly integrates into your laboratory, both functionally and aesthetically.


Ideal for Cold Stability Testing by Conductivity Drop Testing

This laboratory chiller excels in cold stability testing. It consistently reaches and maintains low temperatures. This consistent performance is essential for conductivity drop testing. You can depend on it to provide the necessary chilling conditions. This reliability makes it a suitable choice for precise scientific studies. No matter if you're conducting simple or complex tests, these chillers will support your needs.Anyone performing cold stabilization tests should definitely consider using this equipment.


Reliable and Cost-Effective Solution for Laboratory Cooling Needs

The VEVOR laboratory chiller offers exceptional value for its price. It delivers dependable performance at an affordable price. Compared to higher-end models, it gives most of the same benefits at a fraction of the cost. This makes it accessible for many labs looking to optimize their budgets. Although this machine is competitive in price, quality does not compromise. In fact, even with its high-quality model, it consistently delivers on its promises, making it essentially the cheapest solution. Thus, you get excellent functionality without overspending.


Compatible with Various Laboratory Applications Including Soxhlet Extractors

This chiller is versatile and compatible with many applications. It works well with Soxhlet extractors, allowing for efficient extraction. You can handle both water and alcohol extraction with ease. Its compatibility with other lab equipment makes it a multipurpose tool. With its reliable chilling capabilities, you can use it for various experiments. This flexibility makes it a useful asset in any laboratory. In addition to supporting numerous scientific endeavors, it ensures you get the most out of your investment.


See More

Specification

Input
110V
Material
304 Stainless Steel
Temperature Range
Ambient to -20°C
Temperature accuracy
±1°C
Reservoir Volume
5L
Maximum pressure
0.7bar
Flow rate
10L/min
Chilling fluid connection
3/8" hose barb X2
Chilling Power @ 20°C
500W
Chilling Power @ 10°C
400W
Chilling Power @0°C
150W
Power Transformer Electrical Requirements
220V
Questions and Answers
19 Questions
Is this chiller compatible with a standard US 120 V outlet? Or would we need to install a 220 V outlet to use the device.
The machine is equipped with a 110V transformer. The host socket is first plugged into the transformer, and then the transformer is connected to the 110V power supply.
By vevor
can this unit cool recirculating water from 90F back to 50F @ 10L/min flow?
This requires refrigerant cooling, using ethylene glycol. Water doesn't work, it freezes when it reaches 0 degrees, and the refrigerant drops from room temperature to minus 20 degrees.
By vevor
Does coolant really become -20 degree celsius as described?
The temperature is related to the coolant, capacity and heat you use. The machine can reach minus 20 degrees Celsius, but there are many factors that affect the temperature.
By vevor
What are the exact dimensions of the reservoir?
Diameter: 220mm. Depth: 160mm.
By vevor
What type of refrigerant does this unit use?
Ethylene glycol or propylene glycol can be OK.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
16 Review(s)
Clear filters
BRIAN BRIAN
owner
I purchased 2 units, first one worked wonderfully and is quick tootemperature and relatively easy to use. The second unit developed a leak within 2 hours of use. Vevor sent me troubleshooting, expected me to tear the unit apart and make repairs. When I finally told them "enough" and demanded a refund, they relented into sending a new pump that is supposed to be the source of the leak. they say they are sending a part, but it has not been received yet. A buyer should be aware, this stuff is cheaper for a reason. 50:50 for me on the unit being operational. They are easy to get in touch with through your account, but they will try to get you to fix any issues yourself.
Customer Service Reply: Dear valued customer,we hope this message finds you well. We are writing to inform you that following our recent discussions and the agreement reached, we have completed the necessary actions to address your concerns.We sincerely apologize for any inconvenience or frustration this situation may have caused you. Your satisfaction is incredibly important to us, and we are committed to making things right.
Mwilson1392 Mwilson1392
best price for a small unit
I have compared these to other first buy chillers, this is the best price. I have been using mine for 6 months and no issues.
D. K. D. K.
Straight up Company.
The first unit I received had a refrigeration controls problem so they sent me another right away no charge. It works perfectly.
Ruben Calatayud-Chardi Ruben Calatayud-Chardi
Very reliable chiller at a very competitive price.
Very reliable chiller at a very competitive price.
Keith Nicholas Keith Nicholas
Good fountain for price
This fountain is awesome. It looks modern, doesn’t take up a lot of space, and as advertised it is very quiet. Filters are convenient to order and easy to replace.
Pam Pam
Clean and well-designed
Extremely easy to use and clean. My only complaint is not being able to see the internal water level but you can tell when you pick it up if it's running low.
Cordell Hoff Cordell Hoff
Great buy
Love this Chiller! Works great and quiet
Kolby Kolby
Works as priced......
First one was inoperative upon arrival. But the accepted my return, shipped me a new one, and all is working as it should.
Raymond Raymond
So far so good!
Come packaged in plywood. shipping was like less then 10 days. Could of been sent to the moon and been okay. So far so good with operation, will do update once fully in use.Update: This isnt cooling at all reaching out to them right now ill update on there customer service.Update 2: Now is fully functional. liquid is now cooling very happy! Always reached back within a day and we found the problem relatively fast.
Mwilson1392 Mwilson1392
best price for a small unit
I have compared these to other first buy chillers, this is the best price. I have been using mine for 6 months and no issues. It could definitely use a better circulator and chiller unit but I can't expect much for $900. I use this for running soxhlet extractors. I can really only one at a time with water extractions. I can usually run two extractors at once with an alcohol extraction because it has a lower boiling point and doesn't over heat the unit.My wish is it would have a higher pressure circulator but again, compared to $5000 starting units, this is pretty good and can hold low temps pretty consistently. I use around 50-70% isopropyl alcohol with it.
