VEVOR lathe chuck with jaw set, t-handle, and screws on white background. VEVOR lathe chuck for metal rings, bolts, screws, and valve parts, ideal for machines. VEVOR lathe chuck with adjustable internal and external jaws for varied workpiece sizes. high-performance VEVOR lathe chuck with reversible jaws, accurate bearings, and m8 thread. VEVOR lathe chuck installation steps with tools: mounting bolt, wrench, safety chuck key, external jaws. VEVOR lathe chuck made from ht 300 cast iron with anti-rust oil coating and ground jaw teeth. VEVOR lathe chuck, 4.92 in diameter, 11.2 lbs weight, in stainless steel.
KPK11-125KPZFZ001V0

VEVOR K11-125 Lathe Chuck 5", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Premium Material: Diameter: 4.92" / 125 mm; Clamping Range:0.098"-4.33" / 2.5-110 mm; Jamming Range: 1.5"-4.92" / 38-125 mm. The self-centering lathe chuck body is made of quality cast iron that is strong and durable. Several rigorous quality tests have proved that.
  • Internal & External Jaws: The 3-jaw lathe chuck comes with two sets of jaws—inside and outside ones—to extend its holding range, and therefore allows you to handle a wide variety of stock sizes.
  • High Precision: The self-centering lathe part contains a delicate bevel gear and three pinion gears. They contribute to precise processing progress, bearing tolerance of ≤ 0.002in / 0.05 mm.
  • High Efficiency: The mini lathe chuck is easy to use by turning the ergonomic T chuck key (included in the package). Since the changeover and setting time is cut, your lathe can work with higher efficiency.
  • Diversified Application: The metal lathe chuck is widely applied to metal lathes for the general turning of shafts and some more delicate materials. It would be the perfect choice for your lathe machine.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR K11-125 Lathe Chuck 5", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

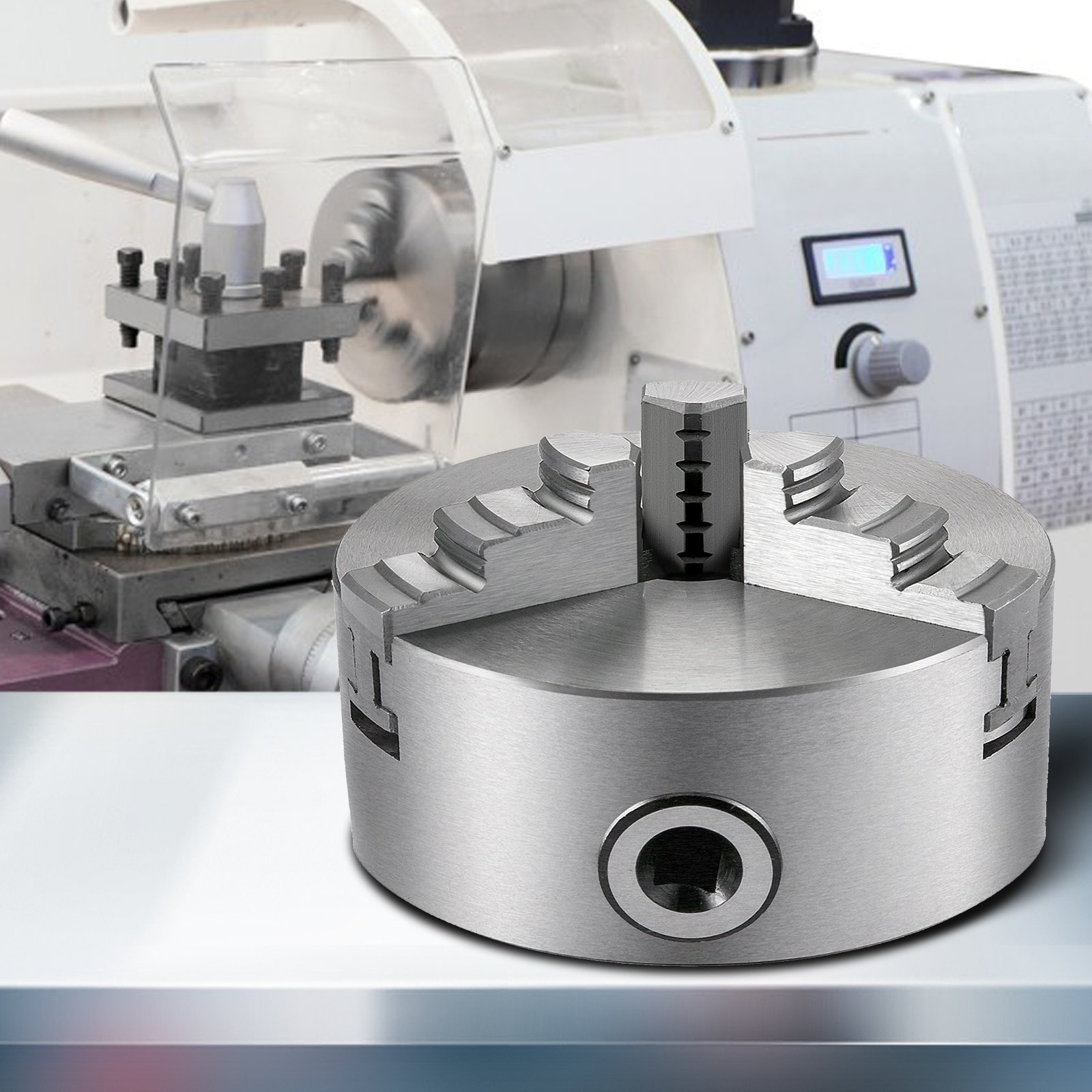

VEVOR lathe chuck in a workshop scene with details on mounting thread and self-centering.
VEVOR lathe chuck with three steel jaws, screws, and a t-handle tool.
K11-125 3-Jaw Chuck
Self-Centering & Superior Cast Iron & 0.002" High Accuracy
The self-centering lathe chuck is composed of a strong cast iron body and three steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle.
  • Premium Material
  • Internal & External Jaws
  • High Precision
  • High Efficiency
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

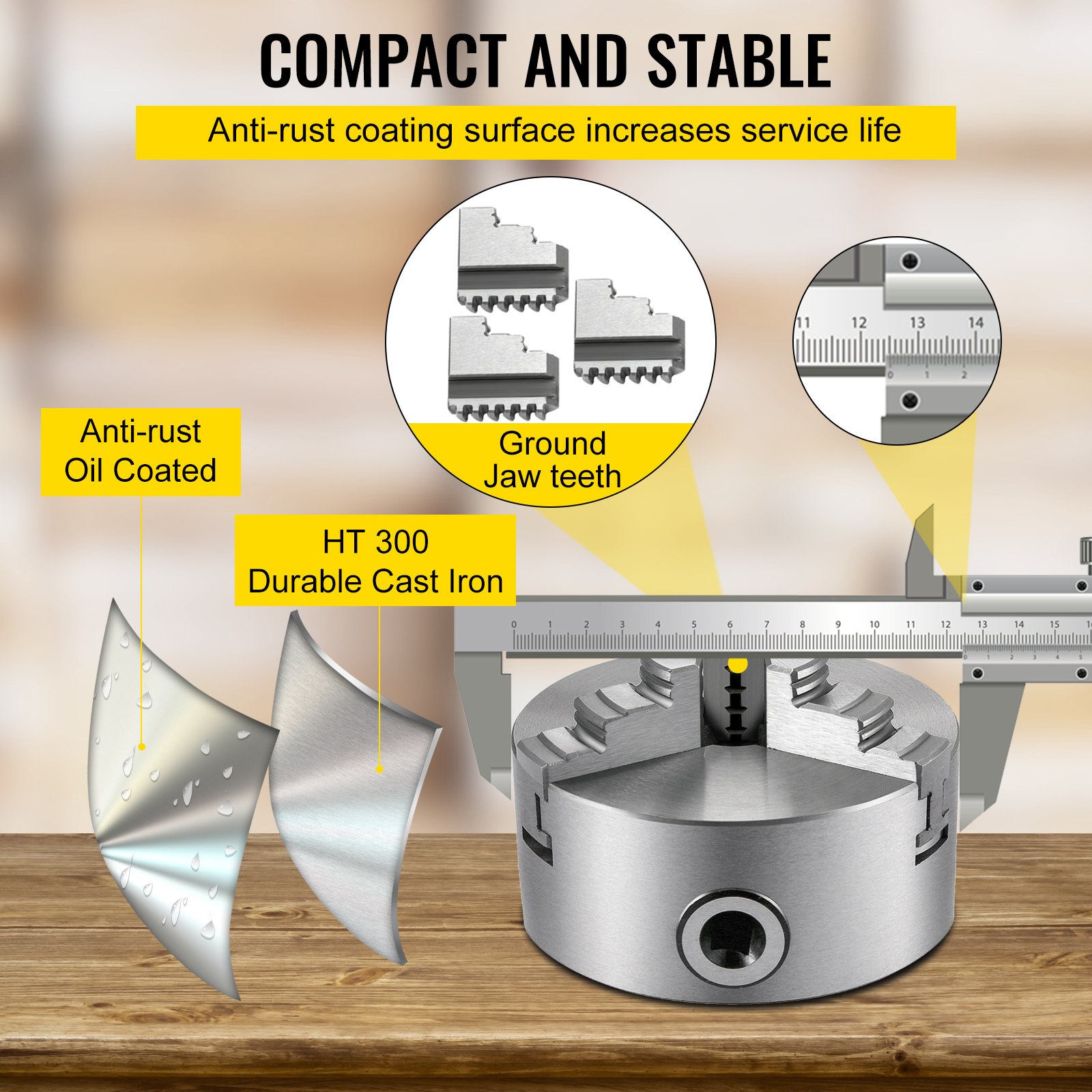

VEVOR lathe chuck made of ht 300 durable cast iron and hardened steel.
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron. The surface is nicely ground with a nice radius on all external edges.
VEVOR lathe chuck with self-centering and flexible linkage features.
Self Centering Chuck
The three jaws will efficiently push the material to be processed from 3 directions simultaneously until it is held tightly.

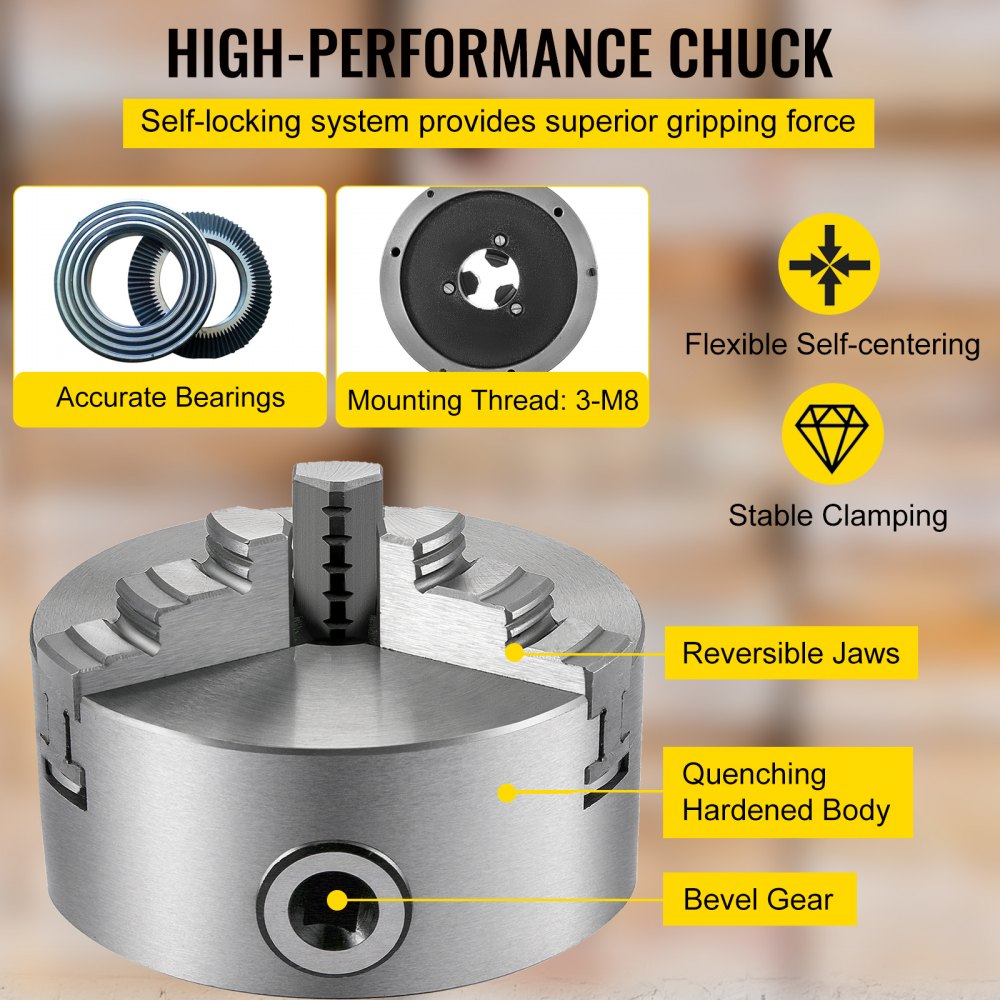

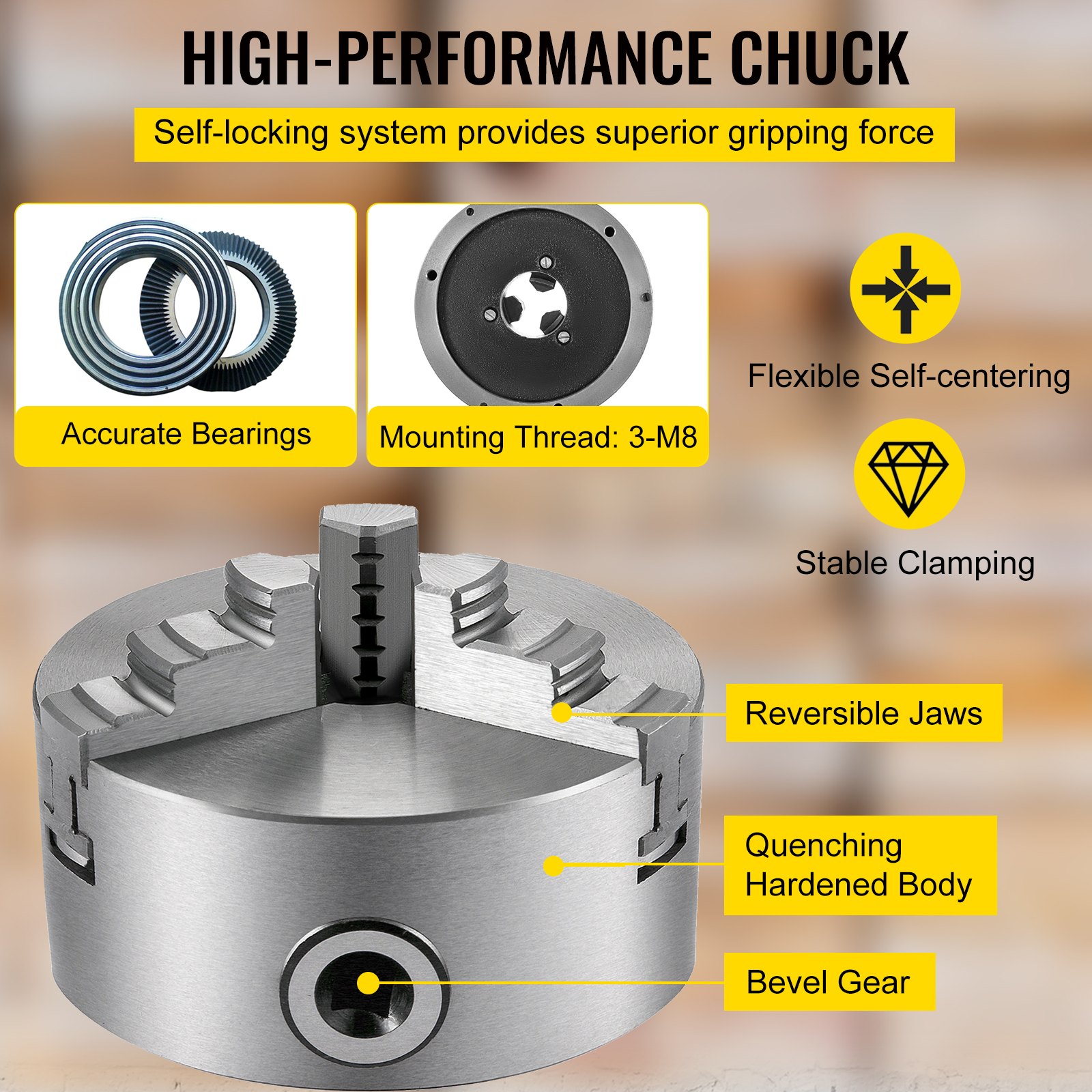

VEVOR lathe chuck - high-precision, 0.001 accuracy with bevel and pinion gear.
High-precision Chuck
The 3-jaw mini lathe chuck of the tolerance ≤0.002 inch works with few vibrations, ensuring accurate finished parts.

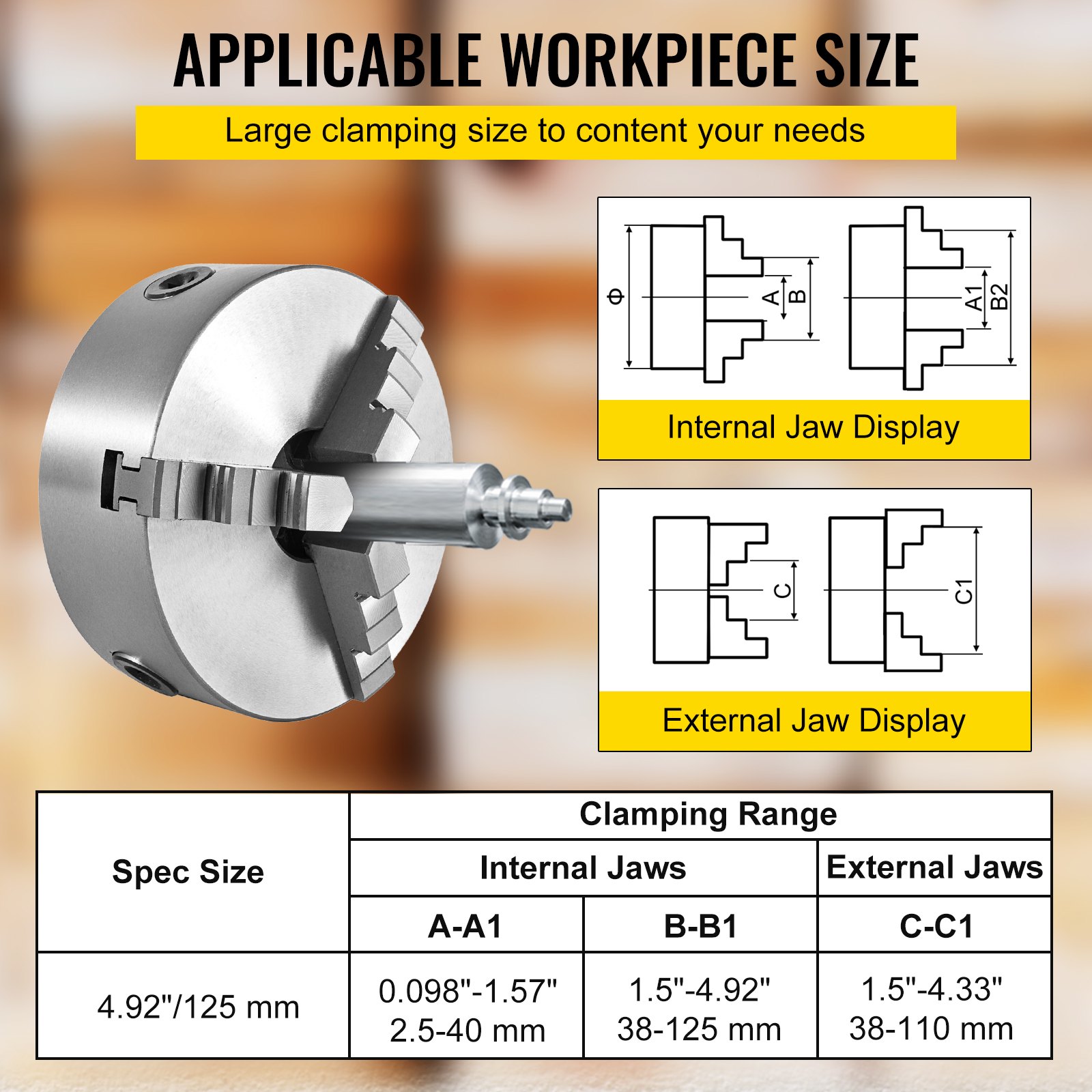

VEVOR lathe chuck with large clamping range, internal and external jaw displays.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.

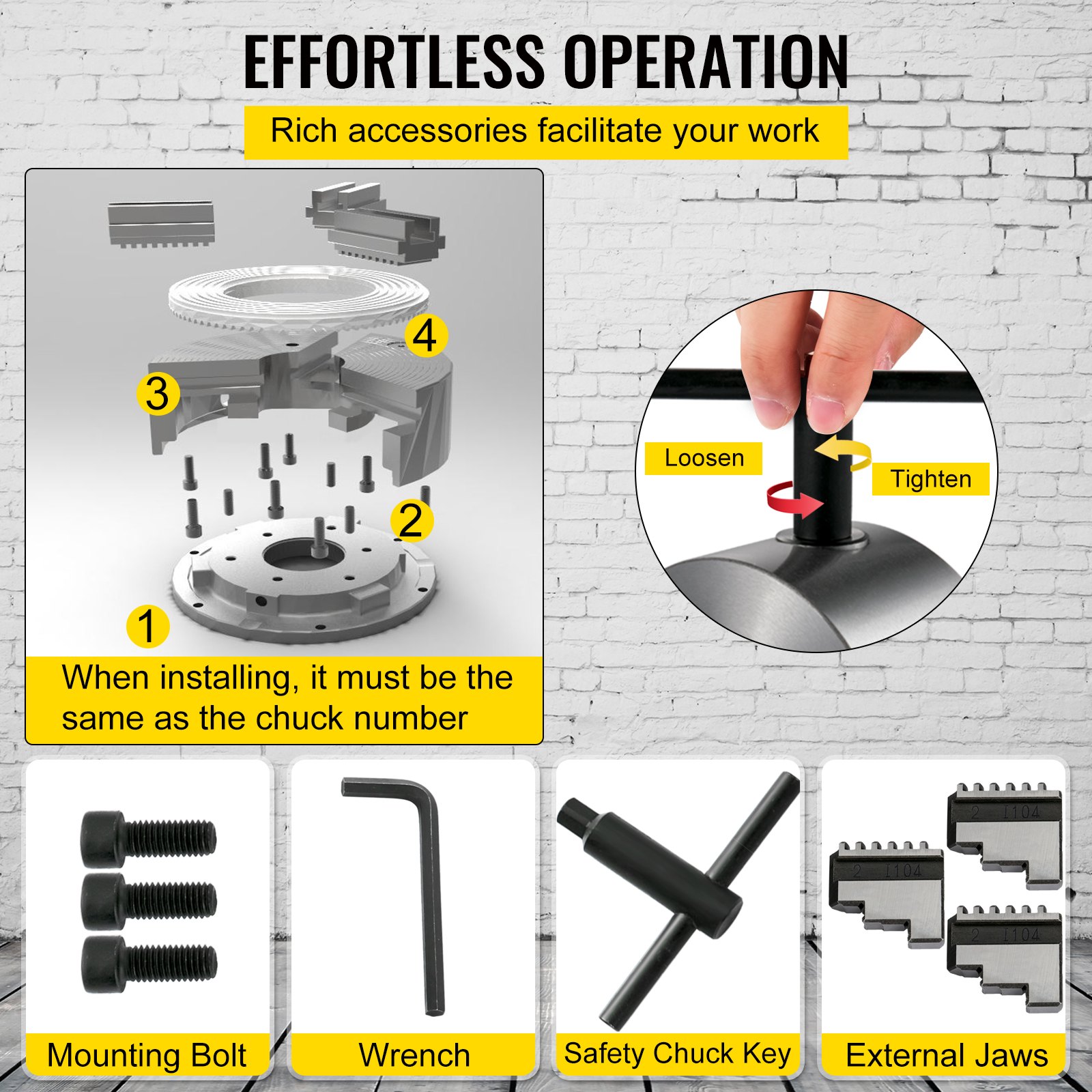

VEVOR lathe chuck setup showcasing internal and external jaws, chuck body, bolts, and safety key.
Easy Installation
It is easy for you to adjust the jaws by scrolling the chuck key. Quicker installation leaves more time for real work.

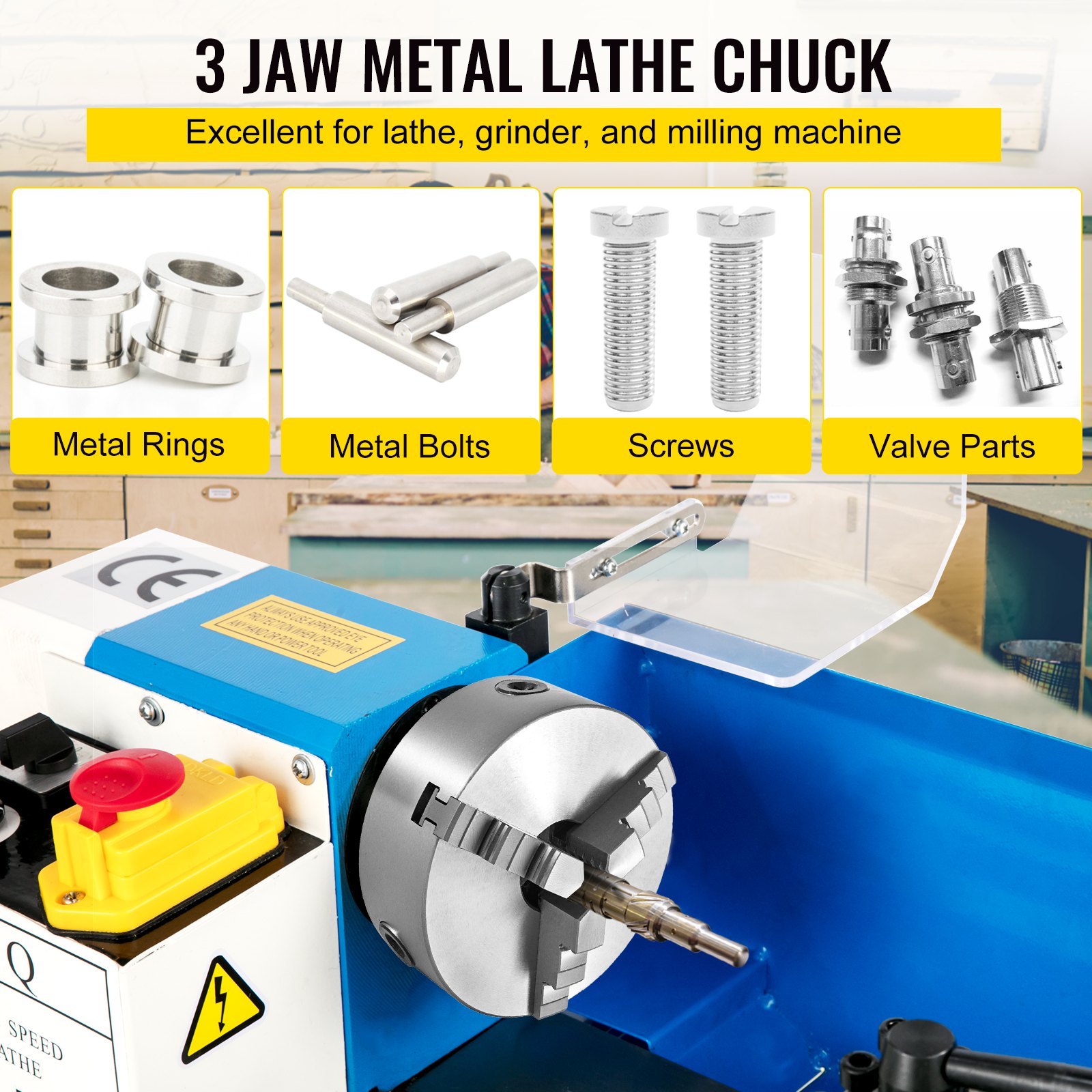

VEVOR lathe chuck used on wood lathe, metal lathe, drilling machine, and milling machine.
Wide Application
The manual self-centering chuck is compact and convenient, and it is the perfect choice for your lathe machine, grinding machines, or milling machines.

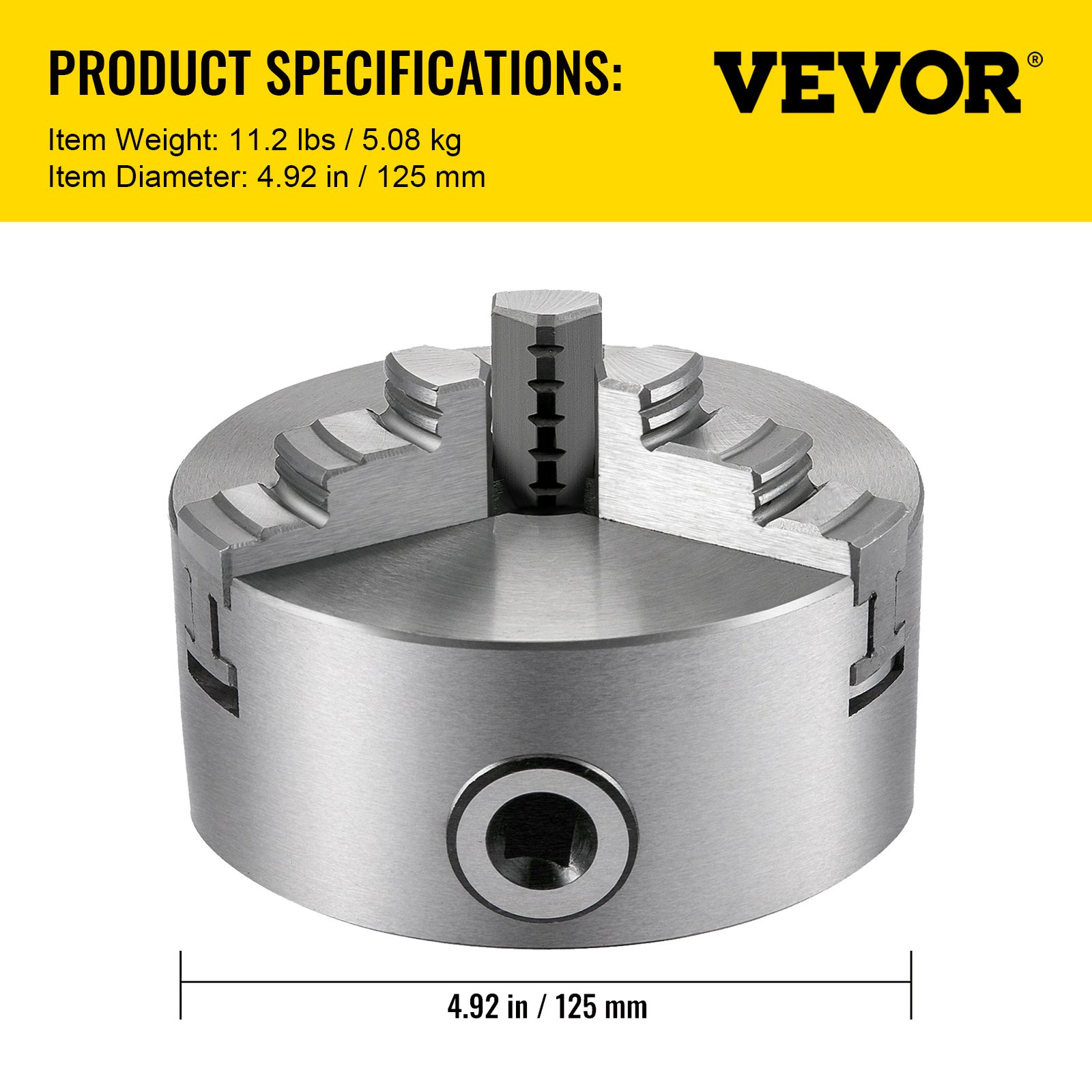

VEVOR lathe chuck with 4.92 in / 125 mm dimensions, showcasing jaws and central hole.
Specifications
  • Chuck Body Material: Cast Iron
  • Jaws Material: 40CR Steel
  • Bevel Gear Material: 40CR Steel
  • Pinions Material: 20CR Steel
  • Item Diameter: 4.92" / 125 mm
  • Bolt Circle Diameter: 4.25" / 108 mm
  • Center Hole Diameter: 1.18" / 30 mm
  • Internal Jaw Clamping Range (A-A1): 0.098"-1.57" / 2.5-40 mm
  • Internal Jaw Jamming Range (B-B1): 1.5"-4.92" / 38-125 mm
  • External Jaw Clamping Range (C-C1): 1.5"-4.33" / 38-110 mm
  • Chuck Body Thickness: 2.28" / 58 mm

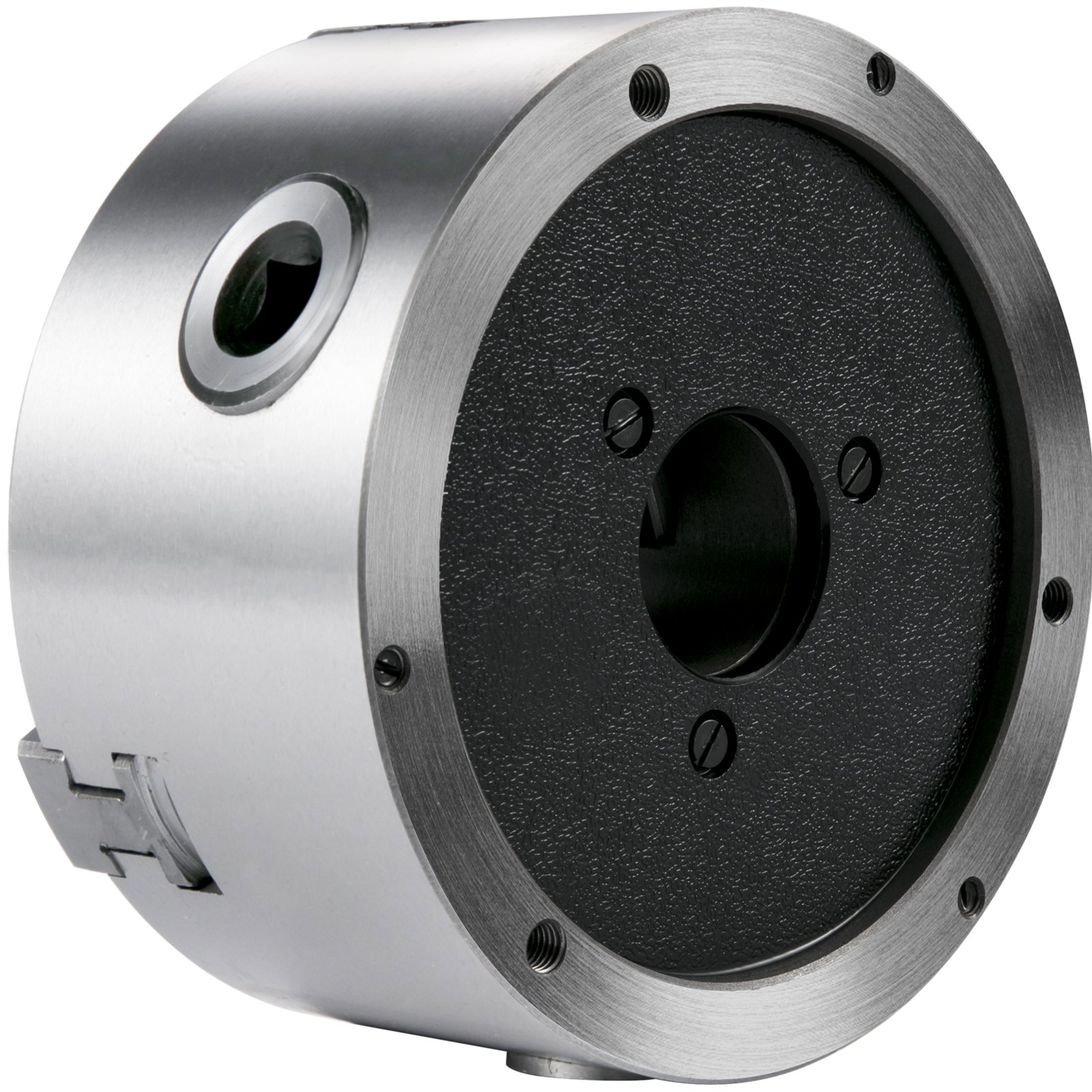

  • Mounting Thread: 3-M8
  • Item Weight: 11.2 lbs / 5.08 kg
  • Package Dimensions: 6.3" x 6.3" x 5.9" / 16 x 16 x 15 cm

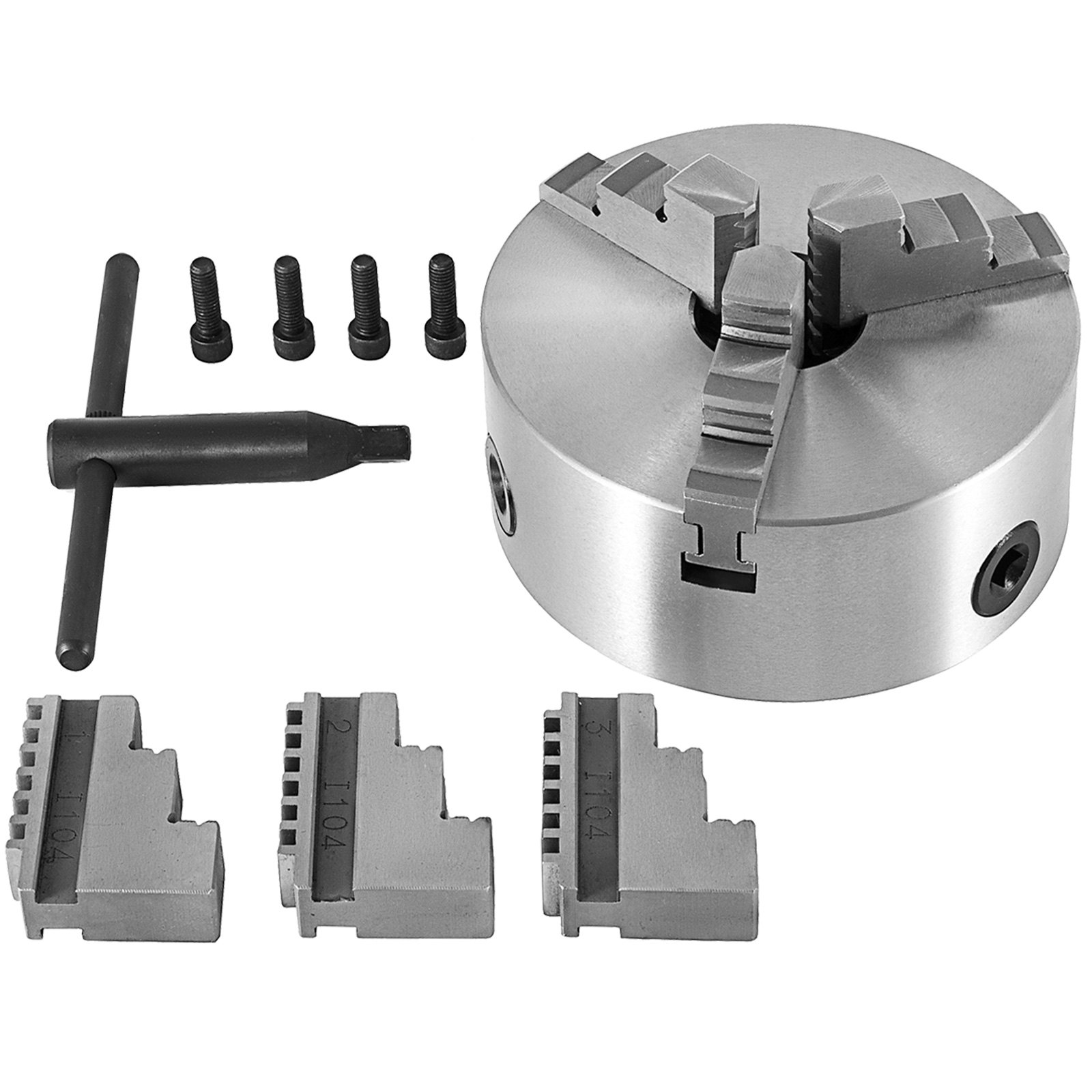

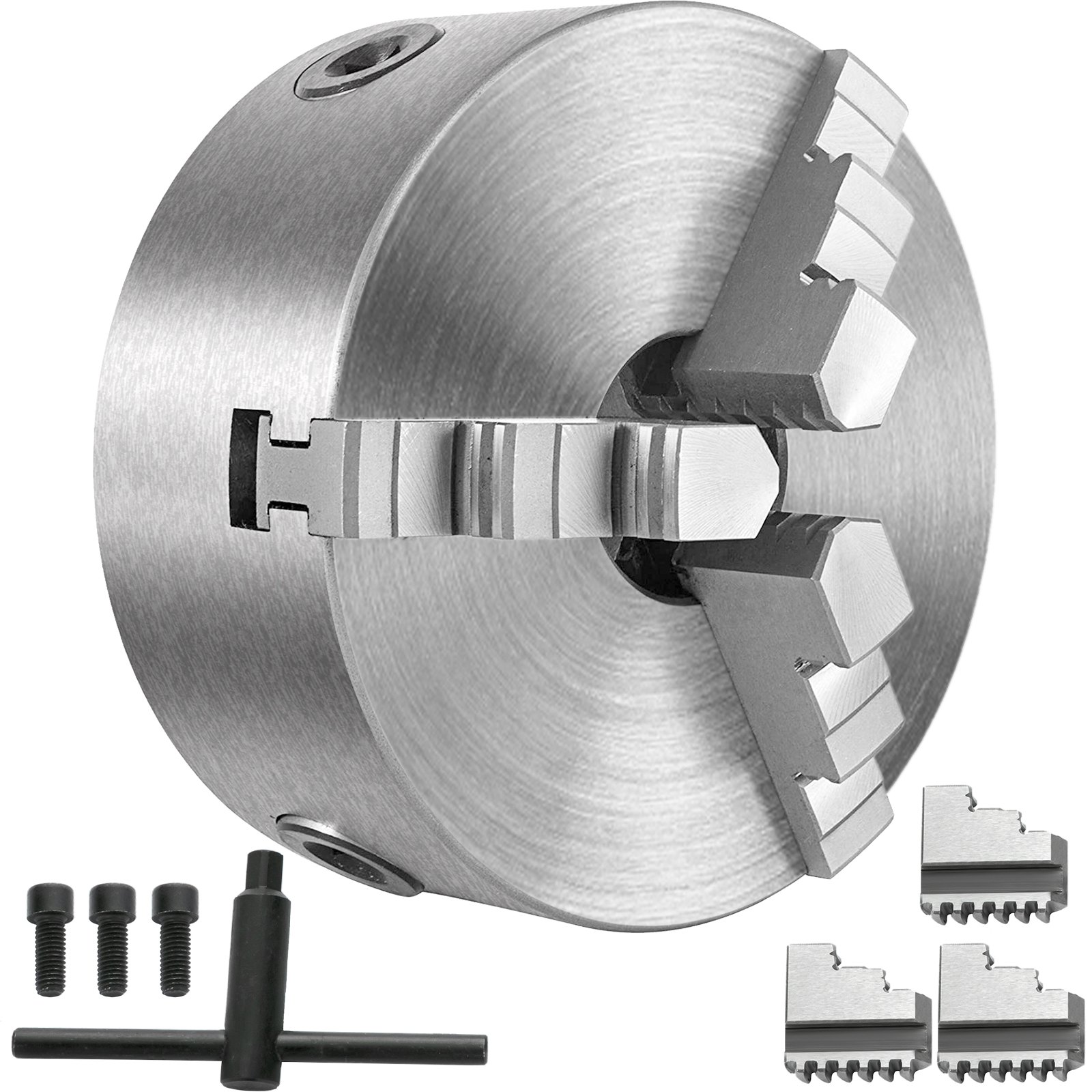

VEVOR lathe chuck with jaw sets, t-handle wrench, and mounting bolts.
Package Content
  • 1 x Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck in a workshop scene with details on mounting thread and self-centering.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with three steel jaws, screws, and a t-handle tool.
K11-125 3-Jaw Chuck
Self-Centering & Superior Cast Iron & 0.002" High Accuracy
The self-centering lathe chuck is composed of a strong cast iron body and three steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle.
  • Premium Material
  • Internal & External Jaws
  • High Precision
  • High Efficiency

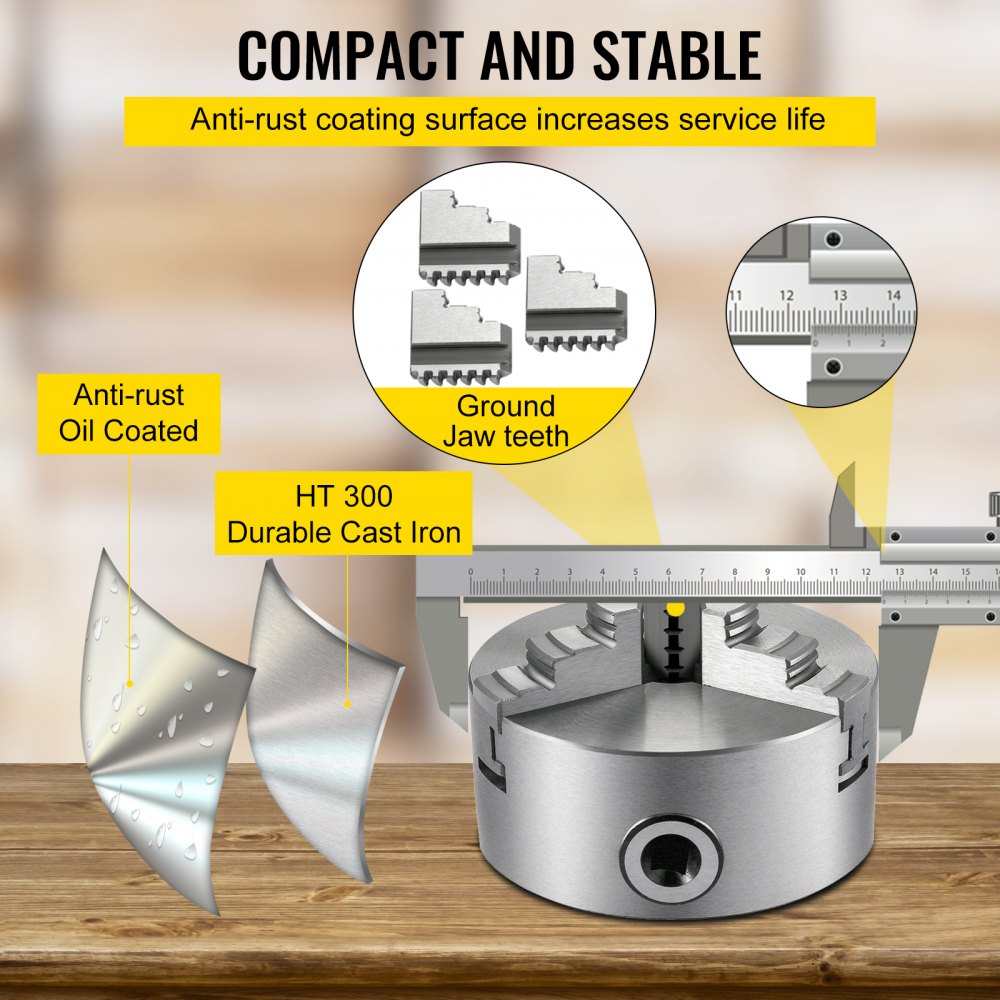

VEVOR lathe chuck made of ht 300 durable cast iron and hardened steel.
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron. The surface is nicely ground with a nice radius on all external edges.
VEVOR lathe chuck with self-centering and flexible linkage features.
Self Centering Chuck
The three jaws will efficiently push the material to be processed from 3 directions simultaneously until it is held tightly.
VEVOR lathe chuck - high-precision, 0.001 accuracy with bevel and pinion gear.
High-precision Chuck
The 3-jaw mini lathe chuck of the tolerance ≤0.002 inch works with few vibrations, ensuring accurate finished parts.
VEVOR lathe chuck with large clamping range, internal and external jaw displays.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR lathe chuck setup showcasing internal and external jaws, chuck body, bolts, and safety key.
Easy Installation
It is easy for you to adjust the jaws by scrolling the chuck key. Quicker installation leaves more time for real work.
VEVOR lathe chuck used on wood lathe, metal lathe, drilling machine, and milling machine.
Wide Application
The manual self-centering chuck is compact and convenient, and it is the perfect choice for your lathe machine, grinding machines, or milling machines.
VEVOR lathe chuck with jaw sets, t-handle wrench, and mounting bolts.
Package Content
  • 1 x Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck with 4.92 in / 125 mm dimensions, showcasing jaws and central hole.
Specifications
  • Chuck Body Material: Cast Iron
  • Jaws Material: 40CR Steel
  • Bevel Gear Material: 40CR Steel
  • Pinions Material: 20CR Steel
  • Item Diameter: 4.92" / 125 mm
  • Bolt Circle Diameter: 4.25" / 108 mm
  • Center Hole Diameter: 1.18" / 30 mm
  • Internal Jaw Clamping Range (A-A1): 0.098"-1.57" / 2.5-40 mm
  • Internal Jaw Jamming Range (B-B1): 1.5"-4.92" / 38-125 mm
  • External Jaw Clamping Range (C-C1): 1.5"-4.33" / 38-110 mm
  • Chuck Body Thickness: 2.28" / 58 mm
  • Mounting Thread: 3-M8
  • Item Weight: 11.2 lbs / 5.08 kg
  • Package Dimensions: 6.3" x 6.3" x 5.9" / 16 x 16 x 15 cm

Precision Lathe Chuck for Enhanced Accuracy

The VEVOR lathe chuck ensures high accuracy for your machining needs. It is made with precision, providing minimal runout. This makes it ideal for tasks that require precise measurements. The self-centering feature adds to its precision. You can use it for both grinding and milling machines. Due to this accuracy, it is a reliable tool for various applications. No matter if you are a hobbyist or professional, this chuck delivers consistent performance.


Durable Materials for Long-lasting Performance

The VEVOR lathe chuck boasts a robust construction. It features a cast iron body, providing strength and durability. The jaws are made from 40CR steel. This ensures strength and longevity. The bevel gear and pinions also come from high-quality steel for this purpose. This construction guarantees the chuck can handle heavy-duty tasks. It is designed to withstand the rigors of frequent use. The materials used in its construction make it a reliable tool. You should not wait any longer when you need a dependable lathe chuck.


Easy-to-use Self-centering 3 Jaw Lathe Chuck

It is easy to use this lathe chuck. It has a self-centering 3-jaw design. This feature simplifies the alignment process, saving you time. The jaws close uniformly, guaranteeing a secure hold on the workpiece. This makes it suitable for a wide range of machining tasks. Also, the self-centering mechanism is convenient for any workshop. Both beginners and experienced users can make an informed purchase with this easy-to-use lathe chuck. Our self-centering mechanisms ensure reliable performance every time around.


Wide Clamping Range for Versatility

The VEVOR lathe chuck has a wide clamping range. It can hold workpieces from 0.098 inches to 4.92 inches. This versatility makes it suitable for various applications. Whether you are working with small or large parts, this chuck can handle it. Its internal and external jaw clamps also make it an invaluable tool for any machining project. You can easily adapt it to different needs. As a result, it is incredibly versatile in your workshop.


Cost-effective Solution with High Value

This lathe chuck offers great value for its price. It is an affordable solution without sacrificing quality. The materials and construction ensure it performs reliably. For budget-conscious buyers, it is a cost-effective option. Although low cost, it delivers high performance. This makes it a smart investment for any workshop. You get a dependable, durable, and precise tool at a fraction of the cost of other chucks.


Easy Mounting and Adaptability to Various Lathes

The VEVOR lathe chuck is easy to mount on various lathes. It comes with a bolt circle diameter of 4.25 inches. This makes it suitable for many lathe models. Mounting Thread: 3-M8, adding to its adaptability. You may need to use an adapter plate, but this is common with many chucks too. The chuck design allows for easy installation. So, it’s an easy-to-use tool for any workshop. For those who need a dependable and versatile lathe chuck, you can complete your work in no time.


Minimal Runout for Precise Machining

The VEVOR lathe chuck offers minimal runout. This ensures precise machining for your projects. Its high-accuracy design makes it ideal for detailed work. It maintains the workpiece's integrity by minimizing runout. Therefore, this makes it a dependable tool for tasks requiring exact measurements. Whether you are working on a hobby project or pursuing a professional job, this chuck delivers the precision you need. It is an excellent tool for any workshop.


See More

Specification

Chuck Body Material
Cast Iron
Jaws Material
40CR Steel
Bevel Gear Material
40CR Steel
Pinions Material
20CR Steel
Item Diameter
4.92" / 125 mm
Bolt Circle Diameter
4.25" / 108 mm
Center Hole Diameter
1.18" / 30 mm
Internal Jaw Clamping Range (A-A1)
0.098"-1.57" / 2.5-40 mm
Internal Jaw Jamming Range (B-B1)
1.5"-4.92" / 38-125 mm
External Jaw Clamping Range (C-C1)
1.5"-4.33" / 38-110 mm
Chuck Body Thickness
2.28" / 58 mm
Mounting Thread
3-M8
Item Weight
11.2 lbs / 5.08 kg
Package Dimensions
6.3" x 6.3" x 5.9" / 16 x 16 x 15 cm
Questions and Answers
1 Questions
How large is the mounting recess on the back? I have an adapter plate that uses a 95mm shoulder that most of these chucks seem to have in common but wasn't sure about this one
Yes, this 125 model is 95mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
57 Review(s)
Clear filters
akb akb
Preiswert und absolut brauchbar
Für den stationären Einsatz kommt es auf einen perfekten Rundlauf weniger an. Dafür ist das Futter (allzumal im Angebot!) überaus preiswert und von guter Qualität. Einziges Manko: die rückseitige Abdeckung lässt sich ohne Gewalt kaum entfernen; das erschwert das Reinigen des Inneren. Ansonsten sehr zu empfehlen!
FH FH
K11-100
Alles bestens! Für meine Zwecke ausreichend, bin kein Profidreher. Alles bestens! Für meine Zwecke ausreichend, bin kein Profidreher.
Bernd Bernd
Herr
Das Futter kam superschnell, entspricht genau meinen Vorstellungen. Das Futter ist für eine Bohreinrichtung gedacht und muss nicht drehen.
Schulz Schulz
Empfehlenswert
Preiswertes Backenfutter,macht was es soll,eine Nummerierung des Futterkörpers entsprechend der Futterbacken wäre wünschenswert
Schulz Schulz
Drehfutter
Insgesamt gesehen ein preiswertes Backenfutter,Wenn es nicht auf hohe Genauigkeit ankommt kann man es bedenkenlos weiter empfehlen, schön wäre es wenn der Futterkörper zu den dazugehörigen Backen ebenfalls nummeriert wäre
WKH WKH
---
Das Futter ist sehr sauber verarbeitet und hat einen sehr guten Rundlauf ... ein ausgezeichnetes Produkt für meine Anwendung und das zu einem sehr fairen Preis ... danke.
Die Katze Die Katze
Ruheständler
Es siegt sehr gut aus.Mit dem Teil habe ich ein Futter mit MK 4 Aufnahme für den Reitstock gefertigt . Mit der Aufnahme habe ich 2/100 mm Rundlauf erziehlt und wenn ich Lust und Laune habe versuche ich auf 1/100 mm Rundlazf an Körper zu kommen,
Herbst Johann Herbst Johann
Herr
Ja ihr bekommt eine Bewertung des gekauften Gegenstandes, nun ich bin zufrieden, aber ich habe es noch nicht in Betrieb genommen? Wird schon passen?? LG.Herbst Johann
Hobby-Werkler Hobby-Werkler
Qualitativ sehr gut
Ware wurde gut verpackt und sehr schnell geliefert. Entspricht voll und ganz den Erwartungen. Montage auf der Grundplatte einfach. Musste bei mir allerdings etwas modifiziert werden, da die Drechselbank ein etwas älteres und preislich eher billiges Model ist.Die Backen greifen aber sehr gut. Leider habe ich, als Hobbybastler, noch kein Projekt damit durchgeführt.
flavio flavio
chuck
nice chuck good quality. it will works good on my projects, probably i will shop more on this brand, good quality and the prices are really good
