VEVOR lathe chuck with three jaw sets, three screws, and a t-handle key. VEVOR lathe chuck with 4 jaws for metal rings, bolts, screws, and valve parts. VEVOR lathe chuck with clamping range details and max torque and speed specifications. high-performance VEVOR lathe chuck with self-locking system and precise jaws. VEVOR lathe chuck with mounting bolts, chuck key, and external jaws for effortless operation. VEVOR lathe chuck: compact and stable with anti-rust coating and high-quality steel. VEVOR lathe chuck, 6in/16cm diameter, 11.9lbs/5.4kg weight.
KPK12-1604Z000001V0

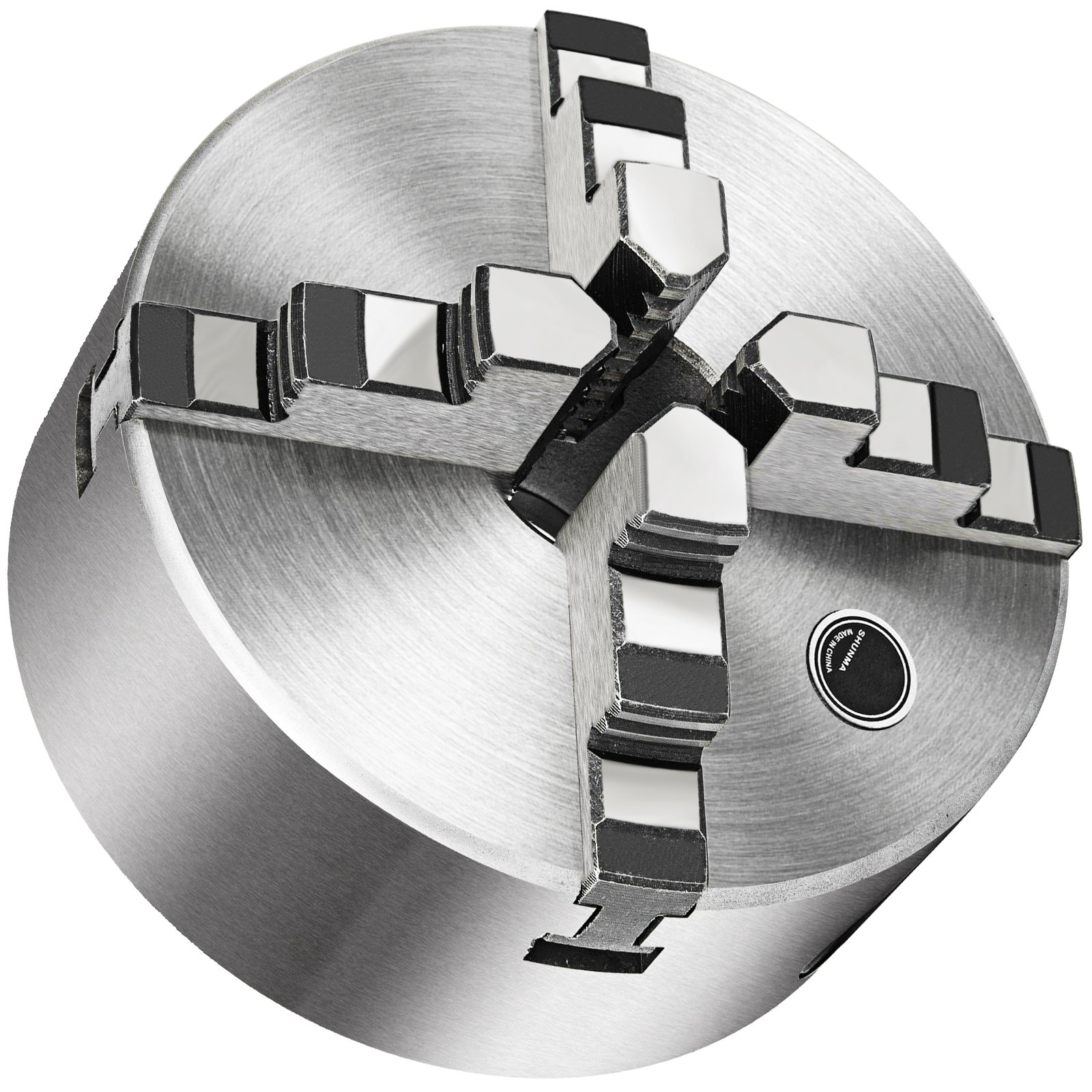

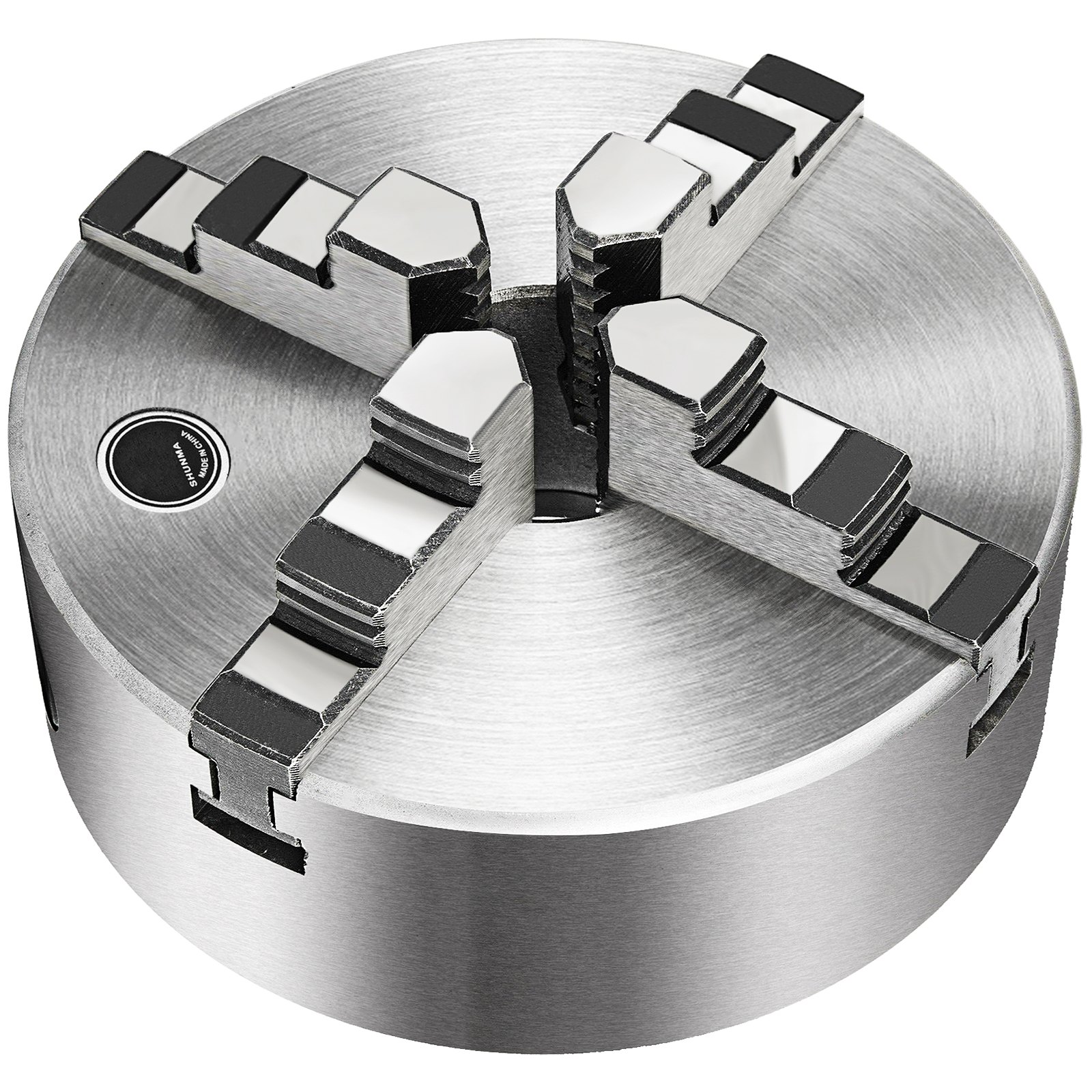

VEVOR Lathe Chuck K12-160 6 Inch 4-Jaw,Mini Lathe Chuck Quality Cast Iron Material,Lathe Chuck Self-centering With Two Sets Of Jaws,for Lathe Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Quality Construction: The lathe chuck body is made of high-quality hardened steel, several rigorous quality tests have proved that. The wearing parts are specially designed after quenching, for greater durability and a long duration of life.
  • High Precision: This metal lathe chuck is connected by a high-precision short cone, The self-centering lathe part contains a delicate bevel gear and pinion gears. They contribute to precise processing progress, and its alignment accuracy is less than or equal to 0.003" / 0.07 mm.
  • 2 Sets of Jaws: This chuck includes two sets of solid steel jaws, Jaws are hardened and ground. The internal jaws are a positive L shape, and the external jaws are an inverted L shape. The clamping range of the external jaw is larger than that of the internal jaw.
  • Large Clamping Range: This self-centering lathe chuck has a large clamping range, the internal clamping range is 0.12" - 2.17" / 3 - 55 mm, and the external clamping is 2.17"- 5.71" / 55 - 145 mm. Jacket jaw is adjustable and reversible independent.
  • High Adaptability: This turning chuck is highly adaptable, suitable for all kinds of general-purpose lathes, economical CNC lathes, grinders, milling machines, drilling machines, and machine tool accessories.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Lathe Chuck K12-160 6 Inch 4-Jaw,Mini Lathe Chuck Quality Cast Iron Material,Lathe Chuck Self-centering With Two Sets Of Jaws,for Lathe Machine
VEVOR lathe chuck for precise self-centering metal turning, featuring durable service.
VEVOR lathe chuck with 3 jaws, extra grips, screws, and key tool on white background.
6.3" 4-Jaw Lathe Chuck with Two Sets Of Jaws
Self Centering & 0.002" Accuracy & Extra 4 Jaws
This versatile lathe chuck is made of high-quality hardened steel, compression resistance and has a long service life. This chuck is a short conical connection with high centering accuracy, good rigidity, and short overhang. This scroll chuck has two sets of internal and external jaws, which can hold industrial parts in the range of 0.12" - 6.3" / 3 - 160 mm. The 4-jaw chuck has a large clamping range and a strong clamping force, and is suitable for industrial parts with complex shapes.
  • Quality Construction
  • High Precision
  • 2 Sets of Jaws
  • Large Clamping Rang
  • High Adaptability
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

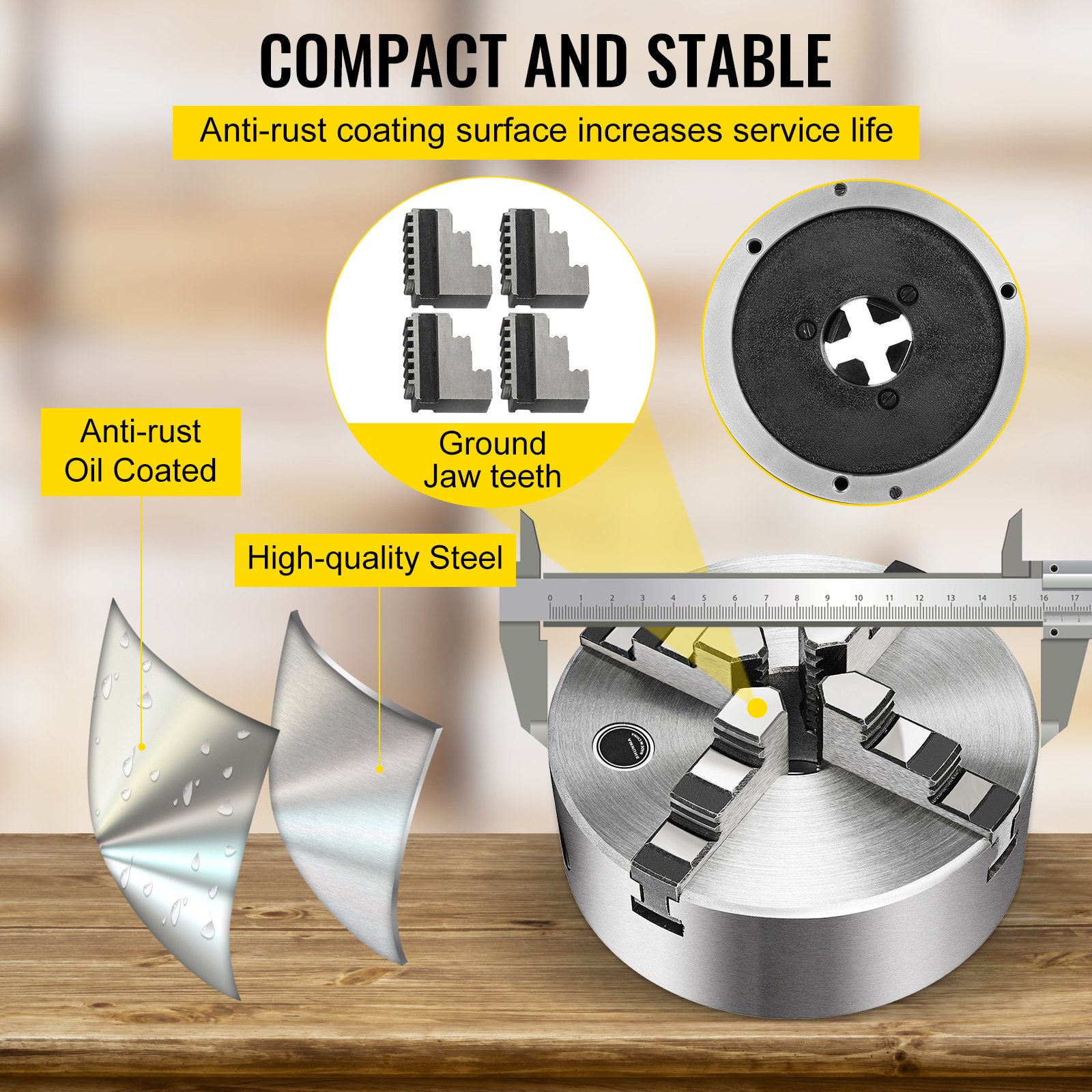

hardened steel VEVOR lathe chuck with highly polished finish and strong grip jaws.
Hardened Steel
The lathe chuck body is made of high-quality steel. All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC58-62 test.

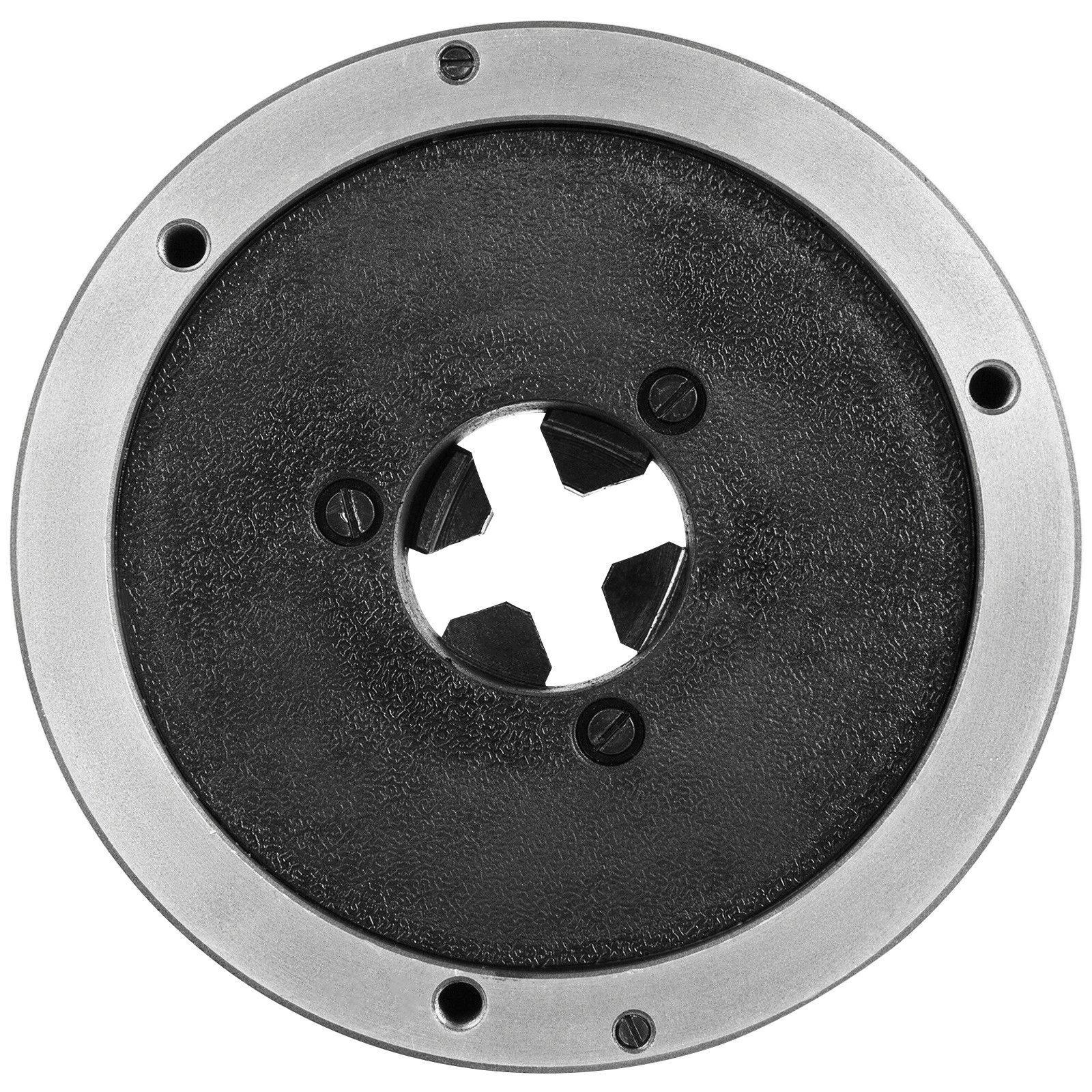

VEVOR lathe chuck showing short cone connection and high centering accuracy.

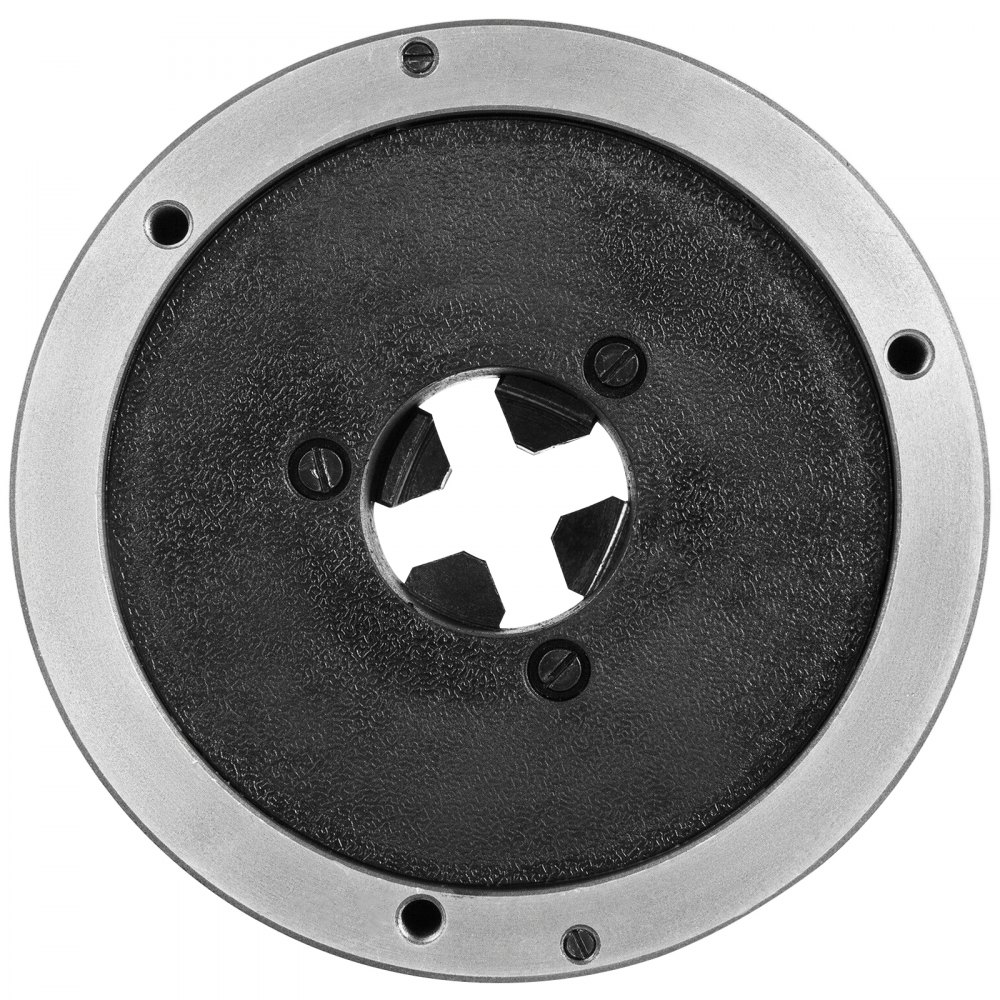

Short Cone Connection
The taper hole is designed on the gland of the chuck and assembled with the chuck body by screws to form a closed structure. Therefore, the centering accuracy is high, the rigidity is good, and the overhang is short.

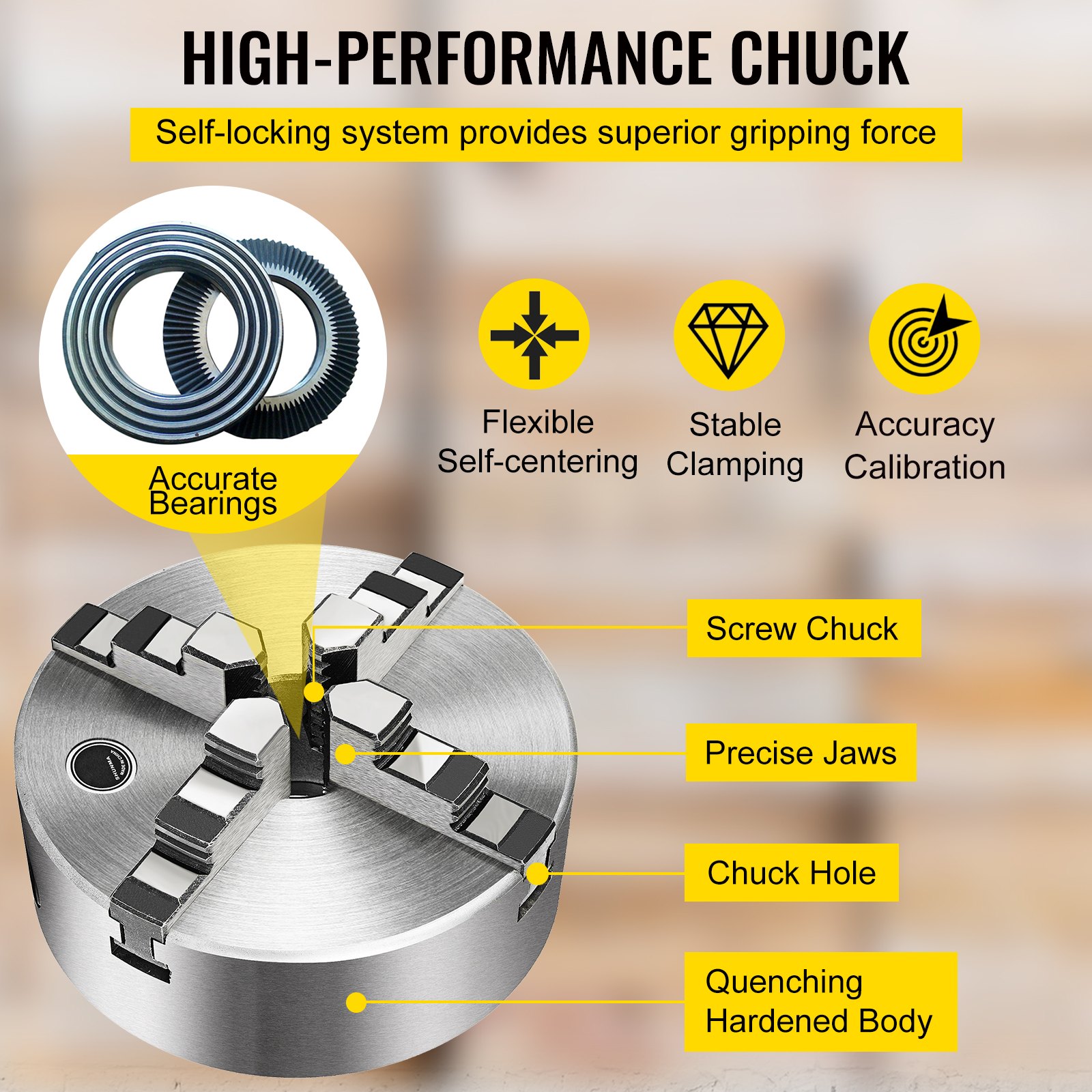

VEVOR lathe chuck showing precision bevel gear and tolerance of ≤ 0.003".
Precision Bevel Gear
The bevel gear controls the precision of the power lathe chuck operation. Each time it is pulled, the position of the clamping parts is ensured to achieve the precise operation of the machine.

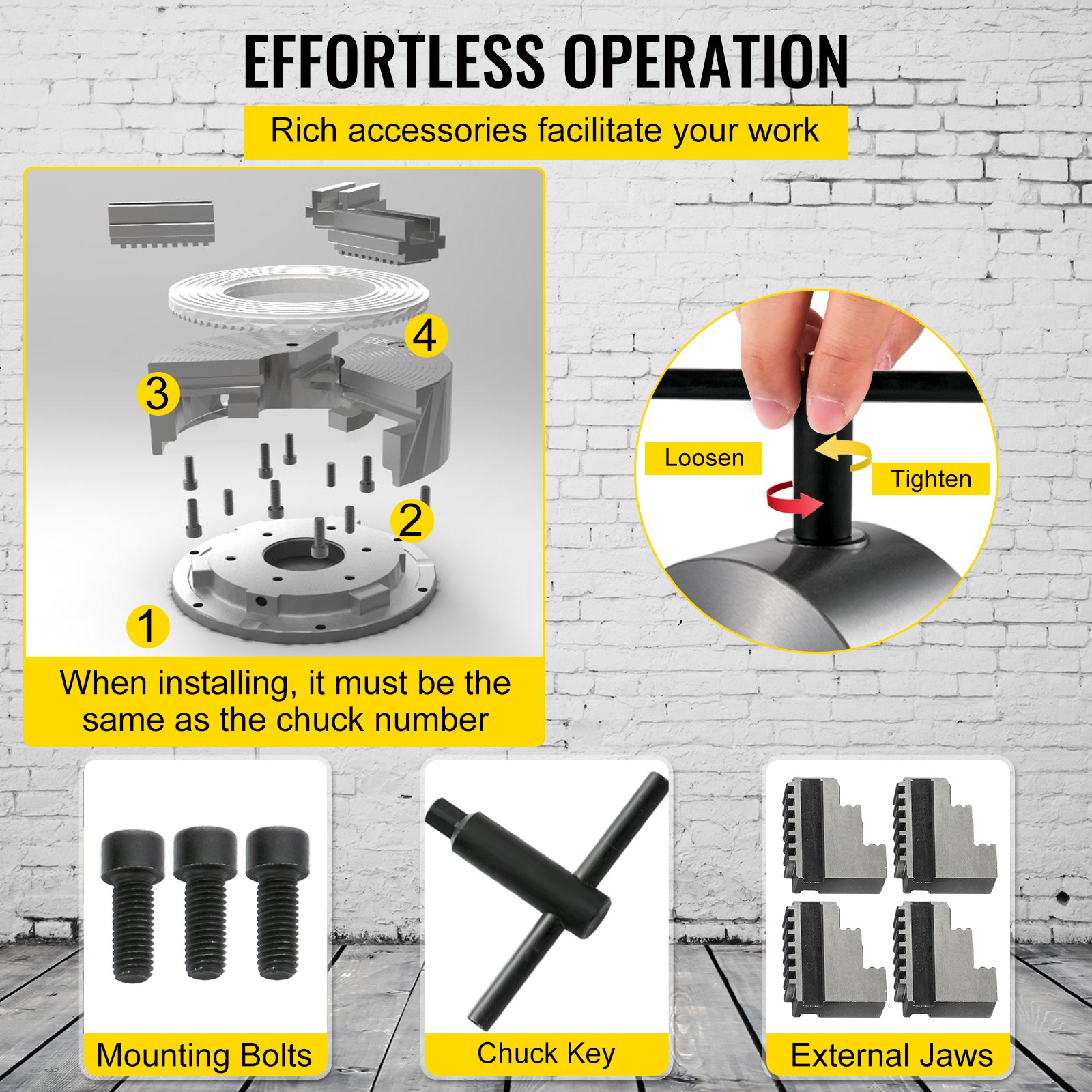

VEVOR lathe chuck complete accessories: internal jaws, external jaws, chuck key, bolts.
Complete Accessories
This 4-jaw lathe chuck comes with two sets of jaws, one set of solid steel internal jaws and one set of solid steel external jaws; three mounting bolts; and one security chuck key for your facilitate operation.

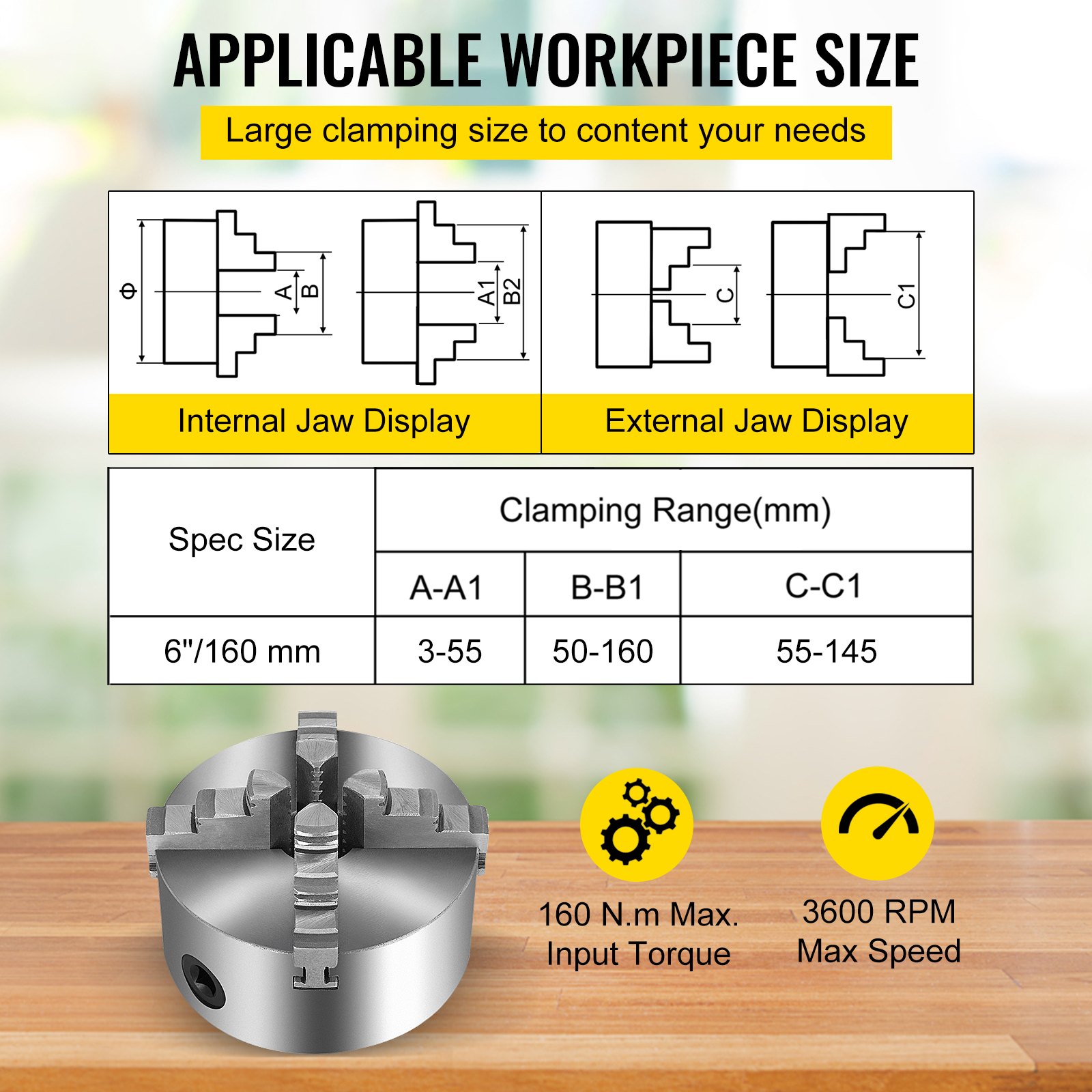

VEVOR lathe chuck with high adaptability and clamping range of 0.12”-6.3”/3-160 mm.
High Adaptability
The clamping range of this mini lathe chuck is 0.12" - 6.3" / 3 - 160 mm, which can be used to clamp a variety of irregularly shaped industrial parts.

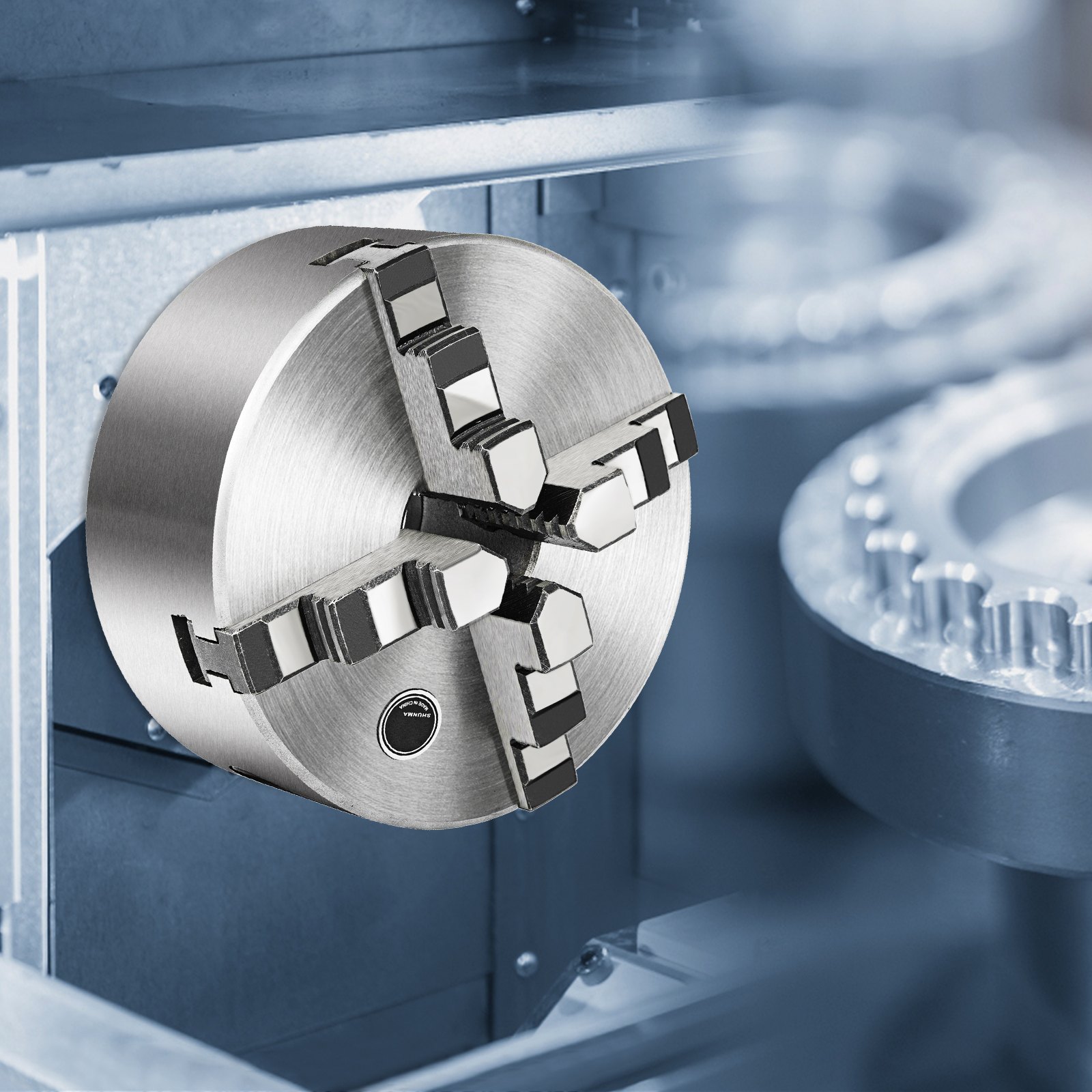

grinding, metal lathe, drilling, and milling machines in an industrial setting. VEVOR lathe chuck
Wide Application
The scroll chuck has a large clamping range and a large clamping force, which is suitable for the work with the complicated clamping appearance.

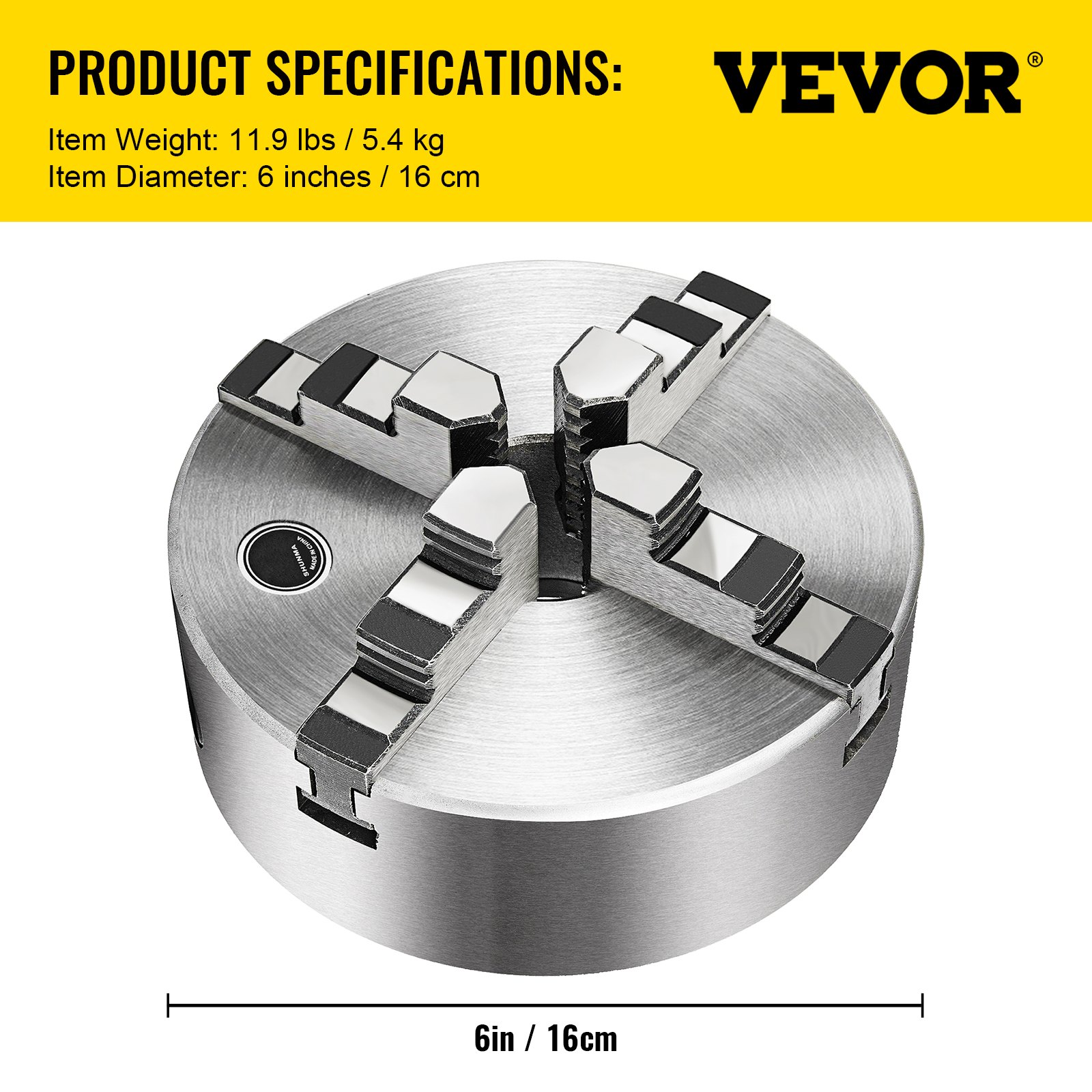

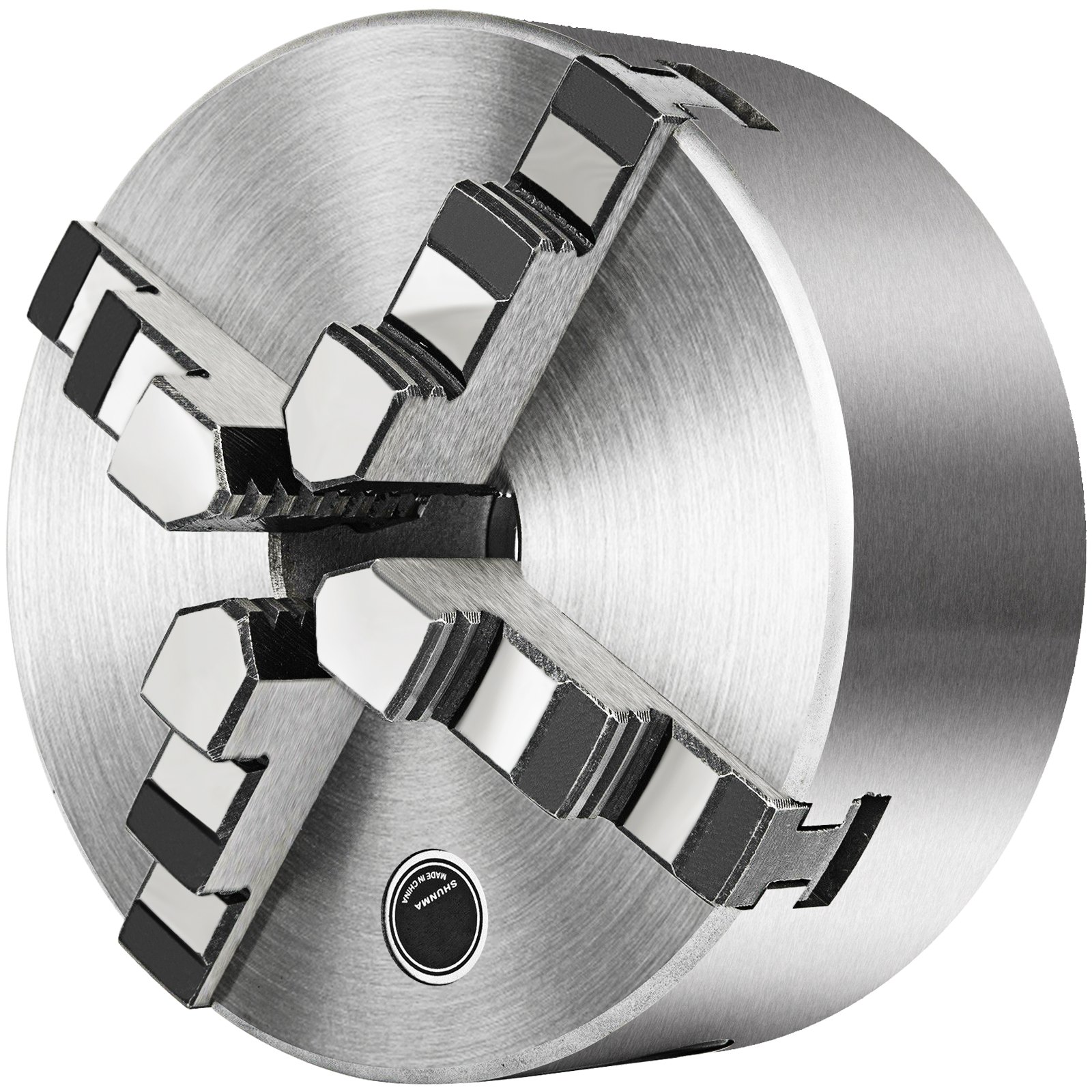

VEVOR lathe chuck 6in/16cm, four-jaw, round, metallic finish.
Specifications
  • Size: 6.3" / 160 mm
  • Internal Jaw Clamping Range (A-A1): 0.118" - 2.17" / 3- 55 mm
  • Internal Jaw Jamming Range (B-B1): 1.968" - 6.3" / 50 - 160 mm
  • External Jaw Clamping Range (C-C1): 2.17" - 5.71" / 55 - 145 mm
  • Number of Jaws: 4
  • Outside Diameter: 6.3" / 160 mm
  • Bolt Type: M8
  • Center Thru Hole Diameter: 1.77" / 45 mm
  • Mounting Thread: 3-M8
  • Accuracy: 0.003" / 0.07 mm
  • Max. Input Torque: 160 N.m
  • Max. Speed: 3600 RPM
  • Accuracy: 0.003" / 0.07 mm
  • Gross Weight: 11.9 lbs / 5.4 kg
  • Package Dimensions (L x W x H): 6.3" x 6.3" x 5.5" / 16 x 16 x 14 cm

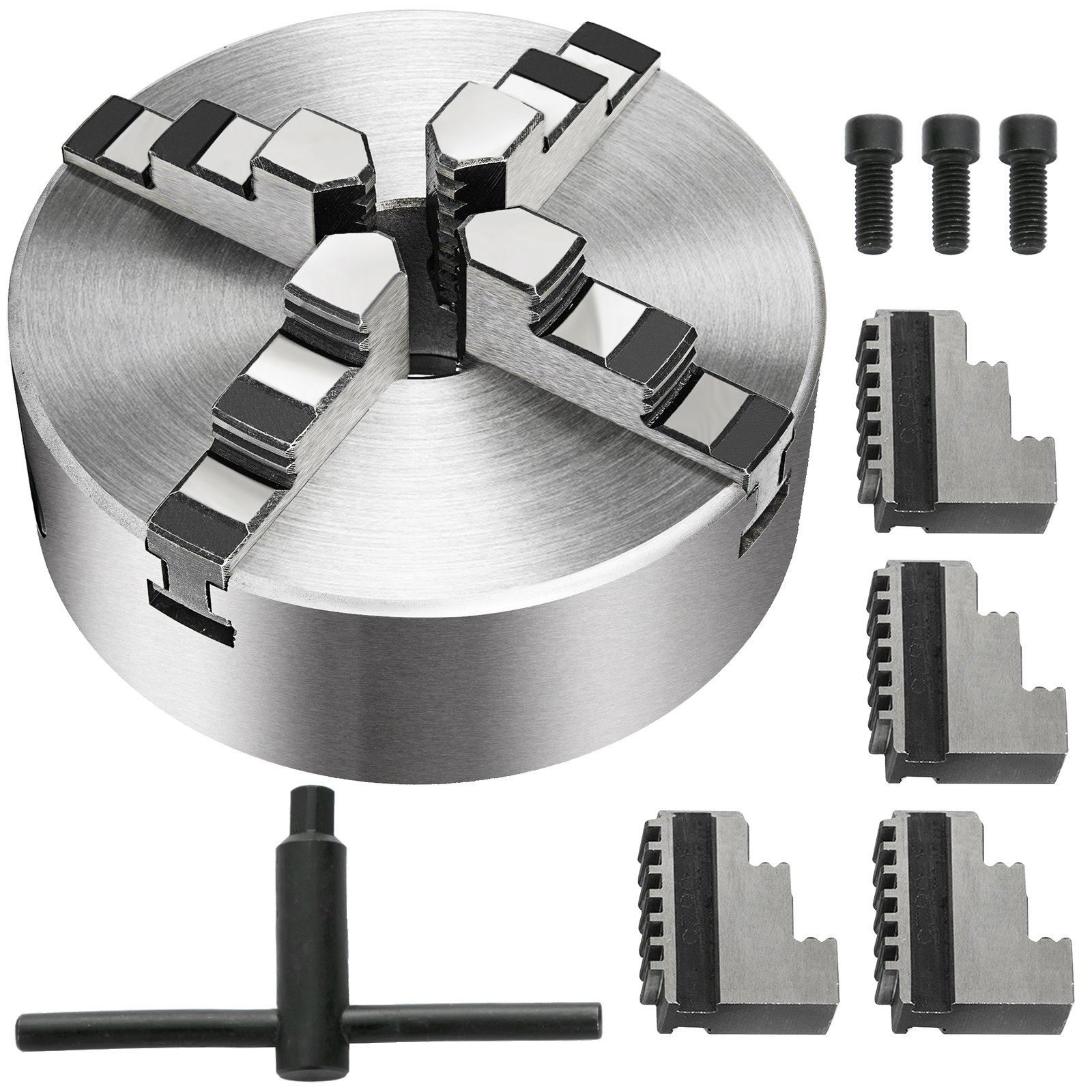

VEVOR lathe chuck set with 4 jaws, screws, and wrench on a white background.
Package Content
  • 1 x 6.3" / 160 mm Lathe Chuck Body
  • 4 x Internal Jaws
  • 4 x External Jaws
  • 1 x Chuck Key
  • 3 x Mounting Bolts
VEVOR lathe chuck for precise self-centering metal turning, featuring durable service.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with 3 jaws, extra grips, screws, and key tool on white background.
6.3" 4-Jaw Lathe Chuck with Two Sets Of Jaws
Self Centering & 0.002" Accuracy & Extra 4 Jaws
This versatile lathe chuck is made of high-quality hardened steel, compression resistance and has a long service life. This chuck is a short conical connection with high centering accuracy, good rigidity, and short overhang. This scroll chuck has two sets of internal and external jaws, which can hold industrial parts in the range of 0.12" - 6.3" / 3 - 160 mm. The 4-jaw chuck has a large clamping range and a strong clamping force, and is suitable for industrial parts with complex shapes.
  • Quality Construction
  • High Precision
  • 2 Sets of Jaws
  • Large Clamping Rang
  • High Adaptability
hardened steel VEVOR lathe chuck with highly polished finish and strong grip jaws.
Hardened Steel
The lathe chuck body is made of high-quality steel. All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC58-62 test.
VEVOR lathe chuck showing short cone connection and high centering accuracy.
Short Cone Connection
The taper hole is designed on the gland of the chuck and assembled with the chuck body by screws to form a closed structure. Therefore, the centering accuracy is high, the rigidity is good, and the overhang is short.
VEVOR lathe chuck showing precision bevel gear and tolerance of ≤ 0.003".
Precision Bevel Gear
The bevel gear controls the precision of the power lathe chuck operation. Each time it is pulled, the position of the clamping parts is ensured to achieve the precise operation of the machine.
VEVOR lathe chuck complete accessories: internal jaws, external jaws, chuck key, bolts.
Complete Accessories
This 4-jaw lathe chuck comes with two sets of jaws, one set of solid steel internal jaws and one set of solid steel external jaws; three mounting bolts; and one security chuck key for your facilitate operation.
VEVOR lathe chuck with high adaptability and clamping range of 0.12”-6.3”/3-160 mm.
High Adaptability
The clamping range of this mini lathe chuck is 0.12" - 6.3" / 3 - 160 mm, which can be used to clamp a variety of irregularly shaped industrial parts.
grinding, metal lathe, drilling, and milling machines in an industrial setting. VEVOR lathe chuck
Wide Application
The scroll chuck has a large clamping range and a large clamping force, which is suitable for the work with the complicated clamping appearance.
VEVOR lathe chuck set with 4 jaws, screws, and wrench on a white background.
Package Content
  • 1 x 6.3" / 160 mm Lathe Chuck Body
  • 4 x Internal Jaws
  • 4 x External Jaws
  • 1 x Chuck Key
  • 3 x Mounting Bolts
VEVOR lathe chuck 6in/16cm, four-jaw, round, metallic finish.
Specifications
  • Size: 6.3" / 160 mm
  • Internal Jaw Clamping Range (A-A1): 0.118" - 2.17" / 3- 55 mm
  • Internal Jaw Jamming Range (B-B1): 1.968" - 6.3" / 50 - 160 mm
  • External Jaw Clamping Range (C-C1): 2.17" - 5.71" / 55 - 145 mm
  • Number of Jaws: 4
  • Outside Diameter: 6.3" / 160 mm
  • Bolt Type: M8
  • Center Thru Hole Diameter: 1.77" / 45 mm
  • Mounting Thread: 3-M8
  • Accuracy: 0.003" / 0.07 mm
  • Max. Input Torque: 160 N.m
  • Max. Speed: 3600 RPM
  • Accuracy: 0.003" / 0.07 mm
  • Gross Weight: 11.9 lbs / 5.4 kg
  • Package Dimensions (L x W x H): 6.3" x 6.3" x 5.5" / 16 x 16 x 14 cm

Lathe Chuck Precision and Accuracy for Superior Results

Precision is important for high-quality work. It has a high-precision short-cone connection. The delicate bevel gear and pinion gears improve precision. The alignment accuracy is within 0.003′′ or 0.07 mm. This ensures your projects have high accuracy. This precision will be ideal for detailed tasks. Whether you are a hobbyist or a professional, this accuracy matters. You will get consistent and reliable results. With this precision feature, you add value to your lathe machine. It reduces errors while improving work efficiency.


Durable Construction Ensures Long-Lasting Use

This lathe chuck is made from high-quality hardened steel. It undergoes rigorous quality tests. The wearing parts are specially designed post-quenching. This improves durability and increases its lifespan. It can withstand heavy use without wear and tear. The strong construction makes it reliable for long-term use. It is built to handle various materials and tasks. This durability feature ensures that you get value for your investment. You reduce the need for frequent replacements or repairs. This 4-jaw lathe chuck is perfect for both light and heavy tasks.


Enhanced Clamping Versatility with Two Sets of Jaws

The chuck includes two sets of solid steel jaws. The internal jaw is a positive L-shape, while the external jaws are an inverted L-shape. This design offers greater versatility. It allows for a larger clamping range. Its internal clamping range is 0.12′′ - 2.17′′, or 3-55 mm. It also has an external clamping range of 2.17′′ (5.071′′) or 55-145 mm. Our flexibility makes it suitable for different projects. The adjustable and reversible independent jaw adds more functionality. So you can work on various projects without any hassle.


Wide Clamping Range for Various Projects

This lathe chuck supports a wide clamping range. The internal clamping range is 0.118′′ - 2.17′′ or 3-55 mm. The external clamping range is 2.18′′ (5.071′′) or 55-145 mm. The internal jamming range is 1.968′′ - 6.3′′ or 50-160 mm. It covers various project sizes. It can handle small, intricate pieces as well as larger workpieces. The adjustability of the jaws ensures flexibility. This makes it suitable for different applications. Whether you're working on hobbyist projects or professional work, this lathe chuck with two sets of jaws meets diverse needs. The wide clamping range of this mini lathe chuck improves usability.


High Adaptability for Multiple Machine Tools

This lathe chuck is highly versatile. It fits all types of general-purpose lathes. You can fit economical CNC lathes, grinders, and milling machines too. This flexibility extends its use. We have also got it ready for various machine tools. You can use this tool with different machine instruments. This versatility saves costs by reducing the need for multiple chucks in workshops with diverse machines. The high adaptability makes it an excellent addition. In terms of functionality, it enhances the functionality of your existing tools to be used for many machining tasks.


Quick and Reliable Customer Support

The VEVOR provides quick and reliable customer support. If any issues arise, they respond promptly. This ensures that any problems are resolved efficiently. The customer service team is knowledgeable and helpful. They provide assistance to ensure customer satisfaction. This reliable support adds value to the product. It ensures a smooth and hassle-free experience. Knowing that support is readily available gives peace of mind. This feature enhances the overall experience with the lathe chuck.


Cost-Effective Solution for Precision Machining

This lathe chuck offers high quality at an affordable price. It provides precision and durability without a high price tag. This makes it an ideal, cost-effective solution for precision machining. The high adaptability and versatility enhance its value. You reduce the need for multiple chucks, saving costs. The cost-effective solution does not compromise on quality. This self-centering lathe chuck ensures that you perform excellently without overspending. Therefore, it makes it a practical choice for various machine needs.


See More

Specification

Size
6.3" / 160 mm
Internal Jaw Clamping Range (A-A1)
0.118" - 2.17" / 3- 55 mm
Internal Jaw Jamming Range (B-B1)
1.968" - 6.3" / 50 - 160 mm
External Jaw Clamping Range (C-C1)
2.17" - 5.71" / 55 - 145 mm
Number of Jaws
4
Outside Diameter
6.3" / 160 mm
Bolt Type
M8
Center Thru Hole Diameter
1.77" / 45 mm
Mounting Thread
3-M8
Accuracy
0.003" / 0.07 mm
Max. Input Torque
160 N.m
Max. Speed
3600 RPM
Accuracy
0.003" / 0.07 mm
Gross Weight
11.9 lbs / 5.4 kg
Package Dimensions (L x W x H)
6.3" x 6.3" x 5.5" / 16 x 16 x 14 cm
Questions and Answers
1 Questions
Hi, at what radius from the center of the chuck are the three mounting holes (on the back) placed. Or at what diameter of a circle are the mounting holes placed. I would appreciate your response.
Please refer to the picture in below link for reference, the link is valid in 3 days: https://we.tl/t-yrOs9bz0np.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
7 Review(s)
Clear filters
Tim shannon Tim shannon
IT will not fit lathe with a 4\" chuck without adaptor
I am an idiot thought I could adapt 5\" chuck to a 4\" lathe could not find adaptor plate
chiky chiky
lathe chuck
god quality chuck for the price some dings on it but usable .002 of .
Donald Donald
You have to buy a adapter from your thread to a 1x8 thread on the chuck
Turning bowls
TIM P WOOD TIM P WOOD
Great chuck
Better than I thoughtPerfect produy
KENNETH F. KENNETH F.
The jaws only as stated could be too small for some projects
It works just like it stated
eric suderow eric suderow
Good customer service
Works well and arrived quickly. Two of the external jaws were missing but they worked quickly to get me a new full set of 4
Becky Becky
Well made good purchase
High quality product for the money
