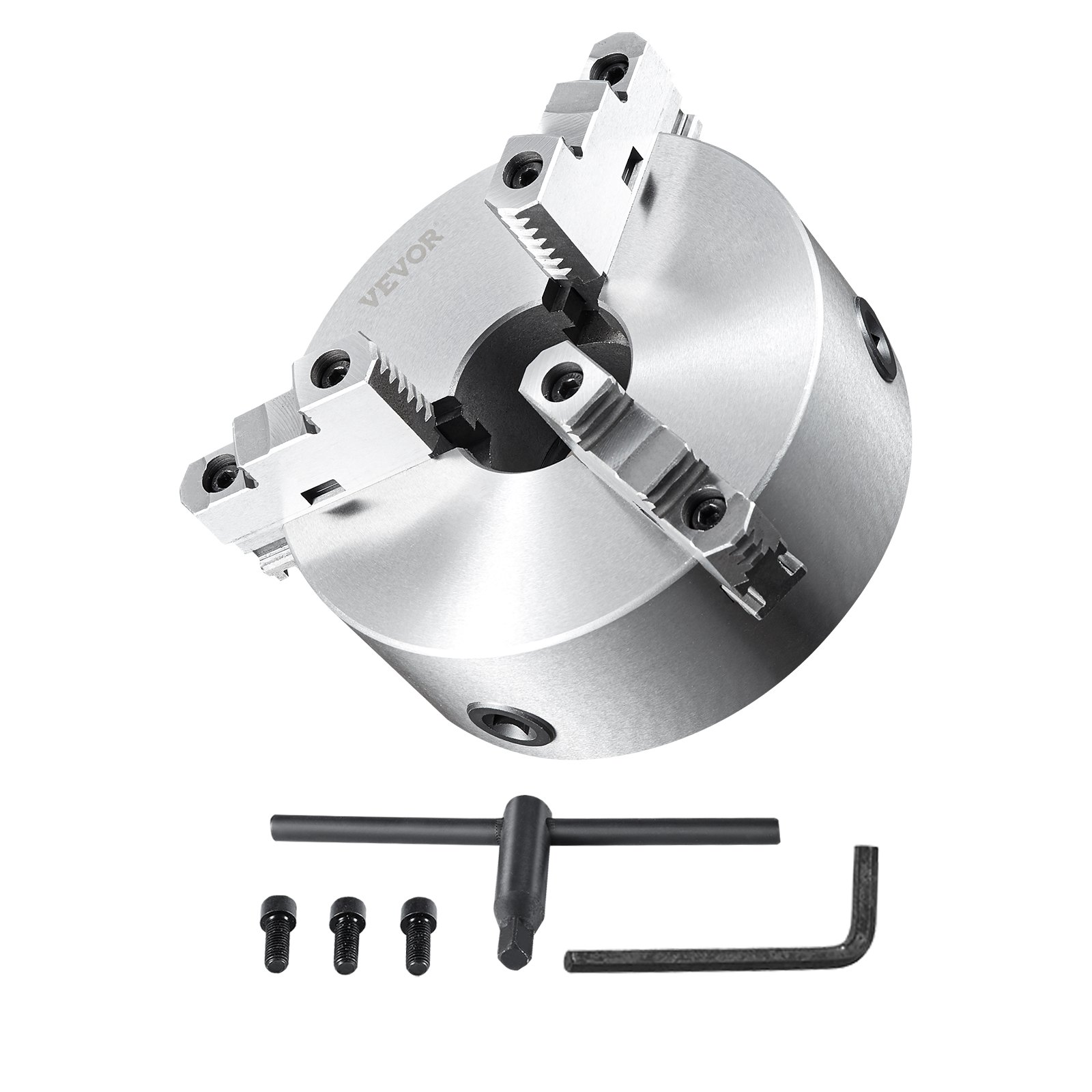

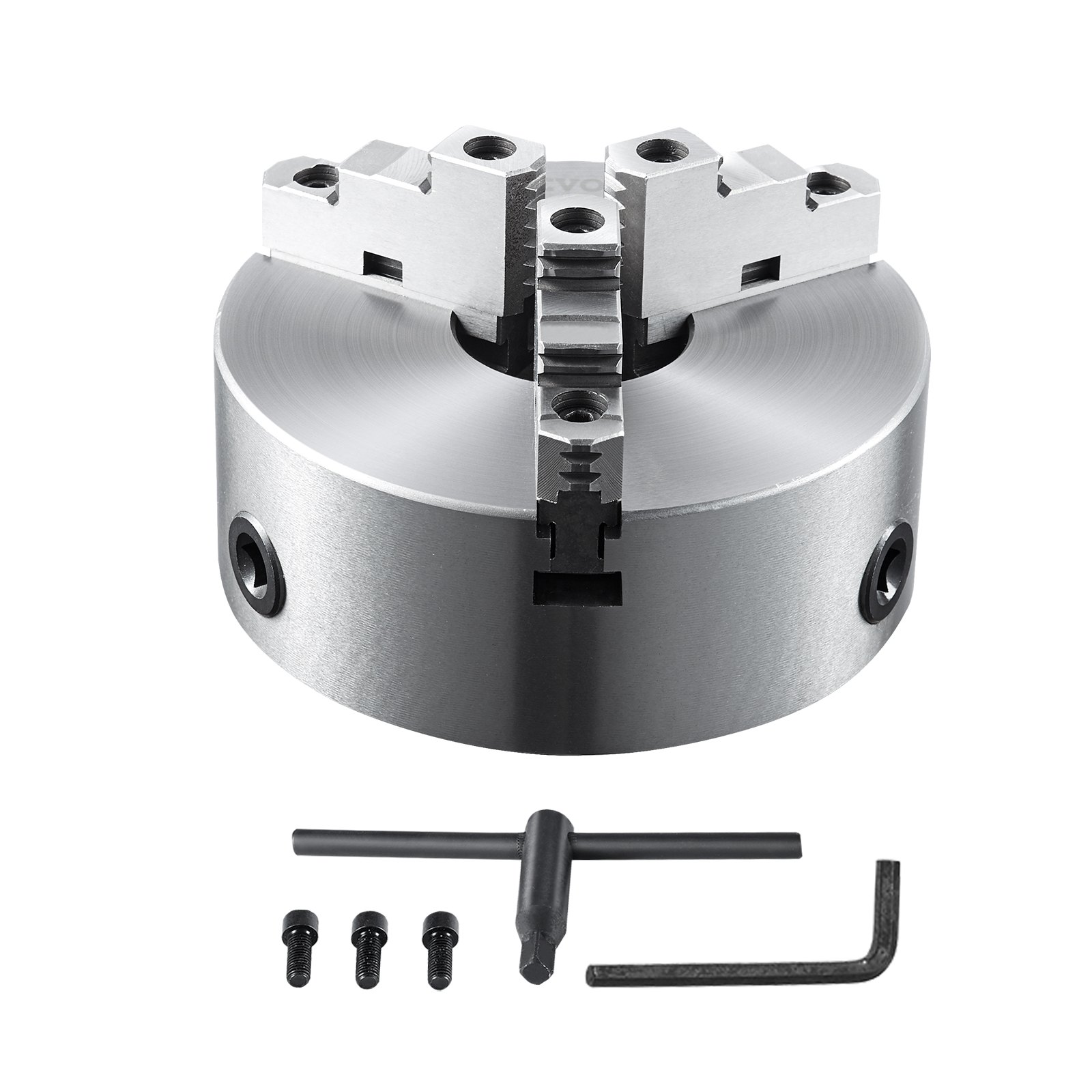

VEVOR 3-jaw lathe chuck with screws, wrench, and l-shaped hex key. VEVOR 3-jaw lathe chuck made of ht300 material with non-deformable and high hardness attributes. VEVOR 3-jaw lathe chuck showing accuracy calibration and self-centering for precision craftsmanship. VEVOR 3-jaw lathe chuck, dual jaws design, large adjustable range for multi-size part manipulation. VEVOR 3-jaw lathe chuck with a simple structure, easy to use for expanding and tightening objects. VEVOR 3-jaw lathe chuck used in wood lathe, metal lathe, drilling machine, and milling machine. VEVOR 3-jaw lathe chuck with key and screws, 10 in diameter, details on clamping range, and materials.
SZKP10YC3G00YQFFEV0

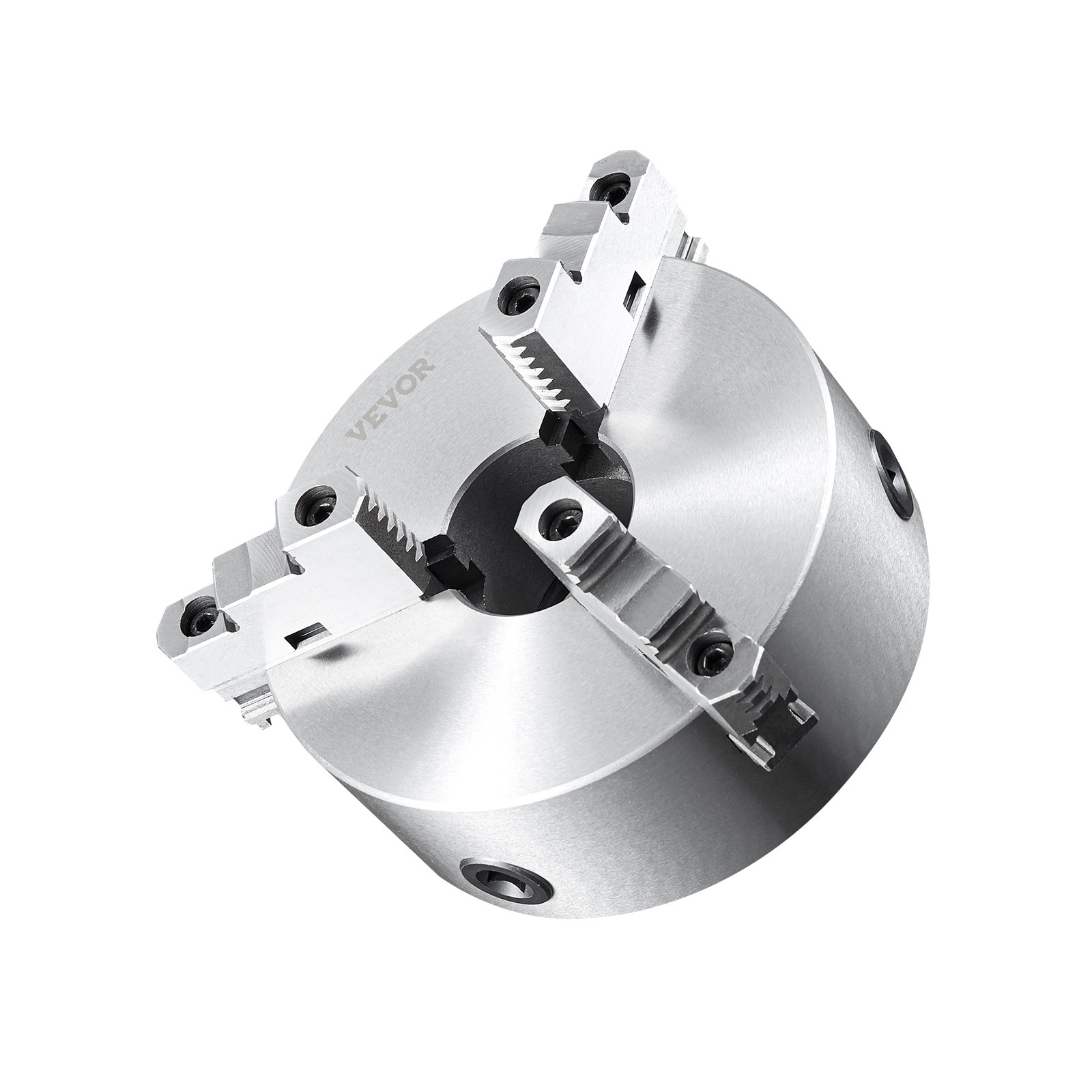

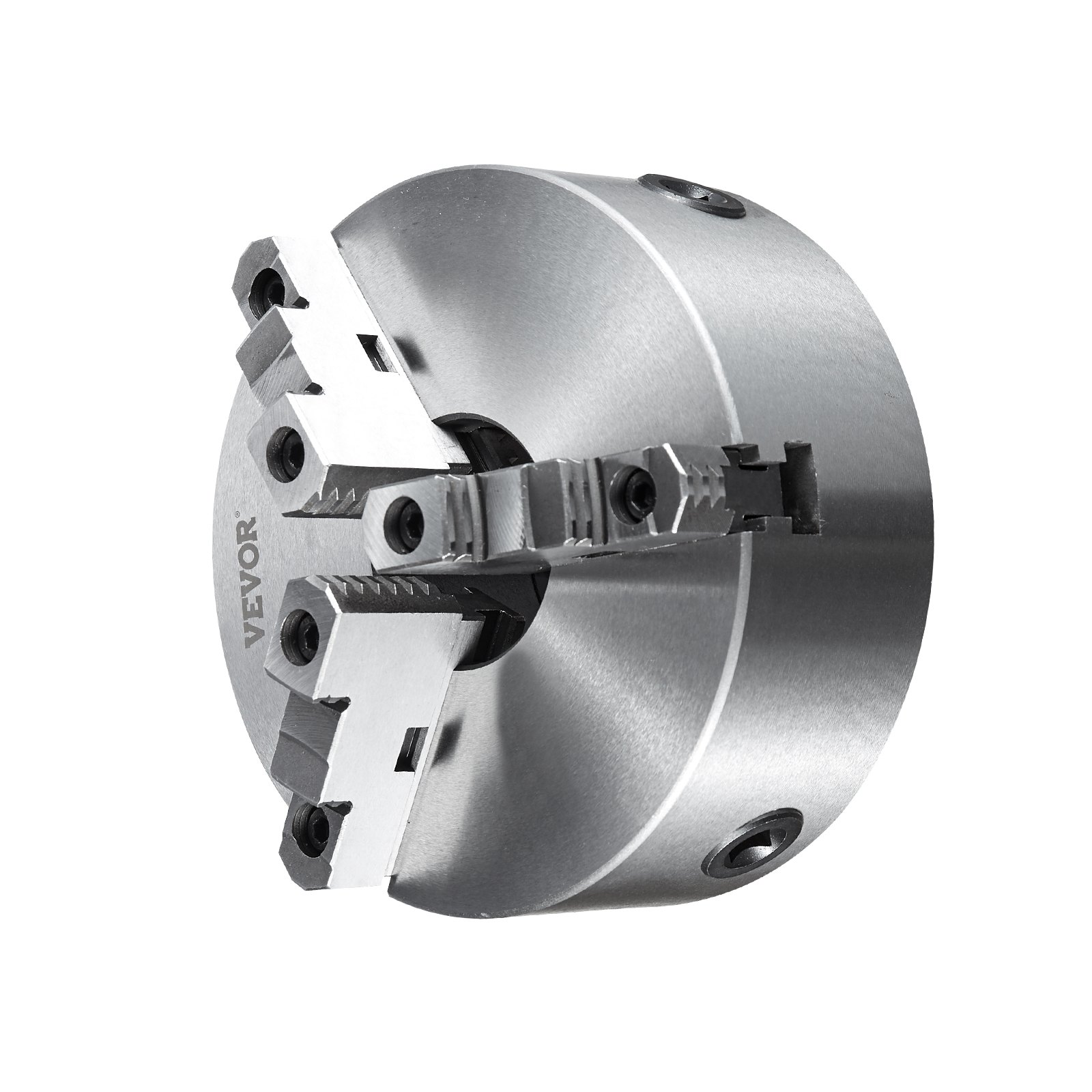

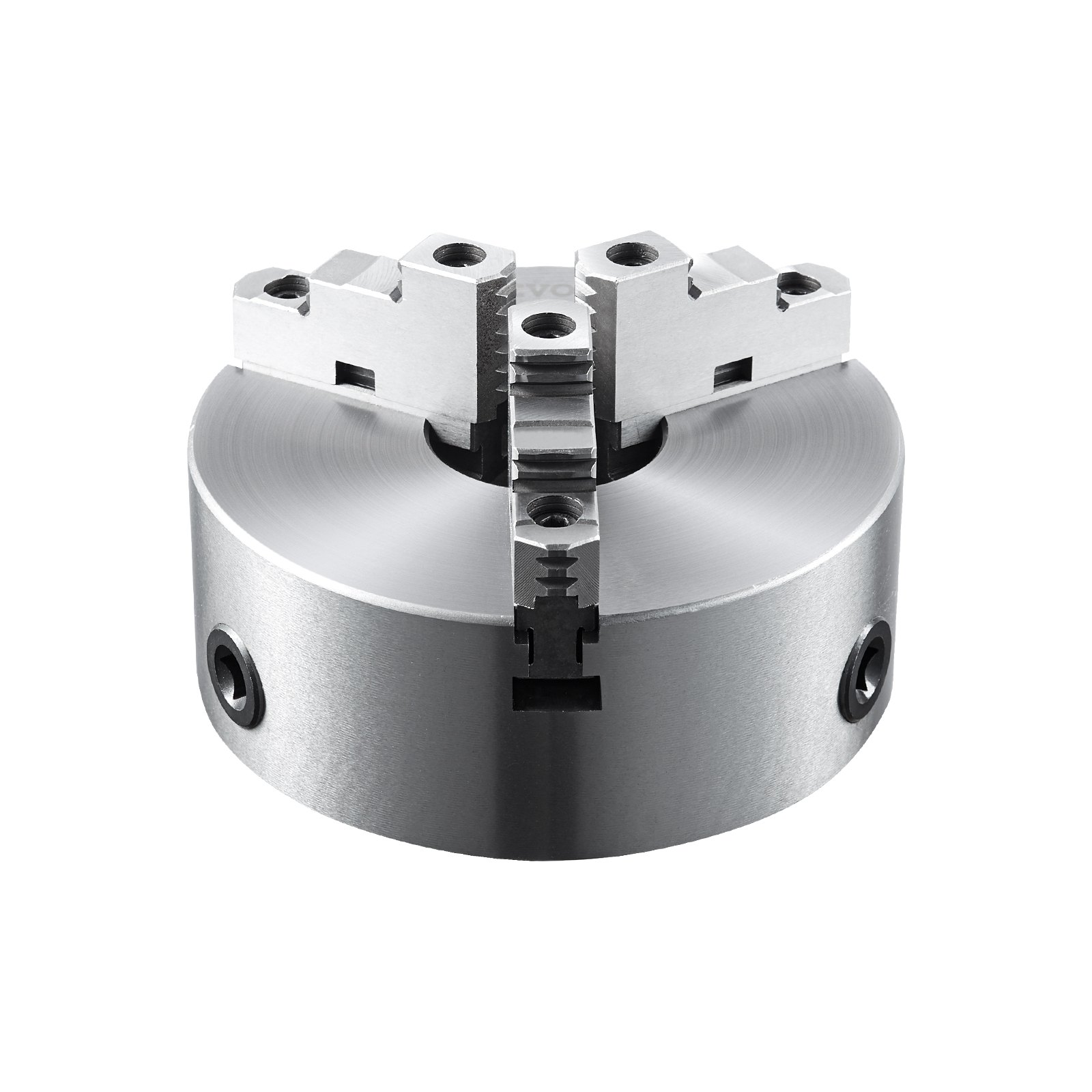

VEVOR 3-Jaw Lathe Chuck, 10'', Self-Centering Lathe Chuck, 0.24-9.84 in/6-250 mm Clamping Range with T-key Fixing Screws Hexagon Wrench, for Lathe 3D Printer Machining Center Milling Drilling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

10 inch

  • 10 inch
  • 6 inch
  • 5 inch
  • 8 inch
  • 4 inch

About this item

  • Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
  • High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
  • Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.
  • Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
  • Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 3-Jaw Lathe Chuck, 10'', Self-Centering Lathe Chuck, 0.24-9.84 in/6-250 mm Clamping Range with T-key Fixing Screws Hexagon Wrench, for Lathe 3D Printer Machining Center Milling Drilling Machine
10 inch
vevorA+Template
10'' 3-Jaw Self-Centering Lathe Chuck

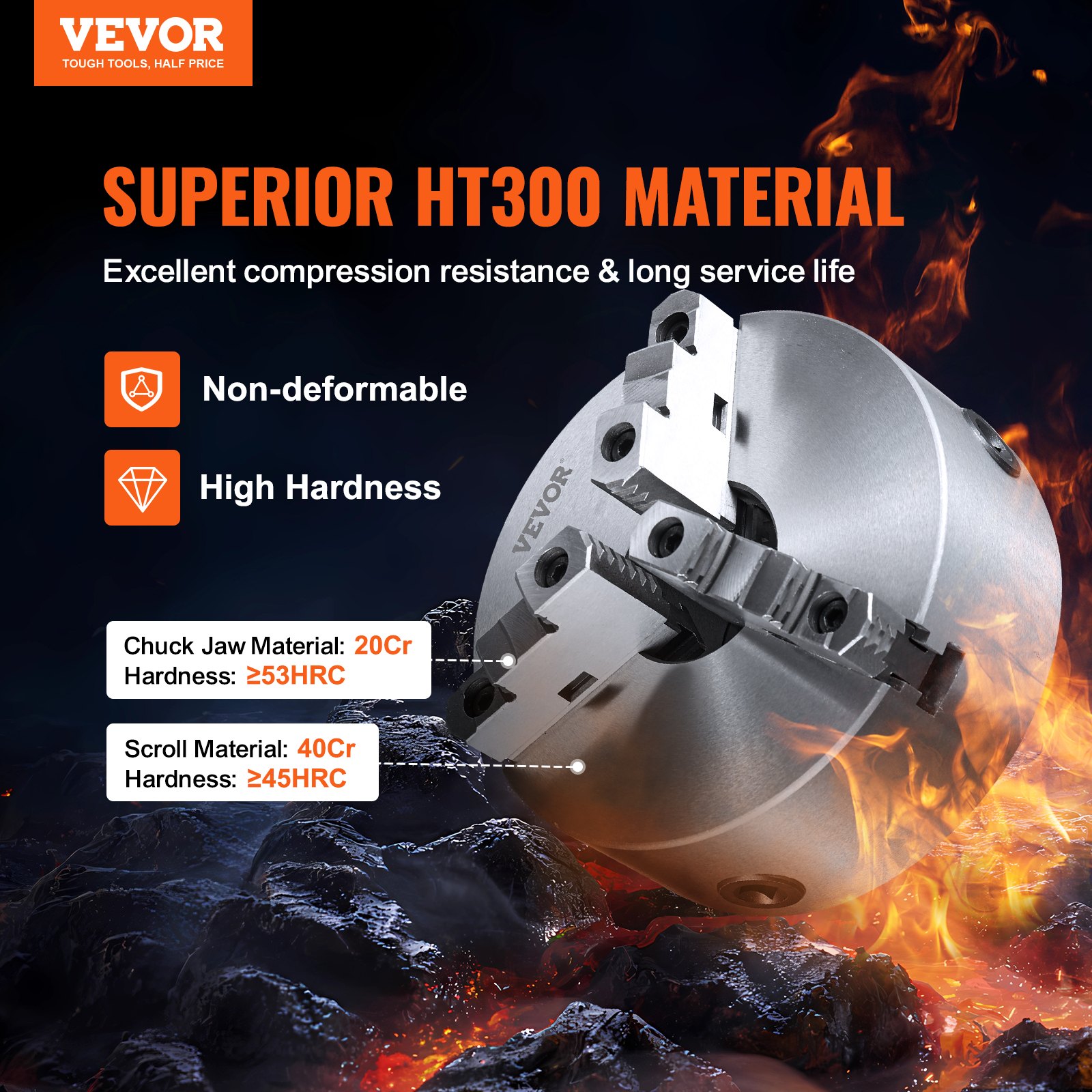

VEVOR 3-jaw lathe chuck made of high strength ht300 material, 20cr steel chuck, and 40cr steel scroll.
VEVOR 3-jaw lathe chuck made of high strength ht300 material, 20cr steel chuck, and 40cr steel scroll.
The 10'' 3-jaw lathe chuck is made of high-strength HT300 material with strong compression resistance and long service life. It can be used as internal and external jaws to clamp larger-sized industrial components and a self-centering function to avoid repeated calibration.

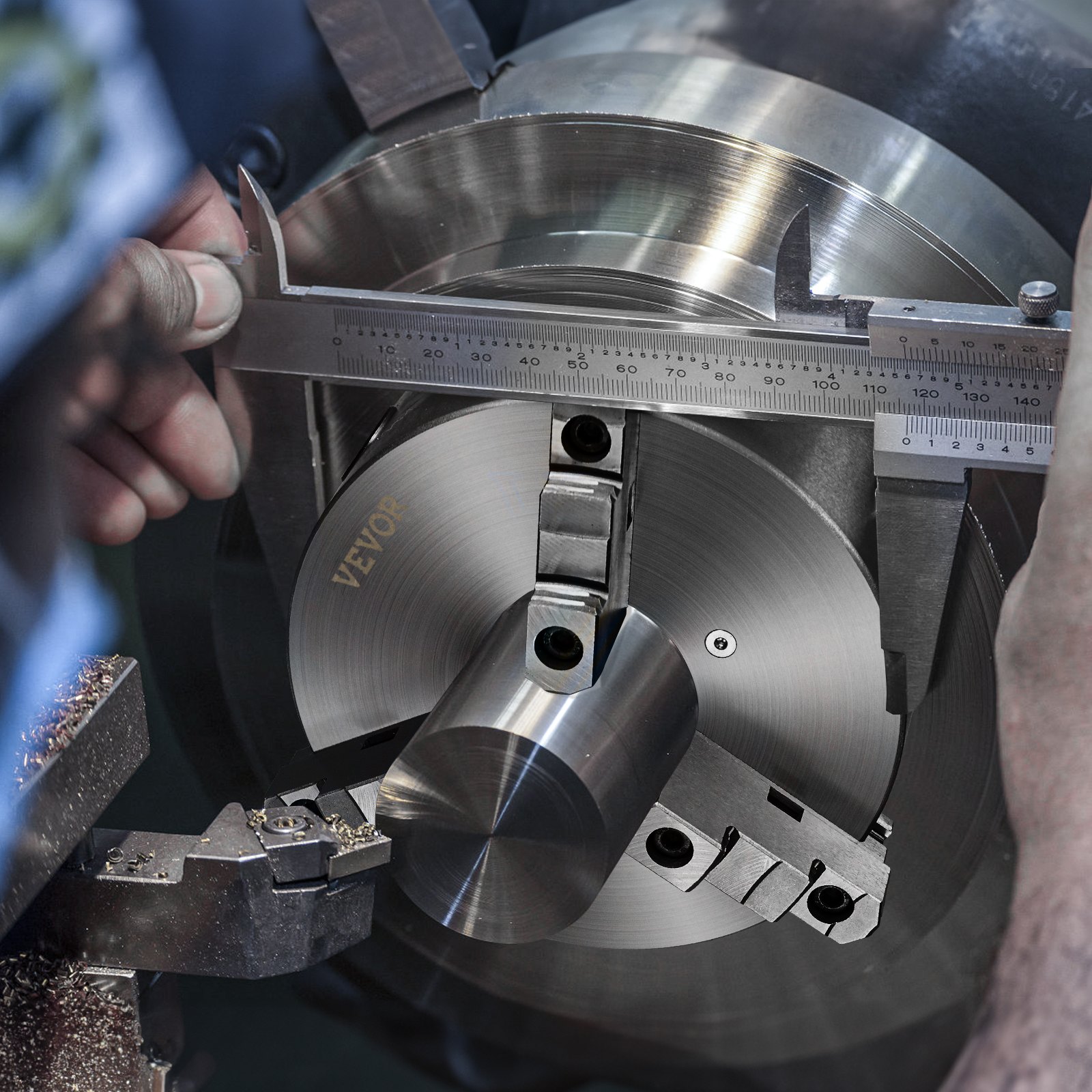

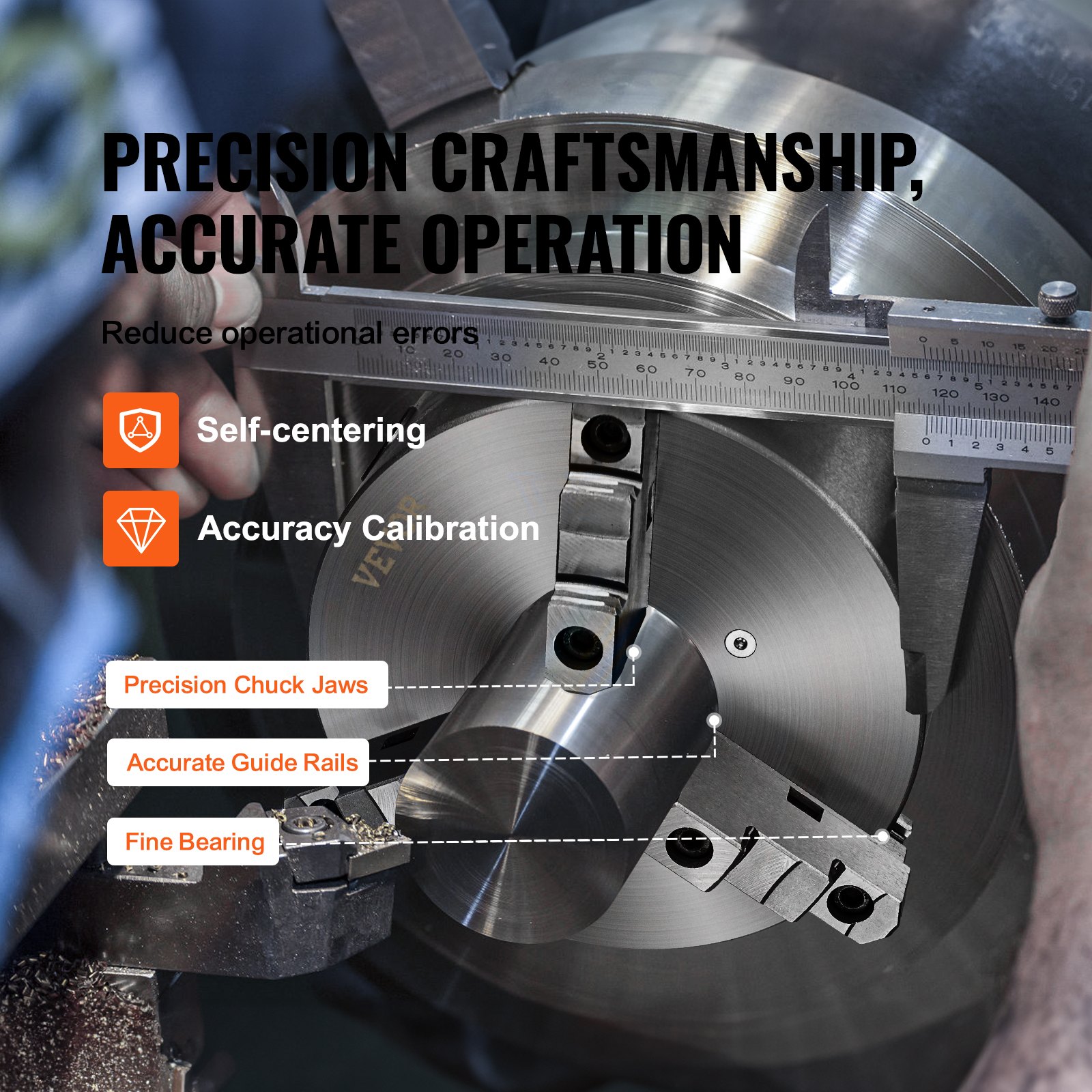

VEVOR 3-jaw lathe chuck showcasing precision jaws, self-centering feature, and fine gears for accuracy.
VEVOR 3-jaw lathe chuck showcasing precision jaws, self-centering feature, and fine gears for accuracy.
The 3-jaw chuck has a self-centering function and a bevel gear to precisely control the accuracy of the clamped workpiece for precise machining. Bearing tolerance ≤ 0.05 mm / 0.002" ensures the lathe chuck's structural stability and high accuracy.

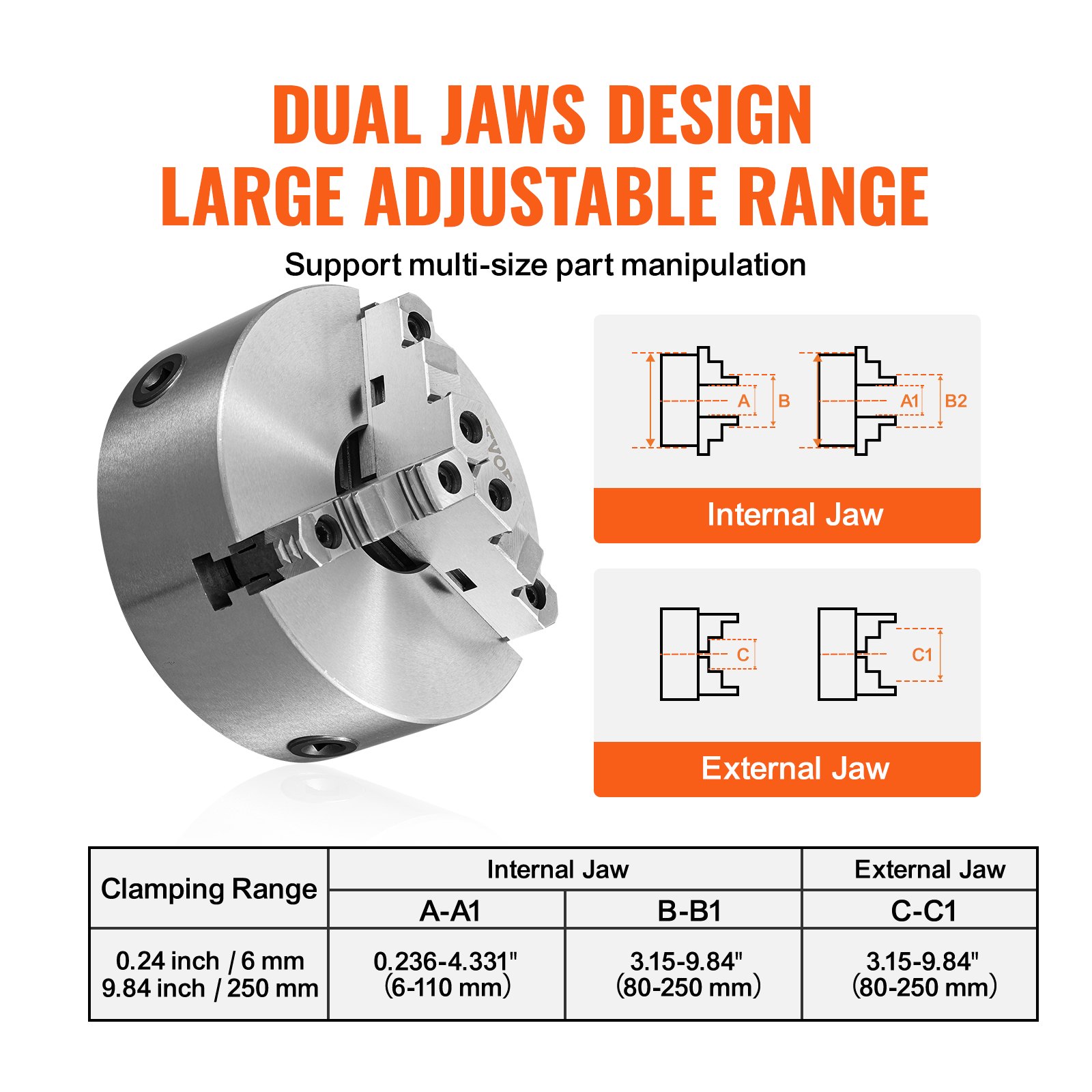

VEVOR 3-jaw lathe chuck, adjustable clamping range, internal and external jaws for industrial parts.
VEVOR 3-jaw lathe chuck, adjustable clamping range, internal and external jaws for industrial parts.
The chuck jaws can be used as both internal and external jaws, capable of clamping larger-sized industrial components. You can precisely clamp and secure various industrial components.

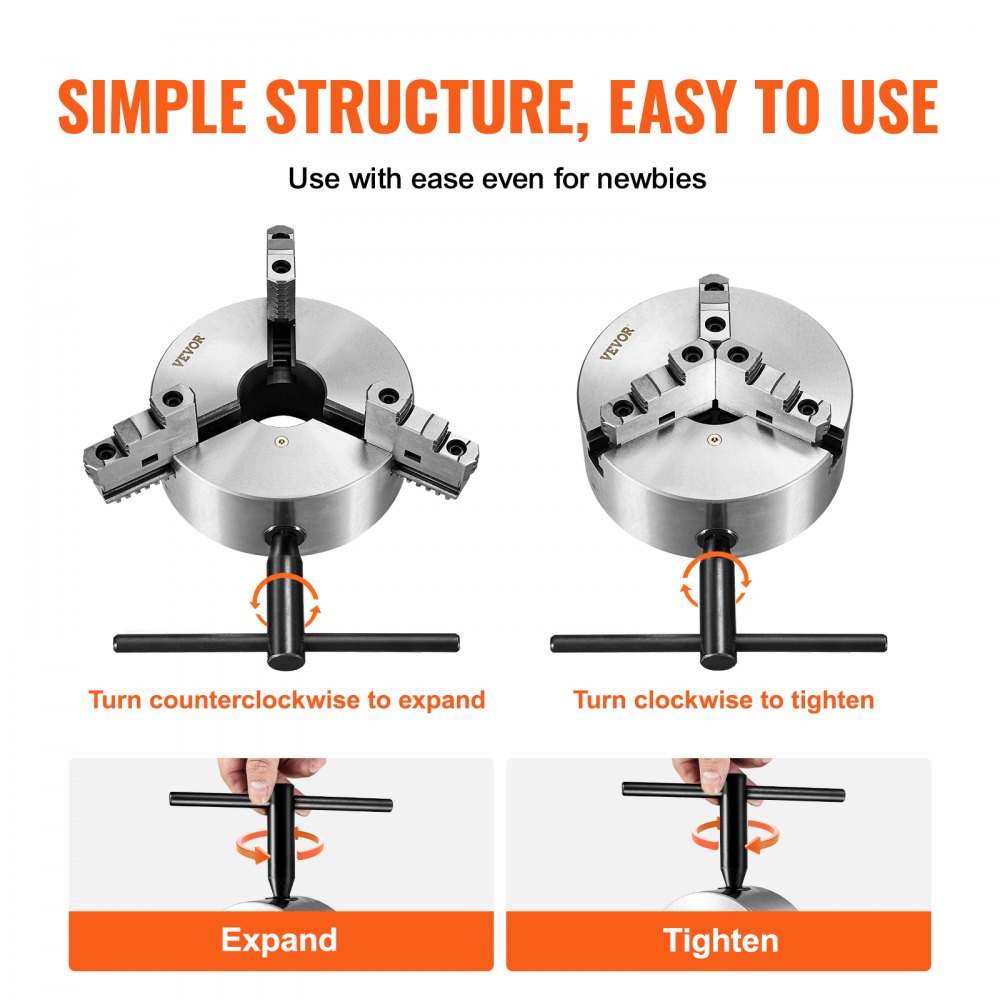

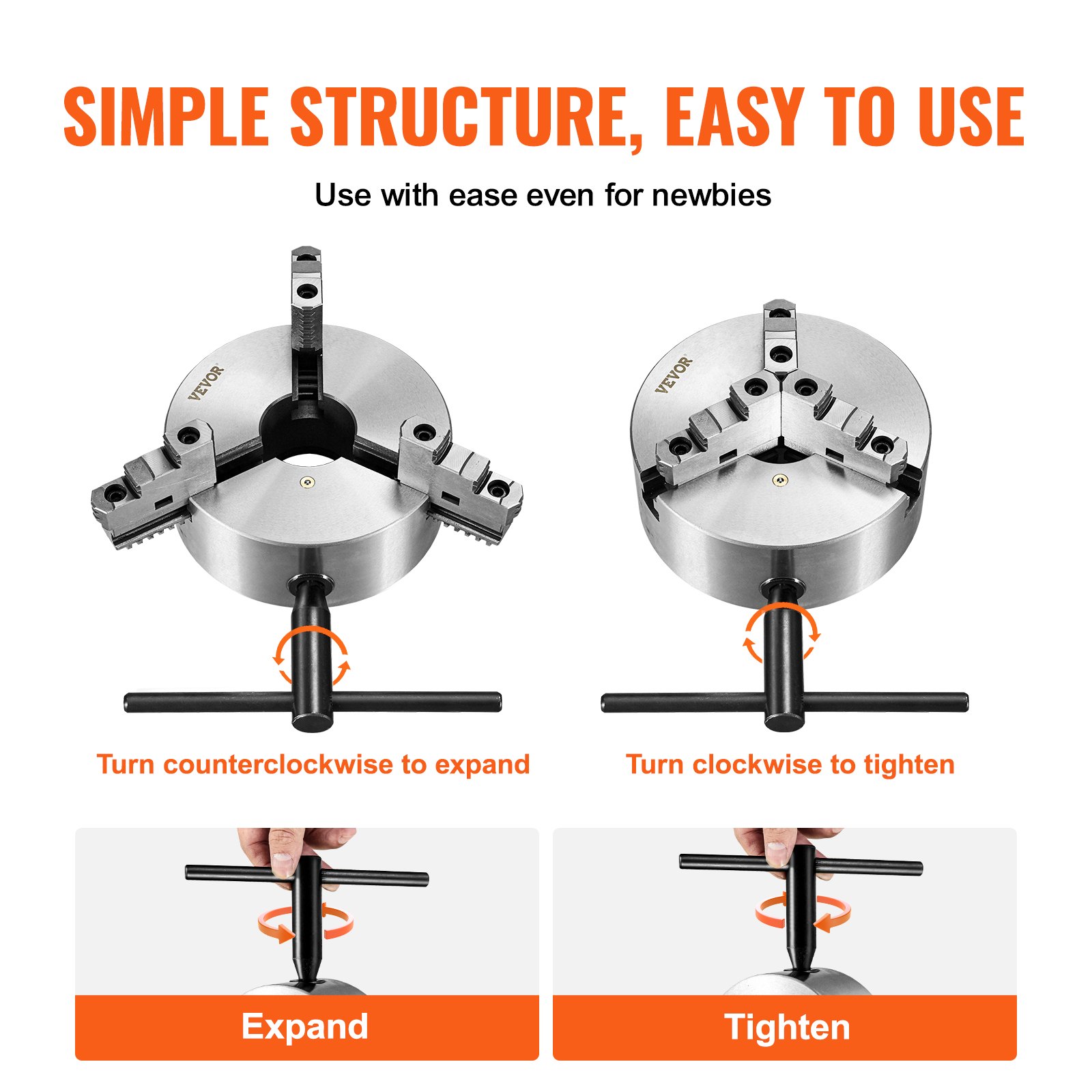

VEVOR 3-jaw lathe chuck, self-centering design, t-wrench operation, chuck jaws labeled, easy setup.
VEVOR 3-jaw lathe chuck, self-centering design, t-wrench operation, chuck jaws labeled, easy setup.
This chuck consists of a chuck body, movable chuck, and jaw drive with a simple structure. When clamping a work part, the chuck is able to find and hold the center of the part automatically. All you need to do is install them in the correct order.

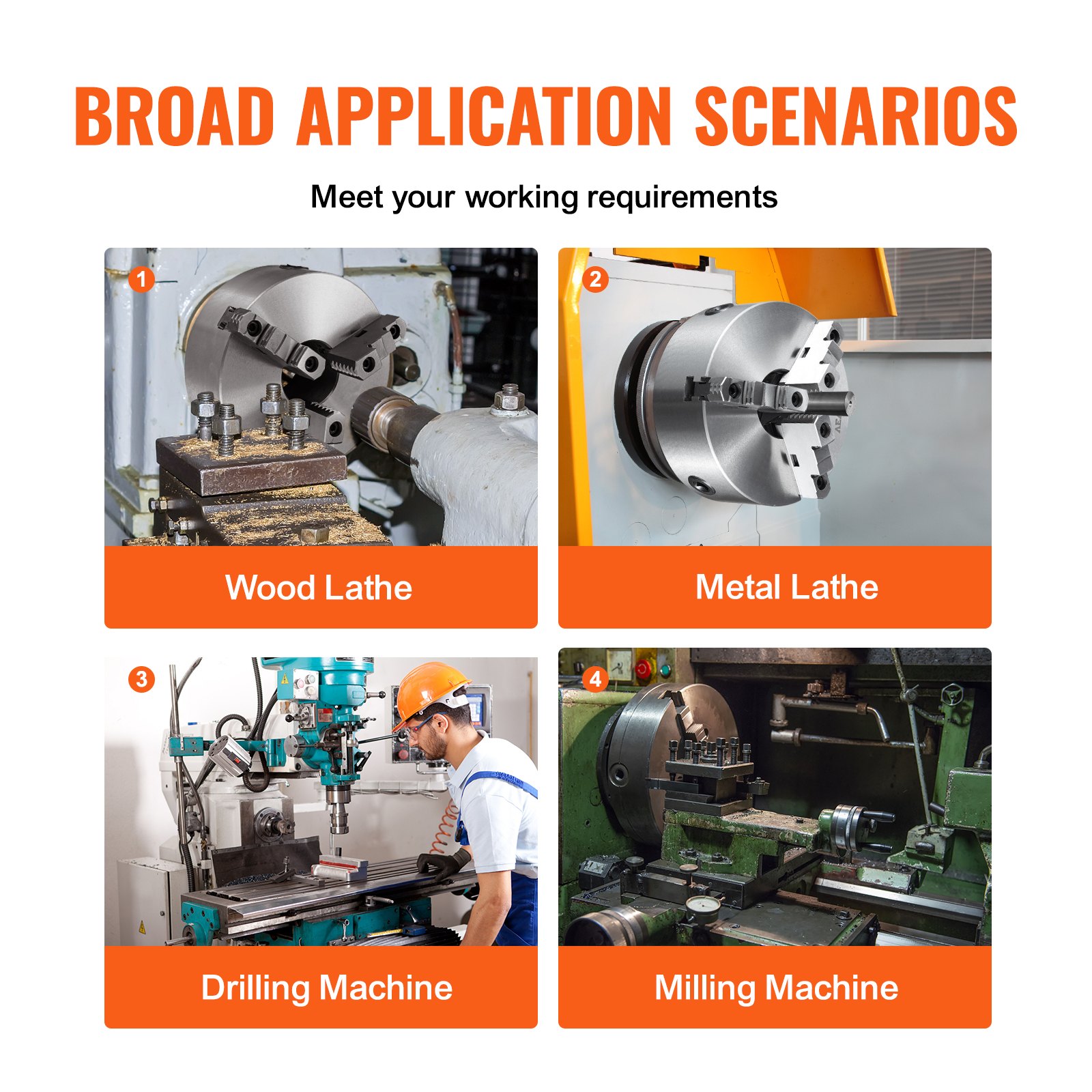

VEVOR 3-jaw lathe chuck used in 3d printing, machining centers, grinding, lathes, and drilling.
VEVOR 3-jaw lathe chuck used in 3d printing, machining centers, grinding, lathes, and drilling.
Whether you're working in woodworking, metalworking, drilling, or milling, our 3-jaw self-centering lathe chuck can meet your requirements for improved machining efficiencies and increased job flexibility and precision.

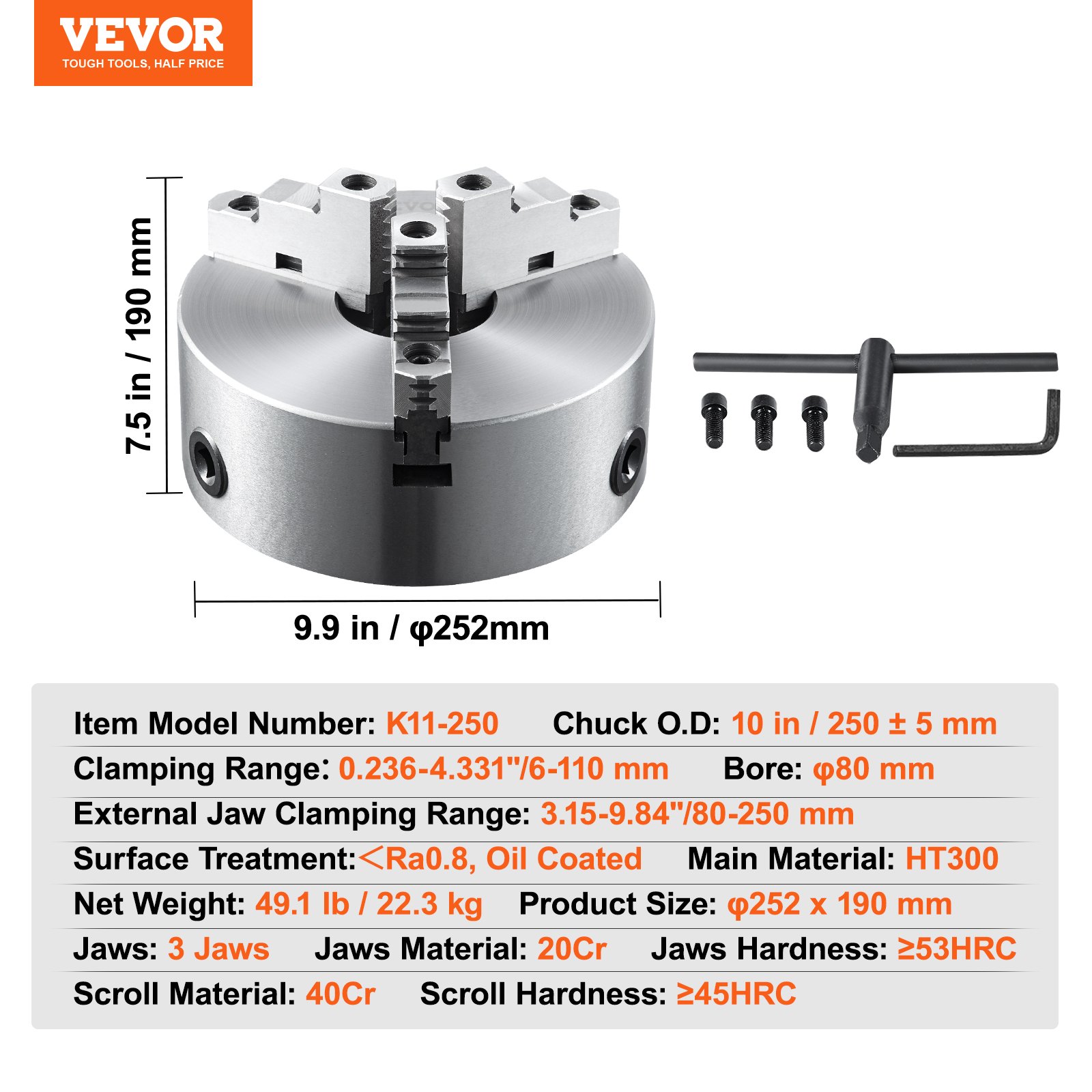

VEVOR 3-jaw lathe chuck k11-250 dimensions and specifications with included tools shown.
VEVOR 3-jaw lathe chuck k11-250 dimensions and specifications with included tools shown.

3-Jaw Lathe Chuck Ensures Precision and Durability

The VEVOR 3-jaw lathe chuck offers precise alignment and holds workpieces securely. It is designed for high durability, ensuring long-lasting performance. The chuck is made from HT300 material, which guarantees toughness and resistance to wear. This ensures consistent accuracy, providing a reliable solution for various machining tasks. Our self-centering feature simplifies the setup process. This chuck can handle heavy loads without losing precision. The 3-Jaw Lathe has been created for professionals who need reliable performance.


Easy Installation and Disassembly for Maintenance

It is easy to install and disassemble the VEVOR 3-jaw lathe chuck. This tool includes T-key fixing screws and a hexagon wrench for easy setup. The disassembly is simple, allowing for routine maintenance. This feature ensures that the chuck remains in optimal condition. The hose design allows users to perform regular checks and adjustments. So, the self-centering lathe chuck operates smoothly and efficiently. The ease of maintenance extends the life of the part of this lathe, with an extended lifespan if you keep it in top shape too.


High Accuracy with Minimal Runout for Superior Results

It provides high accuracy with minimal runout. It ensures that the workpiece is held with utmost precision. This is important for achieving high-quality results. The chuck's runout is within .001". It offers excellent accuracy. So, it’s ideal for demanding machining tasks. The minimum runout reduces errors and improves the final product's quality. This precision is essential in industries where tight tolerances are required. Our accurate performance ensured that projects were completed to a high standard. Therefore, this makes it an incredibly useful tool for professionals who need high accuracy.


Robust Construction with HT300 Material for Long-Lasting Use

This is based on HT300 material. This ensures that the chuck has a strong construction and long-lasting use. The material is known for its strength and durability. It makes the VEVOR 3-jaw lathe chuck resistant to wear and tear. It can withstand heavy loads and demanding applications. Our robust design ensures that it performs reliably over time. So, this lathe chuck for the machining center is suitable for both light and heavy-duty tasks. Its durable construction provides long-lasting performance for various machining needs.


Versatile Use for Lathe, 3D Printer, and Machining Center

It is a useful 3-jaw lathe chuck. This versatile 10-inch lathe chuck can be used with lathes, 3D printers, and machining centers. So, this versatility makes it an invaluable tool in various industries. It’s perfect for woodworking, metalworking, and plastic machining. The chuck's adaptability ensures that it meets diverse machining needs. Therefore, it's a practical addition to any workshop. Its compatibility with different machines enhances its utility. The versatility of our lathe chuck for 3D printers adds value to every operation and setup.


Quick and Reliable Customer Support from VEVOR

This 3-jaw lathe chuck has incredibly quick and reliable customer support. If there are any issues, their support team is responsive and helpful. This ensures that problems are resolved quickly. It's essential for maintaining productivity and avoiding downtime. The support staff is knowledgeable and provides effective solutions. This support adds peace of mind for users, knowing help is readily available. The quick resolution of issues ensures the chuck stays in optimal condition. Reliable support enhances the overall user experience.


Well-Packaged and Secure Delivery Ensures Product Integrity

The VEVOR 3-jaw lathe chuck is well-packaged to ensure secure delivery. The packaging protects the chuck from damage during transit. This ensures it arrives in perfect condition. Secure packaging is essential for maintaining product integrity. It prevents any potential issues that could arise due to poor packaging. Attention to detail in packaging reflects the company's commitment to quality. Thus, users are given a product that is ready for use. The secure delivery adds value to the overall purchase experience.


See More

Specification

Item Model Number
K11-250
Chuck O.D
10 in / 250 ± 5 mm
Clamping Range
0.236-4.331"/6-110 mm
External Jaw Clamping Range
3.15-9.84"/80-250 mm
Fixed Thread
3-M10
Bore
φ80 mm
Surface Treatment
<Ra0.8, Oil Coated
Main Material
HT300
Net Weight
49.1 lb / 22.3 kg
Product Size
φ252 x 190 mm
Jaw
3-Jaw, 20Cr, ≥53HRC
Scroll
40Cr, ≥45HRC
Questions and Answers
1 Questions
Will this fit a central Machining lathe Mill and drill press combo
Yes, it fits.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
93 Review(s)
Clear filters
Fred Baeza Fred Baeza
Buyer
Very high quality, shipping took a while though. Hopefully that’ll get fixed. I buy at least 100 of these a year and never have an issue with anything.
Mark Mark
No problems at all.
No problems at all. Great chuck.I recommend it
dom dom
Thanks!!! Great Tool!!!
I used this chuck to make a roll out wheel for fab work and let me tell you it’s so much easier than trying to bolt up the old style. Thanks!!! Great Tool!!!
Dick Moody Dick Moody
Great product.
Great product, well packaged, arrived in good shape perfect delivery time as they promised. Have to figure out how to have it mounted because the radius for the three bolts that hold it on the plate, is slightly larger than the radius of the holes for the plate, about 3mm. I did not try to install it right away and cannot return it. Check those measurements, which they don't provide, before ordering or will end up as a very heavy paper weight.
Robinson Arias Robinson Arias
I feel I got a good deal.
see no problem with this chuck. Since several reviews indicated a malfunction because of debris inside the chuck, I immediately disassembled it upon receipt. Disassembly was simple. One review stated the jaws didn't close evenly. I think those jaws were removed and were not reassembled in the correct order. I found one small chip inside which would have never caused a problem. The chuck was well oiled, wrapped in plastic, and packaged securely. I am in the process of turning the backing plate, so I can not yet attest as to the trueness of the jaws, but, I don't foresee a problem. The OD of the chuck is larger than 6". It measured 6.424". There is one plastic piece attached. It seems to be a "dust cover" on the back side and has no mechanical function. The jaws are numbered, (1,2,3) but, the chuck itself is not numbered. I plan to just number stamp it myself. I can see this chuck giving years of service. I feel I got a good deal.
nick141 nick141
This was a perfect replacement for my table to lathe.
This was a perfect replacement for my table to lathe. It was a little stiff, but I disassembled it, a thorough cleaning, and lubricated it. It was spot on and the runout was pretty accurate (within .001"). I'm looking at one of their 4 jaw chucks now...
Kevin Callaghan Kevin Callaghan
He quality of the chuck is good
he quality of the chuck is good, but bought a vevor brand wood lathe and had trouble getting the t bar to mount. Now I have this 4 inch 3jaw chuck that does not have the correct size t handle. I will post a video later. Update, I contacted vevor about the chuck key, and they quickly fixed the problem. If you have any issues, I recommend contacting them because I contacted Amazon about it and it went nowhere.
jacksequipt2012 jacksequipt2012
Seems to be good,
seems to be good, great finish, smooth to operate, comes with the handle, extra set of outside jaws, very pleased
Neil Neil
Works great!
Great for fabrication on pipeline
ricochetrichard ricochetrichard
Prompt shipping.
Prompt shipping and a good product for the price.
