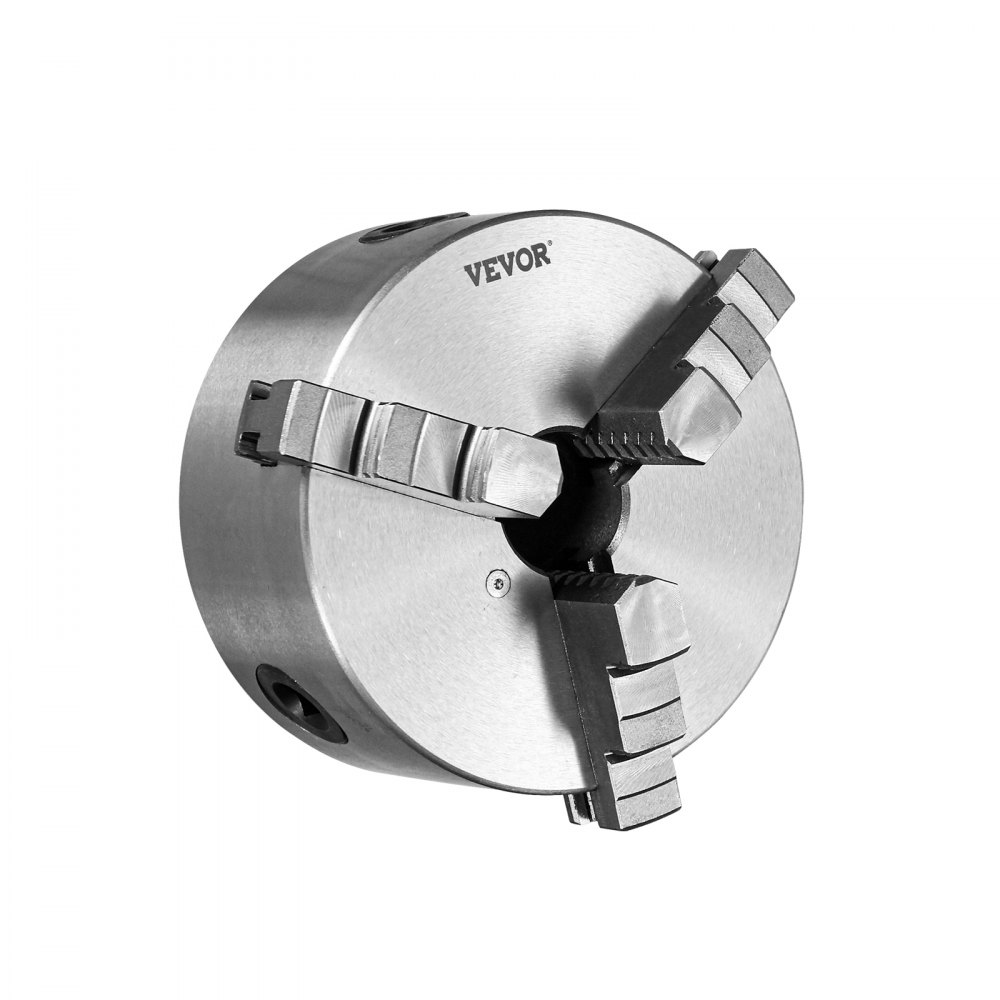

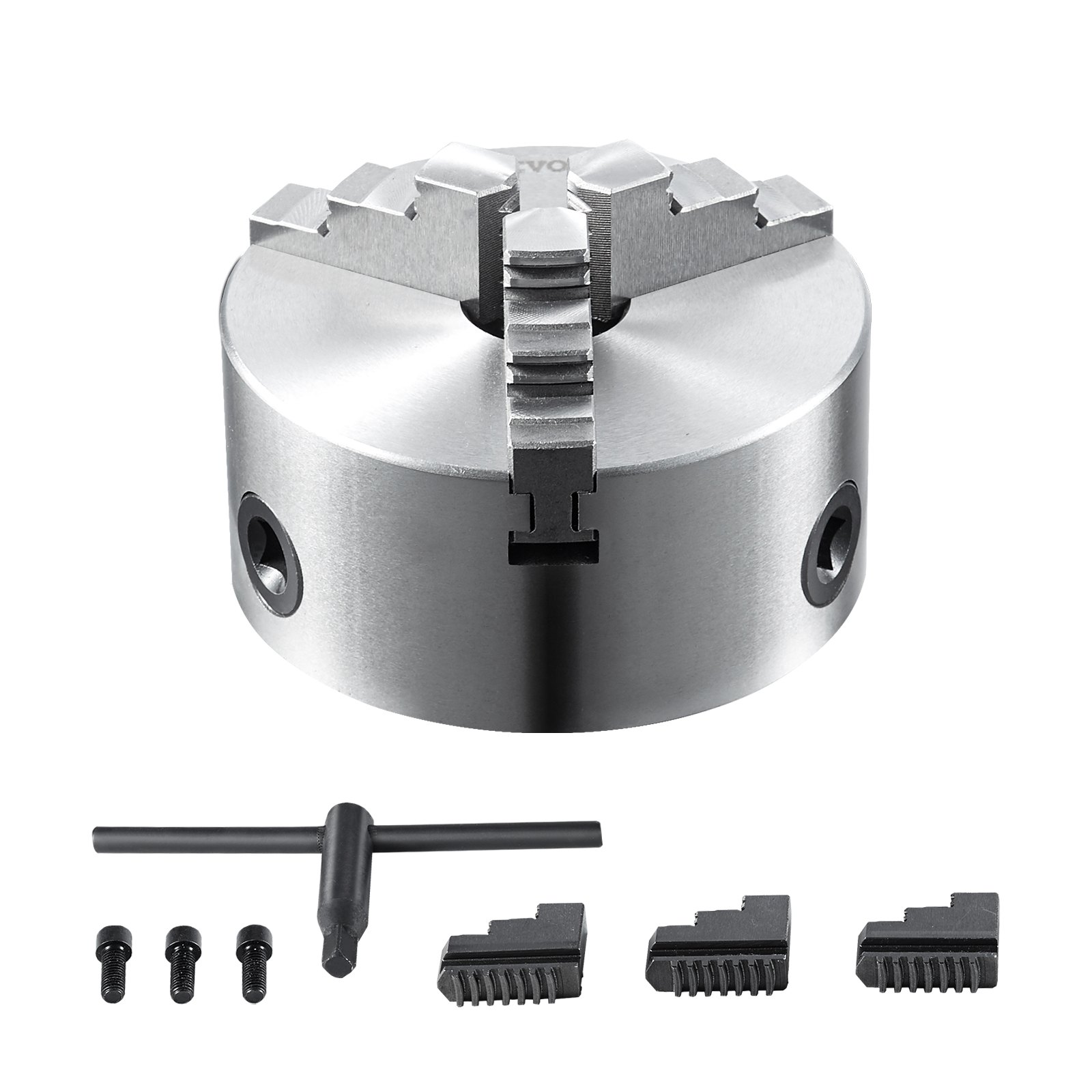

VEVOR 3-jaw lathe chuck with wrench, screws, and additional jaws on white background. VEVOR 3-jaw lathe chuck with ht300 material, non-deformable, high hardness, 20cr, and 40cr properties. VEVOR 3-jaw lathe chuck with precision chuck jaws, fine bearing, and accurate guide rails. VEVOR 3-jaw lathe chuck with dual jaws design, large adjustable range for multi-size part manipulation. VEVOR 3-jaw lathe chuck with instructions on expanding and tightening for easy use. VEVOR 3-jaw lathe chuck used on wood lathe, metal lathe, drilling machine, and milling machine. VEVOR 3-jaw lathe chuck k11-125, 135mm diameter, with specifications in orange and black text.
SZKP5YC3G000UY5V5V0

VEVOR 3-Jaw Lathe Chuck, 5'', Self-Centering Lathe Chuck, 0.1-5 in/2.5 -125 mm Clamping Range with T-key Fixing Screws Reversible Jaws, for Lathe 3D Printer Machining Center Milling Drilling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

5 inch

  • 10 inch
  • 6 inch
  • 5 inch
  • 8 inch
  • 4 inch

About this item

  • Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
  • High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
  • Internal & External Jaw: The 3-jaw self-centering lathe chuck is equipped with an internal jaw and external jaw to expand its clamping range, and the external jaws are capable of clamping larger-sized industrial parts. Clamping Range: 0.1-5 in/2.5 -125 mm. All you need to do is rotate it using the T-key and adjust it to fit your workpiece size and shape.
  • Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
  • Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 3-Jaw Lathe Chuck, 5'', Self-Centering Lathe Chuck, 0.1-5 in/2.5 -125 mm Clamping Range with T-key Fixing Screws Reversible Jaws, for Lathe 3D Printer Machining Center Milling Drilling Machine
5 inch
5'' 3-Jaw Self-Centering Lathe Chuck

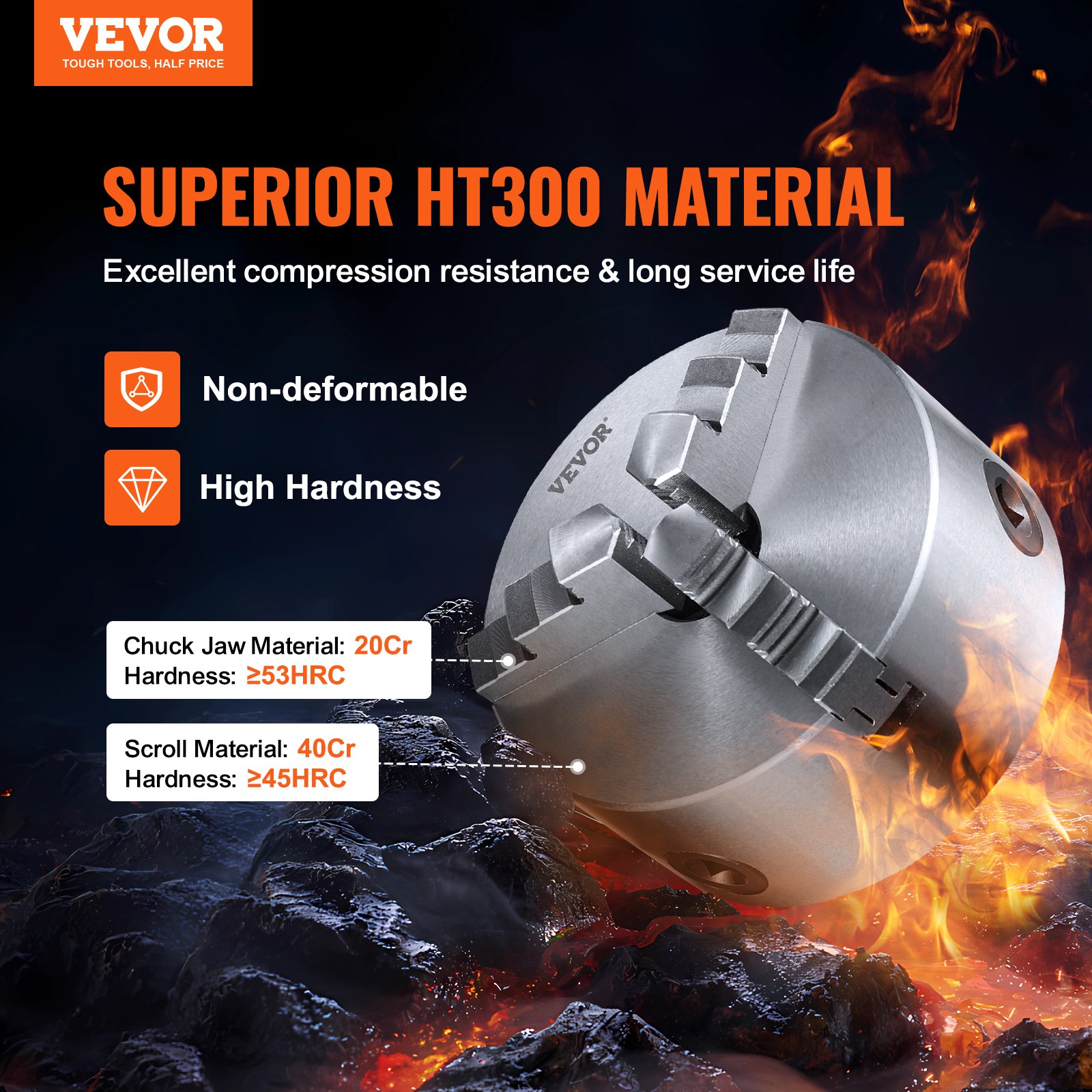

VEVOR 3-jaw lathe chuck with ht300 material, wear-resistant, rust-proof, high hardness.
VEVOR 3-jaw lathe chuck with ht300 material, wear-resistant, rust-proof, high hardness.
The 5'' 3-jaw lathe chuck is made of high-strength HT300 material with strong compression resistance and long service life. It features an internal and external jaw to clamp larger-sized industrial components and a self-centering function to avoid repeated calibration.

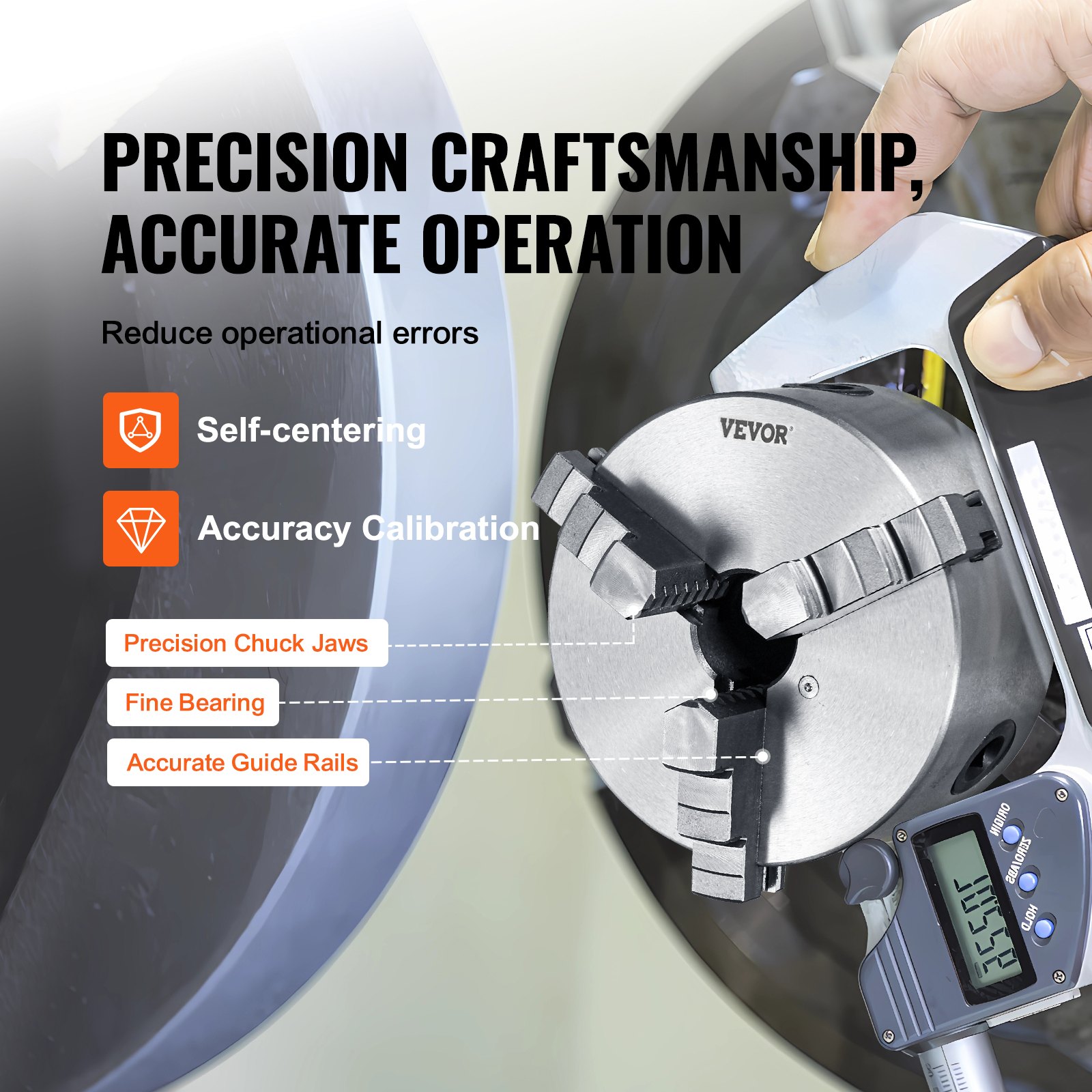

Outstanding Operating Precision

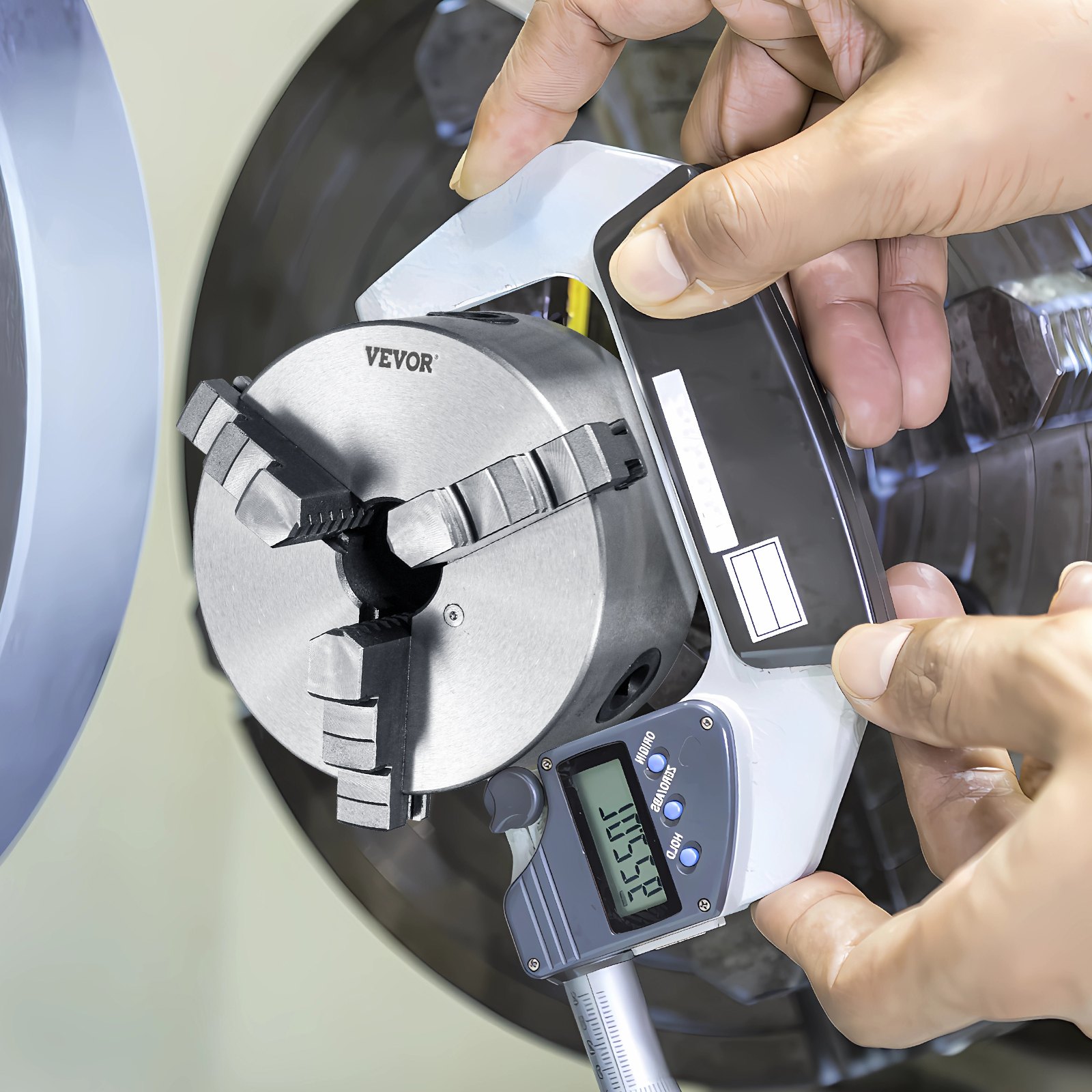

VEVOR 3-jaw lathe chuck, precision jaws, self-centering, fine gears, exquisite craftsmanship.
VEVOR 3-jaw lathe chuck, precision jaws, self-centering, fine gears, exquisite craftsmanship.
The 3-jaw chuck has a self-centering function and a bevel gear to precisely control the accuracy of the clamped workpiece for precise machining. Bearing tolerance ≤ 0.05 mm / 0.002" ensures the lathe chuck's structural stability and high accuracy.

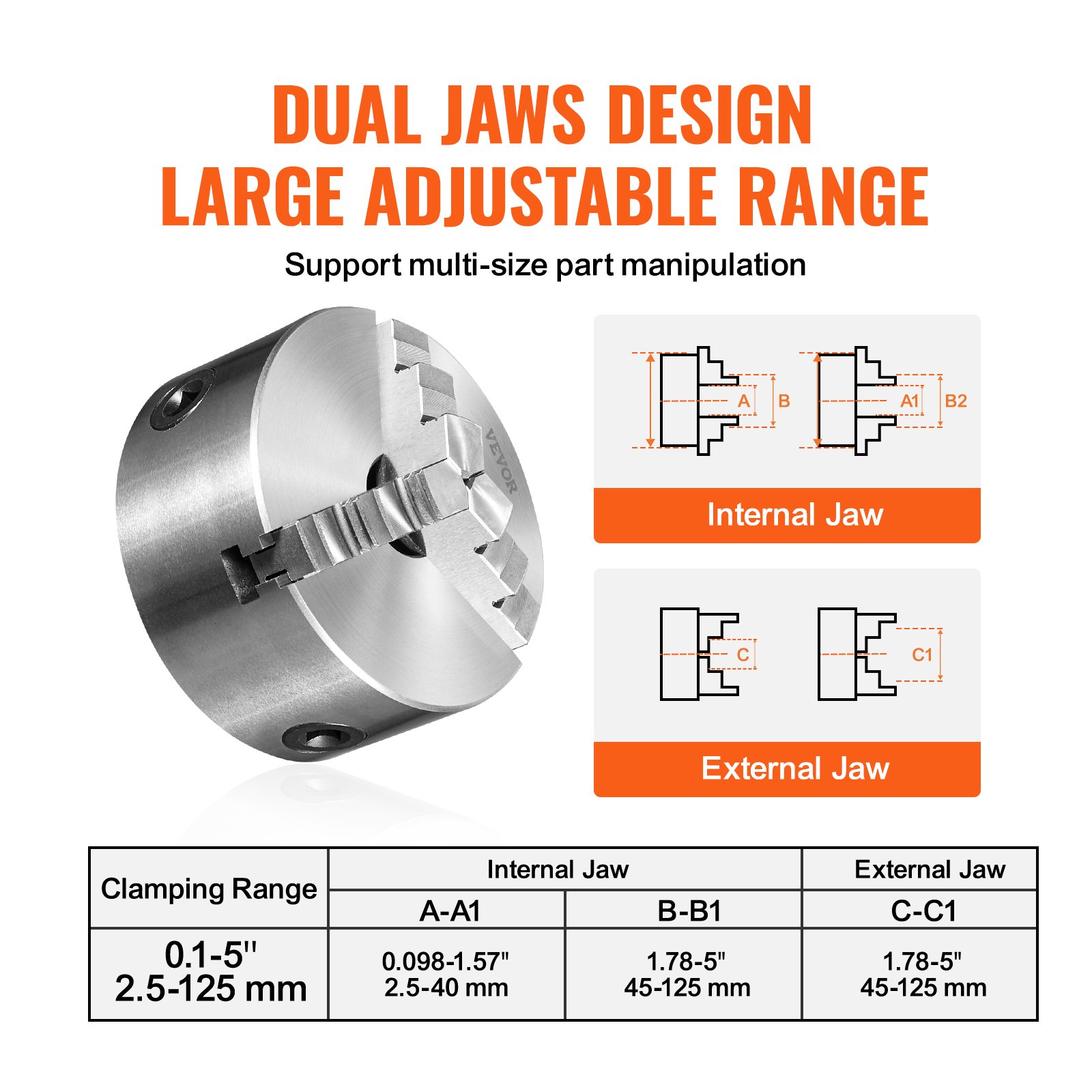

Adjustable Chuck Jaw
VEVOR 3-jaw lathe chuck with adjustable clamping range from 0.1-5 inches for easy clamping.
VEVOR 3-jaw lathe chuck with adjustable clamping range from 0.1-5 inches for easy clamping.
We provide you with two types of jaws, internal jaw, and external jaw, capable of clamping larger-sized industrial components. You can easily open and close the jaws by rotating the T-shaped key.
Easy to Use

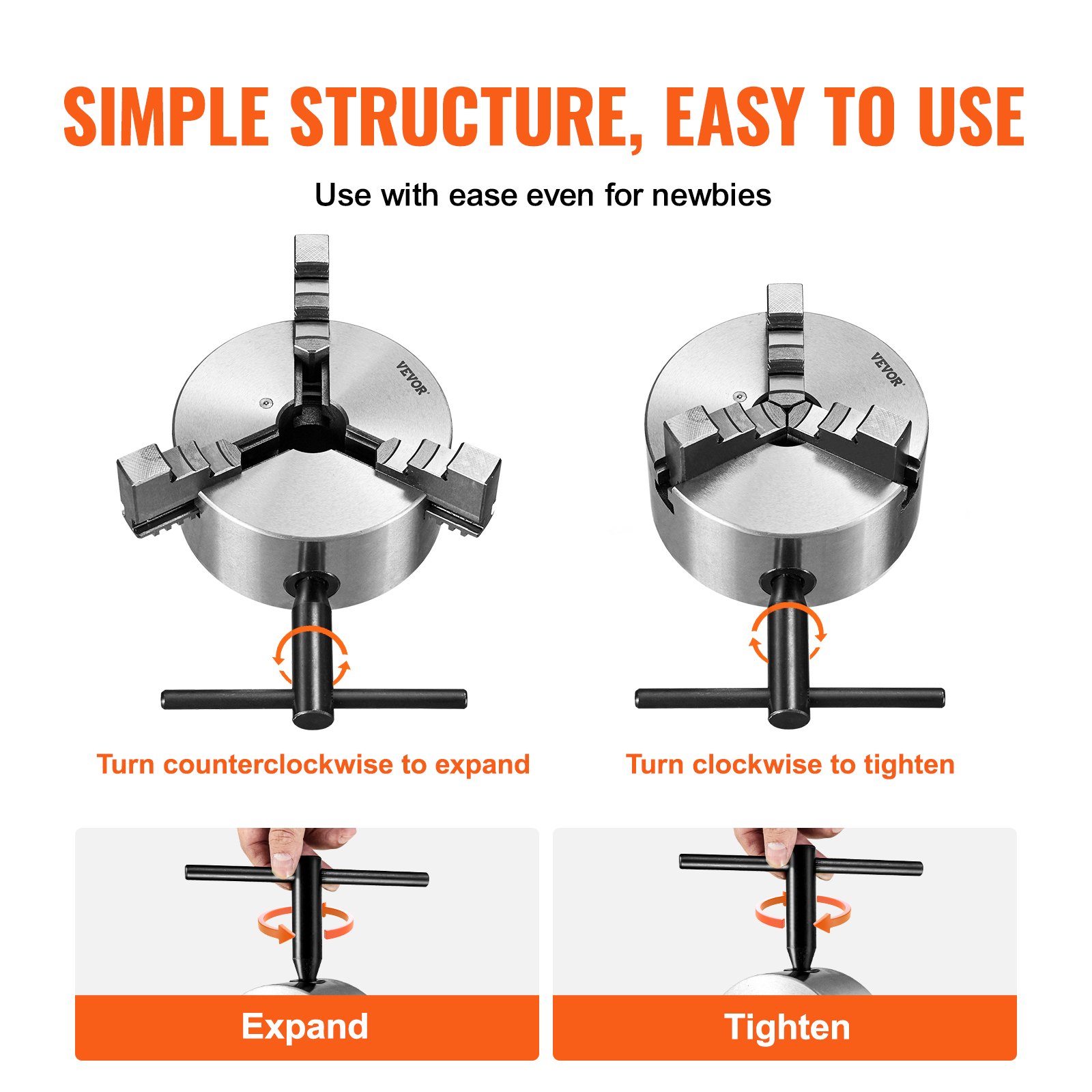

VEVOR 3-jaw lathe chuck demonstrating self-centering, t-wrench usage, and easy installation.
VEVOR 3-jaw lathe chuck demonstrating self-centering, t-wrench usage, and easy installation.
This chuck consists of a chuck body, movable chuck, and jaw drive with a simple structure. When clamping a work part, the chuck is able to find and hold the center of the part automatically. All you need to do is install them in the correct order.

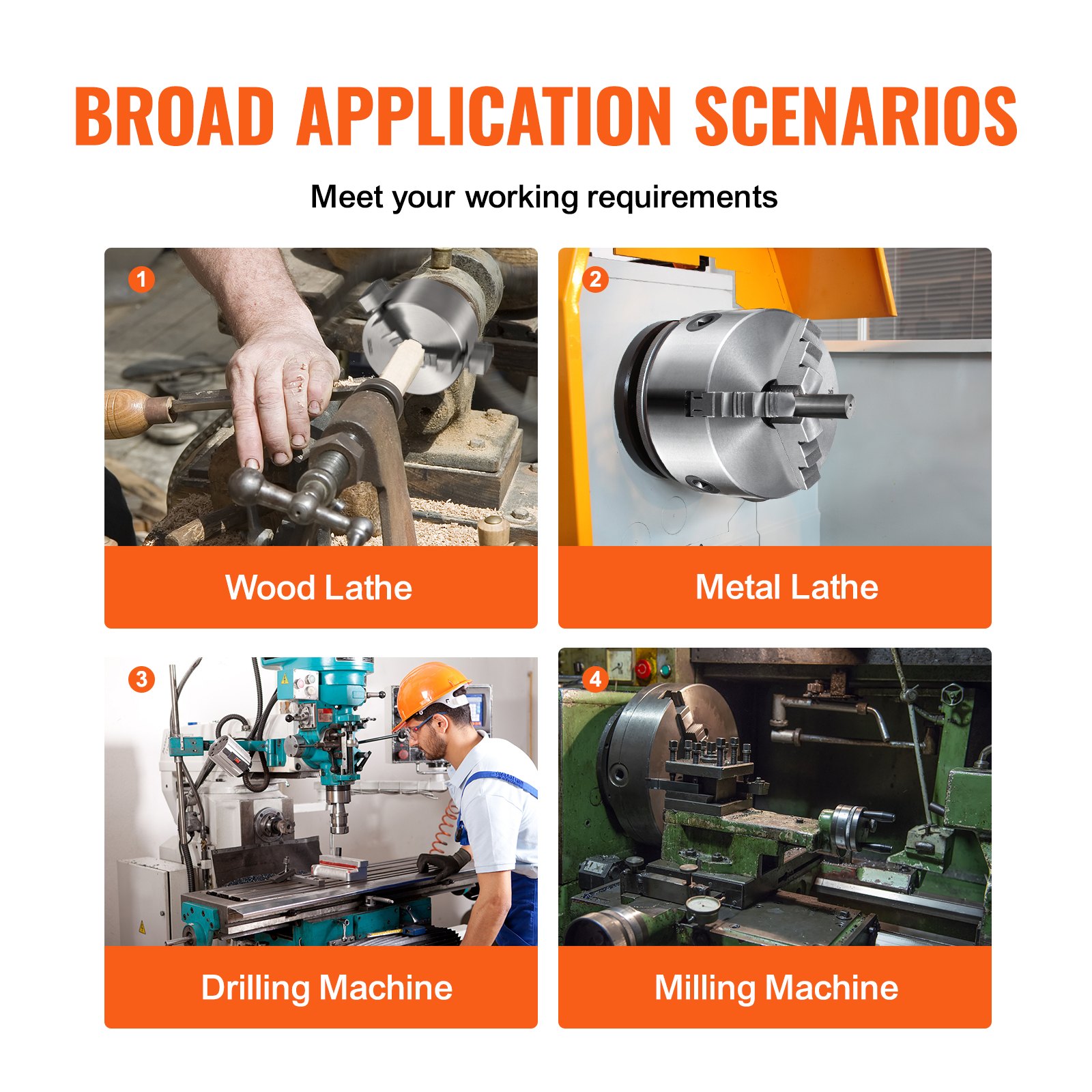

Wide Application
applications for VEVOR 3-jaw lathe chuck: 3d printer, machining center, grinding, lathe, drilling.
applications for VEVOR 3-jaw lathe chuck: 3d printer, machining center, grinding, lathe, drilling.
Whether you're working in woodworking, metalworking, drilling, or milling, our 3-jaw self-centering lathe chuck can meet your requirements for improved machining efficiencies and increased job flexibility and precision.

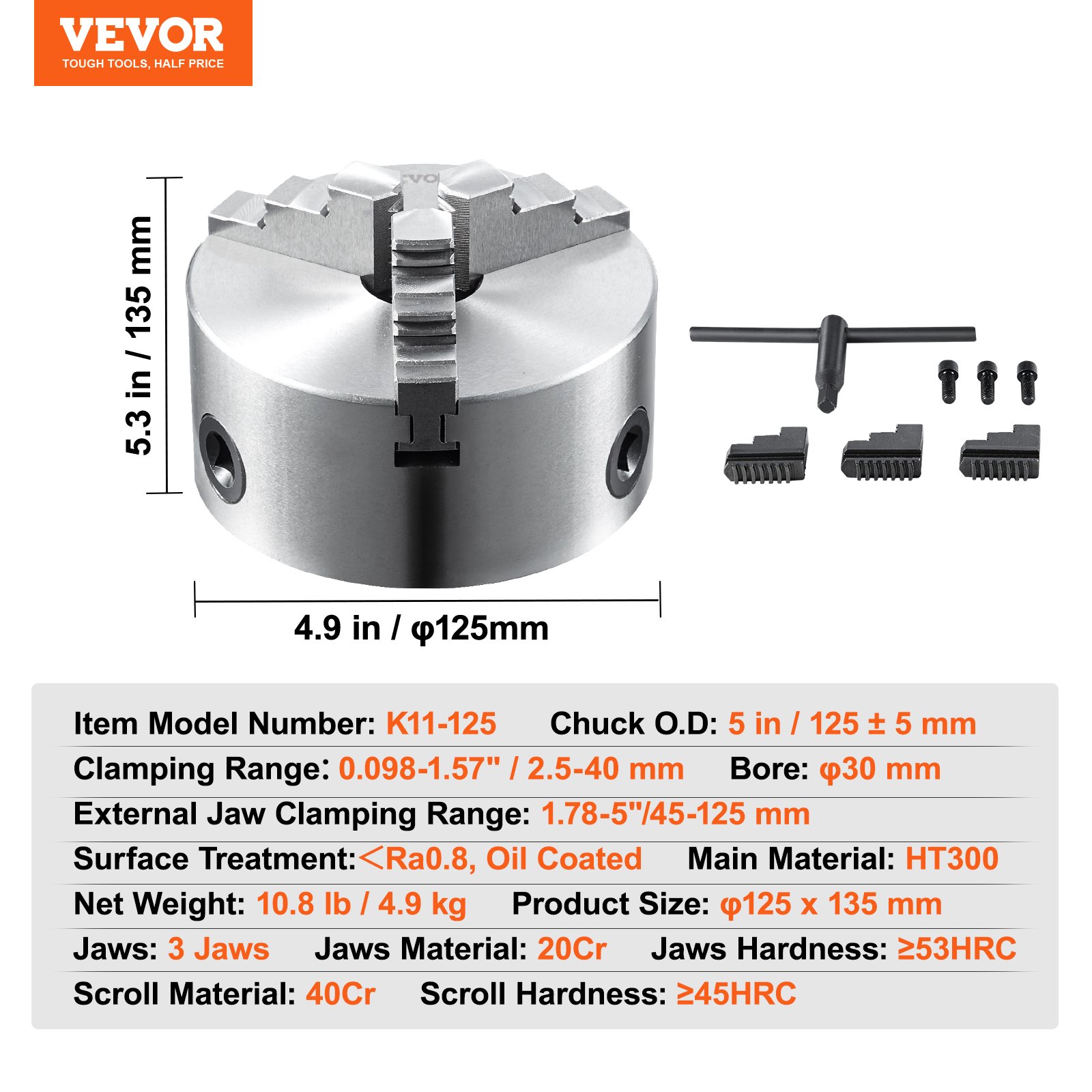

VEVOR 3-jaw lathe chuck technical specifications and package content details.
VEVOR 3-jaw lathe chuck technical specifications and package content details.

3-Jaw Lathe Chuck for Precision and Reliability

The VEVOR 3-jaw lathe chuck ensures precision and reliability for various tasks. It includes a strong construction with HT300 material and high-hardness jaws. This makes it suitable for heavy-duty applications. The self-centering mechanism provides accurate alignment every time. This chuck is ideal for both professional and hobbyist use. Our 0.1-5 inch clamping range accommodates different sizes. Its versatility also meets diverse needs. 1. Extended Life Expectancy: The 0.1-5" clamping range offers additional protection against the variable requirements of its lifespan. 2. Oil-Coated Surface: Provides additional safeguards for your tool. 3. Warranty: The chuck design's oil-coated surface ensures a consistent clamping force. These guarantee stability during operation. No matter if you're working on a lathe, a 3D printer, or a machining center, this chuck delivers consistent performance. Its ease of use and durability make it an invaluable addition to any workshop. Explore the VVP3-3Jaw lathe chuck today!


High Durability and Performance Lathe Chuck

The VEVOR 3-jaw lathe chuck is made to last and perform. It features high durability and performance. Made from HT300 material, it withstands heavy loads. The jaws, made from 20Cr, have a hardness of 53HRC. This provides robust operation and reliability. Our wide range suits various applications. The oil-coated surface provides extra protection. This includes preventing rust and wear. This chuck is ideal for lathe, 3D printer, and machining tasks. Their high performance ensures efficient and accurate work. For demanding projects, choose the VVP3-3Jaw lathe chuck.


Perfect Replacement for Various Lathe Models

The VEVOR 3-jaw lathe chuck is a perfect replacement. It fits various lathe models, offering seamless integration. This chuck has a 5-inch O.D. and clamping range. They make it versatile. You can replace older chucks on different machines. This flexibility ensures it meets diverse needs. The self-centering feature guarantees precise alignment. This is important for accurate machining. Our strong construction guarantees long-term use. This chuck is suitable for both home and commercial applications. Its ease of installation saves time and effort. The reliable performance provides consistent results. For lathe upgrades, choose the VEVOR 3Jaw lathe chuck.


Easy to Clean, Lubricate, and Maintain

It is easy to maintain the VEVOR 3-jaw lathe chuck. The user-friendly design allows for simple cleaning and lubrication. This ensures smooth operation and longevity. Disassembly is straightforward, making maintenance hassle-free. To prevent debris buildup, keep the chuck clean. That helps it maintain its performance. Proper lubrication ensures that the jaws move smoothly. This extends the lifespan of the machine. Oil-coated surfaces reduce the need for frequent maintenance. This chuck’s ease of care makes it easier to use. Whether you're working on a lathe, 3D printer, or machining center, maintenance is effortless. Choose the VEVOR 3-jaw lathe chuck.


Well Packaged and Securely Delivered

Packaging The VEVOR 3-jaw lathe chuck comes well packaged. It ensures secure delivery without any damage. During transit, the packaging protects the chuck. This guarantees it arrives in perfect condition. Secure packaging prevents any accidents. This peace of mind is invaluable for buyers. We wrap our chuck in plastic for added safety, and attention to detail ensures customer satisfaction. Prompt delivery adds to the positive experience. You can trust its reliable packaging and delivery, making it a trustworthy choice. Choose the VEVOR 3-jaw lathe chuck for an excellent e-commerce experience.


Great for Fabrication and Pipeline Work

The VEVOR 3-jaw lathe chuck excels in fabrication. It is ideal for pipeline work and various machining tasks. With its strong construction, it handles heavy loads. The self-centering feature guarantees precise alignment. This is essential for accurate machining. Our wide clamping range suits different project needs. No matter if you're working on a lathe, 3D printer, or completing assembling centers, this tool performs well. You can use it easily for reliable performance to achieve versatile results. This chuck is perfect for both professionals and hobbyists. Choose the VVP3 jaw lathe chuck for your fabrication projects.


Excellent Customer Service and Support

Customer Service and Support: VEVOR provides excellent customer service and support. This guarantees the prompt resolution of any issues with the 3-jaw lathe chuck. The company’s responsiveness adds to customer satisfaction. If there are any problems, contacting VEVOR leads to quick solutions. This support is essential for maintaining the chuck’s performance. Customers can trust the product’s quality and the brand's support.


See More

Specification

Item Model Number
K11-125
Chuck O.D
5 in / 125 ± 5 mm
Clamping Range
0.098-1.57"/2.5-40 mm
External Jaw Clamping Range
1.78-5"/45-125 mm
Fixed Thread
3-M8
Bore
φ30 mm
Surface Treatment
<Ra0.8, Oil Coated
Main Material
HT300
Net Weight
10.8 lb / 4.9 kg
Product Size
φ125 x 135 mm
Jaw
3-Jaw, 20Cr, ≥53HRC
Scroll
40Cr, ≥45HRC
Manual
Download Link
Questions and Answers
2 Questions
I ordered this and it does'nt have threads for 1"×8?
The chuck does not have threads and needs to be equipped with a connecting plate.
By vevor
Is it a plain back mount?
It is regular size.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
93 Review(s)
Clear filters
Fred Baeza Fred Baeza
Buyer
Very high quality, shipping took a while though. Hopefully that’ll get fixed. I buy at least 100 of these a year and never have an issue with anything.
Mark Mark
No problems at all.
No problems at all. Great chuck.I recommend it
dom dom
Thanks!!! Great Tool!!!
I used this chuck to make a roll out wheel for fab work and let me tell you it’s so much easier than trying to bolt up the old style. Thanks!!! Great Tool!!!
Dick Moody Dick Moody
Great product.
Great product, well packaged, arrived in good shape perfect delivery time as they promised. Have to figure out how to have it mounted because the radius for the three bolts that hold it on the plate, is slightly larger than the radius of the holes for the plate, about 3mm. I did not try to install it right away and cannot return it. Check those measurements, which they don't provide, before ordering or will end up as a very heavy paper weight.
Robinson Arias Robinson Arias
I feel I got a good deal.
see no problem with this chuck. Since several reviews indicated a malfunction because of debris inside the chuck, I immediately disassembled it upon receipt. Disassembly was simple. One review stated the jaws didn't close evenly. I think those jaws were removed and were not reassembled in the correct order. I found one small chip inside which would have never caused a problem. The chuck was well oiled, wrapped in plastic, and packaged securely. I am in the process of turning the backing plate, so I can not yet attest as to the trueness of the jaws, but, I don't foresee a problem. The OD of the chuck is larger than 6". It measured 6.424". There is one plastic piece attached. It seems to be a "dust cover" on the back side and has no mechanical function. The jaws are numbered, (1,2,3) but, the chuck itself is not numbered. I plan to just number stamp it myself. I can see this chuck giving years of service. I feel I got a good deal.
nick141 nick141
This was a perfect replacement for my table to lathe.
This was a perfect replacement for my table to lathe. It was a little stiff, but I disassembled it, a thorough cleaning, and lubricated it. It was spot on and the runout was pretty accurate (within .001"). I'm looking at one of their 4 jaw chucks now...
Kevin Callaghan Kevin Callaghan
He quality of the chuck is good
he quality of the chuck is good, but bought a vevor brand wood lathe and had trouble getting the t bar to mount. Now I have this 4 inch 3jaw chuck that does not have the correct size t handle. I will post a video later. Update, I contacted vevor about the chuck key, and they quickly fixed the problem. If you have any issues, I recommend contacting them because I contacted Amazon about it and it went nowhere.
jacksequipt2012 jacksequipt2012
Seems to be good,
seems to be good, great finish, smooth to operate, comes with the handle, extra set of outside jaws, very pleased
Neil Neil
Works great!
Great for fabrication on pipeline
ricochetrichard ricochetrichard
Prompt shipping.
Prompt shipping and a good product for the price.
