Name: VEVOR 8 Inch Stroke Electric Actuators DC 12V with Mounting Bracket Heavy Duty 6000N/1320LB Actuators for Recliner TV Table Lift Massage Bed Electric Sofa
Brand: VEVOR
SKU: XXZXQ6000NXC200MMV0
Price: 39.99 USD
Availability: Discontinued
Rating: 4.9 (158 reviews)

VEVOR 8 Inch Stroke Electric Actuators DC 12V with Mounting Bracket Heavy Duty 6000N/1320LB Actuators for Recliner TV Table Lift Massage Bed Electric Sofa

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive $5.00 off on your first three app orders. Only App.

Download Now

Exclusive $5.00 off on your first three app orders. Only App.

Scan the QR code to download

About this item

【PREMIUM QUALITY】- Type: Heavy-duty actuator; Stroke Length: 8"; Travel Speed: 5 mm/s; Power: DC 12V; Limit Switch: Built-in; This linear actuator features φ24 mm thick aluminum alloy tube and the metal construction for functional load capacity and durability. It is sturdy, well-sealed, and has IP44 level protection. Notice: We recommend using our product with a power supply with DC 12V output voltage and 8-9A output current.
【RETRACT & EXTEND FUNCTION】- This electric linear actuator can powerfully lift or down recliner, industrial equipment, etc. Retracted length 14.7" and extended length 22.6". Stop at any place you want. Metal gears make movement more smooth.
【POWERFUL MOTOR RUN】- Equip with a strong 6000 N motor(most powerful motor on the market). Provide max.6000 N pushing force and 4000 N pulling force. Works with only 48dB, quiet, and not to create annoying sound.
【QUICK & EASY ASSEMBLY】- It is quick to attach this 12-volt linear actuator to electric devices. Reliable performance & stable running. It also has two limit switches on each side to protect the motor.
【DIVERSE USE SCENARIOS】- It can be used to open doors, lift tables, raise flat screens, adjust recliners for the headset, footrests, relaxation beds, and floor cleaning machines, mobile traffic signs. It can adapt stretchers, procedural tables, hospital beds, wheelchairs.

See More See Less

VEVOR electric actuator next to a reclining massage chair in a modern living room.

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

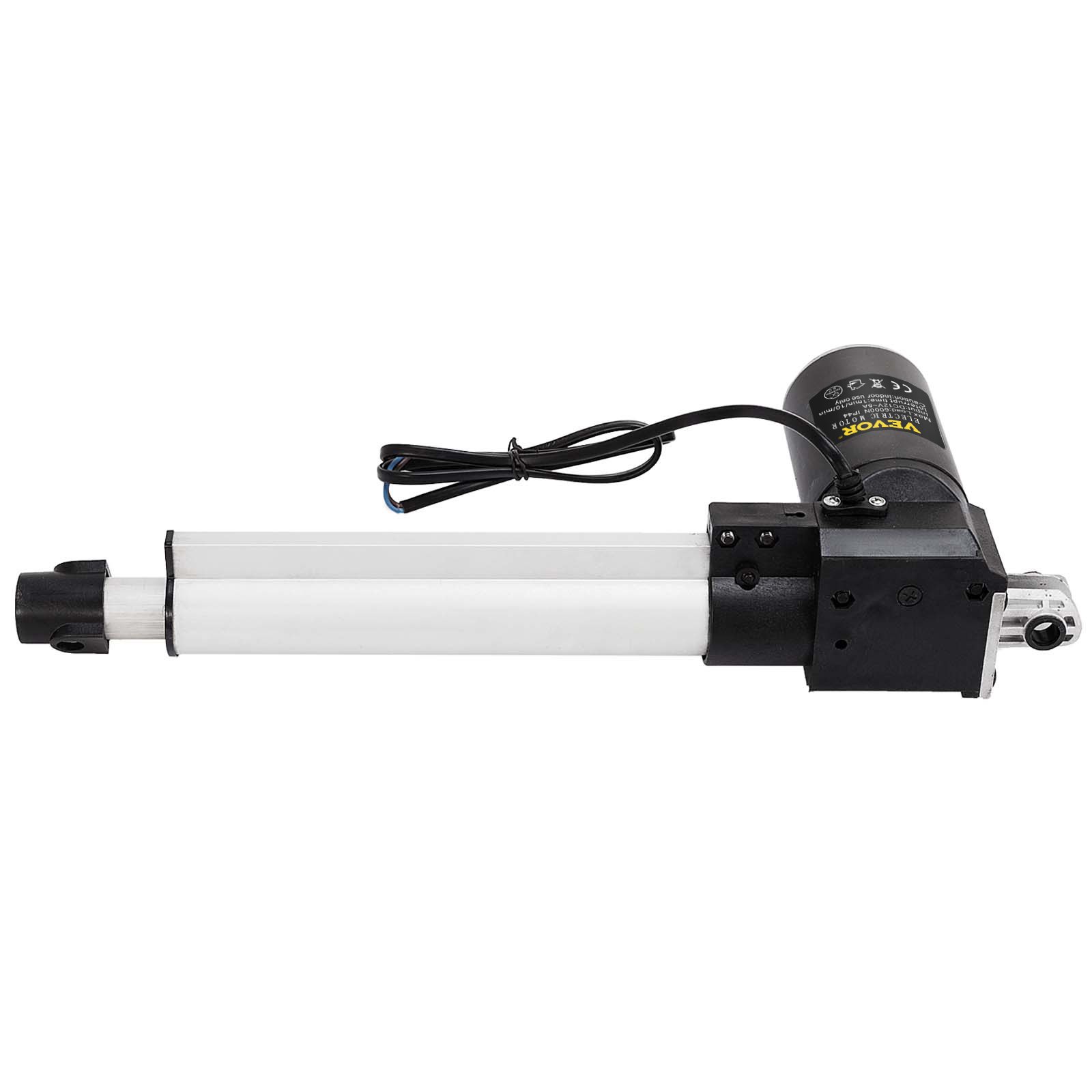

VEVOR electric actuator with attachments and wires.

6000 N Heavy-Duty Actuator

DC 12V linear actuator is used to get the purpose of moving things in a straight line(up and down, or side to side). Our 8" product is a robust and reliable actuator with 6000N power. It has built-in limit switches and designed with IP44 level protection. It is suitable for a massage sofa, recliner, TV lifter, lifting table, electric window opener, etc. Quite a practical device for heavy-duty works.

Premium Quality
Retract & Extend
Powerful Motor Run
Quick & Easy Assembly

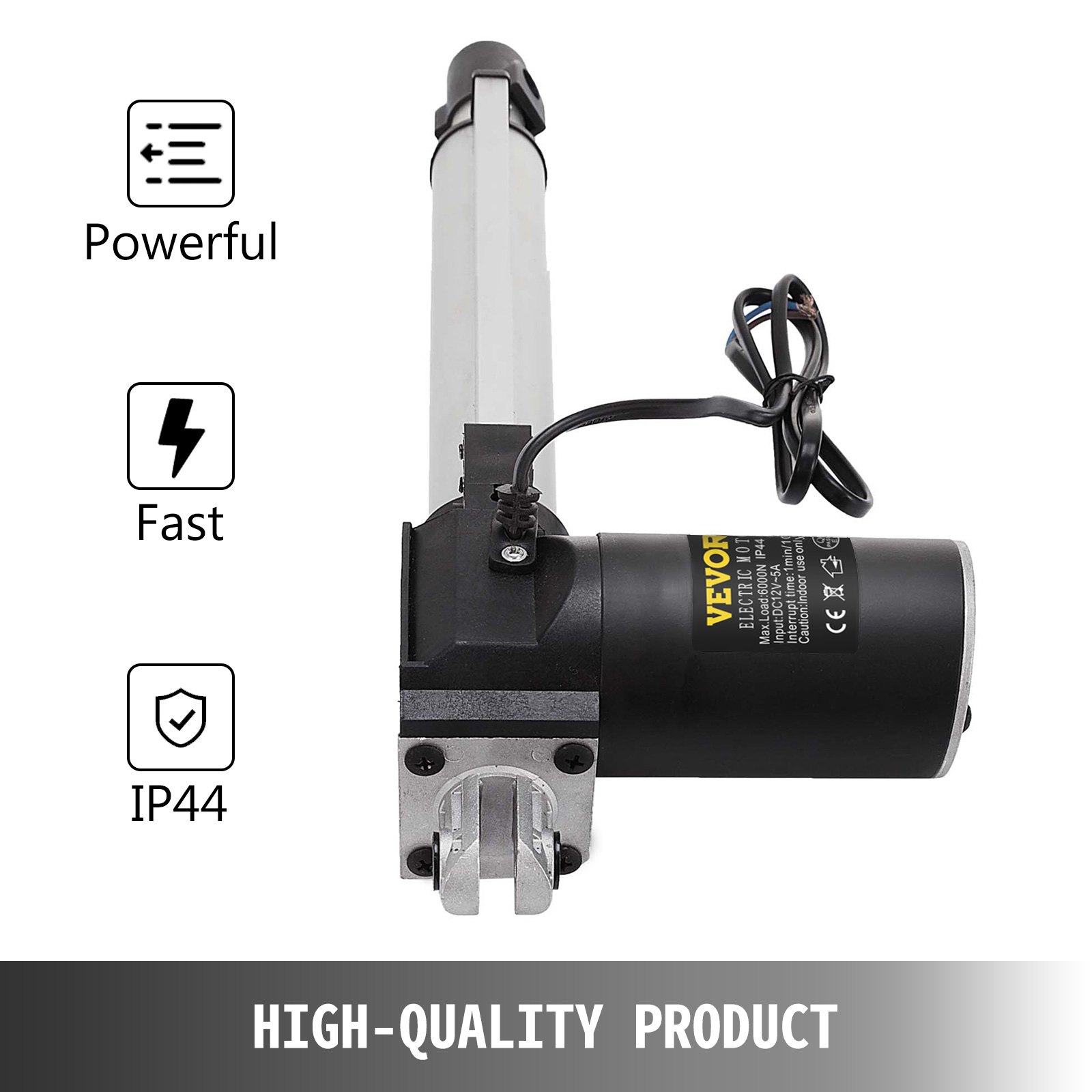

High-Quality Product

DC 12V electric actuator can run stably and has an excellent performance. Quicker than most products and has IP44 level protection.

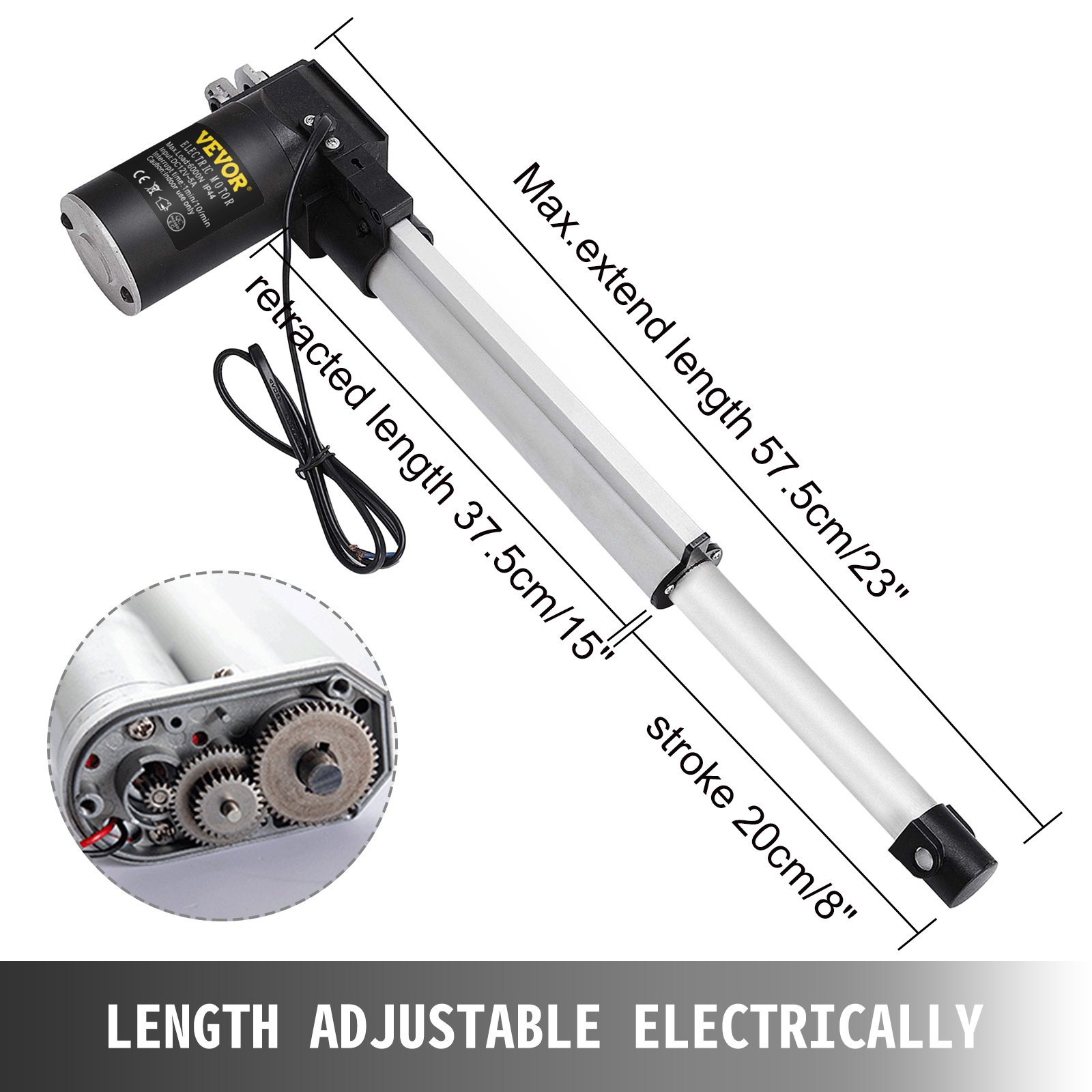

VEVOR electric actuator with adjustable length and internal gear mechanism.

Length Adjustable Electrically

This actuator supports both the retraction and extension movement of the electric device. 8" stroke length, 14.7" retracted length, and 22.6" extended length.

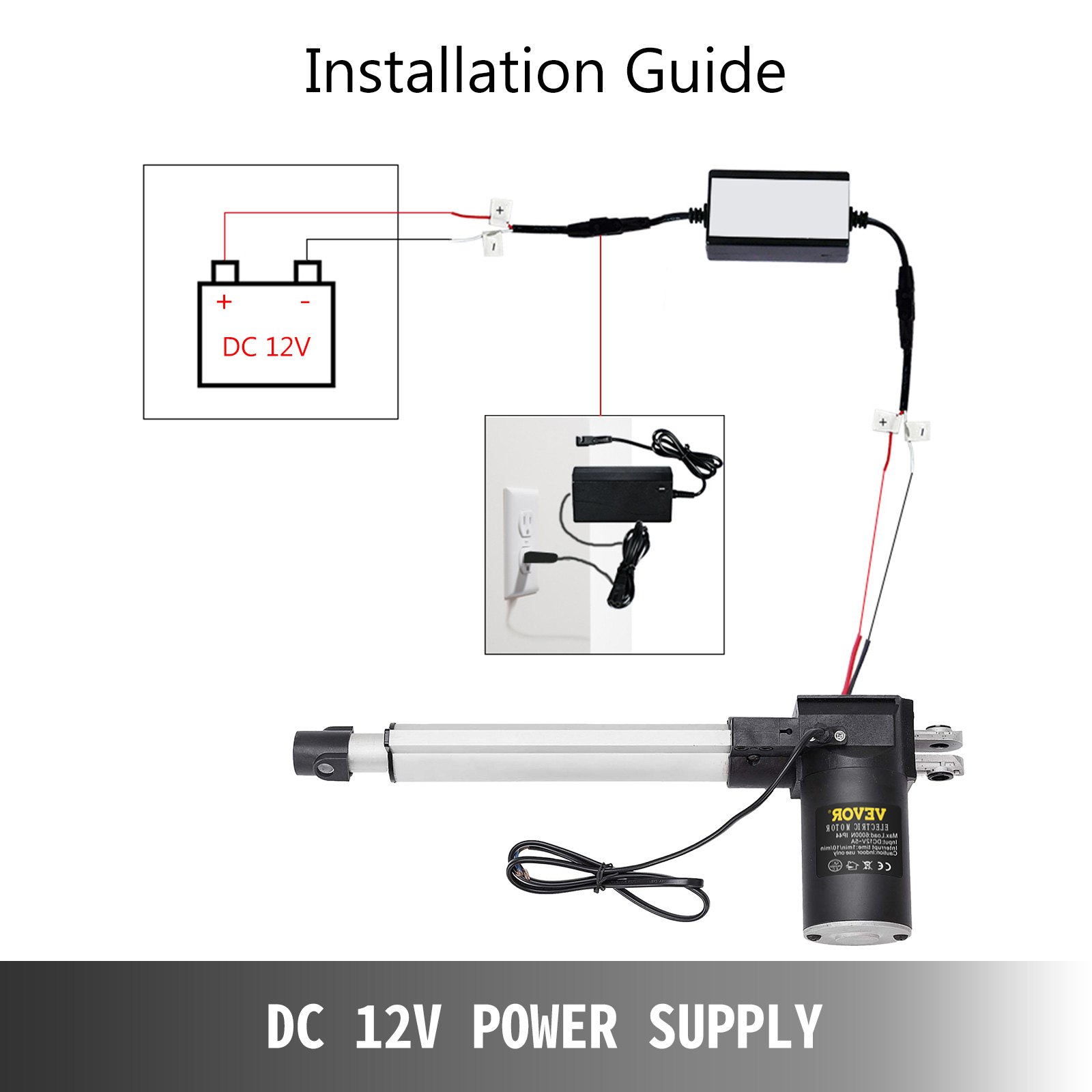

DC 12V Power Supply

This actuator should be connected to DC 12V power supply to protect the motor and central parts of the electronic device.

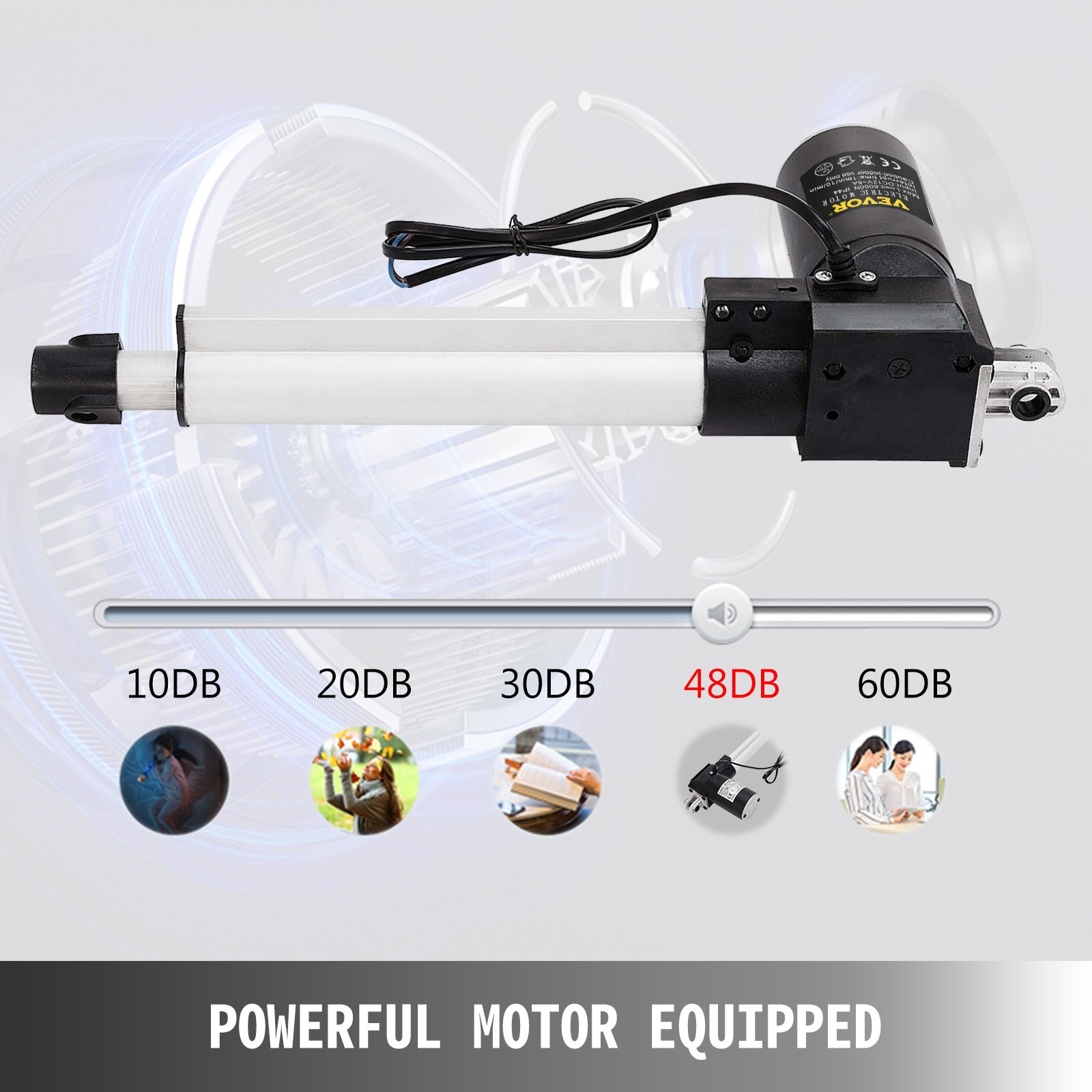

VEVOR electric actuator with powerful motor, 48db noise level slider, and product images.

Powerful Motor Equipped

We deploy a heavy-duty 6000 N motor for lifting or down. It travels at 5 mm/s speed, while silent on working.

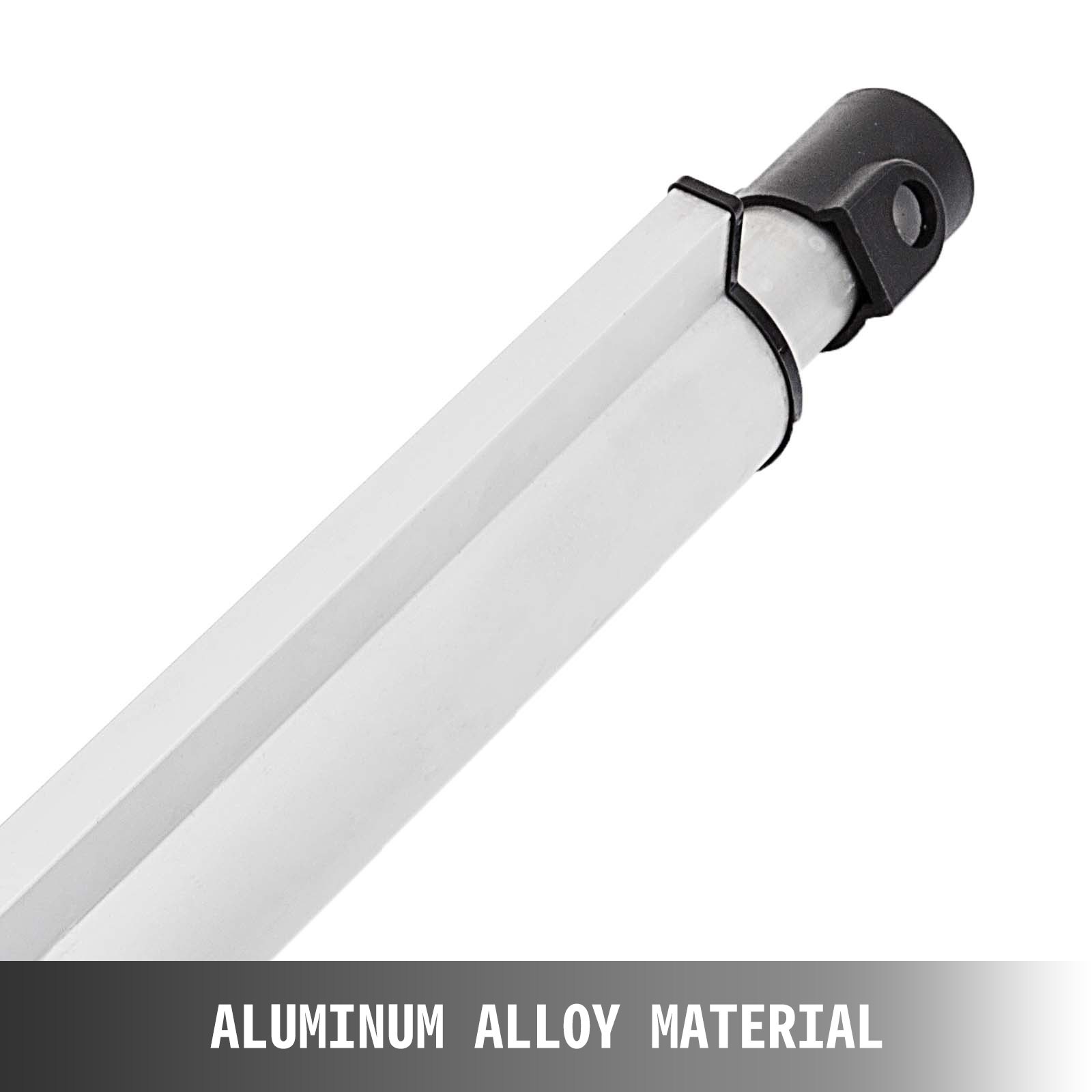

Aluminum Alloy Material

This product adopts the excellent aluminum alloy case, which is thick, sturdy, and powder-coated on the surface for anti-rust.

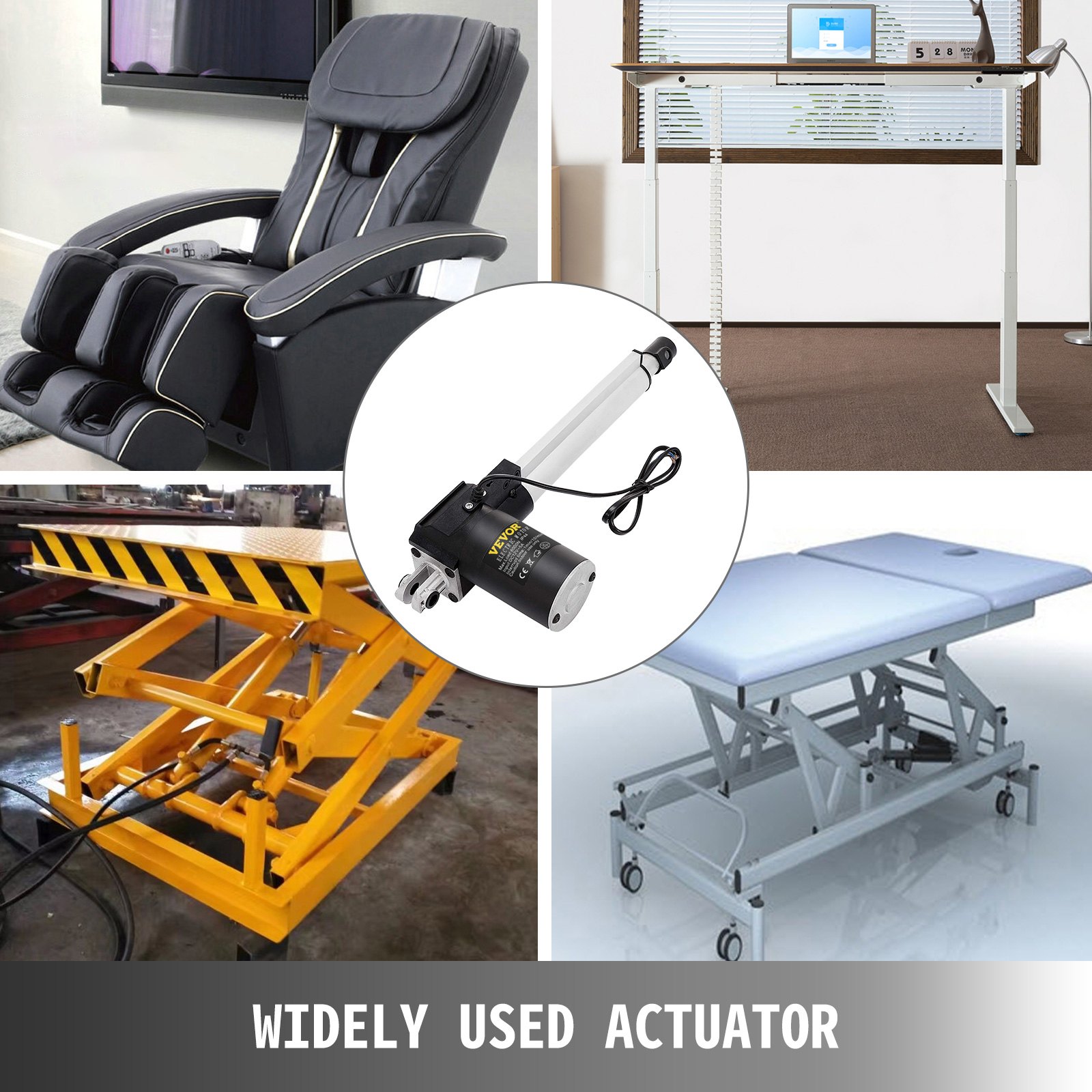

VEVOR electric actuator for massage chairs, standing desks, lifting tables, and hospital beds.

Wide Application Places

It can be used for some heavy works in different fields like home furniture, hospital & health care, industry, etc.

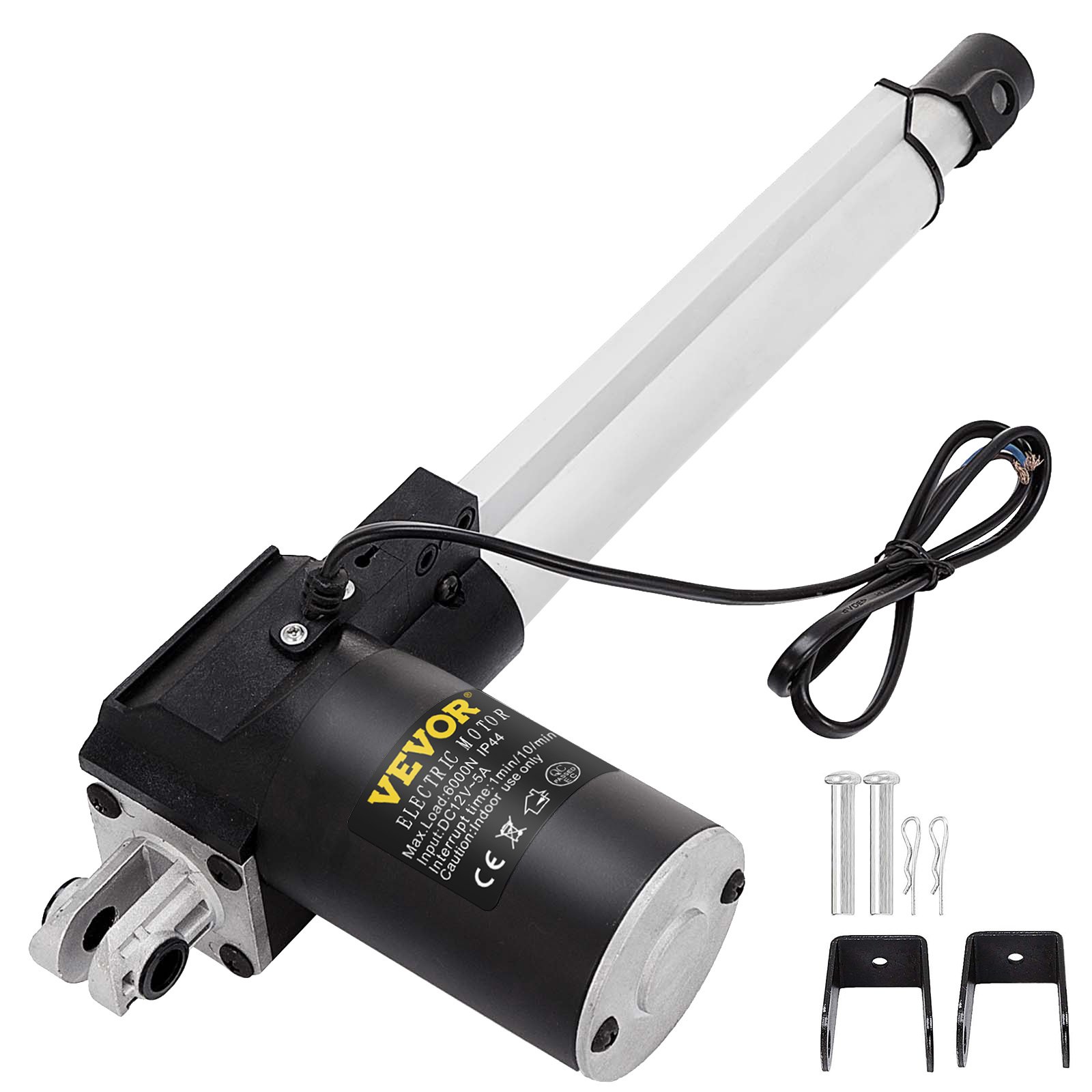

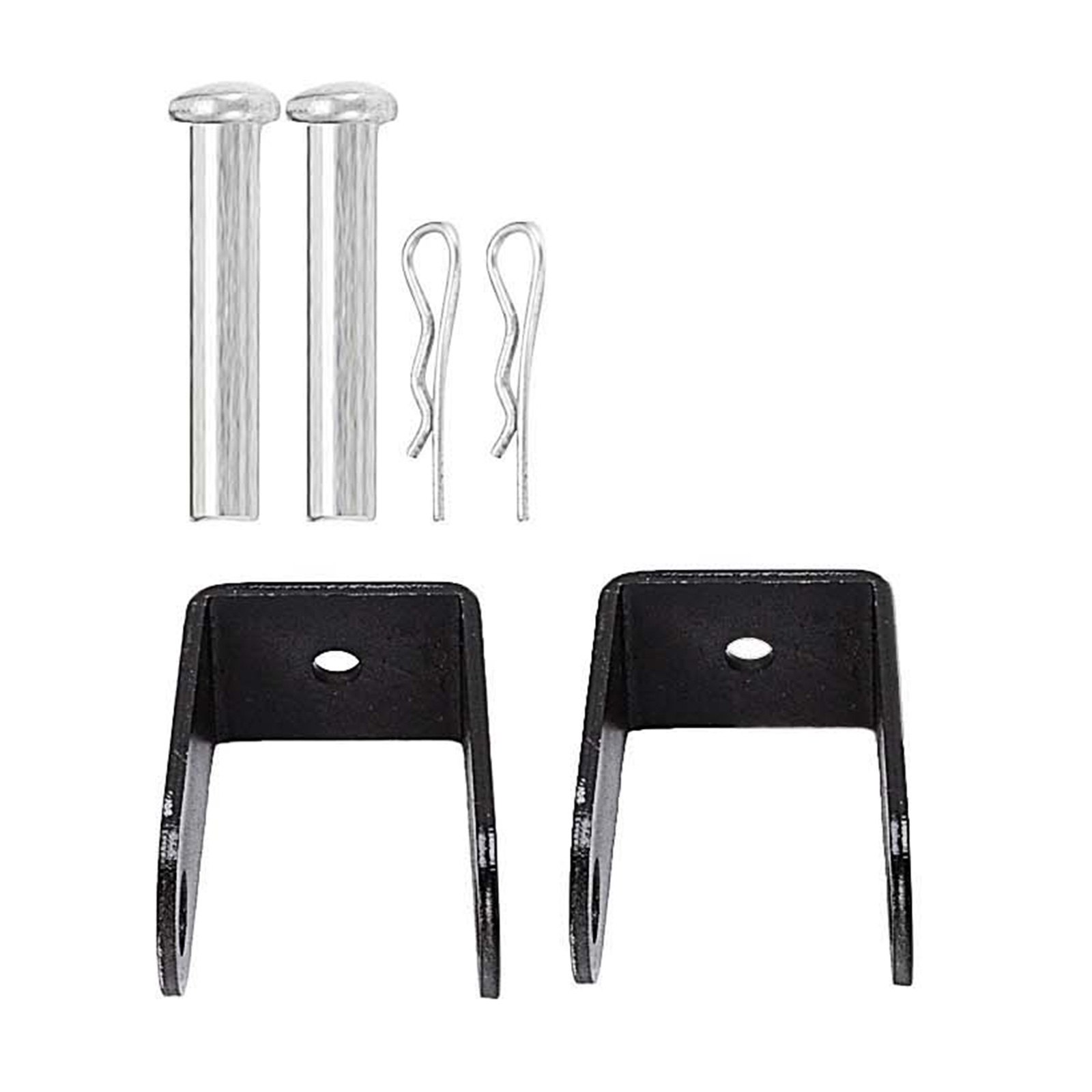

VEVOR electric actuator mounting brackets and hardware set.

Package Content

1 x Linear Actuator
1 x Screw Set
2 x Mounting Brackets

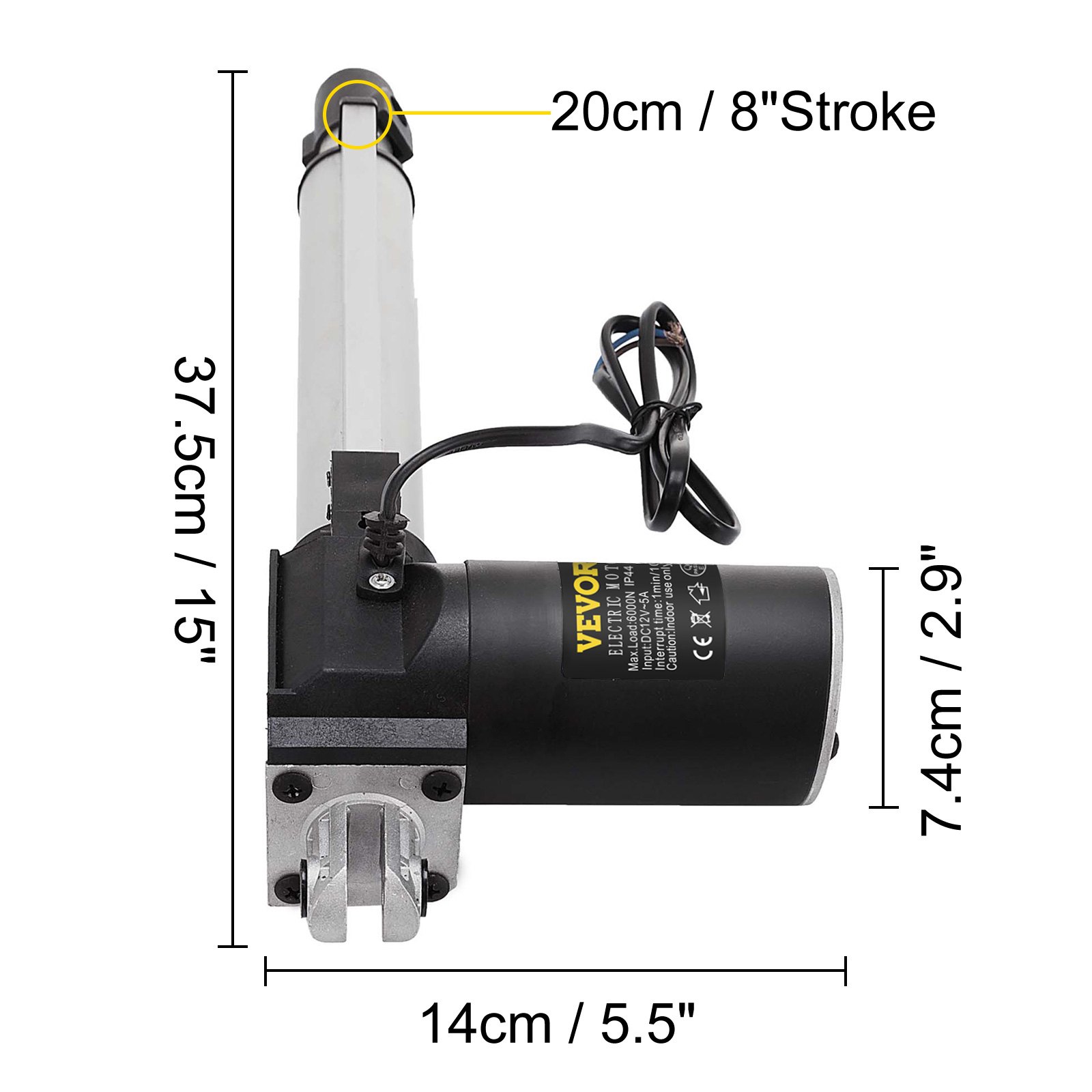

VEVOR electric actuator with dimensions: 20cm stroke, 37.5cm length, and 7.4cm width.

Specifications

Stroke Length: 200 mm/8"
Max. Pushing Force: 6000 N
Max. Pulling Force: 4000 N
Travel Speed: 5 mm/s
Input Voltage: DC 12 V
Min. Retract Length: 375 mm/14.7"
Max. Extend Length: 575 mm/22.6"
Material: Aluminum Alloy

This one takes about 15-20 seconds to cycle, which is great for our adjustable computer cart. A little noisier than the first one I purchased, but it's a trade off for the speed. I would purchase this again should the need arise.

Works great for my project (engine hatch opener) seems to be good quality and function . Made from aluminum and powder coated brackets . Very happy with purchase

The electric actuators are ok. They have built in limit switches that's a nice feature. Fairly powerful. However very slow. Over a minute to extend. Same to retract. The price of it, kinda makes up for the speed. Its a good value for the money.

Customer Reviews

4.9 Out of 5

Based on 158 reviews

Ratings by Features

Price 4.8
Quality 4.7
Features 4.7
Easy to Use 4.7
See More See Less

158 Review(s)

Clear filters

Jimmy

Know the weight of what you want to move or lift

Product arrived on time and was as advertised. Good value for the money

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Kelvin

Owner

Steve

The actuator works great and is as described, it is very strong and can lift what is is rated for, it is well worth it.

Curtis Hook

Great product

Michael Schaffer

As advertised

Works great

Penfold Motors Inc

electric actuators

Michael N

Snowblower lift, hommade.

This item has very good quality. It was easily adapted to my need and does a great job. The only problem , for me, is that it is slower at extension/retraction movement. In the long run I will be replacing this actuator with a faster one.

STEIN

Powerful and quiet.

I used this on a project of my own design and so far it’s worked very well. It seems to have plenty of power. From the sounds it doesn’t seem as though I am working it too hard or stressing it beyond its limits. It’s quiet which for me doesn’t matter as I use it outdoors. I did have to make a cover for it as it is not waterproof, but no big issue. As long as the gearing holds up I don’t anticipate any problems. It’s a fair value.

Nathan W. Ricks

Only for indoor projects.

I sent it back because I needed it for an outside project. When it arrived, it clearly stated for indoor use only! That information wasn't in the description when I ordered it!

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

Don

Actuator Lift

Well made , good price , quite , very strong . The only thing I don't like it is extremely slow , travel was in metric ??? takes at least 60 seconds to go the 16" .
