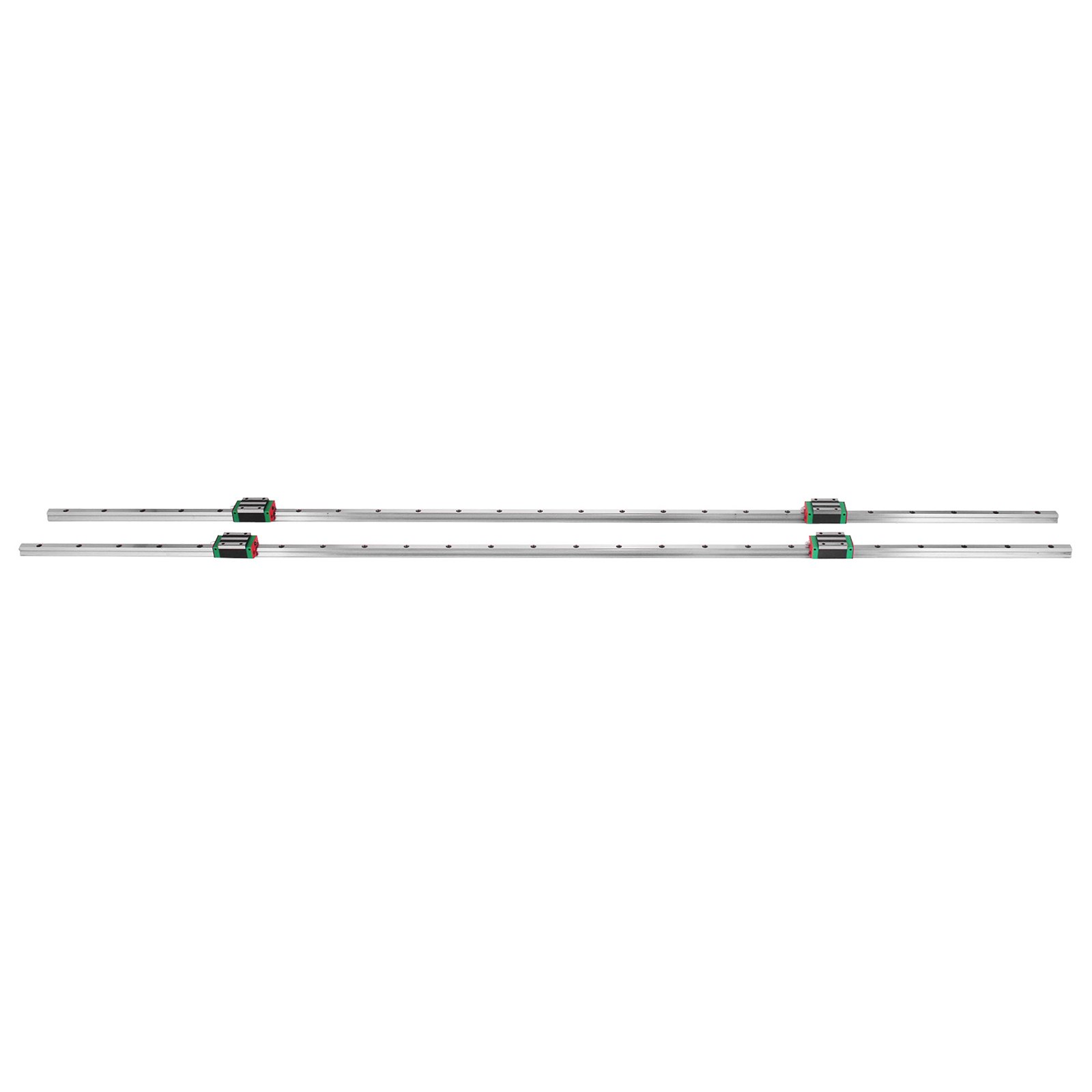

VEVOR linear rail hsr15 with red and green blocks on metal rails. VEVOR linear rail hsr15 for automation machinery highlighted with various machine types. VEVOR linear rail hsr15 showcasing steel material, bearing block, and alloy support. VEVOR linear rail hsr15 showcasing high stability and rigidity for precision guiding systems. VEVOR linear rail hsr15 assembly guide with pre-drilled mounting holes. VEVOR linear rail hsr15 emphasizing mute operation with ball bearing structure. VEVOR linear rail hsr15, 59in length, block dimensions 2.4x1.3x1.1 inches.
HSR15X1500ZXFGTZ1V0

VEVOR Linear Rail HSR15-1500mm 2pcs Linear Guideway Rail 4X Square Type Carriage Bearing Blocks?Linear Rail Support for 15mm Slotted Bearings

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • HSR15-1500 mm Linear Guide Rail: This linear guide rail set includes one piece of 1500 mm/59" long HSR15 rail shafts and 4 bearing blocks with smooth sliding.
  • High-Quality Steel Material: Linear bearings are made of quality bearing steel. Beautiful and anti-rust surface treatment ensures durability, high hardness, and stiffness—smooth running, low noise, and non-pollution.
  • Premier Linear Guiding System: Linear guides and rails provide a smooth and precise guiding surface on which the rolling element of a linear bearing rides. It helps to build an economical linear guiding system and is designed to achieve high precision linear motion, low friction coefficient.
  • Easy to Install: Steel support rail with pre-drilled holes for easy mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.
  • Wide Application: The linear guide rail is widely used in CNC RouterCNC Grinding machine, the industrial machinery printing, paper-processing, automatic machine, X-Y table, factory automation equipment, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Rail HSR15-1500mm 2pcs Linear Guideway Rail 4X Square Type Carriage Bearing Blocks?Linear Rail Support for 15mm Slotted Bearings

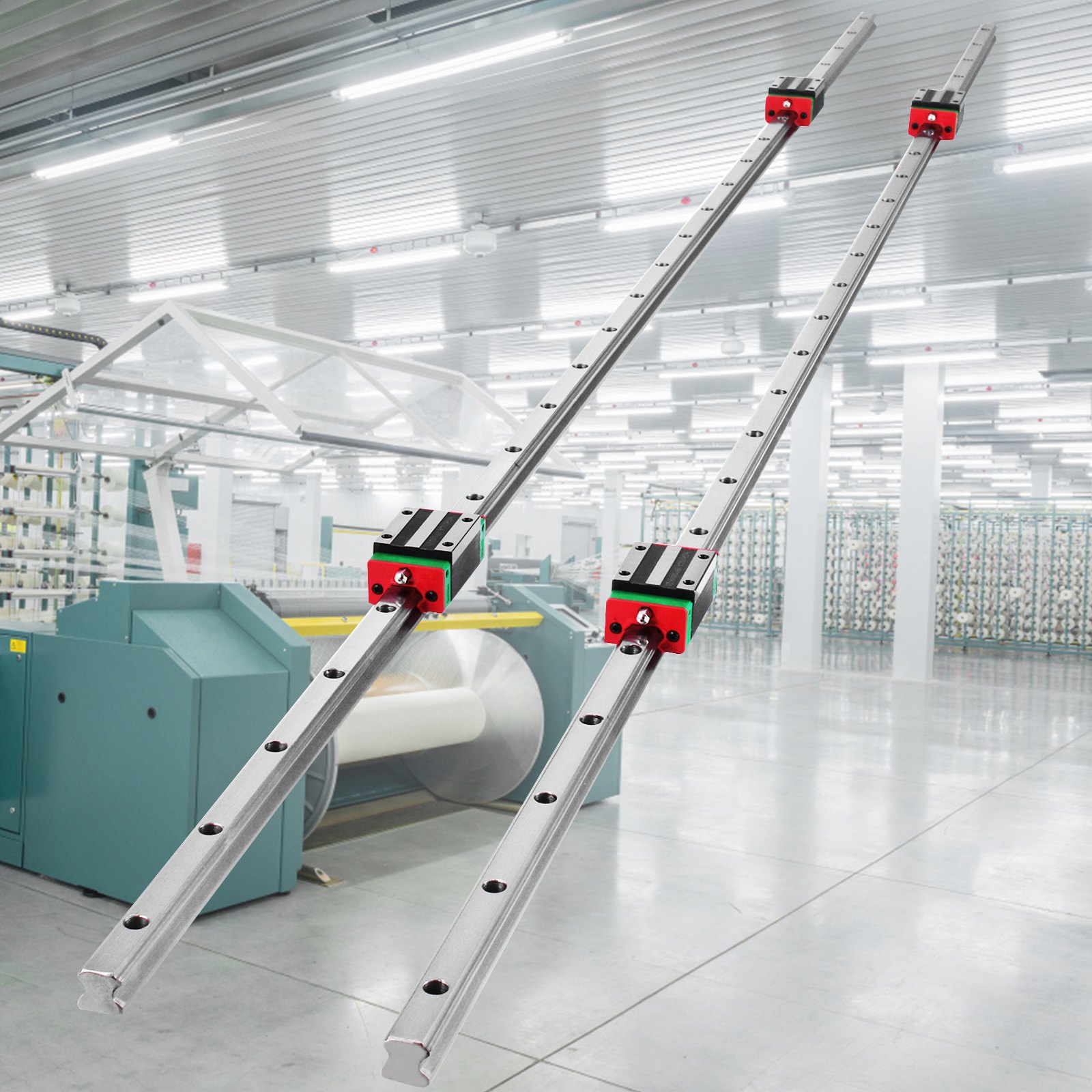

VEVOR linear rail hsr15 in a bright industrial setting, showcasing high precision.

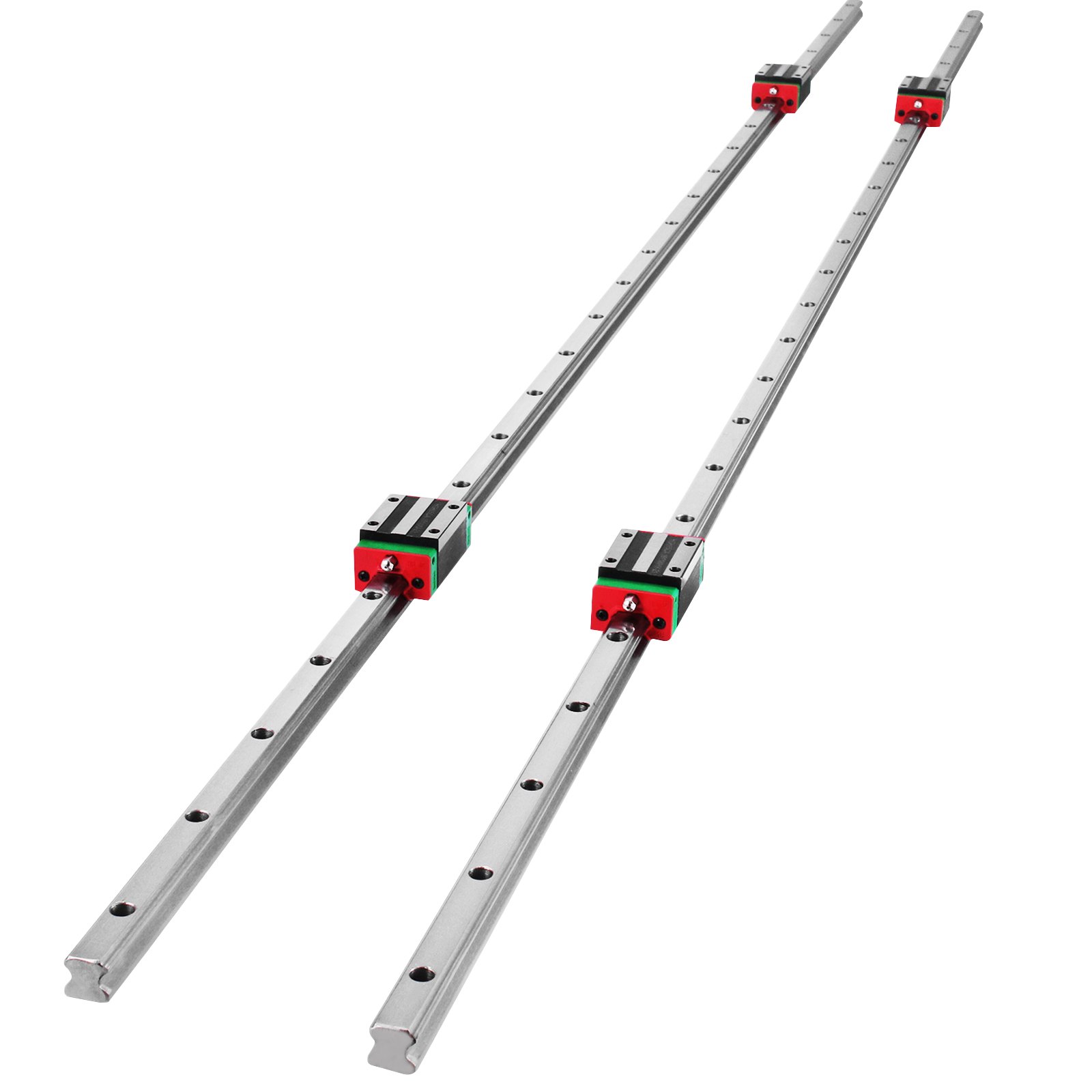

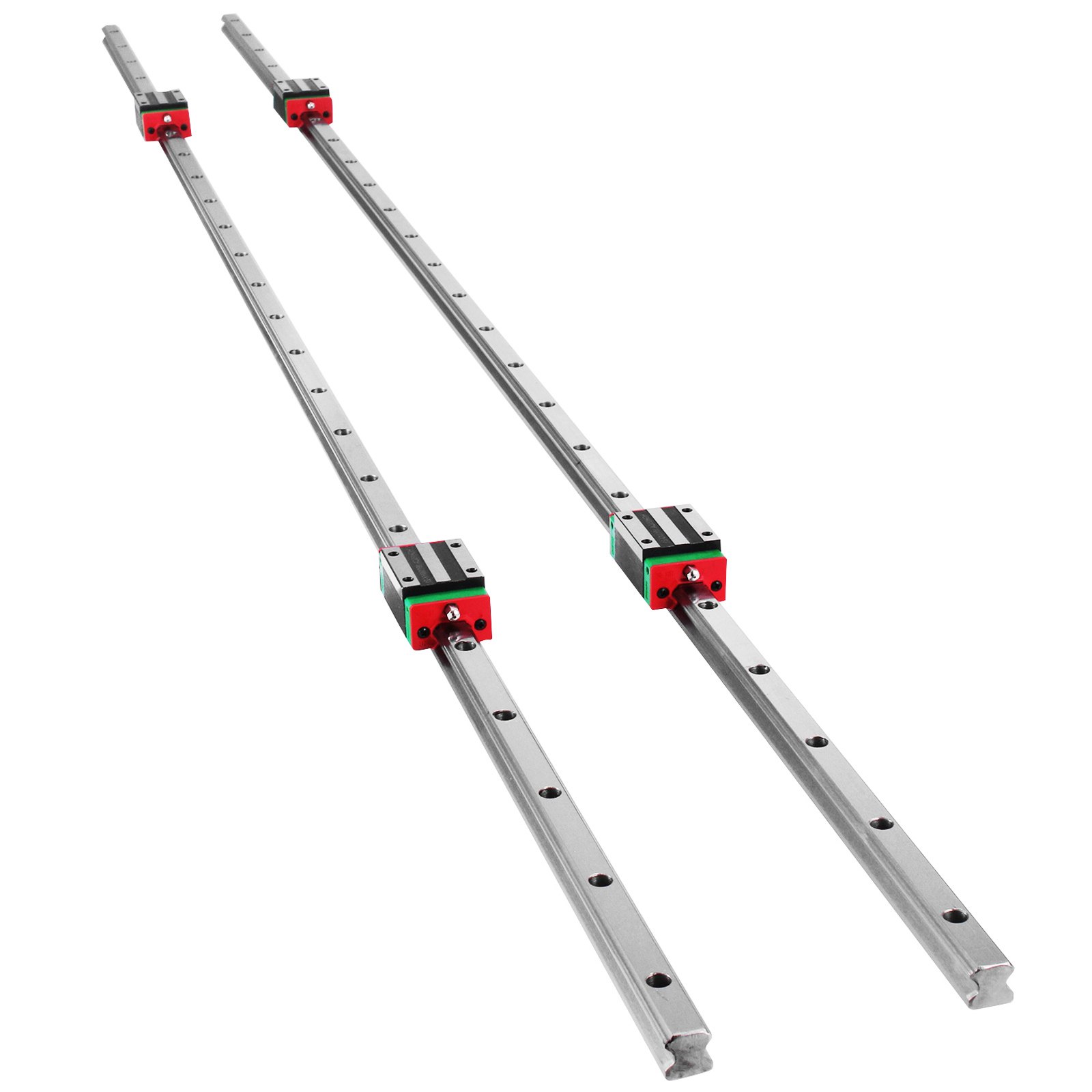

two precision VEVOR linear rail hsr15 with red and green bearing blocks.
HSR15-1500 mm Linear Guideway Rail w/ Square block
4 Bearing Blocks & Smooth Operation & Low Noise
The linear motion products and technology are widely used for automatic mechanical facilities under common accuracy. HG series linear guideways are designed with load capacity and rigidity higher than similar products with circular-arc groove and structure optimization.
  • HSR15-1500 mm Linear Guide Rail
  • High-Quality Steel Material
  • Premier Linear Guiding System
  • Easy to Install
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR linear rail hsr15 showcasing fine workmanship, high stability, solid and durable.
Fine Workmanship
Linear slide kit includes 1 x 59 in / 1500 mm long HGH20 rail shaft and 4 x bearing pillow blocks. The bearing steel central axle is solid and durable, which makes it has a long service life.

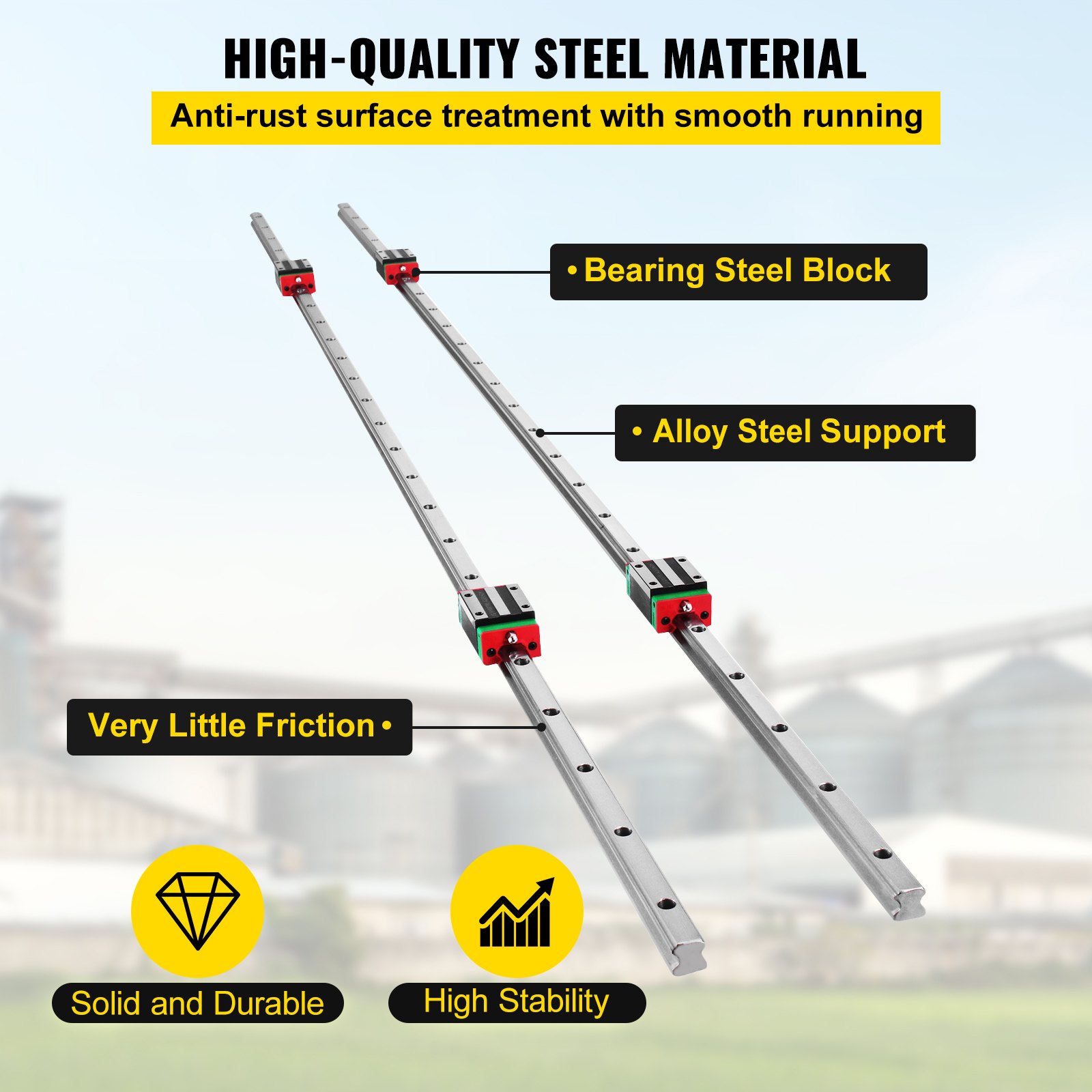

VEVOR linear rail hsr15 with steel block and aluminum alloy support.
Heavy-Duty Material
This bearing rail is constructed with high-quality steel material. The rust-proof surface treatment provides smooth running. What's more, the heatproof bearing steel blocks can work at high temperature and has very little friction.

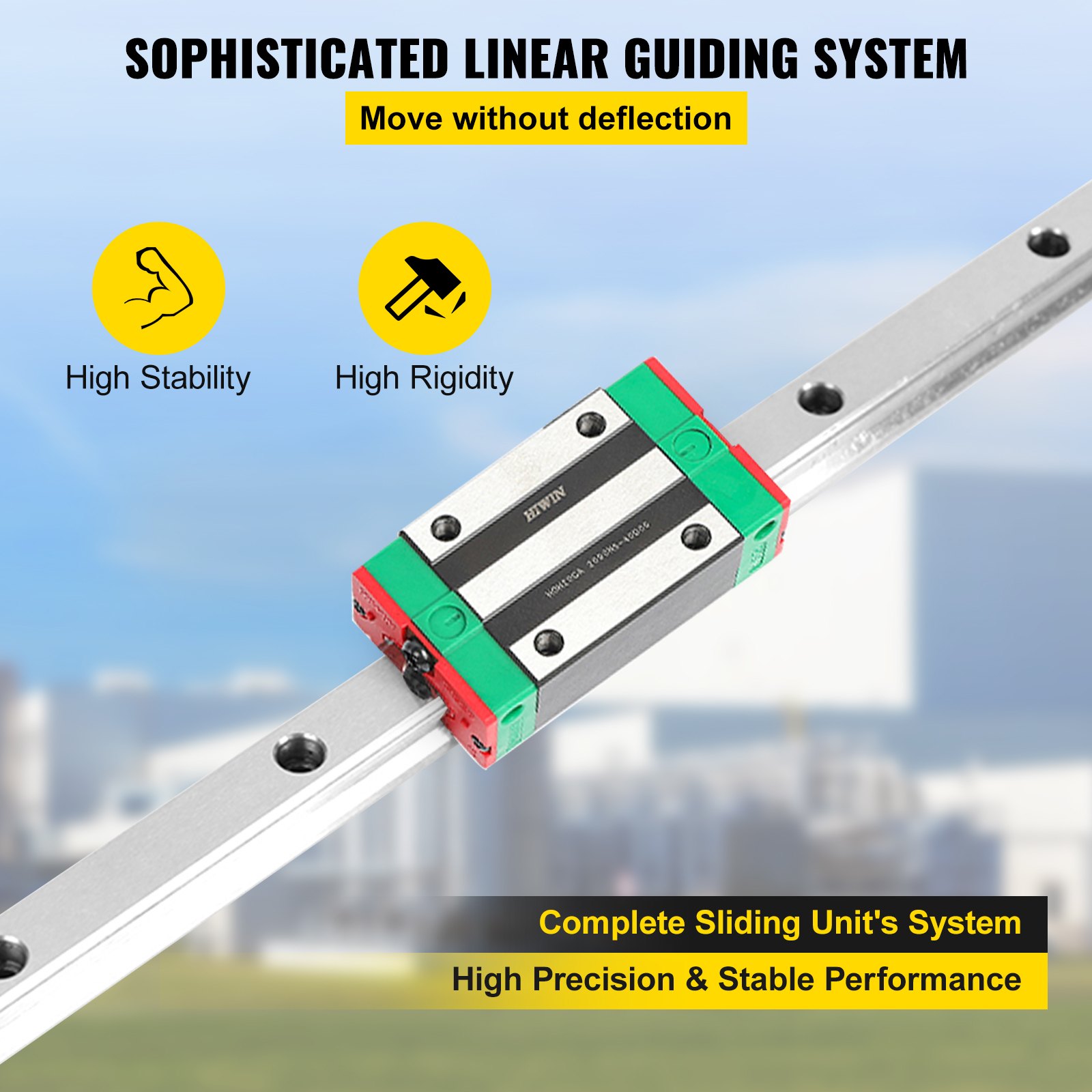

VEVOR linear rail hsr15: complete linear guiding system with heavy-duty and high rigidity benefits.
Complete Linear Guiding System
The complete sliding unit's system with a beautiful and anti-rust surface treatment makes your process move without deflection. The four-row arc groove design has high rigidity and strong bearing capacity.

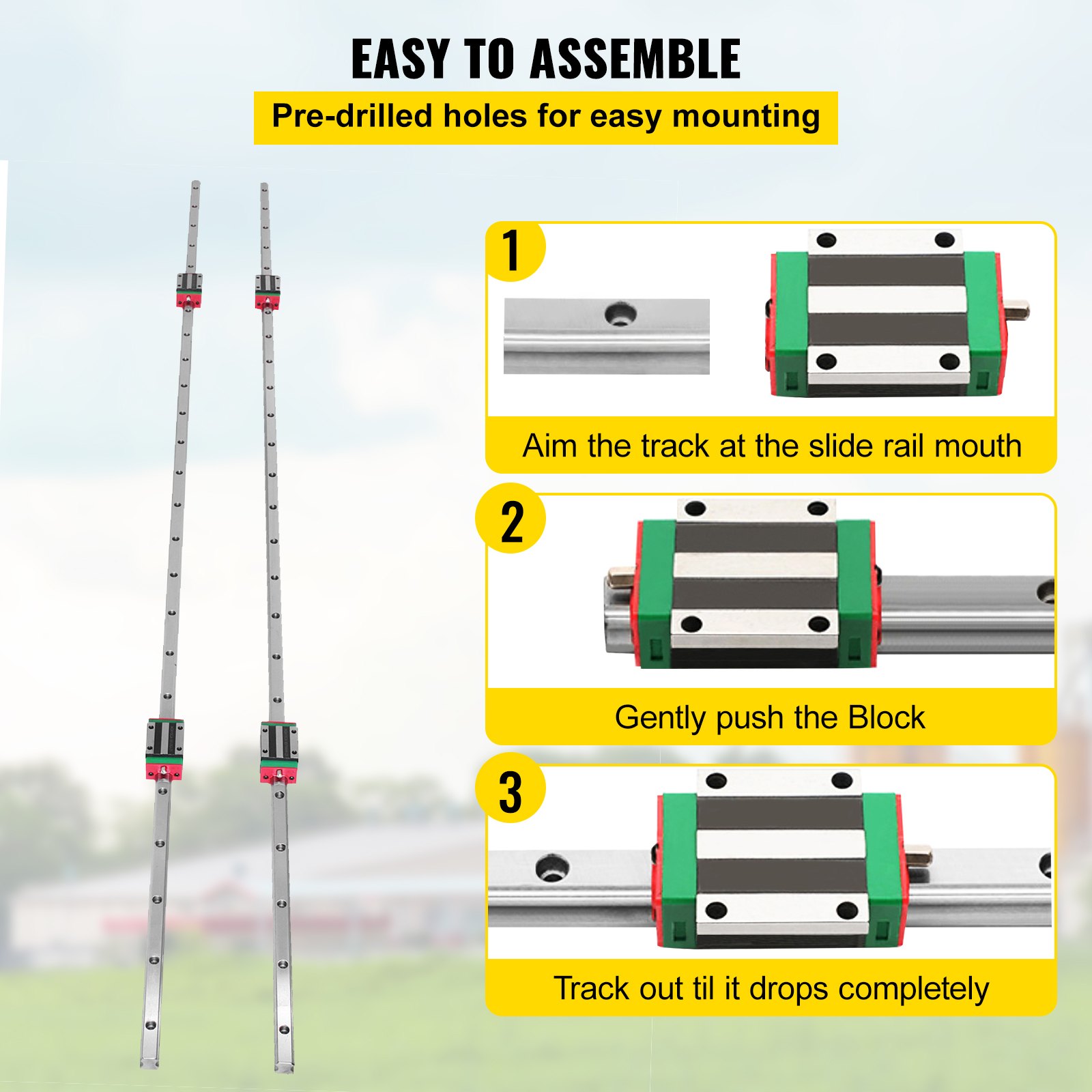

simple installation steps for VEVOR linear rail hsr15, showing precise alignment and assembly.
Simple Installation
The linear rail set prefers careful installation that, however, is easy. After three steps, it is ready to run for a long time.

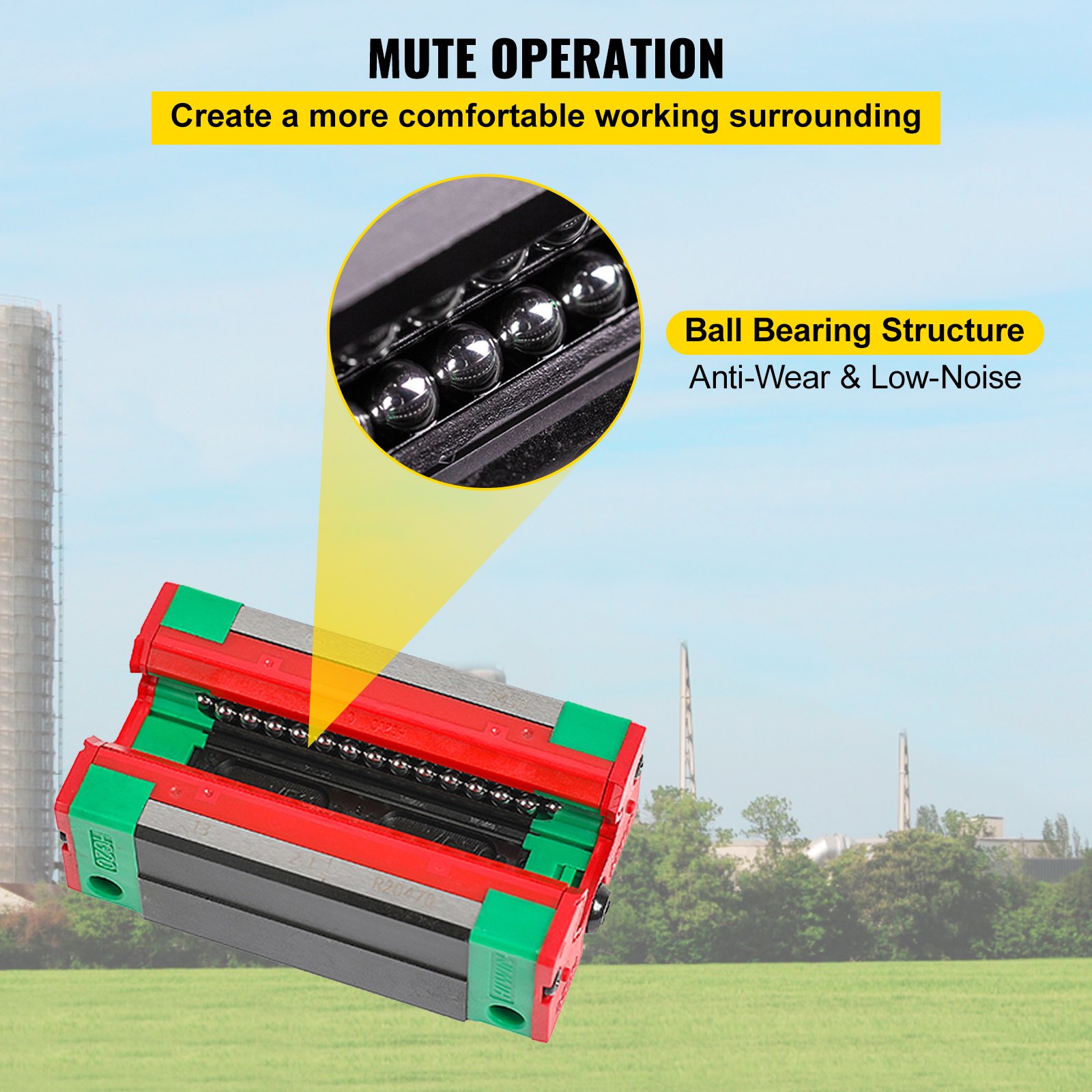

VEVOR linear rail hsr15 with quiet operation and anti-wear, low-noise ball bearings.
Quiet Operation
Our professional and technical linear slides and blocks can stabilize the original rail. As a result, move smoothly without deflection, minimal wear, and low noise while using.

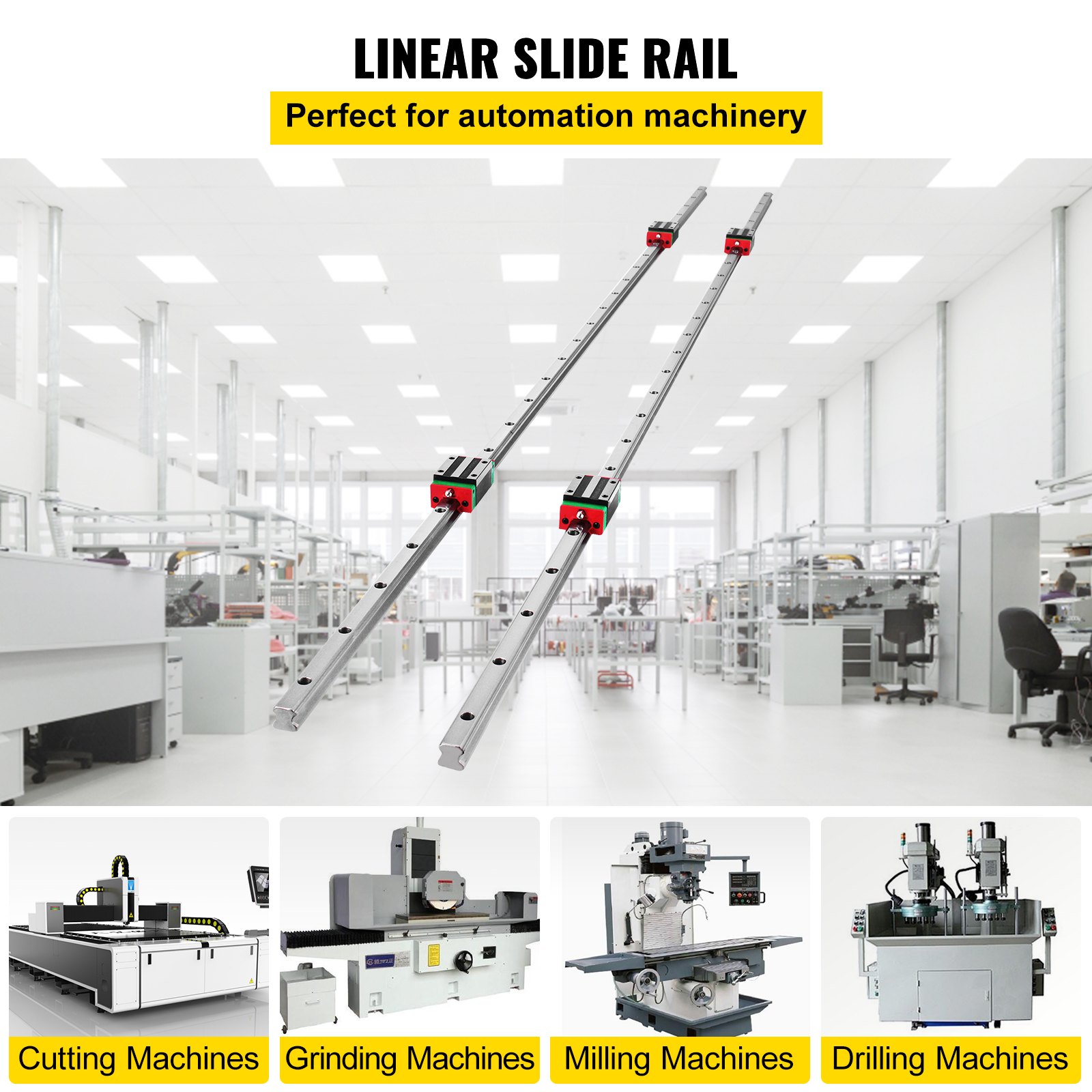

extensive application: cutting, grinding, milling, drilling machines using VEVOR linear rail hsr15.
Extensive Application
The linear rail performs well in automation machinery such as DIY CNC routers, lathes, machine tools, bending machines, etc.

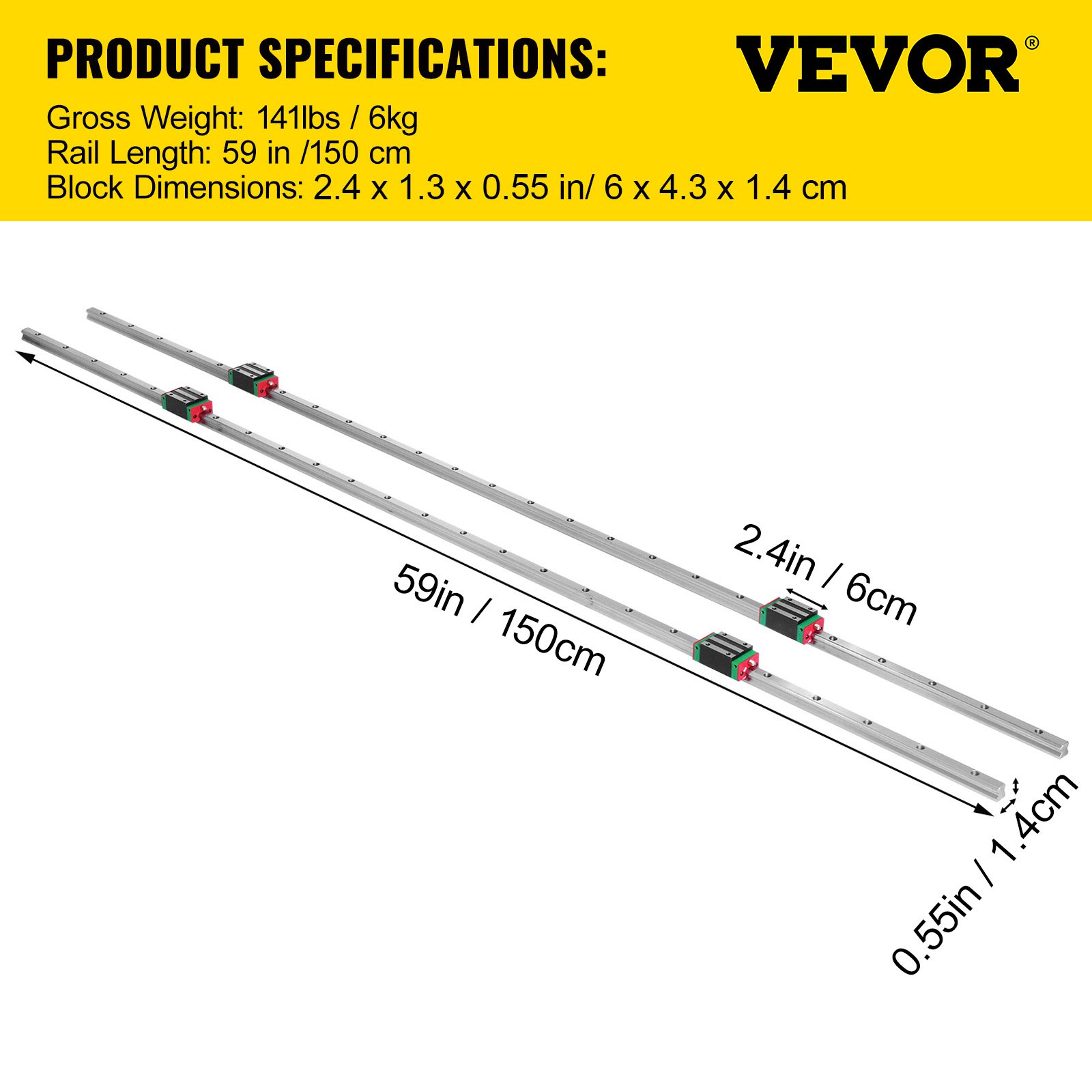

VEVOR linear rail hsr15, 59in length, 2.4in width, and 1.1in height.
Specifications
  • Type: Linear Actuator
  • Model: 15CA
  • Guide Length: 59 in /1500 mm
  • Packing Size: 60 x 5 x 3 in / 152 x 12 x 7 cm
  • Gross Weight: 13.2 lbs/6 kg

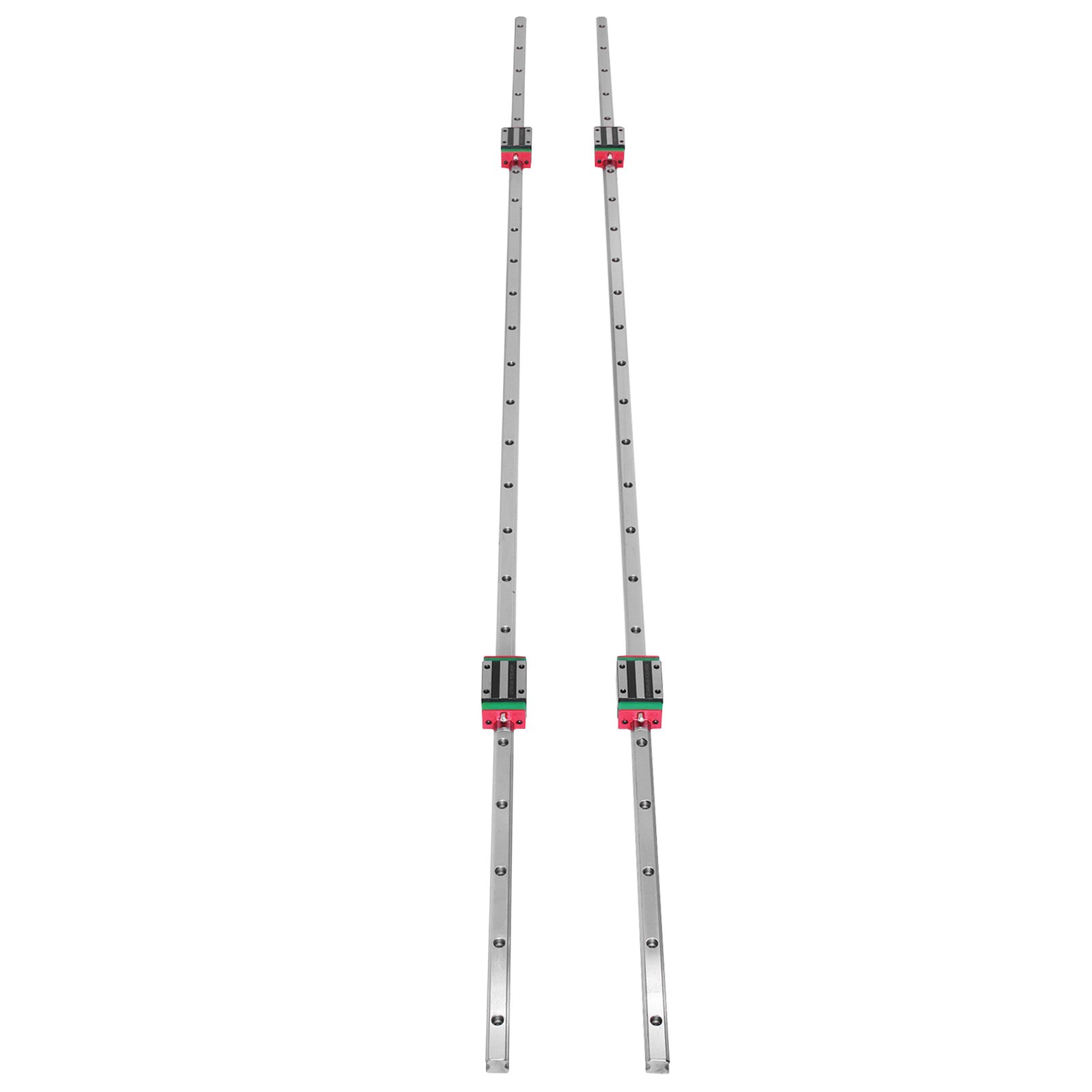

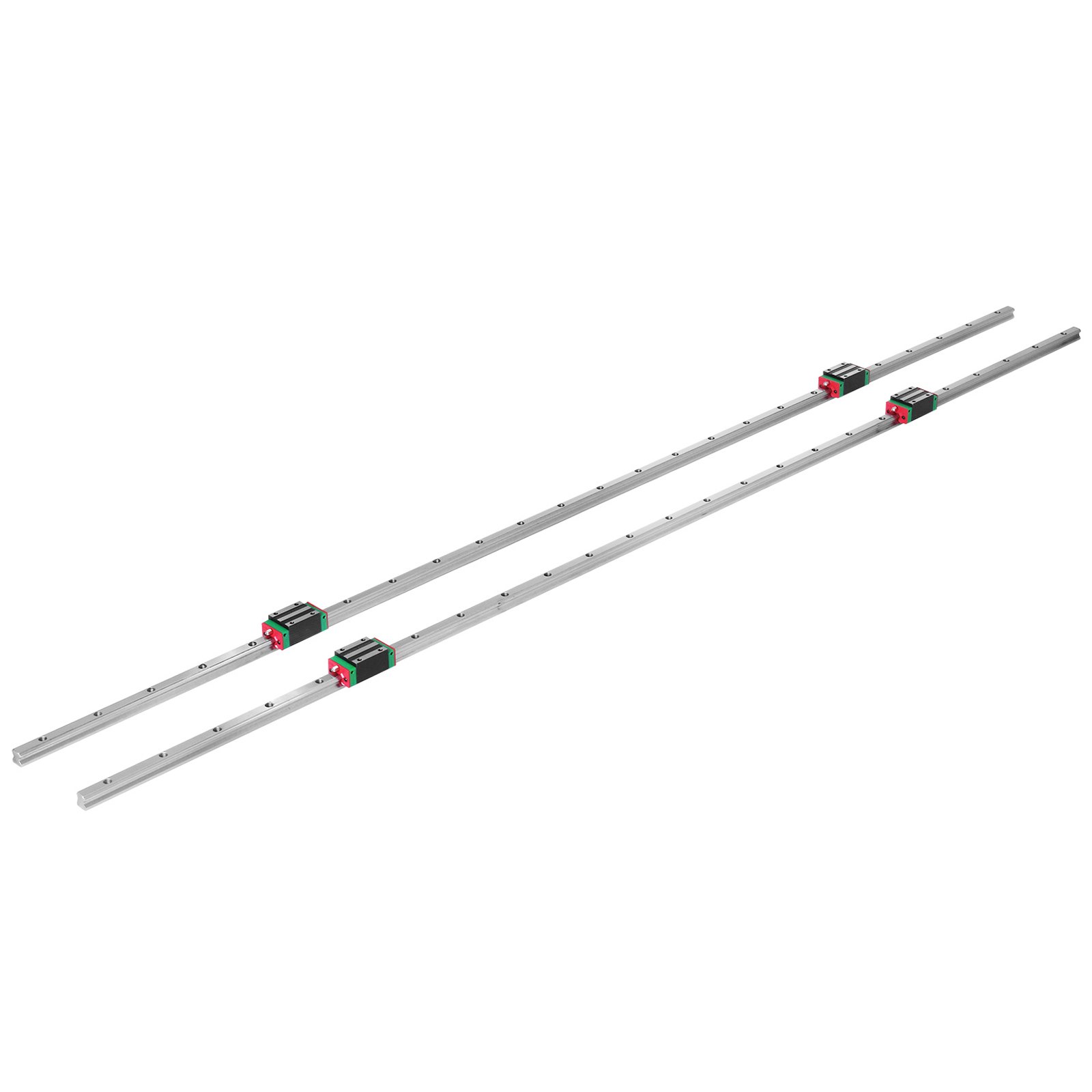

two VEVOR linear rail hsr15 with red blocks on silver rails.
Package Content
  • 2 x Rail
  • 4 x Blocks
VEVOR linear rail hsr15 in a bright industrial setting, showcasing high precision.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
two precision VEVOR linear rail hsr15 with red and green bearing blocks.
HSR15-1500 mm Linear Guideway Rail w/ Square block
4 Bearing Blocks & Smooth Operation & Low Noise
The linear motion products and technology are widely used for automatic mechanical facilities under common accuracy. HG series linear guideways are designed with load capacity and rigidity higher than similar products with circular-arc groove and structure optimization.
  • HSR15-1500 mm Linear Guide Rail
  • High-Quality Steel Material
  • Premier Linear Guiding System
  • Easy to Install
VEVOR linear rail hsr15 showcasing fine workmanship, high stability, solid and durable.
Fine Workmanship
Linear slide kit includes 1 x 59 in / 1500 mm long HGH20 rail shaft and 4 x bearing pillow blocks. The bearing steel central axle is solid and durable, which makes it has a long service life.
VEVOR linear rail hsr15 with steel block and aluminum alloy support.
Heavy-Duty Material
This bearing rail is constructed with high-quality steel material. The rust-proof surface treatment provides smooth running. What's more, the heatproof bearing steel blocks can work at high temperature and has very little friction.
VEVOR linear rail hsr15: complete linear guiding system with heavy-duty and high rigidity benefits.
Complete Linear Guiding System
The complete sliding unit's system with a beautiful and anti-rust surface treatment makes your process move without deflection. The four-row arc groove design has high rigidity and strong bearing capacity.
simple installation steps for VEVOR linear rail hsr15, showing precise alignment and assembly.
Simple Installation
The linear rail set prefers careful installation that, however, is easy. After three steps, it is ready to run for a long time.
VEVOR linear rail hsr15 with quiet operation and anti-wear, low-noise ball bearings.
Quiet Operation
Our professional and technical linear slides and blocks can stabilize the original rail. As a result, move smoothly without deflection, minimal wear, and low noise while using.
extensive application: cutting, grinding, milling, drilling machines using VEVOR linear rail hsr15.
Extensive Application
The linear rail performs well in automation machinery such as DIY CNC routers, lathes, machine tools, bending machines, etc.

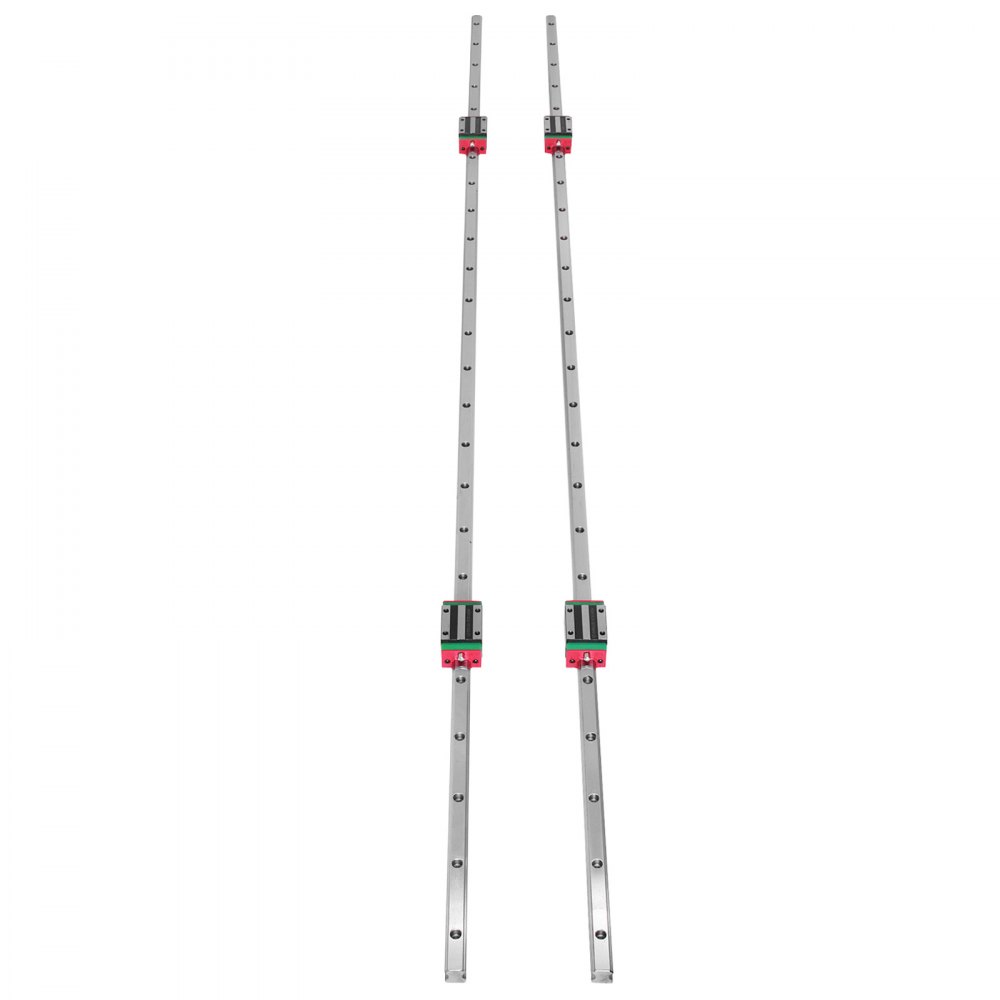

two VEVOR linear rail hsr15 with red blocks on silver rails.
Package Content
  • 2 x Rail
  • 4 x Blocks
VEVOR linear rail hsr15, 59in length, 2.4in width, and 1.1in height.
Specifications
  • Type: Linear Actuator
  • Model: 15CA
  • Guide Length: 59 in /1500 mm
  • Packing Size: 60 x 5 x 3 in / 152 x 12 x 7 cm
  • Gross Weight: 13.2 lbs/6 kg

Linear Rail HSR15-1500mm Provides Strong and Smooth Motion for CNC Projects

This rail offers a consistent and strong performance. It is ideal for both professional and DIY CNC setups, with the rails helping to achieve high accuracy. Using the Linear Rail HSR15-1500mm ensures efficiency in your CNC projects.


Square Type Carriage Bearing Blocks Ensure Tight Fit and Robust Assembly

The square type carriage bearing blocks are designed to fit tightly. This ensures the rail remains stable during operations. The tight fit contributes to the overall strength of the rail. These blocks are made for precise alignment. They hold up well under high torque and heavy loads. Installation is easy with these blocks. It's made from quality materials, ensuring long-term use. These bearing blocks are essential for secure and tight assembly. They are essential for improving the accuracy of any mechanical setup.


Linear Rail HSR15-1500mm Support Suitable for High Torque and Heavy Load Applications

This feature is important for projects requiring precise movements. It's perfect for both professional and DIY heavy-duty tasks. The design ensures consistent operation over prolonged periods. Reliability is guaranteed, even under heavy use. This makes it ideal for robust machines.


15mm Slotted Bearings for Precise and Secure Positioning

The 15mm slotted bearings provide accurate positioning. They fit securely, preventing any unwanted movement. Precision is assured with these bearings. Perfect for applications needing exact measurements. These bearings help maintain the integrity of the setup. Secure positioning is essential for high-performance tasks. These bearings are made to withstand repeated use. Essential for achieving precision in various mechanical setups. They contribute to the overall efficiency of the rail system.


Fast Shipping and Reliable Packaging to Ensure Product Integrity

Packaging is important for maintaining product integrity. The rails and blocks are securely packed. This prevents any scratches or damages. Fast shipping means your projects won’t be delayed. Reliable packaging shows VEVOR's commitment to quality. Ensuring the products reach you safely is their top priority.


Versatile Application Across Various Mechanical and Industrial Setups

This versatile addition to your toolkit is ideal for CNC machines and other mechanical tasks. They adapt well to various machine setups. Hence, they offer flexibility in their use. The solid construction supports different operational requirements. It’s suitable for both professional and personal projects. Their versatility ensures you can use them across multiple setups.


Solid Steel Construction for Durability in Demanding Environments

They are made from solid steel. This ensures they can handle demanding tasks. The durability of the Rails is ideal for tough environments. They are built to last, even under extreme conditions. Hence, they are perfect for industrial tasks. Solid construction guarantees consistent performance. It won’t bend or break easily. These rail systems provide long-term reliability and durability. Essential for environments where strength matters.


Great Value for Money with Reliable After-Sales Support

They offer great value for money. They are priced competitively without compromising quality. VEVOR provides reliable after-sales support. This ensures any issues are promptly addressed. The combination of quality and price makes them a smart choice. After-sales support ensures continued satisfaction with your purchase. Quality and support together provide an excellent experience. Investing in these rails is budget-friendly and reliable.


See More

Specification

Type
Linear Actuator
Model
15CA
Guide Length
59 in /1500 mm
Packing Size
60 x 5 x 3 in / 152 x 12 x 7 cm
Gross Weight
13.2 lbs/6 kg
Questions and Answers
7 Questions
what size screws are needed to mount the rail to the bed?
M4.
By vevor
Are you able to mount these on their side? With the load out to the left or right?
No, they cannot be mounted on their side and if they are mounted on their side they cannot carry any weight.
By vevor
What is the weight capacity for these?
Its dynamic load is 45 kg and its static load is 99 kg.
By vevor
What is the weight capacity for these rails? Thank you
Its dynamic load is 45 kg and its static load is 99 kg.
By vevor
What orientation should they be mounted? On the side or underneath the load (wall or floor)
It is mounted vertically from above.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
23 Review(s)
Clear filters
J Tapia J Tapia
Nice for the Price
the price its the big difference. there is so many other on the market but these are cheap and feel very good quality. no complaint for right now.
David Mccrary David Mccrary
Linear rails
I absolutely love you excellent for the price I wish you sold just the sliding part by itself though so I can buy some more of those other than that they're great
Keith Keith
Maker
Ordered this item on sale for use in a router build. It arrived quickly with some damage to the outside packaging, but the rails and carriage blocks were in great shape. The blocks roll smoothly without any binding even under substantial force laterally and vertically. Extremely happy with this purchase!
paul paul
Exactly as described, great value
The price of these rails are about a third of other similar rail systems. The measurements are accurate, the parts arrived in good condition and well oiled. The rails are straight and made of solid steel. The carriages glide well on the rails.
Kimberly Barton Kimberly Barton
This company is solid
had problem with shipping and they were very quick to remedy the situation. Top shelf company, very good to do business with, looking forward to more in the future.Also the rails are good, as expected
PCoop PCoop
Quality rails
These were bought to upgrade a home made CNC machine, and they sure do a nice job of being smooth and quiet. I will be upgrading other axis on my machine with more of these as my other rails wear, for the money I don't think you'll find a better linear movement rail.
Colorado Jenn Colorado Jenn
When buying bolts for the carriages, just remember they are METRIC.Some English bolts can fool you.
This works really well and I will order it again for another project. Very strong. Very smooth action. Careful when putting carriages on and off of rails (which I will never have to do again, now that the project is complete). That's because I didn't realize I could knock ball bearings out if I was sloppy doing that (only 2 or 3, not an avalanche). They went right back in ... once I *found* them!
Mr Eric Mr Eric
Very pleased
Everything Packed well, nothing bent or damage. Installed on my Workbee Y axis and I am cutting today
VEVOR Customer VEVOR Customer
Profile Rail for a Decent Price??
Honestly quite surprised with the quality/price. Purchased for a low budget prototype seeing intermittent use and I am quite happy with the results. Threads in the bearing blocks are clean and tight (M4) and the mounting holes for the rails are clearanced ~1mm (Again M4) for alignment I'm guessing. Overall length varied in my two rails by about 2mm but I really can't complain about that.
J. Miller J. Miller
Very tight and consistant rails!
So far so good. These are super tight. I am amazed at the amount of tourqe thees things can handle. I thought these would be kinda sloppy but they are great.These are a bit rough when sliding and feel like the balls are a little too tight but I need to align the two rails to be more parallel. Worth the money so far!
