VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project
ZXH16MM1000MMWXUNV0

VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

SC16

  • SC16
  • SC20

1000 mm

  • 1000 mm
  • 500 mm
  • 1200 mm

About this item

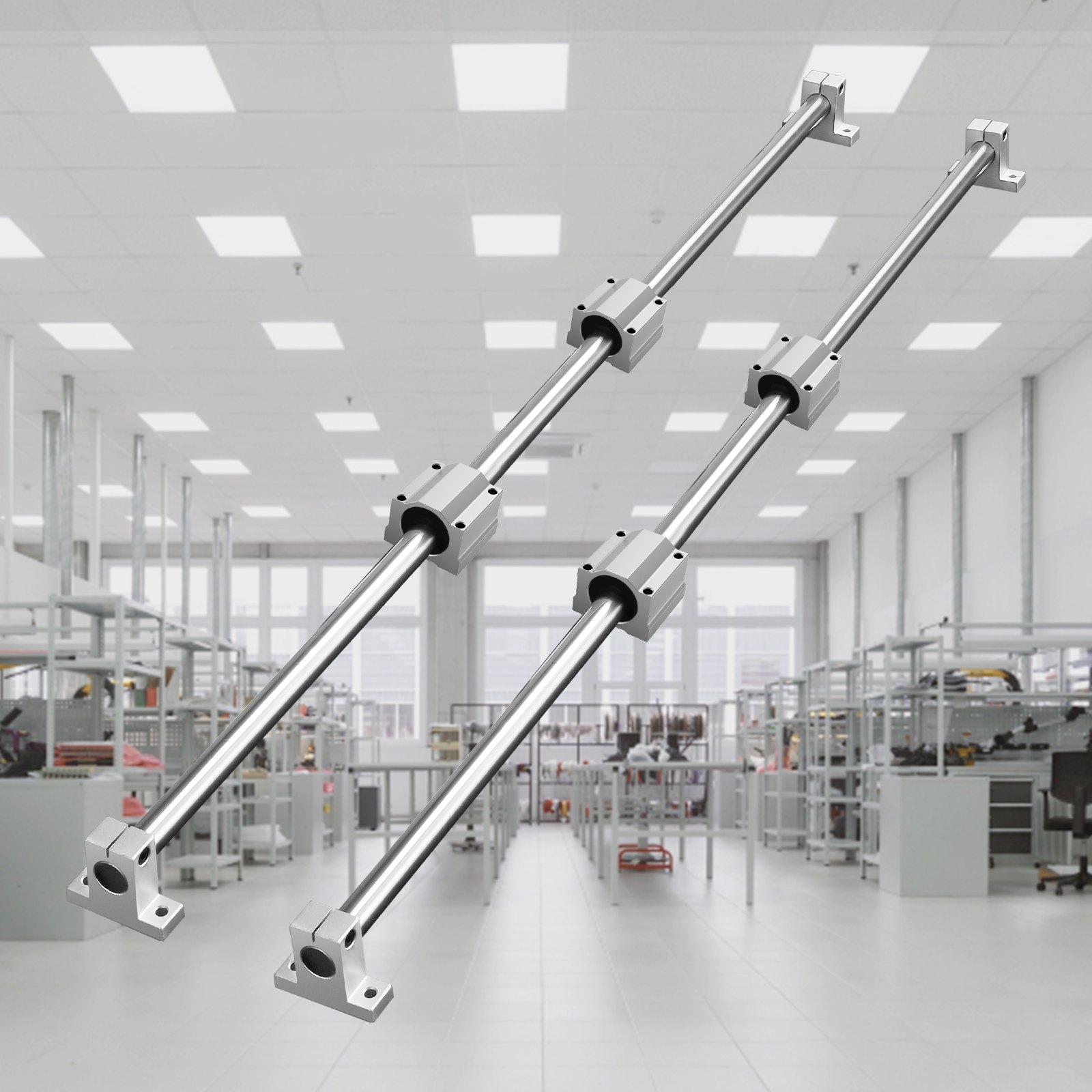

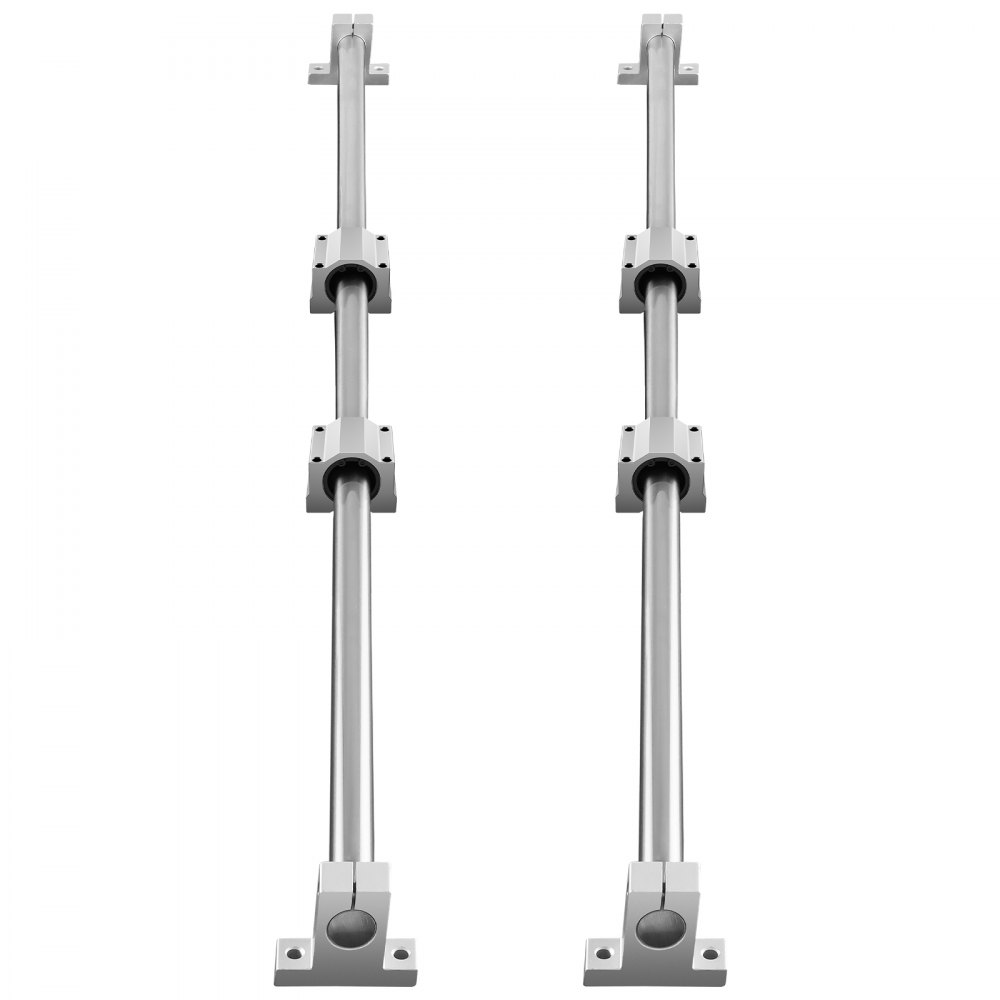

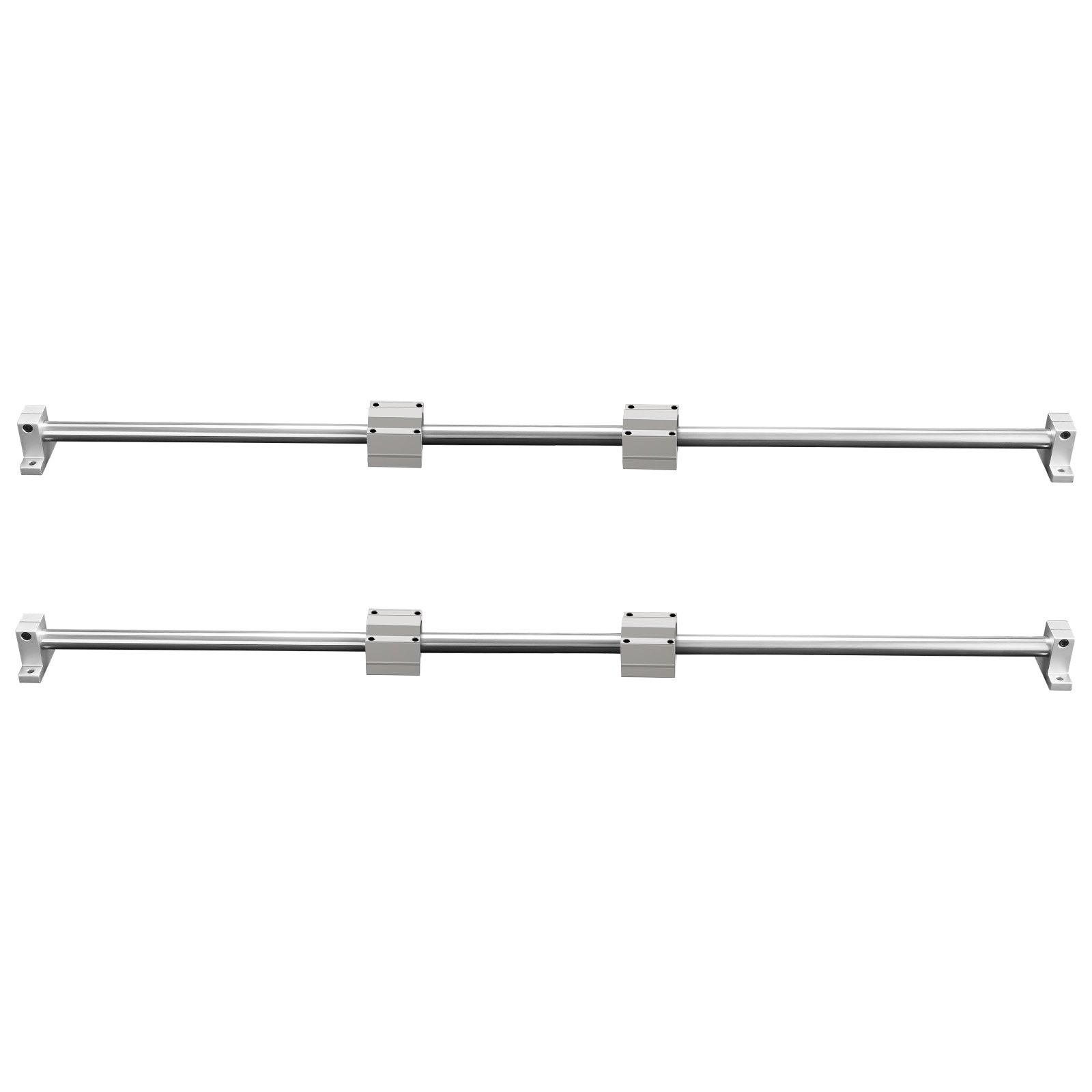

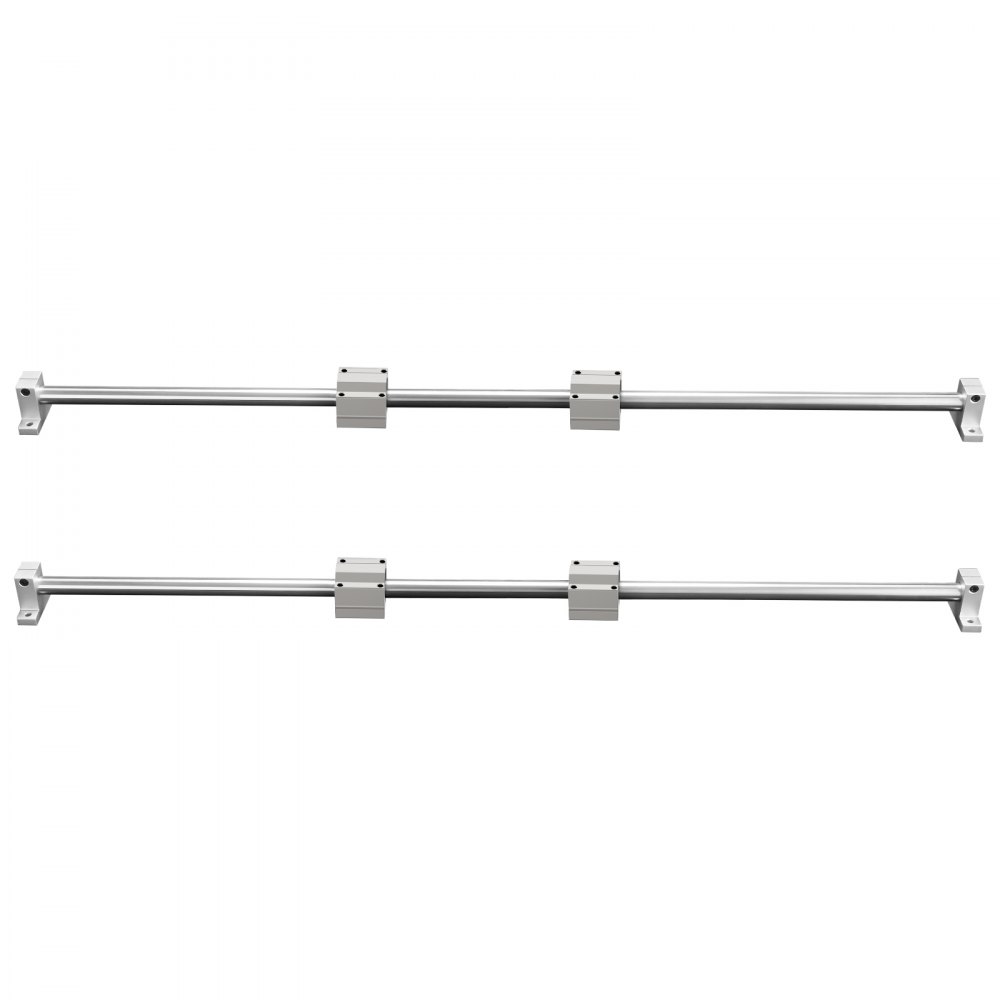

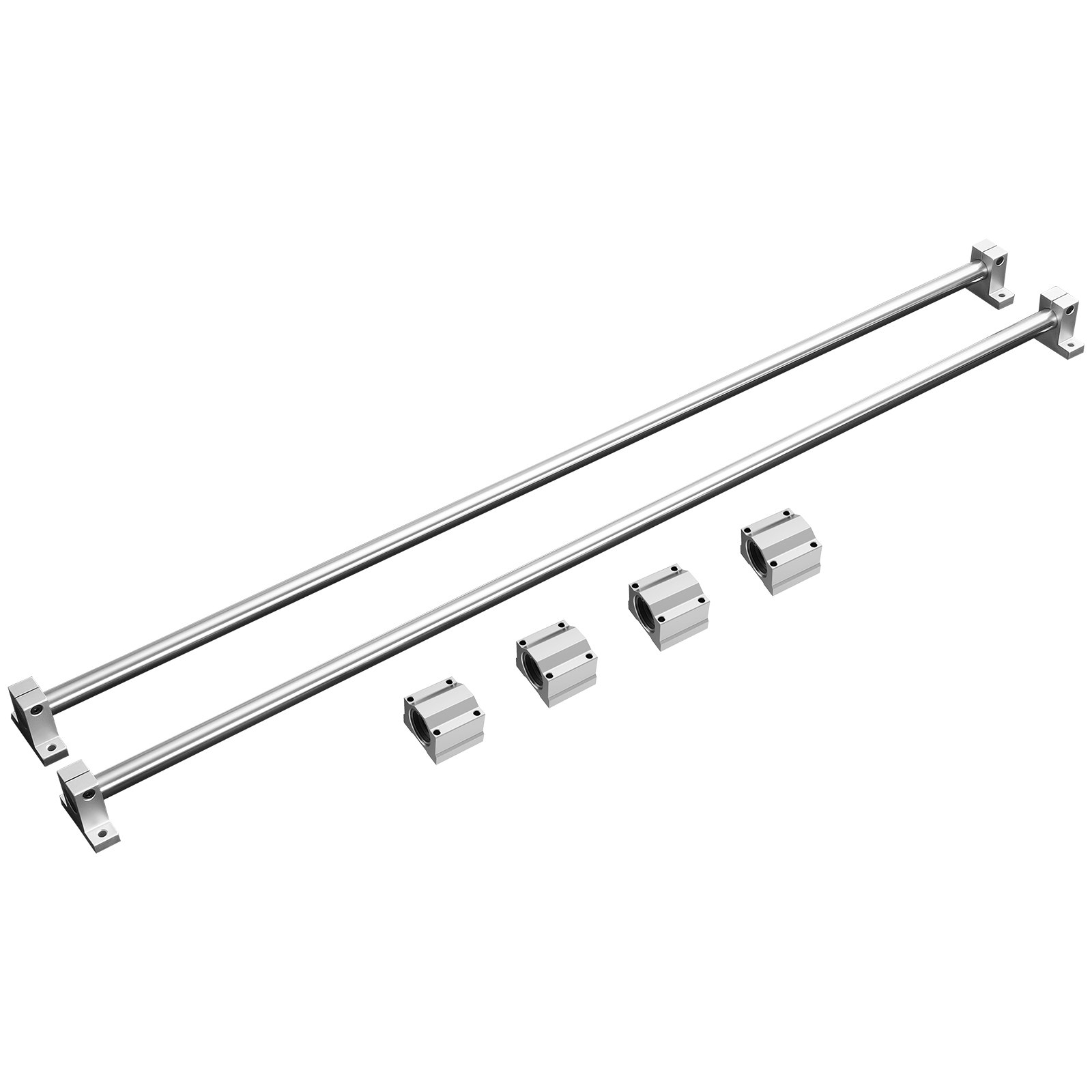

  • SFC Linear Guide Rail Set: Linear motion guide rail includes 2 x 39.4" / 1000mm length SFC16 linear shafts, 4 x SC16 slide blocks and 4 x rail supports. Dynamic Load Per Block: 774N, Static Load Per Block: 1180N.

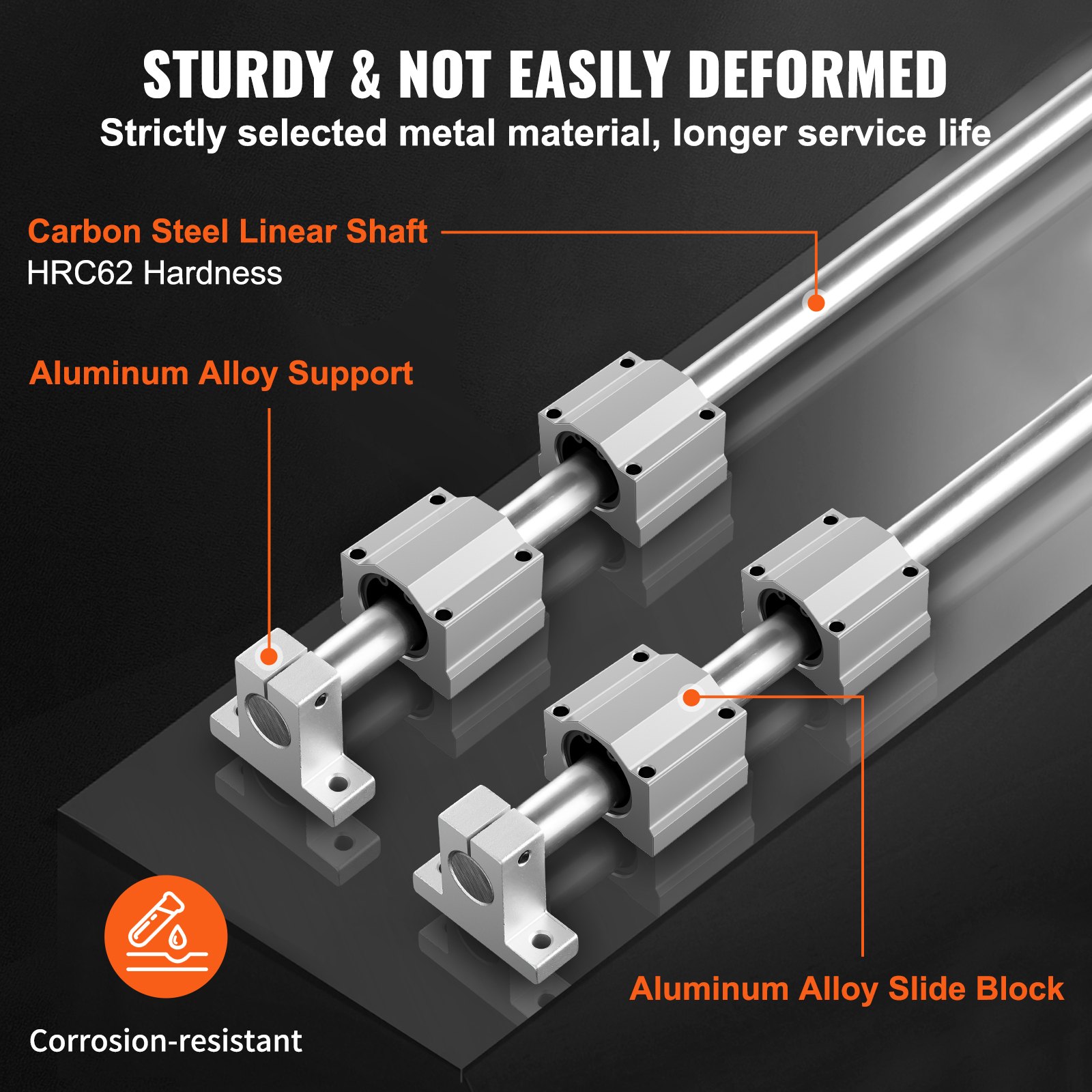

  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.

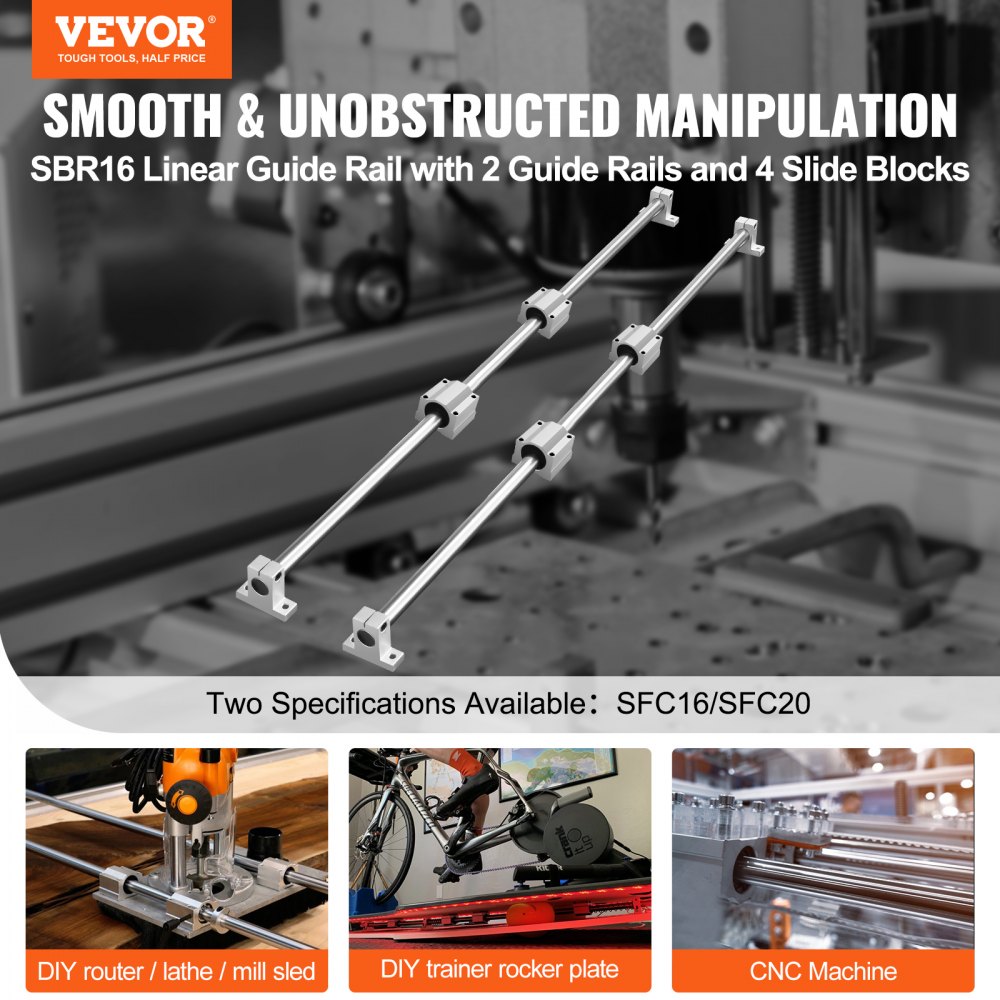

  • Wide Application: The SFC linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project
SC16 1000 mm

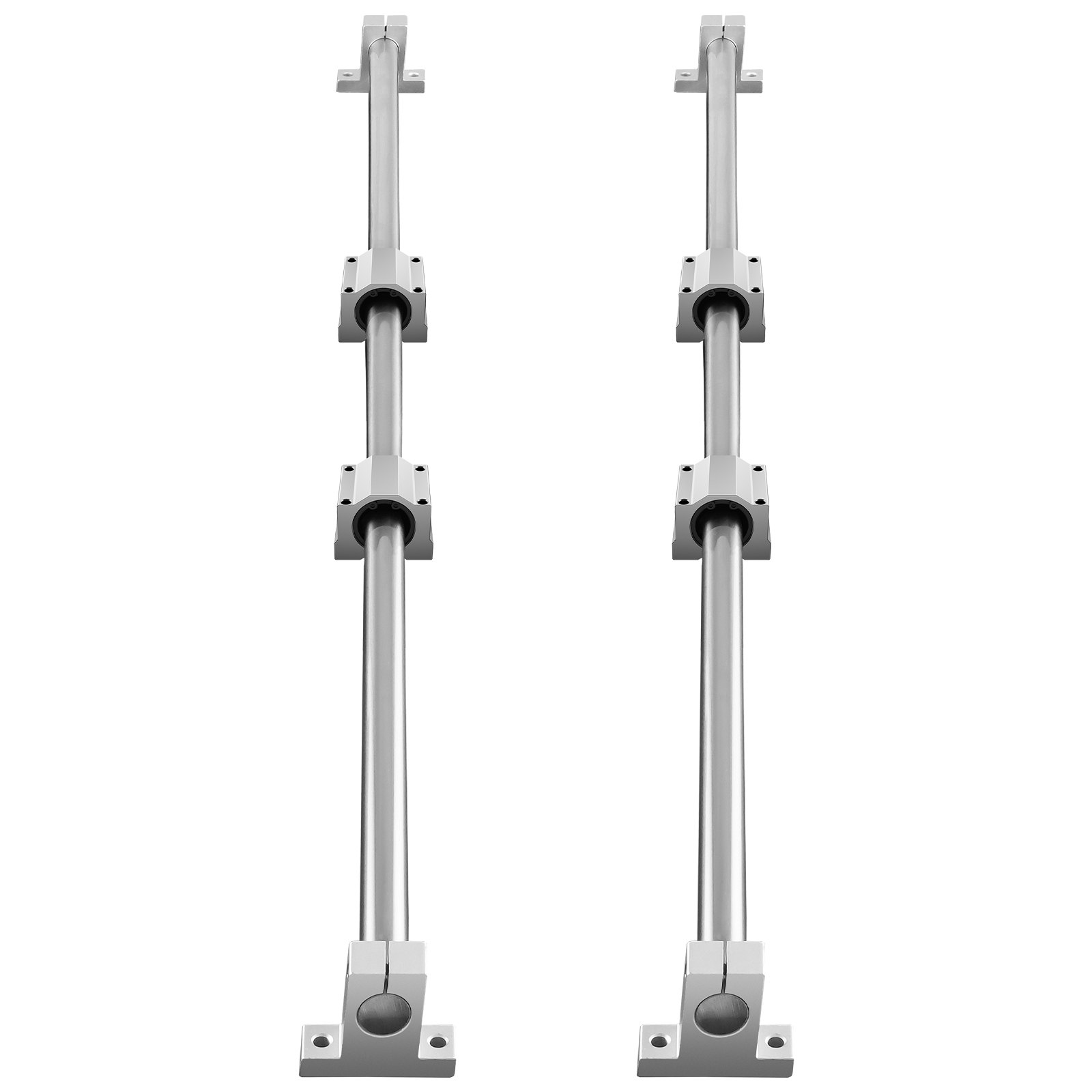

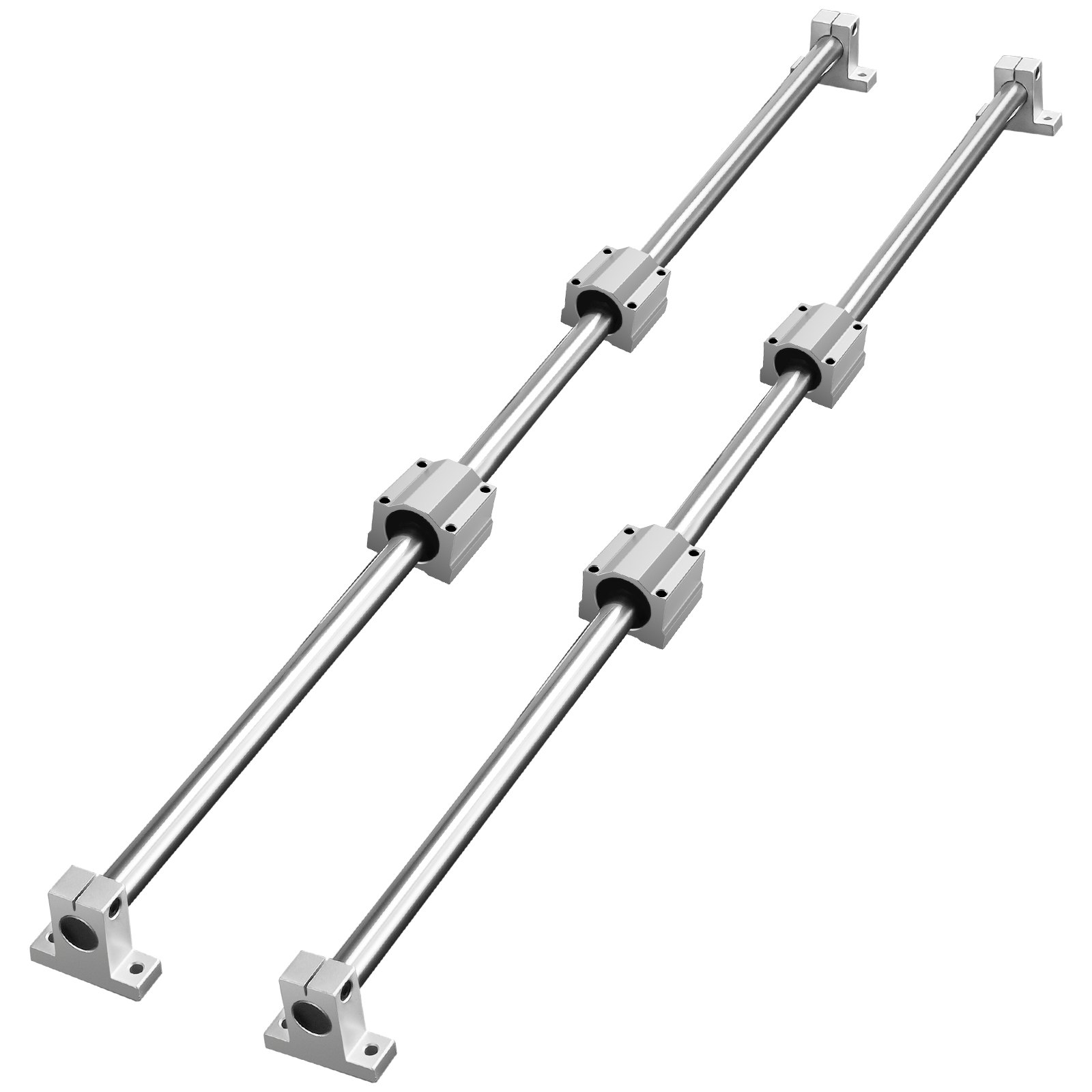

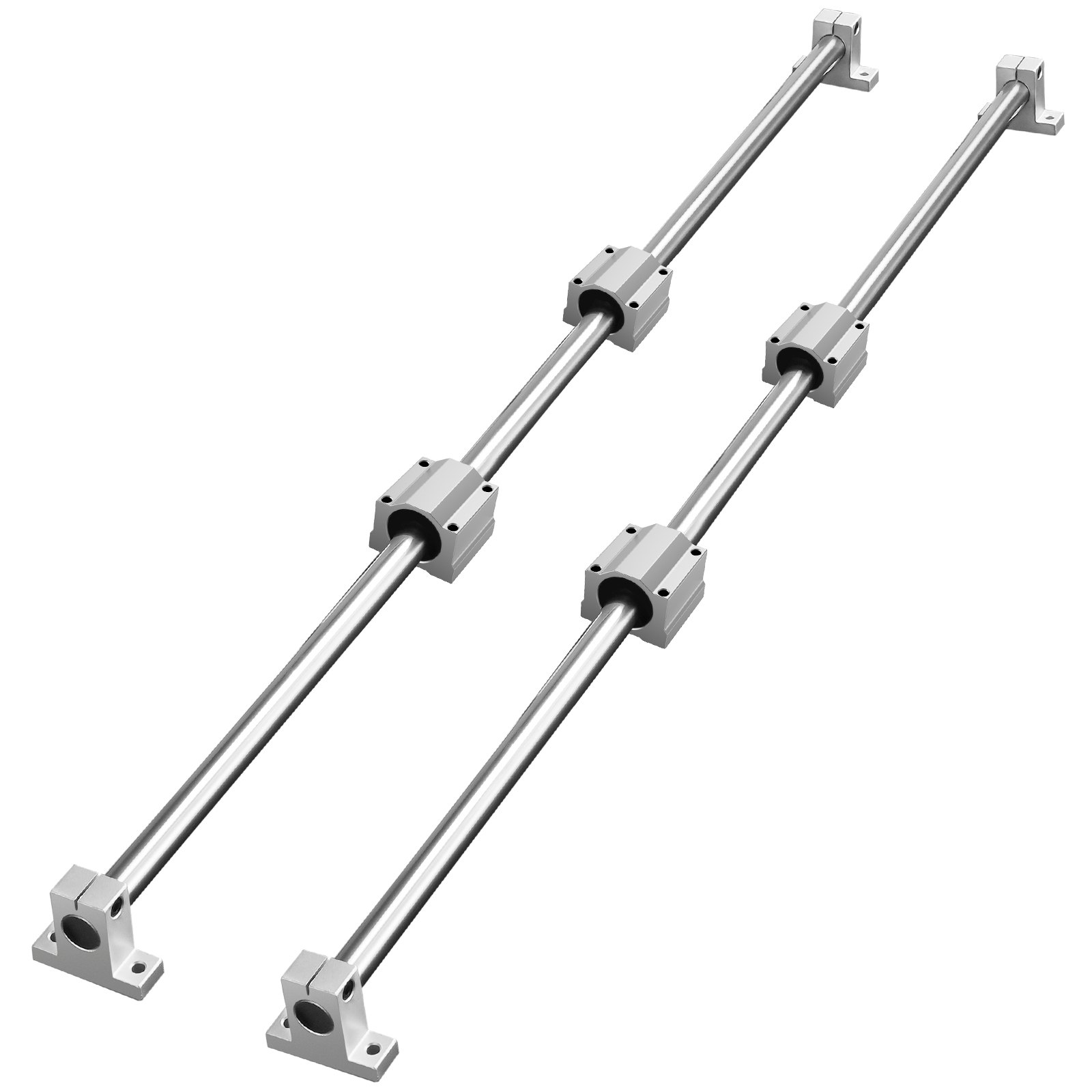

SFC Linear Guide Rail

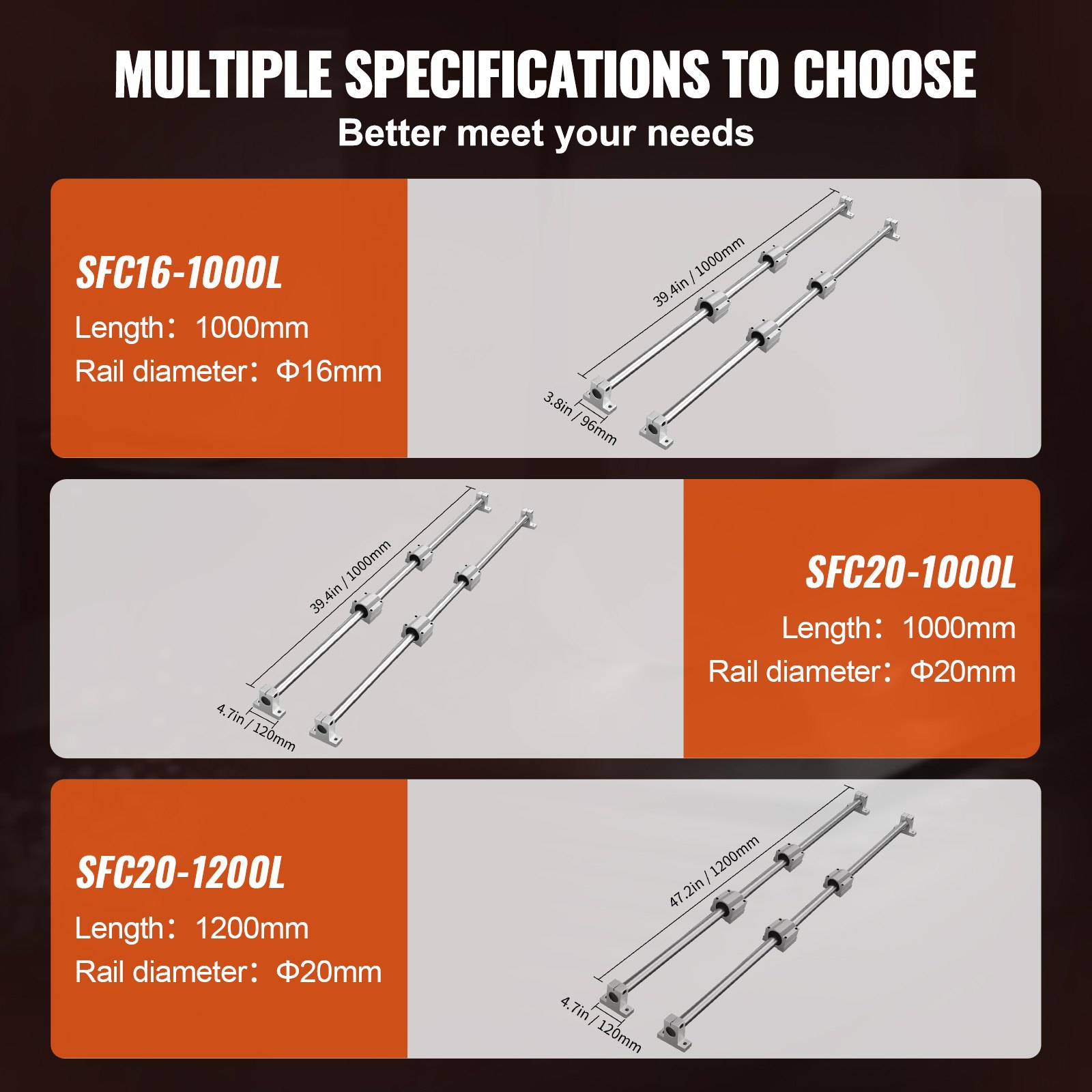

VEVOR SFC linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SC slide blocks utilize ball bearings for smooth and unobstructed movement. Multiple specifications are available to perfectly fit your needs.
Handle Pressure with Ease
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

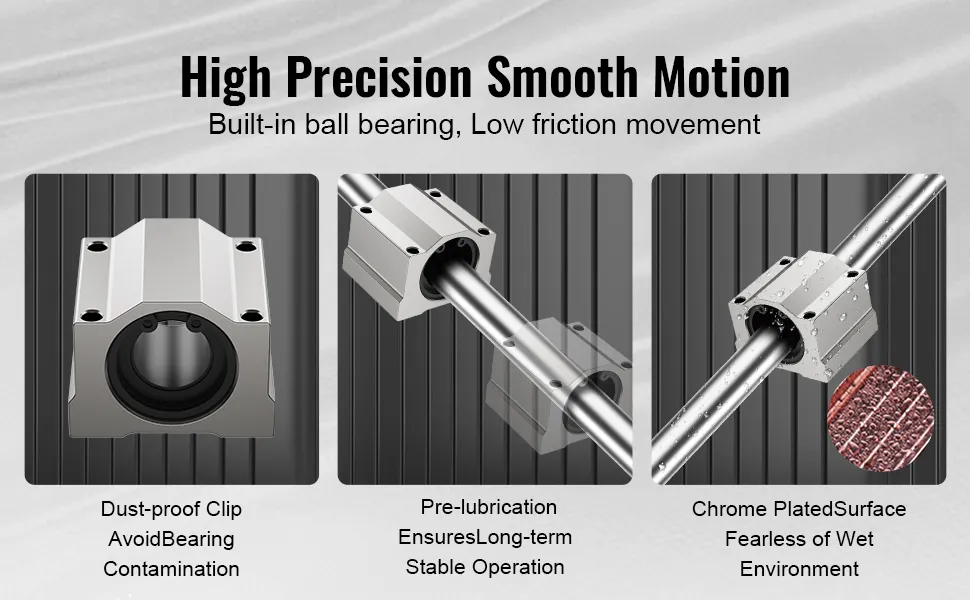

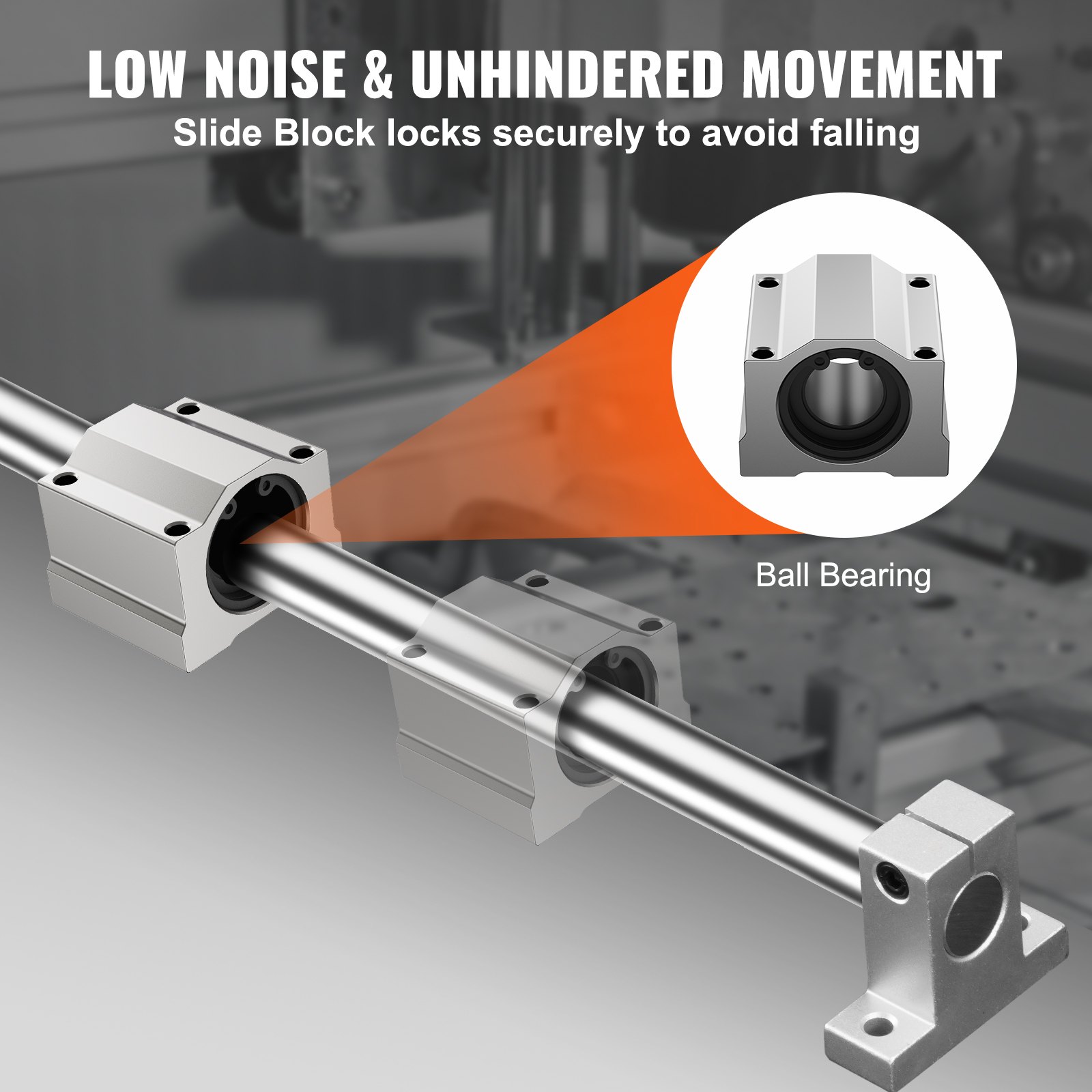

Smooth Sliding without Stutter
Aluminum fully sealed SC slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.
More Accurate Than Ever
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.

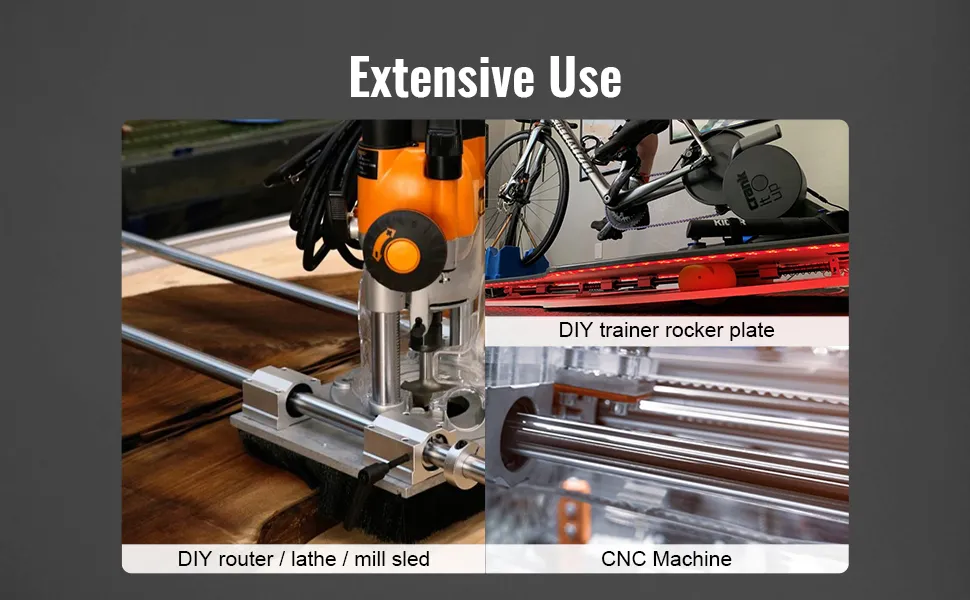

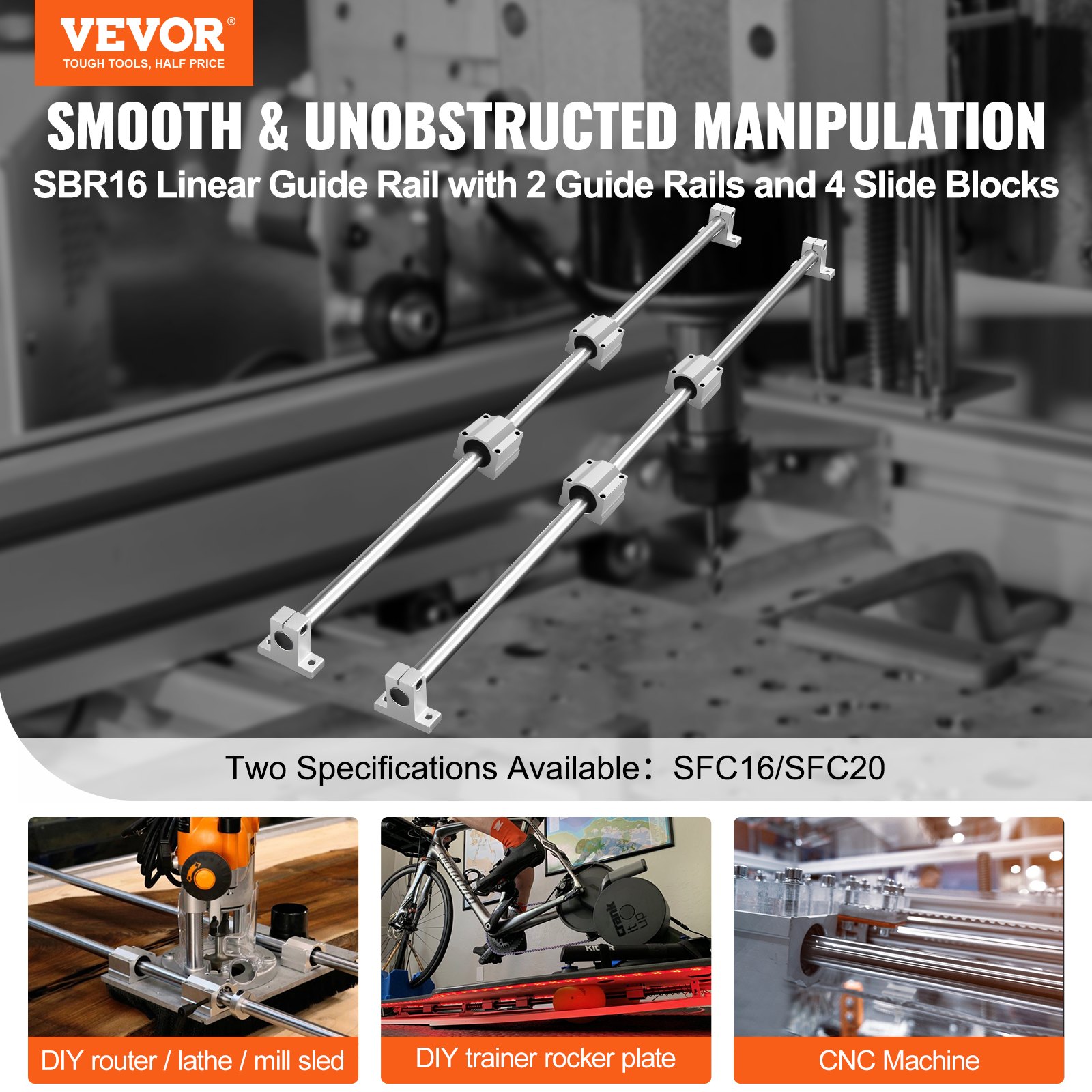

Broad Usage Scenarios
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

Linear Guide Rail for Precision CNC Projects and DIY Enthusiasts

These linear guide rails provide precision for your CNC projects. They are perfect for DIY enthusiasts looking to build custom machines. VEVOR ensures smooth motion and exact alignment. The SFC16 Guide Rails are ideal for various applications like router sleds and leveling tables. High-carbon steel construction adds durability to your builds. No matter if you're a hobbyist or professional, these rails meet your needs. It doesn’t matter whether you want to use router sleds or leveling tables. Their high carbon steel construction adds durability to your builds. Are they suitable for any CNC project? Yes, they can be used for all kinds of jobs. You can trust them for anything from beginner to professional. Reliable For Any CNC Project Their precision helps in creating accurate and efficient machines! Enjoy the ease of use and the robust performance across different applications. These rails are incredibly useful for those who value accuracy in their work.


Smooth and Robust Operation with High Carbon Steel Construction

The linear guide rails feature high carbon steel construction. It provides smooth and robust operation. The steel is strong. This makes these rails highly durable. They can withstand heavy loads, providing consistent performance. These rails are polished. So, you can easily move the slide blocks. That ensures your projects run smoothly without any hitches. High-quality construction means you can trust these rails for long-term use. They are built to last, giving reliable performance every time. Our rail systems are tough, which makes them suitable for both light and heavy-duty applications.


Easy Integration with CNC Projects Using SFC16 Guide Rails and Slide Blocks

They're perfect for CNC projects. The SFC16 Guide Rails and Slide Blocks are designed to work perfectly together. This makes setup and installation easy and hassle-free. These guide rails can be used with a variety of CNC machines and DIY Projects. Their slide blocks smoothly move along the railroad tracks, guaranteeing precise movements in your toolkit. It is compatible with all kinds of tools. No matter if you'll be building a router sled or leveling tables, these rails fit seamlessly. With their ease of integration, they ensure that you can focus on your project without any issues.


Reliable Performance with Included Rail Supports and Mounting Hardware

The linear guide rail set includes reliable rail supports and mounting hardware. These components ensure that the rails are stable and secure. The supports hold the rails in place, preventing any unwanted movement. This stability is essential for maintaining the accuracy of your projects. Included mounting hardware makes installation quick and easy. You get all the necessary screws and brackets for a secure setup. Attention to detail ensures that your rails perform reliably. Stability and ease of installation make these rails an excellent choice for any CNC project.


Cost-Effective Solution Compared to Expensive Linear Rails

These linear guide rail offer a cost-effective solution. Compared to expensive linear rails, these provide great value for money. They are budget-friendly without compromising on quality. You get high-carbon steel construction and smooth operation at an affordable price. This makes them accessible to both hobbyists and professionals. The cost-effectiveness doesn't affect performance. These rails perform just as well as more expensive options. Investing in these rail systems means getting reliable performance without breaking the bank. Its affordability makes it an excellent choice for any CNC or DIY project.


Versatile Use in Router Sleds, Flattening Tables, and Microscope Stands

The versatility and reliability of these linear guide rails make them a valuable addition to any workshop. They are suitable for router sleds, flattening tables, and microscope stands. Their robust construction makes them ideal for these tasks. The rail provides smooth and precise movements. This flexibility ensures that you get the most out of your investment. No matter whether you're working on a woodworking project or building an IBM microscope stand, these rails are an excellent addition to any workshop. These rails are perfect for many projects.


Timely Delivery and Quality Assurance for VEVOR Linear Guide Rails

When it comes to timely delivery and quality assurance, VEVOR ensures prompt delivery and exceptional quality for their linear guide rails. You can expect your rails to arrive promptly. This ensures that your projects stay on schedule. The quality guarantee means you get rail services that meet high standards. They are inspected for any defects before shipping. It gives you peace of mind knowing you're getting a good product. These rail systems are well packaged to prevent any damage during transit. A combination of timely dispatch and quality assurance ensures you have reliable sources like VEVOR for your linear rail needs.


See More

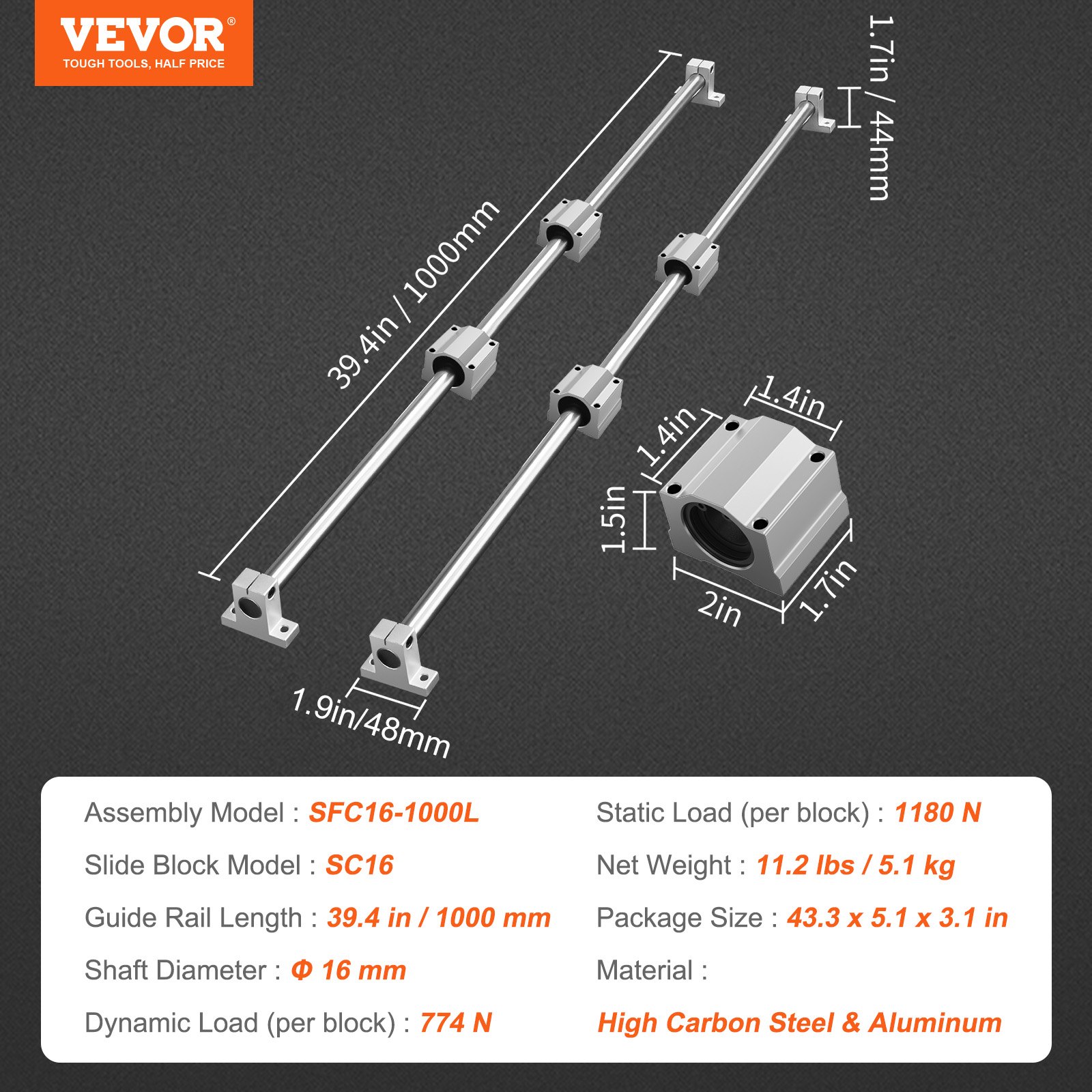

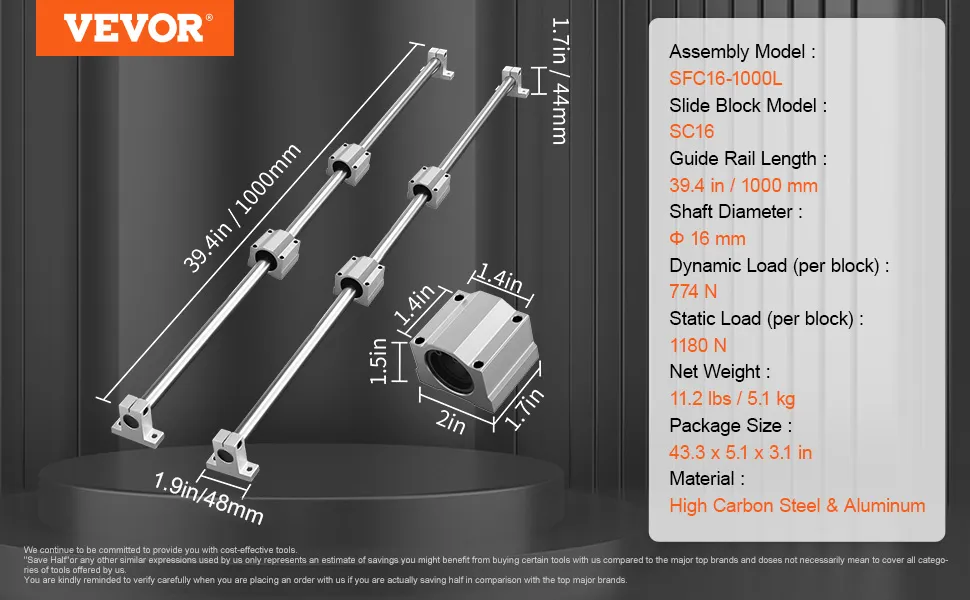

Specification

Model Number
SFC16-1000L
Slide Block Model
SC16
Guide Rail Length
39.4 in/1000 mm
Shaft Diameter
Φ16 mm

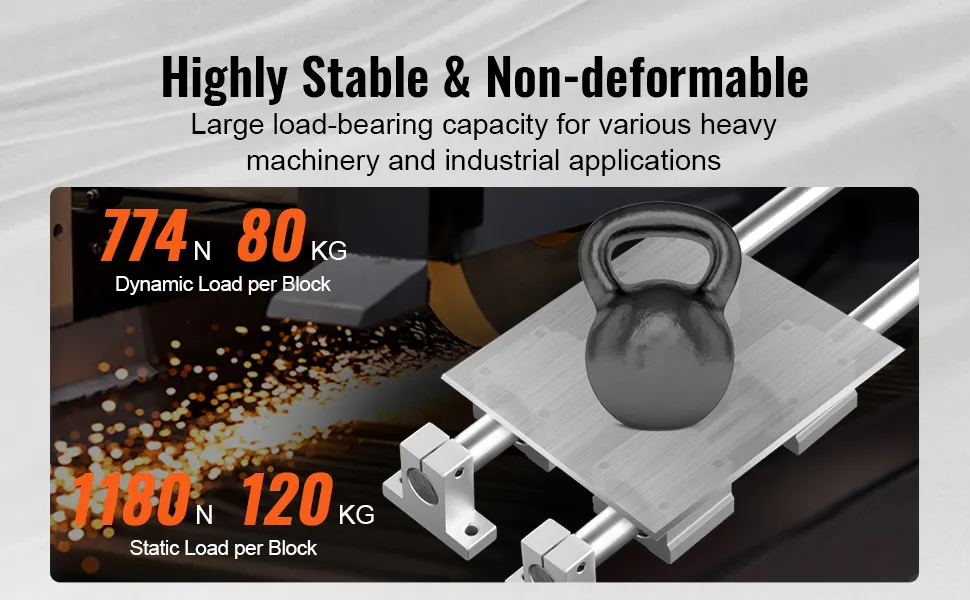

Dynamic Load (per block)
774 N
Static Load (per block)
1180 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.4 in/36 mm
Mounting Hole Distance B
1.4 in/36 mm
Slide Block Size(L x W x H)
1.7 x 2 x 1.5 in/44 x 50 x 38.5 mm
Product Dimensions(L x W x H)
39.4 x 3.8 x 1.7 in/1000 x 96 x 44 mm
Package Size(L x W x H)
43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm
Net Weight
11.2 lbs/5.1 kg
Questions and Answers
4 Questions
working on a project that requires sliders 12 long light weight. can you help
If the 12 you mentioned refers to the 1200mm length, then the 1000 cannot be used. You need to use the product of the corresponding length.
By vevor
Can this be mounted upside down?
Yes, but it is not recommended to install it upside down
By vevor
What machine screws do I need for the mounting blocks?
M5 is needed.
By vevor
What's the mounting hole distance for the clamp mounts?
The distance is 48mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
52 Review(s)
Clear filters
Duc Duc
Home use
It is made of good quality and is easy to use. It was delivered on time and works well. It has some nice features and has a good price.
jim stevens jim stevens
Plank surfacer
Super smooth no run out. Very heavy and stable.
Rodrigo Rodrigo
Low Price, Average Quality
Bearings cheaply made overall. One of the sliding blocks even has its travel somewhat hindered due to excessive friction inside the bearing. Should still work though, so good deal for the price. Will have to see how it holds up over time.
Jose Alvarez Jose Alvarez
Carpentry hobbyist
Estoy muy satisfecho con los productos obtenidos en Vevor por la calidad de sus productos a un precio accesible.
Michael Michael
fabricator
They are working great will buy more when needed. Telling everyone about them. purchased some high dollar ones before and yours are of equal quality. Thanks
Frank Y. Larksville PA. Frank Y. Larksville PA.
NO BOLTS
nicely made, smooth operation, but no bolts to attach your item to the slide. and they are metric. so its off to the hardware store to get what should have been enclosed. i kind of expected this , but come on already.
VEVOR Customer VEVOR Customer
linear rail slide.
this is a really hefty rail to the extreme. extremely rigid and well made.
Kevin Kevin
DIYer
Exactly what I Ordered, Reasonably Priced and good Quality... Used it and a Router I purchase from VEVOR to construct my own Router Sled. Thank You, Kevin
Dr SE Dr SE
Used to build a router sled
In combination with a solid carrier rail, this provides the best low profile and strength for a leveling router sled.
Luke Hosinski Luke Hosinski
Retired
Awesome product at a fantastic price. These would have cost ten times as much from Misumi. The quality is rock solid.
