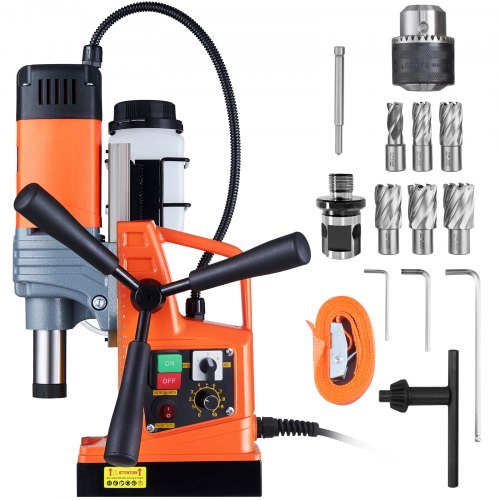

VEVOR magnetic drill kit with accessories including drill bits, chuck, hex keys, and safety strap. VEVOR magnetic drill press performing drilling, tapping, and coring in a workshop setting. VEVOR magnetic drill with 10-speed regulation, 810 rpm spindle speed, and 1400w power for versatile drilling. VEVOR magnetic drill with quick-remove bits, m3-m14 tap size, 2-inch max coring depth. VEVOR magnetic drill with integrated defense system featuring overload protection, alloy rail, coolant system. VEVOR magnetic drill with scale markings, easy-grip handle, and no-shake downward gravity center.
CLZTJJTM650MMO9QZV1

VEVOR Magnetic Drill 1400W 2922lbf/13000N Portable Mag Drill Press 810RPM

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

Twist drill and hollow drill can be tapped and quickly disassembled

  • Core Drill
  • Twist drill and hollow drill can be tapped
  • Twist Drill and Core Drill
  • Twist drill and hollow drill can be tapped and quickly disassembled

6-Piece Set

  • 1 Piece
  • 2 Pcs
  • Single Item
  • 6-Piece Set
  • 11-Piece Set

About this item

  • Top-level Magnet: Get ready for unstoppable power! This 1400W heavy-duty mag drill bores at 0-810 RPM up to 50mm depth and 50mm across, consistently generating enormous power to drill through rigid materials. 2922lbf / 13000N robust force created by the electromagnetic base on the two ends anchors the mag drill press solidly to avoid movement during the drilling process.
  • Understand the Power: Quick-release arbor enables the drill bit to change in 1 second without tools. Now that is fast! Equipped 6pcs drill bits meet your various boring needs for a wide range of hole diameters. 0-810rpm adjustable 10-speed gears unleash outstanding accuracy for an efficient operation by adjusting the speed according to different hole diameters.
  • Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling. Besides, the titanium magnesium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life.
  • User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.
  • Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Magnetic Drill 1400W 2922lbf/13000N Portable Mag Drill Press 810RPM
Twist drill and hollow drill can be tapped and quickly disassembled 6-Piece Set
The Pinnacle of Magnetic Power
Get ready to drill smarter, not harder! Manufactured from a high-quality titanium magnesium alloy, this drill press is an essential tool for residential construction, heavy-duty industries, and steel manufacturing.
  • VEVOR magnetic drill with 810 rpm spindle speed, 1400w power, 10-speed gearbox, reversible tapping.
  • durable VEVOR magnetic drill with precise drilling, titanium magnesium alloy, and aluminum comparison.
  • VEVOR magnetic drill with 810 rpm spindle speed, 1400w power, 10-speed gearbox, reversible tapping.
  • durable VEVOR magnetic drill with precise drilling, titanium magnesium alloy, and aluminum comparison.
  • VEVOR magnetic drill with 13000n super attraction, suitable for horizontal, inverted, and upright drilling.
  • VEVOR magnetic drill with adjustable head, extension handle, non-slip rubber, and shock absorption.
  • VEVOR magnetic drill with 13000n super attraction, suitable for horizontal, inverted, and upright drilling.
  • VEVOR magnetic drill with adjustable head, extension handle, non-slip rubber, and shock absorption.
  • equipment installation using VEVOR magnetic drill next to a brick wall structure under construction.
  • steel fabrication with VEVOR magnetic drill on left, railway construction in tunnel on right.
  • equipment installation using VEVOR magnetic drill next to a brick wall structure under construction.
  • steel fabrication with VEVOR magnetic drill on left, railway construction in tunnel on right.
Key Features
13000N Magnetic Force
The powerful two-stage magnet can generate 13000 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.
Excellent Performance
Designed for precise and demanding coring, this mag base drill features 1400 watts of motor power. Max. Coring Diameter: 2 in / 50 mm; Max. Travel Distance: 8.3 in / 210 mm.
Efficient Cooling System
The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What's more, dustproof air inlets and exhaust air holes for temperature reduction.
VEVOR magnetic drill with dimensions and accessories, showcasing max boring diameter and weight.VEVOR magnetic drill with dimensions and accessories, showcasing max boring diameter and weight.

Effortlessly Do Your Drilling Tasks — Magnetic Drill

Simplify your drilling projects with this magnetic drill. It features a powerful 1400W motor and maintains steady performance throughout use. This drill has adjustable speeds from 0 to 810 RPM. It handles tough materials like thick steel. This makes it perfect for home improvement projects and industrial uses. Its strong design ensures reliability for demanding tasks, offering precision and power in every drill. Engineered with user-friendly features, this magnetic drill simplifies complex drilling tasks.


High Power & Efficiency

This magnetic drill has a solid 1400W motor that works well, creating a steady force of 2922 pounds (13000N) to keep it steady while you use it. You can adjust how fast the drill spins, from 0 to 810 RPM, which helps you drill accurately into different kinds of materials and sizes of holes. Its power and efficiency make it easy to drill through thick steel plates and other rigid materials. Moreover, because it's built strong, you can rely on it to last a long time and handle all your drilling jobs.


Effortless Bit Changes

The VEVOR magnetic drill makes it easy to change drill bits. Its quick-release arbor means you can change bits without needing tools in one second. This is helpful for professionals who often need to switch between different hole sizes.


This magnetic drill has six different bits, so it's ready for many drilling jobs. Changing bits saves time and makes the drilling process more efficient. Moreover, this magnetic drill is designed to handle various drilling tasks. It is a versatile tool for professional workshops and DIY projects at home.


Premium Quality for Extended Use

Made from a strong material called titanium-magnesium alloy, this magnetic drill doesn't rust or damage fast. It is shipped with care to make sure it arrives undamaged and ready to use immediately. This careful wrapping protects the drill during delivery. It guarantees that it will stay in excellent condition for any task you need to do. Its strong build and protective packing ensure it lasts long and works well for drilling tasks.


Stay Cool & Safe

The VEVOR magnetic drill prioritizes safety. Its clever cooling system prevents it from getting too hot, keeping both the drill and the person using it safe. Moreover, it includes overload protection, so even heavy usage won't cause it to overheat or stop working immediately. Whether you're working on a quick task or a long project, these safety features make sure the drill works well and keeps you safe.


Precision & Ease of Use

Operating this magnetic drill is straightforward. It is like a super-strong drill that sticks to metal and is strong enough to handle challenging tasks. This tool will help you consistently create precise holes, no matter your level of drilling experience.


You can measure the depth of the hole with its built-in ruler. Even after drilling for a long period, the handle is made to support your hand. Moreover, the longer handles give you extra power to push steadily while you drill. This makes the drill work more accurately, so you get top-notch results every time you use it.


Versatility for Every Task

This high-power magnetic drill can be used in many different ways. It's great for home improvement projects and big factories. It's also helpful in building things like ships and bridges. This portable magnetic drill can make holes in metal objects like truck parts and containers.


It is perfect for both inside and outside. Because the drill's direction and position can be adjusted, it's also suitable for a range of drilling jobs. This makes it a helpful tool that can perform many different tasks.


See More

Specification

Power
1400W 110V 60Hz
Tap Size
M3-M14
Max. Boring Diameter(Coring Drill)
2 in / 50 mm
Max. Boring Depth
2 in / 50 mm
Max. Boring Diameter(Twist Drill)
0.63 in /16 mm
Max. Boring Depth (Twist Drill)
3.9 in / 100 mm
Max. Travel Distance
8.3 in / 210 mm
Magnetic Force
2922 lbf / 13000 N
Stepless Speed
0 - 810 rpm
Product Size
10.6 × 4.7 × 14.2 in / 270 × 120 × 360 mm
Product Weight
28.2 lbs / 12.8 kg
Manual
Download Link
Questions and Answers
17 Questions
Do standard 3/4 inch Weldon shank bits fit the quick release arbor?
No.
By vevor
Where can i purchase replacement annular cutters for this unit?
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(Except for consumables). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
Are individual bits and center pins available? how about a case?
Hello, we regret to inform you that our website currently does not sell drill bits and center pins separately. The products are currently sold in complete sets, but we will feedback on your needs to the company's purchasing department to increase the diversity of our sales.
By vevor
What size cutters come with this? Not listed anywhere.
15*30,18*30,21*30,24*30,26*30,27*30.
By vevor
I don't see Model # anywhere. What Model # is it ?
The model is 8850E.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
223 Review(s)
Clear filters
Gerald Stanley Gerald Stanley
Great drill
I bought this to drill holes in the chassis of my off road truck to mount brackets. 1/4” thick steel and it had no problem making a perfect hole. I highly recommend this drill. Use your common sense when operating this equipment and you have no issues. Some reviewers very critical of the lack of an interlock but if you take your time and look at what you’re doing it’s not a problem. Great purchase and very useful tool.
Vinito Vinito
Mr.
I just received this drill today, so I can't speak to longevity. That said, if longevity was a huge priority on this I would expect to pay $1,600 or more and this suits my budget MUCH better. I will say that the drill is VERY solid construction (much better than expected) and yet operation is still very smooth. I've several times used a very popular brand seen on YT all the time and that one has excessive wiggle and rocking on the vertical track, but this Vevor one has none of that. Very nice. The weldon socket fits the tools very well, i.e. not loose - this one is very concentric in that regard. Both boring tools and even the drill chuck ran very true and I could not detect any runout at all by naked eye, so is much better than most tools of this type that I've used. Whether that's luck or something else, I'm very happy about this. The electronic speed controller takes a second or so to catch up with itself if you push it enough to slow it down (not what you'd normally do), but that's typical of electronic controllers and I prefer this type to primitive "get what you set" variable speed. Speed range is VERY useful (pretty much slows to zero) and reversing will come in handy. All the switches and knobs feel smooth and solid. There IS a magnet/motor interlock!! Thus you can't start the motor if you forget to switch on the magnet first. Also, if you accidentally switch off the magnet while the motor is spinning, it switches the motor off automatically. Important safety feature! Surprised NONE of the online info on the drill notes this fact. The drill is GOOD, but this item's listing on their website needs help. The features are very nice. The only thing I wish it had was a quill lock since gravity keeps wanting to lower it constantly making it awkward for changing tools and such. It's not terrible, just a bit annoying. Mine did NOT come with the "quick change" tool collar as the pictures show, but I'm actually glad about that because the typical set screw arrangement this one came with is simple and reliable. I don't change tools on mag drills often enough to need quick change anyway. So technically a dropped feature, but for me that was kind of a relief since I was skeptical of the reliability of a quick-change collar thing. One less thing to go wrong. Another feature that is never mentioned is the positioning of the drill body along the vertical slide is quick and easily accessible. None of that disassembling stuff some mag drills have. Loosen a hex socket screw on the side, slip it up or down, and snug it back down. I like this. Long story short, I really like this drill so far. Drilled a few 1/2" holes today for something I'm building and really it worked great. Operation is very smooth, has plenty adequate power (both magnet and motor) and a pleasure to use. I like it! Photo shows the 1/2" jobber length drill chucked in the thing. Does this with about 3/4" to spare. Awesome.
Dean Long Dean Long
Lead Fabricator and Mechanic
This drill is a great deal, drills very well and has an extremely strong magnet. I have used it to drill through 1in plate down to 11ga. I have even drilled holes with it upside down, great product
jim jim
Owner
Great product. I would definitely recommend but don't forget the extra bits! The Mag Drill Press cut through 1/4 steel plate with ease.
Jim Francis Jim Francis
Extreme Drilling
Why have I not gotten this drill earlier in my life? Used my new drill immediately with the best results possible. Easy to use, awesome results.
Pilotrace Pilotrace
Owner
Very disappointed with the VEROR company. THEY SOLD ME THIS ANGULAR CUTTER SET ALONG WITH A MAG DRILL. THIS CUTTER DOES NOT FIT THE DRILL THEY SENT ME. THEY HAVE THE WORST SERVICE DEPARTMENT EVER NO SERVICE PHONE NUMBER TO CALL. I’VE ASKED HIM A HALF DOZEN TIMES TO LET ME KNOW WHAT BITS WILL ACTUALLY FIT THIS DRILL. I STILL HAVE NOT RECEIVED ANY INFORMATION BACK YET. I WANTED TO SEND THESE BACK AND GET A REFUND. WHICH THEY WILL NOT DO. SO ANYTHING YOU BUY, THEY WILL NOT TAKE BACK! VERY DISAPPOINTING COMPANY!
Dave Dave
Vevor 1100W Magnetic Drill Press
Glad to have purchased this, I recommend this drill! Fast and easy delivery, great quality and great price.
Paul D Paul D
Mag drill
Heavy duty packing, arrived in perfect condition. Was just as advertised, no surprises pro's: variable speed seems good, fully adjustable from top speed to zero. Torque seems good, reverse will be handy but haven't really used it yet. Quick Chuck seems to hold pretty good, time will tell how it holds up. First impression is good. Drill bit Chuck is good to 5/8 which is more than expected, bites down to less than 1/8. Adjustabillityi is easy for moving up for the drill Chuck, stays solid. Cons: magnet is marginal on thin materials. Tried it on 1/8,3mm,sheet and it wanted to walk sideways. Fairly common in many brands ,when I went to heavier plates it was fine. If you turn off the magnet without stopping the motor first, the motor will start when the mag is turned back on. This COULD be a safety hazard for a new or distracted user. There's no provision for containing the bits and pieces that come with it, you will need to get a box on your own for them. A case for the drill would be great too. I realize that it would raise the price, but in my opinion it's worth it. All in all it seems a good value and a handy tool of reasonable quality
Robert Robert
Owner
Worked great! Had a welding table project needing 140 3/4” holes. Table is attached to my welding cart and was not feasible to use cnc table. Table top is made of 1x2 tubing with 1” gaps. The VEVOR mag drill worked great holding onto 2” wide tubing. Haven’t had a chance to use it in a vertical aplication or on thicker solid material but I think it would be fine. Holds great and the drip lubricant works fine. Sorry I don’t have any photos.
