VEVOR metal lathe with accessories, tool kit, and precision components in blue and white. VEVOR metal lathe: ideal for gyroscope processing, slot turning, and taper turning. VEVOR metal lathe with aluminum alloy handwheel and high-grade cast iron structure. VEVOR metal lathe with adjustable speeds and 550w motor for stable output and low noise VEVOR metal lathe with ultra-precise chuck, power-off cover, and detailed dimensions. VEVOR metal lathe with 4-way tool post, horizon blade switch, and movable tailstock.
0618WXCC000000001V1

VEVOR Metal Lathe 7" x 14",Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

7 inch

  • 7 inch
  • 8.3 inch

About this item

  • Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
  • Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
  • Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.
  • Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
  • Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe 7" x 14",Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning
7 inch
VEVOR metal lathe with powerful motor, variable speed, and high-precision chuck.
VEVOR metal lathe with accessories, tools, and toolbox included.
7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
  • Sturdy Aluminium Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR metal lathe in a warehouse, labeled "heavy & sturdy machine," "rigid cast iron," "abrasive-resistance."
Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately. It has a swing over bed of 7.09" / 180 mm and a swing over cross slide of 14" / 350 mm, so you can handle large projects.
VEVOR metal lathe with infinitely variable speeds, spindle speed 0-2500 rpm.
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.
VEVOR metal lathe with high accuracy chuck and precise self-centering spindle.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.
VEVOR metal lathe with four-way tool post and precision adjustment dial.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
VEVOR metal lathe with professional cross slide and 16 tpi reversible lead screw.
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
VEVOR metal lathe with adjustable tailstock for stable and secure operation.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
VEVOR metal lathe, compact blue and gray machine with labeled dimensions.
Specifications
  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0 - 2250 RPM
  • Swing Over Bed: 7.09" / 180 mm
  • Swing Over Cross Slide: 4.3" / 110 mm
  • Chuck Diameter: 3.94" / 100 mm
  • Centers Distance: 13.78" / 350 mm
  • Spindle Bore: 0.79" / 20 mm
  • Spindle Taper: MT3
  • Tailstock Taper: MT2
  • Cross Slide Travel: 2.53" / 65 mm
  • Top Slide Travel: 1.36" / 35 mm
  • Spindle Accuracy: 0.0004" / 0.01 mm
  • Inch Thread: 12 - 52 T.P.I
  • Metric Thread: 0.5 - 2.5 mm
  • Net Weight: 102.7 lbs / 46.6 kg
  • Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

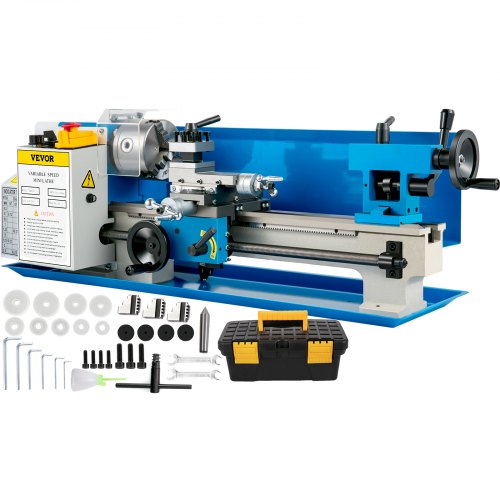

VEVOR metal lathe with accessories and tool kit on a white background.
Package Content
  • 1 x Mini Metal Lathe
  • 3 x Chuck Jaws
  • 1 x Lathe Center
  • 1 x Chuck Wrench
  • 2 x Wrench
  • 1 x Oil Can
  • 5 x Hex Wrenches
  • 9 x Plastic Nylon Gears
  • 2 x Handle
  • 4 x Rubber Feet
  • 4 x Screws
  • 1 x Tool Box
VEVOR metal lathe with powerful motor, variable speed, and high-precision chuck.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR metal lathe with accessories, tools, and toolbox included.
7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
  • Sturdy Aluminium Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest
VEVOR metal lathe in a warehouse, labeled "heavy & sturdy machine," "rigid cast iron," "abrasive-resistance."
Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately. It has a swing over bed of 7.09" / 180 mm and a swing over cross slide of 14" / 350 mm, so you can handle large projects.
VEVOR metal lathe with infinitely variable speeds, spindle speed 0-2500 rpm.
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.
VEVOR metal lathe with high accuracy chuck and precise self-centering spindle.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.
VEVOR metal lathe with four-way tool post and precision adjustment dial.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
VEVOR metal lathe with professional cross slide and 16 tpi reversible lead screw.
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
VEVOR metal lathe with adjustable tailstock for stable and secure operation.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
VEVOR metal lathe with accessories and tool kit on a white background.
Package Content
  • 1 x Mini Metal Lathe
  • 3 x Chuck Jaws
  • 1 x Lathe Center
  • 1 x Chuck Wrench
  • 2 x Wrench
  • 1 x Oil Can
  • 5 x Hex Wrenches
  • 9 x Plastic Nylon Gears
  • 2 x Handle
  • 4 x Rubber Feet
  • 4 x Screws
  • 1 x Tool Box
VEVOR metal lathe, compact blue and gray machine with labeled dimensions.
Specifications
  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0 - 2250 RPM
  • Swing Over Bed: 7.09" / 180 mm
  • Swing Over Cross Slide: 4.3" / 110 mm
  • Chuck Diameter: 3.94" / 100 mm
  • Centers Distance: 13.78" / 350 mm
  • Spindle Bore: 0.79" / 20 mm
  • Spindle Taper: MT3
  • Tailstock Taper: MT2
  • Cross Slide Travel: 2.53" / 65 mm
  • Top Slide Travel: 1.36" / 35 mm
  • Spindle Accuracy: 0.0004" / 0.01 mm
  • Inch Thread: 12 - 52 T.P.I
  • Metric Thread: 0.5 - 2.5 mm
  • Net Weight: 102.7 lbs / 46.6 kg
  • Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

Get Exceptional Work Experience with VEVOR Metal Lathe

Foster your metalworking skills in artistry with VEVOR Metal Lathe. Whether you are a professional or a hobbyist bring your designs to life through high-frequency quenching, drilling, threading, and grinding of top-notch cast iron. Its solid aluminum construction, variable speed control gears, and high-accuracy chunk ensure its durability and reliability in the long run. So rush to involve yourself in the art of metalwork and get this mini metal lathe.


The brilliancy of Construction: A Sturdy Building & Solid Material

The VEVOR Metal Lathe 7" x 14", is well-hyped for its durability and quality. This humanized design is made of aluminium and cast iron ensuring it’s enduring and worthwhile. Every part from the lathe bed to gears and handles, is made to last.


The lathe bed and other parts are made with high-grade cast iron and its handwheel is crafted with aluminium alloy. Its wear-resistant nylon gears give every part a smooth and accurate run. The full-length splash guards provide optimal protection and controlled work. The mini metal lathe’s motor power is 550W providing guaranteed accuracy.


Controlled & Variable Speed

This mini benchtop lathe can vary the spindle speed from zero-2250 RPM making it surprisingly extraordinary. With this, you can enjoy working on various projects without any work limitations. Its adjustable auto feed rate helps you to work on larger or tiny pieces with accuracy and you can also operate it manually.


Its flexibility is unmatched as it has forward and reverse functions at all speeds. Its stable output, low noise, and low power consumption make it suitable for every operation. Many users regard this machine for precision and adjustability.


Versatility and Accuracy with 3-Jaw Chunk

The 4-inch 3-jaw seld-centering chunk is its distinctive feature. This Ulta-precise chunk helps stable setting cylindrical materials that enhance accuracy and precision during work.


The spindle, supported by precision tapered roller bearings, guarantees accuracy within 0.0004"/0.01mm. Its backsplash guard provides ease in gyroscope processing, turned screws, slot turning, and tapper turning.


Compound Rest for Diverse Cutting Tasks

This mini benchtop metal lathe is well known for its smooth movement due to its professional compound rest. The abrasive-resistant T-slotted cross slides with a four-way tool post move blades freely with the rod, so you can adjust the positions for internal metal cutting, face, and bevel cutting.


It’s handy in use, just adjust the post angle and the compound rest. It has a swing-over bed of 7.09" / 180 mm and a swing-over cross slide of 14" / 350 mm, so you can handle large projects well. The flexibility and versatility of this mini lathe machine are benchmark for its guarantee.


Wide-Ranging Processing

The robust structure of the machine handles every task from sample processing to Modeling Works. It is driven by a high-power DC motor that is suitable for tiny and precise cuttings on small or large metals. The tailstock with MT2 taper is compatible for sliding along the way supporting the pieces of various lengths. Users love this variable speed lathe for its ability to work on various types of metal turning, from pen turning, and pool cue repair to making small parts for various devices.


High-Quality Performance in Affordable Price

This VEVOR Mini Metal Lathe is a great exchange for money. From its rigid structure to flexibility, versatility, and precision in work, it is a great value for your money.


For customer satisfaction, VEVOR provides a 12-month warranty in case of any damage or dysfunction, you can exchange parts free of cost. This Metal Lathe 7" x 14" is a great helping tool for everyone. Its mini structure is quite for small spaces and you enjoy loads of work within your pocket-friendly price.


See More

Specification

Power of Motor
550W DC Single Phase
Spindle Speed
0 - 2250 RPM
Swing Over Bed
7.09" / 180 mm
Swing Over Cross Slide
4.3" / 110 mm
Chuck Diameter
3.94" / 100 mm
Centers Distance
13.78" / 350 mm
Spindle Bore
0.79" / 20 mm
Spindle Taper
MT3
Tailstock Taper
MT2
Cross Slide Travel
2.53" / 65 mm
Top Slide Travel
1.36" / 35 mm
Spindle Accuracy
0.0004" / 0.01 mm
Inch Thread
12 - 52 T.P.I
Metric Thread
0.5 - 2.5 mm
Net Weight
102.7 lbs / 46.6 kg
Item Dimensions (L x W x H)
29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
Questions and Answers
31 Questions
I need to make my own 1/4 in. 303 stainless steel headless bolts with 1/4 28 threads approximately 3/16 long on one end. I would like to use a threading die to do this.Not single point threading. Will this lathe handle that?
Metric threads are fine, but stainless steel processing requires a smaller feed.
By vevor
I have just acquired a 7x14 mini lathe . Where can I get replacement nylon gears. Or other parts?
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(In the case of parts that are not consumable). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
What cutting tools fit this Lathe?
12x12.
By vevor
Yes.
By vevor
What us the operating voltage of this?
Its working voltage is 110v.
By vevor
Is this powerful enough to cut small titanium parts?
Absolutely! I used carbide cutters and got really great results.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
90 Review(s)
Clear filters
Bob Bob
Grandpa
For my use it works great. Making some small parts. It was well packaged and worked without too much fuss to set up. Definitely a good buy.
James Gibbs James Gibbs
James
I bought this lathe with a mindset that at is cheap.But boy I was pretty happy with it when it came everything was very nice . Every thing lined up I would tell anyone that wanted one too get it great value for the money
Renn N Sminkey Renn N Sminkey
Tool & Diemaker
This is the third lathe I bought. The first two I bought were from Ebay and they never delivered and I had to wait to get my money back. I did get my money back , but it delayed my projects from getting done for 6 months. I ordered this lathe from Vevor and they promised delivery in 1 week and they lived up to there promise . Do not delay ordering from this company, prices are going up so order now. This lathe is the best product out there . I bought this for pool cue repair and it works just what you would expect a good lathe to work. The quality is great. Well made heavy casting for the bed, great precision .0001 tol. Renn
ET ET
Mr.
The lathe arrived within a few days of purchase and was undamaged. The crate it was shipped in is a work of art and worth keeping. I have spent ~24 hours disassembling, cleaning, inspecting, deburring, honing, oiling, greasing, and reassembling the lathe's mechanical subsystems - tail stock, compound slide, cross slide, carriage, apron, ways, feed screw, rack gear, chuck, and stud gears. I also inspected the motor and electronics. I have posted >150 photos in the Facebook group Home Shop Machinist (https://www.facebook.com/groups/1104020856281121) of my progress - 10/12 (6), 10/23 (19), 10/26 (46), 10/28 (17), 10/31 (35), 11/04 (26), 11/07 (5). This is the second lathe I have owned. I am very pleased with it so far. I am looking for more accessories - MT3 ER32 collet chuck w/collets, MT3 dead center, faceplate and lathe dogs, follower/steady rest, MT2 live center, tooling. I am also planning a few upgrades - way covers and locks and/or stops for the slides. Once I get it mounted to a solid base I will align the tailstock, tool, and chuck. Once aligned I will begin to make parts with it. I look forward to many years of service from it. It is a fine addition to my small home shop.
donald pierce donald pierce
Very fast shipping , 7 x 14 lathe works perfectly very good bargain. so far very good equipment thank you
kerry kerry
Happy
I just set it up.....a little adjustment with gibs....but ok where they are ....I'm a machinist since 1978...but every happy it came with metal gears....
Robert Robert
Horrible experience
After over 2 months, item never arrived, ZERO tracking information, horrible customer service experience with no help only automated responses GET YOU ACT TOGETHER VEVOR!!!! LEARN HOW TO GIVE VALID INFORMATION!!
Marcus Dale Marcus Dale
Vevor lathe regret
Crate was broken, loose nuts in the crate that I can't figure out where they go. Very noisy motor. It's cheaply made, poor quality materials, likely to last a short time.
DK DK
You get what you pay for.
Do not expect to use this lathe right out of the box. It requires extensive cleaning and adjustment before the first use. Shipping packaging is poor so expect to do shipping related repairs. tooling is all but useless. With a few inexpensive changes in the design the lathe could have been much better. I can see that I will need to spent at least another $400 to make this lathe usable.
Customer Service Reply: Dear valued customer,thank you for reaching out to us and sharing your concerns. We genuinely appreciate your feedback and understand how important it is for you to have a positive experience with our products or services.
James James
No way to contact seller
Product started at the east coast, went to the west coast, passing Wisconsin where it was supposed to be delivered.Vevor would not reply to my emails. Finally when I received my order, wooden crate was damaged. The product inside was broken. I patched it together so I could get to work on my projects.The product itself is what it is…CHEAP…If you are buying anything from Vevor you must be mechanically inclined. Their products are not consumer friendly. I told myself, at least I got the product after all the hassle. I don’t know if Vevor is even in business anymore. I received emails from some mail service site explaining my emails could not be delivered to Vevor. Basically my emails were returned to me? I will never buy another thing from Vevor. Probably out of business anyway.
