VEVOR metal lathe with accessories including gears, wrenches, screwdriver, belt, and tool case. VEVOR metal lathe 8" x 14" professional, designed for complex parts, displayed in a workshop. VEVOR metal lathe with 500w motor, intelligent digital display, 4 speeds, and 50-2500 rpm range. VEVOR metal lathe with 100mm 3-jaw metal chuck, poly-v-belt external, and automatic feed screw. VEVOR metal lathe showcasing thread turning, 20 mm spindle hole, and precision measurement display. VEVOR metal lathe with durable metal gears, aluminum alloy handwheel, and heavy-duty components. VEVOR metal lathe with dimensions and specifications highlighted on a dark background.
TSJSCCYSDJ200ZM3GV1

VEVOR Metal Lathe Machine, 7.87'' x 13.78'', Precision Benchtop Power Metal Lathe,, 50-2500 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • 8" x 14" Metal Lathe: Our metal lathe machine adopts external poly-V-belt drive technology. The output torque is increased by 3 times, up to 1:9, so you can turn 45# steel bar easily. With 20 mm / 0.79 in hole through spindle diameter, you can process all kinds of rotating surfaces and end faces of rotating bodies.
  • 4-Speed Adjustment: The benchtop metal lathe adopts a 4-speed continuously variable function so that you can adjust spindle speed flexibly from 50 to 2500 rpm according to your demand. Intelligent electric control speed regulation and digital display equipment are more convenient for you to adjust and operate accurately.
  • High Accuracy & Professionalism: The tailstock spindle features an MT2 taper with top-press thread quick-lock technology for user-friendly use without effort. The precision dial is provided in the tailstock handle so that you can work more accurately and professionally.
  • Forward & Reverse Thread Turning: All gears of the power metal lathe are made of high-quality metal material, ensuring a longer service life. It can turn 18 types of imperial threads (12-52 T.P.I) in both forward and reverse.
  • Security Comes First: The benchtop metal lathe has chuck cover disconnection protection, automatic overload protection, and an added circuit board protector to avoid high-speed reverse short circuits, which protects the security of the operator and the machine motor.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe Machine, 7.87'' x 13.78'', Precision Benchtop Power Metal Lathe,, 50-2500 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts

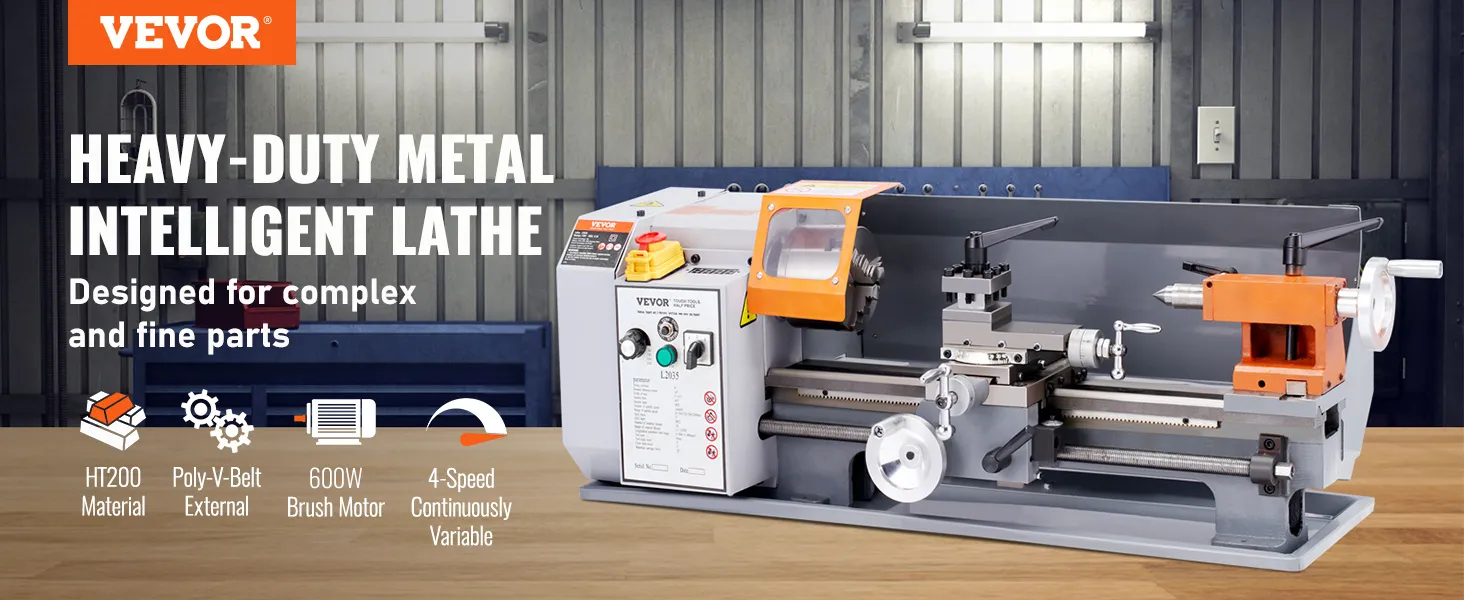

Heavy-Duty Metal Lathe
VEVOR metal lathe with 600w motor, ht200 material, and 4-speed variability for complex parts.
VEVOR metal lathe with 600w motor, ht200 material, and 4-speed variability for complex parts.
8'' x 14'' benchtop metal lathe features a powerful 600W motor and a robust HT200 cast iron body, ensuring durability and sturdiness. With a 20 mm / 0.79" hole through spindle, it accommodates various parts and threading tasks, allowing the processing of stainless steel, iron, wood, etc.
VEVOR metal lathe with 4-speed range, intelligent display, and adjustable gear settings.
VEVOR metal lathe with 4-speed range, intelligent display, and adjustable gear settings.

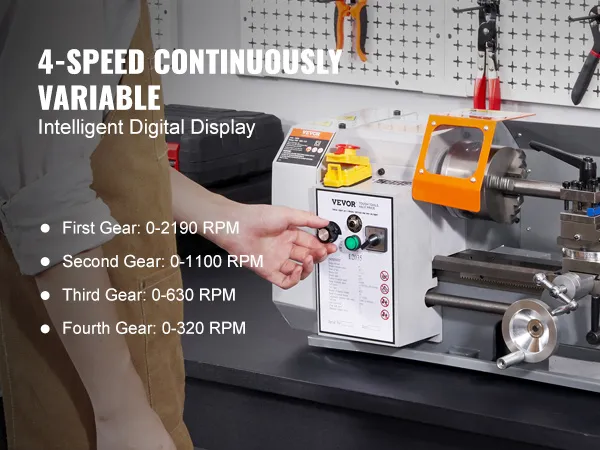

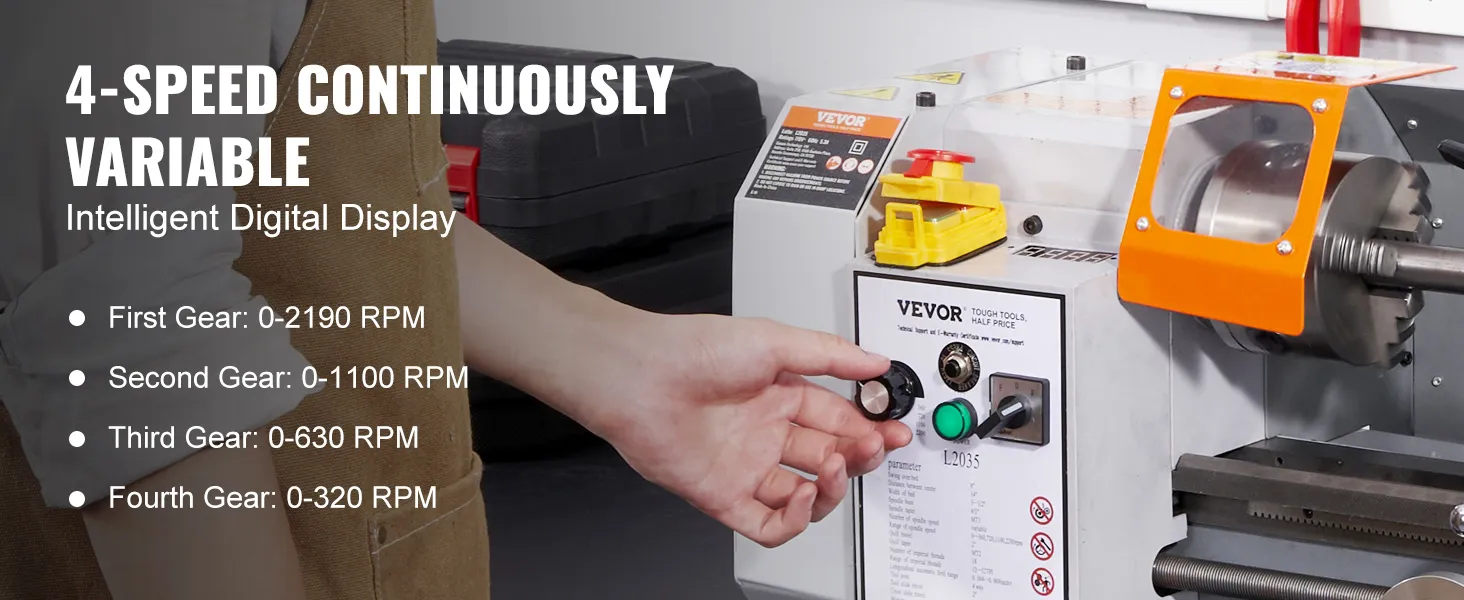

The metal lathe machine has a 4-speed continuously variable function, and you can flexibly adjust the speed within the range of 50 - 2500 rpm. Intelligent electric control and digital display make it more convenient for precise adjustment and operation.
VEVOR metal lathe with chuck cover, overload protection, and high-speed reverse fool-proofing device.
VEVOR metal lathe with chuck cover, overload protection, and high-speed reverse fool-proofing device.

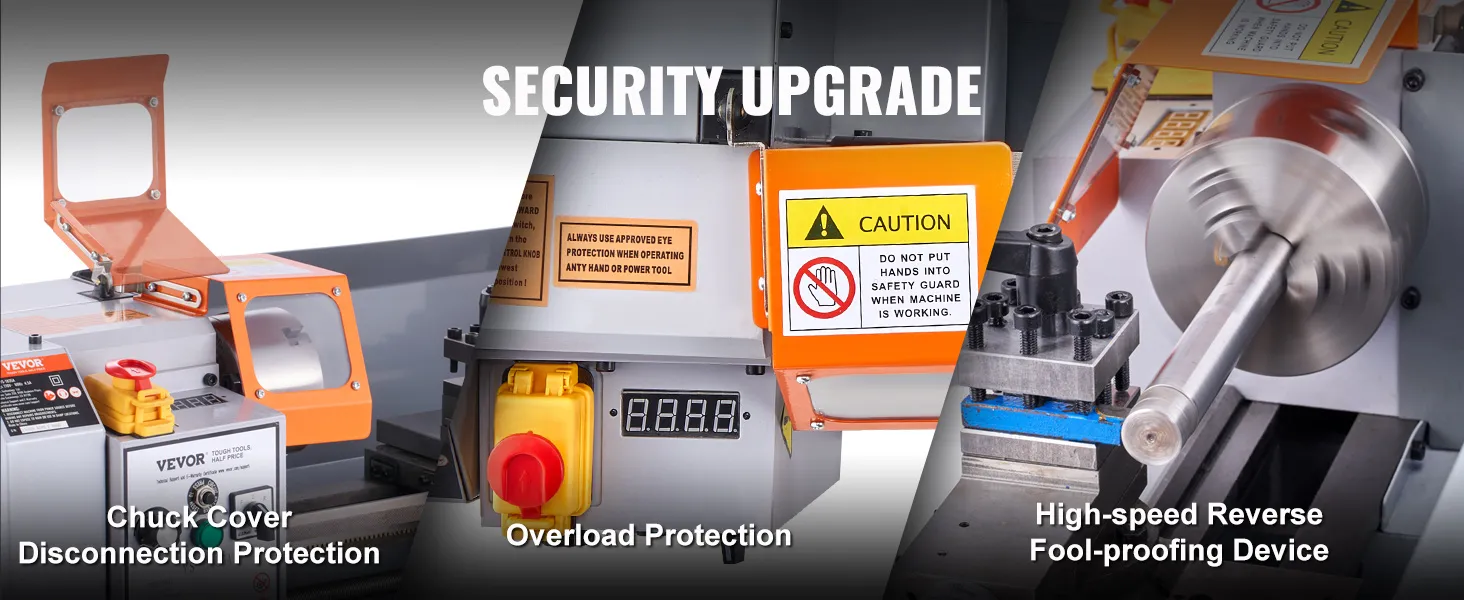

Our power metal lathe features multiple protections that make processing more secure, including overload protection, high-speed reverse fool-proofing, and chuck cover disconnection protection.
VEVOR metal lathe with external poly-v-belt, easy turning of steel bars, smooth transmission.
VEVOR metal lathe with external poly-v-belt, easy turning of steel bars, smooth transmission.
The metal lathe utilizes external poly-V-belt transmission technology, and the output torque is increased by 3 times, reaching up to 1:9, effortlessly enabling the turning of 45# steel bars for smoother transmission and easy replacement.
machining fine parts with VEVOR metal lathe: turning, drilling, thread turning, and knurling.
machining fine parts with VEVOR metal lathe: turning, drilling, thread turning, and knurling.
The tail stock spindle adopts an MT2 taper featuring the top-pressing thread quick-lock technology for ease of use. The precision dial is provided on the tailstock handle, allowing you to work more accurately and professionally.

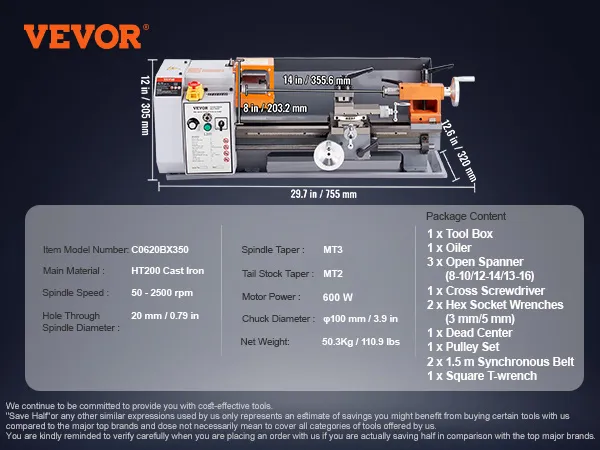

VEVOR metal lathe specifications and dimensions with package contents listed on the side.
VEVOR metal lathe specifications and dimensions with package contents listed on the side.

Metal Lathe Machine: Precision and Power for All Materials

This metal lathe machine offers precision and power to handle various materials with ease. This is perfect for both beginners and pros. The strong design ensures reliability. The machine is built to last with high-quality materials. No matter if you’re working on small or large projects, this lathe provides consistent performance. With its powerful motor, it ensures efficient and smooth operations. This lathe machine is a versatile tool for any workshop.


Compact Desgin and Easy Storage

This benchtop metal lathe is perfect for home workshops. It fits easily on your workbench, saving space. Despite its size, it offers impressive functionality. This lathe is ideal for small to medium projects. It is suitable for both hobbyists and DIY enthusiasts to work on different materials. The machine's robust construction ensures long-lasting performance.


Variable Speed Control for Precision Machining

This machine comes with variable-speed lathe. You can adjust the speed from 50 to 2500 RPM. This flexibility is essential for precision machining. The variable speed allows you to work with accuracy on different materials.  This feature enhances the machine's versatility. It ensures you get the best results every time. Our tool is suitable for all skill levels, making it ideal for both beginners and experienced users. It is a valuable feature for both beginners and experienced users.


Robust Design with Durable Cast Iron Construction

This precision metal lathe is made with HT200 cast iron. This material ensures durability and stability. The strong design can handle heavy-duty tasks. We build our lathe to withstand the rigors of regular use. Its sturdy construction minimizes vibrations during operation. This improves precision and accuracy. Since your machine is durable, it will serve you for years. This tool is suitable for both home and professional workshops. High-quality build guarantees consistent performance.


Easy Setup and Tuning for Maximum Accuracy

Setting up this metalworking lathe is easy, as it comes with clear instructions. You can get it ready for use in no time. Tuning the lathe for maximum accuracy is also simple. You can make adjustments to ensure precise machining. This lathe is designed to be user-friendly. Even beginners can set it up without much trouble. The ability to fine-tune the machine ensures the best performance. It is a useful tool for all levels of expertise.


Fast Delivery and Reliable Customer Support

The VEVOR ensures fast delivery of their metal lathe machines. You won't have to wait long to start your projects. Their customer support is reliable and responsive. If you face any issues, they are ready to help. This guarantees a smooth buying experience. You’ll feel confident knowing help is available if needed. The company’s commitment to customer satisfaction is clear. So, you can trust their support for any concerns.


Cost-Effective Solution for Precision Machining Needs

This lathe machine offers great value for money. It’s a cost-effective solution for precision machining. This machine offers professional results at an affordable price, making it a wise investment.


See More

Specification

Item Model Number
C0620BX350
Main Material
HT200 Cast Iron
Spindle Speed
50 - 2500 rpm
Hole Through Spindle Diameter
20 mm / 0.79 in
Spindle Taper
MT3
Tail Stock Taper
MT2
Motor Power
600W
Chuck Diameter
φ100 mm / 3.9 in
Net Weight
50.3 kg / 110.9 lbs
Product Dimensions(L x W x H)
755 x 320 x 305 mm / 29.7 x 12.6 x 12 in
Manual
Download Link
Questions and Answers
1 Questions
110 volt or 220 volt
It is 110V.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
10 Review(s)
Clear filters
Ed H Ed H
Lathe
I purchased a lathe but it was never delivered. Vevor made no attempt to find it. Vevor solved the problem by issuing me a refund. I never asked for a refund. I just wanted the item.
Howard Beever Howard Beever
Retired
It is a nice machine , it needs a lot adjustment to work like it should. I love 4 different speed ranges,which makes great for threading. I .would buy again
One Bone One Bone
Arrived earlier than expected
Arrived slightly beat up from handling. Just a few dents, but nothing that was not fixable. I am impressed with the quality. It actually had metal gears. I thought the start solenoid PB was faulty. The company is sending a replacement. But further investigation: After further investigation I discovered that the coil connects between terminal #4 (120 vac supply) then once the PB is pushed then to termina A1. A1 needs a neutral connection to hold the contacts in. This lathe was wired incorrectly as the A1 wire went to forward reverse switch terminal 9 then to terminal 10 which connected to the supply terminal on the board. That wire connected to the F/R switch #10 should have been connected to the neutral J1 terminal on the board, not the supply. So, it appears that the original switch was not bad, only a wiring mistake at Vevor. Even their print is incorrect. Check it out!
Rusty Shackleford Rusty Shackleford
Seems to be a good machine
Works well. Has more power and is more precise out of the box than I was expecting. The shipping took several weeks longer than advertised, when I contacted Vevor they said it was lost and offered a refund, then it finally arrived, so no refund. Weeks of precious project time were tied up in waiting for it to arrive. It seems to be a good machine, though time will tell. Just don't expect it to arrive without significant delay.
zero zero
Don't believe NEGATIVE reviews
I'm a beginner lathe wannabe. I read dozens of reviews and a good of those reviews number TRASHED Vevor lathes. Lots of complaints about the need to work on the lathe to obtain maximum accuracy. YES, right out of the crate will give you an accuracy measured in tenths(!). I finally ordered Vevor and KNEW I'd have to mess with it to get the advertised maximum accuracy and make numerous adjustments to this mass produced ~200 pound hunk of Chinese metal. No problem. Good thing I experienced in tearing down and rebuilding car engines. I have many talents and skills and tools as far as machines are concerned. So I spent several days FINE TUNING this thing. Now it's working well (but I'm not fully familiar with metal lathe operations). I'm getting closer to reliable thousandths. MY POINT: The thing was shipped around the world and got knocked around during shipment. How can anybody expect a 200 pound chunk metal to be accurate to thousandths right out if the box?? YOU MUST SPEND HOURS WITH IT TO TUNE IT UP! PLUS? we have hundreds off guys on the net who are very willing to offer helpful advice if you were to come up against a problem that resists your DIY skills. Vevor. They make thousands of these machines so I trusted them to send me (us) a product which definitely has the POTENTIAL to be very accurate AFTER the new buyer spends hours tuning it.
archie archie
GM
Very good quality and good price, it is made with good materials which gives the operator the ease of working with various materials and not worrying about changing parts at all times
john w. walsh john w. walsh
quality product, precision lathe, a perfect tool for the home workshop
super quality, fast delivery, it came in a wooden crate when was the last time you saw that,a super machine, don't fool around if you need a mini precision lathe, this is the one , thanks John
ds5150 ds5150
Great product for the price
I had been looking at mini lathes for some time when this one became available for a substantial discount so I decided to buy it. Honestly, I don’t know how they can produce these things at this price. It arrived on time and mostly in tact, some of the tooling was loose in the crate and suffered from it, and the chip shield was bent, nothing I couldn’t get past. The machine itself is well made and functioning as it should. I immediately made modifications to accommodate a quick change tool post which only showed the quality of the build of this machine and now I have repeatable ability for tooling setup. This machine is built for hobbyists and DIYers but the specific design adds functionality beyond that. I absolutely recommend this tool for anyone looking to get into machine work.
GOT GOT
Great machine for the money
Initial setup doesn't show any issues. Great lathe for the price.
Diego Diego
Ottimo venditore
Il tornio di per sé lo trovo funzionale, robusto e per hobbistica è ottimo. Ho avuto dei problemi con la torre perché i piani nn scorrevano e si inceppavano , ho quindi smontato tutto il blocco e portato a rettificare i vari pezzi perché nn erano decisamente in linea. Anche la vite guida nn era dritta. Il venditore è stato sempre disponibile e ha infine deciso di restituirmi l'intero importo pagato senza effettuare il reso del tornio che provvederò a riparare a mie spese . Direi onesto. Il tornio riesce a tornare bene anche l'acciaio inox , ovviamente con utensili ben affilati. Non ci sono vibrazioni. Aggiorno la recensione al 28 novembre : Dopo un po' di utilizzo e dopo aver portato i vari piani del carrello dritti devo dire che il tornietto va alla grande, per obbistica avanzata è perfetto. Se avete qualche dubbio mi trovate su Instagram jego_lab
