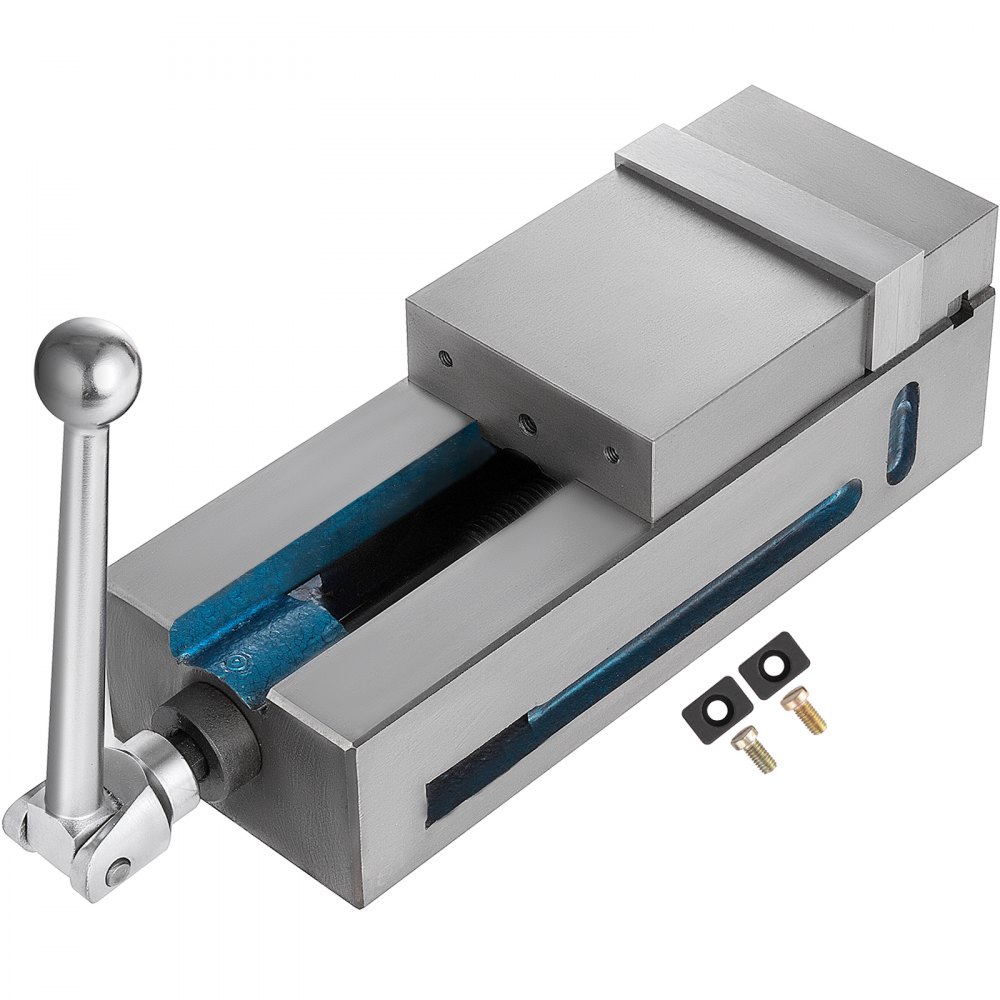

VEVOR milling vise with a silver handle and included mounting hardware. VEVOR milling vise qt500 ductile cast iron with precision grip on black background VEVOR milling vise with closed design, featuring a detailed build and robust structure. VEVOR milling vise with precision thread highlighting internal mechanism. VEVOR milling vise with adjustable handles in a well-lit workshop. VEVOR milling vise with precise alignment and robust clamping mechanism. VEVOR milling vise in various industrial machinery settings, featuring a robust metal vise.
TQ4YCJMJYHQ000001V0

VEVOR Milling Vise 4"/100mm,Bench Clamp Vise Nodular Cast Iron Material,Clamping Vise Clamping Force 19KN Max, Milling Machine Vise

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Premium Quality Structure: 45# steel jaws, after high-frequency quenching, undergo improving the wear resistance and service life of the jaws. Vise body for the QT500 ductile cast iron forging, which has good toughness, high strength, and durability.
  • Powerful Clamping Force: Vise guide surfaces are finely polished, smooth surface. When clamping the workpiece, the movement is stable, the positioning is accurate, and the clamping force can reach up to 19 KN, which is suitable for workpieces of different sizes.
  • High Accuracy Screw: The closed design protects the screw rod and prevents the entry of iron pins and other debris, which is convenient for maintenance and cleaning. The vise can be used not only horizontally, sideways, but also vertically, without affecting its precision.
  • Humanized Design: Our vises are detachable and can be quickly changed. The unique downward pressure design prevents the workpiece from floating when clamped. The hardened swivel handle is a universal joint structure, easy operation, flexible, and convenient to use.
  • Multifunctional Tool: Jaw Width: 4" (100 mm), Jaw Opening: 4.7" (120 mm). Milling Vise is an essential tool for fitters. Most work of the fitters is running by using the clamping vise such as sawing, filing, chiseling, and some assembly and removal jobs.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Milling Vise 4"/100mm,Bench Clamp Vise Nodular Cast Iron Material,Clamping Vise Clamping Force 19KN Max, Milling Machine Vise
VEVOR milling vise, solid casting, high precision in a modern industrial setting.
VEVOR milling vise with handle and mounting bolts, precision machining tool.
4" Multifunction Precision Lockdown Vise
During workshop operation, many workpieces minor damage due to their materials or excessive force, which caused work delays or economic losses. Therefore, to avoid damage to your workpiece, we recommend that you use the vise to clamp the workpiece. Our vise has a strong clamping force and can hold the workpiece very firmly. It can ensure the stability of the workpiece and avoid damage.
  • Premium Quality Structure
  • Powerful Clamping Force
  • High Accuracy Screw
  • Humanized Design
  • Multifunctional Tool
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR milling vise made from qt500 ductile cast iron, sturdy and durable.
Durable Material
The vise is made of QT500 ductile cast iron, with strong toughness, high tensile strength, and wear resistance. Internal refine grinding treatment, smooth use, no jamming, rust, and corrosion resistance.
VEVOR milling vise with closed design, grey finish, highlighting internal structure.
Hardened Clamping Jaw
The jaws are thickened and finely ground, and the maximum clamping force can reach 19 KN. The lockdown vise machine adopts a fully enclosed design, and iron filings are not easy to enter, which improves the service life of the vise.
VEVOR milling vise with precision thread and robust steel construction.
Quality Lead Screw
The thread pitch of the ladder screw is larger than the standard screw. The surface is quenched, turned, and ground. It is more wear-resistant, durable, and corrosion-resistant than the ordinary screw, and has higher accuracy.
VEVOR milling vise in a well-lit industrial space with adjustable handles.
Adjustable Handle
The universal joint handle is ductile iron material, which is not easy to rust and is flexible and durable. You can precisely adjust the gripping force of the jaws through the handle, and complete the workpiece clamping work excellently.
VEVOR milling vise close-up highlighting details and features in blue and silver.
Precision Design
The guide rail surface is refined ground, seamless contact surface, and the positioning is more accurate. Compared with a standard vise, it can be used upright without affecting the accuracy of clamping the workpiece.
VEVOR milling vise in various industrial machinery settings.
Wide Application
Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for finishing milling machines, drilling machines, and precision parts.
VEVOR milling vise with handle, dimensions labeled 13.1", 3.7", 7.4".
Specifications
  • Type: Bench Vise
  • Jaw height: 1.2" (30 mm)
  • Jaw width: 4" (100 mm)
  • Jaw opening: 4.7" (120 mm)
  • Jaw material: 45# steel
  • Body material: QT500 ductile cast iron
  • Wrench material: QT500 ductile iron
  • Vise Height: 3.7" (95 mm)
  • Max Clamping force: 19 KN
  • Gross weight: 22.8 lbs (10.4 kg)
  • Package dimensions (L x W x H): 14.2" x 6.3" x 6.7" (36 x 16 x 17 cm)
VEVOR milling vise with mounting accessories including bolts and washers.
Package Content
  • 1 x 4" Bench Clamp Vise Fixed Jaw
  • 1 x Handle
  • 1 x Manual
VEVOR milling vise, solid casting, high precision in a modern industrial setting.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR milling vise with handle and mounting bolts, precision machining tool.
4" Multifunction Precision Lockdown Vise
During workshop operation, many workpieces minor damage due to their materials or excessive force, which caused work delays or economic losses. Therefore, to avoid damage to your workpiece, we recommend that you use the vise to clamp the workpiece. Our vise has a strong clamping force and can hold the workpiece very firmly. It can ensure the stability of the workpiece and avoid damage.
  • Premium Quality Structure
  • Powerful Clamping Force
  • High Accuracy Screw
  • Humanized Design
  • Multifunctional Tool
VEVOR milling vise made from qt500 ductile cast iron, sturdy and durable.
Durable Material
The vise is made of QT500 ductile cast iron, with strong toughness, high tensile strength, and wear resistance. Internal refine grinding treatment, smooth use, no jamming, rust, and corrosion resistance.
VEVOR milling vise with closed design, grey finish, highlighting internal structure.
Hardened Clamping Jaw
The jaws are thickened and finely ground, and the maximum clamping force can reach 19 KN. The lockdown vise machine adopts a fully enclosed design, and iron filings are not easy to enter, which improves the service life of the vise.
VEVOR milling vise with precision thread and robust steel construction.
Quality Lead Screw
The thread pitch of the ladder screw is larger than the standard screw. The surface is quenched, turned, and ground. It is more wear-resistant, durable, and corrosion-resistant than the ordinary screw, and has higher accuracy.
VEVOR milling vise in a well-lit industrial space with adjustable handles.
Adjustable Handle
The universal joint handle is ductile iron material, which is not easy to rust and is flexible and durable. You can precisely adjust the gripping force of the jaws through the handle, and complete the workpiece clamping work excellently.
VEVOR milling vise close-up highlighting details and features in blue and silver.
Precision Design
The guide rail surface is refined ground, seamless contact surface, and the positioning is more accurate. Compared with a standard vise, it can be used upright without affecting the accuracy of clamping the workpiece.
VEVOR milling vise in various industrial machinery settings.
Wide Application
Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for finishing milling machines, drilling machines, and precision parts.
VEVOR milling vise with mounting accessories including bolts and washers.
Package Content
  • 1 x 4" Bench Clamp Vise Fixed Jaw
  • 1 x Handle
  • 1 x Manual
VEVOR milling vise with handle, dimensions labeled 13.1", 3.7", 7.4".
Specifications
  • Type: Bench Vise
  • Jaw height: 1.2" (30 mm)
  • Jaw width: 4" (100 mm)
  • Jaw opening: 4.7" (120 mm)
  • Jaw material: 45# steel
  • Body material: QT500 ductile cast iron
  • Wrench material: QT500 ductile iron
  • Vise Height: 3.7" (95 mm)
  • Max Clamping force: 19 KN
  • Gross weight: 22.8 lbs (10.4 kg)
  • Package dimensions (L x W x H): 14.2" x 6.3" x 6.7" (36 x 16 x 17 cm)

Milling Vise 4 inch with Premium Quality Material for Durability

The VEVOR milling vise 4 inch is made of premium-quality materials. The jaws are made from 45# steel. This ensures exceptional wear resistance. The vise body is constructed from QT500 ductile cast iron. It offers high strength and toughness. The vise is designed for durability and long-lasting use. The vise, blending materials, can withstand tough conditions. It is a reliable tool for all your clamping needs. The use of high-grade materials makes it an excellent addition to any workshop. You can trust this vise to provide consistent performance over time.


Powerful Clamping Force of 19KN for Secure Workpiece Holding

The VEVOR nodular cast iron vise offers a powerful clamping force of 19KN. This ensures that workpieces are held securely. The vise-guide surfaces are finely polished. This allows for smooth and stable movement. High clamping force makes it suitable for workpieces of different sizes. You can count on this vise to keep your work pieces in place. That's important for precise and accurate machining tasks. Powerful clamping force adds to the vise's versatility. So, it is a dependable tool for both home and professional use.


High Precision and Versatile Usage in Any Direction

The VEVOR milling machine vise offers high precision. The closed design protects the screw rod from debris. It ensures smooth operation and easy maintenance. When used horizontally, vertically, or sideways, the vise maintains its precision regardless of orientation. This flexibility makes it suitable for a wide range of applications. Our vise is perfect for sawing, filing, chiseling, and more. With its high accuracy, it delivers accurate results. Therefore, this tool is an indispensable asset for any fitter or mechanic. Its versatility makes it practical for use in various fields.


Humanized Design with Quick Change and Stable Clamping

The VEVOR clamping vise 19KN force humanized design makes it user-friendly. The vise is detachable and can be quickly changed. This feature saves time and effort during setup. Unique downward pressure design prevents workpieces from floating. This ensures stable clamping. The hardened swivel handle is simple to operate. Using the vise provides convenience. We make it simple for you to handle and operate it; this feature is especially beneficial for prolonged use.


Ideal for Fitting and Assembly Tasks with 4-Inch Jaw Width

The 4-inch jaw width of this vise is ideal for fitting and assembly tasks. It allows for various types of work, including sawing and filing. The vise is perfect for chiseling and some assembly and removal jobs. You can use it in any workshop. This makes it a versatile and useful tool. We designed our jaw width to accommodate a wide range of workpiece sizes. Therefore, it is suitable for both small and large tasks. What you should know about the vise is that it simplifies many tasks and increases efficiency.


Built to Last with 45# Steel Jaws and QT500 Ductile Cast Iron Body

The construction of this VEVOR bench clamp vise is built to last. The jaws are made from 45# steel, ensuring high wear resistance. The body is made of QT500 ductile cast iron, which is strong and durable. This combination of materials makes the vise long-lasting. It can withstand heavy use without compromising on performance. Durable build ensures that the vise remains reliable over time. So, it's a valuable investment for any workshop. You can trust this vise to deliver consistent performance.


Easy to Maintain with Smooth Surfaces and Protective Design

The VEVOR clamping vise 19KN force guide surfaces are finely polished, ensuring smooth operation. The closed design protects the screw rod from debris. This design makes it simple to clean and maintain the vise. Regular maintenance ensures that the vise remains precise and accurate. Smooth surfaces prevent the buildup of dirt and dust. This feature adds to the durability of the vise. The ease of maintenance makes this vise a practical tool for any workshop. You can keep the vise in top condition with minimal effort.


See More

Specification

Type
Bench Vise
Jaw height
1.2" (30 mm)
Jaw width
4" (100 mm)
Jaw opening
4.7" (120 mm)
Jaw material
45# steel
Body material
QT500 ductile cast iron
Wrench material
QT500 ductile iron
Vise Height
3.7" (95 mm)
Max Clamping force
19 KN
Gross weight
22.8 lbs (10.4 kg)
Package dimensions (L x W x H)
14.2" x 6.3" x 6.7" (36 x 16 x 17 cm)
Manual
Download Link
Questions and Answers
3 Questions
What is the size of the keyway slot?
It is 14mm.
By vevor
replacment jaws?
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(Except for consumables). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
What are the mounting bolt centers?
This vise has no center distance, it has to be installed with a pressure plate.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
130 Review(s)
Clear filters
Deputyd123 Deputyd123
Mr
I have purchased several of these Accu-lock vises in the past and have been happy with them all. They are well built, have a very good design, and work well. This vise is no Kurt vise, but it is a very good vise at a good price. I would definitely recommend this vise to anyone that needs a good mid-size milling vise.
mpw mpw
Mr
I knew what I was getting into so I wasn't disappointed by what I received. The basic manufacturing process was good and the item is solid and square. But, the finish was known to be poor; not the paint but the corners. You have to be prepared to take the item completely to pieces (which is easy enough to do) and go over all the edges and corners with a file, none of which have been addressed in the factory. After that it is a very good mill vice, without that - wear gloves!
Vegas OBie Vegas OBie
Hobbist
Great and precise. I use it on my Drill Press. I also bought a 6" version for my Grizzly Milling Machine.
Axis Innovations Axis Innovations
Owner
Purchased 4 Vises and they seem to be well built. So far so good. Edges are a little sharp but for the price I'll deburr them myself.
Deputyd123 Deputyd123
Mr
I have three of these vises with different configurations and am pleased with all of them. Understand this is no Kurt vise, but for the money, Vevor has put together a pretty good product.
Randy Randy
owner
Vice is nice but you have to clean it or the threads will lock up as the drilling residue binds up the threads.
Charley Charley
3” mill vise
Great vise for my lathe/mill combo. Great price and good quality for the price. Would highly recommend.
cookingout cookingout
VEVOR 5 Inch ACCU Lock Down Vise
This is an excellent vice and the price cannot be beat. I was amazed at how good this vise is. I recently purchased the 5 inch model for my Jet Mill / Drill. So far it is performing very well. It holds the work very securely. I am very happy with this purchase and will be buying more products from Vevor.
Marci-B Marci-B
Vice
Good for the price. Nice color not to heavy not to light. OK for Do It Your Self-er. Arrived sooner than expected.
Mr_Bibs Mr_Bibs
Owner/Operator
Exceptional value, well made and very affordable for the smaller shop. Would be happy to recommend this as a wonderful addition to your shop.
