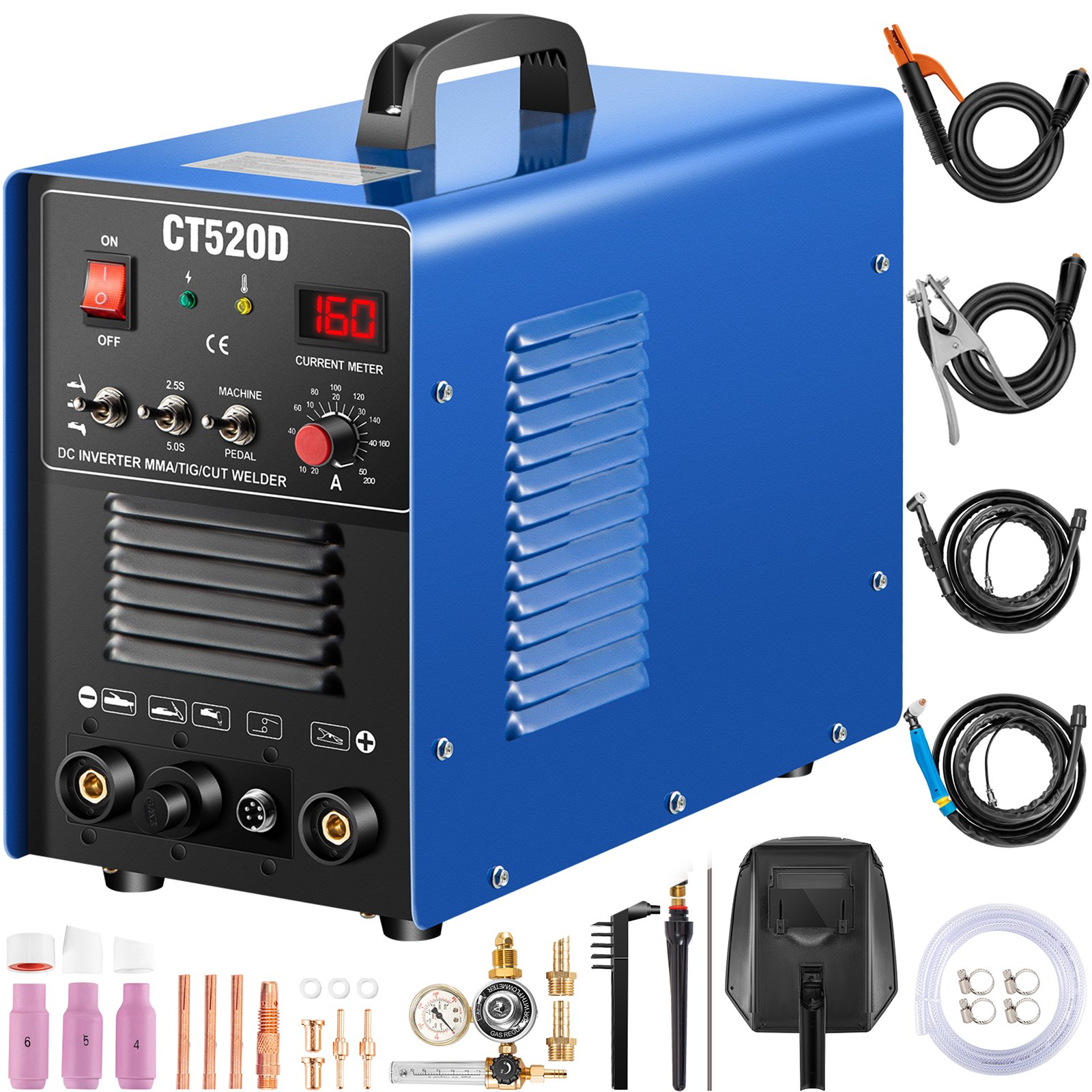

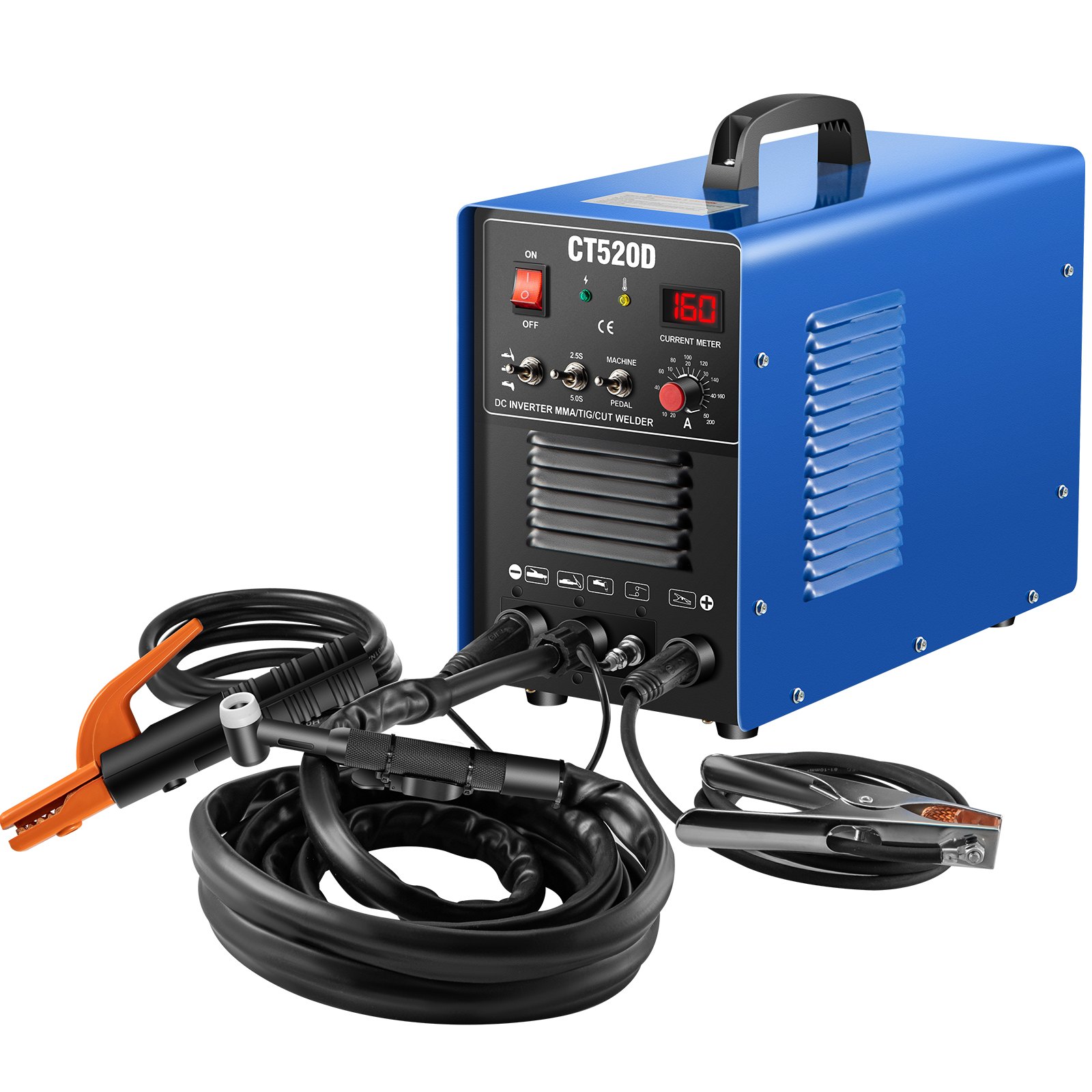

VEVOR plasma cutter welder ct520d, blue unit with cables and accessories. VEVOR plasma cutter welder in use, showcasing sparks and welding process. igbt technology for stable arc welding with VEVOR plasma cutter welder, features shown. VEVOR plasma cutter welder showcasing cutting capabilities for stainless steel, carbon steel, and iron. control panel and features of VEVOR plasma cutter welder ct520d for mma, tig, and cut. VEVOR plasma cutter welder ct520d with automatic protection and cooling fan. VEVOR plasma cutter welder specifications and usage examples for pipes, guardrails, ships, and cars.
CT520DSHYDHJ00000V4

CT520D Plasma Cutter/TIG/Stick 3-in-1 Combo Welder 50A/200A 110/220V

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Advanced IGBT Technology: Our CT-520D adopts the most advanced IGBT inverter technology with excellent arc stability. Suitable for welding carbon steel, iron, stainless steel, and other metals. (Friendly Reminder: Not Suitable For Welding Aluminum!)
  • Suitable Cutting Thickness: Effectively cut rough, painted and rusty surfaces, and produce the least slag. The maximum ideal cutting thickness: 6 mm; the maximum cutting thickness: 10 mm.
  • Easy Control Panel & 3 In 1: The inverter welder has CUT MMA TIG mode. The welding machine has knobs to support different current adjustment needs. The LCD digital display is clear and easy to read. With this multi-function welding machine, you will save time and money when meeting different needs.
  • Safety & Overheat Protection: The welding machine has a built-in protection device, and the engine will automatically shut down when overheated and overload; it is protected against splashing water, with a protection level of IP21, which has good water resistance.
  • Compact and Portable: Lightweight 29 pounds, with a comfortable handle, easy to install and store. Ideal for outdoor repairs, rusty metal, farm and road equipment, and maintenance and repairs.

Frequently Bought Together

People Who Bought This Item Also Bought

CT520D Plasma Cutter/TIG/Stick 3-in-1 Combo Welder 50A/200A 110/220V

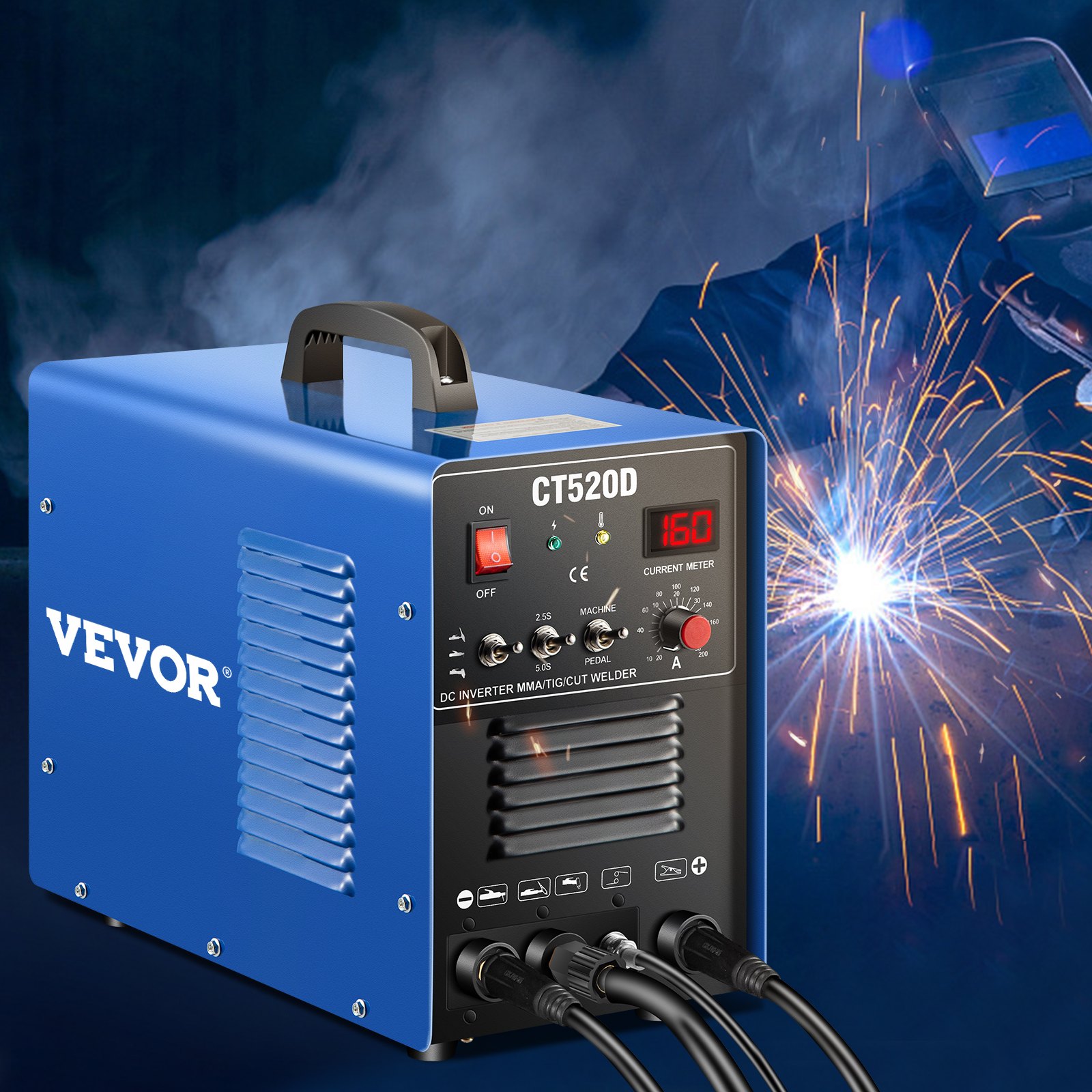

VEVOR plasma cutter welder ct-520d, 3-in-1 tig/mma/cut, in use.
VEVOR plasma cutter welder with accessories and control panel display.
CT-520D 3 In 1 Inverter Welder
Three Modes & IGBT Technology & Easy to Use
Multifunction 3-in-1 CUT/TIG/MMA professional combo welder, capable of welding / cutting mild steel, weld steel, stainless steel, copper, and cast iron. Withstand extensive use in rugged industrial and construction environments. It is perfect for any home project too.
  • Special Notice: For overload concerns in industrial scenarios, this model is no plugs included.
  • Advanced IGBT Technology
  • Suitable Cutting Thickness
  • Easy Control Panel & 3 In 1
  • Safety & Overheat Protection
  • Compact and Portable
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR plasma cutter welder ct520d with stable performance and high efficiency.
IGBT Inverter
The IGBT in inverter technology of this 3 in 1 welder has the characteristics of stable arc, small splash, anti-interference, firm thrust, and stable performance. It is simple and easy to operate, which is very suitable for beginners and professionals.

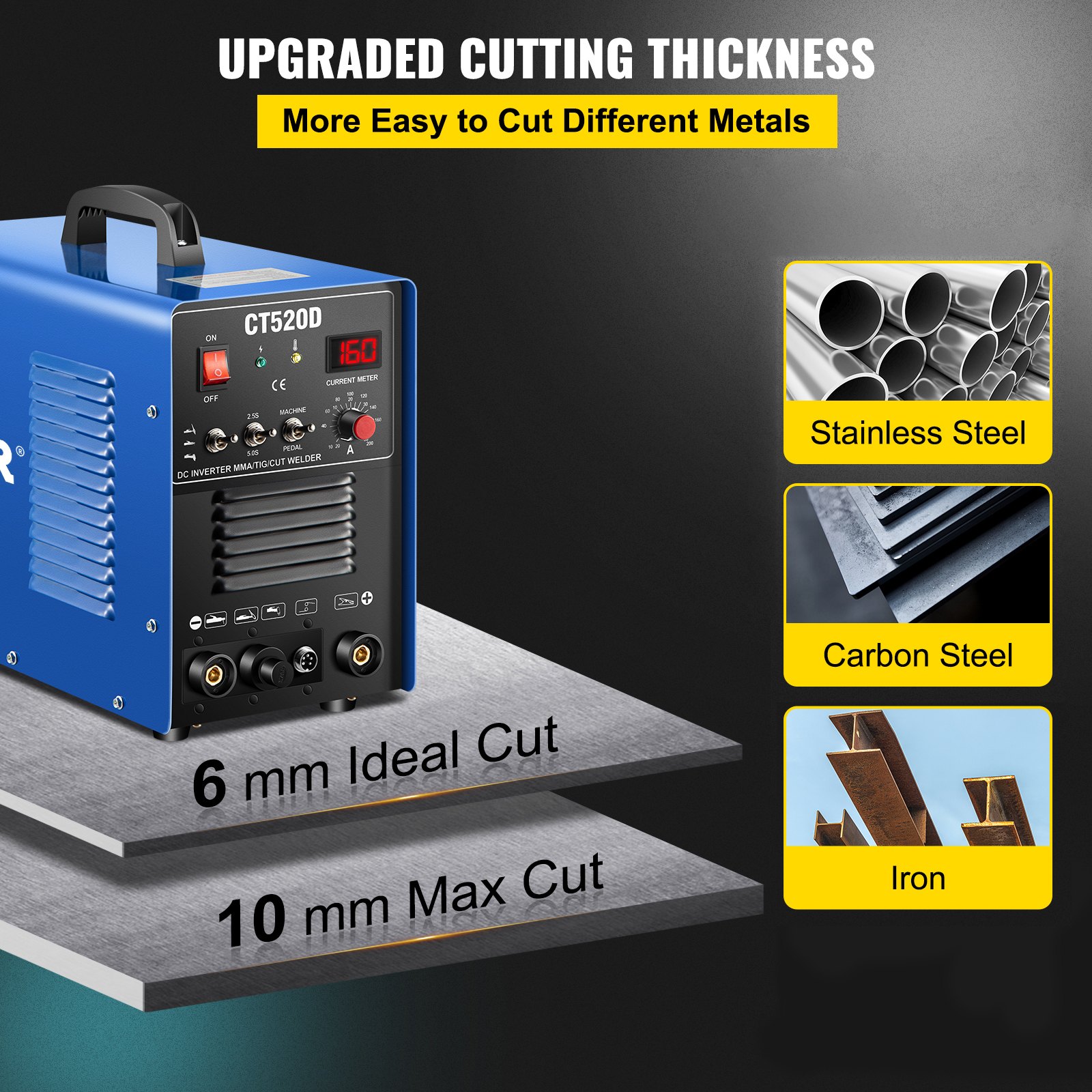

VEVOR plasma cutter welder, cuts stainless steel, carbon steel, and iron, 10mm max cut.
Cutting Thickness
Using arc-ignited cutting technology, the cutting effect is very ideal and no matter the material is rough, rusty, greasy, dirty, spray paint, etc., the work can be completed easily and quickly. The ideal cutting thickness: 6 mm; the maximum cutting thickness: 10 mm.

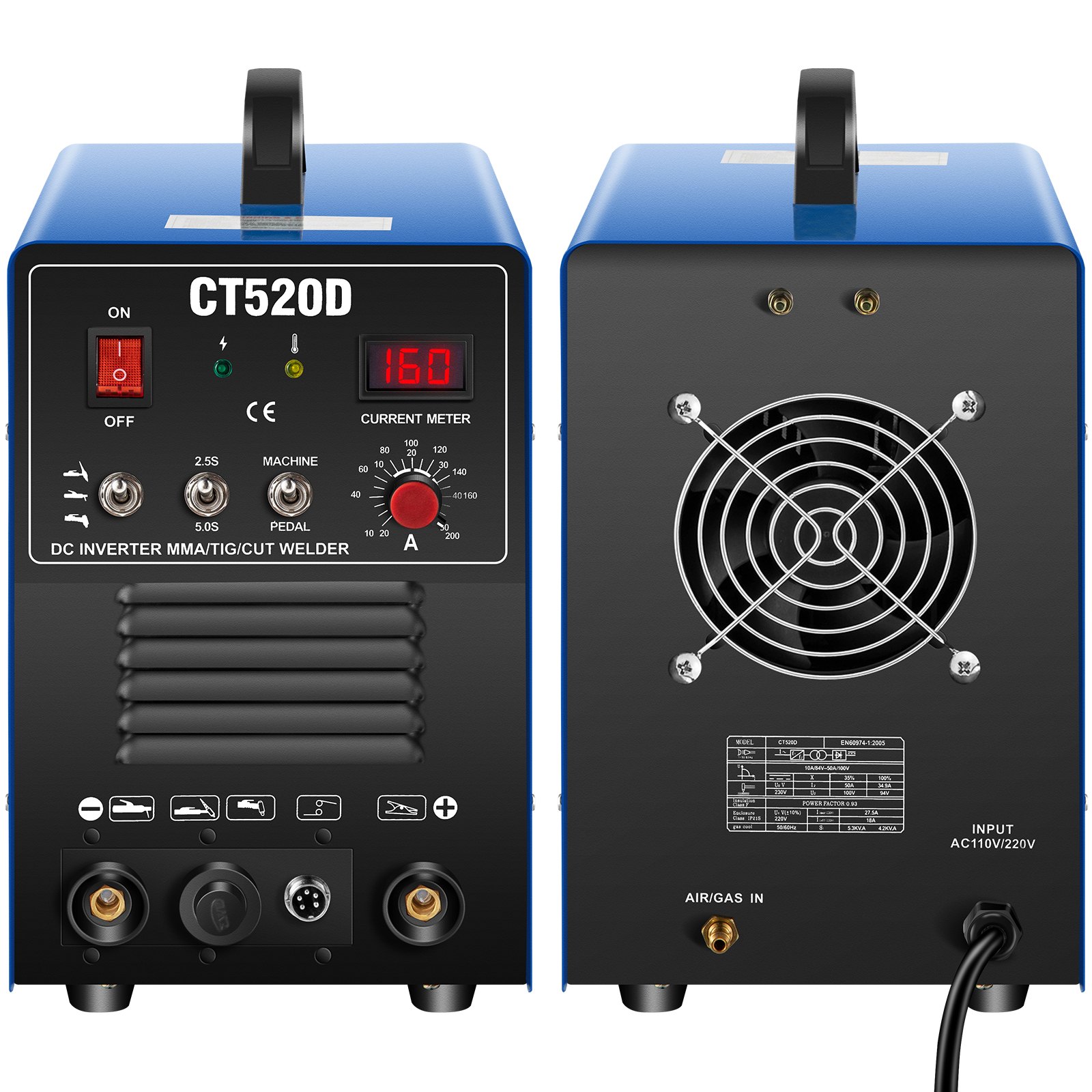

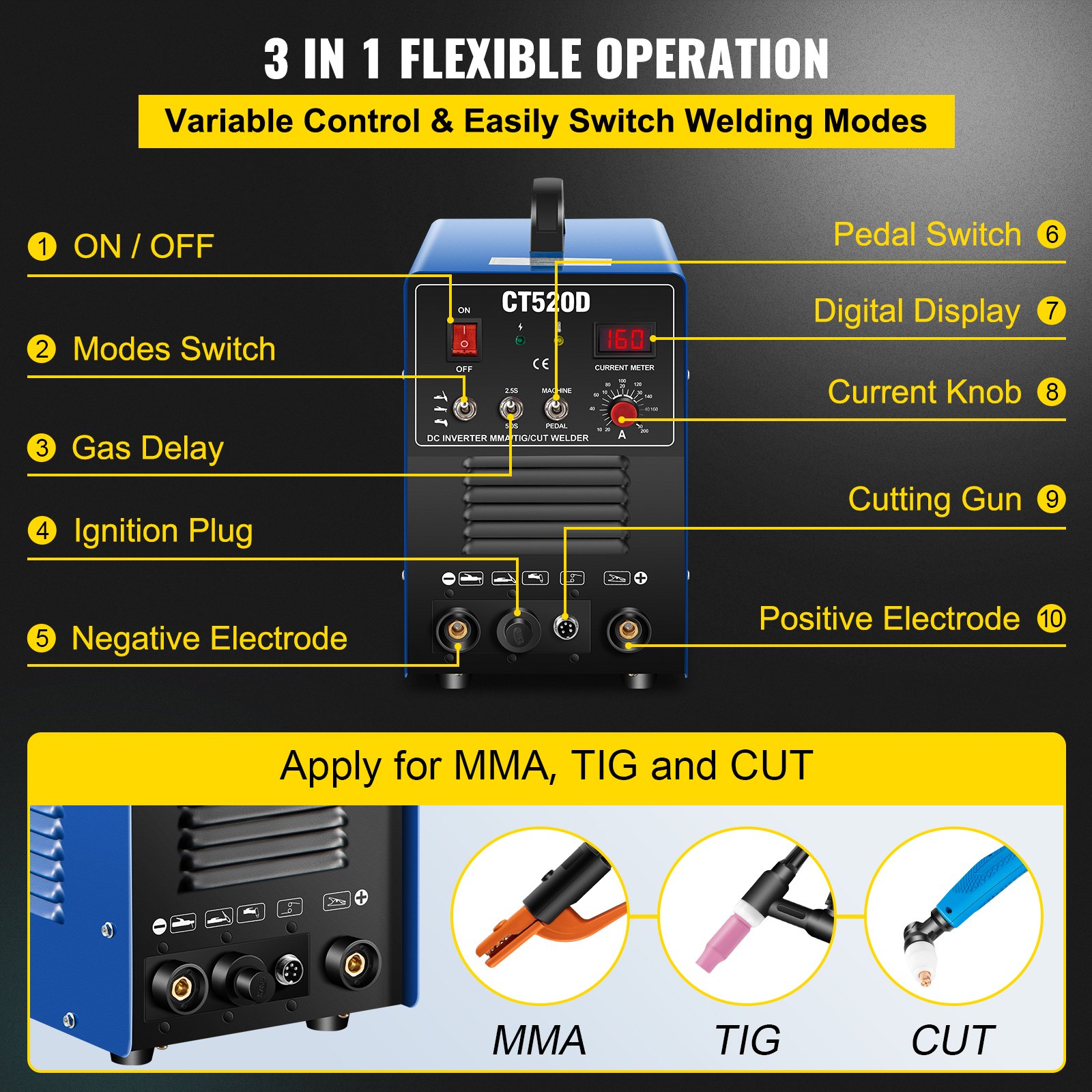

VEVOR plasma cutter welder with digital display, current knob, and multiple connectors.
3 IN 1 Welder
The panel of the welder is straightforward and easier to operate. Three modes can be easily switched: CUT, MMA, TIG. The welding current, and voltage are adjustable. You can adjust according to your application and different thickness materials.

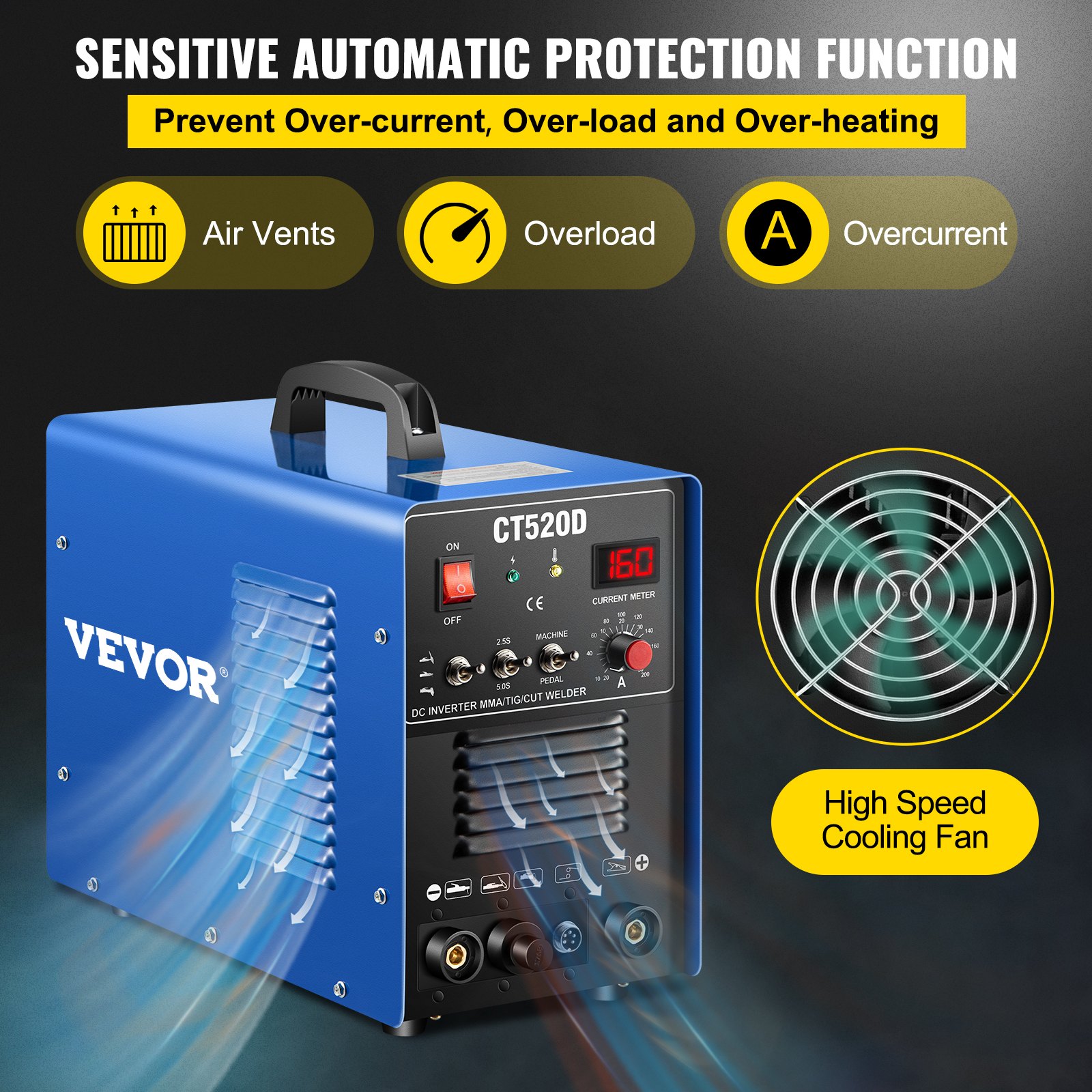

VEVOR plasma cutter welder ct520d with overheat, over-current, and overload protection.
Built-in Protection Function
The welding machine has a safety function. The welding machine will automatically shut down when the temperature is too high, or the voltage and current exceed the range. The built-in fan cooling system reduces dust entering the machine and ensures practical long-term welding.
VEVOR plasma cutter welder with carry handle, weighing 29 lbs / 13.2 kg.
Mini Size and Dual Voltage
Only weighs 29 pounds, lightweight and compact design with a comfortable handle, you can effortlessly take it to the farthest place. Dual voltage (110V & 220V) to deal with fluctuate of power network.

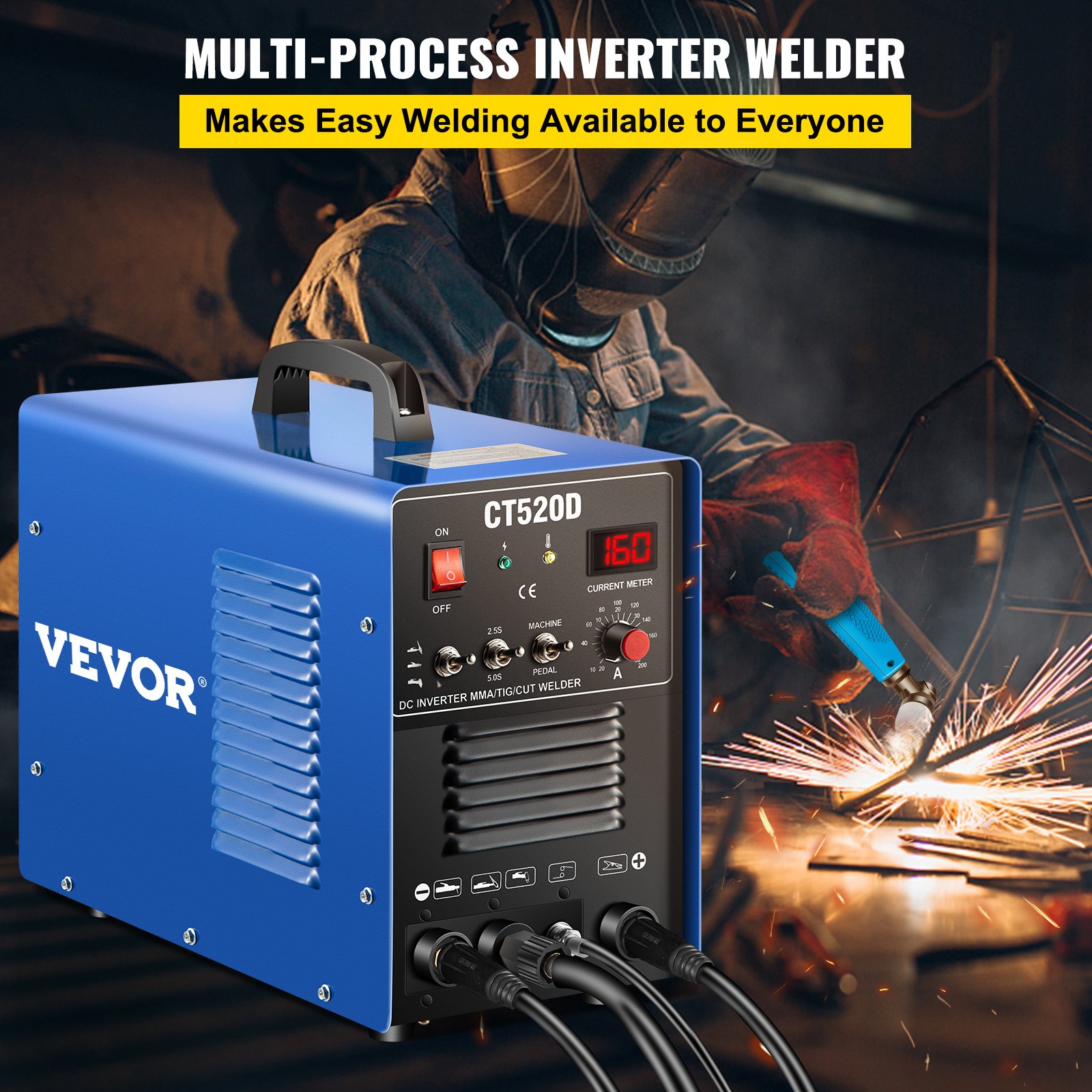

VEVOR plasma cutter welder with ct520d model used on steel and welding applications.
Wide Application
This welder is ideal for home, work, and DIY use. It is a must assistant of your work and life. Also is an excellent gift for your family and friends. Used for welding ordinary thin steel and iron, stairs, metal cages, square tubes, sheet metal, etc.

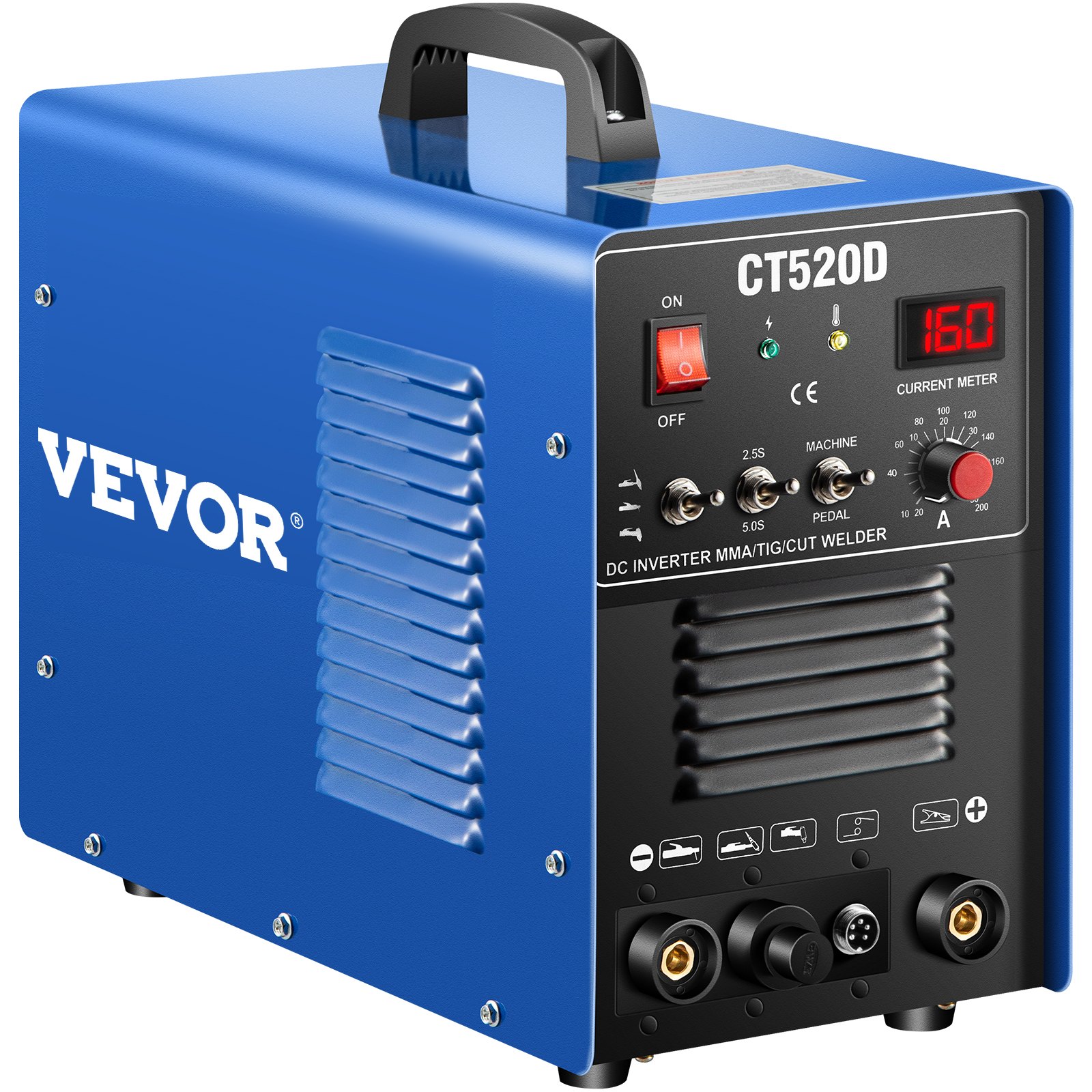

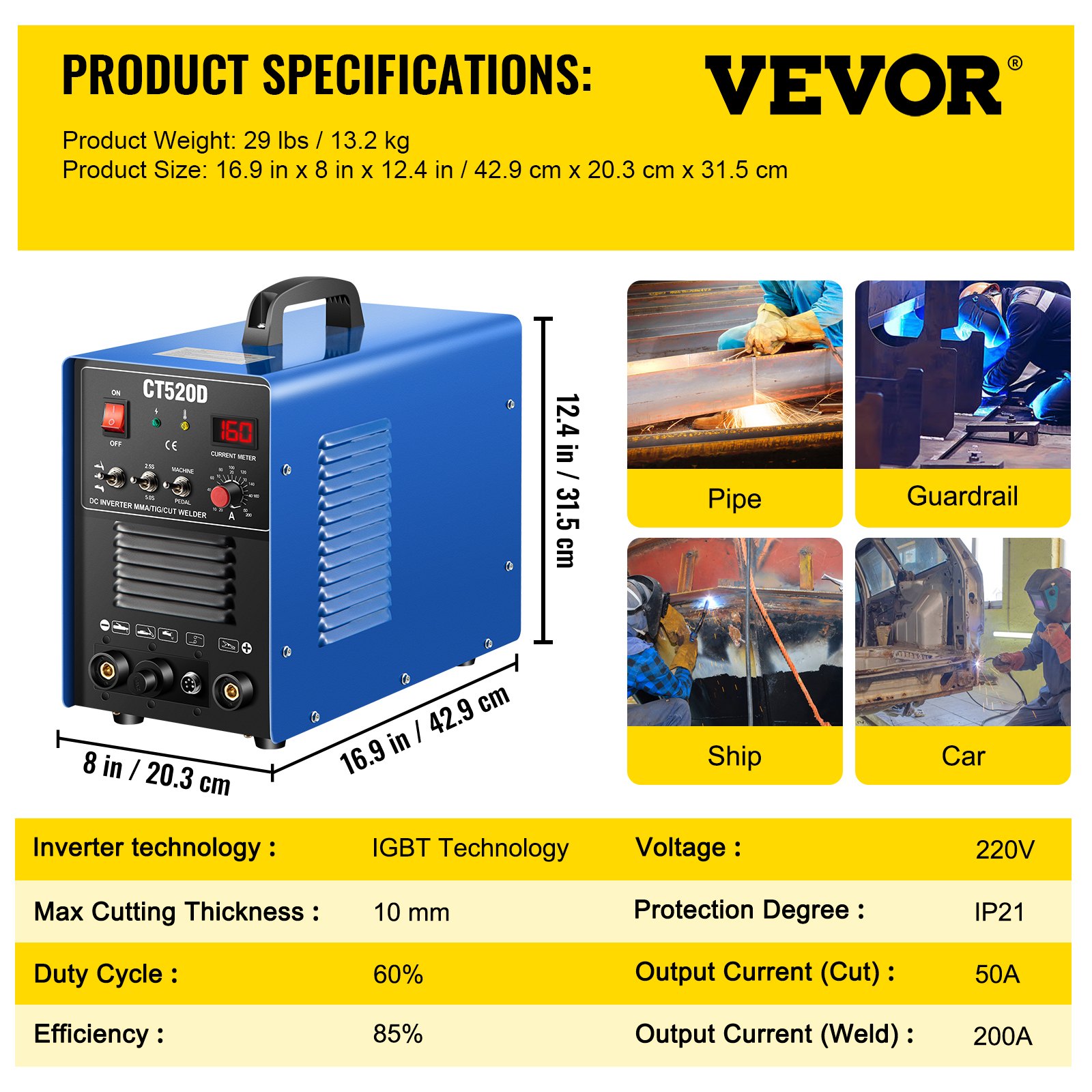

blue VEVOR plasma cutter welder ct520d with dimensions 16.9x12.4x8 inches.
Specifications
  • Model: CT-520D
  • Welder Type: CUT/MMA/TIG
  • Voltage: 110V/220V, 1-PH,50/60Hz
  • Current Cut: 50A
  • Current Weld: 200A
  • Protection Degree: IP21S
  • Duty Cycle: 60%@50A, 100%@40A
  • Efficiency: 85%
  • Cutting Thickness: 0.24" / 6 mm
  • Max Cut Thickness: 0.4" / 10 mm
  • Gas Supply: Clean, Dry, Oil-free Argon Gas
  • Product Dimensions: 8 x 16.9 x 12.4 in / 20.3 x 42.9 x 31.5 cm
  • Product Weight: 29 lbs / 13.2 kg

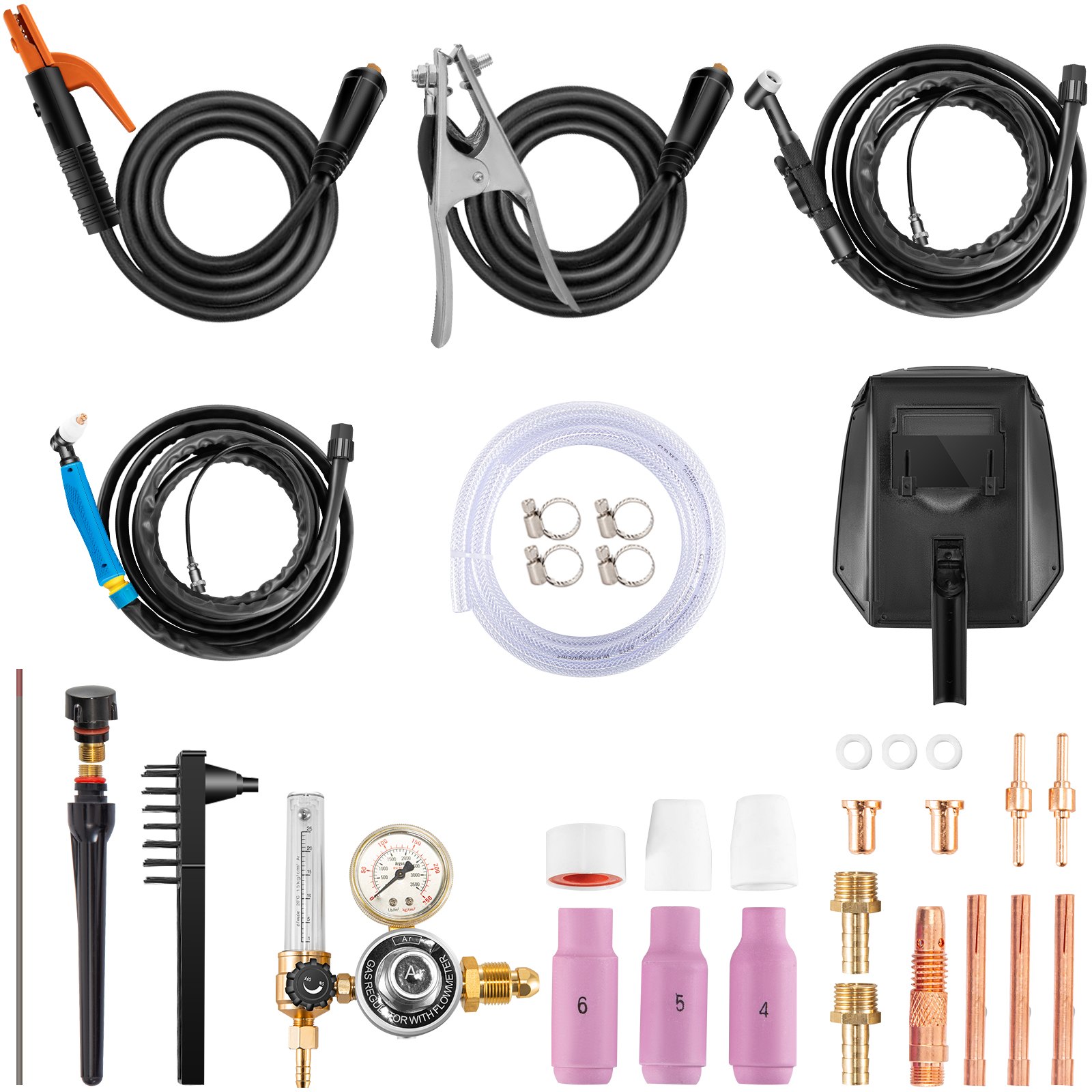

VEVOR plasma cutter welder accessories and tools laid out, including cables and connectors.
Package Content
  • 1 x Welder Main Body
  • 1 x TIG Torch
  • 1 x Cutting Torch
  • 1 x MMA Clamp & Cable
  • 1 x Ground Clamp & Cable
  • 1 x Set of Accessories
VEVOR plasma cutter welder ct-520d, 3-in-1 tig/mma/cut, in use.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR plasma cutter welder with accessories and control panel display.
CT-520D 3 In 1 Inverter Welder
Three Modes & IGBT Technology & Easy to Use
Multifunction 3-in-1 CUT/TIG/MMA professional combo welder, capable of welding / cutting mild steel, weld steel, stainless steel, copper, and cast iron. Withstand extensive use in rugged industrial and construction environments. It is perfect for any home project too.
  • Special Notice: For overload concerns in industrial scenarios, this model is no plugs included.
  • Advanced IGBT Technology
  • Suitable Cutting Thickness
  • Easy Control Panel & 3 In 1
  • Safety & Overheat Protection
  • Compact and Portable
VEVOR plasma cutter welder ct520d with stable performance and high efficiency.
IGBT Inverter
The IGBT in inverter technology of this 3 in 1 welder has the characteristics of stable arc, small splash, anti-interference, firm thrust, and stable performance. It is simple and easy to operate, which is very suitable for beginners and professionals.
VEVOR plasma cutter welder, cuts stainless steel, carbon steel, and iron, 10mm max cut.
Cutting Thickness
Using arc-ignited cutting technology, the cutting effect is very ideal and no matter the material is rough, rusty, greasy, dirty, spray paint, etc., the work can be completed easily and quickly. The ideal cutting thickness: 6 mm; the maximum cutting thickness: 10 mm.
VEVOR plasma cutter welder with digital display, current knob, and multiple connectors.
3 IN 1 Welder
The panel of the welder is straightforward and easier to operate. Three modes can be easily switched: CUT, MMA, TIG. The welding current, and voltage are adjustable. You can adjust according to your application and different thickness materials.
VEVOR plasma cutter welder ct520d with overheat, over-current, and overload protection.
Built-in Protection Function
The welding machine has a safety function. The welding machine will automatically shut down when the temperature is too high, or the voltage and current exceed the range. The built-in fan cooling system reduces dust entering the machine and ensures practical long-term welding.
VEVOR plasma cutter welder with carry handle, weighing 29 lbs / 13.2 kg.
Mini Size and Dual Voltage
Only weighs 29 pounds, lightweight and compact design with a comfortable handle, you can effortlessly take it to the farthest place. Dual voltage (110V & 220V) to deal with fluctuate of power network.
VEVOR plasma cutter welder with ct520d model used on steel and welding applications.
Wide Application
This welder is ideal for home, work, and DIY use. It is a must assistant of your work and life. Also is an excellent gift for your family and friends. Used for welding ordinary thin steel and iron, stairs, metal cages, square tubes, sheet metal, etc.
VEVOR plasma cutter welder accessories and tools laid out, including cables and connectors.
Package Content
  • 1 x Welder Main Body
  • 1 x TIG Torch
  • 1 x Cutting Torch
  • 1 x MMA Clamp & Cable
  • 1 x Ground Clamp & Cable
  • 1 x Set of Accessories
blue VEVOR plasma cutter welder ct520d with dimensions 16.9x12.4x8 inches.
Specifications
  • Model: CT-520D
  • Welder Type: CUT/MMA/TIG
  • Voltage: 110V/220V, 1-PH,50/60Hz
  • Current Cut: 50A
  • Current Weld: 200A
  • Protection Degree: IP21S
  • Duty Cycle: 60%@50A, 100%@40A
  • Efficiency: 85%
  • Cutting Thickness: 0.24" / 6 mm
  • Max Cut Thickness: 0.4" / 10 mm
  • Gas Supply: Clean, Dry, Oil-free Argon Gas
  • Product Dimensions: 8 x 16.9 x 12.4 in / 20.3 x 42.9 x 31.5 cm
  • Product Weight: 29 lbs / 13.2 kg

Transform Your Welding Tasks — Tig Welder

Elevate your welding tasks with the VEVOR 3-in-1 welder. This versatile machine provides precise welding and cutting with three functions in one. It is very flexible for various tasks and saves space. It works with different metal thicknesses and cuts through harsh surfaces easily. It is handy and lightweight, weighing only 29 pounds. It includes safety features to prevent overheating. It also uses modern technology for smooth operation. This combo welder is perfect for DIY projects and professional work.


Multi-Functionality & Versatility

The VEVOR tig welder combines three important tools into a tiny machine. It easily cuts through various metals as a plasma cutter. Iron rods are used in TIG welding to produce precise welds on thin materials. The stick welding function is good for general welding tasks on various metals. With these three features in one machine, you can easily switch between cutting and welding. This saves you space and money, making the VEVOR stick welder a great tool for any workshop.


Exceptional Performance & Efficiency

This combo welder performs very well. It excels at both cutting and welding. The machine handles different metal thicknesses easily, making it suitable for small and large projects. It can cut through rough, painted, and rusty surfaces with minimal slag, keeping the work area clean and ensuring high-quality results.


The tig welding feature uses a high-frequency start for a smooth and reliable arc. The plasma cutting feature includes a pilot arc that improves precision and control. These features make this 110V welder effective for hobbyist and professional projects, providing consistent and efficient results.


Advanced Arc Stability

The VEVOR combo welder uses advanced IGBT technology, which improves the machine’s performance. It keeps the welding arc steady and reduces sparks. It also provides strong performance, making welding smooth and reliable. IGBT technology reduces interference and enhances overall performance. This welder works on carbon steel, iron, and stainless steel.


Lightweight & Space-Efficient

This tig welder is light and easy to carry. It weighs just 29 pounds, making it simple to move. You can easily take it to different work sites or move it around in your workshop. Its small size means it fits in tight spaces. It's easy to store in a car trunk, garage, or closet. This makes it great for those with limited space who need a simple welder to move and put away.


Safe Operation & Overheat Prevention

Safety is a big part of this stick welder. It has safety features that turn it off if it gets too hot or has too much strain. It also protects against water splashes, so it can handle a little bit of water. A built-in fan helps keep the machine cool and clean by reducing dust and ensuring it runs smoothly during long use. These safety features make it a suitable tool for heavy tasks.


Effortless to Use

The VEVOR combo welder has an easy control panel with knobs for adjusting power. It is simple to use for both beginners and experienced welders. The LCD screen shows precise numbers, so seeing and changing settings is simple. Switching between cutting and welding modes is straightforward. The knobs let you adjust the power for different tasks. This multi-function welder combines cutting and welding tasks in one machine. You don’t need to buy separate tools for each job.


Construction & Build Quality

This tig welder is built tough. It can handle a lot of work without wearing out or breaking. You can use it without worrying about it falling apart. It's made to be solid and last a long time. Whether you have minor fixes or big projects, this welder is ready to help. You won’t need to replace it often. This saves you money and avoids the hassle of finding a new one. Plus, its robust design ensures consistent performance over time.


Versatile Uses

The VEVOR multi-function welder is a valuable tool for many jobs at home and work. It works well for welding thin steel and iron, metal cages, square tubes, sheet metal, and more. Because it can handle many tasks, it's a great addition to any workshop or DIY project. It also makes an excellent gift for anyone who likes metalworking or needs a good welding machine. In short, this 3-in-1 welder is a versatile tool for handling different metalworking tasks.


See More

Specification

Model
CT-520D
Welder Type
CUT/MMA/TIG
Voltage
110V/220V, 1-PH,50/60Hz
Current Cut
50A
Current Weld
200A
Protection Degree
IP21S
Duty Cycle
60%@50A, 100%@40A
Efficiency
85%
Cutting Thickness
0.24" / 6 mm
Max Cut Thickness
0.4" / 10 mm
Gas Supply
Clean, Dry, Oil-free Argon Gas
Product Dimensions
8 x 16.9 x 12.4 in / 20.3 x 42.9 x 31.5 cm
Product Weight
29 lbs / 13.2 kg
Manual
Download Link
Questions and Answers
22 Questions
I do not see a high frequency switch on this Welder looks like it's just DC. how do you use it for welding aluminum then?
This product cannot weld aluminum, which requires alternating current.
By vevor
Yes, it is not suitable for welding aluminum.
By vevor
Do you make the peddel for tig welding
No, we don't sell the peddel for tig welding.
By vevor
How much air (cfm & psi) is needed for plasma cutter to operate properly?
As long as it can maintain 55psi, it will be fine.
By vevor
Is this a No Touch Plasma torch
No, it's contact.
By vevor
Is the input power 110? Can I plug it in to a typical American wall socket with a 30 amp breaker?
The input current is about 35A, so a 30 amp breaker will work for short periods of time, and you'd better get a breaker larger than 30A.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
60 Review(s)
Clear filters
Danny Poteet Danny Poteet
Mr
I haven't used it yet. Bot quality seems good. It has all the features I was looking for. All the parts were in the box.
Corey haugen Corey haugen
Mr
I've Only used the plasma cutter a couple times on the 240v setting but cut great. Haven't tried it on the 120v power setting or tig or arc welder. Seems to be well built and price is unbeatable.
Scott Scott
Owner
Really love this unit. Worked perfect for me. Tigged both carbon and stainless steel. Plasma torch worked great. Perfect for my projects here on the boat.
Dwen Dwen
Spouse
Well, this review is more based on the company. I ordered this at the current price and the very next day it went on sale for $60 cheaper. Although the communication was a challenge since it was email only the company turned this one around and sent out another one for the cheaper price. It would have been much easier to just do a price adjustment but because of the delays for email it was a bit confusing. This is a great company and waiting on price to drop again because it will be a Christmas present for my son inlaw:
Dawn Dawn
Spouse
Purchased this for my husband and he absolutely loves it. He wanted a plasma cutter and didn’t think he really had a need for tig but when he saw how cheap this was we ordered it. He has used both and didn’t realize how much tig is going to come in handy. He is fabricating a new front bumper for his 1997 Ford F150.
Robert Robert
Fills the gap in my welding tools
I have a very nice wire welder that costs nearly 10 times this amount but needed a tig and plasma cutter occasionally. This has filled that gap without draining my bank account. I’ve used all its features and happy I have it. I only use it once a month so I’m not working it really hard. The price was right so I think I’ve already gotten my money’s worth from it.
Jason Hayes Jason Hayes
Owner
Very pleased with this little machine and truly impressed I received it and used it the next day I’ve cut up to a half inch steel with it. It was very easy to set up.
Barry C. Tornow Barry C. Tornow
Owner
Works very well for smaller simpler projects. It might be more versatile than I realize because I am not a "WELDER" I just do some hobby stuff.
Anthony s smathers Anthony s smathers
owner
I was planning on doing a video just sp u could see how great this machine is for the money, but just haven't had a chance, 2 days off just isn't enough. anyways, 1. vector has it listed as a ct 1520d, it is not, it is a cut-520. 2. it is hf start tig welding, pilot arc plasma cutting, stick welding machine. 3. vevor says it can cut 10mm and the owner manual says 12mm. the book is right, I have cut 1/2" steel, but you have to move slowly and have your air pressure set correctly. 4. I bough the machine for tigging, and it is quiet capable, keep on kind it is DC, so no aluminum. Also, it comes with a 9 torch and 1/16th consumables so you'll have to buy different ones if you want to use 3/32 tungsten. 5.It does not come with tungsten. 6. it does come with an argon regulator. 7. It comes with what I believe is an ag-60 torch, however it is not marked, but does use 60 consumables. 8. not much to say about stick, I've only used it a couple times and it isn't a power house,but the book says it is 160 Amp machine and I'd say that's about right. I think that's about all I can say about it other than it is very capable, it's hard to believe you can buy a machine of this quality for this price. I'm planning on building a cnc plasma table and had thought I'd buy a higher price plasma for that build,but I see no point in wasting money on another, this things a beast at plasma cutting.
Christopher Sonier Christopher Sonier
3 - 1 multiprocess
Love it. Never tigged before. After a short tutorial on Youtube and a little practice. My 3 in 1 performed beyond my expectations.
