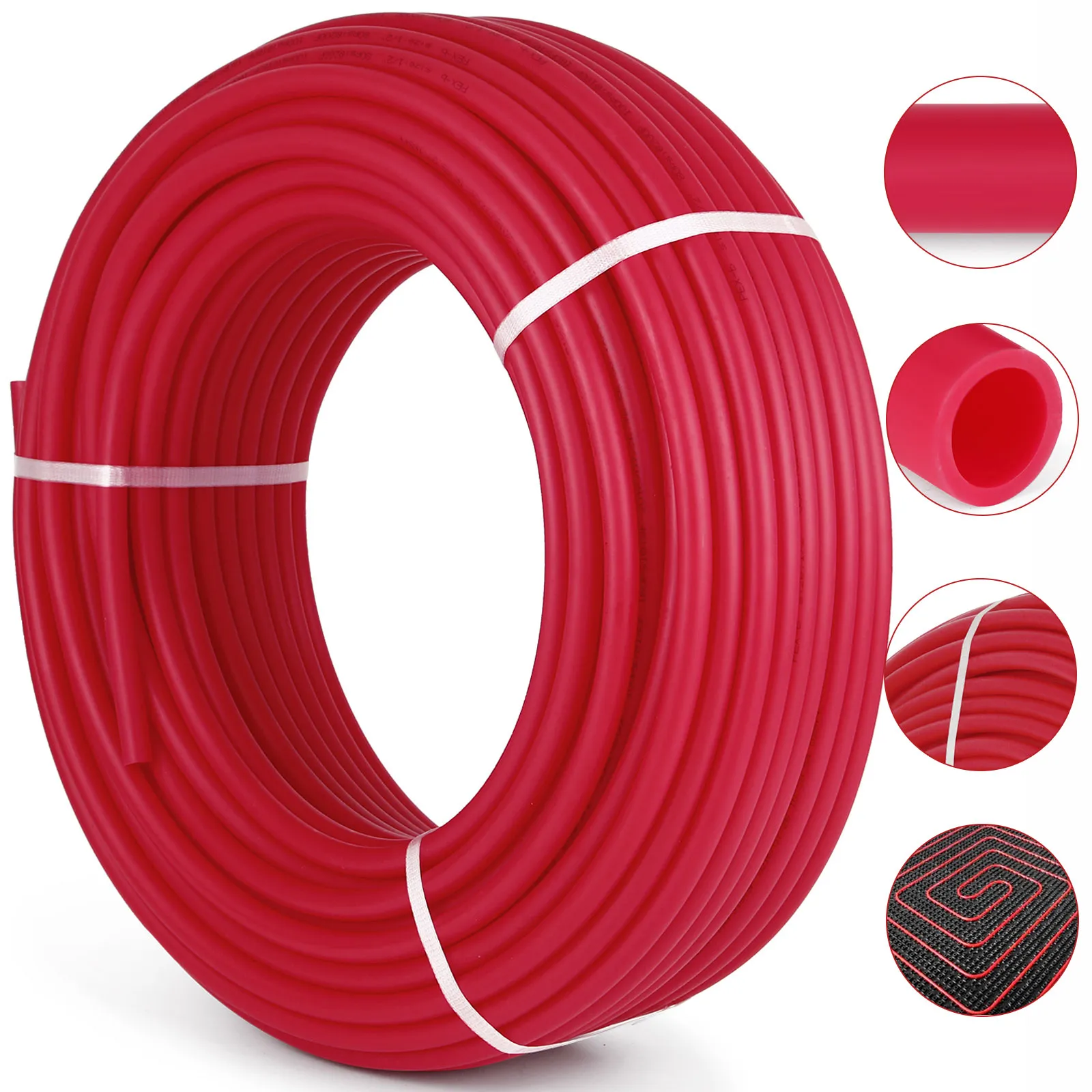

VEVOR oxygen barrier pex tubing in red coil with close-up views of cross-section. 1/2" VEVOR oxygen barrier pex tubing displaying dimensions: 0.625" od, 0.07" thick, 0.475" id. red VEVOR oxygen barrier pex tubing in various diameters with detailed cross-section. person demonstrating 5" bending radius of VEVOR oxygen barrier pex tubing. VEVOR oxygen barrier pex tubing for underfloor heating installation and connections various VEVOR oxygen barrier pex tubing installation methods for diverse environments. red VEVOR oxygen barrier pex tubing installed under hardwood floor in a modern living room.
PEXG500FT1-2SCHS1V0

VEVOR Oxygen Barrier PEX Tubing - 1/2 Inch X 500 Feet Tube Coil - EVOH PEX-B Pipe for Residential Commercial Radiant Floor Heating Pex Pipe (1/2" O2-Barrier, 500Ft/Red)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

Red

  • Red-and-Blue
  • White
  • Red
  • Blue

500 ft

  • 2x100 ft
  • 300 ft
  • 500 ft
  • 1000 ft
  • 2x300 ft

1/2 inch

  • 1/2 inch
  • 1 inch
  • 5/8 inch
  • 3/4 inch

About this item

  • 【RELIABLE MATERIAL】- Type: Oxygen-Barrier; Color: Red; Nominal Diameter: 1/2"; Total Length: 500ft. Outside Diameter: 0.625"; Inner Diameter: 0.475"; Tube Thickness: 0.07"; Keep quick & constant hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.
  • 【ROBUST O2 RESISTANT】- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. Heating system's service time can be greatly lengthened. Smooth inner pipe, anti- scaling quality, increase heat dissipation efficiency & speed for energy-saving.
  • 【EFFORTLESS INSTALLATION】- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.
  • 【PREMIUM FLEXIBILITY】- Min.5" bending radius, this radiant floor heating system is easy to bend for different ground situation. Big pressure capacity: 188-217psi at 20℃; 101-108psi at 95℃. Temperature Range: -45 to 110℃(-47℉ to 230℉).
  • 【DIVERSE USE SCENARIO】- Suit for home & commercial use, like: radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Oxygen Barrier PEX Tubing - 1/2 Inch X 500 Feet Tube Coil - EVOH PEX-B Pipe for Residential Commercial Radiant Floor Heating Pex Pipe (1/2" O2-Barrier, 500Ft/Red)
Red 500 ft 1/2 inch
VEVOR oxygen barrier pex tubing in-floor heating system, available in 300ft/500ft/900ft.
VEVOR oxygen barrier pex tubing in red with detailed close-up views.
1/2" PEX Tubing
This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.
  • Standards, Certifications & Approvals
  • ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
  • ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
  • ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
  • CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
  • All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

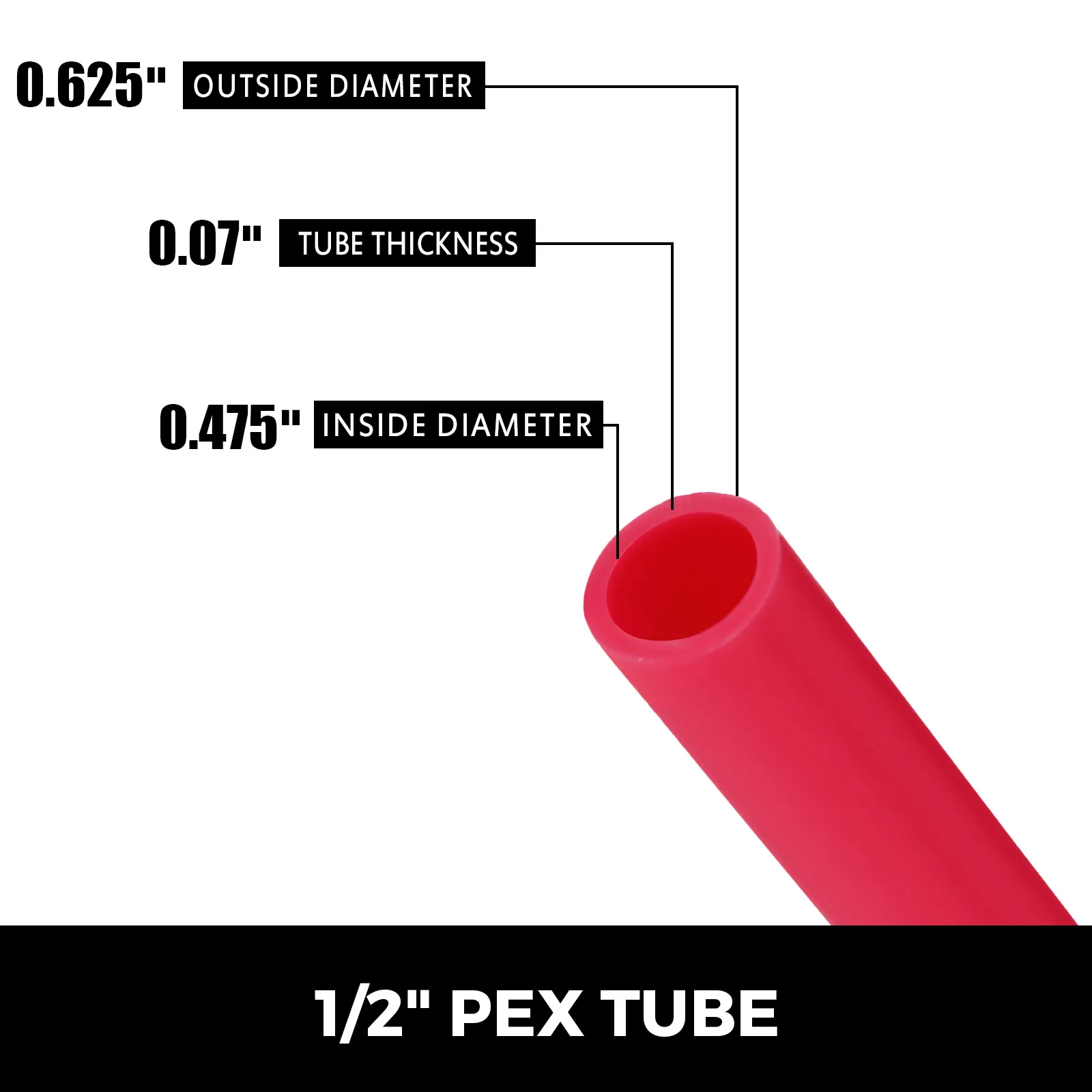

1/2" VEVOR oxygen barrier pex tubing dimensions: 0.625" od, 0.475" id, 0.07" thickness.
1/2" PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 1/2"; Tube Length: 500ft, longer than normal products.

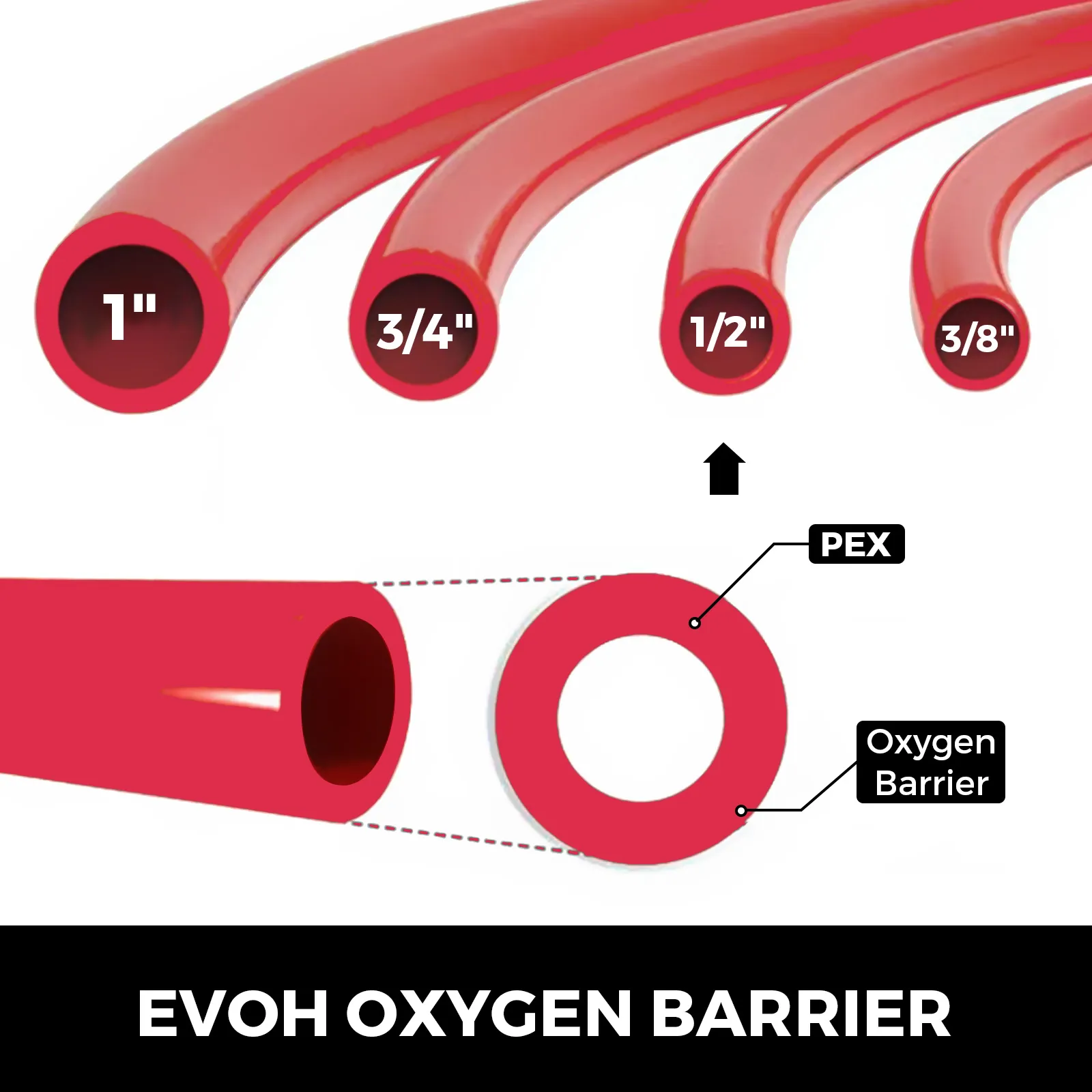

VEVOR oxygen barrier pex tubing sizes with evoh oxygen barrier layers.
EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.

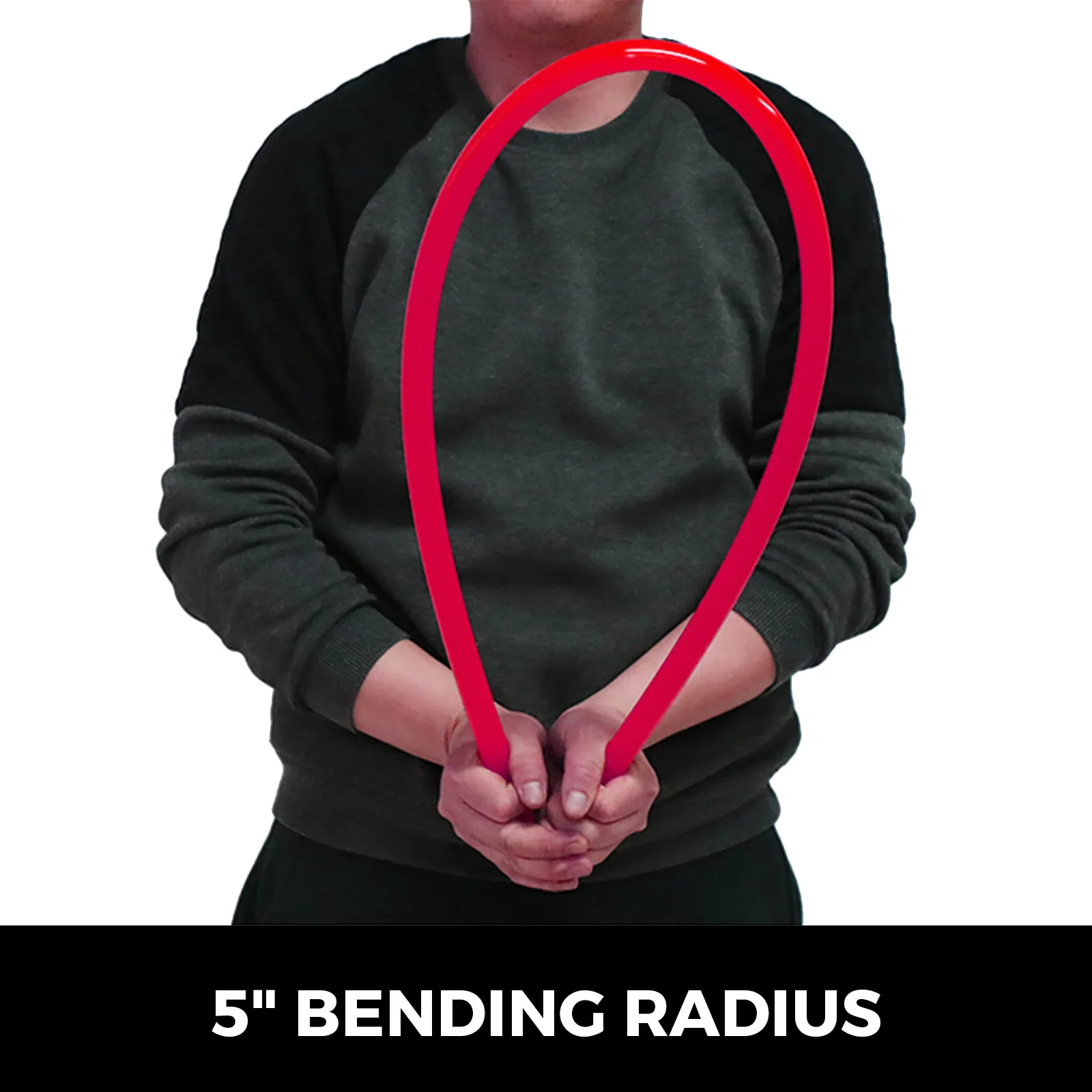

person holding VEVOR oxygen barrier pex tubing bent to a 5" radius.
5" Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.5" bending radius(industry standard for 1/2" pipe) and excellent flexibility.

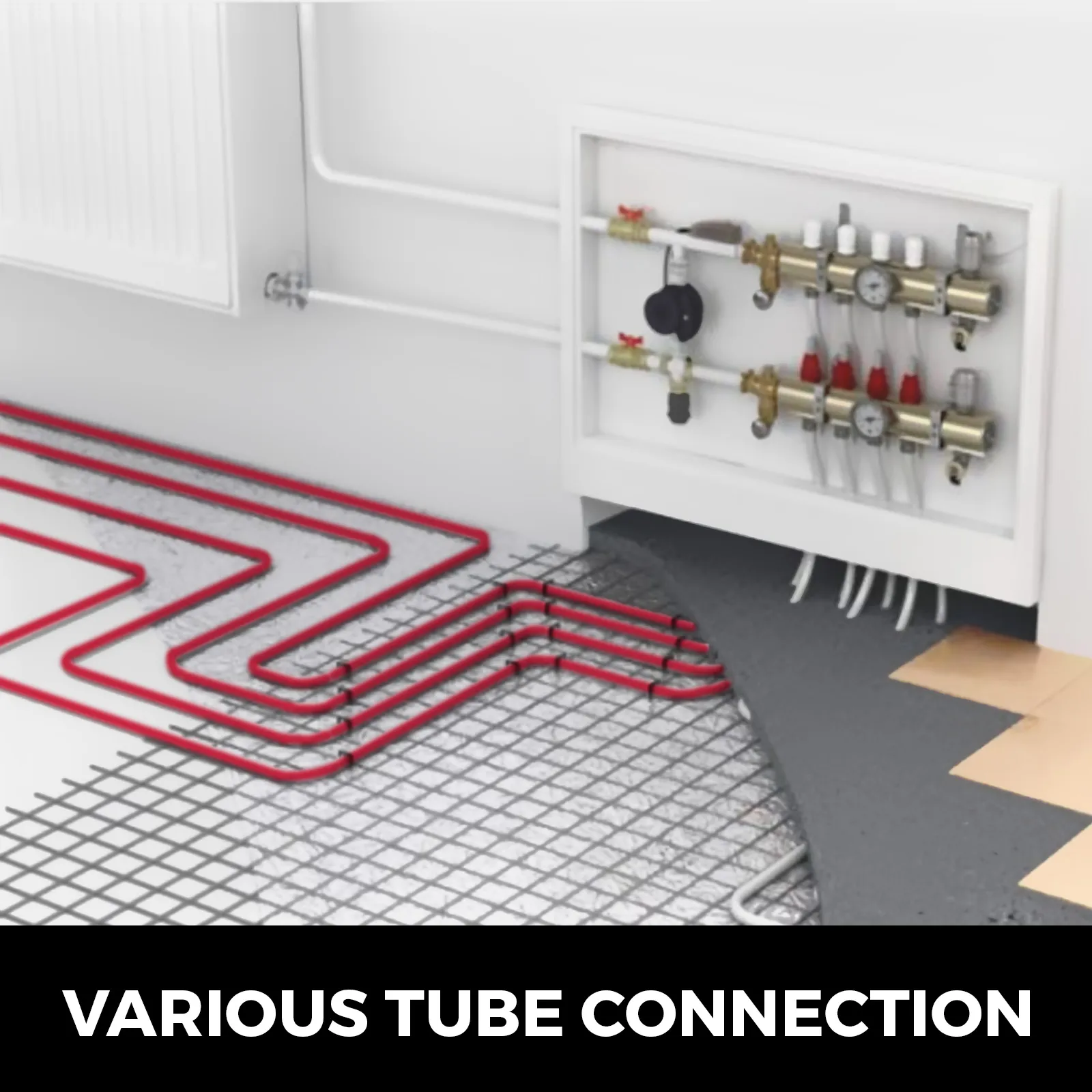

radiant floor heating system with VEVOR oxygen barrier pex tubing and a manifold.
Various Tube Connection
Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.

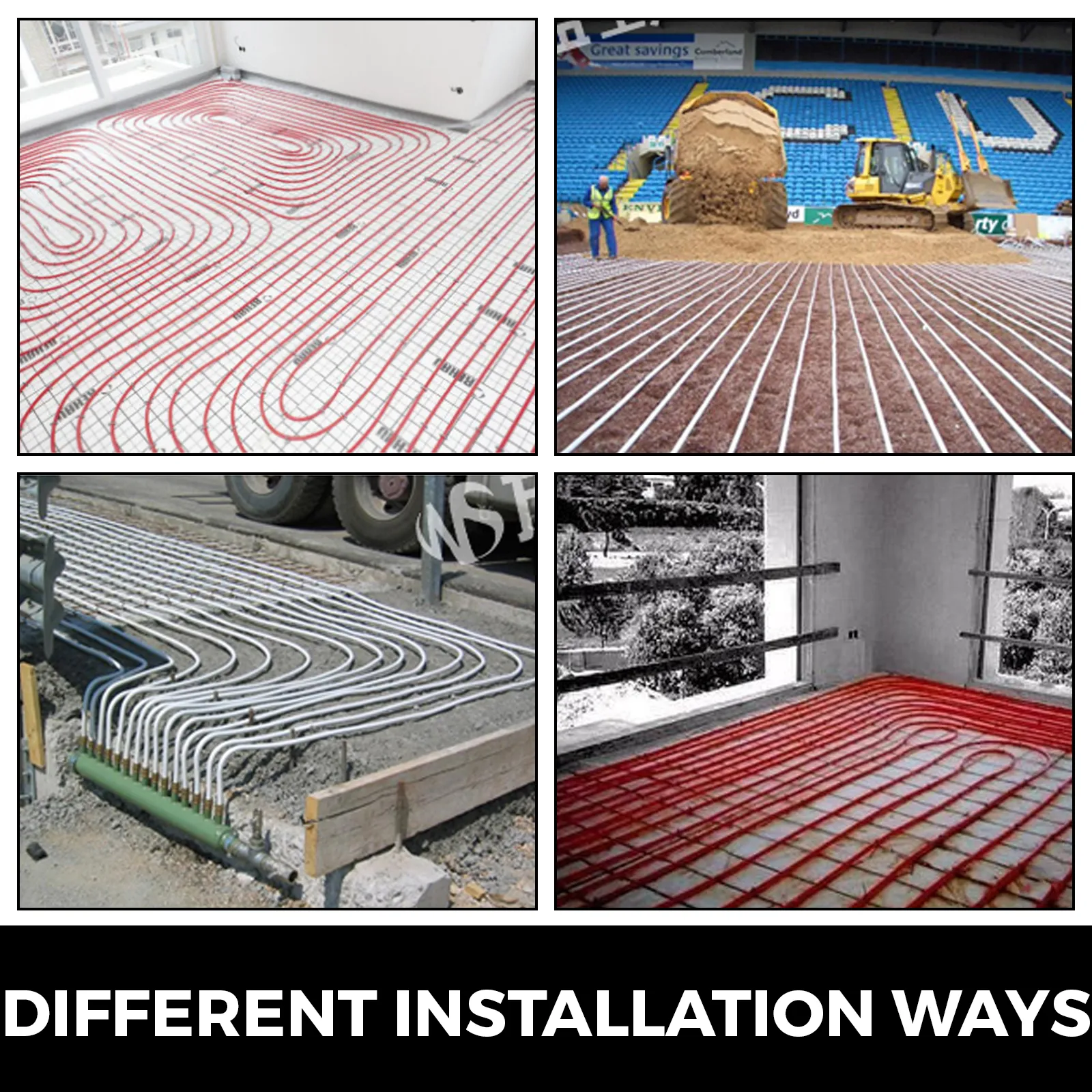

VEVOR oxygen barrier pex tubing in various installation methods.
Different Installation Ways
Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich" type radiant heating; Snow & ice melting systems etc.

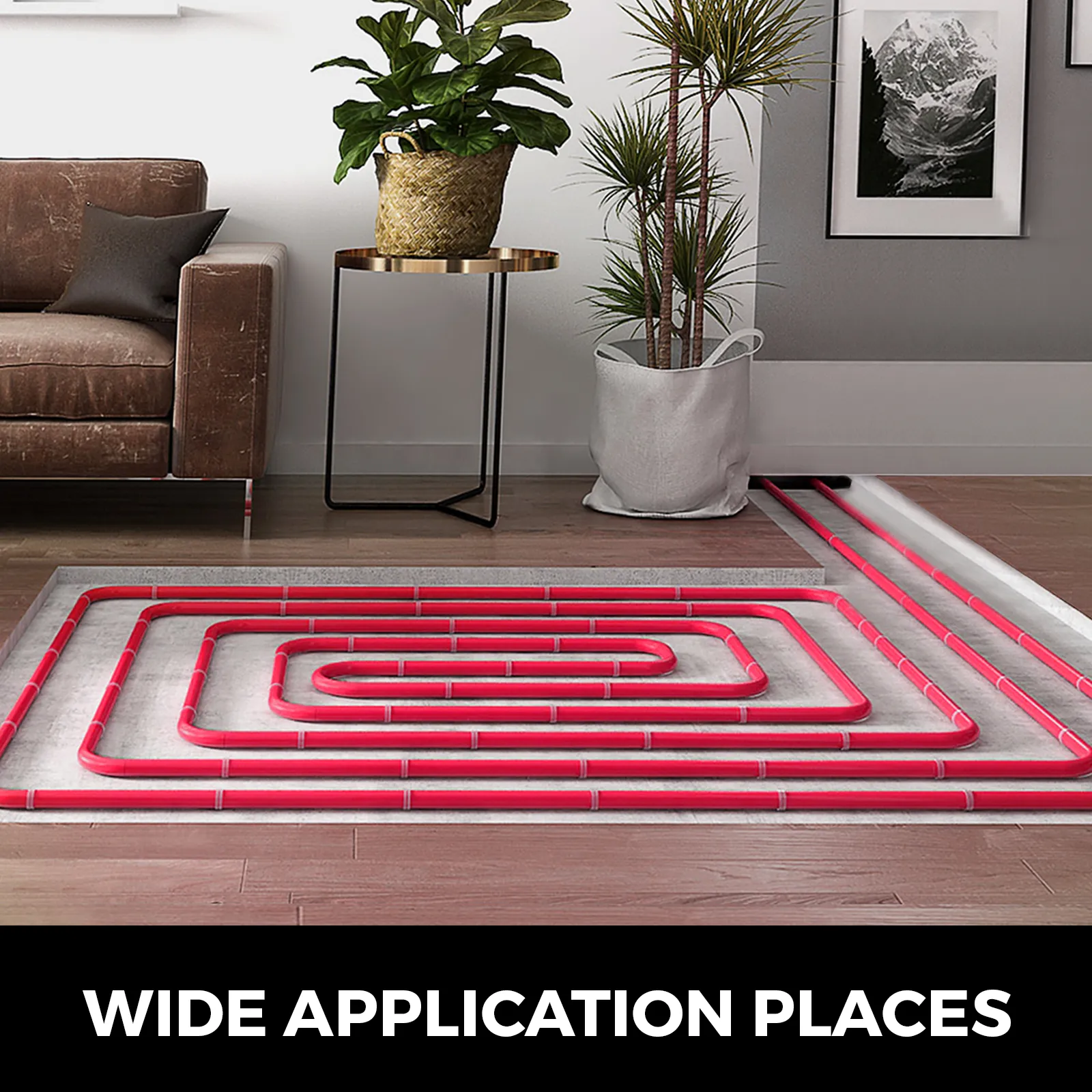

VEVOR oxygen barrier pex tubing installed under wood flooring in a modern living room.
Wide Application Places
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.

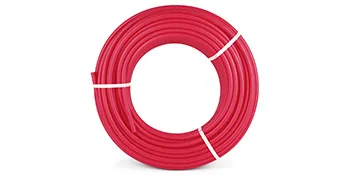

red coiled VEVOR oxygen barrier pex tubing with white ties.
Specifications
  • Type: PEX Tube(Oxygen Barrier)
  • Total Length: 500ft
  • Nominal Diameter: 1/2"
  • Inside Diameter: 0.475"
  • Outside Diameter: 0.625"
  • Tube Thickness: 0.07"
  • Pressure Ratings: 188-217psi at 20℃; 101-108psi at 95℃
  • Temperature Range: -45 to 110℃( -47℉ to 230℉)
  • Min.Bending Radius: 5"
  • ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
  • UPC listed by IAPMO.
  • SDR-9 dimensional standards.

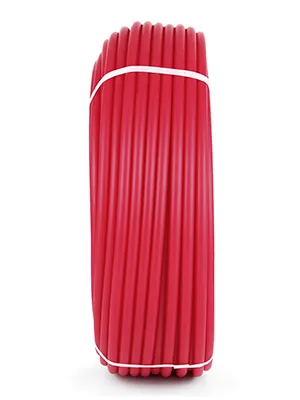

red coiled VEVOR oxygen barrier pex tubing secured with white ties.
Package Content
  • 1 x 500ft 1/2" Oxygen Barrier PEX Tube
VEVOR oxygen barrier pex tubing in-floor heating system, available in 300ft/500ft/900ft.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR oxygen barrier pex tubing in red with detailed close-up views.
1/2" PEX Tubing
This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.
  • Standards, Certifications & Approvals
  • ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
  • ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
  • ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
  • CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
  • All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.
1/2" VEVOR oxygen barrier pex tubing dimensions: 0.625" od, 0.475" id, 0.07" thickness.
1/2" PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 1/2"; Tube Length: 500ft, longer than normal products.
VEVOR oxygen barrier pex tubing sizes with evoh oxygen barrier layers.
EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.
person holding VEVOR oxygen barrier pex tubing bent to a 5" radius.
5" Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.5" bending radius(industry standard for 1/2" pipe) and excellent flexibility.
radiant floor heating system with VEVOR oxygen barrier pex tubing and a manifold.
Various Tube Connection
Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.
VEVOR oxygen barrier pex tubing in various installation methods.
Different Installation Ways
Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich" type radiant heating; Snow & ice melting systems etc.
VEVOR oxygen barrier pex tubing installed under wood flooring in a modern living room.
Wide Application Places
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.
red coiled VEVOR oxygen barrier pex tubing secured with white ties.
Package Content
  • 1 x 500ft 1/2" Oxygen Barrier PEX Tube
red coiled VEVOR oxygen barrier pex tubing with white ties.
Specifications
  • Type: PEX Tube(Oxygen Barrier)
  • Total Length: 500ft
  • Nominal Diameter: 1/2"
  • Inside Diameter: 0.475"
  • Outside Diameter: 0.625"
  • Tube Thickness: 0.07"
  • Pressure Ratings: 188-217psi at 20℃; 101-108psi at 95℃
  • Temperature Range: -45 to 110℃( -47℉ to 230℉)
  • Min.Bending Radius: 5"
  • ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
  • UPC listed by IAPMO.
  • SDR-9 dimensional standards.

Oxygen Barrier PEX Tubing for Enhanced Durability and Safety

This barrier protects against corrosion in metal pipe systems. It is safe for potable water systems, including UP, which IAPMO lists. This guarantees high quality and reliable performance. Choose this tubing for durability and safety in your water system.


Easy Installation with Flexible 500 Feet PEX Coil

This flexible coil is easy to handle. It allows for quick and simple installations. The tubing is pliable and can be bent without kinking. This makes it ideal for complex layouts. Easily cut to length using the included cutter. Also, the coil remains lightweight during transport. Unroll it easily for fast installation. These tubers work with clamp and shark-bite style connectors in their projects. They are perfect for both DIY / professional projects, too. Save time and effort with this easy-to-install tuber.


Versatile 1/2 Inch PEX-B Pipe for Various Applications

The 1/2 inch PEX-B pipe is versatile. It can be used for a variety of applications. Use it for radiant floor heating systems. You get consistent warmth and comfort. This makes it ideal for plumbing and potable water systems, too. The tubing is flexible and easy to route. So, it can handle both hot and cold water. It is resistant to freezing and bursting, making it suitable for all-weather use. Can the tubing be utilized in outdoor irrigation systems? Well, its versatility makes it an incredibly valuable addition to any project.


Reliable Performance with High Pressure Ratings

The PEX tubing offers reliability. It has high-pressure ratings. At 20°C, it handles pressures up to 217 psi. At 95°C, it can handle up to 108 psi. This ensures consistent and reliable water flow. The tubing is built to last. It resists high pressures without leaks. Is it suitable for both low and high-pressure systems? The EVOH layer adds an extra layer of protection. You prevent leakage and ensure a secure water supply. Trust this tubing for reliable performance in your systems.


Cost-Effective Solution with Competitive Pricing

The PEX tubing offers great value. It is competitively priced. This makes it a cost-effective solution for your plumbing needs. You get high-quality tubing without breaking the bank. The tubs are affordable yet durable. They save you money on installation costs. A flexible coil reduces the need for additional fittings. So, this further lowers your overall costs! Choose this tubing for the cheapest option. Perfect for both small and large projects.


Fast and Reliable Shipping for Timely Project Completion

The tubing is packaged securely, ready for use. Reliable shipping means fewer delays and less stress. You can plan your projects confidently. The VEVOR's commitment to timely delivery is unmatched. This ensures you get the materials you need when you require them. Trust VEVOR for fast and reliable shipping.


Exceptional Quality and Customer Satisfaction

The tubing is made from high-quality materials. It meets all industry standards. The company offers excellent customer service. They are responsive and helpful. This ensures a smooth buying experience. You can trust the quality of the product. The VEVOR's commitment to quality ensures long-lasting performance. Choose this tuber for exceptional quality and satisfaction.


See More

Specification

Type
PEX Tube(Oxygen Barrier)
Total Length
500ft
Nominal Diameter
1/2"
Inside Diameter
0.475"
Outside Diameter
0.625"
Tube Thickness
0.07"
Pressure Ratings
188-217psi at 20℃; 101-108psi at 95℃
Temperature Range
-45 to 110℃( -47℉ to 230℉)
Min.Bending Radius
5"
ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
UPC listed by IAPMO.
SDR-9 dimensional standards.
Questions and Answers
1 Questions
Is this tubing good for regular water ? Can you drink the water from this tubing. ? Thanks Don
It's drinkable if you don't need NSF Sanitary Permit certification.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
280 Review(s)
Clear filters
mdbluemax mdbluemax
Mr
purchase for in-slab floor heating, easy to use contractor had no issues. no kinks no leaks and easy to install
Robert thayer Robert thayer
Worked the same as the $600 roll I typically buy!
I have been using pex and pert in concrete radiant applications for years. I paid $600 for a 1000 roll pert recently and this product is just as good for far less money. Those that have had problems with this product in the reviews I read most likely don’t have experience using product. You have to unroll the coil like a wheel as you go so it lays flat and avoids kinks. I will be buying again!
David Lancaster David Lancaster
Mr
Easy to install on 110 v and 8 gallons is just the right size for rv use. The tank seems to be heavy duty and the paint or coating is nice too.
Joey Tren Joey Tren
Don't buy from Vevor
I have purchase several items form Vevor and I recently purchased a hammer drill. It drilled 2 holes and died. They have given me the biggest run around in an attempt to fraud me out of my money and/or product. I am using this review as one of many avenue to tell people to avoid this scamming Chinese company. Go elsewhere to purchase anything. They are crooks and only care about stealing your money. I have been over a week trying to get a simple resolution. I have sent videos, in which they requested, and then they say.... give us 48 to 72 hours to send it to another department. They are SCAMMERS period! Avoid at all cost and tell your friends.
Stevenson Bailey Stevenson Bailey
Home use
Good product 👌 installed underground water supply to a mobile home was very easy to install, would buy again
Stephen Stephen
Mr
Great value with such a great savings to buy more products,rapid lightning shipping, Highly recommend, definitely will be a repeat customer.
Barry Burton Barry Burton
Installer
Excellent product, perfect,for long distance installation of water lines without the need of extra joints , after a thousand ft no leaks lifetime fix.
Justin Fougerousse Justin Fougerousse
Radiant
Fast shipping, the pex is in my concrete pad. Arrived with no kinks and unrolled nicely. Thank you
Janice G. Janice G.
Pex pipe
Working great!!
Nate Nate
None
Can not tell the difference from the box stores. Not only that but I didn't have to drive to get it. The cutters are good ish. The clamps are garbage. But it's not like you should use that type anyway.
