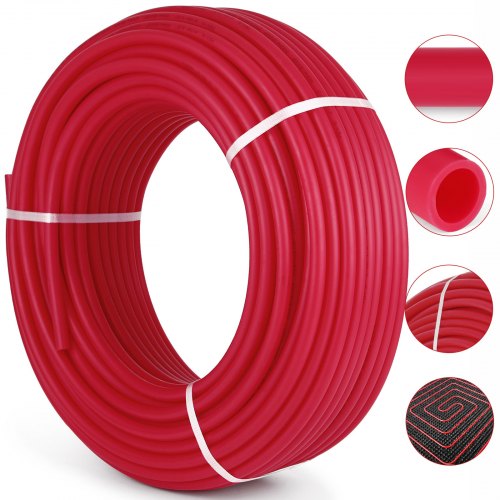

red VEVOR pex tubing coil with close-up insets of material, cross-section, and installation. VEVOR pex tubing with 0.86” od, 0.1” thickness, and 0.66” id in red. VEVOR pex tubing sizes with evoh oxygen barrier layer diagram. person holding flexible VEVOR pex tubing demonstrating a 7" bending radius. underfloor heating system showing VEVOR pex tubing installation and manifold connections. VEVOR pex tubing installation examples in various flooring and outdoor settings. living room with VEVOR pex tubing underfloor heating system and indoor plants.
PEXG500FT3-4SCHS1V0

VEVOR 3/4" X 500Ft PEX Tubing Oxygen Barrier O2 EVOH Pex-B Red Hydronic Radiant Floor Heat Heating System Pex Pipe Pex Tube (3/4" O2-Barrier, 500Ft/Red)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

Red

  • Red-and-Blue
  • White
  • Red
  • Blue

500 ft

  • 2x100 ft
  • 300 ft
  • 500 ft
  • 1000 ft
  • 2x300 ft

3/4 inch

  • 1/2 inch
  • 1 inch
  • 5/8 inch
  • 3/4 inch

About this item

  • 【RELIABLE MATERIAL】- Type: Oxygen-Barrier; Color: Red; Nominal Diameter: 3/4"; Total Length: 500ft. Outside Diameter: 0.86"; Inner Diameter: 0.66"; Tube Thickness: 0.1"; Keep quick & constant hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.
  • 【ROBUST O2 RESISTANT】- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. Heating system's service time can be greatly lengthened. Smooth inner pipe, anti- scaling quality, increase heat dissipation efficiency & speed for energy-saving.
  • 【EFFORTLESS INSTALLATION】- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.
  • 【PREMIUM FLEXIBILITY】- Min.7" bending radius, this radiant floor heating system is easy to bend for different ground situation. Big pressure capacity: 188-217psi at 68℉; 101-108psi at 203℉. Temperature Range: -45 to 110℃(-47℉ to 230℉).
  • 【DIVERSE USE SCENARIO】- Suit for home & commercial use, like: radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 3/4" X 500Ft PEX Tubing Oxygen Barrier O2 EVOH Pex-B Red Hydronic Radiant Floor Heat Heating System Pex Pipe Pex Tube (3/4" O2-Barrier, 500Ft/Red)
Red 500 ft 3/4 inch
VEVOR pex tubing for professional, durable, easy install, and reliable use. sizes: 300ft/500ft/900ft.
red VEVOR pex tubing coil with close-ups showcasing smooth surface and inner diameter.
3/4" PEX Tubing
This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.
  • Standards, Certifications & Approvals
  • ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
  • ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
  • ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
  • CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
  • All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pex tubing, 3/4" with 0.86" od, 0.1" thickness, and 0.66" id in red.
3/4" PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 3/4"; Tube Length: 500ft, longer than normal products.
VEVOR pex tubing with evoh oxygen barrier in various sizes.
EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.
person holding red VEVOR pex tubing with 7" bending radius.
7" Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.7" bending radius(industry standard for 3/4" pipe) and excellent flexibility.
VEVOR pex tubing underfloor heating system with manifold and control valves.
Various Tube Connection
Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.
VEVOR pex tubing installation methods for floor heating and construction.
Different Installation Ways
Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich" type radiant heating; Snow & ice melting systems etc.
living room with VEVOR pex tubing for underfloor heating, plants, and couch.
Wide Application Places
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.
red coil of VEVOR pex tubing neatly bundled with white ties.
Specifications
  • Type: PEX Tube(Oxygen Barrier)
  • Total Length: 500ft
  • Nominal Diameter: 3/4"
  • Inside Diameter: 0.66"
  • Outside Diameter: 0.86"
  • Tube Thickness: 0.1"
  • Pressure Ratings: 188-217psi at 65℉; 101-108psi at 203℉
  • Temperature Range: -45 to 110℃( -47℉ to 230℉)
  • Min.Bending Radius: 7" (industry standard for 3/4" PEX)
  • ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
  • UPC listed by IAPMO.
  • SDR-9 dimensional standards.
red coiled VEVOR pex tubing secured with white ties against a plain background.
Package Content
  • 1 x 500ft 3/4" Oxygen Barrier PEX Tube
VEVOR pex tubing for professional, durable, easy install, and reliable use. sizes: 300ft/500ft/900ft.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
red VEVOR pex tubing coil with close-ups showcasing smooth surface and inner diameter.
3/4" PEX Tubing
This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.
  • Standards, Certifications & Approvals
  • ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
  • ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
  • ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
  • CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
  • All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.
VEVOR pex tubing, 3/4" with 0.86" od, 0.1" thickness, and 0.66" id in red.
3/4" PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 3/4"; Tube Length: 500ft, longer than normal products.
VEVOR pex tubing with evoh oxygen barrier in various sizes.
EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.
person holding red VEVOR pex tubing with 7" bending radius.
7" Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.7" bending radius(industry standard for 3/4" pipe) and excellent flexibility.
VEVOR pex tubing underfloor heating system with manifold and control valves.
Various Tube Connection
Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.
VEVOR pex tubing installation methods for floor heating and construction.
Different Installation Ways
Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich" type radiant heating; Snow & ice melting systems etc.
living room with VEVOR pex tubing for underfloor heating, plants, and couch.
Wide Application Places
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.
red coiled VEVOR pex tubing secured with white ties against a plain background.
Package Content
  • 1 x 500ft 3/4" Oxygen Barrier PEX Tube
red coil of VEVOR pex tubing neatly bundled with white ties.
Specifications
  • Type: PEX Tube(Oxygen Barrier)
  • Total Length: 500ft
  • Nominal Diameter: 3/4"
  • Inside Diameter: 0.66"
  • Outside Diameter: 0.86"
  • Tube Thickness: 0.1"
  • Pressure Ratings: 188-217psi at 65℉; 101-108psi at 203℉
  • Temperature Range: -45 to 110℃( -47℉ to 230℉)
  • Min.Bending Radius: 7" (industry standard for 3/4" PEX)
  • ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
  • UPC listed by IAPMO.
  • SDR-9 dimensional standards.

PEX Tubing Offers Unbeatable Flexibility and Durability for Easy Installation

The material is highly flexible and durable. This makes it ideal for various plumbing and heating needs. It can bend without kinking, making installation easy in tight spaces. The tubing is strong, too. It can withstand freezing temperatures without cracking. So, it’s suitable for both indoor and outdoor applications. Additionally, its flexibility means fewer fittings are needed. They reduce potential leak points and make it easier to work with. Durability ensures a long-lasting solution for your water and heating systems.


High-Quality Oxygen Barrier PEX Prevents Rust and Corrosion

This PEX tubing features an oxygen barrier. This barrier prevents oxygen from entering the system. It is very important for radiant floor heating systems. The barrier stops rust and corrosion in boilers and radiators. These barriers extend your heating system's lifespan. Furthermore, the barrier ensures clean water by preventing oxygen-related water quality issues. Is it certified for radiative heating applications? Yes, this barrier protects you from getting into troubleshooting problems with high standards. Therefore, meeting these requirements makes it a dependable choice for long-term installations.


Ideal for Hydronic Radiant Floor Heat Systems

The PEX tubing is ideal for radiant floor heating systems. It can handle high temperatures. This makes it suitable for underfloor heating applications. The tubing is flexible. You can easily lay it in a snake-like pattern across the floor. This ensures even heat distribution. Due to its high-pressure ratings, you get reliable performance under various conditions. Your heating system’s design ensures minimal heat loss. So your heating setup becomes more efficient. If you are looking to install an efficient and comfortable heating system


Cost-Effective Solution Compared to Traditional Plumbing Materials

The PEX tubing offers significant cost savings compared to traditional materials such as copper or PVC. The tubing is cheaper to purchase and easier to install, reducing labor costs. Its flexibility means fewer fittings are needed, further cutting costs. This makes it a highly economical choice for residential and commercial plumbing and heating needs.


Fast and Reliable Shipping with Accurate Product Descriptions

The VEVOR provides fast and reliable shipping for all its products. The PEX tubing arrives promptly, ensuring your project stays on schedule. The product description is accurate, so you know exactly what you’re getting. This reliability is essential for smooth project planning and execution. Our tubing comes in a manageable 500ft roll, making it easy to handle and install. This efficiency ensures the e-commerce experience from ordering to installation is hassle-free.


Easy to Use with Both Clamp Style and Shark Bite Connectors

It is easy to use with different connectors. PEX tubing is user-friendly and can be used with various connector types. It works well for clamp style and shark bite connectors, making it compatible with various plumbing systems. This versatility makes it suitable for several plumbing systems. The tubing is simple to cut and shape, so installation is straightforward. Because of its flexibility, it fits snugly around corners and bends. This ease of use saves time and effort. Both professionals and DIY enthusiasts love using the same device regardless of their expertise or experience.


Suitable for a Wide Range of Temperatures and Pressures

This PEX tubing can handle a wide range of temperatures and pressures. It operates effectively from -47°F to 230°F. So, it is suitable for various applications, including hot water systems and underfloor heating. The tubing maintains its structural integrity under high pressure. This ensures that you get a reliable water supply. Because the tubers can deal with extreme conditions, they are versatile and reliable choices for different environments.


Certified for Safety and Compliance with Industry Standards

The PEX tubing meets various industry standards and certifications. These include ANSI/NSF 14, ANSI/NSF 61, and NSF-PW. It’s also listed by IAPMO, ensuring it meets strict safety and quality standards. This certification guarantees safe and reliable performance. You can trust the tubing to deliver consistent results and meet regulatory requirements. Therefore, it is a safe, compliant choice for any plumbing or heating project.


See More

Specification

Type
PEX Tube(Oxygen Barrier)
Total Length
500ft
Nominal Diameter
3/4"
Inside Diameter
0.66"
Outside Diameter
0.86"
Tube Thickness
0.1"
Pressure Ratings
188-217psi at 65℉; 101-108psi at 203℉
Temperature Range
-45 to 110℃( -47℉ to 230℉)
Min.Bending Radius
7" (industry standard for 3/4" PEX)
ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
UPC listed by IAPMO.
SDR-9 dimensional standards.
Questions and Answers
16 Questions
Looking for a poly or pex pipe for a potable well with pump set at 450 feet deep. Will this pipe work for that?
I have a well and have replaced the pump (and pipe) in it a few times. My experience tells me that PEX pipe is really not appropriate for a well. It comes in a roll, and thus has a natural bend in it, which is going to cause problems at the bottom of the well shaft, tending to push the pump to one side at the bottom, rather than it being centered. There is a seal down at the bottom that you have to get the pump through, and this off-centeredness is likely to cause you problems. Also, I don't think there are any pitless adapters made for PEX fittings, so you would have to convert from PEX to PVC or a metal fitting going into the pitless adapter -- more points of failure. Any in-line pex fitting at the top will be supporting the weight of 450 feet of PEX plus the weight of the pump plus the weight of the water in 450 feet of pipe. The SharkBite fittings stay on with tiny teeth that grab and hold the pipe. All that weight will put a lot of stress on those little teeth, and I would fear that over time they would give out and the remaining pipe and pump would then plummet to the bottom of the well. So although this would be a cheaper alternative, my recommendation is that you instead use PVC pipe that is chemically welded together with PVC cement. Good luck with your project!
By vevor
Can it be used for both hot and cold water applications?
According to the product description, it is suitable for both hot and cold water applications. The pex tubing is designed to withstand temperatures ranging from -45 to 110°C (-47°F to 230°F).
By VEVOR
Is it compatible with common radiant floor heating systems?
Yes, it is compatible with common radiant floor heating systems. The tubing is designed for use in radiant floor heat systems.
By VEVOR
Is it suitable for outdoor installations?
The PEX tubing can be suitable for outdoor installations. The tubing is designed to expand and shrink with temperature changes and is flexible with a 7" bending radius, allowing it to withstand outdoor conditions.
By VEVOR
Can this tubing be used for plumbing or only heating systems?
This PEX tubing can be used for plumbing as well as radiant and hydronic heating systems. It is approved for hot and cold potable water lines.
By VEVOR

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
285 Review(s)
Clear filters
mdbluemax mdbluemax
Mr
purchase for in-slab floor heating, easy to use contractor had no issues. no kinks no leaks and easy to install
Robert thayer Robert thayer
Worked the same as the $600 roll I typically buy!
I have been using pex and pert in concrete radiant applications for years. I paid $600 for a 1000 roll pert recently and this product is just as good for far less money. Those that have had problems with this product in the reviews I read most likely don’t have experience using product. You have to unroll the coil like a wheel as you go so it lays flat and avoids kinks. I will be buying again!
A A
Great cheaper alternative to big box stores
No leaks! They fit perfectly and you cannot tell a difference between them and any that you would purchase from your local big box store. I will use again in the future!
Maria Gurrola Maria Gurrola
Perfect product for professional and DIY
Perfect product for professional and DIY.
Russell Carnahan Russell Carnahan
1/2 pex fish structure
Used it to make artificial fish structures. Seems like good quality though. I would use it for normal applications.
Phily Phily
Owner
Good product, easy to use. Used for radiant heating in concrete. Will purchase again when needed. Very easy to deal with and also very fast shipping!
Phily Phily
Owner
Good product, easy to use. Used for radiant heating in concrete. Will purchase again when needed. Very easy to deal with and also very fast shipping! A+
David Lancaster David Lancaster
Mr
Easy to install on 110 v and 8 gallons is just the right size for rv use. The tank seems to be heavy duty and the paint or coating is nice too.
Joey Tren Joey Tren
Don't buy from Vevor
I have purchase several items form Vevor and I recently purchased a hammer drill. It drilled 2 holes and died. They have given me the biggest run around in an attempt to fraud me out of my money and/or product. I am using this review as one of many avenue to tell people to avoid this scamming Chinese company. Go elsewhere to purchase anything. They are crooks and only care about stealing your money. I have been over a week trying to get a simple resolution. I have sent videos, in which they requested, and then they say.... give us 48 to 72 hours to send it to another department. They are SCAMMERS period! Avoid at all cost and tell your friends.
Customer Service Reply: Dear valued customer,thank you for reaching out to us and sharing your concerns. We genuinely appreciate your feedback and understand how important it is for you to have a positive experience with our products or services.
Stevenson Bailey Stevenson Bailey
Home use
Good product 👌 installed underground water supply to a mobile home was very easy to install, would buy again
